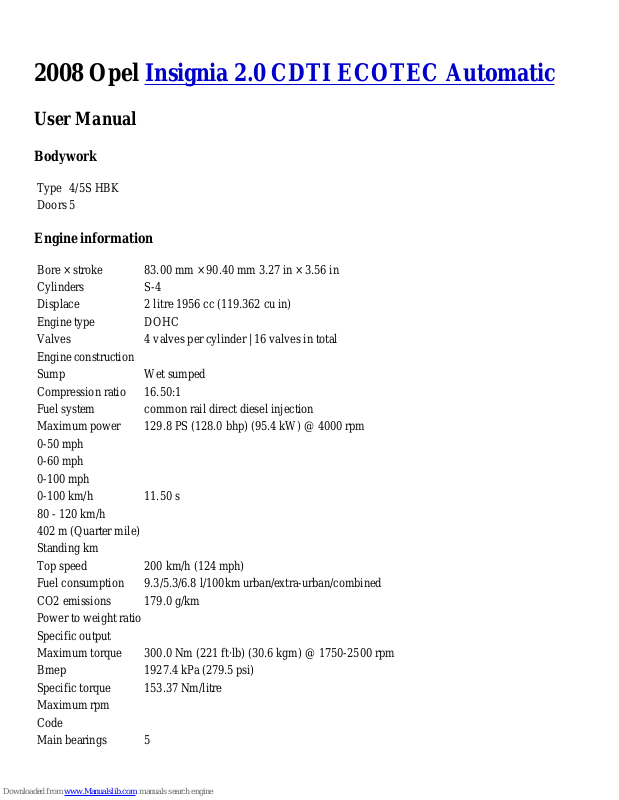

Opel 2008 Insignia, 2008 Insignia 2.0 CDTI ECOTEC Automatic Owner's Manual

2008 Opel Insignia 2.0 CDTI ECOTEC Automatic

User Manual

Bodywork

Type 4/5S HBK
Doors 5

Engine information

Bore × stroke 83.00 mm × 90.40 mm 3.27 in × 3.56 in
Cylinders S-4
Displace 2 litre 1956 cc (119.362 cu in)
Engine type DOHC
Valves 4 valves per cylinder | 16 valves in total
Engine construction
Sump Wet sumped
Compression ratio 16.50:1
Fuel system common rail direct diesel injection
Maximum power 129.8 PS (128.0 bhp) (95.4 kW) @ 4000 rpm
0-50 mph
0-60 mph
0-100 mph
0-100 km/h 11.50 s
80 - 120 km/h
402 m (Quarter mile)
Standing km
Top speed 200 km/h (124 mph)
Fuel consumption 9.3/5.3/6.8 l/100km urban/extra-urban/combined
CO2 emissions 179.0 g/km
Power to weight ratio
Specific output
Maximum torque 300.0 Nm (221 ft·lb) (30.6 kgm) @ 1750-2500 rpm
Bmep 1927.4 kPa (279.5 psi)
Specific torque 153.37 Nm/litre
Maximum rpm
Code
Main bearings 5

Coolant Water
Bore / stroke ratio 0.92
Unitary capacity 489 cc/cylinder
Aspiration Turbo D.
Compressor type
Intercooler
Catalytic converter Y

Dimensions and weight

Wheelbase 2737 mm
Wheelbase 107.8 in
Length (milimeters) 4830 mm
Length (inches) 190.2 in
Width (milimeters) 1856 mm
Width (inches) 73.1 in
Height (milimeters) 1498 mm
Height (inches) 59 in
L:W ratio 1.76
Ground clearance (milimeters)
Ground clearance (inches)
Kerb weight (kilograms)
Kerb weight (pounds)
Weight distribuiton
Fuel capacity (litres) 60 litres
Fuel capacity (UK Ga) 13.2 UK Ga
Fuel capacity (US Gal) 15.9 US Gal

Aerodynamics

Drag coefficient 0.270
Frontal area
Cx

Chassis

Engine location Front
Engine alignment Transverse
Drive FWD
Steering
Turns lock-to-lock
