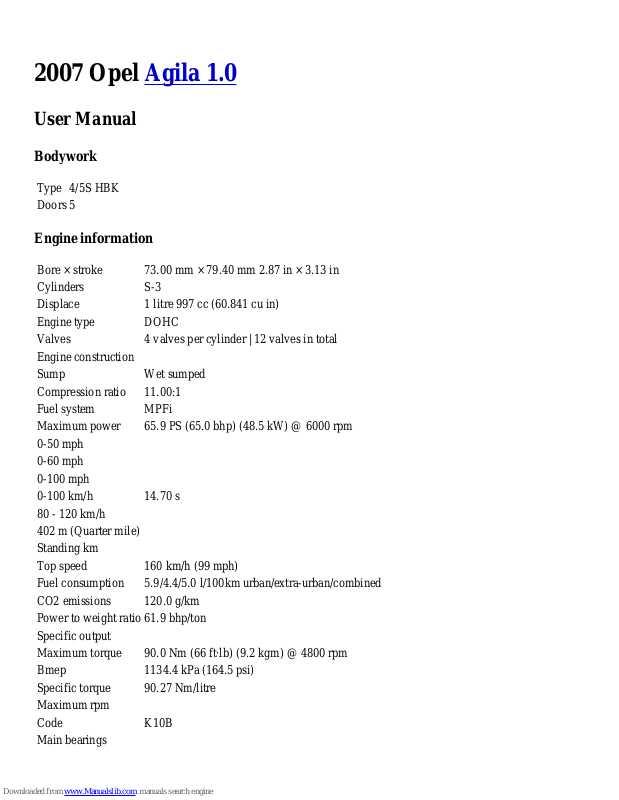

Opel 2007 Agila User Manual

2007 Opel Agila 1.0

User Manual

Bodywork

Type 4/5S HBK
Doors 5

Engine information

Bore × stroke 73.00 mm × 79.40 mm 2.87 in × 3.13 in
Cylinders S-3
Displace 1 litre 997 cc (60.841 cu in)
Engine type DOHC
Valves 4 valves per cylinder | 12 valves in total
Engine construction
Sump Wet sumped
Compression ratio 11.00:1
Fuel system MPFi
Maximum power 65.9 PS (65.0 bhp) (48.5 kW) @ 6000 rpm
0-50 mph
0-60 mph
0-100 mph
0-100 km/h 14.70 s
80 - 120 km/h
402 m (Quarter mile)
Standing km
Top speed 160 km/h (99 mph)
Fuel consumption 5.9/4.4/5.0 l/100km urban/extra-urban/combined
CO2 emissions 120.0 g/km
Power to weight ratio 61.9 bhp/ton
Specific output
Maximum torque 90.0 Nm (66 ft·lb) (9.2 kgm) @ 4800 rpm
Bmep 1134.4 kPa (164.5 psi)
Specific torque 90.27 Nm/litre
Maximum rpm
Code K10B
Main bearings

Coolant Water
Bore / stroke ratio 0.92
Unitary capacity 332.33 cc/cylinder
Aspiration Normal
Compressor type N/A
Intercooler None
Catalytic converter Y

Dimensions and weight

Wheelbase 2360 mm
Wheelbase 92.9 in
Length (milimeters) 3740 mm
Length (inches) 147.2 in
Width (milimeters) 1680 mm
Width (inches) 66.1 in
Height (milimeters) 1590 mm
Height (inches) 62.6 in
L:W ratio 1.58
Ground clearance (milimeters)
Ground clearance (inches)
Kerb weight (kilograms) 1050 kg
Kerb weight (pounds) 2315 lb
Weight distribuiton
Fuel capacity (litres) 45 litres
Fuel capacity (UK Ga) 9.9 UK Gal
Fuel capacity (US Gal) 11.9 US Gal

Aerodynamics

Drag coefficient 0.320
Frontal area
Cx

Chassis

Engine location Front
Engine alignment Transverse
Drive FWD
Steering
Turns lock-to-lock
