Opalum sound system Quick Manual

1

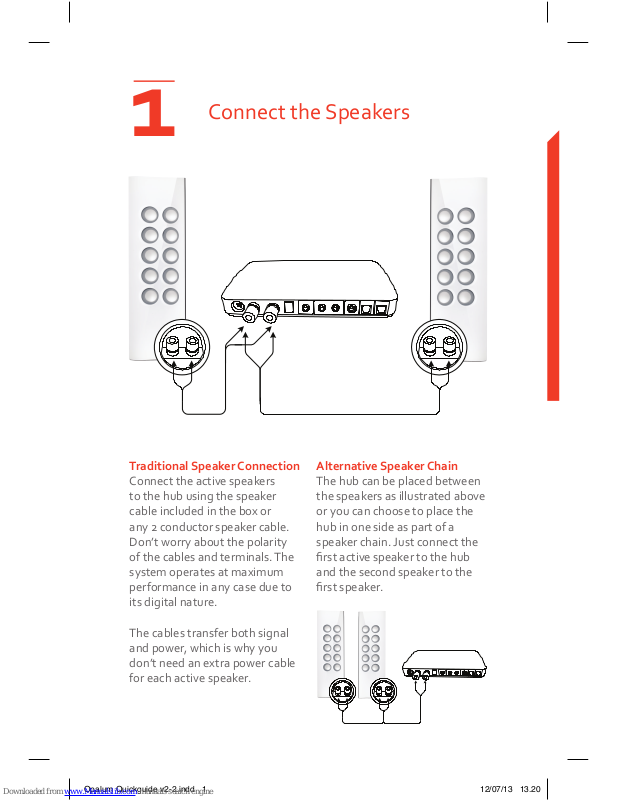

Traditional Speaker Connection

Connect the active speakers
to the hub using the speaker
cable included in the box or
any 2 conductor speaker cable.
Don’t worry about the polarity
of the cables and terminals. The
system operates at maximum
performance in any case due to
its digital nature.

The cables transfer both signal
and power, which is why you
don’t need an extra power cable
for each active speaker.

Alternative Speaker Chain

The hub can be placed between
the speakers as illustrated above
or you can choose to place the
hub in one side as part of a
speaker chain. Just connect the
rst active speaker to the hub
and the second speaker to the
rst speaker.

Connect the Speakers

Opalum Quickguide v2-2.indd 1 12/07/13 13.20

2

Connect the power cable to the power supply and power supply to
the hub. Plug the power cable into an un-switched power outlet.

Connect Power to the Hub

The process of system activation
illustrated on these pages is
identical, regardless of which
Opalum active speaker model
you have.

Opalum Quickguide v2-2.indd 2 12/07/13 13.20

3

Connect Input Sources

Depending on your choice of
sources and connection cables,
connect the cables to the correct
inputs on the hub. The type of
inputs is indicated on the hub in
both colours and text.

Activating the Sound System

Turn on power to all input
sources and the system itself.
The hub will automatically turn
on. There is no need for source
selection as the system auto­matically plays music from any
connected source.

Digital Sources

Computer, Apple tv, Airport
Express, Blu-ray, DVD, TV,
video games, HTPC etc.

Analog Sources

MP3-player etc.

Subwoofer

In most cases the system won’t
require a subwoofer, but should
you happen to be a fan of
extreme deep and vibrant bass,
just connect your subwoofer to
the hub and turn the low-pass
frequency setting to max. The
only thing you need to adjust is
the subwoofer level.

Connect Input Sources

IR

Opalum Quickguide v2-2.indd 3 12/07/13 13.20

4

Connecting through Bluetooth

You can stream your music wire­lessly from a smartphone, tablet
or any other Bluetooth enabled
device directly to your Opalum
system.

After the hub is powered the
system is ready for pairing with
your Bluetooth device.

Activate Bluetooth on your
device and search for nearby
connections. Your Bluetooth
device must be within 10 meters
reach of the hub.

Choose ”Opalum” and enter
PIN/passcode: 1397.

The sound quality from your
Opalum speakers depends on
the music le type/compres­sion rate and which Bluetooth
version your device is using.
For optimal quality use lossless
music formats and use the latest
Bluetooth version available for
your device.

Bluetooth PIN/passcode:

1397

Connect Bluetooth

Opalum Quickguide v2-2.indd 4 12/07/13 13.20

Separate box

2 new Opalum active Speakers

According to your choice of
model.

Cables and Power Supply

1 Power supply with connection
for hub
1 European power cord
1 American power cord
2 Digital speaker/power cables
– for connecting hub and
active speakers (Yes, the
cables transmit both digital
signal and power to the
speakers).

Opalum Quickguide v2-2.indd 5 12/07/13 13.20

Main oce

Opalum ApS
Ørstedsvej 10
DK-8660 Skanderborg
Denmark
Phone [phone]

US Oce

Opalum USA, Inc
1860 Renaissance Blvd
Sturtevant, WI 53177
Phone [phone]
Fax [phone]

For more information please visit

opalum.com facebook.com/opalum

Opalum Quickguide v2-2.indd 6 12/07/13 13.20

Quick guide

How to set up your new Opalum sound system

Opalum Quickguide v2-2.indd 7 12/07/13 13.20

This box

1 Opalum Control Hub
1 Quick Guide

The Opalum Sound System

The Opalum Sound System comes in 2 boxes containing the Control
Hub and the speakers with cables. If anything is missing, contact
your dealer or customer service.
