Onyx MedPC-5500 User Manual

Med PC MedPC-5500

1

MedPC-5500

Intel dual core i7 Processor

Multiple display output support

System chassis of easy clean design (no airhole)

Isolated I/O interface (COM, USB, LAN)

CE/FCC Class B Passed 18

IEC 60601-1-1-1:2005, EN60601-1-1:206

Med PC MedPC-5500

2

MedPC-5500 Manual 1st Ed

October, 2012

Copyright Notice

This document is copyrighted, 2012. All rights are reserved. The
original manufacturer reserves the right to make improvements to
the products described in this manual at any time without notice.

No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in
this manual is intended to be accurate and reliable. However, the
original manufacturer assumes no responsibility for its use, nor
for any infringements upon the rights of third parties, which may
result from its use.

The material in this document is for product information only and
is subject to change without notice. While reasonable efforts have
been made in the preparation of this document to assure its
accuracy, ONYX Healthcare Inc., assumes no liabilities resulting
from errors or omissions in this document, or from the use of the
information contained herein

ONYX Healthcare Inc. reserves the right to make changes in the
product design without notice to its users

Med PC MedPC-5500

3

Acknowledgments



Intel® CoreTM i7 is registered trademarks of Intel® Corporation.



IBM, PC/AT, PS/2 are trademarks of International Business

Machines Corporation.



Microsoft® Windows is a registered trademark of Microsoft®

Corporation.



RTL is a trademark of Realtek Semi-Conductor Co., Ltd.



C&T is a trademark of Chips and Technologies, Inc.



UMC is a trademark of United Microelectronics Corporation.



ITE is a trademark of Integrated Technology Express, Inc.



SiS is a trademark of Silicon Integrated Systems Corp.



VIA is a trademark of VIA Technology, Inc.

All other product names or trademarks are properties of their r

espective owners.

Med PC MedPC-5500

4

Packing List

Before you begin installing your Medical Station, please make sure

that the following items have been shipped:



MedPC-5500 Medical PC



Screws bag x 1 (HDD screw x 4)



Rubber foot x 1



Utility CD-ROM (Please insert the MedPC-5500 CD-ROM into

external CD-ROM drive.) which Contains User’s Manual (in

PDF format), Drivers and Utilities

If any of these items are missing or damaged, you should contact
your distributor or sales representative immediately.

Headquarters

Onyx Healthcare Inc.

2F, No.135, Lane 235, Pao-Chiao Rd.,

Hsin-Tien City, Taipei 231, Taiwan, R.O.C.

TEL: [phone]

FAX: [phone]

E-mail: [e-mail]

http://www.on

yx-healthcare.com

Med PC MedPC-5500

5

Worldwide Offices:

Onyx Healthcare, USA Inc.

2663 Saturn street, Brea, CA 92821, USA

Tel : [phone]

Fax: [phone]

Email:

[e-mail]

Onyx Healthcare EUROPE B.V.

Ekkersrijt 4002, 5692 DA Son, The Netherlands

Tel : [phone]

Fax: [phone]

Email:

[e-mail]

Onyx Healthcare Technology GmbH

An der Trift65d

63303 Dreieich , Germany

TEL: [phone]

Fax: [phone]

Email:

[e-mail]

Med PC MedPC-5500

6

Onyx Healthcare (SU ZHOU) INC.

Room 12, 2F, Building B, No.5 Xing Han Street, Suzhou Industrial

Park, Jiang Su Province, China

Tel: [phone]

Fax: [phone]

Email:

[e-mail]

Onyx Healthcare Singapore PTE LTD

57 Genting Lane, #07-00, Singapore 349564

Tel: [phone]

Fax [phone]

Email:

[e-mail]

Med PC MedPC-5500

7

Safety & Warranty

1. Read these safety instructions carefully.

2. Keep this user's manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning.

Do not use liquid or spray detergents for cleaning. Use a damp

cloth.

4. For pluggable equipment, the power outlet must be installed

near the equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a reliable surface during installation.

Dropping it or letting it fall could cause damage.

7. The openings on the enclosure are for air convection. Protect

the equipment from overheating. DO NOT COVER THE

OPENINGS.

8. Make sure the voltage of the power sou rce is correct b efore
connecting the equipment to the power outlet.

9. W

ARNING

: To avoid risk of electric shock, this equipment
must only be connected to a supply mains with protective
earth

10. Position the power cord so that people cannot step on it. Do not

place anything over the power cord.

11. All cautions and warnings on the equipment should be noted.

12. If the equipment is not used for a long time, disconnect it from

the power source to avoid damage by transient over-voltage.

Med PC MedPC-5500

8

13. Never pour any liquid into an opening. This could cause fire or

electrical shock.

14. Never open the equipment. For safety reasons, only qualified

service personnel should open the equipment.

15. Warning: Do not modify this equipment without

authorization of the ma nufacturer

16. If any of the following situations arises, get the equipment
checked by service personnel:

a. The power cord or plug is damaged.

b. Liquid has penetrated into the equipment.

c. The equipment has been exposed to moisture.

d. The equipment does not work well, or you cannot get it

to work according to the users manual.

e. The equipment has been dropped and damaged.

f. The equipment has obvious signs of breakage.

17. DO NOT LEAVE THIS EQUIPMENT IN AN UNCONTROLLED

ENVIRONMENT WHERE THE STORAGE TEMPERATURE IS
BELOW -20° C (-4°F) OR ABOVE 60° C (140° F). IT MAY
DAMAGE THE EQUIPMENT.

18. External equipment intended for connection to signal

input/output or other connectors, shall comply with
relevant UL / IEC standard (e.g. UL 1950 for IT equipment
and ANSI/AAMI ES 60601-1: 2005 AND CAN/CSA-C22.2 No.
60601-1:08 / IEC 60601 series for systems – shall comply

Med PC MedPC-5500

9

with the standard IEC 60601-1-1, Safety requirement s for
medical electrical systems. Equipment not complying
with UL 60601-1 shall be kept outside the patient
environment, as defined in the standard.

Caution:

It may cause the danger of explosion if battery is incorrectly
replaced. Replace only with same or equivalent type
recommended by th e manufacturer.

Classification

1. Degree of production against electric shock: not classified

2. Degree of protection against the ingress of water: IPX0

3. Mode of operation: Continuous

4. Type of protection against electric shock: Class I equipment

5. No Applied Part, No AP/APG

FCC

This device complies with Part 18 FCC
Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful inter ference , and (2)
this device must accept any interference
received including interference that may
cause undesired operation.

Med PC MedPC-5500

10

UL Module Description

MEDPC-5500 modules are developed to
suitable for the Classification Mark
requirement

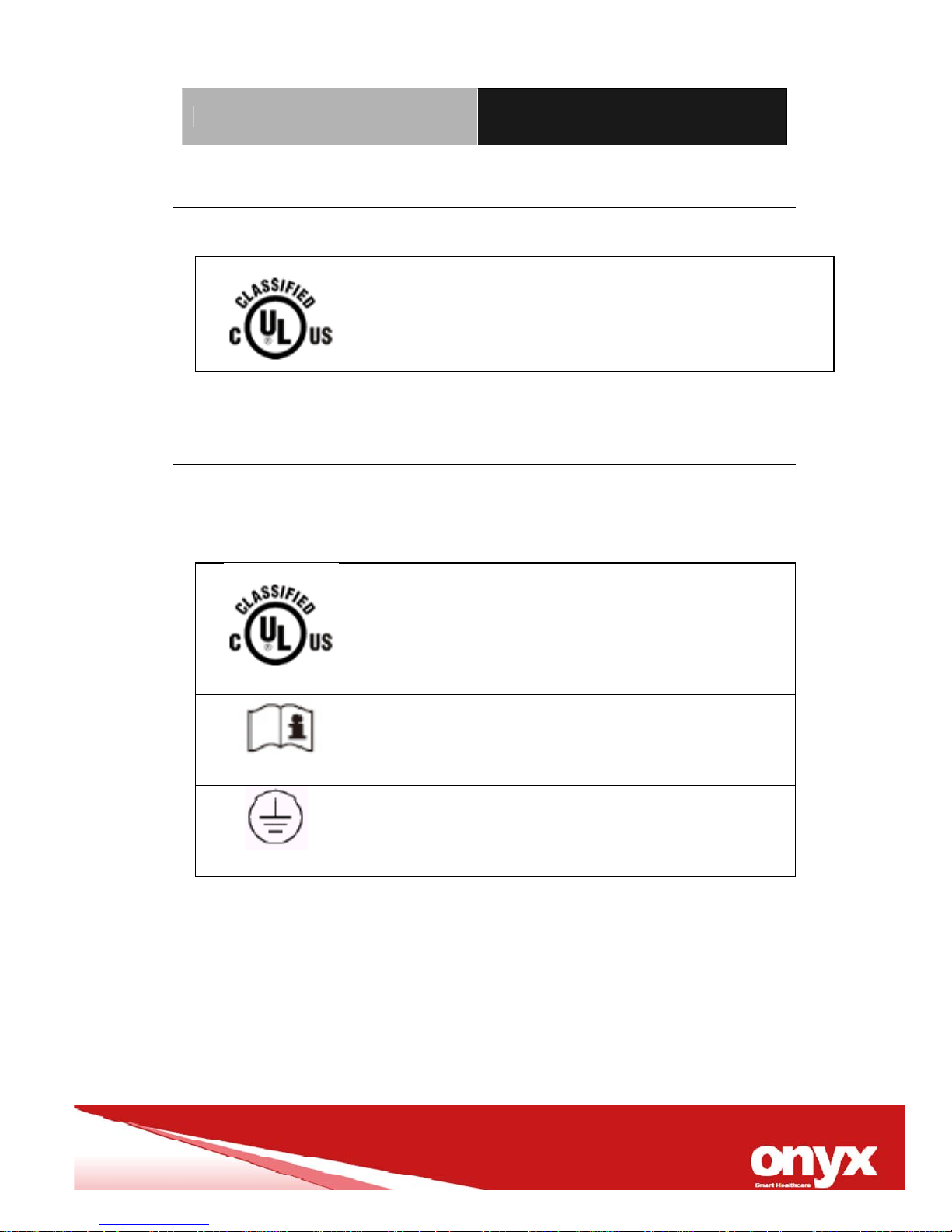

Safety Symbol Description

The following safety symbols are the further explanations for your

reference.

Medical equipment with respect to electric
shock, fire and mechanical hazards only in
accordance with ANSI/AAMI ES 60601-1:

2005 AND CAN/CSA-C22.2 No.
60601-1:08

Attention, consult ACCOMPANYING
DOCUMENTS.

Ground wire
Protective Ground wire.

Med PC MedPC-5500

11

Contents

Chapter 1 General Information

1.1 Introduction ................................................................... 14

1.2 Feature ........................................................................... 15

1.3 Specification .................................................................. 15

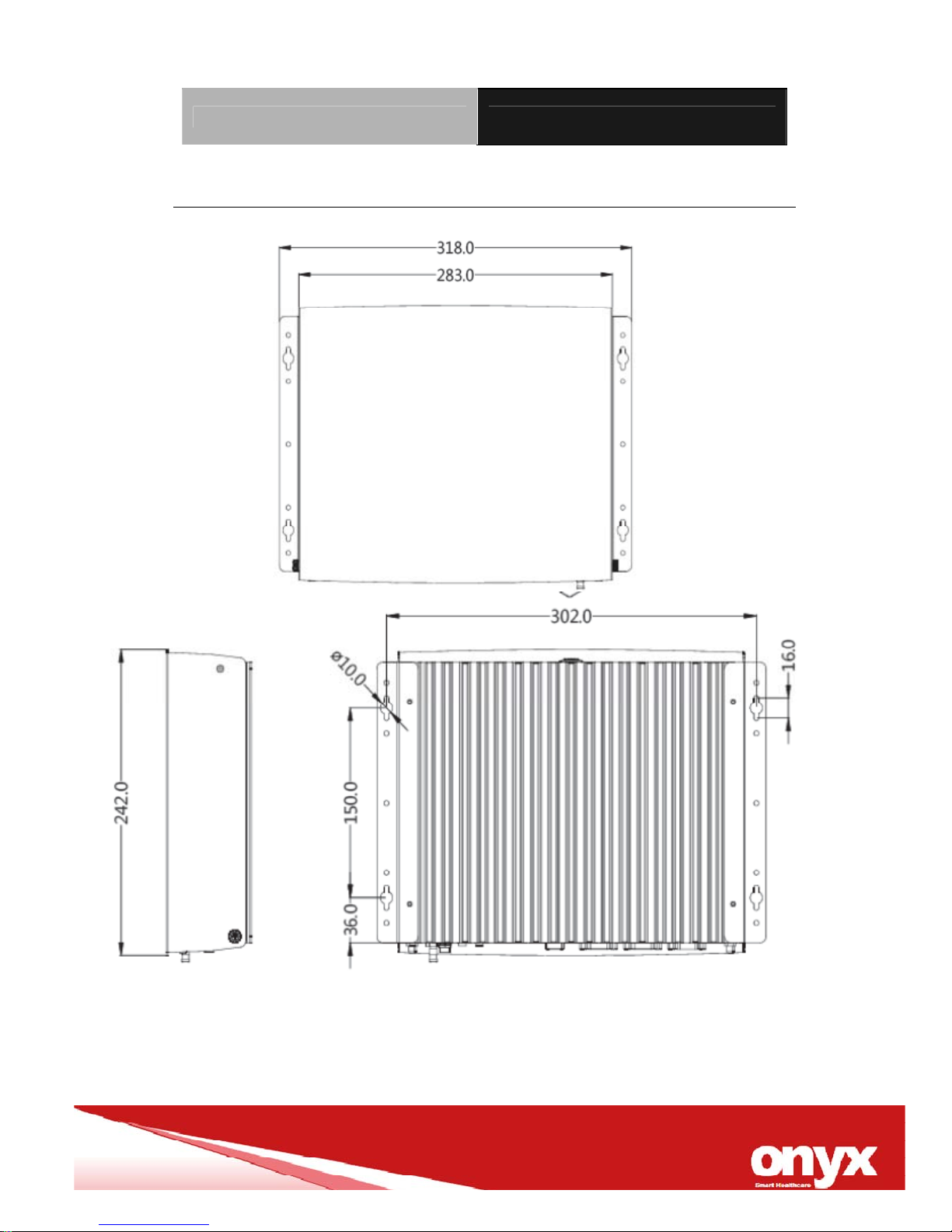

1.4 Dimension ...................................................................... 17

Chapter 2 Hardware Installation

2.1 Safety Precautions ........................................................ 19

2.2 A Quick Tour of the MEDPC-5500 ................................ 19

2.3 Turn On and Boot up into Windows…………………….20

2.4 Turn off……………………………………………………….20

2.5.1 Overview…………………………………………………...21

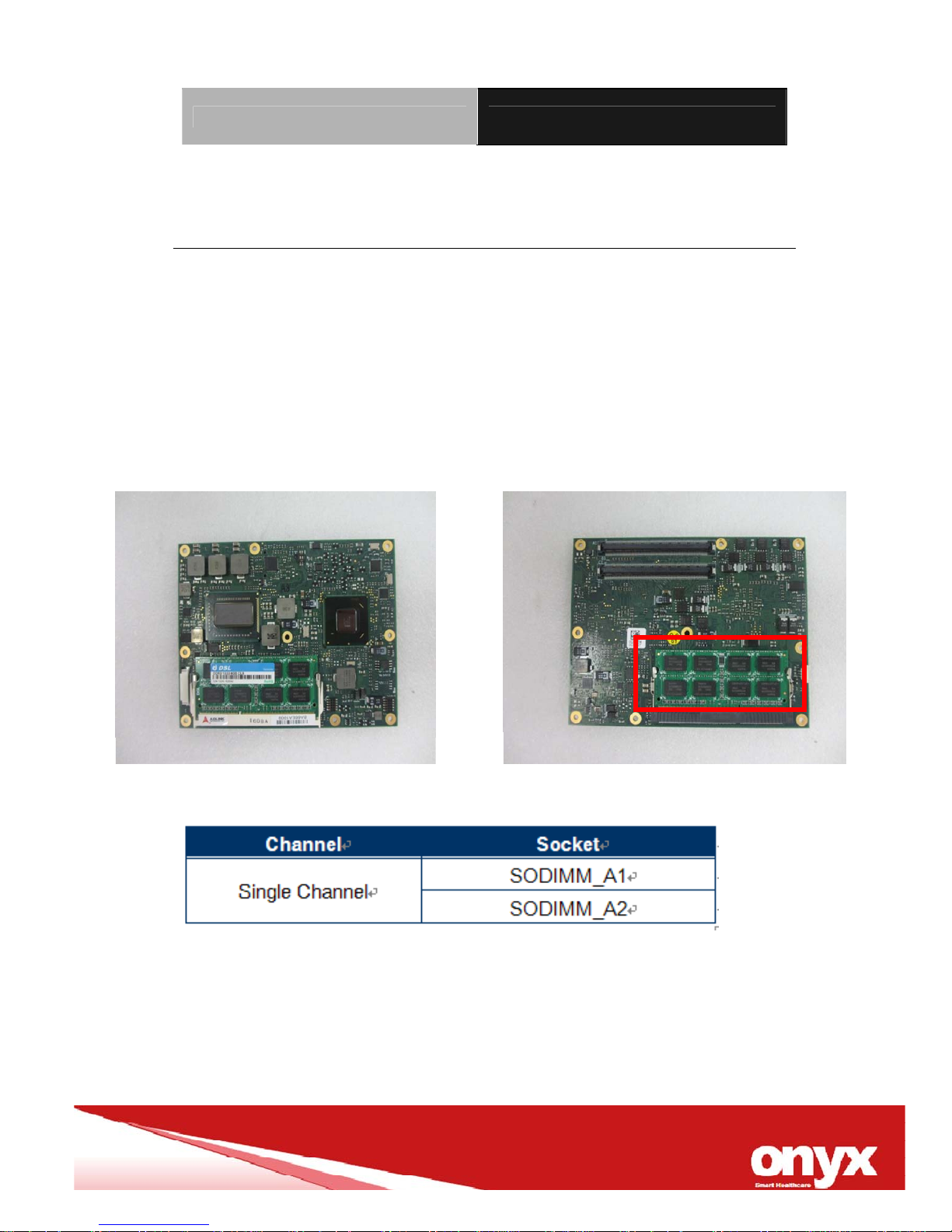

2.5.2 Memory Configurations…………………………………21

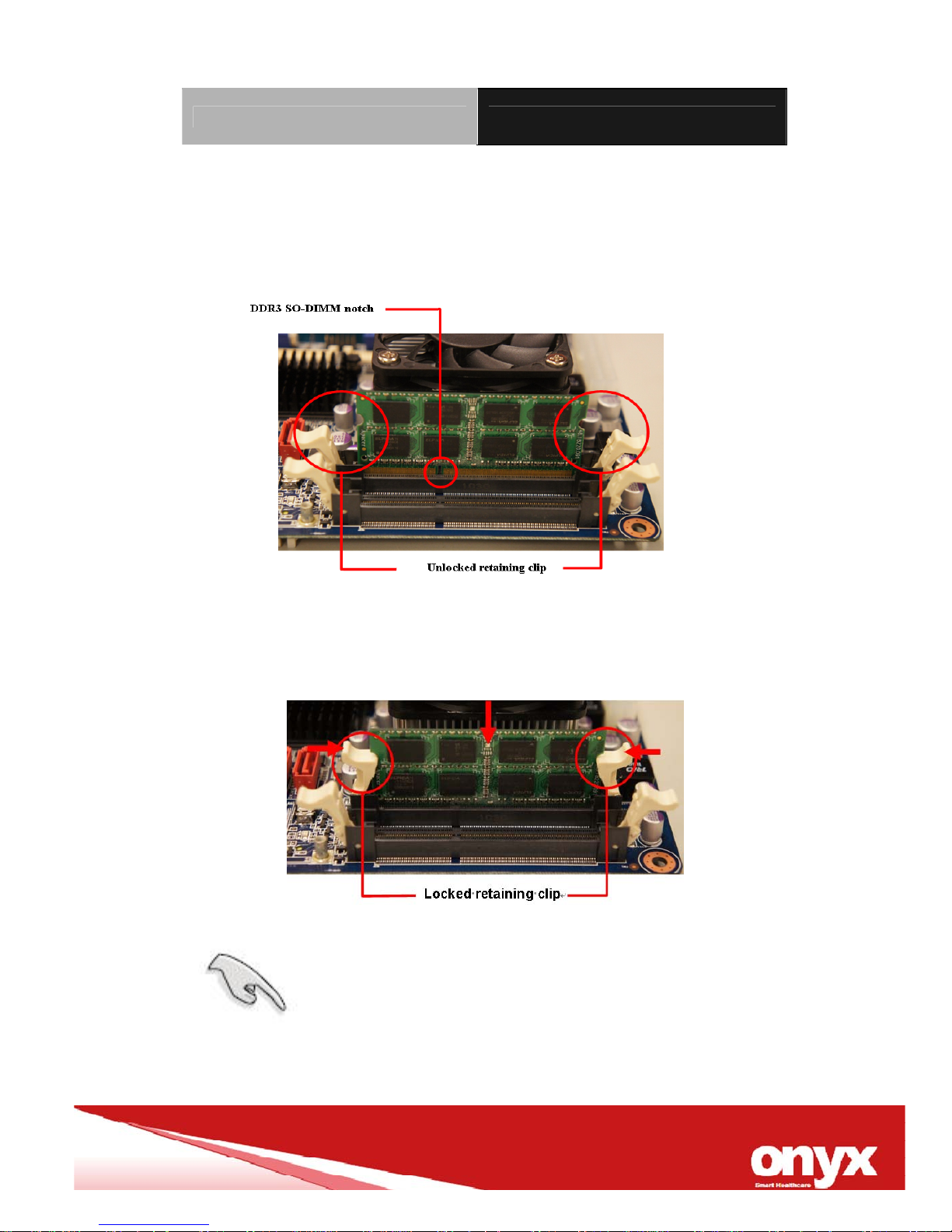

2.5.3 Installing a SO-DIMM………………………………….…22

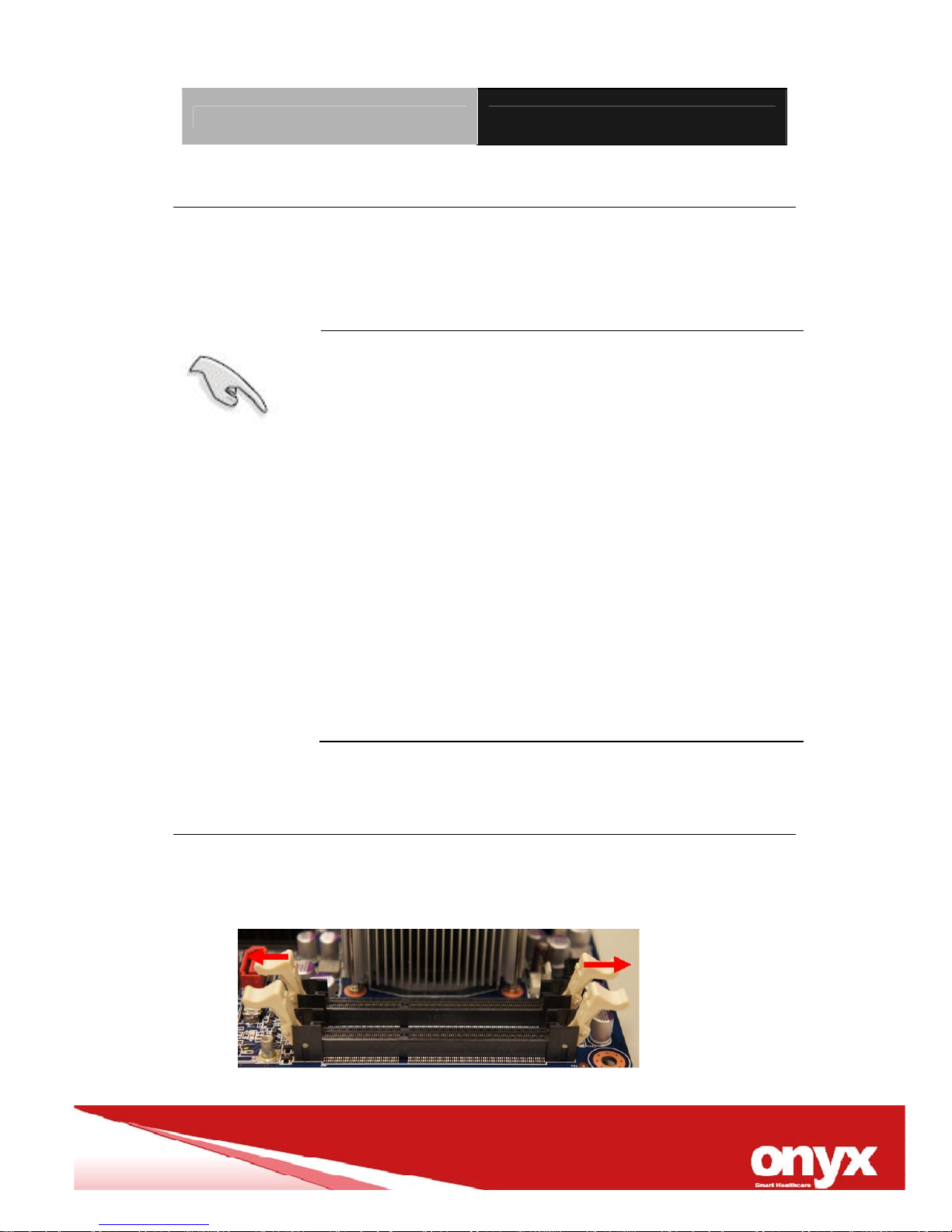

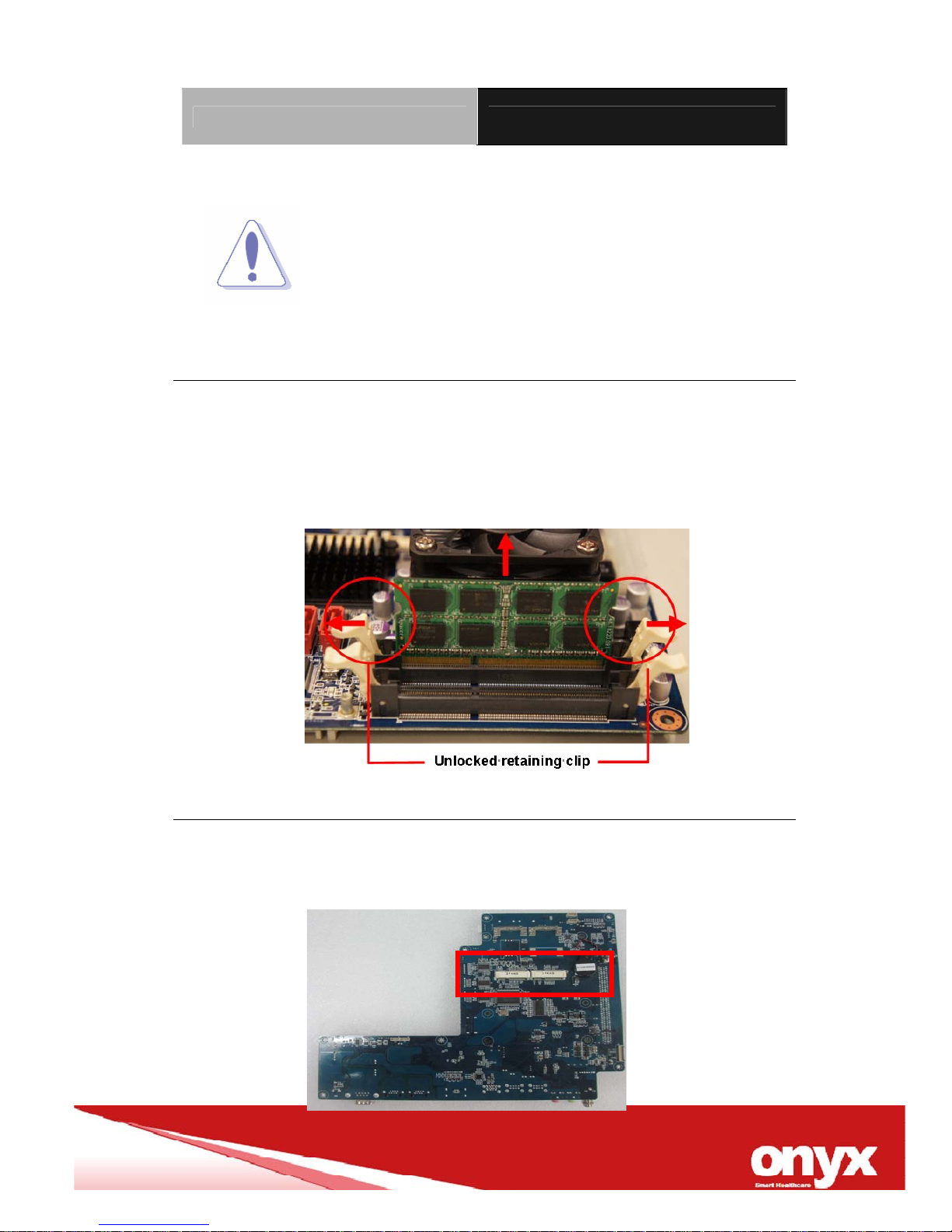

2.5.4 Removing a SO-DIMM……………….……………….….24

2.6 Mini PCI Express………………………………… …… ……24

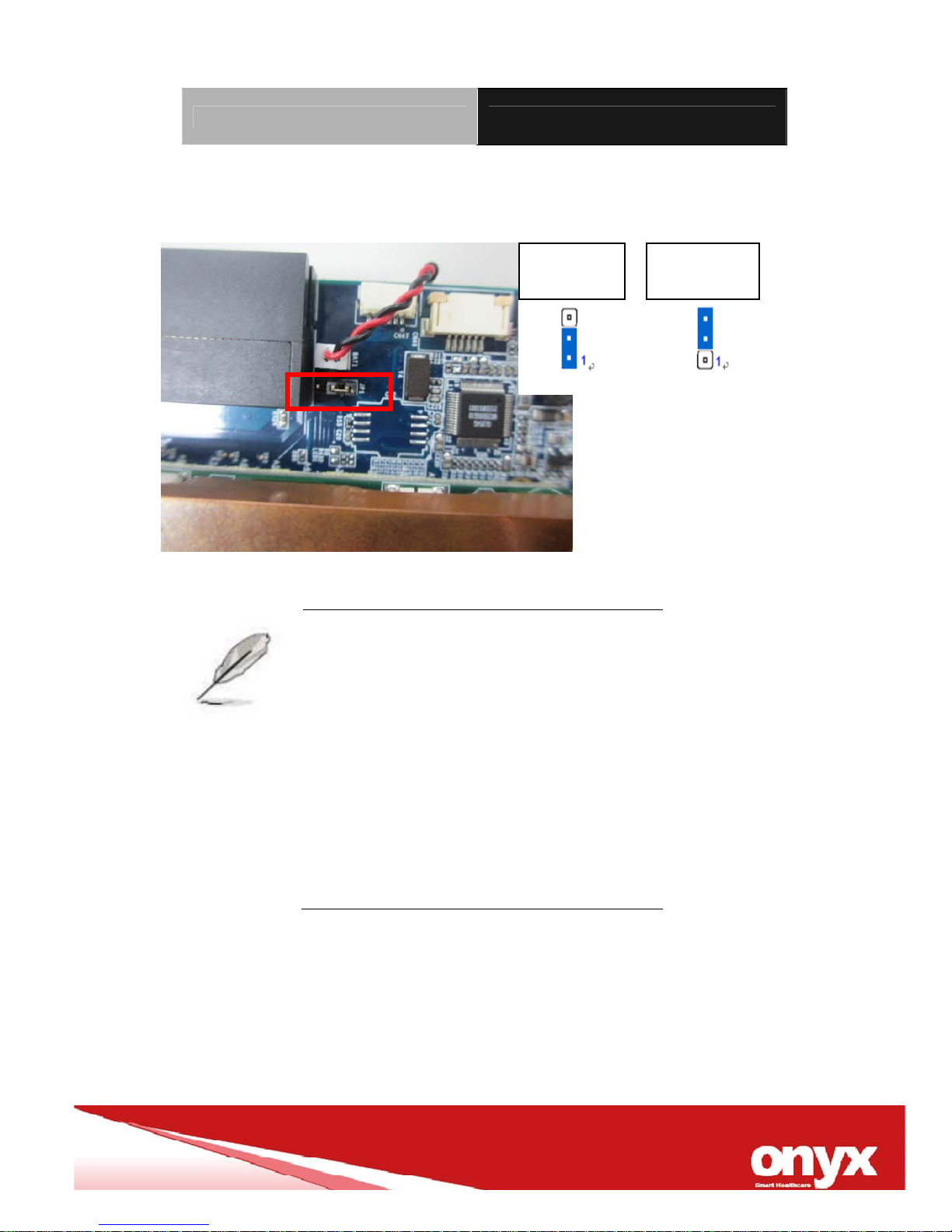

2.7 Clear CMOS9CLTRC1……………………………………...25

2.8 Rear Panel Connectors……………………………………27

2.9 Mount kit……………………………………………………..29

Chapter 3 BIOS Setup

3.1 BIOS Setup Program……………………………..…31

3.2 Legend Box………………………………………..….32

3.3 List Box………………………………………………..33

Med PC MedPC-5500

12

3.4 Sub-menu……………………………………………..33

Chapter 4 Driver Installation

4.1 Installation…………………………………………….36

Appendix A Miscellanea

A.1 General Cleaning Tips ................................................... 39

A.2 Cleaning Tools ............................................................... 40

A.3 Scrap Computer Recycling ......................................... 42

Med PC MedPC-5500

13

General

Information

Chapter

Med PC MedPC-5500

14

1.1 Introduction

The MedPC-5500 is based on Intel® CoreTM i7 Dual Core processor,

which delivers a performance improvement of more than 100

percent compared to systems running traditional single-core

processors. With two cores, or computing engines, ONYX can

simultaneously execute two computing tasks. It accommodates one

2.5” SATA SSD and two DDRIII SODIMM up to 8GB.

The fanless solution, integrated multimedia functions and extensive

expansion options make them the perfect platform upon which to

build comprehensive lifestyle computing applications.

The MedPC-5500 includes all the features of a powerful computer

into a slim and attractive chassis. Combining the MEDPC-5500 into

your system can achieve both cost-saving and efficient

improvements in common applications including Surgical,

Radiology, LIS (Lab Information Systems) and Electronic Medical

Record. The MEDPC-5500 is definitely your perfect choice.

Med PC MedPC-5500

15

1.2 Feature



Intel® CoreTM i7 Dual Core processor



Multiple display output support



System chassis of easy clean design (no airhole)



Top cover with IPX1 water proof protection



Isolated I/O interface (COM, USB, LAN)



CE/FCC Class B Passed 18



IEC 60601-1-1-1:2005, EN60601-1-1:2006

1.3 Specification

Hardware Specifications

CPU

Onboard Intel

®

Core

TM

i7-2655LE 2.2H Processor

System memory

DDR3 1333 4GB

Disk Drive
Space

2.5” SATA SSD driver bay x 1 (optional)

Function Key

Power On

Chipest

Intel HD Graphics 3000

Video

VGA x 1, Display Port 1

Audio

Mic-in x 1, Line-out x 1, phone jacks

Serial Port

Isolated RS-232/422/485 x1 , RS-232 x 1

3

Ethernet

Isolated GbE LAN x 2 by RJ-45

USB

USB version 2.0 x 9, USB version 3.0 x 2

Mechanical Specifications

Med PC MedPC-5500

16

Construction

Metal chassis with fanless system design

Dimension

283mm(W) x 64.95mm(H) x 242mm(D)

Carton Dimension

400mm x 350mm x 210mm

Net Weight

4.5Kg

Gross Weight

6Kg

Packing Filler

PE foam

Power Supply Specifications

AC/DC Adapter POWER-WIN type PW-M110A-1Y240G

Input Voltage 100-240V AC, 2.0-1.0A @ 50-60 Hz
Output Voltage 24V, 4.6A,110W max.
MTBF

100,000 hrs operation at 25˚C

Environmental Specifications

Operating
Temperature

0˚C to 30˚C (32˚F ~86˚F)
10°C ~ 40°C (32°F ~ 104°F)

Storage Temperature

-20˚C to 60˚C (-4˚F ~140˚F)

Storage Humidity

5% ~ 95% @ 40°C, Non-Condensing

Pressure 850~1000hPa(Operating) /

700~1060hPa(Transport / Storage)

EMI / Safety

CE、FCC Class B Passed 18 (醫療類)

cULus Mark/UL+ VTC Report+RMF(ISO 14971)

(CAN/CSA-C22.2No.60601-1-08;ANSI/AAMI

ES60601-1:2005, IEC 60601-1-1:2005,EN

60601-1:2006, ISO 14971:2007

Med PC MedPC-5500

17

1.4 Dimension

Med PC MedPC-5500

18

Hardware

Introduction

Chapter

Med PC MedPC-5500

19

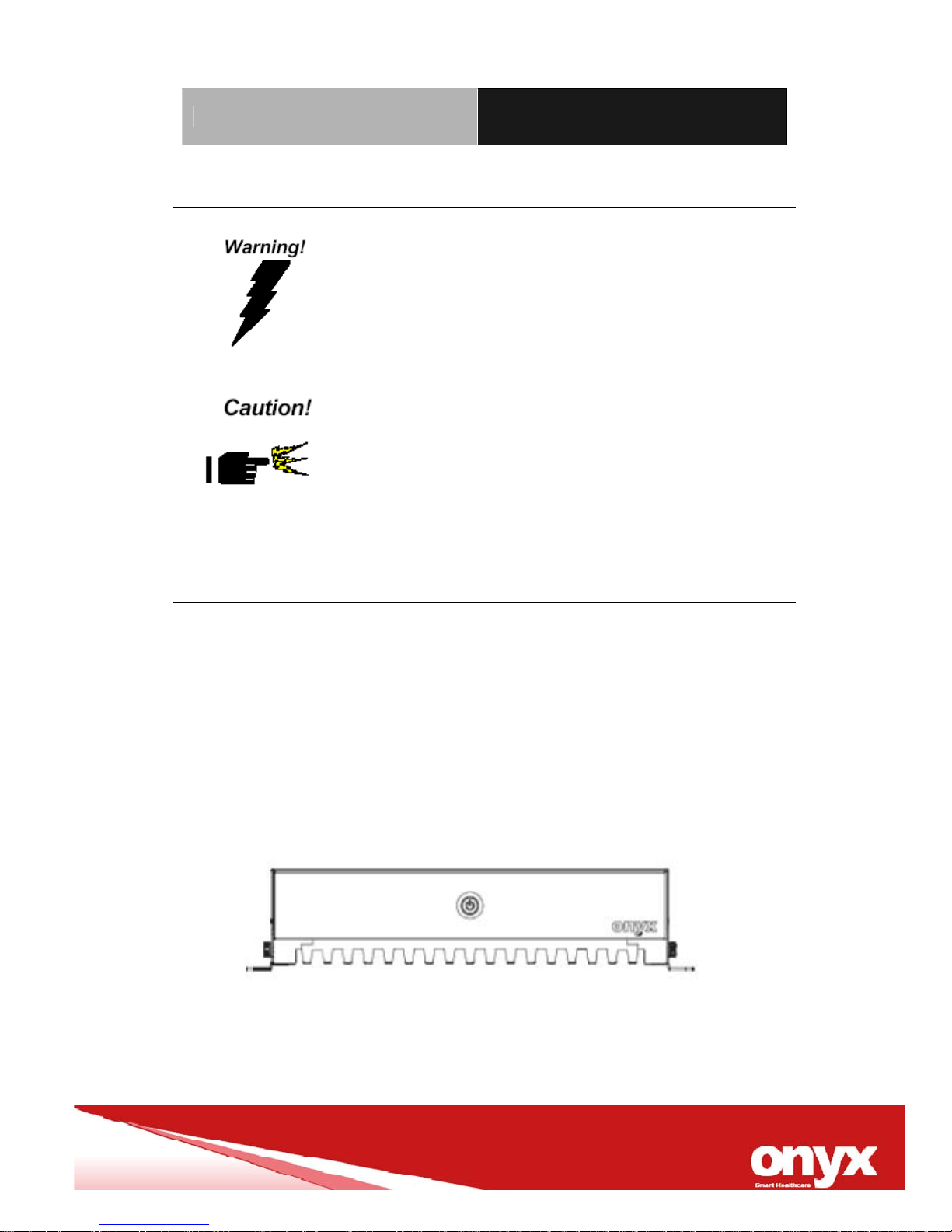

2.1 Safety Precautions

Always completely disconnect the power cord
from your board whenever you are working on
it. Do not make connections while th e power is
on, because a sudden rush of power can
damage sensitive electronic components.

Always ground yourself to remove any static
charge before touching the board. Modern
electronic devices are very sensitive to static
electric charges. Use a grounding wrist strap at
all times. Place all electronic components on a
static-dissipati ve su rf ace or in a static-shielded
bag when they are not in the chassis

2.2 A Quick Tour of the MEDPC-5500

Before you start to set up the MEDPC-5500, take a moment to

become familiar with the locations and purposes of the controls,

drives, connections and ports, which are illustrated in the figures

below.

When you place the MEDPC-5500 upright on the desktop, its front

side appears as shown in Picture 2-1.

Picture 2.1: Front View of the MEDPC-5500

Med PC MedPC-5500

20

When you turn the 5500 around and look at its rear side, as shown

in Picture 2-2.

Picture 2.2: Rear view of the Zeus Series

2.3 Turn On and Boot up into Windows OS

This section is for Windows operating system only. If you are
installing a different operating system, please contact your vendor
for installation details.

Your 5500 will begin loading Windows OS once you push the power
button to turn power on. After less than one minute, Windows
desktop screen will appear.

You can select the programs from the start menu in the left-down
corner of the desktop screen.

2.4 Turn off

Turning off ZEUS properly is important for system reliability. There
are two ways to turn off the system.

1. On the start menu, click “shut down” and select “OK”

2. Push the power button and then the system will shut down

Med PC MedPC-5500

21

automatically

2.5.1 Overview

The motherboard comes with four 204-pin Double Data Rate 3

(DDR3) SO Dual Inline Memory Modules (DIMM) sockets. DDR3

SODIMMs are notched differently to prevent installation on a DDR2

SODIMM socket. The following figure illustrates the location of the

sockets:

204-Pin DDR3 SODIMM sockets

Med PC MedPC-5500

22

2.5.2 Memory Configurations

You may install 1 GB and 2 GB unbuffered ECC or non-ECC DDR3

SODIMMs into the SODIMM sockets using the memory

configurations in this section.

 IF you installed two 2GB memory modules,

the system may detect less than 3GB of total

memory because of address space

allocation for other critical functions. This

limitation applies to Windows XP 32-bit

version operating system since it does not

support PAE (Physical Address Extension)

mode.

 IF you install Windows XP 32-bit version

operating system, we recommend that you

install less than 3GB of total memory.

2.5.3 Installing a SO-DIMM

1. Unlock a DIMM socket by pressing the retaining clips outward.

(simulative sample)

Med PC MedPC-5500

23

2. Align a SO-DIMM on the socket such that the notch on the

SO-DIMM matches the break on the socket. (simulative

sample)

3. Firmly insert the SO-DIMM into the socket until the retaining

clips snap back in place and the SO-DIMM is properly seated.

(simulative sample)

 The DDR3 SO-DIMM sockets do not

support DDR SO-DIMMs. DO NOT install

DDR2 SO-DIMMs to the DDR3 SO-DIMM

Med PC MedPC-5500

24

socket.

Make sure to unplug the power supply before
adding or removing SO-DIMMs or other system
components. Failure to do so may cause severe
damage to both the motherboard and the
components.

2.5.4 Removing a SO- DIMM

1. Simultaneously press the retaining clips downward to unlock

the DIMM.

2. Remove the DIMM from the socket. (simulative sample)

2.6 Mini PCI Express

This motherboard supports two MINI PCI Express. The following

figure shows a Decode card installed on the MINI PCI Express slot.

Med PC MedPC-5500

25

2.7 Clear CMOS9CLTRC1

This jumper allows you to clear the Real Time Clock (RTC) RAM in

CMOS. You can clear the CMOS memory of date, time, and system

setup parameters by erasing the CMOS RTC RAM data. The

onboard button cell battery powers the RAM data in CMOS, which

includes system setup information such as system passwords.

To erase the RTC RAM:

1. Turn OFF the computer and unplug the power cord.

2. Remove the onboard battery.

3. Move the jumper cap from pins 2-3 (default) to pins 1-2. Keep

the cap on pins 1-2 for about 5~10 seconds, then move the cap

back to pins 2-3.

4. Re-install the battery.

5. Plug the power cord and turn ON the computer.

6. Hold down the <Del> key during the boot process and enter

BIOS setup to re-enter data.

Except when clearing the RTC RAM, never

remove the cap on CLRTC jumper default

position. Removing the cap will cause

system boot failure!

Med PC MedPC-5500

26

You do not need to clear the RTC

when the system hangs due to

overclocking. For system failure due

to overclocking, use the C.P.R. (CPU

Parameter Recall) feature. Shut

down and reboot the system so the

BIOS can automatically reset

parameter settings to default values.

Clear Normal(Def

Med PC MedPC-5500

27

2.8 Rear Panel Connectors

1. DC-in power jack This port is for 24V DC power.

2. COM These 9-pin COM port is for serial devices.

3. VGA port This 15-pin port connect is for a VGA monitor.

4. Display port This 20-pin port is for external connectors on
desktops, notebooks, graphics cards, monitors..

5. USB 2.0 ports These 4-pin Universal Serial Bus (USB) ports

are available for connecting USB 2.0 devices.

6. USB 3.0 ports These 9 Universal Serial Bus (USB) ports are

available for connecting USB 3.0 devices.

6. LAN (RJ-45) port. These port allows Gigabit connection to a

Local Area Network (LAN) through a network hub. Refer to the

table below for the LAN port LED indications.

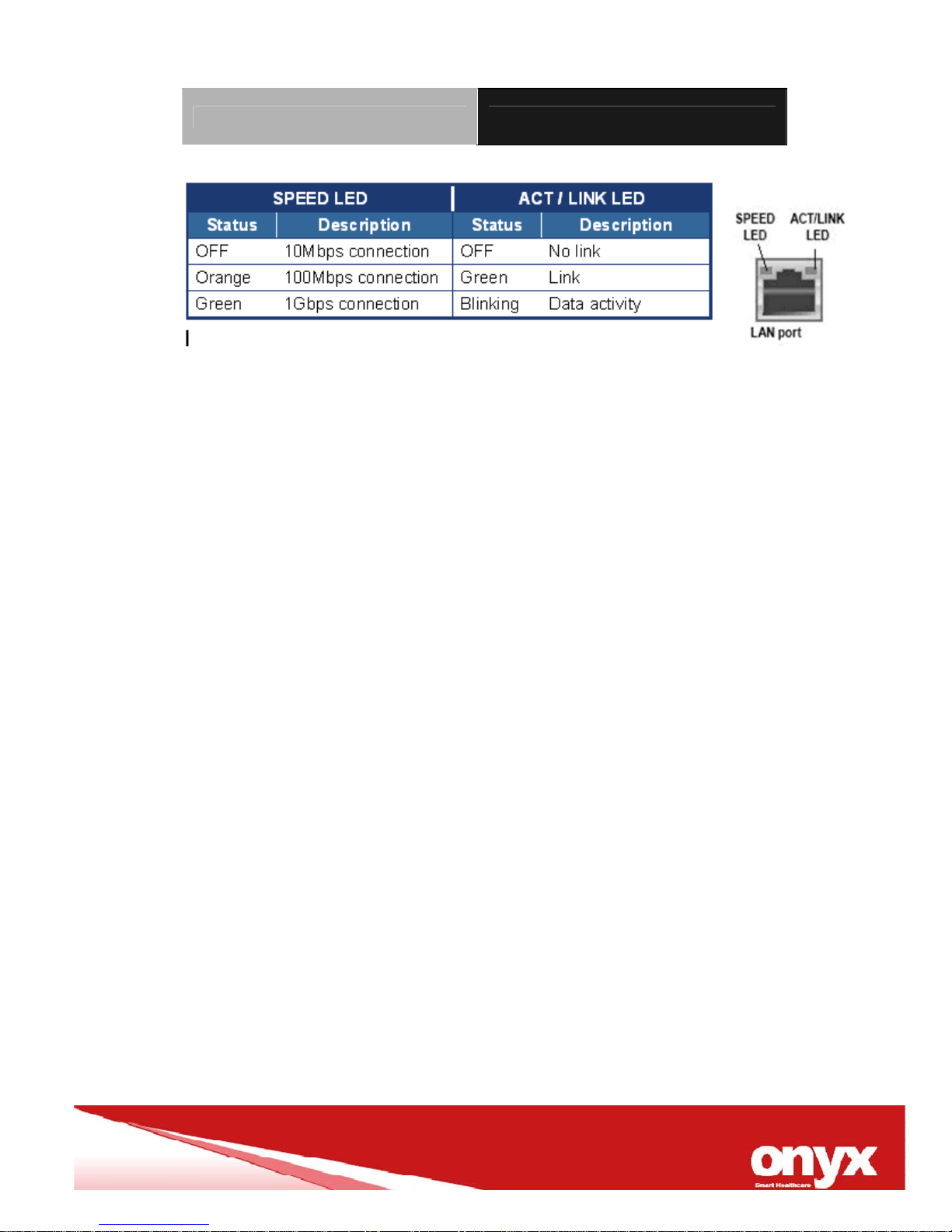

LAN port LED indications

DC-in

Med PC MedPC-5500

28

9. Line In port (light blue). This port connects a tape, CD, DVD

player, or other audio sources.

10 Line Out port (lime). This port connects a headphone or a

speaker. In 4-channel, 6-channel, and 8-channel configuration,

the function of this port becomes Front Speaker Out.

11. Microphone port (pink). This port connects a microphone.

Med PC MedPC-5500

29

2.9 Mount kit

The mount kit screw hole and screw type as below

Med PC MedPC-5500

30

BIOS Setup

Chapter

Med PC MedPC-5500

31

3.1BIOS Setup Program

This motherboard supports a programmable firmware chip that you

can update using the provided utility. Use the BIOS Setup program

when you are installing a motherboard, reconfiguring your system,

or prompted to “Run Setup.” This section explains how to configure

your system using this utility.

Even if you are not prompted to use the Setup program, you can

change the configuration of your computer in the future. For

example, you can enable the security password feature or change

the power management settings. This requires you to reconfigure

your system using the BIOS Setup program so that the computer

can recognize these changes and record them in the CMOS RAM

of the firmware hub.

The firmware hub on the motherboard stores the Setup utility. When

you start up the computer, the system provides you with the

opportunity to run this program. Press <Del> during the

Power-On-Self-Test (POST) to enter the Setup utility; otherwise,

POST continues with its test routines.

If you wish to enter Setup after POST, restart the system by

pressing

Med PC MedPC-5500

32

<Ctrl + Alt + Delete>, or by pressing the reset button on the system

chassis. You can also restart by turning the system off and then

back on. Do this last option only if the first two failed.

The Setup program is designed to make it as easy to use as

possible. Being a menu-driven program, it lets you scroll through

the various sub-menus and make your selections from the available

options using the navigation keys.

 The default BIOS settings for this

motherboard apply for most conditions to
ensure optimum performance. If the system
becomes unstable after changing any BIOS
settings, load the default settings to ensure
system compatibility and stability. Select the

Load Optimized Defaults from the BIOS

menu screen.

 The BIOS setup screens shown in this

section are for reference purposes only, and
may not exactly match what you see on your
screen.

 Visit the system builder’s website to

download the latest BIOS file for this
motherboard

3.2 Legend Box

The keys in the legend bar allow you to navigate through the

various setup menus

Key Function Description

← Select Screen

↑↓ Select Item

Med PC MedPC-5500

33

+ - Change Option / Field

Enter Go to Sub Screen

PGDN Next Page

PGUP Previous Page

F1 General Help

F2 Previous Values

F3 Optimized Defaults

F4 Save & Exit

ESC Exit

3.3 List Box

This box appears only in the opening screen. The box displays an

initial list of configurable items in the menu you selected.

3.4 Sub-menu

Note that a right pointer symbol appears to the left of certain

fields. This pointer indicates that you can display a sub-menu from

this field. A sub-menu contains additional options for a field

parameter. To display a sub-menu, move the highlight to the field

and press <Enter>. The sub‑menu appears. Use the legend keys to

enter values and move from field to field within a sub-menu as you

would within a menu. Use the <Esc> key to return to the main

menu.

Med PC MedPC-5500

34

Driver

Installation

Chapter

Med PC MedPC-5500

35

There are several installation ways depending on the driver
package under different Operating Systems.

Please follow the sequence below to install the drivers:

Step 1 – Install INF Driver

Step 2 – Install VGA Driver

Step 3 – Install LAN Driver

Step 4 – Install Audio Driver

Step 5 – USB 3.0 Driver

Step6 – ME Driver

Step 7 – Serial Port Driver(optional)

Please read instructions below for further detailed installations.

Med PC MedPC-5500

36

4.1 Installation

Insert the MedPC-5500 CD-ROM into the CD-ROM drive. And

install the drivers from Step 1 to Step 5 in order.

Step 1 – Install Intel

®

INF Driver

1. Click on the Step 1 – Inf Driver folder and double
click on the infinst911autol.exe

2. Follow the instructions that the window shows

3. The system will help you install the driver automatically

Step 2 – Install Intel

®

VGA Driver

1. Click on the Step 2 – VGA Driver folder and select

the OS folder your system is

2. Double click on the .exe file located in the OS folder

3. Follow the instructions that the window shows

4. The system will help you install the driver automatically

Step 3 – Install Intel LAN Driver

1. Click on the LAN driver folder and select the Winx32
folder and double click on .exe for x86 (32bit) OS; if the
OS is Windows 64bit OS, please select the Winx64 folder
and double click on .exe file

2. Follow the instructions that the window shows

3. The system will help you install the driver automatically

Step 4 –Install Audio Driver

1. Click on the Step 4 –AUDIO driver folder and select the

corresponding folder for your operating system and double

click on Setup.exe file

2. Follow the instructions that the window shows

3. The system will help you install the driver automatically

Step 5 – Install USB3.0 Driver

1. Click on the USB3.0 folder and and select the
USB3_allOS_2.1.19.0_PV folder and double click on

Med PC MedPC-5500

37

the setup.exe

2. Follow the instructions that the window shows

3. The system will help you install the driver automatically

Step 6 – Install Me Driver

1. Click on the Me Driver folder and and select the

Intel_Management_Engine_Interface_v7.0.0.1144

folder and double click on the setup.exe

2. Follow the instructions that the window shows

3. The system will help you install the driver automatically

Step 7 – Install Serial Port Driver

1. Click on the Serial Port Driver folder and and select
the WIN7_32 / WIN7_64 / WINXP_32 folder and
double click on the setup.exe

2. Follow the instructions that the window shows

Med PC MedPC-5500

38

Miscellanea

Appendix

Med PC MedPC-5500

39

A.1 General Cleaning Tips

You may need the following precautions before you begin to clean

the computer. When you clean any single part or component for the

computer, please read and understand the details below fully.

1. Never spray or squirt the liquids directly onto any computer

component. If you need to clean the device, please rub it

with a piece of dry cloth.

2. Be cautious of the tiny removable components when you

use a vacuum cleaner to absorb the dirt on the floor.

3. Turn the system off before you start to clean up the

component or computer.

4. Never drop the components inside the computer or get

circuit board damp or wet.

5.

Be cautious of all kinds of cleaning solvents or chemicals

when you use it for the sake of cleaning. Some individuals

may be allergic to the ingredients.

6.

Try not to put any food, drink or cigarette around the

computer.

7.

ONYX Healthcare Inc. has tested and verified these

cleaning disinfectants, CIDEX, Viraguard, Control III

Disinfectant Germicide, Caviwipes, Dispatch Disinfectant

Cleaner CLH69101, Puregreen 24 Disinfectant, can be

used with the ONYX-175/195. Use of any other

Med PC MedPC-5500

40

disinfectants will void the warranty.

A.2 Cleaning tools

Although many companies have created products to help improve

the process of cleaning your computer and peripherals users can

also use household items to clean their computers and peripherals.

Below is a listing of items you may need or want to use while

cleaning your computer or computer peripherals.

Keep in mind that some components in your computer may only be

able to be cleaned using a product designed for cleaning that

component, if this is the case it will be mentioned in the cleaning

tips.

 Cloth - A piece of cloth is the best tool to use when rubbing

up a component. Although paper towels or tissues can be

used on most hardware as well, we still recommend you to

rub it with a piece of cloth.

 Water or rubbing alcohol – You may moisten a piece of

cloth a bit with some water or rubbing alcohol and rub it on

the computer. Unknown solvents may be harmful to the

plastics parts.

 Vacuum cleaner - Absorb the dust, dirt, hair, cigarette

particles, and other particles out of a computer can be one

of the best methods of cleaning a computer. Over time

Med PC MedPC-5500

41

these items can restrict the airflow in a computer and cause

circuitry to corrode.

 Cotton swabs - Cotton swaps moistened with rubbing

alcohol or water are excellent tools for wiping hard to reach

areas in your keyboard, mouse, and other locations.

 Foam swabs - Whenever possible it is better to use lint

free swabs such as foam swabs.

Please follow the steps below.

1. Close all application programs.

2. Close operating software.

3. Turn off power switch

4. Remove all device

5. Pull out power cable

Note:

We strongly recommended that you should shut down the

system before you start to clean any single components.

Med PC MedPC-5500

42

A.3 Scrap Computer Recycling

If the computer equipments need the maintenance or are beyond

repair, we strongly recommended that you should inform us as

soon as possible for the suitable solution. For the computers that

are no longer useful or work well, please contact with worldwide

distributors for recycling.

The worldwide distributors show on the following website:

http://www.onyx-healthcare.com.tw/Contact.php

Note:

Follow the national requirement to dispose unit
