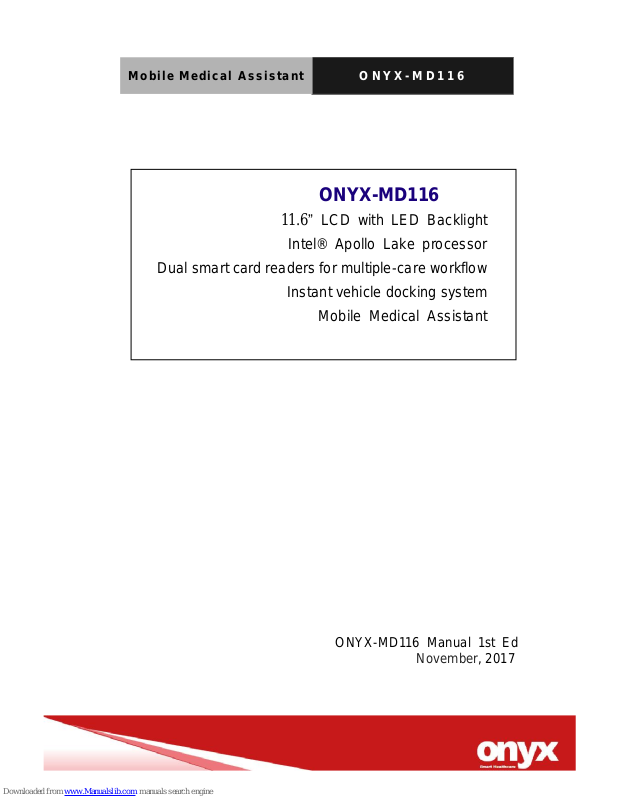

Onyx MD116 User Manual

Mobile Medical Assistant

O N Y X- M D 1 1 6

ONYX-MD116

11.6” LCD with LED Backlight

Intel® Apollo Lake processor

Dual smart card readers for multiple-care workflow

Instant vehicle docking system

Mobile Medical Assistant

ONYX-MD116 Manual 1st Ed

November, 2017

Mobile Medical Assistant

O N Y X- M D 1 1 6

Copyright Notice

This document is copyrighted, 2017. All rights are reserved. The
original manufacturer reserves the right to make improvements to
the products described in this manual at any time without notice.

No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in
this manual is intended to be accurate and reliable. However, the
original manufacturer assumes no responsibility for its use, nor for
any infringements upon the rights of third parties, which may result
from its use.

The material in this document is for product information only and
is subject to change without notice. While reasonable efforts have
been made in the preparation of this document to assure its
accuracy, ONYX Healthcare Inc., assumes no liabilities resulting
from errors or omissions in this document, or from the use of the
information contained herein

ONYX Healthcare Inc. reserves the right to make changes in the
product design without notice to its users

Mobile Medical Assistant

O N Y X- M D 1 1 6

Acknowledgments

 Intel

®

PentiumTM is registered trademarks of Intel® Corporation.

 Microsoft

®

Windows is a registered trademark of Microsoft®

Corporation.

All other product names or trademarks are properties of their
respective owners.

Mobile Medical Assistant

O N Y X- M D 1 1 6

Packing List

Before you begin installing your Mobile Medical Assistant, please
make sure that the following items have been shipped:

 ONYX-MD116 Mobile Medical Assistant
 ONYX-MD116 Docking Station(model: OPM-T016)
 Four VESA Screws(M:4mm x P:0.7mm x L:10mm)

Mobile Medical Assistant

O N Y X- M D 1 1 6

If any of these items are missing or damaged, you should contact
your distributor or sales representative immediately.

Headquarters
Onyx Healthcare Inc.
2F, No.135, Lane 235, Pao-Chiao Rd.,
Hsin-Tien City, Taipei 231, Taiwan, R.O.C.
TEL: [phone]
FAX: [phone]
E-mail: [e-mail]
http://www.onyx-healthcare.com

Worldwide Offices:
Onyx Healthcare Inc.
2F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist.,
New Taipei City 231, Taiwan (R.O.C.)
TEL: [phone]
FAX: [phone]
E-mail: [e-mail]
http://www.onyx-healthcare.com

Worldwide Offices:
Onyx Healthcare, USA Inc.
324W. Blueridge Ave., Orange,, CA 92865, USA
Tel : [phone]
Fax: [phone]

Mobile Medical Assistant

O N Y X- M D 1 1 6

Email: [e-mail]
Onyx Healthcare EUROPE B.V.
Primulalaan 42, 5582 GL Waalre, Netherlands
Tel : [phone]
Email: [e-mail]

Onyx Healthcare (Shanghai) INC.
20F, unit D, GEM Building, No. 487 Tianlin Road,
Shanghai, China
Tel: [phone]

Fax: [phone]
Email: [e-mail]

Mobile Medical Assistant

O N Y X- M D 1 1 6

Safety & Warranty

1. Read these safety instructions carefully.

2. Keep this user's manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning.
Do not use liquid or spray detergents for cleaning. Use a damp
cloth.

4. For pluggable equipment, the power outlet must be installed

near the equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a reliable surface during installation.

Dropping it or letting it fall could cause damage.

7. The openings on the enclosure are for air convection. Protect
the equipment from overheating. DO NOT COVER THE
OPENINGS.

8. Make sure the voltage of the power source is correct before
connecting the equipment to the power outlet.

9. Warning: To avoid risk of electric shock, this equipment must
only be connected to a supply mains with protective earth.
(Avertissement: Pour éviter tout risque de choc électrique, cet
appareil doit être connecté à une alimentation secteur avec une
prise de terre)

10. Position the power cord so that people cannot step on it. Do
not place anything over the power cord.

11. All cautions and warnings on the equipment should be noted.

Mobile Medical Assistant

O N Y X- M D 1 1 6

12. If the equipment is not used for a long time, disconnect it from
the power source to avoid damage by transient over-voltage.

13. Never pour any liquid into an opening. This could cause fire or

electrical shock.

14. Never open the equipment. For safety reasons, only qualified

service personnel should open the equipment.

15. Warning: Do not modify this equipment without authorization of

the manufacturer. (Avertissement: Ne pas modifier cet équipement
sans l'autorisation du fabricant)

16. Warning : It is necessary for checking or replacing the battery

pack every year. (Avertissement: Il est nécessaire de vérifier ou de
remplacer la batterie chaque année)

Mobile Medical Assistant

O N Y X- M D 1 1 6

16. If any of the following situations arises, get the equipment

checked by service personnel:

a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it

to work according to the users manual.
e. The equipment has been dropped and damaged.
f. The equipment has obvious signs of breakage.

17. DO NOT LEAVE THIS EQUIPMENT IN AN UNCONTROLLED
ENVIRONMENT WHERE THE STORAGE TEMPERATURE IS
BELOW -20° C (-4°F) OR ABOVE 60° C (140° F). IT MAY
DAMAGE THE EQUIPMENT.

18. External equipment intended for connection to signal
input/output or other connectors, shall comply with
relevant UL / IEC standard (e.g. UL 1950 for IT equipment
and ANSI/AAMI ES 60601-1: 2005 AND CAN/CSA-C22.2 No.
60601-1:08 / IEC 60601 series for systems – shall comply
with the standard IEC 60601-1-1, Safety requirements for
medical electrical systems. Equipment not complying
with UL 60601-1 shall be kept outside the patient
environment, as defined in the standard.

Caution:

It may cause the danger of explosion if battery is incorrectly
replaced. Replace only with same or equivalent type
recommended by the manufacturer.

Mobile Medical Assistant

O N Y X- M D 1 1 6

Classification

1. Degree of production against electric shock: not classified

2. Degree of protection against the ingress of water: IPX0

3. Mode of operation: Continuous

4. Type of protection against electric shock: Class I equipment

5. No Applied Part, No AP/APG

Mobile Medical Assistant

O N Y X- M D 1 1 6

FCC

This device complies with Part 18 FCC
Rules. Operation is subject to the following
two conditions: (1) this device may not
cause harmful interference, and (2) this
device must accept any interference
received including interference that may
cause undesired operation.

Mobile Medical Assistant

O N Y X- M D 1 1 6

UL Module Description

ONYX-MD116 module is developed to
suitable for the Classification Mark
requirement

OPM-T016 module is developed to suitable for
the Classification Mark requirement

Mobile Medical Assistant

O N Y X- M D 1 1 6

Safety Symbol Description

The following safety symbols are the further explanations for your
reference.

MEDICAL – GENERAL MEDICAL
EQUIPMENT AS TO ELECTRICAL
SHOCK, FIRE AND MECHANICAL
HAZARDS ONLY IN ACCORDANCE
WITH ANSI/AAMI ES 60601-1 (2005) +
AMD (2012) and CAN/CSA-C22.2 No.
6060-1 (2014).

Attention, consult ACCOMPANYING
DOCUMENTS.

Stand-by

Ground wire
Protective Ground wire.

Mobile Medical Assistant

O N Y X- M D 1 1 6

Contents

Chapter 1 General Information

1.1 Introduction..................................................................1-2

1.2 Feature .........................................................................1-3

1.3 Specification ................................................................1-4

1.4 Dimension ....................................................................1-8

Chapter 2 Hardware Installation

2.1 Safety Precautions ......................................................2-2

2.2 Quick Tour of ONYX-MD116 ........................................2-3

2.3 Mounting…………………………………………………… 2-6

2.4 Turn On and Boot up into Windows…………………….2-6

2.5 Turn off……………………………………………………….2-6

Chapter 3 Driver Installation
Appendix A Miscellanea

A.1 General Cleaning Tips................................................ C-2

A.2 Cleaning Tools ........................................................... C-3

A.3 Scrap Computer Recycling ...................................... C-5

Mobile Medical Assistant

O N Y X- M D 1 1 6

General

Information

Chapter

1

Slim Medical Panel PC

ONYX- M D 11 6

Chapter 1 General Information 1-1

1.1 Introduction

ONYX-MD116 Mobile Medical Assistant is based on Intel®
PentiumTM N4200 Quad Core processor, which delivers a
performance improvement of more than 100 percent compared to
systems running traditional single-core processors. With four cores
computing engines, ONYX-MD116 can simultaneously execute four
computing tasks. It accommodates one M.2 2242 Interface SATA
SSD and one DDRIII SODIMM up to 16GB.
The high brightness LCD, zero noise solution, integrated
multimedia functions make them the perfect platform upon which to
build comprehensive lifestyle computing applications.
ONYX-MD116 includes all the features of a powerful computer into
a slim and attractive chassis. It has a 11.6” 600 nits TFT display
with 1920 x 1080 resolution. ONYX-MD116 owns Dual smart card
reader to support ID check. Combining ONYX-MD116 into your
system can achieve both cost-saving and efficient improvements in
common medical applications. ONYX-MD116 is definitely your
perfect choice.
ONYX-MD116 was regarded as Medical Device Data Systems
(MDDS). It is a hardware product that transfer, store, convert
formats, and display medical device data. MDDS are not intended
to be used for active patient monitoring.

Slim Medical Panel PC

ONYX- M D 11 6

Chapter 1 General Information 1-2

1.2 Feature

 Intel® Apollo Lake N4200 Quad Core Processor
 Supports One DDR3 SODIMM up to16GB
 Built-in RFID and Dual Smart Card Security
 Dual hot-swappable batteries for 24/7 operation
 Instant vehicle docking system
 ORION client compatible

Slim Medical Panel PC

ONYX- M D 11 6

Chapter 1 General Information 1-3

1.3 Specification

Hardware Specifications

Processor

Processor Intel® Apollo Lake Processor

System Memory

DDR3L SO-DIMM x1, Default 4 GB (Up to 16 GB)

OS Support

Microsoft® Windows 10

Storage

M.2 Interface x1, Default 64 GB

Wireless
Communication

802.11 a/b/g/n + BT4.0 (Optional)

Camera

2 MP (Front) / 5 MP (Rear)

Touchscreen

w/Soda Lime Glass (Default); Gorilla Glass

Digital
Accelerometer

ADI ADXL345

Ambient Light
Sensor

TAOS TSL2581

LTE+GPS

Telit LN930 x 2 (Optional)

Function Keys

x2

LED Indicators

x2

USB

USB 3.0 (Type-A) x1, USB 2.0 (Type-A) x1

Ethernet

Gigabit LAN x1

DC-In

DC-In Jack x1

Docking

Docking Connector x1

Battery Type

Polymer

Battery

Capacity 3300 mAh x2

Slim Medical Panel PC

ONYX- M D 11 6

Chapter 1 General Information 1-4

Battery Run Time

Approx. 5 hrs

Speaker

3W x1

LCD Specifications

Display Type

11.6” LCD

Max. Resolution

1920 x 1080

Contrast Ratio

800:1

Luminance (cd/m2)

600(TYP)

Back Light Life Time

>50,000 Hrs

Note:
All ONYX LCD products are manufactured with High precision technology.
However, there are a small number of defective pixels in all LCD panels
that are not able to change color. This is a normal occurrence for all LCD
displays from all manufacturers and should not be noticeable or
objectionable under normal operation. All LCD panels are qualified for
industry standard conditions in the following: total 7 dead pixels on a
screen or if there are 3 within 1 inch square area of each other on the
display.

Slim Medical Panel PC

ONYX- M D 11 6

Chapter 1 General Information 1-5

Mechanical Specifications

Architecture

Close-frame

Color

Dark Gray

Mounting / Holder

VESA 75/100mm, Screw type:M4*8mm

Construction

3mm ABS + PC TYPE Plastic housing

Rear cover

magnesium

Dimension (WxHxD)

312 (W) x 239 (H) x 37 (D) mm

Net Weight

Approx. 1.8 kg

Power Supply Specifications

Model

Adapter FSP090M-RHA

Input Voltage

100-240V AC @ 50-60 Hz

Output Voltage

12V, 7.5A, 90W max.

Slim Medical Panel PC

ONYX- M D 11 6

Chapter 1 General Information 1-6

Environmental Specifications

Operating Temperature

0°C ~ 40°C (32°F ~ 104°F)

Operating Humidity

30% to 75% RH, non-condensing

Operating Pressure

700 to 1060 hPa

Storage Temperature

-20°C ~ 60°C (-4°F ~ 140°F)

Storage Humidity

10%~95%@35°C, non-condensing

Storage Pressure

700 to 1060 hPa

Vibration

0.5G / 5 ~ 500Hz (Random) / operation

Shock

20G peak acceleration (11 msec. duration) /
operation

Drop(with packaging)

80 cm (1 Corner, 3 Edge, 6 Surface)

EMI / Safety

CE/FCC Class B, UL60601-1, EN60601-1,
E1, EN1789

Touch Screen

Type

Projective Capacitive / 5-wire Resistive

Interface

USB interface

Light Transmission

> 80%

Docking Station

Model

OPM-T016

Power

DC 12V

Slim Medical Panel PC

ONYX- M D 11 6

Chapter 1 General Information 1-7

Battery

3300 mAh x2

USB

USB 3.0 (Type-A) x1, USB 2.0 (Type-A) x1

Ethernet

Ethernet Gigabit LAN x1

Intended use

OPM-T016 were mobile docking station, and
intended to provide stable platforms for
notebook, laptop and tablet operation.

Slim Medical Panel PC

ONYX- M D 11 6

Chapter 1 General Information 1-8

1.4 Dimension

Slim Medical Panel PC

O N Y X- M D 1 1 6

Chapter 2 Hardware Installation 2-1

Hardware

Installation

Chapter

2

Slim Medical Panel PC

O N Y X- M D 1 1 6

Chapter3 Award BIOS Setup 3-1

2.1 Safety Precautions

Always completely disconnect the power cord
from your board whenever you are working on
it. Do not make connections while the power is
on, because a sudden rush of power can
damage sensitive electronic components.

Always ground yourself to remove any static
charge before touching the board. Modern
electronic devices are very sensitive to static
electric charges. Use a grounding wrist strap at
all times. Place all electronic components on a
static-dissipative surface or in a static-shielded
bag when they are not in the chassis

Slim Medical Panel PC

O N Y X- M D 1 1 6

Chapter3 Award BIOS Setup 3-2

2.2 Quick Tour of ONYX-MD116

Before you start to set up ONYX-MD116, take a moment to become
familiar with the locations and purposes of the controls, drives,
connections and ports, which are illustrated in the figures below.
When you place ONYX-MD116 upright on the desktop, its front
panel appears as shown in Picture 2-1.

Picture 2.1: Front View of ONYX-MD116 Series

Slim Medical Panel PC

O N Y X- M D 1 1 6

Chapter3 Award BIOS Setup 3-3

When you turn the Mobile Medical Assistant around and look at its
rear cover, the I/O port in left and right side, as shown in Picture 2-2.
(The I/O section includes various I/O ports, including a DC-IN Jack,
1 Ethernet ports, 2 USB ports.). Top side have 2 smart card reader.

Picture 2.2 Rear view of ONYX-MD116 Series IO Port

Slim Medical Panel PC

O N Y X- M D 1 1 6

Chapter3 Award BIOS Setup 3-4

Below picture 2-3/2-4 show the Docking front and rear view. In front
view have 2 USB port and Battery charging hole. Back side have
DC-IN Jack and phoenix connector/ Line-out/ RJ 45 port.

Picture 2.3: ONYX-MD116 Docking front side

Slim Medical Panel PC

O N Y X- M D 1 1 6

Chapter3 Award BIOS Setup 3-5

Picture 2.4: ONYX-MD116 back side view

Slim Medical Panel PC

O N Y X- M D 1 1 6

Chapter3 Award BIOS Setup 3-6

2.3 Mounting

ONYX-MD116 Docking be mounted with 75mm x 75mm or 100mm x
100mm VESA holes in the rear cover by wall-mount or desktop stand.

2.4 Turn On and Boot up into Windows OS

This section is for Windows operating system only. If you are
installing a different operating system, please contact your vendor
for installation details.

Your ONYX-MD116 will begin loading Windows OS once you push
the power button to turn power on. After less than one minute,
Windows desktop screen will appear.

You can select the programs from the start menu in the left-down
corner of the desktop screen.

VESA Holes

Slim Medical Panel PC

O N Y X- M D 1 1 6

Chapter3 Award BIOS Setup 3-7

When turn on unit and the electrical quantity of battery is high, the
LED Indicators will be bright green.

When turn on unit and the electrical quantity of battery is low, the
LED Indicators will be bright orange.

When the battery cannot be detected and connected with adapter,
the LED Indicators will be bright blue.

2.5 Turn off

Turning off ONYX-MD116 properly is important for system reliability.
There are two ways to turn off the system.

1. On the start menu, click “shut down” and select “OK”

2. Push the power button and then the system will shut

down automatically

2.6 Connectors

1. USB 2.0 port These 4-pin Universal Serial Bus (USB)

ports are available for connecting USB 2.0 devices.

2. USB 3.0 These 9 Universal Serial Bus (USB) ports

are

available for connecting USB 3.0 devices.

3. LAN (RJ-45) port. These port allows Gigabit connection

Slim Medical Panel PC

O N Y X- M D 1 1 6

Chapter3 Driver Installation 3-1

Driver

Installation

Chapter

3

Slim Medical Panel PC

O N Y X- M D 1 1 6

Chapter 4 Drivers Installation 3-2

There are several installation ways depending on the driver
package under different Operating Systems.

Please follow the sequence below to install the drivers:

For Windows 10:

Step 1 – Chipset Driver
Step 2 – Graphics Driver
Step 3 – SIO Driver
Step 4 – TXE Driver
Step 5 – Audio Driver
Step 6 –BT Driver
Step 7 –GPS Driver
Step 8 – Ethernet on Docking Driver
Step 9 – LAN Driver
Step 10 – SMART CARD READER Driver

Slim Medical Panel PC

O N Y X- M D 1 1 6

Appendix A Miscellanea A-1

Miscellanea

Appendix

A

Slim Medical Panel PC

O N Y X- M D 1 1 6

Appendix A Miscellanea A-2

A.1 General Cleaning Tips

You may need the following precautions before you begin to clean
the computer. When you clean any single part or component for the
computer, please read and understand the details below fully.

1. Never spray or squirt the liquids directly onto any computer
component. If you need to clean the device, please rub it
with a piece of dry cloth.

2. Be cautious of the tiny removable components when you
use a vacuum cleaner to absorb the dirt on the floor.

3. Turn the system off before you start to clean up the
component or computer.

4. Never drop the components inside the computer or get
circuit board damp or wet.

5. Be cautious of all kinds of cleaning solvents or chemicals

when you use it for the sake of cleaning. Some individuals
may be allergic to the ingredients.

6. Try not to put any food, drink or cigarette around the

computer.

7. ONYX Healthcare Inc. has tested and verified these

cleaning disinfectants, CIDEX, Viraguard, Control III
Disinfectant Germicide, Caviwipes, Dispatch Disinfectant
Cleaner CLH69101, Puregreen 24 Disinfectant, can be
used with ONYX-MD116. Use of any other disinfectants will

Slim Medical Panel PC

O N Y X- M D 1 1 6

Appendix A Miscellanea A-3

void the warranty.

A.2 Cleaning tools

Although many companies have created products to help improve
the process of cleaning your computer and peripherals users can
also use household items to clean their computers and peripherals.
Below is a listing of items you may need or want to use while
cleaning your computer or computer peripherals.

Keep in mind that some components in your computer may only be
able to be cleaned using a product designed for cleaning that
component, if this is the case it will be mentioned in the cleaning
tips.

 Cloth - A piece of cloth is the best tool to use when rubbing

up a component. Although paper towels or tissues can be
used on most hardware as well, we still recommend you to
rub it with a piece of cloth.

 Water or rubbing alcohol – You may moisten a piece of

cloth a bit with some water or rubbing alcohol and rub it on
the computer. Unknown solvents may be harmful to the
plastics parts.

 Vacuum cleaner - Absorb the dust, dirt, hair, cigarette

particles, and other particles out of a computer can be one
of the best methods of cleaning a computer. Over time
these items can restrict the airflow in a computer and cause

Slim Medical Panel PC

O N Y X- M D 1 1 6

Appendix A Miscellanea A-4

circuitry to corrode.

 Cotton swabs - Cotton swaps moistened with rubbing

alcohol or water are excellent tools for wiping hard to reach
areas in your keyboard, mouse, and other locations.

 Foam swabs - Whenever possible it is better to use lint

free swabs such as foam swabs.

Please follow the steps below.

1. Close all application programs.

2. Close operating software.

3. Turn off power switch

4. Remove all device

5. Pull out power cable

Note:

We strongly recommended that you should shut down the

system before you start to clean any single components.

Slim Medical Panel PC

O N Y X- M D 1 1 6

Appendix A Miscellanea A-5

A.3 Scrap Computer Recycling

If the computer equipments need the maintenance or are beyond
repair, we strongly recommended that you should inform us as
soon as possible for the suitable solution. For the computers that
are no longer useful or work well, please contact with worldwide
distributors for recycling.

The worldwide distributors show on the following website:

http://www.onyx-healthcare.com.tw/Contact.php

Note:

Follow the national requirement to dispose unit
