ONYX MAX2 Users Manual

BOOX MAX 2
SMART READING
User Manual
Copyright © 2017 Onyx International. All rights reserved. 1 / 99
www.onyx-international.com
Table of Contents
1. About ONYX ........................................................ 3
2. Standard Accessories ......................................... 4
3. Safety Guide ........................................................ 5
4. Product Views ..................................................... 7
5. Interface Introduction ....................................... 9
6. Reading Page .................................................... 18
7. Library ................................................................ 52
8. Storage .............................................................. 58
9. Apps ................................................................... 59
10. Setting ............................................................. 78
11. FAQ ................................................................... 93
12. Warranty ......................................................... 95
13. Specifications ................................................. 97
14.Declaration ....................................................... 99
Copyright © 2017 Onyx International. All rights reserved. 2 / 99
www.onyx-international.com
1. About ONYX
BOOX is presented by Onyx International, which has a group of professionals who
dedicate themselves in designing state-of-the-art reading terminal. The beauty of the
BOOX is embodied in both its simplicity and its power. As we are going to show you,
BOOX is an open and flexible platform for both consumers and content providers.
BOOX is powered by a 16-level grayscale e-ink screen that looks and feels like paper.
Passive lighting and diffuse surface relax your eyes and reduce eye strain. By the
hand-writing system, you can take notes while reading and sketch up ideas that happen
to emerge. BOOX takes full advantage of new-generation e-ink screens: extremely low
power consumption without reflection and backlight. Each full charge can sustain a few
weeks' reading. By reducing paper consumption while providing a realistic paper-like
reading experience, digital content helps to protect the environment without sacrificing
convenience or life style.
For content partners, we also provide support for custom formats and digital rights
management solutions. All of our viewers have standard features such as layout
management, font adjustment, full text search, zooming, and page flow.
For a next-generation information device, connectivity is essential. The user can
connect to the Internet by build-in Wi-Fi to download new content or surf the web.
Customized for the e-ink screen, WebKit, the same software engine as some powerful
desktop browsers such as Safari and Chrome, is the web browser of BOOX.
BOOX gives you a new reading experience.
Copyright © 2017 Onyx International. All rights reserved. 3 / 99
www.onyx-international.com
2. Standard Accessories
Included in the Box
1. BOOX MAX2 Reader x1
2. Stylus Pen x1
3. USB Cable x1
4. HDMI Cable x1
5. Quick Start Guide x1
6. Warranty Sheet x1
7. Protective Cover x1
Optional AccessoriesPurchased separately
1. Adapter
2. Stereo headphone
Copyright © 2017 Onyx International. All rights reserved. 4 / 99
www.onyx-international.com
3. Safety Guide
Please read the Safety Guide carefully before you start to use the device.
Contact your BOOX retailer if you have any technical problem; or you can dial
our official service line at 4008-860-830 .
Screen protection
The device is equipped with Eink screen, which is very fragile. Please
have no shocking, squeezing, pressing against the screen, or dropping the
device from higher place. If the screen is already broken, stop using it and
contact the professional or other qualified staff to replace the screen for you.
Please don’t dismantle the device without our permission;
Copyright © 2017 Onyx International. All rights reserved. 5 / 99
www.onyx-international.com
Standard accessories
Only the battery, adapter, and other accessories meeting our
standard safety rules can be used for the device. For details, please refer to
Product Specification. We will not be responsible for any damage caused by
incompatible accessories;
Stay away from liquids
The device is not waterproof. Don’t expose the device to humid
environment or use it in the rain. Please keep it away from any corrosive liquids;
Dont dismantle the device
Please don’t dismantle the device in case of any damage ;
Using environment
The using environment of the device is 0°C-50°C ;
Copyright © 2017 Onyx International. All rights reserved. 6 / 99
MENU
BACK
PREV.
NEXT
pen hanger
www.onyx-international.com
4. Product Views
Front View
Copyright © 2017 Onyx International. All rights reserved. 7 / 99
Speaker
Power
Audio
Jack
Micro USB
Port
HDMI
Port
MIC
www.onyx-international.com
Back View
Bottom View
Copyright © 2017 Onyx International. All rights reserved. 8 / 99
Power/
Standby
Button
Press the power button to turn on the device Press the power button and hold for 2 seconds to turn off the device.
Or select “Power offin the menu to turn off the device.
Press the power button and release quickly to let the device go
standby or wake up.
Press the power button for 8-10 seconds to reset your device , then
press it quickly to restart .
Menu Button
Press the menu button to pop up the menu. Same as the function that tapping the menu icon on screen
Back Button
Exit the current apps; Exit the current view or dialog; Go back to previous directory
Next Button
Turn to next page when reading or viewing files;
Prev Button
Turn to previous page when reading or viewing files;
Mic
Recording voice
Audio Jack
Diameter of the audio jack is 3.5mm
USB Port
Connect the device with PC to transfer data or recharge.
HDMI Port
HDMI cable connect with PC host and Max 2, Max 2 could be acted
as a monitor.
www.onyx-international.com
Button Function
Copyright © 2017 Onyx International. All rights reserved. 9 / 99
Status bar
Now Reading
Recent Added Function Area
www.onyx-international.com
5. Interface Introduction
5.1 Main interface
The main interface contains “Status Bar”, “Now Reading”, “Recent
Added” and Function Area”;
Copyright © 2017 Onyx International. All rights reserved. 10 / 99
www.onyx-international.com
Status bar
This section displays the current state of the device, including: Home icon,
Battery Usage, Notification, Time, One-Click Clearance, Switch between
Pageturn / Volume buttons, A2 mode on/off, Multi-tasking switching and
Menu;
A2 mode refreshment
Two-grey level refreshment mode is good for fast refreshment of text page.
It enables fast pageturn, no screen flashing and less ghost background.
When A2 mode is on, reading articles with images, graphics, texts mixed are
not recommended because the images may not fully shown;
: A2 is on
A2 is off
Copyright © 2017 Onyx International. All rights reserved. 11 / 99
www.onyx-international.com
Switch between Pageturn / volume
This indicates button is set as pageturn function by default for the
pre-installed application of the device ;
This indicates button is set as volume adjustment function by
default for third-party application;
One-click Clearance
Clicking the icon will clear the backend running applications and
release internal memory to have faster running of the device;
Multi-tasking switching
Clicking this icon, pop up the Android multi-task list to check the
running applications in background, you can choose to switch or
close the selected application.
Copyright © 2017 Onyx International. All rights reserved. 12 / 99
www.onyx-international.com
Now Reading
The recently read books information is displayed in this section, including
book cover, book title, author, page number, last read time, reading progress
etc.;
Open the book by tapping book cover or book title and read from where you
left off last time;
Read books can display book covers while those unread books shall display
BOOX cover by default;
Copyright © 2017 Onyx International. All rights reserved. 13 / 99
www.onyx-international.com
Recent Added
The newly added books are listed here chronologically. There are total 8 pages
of the list. Swipe to left/right to check more newly added books;
Function Area
This section displays some frequently used function icons, including Library,
Storage, Apps, Setting, Note and Browser ;

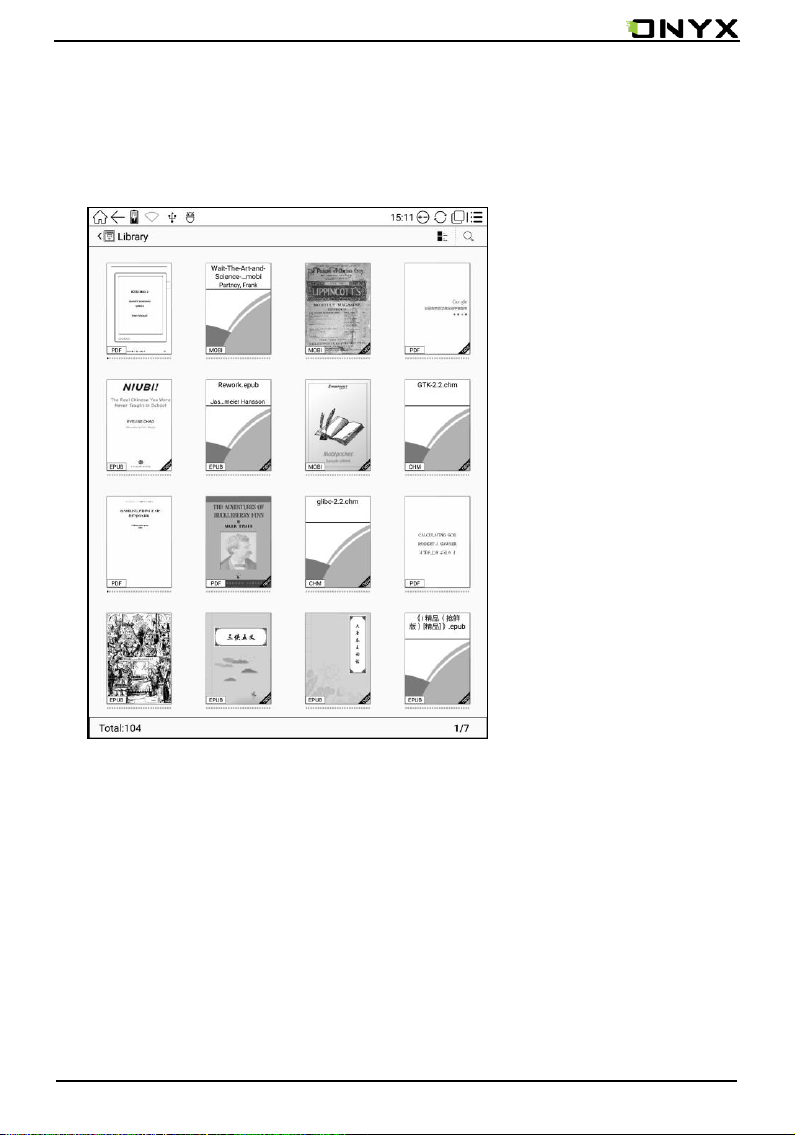

Library
All books from both internal storages are displayed here. It is non-file
management mode;
But user can choose to only display the books from directory Books” by
User Preference of Setting;
Copyright © 2017 Onyx International. All rights reserved. 14 / 99
www.onyx-international.com
Storage
All folders from internal storage will be displayed here. Users can manage
documents and folders from page;
APPS management
Apps page allows users to manage or uninstall all apps;

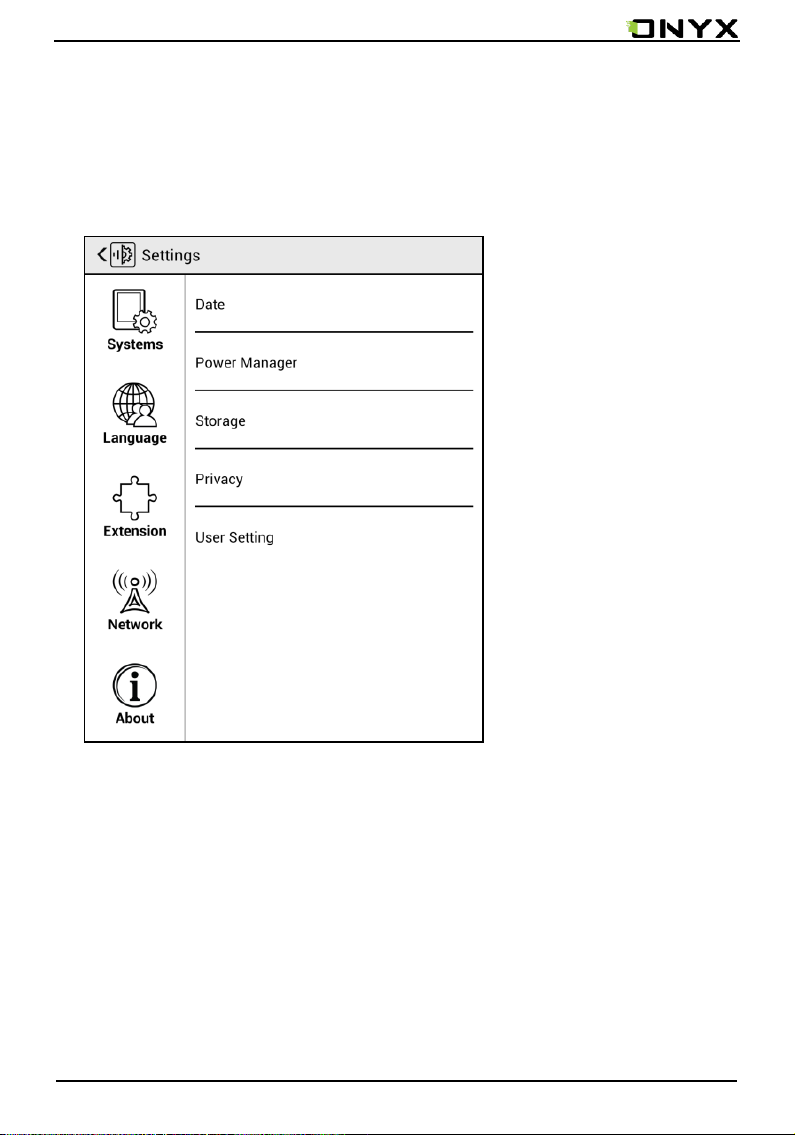

Setting
Going to Setting page, users can manage settings for the whole device.
Copyright © 2017 Onyx International. All rights reserved. 15 / 99
www.onyx-international.com
5.2 Notification interface
Click the middle of the Status Bar, the notification interface can be callout, press
back button or home icon to exit;

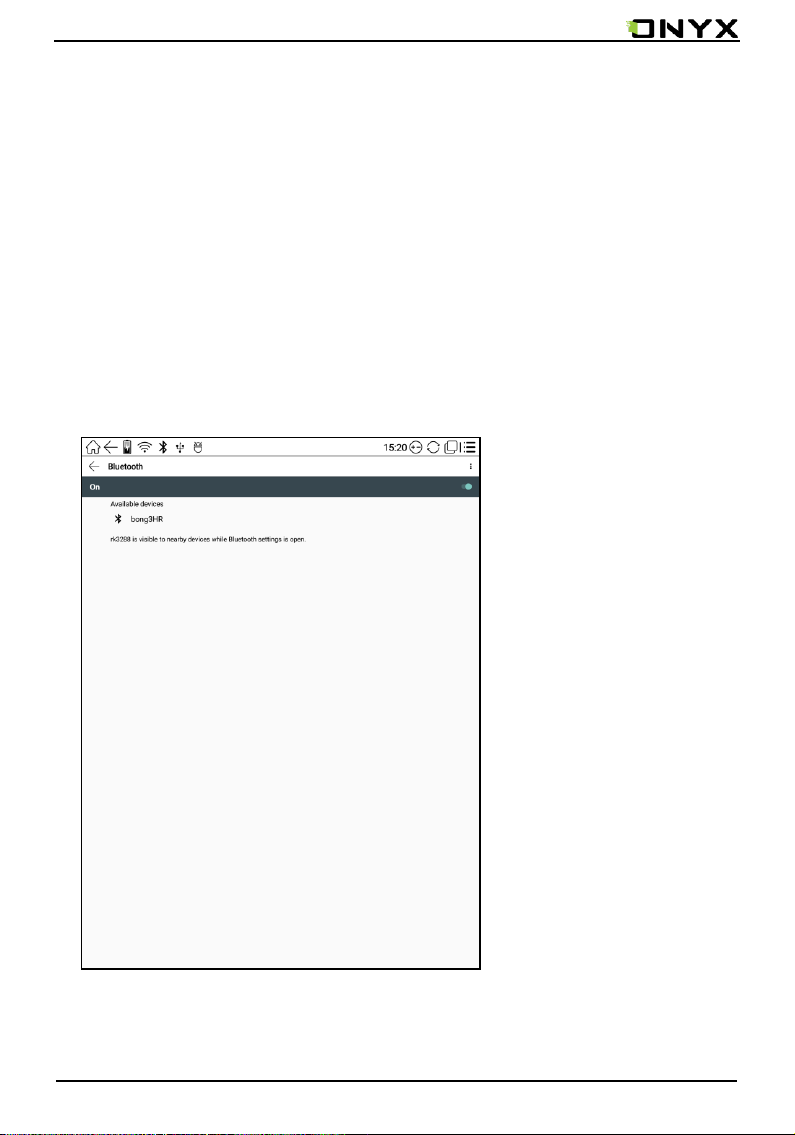

Notification interface contains: battery percentage, WIFI setting, Bluetooth
setting, system setup, ongoing operation indication and Program update
information etc.
Copyright © 2017 Onyx International. All rights reserved. 16 / 99
www.onyx-international.com
5.3 Multi-tasking interface
Click multi-tasking icon, to switch on/off multi-tasking interface to check the
running applications list in background, you can choose to switch or close the
selected application.
One click removal mode can release more memory space, optimize the system
speed.
Copyright © 2017 Onyx International. All rights reserved. 17 / 99
www.onyx-international.com
6. Reading Page
Tap any book cover to open a book. Full-screen reading without showing
status bar and page bar is set by default;
Support multiple document switching, up to 4 documents can be opened at
the same time, support for a separate shutdown, exit will not automatically
close the document;
The current reading of the document label with highlight;
Hide / show document tab bar by the button on top left;
Copyright © 2017 Onyx International. All rights reserved. 18 / 99
www.onyx-international.com
Tap middle column of the book content to pop up reading menu and status
bar;
Status bar contains: Back, Prev. / Next, Dictionary, TOC, Search;
Reading menu contains: Zoom in/out, Navigation, Notes, Rotation and more
settings.;
Zoom
To zoom in/out the page freely; Other zoom shortcuts are available: To width,
To page, Crop, Selection to zoom (reflow is not supported);
Navigation
To have options of manual cropingnumber of columns and reading order;
Notes

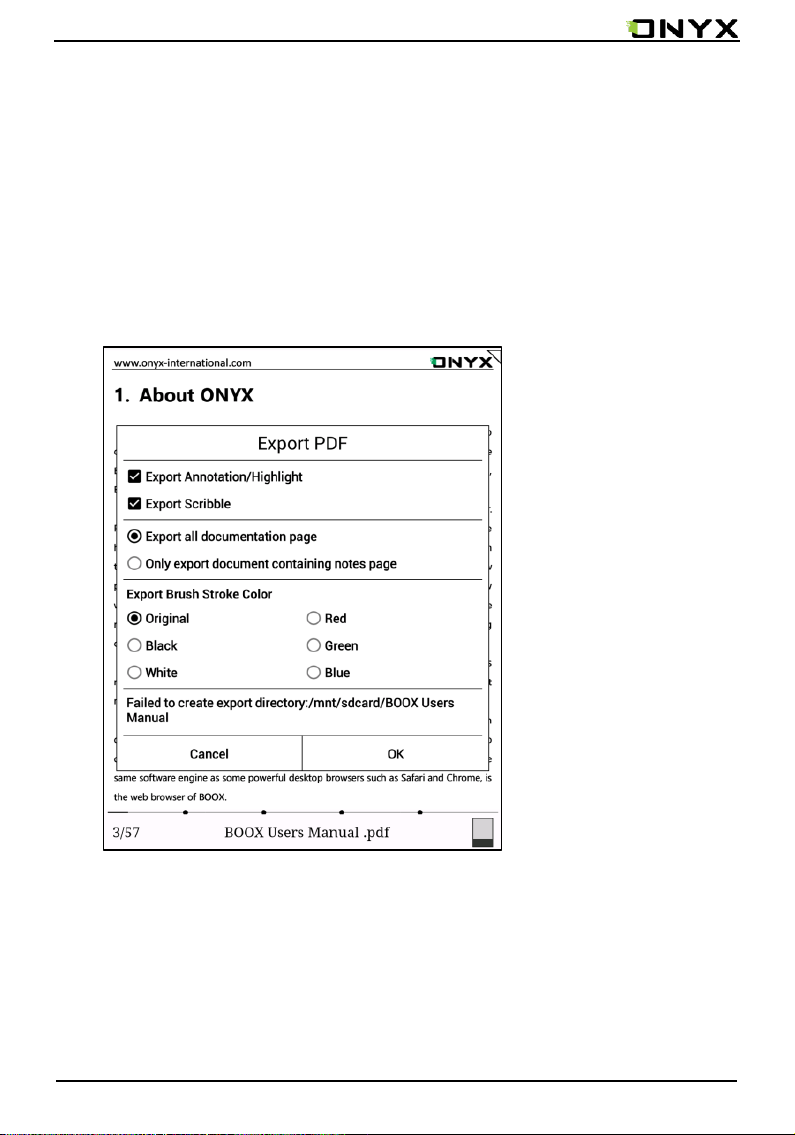

To check TOC, Bookmark, Annotation and export Annotation;
Rotation
Horizontal and vertical displays are available to choose;
Copyright © 2017 Onyx International. All rights reserved. 19 / 99
www.onyx-international.com
Prev. /Next
To view previous or next page quickly ;
Icon in grey means no further previous / next page available; Icon in dark
means more pages available;
Dictionary
When reading, long press on the word to pop up Dictionary dialog for
look-ups. Stardict\bg\mdict dictionary formats can be supported. Users can
download and install dictionary themselves. Put dictionary file on the path
root directory \dicts\xxx ( e.g root directionary\ dicts\ English-french) , or
download dictionary online directly. Dictionary is available to use after being
installed;
TOC (Table of Contents)
To access TOC page where user can switch between pages of Bookmark,
Notes, Scribble etc;
Copyright © 2017 Onyx International. All rights reserved. 20 / 99
www.onyx-international.com
Search
To search text within the book; To switch input type methods by long press
against Search Box;
Refreshment
Users can select screen refreshment rate by their preference. 3\5\7\9\30\50
refreshment rates are available to choose. Every 5 pages to refresh is set by
default;
Setting
Page margin, footer, time, navigation and dictionary for current content are
shown for setting.
Sidenotes
The current page can be split into two horizontally, the left side shows the
document contents, the right side is a blank handwritten pages, can do
handwritten notes.
Copyright © 2017 Onyx International. All rights reserved. 21 / 99
www.onyx-international.com
6.1 Table of Content
6.1.1 Table of Content
Pop up Reading menu by tapping the middle column of the screen when
reading. at the top menu is TOC. Tap it to go to TOC page where user can
switch between pages of Bookmark, Notes, Scribble etc;
TOC supports three list levels. Current level is underlined. Jump to the
corresponding page when tapping any of the level list;
Copyright © 2017 Onyx International. All rights reserved. 22 / 99
www.onyx-international.com
6.1.2 Bookmarks
Bookmark the reading page by simply tapping the right up corner of the
screen when reading. Tap it again to un-bookmark the page;
Bookmarks can be checked under the page of TOC-Bookmark, where users
can delete bookmarks.
Jump to the corresponding page by tapping any of the bookmarks;
Copyright © 2017 Onyx International. All rights reserved. 23 / 99
www.onyx-international.com
6.1.3 Notes
Long press on any words and drag to select contents /text you want to
copy, highlight, add notes to and look up dictionary;
Highlight is set default for selected text/content. Users can switch between
highlight and underline from menu\apps\screen\mark;
All annotations will auto-generate a file named filename–annotation.txt
and it will be saved in the path of the source file.
Copyright © 2017 Onyx International. All rights reserved. 24 / 99
www.onyx-international.com
 Long press to select the text, then choose “Annotation” to add notes;
Copyright © 2017 Onyx International. All rights reserved. 25 / 99
Exit
Export
TOC
Bookmark
Annotation
Scribble
www.onyx-international.com
All highlighted / underlined / annotated content/text would be listed under
the page of TOC-Notes for further searching, editing and deleting;
Jump to the corresponding page/ content by tapping any list;
All contents on Note page can be exported in txt format. Exported file is
saved under the same directory folder “Export”;
Copyright © 2017 Onyx International. All rights reserved. 26 / 99
Exit
Export
www.onyx-international.com
6.1.4 Scribbler Interface
pdf、djvucbrcbz formats support scribble mode. Users can write on top of
the text. All scribble history can be viewed under the page of TOC- scribble;
Jump to the corresponding page by tapping any page
All scribble contents can be exported in png format and saved under the
same directory folder “Export”;
Copyright © 2017 Onyx International. All rights reserved. 27 / 99
www.onyx-international.com
6.1.5 Look-Ups
Pop up dictionary to look up the corresponding texts/words by long press on
the texts / words. Chinese supports single character, phrases look-up;
Multiple dictionaries can be supported. Select the desired dictionary from the
drop-down list;
This function requires installation of dictionaries. Without installing
dictionaries, words cannot be looked up;
Exit the dictionary by tapping any blank area;
Copyright © 2017 Onyx International. All rights reserved. 28 / 99
www.onyx-international.com
6.2 Sidenotes
The current page can be split into two horizontally, the left side shows the
document contents, the right side is a blank handwritten pages, can do
handwritten notes.

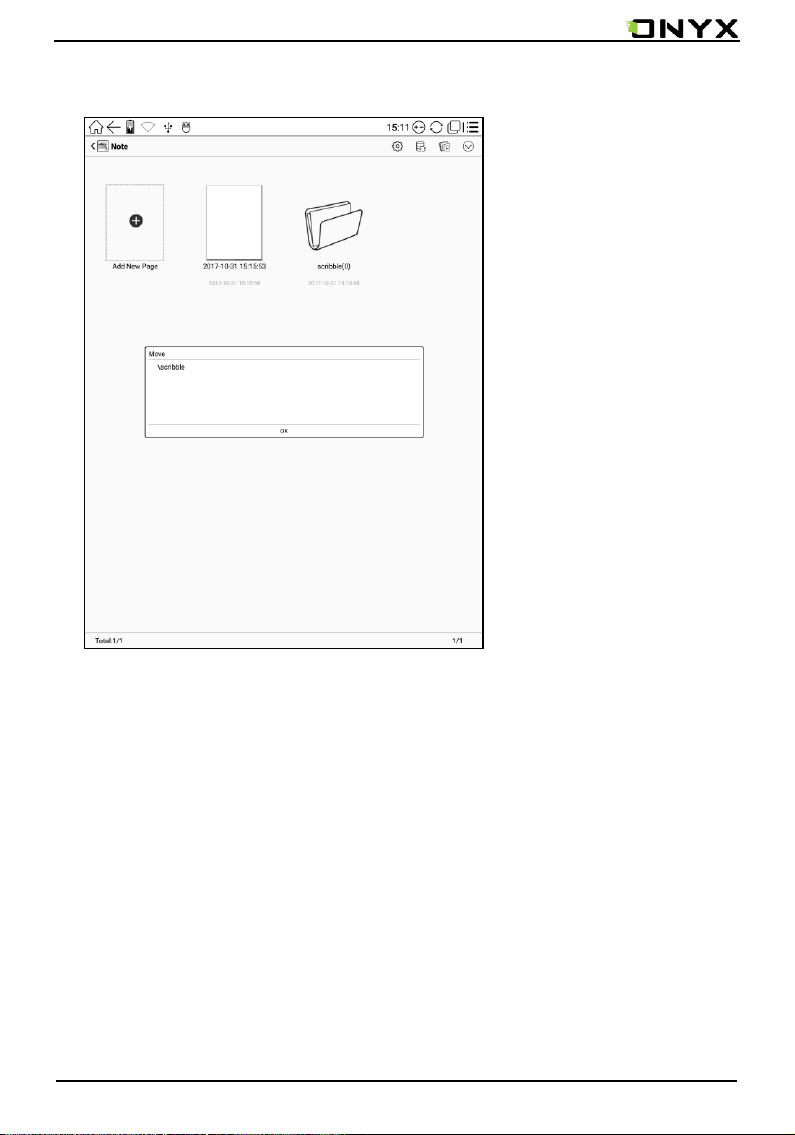

The handwriting function is the same as the notes App, you can create
multiple pages; the sidenotes page is associated with the current page .
When the document is exported as a PDF file, the sidenotes page is inserted
after the original page, for example, the current page is page 1, the sidenotes
page are inserted after page 1, the page number are marked as
page1-1/page1-2/page1-3, etc.
Copyright © 2017 Onyx International. All rights reserved. 29 / 99
www.onyx-international.com
In the document TOC list \ handwriting markup column, can display the
thumbnail of the sidenote pages, click directly to enter into the sidenote page,
continue to edit;
when the document with sidenote being exported as a PDF document, the
sidenote page insert directly as a new page after the original page;
Copyright © 2017 Onyx International. All rights reserved. 30 / 99
Loading...
+ 70 hidden pages
