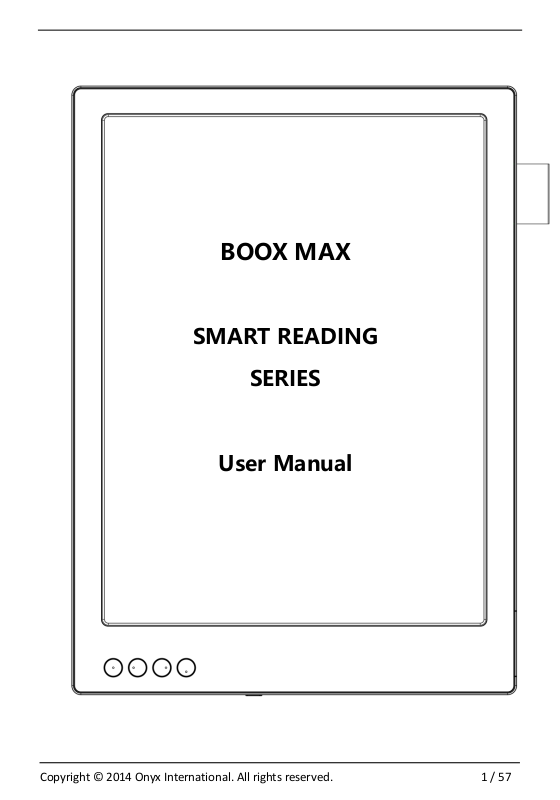

ONYX MAX User Manual

BOOX MAX

SMART READING

SERIES

User Manual

www.onyx-international.com

Table of Contents

1. About ONYX ............................................. 3

2. Standard Accessories .............................. 4

3. Safety Guide ............................................. 5

4. Product Views ........................................... 7

5. Interface Introduction .......................... 10

6. FAQ .......................................................... 50

7. Warranty ................................................. 52

8. Specifications ......................................... 55

9. Declaration .............................................. 57

www.onyx-international.com

1. About ONYX

BOOX is presented by Onyx International, which has a group of professionals who

dedicate themselves in designing state-of-the-art reading terminal. The beauty of the

BOOX is embodied in both its simplicity and its power. As we are going to show you,

BOOX is an open and flexible platform for both consumers and content providers.

BOOX is powered by a 16-level grayscale e-ink screen that looks and feels like paper.

Passive lighting and diffuse surface relax your eyes and reduce eye strain. By the

hand-writing system, you can take notes while reading and sketch up ideas that happen

to emerge. BOOX takes full advantage of new-generation e-ink screens: extremely low

power consumption without reflection and backlight. Each full charge can sustain a few

weeks' reading. By reducing paper consumption while providing a realistic paper-like

reading experience, digital content helps to protect the environment without sacrificing

convenience or life style.

For content partners, we also provide support for custom formats and digital rights

management solutions. All of our viewers have standard features such as layout

management, font adjustment, full text search, zooming, and page flow.

For a next-generation information device, connectivity is essential. The user can

connect to the Internet by build-in Wi-Fi, 3G module or other add-on modules to

download new content or surf the web. Customized for the e-ink screen, WebKit, the

same software engine as some powerful desktop browsers such as Safari and Chrome, is

the web browser of BOOX.

BOOX gives you a new reading experience.

www.onyx-international.com

2. Standard Accessories

Included in the Box：

1. BOOX MAX Reader x1

2. Stylus Pen x1

3. USB Cable x1

4. Quick Start Guide x1

5. Warranty Sheet x1

6. Protective Cover x1

Optional Accessories（Purchased separately）

1. Adapter

2. Stereo headphone

www.onyx-international.com

3. Safety Guide

Please read the Safety Guide carefully before you start to use the device.

Contact your BOOX retailer if you have any technical problem; or you can dial

our official service line at 4008-860-830 .

Screen protection

The device is equipped with Eink screen, which is very fragile. Please

have no shocking, squeezing, pressing against the screen, or dropping the

device from higher place. If the screen is already broken, stop using it and

contact the professional or other qualified staff to replace the screen for you.

Please don’t dismantle the device without our permission;

www.onyx-international.com

Standard accessories

Only the battery, adapter, and other accessories meeting our

standard safety rules can be used for the device. For details, please refer to

Product Specification. We will not be responsible for any damage caused by

incompatible accessories;

Stay away from liquids

The device is not waterproof. Don’t expose the device to humid

environment or use it in the rain. Please keep it away from any corrosive liquids;

Don’t dismantle the device

Please don’t dismantle the device in case of any damage ;

Using environment

The using environment of the device is 0°C-50°C ;

MENU

BACK

PREV.

www.onyx-international.com

4. Product Views

Front View

Speaker

Power

Audio

Jack

Micro USB

Slot

Micro SD

Card Slot

MIC

www.onyx-international.com

Back View

Bottom View

Power/

Standby

Button

 Press the power button to turn on the device  Press the power button and hold for 2 seconds to turn off the

device. Or select “Power off”in the menu to turn off the device.

 Press the power button and release quickly to let the device go

standby or wake up.

 Press the power button for 8-10 seconds to reset your device ,

then press it quickly to restart .

Menu Button

 Press the menu button to pop up the menu.  Same as the function that tapping the menu icon on screen

Back Button

 Exit the current apps;  Exit the current view or dialog;  Go back to previous directory

Next Button

 Turn to next page when reading or viewing files;

Prev Button

 Turn to previous page when reading or viewing files;

Mic

 Recording voice

Audio Jack

 Diameter of the audio jack is 3.5mm

SD Card Slot

 Insert MicroSD card to read the content on MicroSD card

USB Slot

 Connect the device with PC to transfer data or recharge.

www.onyx-international.com

Button Function

Status Bar

Now Reading

Recently Added

Function Area

www.onyx-international.com

5. Interface Introduction

5.1 Main Interface

The main interface contains “Status Bar”, “Now Reading”, “Recently Added”and “Function Area”.

www.onyx-international.com

Status Bar

This section displays the current state of the device, including: home icon, battery

usage, notification, time, A2 mode on/off, Setting etc；

 A2 mode refreshment

Two-grey level refreshment mode is good for fast refreshment of text page. It enables fast pageturn, no screen flashing and less ghost background. When A2 mode is on, reading articles with images, graphics, texts mixed are not suggested because of blur image would occur.

When A2 is on：

When A2 is off：

Now Reading

The information of recently read books is displayed in this section, including book

cover, book title, author, page number, last read time, reading progress etc；

Tap book cover or book title can open the books and enter the page read recently. Only those read books can display book covers while those unread books shall

display BOOX cover by default；

www.onyx-international.com

Recently Read/Recently Added

The newly added books will be listed here chronologically. Slide the screen or press

the prev/next button to turn pages.

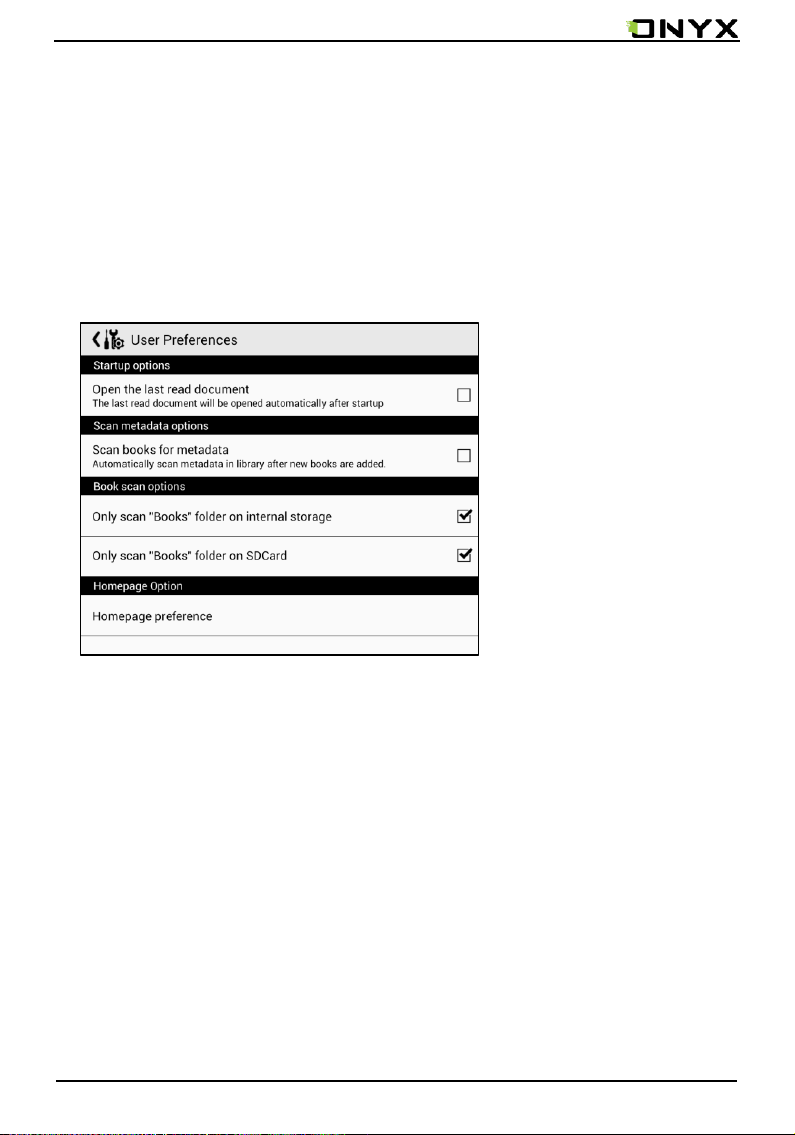

Users can switch into “Recently Added”through “system—user preferences—homepage options”, then it will display the book list added recently.

Function Area

This section displays some frequently used function icons, including Library, Storage,

Apps, Setting, Browser.

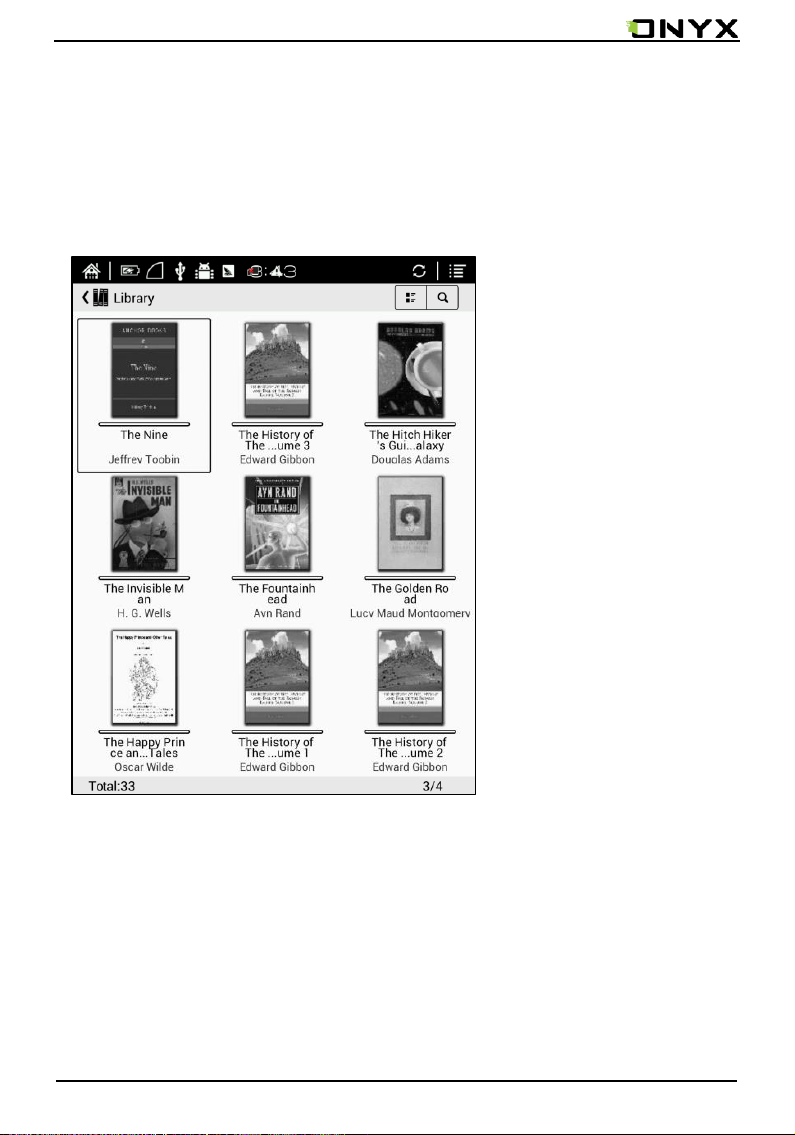

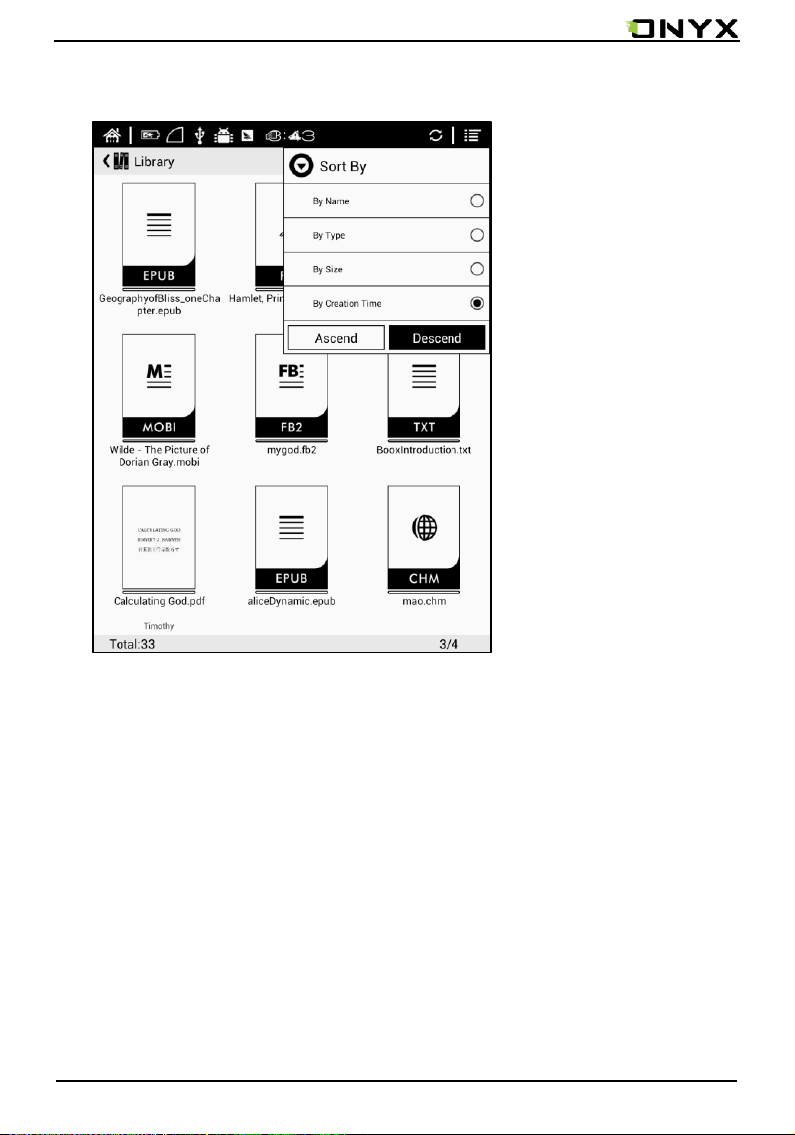

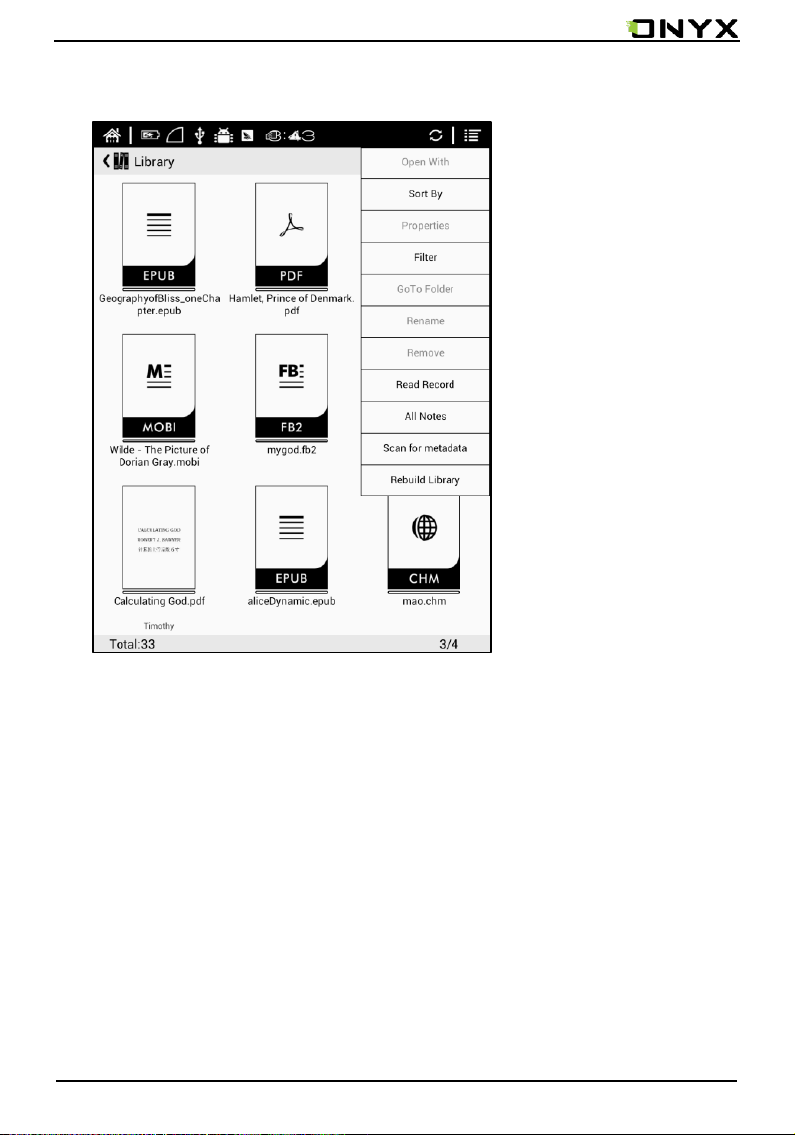

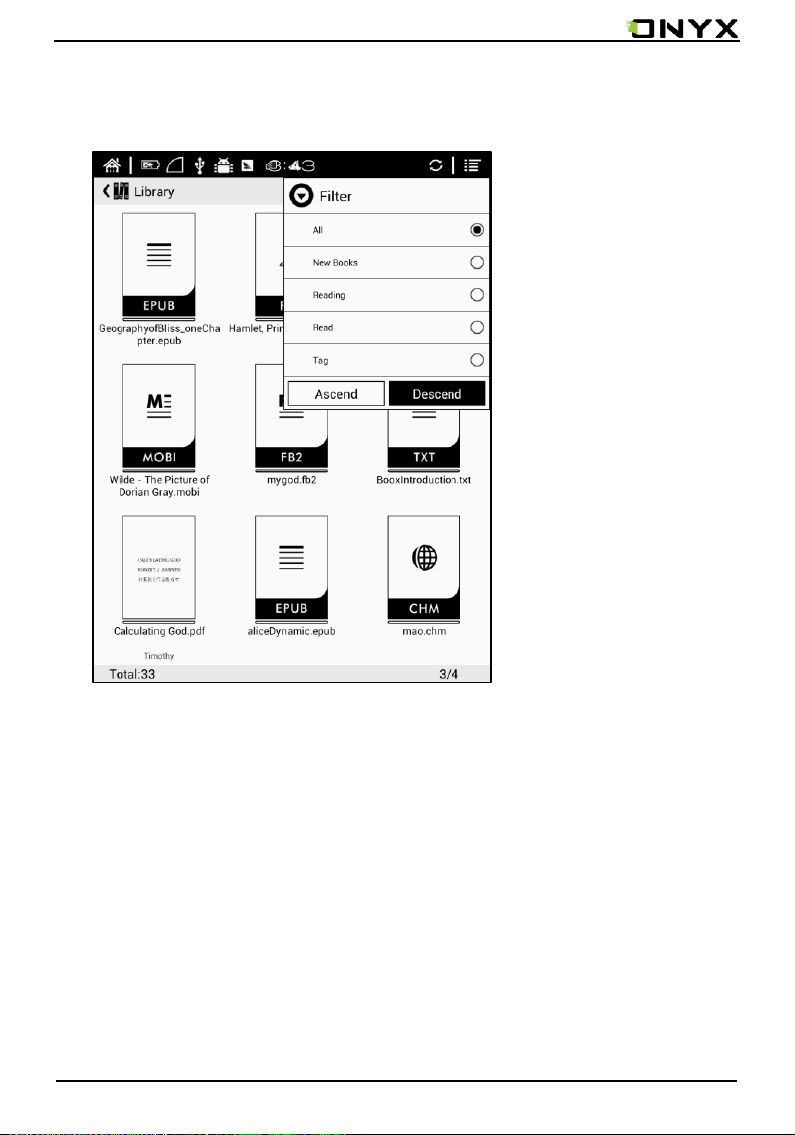

 Library

All books supported by the device will be displayed here, including books from

local storage and MicroSD card. Users can choose “Scanning”through Setting-System-User Preference to display all books supported by the device in directory “Books”including books from local storage and MicroSD card.

www.onyx-international.com

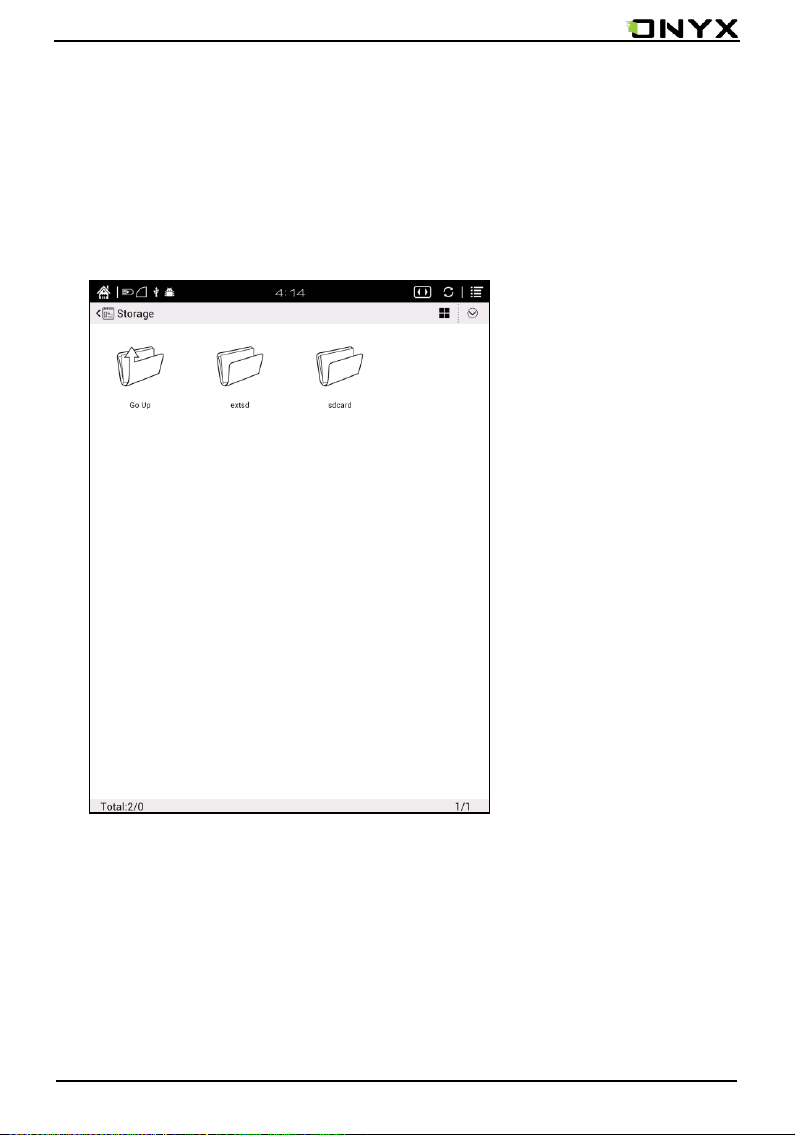

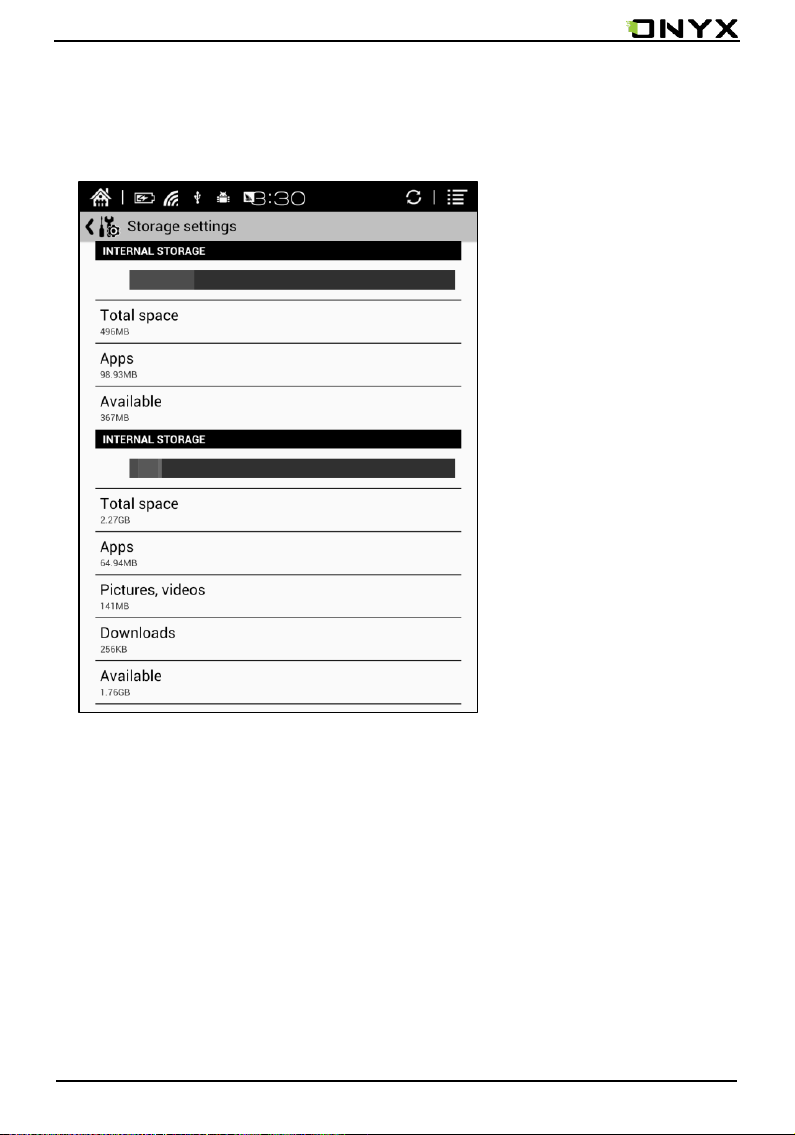

 Storage

It displays all files both from local storage and MicroSD card. Users can manage

all files by customized folders to manage books, apps and other files.

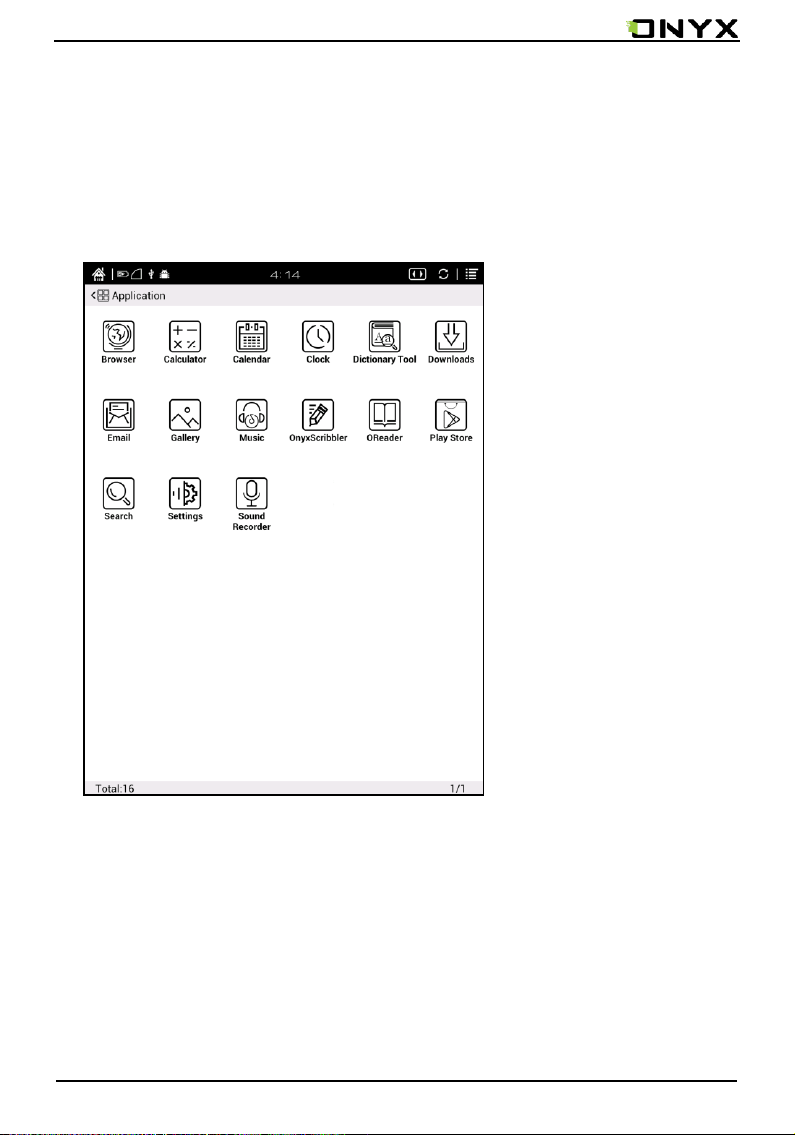

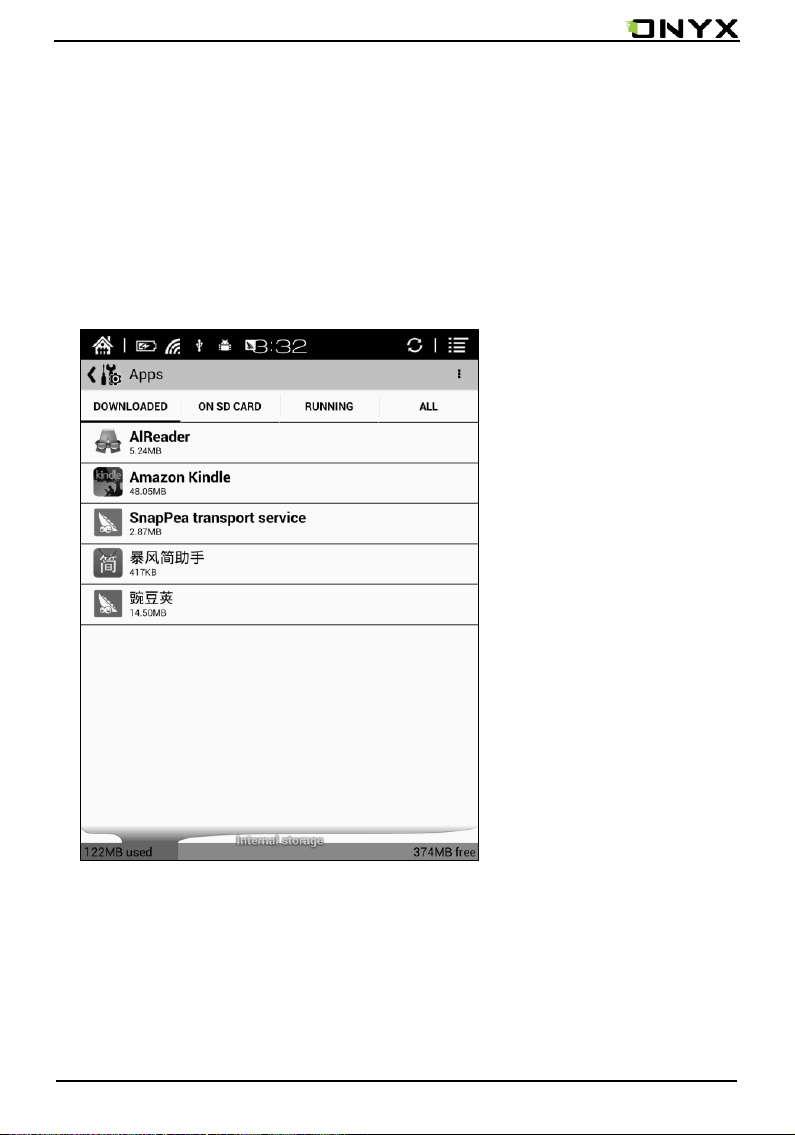

 Apps

Going to Apps lists page, users can manage or uninstall the apps.

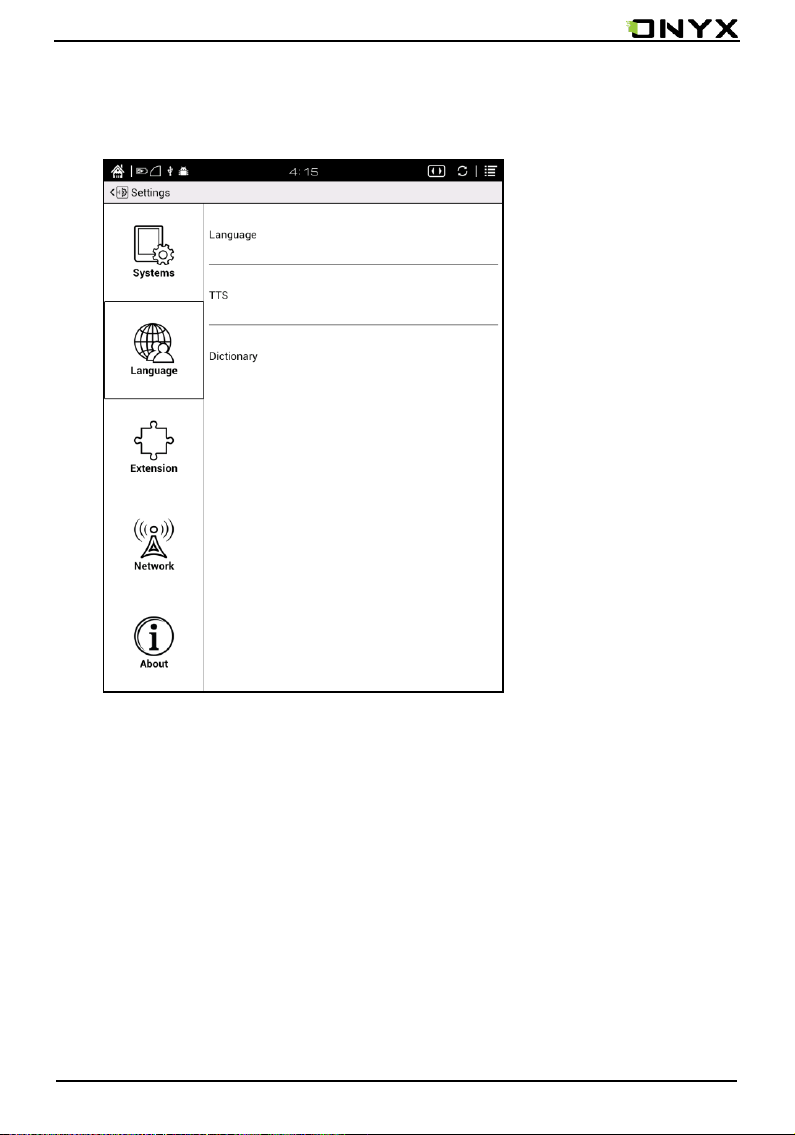

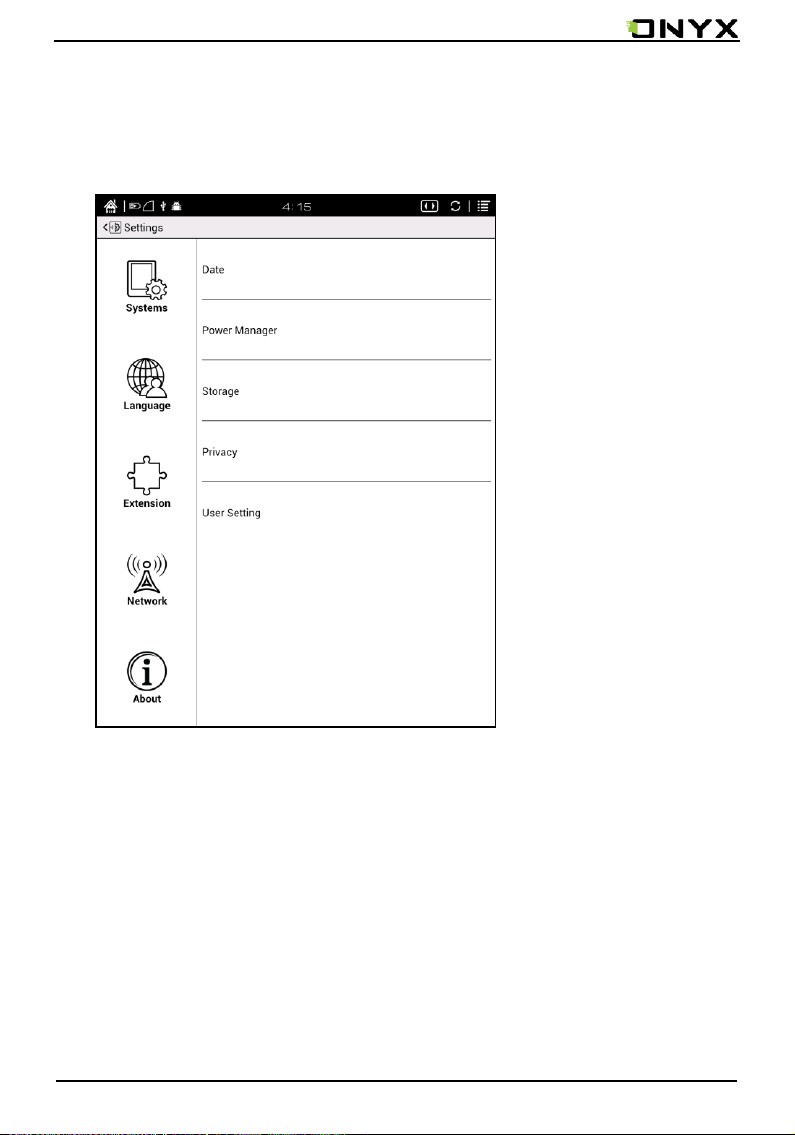

 Setting

Going to setting interface, users can manage the settings for all items.

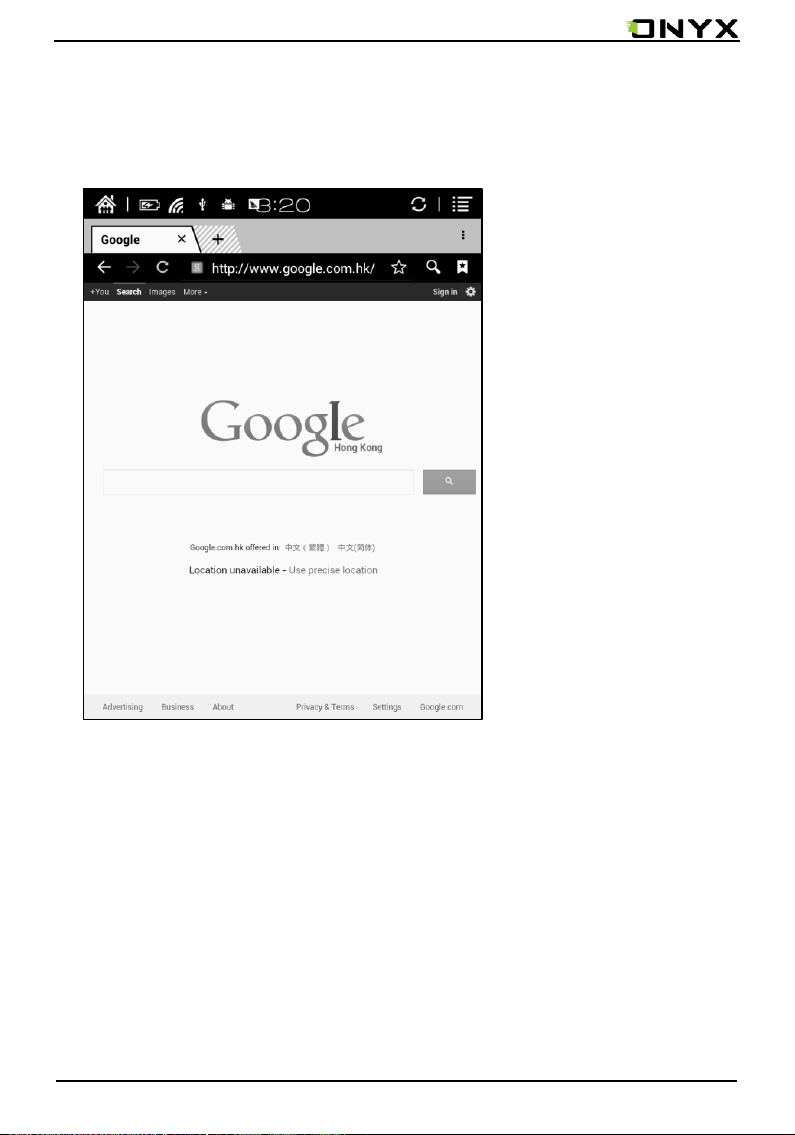

 Browser

When WiFi is on, users can browse webs or download files from internet via

Browser.

www.onyx-international.com

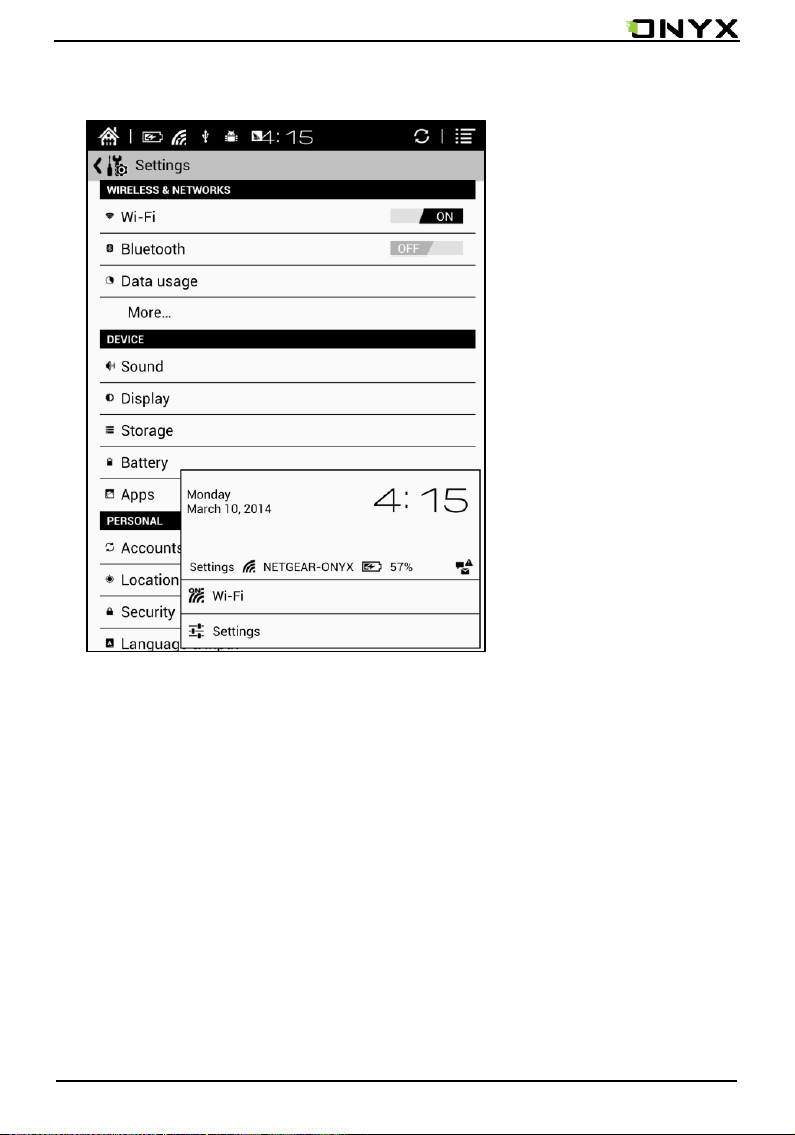

5.2 Notification Interface

Tap battery usage site on the right of the Status Bar to pop up Notification board; Press

Back button or tap Home icon can exit.

Notification page contains: WiFi setting, date, volume control, setting, and other new

msg notice etc;

www.onyx-international.com

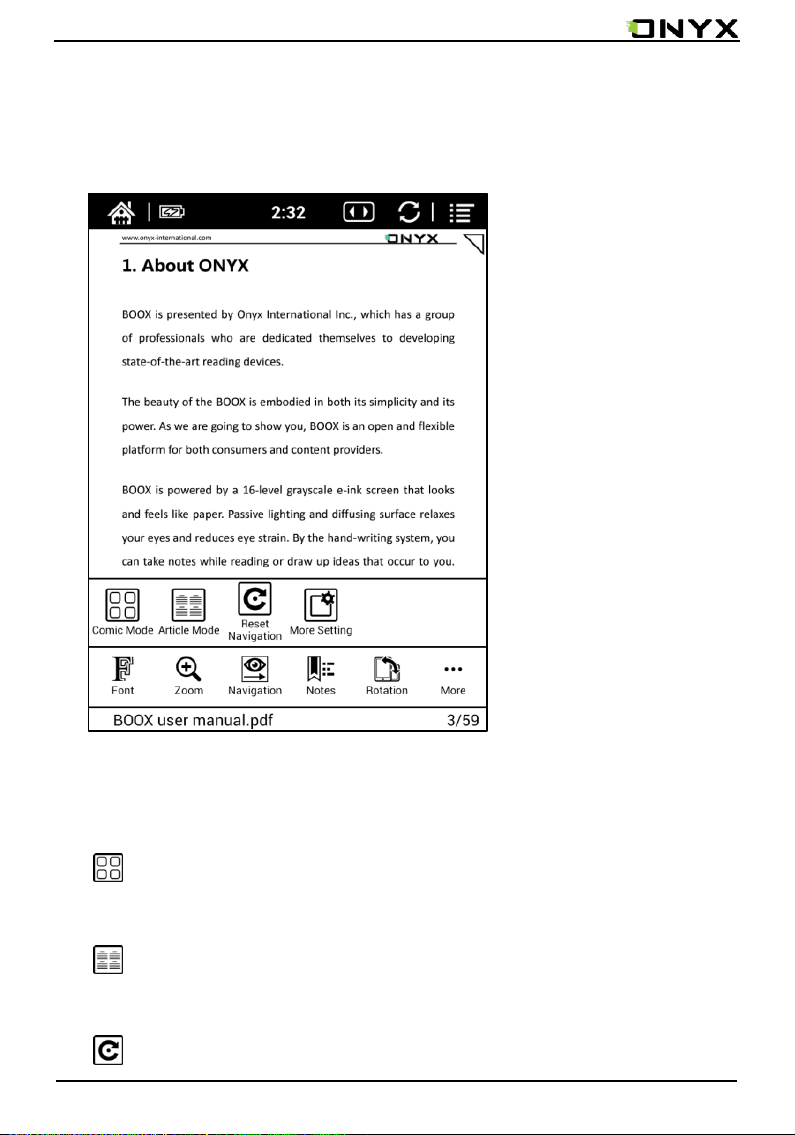

5.3 Reading Interface

Tap any book cover to go into reading interface. Only

book content and page number are displayed here. Page

number area includes page number, prev/next and current

time.

Tap the middle area of the screen or menu button to pop up reading menu and

status bar;

Reading menu contains: fonts, zoom, directory, rotation, TTS, dictionary, search,

refreshment, pagination view, setting etc ;

www.onyx-international.com

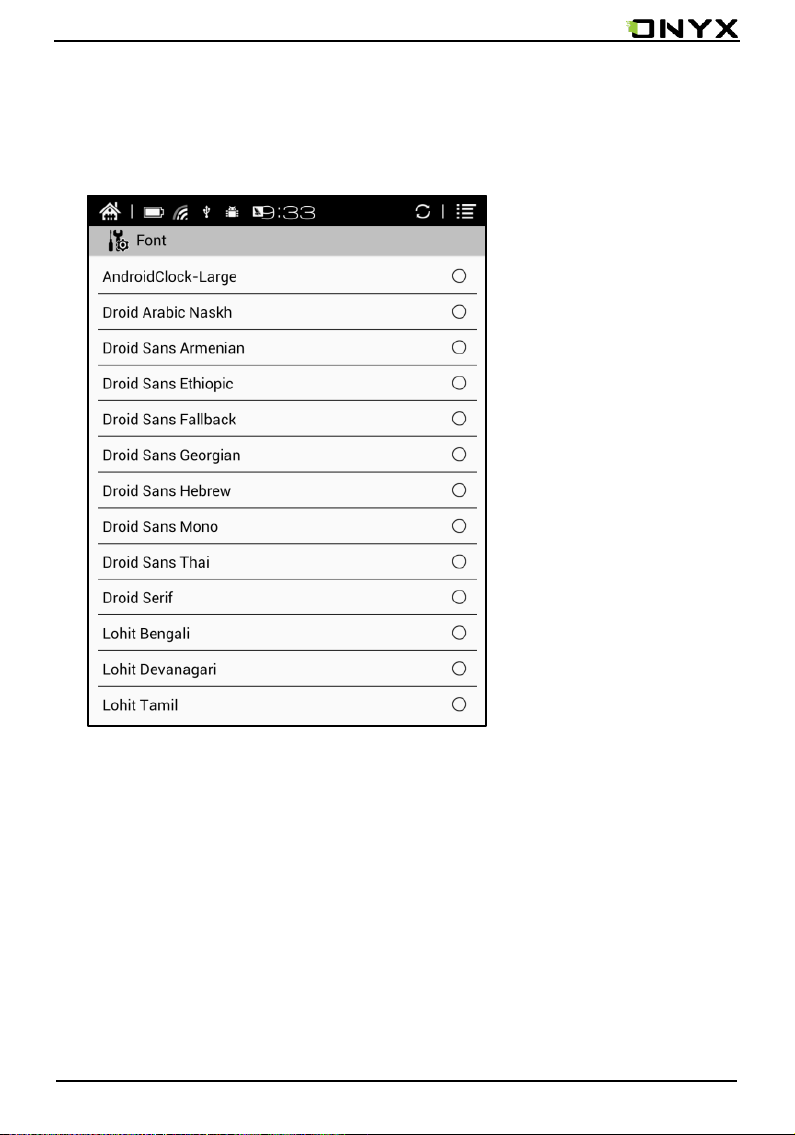

Font

Fonts can be adjustable (reflow mode is supported): font size, bold type, font

change(only some formats supported), spacing(only some formats supported) etc;

Zoom

User can zoom in/out the page freely; Other zoom shortcuts are available: To width,

To page, Crop, Selection to zoom; Reflow mode is not supported.

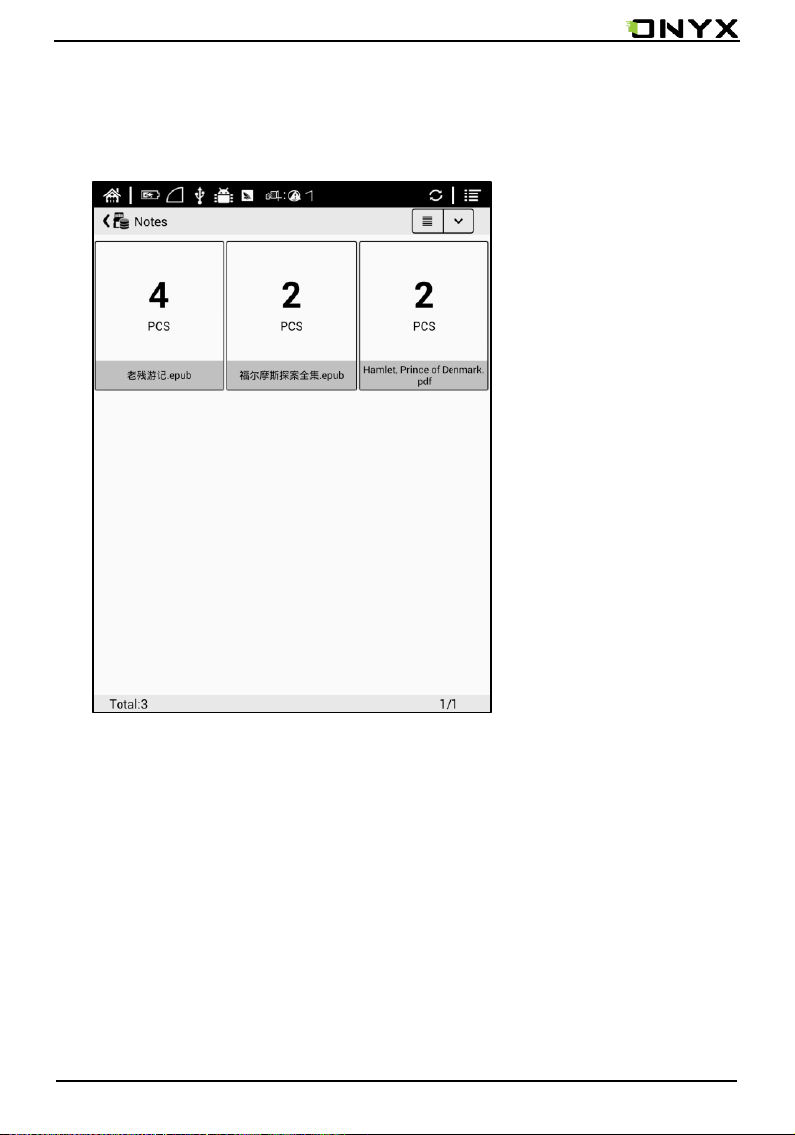

Notes

TOC, Bookmark, Annotation can be checked here;

Rotation

Users can select the direction of the screen display;

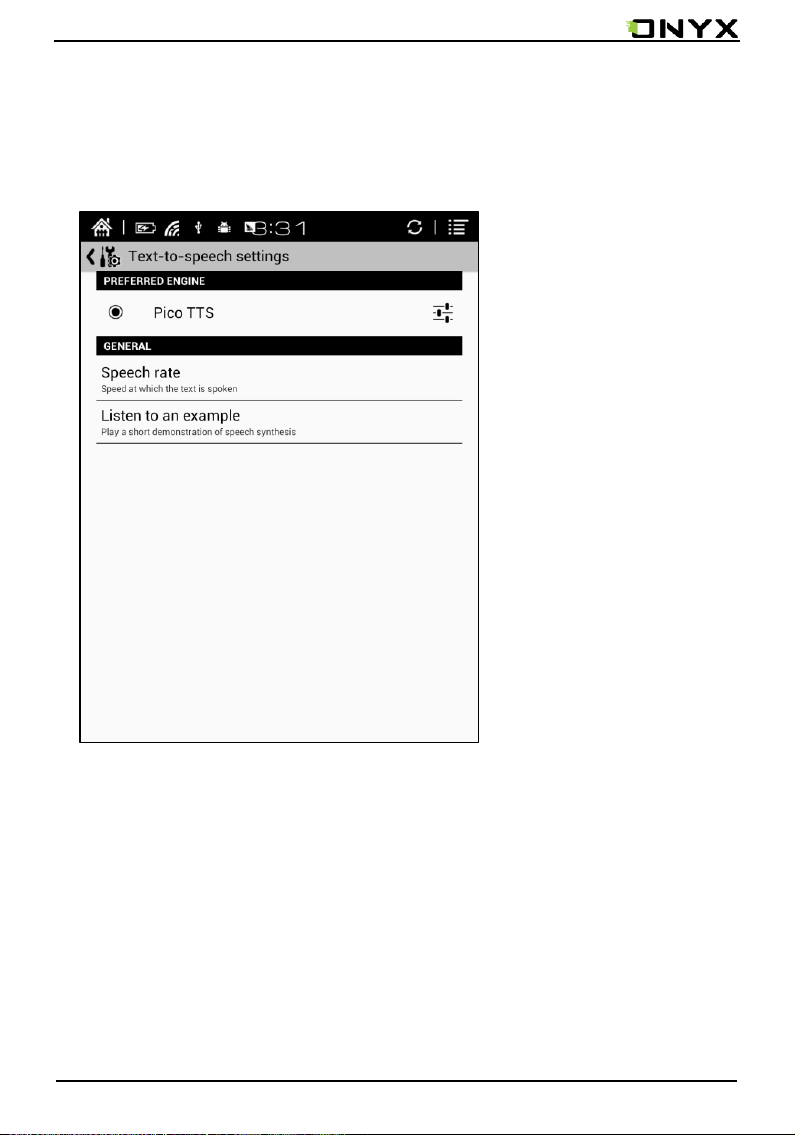

TTS

TTS is available for part of the documents.

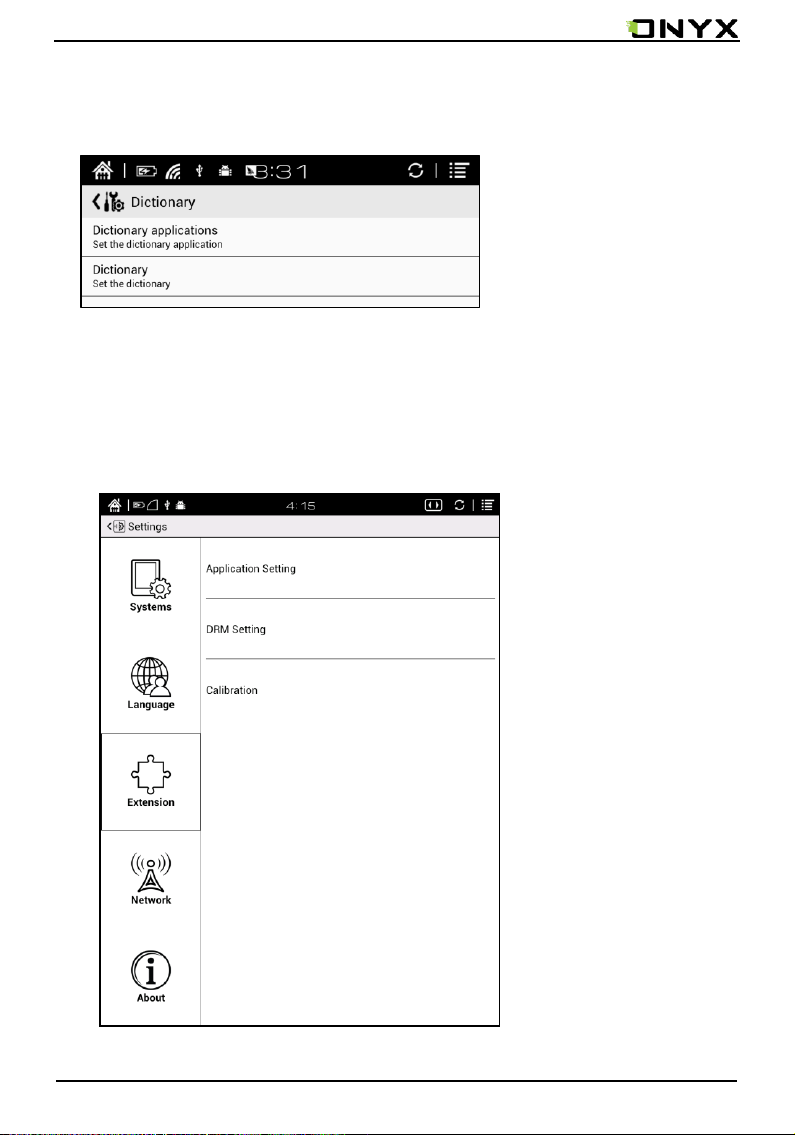

Dictionary

Long press the content can pitch up words to pop up the dictionary. Stardict can be supported. Users can download Stardict dictionary and put it into folder“dictionary” on MicroSD card, then the dictionary can be used when reading;

www.onyx-international.com

Search

User can search the targeting texts; Long press the input box can change input method;

Refreshment

Users can select screen refreshment rate by their preference, including full refreshment, 3/5/7/9 pages refreshment and never full refreshment. Every 7 pages to refresh is system default;

Setting

Page margin, footer, time, navigation and dictionary for current content can be set.

www.onyx-international.com

Scribbler Interface

In Menu-notes-scribbler , user can use scribble annotation (only support PDF format), this interface including stroke thickness, color, eraser, pages move ,etc;
