INSTALLATION MANUAL
3MP IP INTERIOR/EXTERIOR
DOME CAMERA: IPFD3TI
Please read this manual thoroughly before use and keep it handy for future reference.
Page 2
2
Page 3
3
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY
METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER
OPENNINGS ON THE EQUIPMENT.
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK).
NO USER-SERVICABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
EXPL A N A T I ON OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of dangerous voltage within the products
enclosure that may be of sufficient magnitude to constitute a risk of electric shock
to persons.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing) instructions
in the literature accompanying the product.
Page 4
4
FCC COMPLIANCE STATEMENT
CE COMPLIANCE STATEMENT
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
WARNING
This is a Class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil nume
`
rique de la classe A est conforme a
´
la norme NMB-003 du
Canada.
CAUTION: Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
FCC INFORMATION: This equipment has been tested and found to
comply with the limits for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference
at his own expense.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Page 5
5
IM P O R T A N T SAFETY INSTRUCTIONS
1.
Read these instructions.
2.
Keep these instructions.
3.
Heed all warnings.
4.
Follow all instructions.
5.
Do not use this apparatus near water.
6.
Clean only with dry cloth.
7.
Do not block any ventilation openings, Install in accordance with the manufacturers in-
structions.
8.
Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9.
Do not defeat the safety purpose of the polarized or grounding-type plug, A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and
a third grounding prong. The wide blade or the third prong are provided for your safety, If
the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10.
Protect the power cord from being walked on or pinched particularly at plugs, conve-
nience receptacles, and the point where they exit from the apparatus.
11.
Only use attachments/accessories specified by the manufacturer.
12.
Use only with the cart, stand, tripod, bracket, or table specified
by the manufacturer, or sold with the apparatus. When a cart is used.
Use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13.
Unplug this apparatus during lightning storms or when unused for
long periods of time.
14.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
15.
CAUTION THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED
SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT
PERFORM ANY SERVICING OTHER THAN THAT CONTAINED IN THE OPERATING INSTRUCTIONS UNLESS YOU QRE QUALIFIED TO DO SO.
16.
Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class 2 power
source onl y.
17.
ITE is to be connected only to PoE networks without routing to the outside plant.
Page 6
6
Contents
1
Introduction 6
1.1 Components
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.2
Key Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2
Installation 8
2.1
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2
Installing Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.3
Connection........................................................................................................................13
2.4
Resetting to the factory default settings.......................................................................14
A Appen dix 15
A.1 Product Specification.......................................................................................................15
Page 7
7
1
Introduction
This installation manual applies to the IPFD3TI network camera.
The network camera is fully featured for security surveillance and remote monitoring needs.
It is based on the DSP compression chip, and makes it available on the network as real-time,
full frame rate Motion JPEG and H.264 video streams.
The alarm input and alarm output can be used to connect various third party devices, such
as, door sensors and alarm bells.
1.1
Components
This system comes with the following components;
Dome Camera 1
Installation Guide/CD 1
Drilling Guide Label 1
Accessory Kit 1
Note 1. Check your package to make sure that you received the complete system, includ-
ing all components listed above.
Note 2. Adapter for DC 12V is not supplied.
Page 8
8
1.2
Key Features
•
Brilliant video quality
The network camera offers the highly efficient H.264 video compression, which drastically reduces bandwidth and storage requirements without compromising image quality. Motion JPEG is also supported for increased flexibility.
•
Wide Dynamic Range
The network camera provides digital WDR (Wide Dynamic Range) that improves video
exposure quality in scenes with high contrast between bright and dark areas in the
video, for example a shady area and a sunny area in the same scene.
•
Dual or Triple Streams
The network camera can deliver dual or triple video streams simultaneously at full
frame rate in all resolutions up to 3MP (2048 x 1536p) using H.264 and Motion JPEG.
This means that several video streams can be configured with different compression
formats, resolutions and frame rates for different needs.
•
Intelligent video capabilities
The network camera includes intelligent capabilities such as enhanced video motion
detection. The network cameras external inputs and outputs can be connected to devices such as sensors and relays, enabling the system to react to alarms and activate
lights or open/close doors.
•
Improved Security
The network camera logs all user access, and lists currently connected users. Also, its
full frame rate video can be provided over HTTPS.
•
PoE ( P o wer over Ethernet)
This network camera can be powered through PoE (IEEE802.3af), which simplifies
installation since only one cable is needed for carrying po wer, as well as video controls.
•
ONVIF Certificate
This is a global interface standard that makes it easier for end users, integrators, consultants, and manufacturers to take advantage of the possibilities offered by network
video technology. ONVIF enables interoperability between diffe rent vendor products,
increased flexibility, reduced cost, and future-proof systems.
•
Micro-SD Recording support
The Network Camera also supports a micro-SD memory slot for local recording with
removable storage of type SDHC and SDXC.
•
Audio support
The Network Camera also supports two-way audio.
Page 9
9
2
Installation
For the operation of the Network Camera, it is necessary to connect a network cable for
data transmission, power connection from supplied power adapter. Depending on operation
methods, it is possible to connect an alarm cable additionally. For its fixation on different
locations, please consult with an installer.
2.1
Overview
•

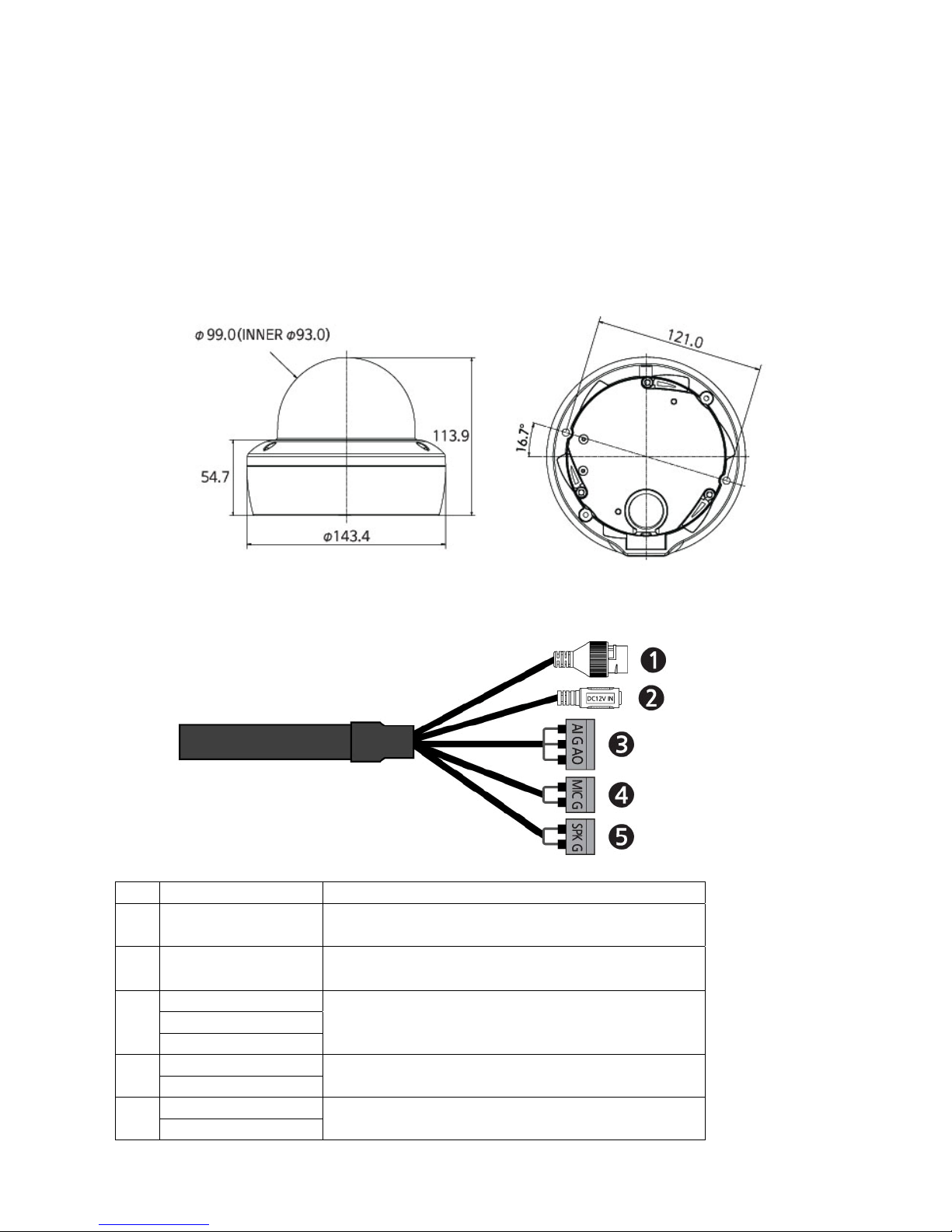

Dimension
•
Extension Cable
NO Item Description
1
RJ-45
Ethernet, RJ-45 port compatible
with 10/100Mbps PoE Modular Jack
2
DC Jack
Main Power, DC Jack, DC12V
AI: Alarm In
G: GND
3
AO: Alarm Out
Alarm input and output, 3pin terminal
MIC: Audio In
4
G: GND
Audio line input, 2pin terminal
SPK: Audio Out
5
G: GND
Audio line output, 2pin terminal
Page 10
10
2.2
Installing Camera
Carefully remove the contents from the box, and verify that nothing was damaged in shipment.
•
Surface Type
1.

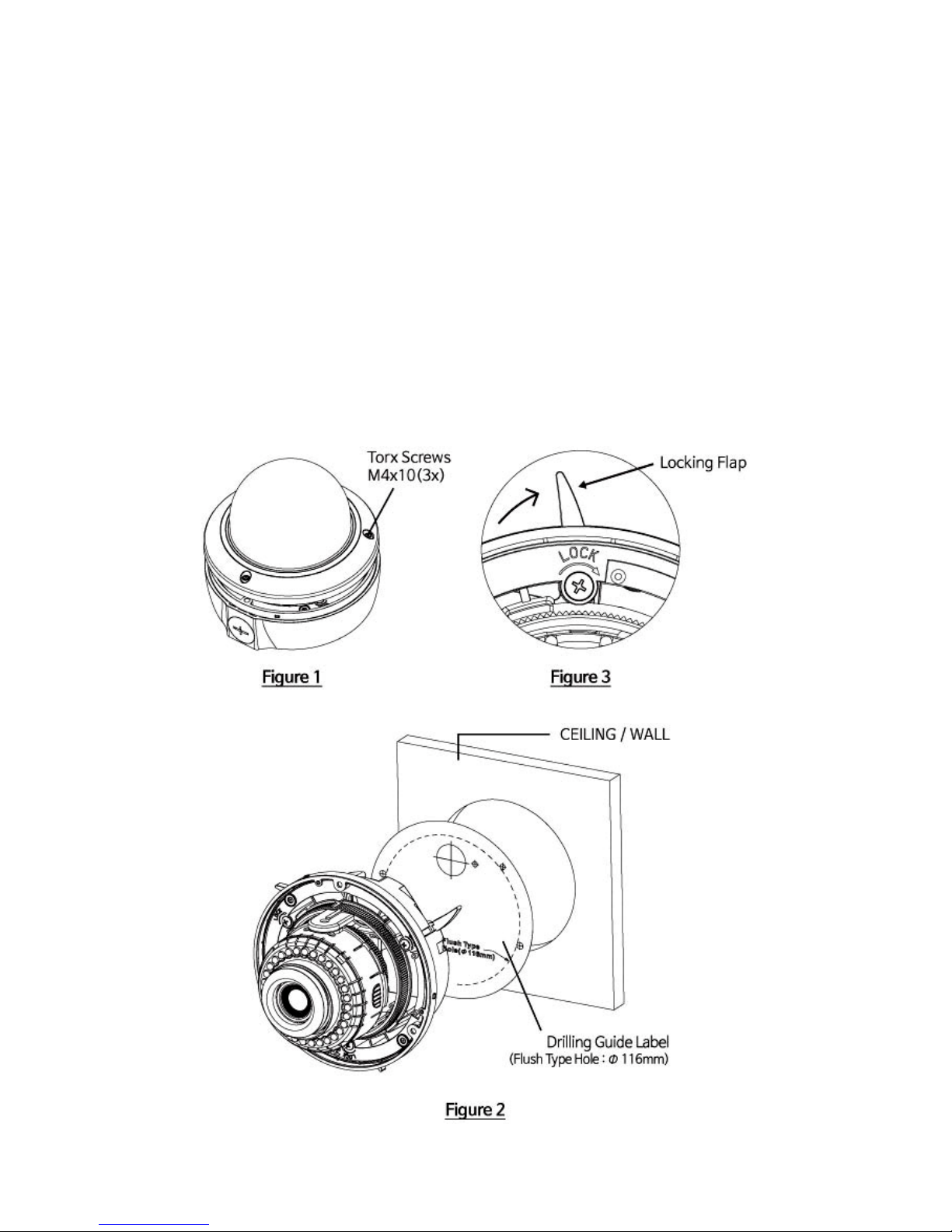

Loosen the three torx screws located midway up the front of the housing, leave the
screws intact in the front portion (Fig. 1)
2.

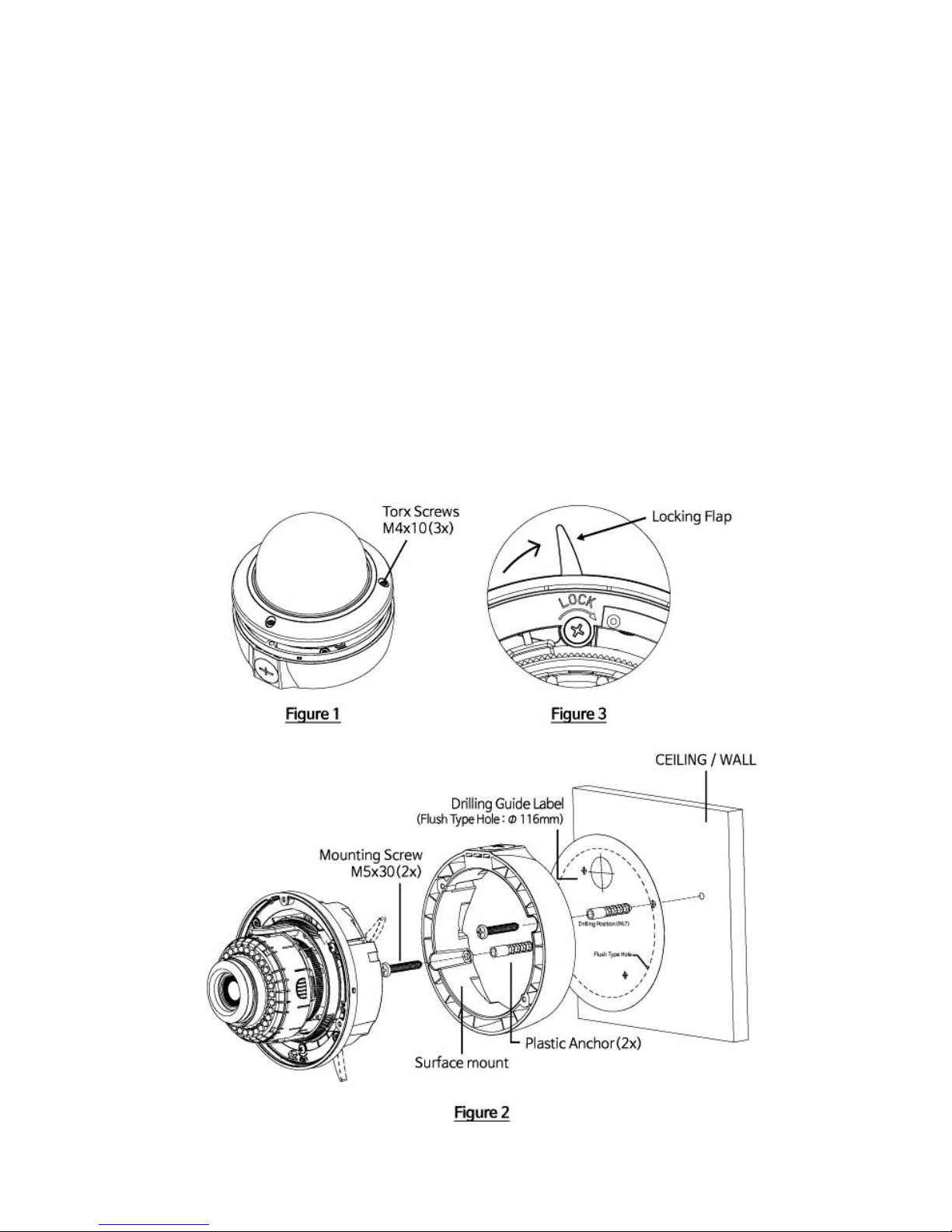

Drill the mounting location using the supplied Drilling Guide Label. (Fig. 2)
3.
Attach the surface Mount to the ceiling or wall using suitable fasteners. The supplied
M5x30 tapping screws are used only if they are applicable. (Fig. 2)
4.

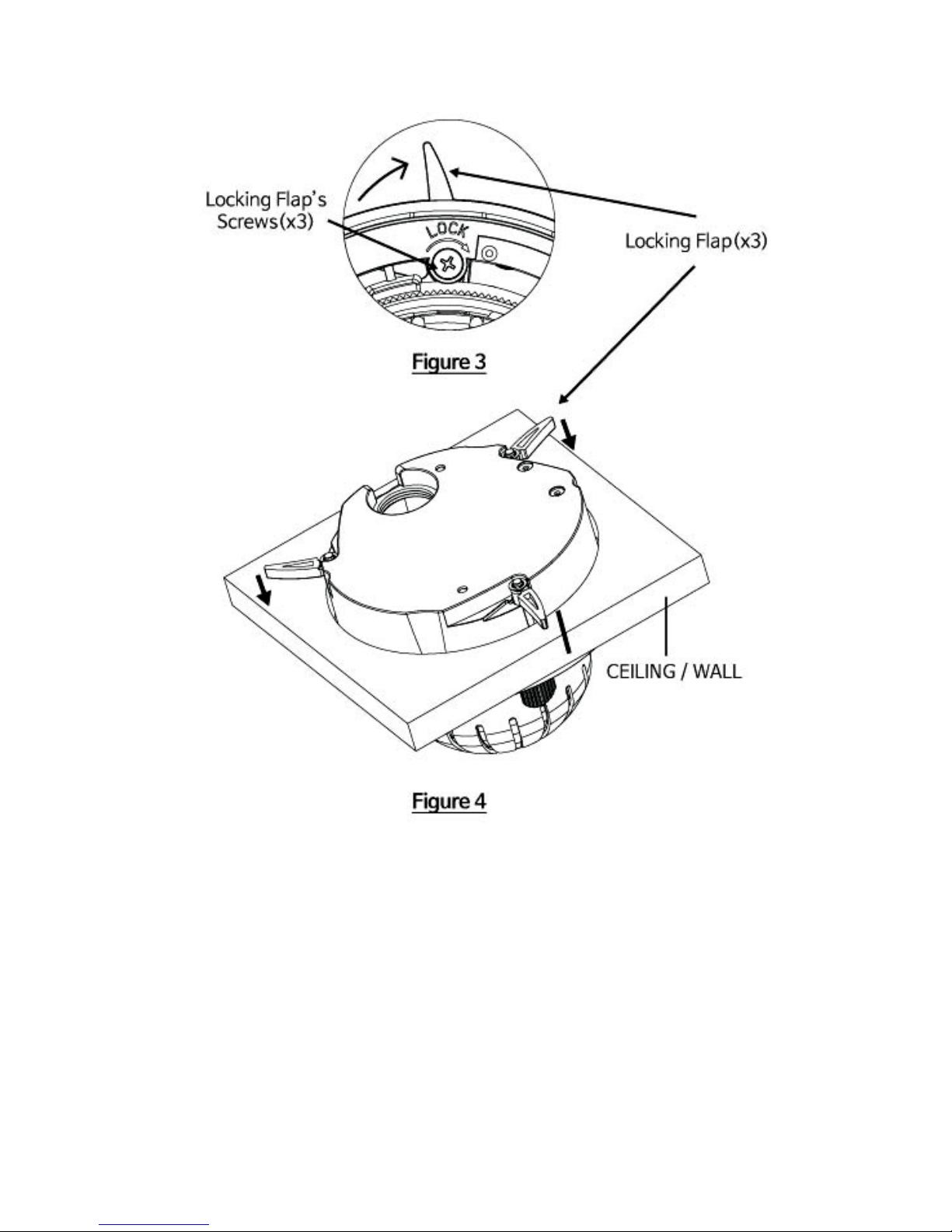

Insert the bottom case into the surface mount and turn the locking flap to fasten the
bottom case to the surface mount using 3 screws. (Fig.3, Fig. 4)
5.
Close the housing by fastening three torx screws.
Page 11
11
Page 12
12
•
Flush Type
Note: The ceiling tile must be thicker than 0.15inch (37mm)
1.
Loosen the three torx screws located midway up the front of the housing, leave the
screws intact in the front portion (Fig. 1)
2.
Remove the ceiling tile from the ceiling. Draw a circle whose diameter is 116mm on
the tile (You can user carton with a hole). Cut the circle out of the ceiling tile. (Fig. 2)
3.

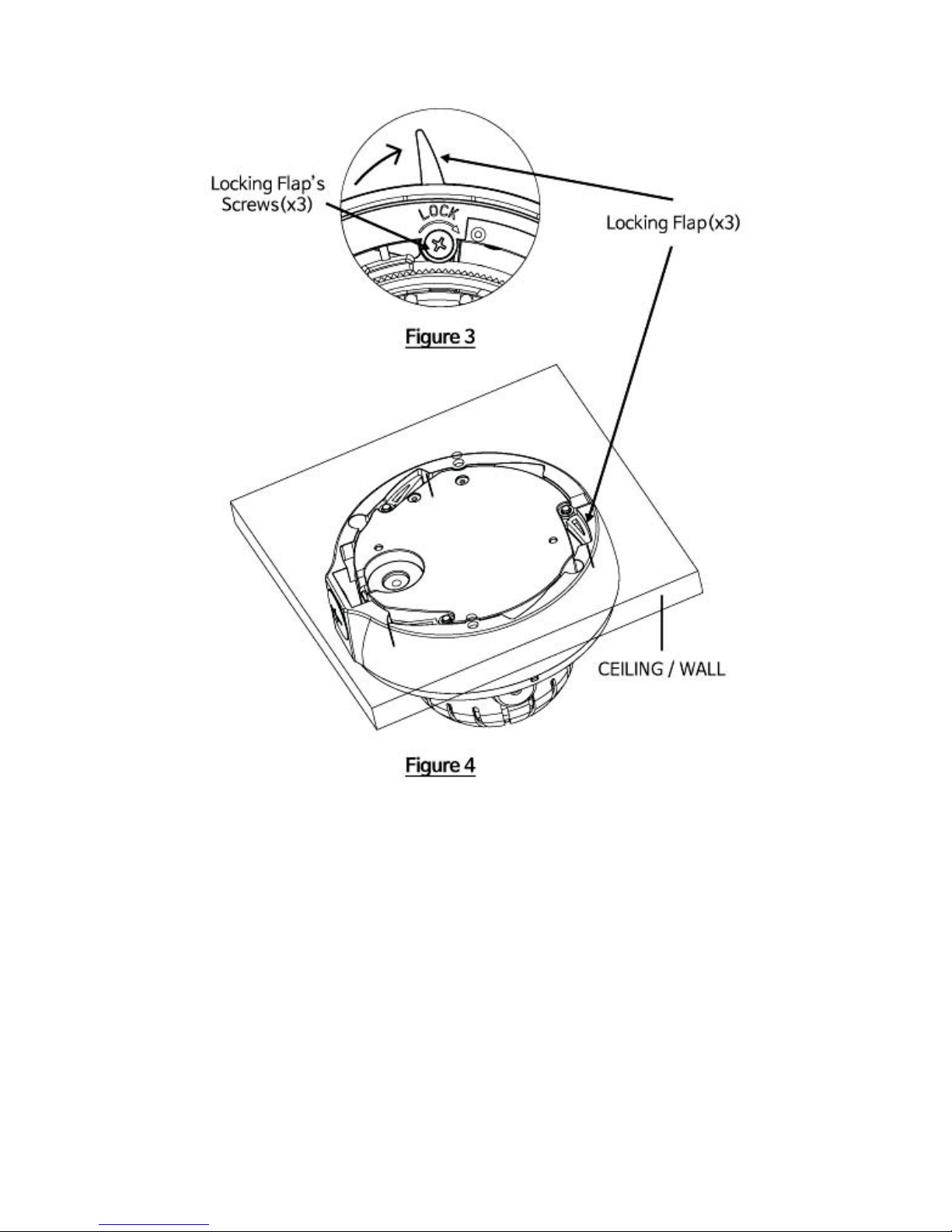

Insert the bottom case into the ceiling tile and turn the locking flap to fasten the bottom
case to the ceiling tile using 3 screws. (Fig.3)
Note: When installing the camera flush with the ceiling, three locking flaps hold firmly
which makes it easy to install. (Fig. 4)
4.
Close the housing by fastening three torx screws.
Page 13
13
Page 14
14
2.3
Connection
•
Micro SD memory card insertion

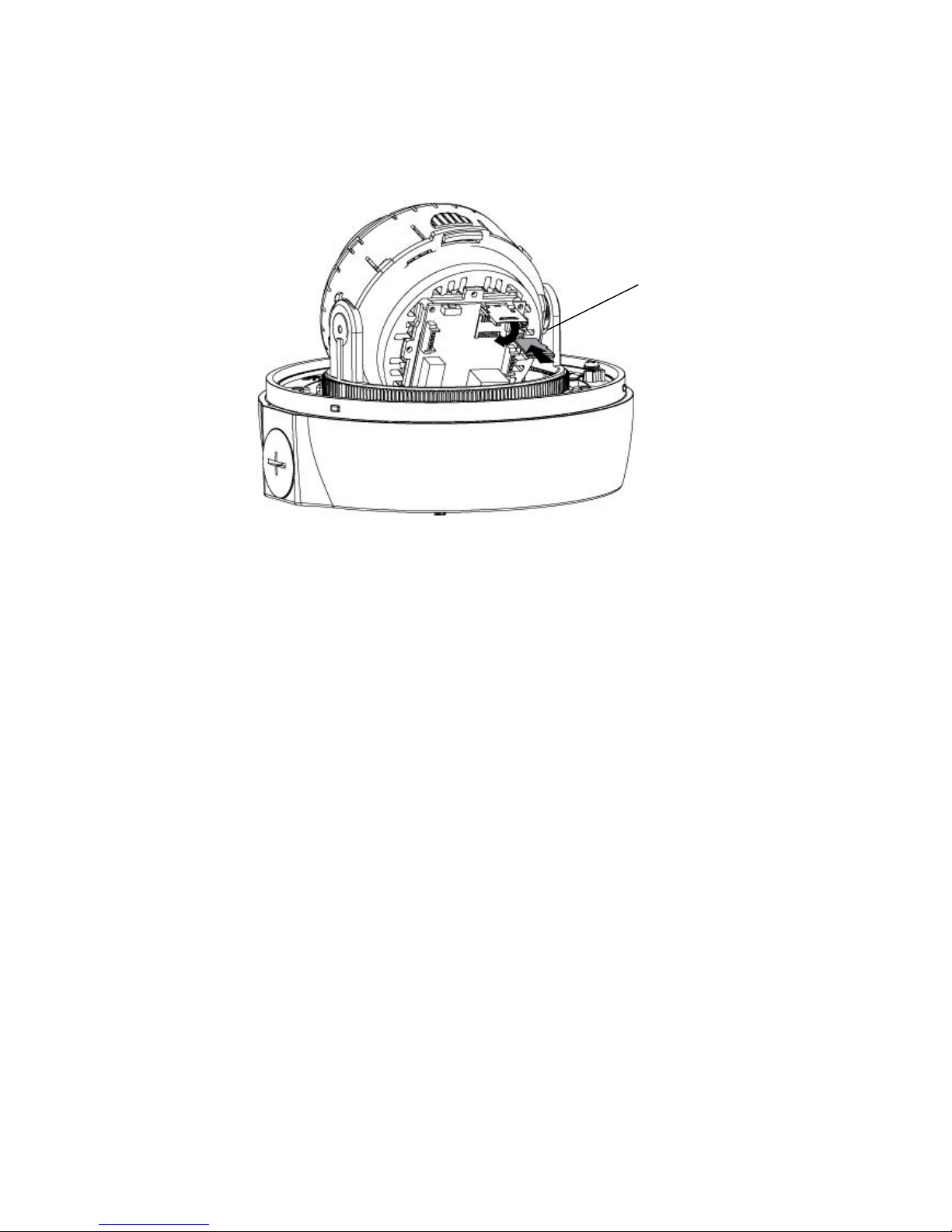

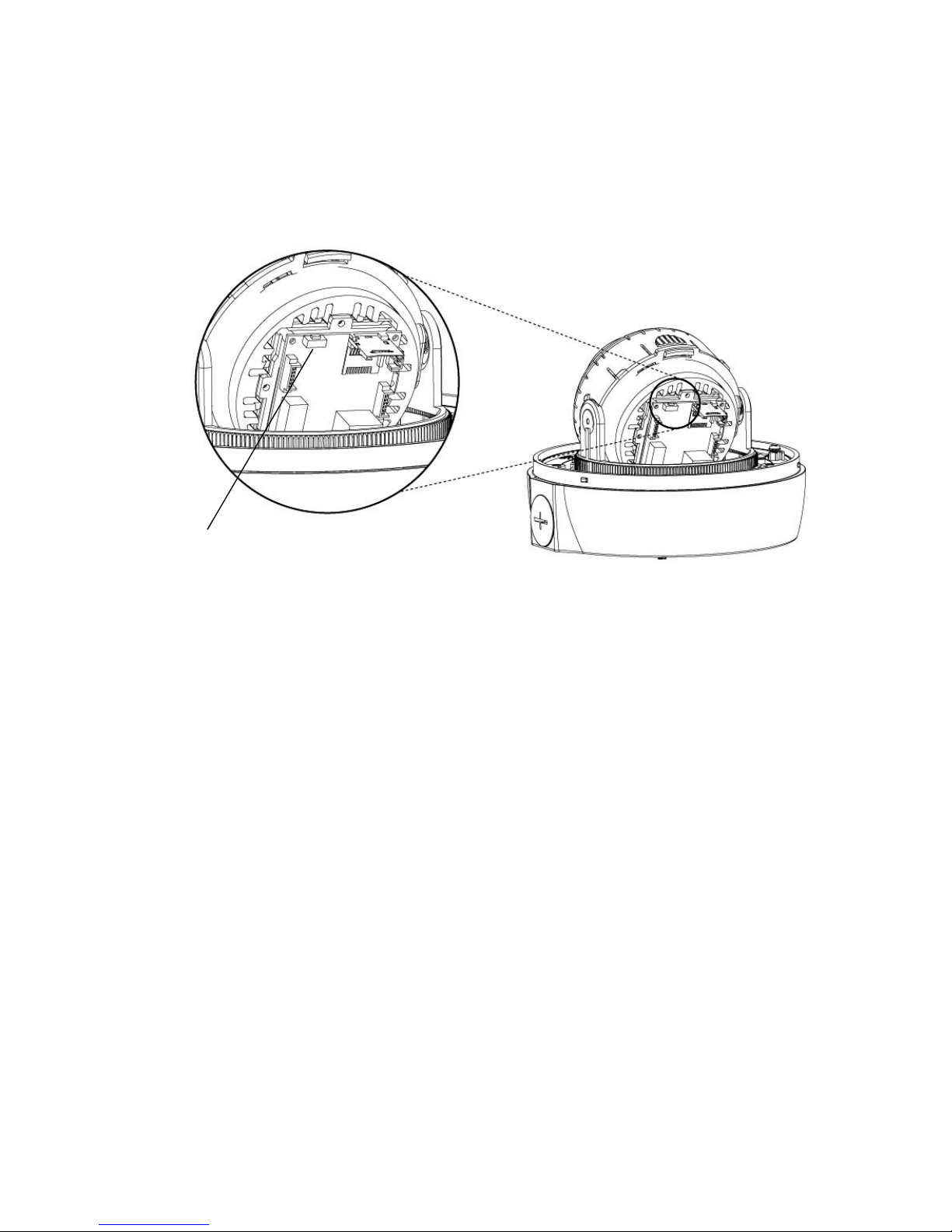

Remove the bubble of the camer a to inse rt the SD memory card.
•
Connecting to the RJ-45
Connect a standard RJ-45 cable to the network port of the network camera. Generally
a cross-over cable is used for directly connection to PC, while a direct cable is used for
connection to a hub. You can also u se a router featuring PoE (Power over Ethernet) t o
supply power to the camera.
•
Connecting Alarms
AI(Alarm In): You can use external devices to signal the network camera to react on
events. Mechanical or electrical switches can be wired to the AI (Alarm In) and G
(Ground) connectors.
G(Ground): Connect the ground side of the alarm i nput and/or alarm output to the G
(Ground) connector.
AO(Alarm Out): The network camera can activate external devices such as buzzers
or lights. Connect the device to the AO (Alarm Out) and G (Ground) connectors.
•
Connecting the Power
Connect the power of 12 VDC 450mA for the network camera. Connect the positive
(+) pole to the ‘+’ position and the negative (-) pole to the ‘-’ position for the DC po wer.
–
Be careful not to reverse the polarity when connecting the power cable.
–
A router featuring PoE ( Po we r o ve r Ethernet) can also be used to supply power to
the camera.
–
For the power specifications, refer to the Appendix, Product Specification.
–
If PoE and 12 VDC are both applied, the camera will be supplied with power from
PoE.
•
Connecting Audio
Connect Speaker to Audio line output and external Mic to Audio input line.
SD memory card
Page 15
15
2.4
Resetting to the factory default settings
To reset the network camera to the original factory settings, go to the Setup > System >
Maintenance web page (described in “System > Maintenance” of User’ s Manual) or use the
Reset button on the network camera, as described below.
•
Using the Reset button:
Follow the instructions below to reset the network camera to the factory default settings using the Reset button.
1.
Switch off the network camera by disconnecting the power adapter.
2.
Press and hold the Reset button while reconnecting the power.
3.
Keep the Reset button pressed for at least 2 or more seconds.
4.
Release the Reset button.
5.
The network camera resets to factory defaults and restarts after completing the factory
reset.
CAUTION: When performing a Factory Reset, you will lose any settings that have been
saved. (Default IP 192.168.30.220)
Reset Button
Page 16
16
A Appendix
A.1 Product Specification
Model Network Camera
Lens
Varifocal 2.8mm ∼ 12.0mm,F1.4, DC IRIS
Angle of View
97
o
(H)
∼ 37
o
(H)
Type 1/2.8” Sony Exmor CMOS
Image Sensor
Pixels 2048(H) x 1536(V)
Min. Illumination
Color: 0.1 Lux @ F1.4
B/W: 0 Lux @ F1.4
Scanning Mode Progressive Scan
Wide Dynamic Range D-WDR
Day and Night Mode Tru e D/N (Aut o , D ay, Night)
Noise Reduction 2DNR, 3DNR
Digital Zoom Yes (ROI)
Exposure Control Auto
Auto White Balance Control Auto, Incandescent, Fluorescent, Outdoor, Manual
Back Light Compensation Yes
Image Effect Flip, Mirror, Aisle, Defog, HLC, S-LDC
Flicker Free Mode 50Hz, 60Hz
Shutter Speed
A
uto(1/10,000 ∼ 1sec), Manual
Quality 30 IR LEDs
Angle 76
o
IR Illuminator
Distance up to 30m
Video Compression H.264 (Baseline, Main, High Profile), MJPEG
Bitrate Control CVBR, VBR
Video Resolution
2048x1536, 1920x1080, 1280x1024, 1280x720/960,
1024x768, 704x480/576, 640x360/480, 320x240
Video Frame Rate Max. 25fps/30fps
Video Streaming 25/30fps (Triple Stream : H.264 x 2, MJPEG x 1)
Composite Out
-
Audio Compression G.711
Video/
Audio
Audio Streaming 2 Way
Video Contents Analysi s Line Detector, Field Detector
Motion Detection Area 16 Programmable Area (Include Area 8, Exclude Area 8)
Privacy Mask 8 Programmable Zone
FTP Uploading MJPEG
Event Notification
E-mail, FTP, Notification Server,
XML Notification, Audio Alert, AIHM
Audio Alert User-Defined 3 Audio files
Login Authority Administrator, Operator, Guest
FTP Pre : 30sec, Post : 30sec
Event Buffering
SD Record Pre : 10sec, Post : 60sec
Manual Trigger 4 Programmable Tr i gger
Security Multi User Auth ority, IP Filtering, HTTPS, SSL
Network Time Sync NTP Server, Synchronize Computer, M anual
Software Reset Restart, Reset, Factory Default
Hardware Factory Reset Yes
Auto Recovery Backup, Restore
Remote Upgrade Web Browsing(IE, Chrome, Safari, Firefox), SmartManager
System
SD Recording Mode Event, Continuous
Page 17
17
Protocols
TCP/IP, UDP, IPv4/IPv6, HTTP, HTTPS, QoS, FTP,
UPnP, RTP, RT SP,RTCP, DHCP, ARP , Zeroconf, Bonjour
Client Software Web, SmartManager, Client S/W, Mobile S/W
Max. User Connection Live : 10 Users, Playback : 3 Users
API Support Open API, ONVIF Compliance
Network
Mobile Support Android, i-OS
Audio 1 Input, 1 Output (Term inal Block)
Alarm 1 Input, 1 Output (Terminal Block)
Ethernet RJ-45 (10/100Base-T)
External
In/Out
SD Card SDHC, SDXC
Operating Humidity
0 ∼ 90% RH
(
Non-condensing)
Operating Temp e ra t u re
-30
o
C ∼ +45oC
Power Supply PoE(IEEE802.3af compliant, Class0), 12VDC
Power Consumption DC 12V 450mA, 5.4W / PoE 120mA, 5.7W (with IR on)
Dimensions
143.4mm(φ) x 113.9mm(H)
Net Weight
Approx. 720g
ETC
Ingress Protection
IP66
> Specifications are subject to change without notice.
Page 18
18
Page 19
19
Page 20
3MP IP INTERIOR/EXTERIOR
DOME CAMERA: IPFD3TI
50303945A
Loading...
