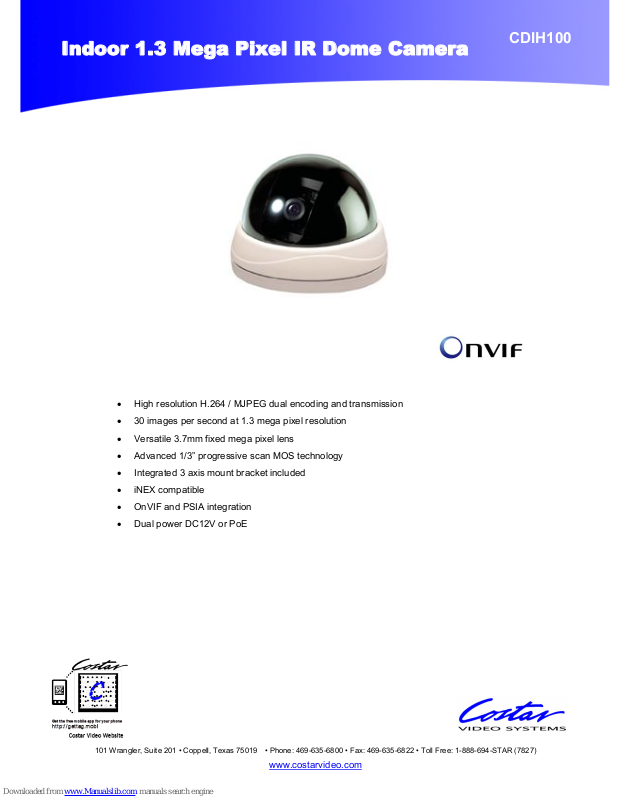

Indoor 1.3 Mega Pixel IR Dome Camera
CDIH100
High resolution H.264 / MJPEG dual encoding and transmission
30 images per second at 1.3 mega pixel resolution
Versatile 3.7mm fixed mega pixel lens
Advanced 1/3” progressive scan MOS technology
Integrated 3 axis mount bracket included
iNEX compatible
OnVIF and PSIA integration
Dual power DC12V or PoE
101 Wrangler, Suite 201 • Coppell, Texas 75019 • Phone: 469-635-6800 • Fax: 469-635-6822 • Toll Free: 1-888-694-STAR (7827)
www.costarvideo.com
CDIH100 User’s Manual
CDIH100 User’s Manual
(Product Guide)
Version 4.12(Rev.E)
September 30, 2011
Class B Digital Device (residential environment)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to CE
and FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. However, there is no guarantee that the interference will not occur in a
particular installation.
2 Costar Video Systems, LLC
CDIH100 User’s Manual
CDIH100 User’s Manual
Document Version: 4.12(Rev.E)
Revised: September 30, 2011
About This Document
This document is prepared for users of CDIH100 supplied by Costar Video Systems, LLC. It is assumed
that the users are familiar with Microsoft Windows operating systems and Web browsers such as Internet
Explorer. It is also assumed that the users are well aware of how to install and use the network equipment
such as LAN, Hub, router, and having basic knowledge of network terminologies. If you have any
questions regarding network installations, please contact your network equipment vendor or network
administrator or Internet service providers.
For updated contents, detailed features and other applications from Costar Video, please refer to the user’s
manual in CD-ROM provided with the product you purchased, or visit Costar Video’s wesbsite at
www.costarvideo.com
Copyright Notice
Copyright © 2011 Costar Video Systems, LLC. All rights reserved.
No part of this document may be reproduced in any form or by any means without the prior written
permission of Costar Video Systems, LLC.
Disclaimer
Costar Video Systems, LLC. (Costar Video) Makes no representations or warranties with respect to the
contents hereof. In addition, information contained herein is subject to change without notice. Every
precaution has been taken in the preparation of this manual, nevertheless, Costar Video assumes no
responsibility for errors or omissions or any damages resulting from the use of the information contained
in this document.
Trademarks
Costar Video
Windows and Internet Explorer are a trademark of Microsoft Corporation.
All other trademarks belong to their respective owners.
Technical Support
For technical support call, email, or visit our web site.
Telephone: 888-694-7827
Web site: www.costarvideo.com
®
and Costar Video® Logo are trademarks of Costar Video Systems, LLC.
.
3 Costar Video Systems, LLC
CDIH100 User’s Manual
Contents
1. PRODUCT OVERVIEW ......................................................................................................................... 5
1.1. CDIH100 ....................................................................................................... E
1.2. K
1.3. T
1.4. CDIH100
EY FEATURES ............................................................................................................................................................. 6
ECHNICAL SPECIFICATION ....................................................................................................................................... 7
PACKING LIST .......................................................................................................................................... 9
RROR! BOOKMARK NOT DEFINED.
2. HARDWARE DESCRIPTION .............................................................................................................. 10
2.1. F
2.1. O
RONT VIEW WITH DOME COVER ......................................................................................................................... 10
UTING CABLE ......................................................................................................................................................... 11
3. CDIH100 INSTALLATION AND BASIC SETUP ............................................................................... 12
3.1. B
3.2. F
3.3. I
EFORE INSTALLATION ............................................................................................................................................ 12
ACTORY DEFAULT SETTINGS ................................................................................................................................. 12
NSTALLING CDIH100 ............................................................................................................................................ 12
4 Costar Video Systems, LLC
CDIH100 User’s Manual
1. Product Overview
1.1. CDIH100
Costar Video® CDIH100 is a stand-alone device transmitting vdeo from built-in megapixel camera
over IP(Internet Protocol) network.
It can transmit up to 30fps@VGA(VC)/1.3M(MC) over the existing network. You can monitor video of
CDIH100 through web browser(ie. MS Internet Explorer), if CDIH100 is connected to network. CDIH100
supports video compression both Motion-JPEG and H.264 simultaneously so that user can choose
appropriate video compression for the purpose. For both Motion-JPEG and H.264, CDIH100 provides 6
levels of video quality. CDIH100 also supports both ONVIF and PSIA.
Built-in SD slot is provided for local recording and built-in PoE function is optional.
CDIH100 can be upgraded to VO/MS which supports two way audio, DI/DO, USB interface including
SD by pin connectors. External PoE is used for this model.
5 Costar Video Systems, LLC
Picture 1 : CDIH100
CDIH100 User’s Manual
1.2. Key Features
Standalone device with a built-in web server
10M/100M Auto-Sensing Ethernet
Configuring and controlling through Web browser
Max 30 fps transmission speed on TCP/IP network
Effective Bandwidth & Bit-rate Control (VBR/CBR) by H.264
Supports Dual Streaming in Motion JPEG and H.264
Support Dynamic IP network by IPCCTVDNS Server
Encryption function by user authentication
Image transmission function via FTP and Email
Built-in SD card slot
Optional PoE(Power over Ethernet)
Support both ONVIF/PSIA
6 Costar Video Systems, LLC
CDIH100 User’s Manual
1.3. Technical Specification
CDIH100
32bit Embedded CPU
Hardware
Image sensor
Lens 3.7mm F.2.0 fixed megapixel lens
NAND Flash 128Mbytes/DDR2: 128Mbytes
Linux version 2.6.xx operating system
Battery backed up real-time clock
1/3” progressive scan MOS
Active pixels 1280H x 1024V, 1.31M
Effective pixels 1376H x 1070V, 1,47M
Pixel size: 3.75 (H) μm × 3.75 (V) μm
Color filter Bayer arrangement of primary colors: R, G, B
Bit number of internal ADC: 12 bits
Parallel output: 54 MHz, 12 bits
Output frame rate: 30 fps
Minimum illumination 1 Lux(F2.0)
Day & Night (ON/OFF)
AGC, AWB
Video related special
functions
Video compression
Resolution 1.3M(1280x1024), HD(1280x720), VGA(640x352), CIF(320x176), QCIF(160x96)
Frame rate
(each channel)
Video Streaming
Video Standards
Image setting
Lens (MANUAL/DC)
Shutter (MANUAL/AUTO)
Vertical/Horizontal Flip
Frequency Control (50/60)
Brightness/Contrast/Sharpness Control
Motion JPEG
H.264
Motion JPEG: Up to 30 fps @ 1280H x 1024V (Other Stream at QCIF)
H.264: Up to 30 fps @ 1280H x 1024V (Other Stream at QCIF)
Motion JPEG and H.264 Dual Streaming (Simultaneously)
Controllable frame rate and bandwidth
ONVIF
PSIA
Compression levels: 6 (Motion-JPEG, H.264)
Color: color, black & white
LAN interface
Video Output Option
Power Over Ethernet Option
Security features Multi user level protection for camera access
10/100BaseT Ethernet auto sensing
IEEE 802.3af Built-in POE (optional)
7 Costar Video Systems, LLC
CDIH100 User’s Manual
Up to 5.6M memory for Pre/Post alarm buffer
Advanced Service
Built-in Motion detections
Others IP notification by e-mail
E-Mail, FTP, IP notification, Alarm Notification to e-mail
CGI Call by event or schedule
Accuracy: 12x12=144 blocks
Motion Sensitivity : -100 ~ 100 : 100 is hypersensitive
Management
Developer support
PWR Supply
PWR Consumption DC 12Volt Max 300 mA
Operating Environment
Miscellaneous
Simultaneous users Live-cast for up to 16 clients
Installation, management
and maintenance
Video access from Web
browser
Minimum Web browsing
requirements
Configurable by serial, web or telnet
Remote system update via telnet, FTP OR web browser
Provides HTTP CGI API
ActiveX control development kit
SMPS
Input: 100~240VAC, AC 50/60Hz, 300mA
Output: DC 12 Volt, 1A
Temperature : 32° ~ 122°F (0° ~ 50°C)
Humidity : 20 ~ 80% RH(non-condensing)
Freely downloadable NDVR Software
Work with FW-Manager(NDVR S/W)
Dynamic IP support through IPCCTVDNS Server
Installation CD and web-based configuration
Firmware upgrades over HTTP or FTP, firmware available at www.Costar Video.com
Video access from Web browser
Pentium 4, 2 GHz, 2GB(RAM) or higher
Video Card: 256MB RAM, 1024x768 resolution or higher
100Mbps Network Adaptor or faster
Windows XP Pro or later
Internet Explorer 6.x or later
Powerful API for software integration available at http://www.Costar Video.com,
including Simple Viewer API, Costar Video Control SDK, event trigger data in video
System integration support
Supported protocols
Applications
(not included)
Included Accessories
Approvals
Dimensions (HxWxD) and
weight (1lbs = 454g)
stream, embedded scripting and access to serial port peripherals over HTTP/TCP
User can be installed user program daemon for event notification or sending image
Embedded operating system: Linux 2.6
HTTP, RTP/RTSP, TCP/IP, FTP, Telnet, RARP, PPPoE, PAP, CHAP, DHCP, SMTP
client(e- mail), NTP
Costar Video Manager 16/32/128/256
Power supply 12 V DC
CD (User’s Manual, installation wizard and etc)
KCC
FCC : Class B
CE : Class B
RoHS
100Ø x 70(H) (in mm)
About 0.190kg without power supply.
* All specifications are subject to change without prior notice.
Table 1 : CDIH100 Data Sheet
8 Costar Video Systems, LLC
CDIH100 User’s Manual

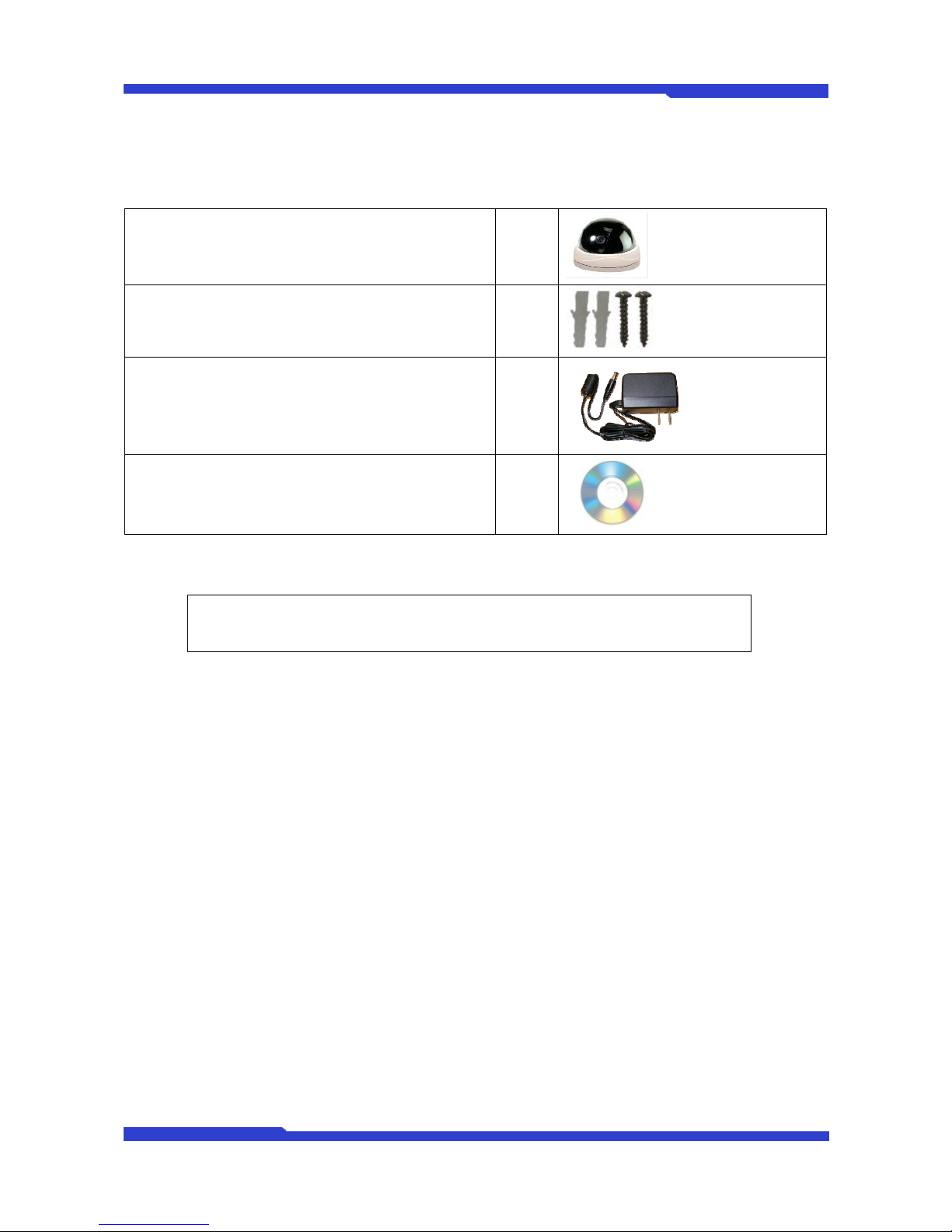

1.4. CDIH100 Packing List
CDIH100 1ea
Screw and Anchor Bolt Set 1ea
Power Supply Unit
(Power Cable & SMPS DC12V 1.0A Adapter)
CD (User’s Manual, installation wizard and etc) 1ea
1ea
Table 2 : CDIH100 Packing List
Note: Please check all the listed items are included in your package. For any missing items,
please contact your local distributor.
9 Costar Video Systems, LLC
CDIH100 User’s Manual
2. Hardware Description
2.1. Front View with Dome Cover
OPEN
Picture 2 : Front View
Name Description
A Dome Cover Mini dome cover
B Cable Outing cable for connection
Table 3 : CDIH100 Front View
CLOSE
10 Costar Video Systems, LLC
CDIH100 User’s Manual
2.1. Outing Cable
Picture 3 : CDIH100 Outing Cable
Name Description
A Cable Outing cable for connection
B Power Conn. Power Connector. (Removed when built-in PoE is selected)
C LAN LAN Connector.
Table 4 : CDIH100 Outing Cable
11 Costar Video Systems, LLC
CDIH100 User’s Manual
3. CDIH100 Installation and Basic Setup
3.1. Before Installation
Read carefully User's Manual.
Check User’s Network (IP Address, Network Mask and default gateway)
Secure IP address for CDIH100.
3.2. Factory Default Settings
The following table shows the factory default condition. Please refer to this when you need to change
the values on admin menu.
Factory Default
Admin ID root
Admin password root
IP address 10.20.30.40
Network mask 255.255.255.0
Gateway 10.20.30.1
Table 5 : Factory Default
Note:
Factory default Admin ID and Password are all lower case letters. You can change the
password with Capital letters.
3.3. Installing CDIH100
Following steps are the physical installation process for CDIH100.
1. Fix the CDIH100 in place
2. Connect the CDIH100 to the Internet cable through the LAN port.
3. Connect the power supply of CDIH100.
After that, you need to follow the steps below.
Network Configuration: Refer to “IP Installer User’s Manual”
Camera Configuration: Refer to “Costar Video Admin Menu User’s Manual”
Service Configuration: Refer to “Costar Video Admin Menu User’s Manual”
12 Costar Video Systems, LLC
