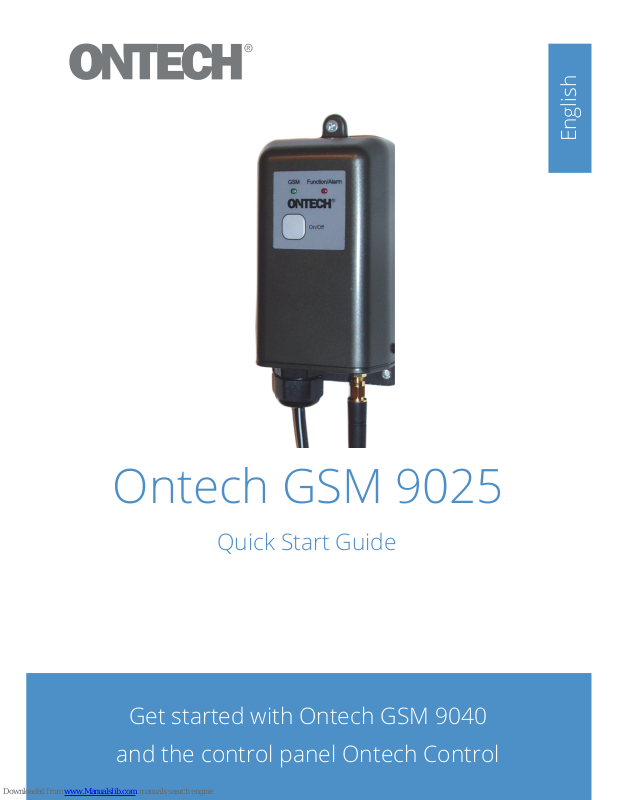

Page 1
Ontech GSM 9025
Quick Start Guide
Get started with Ontech GSM 9040
and the control panel Ontech Control
English
Page 2
Normally Open Normally Closed
Fig. 2
Figures
Fig. 1
Fig. 3
Sensor A Sensor B
A B3.8 V
SensorA Sensor B
A B3.8 V
SIM-
CARD
C
B
3
2
1
+12-24VDC
A
+3.8 V
Temp
GND
4-20 mA
B
A
GND
Page 3
Install the unit
• Attach the antenna on the SMA antenna contact
• Place the unit on the place of your desire and attach it by
using screws in the two holes. The antenna shall point
down. Open the unit by unscrew the two screws on the
left and right sides.
• Pull the ”hood” approximately 5 cm or until you can
see the SIM card holder. Pull carefullyand not too long
because there is a risk of the at cable is loosened from
its contact. If this happens see the reference manual
www.ontechgsm.com/en/support/reference9025en.pdf.
• Install the SIM card.
• Open the screw cap by screwing it to the left.
• Collect the cables you want to connect to the unit Se
below).Pull the cables through the screw cap.
• Connect the cables:
a. Power. Terminal A. 12VDC. Either the power adapter
or an 12V accumulator or both. Plus (white cord) is
connected to connector “+12-24VDC”. Minus (black
cord) is connected to the connector ”GND . Important. Do not connect to power at this stage. It can
damage the equipment.
b. Relay. Terminal B. If you want “Normally Open Relay”
(use connector 2 and 3. If you want “Normally Closed
Relay” (use connector 1 and 3. Maximum load is
230V/10A .
NB. If you shall connect main power, contact a
professional electrician.
c. Alarm. Terminal A. Alarm A is connected to con-
nector “3.8V” and “A” and alarm B is connected to
connector ““3.8V” ” and “B”. See g 2 and 3.
d. External temperature sensor. Terminal A. The sensor
is connected to connector “Temp” and “GND”.
e. Adapter for GPS-receiver (page 23). Contact D. Con-
nect the connector.
Page 4
Declaration of conformity
Onvako AB, Datavägen 14A, 436 32 Askim, Sweden, hereby declares
that the product Ontech GSM 9025 is in conformity with the provisions of the Radio & Teleterminal directive R&TTE 1999/5/EG and the
Low Voltage directive 2006/95/EC .
IB_15046__QSG_GPRS_EN_170920
Get started:
Help and support can be found at
www.ontechgsm.com.
Support:
Create your account at www.ontechgsm.
com and follow the instructions.
• When all desired cables have been connected, turn the
screw cap clockwise in order to create a tight seal. You
can use plastic tape around the bundle of cables to
make it thicker and that way create a tighter seal.
• Push the ”hood” back to its original position and replace
the screws and also the screw on top of the hood.
• Connect the power cable to the accumulator and/or the
power adapter to the mains.
