ONSTAGE MS9750 MS9750.pdf

Page 1

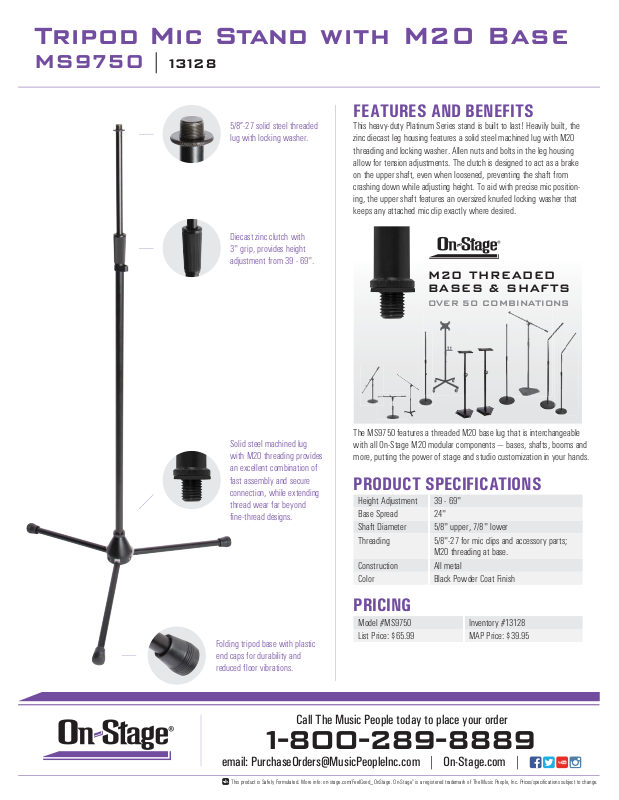

MS9750 | 13128
FEATURES AND BENEFITS
5/8”-27 solid steel threaded lug with locking washer.
Diecast zinc clutch with 3" grip, provides height adjustment from 39 - 69".
This heavy-duty Platinum Series stand is built to last! Heavily built, the zinc diecast leg housing features a solid steel machined lug with M20 threading and locking washer. Allen nuts and bolts in the leg housing allow for tension adjustments. The clutch is designed to act as a brake on the upper shaft, even when loosened, preventing the shaft from crashing down while adjusting height. To aid with precise mic position­ing, the upper shaft features an oversized knurled locking washer that keeps any attached mic clip exactly where desired.
M20 THREADED BASES & SHAFTS
OVER 50 COMBINATIONS
Solid steel machined lug with M20 threading provides an excellent combination of fast assembly and secure connection, while extending thread wear far beyond fine-thread designs.
Folding tripod base with plastic end caps for durability and reduced floor vibrations.
Call The Music People today to place your order
The MS9750 features a threaded M20 base lug that is interchangeable with all On-Stage M20 modular components — bases, shafts, booms and more, putting the power of stage and studio customization in your hands.
PRODUCT SPECIFICATIONS
Height Adjustment 39 - 69" Base Spread 24" Shaft Diameter 5/8" upper, 7/8" lower Threading 5/8"-27 for mic clips and accessory parts;
M20 threading at base. Construction All metal Color Black Powder Coat Finish
PRICING
Model #MS9750 Inventory #13128 List Price: $65.99 MAP Price: $39.95
1-800-289-8889
email: [email protected] | On-Stage.com |
This product is Safely Formulated. More info: on-stage.com/FeelGood_OnStage. On-Stage® is a registered trademark of The Music People, Inc. Prices/specifications subject to change.
