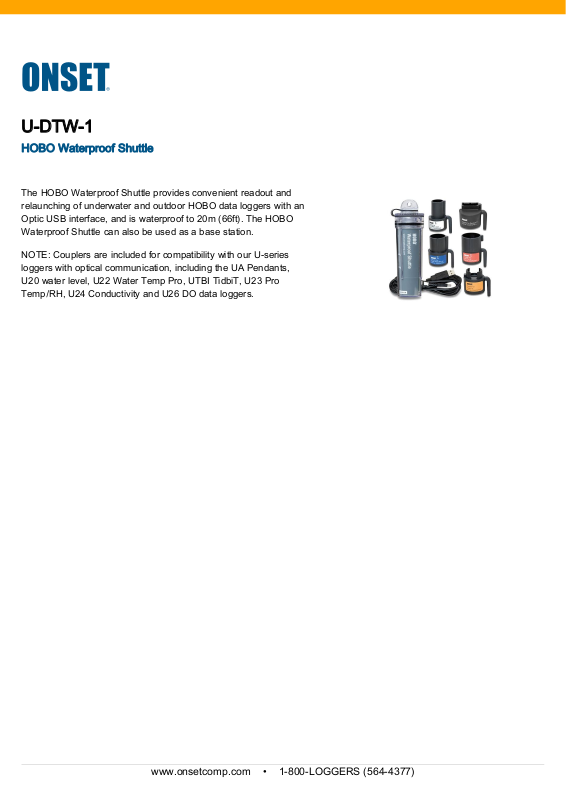

Onset U-DTW-1 Specifications

U-DTW-1

HOBO Waterproof Shuttle

The HOBO Waterproof Shuttle provides convenient readout and
relaunching of underwater and outdoor HOBO data loggers with an
Optic USB interface, and is waterproof to 20m (66ft). The HOBO
Waterproof Shuttle can also be used as a base station.

NOTE: Couplers are included for compatibility with our U-series
loggers with optical communication, including the UA Pendants,
U20 water level, U22 Water Temp Pro, UTBI TidbiT, U23 Pro
Temp/RH, U24 Conductivity and U26 DO data loggers.

www.onsetcomp.com • 1-800-LOGGERS (564-4377)

U-DTW-1 Specifications

Compatibility:
All HOBO U-Series loggers with optic USB.
Not compatible with the HOBO U-Shuttle (U-DT-1)

Requirements: HOBOware Pro 2.2 or greater

Compatible logger and matching coupler:
For UA Pendant (Part # COUPLER2-A)
For U20 Water Level (Part # COUPLER2-B)
For U22 Water Temp Pro v2 (Part # COUPLER2-C)
For UTBI TidbiT v2 (Part # COUPLER2-D)
For U23 HOBO Pro v2 (Part # COUPLER2-E)

Data capacity: 63 logger readouts of up to 64K each
Operating temperature: 0° to 50°C (32° to 122°F)
Storage temperature: -20° to 50°C (-4° to 122°F)
Wetted materials: Polycarbonate case, EPDM o-rings and retaining loop
Waterproof: to 20 m (66 feet)
Time accuracy: ± 1 minute per month at 25°C (77°F)
Logger-to-shuttle transfer speed: Reads out one full 64K logger in about 30 seconds
Shuttle-to-host transfer speed: Full shuttle offload (4 MB) to host computer in 10 to 20 minutes, depending on computer
Batteries: 2 AA alkaline batteries required for remote operation
Battery life: One year or at least 50 complete memory fills, typical use
Weight: 150 g (4 oz)
Dimensions: 15.2 x 4.8 cm (6.0 x 1.9 inches)

The CE Marking identifies this product as complying with the relevant directives in the European Union (EU).
