Onset UA-004-64 Specifications

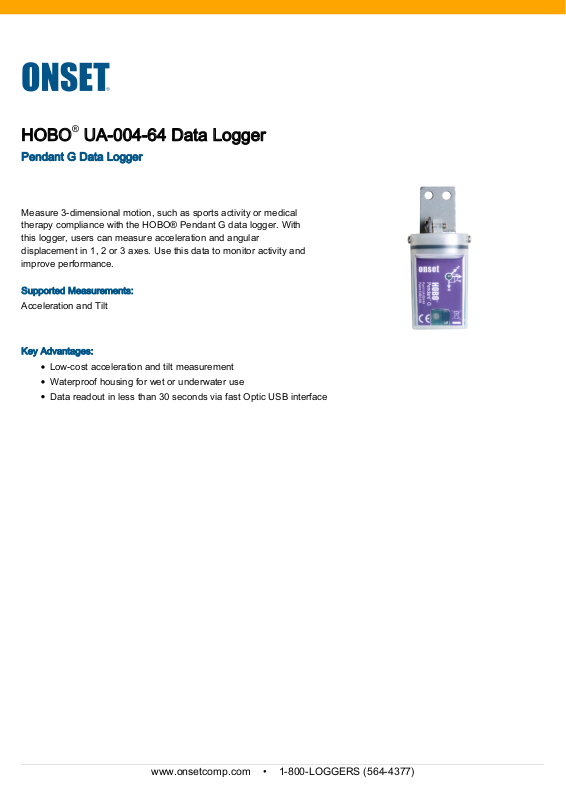

HOBO® UA-004-64 Data Logger
Pendant G Data Logger
Measure 3-dimensional motion, such as sports activity or medical
therapy compliance with the HOBO® Pendant G data logger. With
this logger, users can measure acceleration and angular
displacement in 1, 2 or 3 axes. Use this data to monitor activity and
improve performance.
Supported Measurements:
Acceleration and Tilt
Key Advantages:
Low-cost acceleration and tilt measurement
Waterproof housing for wet or underwater use
Data readout in less than 30 seconds via fast Optic USB interface
www.onsetcomp.com • 1-800-LOGGERS (564-4377)
HOBO UA-004-64 Data Logger Specifications
Measurement Range: ± 3 g; 29.4 m/s² (96.5 ft/s²)
Accuracy:
± 0.075 g; 0.735 m/s² (2.41 ft/s²) at 25°C (77°F);
± 0.105 g; 1.03 m/s² (3.38 ft/s²) from -20°C to 70°C (-4°F to 158°F)
Resolution: 0.025 g; 0.245 m/s² (0.8 ft/s²)
Logging Interval
In Normal mode: 1 second to 18 hours, 12minutes, 15 seconds
In Fast mode: 0.01 seconds (100 Hz) to 0.99 seconds (1.01 Hz)
Time accuracy: ± 1 minute per month at 25°C (77°F)
Operating Range
In water/ice: -20° to 50°C (-4° to 122°F)
In air: -20° to 70°C (-4° to 158°F)
Water depth rating: 30 m from -20° to 20°C (100 ft from -4° to 68°F)
Battery life
In Normal mode: 1 year typical use
In Fast mode: 7 days logging at 0.01 seconds (100 Hz)
Battery Type: CR2032
Memory: 64K bytes (approximately 21.8K combined x-, y-, and z-axis readings or events)
Materials: Polypropylene case; stainless steel screws; Buna-N o-ring
Weight: 18 g (0.6 oz)
Dimensions: 58 x 33 x 23 mm (2.3 x 1.3 x 0.9 inches)
Environmental Rating: IP68
The CE Marking identifies this product as complying with the relevant directives in the European Union (EU).
