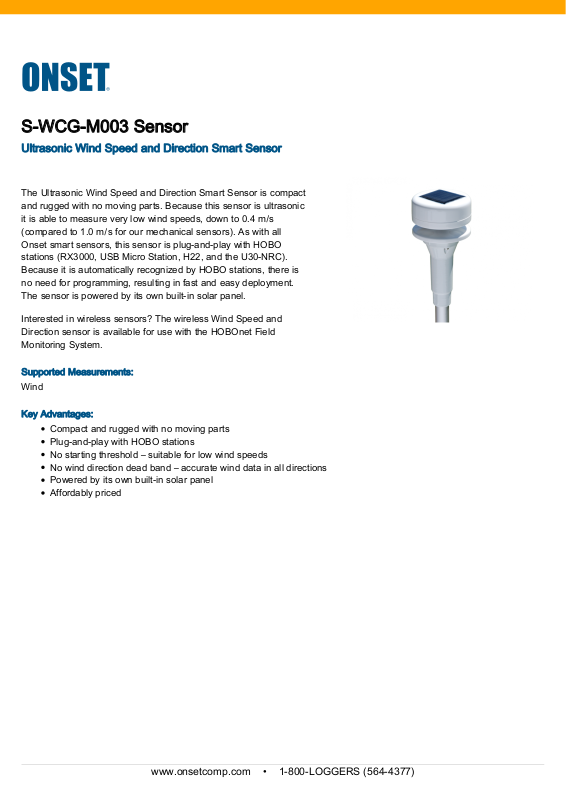

Onset S-WCG-M003 Specifications

S-WCG-M003 Sensor

Ultrasonic Wind Speed and Direction Smart Sensor

The Ultrasonic Wind Speed and Direction Smart Sensor is compact
and rugged with no moving parts. Because this sensor is ultrasonic
it is able to measure very low wind speeds, down to 0.4 m/s
(compared to 1.0 m/s for our mechanical sensors). As with all
Onset smart sensors, this sensor is plug-and-play with HOBO
stations (RX3000, USB Micro Station, H22, and the U30-NRC).
Because it is automatically recognized by HOBO stations, there is
no need for programming, resulting in fast and easy deployment.
The sensor is powered by its own built-in solar panel.

Interested in wireless sensors? The wireless Wind Speed and
Direction sensor is available for use with the HOBOnet Field
Monitoring System.

Supported Measurements:

Wind

Key Advantages:

Compact and rugged with no moving parts
Plug-and-play with HOBO stations
No starting threshold – suitable for low wind speeds
No wind direction dead band – accurate wind data in all directions
Powered by its own built-in solar panel
Affordably priced

www.onsetcomp.com • 1-800-LOGGERS (564-4377)

S-WCG-M003 Sensor Specifications

Wind Speed/Gust Wind Direction

Measurement Range 0 to 41.16 m/s (0 to 92.07 mph) 0 to 359 degrees

Accuracy ±0.8 m/s (1.79 mph) or ±4% of reading,

whichever is greater

Resolution 0.4 m/s (0.89 mph) 1 degrees (0 to 359 degrees)

Measurement Definition Wind speed readings are taken every

three seconds for the duration of the
logging interval
Wind speed: Average speed for the entire
logging interval
Gust speed: The highest three-second
wind recorded during the logging interval
See

Measurement Operation

Operating Temperature Range
Without Icing

Environmental Rating Weatherproof

Housing Polyacetal

Dimensions Sensor length: 380 mm (14.96 inches)

Weight 200 g (7 oz)

Power Supply Photovoltaic panel, LIFEP04 3.2 V -600 mAh battery

Bits per Sample 8 for each channel, 24 total

Number of Data Channels* 3

Measurement Averaging Option Automatic averaging (see

Cable Length Available 3 m (9.8 ft)

Length of Smart Sensor Network
Cable*

-15°C to 55°C (5°F to 131°F)

Sensor head diameter: 60 mm (2.36 inches)
Sensor rod diameter: 16 mm (0.63 inches)

0.5 m (1.6 ft)

The CE Marking identifies this product as complying with all relevant directives in the
European Union (EU).

.

Measurement Operation

0.2 to 3 m/s (0.44–6.7 mph):
±4 degrees
>3 m/s (6.7 mph): ±2 degrees

Unit vector averaging used; vector
components for each wind measurement are
calculated every three seconds for duration
of logging interval (see

Operation

)

)

Measurement

* A single HOBO station can accommodate 15 data channels and up to 100 m (328 ft) of smart sensor cable (the digital
communications portion of the sensor cables).
