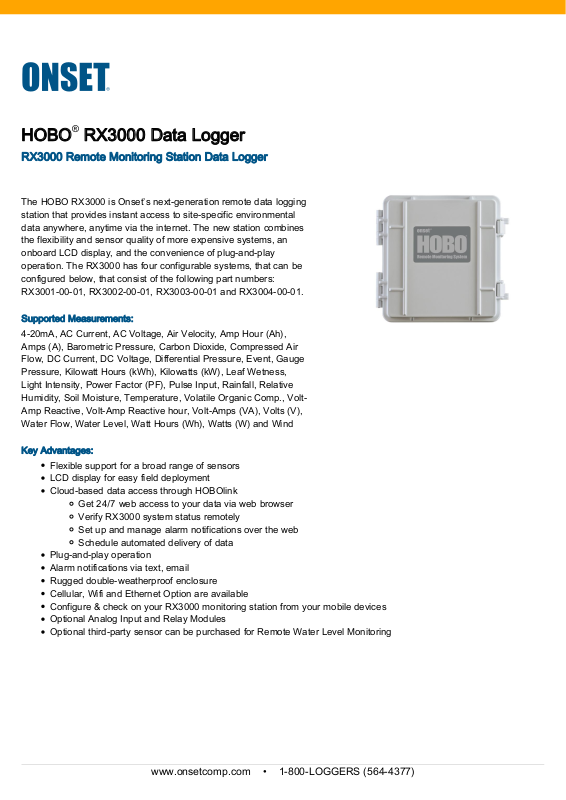

HOBO® RX3000 Data Logger
RX3000 Remote Monitoring Station Data Logger
The HOBO RX3000 is Onset’s next-generation remote data logging
station that provides instant access to site-specific environmental
data anywhere, anytime via the internet. The new station combines
the flexibility and sensor quality of more expensive systems, an
onboard LCD display, and the convenience of plug-and-play
operation. The RX3000 has four configurable systems, that can be
configured below, that consist of the following part numbers:
RX3001-00-01, RX3002-00-01, RX3003-00-01 and RX3004-00-01.
Supported Measurements:
4-20mA, AC Current, AC Voltage, Air Velocity, Amp Hour (Ah),
Amps (A), Barometric Pressure, Carbon Dioxide, Compressed Air
Flow, DC Current, DC Voltage, Differential Pressure, Event, Gauge
Pressure, Kilowatt Hours (kWh), Kilowatts (kW), Leaf Wetness,
Light Intensity, Power Factor (PF), Pulse Input, Rainfall, Relative
Humidity, Soil Moisture, Temperature, Volatile Organic Comp., VoltAmp Reactive, Volt-Amp Reactive hour, Volt-Amps (VA), Volts (V),
Water Flow, Water Level, Watt Hours (Wh), Watts (W) and Wind
Key Advantages:
Flexible support for a broad range of sensors
LCD display for easy field deployment
Cloud-based data access through HOBOlink
Get 24/7 web access to your data via web browser
Verify RX3000 system status remotely
Set up and manage alarm notifications over the web
Schedule automated delivery of data
Plug-and-play operation
Alarm notifications via text, email
Rugged double-weatherproof enclosure
Cellular, Wifi and Ethernet Option are available
Configure & check on your RX3000 monitoring station from your mobile devices
Optional Analog Input and Relay Modules
Optional third-party sensor can be purchased for Remote Water Level Monitoring
www.onsetcomp.com • 1-800-LOGGERS (564-4377)
HOBO RX3000 Data Logger Specifications
Operating Range
Smart Sensor Connectors 10
Smart Sensor Network Cable
Length
Smart Sensor Data Channels
Module Slots 2
Logging Rate 1 second (RX3001 and RX3002) or 1 minute (RX3003 and RX3004) to 18 hours
Time Accuracy
Battery Type/Power Source
Rechargeable Battery
Service Life
Memory 32 MB, 2 million measurements, continuous logging
Alarm Notification Latency Logging interval plus 2–4 minutes, typical
Enclosure Access Hinged door secured by two latches with eyelets for use with user-supplied padlocks
-40° to 60°C (-40° to 140°F); no remote communications for battery voltage less than 3.9 V
DC
100 m (328 ft) maximum
Maximum of 15 (some smart sensors use more than one data channel; see sensor manual
for details)
±8 seconds per month in 0° to 40°C (32°F to 104°F) range;
±30 seconds per month in -40° to 60°C (-40° to 140°F) range
4 Volt, 10 AHr, rechargeable sealed lead-acid; external power required using one of these
options: AC power adapter (AC-U30), solar panel (SOLAR-xW), or external power source 5
V DC to 17 V DC with external DC power cable (CABLE-RX-PWR)
Typical 3–5 years when operated in the temperature range -20° to 40°C (-4°F to 104°F);
operation outside this range will reduce the battery service life
LCD
Materials
Size 18.6 x 18.1 x 11.8 cm (7.3 x 7.1 x 4.7 in.); see diagrams on next page
Weight 2.2 kg (4.85 lb)
Mounting 3.8 cm (1.5 inch) mast or wall mount
Environmental Rating Weatherproof enclosure, NEMA 4X (requires proper installation of cable channel system)
Wireless Radio
LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in
temperatures outside this range
Outer enclosure: Polycarbonate/PBT blend with stainless steel hinge pins and brass inserts;
Inner enclosure: Polycarbonate; Gaskets: Silicone rubber; Cable channel: EPDM rubber;
Cable opening cover: Aluminum with ABS plastic thumb screws; U-Bolts: Steel with zinc
dichromate finish
The CE Marking identifies this product as complying with all relevant directives in the
European Union (EU)
RX3002: FCC ID R68XPICOW, IC ID 3867A-XPICOW
RX3003: FCC ID QIPEHS6, IC ID 7830A-EHS6; approved for use in Taiwan and Japan
RX3004: FCC ID QIPPLS62-W, IC ID:7830A-PLS62W
RX3003:
GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz, UMTS/HSPA+: Five band
800/850/900/1900/2100 MHz
RX3004:
GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz
UMTS/HSPA+: Seven band 800/850/900/1800/1900/2100 MHz
LTE: Twelve Band 700/800/850/900/1800/1900/2100/2600 MHz
Antenna
RX3003: Penta band
RX3004: 4G LTE
Ethernet (RX3001)
Connector One RJ45/100BaseT
Wi-Fi (RX3002)
Network Standards IEEE 802.11b/g/n
Frequency Range 2.412–2.484 GHz
Antenna Connector 1, no diversity supported
1, 2, 5.5, 11 Mbps (802.11b); 6, 9, 12, 18, 24, 36, 48, 54 Mbps (802.11g); 802.11n, HT20
Data Rates
MCS0 (6.5 Mbps) to HT20 MC87 (65 Mbps)
Number of Selectable Radio
Subchannels
Up to 14 channels; profiles available will include USA, France, Japan, Spain, Canada, and
“Other” (multiple countries)
Radio Modulations OFDM, DSSS, DBPSK, DQPSK, CCK, 16QAM, 64QAM
Security WEP 64/128, WPA-PSK, AES end-to-end encryption
Maximum Receive Level -10 dBm (with PER <8%)
Receiver Sensitivity
-72 dBM for 54 Mbps, -87 dBm for 11 Mbps, -89 dBm for 5.5 Mbps,
-90 dBm for 2.0 Mbps, -92 dBm for 1.0 Mbps
Cellular (RX3003 and RX3004)
RX3003:
GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz, UMTS/HSPA+: Five band
800/850/900/1900/2100 MHz
Wireless Radio
RX3004:
GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz
UMTS/HSPA+: Seven band 800/850/900/1800/1900/2100 MHz
LTE: Twelve Band 700/800/850/900/1800/1900/2100/2600 MHz
Antenna
RX3003: Penta band
RX3004: 4G LTE
