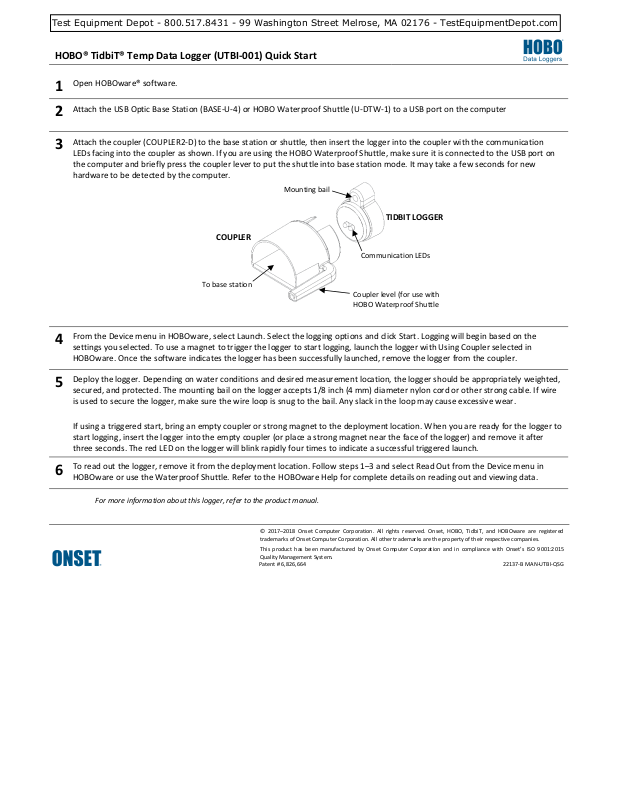

HOBO® TidbiT® Temp Data Logger (UTBI-001) Quick Start
Open HOBOware® software.
1
Attach the USB Optic Base Station (BASE-U-4) or HOBO Waterproof Shuttle (U-D TW-1) to a USB port on the computer
2
Attach the coupler (COUPLER2-D) to the base station or shuttle, then insert the logger into the coupler with the communication
3
LEDs facing into the coupler as shown. If you are using the HOBO Waterproof Shuttle, make sure it is connected to the USB port on
the computer and briefly press the coupler lever to put the shuttle into base station mode. It may take a few seconds for new
hardware to be detected by the computer.
Mounting bail
TIDBIT LOGGER
COUPLER
Communication LEDs
To base station
Coupler level (for use with
HOBO Waterproof Shuttle
From the Device menu in HOBOware, select Launch. Select the logging options and click Start. Logging will begin based on the
4
settings you selected. To use a magnet to trigger the logger to start logging, launch the logger with Using Coupler selected in
HOBOware. Once the software indicates the logger has been successfully launched, remove the logger from the coupler.
Deploy the logger. Depending on water conditions and desired measurement location, the logger should be appropriately weighted,
5
secured, and protected. The mounting bail on the logger accepts 1/8 inch (4 mm) diameter nylon cord or other strong cable. If wire
is used to secure the logger, make sure the wire loop is snug to the bail. Any slack in the loop may cause excessive wear.
If using a triggered start, bring an empty coupler or strong magnet to the deployment location. When you are ready for the logger to
start logging, insert the logger into the empty coupler (or place a strong magnet near the face of the logger) and remove it after
three seconds. The red LED on the logger will blink rapidly four times to indicate a successful triggered launch.
To read out the logger, remove it from the deployment location. Follow steps 1–3 and select Read Out from the Device menu in
6
HOBOware or use the Waterproof Shuttle. Refer to the HOBOware Help for complete details on reading out and viewing data.
For more information about this logger, refer to the product manual.
2018 Onset Computer Corporation. All rights reserved. Onset, HOBO, TidbiT, and HOBOware are registered
© 2017–
trademarks of Onset Computer Corporation. All other trademarks are the property of their respective companies.
This product has been manufactured by Onset Computer Corporation and in compliance with Onset’s ISO 9001:2015
Quality Management System.
Patent # 6,826,664 22137-B MAN-UTBI-QSG
