Onset MX2001 Specifications

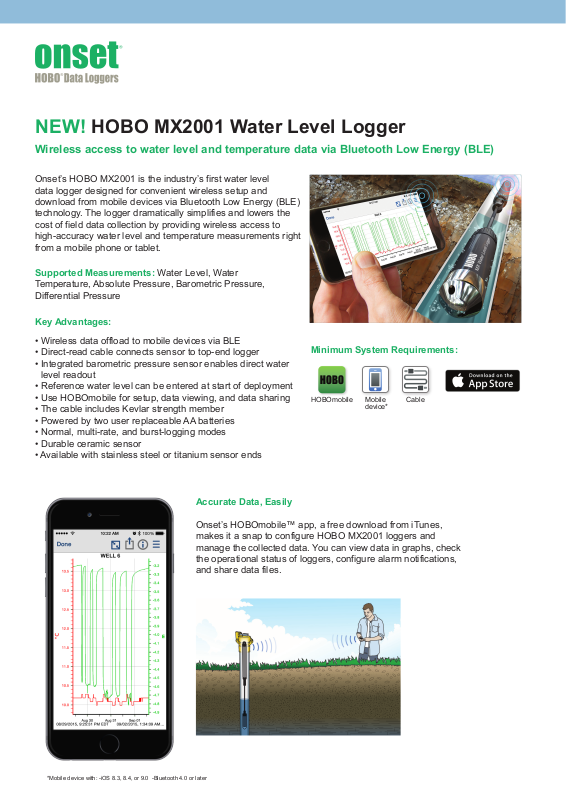

NEW! HOBO MX2001 Water Level Logger
Wireless access to water level and temperature data via Bluetooth Low Energy (BLE)
Onset’s HOBO MX2001 is the industry’s first water level
data logger designed for convenient wireless setup and
download from mobile devices via Bluetooth Low Energy (BLE)
technology. The logger dramatically simplifies and lowers the
cost of field data collection by providing wireless access to
high-accuracy water level and temperature measurements right
from a mobile phone or tablet.
Supported Measurements: Water Level, Water
Temperature, Absolute Pressure, Barometric Pressure,
Differential Pressure
Key Advantages:
• Wireless data offload to mobile devices via BLE
• Direct-read cable connects sensor to top-end logger
• Integrated barometric pressure sensor enables direct water
level readout
• Reference water level can be entered at start of deployment
• Use HOBOmobile for setup, data viewing, and data sharing
• The cable includes Kevlar strength member
• Powered by two user replaceable AA batteries
• Normal, multi-rate, and burst-logging modes
• Durable ceramic sensor
• Available with stainless steel or titanium sensor ends
Accurate Data, Easily
Onset’s HOBOmobile™ app, a free download from iTunes,
makes it a snap to configure HOBO MX2001 loggers and
manage the collected data. You can view data in graphs, check
the operational status of loggers, configure alarm notifications,
and share data files.
Minimum System Requirements:
HOBOmobile Mobile
device*
Cable
*Mobile device with: -iOS 8.3, 8.4, or 9.0 -Bluetooth 4.0 or later
For complete information and accessories, please visit: www.onsetcomp.com
Part number MX2001-01 (and-Ti) MX2001-02 MX2001-03 MX2001-04 (and-Ti)
Water Level
Range
Calibrated Range (0° to
40°C (32° to 104°F)
Accuracy (Typical)
Resolution
Temperature
Range -20° to 50°C (-4° to 122°F)
Accuracy ±0.44°C from 0° to 50°C (±0.79°F from 32° to 122°F)
Resolution 0.1°C at 25°C (0.18°F at 77°F)
Barometric Pressure
Range 66 to 107 kPa (9.57 to 15.52 psia)
Accuracy (typical) ±0.075% FS, 0.3 cm (0.01 ft) water
Logger Specications
Operating Range -20° to 50°C (-4° to 122°F)
Transmission Range Approximately 30.5 m (100 ft) line-of-sight
Dimensions
CE compliant Yes
FCC compliant Yes
Mobile Device Compatibility *iOS 8.3, 8.4 & 9.0, and Bluetooth 4.0 or later
Bluetooth Compatibility Bluetooth 4.0 or later (Bluetooth Low Energy, Bluetooth Smart)
Approx. 0 to 9 m
(0 to 30 ft)
69 to 207 kPa
(10 to 30 psia)
±0.05% FS, 0.5 cm
(0.015 ft)
0.02 kPa (0.003 psi),
0.21 cm (0.007 ft) water
Top end (MX2001-TOP): 2.54 cm (1.0 inches) diameter, 28.9 cm (11.4 inches) length
Sensor end (MX2001-0x-S and MX2001-0x-Ti-S: 2.54 cm (1.0 inches) diameter, 9.91 cm (3.9 inches) length
Approx. 0 to 30.6 m
(0 to 100 ft)
69 to 400 kPa
(10 to 58 psia)
±0.05% FS, 1.5 cm
(0.05 ft)
<0.04 kPa (0.006 psi),
0.41 cm (0.013 ft) water
Approx. 0 to 76.5 m
(0 to 251 ft)
69 to 850 kPa
(10 to 123.3 psia)
±0.05% FS, 3.8 cm
(0.125 ft)
<0.085 kPa (0.012 psi),
0.87 cm (0.028 ft) water
Approx. 0 to 4 m
(0 to 13 ft)
69 to 145 kPa
(10 to 21 psia)
±0.075% FS, 0.3 cm
(0.01 ft)
<0.014 kPa (0.002 psi),
0.14 cm (0.005 ft) water
Direct read cables can be ordered in lengths from 0.2 m to 500 m
