LM2596

3.0 A, Step-Down Switching Regulator

The LM2596 regulator is monolithic integrated circuit ideally suited for easy and convenient design of a step−down switching regulator (buck converter). It is capable of driving a 3.0 A load with excellent line and load regulation. This device is available in adjustable output version and it is internally compensated to minimize the number of external components to simplify the power supply design.

Since LM2596 converter is a switch−mode power supply, its efficiency is significantly higher in comparison with popular three−terminal linear regulators, especially with higher input voltages.

The LM2596 operates at a switching frequency of 150 kHz thus allowing smaller sized filter components than what would be needed with lower frequency switching regulators. Available in a standard 5−lead TO−220 package with several different lead bend options, and

PAK surface mount package.

The other features include a guaranteed $4% tolerance on output voltage within specified input voltages and output load conditions, and $15% on the oscillator frequency. External shutdown is included, featuring 80 mA (typical) standby current. Self protection features include switch cycle−by−cycle current limit for the output switch, as well as thermal shutdown for complete protection under fault conditions.

Features

• Adjustable Output Voltage Range 1.23 V − 37 V

• Guaranteed 3.0 A Output Load Current

• Wide Input Voltage Range up to 40 V

• 150 kHz Fixed Frequency Internal Oscillator

• TTL Shutdown Capability

• Low Power Standby Mode, typ 80 mA

• Thermal Shutdown and Current Limit Protection

• Internal Loop Compensation

• Moisture Sensitivity Level (MSL) Equals 1

• Pb−Free Packages are Available

http://onsemi.com

Heatsink surface connected to Pin 3

Pin 1. V

2. Output

3. Ground

4. Feedback

5. ON

Heatsink surface (shown as terminal 6 in case outline drawing) is connected to Pin 3

TO−220

TV SUFFIX

CASE 314B

TO−220

T SUFFIX

CASE 314D

/OFF

PAK

D2T SUFFIX

CASE 936A

Applications

• Simple High−Efficiency Step−Down (Buck) Regulator

• Efficient Pre−Regulator for Linear Regulators

• On−Card Switching Regulators

• Positive to Negative Converter (Buck−Boost)

• Negative Step−Up Converters

• Power Supply for Battery Chargers

November, 2008 − Rev. 0

ORDERING INFORMATION

See detailed ordering and shipping information in the package dimensions section on page 23 of this data sheet.

DEVICE MARKING INFORMATION

See general marking information in the device marking section on page 23 of this data sheet.

1 Publication Order Number:

LM2596/D

Unregulated

DC Input

LM2596

Typical Application (Adjustable Output Voltage Version)

out

220 mF

1.0k

5.0 V Regulated Output 3.0 A Load

/OFF

Output

2 GND

Regulated

Output

out

Load

Feedback

12 V

Unregulated

DC Input

100 mF

/OFF5

Output

LM2596

GND

3ON

33 mH

D1 1N5822

3.1k

Block Diagram

Feedback

Fixed Gain Error Amplifier

Freq Shift

30 kHz

1.235 V Band-Gap Reference

3.1 V Internal

Comparator

150 kHz

Oscillator

Regulator

Current

Latch

Reset

Limit

/OFF

Driver

3.0 Amp Switch

Thermal

Shutdown

Figure 1. Typical Application and Internal Block Diagram

MAXIMUM RATINGS

Rating Symbol Value Unit

Maximum Supply Voltage V

ON/OFF Pin Input Voltage − −0.3 V ≤ V ≤ +V

Output Voltage to Ground (Steady−State) − −1.0 V

Power Dissipation

Case 314B and 314D (TO−220, 5−Lead) P

Thermal Resistance, Junction−to−Ambient

Thermal Resistance, Junction−to−Case

Case 936A (D2PAK) P

Thermal Resistance, Junction−to−Ambient

Thermal Resistance, Junction−to−Case

Storage Temperature Range T

Minimum ESD Rating (Human Body Model: C = 100 pF, R = 1.5 kW)

stg

− 2.0 kV

Lead Temperature (Soldering, 10 seconds) − 260 °C

Maximum Junction Temperature T

Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.

45 V

Internally Limited W

65 °C/W

5.0 °C/W

Internally Limited W

70 °C/W

5.0 °C/W

−65 to +150 °C

150 °C

http://onsemi.com

LM2596

PIN FUNCTION DESCRIPTION

Pin Symbol Description (Refer to Figure 1)

1 V

2 Output This is the emitter of the internal switch. The saturation voltage V

3 GND Circuit ground pin. See the information about the printed circuit board layout.

4 Feedback This pin is the direct input of the error amplifier and the resistor network R2, R1 is connected externally to allow pro-

5 ON/OFF It allows the switching regulator circuit to be shut down using logic level signals, thus dropping the total input supply

OPERATING RATINGS (Operating Ratings indicate conditions for which the device is intended to be functional, but do not guarantee

specific performance limits. For guaranteed specifications and test conditions, see the Electrical Characteristics.)

Operating Junction Temperature Range T

Supply Voltage V

This pin is the positive input supply for the LM2596 step−down switching regulator. In order to minimize voltage transi-

ents and to supply the switching currents needed by the regulator, a suitable input bypass capacitor must be present (C

in Figure 1).

of this output switch is typically 1.5 V. It should be

kept in mind that the PCB area connected to this pin should be kept to a minimum in order to minimize coupling to

sat

sensitive circuitry.

gramming of the output voltage.

current to approximately 80 mA. The threshold voltage is typically 1.6 V. Applying a voltage above this value (up to

) shuts the regulator off. If the voltage applied to this pin is lower than 1.6 V or if this pin is left open, the regulator

will be in the “on” condition.

Rating

Symbol Value Unit

−40 to +125 °C

4.5 to 40 V

http://onsemi.com

LM2596

SYSTEM PARAMETERS

ELECTRICAL CHARACTERISTICS Specifications with standard type face are for T

over full Operating Temperature Range −40°C to +125°C

Characteristics Symbol Min Typ Max Unit

LM2596 (Note 1, Test Circuit Figure 15)

Feedback Voltage (V

= 12 V, I

Feedback Voltage (8.5 V ≤ Vin ≤ 40 V, 0.5 A ≤ I

Efficiency (V

Feedback Bias Current (V

= 12 V, I

Load

out

Oscillator Frequency (Note 2) f

Saturation Voltage (I

= 3.0 A, Notes 3 and 4) V

out

Max Duty Cycle “ON” (Note 4) DC 95 %

Current Limit (Peak Current, Notes 2 and 3) I

Output Leakage Current (Notes 5 and 6) Output = 0 V Output = −1.0 V

Quiescent Current (Note 5) I

Standby Quiescent Current (ON/OFF Pin = 5.0 V (“OFF”)) (Note 6)

ON/OFF PIN LOGIC INPUT

Threshold Voltage

= 0 V (Regulator OFF) V

out

= Nominal Output Voltage (Regulator ON) V

out

ON/OFF Pin Input Current

/OFF Pin = 5.0 V (Regulator OFF) I

ON/OFF Pin = 0 V (regulator ON) I

1. External components such as the catch diode, inductor, input and output capacitors can affect switching regulator system performance. When the LM2596 is used as shown in the Figure 15 test circuit, system performance will be as shown in system parameters section.

2. The oscillator frequency reduces to approximately 30 kHz in the event of an output short or an overload which causes the regulated output voltage to drop approximately 40% from the nominal output voltage. This self protection feature lowers the average dissipation of the IC by lowering the minimum duty cycle from 5% down to approximately 2%.

3. No diode, inductor or capacitor connected to output (Pin 2) sourcing the current.

4. Feedback (Pin 4) removed from output and connected to 0 V.

5. Feedback (Pin 4) removed from output and connected to +12 V to force the output transistor “off”.

= 40 V.

6. V

= 0.5 A, V

Load

= 3.0 A, V

out

= 5.0 V, ) V

out

Load

≤ 3.0 A, V

= 5.0 V) V

out

FB_nom

= 5.0 V) η − 73 − %

Characteristics Symbol Min Typ Max Unit

= 5.0 V) I

= 25°C, and those with boldface type apply

1.23 V

1.193

1.18

135

120

4.2

3.5

25 100

150 165

1.5 1.8

5.6 6.9

0.5

osc

sat

6.0

stby

5.0 10 mA

80 200

1.6 V

2.2

2.4

− 15 30

− 0.01 5.0

1.267

1.28

200

180

2.0

7.5

2.0 20

250

1.0

0.8

kHz

http://onsemi.com

LM2596

TYPICAL PERFORMANCE CHARACTERISTICS (Circuit of Figure 15)

1.0

Vin = 20 V

0.8 I

Load

0.6 Normalized at T

0.4

0.2

-0.2

-0.4

-0.6

, OUTPUT VOLTAGE CHANGE (%)

out

-0.8

-1.0

2.0

1.5

= 500 mA

= 25°C

TJ, JUNCTION TEMPERATURE (°C)

Figure 2. Normalized Output Voltage

= 3.0 A

Load

1.4

1.2

1.0

0.8

0.6

0.4

0.2

-0.2

, OUTPUT VOLTAGE CHANGE (%)

out

-0.4

1251007550250-25-50 403530252015105.00

-0.6

6.0

5.5

Load

= 25°C

= 500 mA

3.3 V and 5.0 V

, INPUT VOLTAGE (V)

Figure 3. Line Regulation

12 V and 15 V

Vin = 25 V

INPUT - OUTPUT DIFFERENTIAL (V)

, QUIESCENT CURRENT (mA)

1.0

0.5

8.0

6.0

4.0

5.0

= 500 mA

Load

, OUTPUT CURRENT (A)

4.5

L1 = 33 mH

= 0.1 W

ind

1251007550250-25-50 1251007550250-25-50

TJ, JUNCTION TEMPERATURE (°C)

4.0

TJ, JUNCTION TEMPERATURE (°C)

Figure 4. Dropout Voltage Figure 5. Current Limit

= 5.0 V

= 3.0 A

Load

out

Measured at Ground Pin T

= 25°C

= 200 mA

Load

403530252015105.00 1251007550250-25-50

, INPUT VOLTAGE (V)

μA)

, STANDBY QUIESCENT CURRENT (

stby

200

180

160

140

120

100

= 5.0 V

ON/OFF

Vin = 40 V

Vin = 12 V

TJ, JUNCTION TEMPERATURE (°C)

Figure 6. Quiescent Current Figure 7. Standby Quiescent Current

http://onsemi.com

LM2596

TYPICAL PERFORMANCE CHARACTERISTICS (Circuit of Figure 15)

200

180

160

TJ = 25°C

35 2.5

Vin, INPUT VOLTAGE (V)

, STANDBY QUIESCENT CURRENT (μA)I

stby

140

120

100

Figure 8. Standby Quiescent Current

1.0

0.0

−1.0

−2.0

−3.0

−4.0

−5.0

−6.0

−7.0

NORMALIZED FREQUENCY (%)

−8.0

−9.0

−50 −25 0 25 50 75 100 125

TJ, JUNCTION TEMPERATURE (°C)

VIN = 12 V Normalized at 25°C

Figure 10. Switching Frequency

1.6

1.4

1.2

-40°C

1.0

0.8

25°C

0.6 125°C

, SATURATION VOLTAGE (V)

0.4

sat

0.2

40302520151050 0 0.5 1.0 1.5 2.0 3.0

SWITCH CURRENT (A)

Figure 9. Switch Saturation Voltage

5.0

4.5

4.0

3.5

3.0

2.5

2.0

, INPUT VOLTAGE (V)

1.5

1.0

0.5

-50

' 1.23 V

out

= 500 mA

Load

TJ, JUNCTION TEMPERATURE (°C)

1251007550250-25

Figure 11. Minimum Supply Operating Voltage

, FEEDBACK PIN CURRENT (nA)

-100

100

-20

-40

-60

-80

1251007550250-25-50

, JUNCTION TEMPERATURE (°C)

Figure 12. Feedback Pin Current

http://onsemi.com

LM2596

TYPICAL PERFORMANCE CHARACTERISTICS (Circuit of Figure 15)

10 V

4.0 A

2.0 A

4.0 A

2.0 A

Figure 13. Switching Waveforms Figure 14. Load Transient Response

Vout = 5 V A: Output Pin Voltage, 10 V/div B: Switch Current, 2.0 A/div C: Inductor Current, 2.0 A/div, AC−Coupled D: Output Ripple Voltage, 50 mV/div, AC−Coupled

Horizontal Time Base: 5.0 ms/div

Output

Voltage

Change

- 100 mV

Load

Current

100 mV

3.0 A

2.0 A

1.0 A

100 ms/div2 ms/div

8.5 V - 40 V Unregulated

DC Input

100 mF

Adjustable Output Voltage Versions

Feedback

LM2596

Output

/OFFGND

53ON

+ V

ref

= 1.23 V, R1

ref

1.0 )

out

1.0Ǔ

ref

out

R2 + R1ǒ

Where V between 1.0 k and 5.0 k

Figure 15. Typical Test Circuit

33 mH

D1 1N5822

out

220 mF

5,000 V

out

Load

http://onsemi.com

LM2596

PCB LAYOUT GUIDELINES

As in any switching regulator, the layout of the printed circuit board is very important. Rapidly switching currents associated with wiring inductance, stray capacitance and parasitic inductance of the printed circuit board traces can generate voltage transients which can generate electromagnetic interferences (EMI) and affect the desired operation. As indicated in the Figure 15, to minimize inductance and ground loops, the length of the leads indicated by heavy lines should be kept as short as possible.

For best results, single−point grounding (as indicated) or ground plane construction should be used.

DESIGN PROCEDURE

Buck Converter Basics

The LM2596 is a “Buck” or Step−Down Converter which is the most elementary forward−mode converter. Its basic schematic can be seen in Figure 16.

The operation of this regulator topology has two distinct time periods. The first one occurs when the series switch is on, the input voltage is connected to the input of the inductor.

The output of the inductor is the output voltage, and the rectifier (or catch diode) is reverse biased. During this period, since there is a constant voltage source connected across the inductor, the inductor current begins to linearly ramp upwards, as described by the following equation:

L(on)

VIN* V

OUT

During this “on” period, energy is stored within the core material in the form of magnetic flux. If the inductor is properly designed, there is sufficient energy stored to carry the requirements of the load during the “off” period.

Power Switch

On the other hand, the PCB area connected to the Pin 2 (emitter of the internal switch) of the LM2596 should be kept to a minimum in order to minimize coupling to sensitive circuitry.

Another sensitive part of the circuit is the feedback. It is important to keep the sensitive feedback wiring short. To assure this, physically locate the programming resistors near to the regulator, when using the adjustable version of the LM2596 regulator.

This period ends when the power switch is once again turned on. Regulation of the converter is accomplished by varying the duty cycle of the power switch. It is possible to describe the duty cycle as follows:

d +

, where T is the period of switching.

For the buck converter with ideal components, the duty cycle can also be described as:

out

d +

Figure 17 shows the buck converter, idealized waveforms of the catch diode voltage and the inductor current.

on(SW)

Power Switch

Off

Diode VoltageInductor Current

VD(FWD)

Power

Switch

Power Switch

Off

Power

Switch

Figure 16. Basic Buck Converter

out

Load

The next period is the “off” period of the power switch. When the power switch turns off, the voltage across the inductor reverses its polarity and is clamped at one diode voltage drop below ground by the catch diode. The current now flows through the catch diode thus maintaining the load current loop. This removes the stored energy from the inductor. The inductor current during this time is:

L(off)

OUT

* V

off

http://onsemi.com

min

Diode Diode

Figure 17. Buck Converter Idealized Waveforms

Power Switch

Power

Switch

Load

Time

(AV)

Time

LM2596

PROCEDURE (ADJUSTABLE OUTPUT VERSION: LM2596)

Procedure Example

Given Parameters:

= Regulated Output Voltage

out

= Maximum DC Input Voltage

in(max)

Load(max)

1. Programming Output Voltage

To select the right programming resistor R1 and R2 value (see Figure 1) use the following formula:

Resistor R1 can be between 1.0 k and 5.0 kW. (For best temperature coefficient and stability with time, use 1% metal film resistors).

= Maximum Load Current

+ V

out

ref

1.0 )

R2 + R1

R2 R1

out

ref

where V

* 1.0

= 1.23 V

ref

Given Parameters:

= 5.0 V

out

= 12 V

in(max)

Load(max)

1. Programming Output Voltage (selecting R1 and R2) Select R1 and R2:

= 3.0 A

+ 1.23ǒ1.0 )

out

R2 + R1

R2 = 3.0 kW, choose a 3.0k metal film resistor.

ref

* 1.0Ǔ+

Select R1 = 1.0 kW

1.23 V

* 1.0

2. Input Capacitor Selection (Cin)

To prevent large voltage transients from appearing at the input and for stable operation of the converter, an aluminium or tantalum electrolytic bypass capacitor is needed between the input pin +V located close to the IC using short leads. This capacitor should have a low ESR (Equivalent Series Resistance) value.

For additional information see input capacitor section in the “Application Information” section of this data sheet.

3. Catch Diode Selection (D1)

A. Since the diode maximum peak current exceeds the

regulator maximum load current the catch diode current rating must be at least 1.2 times greater than the maximum load current. For a robust design, the diode should have a current rating equal to the maximum current limit of the LM2596 to be able to withstand a continuous output short.

B. The reverse voltage rating of the diode should be at least

1.25 times the maximum input voltage.

and ground pin GND This capacitor should be

2. Input Capacitor Selection (Cin)

A 100 mF, 50 V aluminium electrolytic capacitor located near

the input and ground pin provides sufficient bypassing.

3. Catch Diode Selection (D1) A. For this example, a 3.0 A current rating is adequate.

B. For robust design use a 30 V 1N5824 Schottky diode or

any suggested fast recovery diode in the Table 2.

http://onsemi.com

LM2596

PROCEDURE (ADJUSTABLE OUTPUT VERSION: LM2596) (CONTINUED)

Procedure Example

4. Inductor Selection (L1)

A. Use the following formula to calculate the inductor Volt x

microsecond [V x ms] constant:

E T +ǒVIN* V

OUT

* V

SAT

OUT

VIN* V

SAT

) V

1000

150 kHz

) V

B. Match the calculated E x T value with the corresponding

number on the vertical axis of the Inductor Value Selection Guide shown in Figure 18. This E x T constant is a measure of the energy handling capability of an inductor and is dependent upon the type of core, the core area, the number of turns, and the duty cycle.

C. Next step is to identify the inductance region intersected by

the E x T value and the maximum load current value on the horizontal axis shown in Figure 18.

D. Select an appropriate inductor from Table 3.

The inductor chosen must be rated for a switching frequency of 150 kHz and for a current rating of 1.15 x I The inductor current rating can also be determined by calculating the inductor peak current:

where t

Vin* V

+ I

p(max)

is the “on” time of the power switch and

Load(max)

ton+

)

out

1.0

osc

out

V ms

Load

4. Inductor Selection (L1) A. Calculate E x T [V x ms] constant:

E T +ǒ12 * 5 * 1.5Ǔ

E T +ǒ5.5Ǔ

B. E x T = 27 [V x ms]

C. I

Load(max)

Inductance Region = L40

D. Proper inductor value = 33 mH

Choose the inductor from Table 3.

5.5

7.5

= 3.0 A

5 ) 0.5

12 * 5 ) 0.5

6.6ǒV ms

1000

150 kHz

V ms

5. Output Capacitor Selection (C

out

)

A. Since the LM2596 is a forward−mode switching regulator

with voltage mode control, its open loop has 2−pole−1−zero frequency characteristic. The loop stability is determined by the output capacitor (capacitance, ESR) and inductance values.

For stable operation use recommended values of the output capacitors in Table 1. Low ESR electrolytic capacitors between 220uFand 1500uF provide best results.

B. The capacitors voltage rating should be at least 1.5 times

greater than the output voltage, and often much higher voltage rating is needed to satisfy low ESR requirement

6. Feedforward Capacitor (CFF)

It provides additional stability mainly for higher input voltages. For Cff selection use Table 1. The compensation capacitor between

0.6 nF and 40 nF is wired in parallel with the output voltage setting resistor R2, The capacitor type can be ceramic, plastic, etc..

5. Output Capacitor Selection (C

out

)

A. In this example is recommended Nichicon PM

capacitors: 470 mF/35 V or 220 mF/35 V

6. Feedforward Capacitor (CFF)

In this example is recommended feedforward capacitor 15 nF or 5 nF.

http://onsemi.com

LM2596

LM2596 Series Buck Regulator Design Procedures (continued)

Table 1. RECOMMENDED VALUES OF THE OUTPUT CAPACITOR AND FEEDFORWARD CAPACITOR

= 3 A)

load

Nichicon PM Capacitors

Vin (V)

40 1500/35/24 1000/35/29 1000/35/29 680/35/36 560/25/55 560/25/55 470/35/46 470/35/46

26 1200/35/26 820/35 680/35/36 560/35/41 470/25/65 470/25/65 330/35/60

22 1000/35/29 680/35/36 560/35/41 330/25/85 330/25/85 220/35/85

20 820/35/32 470/35/46 470/25/65 330/25/85 330/25/85 220/35/85

18 820/35/32 470/35/46 470/25/65 330/25/85 330/25/85 220/35/85

12 820/35/32 470/35/46 220/35/85 220/25/111

10 820/35/32 470/35/46 220/35/85

(V) 2 4 6 9 12 15 24 28

out

CFF (nF] 40 15 5 2 1.5 1 0.6 0.6

Capacity/Voltage Range/ESR (mF/V/mW)

70 60

220uH

L35L27

L36

L27

L42

L43

L44

L37

150uH

L29

L38

30 25

100uH

68uH

L30

L39

E*T(V*us)

9 8

Figure 18. Inductor Value Selection Guides (For Continuous Mode Operation)

L21

L31

47uH

L32

L40

33uH

L22

L40

22uH

L23

L34

L24

L15

L25

15uH

0.6 0.8 1.0 1.5 2.0 2.5 3.0

Maximum load current (A)

http://onsemi.com

Table 2. DIODE SELECTION

3.0 A 4.0 − 6.0 A 3.0 A 4.0 − 6.0 A

Through

20 V 1N5820

Hole

MBR320P

SR302

Surface

Mount

SK32 1N5823

LM2596

Schottky Fast Recovery

Through

Hole

SR502 SB520

Surface

Mount

Through

Hole

Surface

Mount

Through

Hole

Surface

Mount

30 V 1N5821

MBR330

SR303

31DQ03

40 V 1N5822

MBR340

SR304

31DQ04

50 V MBR350

31DQ05

SR305

60 V MBR360

DQ06

SR306

NOTE: Diodes listed in bold are available from ON Semiconductor.

SK33

30WQ03

SK34

30WQ04

MBRS340T3

MBRD340

SK35

30WQ05

MBRS360T3

MBRD360

1N5824

SR503 SB530

1N5825

SR504 SB540

SB550 50WQ05

50SQ080 MBRD660CT

50WQ03

MBRD640CT

50WQ04

MUR320

31DF1

HER302

(all diodes

rated

to at least

100 V)

MURS320T3

MURD320

30WF10

(all diodes

rated

to at least

100 V)

MUR420

HER602

(all diodes

rated

to at least

100 V)

MURD620CT

50WF10

(all diodes

rated

to at least

100 V)

http://onsemi.com

LM2596

Table 3. INDUCTOR MANUFACTURERS PART NUMBERS

Schott Renco Pulse Engineering Coilcraft

Inductance

(mH)

L15 22 0.99 67148350 67148460 RL−1284−22−43 RL1500−22PE−53815 PE−53815−S DO3308−223

L21 68 0.99 67144070 67144450 RL−5471−5 RL1500−68PE−53821 PE−53821−S DO3316−683

L22 47 1.17 67144080 67144460 RL−5471−6 − PE−53822 PE−53822−S DO3316−473

L23 33 1.40 67144090 67144470 RL−5471−7 − PE−53823 PE−53823−S DO3316−333

L24 22 1.70 67148370 67148480 RL−1283−22−43 − PE−53824 PE−53825−S DO3316−223

L25 15 2.10 67148380 67148490 RL−1283−15−43 − PE−53825 PE−53824−S DO3316−153

L26 330 0.80 67144100 67144480 RL−5471−1 − PE−53826 PE−53826−S DO5022P−334

L27 220 1.00 67144110 67144490 RL−5471−2 − PE−53827 PE−53827−S DO5022P−224

L28 150 1.20 67144120 67144500 RL−5471−3 − PE−53828 PE−53828−S DO5022P−154

L29 100 1.47 67144130 67144510 RL−5471−4 − PE−53829 PE−53829−S DO5022P−104

L30 68 1.78 67144140 67144520 RL−5471−5 − PE−53830 PE−53830−S DO5022P−683

L31 47 2.20 67144150 67144530 RL−5471−6 − PE−53831 PE−53831−S DO5022P−473

L32 33 2.50 67144160 67144540 RL−5471−7 − PE−53932 PE−53932−S DO5022P−333

L33 22 3.10 67148390 67148500 RL−1283−22−43 − PE−53933 PE−53933−S DO5022P−223

L34 15 3.40 67148400 67148790 RL−1283−15−43 − PE−53934 PE−53934−S DO5022P−153

L35 220 1.70 67144170 − RL−5473−1 − PE−53935 PE−53935−S −

L36 150 2.10 67144180 − RL−5473−4 − PE−54036 PE−54036−S −

L37 100 2.50 67144190 − RL−5472−1 − PE−54037 PE−54037−S −

L38 68 3.10 67144200 − RL−5472−2 − PE−54038 PE−54038−S DO5040H−683ML

L39 47 3.50 67144210 − RL−5472−3 − PE−54039 PE−54039−S DO5040H−473ML

L40 33 3.50 67144220 67148290 RL−5472−4 − PE−54040 PE−54040−S DO5040H−333ML

L41 22 3.50 67144230 67148300 RL−5472−5 − PE−54041 PE−54041−S DO5040H−223ML

L42 150 2.70 67148410 − RL−5473−4 − PE−54042 PE−54042−S −

L43 100 3.40 67144240 − RL−5473−2 − PE−54043

L44 68 3.40 67144250 − RL−5473−3 − PE−54044 DO5040H−683ML

Current

(A)

Through

Hole

Surface

Mount

Through

Hole

Surface

Mount

Through

Hole

Surface

Mount

Surface Mount

http://onsemi.com

LM2596

APPLICATION INFORMATION

EXTERNAL COMPONENTS

Input Capacitor (Cin)

The Input Capacitor Should Have a Low ESR

For stable operation of the switch mode converter a low ESR (Equivalent Series Resistance) aluminium or solid tantalum bypass capacitor is needed between the input pin and the ground pin, to prevent large voltage transients from appearing at the input. It must be located near the regulator and use short leads. With most electrolytic capacitors, the capacitance value decreases and the ESR increases with lower temperatures. For reliable operation in temperatures below −25°C larger values of the input capacitor may be needed. Also paralleling a ceramic or solid tantalum capacitor will increase the regulator stability at cold temperatures.

RMS Current Rating of C

The important parameter of the input capacitor is the RMS current rating. Capacitors that are physically large and have large surface area will typically have higher RMS current ratings. For a given capacitor value, a higher voltage electrolytic capacitor will be physically larger than a lower voltage capacitor, and thus be able to dissipate more heat to the surrounding air, and therefore will have a higher RMS current rating. The consequence of operating an electrolytic capacitor beyond the RMS current rating is a shortened operating life. In order to assure maximum capacitor operating lifetime, the capacitor’s RMS ripple current rating should be:

> 1.2 x d x I

rms

Load

where d is the duty cycle, for a buck regulator

and d +

Output Capacitor (C

out

d +

out

| ) V

out

)

out

for a buck*boost regulator.

For low output ripple voltage and good stability, low ESR output capacitors are recommended. An output capacitor has two main functions: it filters the output and provides

regulator loop stability. The ESR of the output capacitor and the peak−to−peak value of the inductor ripple current are the main factors contributing to the output ripple voltage value. Standard aluminium electrolytics could be adequate for some applications but for quality design, low ESR types are recommended.

An aluminium electrolytic capacitor’s ESR value is related to many factors such as the capacitance value, the voltage rating, the physical size and the type of construction. In most cases, the higher voltage electrolytic capacitors have lower ESR value. Often capacitors with much higher voltage ratings may be needed to provide low ESR values that, are required for low output ripple voltage.

Feedfoward Capacitor

(Adjustable Output Voltage Version)

This capacitor adds lead compensation to the feedback loop and increases the phase margin for better loop stability. For C

FF selection, see the design procedure section.

The Output Capacitor Requires an ESR Value That Has an Upper and Lower Limit

As mentioned above, a low ESR value is needed for low output ripple voltage, typically 1% to 2% of the output voltage. But if the selected capacitor’s ESR is extremely low (below 0.05 W), there is a possibility of an unstable feedback loop, resulting in oscillation at the output. This situation can occur when a tantalum capacitor, that can have a very low ESR, is used as the only output capacitor.

At Low Temperatures, Put in Parallel Aluminium Electrolytic Capacitors with Tantalum Capacitors

Electrolytic capacitors are not recommended for temperatures below −25°C. The ESR rises dramatically at cold temperatures and typically rises 3 times at −25°C and as much as 10 times at −40°C. Solid tantalum capacitors have much better ESR spec at cold temperatures and are recommended for temperatures below −25°C. They can be also used in parallel with aluminium electrolytics. The value of the tantalum capacitor should be about 10% or 20% of the total capacitance. The output capacitor should have at least 50% higher RMS ripple current rating at 150 kHz than the peak−to−peak inductor ripple current.

http://onsemi.com

LM2596

Catch Diode

Locate the Catch Diode Close to the LM2596

The LM2596 is a step−down buck converter; it requires a fast diode to provide a return path for the inductor current when the switch turns off. This diode must be located close to the LM2596 using short leads and short printed circuit traces to avoid EMI problems.

Use a Schottky or a Soft Switching Ultra−Fast Recovery Diode

Since the rectifier diodes are very significant sources of losses within switching power supplies, choosing the rectifier that best fits into the converter design is an important process. Schottky diodes provide the best performance because of their fast switching speed and low forward voltage drop.

They provide the best efficiency especially in low output voltage applications (5.0 V and lower). Another choice could be Fast−Recovery, or Ultra−Fast Recovery diodes. It has to be noted, that some types of these diodes with an abrupt turnoff characteristic may cause instability or EMI troubles.

A fast−recovery diode with soft recovery characteristics can better fulfill some quality, low noise design requirements. Table 2 provides a list of suitable diodes for the LM2596 regulator. Standard 50/60 Hz rectifier diodes, such as the 1N4001 series or 1N5400 series are NOT suitable.

Inductor

The magnetic components are the cornerstone of all switching power supply designs. The style of the core and the winding technique used in the magnetic component’s design has a great influence on the reliability of the overall power supply.

Using an improper or poorly designed inductor can cause high voltage spikes generated by the rate of transitions in current within the switching power supply, and the possibility of core saturation can arise during an abnormal operational mode. Voltage spikes can cause the semiconductors to enter avalanche breakdown and the part can instantly fail if enough energy is applied. It can also cause significant RFI (Radio Frequency Interference) and EMI (Electro−Magnetic Interference) problems.

Continuous and Discontinuous Mode of Operation

The LM2596 step−down converter can operate in both the continuous and the discontinuous modes of operation. The regulator works in the continuous mode when loads are relatively heavy, the current flows through the inductor continuously and never falls to zero. Under light load conditions, the circuit will be forced to the discontinuous mode when inductor current falls to zero for certain period of time (see Figure 19 and Figure 20). Each mode has distinctively different operating characteristics, which can affect the regulator performance and requirements. In many cases the preferred mode of operation is the continuous mode. It offers greater output power, lower peak currents in the switch, inductor and diode, and can have a lower output

ripple voltage. On the other hand it does require larger inductor values to keep the inductor current flowing continuously, especially at low output load currents and/or high input voltages.

To simplify the inductor selection process, an inductor selection guide for the LM2596 regulator was added to this data sheet (Figure 18). This guide assumes that the regulator is operating in the continuous mode, and selects an inductor that will allow a peak−to−peak inductor ripple current to be a certain percentage of the maximum design load current. This percentage is allowed to change as different design load currents are selected. For light loads (less than approximately 300 mA) it may be desirable to operate the regulator in the discontinuous mode, because the inductor value and size can be kept relatively low. Consequently, the percentage of inductor peak−to−peak current increases. This discontinuous mode of operation is perfectly acceptable for this type of switching converter. Any buck regulator will be forced to enter discontinuous mode if the load current is light enough.

2.0 A

Inductor

Current

Waveform

Selecting the Right Inductor Style

0 A

2.0 A

Power

Switch

Current

0 A

HORIZONTAL TIME BASE: 2.0 ms/DIV

Figure 19. Continuous Mode Switching Current

Waveforms

Some important considerations when selecting a core type are core material, cost, the output power of the power supply, the physical volume the inductor must fit within, and the amount of EMI (Electro−Magnetic Interference) shielding that the core must provide. The inductor selection guide covers different styles of inductors, such as pot core, E−core, toroid and bobbin core, as well as different core materials such as ferrites and powdered iron from different manufacturers.

For high quality design regulators the toroid core seems to be the best choice. Since the magnetic flux is contained within the core, it generates less EMI, reducing noise problems in sensitive circuits. The least expensive is the bobbin core type, which consists of wire wound on a ferrite rod core. This type of inductor generates more EMI due to the fact that its core is open, and the magnetic flux is not contained within the core.

When multiple switching regulators are located on the same printed circuit board, open core magnetics can cause

VERTRICAL RESOLUTION 1.0 A/DIV

http://onsemi.com

LM2596

interference between two or more of the regulator circuits, especially at high currents due to mutual coupling. A toroid, pot core or E−core (closed magnetic structure) should be used in such applications.

Do Not Operate an Inductor Beyond its Maximum Rated Current

Exceeding an inductor’s maximum current rating may cause the inductor to overheat because of the copper wire losses, or the core may saturate. Core saturation occurs when the flux density is too high and consequently the cross sectional area of the core can no longer support additional lines of magnetic flux.

This causes the permeability of the core to drop, the inductance value decreases rapidly and the inductor begins to look mainly resistive. It has only the DC resistance of the winding. This can cause the switch current to rise very rapidly and force the LM2596 internal switch into cycle−by−cycle current limit, thus reducing the DC output load current. This can also result in overheating of the

GENERAL RECOMMENDATIONS

Output Voltage Ripple and Transients

Source of the Output Ripple

Since the LM2596 is a switch mode power supply regulator, its output voltage, if left unfiltered, will contain a sawtooth ripple voltage at the switching frequency. The output ripple voltage value ranges from 0.5% to 3% of the output voltage. It is caused mainly by the inductor sawtooth ripple current multiplied by the ESR of the output capacitor.

Short Voltage Spikes and How to Reduce Them

The regulator output voltage may also contain short voltage spikes at the peaks of the sawtooth waveform (see Figure 21). These voltage spikes are present because of the fast switching action of the output switch, and the parasitic inductance of the output filter capacitor. There are some other important factors such as wiring inductance, stray capacitance, as well as the scope probe used to evaluate these transients, all these contribute to the amplitude of these spikes. To minimize these voltage spikes, low inductance capacitors should be used, and their lead lengths must be kept short. The importance of quality printed circuit board layout design should also be highlighted.

Voltage spikes caused by

Filtered

Output

Voltage

Unfiltered

Output

Voltage

HORIZONTAL TIME BASE: 5.0 ms/DIV

Figure 21. Output Ripple Voltage Waveforms

switching action of the output switch and the parasitic inductance of the output capacitor

20 mV/DIV

VERTRICAL

RESOLUTION

inductor and/or the LM2596. Different inductor types have different saturation characteristics, and this should be kept in mind when selecting an inductor.

0.4 A

Inductor

Current

Waveform

0 A

0.4 A

Power

Switch

Current

Waveform

Minimizing the Output Ripple

0 A

HORIZONTAL TIME BASE: 2.0 ms/DIV

Figure 20. Discontinuous Mode Switching Current

Waveforms

In order to minimize the output ripple voltage it is possible to enlarge the inductance value of the inductor L1 and/or to use a larger value output capacitor. There is also another way to smooth the output by means of an additional LC filter (20 mH, 100 mF), that can be added to the output (see Figure 30) to further reduce the amount of output ripple and transients. With such a filter it is possible to reduce the output ripple voltage transients 10 times or more. Figure 21 shows the difference between filtered and unfiltered output waveforms of the regulator shown in Figure 30.

The lower waveform is from the normal unfiltered output of the converter, while the upper waveform shows the output ripple voltage filtered by an additional LC filter.

Heatsinking and Thermal Considerations

The Through−Hole Package TO−220

The LM2596 is available in two packages, a 5−pin

TO−220(T, TV) and a 5−pin surface mount D

PAK(D2T). Although the TO−220(T) package needs a heatsink under most conditions, there are some applications that require no heatsink to keep the LM2596 junction temperature within the allowed operating range. Higher ambient temperatures require some heat sinking, either to the printed circuit (PC) board or an external heatsink.

The Surface Mount Package D2PAK and its Heatsinking

The other type of package, the surface mount D2PAK, is designed to be soldered to the copper on the PC board. The copper and the board are the heatsink for this package and the other heat producing components, such as the catch diode and inductor. The PC board copper area that the package is soldered to should be at least 0.4 in

(or 260 mm2) and ideally should have 2 or more square inches (1300 mm of 0.0028 inch copper. Additional increases of copper area beyond approximately 6.0 in

(4000 mm2) will not improve

VERTICAL RESOLUTION 200 mA/DIV

)

http://onsemi.com

LM2596

heat dissipation significantly. If further thermal improvements are needed, double sided or multilayer PC boards with large copper areas should be considered. In order to achieve the best thermal performance, it is highly recommended to use wide copper traces as well as large areas of copper in the printed circuit board layout. The only exception to this is the OUTPUT (switch) pin, which should not have large areas of copper (see page 8 ‘PCB Layout Guideline’).

Thermal Analysis and Design

The following procedure must be performed to determine

whether or not a heatsink will be required. First determine:

1. P

maximum regulator power dissipation in the

D(max)

application.

2. T

) maximum ambient temperature in the

A(max

application.

3. T

J(max)

maximum allowed junction temperature (125°C for the LM2596). For a conservative design, the maximum junction temperature should not exceed 110°C to assure safe operation. For every additional +10°C temperature rise that the junction must withstand, the estimated operating lifetime of the component is halved.

4. R

5. R

package thermal resistance junction−case. package thermal resistance junction−ambient.

(Refer to Maximum Ratings on page 2 of this data sheet or

and R

values).

The following formula is to calculate the approximate

total power dissipated by the LM2596:

PD = (Vin x IQ) + d x I

Load

x V

sat

where d is the duty cycle and for buck converter

(quiescent current) and V

d +

can be found in the

sat

LM2596 data sheet, is minimum input voltage applied,

is the regulator output voltage,

is the load current.

Load

The dynamic switching losses during turn−on and

turn−off can be neglected if proper type catch diode is used.

Packages Not on a Heatsink (Free−Standing)

For a free−standing application when no heatsink is used, the junction temperature can be determined by the following expression:

TJ = (R

where (R

)(PD) represents the junction temperature rise

caused by the dissipated power and T

) (PD) + T

is the maximum

ambient temperature.

Packages on a Heatsink

If the actual operating junction temperature is greater than the selected safe operating junction temperature determined in step 3, than a heatsink is required. The junction temperature will be calculated as follows:

where R

TJ = PD (R

is the thermal resistance junction−case,

is the thermal resistance case−heatsink,

is the thermal resistance heatsink−ambient.

+ R

) + T

If the actual operating temperature is greater than the selected safe operating junction temperature, then a larger heatsink is required.

Some Aspects That can Influence Thermal Design

It should be noted that the package thermal resistance and the junction temperature rise numbers are all approximate, and there are many factors that will affect these numbers, such as PC board size, shape, thickness, physical position, location, board temperature, as well as whether the surrounding air is moving or still.

Other factors are trace width, total printed circuit copper area, copper thickness, single− or double−sided, multilayer board, the amount of solder on the board or even color of the traces.

The size, quantity and spacing of other components on the board can also influence its effectiveness to dissipate the heat.

12 to 40 V

Unregulated

DC Input

100 mF/50 V

Feedback

LM2596−ADJ

Figure 22. Inverting Buck−Boost Develops −12 V

ON/OFF

http://onsemi.com

GND

33 mH

D1 1N5822

out

220 mF

−12 V @ 0.7 A Regulated

Output

LM2596

ADDITIONAL APPLICATIONS

Inverting Regulator

An inverting buck−boost regulator using the LM2596−ADJ is shown in Figure 22. This circuit converts a positive input voltage to a negative output voltage with a common ground by bootstrapping the regulators ground to the negative output voltage. By grounding the feedback pin, the regulator senses the inverted output voltage and regulates it.

In this example the LM2596−12 is used to generate a

−12 V output. The maximum input voltage in this case cannot exceed +28 V because the maximum voltage appearing across the regulator is the absolute sum of the input and output voltages and this must be limited to a maximum of 40 V.

This circuit configuration is able to deliver approximately

0.7 A to the output when the input voltage is 12 V or higher. At lighter loads the minimum input voltage required drops to approximately 4.7 V, because the buck−boost regulator topology can produce an output voltage that, in its absolute value, is either greater or less than the input voltage.

Since the switch currents in this buck−boost configuration are higher than in the standard buck converter topology, the available output current is lower.

This type of buck−boost inverting regulator can also require a larger amount of startup input current, even for light loads. This may overload an input power source with a current limit less than 5.0 A.

Such an amount of input startup current is needed for at least 2.0 ms or more. The actual time depends on the output voltage and size of the output capacitor.

Because of the relatively high startup currents required by this inverting regulator topology, the use of a delayed startup or an undervoltage lockout circuit is recommended.

Using a delayed startup arrangement, the input capacitor can charge up to a higher voltage before the switch−mode regulator begins to operate.

The high input current needed for startup is now partially supplied by the input capacitor C

It has been already mentioned above, that in some situations, the delayed startup or the undervoltage lockout features could be very useful. A delayed startup circuit applied to a buck−boost converter is shown in Figure 27. Figure 29 in the “Undervoltage Lockout” section describes an undervoltage lockout feature for the same converter topology.

Design Recommendations:

The inverting regulator operates in a different manner than the buck converter and so a different design procedure has to be used to select the inductor L1 or the output capacitor C

out

The output capacitor values must be larger than what is normally required for buck converter designs. Low input voltages or high output currents require a large value output capacitor (in the range of thousands of mF).

The recommended range of inductor values for the inverting converter design is between 68 mH and 220 mH. To select an inductor with an appropriate current rating, the inductor peak current has to be calculated.

The following formula is used to obtain the peak inductor current:

peak

where ton+

Load(Vin

[

|VO|

Vin) |VO|

) |VO|)

1.0

osc

)

, and f

Vinxt

osc

+ 52 kHz.

Under normal continuous inductor current operating conditions, the worst case occurs when V

is minimal.

12 to 40 V

Unregulated

DC Input

100 mF/50 V

Feedback

LM2596−ADJ

0.1 mF

Figure 23. Inverting Buck−Boost Develops −12 V

ON/OFF

R2 47k

http://onsemi.com

GND

33 mH

D1 1N5822

out

220 mF

−12 V @ 0.7 A Regulated

Output

LM2596

Shutdown

Off

Input

470

5.0 V

NOTE: This picture does not show the complete circuit.

100 mF

47 k

MOC8101

LM2596−XX

35GN

ON/OFF

R2 47 k

-V

Figure 24. Inverting Buck−Boost Regulator Shutdown

Circuit Using an Optocoupler

With the inverting configuration, the use of the ON/OFF pin requires some level shifting techniques. This is caused by the fact, that the ground pin of the converter IC is no longer at ground. Now, the ON

/OFF pin threshold voltage (1.3 V approximately) has to be related to the negative output voltage level. There are many different possible shut down methods, two of them are shown in Figures 24 and 25.

5.6 k

Shutdown Input

Q1 2N3906

LM2596−XX

ON/OFF

R1 12 k

35GN

-V

out

NOTE: This picture does not show the complete circuit.

Off

100 mF

Figure 25. Inverting Buck−Boost Regulator Shutdown

Circuit Using a PNP Transistor

Negative Boost Regulator

This example is a variation of the buck−boost topology and it is called negative boost regulator. This regulator experiences relatively high switch current, especially at low input voltages. The internal switch current limiting results in lower output load current capability.

The circuit in Figure 26 shows the negative boost configuration. The input voltage in this application ranges from −5.0 V to −12 V and provides a regulated −12 V output. If the input voltage is greater than −12 V, the output will rise above −12 V accordingly, but will not damage the regulator.

LM2596−ADJ

100 mF/

50 V

−12 V

Unregulated

DC Input

ON/OFF

33 mH

Figure 26. Negative Boost Regulator

Design Recommendations:

The same design rules as for the previous inverting buck−boost converter can be applied. The output capacitor C

must be chosen larger than would be required for a what

out

standard buck converter. Low input voltages or high output currents require a large value output capacitor (in the range of thousands of mF). The recommended range of inductor

out

GND

Feedback

1N5822

470 mF

−12 V @ 0.7 A Regulated

Output

values for the negative boost regulator is the same as for inverting converter design.

Another important point is that these negative boost converters cannot provide current limiting load protection in the event of a short in the output so some other means, such as a fuse, may be necessary to provide the load protection.

http://onsemi.com

Delayed Startup

There are some applications, like the inverting regulator already mentioned above, which require a higher amount of startup current. In such cases, if the input power source is limited, this delayed startup feature becomes very useful.

To provide a time delay between the time when the input voltage is applied and the time when the output voltage comes up, the circuit in Figure 27 can be used. As the input voltage is applied, the capacitor C1 charges up, and the voltage across the resistor R2 falls down. When the voltage on the ON

/OFF pin falls below the threshold value 1.3 V, the regulator starts up. Resistor R1 is included to limit the maximum voltage applied to the ON

/OFF pin. It reduces the power supply noise sensitivity, and also limits the capacitor C1 discharge current, but its use is not mandatory.

When a high 50 Hz or 60 Hz (100 Hz or 120 Hz respectively) ripple voltage exists, a long delay time can cause some problems by coupling the ripple into the ON

/OFF pin, the regulator could be switched periodically

on and off with the line (or double) frequency.

100 mF

NOTE: This picture does not show the complete circuit.

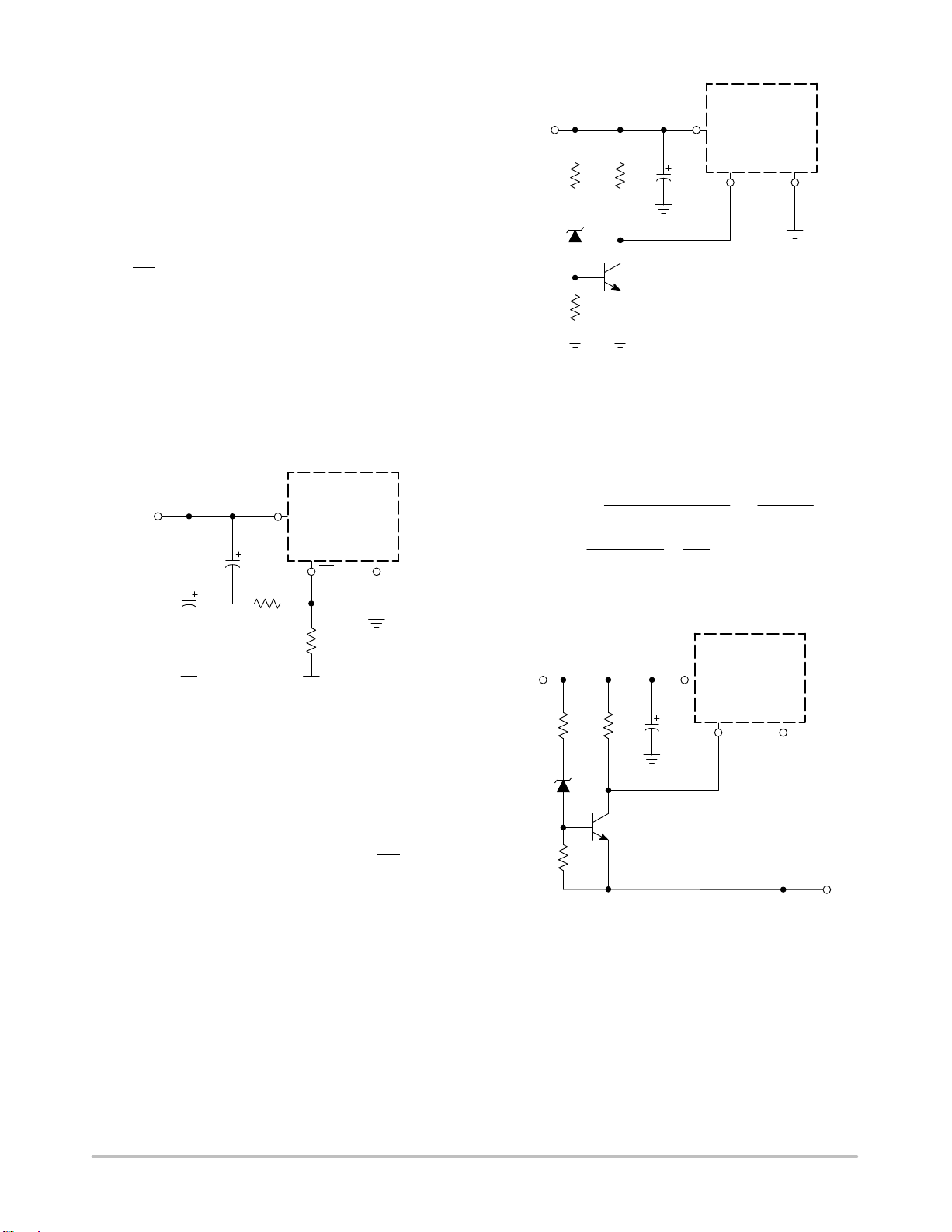

Figure 27. Delayed Startup Circuitry

Undervoltage Lockout

0.1 mF

47 k

LM2596−XX

35GN

ON/OFF

R2 47 k

Some applications require the regulator to remain off until the input voltage reaches a certain threshold level. Figure 28 shows an undervoltage lockout circuit applied to a buck regulator. A version of this circuit for buck−boost converter is shown in Figure 29. Resistor R3 pulls the ON

/OFF pin high and keeps the regulator off until the input voltage reaches a predetermined threshold level with respect to the ground Pin 3, which is determined by the following expression:

Vth[ VZ1)ǒ1.0 )

(Q1)

LM2596

10 k

1N5242B

10 k

NOTE: This picture does not show the complete circuit.

47 k

Q1 2N3904

Figure 28. Undervoltage Lockout Circuit for

Buck Converter

The following formula is used to obtain the peak inductor

current:

[

Load(Vin

peak

|VO|

where ton+

Vin) |VO|

Under normal continuous inductor current operating

conditions, the worst case occurs when V

15 k

1N5242B

15 k

NOTE: This picture does not show the complete circuit.

47 k

Q1 2N3904

Figure 29. Undervoltage Lockout Circuit for

Buck−Boost Converter

Adjustable Output, Low−Ripple Power Supply

A 3.0 A output current capability power supply that

features an adjustable output voltage is shown in Figure 30.

This regulator delivers 3.0 A into 1.2 V to 35 V output. The input voltage ranges from roughly 3.0 V to 40 V. In order to achieve a 10 or more times reduction of output ripple, an additional L−C filter is included in this circuit.

C 100 mF

) |VO|)

100 mF

1.0 osc

LM2596−XX

ON/OFF

Vth ≈ 13 V

)

, and f

LM2596−XX

ON/OFF

35GN

Vinxt

+ 52 kHz.

osc

is minimal.

35GN

Vth ≈ 13 V

out

http://onsemi.com

LM2596

40 V Max Unregulated DC Input

100 mF

Feedback

/OFFGN

Output

33 mH

D1 1N5822

R2 50 k

out

220 mF

1.21 k

LM2596−Adj

53ON

Figure 30. 1.2 to 35 V Adjustable 3.0 A Power Supply with Low Output Ripple

20 mH

100 mF

Optional Output

Ripple Filter

Output

Voltage

1.2 to 35 V @ 3.0 A

http://onsemi.com

LM2596

THE LM2596 STEP−DOWN VOLTAGE REGULATOR WITH 5.0 V @ 3.0 A OUTPUT POWER CAPABILITY.

TYPICAL APPLICATION WITH THROUGH−HOLE PC BOARD LAYOUT

4 Feedback

Unregulated DC Input

+Vin = 10 V to 40 V

100 mF

/50 V

C1 − 100 mF, 50 V, Aluminium Electrolytic C2 − 220 mF, 25 V, Aluminium Electrolytic D1 − 3.0 A, 40 V, Schottky Rectifier, 1N5822 L1 − 33 mH, DO5040H, Coilcraft R1 − 1.0 kW, 0.25 W R2 − 3.0 kW, 0.25 W

LM2596−ADJ

53ON

ON/OFF

Output

/OFFGN

33 mH

D1 1N5822

3.0 k

C2 220 mF /16 V

1.0 k

+ V

out

= 1.23 V

ref

R1 is between 1.0 k and 5.0 k

ref

)ǒ1.0 )

Regulated Output Filtered

= 5.0 V @ 3.0 A

out2

R2 R1

Figure 31. Schematic Diagram of the 5.0 V @ 3.0 A Step−Down Converter Using the LM2596−ADJ

NOTE: Not to scale. NOTE: Not to scale.

Figure 32. Printed Circuit Board Layout

Component Side

Figure 33. Printed Circuit Board Layout

Copper Side

References

• National Semiconductor LM2596 Data Sheet and Application Note

• National Semiconductor LM2595 Data Sheet and Application Note

• Marty Brown “Practical Switching Power Supply Design”, Academic Press, Inc., San Diego 1990

• Ray Ridley “High Frequency Magnetics Design”, Ridley Engineering, Inc. 1995

http://onsemi.com

LM2596

ORDERING INFORMATION

Device Package Shipping

LM2596TADJG TO−220

(Pb−Free)

LM2596TVADJG TO−220 (F)

(Pb−Free)

LM2596DSADJG D2PAK

(Pb−Free)

LM2596DSADJR4G D2PAK

(Pb−Free)

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging

Specifications Brochure, BRD8011/D.

50 Units / Rail

800 / Tape & Reel

MARKING DIAGRAMS

†

TO−220

TV SUFFIX

CASE 314B

2596T−ADJ

AWLYWWG

TO−220

T SUFFIX

CASE 314D

2596T−ADJ

AWLYWWG

A = Assembly Location WL = Wafer Lot Y = Year WW = Work Week G = Pb−Free Package

PAK

DS SUFFIX

CASE 936A

2596−ADJ

AWLYWWG

http://onsemi.com

LM2596

PACKAGE DIMENSIONS

TO−220

TV SUFFIX

CASE 314B−05

ISSUE L

0.10 (0.254) PMT

−Q−

5 PL

0.356 (0.014) T

−P−

12345

OPTIONAL CHAMFER

5X J

0.24 (0.610) T

SEATING

−T−

PLANE

NOTES:

1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982.

2. CONTROLLING DIMENSION: INCH.

3. DIMENSION D DOES NOT INCLUDE INTERCONNECT BAR (DAMBAR) PROTRUSION. DIMENSION D INCLUDING PROTRUSION SHALL NOT EXCEED 0.043 (1.092) MAXIMUM.

DIM MIN MAX MIN MAX

A 0.572 0.613 14.529 15.570 B 0.390 0.415 9.906 10.541 C 0.170 0.180 4.318 4.572 D 0.025 0.038 0.635 0.965 E 0.048 0.055 1.219 1.397 F 0.850 0.935 21.590 23.749 G 0.067 BSC 1.702 BSC H 0.166 BSC 4.216 BSC

J 0.015 0.025 0.381 0.635 K 0.900 1.100 22.860 27.940 L 0.320 0.365 8.128 9.271 N 0.320 BSC 8.128 BSC Q 0.140 0.153 3.556 3.886 S --- 0.620 --- 15.748 U 0.468 0.505 11.888 12.827 V --- 0.735 --- 18.669 W 0.090 0.110 2.286 2.794

MILLIMETERSINCHES

TO−220

T SUFFIX

CASE 314D−04

ISSUE F

SEATING

−T−

PLANE

DETAIL A-A

NOTES:

1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982.

2. CONTROLLING DIMENSION: INCH.

3. DIMENSION D DOES NOT INCLUDE INTERCONNECT BAR (DAMBAR) PROTRUSION. DIMENSION D INCLUDING PROTRUSION SHALL NOT EXCEED 10.92 (0.043) MAXIMUM.

DIM MIN MAX MIN MAX

A 0.572 0.613 14.529 15.570 B 0.390 0.415 9.906 10.541

B1 0.375 0.415 9.525 10.541

C 0.170 0.180 4.318 4.572 D 0.025 0.038 0.635 0.965

E 0.048 0.055 1.219 1.397 G 0.067 BSC 1.702 BSC H 0.087 0.112 2.210 2.845

J 0.015 0.025 0.381 0.635 K 0.977 1.045 24.810 26.543

L 0.320 0.365 8.128 9.271 Q 0.140 0.153 3.556 3.886 U 0.105 0.117 2.667 2.972

MILLIMETERSINCHES

DETAIL A−A

http://onsemi.com

LM2596

PACKAGE DIMENSIONS

D2PAK

D2T SUFFIX

CASE 936A−02

ISSUE C

0.010 (0.254) T

123

OPTIONAL CHAMFER

10.66

0.42

−T−

TERMINAL 6

SOLDERING FOOTPRINT*

8.38

0.33

NOTES:

1. DIMENSIONING AND TOLERANCING PER ANSI

Y14.5M, 1982.

2. CONTROLLING DIMENSION: INCH.

3. TAB CONTOUR OPTIONAL WITHIN DIMENSIONS A AND K.

4. DIMENSIONS U AND V ESTABLISH A MINIMUM MOUNTING SURFACE FOR TERMINAL 6.

5. DIMENSIONS A AND B DO NOT INCLUDE MOLD FLASH OR GATE PROTRUSIONS. MOLD FLASH AND GATE PROTRUSIONS NOT TO EXCEED 0.025 (0.635) MAXIMUM.

DIMAMIN MAX MIN MAX

INCHES

0.386 0.403 9.804 10.236

B 0.356 0.368 9.042 9.347 C 0.170 0.180 4.318 4.572 D 0.026 0.036 0.660 0.914

E 0.045 0.055 1.143 1.397 G 0.067 BSC 1.702 BSC H 0.539 0.579 13.691 14.707 K 0.050 REF 1.270 REF

L 0.000 0.010 0.000 0.254 M 0.088 0.102 2.235 2.591 N 0.018 0.026 0.457 0.660

P 0.058 0.078 1.473 1.981 R 5 REF

S 0.116 REF 2.946 REF U 0.200 MIN 5.080 MIN

V 0.250 MIN 6.350 MIN

MILLIMETERS

5 REF

1.702

0.067

1.016

3.05

0.04

0.12

16.02

0.63

SCALE 3:1

inches

*For additional information on our Pb−Free strategy and soldering

details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.

ON Semiconductor and are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC reserves the right to make changes without further notice to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. “Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where personal injury or death may occur. Should Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.

PUBLICATION ORDERING INFORMATION

LITERATURE FULFILLMENT:

Literature Distribution Center for ON Semiconductor P.O. Box 5163, Denver, Colorado 80217 USA

Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada Email: orderlit@onsemi.com

N. American Technical Support: 800−282−9855 Toll Free

USA/Canada

Europe, Middle East and Africa Technical Support:

Phone: 421 33 790 2910

Japan Customer Focus Center

Phone: 81−3−5773−3850

http://onsemi.com

ON Semiconductor Website: www.onsemi.com

Order Literature: http://www.onsemi.com/orderlit

For additional information, please contact your local Sales Representative

LM2596/D

ON Semiconductor LM2596 Technical data

Specifications and Main Features

Frequently Asked Questions

User Manual
