1. Introduction
OnQ offers both In-Ceiling (364518-01) and In-Wall (364519-01) 6.5” (woofer size) speakers. They can be used
for general music distribution and/or home theater applications. Both models are 2-way speakers and have
adjustable tweeters to help direct high frequencies to specific locations if needed. Speakers come with several
types of templates and paint rings.
2. Description
OnQ In-Ceiling and In-Wall speakers are made of tough semi-flexible plastic and feature perforated metal grills.
Speakers are paintable and come with painting shields to protect the drivers from paint and damage. The
speakers feature flip out tabs for installation and both speakers have swiveling tweeters. The In-Wall speakers
have a 3 position switch to adjust the tweeter output level; this can come in handy for matching the speaker to
its environment or tailoring to specific tastes.
3. Installation
NOTE: It is recommended that 16 gauge 2 conductor wire be run for most applications
from the amplifier or volume control to the speaker at a minimum. Different
gauges can, and should, be used based upon the distance of the intended run or
quality of installation (see Gauge Selection Chart). It is recommended that wire
gauge not be less than 18 gauge.
NOTE: The OnQ Impedance Matching Volume Controls (P/N 364520-01 & -03), A-BUS
Amplified Volume Controls (P/N 364471-01, -02 & -03; w/IR 364472-01, -02
& -03) and 6 Room Audio Distribution Module (P/N 364454-01) all
accommodate wire gauges from 18 to 14.
A. Run x/2 conductor (x=gauge preference) stranded speaker wire from the
distribution/volume control to the speaker location (pre-wiring).
B. Leave 2 to 4 feet of wire at the speakers intended location. Use a strip of
card board stapled to the joints/studs with a hole through it as a wire place
holder for the drywall installers (see Figure 1).
C. After drywall and/or painting is complete, push wire through hole, center
template over hole, mark with a pencil and cut out with a dry-wall knife.
OnQ Technologies, Inc.
P.O. Box 60907
Harrisburg, PA 17106-0907
800-321-2343
www.onqtech.com
Installation/Instruction Sheet
OnQ 6.5” Speakers
IS-0166 Rev. O
IS-0166 Rev. O Page 1 of 2
Ref. P/N 100225-66
In-Ceiling - 364518-01
In-Wall - 364519-01

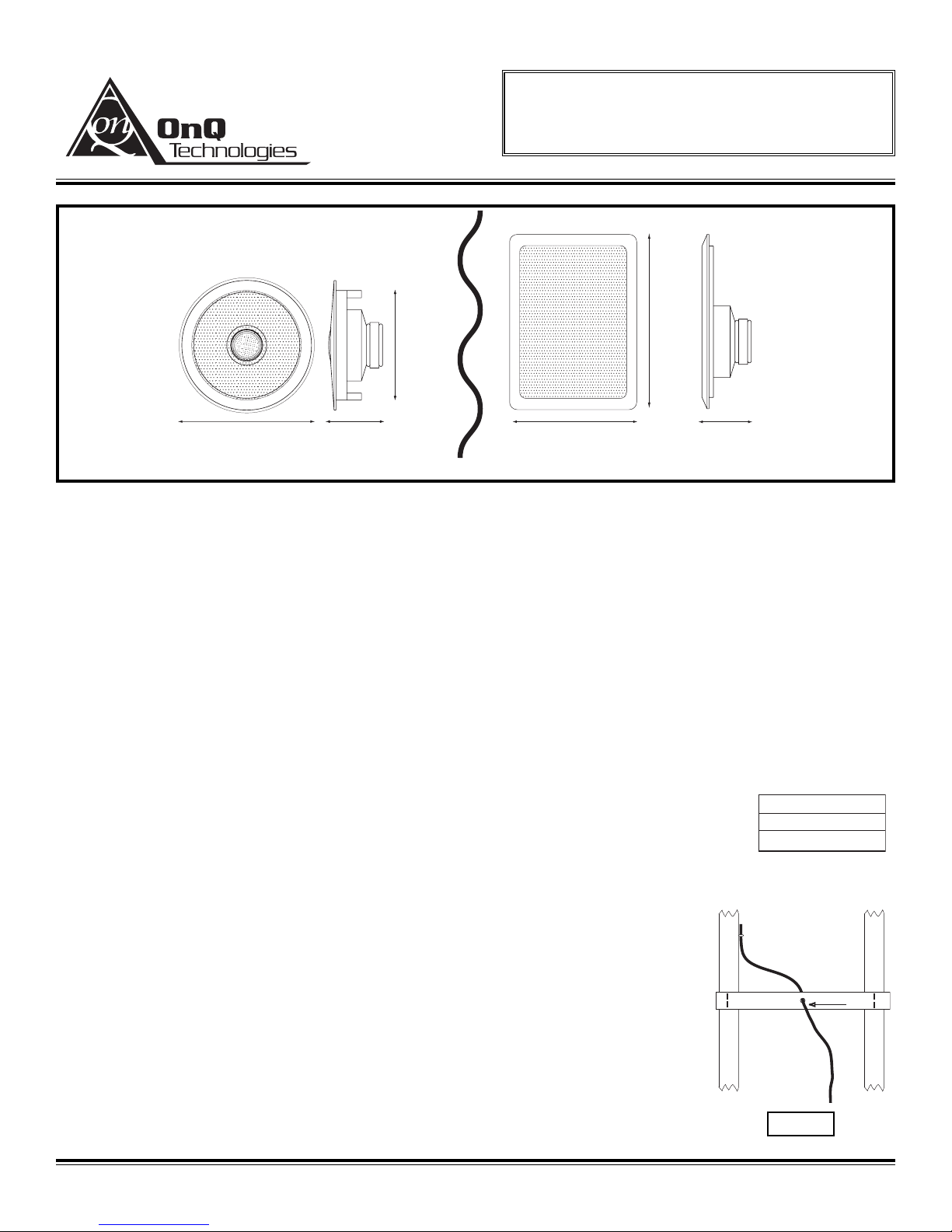

Figure 1
7.6"
12"
9" 3.75"
8.6"
3.4"
Distance
<10 Feet
10-50 Feet
>50 Feet
Gauge Selection
Gauge
18
16
14
Please Pull Thru Dry-Wall Here
D. Strip off 3 inches or so of the speaker cable jacket to expose the
positive and negative insulated wires. Strip 3/8 to 1/2 inch of
insulation off of these conductors.
E. Hold the speaker with one hand, push in the speaker terminal
connectors and insert wires; remove speaker grill (for in-ceiling leave
the tweeter grill on). Be sure to have the positive wire in the RED
terminal and the negative in the BLACK.
NOTE: Wiring both speakers identically as the above instruction states will
yield speakers that are “in phase”. If one speaker is wired opposite of
the other, the speakers will be “out of phase” with one another.
When speakers are “out of phase” they loose most of their bass
response and have a “canned” type sound. Make sure every
installed pair of speakers are correctly phased.
F. Use one hand to push the speaker into the cut out and the other to
turn the screws that engage the installation tabs. Tighten the tabs in
a cross or X-pattern until “snug”. Be careful not to over tighten the
tabs or damage could result (see Figure 2).
NOTE: If using a cordless drill/screwdriver, it is suggested that the screws be turned
until almost tight, then finish tightening via a screwdriver.
G. After the speaker has been installed, the tweeter can be positioned if desired
(see Figure 3).
H. If installing the In-Wall speaker, the tweeter level can be adjusted by rotating
the three position selection switch (see Figure 4).
OnQ Technologies, Inc.
P.O. Box 60907
Harrisburg, PA 17106-0907
800-321-2343
www.onqtech.com
Installation/Instruction Sheet
OnQ 6.5” Speakers
IS-0166 Rev. O
IS-0166 Rev. O Page 2 of 2
Ref. P/N 100225-66
Figure 2
Figure 3
Figure 4
Specifications Table
3
2
1
12dB 9dB 6dB
In-Ceiling In-Wall
Efficiency
Wattage
Freq. Response
Woofer Type
Tweeter Type
Impedance
90 db
80 Watts RMS
60Hz to 21 KHz
6.5" Poly Mica
3/4" Neodymium
8 Ohms
90 db
100 Watts RMS
50Hz to 22 KHz
6.5" Poly Mica
1" Titanium
8 Ohms
12dB 9dB 6dB
12dB 9dB 6dB
