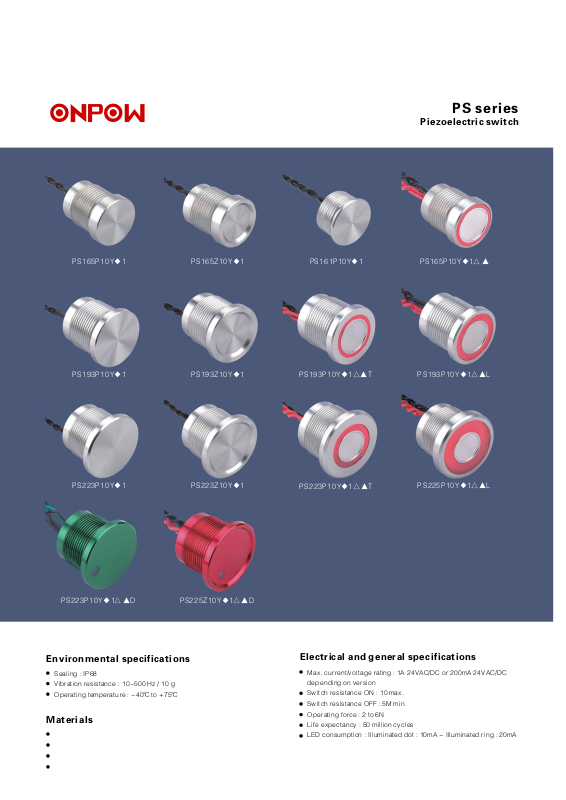

Page 1
PSseries
Piezoelectricswitch
PS165P10Y1◆ PS165Z10Y1◆ PS161P10Y1◆ PS165P10Y1◆△▲
PS193P10Y1◆ PS193Z10Y1◆
PS223P10Y1◆ PS223Z10Y1◆
PS223P10Y1D◆△▲ PS225Z10Y1D◆△▲
PS193P10Y1T◆△▲ PS193P10Y1L◆△▲
PS223P10Y1T◆△▲
PS225P10Y1L◆△▲
Environmentalspecifications
Sealing:IP68
Vibrationresistance:10-500Hz/10g
Operatingtemperature:-40℃ to+75℃
Materials
Electricalandgeneralspecifications
Max.current/voltagerating:1A24VAC/DCor200mA24VAC/DC
dependingonversion
SwitchresistanceON:10max.
SwitchresistanceOFF:5Mmin.
Operatingforce:2to6N
Lifeexpectancy:50millioncycles
LEDconsumption:Illuminateddot:10mA-Illuminatedring:20mA
Page 2
16
PS □ □ □
Series
Mounting
dimensions
PS
19
Series
Mounting
dimensions
★ ▲◆ △
Operator
5PFlatoperator,
height4,5
1PFlatoperator,
height1.0
(nonilluminated)
5ZWithfingerlocation,
height4,5
(non-illuminated)
★
Operator
3Pflatoperator,
height3.0
3Zwithfingerlocation,
height3.0
Electricalfunction
10NO(pulse)
□ □ □
Electricalfunction
10NO(pulse)
Terminals
YLead(length30mm)
OtherLeadlengthand
connection
modecanbecustomized.
Terminals
YLead(length30mm)
OtherLeadlengthand
connection
modecanbecustomized.
Colours/Materials
NTNaturalanodized
BUBlueanodized
BKBlackanodized
GDGoldanodized
RDRedanodized
SSStainlesssteel
◆
Colours/Materials
NTNaturalanodized
BUBlueanodized
BKBlackanodized
GDGoldanodized
RDRedanodized
SSStainlesssteel
Switchratings
1200mA24VAC/DC
Ratings
1200mA24VAC/DC
PSseries
Piezoelectricswitch
Overview
LEDcolour
BlankNon-illum.
RRed
GGreen
YYellow
OOrange
BBlue
WWhite
△
LEDcolour
BlankNon-illum.
RRed
GGreen
YYellow
OOrange
BBlue
WWhite
Lampvoltage
BlankNon-illum.
05Standardring-5VDC
12Standardring-12VDC
24Standardring-24VDC
▲
Lampvoltage
BlankNon-illum.
05Tthinring-5VDC
12Tthinring-12VDC
24Tthinring-24VDC
05Llargering-5VDC
12Llargering-12VDC
24Llargering-24VDC
PS
22 ★ ◆
Series
Mounting
dimensions
3PFlatoperator,height3.0
(Notavailablewithlarge
illuminatedring.)
3ZWithfingerlocation,height3.0,
(Notavailablewith
illuminatedring).
5PFlatoperator,height4.5
(Availablewithlarge
illuminatedringonly.)
□ □ □
Electricalfunction
ANO(pulse)
Terminals
YLead(length30mm)
OtherLeadlengthand
connection
modecanbecustomized.
Fingerpressure
appliedtoswitch
t<20s t<20s
1=pressure
0=nopressure
Output
-MomentaryNO(pulse)
Noexternalpowersupplyrequired
1
0
1
0
Colours/Materials
NTNaturalanodized
BUBlueanodized
BKBlackanodized
GDGoldanodized
RDRedanodized
SSStainlesssteel
Ratings
1200mA
24VAC/DC
△
LEDcolour
BlankNon-illum.
RRed
GGreen
YYellow
OOrange
BBlue
WWhite
t
t
▲
Lampvoltage
BlankNon-illum.
05Tthinring-5VDC
12Tthinring-12VDC
24Tthinring-24VDC
05Llargering-5VDC
12Llargering-12VDC
24Llargering-24VDC
05Ddot-5VDC
12Ddot-12VDC
24Ddot-24VDC
Wiringdiagrams
MomentaryNO
Non-illuminated
RED
RED
1LED*
RED
RED
www.onpow.com...02
Page 3
Non-illuminated,operatorheight4.50mm,flat
PSseries
Piezoelectricswitch Φ19
Options
0.5-8Max.
M16x1
PS165P10Y1◆
Non-illuminated,operatorheight4.50mm,withfingerlocation
PS165Z10Y1◆
Non-illuminated,operatorheight1mm,flat
PS161P10Y1◆
4.5
0.5-8Max.
4.5 15.5
0.5-5Max.
1
15.5
M16x1
M16x1
9
Withstandardilluminatedring,operatorheight4.50mm,flat
0.5-8Max.
PS165P10Y1◆△▲
◆
Colours/Materials
NTNaturalanodized
BUBlueanodized
BKBlackanodized
GDGoldanodized
RDRedanodized
SSStainlesssteel
LEDcolour
BlankNon-illum.
RRed
GGreen
YYellow
OOrange
BBlue
WWhite
▲△
Lampvoltage
BlankNon-illum.
05Standardring-5VDC
12Standardring-12VDC
24Standardring-24VDC
4.5 15.5
M16x1
Φ13.5
2
0.22mm
www.onpow.com...03
1.2
Page 4
Non-illuminated-operatorheight3mm,flat
PSseries
Piezoelectricswitch Φ19
Options
0.5-8Max.
M19x1
PS193P10Y1◆
Non-illuminated-operatorheight3mm,withfingerlocation
PS193Z10Y1◆
Withthinilluminatedring,operatorheight3mm,flat
PS193PY1◆△▲
0.5-8Max.
173
0.5-8Max.
M19x1
173
173
0.22mm
M19x1
Φ13.5
2
1.2
Withlargeilluminatedring,operatorheight3mm,withchamfer
0.5-8Max.
PS193CY1◆△▲
▲◆ △
Colours/Materials
Colours/Materials
NTNaturalanodized
BUBlueanodized
BKBlackanodized
GDGoldanodized
RDRedanodized
SSStainlesssteel
LEDcolour
BlankNonillum
RRed
GGreen
YYellow
OOrange
BBlue
WWhite
-.
Lampvoltage
BlankNon-illum.
05Tthinring-5VDC
12Tthinring-12VDC
24Tthinring-24VDC
05Llargering-5VDC
12Llargering-12VDC
24Llargering-24VDC
173
M19x1
Φ13.5
2
0.22mm
2.4
www.onpow.com...04
Page 5
Non-illuminated,operatorheight3mm,flat
PSseries
Piezoelectricswitch Φ22
Options
PS223PY1◆
Non-illuminated,operatorheight3mm,withfingerlocation
PS223ZY1◆
Withthinilluminatedring-operatorheight4,50,flat
0.5-8Max.
M22x1
0.5-8Max.
0.5-8Max.
M22x1
173
M22x1
173
Φ13.5
PS223PY1◆△▲
Withlargeilluminatedring,operatorheight4,50,flat
PS225PY1◆△▲
Colours/Materials
NTNaturalanodized
BUBlueanodized
BKBlackanodized
GDGoldanodized
RDRedanodized
SSStainlesssteel
LEDcolour
BlankNonillum
-.
RRed
GGreen
YYellow
OOrange
BBlue
WWhite
▲◆ △
Lampvoltage
BlankNon-illum.
05Ddot-5VDC
12Ddot-12VDC
24Ddot-24VDC
05Tthinring-5VDC
12Tthinring-12VDC
24Tthinring-24VDC
0.5-8Max.
4.5
05Llargering-5VDC
12Llargering-12VDC
24Llargering-24VDC
173
15.5
M22x1
0.22mm
0.22mm
2
Φ13.5
2
2.4
4.8
www.onpow.com...05
Page 6
Withilluminateddot,operatorheight3mm,flat
0.5-8Max.
PSseries
Piezoelectricswitch Φ22
Options
M22x1
7.5
push
zone
PS223P10Y1D◆△▲
173
Withilluminateddot,operatorheight4.50mm,withfingerlocation
PS225Z10Y1D◆△▲
0.5-8Max.
4.5
M22x1
15.5
0.22mm
0.22mm
2
push
zone
2
Φ3
7.5
Φ3
Colours/Materials
NTNaturalanodized
BUBlueanodized
BKBlackanodized
GDGoldanodized
RDRedanodized
SSStainlesssteel
LEDcolour
BlankNonillum
RRed
GGreen
YYellow
OOrange
BBlue
WWhite
-.
▲◆ △
Lampvoltage
BlankNon-illum.
05Ddot-5VDC
12Ddot-12VDC
24Ddot-24VDC
05Tthinring-5VDC
12Tthinring-12VDC
24Tthinring-24VDC
05Llargering-5VDC
12Llargering-12VDC
24Llargering-24VDC
Www.onpow.com...06
Page 7
PSseries
Piezoelectricswitch

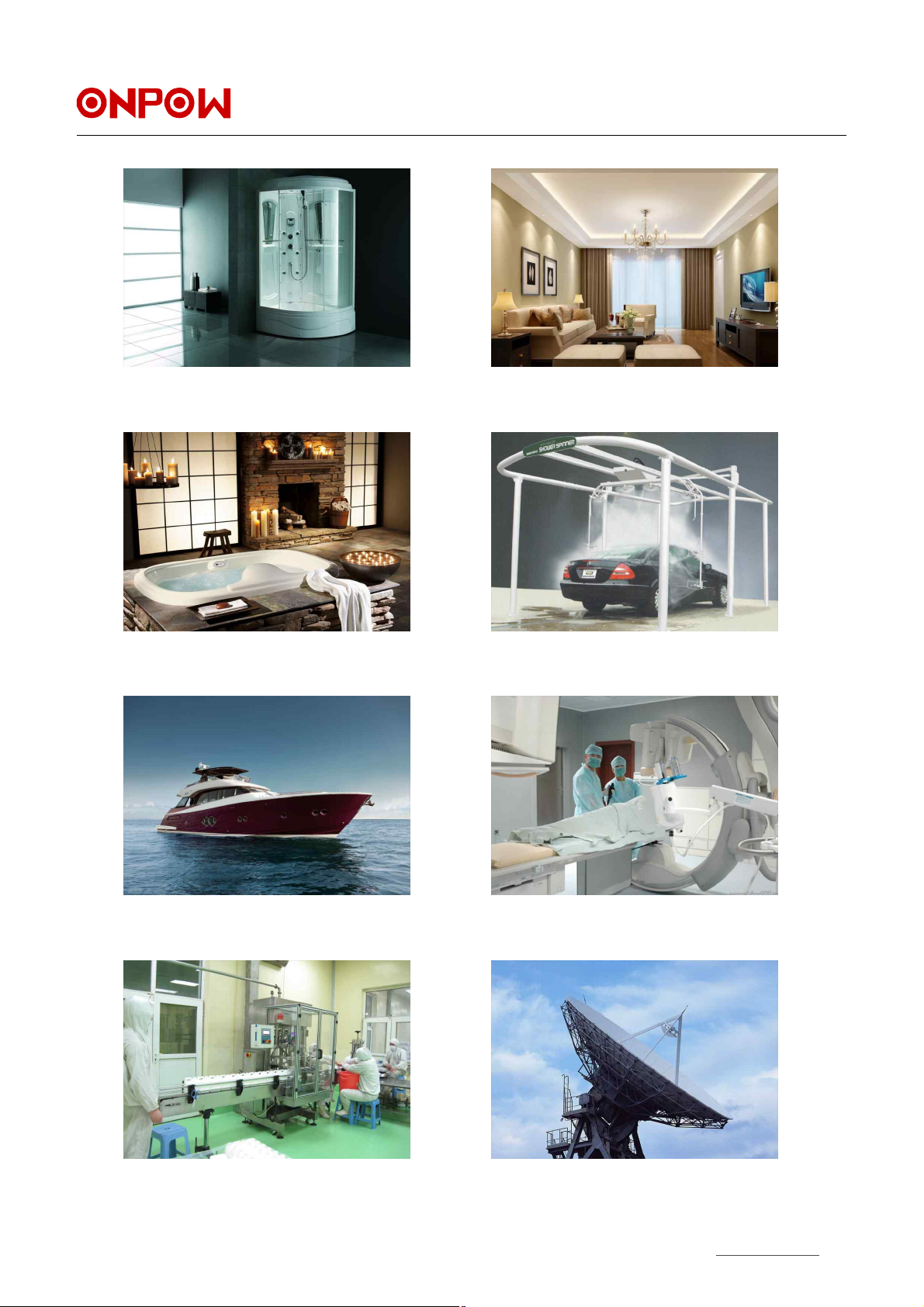

Specifications
Shower
(IP68sealing)
Bath
(IP69sealing,customization)
Homeautomation
(design,customization)
Carwash
(IP68sealing,longlife)
Marine
(IP68sealing,design)
Foodprocessing
(IP69Ksealing)
Medical
(easytocleansurface,noretentionarea)
Mining
(ATEXversions)
Www.onpow.com...07
