Easy, Reliable & Secure
N150 Wireless ADSL2+ Modem Router N150RM
User Manual
350 East Plumeria Drive
San Jose, CA 95134
USA
December 2012
202-11139-01
v1.0
N150 WiFi Router (N150R)
Trademarks
Brand and product names are trademarks or registered trademarks of their respective holders. Information is
subject to change without notice.
In the interest of improving internal design, operational function, and/or reliability, On Networks reserves the right
to make changes to the products described in this document without notice. On Networks does not assume any
liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.
This symbol is placed in accordance with the European Union Directive 2002/96 on the Waste Electrical
and Electronic Equipment (the WEEE Directive). If disposed of within the European Union, this product
should be treated and recycled in accordance with the laws of your jurisdiction implementing the WEEE
Directive.
2
Contents
Chapter 1 Hardware Setup
Chapter 2 Getting Started
Unpack Your Modem Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Position Your Modem Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Hardware Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Reset Button on the Side Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Label. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Install the Modem Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Tips for Connecting to the Modem Router . . . . . . . . . . . . . . . . . . . . . . . 13
Modem Router Setup Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Use Standard TCP/IP Properties for DHCP . . . . . . . . . . . . . . . . . . . . . . 15
Replace an Existing Modem and Router . . . . . . . . . . . . . . . . . . . . . . . . 15
Gather ISP Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Types of Logins and Access. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Log In to the Modem Router. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Unsuccessful Login . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Log Out Manually . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Home Screen (Dashboard). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
EZ Setup Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Join Your Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
WPS Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Manual Method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Chapter 3 Modem Router Setup
Internet Setup (Basic Settings). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Preset Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
WiFi Security Basics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Disable SSID Broadcast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Restrict Access by MAC Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Wireless Security Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Wireless Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Consider Every Device on Your Network . . . . . . . . . . . . . . . . . . . . . . . . 25
View or Change Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Wireless Settings Screen Fields. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Restrict Wireless Access by MAC Address . . . . . . . . . . . . . . . . . . . . . . 28
WAN Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
3
N150 WiFi Router (N150R)
Default DMZ Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
MTU Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
LAN Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Use the Modem Router as a DHCP Server . . . . . . . . . . . . . . . . . . . . . . 33
Address Reservation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Chapter 4 Security Settings
Block Internet Sites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Block Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Firewall Rules to Control Network Access . . . . . . . . . . . . . . . . . . . . . . . . . 37
Set Up Firewall Rules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Set the Time Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Schedule Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Set Up Email Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Chapter 5 Network Management
Upgrade the Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Automatic Firmware Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Check for Firmware Upgrades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Backup Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Back Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Restore. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Erase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Set the Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Password Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
View Router Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
ADSL Port Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
LAN Port (Local Ports) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Modem Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Wireless Port Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Show Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Connection Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
View Attached Devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Diagnostics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Chapter 6 Advanced Settings
Advanced Wireless Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Dynamic DNS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Static Routes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Remote Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Universal Plug and Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Chapter 7 Troubleshooting
Troubleshoot with the LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
4
N150 WiFi Router (N150R)
Power LED Is Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Power LED Is Red . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
LAN LED Is Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Cannot Log In to the Modem Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Troubleshoot the Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
ADSL Link. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
Internet LED Is Red . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Obtaining an Internet IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
PPPoE or PPPoA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Internet Browsing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
TCP/IP Network Does Not Respond . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Test the LAN Path to Your Modem Router. . . . . . . . . . . . . . . . . . . . . . . 68
Test the Path from Your Computer to a Remote Device . . . . . . . . . . . .69
Changes Not Saved . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Incorrect Date or Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
Appendix A Supplemental Information
Factory Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
Appendix B Notification of Compliance
5
1. Hardware Setup
Getting to know your modem router
1
This chapter explains how to set up your hardware. If you have already set up your modem
router, you can skip this chapter. Chapter 2 explains how to set up your Internet connection.
This chapter contains the following sections:
• Unpack Your Modem Router
• Position Your Modem Router
• Hardware Features
• Install the Modem Router
6
N150 Wireless ADSL2+ Modem Router N150RM
The filter or
splitter provided
depends on the
region.
N150 Modem Router
Ethernet cable
Power adapter
Phone cable
Filter/splitter
Unpack Your Modem Router
Open the box and remove the modem router, cables, and installation guide.
Figure 1. Check the package contents
If any parts are incorrect, missing, or damaged, contact your On Networks dealer. Keep the
carton and original packing materials, in case you need to return the product for repair.
Position Your Modem Router
The modem router lets you access your network from virtually anywhere within the operating
range of your wireless network. This range can vary significantly depending on where you
put the modem router. For example, the thickness and number of walls the wireless signal
passes through can limit the range. For best results, place your modem router:
• Nea
• So it is accessib
• In
• A
• A
When you use multiple access points, it is bett
frequency channels to reduce interference. The recommended channel spacing between
adjacent access points is 5 channels (for example, use Channels 1 and 6, or 6 and 11).
r the center of the area where your computers and other devices operate, and
preferably within line of sight to your wireless devices.
le to an AC power outlet and near Ethernet cables for wired computers.
an elevated location such as a high shelf, keeping the number of walls and ceilings
between the modem router and your other devices to a minimum.
way from electrical devices that are potential sources of interference. Equipment that
might cause interference includes ceiling fans, home security systems, microwaves,
computers, the base of a cordless phone, or 2.4-GHz cordless phone.
way from any large metal surfaces, such as a solid metal door or aluminum studs. Large
expanses of other materials such as glass, insulated walls, fish tanks, mirrors, brick, and
concrete can also affect your wireless signal.
er if adjacent access points use different radio
Hardware Setup
7
N150 Wireless ADSL2+ Modem Router N150RM
Power
Ethernet
ADSL
Internet
WPS
Wireless
Hardware Features
Before you cable your modem router, take a moment to become familiar with the front, side,
and back panels and the label. Pay particular attention to the LEDs on the front panel.
Front Panel
The modem router front panel has buttons and status LEDs.

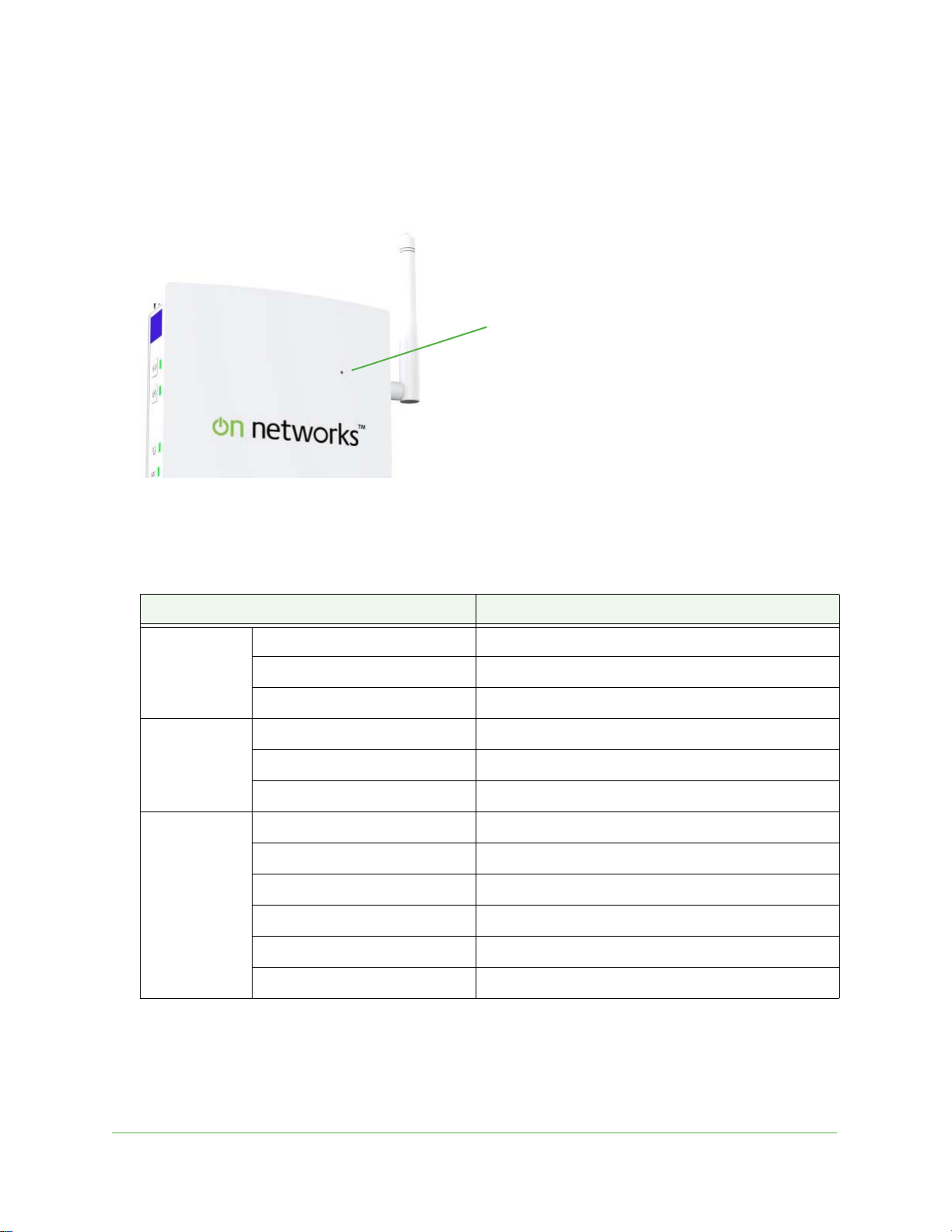

Figure 2. Modem router front panel
Table 1. Front panel LED descriptions
LED Description
WPS Wi-Fi Protected Setup (WPS) lets your use a wireless computer or device to join a secure wireless
age 22.
Wireless
Internet
network without typing the password. See WPS Method on p
lid green. A WPS-capable device is connected to the router.
• So
• Blin
• Off. No WPS co
You can press the Wireless button to turn the wireless radio off and on.
• Blin
• Off. The wireless radio is turned off.
• Solid green. The Internet connection has been established.
• Blinking green. There is traffic on the Internet port.
• So
• Off. No Inte
king green. A WPS connection with a WPS-capable device is in process.
nnection is detected.
king green. Data is being transmitted or received over the wireless link.
lid red. The Internet (IP) connection failed.
rnet connection is detected.
Hardware Setup
8
N150 Wireless ADSL2+ Modem Router N150RM
RJ-45 Ethernet
RJ-11 ADSL
Power On/Off
LAN ports (4)
Power connector
nternet port
Table 1. Front panel LED descriptions (continued)
LED Description
ADSL • Solid green. You have a DSL connection. In technical terms, the DSL port is synchronized
with an ISP’s network-access device.
• Blinkin
• Off.
g green. The modem router is negotiating the best possible speed on the DSL line.
The unit is off or there is no DSL link established.
Ethernet
(1-4)
Power/
Che
• Solid green. The LAN port has detected an Ethernet link with a device such as a computer.
• Blin
• Off. No link is detected on this port.
• Solid green. Power is supplied to the modem router.
ck
• Blinking green. The router is starting up.
• Solid red. T
• Off. Pow
king green. Data is being transmitted or received.
he power-on self-test (POST) failed or the modem router has malfunctioned.
er is not supplied to the modem router.
Rear Panel
The rear panel has the connections shown in the following figure.
Figure 3. Modem router, rear panel
Hardware Setup
9
N150 Wireless ADSL2+ Modem Router N150RM
Reset button
MAC addressSerial number
Preset WiFi
Router login
P\assword
WiFi Network
Name (SSID)
Reset Button on the Side Panel
You can use the Reset button to return the modem router to its factory settings.
Figure 4. Reset button
To reset the modem router:
Use a pin or paper clip to press and hold the Reset b
For information about the factory settings, see Factory Settings o
utton for at least 7 seconds.
n page 72.
Label
The label on the bottom of the modem router shows the preset WiFi network name and
password, login information, MAC address, and serial number.
Figure 5. The label shows unique information about your modem router
Hardware Setup
10
N150 Wireless ADSL2+ Modem Router N150RM
Install the Modem Router
A microfilter filters DSL interference out of standard phone equipment that shares the line with DSL
service. Examples of devices are telephones, fax machines, answering machines, and caller ID displays.
To install the modem router:
1. Conne
ct the ADSL.
a. Install an ADSL filter/splitter between the phone line and the phone.
b. Connect the ADSL port o
c. If your
modem router and telephone connect to the same phone line, use an ADSL
f the modem router to the ADSL port of the filter/splitter.
filter/splitter for every phone line in the house.
2. A
dd power to the modem router.
a. Connect the power adapter to the modem router, and plug the power adapter into an
outlet.
b. W
ait for the Wireless LED on the front panel to light. If none of the LEDs on the front
panel are lit, press the Power On/Off button on the rear panel of the modem router.
3. Connect a computer
.
Hardware Setup
11
N150 Wireless ADSL2+ Modem Router N150RM
You can use an Ethernet cable or connect wirelessly.
• Use the yellow Ethernet cable to connect your computer to an Ethernet port on your
modem router.
• Or con
nect wirelessly by using the preset wireless security settings on the label on
the bottom of the router.
4. Open a browser
.
The first time that you connect to your modem router, the browser automatically displays a
modem router screen
to help you set up your Internet connection.
If this screen does not display, see the following section, Tips for Connecting to the
Modem Router o
If you already connected to the modem router and used this
log in. See Log In to the Modem Router on
5. Co
nnect any additional wired computers to your modem router by inserting an Ethernet
n page 13.
screen, you are prompted to
page 19.
cable from a computer into one of the three remaining LAN ports.
Hardware Setup
12
N150 Wireless ADSL2+ Modem Router N150RM
Tips for Connecting to the Modem Router
If the browser cannot display the web page:
• Make sure that the computer is connected to one of the four LAN Ethernet ports or
wirelessly to the modem router.
• Make sure that the modem router has full power, and that its Wireless LED is lit.
• Close and reopen the browser to make sure that the browser does not cache the
previous page.
• Browse to http://www.mywifirouter.com (or http://192.168.0.1/index.htm).
• If the computer is set to a static or fixed IP address (this is uncommon), change it to
obtain an IP address automatically from the modem router.
If the modem router does not connect to the Internet:
1. Review your settings to be sure that you have selected the correct options and typed
everything correctly.
2. Contact your ISP to verify that you have the correct configuration information.
Hardware Setup
13
2. Getting Started
This chapter contains the following sections:
• Modem Router Setup Preparation
• Types of Logins and Access
• Log In to the Modem Router
• Home Screen (Dashboard)
• EZ Setup Wizard
• Join Your Wireless Network
2
14
N150 Wireless ADSL2+ Modem Router N150RM
Modem Router Setup Preparation
You can set up your modem router with the Setup Wizard as described in EZ Setup Wizard
on page 18, or manually as described in Internet Setup (Basic Settings) on page 22.
However, before you start the setup process, you need to have your ISP information and to
make sure the laptops, computers, and other devices in the network have the settings
described here.
Note: For a Macintosh or Linux system, you have to use manual setup.
Use Standard TCP/IP Properties for DHCP
If you set up your computer to use a static IP address, you have to change the settings back
so that it uses Dynamic Host Configuration Protocol (DHCP).
Replace an Existing Modem and Router
To replace an existing modem and router, disconnect them and set them aside before starting
the modem router setup.
Gather ISP Information
You need the following information to set up your modem router and to check that your
Internet configuration is correct. Your Internet service provider (ISP) should have provided
you with all the information needed to connect to the Internet. If you cannot locate this
information, ask your ISP to provide it. When your modem router Internet connection is set
up, you no longer need to launch the ISP login program on your computer to access the
Internet. When you start an Internet application, your modem router automatically logs you in.
• Active Internet service account
• The ISP configuration information for your account
- ISP login name and password
- ISP Domain Name Server (DNS) addresses
- Fixed or static IP address
- Host and domain names
- Depending on how your ISP set up your Internet account, you could need to know
one or more of these settings for a manual setup:
- Virtual path identifier (VPI) and virtual channel identifier (VCI) parameters
- Multiplexing method
- Host and domain names
Getting Started
15
N150 Wireless ADSL2+ Modem Router N150RM
WARNING:
Types of Logins and Access
There are separate types of logins that have different purposes. It is important that you
understand the difference so that you know which login to use when.
• Mod
• ISP login logs you in to your Inte
• W
em router login logs you in to the modem router interface.
rnet service. Your service provider has provided you with
this login information in a letter or some other way. If you cannot find this login
information, contact your service provider.
ireless network key or password. Your modem router is preset with a unique wireless
network name (SSID) and password for wireless access. This information is on the label
on the bottom of your modem router.
Log In to the Modem Router
You can log in to the rmodem router to view or change its settings.
To log in to the modem router:
pe http://192.168.0.1 in the address field of your browser and press Enter to display
1. Ty
the login window. You can also enter http://www.mywifirouter.com.
2. Enter admin for the user name and admin for the password, both in lowercase letters.
When you log in, if you are connected to the Internet, the Firmware Upgrade Assistant
screen d
A message displays telling you whether the mod
o update to the new firmware, click Yes to allow the modem router to download and install
3. T
the new firmware file from On Networks.
When the upload is complete, the modem router restarts. The update process typically
takes about 1 minute.
isplays so you can upgrade to the latest firmware.
em router discovered newer firmware.
To avoid corrupting the firmware, do not interrupt this process by
closing the browser window, clicking a link, or loading a new
page.
Getting Started
16
N150 Wireless ADSL2+ Modem Router N150RM
Language
Unsuccessful Login
If you do not see the login prompt, do the following:
1. Che
2. If you co
3. If you are having trouble accessing the modem rout
4. If you cannot conne
ck the LEDs on the front of modem router to make sure that it is plugged in, its
power is on. If you used an Ethernet cable between your computer and the modem
router, make sure that it is connected to a LAN port.
nnected the Ethernet cable and quickly launched your browser and typed in the
modem router URL, your computer might need a minute or two to recognize the LAN
connection. Relaunch your browser and try again.
er wirelessly, during setup you can use
an Ethernet cable to connect your computer so that you can log in to the modem router.
ct to the modem router, check the Internet Protocol (TCP/IP) properties.
(For a Windows PC, see the Network Connections section of the Control Panel.) The
computer should be set to obtain both IP and DNS server addresses automatically. See your
computer documentation.
Log Out Manually
The modem router interface provides a Logout command at the bottom of the modem router
menus. Log out when you expect to be away from your computer for a relatively long time.
Home Screen (Dashboard)
The modem router interface lets you view or change the modem router settings. The left
column has menus and their are tabs at the top.
Figure 6. Dashboard (Home screen)
The Dashboard (Home screen) includes the following selections:
Getting Started
17
N150 Wireless ADSL2+ Modem Router N150RM
• Router Status. View the status of the modem router and its Internet connection.
• EZ Setup Wizard. S
Internet connection. See EZ Setup Wizard on p
• WPS Setup.
Wireless Network on p
• Setup t
modem router. See Internet Setup (Basic Settings) on p
Modem Router Setup, for informatio
• Secu
• Managem
• Advan
rity tab. View and configure the modem router firewall settings to prevent
objectionable content from reaching your computers. See Security Settings o
Management.
access by IP or by domain name from the Internet is needed. See Advanced Set tings on
page 54. Using this menu requires a solid und
Join the secure WiFi network without typing the password. See Join Your
ab. Set, upgrade, and check the ISP and wireless network settings of your
ent tab. Administer your modem router and network. See Chapter 5, Network
ced tab. Set the modem router up for unique situations such as when remote
pecify the language and location, and automatically detect the
age 18.
age 19.
age 22. See also Chapter 3,
n about preset and basic security settings.
n page 35.
erstanding of networking concepts.
• Other Links. For information
These links work once you have an Internet connection.
, help, and product documentation, visit the support site.
EZ Setup Wizard
You can log in to the modem router and use EZ Setup to set up your Internet connection.
To use the EZ Setup wizard:
1. Fro
2. Select either Yes or No, I want to configure the Router myself. If you select No, proceed
3. If you selected Y
m the top of the modem router menu, select EZ Setup.
to Internet Setup (Basic Settings) on p
es, click Next.
• EZ Setu
your ISP configuration.
• EZ Setu
your ISP uses PPTP, you have to set your Internet connection through the screen
described in Internet Setup (Basic Settings) on p
p searches your Internet connection for servers and protocols to determine
p cannot detect a Point-to-Point Tunneling Protocol (PPTP) connection. If
age 22.
age 22.
Getting Started
18
N150 Wireless ADSL2+ Modem Router N150RM
To troubleshoot an unsuccessful Internet connection:
1. Review your settings to be sure that you have selected the correct options and typed
everything correctly.
2. Cont
3. Read
act your ISP to verify that you have the correct configuration information.
Chapter 7, Troubleshooting. If problems persist, register your product and contact
technical support.
4. If you cannot conne
For a Windows PC, this setting is in the Network Connections section of the Control Panel.
The computer should be set to obtain both IP and DNS server addresses automatically. See
your computer documentation.
ct to the modem router, check the Internet Protocol (TCP/IP) properties.
Join Your Wireless Network
Select either the WPS method or the manual method to join your wireless network.
WPS Method
Wi-Fi Protected Setup (WPS) lets you connect to a secure WiFi network without typing its
password. Instead, you press a button or enter a PIN. Some older WiFi equipment is not
compatible with WPS. WPS works only with WPA2 or WPA wireless security.
To use the WPS method:
1. Select Home > WPS
2. Click Next. The following screen let
Setup.
s you select the method for adding the WPS client.
3. Select either Push Button or PIN Number. With either method, the modem router tries to
communicate with the computer or wireless device, set the wireless security for wireless
device, and allow it to join the wireless network.
4. When the PIN metho
d screen displays, enter the client security PIN.
Getting Started
19
N150 Wireless ADSL2+ Modem Router N150RM
When the modem router establishes a WPS connection, the modem router WPS screen
displays a confirmation message.
Manual Method
With the manual method, select the network that you want, and type its password to connect.
To connect manually:
1. On your computer or wireless device, open the software that manages your wireless
connections. This software scans for all wireless networks in your area.
2. Look for your network and select it.
The unique WiFi network name (SSID) and password are on the modem router label. If
you changed these settings, look for the network name that you used.
3. Enter the modem router password and click Connect.
Getting Started
20
3. Modem Router Setup
This chapter contains the following sections:
• Internet Setup (Basic Settings)
• Preset Security
• WiFi Security Basics
• Wireless Setup
• WAN Setup
• LAN Ports
3
21
N150 Wireless ADSL2+ Modem Router N150RM
Internet Setup (Basic Settings)
The Basic Settings screen displays when you select No. I want to configure the Router myself
in the Setup Wizard and is also available from the modem router menu. It is where you view
or change ISP information. The fields that display vary depending on whether your Internet
connection requires a login.
To manually set up the Internet connection:
1. Select Setup > Internet Setup.
2. Select Yes or No depending on whether your ISP requires a login.
• Ye
• No. Ente
3. Enter th
fine. If you have problems with your connection, check the ISP settings.
4. If
5. Click Apply to save
6. Click T
and see Chapter 7, Troubleshoot ing.
The following descriptions explain all of the possible
fields that display in this screen depend on whether an ISP login is required.
s. Select the encapsulation method and enter the login name. If you want to
change the login time-out, enter a new value in minutes.
r the account and domain names, as needed.
e settings for the IP address and DNS server. The default DSL settings usually work
no login is required, you can specify the MAC Address setting.
your settings.
est to test your Internet connection. If you are not able to connect within 1 minute,
fields in the Basic Settings screen. The
Modem Router Setup
22
N150 Wireless ADSL2+ Modem Router N150RM
Does Your Internet Connection Require a Login? Answer either yes or no.
• When no login is required, these fields display:
Account Name (If Required). Enter the account name that your ISP provided. This
might also be called the host name.
Domain Name (If Required). Enter the domain name that your ISP provided.
• When your ISP requires a login, these fields display:
Encapsulation. Encapsulation is a method for enclosing multiple protocols. PPP stands
for Point-to-Point Protocol. The choices are PPPoE (PPP over Ethernet) or PPPoA (PPP
over ATM).
Login. The login name that your ISP provided. This is often an email address.
Password. The password that you use to log in to your ISP.
Idle Timeout (In minutes). If you want to change the login time-out, enter a value in
minutes. This setting determines how long the modem router keeps the Internet
connection active after there is no Internet activity from the LAN. A value of 0 (zero)
means never log out.
Internet IP Address.
When a login is required, these fields display:
Get Dynamically from ISP. Your ISP uses DHCP to assign your IP address. Your ISP
automatically assigns these addresses.
Use Static IP Address. Enter the IP address, IP subnet mask, and the gateway IP
address that your ISP assigned. The gateway is the ISP router to which your modem
router will connect.
Domain Name Server (DNS) Address. The DNS server is used to look up site addresses
based on their names.
• Get Automatically from ISP. Your ISP uses DHCP to assign your DNS servers. Your ISP
automatically assigns this address.
• Use These DNS Servers. If you know that your ISP does not automatically transmit DNS
addresses to the modem router during login, select this option, and enter the IP address
of your ISP primary DNS server. If a secondary DNS server address is available, enter it
also.
NAT (Network Address Translation). You can enable or disable NAT. If you disable NAT,
you can also disable the firewall. The firewall cannot be disabled when NAT is enabled.
Secured NAT provides a secured firewall to protect the computers on the LAN from attacks
from the Internet, but might prevent some Internet games, point-to-point applications, or
multimedia applications from working. Open NAT provides a much less secured firewall, but
allows almost all Internet applications to work.
Modem Router Setup
23
N150 Wireless ADSL2+ Modem Router N150RM
Preset Security
The modem router comes with preset security. This means that the Wi-Fi network name
(SSID) and the WiFi network password (network key) are preset in the factory. You can find
the preset SSID and passphrase on the bottom of the unit.
• Wi-Fi network name (SSID) identifies your network so devices can find it.
• Passphrase controls access to your network. Devices that know the SSID and the
passphrase can find your wireless network and connect.
• Security option is the type of security protocol applied to your wireless network. The
security protocol in force encrypts data transmissions and ensures that only trusted
devices receive authorization to connect to your network. The preset security option is
WPA-PSK/WPA2-PSK mixed mode, described in
The Wireless Settings screen lets you view and change the preset security settings. If you
change your preset security settings, make a note of the new settings and store it in a safe
place where you can easily find it.
Wireless Security Options on page 25.
WiFi Security Basics
Unlike wired network data, wireless data transmissions extend beyond your walls and can be
received by any device with a compatible wireless adapter (radio). For this reason, it is very
important to maintain the preset security and understand the other security features available
to you. Besides the preset security settings described in the previous section, your modem
router has the security features described here and in
• Turn off wireless connectivity
• Disable SSID broadcast
• Restrict access by MAC address
• Wireless security options
Disable SSID Broadcast
By default, the modem router broadcasts its Wi-Fi network name (SSID) so devices can find
it. If you change this setting to not allow the broadcast, wireless devices cannot find your
modem router unless they are configured with the same SSID.
Note: Turning off SSID broadcast nullifies the wireless network discovery
feature of some products such as Windows XP, but the data is still
fully exposed to a determined snoop using specialized test
equipment like wireless sniffers. If you allow the broadcast, be sure
to keep wireless security enabled.
Security Settings on page 35.
Modem Router Setup
24
N150 Wireless ADSL2+ Modem Router N150RM
Restrict Access by MAC Address
You can enhance your network security by allowing access to only specific computers based
on their Media Access Control (MAC) addresses. You can restrict access to only trusted
computers so that unknown computers cannot wirelessly connect to the modem router. The
wireless station MAC address filtering adds more security protection to the wireless security
option that you have in force. The access list determines which wireless hardware devices
are allowed to connect to the modem router by MAC address. See
page 54 for the procedure.
Advanced Settings on
Wireless Security Options
A security option is the type of security protocol applied to your wireless network. The
security protocol encrypts data transmissions and ensures that only trusted devices receive
authorization to connect to your network. There are several types of encryption: Wi-Fi
Protected Access II (WPA2), WPA, and Wired Equivalent Privacy (WEP). WPA2 is the latest
and most secure, and is recommended if your equipment supports it. WPA has several
options including pre-shared key (PSK) encryption and 802.1x encryption for enterprises. It is
possible to disable wireless security, but that is not recommended. You can view or change
the wireless security options in the Wireless Settings screen. See
page 25.
Wireless Setup on
Wireless Setup
The Wireless Settings screen lets you view or change the wireless network settings. Your
preset modem router has a unique network name and password on the product label. If you
change them, note the new settings and save them in a secure location.
Note: If you use a wireless computer to change the wireless network name
(SSID) or security options, you are disconnected when you click
Apply. To avoid this problem, use a computer with a wired
connection to access the modem router.
Consider Every Device on Your Network
Before you begin, check the following:
• Every wireless computer has to be able to obtain an IP address by DHCP from the
modem router as described in
• Each computer or wireless adapter in your network must have the same SSID and
wireless mode (bandwidth or data rate) as the modem router. Check that the wireless
adapter on each computer can support the mode and security option you want to use.
Use Standard TCP/IP Properties for DHCP on page 15.
Modem Router Setup
25
N150 Wireless ADSL2+ Modem Router N150RM
• The security option on each wireless device in the network must match the settings of the
modem router. For example, if you select a security option that requires a passphrase, be
sure to use same passphrase for each wireless computer in the network.
View or Change Wireless Settings
Your preset modem router comes set up with a unique WiFi network name (SSID) and
network password. This information is printed on the label of your modem router. You view or
change these settings in the Wireless Settings screen.
To view or change wireless settings:
1. Select Setup > W
ireless Settings.
2. Make any changes that are needed, and click Apply when done to save your settings.
Note: The screen sections, settings, and procedures are explained in the
owing sections.
foll
3. Set up and test your
a. Use your wireless computer o
computers for wireless connectivity:
r device to join your network. When prompted, enter the
network password.
b. From the wirelessly conne
cted computer, make sure that you can access the
Internet.
Modem Router Setup
26
N150 Wireless ADSL2+ Modem Router N150RM
Wireless Settings Screen Fields
Wireless Network
• Name (SSID). The SSID is also known as the wireless network name. Enter a
32-character (maximum) name in this field. This field is case-sensitive. The default SSID
is randomly generated, and there is typically no need to change it.
• Region. The
the modem router in a region other than the regions listed.
• Cha
nnel. The wireless channel used by the gateway: 1 through 13. Do not change the
channel unless you experience interference (shown by lost connections or slow data
transfers). If this happens, experiment with different channels to see which is the best.
location where the modem router is used. It might not be legal to operate
• Mode. Up
and 802.11g wireless devices to join the network. g & b supports up to 54 Mbps.
to 150 Mbps is the default (11n supports up to 150 Mbps) and allows 802.11n
Wireless Access Point
• Enable Wireless Access Point. Allow the unit to work as a wireless acces point.
• Allo
• W
w Broadcast of Name (SSID). This feature allows the modem router to broadcast its
SSID so that a wireless station can display this wireless name (SSID) in its scanned
network list. This check box is selected by default. To turn off the SSID broadcast, clear
the Allow Broadcast of Name (SSID) check box and click Apply.
ireless Isolation. If this check box is selected, wireless computers or devices that join
the network can use the Internet but cannot access each other or access Ethernet
devices on the network.
Wireless Station Access List
Click the Set up Access List button display the Wireless Card Access List screen. You can
restrict access to your network to specific devices based on their MAC address. See Restrict
Access by MAC Address on p
age 25.
Security Options
You can view or change the security option and passphrase. Your preset modem router is
already set up with WPA2 and WPA security.
To change WPA security:
n the Security Options section, select the WPA option that you want.
1. I
2. Enter the passphrase that you want to use. It is a text string from 8 to 63 characters.
Modem Router Setup
27
N150 Wireless ADSL2+ Modem Router N150RM
3. Click Apply .
Restrict Wireless Access by MAC Address
You can set up a list of computers and wireless devices that are allowed to join the wireless
network. This list is based on the unique MAC address of each computer and device.
Each wireless card or network device has a MAC add
ress, which is a unique 12-character
physical address, containing the hexadecimal characters 0–9, a–f, or A–F only, and
separated by colons (for example, 00:09:AB:CD:EF:01). The MAC address is typically on a
label on the wireless card or device. If you do not have access to the label, you can display
the MAC address using the network configuration utilities of the computer. You might also find
the MAC addresses in the Attached Devices screen.
To restrict access based on MAC addresses:
1. Select Advanced
> Wireless Settings, and click the Setup Access List to display the
Wireless Card Access List.
2. Click Add to add a wireless device to the wireless access control list.
The Wireless Card Access Setup screen opens a
nd displays a list of currently active
wireless cards and their Ethernet MAC addresses.
3. If the computer or device you want is in the Available Wireless Cards list, select that radio
button; otherwise, type a name and the MAC address. You can usually find the MAC
address on the bottom of the wireless device.
Tip: Y
ou can copy and paste the MAC addresses from the Attached Devices
screen into the MAC Address field of this screen. Each computer that
joins the wireless network is listed in the Attached Devices screen.
4. Click Add t
o add this wireless device to the Wireless Card Access List. The screen changes
back to the list screen.
5. Add each computer
or device you want to allow to connect wirelessly.
Modem Router Setup
28
N150 Wireless ADSL2+ Modem Router N150RM
6. Select the Turn Access Control On check box.
7. Click App
ly .
WAN Setup
The WAN Setup screen lets you configure a DMZ (demilitarized zone) server, change the
maximum transmit unit (MTU) size, and enable the modem router to respond to a ping on the
WAN (Internet) port.
Select Setup > W
AN Setup.
The following information is displayed:
• Conn
• Enable PPPoE Relay. When enabled, t
• Dis
• Default DMZ Server.
• Res
• MTU Size
ect Automatically, as Required. The modem router connects to the Internet
automatically.
his feature allows a PPPoE client on a local
computer to connect to a remote PPPoE server with the modem router acting as a relay
agent.
able Port Scan and DoS Protection. DoS protection protects your LAN against
denial of service attacks such as Syn flood, Smurf Attack, Ping of Death, Teardrop Attack,
UDP Flood, ARP Attack, Spoofing ICMP, Null Scan, and many others. This should be
disabled only in special circumstances.
This feature is sometimes helpful when you are playing online
games or videoconferencing. Be careful when using this feature because it makes the
firewall security less effective. See the following section, Default DMZ Server, for more
details.
pond to Ping on Internet WAN Port. If you want the modem router to respond to a
ping from the Internet, select this check box. Use this setting only as a diagnostic tool
because it allows your modem router to be discovered. Do not select this check box
unless you have a specific reason.
(in bytes). The normal MTU (maximum transmit unit) value for most Ethernet
networks is 1500 bytes, or 1492 bytes for PPPoE connections. For some ISPs, you might
need to reduce the MTU. This is rarely required, and should not be done unless you are
sure that it is necessary for your ISP connection. See MTU Size on p
age 30.
Modem Router Setup
29
N150 Wireless ADSL2+ Modem Router N150RM
WARNING:
• Disable SIP ALG. The Session Initiation Protocol (SIP) Application Level Gateway (ALG)
is enabled by default to optimize VoIP phone calls that use the SIP. You can select this
check box to disable the SIP ALG, which might be useful when running certain
applications.
Default DMZ Server
The default DMZ server feature is helpful when you are using some online games and
videoconferencing applications that are incompatible with Network Address Translation
(NAT). The modem router is programmed to recognize some of these applications and to
work correctly with them, but other applications might not function well. In some cases, one
local computer can run the application correctly if that computer’s IP address is entered as
the default DMZ server.
DMZ servers pose a security risk. A computer designated as the
default DMZ server loses much of the protection of the firewall and
is exposed to exploits from the Internet. If compromised, the DMZ
server computer can be used to attack other computers on your
network.
The router usually detects and discards incoming traffic from the Internet that is not a
response to one of your local computers. Instead of discarding this traffic, you can have the
router forward the traffic to one computer on your network. This computer is called the default
DMZ server.
To set up a default DMZ server:
1. Select Setup > WAN Setup.
2. Select the Default DMZ Server check box.
3. Type the IP address.
4. Click Apply .
MTU Size
The maximum transmission unit (MTU) is the largest data packet a network device transmits.
When one network device communicates across the Internet with another, the data packets
travel through many devices along the way. If a device in the data path has a lower MTU
setting than the other devices, the data packets have to be split or fragmented to
accommodate the device with the smallest MTU.
The best MTU setting for On Networks equipment is often just the default value. In some
situations, changing the value fixes one problem but causes another. Leave the MTU
unchanged unless one of these situations occurs:
Modem Router Setup
30
N150 Wireless ADSL2+ Modem Router N150RM
• You have problems connecting to your ISP or other Internet service, and the technical
support of either the ISP or On Networks recommends changing the MTU setting. These
web-based applications might require an MTU change:
- A secu
- Y
re website that does not open, or displays only part of a web page
ahoo email
- MSN port
- America Onlin
• Y
ou use VPN and have severe performance problems.
ou used a program to optimize MTU for performance reasons, and now you have
• Y
al
e’s DSL service
connectivity or performance problems.
Note: An incorrect MTU setting can cause Internet communication
problems. For example, you might not be able to access certain
websites, frames within websites, secure login pages, or FTP or
POP servers.
If you suspect an MTU problem, a common solution is to change the MTU to 1400. If you are
willing to experiment, you can gradually reduce the MTU from the maximum value of 1500
until the problem goes away. The following table describes common MTU sizes and
applications.
Table 2. Common MTU sizes
MTU Application
1500 The largest Ethernet packet size and the default value. This setting is typical for
connections that do not use PPPoE or VPN, and is the default value for On Networks
modem routers, adapters, and switches.
1492 Used in PPPoE environments.
1472 Maximum size to use for pinging. (Large
1468 Used in some DHCP environments.
1460 Usable by AOL if you do not have large email attachments, for example.
1458 Used in PPPoA environments.
1436 Used in PPTP environments or with VPN.
1400 Maximum size for AOL DSL.
576 Typical value to connect to dial up ISPs.
To change the MTU size:
1. Select Setup > W
2. In the MTU Size
AN Setup.
field, enter a value from 64 to 1500.
Modem Router Setup
r packets are fragmented.)
31
N150 Wireless ADSL2+ Modem Router N150RM
3. Click Apply to save the settings.
LAN Ports
The LAN Ports screen allows configuration of LAN IP services such as Dynamic Host
Configuration Protocol (DHCP) and Routing Information Protocol (RIP).
The modem router is shipped preconfigured to use private IP addresses on the LAN side and
to act as a DHCP serve
r. The modem router’s default LAN IP configuration is:
• LAN IP addre
• Subnet
These addresses are part of the designated private address range for use in private networks
and a
scheme, you can change these settings in the LAN Setup screen.
To change the LAN settings:
1. Select Setup > LAN Setup.
mask. 255.255.255.0
re suitable for most applications. If your network requires a different IP addressing
Note: If you change the LAN IP address of the modem router while
ss. 192.168.0.1
connected through the browser, you will be disconnected. You will
have to open a new connection to the new IP address and log in
again.

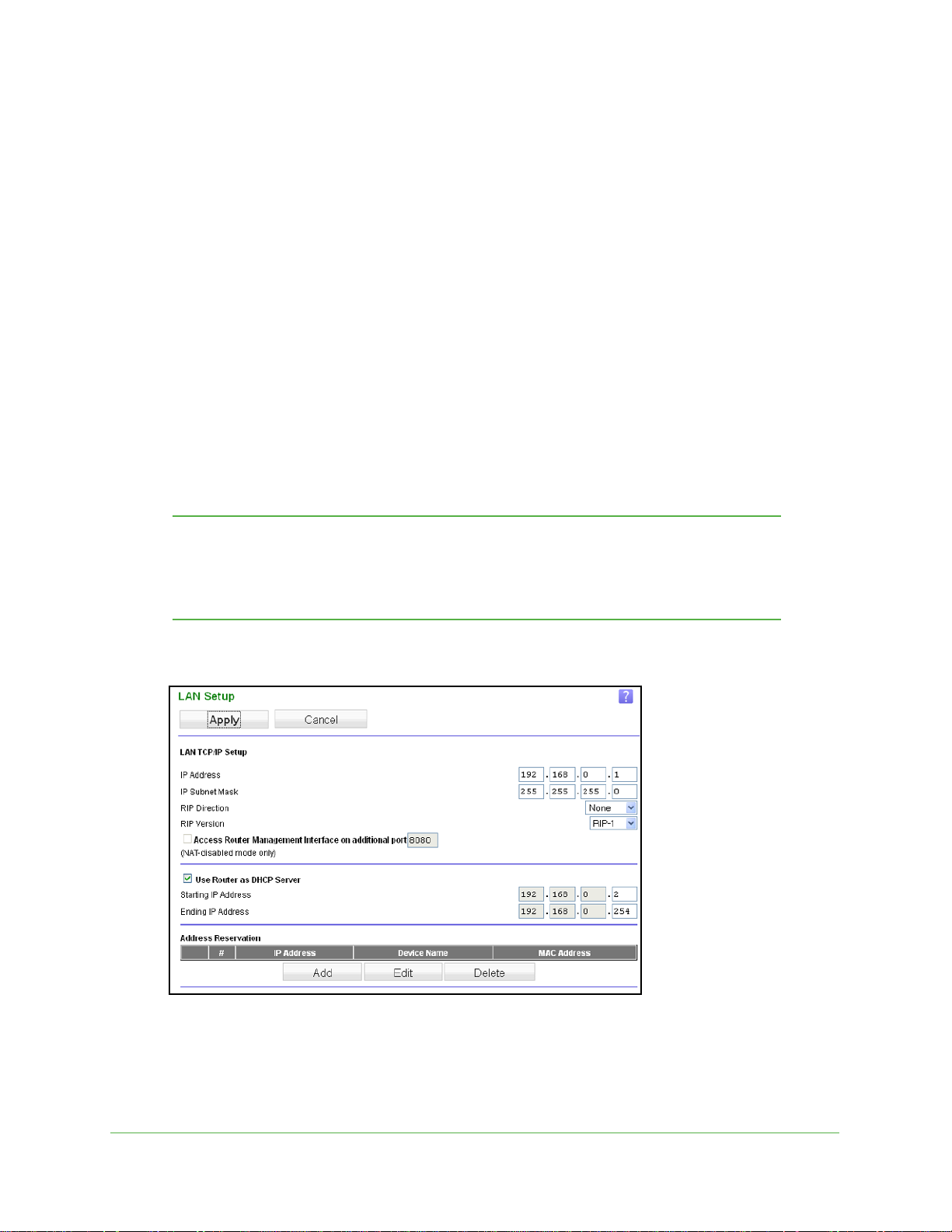

2. Enter the settings that you want to customize. These settings are described in the following
section, LAN TCP/IP Setup.
3. Click Apply to
save your changes.
Modem Router Setup
32
N150 Wireless ADSL2+ Modem Router N150RM
LAN TCP/IP Setup
• IP Address. The LAN IP address of the modem router.
• IP Subnet Mask. The LAN subnet mask of the modem router. Combined with the IP
address, the IP subnet mask allows a device to know which other addresses are local to
it, and which have to be reached through a gateway or modem router.
• RIP Direction. Router Information Protocol (RIP) allows a router to exchange routing
information with other routers. This setting controls how the router sends and receives
RIP packets. Both is the default setting. With the Both or Out Only setting, the router
broadcasts its routing table periodically. With the Both or In Only setting, the router
incorporates the RIP information that it receives.
• RIP Version. This setting controls the format and the broadcasting method of the RIP
packets that the modem router sends. It recognizes both formats when receiving. By
default, the RIP function is disabled.
RIP-1 is universally supported. It is adequate for most networks, unless you have an
unusual network setup.
RIP-2 carries more information. Both RIP-2B and RIP-2M send the routing data in RIP-2
format. RIP-2B uses subnet broadcasting. RIP-2M uses multicasting.
Use Router as a DHCP Server
This check box is selected by default so that the modem router functions as a Dynamic Host
Configuration Protocol (DHCP) server.
• Starting IP Address. Specify the start of the range for the pool of IP addresses in the
same subnet as the modem router.
• Ending IP Address. Specify the end of the range for the pool of IP addresses in the
same subnet as the modem router.
Address Reservation
When you specify a reserved IP address for a computer on the LAN, that computer receives
the same IP address each time it accesses the modem router’s DHCP server. Assign
reserved IP addresses to servers that require permanent IP settings. See
Reservation on page 34.
Address
Use the Modem Router as a DHCP Server
By default, the modem router acts as a DHCP server. The router assigns IP, DNS server, and
default gateway addresses to all computers connected to the LAN. The assigned default
gateway address is the LAN address of the modem router. The modem router assigns IP
addresses to the attached computers from a pool of addresses specified in this screen. Each
pool address is tested before it is assigned to avoid duplicate addresses on the LAN. For
most applications, the default DHCP and TCP/IP settings of the modem router are
satisfactory.
Modem Router Setup
33
N150 Wireless ADSL2+ Modem Router N150RM
You can specify the pool of IP addresses that the modem router assigns by setting the
starting IP address and ending IP address. These addresses should be part of the same IP
address subnet as the modem router’s LAN IP address. Using the default addressing
scheme, define a range between 192.168.0.2 and 192.168.0.254, although you might want to
save part of the range for devices with fixed addresses.
The modem router delivers the following parameters to any LAN device that requests DHCP:
• An IP address from the range you have defined
• Subnet mask
• Gateway IP address (the modem router’s LAN IP address)
• Primary DNS server (if you entered a primary DNS address in the Internet Setup screen;
otherwise, the modem router’s LAN IP address)
• Secondary DNS server (if you entered a secondary DNS address in the Internet Setup
screen)
To use another device on your network as the DHCP server, or to specify the network
settings of all of your computers, clear the Use Router as DHCP Server check box and click
Apply. Otherwise, leave this check box selected. If you clear this check box and no other
DHCP server is on your network, you need to set your computers’ IP addresses manually so
that they can access the modem router.
Address Reservation
When you specify a reserved IP address for a computer on the LAN, that computer always
receives the same IP address each time it accesses the modem router’s DHCP server.
Assign reserved IP addresses to computers or servers that require permanent IP settings.
To reserve an IP address:
1. In the Address Reservation section of the screen, click the Add button.
2. In the IP Address field, type the IP address to assign to the computer or server. (Choose an
IP address from the modem router’s LAN subnet, such as 192.168.0.x.)
3. Type the MAC address of the computer or server.
Tip: If the computer is already on your network, you can copy its MAC
address from the Attached Devices screen and paste it here.
4. Click Apply to enter the reserved address into the table.
The reserved address is not assigned until the next time the computer contacts the
modem router’s DHCP server. Reboot the computer, or access its IP configuration and
force a DHCP release and renew.
To edit or delete a reserved address entry, select the radio button next to the reserved
address you want to edit or delete. Then click Edit or Delete.
Modem Router Setup
34
4. Security Settings
This chapter contains the following sections:
• Block Internet Sites
• Block Services
• Firewall Rules to Control Network Access
• Set the Time Zone
• Schedule Services
• Set Up Email Alerts
4
35
N150 Wireless ADSL2+ Modem Router N150RM
Block Internet Sites
Use keyword blocking to prevent certain types of HTTP traffic from accessing your network.
The blocking can be always or according to a scheduled.
To block traffic:
1. Select Security > Block
Sites.

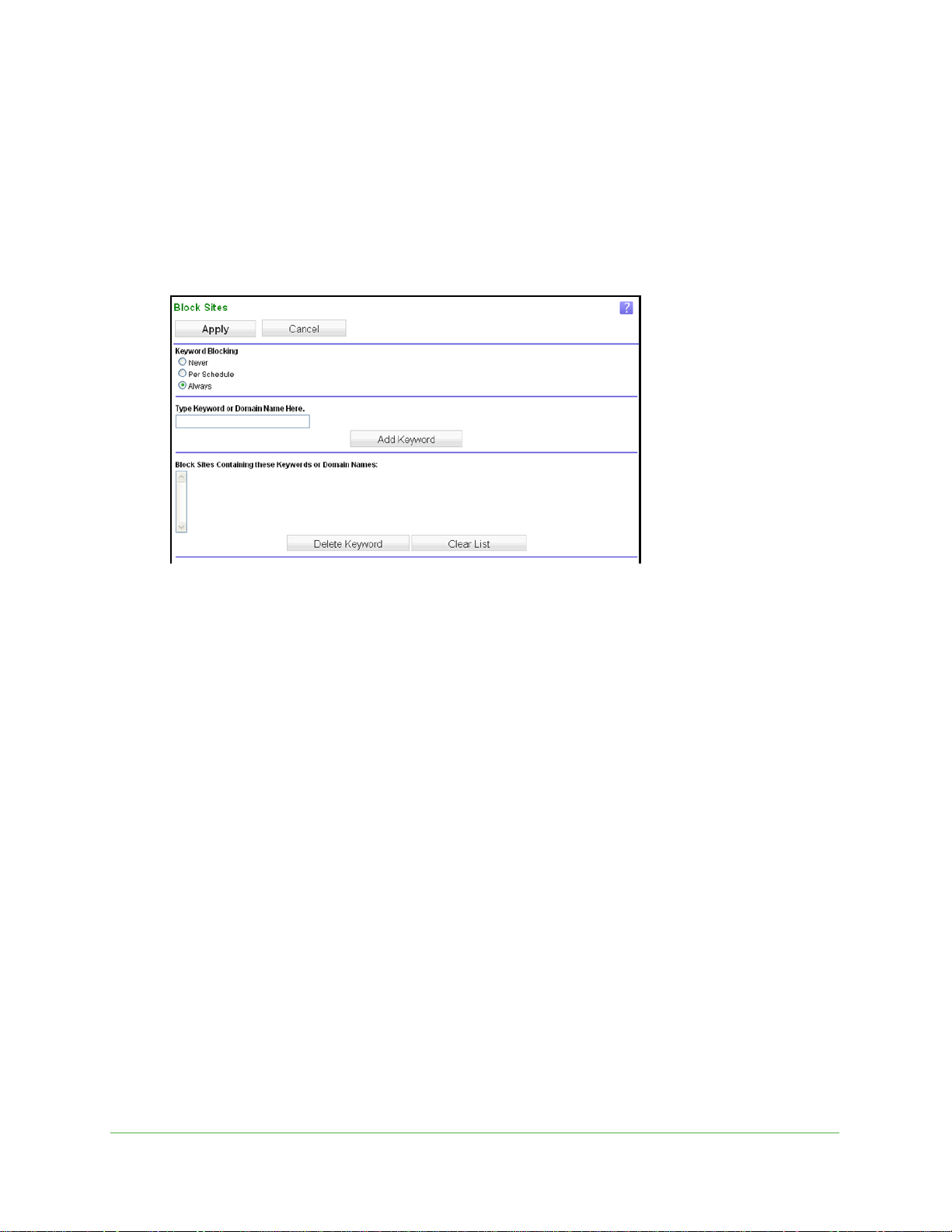

2. Select one of the keyword blocking options:
• Per Sche
• Always. T
3. In
the Keyword field, enter a keyword or domain, click Add Keyword, and click Apply .
dule. Turn on keyword blocking according to the Schedule screen settings.
urn on keyword blocking all the time, independent of the Schedule screen.
The Keyword list. supports up to 32 entries. Here are some sample entries:
pecify XXX to block http://www.badstuff.com/xxx.html.
• S
• S
pecify .com if you want to allow only sites with domain suffixes such as .edu or .gov.
• Enter a
period (.) to block all Internet browsing access.
To delete keywords:
1. Select the keyword
2. Click Delete Keyword and click Apply
or domain that you want to delete from the list.
to save your changes.
You can exempt one trusted computer from blocking and logging. The computer yo
has to have a fixed IP address.
To specify a trusted computer:
1. In the T
2. Click Apply
rusted IP Address field, enter the IP address.
to save your changes.
Security Settings
36
u exempt
N150 Wireless ADSL2+ Modem Router N150RM
Block Services
Services are functions performed by server computers at the request of client computers. For
example, web servers serve web pages, time servers serve time and date information, and
game hosts serve data about other players’ moves. When a computer on the Internet sends
a request for service to a server computer, the requested service is identified by a service or
port number. This number appears as the destination port number in the transmitted IP
packets. For example, a packet that is sent with destination port number 80 is an HTTP (web
server) request.
The service numbers for many common protocols are defin
Task Force (IETF at http://www.ietf.org/) and published in RFC1700, “Assigned Numbers.”
Service numbers for other applications are typically chosen from the range 1024 to 65535 by
the authors of the application. Although the modem router already holds a list of many
service port numbers, you are not limited to these choices.
To add your own service definitions:
1. Select Se
2. Click the Add Services button. If you want to change a service, select it and click Edit
Service.
3. Defin
• Name.
• Ty
• St
curity > Services to display the following screen:
e or edit a service by specifying the following.
Enter a meaningful name for the service.
pe. Select the correct type for this service. If in doubt, select TCP/UDP. The options
are TCP, UDP, and TCP/UDP.
art Port and Finish Port. If a port range is required, enter the range here. If a single
port is required, enter the same value in both fields.
ed by the Internet Engineering
4. Click App
ly to save your changes.
Firewall Rules to Control Network Access
Your modem router has a firewall that blocks unauthorized access to your wireless network
and permits authorized inbound and outbound communications. Authorized communications
are established according to inbound and outbound rules. The firewall has the following two
default rules. You can create custom rules to further restrict the outbound communications or
more widely open the inbound communications:
bound. Block all access from outside except responses to requests from the LAN side.
• In
• Outb
ound. Allow all access from the LAN side to the outside.
Security Settings
37
N150 Wireless ADSL2+ Modem Router N150RM
Set Up Firewall Rules
The Firewall Rules screen lets you add custom rules to make exceptions to the default rules.
Exceptions can be based on the service or application, source or destination IP addresses,
and time of day. You can log traffic that matches or does not match the rule and change the
order of rule precedence.
All traffic attempting to pass through the firewall is subjected
to the rules in the order shown in
the rules table from the top (highest precedence) to the default rules at the bottom. In some
cases, the order of precedence is important to determine which communications are allowed
into or out of the network.
To set up firewall rules:
1. Select Security > Firewall Rules.

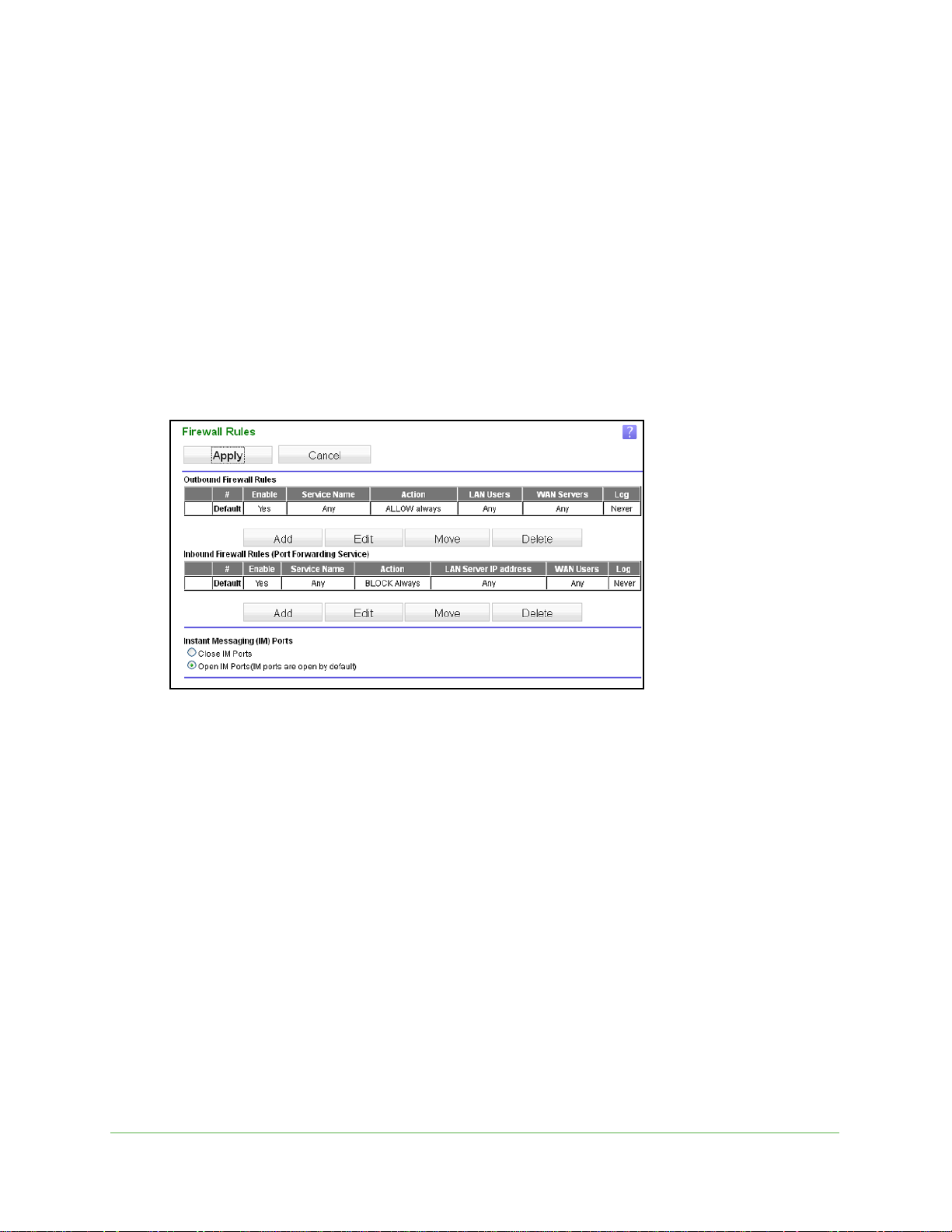

2. To add an outbound rule, click Add under Outbound Services. To edit or delete a rule, select
its button on the left side and click Edit or Delete.
o change the order of precedence:
3. T
a. Select the
b. At the prompt, en
o open or close instant messaging, select one of the following radio buttons:
4. T
ose IM Ports. Disables instant messaging traffic.
• Cl
• Open IM Port
5. Click Apply to save
button on the left side of the rule and click Move.
ter the number of the new position and click OK.
s. Enables instant messaging traffic. IM ports are open by default.
your settings.
Security Settings
38
N150 Wireless ADSL2+ Modem Router N150RM
Set the Time Zone
The modem router uses the Network Time Protocol (NTP) to obtain the current time and date
from one of several network time servers on the Internet.
To set the time zone:
1. Select Se
2. Select your time zone. This setting determines the blocking schedule and time-stamping of
log entries.
3. If your time zone is
savings time check box to add one hour to standard time.
curity > Schedule.
in daylight savings time, select the Automatically Adjust for daylight
4. Click App
ly to save your settings.
Security Settings
39
N150 Wireless ADSL2+ Modem Router N150RM
Schedule Services
If you enabled service blocking in the Block Services screen, you can set up a schedule for
when blocking occurs or when access is not restricted.
To schedule services:
1. Select Security > Sche
2. To block Internet services based on a schedule, select Every Day or select one or more
days.

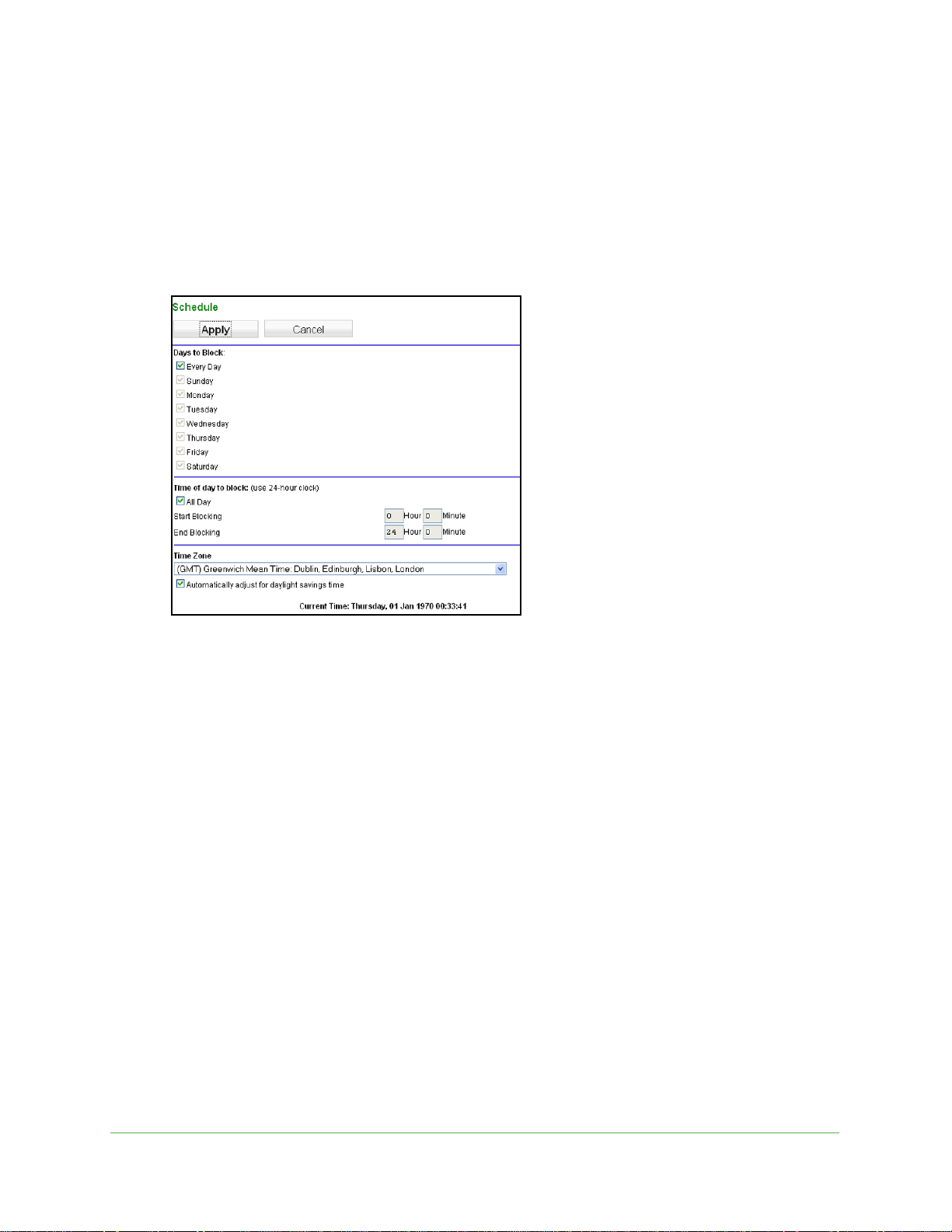

3. If
you want to limit access completely for the selected days, select All Day. Otherwise, to
limit access during certain times for the selected days, enter times in the Start Blocking and
End Blocking fields.
dule.
Note: Enter the values in 24-hour time format. For example, 10:30 a.m. would
be 10 hours and 30 minutes, and 10:30 p.m. would be 22 hours and 30
minutes. If you set the
through midnight the next day.
4. Click Apply to save
start time after the end time, the schedule is effective
your settings.
Security Settings
40
N150 Wireless ADSL2+ Modem Router N150RM
Set Up Email Alerts
To receive logs and alerts by email, provide your email information in the E-mail screen and
specify which alerts you want to receive and how often.
Select Security > E-m

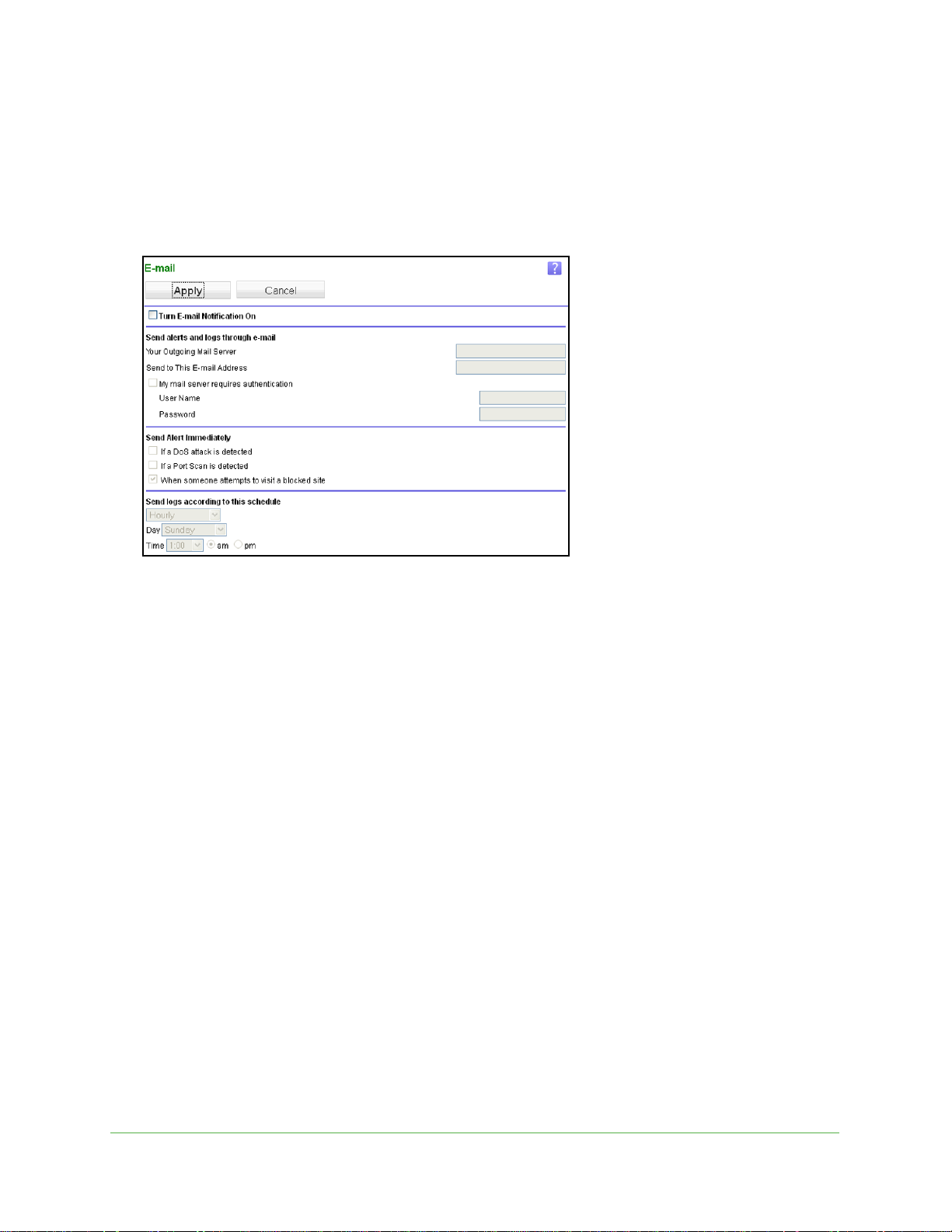

Figure 7. E-Mail screen
• Turn E-mail Notification On. Select this check box if you want to receive email logs and
alerts from the modem router.
• Sen
• Y
• My ma
d to This E-mail Address. Enter the email address where you want logs and alerts
sent. This email address is also used as the From address. If you leave this field blank,
log and alert messages are not sent.
our Outgoing Mail Server. Enter the name or IP address of your ISP’s outgoing
(SMTP) mail server (such as mail.myISP.com). You might be able to find this information
in the configuration settings of your email program. Enter the email address to which logs
and alerts are sent. This email address is also used as the From address. If you leave this
field blank, log and alert messages are not sent.
il server requires authentication. If you use an outgoing mail server provided by
your current ISP, you do not need to select this check box. If you use an email account
that your ISP did not provide, select this check box, and enter the required user name
and password information.
ail to display the following screen:
• Sen
• Sen
d Alerts Immediately. Select the corresponding check box if you would like
immediate notification of a significant security event, such as a known attack, port scan,
or attempted access to a blocked site.
d logs according to this schedule. Specifies how often to send the logs: Hourly,
Daily, Weekly, or When Full.
- Days.
This setting specifies which day of the week to send the log. This is relevant
when the log is sent weekly.
Security Settings
41
N150 Wireless ADSL2+ Modem Router N150RM
- Time. This setting specifies the time of day to send the log. This is relevant when the
log is sent daily or weekly.
If the Weekly, Daily, or Hourly option is selected and the log fills up before the specified
period, the log is emailed to the specified email address. After the log is sent, it is cleared
from the modem router’s memory. If the modem router cannot email the log file, the log buffer
might fill up. In this case, the modem router overwrites the log and discards its contents.
Security Settings
42
5. Network Management
This chapter contains the following sections:
• Upgrade the Firmware
• Check for Firmware Upgrades
• Backup Settings
• Set the Password
• View Router Status
• View Attached Devices
• Logs
• Diagnostics
5
43
N150 Wireless ADSL2+ Modem Router N150RM
WARNING:
Upgrade the Firmware
The modem router firmware (routing software) is stored in flash memory. By default, when
you log in to your modem router, it checks the On Networks website for new firmware and
alerts you if there is a newer version.
When uploading firmware to the modem router, do not interrupt
the web browser by closing the window, clicking a link, or loading
a new page. If the browser is interrupted, it could corrupt the
firmware.
Automatic Firmware Check
When automatic firmware checking is on, the modem router performs the check and notifies
you if an upgrade is available or not.
To check the firmware automatically:
1. Click Ye
upgrade process could take a few minutes. When the upload is complete, your modem
router restarts.
2. Go to the N150R
whether you need to reconfigure the modem router after upgrading.
Note: If you get a Firmware needs to be reloaded message, it means that
s to allow the modem router to download and install the new firmware. The
support page and read the new firmware release notes to determine
a problem has been detected with the modem router’s firmware.
Follow the prompts to correct the problem.
Network Management
44
N150 Wireless ADSL2+ Modem Router N150RM
WARNING:
Check for Firmware Upgrades
You can use the Firmware Upgrade screen to manually check the On Networks website for
newer versions of firmware for your product.
To check for newer versions of firmware:
When uploading firmware to the modem router, do not interrupt
the web browser by closing the window, clicking a link, or loadin g
a new page. If the browser is interrupted, it could corrupt the
firmware.
1. Log in to your router and select Management > Upgrade Firmware.
2. Click Browse, and locate the firmware image that you downloaded to your computer (the file
ends in .img or .chk).
3. Click Upl
When the upload is complete, your modem router restarts. The upgrade process typically
akes about 1 minute. Read the new firmware release notes to determine whether you
t
need to reconfigure the modem router after upgrading.
oad to send the firmware to the router.
Network Management
45
N150 Wireless ADSL2+ Modem Router N150RM
Backup Settings
The modem router configuration settings are stored in a configuration file (*.cfg). This file can
be backed up to your computer, restored, or used to revert to factory default settings.
Back Up
To back up the configuration file:
1. Select Ma
2. Click Save to save a copy of the current settings.
3. Choose a location to store the .cfg file tha
nagement > Backup Settings to display the following screen:
Restore
To restore the configuration file:
1. Enter th
e full path to the file on your network, or click the Browse button to find the file.
t is on a computer on your network.
2. Wh
Upon completion, the modem router reboots.
en you have located the .cfg file, click the Restore button to upload the file to the modem
router.
Erase
Click the Erase button to reset the modem router to its factory default settings. Erase sets the
password to admin and the LAN IP address to 192.168.0.1, and enables the modem router’s
DHCP.
Network Management
46
N150 Wireless ADSL2+ Modem Router N150RM
Set the Password
For security reasons, the modem router has its own user name of admin. The password
defaults to admin. You can and should change the password to one that is secure but also
easy to remember. The ideal password contains no dictionary words from any language and
is a mixture of uppercase and lowercase letters, numbers, and symbols. It can be up to 30
characters.
The modem router user name and password are not the same as the user name and
assword for logging in to your Internet connection. See Types of Logins and Access on
p
page 16 for more information about login types.
To change the password:
1. Select Manag
2. Ente
3. Ente
4. Click App
r the old password.
r the new password twice.
After changing the password, you are required to log in again to continue th
configuration. If you have backed up the modem router settings previously, you should do
a new backup so that the saved settings file includes the new password. See Backup
Settings on p
ement > Set Password.
ly to save your changes.
e
age 46 for information about backing up your network configuration.
Password Recovery
On Networks recommends that you enable password recovery if you change the password
for the router’s user name of admin. Then if the password is forgotten, you can recover it.
This recovery process is supported in Internet Explorer, Firefox, and Chrome browsers, but
not in the Safari browser.
To set up password recovery:
1. Select
2. Select two security quest
3. Click App
When you use your browser to access the router
recovery is enabled, when you click Cancel, the password recovery process starts. You can
then enter the saved answers to the security questions to recover the password.
the Enable Password Recovery check box.
ions, and provide answers to them.
ly to save your changes.
, the login window displays. If password
Network Management
47
N150 Wireless ADSL2+ Modem Router N150RM
View Router Status
The Router Status screen provides status and usage information.
To view the Router Status screen:
Select Managem
ent > Router Status.
ADSL Port Settings
MAC Address. The Ethernet MAC address of the DSL port.
IP Address. T
connect to the Internet.
Network Type. The value (such as PPPoA) depends on your ISP
IP Subnet Mask.
Gateway IP Address. T
Domain Name Server. The
usually are obtained dynamically from the ISP.
he DSL port IP address. If no address is shown, the modem router cannot
.
The DSL port IP subnet mask.
he IP address assigned to the modem router.
modem router DNS server IP addresses. These addresses
LAN Port (Local Ports)
MAC Address. The modem router LAN port Ethernet MAC address.
IP Address. T
he modem router LAN port IP address. The default is 192.168.0.1.
Network Management
48
N150 Wireless ADSL2+ Modem Router N150RM
DHCP server. If Off, the modem router does not assign IP addresses to PCs on the LAN. If
On, the modem router does assign IP addresses to computers on the LAN.
IP Subnet Mask. The subnet mask associated with the LAN IP address.
Modem Settings
ADSL Firmware Version. The model of the hardware and the currently running firmware
version.
Modem Status. The status of the modem connection on the DSL line.
Downstream Connection Speed. The connection speed of the ADSL connection from the
phone company to your Router.
Upstream Connection Speed. The connection speed of the ADSL connection from your
Router to the phone company.
VPI. The VPI setting.
VCI. The VCI setting.
Wireless Port Settings
See Wireless Setup on page 25 for a more detailed description of these settings.
Name (SSID). The Wi-Fi network name (service set ID) for the wireless network.
Region. The country where the unit is set up for use.
Channel. The current channel, which determines the operating frequency.
Mode. The current Mbps setting.
Wireless AP. Indicates if the access point feature is enabled. If disabled, the Wireless LED
on the front panel is off.
Broadcast Name. Indicates if the modem router is configured to broadcast its SSID.
Network Management
49
N150 Wireless ADSL2+ Modem Router N150RM
Show Statistics
Click the Show Statistics button on the Router Status screen to display a screen similar to
the following:

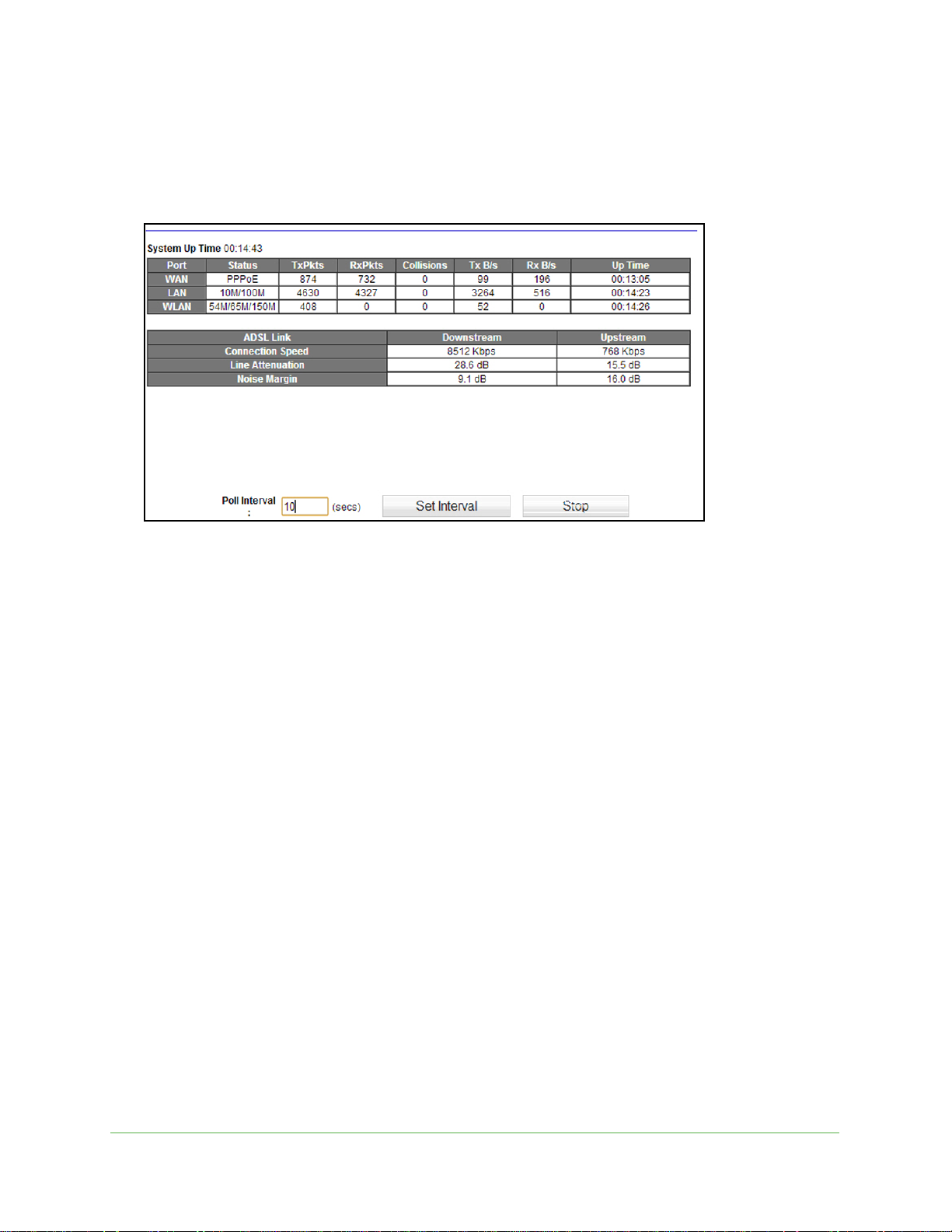

Port
The statistics for the WAN (Internet), LAN (local), and wireless LAN (WLAN) ports. For each
port, the screen displays the following:
• S
tatus. The link status of the port.
• TxPkt
• RxPkt
• Collision
• Tx B/s. T
• Rx B/s. The
• Up T
s. The number of packets transmitted since reset or manual clear.
s. The number of packets received since reset or manual clear.
s. The number of collisions since reset or manual clear.
he current line utilization—percentage of current bandwidth used.
average line utilization.
ime. The time elapsed since the last power cycle or reset.
Network Management
50
N150 Wireless ADSL2+ Modem Router N150RM

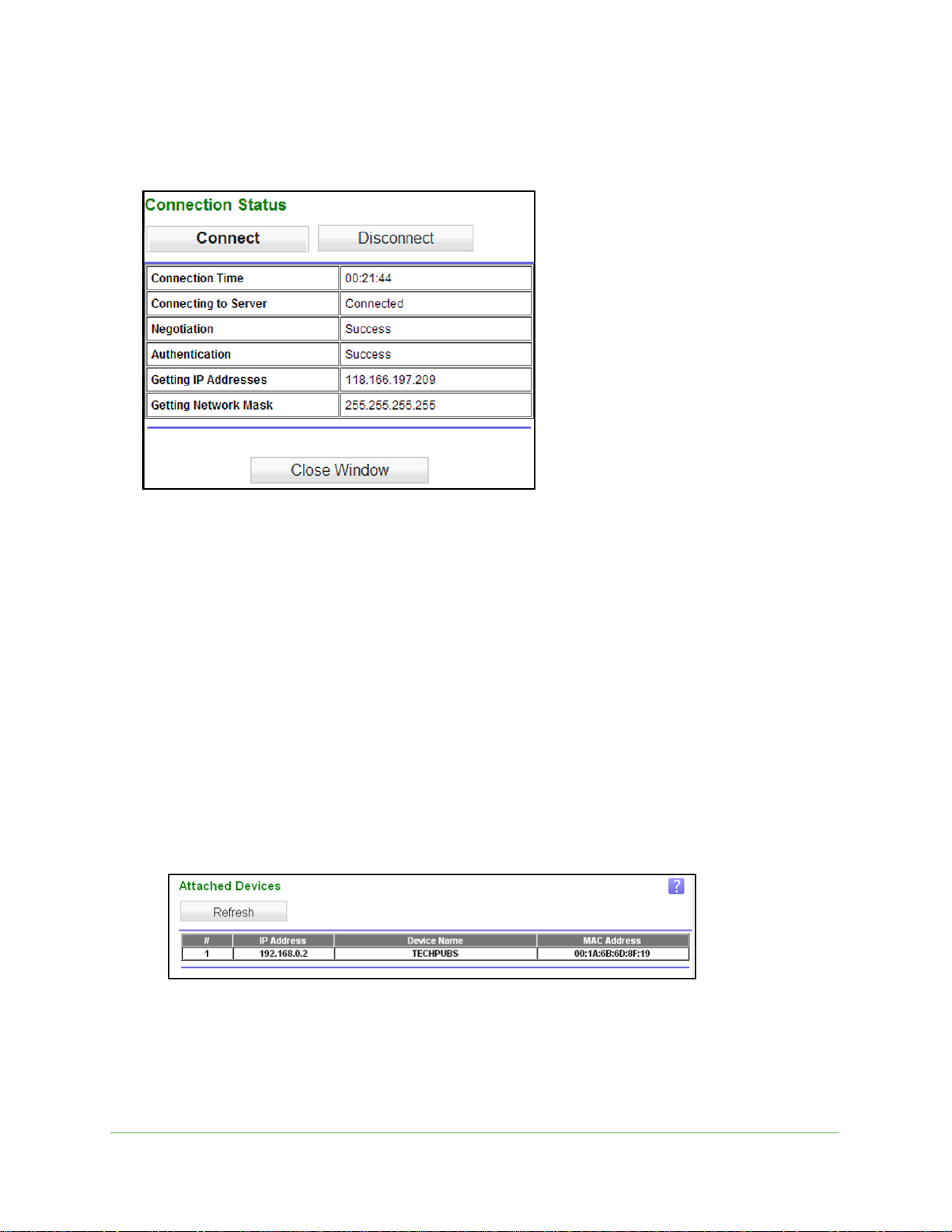

Connection Status
In the Router Status screen, click the Connection Status button.
• Connection Time. The time elapsed since the last connection to the Internet through the
DSL port.
• Conn
• Negotiation.
• Authentication. On
• Getting
• Betti
ecting to server. The connection status.
On or Off.
or Off.
IP Address. The IP address assigned to the WAN port by the ISP.
ng Network Mask. The subnet mask assigned to the WAN port by the ISP.
View Attached Devices
The Attached Devices screen shows all IP devices that the modem router has discovered on
the local network.
To view attached devices:
Select Mana
gement > Attached Devices.
For each device, the table shows the IP address, the device name if available, and the
Ethernet MAC address. If the modem router is rebooted, the table data is lost until the
modem router rediscovers the devices. To force the modem router to look for attached
devices, click the Refresh button.
Network Management
51
N150 Wireless ADSL2+ Modem Router N150RM
Logs
The modem router logs security-related events such as denied incoming service requests,
hacker probes, and administrator logins. If you enable content filtering in the Block Sites
screen, the Logs screen shows you when someone on your network tries to access a blocked
site. If you enable email notification, you receive these logs in an email message.
To view the log:
Select Managem

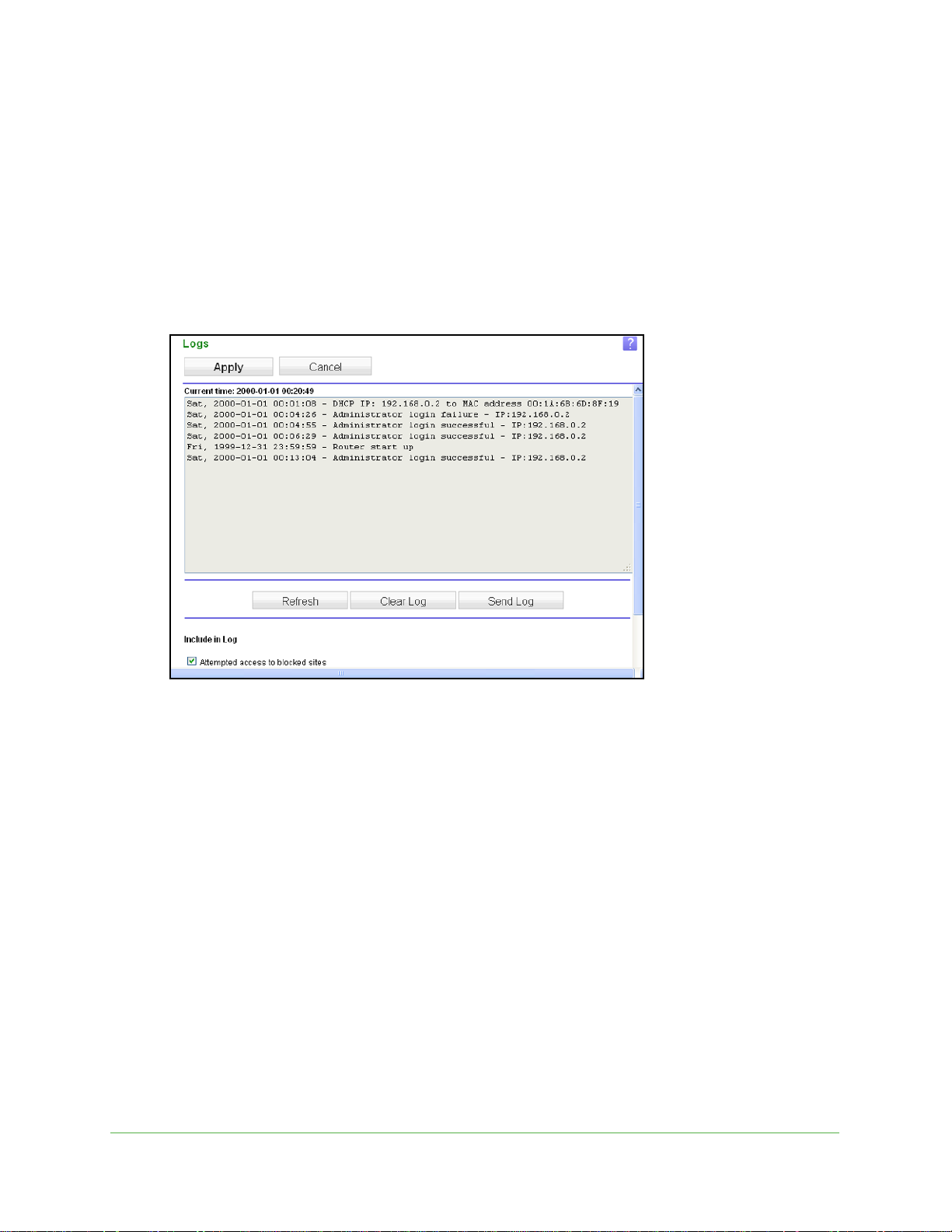

The Include in Log check boxes allow you to select which events are logged. The security log
entries include the following information:
• Date and time. Th
• Description
ent > Logs. A screen similar to the following displays:
e date and time the log entry was recorded.
or action. The type of event and what action was taken, if any.
• Source IP. The
• Source
it originated from the LAN or WAN.
• Destinati
• Destinati
whether it is on the LAN or WAN.
port and interface. The service port number of the initiating device, and whether
on. The name or IP address of the destination device or website.
on port and interface. The service port number of the destination device, and
IP address of the initiating device for this log entry.
Network Management
52
N150 Wireless ADSL2+ Modem Router N150RM
Diagnostics
During normal operation, you do not need to use diagnostics.
To use diagnostics:
Select Mana

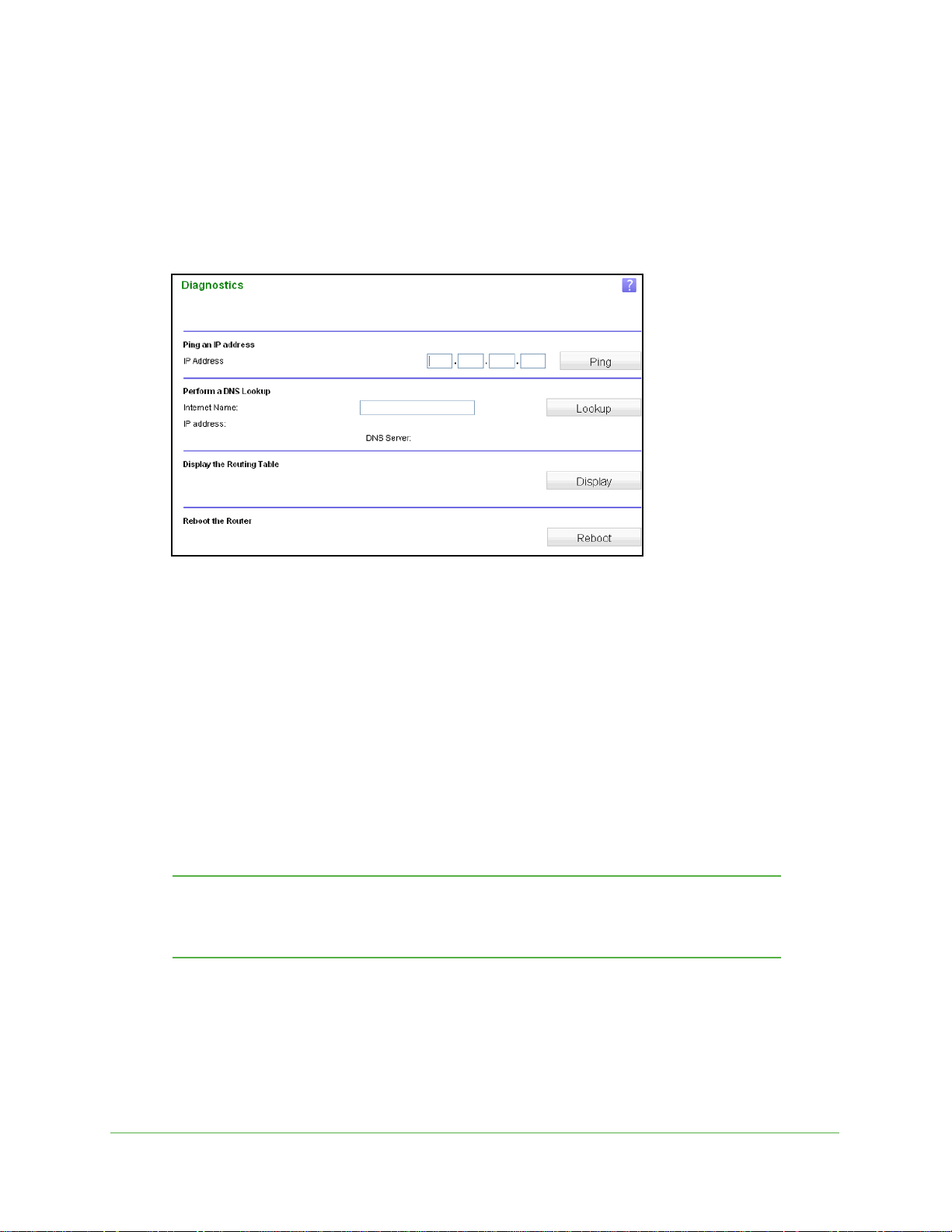

The following features are available on the Diagnostics screen.
• Pin
• Perform a
g an IP address. Use this to send a ping packet request to the specified IP address.
Ping can be used to test a connection. If the request times out (no reply is received), this
usually means that the destination is unreachable. However, some network devices can
be configured not to respond to a ping.
addresses. If you need the IP address of a server on the Internet, you can do a DNS
lookup to find the IP address.
gement > Diagnostics.
DNS Lookup. A Domain Name Server (DNS) converts Internet names to IP
• Dis
• Reb
play the Routing Table. View the internal routing table. This information is used by
technical support and other staff who understand routing tables.
oot the Router. Perform a remote reboot (restart). You can do this if the modem
router seems to have become unstable or is not operating normally.
Note: Rebooting stops any network connections to the modem router or
through the modem router. Connections to the Internet are
automatically reestablished when possible.
Network Management
53
6. Advanced Settings
This chapter describes the advanced features of your modem router. The information is for
readers with advanced networking knowledge who want to set the modem router up for unique
situations such as when remote access from the Internet by IP or domain name is needed.
Note: For information about port forwarding and port triggering, see
Chapter 4, Security Settings.
This chapter includes the following sections:
• Advanced Wireless Settings
• Dynamic DNS
• Static Routes
• Remote Management
6
• Universal Plug and Play
54
N150 Wireless ADSL2+ Modem Router N150RM
Advanced Wireless Settings
To view the Advanced Wireless Settings screen:
Select Advanced > Wireless Settings to display the following screen:
The following settings are available in this screen:
Enable Wireless Router Radio. Y
wireless modem router by clearing this check box. Select this check box again to enable the
wireless portion of the modem router. When the wireless radio is disabled, other members of
your household can use the modem router by connecting their computers to the modem
router with an Ethernet cable.
The Fragmentation Length, CTS/RTS Threshold, and Preamble Mode options are reserved
or wireless testing and advanced configuration only. Do not change these settings.
f
T urn off wireless signal by schedule.
from your modem router at times when you do not need a wireless connection. For instance,
you could turn it off for the weekend if you leave town.
WLAN.
Name (SSID). The service
Region. The
Channel. Th
Wireless AP. Indicate
LED on the front panel is off.
Broadcast Name. Indicates if
SSID.
country where the unit is set up for use.
e current channel, which determines the operating frequency.
s if the access point feature is enabled. If it is disabled, the Wireless
ou can completely turn off the wireless portion of the
You can use this feature to turn off the wireless signal
set ID, also known as the wireless network name.
the wireless modem router is configured to broadcast its
Security.
type of security is configured.
Indicates if security is configured on the wireless modem router, and if so, what
Advanced Settings
55
WPS Settings.
N150 Wireless ADSL2+ Modem Router N150RM
Router’s PIN. The
the wireless network through WPS. If the modem router detects attempts to use the PIN
to break into the network, the PIN is disabled. To enable the PIN, clear the Disable
Router PIN check box and click Apply.
Keep Existing Wireless Settings.
and wireless security settings stay the same when a new wireless computer or device
uses WPS to join the wireless network.
If you clear the Keep Existing Wireless Settings check box, the next time a someone uses
WPS to join th
WPA/WPA2 passphrase.
number that you can use from a wireless computer or device to join
By default, this check box is selected so that the SSID
e wireless network, the modem router generates a new random SSID and
Dynamic DNS
If your Internet service provider (ISP) gave you a permanently assigned IP address, you can
register a domain name and have that name linked with your IP address by public Domain
Name Servers (DNS). Most Internet accounts use dynamically assigned IP addresses. You
do not know in advance what your IP address will be, and the address can change frequently.
In this case, you can use a commercial Dynamic DNS service. This type of service lets you
register your domain to their IP address and forwards traffic directed at your domain to your
frequently changing IP address.
If your ISP assigns a private WAN IP address (su
DNS service does not work because private addresses are not routed on the Internet.
Your modem router contains a client that can
by DynDNS.org. If you register for an account and set up the modem router, whenever your
ISP-assigned IP address changes, your modem router automatically contacts the Dynamic
DNS service provider, logs in to your account, and registers your new IP address. If your host
name is hostname, for example, you can reach your modem router at
http://hostname.dyndns.org.
To set up Dynamic DNS:
1. Register for an
addresses are in the Service Provider list.
2. Select Ad
account with one of the Dynamic DNS service providers whose web
vanced > Dynamic DNS.
ch as 192.168.x.x or 10.x.x.x), the Dynamic
connect to the Dynamic DNS service provided
Advanced Settings
56
N150 Wireless ADSL2+ Modem Router N150RM
3. Select the Use a Dynamic DNS Service check box.
4. Enter the web address of your Dynamic DNS service provider. For example, for
DynDNS.org, type www.dyndns.org.
5. Type the host name (or domain name) that your Dynamic DNS service provider gave you.
6. Type the user name for your Dynamic DNS account. This is the name that you use to log in
to your account, not your host name.
7. Type the password (or key) for your Dynamic DNS account.
8. Click Apply to save your configuration.
Static Routes
Static routes provide additional routing information to your modem router. Typically, you do
not need to add static routes. You have to configure static routes only for unusual cases such
as multiple modem routers or multiple IP subnets on your network.
As an example of when a static route is needed, consider the following case:
• Your primary Internet access is through a cable modem to an ISP.
• You have an ISDN modem router on your home network for connecting to the company
where you are employed. This modem router’s address on your LAN is 192.168.0.100.
• Your company’s network address is 134.177.0.0.
When you first configured your modem router, two implicit static routes were created. A
default route was created with your ISP as the gateway, and a second static route was
created to your local network for all 192.168.0.x addresses. With this configuration, if you
attempt to access a device on the 134.177.0.0 network, your modem router forwards your
request to the ISP. The ISP forwards your request to the company where you are employed,
and the request is likely to be denied by the company’s firewall.
In this case you have to define a static route, telling your modem router that 134.177.0.0
should be accessed through the ISDN modem router at 192.168.0.100. In this example:
• The Destination IP Address and IP Subnet Mask fields specify that this static route
applies to all 134.177.x.x addresses.
• The Gateway IP Address field specifies that all traffic for these addresses should be
forwarded to the ISDN modem router at 192.168.0.100.
• A metric value of 1 will work since the ISDN modem router is on the LAN.
• Private is selected only as a precautionary security measure in case RIP is activated.
Advanced Settings
57
N150 Wireless ADSL2+ Modem Router N150RM
To set up a static route:
1. Select Advanced > Static Routes, and click Add to display the following screen:
2. In the Route Name field, type a name for this static route (for identification purposes only.)
3. Select the Priva
te check box if you want to limit access to the LAN only. If Private is
selected, the static route is not reported in RIP.
4. Select the Active check box to make this
ype the IP address of the final destination.
5. T
6. T
ype the IP subnet mask for this destination. If the destination is a single host, type
route effective.
255.255.255.255.
7. T
ype the gateway IP address, which has to be a modem router on the same LAN segment
as the N150RM modem router.
ype a number from 1 through 15 as the metric value.
8. T
This value represents the number of modem route
rs between your network and the
destination. Usually, a setting of 2 or 3 works, but if this is a direct connection, set it to 1.
9. Click Apply to
add the static route.
Advanced Settings
58
N150 Wireless ADSL2+ Modem Router N150RM
Remote Management
The remote management feature lets you upgrade or check the status of your N150RM
modem router over the Internet.
To set up remote management:
1. Select Adv
Note: Be sure to change the modem router’s default login password to a
secure password. The ideal password contains no dictionary words from any
language and contains uppercase and lowercase letters, numbers, and
symbols. It can be up to 30 characters.
anced > Remote Management.
2. Select th
3. Unde
access the modem router management interface remotely
Note: For enhanced security, restrict access to as few external IP
• To allow access from a single IP address on the Internet, select Only This Computer.
• T
• T
• T
4. S
pecify the port number for accessing the web management interface.
e Turn Remote Management On check box.
r Allow Remote Access By, specify the external IP addresses that are allowed to
addresses as practical.
Enter the IP address of the computer that is allowed access.
o allow access from a range of IP addresses on the Internet, select IP Address
Range. Enter a beginning and ending IP addresses to define the allowed range.
o specify IP addresses, select IP Address List and type in the allowed IP
addresses.
o allow access from any IP address on the Internet, select Everyone.
Advanced Settings
59
N150 Wireless ADSL2+ Modem Router N150RM
Normal web browser access uses the standard HTTP service port 80. For greater
security, enter a custom port number for the remote web management interface. Choose
a number from 1024 to 65535, but do not use the number of any common service port.
The default is 8080, which is a common alternate for HTTP.
5. Click Apply to
6. Wh
en accessing your modem router from the Internet, type your modem router’s WAN IP
address into your browser’s address or location field followed by a colon (:) and the custom
port number. For example, if your external address is 134.177.0.123 and you use port
number 8080, enter http://134.177.0.123:8080 in your browser.
have your changes take effect.
Universal Plug and Play
Universal Plug and Play (UPnP) helps devices, such as Internet appliances and computers,
to access the network and connect to other devices as needed. UPnP devices can
automatically discover the services from other registered UPnP devices on the network.
If you use applications such as multiplayer ga
communications such as instant messaging or remote assistance (a feature in Windows XP),
you should enable UPnP.
To turn on Universal Plug and Play:
1. Select Advance
d > UPnP. The UPnP screen displays.
ming, peer-to-peer connections, or real-time
2. The available settings and information in this screen are:
Turn UPnP On. UPnP ca
The default setting for UPnP is disabled. If this check box is not selected, the modem
router does not allow any device to automatically control the resources, such as port
forwarding (mapping) of the modem router.
Advertisement Period. Th
broadcasts its UPnP information. This value can range from 1 to 1440 minutes. The
default period is 30 minutes. Shorter durations ensure that control points have current
device status at the expense of more network traffic. Longer durations can compromise
the freshness of the device status, but can significantly reduce network traffic.
Advertisement Time to Live. The time to live for the
(steps) for each UPnP packet sent. The time to live hop count is the number of steps a
broadcast packet is allowed to propagate for each UPnP advertisement before it
disappears. The number of hops can range from 1 to 255. The default value for the
n be enabled or disabled for automatic device configuration.
e advertisement period is how often the modem router
advertisement is measured in hops
Advanced Settings
60
N150 Wireless ADSL2+ Modem Router N150RM
advertisement time to live is 4 hops, which is fine for most home networks. If you notice
that some devices are not being updated or reached correctly, it might be necessary to
increase this value.
UPnP Portmap Table. The UPnP Portmap Table displays the IP address of each UPnP
device that is accessing the modem router and which ports (internal and external) that
device has opened. The UPnP Portmap Table also displays what type of port is open and
whether that port is still active for each IP address.
3. Click Apply to save your settings.
Advanced Settings
61
7. Troubleshooting
Diagnose and solve problems
7
This chapter provides information about troubleshooting your modem router. After each problem
description, instructions are provided to help you diagnose and solve the problem.
This chapter contains the following sections:
• Troubleshoot with the LEDs
• Cannot Log In to the Modem Router
• Troubleshoot the Internet Connection
• TCP/IP Network Does Not Respond
• Changes Not Saved
• Incorrect Date or Time
62
N150 Wireless ADSL2+ Modem Router N150RM
Power
Ethernet
ADSL
Internet
WPS
Wireless
Troubleshoot with the LEDs
When you turn the power on, the Power, Ethernet, and ADSL LEDs should light as described
here. If they do not, refer to the sections that follow for help.
hen power is first applied, the Power LED lights.
1. W
ter approximately 10 seconds, the Ethernet and ADSL LEDs light as follows:
2. Af
a. T
he Ethernet port LEDs light for any local ports that are connected.
b. T
he ADSL LED lights to indicate that there is a link to the connected device.
f a LAN port is connected to a 100 Mbps device, verify that the LAN port’s LED is
c. I
green. If the LAN port is 10 Mbps, the LED is amber.
Figure 8. Front panel LEDs
Power LED Is Off
If the Power and other LEDs are off when your modem router is turned on:
• Che
• Che
If the error persists, you could have a hardware problem and should contact technical
suppo
ck that the power cord is correctly connected to your modem router and the power
supply adapter is correctly connected to a functioning power outlet.
ck that you are using the power adapter supplied in the package with this product.
rt.
Troubleshooting
63
N150 Wireless ADSL2+ Modem Router N150RM
Power LED Is Red
When the modem router is turned on, it performs a power-on self-test during which time the
Power LED turns red. If the Power LED does not turn green within a minute or so or if it turns
red at any other time during normal operation, there is a fault within the modem router.
If the Power LED turns red to indicate a modem router fault, turn the power off and on to see
if the modem router recovers. If the Power LED is still red 1 minute after power-up:
• Turn the power off and on one more time to see if the modem router recovers.
• Clear the modem router’s configuration to factory defaults as explained in Factory
Settings on page 72. This sets the modem router’s IP address to 192.168.0.1.
If the error persists, you could have a hardware problem and should contact technical
support.
Ethernet LED Is Off for a Connected Port
If the appropriate Ethernet LED does not light when the Ethernet connection is made, check
the following:
• The Ethernet cable connections are secure at the modem router and at the hub or
workstation.
• The power is turned on to the connected hub or workstation.
• You are using the correct cable.
Cannot Log In to the Modem Router
If you are unable to log in to the modem router from a computer on your local network, check
the following:
• If you are using an Ethernet-connected computer, check the Ethernet connection
between the computer and the modem router as described in the previous section.
• Make sure that your computer’s IP address is on the same subnet as the modem router.
If you are using the recommended addressing scheme, your computer’s address should
be in the range of 192.168.0.2 to 192.168.0.254.
• If your computer’s IP address is shown as 169.254.x.x, recent versions of Windows and
Mac OS generate and assign an IP address if the computer cannot reach a DHCP server.
These auto-generated addresses are in the range of 169.254.x.x. If your IP address is in
this range, check the connection from the computer to the modem router, and reboot your
computer.
• If your modem router’s IP address was changed and you do not know the current IP
address, clear the modem router’s configuration to factory defaults. This sets the modem
router’s IP address to 192.168.0.1. This procedure is explained in
page 72.
Factory Settings on
Troubleshooting
64
N150 Wireless ADSL2+ Modem Router N150RM
• Make sure that your browser has Java, JavaScript, or ActiveX enabled. If you are using
Internet Explorer, click Refresh to be sure that the Java applet is loaded.
• Try quitting the browser and launching it again.
• Make sure you are using the correct login information. The factory default login name is
admin, and the password is password. Make sure that Caps Lock is off when you enter
this information.
Troubleshoot the Internet Connection
If your modem router is unable to access the Internet, check the ADSL connection, then the
WAN TCP/IP connection.
ADSL Link
If your modem router is unable to access the Internet, first determine whether you have an
ADSL link with the service provider. The state of this connection is indicated with the Internet
LED.
ADSL Link LED Is Green
If your ADSL link LED is green, then you have a good ADSL connection. You can be
confident that the service provider has connected your line correctly and that your wiring is
correct.
ADSL Link LED Is Blinking Green
If your ADSL link LED is blinking green, then your modem router is attempting to make an
ADSL connection with the service provider. The LED should turn green within several
minutes.
If the ADSL link LED does not turn green, disconnect all telephones on the line. If this solves
the problem, reconnect the telephones one at a time, being sure to use a microfilter on each
telephone. If the microfilters are connected correctly, you should be able to connect all your
telephones.
If disconnecting telephones does not result in a green ADSL link LED, there might be a
problem with your wiring. If the telephone company has tested the ADSL signal at your
network interface device (NID), then you might have poor-quality wiring in your house.
ADSL Link LED Is Off
If the ADSL link LED is off, disconnect all telephones on the line. If this solves the problem,
reconnect the telephones one at a time, being sure to use a microfilter on each telephone. If
the microfilters are connected correctly, you should be able to connect all your telephones.
If disconnecting telephones does not result in a green ADSL link LED, check for the following:
• Check that the telephone company has made the connection to your line and tested it.
Troubleshooting
65
N150 Wireless ADSL2+ Modem Router N150RM
• Verify that you are connected to the correct telephone line. If you have more than one
phone line, be sure that you are connected to the line with the ADSL service. It might be
necessary to use a swapper if your ADSL signal is on pins 1 and 4 or the RJ-11 jack. The
modem router uses pins 2 and 3.
Internet LED Is Red
If the Internet LED is red, the device was unable to connect to the Internet. Verify the
following:
• Check that your login credentials are correct, or that the information you entered on the
Basic Settings screen is correct.
• Check with your ISP to verify that the multiplexing method, VPI, and VCI settings are
correct.
• Check if your ISP has a problem—it might not be that the modem router cannot connect
to the Internet, but rather that your ISP that cannot provide an Internet connection.
Obtaining an Internet IP Address
If your modem router is unable to access the Internet, and your Internet LED is green, see if
the modem router can obtain an Internet IP address from the ISP. Unless you have been
assigned a static IP address, your modem router requests an IP address from the ISP. You
can determine whether the request was successful using the browser interface.
To check the Internet IP address from the browser interface:
1. Launch your browser, and select an external website.
2. Access the modem router’s configuration at http://192.168.0.1.
3. On the Home screen (Router Status), check that an IP address is shown for the WAN port.
If 0.0.0.0 is shown, your modem router has not obtained an IP address from your ISP.
If your modem router is unable to obtain an IP address from the ISP, the problem might be
one of the following:
• If you have selected a login program, the service name, user name, or password might be
incorrectly set. See the following section,
• Your ISP might check for your computer’s host name. Assign the computer host name of
your ISP account to the modem router in the browser-based Setup Wizard.
• Your ISP allows only one Ethernet MAC address to connect to Internet, and might check
for your computer’s MAC address. In this case, do one of the following:
PPPoE or PPPoA .
- Inform your ISP that you have bought a new network device, and ask them to use the
modem router’s MAC address.
- Configure your modem router to spoof your computer’s MAC address. This can be
done in the Basic Settings screen.
Troubleshooting
66
N150 Wireless ADSL2+ Modem Router N150RM
PPPoE or PPPoA
To debug the PPPoE or PPPoA connection:
1. Log in to the modem router.
2. On the Home screen (Router Status), click the Connection Status button.
3. If all of the steps indicate OK, then your PPPoE or PPPoA connection is up and working.
4. If any of the steps indicates Failed, you can attempt to reconnect by clicking Connect. The
modem router continues to attempt to connect indefinitely.
If you cannot connect after several minutes, you might be using an incorrect service name,
user name, or password. There also might be a provisioning problem with your ISP.
Note: Unless you connect manually, the modem router does not
authenticate using PPPoE or PPPoA until data is transmitted to the
network.
Internet Browsing
If your modem router can obtain an IP address, but your computer is unable to load any web
pages from the Internet:
• Your computer might not recognize any DNS server addresses.
A DNS server is a host on the Internet that translates Internet names (such as www
addresses) to numeric IP
two DNS servers for your use. If you entered a DNS address when you set up the modem
router, reboot your computer, and verify the DNS address. Alternatively, you can
configure your computer manually with DNS addresses, as explained in your operating
system documentation.
• Your computer might not have the modem router configured as its TCP/IP modem router.
If your computer obtains its information from the modem router by DHCP, reboot the
computer, and verify the modem router address.
addresses. Typically your ISP provides the addresses of one or
Troubleshooting
67
N150 Wireless ADSL2+ Modem Router N150RM
TCP/IP Network Does Not Respond
Most TCP/IP terminal devices and routers have a ping utility for sending an echo request
packet to the designated device. The device responds with an echo reply to tell whether a
TCP/IP network is responding to requests.
Test the LAN Path to Your Modem Router
You can ping the modem router from your computer to verify that the LAN path to your
modem router is set up correctly.
To ping the modem router from a PC running Windows 95 or later:
1. From the Windows task bar, click the Start button, and select Run.
2. In the field provided, type ping followed by the IP address of the modem router, as in this
example:
ping 192.168.0.1
3. Click OK.
You should see a message like this one:
Pinging <IP address> with 32 bytes of data
If the path is working, you see this message:
Reply from < IP address >: bytes=32 time=NN ms TTL=xxx
If the path is not working, you see this message:
Request timed out
If the path is not functioning correctly, you could have one of the following problems:
• Wrong physical connections
- Make sure that the Ethernet port LED is on. If the LED is off, follow the instructions
in
Ethernet LED Is Off for a Connected Port on page 64.
- Check that the corresponding link LEDs are on for your network interface card and
for the hub ports (if any) that are connected to your workstation and modem
router.
• Wrong network configuration
- Verify that the Ethernet card driver software and TCP/IP software are both
installed and configured on your computer or workstation.
- Verify that the IP address for your modem router and your workstation are correct
and that the addresses are on the same subnet.
Troubleshooting
68
N150 Wireless ADSL2+ Modem Router N150RM
Test the Path from Your Computer to a Remote Device
After you verify that the LAN path works correctly, test the path from your Windows PC to a
remote device. In the Windows Run screen, type:
ping -n 10 IP address
where IP address is the IP address of a remote device such as your ISP’s DNS server.
If the path is functioning correctly, replies as described in Test the LAN Path to Your Modem
Router on page 68 display. If you do not receive replies:
• Check that your PC has the IP address of your modem router listed as the default modem
router. If the IP configuration of your PC is assigned by DHCP, this information is not
visible in your PC’s Network Control Panel. Verify that the IP address of the modem
router is listed as the default router.
• Check that the network address of your PC (the portion of the IP address specified by the
netmask) is different from the network address of the remote device.
• Check that your cable or DSL modem is connected and functioning.
• If your ISP assigned a host name to your PC, enter that host name as the account name
in the Basic Settings screen.
• Your ISP could be rejecting the Ethernet MAC addresses of all but one of your PCs. Many
broadband ISPs restrict access by allowing traffic only from the MAC address of your
modem, but some additionally restrict access to the MAC address of a single PC
connected to that modem. In this case, configure your modem router to clone or spoof the
MAC address from the authorized PC.
Changes Not Saved
If the modem router does not save the changes you make in the modem router interface,
check the following:
• When entering configuration settings, always click the Apply button before moving to
another screen or tab, or your changes are lost.
• Click the Refresh or Reload button in the web browser. The changes might have
occurred, but the old settings might be in the web browser’s cache.
Incorrect Date or Time
Select Security > Schedule to display the current date and time. The modem router uses the
Network Time Protocol (NTP) to obtain the current time from one of several network time
servers on the Internet. Each entry in the log is stamped with the date and time of day.
Problems with the date and time function can include the following:
• Date shown is January 1, 2000. This means the modem router has not yet reached a
network time server. Check that your Internet access is configured correctly. If you have
Troubleshooting
69
N150 Wireless ADSL2+ Modem Router N150RM
just finished setting up the modem router, wait at least 5 minutes, and check the date and
time again.
• Time is off by one hour. This modem has automatic DST adjustment. To use this feature,
in the Schedule screen, select the Automatically adjust for daylight savings time
check box and click Apply.
Troubleshooting
70
A. Supplemental Information
This appendix covers the following topics:
• Factory Settings
• Technical Specifications
A
71
N150 Wireless ADSL2+ Modem Router N150RM
Reset button
Factory Settings
You can return the modem router to its factory settings. Use the end of a paper clip or some
other similar object to press and hold the Reset button for at least 7 seconds.
Figure 1. Reset button
The modem router resets, and returns to the factory settings, as shown in the following table.
Table 1. Factory default settings
Feature Default Behavior
Router Login User login URL http://www.mywi
User name (case-sensitive) admin
Login password (case-sensitive) admin
Internet
ection
conn
Local network
(LAN)
WAN MAC address Use default address
WAN MTU size 1458
Port speed Autosensing
LAN IP 192.168.0.1
Subnet mask 255.255.255.0
RIP direction None
RIP version Disabled
RIP authentication None
firouter.com
DHCP server Enabled
Supplemental Information
72
N150 Wireless ADSL2+ Modem Router N150RM
Table 1. Factory default settings (continued)
Feature Default Behavior
Local network
(LAN) continued
Firewall Inbound (communications coming
Wireless Wireless communication Enabled
DHCP starting IP address 192.168.0.2
DHCP ending IP address 192.168.0.254
DMZ Enabled or disabled
Time zone GMT for WW except NA and GR, GMT+1 for GR, GMT-8
for NA
Time zone adjusted for daylight
savings time
SNMP Disabled
in from the Internet)
Outbound (communications going
out to the Internet)
Source MAC filtering Disabled
SSID name OnNetworksXX (where XX are two random digits)
WiFi password XXXXXXXX (8 random digits)
Disabled
Disabled (except traffic on port 80, the HTTP port)
Enabled (all)
Can be found on the label on the bottom of the unit.
Security Mixed WPA-PSK + WPA2-PSK
Broadcast SSID Enabled
Country/region Europe
RF channel Auto
Operating mode Up to 150 Mbps
Data rate Best
Output power Full
Access point Enabled
Authentication type Pre-Shared Key
Wireless card access list All wireless stations allowed
Supplemental Information
73
N150 Wireless ADSL2+ Modem Router N150RM
Technical Specifications
Table 2. Technical specifications
Feature Description
Data and Routing Protocols TCP/IP, RIP-1, RIP-2, DHCP, PPPoE or PPPoA, RFC 1483 Bridged or
Routed Ethernet, and RFC 1577 Classical IP over ATM
AC plug is localized 110V-220V, 50/60 Hz, input
Dimensions 200 x 113.4 x 86.2 mm (7.9 x 4.5 x 3.4 in.)
Weight 0.28 kg (0.62 lb)
Operating temperature 0 to
Operating humidity 90% maximum relative humidity, noncondensing
Regulatory compliance EN 55022/24 (CISPR 22/24) Class B
Interface specifications LAN: 10BASE-T or 100BASE-Tx, RJ-45
40C (32º to 104ºF)
EN 60950 (CE LVD) Class B
EN 301 489-17 V.2.1.1 (2009)
EN 301 489-1 V1.9.2 (2011)
EN 300 328 V1.7.1 (2006)
K21:ITU-T K.21- 07/2003
TBR21: TBR21 January 1998
WAN: ADSL, dual RJ-11, pins 2 and 3
T1.413, G.DMT, G.Lite
ITU Annex A hardware or Annex B hardware
ITU G.992.5 (ADSL2+)
Supplemental Information
74
B. Notification of Compliance
Wireless routers, gateways, APs
B
Regulatory Compliance Information
Note: This section includes user requirements for operating this product in accordance with National laws for usage
of radio spectrum and operation of radio devices. Failure of the end-user to comply with the applicable
requirements may result in unlawful operation and adverse action against the end-user by the applicable National
regulatory authority.
Note: This product's firmware limits operation to only the channels allowed in a particular Region or Country.
Therefore, all options described in this user's guide may not be available in your version of the product.
Europe – EU Declaration of Conformity
Marking by the above symbol indicates compliance with the Essential Requirements of the R&TTE Directive of the
European Union (1999/5/EC). This equipment meets the following conformance standards:
EN300 328 (2.4Ghz), EN301 489-17 EN60950-1
For the complete EU Declarations of Conformity, visit http://www.on-networks.com/doc.
EDOC in Languages of the European Community
Language Statement
Cesky [Czech] On Networks In
požadavky a dalšími príslušnými ustanoveními smernice 1999/5/ES.
Dansk [Danish] Undertegnede On Networks I
overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Deutsch
[German]
Eesti [Estonian] Käesolevaga kinnitab On Networks I
English Hereby, On Networks Inc., decla
Hiermit erklärt On Networks
den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der
Richtlinie 1999/5/EG befindet.
põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
requirements and other relevant provisions of Directive 1999/5/EC.
c. tímto prohlašuje, že tento Radiolan je ve shode se základními
nc. erklærer herved, at følgende udstyr Radiolan
Inc., dass sich das Gerät Radiolan in Übereinstimmung mit
res that this Radiolan is in compliance with the essential
75
nc. seadme Radiolan vastavust direktiivi 1999/5/EÜ
N150 Wireless ADSL2+ Modem Router N150RM
Español
[Spanish]
Ελληνική
[Greek]
Français
[French]
Italiano [Italian] Con la presente On Networks Inc. dichiara che questo Radiolan è conforme ai requisiti
Latviski
[Latvian]
Lietuvių
[Lithuanian]
Nederlands
[Dutch]
Por medio de la presente On Networks Inc. declara que el Radiolan cumple con los
requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la
Directiva 1999/5/CE.
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ On Networks Inc. ∆ΗΛΩΝΕΙ ΟΤΙ Radiolan ΣΥΜΜΟΡΦΩΝΕΤΑΙ
ΠΡΟΣ ΤΙΣ ΟΥΣΙΩ∆ΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ∆ΙΑΤΑΞΕΙΣ ΤΗΣ
Ο∆ΗΓΙΑΣ 1999/5/ΕΚ.
Par la présente On Networks Inc. déclare que l'appareil Radiolan est conforme aux
exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.
essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Ar šo On Networks Inc. deklarē, ka Radiolan atbilst Direktīvas 1999/5/EK būtiskajām
prasībām un citiem ar to saistītajiem noteikumiem.
Šiuo On Networks Inc. deklaruoja, kad šis Radiolan atitinka esminius reikalavimus ir
kitas 1999/5/EB Direktyvos nuostatas.
Hierbij verklaart On Networks Inc. dat het toestel Radiolan in overeenstemming is met de
essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.
Malti [Maltese] Hawnhekk, On Networks Inc., jiddikjara li dan Radiolan jikkonforma mal-htigijiet
essenzjali u ma provvedimenti ohrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Magyar
[Hungarian]
Polski [Polish] Niniejszym On Networks Inc. oświadcza, że Radiolan jest zgodny z zasadniczymi
Português
[Portuguese]
Slovensko
[Slovenian]
Slovensky
[Slovak]
Suomi [Finnish] On Networks Inc. vakuuttaa täten että Radiolan tyyppinen laite on direktiivin 1999/5/EY
Svenska
[Swedish]
Alulírott, On Networks Inc. nyilatkozom, hogy a Radiolan megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
On Networks Inc. declara que este Radiolan está conforme com os requisitos essenciais
e outras disposições da Directiva 1999/5/CE.
On Networks Inc. izjavlja, da je ta Radiolan v skladu z bistvenimi zahtevami in ostalimi
relevantnimi določili direktive 1999/5/ES.
On Networks Inc. týmto vyhlasuje, že Radiolan spĺňa základné požiadavky a všetky
príslušné ustanovenia Smernice 1999/5/ES.
oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
Härmed intygar On Networks Inc. att denna Radiolan står I överensstämmelse med de
väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv
1999/5/EG.
76
N150 Wireless ADSL2+ Modem Router N150RM
Íslenska
[Icelandic]
Norsk
[Norwegian]
This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and
EFTA countries, except in France and Italy where restrictive use applies.
In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to
use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or
network services.
This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may
be limited to 10 mW EIRP in the frequency range of 2454 - 2483.5 MHz. For detailed information the end-user should
contact the national spectrum authority in France.
Hér með lýsir On Networks Inc. yfir því að Radiolan er í samræmi við grunnkröfur og
aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC.
On Networks Inc. erklærer herved at utstyret Radiolan er i samsvar med de
grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF.
FCC Requirements for Operation in the United States
FCC Information to User
This product does not contain any user serviceable components and is to be used with approved antennas only.
Any product changes or modifications will invalidate all applicable regulatory certifications and approvals.
FCC Guidelines for Human Exposure
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
FCC Declaration of Conformity
We, On Networks, Inc., 350 East Plumeria Drive, San Jose, CA 95134, declare under our sole responsibility that
the N150 WiFi Router (N150R) complies with Part 15 Subpart B of FCC CFR47 Rules. Operation is subject to the
following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that may cause undesired operation.
FCC Radio Frequency Interference Warnings & Instructions
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following methods:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an electrical outlet on a circuit different from that which the radio receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution
• Any changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate this equipment.
• This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
77
N150 Wireless ADSL2+ Modem Router N150RM
• For product available in the USA market, only channel 1~11 can be operated. Selection of other channels is not
possible.
• This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or
transmitter.
Canadian Department of Communications Radio Interference Regulations
This digital apparatus (N150 WiFi Router (N150R)) does not exceed the Class B limits for radio-noise emissions from
digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications.
This Class [B] digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada
Industry Canada
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
IMPORTANT NOTE: Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance 20cm between the radiator & your body.
Caution:
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence.
Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage
préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer
un fonctionnement indésirable.
NOTE IMPORTANTE: Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non
contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de
rayonnement et votre corps.
Interference Reduction Table
The table below shows the recommended minimum distance between On Networks equipment and household
appliances to reduce interference (in feet and meters).
Household Appliance Recommended Minimum Distance
(in feet and meters)
Microwave ovens 30 feet / 9 meters
Baby Monitor - Analog 20 feet / 6 meters
Baby Monitor - Digital 40 feet / 12 meters
Cordless phone - Analog 20 feet / 6 meters
Cordless phone - Digital 30 feet / 9 meters
Bluetooth devices 20 feet / 6 meters
ZigBee 20 feet / 6 meters
78
Loading...
