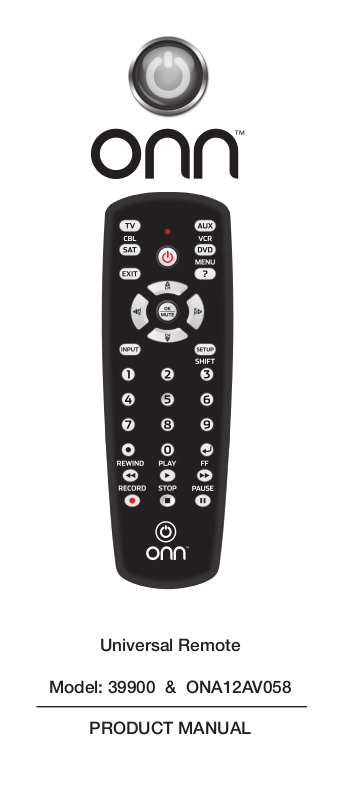

Onn Universal Remote 39900 User Manual
Universal Remote
Model: 39900 & ONA12AV058
PRODUCT MANUAL
Table of Contents
Introduction
Battery Installation ................................................. 3
Care and Maintenance ..................................... 3
Button Functions ................................................... 4
Programming Your Remote ................................... 6
Direct Code Entry ............................................. 6
Auto Code Search ............................................ 8
Controlling Combo Devices ............................. 9
Master Volume Feature ....................................... 10
Reset to Factory Settings .................................... 11
Troubleshooting ................................................... 12
FCC Statement .................................................... 13
Remote Code Section ......................................... 14
Congratulations on your purchase of the ONN
Universal Remote. This remote is capable of
operating thousands of audio/video devices
including TVs, DVD players, cable, satellite
receivers, and more!
IMPORTANT:
SAVE THIS MANUAL FOR
FUTURE REFERENCE
........................................................... 2
QR Code
Scan the QR code to view our helpful
demonstration video for programming your
ONN remote.
2
Battery Installation
Your universal remote requires two (2) AAA
Alkaline batteries (not included).
To Install the Batteries:
1. Remove the battery compartment cover by
sliding the cover down.
2. Match the (+) and (-) marks on the batteries
to the (+) and (-) marks inside the battery
compartment, then insert two (2) AAA Alkaline
batteries. Be sure to use fresh batteries.
3. Slide the battery compartment cover back
into place.
Note: If your remote stops operating properly,
replace the batteries with new ones. The remote
will retain the codes you have programmed for up
to 10 minutes after the batteries are removed.
Battery Precautions:
• Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon-zinc), or
rechargeable (Ni-Cd, Ni-MH, etc.) batteries.
• Always remove old, weak or worn-out batteries
promptly and recycle or dispose of them in
accordance with local and national regulations.
Care and Maintenance
• Keep the remote away from moisture. If it gets
wet, dry it immediately.
• Use and store the remote at normal
household temperatures.
• Use a soft, damp cloth to clean the remote.
• If the remote is not going to be used for a
long period of time, remove the batteries
from the remote.
• Handle the remote with care.
3
Button Functions
TV, CBL/SAT,
VCR/AUX, DVD
Selects the device
to control.
EXIT Exits OnScreen Menus.
MUTE Turns off the TV
sound while the picture
remains. In SHIFT mode
OK Selects menu items
for the device you are
controlling.
INPUT Selects the video
inputs from available
viewing sources.
NUMBERS
Enter numbers for direct
channel selection.
DOT: Used to select
digital channels, for
example: 4.1, 9.2
ON•OFF Turns
the device On
or Off.
Red Indicator
Light when
any button is
pressed.
RECORD, PLAY
STOP, REW (rewind),
FF (fast forward), PAUSE
4
