X3
USER
MANUAL
1EN
Contents
1 Important 2
2 Your Bluetooth speaker 3
Introduction 3
What's in the box 3
Overview of the speaker 4
3 Get started 5
Power supply 5
Switch on or go to standby mode 5
4 Use Bluetooth devices 7
Connect a Bluetooth-enabled device 7
Play from a Bluetooth-enabled device 8
Control your phone call 8
5 Other features 9
Listen to an external device 9
Charge your mobile device 9
Adjust volume 9
6 Product information 10
Specifications 10
7 Troubleshooting 11
General 11
8 Notice 12
2 EN
1 Important
Warning
•
Never remove the casing of this speaker.
• Never lubricate any part of this speaker.
• Never place this speaker on other electrical
equipment.
• Keep this speaker away from direct sunlight, naked
flames or heat.
• Make sure that there is enough free
space around the device for ventilation.
• Use only power supplies listed in the
user manual.
• Only use attachments or accessories
specified by the manufacturer.
• The battery shall not be exposed to
excessive heat such as sunshine, fire or
the like.
• The device shall not be exposed to
dripping or splashing.
• Do not place any sources of danger
on the device (e.g. liquid filled objects,
lighted candles).
• Where the plug of the Direct Plug-in
Adapter is used as the disconnect
device, the disconnect device shall
remain readily operable.
Note
•
The type plate is located on the bottom of the
product.
About operating temperatures and humidity
• Operate in a place where temperature
is between 0
o
C (32oF) and 40oC (104oF)
(up to 80% relative humidity)
• Battery life may be shorter in high or
low temperature conditions
3EN
2 Your Bluetooth
speaker
Thank you for purchasing an Onkyo product.
Please read this manual carefully before
making any connections or using this
product. By following these instructions,
you’ll get the best audio performance and
the most listening pleasure from your
Onkyo product. Keep this manual for future
reference.
Introduction
With this speaker, you can
• enjoy audio from your Bluetoothenabled devices or other external audio
devices;
• control the incoming phone call through
Bluetooth connection; and
• charge your mobile devices through the
USB cable.
What's in the box
Check and identify the contents of your
package:
• Main unit
• Power adapter
• 3.5mm audio cable
• USB cable
• Printed materials
4 EN

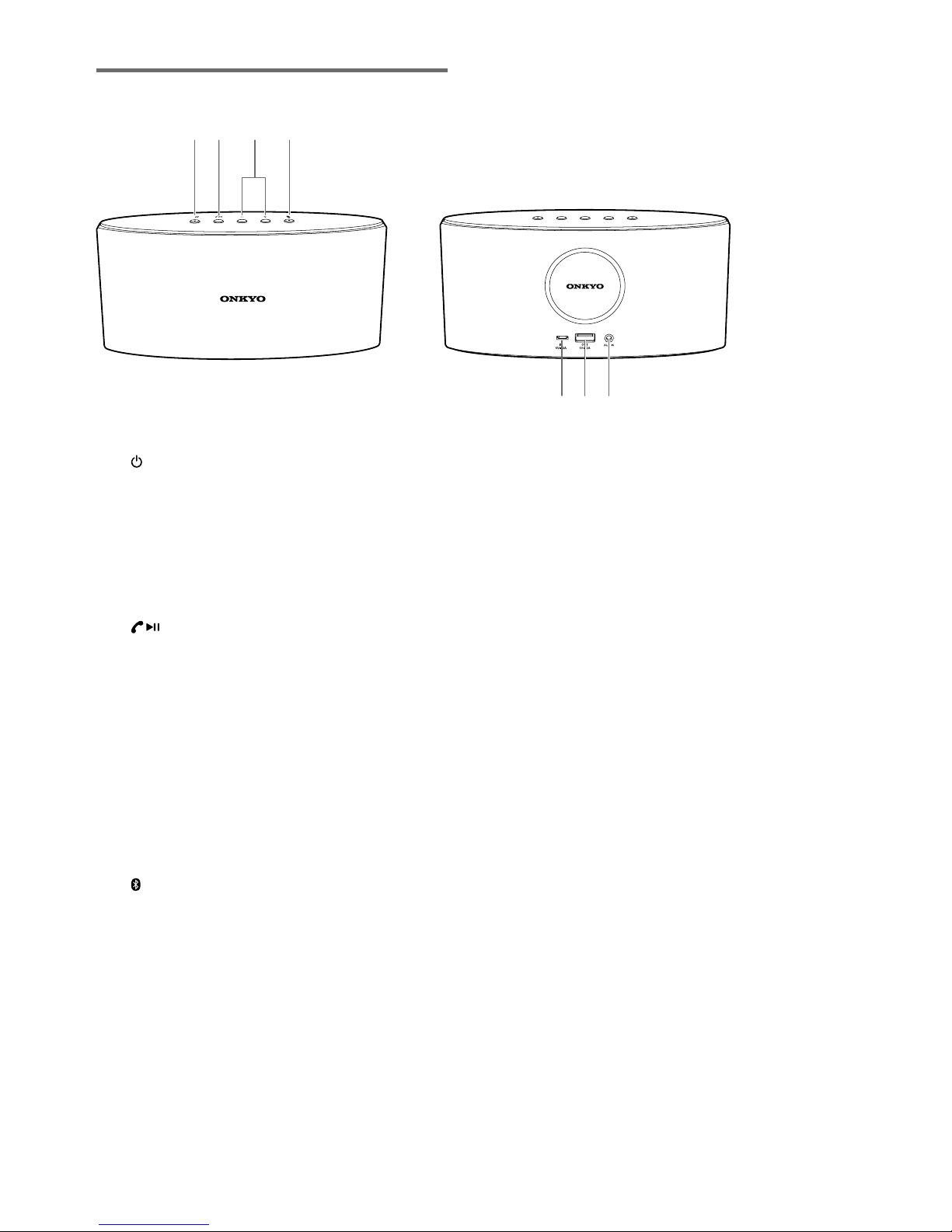

Overview of the speaker
a button/indicator
• Press briefly to switch on or go to
standby mode.
• In standby mode, press and hold to
switch o.
• Indicate the power status.
b
• Start, pause, or resume play.
• Press to answer an incoming call.
• Press and hold to reject an
incoming call.
• During a call, press to end the
current call.
c -/+
• Adjust volume.
d
button/indicator
• Press and hold for 2 seconds to
enter pairing mode manually.
• Press and hold for 7 seconds to
clear pairing information.
• Indicate the Bluetooth connection
status.
ab cd
efg
e Micro USB socket for power supply
• Charge the built-in battery of the
speaker.
f USB charging socket
• Charge an external mobile device.
g AUDIO IN socket
• Connect an external audio device.
5EN
3 Get started
Always follow the instructions in this
chapter in sequence.
Power supply
Either AC power or battery can be used as
power supply of this product.
Option 1: AC power
Caution
•
Risk of product damage! Make sure that the power
voltage corresponds to the voltage printed on the
back or underside of the speaker.
• Risk of electric shock! When you unplug the AC
adapter, always pull the plug from the socket.
Never pull the cord.

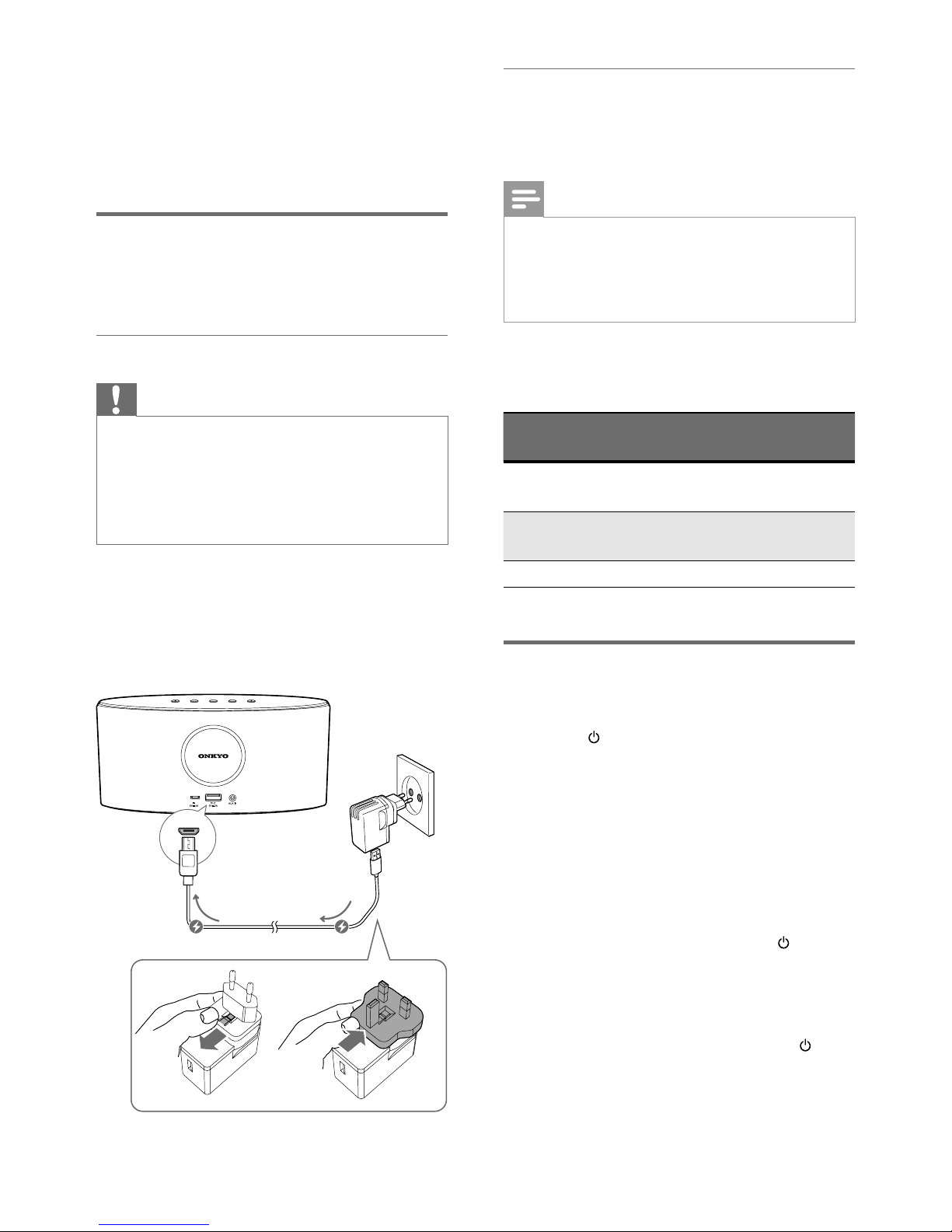

• Connect the power adaptor to:
• the DC IN socket at the back of the
speaker.
• the wall outlet.
Option 2: Battery power
The speaker can also be powered by the
built-in rechargeable battery.
Note
•
Rechargeable battery has a limited number of
charge cycles. The battery life and number of
charge cycles vary by use and settings.
• It takes you approximately three hours to fully
charge the battery.
To charge the built-in battery:
• Connect to AC power supply.
System
status
Battery status Power LED
status
On/o Low power (less
than 10%)
Flashing red
On Under charging Flashing
white
On Fully charged Solid white
Switch on or go to standby
mode
• Press to switch the speaker on.
» If the speaker is fully charged, the
power indicator turns solid white.
» If the speaker is being charged, the
power indicator flashes white.
» If the speaker is in low battery (with
less than 10% power), the power
indicator flashes red.
• To enter standby mode, press
briefly.
» The power indicator is dimmed in
white.
• To switch o when the speaker is on or
in standby mode, press and hold
for
two seconds.
» The power indicator turns o.
6 EN
Tip
•
In Bluetooth mode, if Bluetooth connection is invalid
or music playback is stopped for 15 minutes, this
speaker switches to standby mode automatically.
• In AUX IN mode, if the audio-in cable is
disconnected or music playback is stopped for
15 minutes, this speaker switches to standby mode
automatically.
7EN
4 Use Bluetooth
devices
With this speaker, you can listen to audio
from Bluetooth-enabled devices and control
the incoming call through Bluetooth.
Connect a Bluetoothenabled device
Note
•
Make sure that your Bluetooth device is compatible
with this speaker.
• Before pairing a device with this speaker, read its
user manual for Bluetooth compatibility.
• The speaker can memorize a maximum of two
paired devices.
• Make sure that Bluetooth function is enabled on
your device, and your device is set as visible to all
other Bluetooth devices.
• Any obstacle between this speaker and a Bluetooth
device can reduce the operational range.
• Keep away from any other electronic device that
may cause interference.
• The operational range between this speaker and
a Bluetooth device is approximately 10 meters
(30 feet).
The speaker can connect up to 2 Bluetoothenabled devices at the same time.
1 Press and hold on the speaker for two
seconds.
» The Bluetooth indicator flashes
blue.
2 On your Bluetooth device, enable
Bluetooth and search for Bluetooth
devices (refer to the user manual of the
device).
3 When [Onkyo X3] is displayed on your
device, select it to start pairing and
connection. If necessary, enter the
default password “0000”.
» After successful pairing and
connection, the speaker beeps
twice, and the Bluetooth indicator
turns solid blue.
4 Repeat steps 1 to 3 to add a second
Bluetooth device.
Onkyo X3
8 EN
Note
•
When there are two Bluetooth-enabled devices
connected to the speaker, you can repeat steps
1 to 3 to add a new device. In this case, the earliest
connected device will be replaced.
To disconnect the Bluetooth-enabled
device:
• Disable Bluetooth on your device; or
• Move the device beyond the
communication range.
To clear the existing pairing information:
• Press and hold
for 7 seconds.
To reconnect the Bluetooth-enabled device:
• For a paired Bluetooth device on which
automatic reconnection is enabled, this
product reconnects with it once it is
detected.
• For a paired Bluetooth device that does
not support automatic reconnection,
reconnect it with this product manually.
Bluetooth
indicator
Description
Flashing blue Connecting or waiting
for connection
Solid blue Connected
Play from a Bluetoothenabled device
Note
•
If there is an incoming call on the connected mobile
phone, music play pauses.
• After successful Bluetooth connection,
play music on a connected Bluetooth
device.
» Music streams from your Bluetooth
device to the speaker.
Note
•
To play from another connected device, just use
controls on that device directly and the music
streaming from the current device will be paused.
Control your phone call
After Bluetooth connection, you can control
an incoming call with this speaker.
Button Function
Press to answer an
incoming call.
Press and hold to reject
an incoming call.
During a call, press to
end the current phone
call.
Note
•
You can talk through the microphone of the
speaker.
• Music play pauses when there is an incoming call,
and resumes when your phone call ends.
9EN
5 Other features

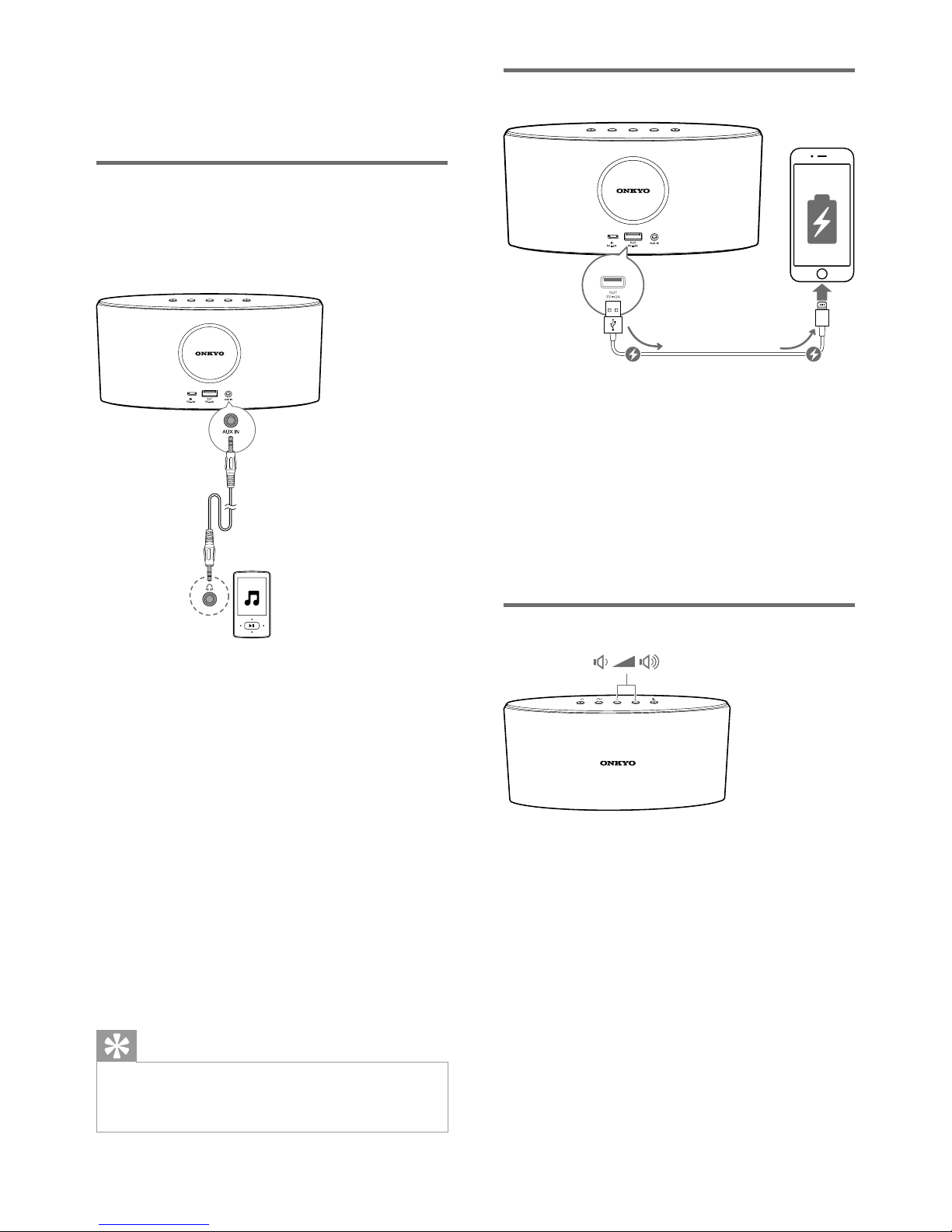

Listen to an external device
With this speaker, you can also listen
to an external audio device such as an
MP3 player.
1 Make sure there is no music streaming
from the connected Bluetooth device (if
available).
2 Connect an audio input cable with a
3.5 mm connector on both ends to
• the AUX IN socket on this speaker,
and
• the headphone socket on the
external device.
3 Play music on the external device (refer
to its user manual).
» The speaker switches to the AUX IN
source.
Tip
•
When you start music streaming from a connected
Bluetooth device, the speaker switches to the
Bluetooth source automatically.
Charge your mobile device
1 Connect a USB charging cable to
• the USB output socket on this
speaker, and
• the USB input socket on the
external device.
2 Check that the speaker is switched on
or in standby mode.
Adjust volume
• Press +/- on the speaker to increase or
decrease the volume.
10 EN
6 Product
information
Note
•
Product information is subject to change without
prior notice.
Specifications
Amplifier
Rated Output Power 2 x 4.5W, 1% THD
Frequency Response 40 Hz - 20 kHz, ±3dB
Signal to Noise Ratio > 80 dBA
Aux In 650mV (RMS), 22k
ohm
Bluetooth
Bluetooth version V2.1
Supported Profiles HFP, A2DP, AVRCP
Range 10 m (Free space)
Speakers
Speaker Impedance 4 ohm
Speaker Driver 2 x 1.75" full range
drivers
Sensitivity > 82dB/m/W ±
3dB/m/W
General information
Power Adaptor AS340-100-AD270
Power Input 100 - 230V,
50/60 Hz
DC Output 5V, 2A
USB Charging
Output
DC5V, 2A
Built-in Battery Lithium ion battery
(7.4 V, 3400 mAh)
Dimensions
- Main Unit
(W x H x D)
195 x 93 x 51 mm
Weight
- Main Unit 0.6 kg
11EN
7 Troubleshooting
Warning
•
Never remove the casing of this device.
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
device, check the following points before
requesting service. If the problem remains
unsolved, contact Onkyo service center. When
you contact Onkyo, make sure that the device
is nearby and the model number and serial
number are available.
General
No power
• Make sure that the AC power plug is
connected properly.
• Make sure that there is power at the AC
outlet.
• Recharge the built-in battery.
No sound
• Adjust volume on the speaker or the
Bluetooth-connected device.
• Make sure that your Bluetooth device is
within the eective operational range.
No response from the speaker
• Restart the speaker.
About Bluetooth device
The audio quality is poor after connection
with a Bluetooth-enabled device.
• The Bluetooth reception is poor. Move the
device closer to this speaker or remove
any obstacle between them.
Cannot connect with the device.
• The Bluetooth function of the device is
not enabled. Refer to the user manual
of the device for how to enable the
function.
• The speaker is not in pairing mode.
Hold
to enter pairing mode, and then
try again.
The paired device connects and
disconnects constantly.
• The Bluetooth reception is poor. Move
the device closer to this product or
remove any obstacle between them.
• For some devices, Bluetooth connection
may be deactivated automatically as
a power-saving feature. This does
not indicate any malfunction of this
speaker.
The speaker is in demo mode and not
working as usual.
• The demo mode is not intended for
end users. You may have activated this
mode by accident. In this case, press
and hold
for 15 seconds to exit demo
mode and enter standby mode. Then
you can power on and operate the
speaker as usual.
12 EN
8 Notice
Hereby, Gibson Innovations declares that
this product is in compliance with the
essential requirements and other relevant
provisions of Directive 1999/5/EC. You can
contact Onkyo service center to get the
Declaration of Conformity.
Any changes or modifications made to this
device that are not expressly approved by
Gibson Innovations may void the user’s
authority to operate the equipment.
Disposal of your old product and battery
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
This symbol on a product means that the
product is covered by European Directive
2012/19/EU.
This symbol means that the product
contains a built-in rechargeable battery
covered by European Directive 2013/56/EU
which cannot be disposed of with normal
household waste. We strongly advise you
to take your product to an ocial collection
point or an Onkyo service centre to have
a professional remove the rechargeable
battery.
Inform yourself about the local separate
collection system for electrical and
electronic products and rechargeable
batteries. Follow local rules and never
dispose of the product and rechargeable
batteries with normal household waste.
Correct disposal of old products and
rechargeable batteries helps prevent
negative consequences for the environment
and human health.
Caution
•
Removal of the built-in battery invalidates the
warranty and may destroy the product.
Always bring your product to a professional
to remove the built-in battery.
Environmental information
All unnecessary packaging has been
omitted. We have tried to make the
packaging easy to separate into three
materials: cardboard (box), polystyrene
foam (buer) and polyethylene (bags,
protective foam sheet.)
Your system consists of materials which
can be recycled and reused if disassembled
by a specialized company. Please observe
the local regulations regarding the disposal
of packaging materials, exhausted batteries
and old equipment.
The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth
A
13EN
SIG, Inc. and any use of such marks by
Gibson Innovations Limited is under license.
Onkyo
®
is a registered trade mark of Onkyo
Corporation. Other trademarks and trade
names are those of their respective owners.
www.onkyo-speakers.com
Specifications are subject to change without notice.
2016 © Gibson Innovations Limited. All rights reserved.
This product has been manufactured by, and is sold under the
responsibility of Gibson Innovations Ltd., and Gibson Innovations Ltd.
is the warrantor in relation to this product.
Onkyo® is a registered trade mark of Onkyo Corporation. Other
trademarks and trade names are those of their respective owners.
OKAX3_10_UM_V3.0
Loading...
