Intelligent Remote Controller
USR-5RF
Instruction
Manual
Contents
Quick Start 4
Before Using 7
Operations 11
Thank you for purchasing the Onkyo Intelligent
Remote Controller. Please read this manual thoroughly
before making connections and plugging in the unit.
Following the instructions in this manual will enable you
to obtain optimum performance and listening enjoyment
from your new Intelligent Remote Controller. Please
retain this manual for future reference.
Other Information 39
Precautions
Care
From time to time you should wipe the front and
rear panels and the cabinet with a soft cloth. For
heavier dirt, dampen a soft cloth in a weak solution of mild detergent and water, wring it out
dry, and wipe off the dirt. Following this, dry
immediately with a clean cloth. Do not use rough
material, thinners, alcohol or other chemical solvents or cloths since these could damage the finish or remove the panel lettering.
FCC Information for User
CAUTION:
The user changes or modifications not expressly
approved by the party responsible for compliance could void the user’s authority to operate
the equipment.
NOTE:
This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equip-
ment and receiver.
• Connect the equipment into an outlet on a
circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/
TV technician for help.
NOTE:
If serial or parallel ports are configured, a filtered/shielded serial or parallel cable is recommended to minimize EMI and ensure FCC B
compliance.
This device complies with Part 15 of the FCC
rules. Operation is subject to the following two
conditions:
2
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
void the user’s authority to operate the equipment.
For Canadian models
NOTE: THIS CLASS B DIGITAL APPA-
RATUS COMPLIES WITH CANADIAN ICES-
003.
For models having a power cord with a polarized
plug:
Modèle pour les Canadien
REMARQUE: CET APPAREIL
NUMÉRIQUE DE LA CLASSE B EST CONFORME À LA NORME NMB-003 DU
CANADA.
Table of contents
Quick Start .................................................................................................................. 4
Quick Reference.......................................................................................................... 5
Introduction ................................................................................................................ 7
1. Intelligent remote controller .................................................................................................... 7
2. Charging the remote controller ................................................................................................ 9
Getting Started ............................................................................................................ 11
1. Activat the remote controller ................................................................................................... 11
2. Define the Brands of Your Devices......................................................................................... 11
3. Select a Device ........................................................................................................................ 16
4. Operate a Device ..................................................................................................................... 17
5. Adjust the Settings................................................................................................................... 19
Getting the Maximum out of it .................................................................................. 21
1. Introduction ............................................................................................................................. 21
2. Program Buttons ...................................................................................................................... 23
3. Label Buttons and Menu Items................................................................................................ 25
4. Add and Move Devices ........................................................................................................... 27
5. Delete and restore .................................................................................................................... 28
6. Record Macros and Set Time .................................................................................................. 30
7. Using the remote controller with Radio Frequency ................................................................ 33
8. ChadEdit .................................................................................................................................. 37
Troubleshooting .......................................................................................................... 39
1. General Problems .................................................................................................................... 39
2. Programming Problems ........................................................................................................... 39
3. Recharging Problems .............................................................................................................. 40
FAQ .............................................................................................................................. 41
Overview of Symbols .................................................................................................. 42
Specifications............................................................................................................... 43
3
Quick Start
Insert batteries
Insert 4 AA batteries according to the picture on
the inside of the battery compartment.
or
Use a rechargeable battery pack (sold separately).
(Remove the AA battery tray first). Before using
the remote controller, be sure to charge the battery
completely according to the instructions in the
manual.
Battery compartment
cover slides off
Touch the screen to start
To turn on the screen, tap it gently with your
finger.
To use the touchscreen, simply tap the images
you see on the screen.
There’s no need to turn the screen off — it shuts
off automatically to save power.
Operate your components
Fresh out of the box, the remote controller is
already set up to work with popular components
made by Onkyo. Programming the remote
controller is easy: Add components to the Device
menu as necessary. Then, program the commands
to the remote controller for the components. For
instructions, refer to the manual.
1
3
2
4

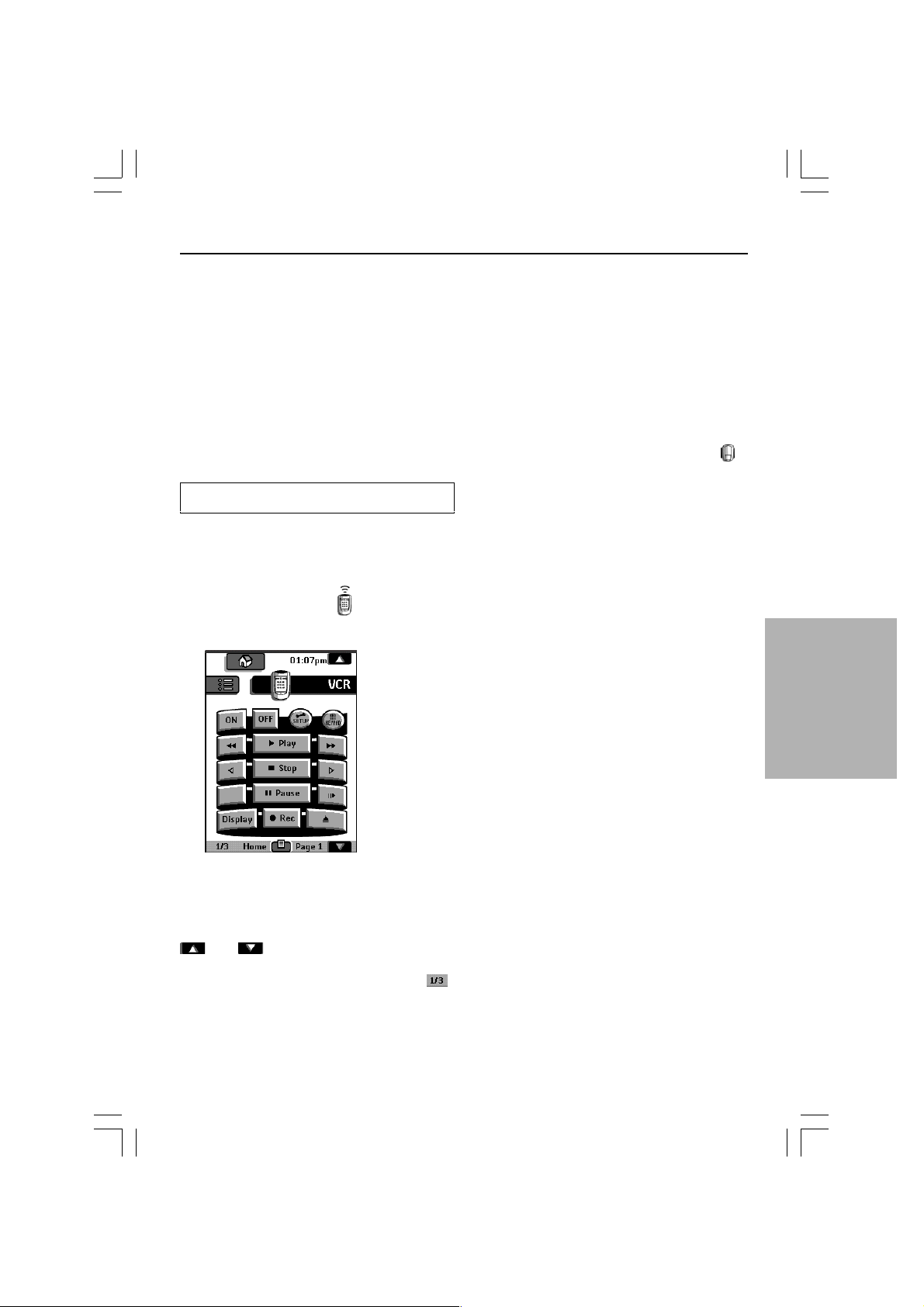

1. Home
If you get lost, you can always go Home menu
screen. Just tap Home.
2. Tap name of component to display
component’s control panels.
Be sure to read the manual for important
information about care and use of the
touchscreen.
4
3. You can also use the Device menu;
tap to display it.
4. Tap to scroll to next panel for this
component.
Quick reference
Quick reference
1
–
CONT
+
2
LIGHT
3
4
5
6
1. Sending eye (IR transmitter)/Learning
eye
Send commands to devices
For learning commands from other remote
controllers
MUTE
VOL
11
10
9
+
CH
–
8
7
5. Panel number
Shows what panel you’re seeing.
6. Left and Right buttons
Activate the commands shown immediately
above the buttons
7. Scroll button
Display next Control Panel. Scroll buttons may
appear on left.
8. Mode menu
Customize the remote controller (see below)
9. Device menu
Open a component’s control panels
2. Home
Easy access to all components
3. Macro menu
Execute stored lists of commands
4. Control panel
Tap buttons to send commands to components
10. Scroll button
Display previous control panel
11. Remote controller icon
Press and hold for 3 seconds to go to Setup
5
Quick reference
Modes
1
2
3
4
5
6
7
8
1. Normal use controlling components.
2. Learn commands from other remote
controllers.
When a macro panel is displayed, this button
changes to REC for recording macros.
3. Assign letters and symbols to
buttons and commands.
4. Add a new component or group of
macros.
5. Delete a button, component, macro,
or macro group.
6. Change the order of commands in a
menu.
7. Define the brands of your device.
8. Configure the remote controller to
operate devices with RF or IR signals.
6
Introduction
Sending eye/Learning eye
Direct-access buttons
Contrast dial
Backlight button
Serial port
1. Intelligent Remote
Controller
The intelligent remote controller can be used for
all devices that understand infrared remote
controller signals. It’s easy-to-use touchscreen
and its intuitive interface makes it a perfect
remote controller for every user.
The remote controller is completely customizable
and programmable. You can add devices and
functions, relabel buttons, record macros and set
timers. To make the remote controller your
universal remote controller, it is designed to learn
from existing remote controllers.
Touchscreen
Left/Right buttons
Reset
button
Battery
cover
Direct-access buttons
The buttons labeled MUTE, CH, and VOL are
direct-access buttons. The direct-access buttons
make these frequently used functions available
even when the touchscreen is off. You can
program them so that they always operate the
same components — for example, the TV. or, you
can program them to operate different devices at
different times.
7
Introduction
Left and Right buttons
The Left and Right buttons change function
depending on the device the remote controller is
controlling. Labels displayed above them on the
touchscreen show their current function.
Touchscreen buttons
Buttons on the touchscreen let you control
particular devices. You activate the buttons by
tapping them with your finger.
Which Buttons Can Be
Programmed?
Direct-access buttons, Left and Right buttons, and
buttons on the touchscreen can all be
programmed. You can set the direct-access and
Left/Right buttons to always perform the same
function. Or, you can program them to perform
different functions depending on the device. For
instructions, see “Programming Buttons” on page
23.
8
1
2
7
1. Home: to go to the Home menu
2. Macro menu: to open stored list of commands
3. Control panel: to send commands to components
4. Panel number: shows active control panel
5. Mode menu: to customize the remote controller
6. Scroll buttons: to display previous and next
control panel
7. Device menu: to open device control panels
3
4
5
6
8. Remote controller icon: Touch and hold to
enter Setup
8
Introduction
2. Charging the Remote
Controller
AA batteries
1. Slide the battery cover off the back of
the remote controller.
2. Insert 4 AA batteries (included in
package) as indicated on the bottom
of the battery compartment.
3. Slide the battery cover back on.
After a few seconds, the remote controller
starts up automatically and beeps twice to
indicate that it is ready to use.
When batteries are running low, the Low Battery
icon
Replace the batteries as soon as possible to ensure
perfect performance.
Note:
The remote controller retains all settings when
batteries have run out or when you replace them.
You will only have to reset the clock.
blinks at the center top of the display.
9
Introduction
Optional recharging dock
Warning:
Use the recharging dock only with the NiMH
rechargeable battery pack of BCC-5.
1. Slide the battery cover off the back of
the remote controller.
2. Remove the plastic AA battery tray
from the battery compartment.
3. Insert the battery pack (included with
the recharging dock) as indicated on
the side of the battery pack.
4. Slide the battery cover back on.
After a few seconds, the remote controller
starts up automatically and beeps twice to
indicate that it has finished starting up.
5. Plug the power adapter into a wallet
outlet and connect it to the
recharging dock.
6. Place the remote controller on the
recharging dock.
Recharging starts automatically. The light on
the front of the recharging dock indicates
charging takes place. When the battery pack
is fully charged, the light goes off.
Notes:
• You can operate the remote controller while it
is being charged.
• Normal charging time is 2 to 3 hours,
depending on the condition of the battery
pack.
10
When the battery pack is running low, the Low
Battery icon
display. Recharge the batteries as soon as possible
to ensure perfect performance.
Note:
The remote controller retains all settings when the
battery pack has run out. You will only have to
reset the clock.
blinks at the center top of the
Getting Started
1. Activate the remote
controller
Turning on the display
■ Tap the screen gently with your finger
or a blunt, soft object like a pencil
eraser.
The display is activated and you see the Home
panel.
Notes:
• If the display stays blank or becomes black,
adjust the contrast dial on the left side.
• If another panel is displayed, tap the Home
button.
• The remote controller shuts down
automatically.
Using the backlight
■ Press the backlight button on the left
side.
The backlight shuts off automatically after a
few seconds to save power.
Note:
In the settings (page 19) you can choose to
activate the backlight automatically when you
activate the remote controller.
Use mode
The remote controller has different “modes.”
When you activate the remote controller for the
first time, it starts up in Use mode allowing you to
immediately operate your devices.
In Use mode, the remote controller icon
entirely visible. If a label (like ) covers the
icon, see page 22 to switch your remote controller
to Use mode.
is
2. Define the Brand of Your
Device
The remote controller uses RC codes to activate
device. Since there are several brands using
specific RC codes, you have to define the brands
of your devices.
In the Home menu, you find buttons for the most
common video and audio devices. The remote
controller is set up by default to operate with
Onkyo devices.
1. Select a device in the Home menu.
The following screen appears.
When selecting CD, DVD, MD or CDR
When you select CD, DVD, MD or CDR, the
preset RC codes for operating Onkyo’s CD
player, DVD player, MD recorder or CD
recorder are used, and the operation buttons
for the device appear on the screen. You can
use the preset RC codes only when the
Onkyo’s device you selected and Onkyo’s
amplifier or receiver are connected using
interface.
11
Getting Started
When you operate Onkyo’s CD player,
DVD player, MD recorder or CD recorder
which has no
connected using
define the brand of your device.
1. In the Mode menu, select Brand.
2. Select the device you want to define.
3. Select Next.
The brand selection screen appears.
4. If you selected CD player, DVD player or
CD recorder, select Onkyo or Onkyo-x
other than Onkyo-1 from the brand list. If
you selected MD player, select Onkyo-5.
To reset the RC codes settings back to the
one for the device using
follow these steps.
1. In the Mode menu, select Brand.
2. Select the device you want to reset the RC
codes settings for.
3. Select Next.
The brand selection screen appears.
4. If you selected CD player, DVD player or
CD recorder, select Onkyo-1 from the
brand list. If you selected MD player,
select Onkyo-4.
connectors or is not
interface, you need to
connection,
Note:
Before you start using the remote controller,
make sure you define the brand for each device
you want to operate in the Home Menu.
Defining brands by selecting
A list of brands and their corresponding RC codes
are pre-installed in the remote controller’s
memory.
You need to select your brand from the list and
because not every device of a certain brand uses
the same RC codes, you might also have to select
a set of RC codes for your brand.
3. Tap Next.
A scrollable list of brands for the selected
device and a “virtual auto-zooming” minikeyboard appears.
2. Select “Yes” to define the brand of
the device to operate.
The remote controller switches to Brand
mode. Follow the instructions as described
below. You can define your brands by
selecting or by searching.
12
Getting Started
4. Navigate through the list of brands.
Use the scroll buttons to scroll up or down in
the list of brands.
• By tapping the scroll buttons, you scroll
through the brands one by one. By
touching and holding the scroll buttons, the
scrolling speed will increase.
• Use the mini-keyboard to jump through the
list of brands.
To enter a character, tap the keyboard near the
character you want to use. The keyboard is
zoomed in, allowing you to tap exactly the
character you need.
To enter a space, tap the lower left corner of
the keyboard. When the keyboard is zoomed
in, tap the empty key.
After you have typed the character, the
keyboard is zoomed out. Repeat this action
for every character.
Every time you enter a character, the list
displays the brands that match the
character(s). The remote controller makes a
pre-selection of the (first) brand that matches.
You only have to type as many characters as
needed to display your brand.
Note:
In case, your brand is not displayed in the list of
brands, Try Search mode. See “Defining brands
by searching” on page 15.
5. Select your brand from the list.
The selected brand will be highlighted. The
Search button switches into Next.
13
Getting Started
6. Tap Next.
When your brand uses only one set of RC
codes, the remote controller switches to Try
mode. Go to step 9.
When there are several code sets for your
brand, the following screen appears.
Notes:
• The code sets are ranked. The first code set
in the list is used for most devices of the
selected brand.
• When you do not know which code set to
select from the list, you can use Search
mode. See “Defining brands by searching”
on page 15.
Note:
However, your device is responding to the
current code set, it is recommended to try
other code sets. When your device responds
to more than one code set, install the most
suitable one.
10. If you are not satisfied with the way
the device is responding to the
selected code set, tab Back to select
another code set.
or
When you are satisfied with the
selected code set, tap Install.
When the RC codes for your devices are
installed, the remote controller beeps and
returns to Use mode. Your brand is now
defined for the selected device.
11. Define all other devices in the Home
menu you want to operate.
7. Select a code set from the list.
The selected code set will be highlighted. The
Search button switches to Next.
8. Tap Next.
The remote controller switches to Try mode.
The first control panel of the selected device
is displayed.
9. Try the buttons on the different
control panels and check if the device
is responding to the RC codes the
remote controller is sending.
14
Getting Started
Defining brands by searching
You can use Search mode to find the matching
RC codes for your device when
• your brand is not displayed in the list of
brands,
• you selected your brand, but you do not know
which code set to select.
3. Tap Next.
The display shows a scrollable list of brands
for the selected device and a “virtual autozooming’’ mini-keyboard.
4. Tap Search
The remote controller automatically searches
through all available brands and code sets to
find the RC codes matches.
5. Tap Next to start sending appropriate
commands for the selected device.
6. Tap OK when the device reacts.
Notes:
• Even when the device is responding to the
current code set, it is advised to try other code
sets. When your device responds to more than
one code set, install the most suitable one.
• The name of the responding code set is
displayed when you tap the OK button, so you
know which code set to select from the list
after you have tried other code sets
The remote controller switches to Try mode.
The first control panel of selected device is
displayed.
7. Try the buttons on the different
control panels and check if the device
is responding to the RC codes the
remote controller is sending.
8. When you are not satisfied with the
current function of the device, tap
Back to continue the automatic
search.
or
When you are satisfied with the
selected code set, tap Install.
When the RC codes for your devices are
installed, the Remote Contorol beeps and
returns to Use mode. Your brand is now
defined for the selected device.
9. Define all other devices in the Home
menu you want to operate.
15
Getting Started
3. Select a Device
Via the Home menu
In the Home menu, you find buttons for the most
common video and audio devices. These buttons
are preprogrammed to work with popular devices
made by Onkyo. If you have devices of other
manufacturers that do not respond to your remote
controller, you can program your remote
controller using your original remote controllers
(see “Programming Buttons” on page 23).
Device tab
Device menu
■ Tap the device you want to operate.
The first control panel of the selected device
appears.
Via the Device menu
The Device menu allows you to easily switch to
another device without returning to the Home
menu.
1. From within any device control panel,
tap the device tab.
The Device menu pops up. You can scroll
through this menu using
and .
16
2 In the Device menu, tap the device you
want to operate.
The control panel that was last accessed for
the device appears.
Note:
You can also activate the Device menu from
Home by tapping the device tab icon .
Getting Started
4. Operate a Device
You operate devices using three kinds of buttons:
■ Touchscreen buttons
■ Left and Right button (below the
touchscreen)
■ Direct-access buttons (to the right of
the touchscreen)
Using touchscreen buttons
Sending commands
By touching the touchscreen buttons you send
commands to the device you have selected. When
you send a command, the remote controller icon
shows transmitting signals . The name of the
active device is indicated on the device tab.
Operating a device without affecting the
active device
You can operate a device while another device is
active (for example, rewinding your VCR while
watching TV) via the Device menu:
1. Open the device menu.
2. Press and hold the Left or Right
button (labeled NO IR).
The remote controller icon turns around
3. Tap the device you want to operate.
The device control panel appears and the remote
controller icon turns to its original position. You
can now operate the new selected device without
affecting the active device.
.
Scrolling
Most devices have more than one control panel.
You can scroll through these control panels using
and . The panel number on the left
bottom of the screen indicates the panel number
and the total number of panels, for example
By touching and holding a scroll button, you go
repeatedly through all the control panels of a
device in a loop.
.
17
Getting Started
Using the Left and Right button
The Left and Right buttons change function
depending on the device the remote controller is
operating. The current function is displayed on
the touchscreen right above the button. The
function can be either an IR (infrared) command
that is transmitted, or a jump to a specific device
page.
IR commands
Device pages
Using the direct-access buttons
MUTE, CH and VOL can be operated at any time,
even without turning on the touchscreen.
18
Getting Started
5. Adjust the Settings
Most of the remote controller’s features can be set
to your own needs.
1. Touch and hold the remote controller
icon for a few seconds.
The first setup panel appears. You can see the
second and third setup panel by using the
scroll buttons.
2. Tap the button of the setting you want
to adjust.
The button becomes black.
3. Use the Left and Right button to
adjust the setting.
Note:
Tap the Left and Right buttons are repeating
buttons; holding down one of these buttons will
increase or decrease a value repeatedly.
First setup panel
Setting
Battery
Clock
Time
Day
LCD
LCD Light
Button Light
Function
Shows the battery level.
Turns the clock display on or off and
lets you set 12 or 24h time display.
Sets the clock.
Sets the day.
Sets how long the touchscreen stays
on.
Sets how long the backlight of the
touchscreen stays on.
Sets how long the backlight of the
direct-access and Left/Right buttons
stays on.
Adjusting
Tap the clock repeatedly.
Tap the time button and use the Left
and Right button.
Tap the day button and use the Left
and Right button.
Tap the LCD button and use the Left
and Right button.
Tap the LCD Light button and use
the Left and Right button.
Tap the Button Light button and use
the Left and Right button.
19
Getting Started
Second setup panel
Setting
Level
Mode Menu
Touch
Button
Calibrate
Revert
Function
Turns the backlight always on or off
when activating the touchscreen.
Note: When you choose always off,
you can only activate the backlight
using the backlight button.
Hides or shows the Mode button.
Hiding the Mode button prevents
unwanted changes to stored
commands.
Adjusts or turns off the touchscreen
beep.
Adjusts or turns off the beep of Left/
Right and direct-access buttons.
Calibrates the touchscreen.
Reverts the remote controller to the
factory default configuration.
Adjusting
Always on: Tap the Level button and
position the indicator in the left half of
the indication bar using the Left
button.
Always off: Tap the Level button and
position the indicator in the right half
of the indication bar using the Right
button.
Tap the Mode Menu button.
Tap the Touch button repeatedly.
Tap Button repeatedly.
Tap the Calibrate button and follow the
on-screen instructions.
Tap the Revert button and follow the
on-screen instructions.
Third setup panel
This panel provides technical information about
your remote controller.
To exit Setup Mode
■ Tap the Setup label on the remote
controller icon.
20
Getting the Maximum out of it
1. Introduction
The remote controller is preprogrammed to work
with all equipment that recognizes NEC infrared
codes. This includes all Onkyo devices and
several devices made by other manufacturers.
What makes the remote controller so powerful is
the ability to extend its functionality in multiple
ways like programming additional functions,
adding supplementary devices, recording macros
and customizing the interface as it suits you best.
Working with Modes
When you operate your devices, the remote
controller is in Use mode. For actions other than
operating (like programming buttons, recording
macro’s, adding devices, and so on) you have to
switch to the appropriate mode:
: To operate devices.
: To input commands from other devices.
For recording macros and setting timers.
: To label buttons and commands.
: To add new devices.
: To delete buttons, devices and macros.
: To change the listing order in a menu.
: To define brands using the remote
controller’s database.
: To configure the remote controller to
operate devices with RF or IR signals.
21
Getting the Maximum out of it
To switch to another mode
1. Tap the Mode button at the bottom of
the touchscreen.
The Mode menu pops up.
2. Tap the mode you want to use.
The label of the active mode appears on the
remote controller icon. You can now work in
the selected mode.
Note:
When a label is displayed, you can also display
the Mode menu by tapping the label.
To hide the Mode menu
To prevent accidental changes to the remote
controller interface and commands, you can hide
the Mode menu:
1. Make sure the remote controller is in
Use mode.
2. Touch and hold the remote controller
icon for a few seconds.
The first setup panel appears.
3. Scroll down to the second setup
panel.
4. Tap the Mode Menu button.
The mode menu icon is crossed out.
5. Tap .
The remote controller switches to Use mode.
The Mode button is no longer visible.
22
Getting the Maximum out of it
2. Programming Buttons
You program the remote controller commands by
transmitting infrared signals from your existing
remote controls to the remote controller’s
learning eye. To do this, place the remote
controller and the device’s remote controller on a
flat surface, 15 to 20 cm (6 to 8 inches) apart.
15 to 20 cm
(6 to 8 inches)
The following buttons can be programmed:
control panel buttons, Device menu items, directaccess buttons and Left/Right buttons.
You cannot program Home menu buttons
directly. You need to program them by following
the Device menu (see page 24).
The remote controller also offers empty control
panel buttons you can program and label as
existing buttons. They are only visible in Learn
and Label mode and appear without label or with
label (intended for a specific function). You will
also see previously deleted buttons: you can
restore them by reprogramming them or you can
reuse them for other commands.
Programming control panel
buttons
1. Navigate to the control panel buttons
you want to program.
2. Switch to Learn mode by using the
Mode button.
Additional empty buttons appear: they can be
programmed and labeled as existing buttons.
3. Point the device’s original remote
controller to the remote controller’s
learning eye as shown (see above).
4. Tap the remote controller button you
want to program.
The button starts blinking.
5. Press and hold the corresponding
button on your device’s original
remote controller.
If the remote controller has learned the
command successfully, OK blinks on the
remote controller icon. You can let go of the
button you’re holding.
If the remote controller has not learned the
command successfully, you hear a short buzz
and FAIL appears on the remote controller
icon.
6. Program all other buttons you want
and relabel them as necessary (see
page 25).
7. Return to Use mode by using the
Mode button.
23
Getting the Maximum out of it
Programming device items
Note:
When you program a command to a device item,
this command is automatically assigned to the
corresponding button in the Home menu.
1. Make sure the device tab is active.
The device tab is active when the name of a
device is displayed.
2. Switch to Learn mode by using the
Mode button.
3. Point the device’s original remote
controller to the remote controller’s
learning eye as described above.
4. Tap the device tab to open the Device
menu.
5. Touch and hold either the remote
controller’s Left or Right button and
tap the device you want to program.
Even when you want to program the currently
active device, you have to tap it in the Device
menu.
The label device starts blinking on the remote
controller icon.
6. Press and hold the button the remote
controller has to learn on your
device’s original remote controller.
If the remote controller has been input the
command successfully, OK will blink on the
display. You can release the button you’re
holding.
If the remote controller has not learned the
command successfully, you hear a short buzz
and FAIL appears on the remote controller
icon.
7. Program all other items you want and
return to Use mode via the Mode
button.
Programming direct-access and
Left/Right Buttons
Direct-access and Left/Right buttons can be
programmed with a global function or with
functions per device. Buttons with global
functions always execute the same command,
even if device is active. Buttons with functions
per device execute commands depending on the
active device. For example, the Left button is the
Play command when the VCR is active.
Note:
Per-device functions overrule global functions.
For example, when you program the Volume
buttons globally but you assign a specific
function to them with the tuner, the specific
command will be executed when the tuner is the
active device.
Programming a button globally
1. Tap the Home menu button .
2. Complete steps 2 to 7 in
“Programming control panel buttons”
on page 23. Instead of tapping a
button on the touchscreen, press the
button you want to program.
The label of the button you have pressed (e.g.
chan+ or left) starts blinking on the remote
controller icon.
Programming a button per device
1. Switch to the device for which you
want to program the button.
2. Complete instructions 2 to 7 in
“Programming control panel buttons”
on page 23. Instead of tapping a
button on the touchscreen, press the
button you want to program.
The label of the button you have pressed (e.g.
chan+ or left) starts blinking on the remote
controller icon.
24
Getting the Maximum out of it
3. Labeling Buttons and Menu
Items
The following elements can be labeled: control
panel buttons, Device menu items, macros, macro
groups and Left/Right buttons.
You cannot label Home menu buttons directly.
You have to label them by using the Device menu
(see page 26).
Labeling a button
1. Navigate to the panel containing the
button you want to label.
2. Switch to Label mode by using the
Mode button
3. Tap the button you want to label.
The display shows a “virtual auto-zooming”
mini-keyboard. The button you want to label
is displayed above the keyboard.
.
4. Edit the label.
• To delete a character, press the Right
button.
• To enter a character, tap the keyboard near
the character you want to use. The
keyboard is zoomed in, allowing you to tap
exactly the character you need.
After you have tapped the character, the
keyboard is zoomed out. Repeat this
action for every character.
Note:
You can zoom out again without tapping
a character by pressing the Right button
(labeled Zoom).
• For capital letters and symbols, press the
Left button repeatedly to display the
keyboard you want.
25
Getting the Maximum out of it
5. Tap Enter to save the changes and
return to the panel you were. -or-Tap
Cancel to return to the panel you
were without saving changes.
6. Label all other items you want and
return to Use mode via the Mode
button.
Labeling a menu item
1. Switch to Label mode by using the
Mode button.
2. Tap the device tab to open the Device
menu.
3. Touch and hold either the remote
controller’s Left or Right button and
tap the device you want to program.
Even when you want to program the currently
active device, you have to tap it in the Device
menu.
4. Complete instruction 4 to 6 in
“Labeling a button” on page 25.
26
Getting the Maximum out of it
4. Adding and Moving Devices
Adding devices
If you have a device that is not provided in the
Device menu, you can add it to the remote
controller.
You cannot add devices to the Home menu
directly. You have to add them by using the
Device menu.
1. Make sure the device tab is active.
The device tab is active when the name of a
device is displayed.
2. Switch to add mode by using the
Mode button.
The remote controller displays the following
choices:
• Add New Device: Choose this option to
add a completely new device.
• Copy Existing Device: Choose this option
to copy a device already provided in the
Device menu (for example for a second
television).
• Restore Deleted Device: Use this option to
restore a device you have deleted.
3. Tap the device you want to add in the
Device menu.
Note:
If the device you want to add is not provided,
choose a similar one. You can customize it
later.
• Don’t add RC codes: If you choose this
option, the new device is added without
operational buttons. You can program
them as described in “Programming
control panel buttons” on page 23.
4. Tap the button of your choice.
The new device is automatically displayed in
Use mode.
Moving menu items
You can change the order of Device menu items
and Macro menu items. Changes you make in the
Device menu are automatically updated in the
Home menu.
1. Make sure the device tab is active.
or
Make sure the macro tab is active.
The device or macro tab is active when the
name of a device or macro is displayed.
2. Switch to Move mode by using the
Mode button.
The remote controller displays the menu.
3. Tap the menu item of your choice.
The menu item is highlighted.
4. Use the Left and Right button to move
the menu item up or down.
5. Tap Accept to save the changes.
You return to Use mode.
The remote controller gives you the
possibility to add the device with or without
RC-codes.
• Add by RC-codes: Choose this option if
you think the new device understands RCcodes. The new device is added with
operational buttons.
27
Getting the Maximum out of it
5. Delete and restore
Delete
You can delete control panel buttons and
functions associated with a direct-access or a
Left/Right button.
You can also delete Device menu items and
Macro menu items.
Home menu buttons cannot be deleted directly.
You have to delete them via the Device menu.
Deleting a button or button function
Note:
Buttons without bold frame can not be deleted.
You can only hide them by removing their label
(see “Labeling a button” on page 25).
1. Switch to Delete mode by using the
Mode button.
Deleting a device or macro menu item
1. Switch to Delete mode via the Mode
button.
2. Navigate to the menu item you want
to delete.
When Device menu is opening, The function
of Left and Right button changes as shown
below.
Left button: Label
Right button: Action
When Macro menu is opening, The function
of Left and Right buttons will be Group.
3. Press and hold down the Left or Right
button depending on what you are
deleting:
• Left button labeled Device: For deleting a
device in the Device menu.
• Right button labeled Action: For deleting
an action from an item in the Device menu.
• Left button labeled Group: For deleting a
macro group.
4. Tap the menu item you want to delete.
2. Tap the button you want to delete.
3. Tap Delete Button Action.
The result depends on the element you are
deleting:
• Control panel button: The button
disappears from the display.
• Left or Right button command: The
corresponding label disappears from the
display.
• Direct-access button: The button becomes
inactive.
4. Delete all the items you want and
return to Use mode via the Mode
button.
28
5. Tap Delete Device or Delete Macro
Group.
The Device (and its associated Home menu
button) or the Macro Group (including its
macros) are deleted.
6. Delete all the items you want and
return to Use mode via the Mode
button.
Getting the Maximum out of it
Restore
After you deleted a control panel button or a menu
item, the button or item is no longer visible in Use
mode but remains in the remote controller’s
memory. This allows you to restore it in Edit
mode.
Actions associated with direct-access or a Left/
Right buttons cannot be restored. You have to
reprogram them as explained in “Programming
Direct-access and Left/Right Buttons” on page
24.
Control panel buttons
1. Switch to Edit mode by using the
Mode button.
The deleted buttons become visible.
2. Complete instruction 3 to 7 in
“Programming control panel buttons”
on page 23.
The button is restored.
Device or Macro menu items
1. Make sure the device tab or macro
tab is active.
The device or macro tab is active while the
name of a device or macro is displayed.
2. Switch to Add mode by using the
Mode button.
3. Tap Restore Deleted Device or
Restore Deleted Group.
The deleted menu items become visible.
4. Tap the item you want to restore.
The item is restored and you return to Use
mode.
Note:
Only the macro group itself is restored, not the
macros it contained.
29
Getting the Maximum out of it
6. Recording Macros and
Setting Timers
A macro enables you to send a sequence of IR
commands using one single button.
By setting a time, you can activate a device at the
time you prefer. See page 31.
Note:
To record a macro or to set a timer, there must be
at least one macro group or timer group in the
Macro menu. To create these groups, see page 32.
Recording macros
1. Tap the Macro menu button.
2. Open the macro menu and select a
macro group.
4. Tap the button you want to use for
your macro.
5. Enter the sequence of commands you
want to record.
You can navigate to any control panel you
want, just as you can in Use mode.
6. Tap the Macro menu button.
The contents of the macro appear. You can
now play, edit, or close the macro.
7. Press the Left button to close the
macro.
A confirmation screen appears where you can
save or cancel the macro.
8. Tap Save and assign a label to the
macro.
The macro is ready to be used.
There are two extra commands you can record in
a macro:
Source switching
To record a Device menu item containing a
source switching command, open the Device
menu, hold down the Right button (labeled
Action) and tap the device you want to switch to.
3. Switch to Edit mode via the Mode
button.
Empty the macro buttons appear in the macro
control panel.
30
Close a device control panel
To close a macro display of device, open the
Device menu, hold down the Left button (labeled
Device) and tap the device you want.
Getting the Maximum out of it
Editing macros
You can edit any macro you have recorded.
1. Open the macro group that contains
the macro.
2. Switch to Edit mode via the Mode
button.
3. Tap the macro you want to edit.
The contents of the macro appear.
Setting timers
To activate a device at the time you set.
1. Tap the Macro menu button.
2. Open the macro menu and select a
timer group.
3. Switch to Edit mode by using the
Mode button.
Empty timer buttons appear in the timer
control panel.
4. Tap the button you want to set a timer
for.
The first timer control panel appears in which
you can set the start time.
4. Edit the macro.
You can move or delete listed commands or
you can add new commands. You can also
add delays to the macro (for example, to
insert a short pause between turning on a
device and sending commands to it allowing
the device to warm up):
1. Tap Delay.
2. Tap
3. Use the arrow buttons
5. Press the Left button to close the
macro.
A confirmation screen appears, which allows
you to save or cancel the macro.
6. Tap Save.
The macro is ready to be used.
or to decrease or increase the
length of the delay.
and to move
the delay to the right place.
5. Enter the command the timer has to
execute.
A timer can contain either a single IR
command or a macro.
You can navigate to any control panel you
want, just as you can in Use mode.
31
Getting the Maximum out of it
6. Tap the clock button and set the start
time using the Left/Right buttons.
7. Tap one or more day buttons to select
or deselect days for the timer.
You can choose to repeat the timer weekly.
8. Scroll down to display the second
timer control panel in which you can
set the stop time.
9. Enter the command the timer has to
execute.
10. Tap the clock button and set the stop
time using the Left/Right buttons.
11. Press the Left button to close the
timer.
A confirmation screen appears, which allows
you to save or cancel the timer.
12. Tap Save.
The timer is activated.
Note:
The timer only works when the remote
controller’s sending eye is pointed towards the
controlled device and no obstructions interfere
the infrared signal.
Editing timers
You can edit any timer you have set.
1. Open the timer group that contains
the timer.
2. Switch to Edit mode via the Mode
button.
3. Tap the timer you want to edit.
The contents of the timer appear.
4. Edit the timer.
5. Press the Left button to close the
timer.
A confirmation screen appears, which allows
you to save or cancel the timer.
6. Tap Save.
The timer is edited.
Organizing macros and timers into
groups
You can create as macro groups or timer groups
up to 25 macros or timers in each group.
32
1. Open any macro or timer group.
2. Switch to Add mode by using the
Mode button.
You can create a new group, copy an existing
group, or restore a previous deleted group.
• Create a new group: You add a new group
in which you can record new macros.
• Copy an existing group: You copy a group
and its macros and use it for new macros.
• Restore a previously deleted group: You
restore a deleted group and reuse the
macros.
3. Tap Create Timer Group or Create
Macro Group.
Getting the Maximum out of it
7. Using the remote controller
with Radio Frequency
Warning:
To use the remote controller with radio frequency
(RF), you need an RF Receiver, which is not
included in package.
By default, the remote controller uses infrared
(IR) signals to operate devices. This means that
you have to point the remote controller’s sending
eye towards the device you are operating. IR
signals have an operating distance of 10 meters
(33 feet).
You can select to operate devices using radio
frequency (RF) signals instead of IR signals. RF
signals have an operating distance of
approximately 20 meters (66 feet) in house and ,
unlike IR signals, is able to go through obstacles
like furniture or walls. The RF signals sent out by
the remote controller are picked up by the RF
Receiver. The RF Receiver translates the RF
signals in IR signals and sends the IR signals to
the appropriate device.
Therefore, the RF Receiver has to be placed near
the device you’re operating with the RF
Receiver’s sending eye pointed to the device.
Your devices will always receive IR signals either
directly from the remote controller or from the RF
Receiver.
33
Getting the Maximum out of it
Changing the remote controller’s
RF IR Settings
All devices are set up by default to work with IR
signals. To be able to operate one or more devices
with RF signals, you have to change the remote
controller’s RF IR settings for those devices.
1. Make sure the Device tab is active.
The Device tab is active when the name of a
device is displayed at the right side of the
touch screen .
2. Switch to RF IR mode by using the
Mode button
The Device menu appears.
.
4. Tap RF.
The RF IR settings for the selected device are
transferable from IR to RF.
When you have only one RF Receiver, you can
accept the default settings for the Extender ID and
the Channel. Continue with step 5.
or
When you have several RF Receivers to operate
devices, you have to assign the correct Extender
ID to the selected device. Follow the instructions
as described in “Changing the Extender ID”.
Note:
The ID on the RF Receiver has to match the
Extender ID on the remote controller.
3. Select the device for which you want
to change the RF IR settings.
The RF IR settings appear. The white label on
the button
device is currently operated with IR signals.
indicates that the selected
34
Getting the Maximum out of it
Changing the Extender ID
1. Make sure the Extender ID button is active.
The button is active when the button label
is white.
2. Press the + and – action buttons to change
the Extender ID.
The remote controller offers 16 Extender
ID’s.
5. Tap Accept to save the RF IR settings
for the selected device.
or
Tap Cancel to return without
changing the RF IR settings for the
selected device.
6. Repeat instructions 3 to 5 for all
devices for which you want to change
the RF IR settings.
7. Tap Close.
The remote controller switches back to Use
mode. The remote controller is configured to
operate the devices you have set with RF
signals.
8. Try the devices which you just
changed the RF IR settings.
Note:
There is a possibility that a device does not
respond properly when operated with RF signals.
This is mostly due to IR signals that cannot be
properly transmitted as RF signals.
In that case, you have to reconfigure the remote
controller to operate the device with IR signals
again.
35
Getting the Maximum out of it
Choosing Another Channel
When you notice RF interference, for instance
from your neighbors, you have to choose another
channel to operate your devices.
Note:
All devices you want to operate with RF signals
use the same channel. If you select another
channel for one device, the remote controller will
automatically change the channel for all devices
that work with RF signals.
1. Switch back to RF IR mode.
The Device menu appears.
2. Select a device that is set with RF
signals.
The RF IR settings appear.
4. Press the + and – action buttons to
change the Channel.
The remote controller offers 4 RF Channels.
Note:
The Channel (CH) on the RF Receiver has to
match the Channel on the remote controller.
5. Tap Accept to save the selected
Channel for all devices that work with
RF signals.
or
Tap Cancel to return without
changing the Channel.
3. Tap .
The button label turns white indicating that
the button is active.
36
6. Tap Close.
The remote controller switches back to Use
mode. The remote controller is configured to
operate the devices you have set with RF
signals through the selected Channel.
7. Try all devices which you just
changed the Channel.
Getting the Maximum out of it
8.ChadEdit
If you want to personalize your remote controller
even more, beyond its standard programming
features, ChadEdit is the tool for you to use.
ChadEdit is the remote controller’s companion
software that you can download from http://
www.onkyousa.com
www.integrahometheater.com.
With ChadEdit you can:
■ upload and download new configurations to
and from your remote controller. You do this
with the serial cable included with your
remote controller;
■ add, delete, modify and move control panels,
devices and commands anywhere on the
touchscreen;
■ save, duplicate and share configuration files,
codes or devices with other remote
controllers;
■ preview new configuration files on
ChadEmulator. In this way you can check
how the remote controller’s interface will
look like.
■ import new graphics to create new buttons
and designs;
■ personalize configuration files to optimize the
use of your remote controller.
37
Getting the Maximum out of it
When you become familiar with ChadEdit, you
can achieve results like:
Por t
System requirements
■ PC
■ Windows 95/98/Me, Windows NT 4.0/2000,
Windows XP
■ 16 MB of RAM
■ 16 MB of free hard disk space
■ Free serial port
38
Troubleshooting
General Problems
The display is blank
• Tap the screen to make sure the Remote
controller is turned on.
• Adjust the contrast dial on the left side.
• Make sure the batteries are properly installed.
• Install new batteries or recharge the battery
pack using the recharging dock.
The display is too light or too dark
• Adjust the contrast dial on the left side.
The Remote controller shuts itself off
• This is a feature of the Remote controller to
save power. You can change the length the
Remote controller stays on in the Settings
(see page 19).
Devices do not respond to commands
from the Remote controller
• Make sure the Remote controller is in Use
mode (see page 11).
• Make sure the Remote controller’s sending
eye is pointed towards the device you are
operating.
• Check if the Low Battery icon is blinking. If
so, replace the batteries or recharge the
battery pack.
• Check if the button you are trying to use is
programmed properly (see page 23).
The Remote controller beeps 4 times
after inserting the batteries
• Use ChadEdit to update the Remote
controller’s software (ChadEdit > Tools >
Update)
Programming Problems
Buttons are not sending the correct
commands
• Check whether the button is programmed
globally or per device (see page 24).
Macros do not work
• Make sure the Remote controller’s sending
eye is pointed towards the device the entire
time the macro is being executed.
• Insert delays to allow devices to start up
properly (see page 21).
• Check if you do not have included inactive
buttons in your macro.
• Check if you do not have reprogrammed
buttons. Macros can not save commands, they
just save buttons. If you reprogram a button,
the macro executes the new command
assigned to the button.
The TV goes blank or the input source
changes
• The Device menu item might be programmed
to switch the input source. Operate the device
without affecting the input source (see page
17).
The Remote controller will not edit, label
or delete commands
• If the label locked appears on the Remote
controller icon, the device control panels have
been locked to prevent unwanted changes.
You cannot modify or delete commands for
this device.
• Make sure your devices are positioned as
shown on page 23. Avoid programming the
Remote controller under bright fluorescent
light: it might affect the infrared signals.
• Make sure the button you want to edit has a
border. Borderless buttons cannot be
programmed.
39
Troubleshooting
The Remote controller will not switch
modes
• When the batteries are low the Remote
controller prevents you from switching to
customizing modes so that no customization
can get lost. Replace the batteries or recharge
the battery pack (see pages 9, 10).
The Remote controller is low on memory
• The remote controller displays a message to
clean up the memory. The Remote controller
will do this by permanently removing devices
and macro and timer groups you have deleted.
Warning:
Cleaning up memory will take 10 minutes or
longer. Never remove batteries during the cleanup process. This might damage the configuration
file resulting in loss of your customized
commands.
The configuration file is corrupted
• When this very unlikely event occurs, you
have to revert to the original configuration.
All your customized commands devices and
macros will be lost and you will have to
reprogram your remote controller.
Recharging Problems
The batteries will not recharge
• Make sure you are using the rechargeable
battery pack included with your recharging
dock and not the AA batteries.
The indicator light blinks
• Check if the contacts on the recharging dock
are clean and free of obstructions.
• Make sure the remote controller lies properly
on the dock.
• Make sure the battery pack is installed
properly in your remote controller (see page
10).
Remote controller error messages
• If one of the following error messages occurs,
please contact your dealer or the Onkyo
customer service:
• Can not open configuration file
• Configuration file error
• No configuration file found
• Invalid configuration file version
40
FAQ
Can I program a button to execute more
than one command?
No, you can not. However, you can create a
macro to execute a sequence of commands (see
page 31).
How do I program source switching?
See “Programming device items” on page 24.
How can I edit, label or delete buttons on
home panels?
You can do this via the Device menu items. All
changes you make to these items are
automatically updated in the Home menu.
How do I reset the Remote controller?
Normally, you never have to reset the Remote
controller. However, if the Remote controller’s
display freezes or if you notice unusual behavior,
you might need to reset. You will not lose any
saved programmed commands or macros.
• Carefully press the reset button on the back of
the Remote controller with a paperclip or
sharp pencil. The remote controller restarts
and beeps to indicate it is ready for use.
How do I revert to the original
configuration?
Reverting to the original configuration restores
the remote controller’s devices and commands to
its state when you purchased it. This means that
all programming is lost permanently. Normally,
you never have to revert the Remote controller.
1. Touch and hold the Remote controller
icon for a few seconds.
The first setup panel appears.
2. Scroll to the second setup panel.
3. Tap the Revert button.
4. Tap Revert to confirm the action.
How do I calibrate the touchscreen?
The remote controller is calibrated when it leaves
the factory, so normally you do not have to
calibrate it yourself. It is possible that the remote
controller displays a message to calibrate the
touchscreen. If this message appears, do the
following:
1. Tap as close as possible the upper
left corner using a blunt tip of a
pencil.
2. Tap as close as possible the upper
right corner using a blunt tip of a
pencil.
41
Overview of Symbols
:Pause
:Stop
:Normal run; normal speed
:Normal run; normal speed
:Fast run; fast speed
:Fast run; fast speed
:Slow run; slow speed
:Slow run; slow speed
:Eject
:Recording, general
:Key
:Navigate
:Still mode
:Tape running direction
:Next track
:Previous track
:Fast forward to index
:Rewind to index
:Frame by frame, general
:Frame by frame, general
:Subtitle
:Cancel picture
:Picture-in-picture mode
:Menu
:Picture-in-picture shift
:Picture-in-picture swap
:Multi-picture display
:Picture-in-picture select
:Teletext mode
:Page number up
:Page number down
:Page enlargement
:TV and text mixed
:1st or 2nd language
:Last view; previous program
:Stand-by
:Zone focus: long distance
:Zone focus: very short distance
:Single or multi-digit selection
:Brightness; brilliance
:Contrast
:Brightness/contrast
:Color saturation
:Lamp; lighting; illumination
:Split screen freeze / double screen freeze
:Split screen swap / double screen swap
:Split screen / double screen
:Movie expand
:Personal preference
:Picture-in-picture freeze
:Main index page
:Picture freeze
:Programmable timer; general
:Tracking
:Application assistance
:Actual time on screen
:EPG / Electronic Program Guide
:Video output
42
Specifications
Hardware
Software
Infrared (IR)
Radio
frequency (RF)
Memory
Batteries
Battery life
Power management
Dimensions
Operating temperature
Accessories
Accessories
(Not included)
High-resolution (320 x 240) liquid crystal display (LCD) with contrast
control
Large touchscreen
Seven programmable direct-access buttons
Backlighting for LCD and direct-access buttons
Infrared sending and learning eyes
3-wire (RS232) serial port connector
Dynamic, animated interface
Editable macros (up to 255 commands per macro)
Total number of devices and macros limited only by memory
Database with RC codes to operate different brands
Operating distance of 10 meters (33 feet)
Learning frequency upto 56 KHz
Learning distance 5 cm (2 inch) up to 30 cm (1 foot)
Operating distance of approximately 20 meters depending on the surrounding
conditions
Band:418 MHz
Bandwidth: +/–100 kHz
16 Extender ID’s and 4 Channels
2 MB non-volatile flash memory (retains commands when batteries are not
present)
512 K SRAM
4 AA 1.5V batteries, or one 4,8V rechargeable battery pack
Approximately 6 months with typical use
Power on by tapping the touchscreen, power off automatically management
153.6 x 94.1 x 43.7 mm (6.0 x 3.7 x 1.7 inch)
0 ˚C to 50 ˚C (32 ˚F to 122 ˚F)
RS232 cable for PC connection
4 AA 1.5 V batteries
Remote controller recharge package BCC-5
RF Receiver RFR-5
43
Sales & Product Planning Div. : 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN
Tel: 072-831-8111 Fax: 072-833-5222
ONKYO U.S.A. CORPORATION
18 Park Way, Upper Saddle River, N.J. 07458, U.S.A.
Tel: 201-785-2600 Fax: 201-785-2650 http://www.onkyousa.com
ONKYO EUROPE ELECTRONICS GmbH
Industriestrasse 20, 82110 Germering, GERMANY
Tel: 089-849-320 Fax: 089-849-3265 E-mail: info@onkyo.de
ONKYO CHINA LIMITED
Units 2102-2107, Metroplaza Tower I, 223 Hing Fong Road, Kwai Chung,
N.T., HONG KONG Tel: 852-2429-3118 Fax: 852-2428-9039
HOMEPAGE
http://www.onkyo.co.jp/
D0107-1
E
Loading...
