Onkyo UPT1WL User Manual

AV Home Theater Receiver
NS-R5101AHD-A
User Guide
v1
R4
ii
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Power cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Important safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Front controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

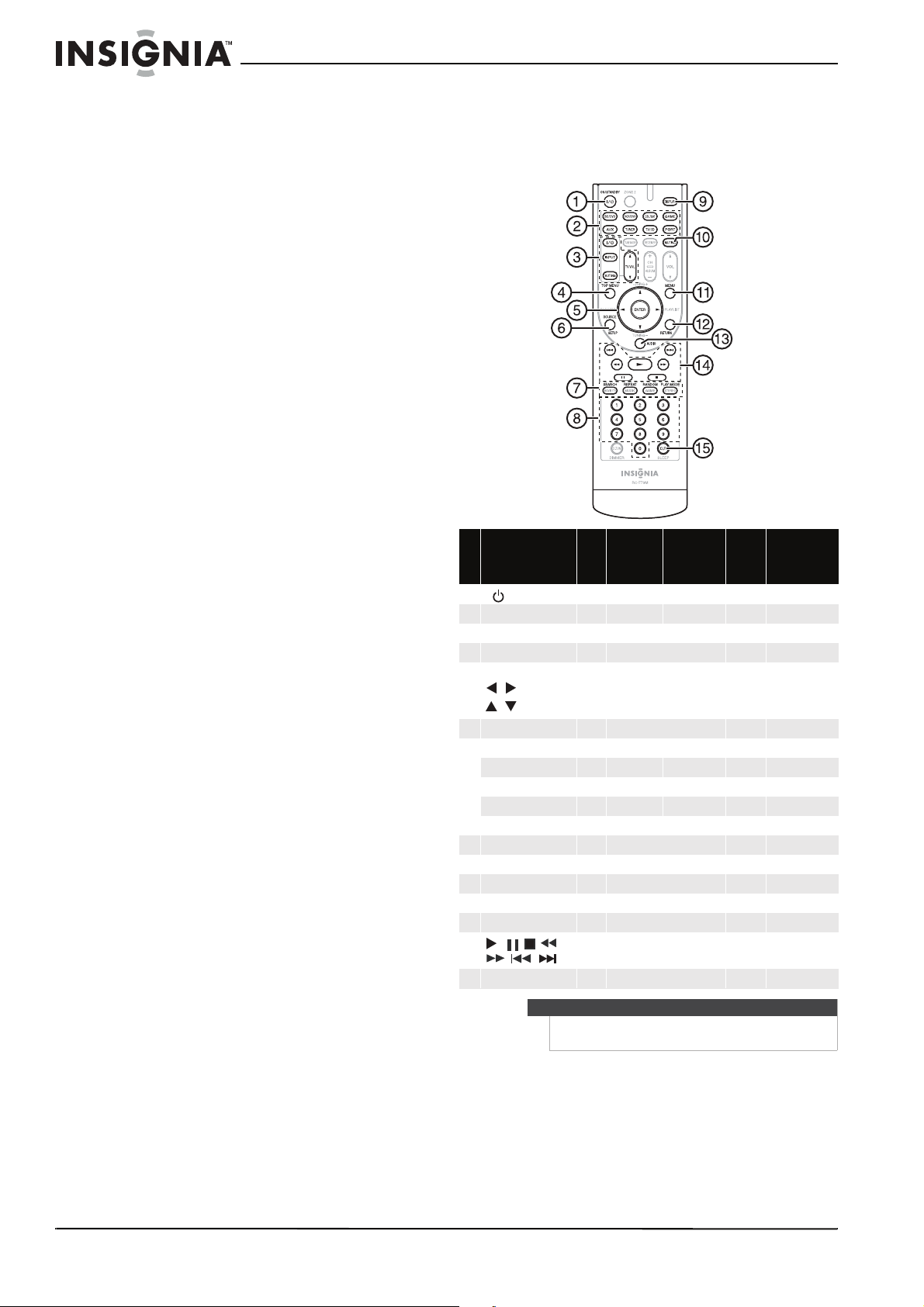

Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Top panel - NS-RB1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Back panel - NS-RB1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Setting up your home theater system . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Finding a location for your home theater system . . . . . . . . . . . . . . . . . . 5

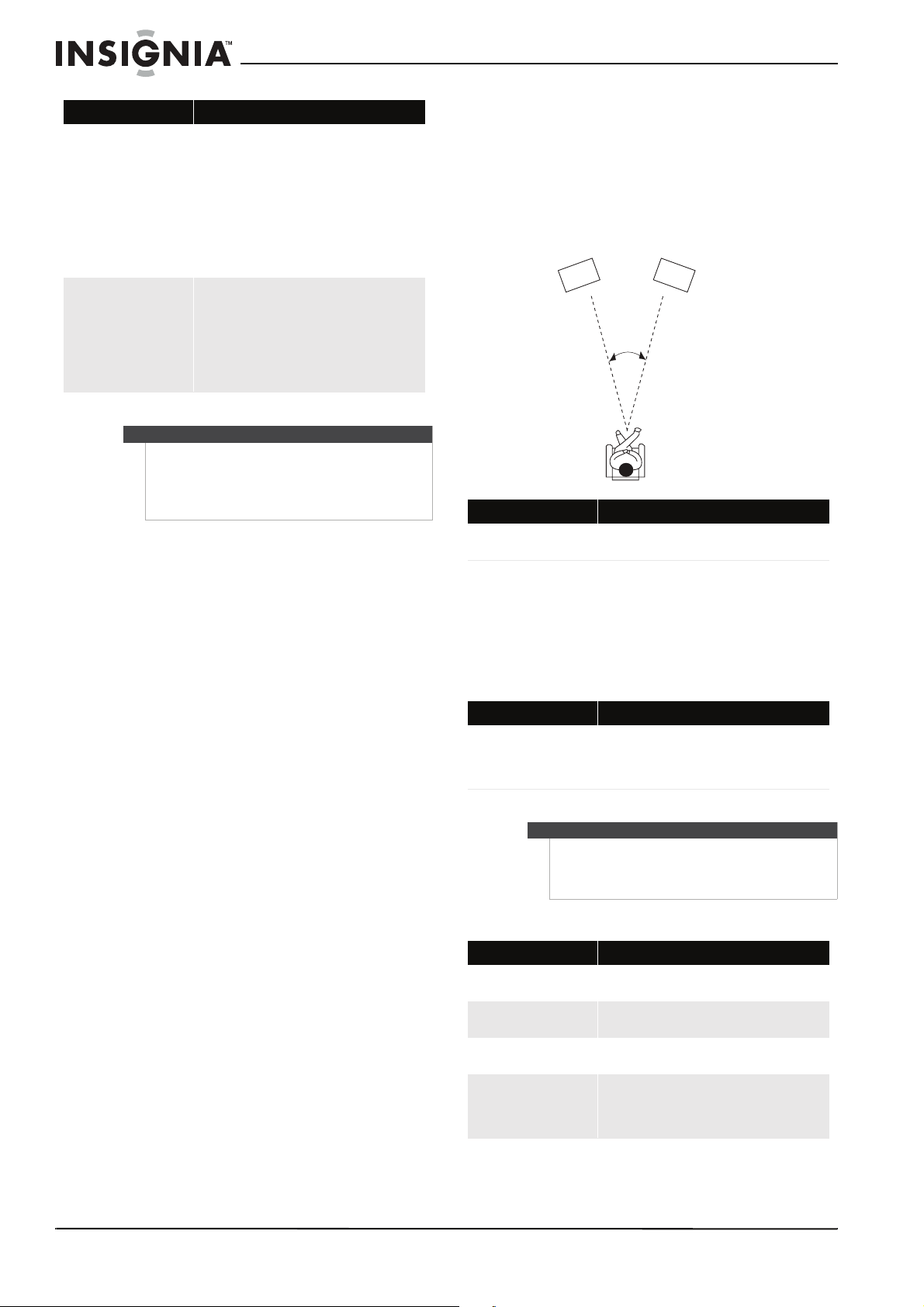

Placing your speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Connecting your speakers to the receiver . . . . . . . . . . . . . . . . . . . . . . . . . 6

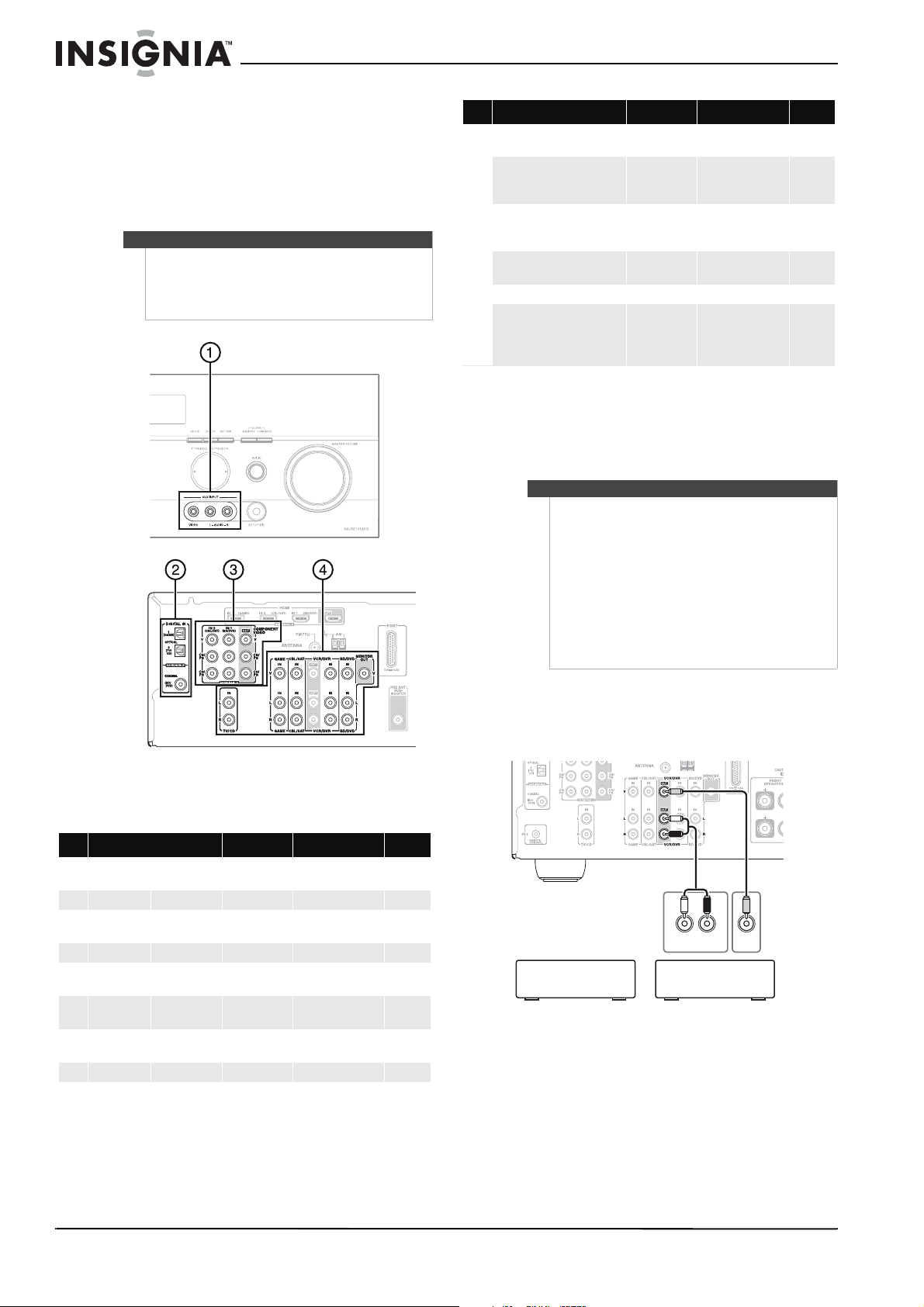

Connecting devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
What is Rocketboost™? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Installing batteries in the remote control . . . . . . . . . . . . . . . . . . . . . . . . 14
Using the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Using the Audyssey 2EQ® room correction and speaker setup . . . . 14
Operating your receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Turning your receiver on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Understanding basic operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Listening to your receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Listening to the radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Presetting FM or AM stations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Using the listening modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Using advanced setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Using on-screen setup menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Setting up HDMI input (HDMI Input menu) . . . . . . . . . . . . . . . . . . . . . . 20
Setting up Component input (Component menu) . . . . . . . . . . . . . . . 21
Setting up Digital Audio (Digital Audio menu) . . . . . . . . . . . . . . . . . . . 21
Configuring speakers (Sp Config menu) . . . . . . . . . . . . . . . . . . . . . . . . . 21
Setting the Wireless Surround/Subwoofer . . . . . . . . . . . . . . . . . . . . . . . 22
Setting speaker distance (Sp Distance menu) . . . . . . . . . . . . . . . . . . . . 22
Setting the level calibration (Level Cal menu) . . . . . . . . . . . . . . . . . . . . 22
Adjusting the audio (Audio Adjust menu) . . . . . . . . . . . . . . . . . . . . . . . . 22
Naming inputs (Name Edit menu) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Setting up HDMI (HDMI Setup menu) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Changing audio settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Selecting a digital input signal format . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
iii
Contents
www.insigniaproducts.com
Controlling other components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Preprogrammed remote control codes . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Using the remote control to control other components . . . . . . . . . . 28
Remote control codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Maintaining . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Amplifier section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Video section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Tuner section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
General section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Legal notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Dolby TrueHD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
DTS HD™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
HDMI® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Audyssey 2EQ® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
One-year limited warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
1
www.insigniaproducts.com
Insignia NS-R5101AHD-A
AV Home Theater Receiver
Introduction
Congratulations on your purchase of a high-quality Insignia product. Your NS-R5101AHD-A represents the state of the art in AV Home Theater Receiver design and is designed for reliable and trouble-free performance.
Safety information
Ventilation
Power cord
Important safety instructions
1 Read these instructions. 2 Keep these instructions. 3 Heed all warnings. 4 Follow all instructions. 5 Do not use this apparatus near water. 6 Clean only with dry cloth. 7 Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8 Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9 Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10 Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11 Only use attachments/accessories specified by
the manufacturer.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRIQUE
NE PAS
OUVRIR
AVIS
Caution
Do not block any ventilation openings. Install in accordance with these instructions.
Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of your system and to protect it from over-heating.
The openings should never be blocked by placing your system on a bed, sofa, rug, or other similar surface. This system should not be placed in a built-in installation such as a bookcase or rack unless correct ventilation is provided or these instructions have been adhered to.
Caution
We recommend that most appliances be placed upon a dedicated circuit—a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this manual for power requirements.
Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire.
Periodically examine the power cord. If its appearance indicates damage or deterioration, unplug it, discontinue use of your system, and have the cord replaced with an exact replacement part by an authorized service provider.
Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits your receiver.
To disconnect power from the outlet, pull out the plug. When installing your system, make sure that the plug is easily accessible.
2
Insignia NS-R5101AHD-A AV Home Theater Receiver
www.insigniaproducts.com
12 Use only with the cart,
stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13 Unplug this apparatus during lightning storms
or when unused for long periods of time.
14 Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15 Damage Requiring Service
Unplug the apparatus from the wall outlet and refer servicing to qualified service personnel under the following conditions:
• When the power-supply cord or plug is damaged,
• If liquid has been spilled, or objects have fallen into the apparatus,
• If the apparatus has been exposed to rain or water,
• If the apparatus does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the apparatus to its normal operation,
• If the apparatus has been dropped or damaged in any way, and
• When the apparatus exhibits a distinct change in performance this indicates a need for service.
16 Object and Liquid Entry
• Never push objects of any kind into the apparatus through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock.
• The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases shall be placed on the apparatus.
• Don’t put candles or other burning objects on top of this unit.
17 Batteries
Always consider the environmental issues and follow local regulations when disposing of batteries.
18 If you install the apparatus in a built-in
installation, such as a bookcase or rack, ensure that there is adequate ventilation.
Leave 20 cm (8") of free space at the top and sides and 10 cm (4") at the rear. The rear edge of the shelf or board above the apparatus shall be set 10 cm (4") away from the rear panel or wall, creating a flue-like gap for warm air to escape.
Precautions
1 Recording copyrighted material—Unless it’s for
personal use only, recording copyrighted material is illegal without the permission of the copyright holder.
2 AC fuse—The AC fuse inside the unit is not
user-serviceable. If you cannot turn on the unit, contact your Insignia dealer.
3 Care—Occasionally you should dust the unit all
over with a soft cloth. For stubborn stains, use a soft cloth dampened with a weak solution of mild detergent and water. Dry the unit immediately afterwards with a clean cloth. Don’t use abrasive cloths, thinners, alcohol, or other chemical solvents, because they may damage the finish or remove the panel lettering.
4 Power
AC outlet voltages vary from country to country. Make sure that the voltage in your area meets
the voltage requirements printed on the unit’s rear panel (e.g., AC 230 V, 50 Hz or AC 120 V, 60 Hz).
The power cord plug is used to disconnect this unit from the AC power source. Make sure that the plug is readily operable (easily accessible) at all times.
Pressing ON/STANDBY to select Standby mode does not fully shutdown the unit. If you do not intend to use the unit for an extended period, remove the power cord from the AC outlet.
5 Preventing Hearing Loss
6 Batteries and heat exposure
7 Never touch this unit with wet hands—Never
handle this unit or its power cord while your hands are wet or damp. If water or any other liquid gets inside this unit, have it checked by your Insignia dealer.
8 Handling notes
• If you need to transport this unit, use the original packaging to pack it how it was when you originally bought it.
• Do not leave rubber or plastic items on this unit for a long time, because they may leave marks on the case.
• This unit’s top and rear panels may get warm after prolonged use. This is normal.
PORTABLE CART WARNIN
G
S3125A
Warning
Before plugging in the unit for the first time, read the following section carefully.
Caution
Excessive sound pressure from earphones and headphones can cause hearing loss.
Warning
Batteries (battery pack or batteries installed) shall not be exposed to excessive heat as sunshine, fire or the like.
3
Insignia NS-R5101AHD-A AV Home Theater Receiver
www.insigniaproducts.com
Components
Features
• 90 Watts/Channel @ 8 ohms
• Rocketboost™ Expandable Wireless Audio Technology: sends wireless audio for surround sound, subwoofer, and 2nd zone; receives wireless audio from Rocketboost™ devices
• Audyssey 2EQ® to Correct Room Acoustic Problems
• Audyssey Dynamic EQ® to Maintain Surround and Bass Detail at any Volume
• Audyssey Dynamic Volume to Stop Volume Spikes and Maintain Optimal Volume
• HDMI (Ver.1.4 with Audio Return Channel, 3D), Deep-Color, x.v.Color, Lip Sync, DTS-HD Master Audio, DTS-HD High Resolution Audio, Dolby TrueHD, Dolby Digital Plus, DSD and Multi-CH PCM
• 3 HDMI Inputs and 1 Output
• 3 Digital Inputs (2 Optical/1 Coaxial)
• Component Video Switching (2 Inputs/1 Output)
• Banana Plug-Compatible Speaker Posts
• 40 FM/AM Presets
• H.C.P.S. (High Current Power Supply) Massive High Power Transformer
• Direct Mode
• 192 kHz/24-bit D/A Converters
• Powerful and Highly Accurate 32-bit Processing DSP
• Crossover Adjustment (40/50/60/80/100/120/150/200 Hz)
• A/V Sync Control Function (up to 100 ms)
• On-Screen Display via HDMI
* “x.v.Color” is a trademark of Sony Corporation.
Package contents
• Receiver
• Rocketboost™ Sender/Receiver (NS-RB1)
• Remote control
• 2 x AA batteries
• FM antenna
• AM antenna
• Speaker setup microphone
Front controls
Item Description Function
1
|/ ON/STANDBY button
Press to turn on your stereo receiver.
2 HDMI THRU indicator Lights when the HDMI pass-through function is
activated in standby mode.
3 Zone 2 indicator Lights when NS-RB1 is connected to the
Rocketboost
Port.
4 STANDBY indicator Lights red when your stereo receiver is in
standby mode. 5 Remote control sensor Receives the signal from the remote control. 6 Display See “Display” on page 4 for additional
information. 7 SETUP button Press to open the on-screen menus. 8
TUNING / PRESET /
ENTER
Press TUNING / to tune the radio to the
next or previous station.
Press PRESET / to tune the radio to the
next or previous station preset.
Press ENTER to confirm a selection. 9 RETURN button In menu mode, press to return to the main
menu. 10 MEMORY button Press to save a radio station preset. Press with
the TUNING MODE button to clear presets. 11 TUNING MODE button Press to turn on the receiver tuning mode and
listen to the radio. Press with the MEMORY
button to clear presets. 12 MASTER VOLUME knob Turn to increase or decrease the volume. 13 Headphone jack Plug your headphones into this jack. 14 Input selector buttons Press to select the input signal source you want. 15 Protective cap Remove when using jack. 16 AUX INPUT VIDEO jack Plug an external video source into this jack. 17 AUX INPUT AUDIO L/R
jacks
Plug an external sound source into this jack.
18 SETUP MIC jack Plug the Audyssey setup microphone into this
jack. See “Using the Audyssey 2EQ® room
correction and speaker setup” on page 14. 19 AUDIO button Press to access audio settings. See “Changing
audio settings” on page 26.
4
Insignia NS-R5101AHD-A AV Home Theater Receiver
www.insigniaproducts.com
Display
Back
Remote control
# Indicator
1 Audio input indicator 2 Listening mode indicator 3 Audyssey indicators 4 Tuning indicators 5 SLEEP indicator 6 MUTING indicator 7 DIGITAL display
# Description Function
1 DIGITAL IN jacks Plug the optical digital cable from a game (1) or
TV/CD (2) into the upper jacks, or the coaxial digital cable from a BD/DVD into the lower jack.
2 COMPONENT video jacks Plug the cables from a component video source
into the #1 (BD/DVD) or #2 (CBL/SAT) jacks. Plug the cables to a component video monitor into
the OUT jacks. The jacks are color coded (red, green, and blue) to
correspond to the cable connectors.
3 HDMI jacks Plug the HDMI signal input cable from a GAME
(IN3), cable/satellite box (IN2), or a BD/DVD player (IN1).
Plug the HDMI output signal cable to a TV or monitor into the OUT jack.
4 ANTENNA connectors Connect a 75 ohm FM antenna to the coaxial
connector or an AM loop antenna to the wire connectors.
5 MONITOR OUT V (Video) Connect this jack to a TV monitor. 6 Rocketboost port Connect the NS-RB1 to this port. 7 FRONT SPEAKERS Connect the front speakers to these jacks.
SURROUND SPEAKERS CENTER SPEAKER
Connect the left and right surround speakers and the center speaker to these connectors. If you use the NS-RB1 to connect your surround speakers, do not connect them here.
8 AC power cord Plug this cord into an AC power outlet.
9 Composite Video and
Audio L/R jacks
Plug the composite video and audio L/R output cables from the indicated devices into these jacks.
For video recording, plug the composite video and audio L/R input cables to a VCR or DVR into the OUT jacks
10 SUBWOOFER Connect the subwoofer to this jack. If you use the
NS-RB1 to connect your subwoofer, connect the NS-RB1 to this jack.
Item Description Function
1 Zone2 button Press to select Zone2 input source. Press this
button then press input selector button. Note: Zone 2 operation is only used with the
Rocketboost
NS-RB1.
2 ON/STANDBY button Press to turn the power on to your receiver.
Press again to go to standby mode.
3 Remote mode input selector
buttons
Press to directly select your receiver input source.
4
ENTER / / / TUNING+/–
Press the arrow keys to navigate through the on-screen menus. Press ENTER to confirm a selection or setting.
In tuning mode, press to tune to the next (TUNING+) or previous (TUNING–) station.
5 SOURCE/SETUP button Press to open the on-screen menus. 6 LISTENING MODE buttons Press to select the listening mode you want.
See “Using the listening modes” on page 18 for additional information.
7 D.TUN
DIMMER
In tuner mode, press D.TUN, then the number buttons to tune directly to a frequency.
Press DIMMER to adjust the brightness of the display.
8 DISPLAY button Press repeatedly to cycle through the
available input source information.
9 RECEIVER button Press to control the receiver. 10 MUTING button Press to mute the sound output from the
receiver.
11 TUNE MODE button Press to toggle between auto and manual
tuning modes.
12
VOL / buttons
Press to increase or decrease the sound volume.
# Description Function
5
Insignia NS-R5101AHD-A AV Home Theater Receiver
www.insigniaproducts.com
Top panel - NS-RB1
Back panel - NS-RB1
Setting up your home theater system
Finding a location for your home theater system
• Install your home theater system on a stable flat surface. Position your receiver so that it has a direct line of sight to the remote control.
• Do not expose your system to extremes of temperature or humidity.
• Avoid placing your system on a hot surface such as on top of other hot running equipment. Make sure that there is adequate ventilation to your system.
13 CH +/– buttons
ALBUM
In tuner mode, press to go to the next or previous preset channel.
14 RETURN button In menu mode, press to return to the main
menu or previous menu.
15 AUDIO button Press to access audio settings. See
“Changing audio settings” on page 26.
16 Number buttons Press to enter a preset number or to
manually tune the radio.
17 SLEEP/CLR button Press repeatedly to select the sleep timer
duration. In menu mode, press to clear an entry.
# Description Function
1 Power/Join button Press to turn the device on, then hold to initiate
joining. Press again to go to standby.
2 Power/Join indicator Lights blue when HUB STATUS is set to DISABLE.
Lights green when HUB STATUS is set to ENABLE. Lights steady when the sender/receiver is joined to
a network. Blinks slowly when the sender/receiver is not
joined to a network. Blinks quickly when the sender/receiver is in
joining mode.
3 Standby indicator Lights red when the sender/receiver is in standby
mode.
4 Subwoofer - Sender mode
indicator
Lights blue when the sender setup for subwoofer is ON.
5 Surround - Sender mode
indicator
Lights blue when the sender setup for surround is ON.
6 Stereo - Sender mode
indicator
Lights blue when the sender setup for Zone 2 is ON.
7 Source button Press to move to the next receiving source. Each
press toggles to the next source.
8 Rx - Receiver mode indicator Lights blue when receiving signals.
Item Description Function
ON/STANDBY
STANDBY SUBWOOFER STEREO
SOURCE
SURROUND
1 3 4
5
6 7 82
# Description Function
1 External antenna Receives signals from other Rocketboost senders.
Sends signals to other Rocketboost
receivers.
2 HUB STATUS switch Enables/disables hub mode operation. See
“Establishing communications” on page 13 for additional information.
When hub status is enabled, the device is on even when the receiver is in standby mode.
When hub status is disabled, the device is off when the receiver is in standby mode.
Note: In a Rocketboost™ network, only one Rocketboost™ device should have the Hub Status switch set to ENABLE.
3 Subwoofer IN jack Connect to the Subwoofer Preout jack using a
mono RCA cable (not provided).
4 NS-RB1 cable Connect to the Rocketboost port on the receiver.
The receiver supplies power, surround L/R, subwoofer, and Zone2 signals. The device supplies received signals from other Rocketboost senders.
Caution
Do not install the receiver in a confined space such as a bookcase.
Caution
Connect the AC cord only after the speakers, antenna, and all optional equipment have been connected. Never make or change any connections with the power turned on.
DISABLE ENABLE
IN
HUB STATUS SUBWOOFER
4
1 132
6
Insignia NS-R5101AHD-A AV Home Theater Receiver
www.insigniaproducts.com
Placing your speakers
1 - Center speaker
This speaker enhances the front speakers, making sound movements distinct and providing a full-sound image. In movies it is used mainly for dialog. Position it close to your TV facing forward at about ear level, or at the same height as the front speakers.
2 - Front speakers
These provide the overall sound. Their role in a home theater system is to provide a solid anchor for the sound image. They should be positioned facing the listener at about ear level, and equidistant from the TV. Angle them inward so as to create a triangle, with the listener at the apex.
3 - Subwoofer
The subwoofer handles the bass sounds of the LFE (Low-Frequency Effects) channel. The volume and quality of the bass output from your subwoofer will depend on its position, the shape of your listening room, and your listening position. In general, a good bass sound can be obtained by installing the subwoofer in a front corner, or at one-third the width of the wall, as shown.
4 - Surround speakers
These speakers are used for precise sound positioning and to add realistic ambience. Position them at the sides of the listener, or slightly behind, about two to three feet (60 to 100 cm) above ear level. Ideally they should be equidistant from the listener.
Speaker precautions
• Do not put water or other liquids close to the speakers. If liquid is spilled on the speakers, they may be damaged.
• Speakers should only be placed on sturdy, flat surfaces that are free from vibration. Putting them on uneven or unstable surfaces, where they may fall and cause damage, affects the sound quality.
• If the subwoofer is placed near a turntable, CD player, or Blu-ray Disc/DVD player, howling or slipping of the sound may occur. To prevent this, move the unit away from the turntable, CD player, or Blu-ray Disc/DVD player, or lower the subwoofer’s output level.
Connecting your speakers to the receiver
Speaker configuration
The following table indicates the channels you should use depending on the number of speakers that you have. For 5.1-channel surround-sound playback, you need five speakers and a powered subwoofer.
No matter how many speakers you use, a powered subwoofer is recommended for a really powerful and solid bass.
To get the best from your surround sound system, you need to set the speaker settings. You can do this automatically (see “Using the Audyssey 2EQ® room correction and speaker setup” on page 14, or manually (see “Configuring speakers (Sp Config menu) on page 21).
Attaching the speaker cable labels
The AV receiver’s positive (+) speaker terminals are all red. (The negative (–) speaker terminals are all black.)
The supplied speaker cable labels are also color-coded. You should attach them to the positive (+) side of each speaker cable in accordance with the table above. Then all you need to do is to match the color of each label to the corresponding speaker terminal.
Speaker connection precautions
Read the following before connecting your speakers:
• You can connect speakers with an impedance of between 6 and 16 ohms. If you use speakers with a lower impedance, and use the amplifier at high volume levels for a long period of time, the built-in amp protection circuit may be activated.
• Disconnect the power cord from the wall outlet before making any connections.
Tip
To find the best position for your subwoofer, while playing a movie or some music with good bass, experiment by placing your subwoofer at various positions within the room, and choose the one that provides the most satisfying results.
Number of channels 2 3 4 5
Front speakers
X X X X
Center speaker
X X
Surround speakers
X X
Speaker Color
Front left White Front right Red Center Green Surround left Blue Surround right Gray
Red line
7
Insignia NS-R5101AHD-A AV Home Theater Receiver
www.insigniaproducts.com
• Pay close attention to speaker wiring polarity. In other words, connect positive (+) terminals only to positive (+) terminals, and negative (–) terminals only to negative (–) terminals. If you get them the wrong way around, the sound will be out of phase and will sound unnatural.
• Unnecessarily long, or very thin speaker cables may affect the sound quality and should be avoided.
• Be careful not to short the positive and negative wires. Doing so may damage the receiver.
• Make sure the metal core of the wire does not have contact with the receiver’s rear panel. Doing so may damage the receiver.
• Don’t connect more than one cable to each speaker terminal. Doing so may damage the receiver.
• Don’t connect one speaker to several terminals.
To connect the speaker cables:
1 Strip 1/2" to 5/8" (12 to 15 mm) of insulation
from the ends of the speaker cables, and twist the bare wires tightly, as shown.
2 Loosen the speaker terminals on the receiver
and insert the speaker wires into the terminals. The following illustration shows which speaker should be connected to each pair of terminals.
3 Tighten the terminals to secure the wire.
To connect the subwoofer:
1 Using a subwoofer RCA cable, connect the AV
receiver's SUBWOOFER PRE OUT jack to an input on your powered subwoofer, as shown.
Connecting devices
Connecting the antenna
This section explains how to connect the supplied indoor FM antenna and AM loop antenna.
The receiver won’t pick up any radio signals without any antenna connected, so you must connect the antenna to use the tuner.
Tips
• If you are using banana plugs, tighten the speaker terminal before inserting the banana plug.
• Do not insert the speaker wire directly into the center hole of the speaker terminal.
Warning
Do not plug the AC cord into the AC outlet until all connections are completed.
Notes
• Be sure to observe the color coding when connecting audio and speaker cords.
• Make connections firmly and correctly. Failure to do this can cause loss of sound, add noise to the sound, or damage your receiver.
Front right speaker
Front left speaker
Center speaker
Powered subwoofer
Surround right speaker
Surround left speaker
Thumbtacks
Indoor FM antenna (supplied)
AM loop antenna (supplied)
Assembling the AM loop antenna
Push
Insert the plug fully into the jack
Insert wire
Release
FM 75 Ohm
8
Insignia NS-R5101AHD-A AV Home Theater Receiver
www.insigniaproducts.com
To connect the antennas:
1 Connect the FM antenna to your receiver.
2 Connect the AM loop antenna to the receiver.
Connecting audio components
HDMI cable
Other cables
AV cables and jacks
Note
If you are using an indoor FM antenna, change the position of the antenna until you get the best reception of your favorite FM stations.
To improve reception, use a 75 Ω outdoor antenna instead of an indoor antenna. Disconnect the indoor antenna before replacing it with an outdoor antenna.
Tip
Once your receiver is ready for use, you need to tune into a radio station and position the antenna to achieve the best possible reception.
If you cannot achieve good reception with the supplied indoor FM antenna, try a commercially available outdoor FM antenna instead.
Notes
Place the AM loop antenna as far as possible from the receiver, television, speaker cords, and the AC cord. Change the position of the antenna until you get the best reception of your favorite AM stations.
To improve reception, use an outdoor AM antenna instead of a loop AM antenna. Disconnect the indoor antenna before replacing it with an outdoor antenna.
Receiver
TV or projector
Blu-ray disc/DVD player
Game console
Notes
• Before making any AV connections, read the manuals supplied with your AV components.
• Don’t connect the power cord until you’ve completed and double-checked all AV connections.
• Push plugs in all the way to make good connections (loose connections can cause noise or malfunctions).
• To prevent interference, keep audio and video cables away from power cords and speaker cables.
TV or projector
Receiver
Blu-ray disc/DVD player
Game console
Video
Audio
Signal Cable Jack Description
Video and audio
HDMI
HDMI connections can carry digital video and audio.
Video
Component video
Component video separates the luminance (Y) and color difference signals (PR, PB), providing the best picture quality (some TV manufacturers label their component video sockets slightly differently).
Composite video Yellow
Composite video is commonly used on TVs, VCRs, and other video equipment.
Audio
Optical digital audio
Optical digital connections allow you to enjoy digital sound such as PCM* or Dolby Digital. The audio quality is the same as coaxial.
Note: The available sampling rate for PCM input signals is 32/44.1/48/88.2/96 kHz. Even 176.4/192 kHz is effective in case of the HDMI connection.
Coaxial digital audio
Orange
Coaxial digital connections allow you to enjoy digital sound such as PCM
*
or Dolby Digital. The audio quality is the same as optical.
Analog audio (RCA)
Analog audio connections (RCA) carry analog audio.
HDMI
Y
Pb/Cb
Pr/Cr
Y
Pb
Pr
Y
OPTICAL
DIGITAL
R
L
Green
Blue
Red
White
Red
9
Insignia NS-R5101AHD-A AV Home Theater Receiver
www.insigniaproducts.com
Deciding which connections to use
The receiver supports several connection formats for compatibility with a wide range of AV equipment. The format you choose depends on the formats supported by your components. Use the following sections as a guide.
Video connection formats
Video components can be connected by using any one of the following video connection formats: composite video, component video, or HDMI (for the best picture quality).
When choosing a connection format, bear in mind that the receiver does not convert between formats, so only outputs of the same format as the input will output the signal.
Audio connection formats
Audio components can be connected by using any of the following audio connection formats:
• Analog
• Optical
• Coaxial
• HDMI
*1 - Depends on the Audio TV Out setting. *2 - This setting is available when the Audio Return Ch setting is
set to Auto. You must select the TV/CD input selector and your TV must support ARC function.
When choosing a connection format, note that the receiver does not convert digital input signals for analog line outputs and vice versa. For example, audio signals connected to an optical or coaxial digital input are not output by the analog VCR/DVR OUT.
If signals are present at more than one input, the inputs are selected automatically in the following order of priority:
• HDMI
• Digital
• Analog
Connecting components with HDMI
Connect your components to the appropriate jacks. The default input assignments are shown below. To change assignments, see “Setting up HDMI input (HDMI Input menu)” on page 20.
Notes
• The AV receiver does not support SCART plugs.
• The AV receiver’s optical digital jacks have shutter-type covers that open when an optical plug is inserted and close when it’s removed. Push plugs in all the way.
Caution
To prevent shutter damage, hold the optical plug straight when inserting and removing.
Notes
• The on-screen setup menus appear only on a TV that is connected to the HDMI OUT. If your TV is connected to the MONITOR OUT V or the COMPONENT VIDEO OUT, use the receiver’s display when changing settings.
• The on-screen setup menus are displayed when there is no video input, or the video input is 480p, 576p, 720p, 1080i, or 1080p.
IN
MONITOR OUT
Blu-ray Disc, DVD player, etc.
TV, projector, etc.
Composite
Composite
Component
Component
Video Signal Flow Chart
HDMI
HDMI
Jack Signal Components Assignable
Input HDMI IN1 Audio/Video Blu-ray disc/DVD player X
HDMI IN2 Satellite, cable, set-top box X HDMI IN3 Game console X
Output HDMI OUT TV or projector
Tip
To listen to audio received by the HDMI IN jacks through your TV’s speakers:
• Set the TV Control setting to On for a CEC-compatible TV.
• Set the Audio TV OUT setting to On when the TV is not compatible with CEC or the TV Control setting is Off.
• Set your Blu-ray Disc/DVD player’s HDMI audio output setting to PCM.
• To listen to TV audio through the receiver, see “Connecting external components” on page 10.
IN
OUT
*1*
2
*
1
*
1
*
1
Blu-ray Disc, DVD player, etc.
TV, projector, etc.
HDMICoaxial Analog
Audio Signal Flow Chart
HDMI Analog
Optical
Game console
TV or projector
Blu-ray Disc/DVD player
Satellite, cable, or set-top box
10
Insignia NS-R5101AHD-A AV Home Theater Receiver
www.insigniaproducts.com
Using the audio return channel (ARC) function
The audio return channel (ARC) function lets an HDMI-capable TV send the audio stream to the HDMI OUT jack of the receiver. To use this function, you must select the TV/CD input selector and your TV must support the ARC function.
Connecting external components
Connect your components to the appropriate jacks. The default input assignments are shown below.To change assignments, see “Setting up Component input (Component menu)” on page 21.
*
Connect to a turntable (MM) that has a phono preamp built-in. If your turntable (MM) does not have a built-in preamp, you will need a commercially available phono preamp.
If your turntable has a moving coil (MC) type cartridge, you will need a commercially available MC head amp or MC transformer as well as a phono preamp. See your turntable’s manual for details.
Connecting recording components
Note
The on-screen setup menus appear only on a TV that is connected to the HDMI OUT jack. If your TV is connected to the MONITOR OUT V jack or the COMPONENT VIDEO OUT jack, use the receiver’s display when changing settings.
No. Jack Signal Components Assign.
1 AUX INPUT VIDEO Composite
video
Camcorder
AUDIO L/R Analog audio
2 DIGITAL IN OPTICAL
IN 1 (GAME)
Digital audio Game console X
IN 2 (TV/CD) TV or CD player X COAXIAL
IN 1 (BD/DVD)
Blu-ray disc/DVD player
X
3 COMPONENT
VIDEO
IN 1 (BD/DVD) Component
video
Blu-ray disc/DVD player
X
IN 2 (CBL/SAT) Satellite, cable,
set-top box
X
OUT TV or projector
4 MONITOR OUT Composite
video
TV or projector
BD/DVD IN Analog audio
and composite video
Blu-ray disc/DVD player
VCR/DVR IN VCR or DVD
recorder/Digital Video recorder
CBL/SAT IN Satellite, cable,
set-top box GAME IN Game console TV/CD IN Analog audio TV, CD player,
turntable*, cassette
tape player, MD,
CD-R
Notes
• The receiver can output audio and video signals from the AUX INPUT jacks to the VCR/DVR OUT jacks.
• With connection 2, you can enjoy Dolby Digital and DTS.
• With connection 4, if your Blu-ray Disc/DVD player has both main stereo and multichannel outputs, be sure to connect the main stereo.
• With the connections described above, you cannot record the video through the receiver. To make a connection for video recording, see the following section.
No. Jack Signal Components Assign.
AUDIO
IN
L R
VIDEO
IN
VCR or DVR Recorder
Cassette, CDR, or MD
To record audio and video from the same source input
OR
11
Insignia NS-R5101AHD-A AV Home Theater Receiver
www.insigniaproducts.com
AV Recording
Audio sources can be recorded to a recorder (such as a cassette deck, CDR, MD) connected to the VCR OUT jacks. Video sources can be recorded to a video recorder (such as a VCR or DVD recorder) connected to the VCR/DVR Out jack.
To record an audio source:
1 Use the input selector buttons to select the
source that you want to record. You can watch the source while recording. The receiver’s MASTER VOLUME control has no effect on recording.
2 Start recording on your recorder. 3 On the source component, start playback. If you
select another input source during recording, that input source will be recorded.
Recording Separate AV Sources
You can record audio and video from completely separate sources, allowing you to overdub audio onto your video recordings. This function takes advantage of the fact that when an audio-only input source (TV/CD) is selected, the video input source remains unchanged.
In the following example, audio from the CD player connected to the TV/CD IN jack and video from the camcorder connected to the AUX INPUT VIDEO jack are recorded by the VCR connected to the
VCR/DVR OUT jacks.
To record separate AV sources:
1 Prepare the camcorder and CD player for
playback and the VCR for recording.
2 Press the AUX input selector. 3 Press the TV/CD input selector. This selects the
CD player as the audio source, but leaves the camcorder as the video source.
4 Start recording on the VCR and start playback
on the camcorder and CD player. The video from the camcorder and the audio from the CD player are recorded by the VCR.
Connecting the power
To connect your receiver to power:
• Plug the power cord into an AC outlet.
What is Rocketboost™?
Rocketboost™ is expandable wireless digital audio.
• Products with Rocketboost™ technology let you easily expand your listening experience throughout your home.
• Rocketboost™ does not interfere with other wireless products in your home.
• Rocketboost™ is uncompressed digital audio compatible with all audio formats like Dolby TrueHD and DTS-HD Master Audio used with Blu-ray.
Notes
• The AV receiver must be turned on for recording. Recording is not possible while it’s in Standby mode.
• If you want to record directly from your TV or playback VCR to the recording VCR without going through the AV receiver, connect the TV/VCR’s audio and video outputs directly to the recording VCR’s audio and video inputs. See the manuals supplied with your TV and VCR for details.
• Video signals connected to composite video inputs can be recorded only via composite video outputs. If your TV/VCR is connected to a composite video input, the recording VCR must be connected to a composite video output.
• The surround sound and DSP listening modes cannot be recorded.
• Copy-protected Blu-ray discs and DVDs cannot be recorded.
• Sources connected to a digital input cannot be recorded. Only analog inputs can be recorded.
• DTS signals will be recorded as noise, so don’t attempt analog recording of DTS CDs or LDs.
CD player
VCR
To record the audio from one source input and the video from another source input
: Video signal : Audio signal
Camcorder
12
Insignia NS-R5101AHD-A AV Home Theater Receiver
www.insigniaproducts.com
When you see the Rocketboost™ logo on any product, it has been designed to work with other Rocketboost™ products, no matter who manufactures them.
How can I use Rocketboost with the NS-R5101AHD-A?
This product includes the NS-RB1 Rocketboost™ sender/receiver. The NS-RB1 can be used to receive any Rocketboost™ audio stream from your other Rocketboost™ products. For example, you can play music from audio sources that are in other rooms.
Plus, the NS-RB1 can be used to send audio from the NS-R101AHD-A. For example, you can connect your rear surround sound speakers, or even subwoofer, by using Rocketboost™ wireless instead of wires. You can also send Zone 2 audio from the NS-R101AHD-A to other rooms in your house. For these applications you will need additional Rocketboost™ products. You can learn more about Rocketboost™ products at www.rocketboost.com.
Initial Rocketboost setup
Connect the NS-RB1 cable to the Rocketboost™ Port on the back of the NS-R5101AHD-A receiver.
Adjust the antennas on the NS-RB1 as shown in the diagram.
If you are using Rocketboost™ to wirelessly send the audio signal to a subwoofer, then connect a subwoofer cable from the NS-R5101AHD-A receiver subwoofer pre-out jack to the NS-RB1 subwoofer in jack. If you are not using Rocketboost™ with a subwoofer then this connection should not be made.
Setting up the Sender
To set up the Sender:
1 Press the Power button on the NS-RB1
sender/receiver to turn it on.
2 Press the PORT input selector on the remote
control.
3 Press SOURCE/SETUP on the remote control to
enter the Source/Setup menu for the NS-RB1. This menu will appear on the TV connected to your receiver.
4 Press or to select Sender Setup, then
press ENTER.
5 Press or to select the Sender you want
(Zone 2, Surround, or Subwoofer).
Note to Onkyo Team: Please confirm these navigation steps.
MK
6 Press or to turn the selected Sender ON or
OFF.
Note to Onkyo Team: Please confirm these navigation steps.
MK
NS-RB1
Note
This is only required if you are using Rocketboost for your Zone2, Surround, or Subwoofer audio.
SUBWOOFER
NS-RB1
IN
Not supplied
Cable not provided
Source/Setup
Rocketfish RF-RBAUX(Aud...
Sender Setup
13
Insignia NS-R5101AHD-A AV Home Theater Receiver
www.insigniaproducts.com
Note to Onkyo Team: Please see this area. MK
Establishing communications
To establish communications:
1 Press the Power button on the NS-RB1
sender/receiver to turn it on.
2 Set the HUB STATUS switch to ENABLE if the
sender/receiver is to be used as the network hub, otherwise set to DISABLE.
• The power indicator lights green when the HUB STATUS switch is set to ENABLE.
• The power indicator lights blue when the HUB
STATUS switch is set to DISABLE.
3 Press and hold the Power button on the
sender/receiver for more than three seconds to put it into joining mode (it will remain in joining mode for 30 seconds). The power indicator LED starts blinking rapidly.
4 Press the Power/Join button on the
sender/receiver device (the one configured as the hub) for more than three seconds, so the sender and receiver will enter joining mode.
• When connected, the power indicator on both joining device and the hub will go solid, indicating the device is now connected to the network.
• The power indicator lights steadily if the link is activated between both of the units.
• The power indicator blinks at a slower rate if the communication link is not successful.
Listening to music from other Rocketboost products
To listen to music:
1 Press the Power button on the NS-RB1
sender/receiver to turn it on.
2 Press the PORT input selector on the remote
control.
3 Turn on your other Rocketboost™ sender device
(sold seperately) and make sure the audio source connected to that device is active.
• The Rx indicator should be lit if a source is active on the network. If not, check to make sure there is an active source.
• If there are multiple sources you may need to press the Source button on the NS-RB1 to find the source you wish to listen to. Each press will toggle through the available sources.
• You can also select the Rocketboost™ source using the NS-RB1 Source/Setup menu. To do this, press PORT on the remote control to enter the menu. This menu appears on the TV connected to your receiver. Then press or
to select the Source you want to listen to
and press the ENTER button to select it.
Listening to Zone 2 audio from your other Rocketboost products
Note to Onkyo Team: Please review this Zone 2 information. I don’t have the product to confirm this.
MK
To listen to Zone 2 audio from your other Rocketboost products:
1 Press the Power button on the NS-RB1
sender/receiver to turn it on.
2 Press Zone 2 on the remote control and then
press the input selector on the remote for the source you want to listen to. For example, to listen to the TUNER from zone 2, press Zone 2 and then press TUNER.
3 Use the NEXT SOURCE switch at the receiving
Rocketboost™ product to select the audio being sent on Zone 2 from the NS-RB1.
Note to Onkyo Team: Please confirm these navigation steps.
MK
Going into standby mode
To go to standby mode:
• Press the Power button and the standby indicator will light, indicating the device is in sleep mode.
Sender Signal Status
ZONE2 STEREO ON ZONE2 STEREO is ON ZONE2 STEREO OFF ZONE2 STEREO is OFF
Surround ON Surround signal is ON Surround OFF Surround signal is OFF Subwoofer ON Subwoofer signal is ON Subwoofer OFF Subwoofer signal is OFF
Note
Set the Sender signals to OFF for any signals (Zone2, Surround, or Subwoofer) that you are not using.
Note
Every Rocketboost network must contain a device called a Hub, which directs network data traffic and helps devices join the network. The network can have only one hub, which is selected using the Hub Status switch on the back of all Rocketboost senders. If you are setting up your network for the first time choose one of your Rocketboost senders to be your hub by setting the Hub Status switch to Enable. If you already have a Rocketboost network, then set the Hub Status switch on the NS-RB1 to disable. The Status LED lights green for the Rocketboost Hub device, and lights blue for all other Rocketboost devices.
Note
When the HUB STATUS is set to ENABLE, power remains on when your receiver is off. When the HUB STATUS is set to DISABLE, the power will be off when your receiver is off.
Zone2
On Off
Note
Use analog input only for Zone2. The audio signal of Zone2 is analog. If the input selector is connected to digital or HDMI input, no sound is produced.
14
Insignia NS-R5101AHD-A AV Home Theater Receiver
www.insigniaproducts.com
Installing batteries in the remote control
To install the batteries:
1 Remove the cover.
2 Insert two AA batteries into the compartment
matching the polarity indicated.
3 Replace the cover.
Using the remote control
Use the remote control by pointing it towards the receiver’s remote sensor window. Objects between the remote control and sensor window may prevent proper operation.
Use the remote control within about 16 feet (5 meters) of the receiver and within 30 degrees of perpendicular to the front of the receiver.
Using the Audyssey 2EQ® room correction and speaker setup
With the supplied calibration microphone, Audyssey 2EQ® automatically determines the number of speakers connected, their size (for purposes of bass management), optimum crossover frequencies to the subwoofer (if present), and distances from the primary listening position.
Audyssey 2EQ then removes the distortion caused by room acoustics by capturing room acoustical problems over the listening area in both the frequency and time domain. The result is clear, well-balanced sound for everyone.
Enabling Audyssey 2EQ lets you also use Audyssey Dynamic EQ®, which maintains the proper octave-to-octave balance at any volume level.
Before using this function, connect and position all of your speakers.
It takes about 15 minutes to complete the room correction and speaker setup for three positions. Total measurement time varies depending on the number of speakers.
Using Audyssey 2EQ®
To create a listening environment in your home theater that all listeners can enjoy, Audyssey 2EQ® takes measurements at up to three positions within the listening area.
Position the microphone at ear height of a seated listener with the microphone tip pointed directly at the ceiling using a tripod. Do not hold the microphone in your hand during measurements as this produces inaccurate results.
First measurement position (1)–Also referred to as the Main Listening Position this refers to the most central position where one would normally sit within the listening environment. 2EQ uses the measurements from this position to calculate speaker distance, level, polarity, and the optimum crossover value for the subwoofer.
Second measurement position (2)–The right side of the listening area.
Third measurement position (3)–The left side of the listening area.
The distances from position 1 to 2 and 1 to 3 must be at least 3.3 feet (1 meter).
Cautions
• If the remote control doesn’t work reliably, try replacing the batteries.
• Don’t mix new and old batteries or different types of batteries.
• If you intend not to use the remote control for a long time, remove the batteries to prevent damage from leakage or corrosion.
• Remove expired batteries as soon as possible to prevent damage from leakage or corrosion.
Cautions
• Do not expose the remote control to shock. In addition, do not expose the remote control to liquids, and do not place in an area with high humidity.
• Do not place the remote control under direct sunlight. The heat may cause deformation of the remote control.
• The remote control may not work properly if the remote sensor window of the receiver is under direct sunlight or strong lighting. In such a case, change the angle of the lighting or receiver, or operate the remote control closer to the remote sensor window.
Batteries (AA/R6)
Approx. 16 ft. (5 m)
Receiver
Remote control sensor
TV
15
Insignia NS-R5101AHD-A AV Home Theater Receiver
www.insigniaproducts.com
To use Audyssey to set up and correct your speakers:
1 Turn on the receiver and the connected TV. 2 On the TV, select the input to which the receiver
is connected.
3 Set the speaker setup microphone at the Main
Listening Position 1, and connect it to the SETUP MIC jack on the front of the receiver.
The speaker setting menu appears.
4 Press ENTER.
The room correction and speaker setup starts. Test tones are played through each speaker as Audyssey 2EQ® Room Correction and Speaker Setup runs. This process takes a few minutes. Refrain from talking during measurements and do not stand between speakers and the microphone. Do not disconnect the speaker setup microphone during the room correction and speaker setup unless you want to cancel the setup.
5 Place the setup microphone at the next
position, then press ENTER. Audyssey 2EQ® performs more measurements.
This takes a few minutes.
6 When prompted, place the setup microphone at
the next position, then repeat step 5.
7 Use or to select an option, then press
ENTER. The options are:
Save–To save the calculated settings and exit the room correction and speaker setup.
Cancel–To cancel the room correction and speaker setup.
8 Disconnect the speaker setup microphone.
Error Messages
While the room correction and speaker setup is in progress, one of the following error messages may appear:
Retry–Try again.
Cancel–Cancel the room correction and speaker setup.
Ambient noise is too high–The background noise is too loud. Remove the source of the noise and try again.
Speaker Matching Error!–The number of speakers detected was different from that of the first measurement. Check the speaker connection.
Writing Error!–This message appears if saving fails. Try saving again. If this message appears after two or three attempts, contact your Insignia dealer.
Speaker Detect Error–This message appears if a speaker is not detected. No means that no speaker was detected.
Changing the speaker settings manually
You can manually make changes to the settings found during the room correction and speaker setup.
See also:
• “Configuring speakers (Sp Config menu)” on page 21.
• “Setting speaker distance (Sp Distance menu)” on page 22.
• “Setting the level calibration (Level Cal menu)” on page 22.
Using the powered subwoofer
The powered subwoofer outputs very low-frequency sound at a low volume level, therefore it may not be detected by Audyssey 2EQ® Room Correction and Speaker Setup.
Notes
• Make the room as quiet as possible. Background noise and Radio Frequency Interference (RFI) can disrupt the room measurements. Close windows, and turn off televisions, radios, air conditioners, fluorescent lights, home appliances, light dimmers, or other devices. Silence the cell phone (even if it is not in use) or place it away from all audio electronics.
• The microphone picks up test tones which played through each speaker as Audyssey 2EQ Room Correction and Speaker Setup run.
Note
• Room correction and speaker setup cannot be performed while a pair of headphones is connected.
Note
The on-screen setup menus only appear on a TV that is connected to the HDMI OUT jack. If your TV is connected to the MONITOR OUT V or COMPONENT VIDEO OUT jacks, use the receiver’s display when changing the settings.
SETUP MIC jack
Speaker setup microphone
Note
You can view the calculated settings for the speaker configuration, speaker distances, and speaker levels by using or .
Notes
• When Audyssey 2EQ® Room Correction and
Speaker Setup is complete, Audyssey is set to On and the Audyssey indicator lights.
• You can cancel Audyssey 2EQ
® Room Correction
and Speaker Setup at any point in this procedure by disconnecting the setup microphone.
• Do not connect or disconnect any speakers during Audyssey 2EQ
® Room Correction and
Speaker Setup.
• If the receiver is muted, it will be unmuted automatically when Audyssey 2EQ
® Room
Correction and Speaker Setup starts.
• Changes to the room after Audyssey 2EQ
®
Room Correction and Speaker Setup requires that you run Audyssey 2EQ
® Room Correction
and Speaker Setup again, as room EQ characteristics may have changed.
16
Insignia NS-R5101AHD-A AV Home Theater Receiver
www.insigniaproducts.com
If Subwoofer appears on the Review Speaker
Configuration screen as No, increase the subwoofer’s volume to the half-way point, set it to its highest crossover frequency, and then try running Audyssey 2EQ® Room Correction and Speaker Setup again. Note that if the volume is set too high and the sound distorts, detection issues may occur, so use an appropriate volume level. If the subwoofer has a low-pass filter switch, set it to
Off or Direct.
Operating your receiver
Turning your receiver on and off
To turn your receiver on and off:
1 Press ON/STANDBY on the front panel.
- OR ­Press RECEIVER, then ON/STANDBY on the
remote control. The receiver turns on, the display lights, and the
STANDBY indicator turns off.
2 Press ON/STANDBY on the remote control
again. The receiver enters standby mode. To prevent any loud surprises when you turn on
the receiver, always turn down the volume before you turn it off.
Understanding basic operations
Playing a connected component
To play a connected component:
1 Press RECEIVER, then press INPUT SELECTOR
buttons to select the input source.
2 Start playback on the source component. 3 To adjust the volume, use the MASTER
VOLUME control.
4 Select a listening mode and enjoy!
See also “Using the listening modes” on page
18.
Displaying source information
To display source information:
• Press RECEIVER, then press DISPLAY repeatedly to cycle through the available information.
The following information can typically be displayed:
Using the music optimizer
The music optimizer enhances the sound quality of compressed music files.
To use the music optimizer:
1 Press AUDIO, then press or to select
M.Optimizer.
2 Press or to select On.
The M.Opt indicator lights on the display.
Setting the display brightness
You can adjust the brightness of the receiver’s display.
To set the display brightness:
• Press RECEIVER, then press DIMMER repeatedly to select: Dim, Dimmer, or Normal brightness.
Muting the receiver
To mute the receiver:
• Press RECEIVER, then press MUTING.
Notes
• The on-screen setup menus appear only on a TV that is connected to the HDMI OUT jack. If your TV is connected to the MONITOR OUT V or the COMPONENT VIDEO OUT jacks, use the receiver’s display when changing settings.
• This manual describes the procedure using the remote control unless otherwise specified.
Notes
• When AM or FM radio is used, the band, preset number, and frequency are displayed.
• If the input signal is analog, no format information is displayed. If the input signal is PCM, the sampling frequency is displayed. If the input signal is digital but not PCM, the signal format is displayed. Information is displayed for about three seconds, then the previously displayed information reappears.
• The input source is displayed with the default name even when you have selected a name. See “Naming inputs (Name Edit menu)” on page 24.
Notes
• The music optimizer function only works with PCM digital audio input signals with a sampling rate below 48 kHz and analog audio input signals. The music optimizer is disabled when the direct listening mode is selected.
• The setting is stored individually for each input selector.
Input source and volume
Signal format or sampling frequency
Input source and listening mode
17
Insignia NS-R5101AHD-A AV Home Theater Receiver
www.insigniaproducts.com
The output is muted and the MUTING indicator flashes on the display.
Using the sleep timer
With the sleep timer, you can set the receiver to turn off automatically after a specified period.
To use the sleep timer:
• Press RECEIVER, then press SLEEP repeatedly to select the sleep time you want.
The sleep time can be set from 90 to 10 minutes, in 10 minute steps.
The SLEEP indicator lights on the display when the sleep timer has been set. The specified sleep time appears on the display for about five seconds, then the previous display reappears.
Using headphones
To use headphones:
• Connect a pair of stereo headphones with a standard plug (1/4 inch or 6.3 mm) to the
PHONES jack.
Listening to your receiver
Important: The procedures described in this
section use the buttons on the front panel, unless otherwise specified.
Listening to the radio
With the built-in tuner you can enjoy AM and FM radio stations. You can store your favorite stations as presets for quick selection.
To listen to the radio:
• Press TUNER to select either AM or FM (each time you press TUNER, the radio band changes between AM and FM).
In this example, FM has been selected.
• To automatically tune to a station:
• Press TUNING MODE until the AUTO indicator appears on the display.
• Press TUNING or . The receiver automatically searches for stations and stops when a station is found.
- OR -
• To manually tune to a station:
• Press TUNING MODE until the AUTO indicator goes off.
• Press and hold TUNING or . The receiver tunes up or down the frequency band as long as you hold the button. Press the button repeatedly to tune up or down by steps.
- OR -
• To tune to a station by entering the frequency:
• Using the remote control, press TUNER repeatedly to select AM or FM, then press D.TUN.
• Within eight seconds, press the number buttons to enter the frequency of the radio station you want. For example, to tune to
87.50, press 8, 7, then 5.
Presetting FM or AM stations
You can store a combination of as many as 40 of your favorite AM or FM stations as presets.
To store a station as a preset:
1 Tune to the FM or AM station that you want to
store as a preset. See “Listening to the radio” on page 17 for information on tuning your receiver.
2 Press MEMORY. The preset number flashes. 3 While the preset number is flashing (about eight
seconds), press PRESET or to select a preset number from one through 40.
4 Press MEMORY again to store the station or
channel. The station or channel is stored and the preset number stops flashing.
Tip
• To unmute, press MUTING again or adjust the volume.
• Muting is also cancelled when the receiver is set to Standby.
Tip
• To cancel the sleep timer, press SLEEP repeatedly until the SLEEP indicator goes off.
• To check the time remaining until the receiver turns off, press SLEEP. If you press SLEEP while the sleep time is being displayed, the sleep time is shortened by 10 minutes.
Tip
• Always turn down the volume before connecting your headphones.
• While the headphones plug is inserted in the PHONES jack, the speakers are turned off.
• When you connect a pair of headphones, the listening mode is set to Stereo, unless it is already set to Stereo, Mono, or Direct.
• The listening modes cannot be selected while a pair of headphones is connected.
Band
Frequency
Tip
You can also press the TUNE MODE and arrow buttons on the remote control.
Tip
• In Manual Tuning mode, FM stations are in mono.
• If the signal from a stereo FM station is weak, it may be impossible to get good reception. In this case, switch to Manual Tuning mode and listen to the station in mono.
• You can also press the TUNE MODE and arrow buttons on the remote control.
AUTO
FM Stereo
TUNED
18
Insignia NS-R5101AHD-A AV Home Theater Receiver
www.insigniaproducts.com
5 Repeat steps 1 through 4 to preset your favorite
radio stations.
Tuning to a preset station
To tune to a preset station:
• To select a preset, press PRESET or on the receiver, or press CH +/– on the remote control.
Deleting preset stations
To delete a preset station:
1 Select the preset you want to delete. 2 Press TUNING MODE while pressing and
holding MEMORY. The preset is deleted and its number disappears from the display.
Using the listening modes
The receiver’s listening modes can transform your listening room into a movie theater or concert hall, with high fidelity and stunning surround sound.
The following audio formats are supported by the listening modes:
MONO–This is mono (monophonic) sound. All the audio signals are mixed and reproduced through a single speaker.
STEREO–This is stereo (stereophonic) sound. Two independent audio signal channels are reproduced through two speakers.
5.1ch–This is 5.1-channel surround sound. This surround system has five main channels of sound and a sixth subwoofer channel (called the point-one channel).
7.1ch–This is 7.1-channel surround sound. This is a further sound enhancement to 5.1 channel sound with two additional speakers that provide greater sound envelopment and more accurate positioning of sounds. The receiver outputs this source in 5.1-channel surround sound.
Selecting a listening mode
To select a listening mode:
• Press one of the following buttons. If you are using the remote control, press the RECEIVER button first. See “Listening modes” on page 18, and “Insignia-Original Listening Modes” on page 19 for information on listening modes.
MOVIE/TV–This button selects the listening modes intended for use with movies and TV.
MUSIC–This button selects the listening modes intended for use with music.
GAME–This button selects the listening modes intended for use with video games.
STEREO–This button selects the Stereo listening mode and All Channel Stereo listening mode.
Listening modes
These listening modes become available when one of the buttons described in “Selecting a listening mode” on page 18 are pushed. The optional modes available depend on which button is pushed.
Tip
You can also press the number buttons on the remote control to select a preset station directly.
Notes
• You can only select the Dolby Digital and DTS listening modes if your Blu-ray Disc/DVD player is connected to the receiver with a digital audio connection (coaxial, optical, or HDMI).
• The listening mode you can select depends on the format of the input signal. To check the format, see “Displaying source information” on page 16.
• You can only select Mono, Direct, and Stereo listening modes with a pair of headphones is connected.
• Listening modes cannot be selected while a pair of headphones is connected.
Listening Mode Description
Input Source
Speaker Layout
Direct (Direct)
In this mode, audio from the input source is output without surround-sound processing. The “Sp Config (Speaker Configuration)” (presence of speakers), “Sp Distance (Speaker Distance)” and “A/V Sync (A/V Sync)” settings are enabled, but much of the processing set via AUDIO is disabled. See “Using advanced setup” on page 20 for more details.
MONO STEREO
5.1ch
7.1ch
2.1, 3.1, 5.1
Stereo (Stereo)
Sound is output by the front left and right speakers and subwoofer. MONO
STEREO
5.1ch
7.1ch
2.1, 3.1, 5.1
Mono (Mono)
Use this mode when watching an old movie with a mono soundtrack, or use it with the foreign language soundtracks recorded in the left and right channels of some movies. It can also be used with DVDs or other sources containing multiplexed audio, such as karaoke DVDs.
MONO STEREO
5.1ch
7.1ch
2.1, 3.1, 5.1
Multichannel
(Multich)
Multichannel This mode is for use with PCM multichannel sources. 5.1ch
7.1ch
3.1, 5.1
Dolby Pro Logic II
(PL II Movie)
(PL II Music)
(PL II Game)
Dolby Pro Logic II Dolby Pro Logic II expands any 2-channel source for 5.1-channel playback. It provides a very natural and seamless surround-sound experience that fully envelops the listener. As well as music and movies, video games can also benefit from the dramatic spatial effects and vivid imaging.
• Dolby PLII Movie–Use this mode with DVDs and videos that bear the Dolby Surround logo or TV shows that feature Dolby Surround. You can also use this mode with stereo movies or TV shows and the receiver creates a 5.1 surround mix from the 2-channel stereo.
• Dolby PLII Music–Use this mode to add 5.1 surround to stereo sources such as music CDs and DVDs.
• Dolby PLII Game–Use this mode when playing game discs.
STEREO 3.1, 5.1
19
Insignia NS-R5101AHD-A AV Home Theater Receiver
www.insigniaproducts.com
1
Dolby Digital is used for Blu-ray discs.
2
The receiver can use the DSD signal from HDMI IN. Setting the output on the player side to PCM might provide better sound to the player.
3
Depending on the input source, DTS is used.
Insignia-Original Listening Modes
Dolby Digital
(Dolby D)
Dolby Digital In this mode, audio from the input source is output without surround-sound processing. Sp Config (Speaker Configuration), (presence of speakers), Crossover (Crossover Frequency), Sp Distance (Speaker Distance),
A/V Sync (A/V Sync), and much of the processing set via AUDIO are enabled. See “Using advanced setup” on page 20.
5.1ch 3.1, 5.1
Dolby Digital
Plus
1
(Dolby D+)
In this mode, audio from the input source is output without surround-sound processing. Sp Config (Speaker Configuration), (presence of speakers), Crossover (Crossover Frequency), Sp Distance (Speaker Distance),
A/V Sync (A/V Sync), and much of the processing set via AUDIO are enabled. See “Using advanced setup” on page 20.
5.1ch
7.1ch
3.1, 5.1
Dolby TrueHD
(Dolby TrueHD)
In this mode, audio from the input source is output without surround-sound processing. Sp Config (Speaker Configuration), (presence of speakers), Crossover (Crossover Frequency), Sp Distance (Speaker Distance),
A/V Sync (A/V Sync), and much of the processing set via AUDIO are enabled. See “Using advanced setup” on page 20.
5.1ch
7.1ch
3.1, 5.1
DTS (DTS)
In this mode, audio from the input source is output without surround-sound processing. Sp Config (Speaker Configuration), (presence of speakers), Crossover (Crossover Frequency), Sp Distance (Speaker Distance),
A/V Sync (A/V Sync), and much of the processing set via AUDIO are enabled. See “Using advanced setup” on page 20.
5.1ch 3.1, 5.1
DTS-HD High
Resolution Audio
(DTS-HD HR)
In this mode, audio from the input source is output without surround-sound processing. Sp Config (Speaker Configuration), (presence of speakers), Crossover (Crossover Frequency), Sp Distance (Speaker Distance),
A/V Sync (A/V Sync), and much of the processing set via AUDIO are enabled. See “Using advanced setup” on page 20.
5.1ch
7.1ch
3.1, 5.1
DTS-HD Master
Audio
(DTS-HD MSTR)
In this mode, audio from the input source is output without surround-sound processing. Sp Config (Speaker Configuration), (presence of speakers), Crossover (Crossover Frequency), Sp Distance (Speaker Distance),
A/V Sync (A/V Sync), and much of the processing set via AUDIO are enabled. See “Using advanced setup” on page 20.
5.1ch
7.1ch
3.1, 5.1
DTS Express
(DTS Express)
In this mode, audio from the input source is output without surround-sound processing. Sp Config (Speaker Configuration), (presence of speakers), Crossover (Crossover Frequency), Sp Distance (Speaker Distance),
A/V Sync (A/V Sync), and much of the processing set via AUDIO are enabled. See “Using advanced setup” on page 20.
STEREO
5.1ch
3.1, 5.1
DSD
2
(DSD)
In this mode, audio from the input source is output without surround-sound processing. Sp Config (Speaker Configuration), (presence of speakers), Crossover (Crossover Frequency), Sp Distance (Speaker Distance),
A/V Sync (A/V Sync), and much of the processing set via AUDIO are enabled. See “Using advanced setup” on page 20.
5.1ch 3.1, 5.1
DTS 96/24
3
(DTS 96/24)
This mode is for use with DTS 96/24 sources. This is high-resolution DTS with a 96 kHz sampling rate and 24-bit resolution, providing superior fidelity. Use it with DVDs that bear the DTS 96/24 logo.
5.1ch 3.1, 5.1
DTS Neo:6
(Neo : 6Cinema)
(Neo : 6Movie)
This mode expands any 2-channel source for up to 5.1-channel playback. It uses seven full-bandwidth channels of matrix decoding for matrix-encoded material, providing a very natural and seamless surround sound experience that fully envelops the listener.
Neo:6 Cinema–Use this mode with any stereo movie (such as TV, DVD, VHS).
Neo:6 Music–Use this mode with any stereo music source (such as CD, radio, cassette, TV, VHS, DVD).
STEREO 3.1, 5.1
Listening Mode Description
Input Source
Speaker Layout
Listening Mode Description Input Source Speaker Layout
Orchestra
(Orchestra)
Suitable for classical or operatic music, this mode emphasizes the surround channels in order to widen the stereo image, and simulates the natural reverberation of a large hall.
MONO STEREO
5.1ch
5.1
Unplugged
(Unplugged)
Suitable for acoustic instruments, vocals, and jazz, this mode emphasizes the front stereo image, giving the impression of being right in front of the stage.
MONO STEREO
5.1ch
5.1
Studio-Mix
(Studio-Mix)
Suitable for rock or pop music, listening to music in this mode creates a lively sound field with a powerful acoustic image, like being at a club or rock concert.
MONO STEREO
5.1ch
5.1
TV Logic
(TV Logic)
This mode adds realistic acoustics to TV shows produced in a TV studio, surround effects to the entire sound, and clarity to voices.
MONO STEREO
5.1ch
5.1
Game-RPG
(Game - RPG)
Use this mode when playing role playing game discs. MONO
STEREO
5.1ch
5.1
Game-Action
(Game - Action)
Use this mode when playing action game discs. MONO
STEREO
5.1ch
5.1
Game-Rock
(Game - Rock)
Use this mode when playing rock game discs. MONO
STEREO
5.1ch
5.1
Game-Sports
(Game - Sports)
Use this mode when playing sports game discs. MONO
STEREO
5.1ch
5.1
20
Insignia NS-R5101AHD-A AV Home Theater Receiver
www.insigniaproducts.com
Speaker layout
The following shows the speakers that are activated in each type of configuration.
Using advanced setup
Using on-screen setup menus
On-screen setup menus appear on the connected TV and provide a convenient way to change the receiver’s various settings. Settings are organized into nine categories on the main menu.
You can change the settings by using the on-screen display.
To use the on-screen setup menus:
1 Press RECEIVER, then press SETUP. The Setup
menu opens.
2 Press or to select a menu, then press
ENTER.
3 Press or to select an option, then press
or to change the setting.
4 Press SETUP to close the menu.
5 Press RETURN to return to the main menu.
Setting up HDMI input (HDMI Input menu)
If you connect a video component to HDMI inputs, you must assign that input to an input selector. For example, if you connect your Blu-ray Disc/DVD player to HDMI IN 2, you must assign HDMI2 to the BD/DVD input selector.
Here are the default assignments:
HDMI1, HDMI2, HDMI3–Select the HDMI input to which the video component has been connected.
- - - - -–Select if you’re not using the HDMI OUT.
All Ch Stereo
(All Ch St)
Ideal for background music, this mode fills the entire listening area with stereo sound from the front, surround, and surround back speakers.
MONO STEREO
5.1ch
7.1ch
3.1, 5.1
Full Mono
(Full Mono)
In this mode, all speakers output the same sound in mono, so the sound you hear is the same regardless of where you are within the listening room.
MONO STEREO
5.1ch
7.1ch
3.1, 5.1
T-D (Theater-
Dimensional)
(T-D)
With this mode you can enjoy a virtual surround sound even with only two or three speakers. This works by controlling how sounds reach the listener’s left and right ears. Good results may not be possible if there is too much reverb, so we recommend that you use this mode in an environment with little or no natural reverb.
MONO STEREO
5.1ch
7.1ch
2.1, 3.1, 5.1
Listening Mode Description Input Source Speaker Layout
Z X C
b
a
c
d
2.1ch
3.1ch
5.1ch
a - Front speakers b - Center speaker c - Subwoofer d - Surround speakers
Tip
If the main menu doesn’t appear, make sure the appropriate external input is selected on your TV.
Setup Menu
1. HDMI Input
2. Component
3. Digital Audio
4. Sp Config
5. Sp Distance
6. Level Cal
7. Audio Adjust
8. Name Edit
9. HDMI Setup
Tip
You can also performed these changes on the receiver by pressing SETUP, the arrow buttons, then ENTER.
Input selector Default assignment
BD/DVD HDMI1 VCR/DVR -----­CBL/SAT HDMI2 GAME HDMI3 AUX -----­TV/CD -----­PORT ------
21
Insignia NS-R5101AHD-A AV Home Theater Receiver
www.insigniaproducts.com
Each HDMI input can only be assigned to a single input selector. When HDMI1 - HDMI3 have already been assigned, you must first set unused input selectors to “- - - - -,” or you cannot assign HDMI1 ­HDMI3 to an input selector.
Setting up Component input (Component menu)
If you connect a video component to a component video input, you must assign that input to an input selector. For example, if you connect your Blu-ray Disc/DVD player to COMPONENT VIDEO IN 2, you must assign IN2 to the BD/DVD input selector.
Here are the default assignments:
IN1, IN2–Select the component input to which the video component has been connected.
- - - - -–Select if you’re not using the COMPONENT VIDEO OUT.
Setting up Digital Audio (Digital Audio menu)
If you connect a component to a digital audio input, you must assign that input to an input selector. For example, if you connect your CD player to the OPTICAL IN 1, you must assign OPT1 to the TV/CD input selector.
Here are the default assignments:
COAX, OPT1, OPT2–Select the digital audio input to which the video component has been connected.
- - - - -–Select if you are using an analog audio input.
Configuring speakers (Sp Config menu)
This section explains how to specify which speakers are connected and defines their sizes.
For speakers with a cone diameter larger than 6.5 inches (16 cm), specify Large (full band). For those with a smaller diameter, specify Small
(default
crossover 150Hz).
The crossover frequency can be changed in the Crossover submenu.
Setting the crossover frequency (Crossover Frequency submenu of Sp Config menu)
This setting is recommended for the speakers that you specify as Small. To get the best bass performance from your speaker system, you need to set the crossover frequency according to the size and frequency response of your speakers. Options include 40Hz, 50Hz, 60Hz, 80Hz, 100Hz, 120Hz, 150Hz, and 200Hz.
Notes
• When an HDMI IN is assigned to an input selector as explained here, the digital audio input for that input selector is automatically set to the same HDMI IN.
• If you connect NS-RB1 to the ROCKETBOOST
PORT jack, you can not assign any input to the PORT selector.
• Do not assign the component connected with the HDMI input to a TV/CD selector when you set the TV Control setting to On. Otherwise, the appropriate CEC (Consumer Electronics Control) operation can not be guaranteed.
Tip
If you connect NS-RB1 to the ROCKETBOOST PORT jack, you can not assign any input to the PORT selector.
Input selector Default assignment
BD/DVD IN1 VCR/DVR -----­CBL/SAT IN2 GAME -----­AUX -----­TV/CD -----­PORT ------
Input selector Default assignment
BD/DVD COAX VCR/DVR -----­CBL/SAT -----­GAME OPT1 AUX -----­TV/CD OPT2 PORT ------
Notes
• When an HDMI IN is assigned to an input selector as explained here, the digital audio input for that input selector is automatically set to the same HDMI IN. In addition to the usual inputs, such as COAX, you can also select HDMI inputs.
• The available sampling rate for PCM signals from a digital input (optical and coaxial) is 32/44.1/48/88.2/96 kHz/16, 20, 24 bit.
• If you connect NS-RB1 to the ROCKETBOOST
PORT jack, you cannot assign any input to the PORT selector.
Note
Some of the settings in this section are made automatically by the Audyssey 2EQ® Room Correction and setup function. See “Using the Audyssey 2EQ® room correction and speaker setup” on page 14.
Note
Speaker Configuration, Crossover Frequency, and Double Bass settings are disabled while headphones are connected, or when Audio TV OUT is set to On.
Speaker(s) Configuration
Subwoofer
Yes–if a subwoofer is connected. No–if no subwoofer is connected.
Front
Small–If speaker cone is 6.5 inches (16 cm) or less in
diameter. Large–If speaker cone is larger than 6.5 inches (16 cm)
in diameter. Note: If the Subwoofer setting is No, the default setting
for this is Large and cannot be changed.
Center and Surround
Small–If speaker cone is 6.5 inches (16 cm) or less in
diameter. Large–If speaker cone is larger than 6.5 inches (16 cm)
in diameter.
None–If no center speaker is connected. Note: If the Front setting is Small, the Large option
cannot be selected.
22
Insignia NS-R5101AHD-A AV Home Theater Receiver
www.insigniaproducts.com
Use the diameter of the smallest speaker in your system when choosing the crossover frequency.
Using the Double Bass setting (Double Bass submenu of Sp Config menu)
Lets you boost bass output by feeding bass sounds from the front left, right, and center channels to the subwoofer. Optional settings are On and Off.
Setting the Wireless Surround/Subwoofer
Set when using the wireless surround or subwoofer speakers with the NS-RB1. Optional settings are On and Off.
Setting speaker distance (Sp Distance menu)
Lets you specify the distance from each speaker to the listening position so that the sound from each speaker arrives at the listener’s ears as the sound designer intended.
Setting the level calibration (Level Cal menu)
Lets you adjust the level of each speaker with the built-in test tone so that the volume of each speaker is the same at the listening position.
Adjusting the audio (Audio Adjust menu)
With the audio adjust settings you can adjust the sound and listening modes to your taste.
Setting the Multiplex (Input Ch(Mux) submenu) and Mono (Input Ch(Mono) submenu)
The multiplex setting determines which channel of a stereo multiplex source is output. Use it to select audio channels or languages with multiplex sources, multilingual TV broadcasts, and so on.
Speaker cone diameter
Recommended Crossover Frequency
Over 8 in. (20 cm) 40/50/60 Hz 6-1/2 to 8 in. (16 to 20 cm) 80 Hz 5-1/4 to 6-1/2 in. (13 to 16 cm) 100 Hz 3-1/2 to 5-1/4 in. (9 to 13 cm) 120 Hz Under 3-1/2 in. (9 cm) 150/200 Hz
Notes
• For a more accurate setting, look up your speaker’s specifications.
• Choose a higher crossover frequency if you want more sound from your subwoofer.
Note
This function can only be set if the Subwoofer setting is Yes, and the Front setting is Large. This setting is not made by Audyssey 2EQ®.
Note
This setting is made automatically by the Audyssey 2EQ® Room Correction and setup function. See “Using the Audyssey 2EQ® room correction and speaker setup” on page 14.
Option Configuration
Unit
Feet (default)–Distances can be set from 1 to 30
feet, in one foot increments. Meters–Distances can be set from 0.3 to 9.0 meters,
in 0.3 meter increments.
Left, Center, Right, Surround Right, Surround Left, Subwoofer
Specify the distance from each speaker to your listening position.
Notes
• The speaker distance setting is disabled while headphones are connected, or when Audio TV OUT is set to On.
• Speakers that you set to No or None in the speaker configuration (Sp Config menu) cannot be selected.
• The Center, Right, and Subwoofer distances can be set up to 5 ft. (1.5 m) more or less than the Left distance. For example, if the Left distance is set to 20 ft. (6 m), the Center, Right, and Subwoofer distances can be set between 15 and 25 ft. (4.5 and 7.5 m).
• The Surround distances can be set up to 5 ft. (1.5 m) more or 15 ft. (4.5 m) less than the Left distance. For example, if the Left distance is set to 20 ft. (6 m), the SurrRight and SurrLeft distances can be set between 5 and 25 ft. (1.5 and 7.5 m).
Note
This setting is made automatically by the Audyssey 2EQ® Room Correction and setup function. See “Using the Audyssey 2EQ® room correction and speaker setup” on page 14.
Option Configuration
Left, Center, Right, Surround Right, Surround Left
-12 dB to 0 dB to +12 dB, in 1 dB steps.
Subwoofer
-15 dB to 0 dB to +12 dB, in 1 dB steps.
Notes
• The speaker level setting is disabled while headphones are connected, or the receiver is muted, or the Audio TV OUT setting is set to ON.
• Speakers that you set to No or None in the speaker configuration (Sp Config menu) cannot be selected.
• The center speaker and subwoofer level settings made by using AUDIO are saved here as the default settings.
Tip
If you’re using a handheld sound level meter, adjust the level of each speaker so that it reads 75 dB SPL at the listening position, measured with C-weighting and slow reading.
23
Insignia NS-R5101AHD-A AV Home Theater Receiver
www.insigniaproducts.com
The mono setting specifies the channel to be used for playing any 2-channel digital source, such as Dolby Digital, or 2- channel analog/PCM source in the Mono listening mode.
Setting the Dolby options (Panorama, Dimension, and Center Width submenus)
These settings only apply to 2-channel stereo sources.
The Panorama setting lets you broaden the width of the front stereo image when using the Dolby Pro Logic II Music listening mode.
The Dimension setting lets you move the sound field forward or backward when using the Dolby Pro Logic II Music listening mode. Higher settings move the sound field backward. Lower settings move it forward. If the stereo image feels too wide, or there’s too much surround sound, move the sound field forward to improve the balance. Conversely, if the stereo image feels like it’s in mono, or there’s not enough surround sound, move it backward.
The Center Width setting lets you adjust the width of the sound from the center speaker when using the Dolby Pro Logic II Music listening mode. Normally, if you’re using a center speaker, the center channel sound is output by only the center speaker. (If you’re not using a center speaker, the center channel sound is distributed to the front left and right speakers to create a phantom center). This setting controls the front left, right, and center mix, allowing you to adjust the weight of the center channel sound.
Setting the DTS options (Center Image submenu)
The DTS Neo:6 Music listening mode lets you create 6-channel surround sound from 2-channel stereo sources. With this setting, you can specify by how much the front left and right channel output is attenuated in order to create the center channel.
A value 0 is only audible from the center speaker. A value of more than 0 is audible from the left and right speakers as well.
Adjusting the Audyssey settings (Audyssey 2EQ®, Dynamic EQ®, Dynamic Volume® and Reference Level submenus
Audyssey 2EQ® is a room equalization solution that calibrates any audio system so that it can achieve optimum performance for every listener in a large listening area. Based on several room measurements, 2EQ calculates an equalization solution that corrects for both time and frequency response problems in the listening area and performs a fully automated surround system setup.
With Audyssey Dynamic EQ®, you can enjoy great sound even when listening at low volume levels. Audyssey Dynamic EQ® solves the problem of deteriorating sound quality as volume is decreased by taking into account human perception and room acoustics. It does so by selecting the correct frequency response and surround volume levels moment-by-moment, so that the content sounds the way it was created, at any volume level — not just at reference level.
Movies are mixed in rooms calibrated for film reference. To achieve the same reference level in a home theater system, each speaker level must be adjusted so that –30 dBFS band-limited (500 Hz to 2000 Hz) pink noise produces 75 dB sound pressure level at the listening position. A home theater system automatically calibrated by Audyssey 2EQ® plays at reference level when the master volume control is set to the 0 dB position. At that level you can hear the mix as the mixers heard it.
Audyssey Dynamic EQ® is referenced to the standard film mix level. It makes adjustments to maintain the reference response and surround envelopment when the volume is turned down from 0 dB. However, film reference level is not always used in music or other non-film content. The Dynamic EQ Reference Level Offset provides three offsets from the film level reference (5 dB, 10 dB, and 15 dB) that can be selected when the mix level of the content is not within the standard.
Option Settings
Multiplex
Main (default)–The main channel is output.
Sub–The sub channel is output.
M/S–Both the main and sub channels are output.
Mono
L+R–Both the left and right channels are output. Left–Only the left channel is output. Right–Only the right channel is output.
Submenu Configuration
Panorama
On– Turns the Panorama function on. Off–Turns the Panorama function off.
Dimension
–3 to 0 to +3
Center Width
0 to 3 to 7
Submenu Configuration
Center Image
0 to 2 (default) to 5
Note
The setting is stored individually for each input selector.
Submenu Configuration
Audyssey
Off–No Audyssey 2EQ equalizing is applied. On–Dynamic EQ
® and Dynamic Volume® become
available. The Audyssey indicator lights.
Dynamic EQ
Off (default)–Audyssey Dynamic EQ off. On–Audyssey Dynamic EQ on. The Dynamic EQ
®
indicator lights.
24
Insignia NS-R5101AHD-A AV Home Theater Receiver
www.insigniaproducts.com
Note
About Audyssey Dynamic EQ® Audyssey Dynamic EQ® solves the problem of
deteriorating sound quality as volume is decreased by taking into account human perception and room acoustics.
Dynamic EQ® selects the correct frequency response and surround levels moment-by-moment at any user selected volume setting. The result is bass response, tonal balance, and surround impression that remain constant despite changes in volume. Dynamic EQ® combines information from incoming source levels with actual output sound levels in the room, a prerequisite for delivering a loudness correction solution.
Audyssey Dynamic EQ® works in tandem with Audyssey 2EQ to provide well-balanced sound for every listener at any volume level.
About Audyssey Dynamic Volume® Audyssey Dynamic Volume® solves the problem of
large variations in volume level between television programs, commercials, and between the soft and loud passages of movies. Audyssey Dynamic Volume® looks at the preferred volume setting by the user and then monitors how the volume of program material is being perceived by listeners in real time to decide whether an adjustment is needed. Whenever necessary, Audyssey Dynamic Volume® makes the necessary rapid or gradual adjustments to maintain the desired playback volume level while optimizing the dynamic range. Audyssey Dynamic EQ® is integrated into Audyssey Dynamic Volume® so that as the playback volume is adjusted automatically, the perceived bass response, tonal balance, surround impression, and dialog clarity remain the same whether watching movies, flipping between television channels, or changing from stereo to surround sound content.
Adjusting the Theater-Dimensional setting (Listening Angle submenu)
This setting lets you optimize the Theater-Dimensional listening mode by specifying the angle of the front left and right speakers relative to the listening position. Ideally, the front left and right speakers should be equidistant from the listening position and at an angle close to one of the two available settings.
Naming inputs (Name Edit menu)
You can enter a preset name for each individual input selector for easy identification. When entered, the preset name appears on the display.
Before selecting a name, press the input selector to select the input source to name.
Setting up HDMI (HDMI Setup menu)
Reference Level
0 dB (default)–Use when listening to movies. 5 dB–Select this setting for content that has a very
wide dynamic range, such as classical music. 10 dB–Select this setting for jazz or other music that
has a wider dynamic range. This setting should also be selected for TV content as that is usually mixed at 10 dB below film reference.
15 dB–Select this setting for pop/rock music or other program material that is mixed at very high listening levels and has a compressed dynamic range.
Dynamic Volume
Off (default)–Audyssey Dynamic Volume® off. Light–Light Compression Mode becomes active. Medium–Medium Compression Mode becomes
active. Heavy–Heavy Compression Mode becomes active.
This setting affects volume the most, causing all sounds to be of equal loudness.
Notes
• The setting is stored individually for each input selector. If you make Audyssey Dynamic
Volume
® active, Audyssey and Dynamic EQ
settings are set to On. The Dynamic Vol indicator lights.
Submenu Configuration
Submenu Options
Listening Angle
Wide (default)–The listening angle is 40 degrees. Narrow–The listening angle is 20 degrees.
Submenu Options
Name Edit
- - -, Blu-ray, DVD, HD DVD, VCR, DVR, Tivo, CableSTB, SAT STB, PS3, Wii, Xbox, PC, TV, CD, TAPE, and iPod.
To reset to the default, select - - -.
Notes
• Two different inputs cannot have the same name.
• This menu cannot be used for the TUNER input selector.
Submenu Configuration
Audio TV OUT
Off (default)–HDMI audio is not output. On–HDMI audio is output.
LipSync
Disable (default)–HDMI lip sync disabled. Enable–HDMI lip sync enabled.
CEC Function
Off (default)–CEC disabled. On–CEC enabled.
Audio Return Ch (ARC)
Off–Select if you don’t want to use audio return
channel (ARC) function. Auto (default)–The audio signal from your TV tuner
can be sent digitally to the HDMI OUT of the receiver.
20°/40°
25
Insignia NS-R5101AHD-A AV Home Theater Receiver
www.insigniaproducts.com
Audio TV OUT (Audio TV Out submenu)
This setting determines whether audio received by HDMI IN is output by the HDMI OUT. You may want to turn this preference on if your TV is connected to the HDMI OUT and you want to listen to the audio from a component that’s connected to an HDMI IN, through your TV’s speakers. Normally, this should be set to Off.
LipSync (LipSync submenu)
Lets you set the receiver to automatically correct any delay between the video and the audio, based on the data from the connected monitor.
CEC Function (HDMI Control submenu)
This function lets CEC-compatible components connected via HDMI to be controlled by the receiver.
Audio Return Ch (ARC)(Audio Return Ch submenu)
The audio return channel (ARC) function enables an HDMI 1.4-capable TV to send the audio stream to the HDMI OUT jack of the receiver. To use this function, you must select the TV/CD input and your TV must support the ARC function.
Power Control (Power Control submenu)
To link the power functions of CEC-compatible components connected via HDMI, select On. This is set to On automatically when HDMI Control is set to On first time.
Power Control
Off–Power Control disabled. On (default)–Power Control enabled.
TV Control
Off–TV Control disabled. On (default)–TV Control enabled.
Notes
• If On is selected and the signal can be output by the TV, the receiver outputs no sound through its speakers.
• If On is selected, TV Sp On appears on the display when you press DISPLAY.
• When TV Control is set to On, this setting default is Auto.
• With some TVs and input signals, no sound may be output, even when this setting is On.
• When the Audio TV OUT or TV Control are set to On, and you are listening through your TV’s speakers, if you turn up the receiver’s volume control, the sound is output by the receiver’s front left and right speakers. To stop the receiver’s speakers from producing sound, change the settings, change your TV’s settings, or turn down the receiver’s volume.
Notes
• This function only works if your HDMI-compatible TV supports HDMI Lip Sync.
• You can check the amount of delay being applied by the HDMI Lip Sync function on the A/V Sync screen.
Submenu Configuration
Notes
• When set to On, the name of connected CEC-compatible components and CEC On are displayed on the receiver when the menu is closed.
• When set to Off, CEC Off is displayed on the receiver when the menu is closed.
• When a CEC-compatible component is connected to the receiver via HDMI cable, the name of the connected component is displayed on the receiver. For example, when you are watching TV, if you turn on a Blu-ray Disc/DVD player by the receiver’s remote control, the name of the Blu-ray Disc/DVD player is displayed on the receiver.
• Set to Off when a connected piece of equipment is not compatible or it is unclear whether the equipment is compatible or not.
• If movement is unnatural when set to On, change the setting to Off.
• Refer to the connected component’s instruction manual for details.
Notes
• The Audio Return Ch setting can only be set when HDMI Control is On.
• This setting is set to Auto automatically when HDMI Control is set to On first time.
Notes
• The Power Control can only be set when the HDMI Control setting is On.
• HDMI power control only works with CEC-compatible components that support it and may not work with some components.
• When set to On, power consumption increases.
• When set to On, regardless of whether the receiver is On or in Standby, both audio and video stream from an HDMI input is output to the TV or other components via HDMI connection (HDMI pass-through function). When the HDMI pass-through function activates in standby mode, the HDMI THRU indicator lights.
• The power consumption during standby mode increases during the HDMI pass-through, however when the TV is in standby mode or you are watching a TV program, power consumption can be improved.
• Refer to the connected component’s instruction manual for details.
26
Insignia NS-R5101AHD-A AV Home Theater Receiver
www.insigniaproducts.com
TV Control (TV Control submenu)
Set to On when you want to control the receiver from a CEC-compatible TV that is connected to HDMI.
Changing audio settings
You can change various audio settings by pressing
AUDIO on the remote control.
To change audio settings:
1 Press RECEIVER on the remote control, then
press AUDIO.
2 Press or to select an option, then press
or to change the setting. Repeat this step
to change additional settings.
Changing tone control settings
You can adjust the bass and treble for the front speakers, except when the Direct listening mode is selected. Options include:
Bass–You can boost or cut low-frequency sounds output by the front speakers. 10 dB to 0 dB to +10 dB, in 2 dB steps
Treble–You can boost or cut high-frequency sounds output by the front speakers. 10 dB to 0 dB to +10 dB, in 2 dB steps
Note
Changing the speaker levels
You can adjust the volume of each speaker while listening to an input source. These temporary adjustments are cancelled when the receiver is set to Standby. To save the setting you made here, go to “Setting the level calibration (Level Cal menu)” on page 22, before returning the receiver to Standby. Options include:
Subwoofer15 dB to 0 dB to +12 dB, in 1 dB steps.
Center12 dB to 0 dB to +12 dB, in 1 dB steps.
Note
Changing Audyssey settings
See “Adjusting the audio (Audio Adjust menu)” on page 22. Options include:
• Dynamic EQ®
• Dynamic Volume®
Setting the Late Night function
The Late Night function lets you reduce the dynamic range of Dolby Digital material so that you can still hear quiet parts even when listening at low volume levels. This makes it ideal for watching movies late at night when you do not want to disturb anyone. Options are:
• For Dolby Digital and Dolby Digital Plus sources, the options are Off, Low, and High.
• For Dolby TrueHD sources, the options are Auto, Off, and On.
Setting the Music Optimizer
The Music Optimizer function enhances the sound quality of compressed music files. Use it with music files that use “lossy” compression, such as MP3. Options are Off and On.
Setting the CinemaFILTER
The CinemaFILTER lets you soften overly bright movie soundtracks, which are typically mixed for reproduction in a movie theater.
CinemaFILTER can be turned On or Off
for the
following listening modes:
• Dolby Digital
• Dolby Digital Plus
• Dolby TrueHD
• Dolby Pro Logic II Movie
• Multichannel
Notes
• Do not assign the component connected with the HDMI input to the TV/CD selector when you set TV Control to On. Otherwise, appropriate CEC (Consumer Electronics Control) operation is not guaranteed.
• Set to Off when the TV is not compatible or when it is unclear whether the TV is compatible or not.
TV Control can be set only when HDMI Control and Power Control are both set to On.
• Refer to the connected component’s instruction manual for details.
• After changing the HDMI Control, Power Control, or TV Control settings, turn off the power to all connected pieces of equipment and then turn them on again. Refer to the user’s manuals for all connected pieces of equipment.
Note
When Audio TV OUT is set to On, the AUDIO button is disabled.
Notes
• To bypass the bass and treble tone circuits, select the Direct listening mode.
• This procedure can also be performed on the receiver by pressing the TONE–/+ buttons.
Notes
• You cannot use this function while the receiver is muted.
• Speakers that are set to No or None in the Sp Config (Speaker Configuration) submenu cannot be adjusted.
Notes
• The effect of the Late Night function depends on the material that you are playing and the intention of the original sound designer. With some material there is little or no effect when you select the different options.
• The Late Night function can only be used when the input source is Dolby Digital, Dolby Digital Plus, or Dolby TrueHD.
• The Late Night function is set to Off when the receiver is set to Standby. For Dolby TrueHD sources, it is set to Auto.
Notes
• The Music Optimizer function only works with PCM digital audio input signals with a sampling rate below 48 kHz and analog audio input signals. The Music Optimizer is disabled when the Direct listening mode is selected.
• The setting is stored individually for each input selector.
• When the Music Optimizer is on, the M.OPT indicator lights.
27
Insignia NS-R5101AHD-A AV Home Theater Receiver
www.insigniaproducts.com
• DTS
• DTS Neo:6 Cinema
• DTS 96/24
• DTS-HD High Resolution
• DTS-HD Master
• DTS Express.
Setting the Audio Selector
You can set priorities of audio output when there are both digital and analog inputs. Options include:
ARC–The audio signal from your TV tuner can be sent digitally to the HDMI OUT of the receiver. With this selection, the TV’s audio can automatically be selected as a priority.
HDMI–This can be selected when HDMI IN has been assigned as an input source. If both HDMI (HDMI IN) and digital audio inputs (COAXIAL IN or OPTICAL IN) have been assigned, HDMI input is automatically selected.
COAX–This can be selected when COAXIAL IN has been assigned as an input source. If both coaxial and optical inputs have been assigned, coaxial input is automatically selected.
OPT–This can be selected when OPTICAL IN has been assigned as an input source.
Analog–The receiver always outputs analog signals.
Setting the A/V Sync
When using progressive scanning on your Blu-ray Disc/DVD player, you may find that the picture and sound are out of sync. With this setting, you can correct this by delaying the audio signals. Option settings are from 0 ms to 100 ms, in 10 ms steps.
Selecting a digital input signal format
The digital input signal formats are available only for the input sources that you have assigned a digital input jack.
Normally, the receiver detects the signal format automatically. However, if you experience any issues when playing PCM or DTS material, you can manually set the signal format to PCM or DTS.
To select a digital input signal format:
1 Press RECEIVER, then press and hold AUDIO for
about eight seconds. Auto appears on the display.
2 Press
or to select one of the following
options:
Auto–The format is detected automatically. If no digital input signal is present, the corresponding analog input is used instead.
PCM–Only 2-channel PCM format input signals are heard. If the input signal is not PCM, the PCM indicator flashes and noise may also be produced.
DTS–Only DTS (but not DTS-HD) format input signals is heard. If the input signal is not DTS, the DTS indicator flashes and there is no sound.
Notes
The CinemaFILTER may not work with some input sources.
Notes
• The setting is stored individually for each input selector.
• This setting can be made only for the input source that is assigned as HDMI IN, COAXIAL IN, or OPTICAL IN. If both HDMI (HDMI IN) and digital audio inputs (COAXIAL IN or OPTICAL IN) are assigned, HDMI input is selected as a priority by setting to ARC. To select the digital audio input, see “Setting up Digital Audio (Digital Audio menu)” on page 21.
• You can select ARC if you select the TV/CD input selector. But you cannot select it if you have selected Off in the Audio Return Ch setting.
Notes
• A/V Sync is disabled when the Direct listening mode is used with an analog input source.
• The setting is stored individually for each input selector.
Notes
• If the beginnings of tracks from a PCM source are cut off, try setting the format to PCM.
• If noise is produced when fast forwarding or reversing a DTS CD, try setting the format to DTS.
• The setting is stored individually for each input selector.
• The setting is reset to Auto when you change the setting in the Audio Selector.
28
Insignia NS-R5101AHD-A AV Home Theater Receiver
www.insigniaproducts.com
Controlling other components
You can use your receiver’s remote control to control your other AV components. This section explains how to enter the remote control code for a component that you want to control, such as a DVD player, a TV, or a CD player. See “Remote control codes” on page 29.
Preprogrammed remote control codes
Remote control codes for Insignia Blu-ray disc players and Insignia TVs are preprogrammed into the remote control. You do not need to enter a remote control code to control these components.
To enter remote control codes:
1 While holding down the REMOTE MODE button
to which you want to enter a code, press and hold down the DISPLAY button until the Remote indicator lights up (about three seconds).
2 Within 30 seconds, press the number buttons to
enter the 5-digit remote control code. The
Remote indicator flashes twice.
To reset a REMOTE MODE button:
1 While holding down the REMOTE MODE button
that you want to reset, press and hold AUDIO until the remote indicator lights (about three seconds).
2 Within 30 seconds, press the REMOTE MODE
button again. The remote indicator flashes twice, indicating
that the button has been reset. Each REMOTE MODE button is preprogrammed
with a remote control code. When a button is reset, its preprogrammed code is restored.
To reset the remote control:
1 While holding down the RECEIVER button,
press and hold AUDIO until the remote indicator lights (about three seconds).
2 Within 30 seconds, press the RECEIVER button
again.
3 The remote indicator blinks twice, indicating
that the remote control has been reset.
To control other components:
• Press the REMOTE MODE button that you have programmed with the remote control code for your component.
Using the remote control to control other components
Press the REMOTE MODE button for the component you want to control first.
#
Button/ Component
TV
DVD player/ recorder
Blu-ray disc player
VCR/ PVR
Satellite/ Cable receiver
1
|/ ON/STANDBY
X X X X
2 Input selec tor X 3 These buttons can control the TV, regardless of the mode selected. 4 TOP MENU X 5 ENTER
/ / /
X X X X
6 SOURCE/SETUP 7 SEARCH X* X X* X*
REPEAT X* X X* X* RANDOM X* X X* X* PLAY MODE X* X X* X*
8 Numbers X X X X 9 DISPLAY X X X X 10 MUTING X X X X 11 MENU X 12 RETURN X X X X 13 AUDIO X X X 14
/ / / /
/ /
X X X X
15 CLR X X X X
Note
Certain buttons may not work as expected with some components, and some may not work at all.
29
Insignia NS-R5101AHD-A AV Home Theater Receiver
www.insigniaproducts.com
Remote control codes
Insignia Receiver
Default 62472
Zone 2 62545
Tuner 52472
Cable Set Top Box
Bright House 01376, 01877
Cable One 01376, 01877
Cablevision 01006, 01376, 01877
Charter 01376, 01877
Cisco 01877, 01982
Comcast 01376, 01877, 01982
Cox 01376, 01877
Digeo 01187
Insight 01376, 01877
Knology 01877
Mediacom 01376, 01877
Motorola 01187, 01376, 01982
Pace 01376, 01877, 01982
Panasonic 01982
Pioneer 01877
Rogers 01877
Scientific Atlanta 01877
Shaw 01376
Sony 01006
Suddenlink 01376, 01877
Time Warner 01376, 01877
WideOpenWest 01877
Cable/PVR Combination
Bright House 01376, 01877
Cable One 01376, 01877
Cablevision 01006, 01376, 01877
Charter 01376, 01877, 02187
Cisco 01877, 01982
Comcast 01376, 01877, 01982, 02576
Cox 01376, 01877
Digeo 01187, 02187
Insight 01376, 01877
Knology 01877
Mediacom 01376, 01877
Motorola 01376, 01187
Pace 01877
Panasonic 01982
Pioneer 01877
Rogers 01877
Scientific Atlanta 01877
Shaw 01376
Sony 01006
Suddenlink 01376, 01877
Time Warner 01376, 01877, 02187
Tivo 02576
WideOpenWest 01877
CD
Denon 72222
DKK 70000
Insignia 72585
Miro 70000
Optimus 70000, 70468
Pioneer 70468
RCA 70468
Sony 70000
Yamaha 70036
CD-R
Sony 70000
Accessory
Insignia 82587
AT&T 00858
Cisco 02345
Motorola 00858, 02378
Scientific Atlanta 00858, 02345
Verizon 02378
Satellite Set Top Box
Bell ExpressVu 00775
DirecTV 00247, 00566, 00639, 00749, 01142,
01377, 01442, 01609, 01749
Dish Network 00775, 01775
Dishpro 00775, 01775
Echostar 00775, 01775
Expressvu 00775, 01775
GE 00566
General Instrument 00869
GOI 00775, 01775
HTS 00775, 01775
Hughes Network Systems 00749, 01142, 01442, 01749
Jerrold 00869
JVC 00775, 01775
Mitsubishi 00749
Motorola 00869
Next Level 00869
Panasonic 00247
Philips 00749, 01142, 01442, 01749
Proscan 00566
RadioShack 00869
RCA 00566
Samsung 01377, 01442, 01609
Sony 00639
Star Choice 00869
Cable/PVR Combination
30
Insignia NS-R5101AHD-A AV Home Theater Receiver
www.insigniaproducts.com
Tivo 01142, 01442
Toshiba 00749, 01749
Voom 00869
SAT/PVR Combination
Bell ExpressVu 00775
DirecTV 00639, 01142, 01377, 01442
Dish Network 00775
Dishpro 00775
Echostar 00775
Expressvu 00775
Hughes Network Systems 01142, 01442
Motorola 00869
Philips 01142, 01442
Samsung 01442
Sony 00639
Star Choice 00869
Tivo 01142, 01442
Television
Akai 10812, 11675
Dynex 11780, 12049, 12184
Electrograph 11755
Emerson 11394, 11864, 11963
ESA 10812, 11963
Funai 11963
Gateway 11755
GFM 11963
Hisense 11660
Hitachi 11643
Insignia 11204, 11423, 11517, 11564, 11660,
11780, 11892, 11963, 12002, 12049, 12417
JVC 11601
LG 11423, 12358
Magnavox 11454, 11866, 11963
Marantz 11454
Maxent 11755
Memorex 11892
Mitsubishi 11250
NEC 11797
NetTV 11755
Olevia 11610
Panasonic 11457, 11480
Petters 11523
Philco 11394, 11963
Philips 11454, 11744
Pioneer 11457
Polaroid 11523, 12002
RCA 11781, 12002, 12187, 12247, 12434
Sampo 11755
Samsung 10812
Sansui 11892
Sanyo 11142
Satellite Set Top Box
Sharp 10818
Sony 10810
SVA 11963
Sylvania 11394, 11864, 11963
Syntax 11610
Toshiba 11524, 12006
Viewsonic 10857, 11627, 11755
Vizio 11758
Westinghouse 10889, 11712
Zenith 11423
VCR
DirecTV 20739
Humax 20739
Philips 20739
Tivo 20739
PVR
DirecTV 20739
Humax 20739
Philips 20739
Tivo 20739
DVD
Accurian 33002
California Audio Labs 30490
Denon 30490, 31634, 33010
Disney 33002
Emerson 33002
Funai 33002
GE 30522
GFM 33002
Go Video 33003
GoldStar 33003
Grundig 30539
Hitachi 30573
Insignia 32095, 33002, 33014, 33025
Integra 31634, 32900
JVC 32365
Kenwood 30490
LG 33003
Magnavox 30503, 30539, 33002
Marantz 30539, 33013
Microsoft 30522
NAD 33003
Onkyo 30503, 32900, 32910
Panasonic 30490, 30503, 33005
Philco 33002
Philips 30503, 30539, 32056, 33002, 33007,
33016
Pioneer 30631, 33000, 33017
Polk Audio 30539
Presidian 33002
Television
31
Insignia NS-R5101AHD-A AV Home Theater Receiver
www.insigniaproducts.com
Proscan 30522
RCA 30522
Samsung 30490, 30573, 33001, 32329, 32489,
32556
Sharp 33002
Sony 30864, 31033, 31633, 33004
Sylvania 33002
Symphonic 33002
Technics 30490
Toshiba 30503, 32277
Urban Concepts 30503
Xbox 30522
Yamaha 30490, 30539, 30817, 33011
Zenith 30503, 33003
DVD High Definition (Blu-Ray)
Denon 33010
Insignia 33002, 33014, 33025
Integra 32900
JVC 32365
LG 33003
Magnavox 33002
Marantz 33013, 33015
NAD 33024
Olevia 33012
Onkyo 32900, 32910
Oppo 33021
Panasonic 33005
Philips 33007, 33016
Pioneer 33000, 33017
Samsung 33001
Sharp 33009
Sony 33004, 33026, 33008
Sylvania 33002
Viore 33022
Vizio 33023
Yamaha 33011
DVD-R
Accurian 33002
Funai 33002
Go Video 33003
LG 33003
Magnavox 33002
Panasonic 30490
Pioneer 30631
RCA 30522
Samsung 30490
Sharp 33002
Sony 31033
Sylvania 33002
Toshiba 32277
DVD
Zenith 33003
TV/DVD Combination
Akai 11675
Dynex 12049, 12184
Emerson 11394, 11864, 11963, 33002
ESA 11963
Funai 11963
GFM 11963
Insignia 11963, 12002, 12049, 12417
LG 11423
Magnavox 11963
Polaroid 11523, 12002
RCA 12002, 12187
Sharp 10818
Sylvania 11394, 11864, 11963, 33002
Toshiba 11524, 12006
DVD-R
32
Insignia NS-R5101AHD-A AV Home Theater Receiver
www.insigniaproducts.com
Maintaining
To clean this receiver, wipe with a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth dipped in a soap and water solution or a weak detergent solution.
• Never use alcohol, paint thinner, or benzine to clean this receiver.
• Before using a chemically treated cloth, read the instructions that came with the cloth carefully.
Troubleshooting
If a problem occurs, run through the following table before contacting Insignia.
If the problem persists, attempt to solve it by switching the receiver off and on again. If this fails to resolve the problem, contact Insignia. Under no circumstances should you attempt to repair the receiver yourself as this could void the warranty.
To reset the receiver to its factory defaults, turn it on and, while holding down VCR/DVR, press ON/ STANDBY. Clear appears on the display and the receiver enters Standby mode.
To reset the remote control to its factory defaults, while holding down RECEIVER, press and hold down AUDIO until the remote indicator lights (about three seconds). Within 30 seconds, press RECEIVER again.
Notes
• The receiver contains a microcomputer for signal processing and control functions. In rare situations, severe interference, noise from an external source, or static electricity may cause it to lockup. If this happens, unplug the power cord from the wall outlet, wait at least five seconds, and then plug it back in again.
• Insignia is not responsible for damages (such as CD rental fees) due to unsuccessful recordings caused by the unit’s malfunction.
• Before disconnecting the power cord from the wall outlet, set the receiver to Standby.
Note that resetting the receiver will delete your radio presets and custom settings.
On the receiver
Remote indicator
RECEIVER button
AUDIO button
Category Problem/Possible Solution
AUDIO Problems
No power
• Connect the cord securely.
• Check the outlet using a lamp or another appliance.
The STANDBY indicator flashes red
• Remove the power cord from the wall outlet immediately. Disconnect all speaker cables and input sources, and then leave the receiver with its power cord disconnected for one hour. After that, reconnect the power cord and set the volume to maximum. If the receiver stays on, set then the volume to minimum, disconnect the power cord, and reconnect your speakers and input sources. If the receiver turns off when you set the volume to maximum, disconnect the power cord, and contact your Insignia dealer.
No sound
• Make sure that the digital input source is selected properly.
• Make sure that all audio connecting plugs are pushed in all the way.
• Make sure that the inputs and outputs of all components are connected properly.
• Make sure that the polarity of the speaker cables is correct, and that the bare wires are in contact with the metal part of each speaker terminal.
• Make sure that the input source is properly selected.
• Make sure that the speaker cables are not shorting.
• Check the volume. The receiver is designed for home theater enjoyment. It has a wide volume range, allowing precise adjustment.
• If the MUTING indicator is flashing on the display, press the remote control MUTING button to unmute the receiver.
• While a pair of headphones is connected to the PHONES jack, no sound is output by the speakers.
• If there is no sound from a DVD player connected to HDMI IN jack, check the DVD player’s output settings, and be sure to select a supported audio format.
• Check the digital audio output setting on the connected device. On some game consoles, such as those that support DVD, the default setting is off.
• With some DVD-Video discs, you need to select an audio output format from a menu.
• If your turntable uses an MC cartridge, you must connect an MC head amp, or an MC transformer.
• Make sure that none of the connecting cables are bent, twisted, or damaged.
• Not all listening modes use all speakers.
• Specify the speaker distances and adjust the individual speaker levels.
• The input signal format is set to PCM or DTS. Set it to Auto.
Only the front speakers produce sound
• When the Stereo or Mono listening mode is selected, only the front speakers and subwoofer produce sound.
• Check the Speaker Configuration.
Only the center speaker produces sound
• If you use the Dolby Pro Logic II Movie, Dolby Pro Logic II Music, or Dolby Pro Logic II Game listening mode with a mono source, such as an AM radio station or mono TV program, the sound is concentrated in the center speaker.
• Make sure the speakers are configured correctly.
The surround speakers produce no sound
• When the T-D (Theater-Dimensional), Stereo, or Mono listening mode is selected, the surround speakers produce no sound.
• Depending on the source and current listening mode, not much sound may be produced by the surround speakers. Try selecting another listening mode.
• Make sure the speakers are configured correctly.
The center speaker produces no sound
• When the Stereo or Mono listening mode is selected, the center speaker produces no sound.
• Make sure the speakers are configured correctly.
The subwoofer produces no sound
• When you play source material that contains no information in the LFE channel, the subwoofer produces no sound.
• Make sure the speakers are configured correctly.
• If you are using Rocketboost™ to send audio to the subwoofer, make sure that the NS-RB1 power is ON
33
Insignia NS-R5101AHD-A AV Home Theater Receiver
www.insigniaproducts.com
There’s no sound with a certain signal format
• Check the digital audio output setting on the connected device. On some game consoles, such as those that support DVD, the default setting is off.
• With some DVD-Video discs, you need to select an audio output format from a menu.
• Depending on the input signal, some listening modes cannot be selected.
No 5.1 playback
• You can not always select all of the listening modes, depending on the number of the speakers connected.
The volume cannot be set to 79
• Check to see if a maximum volume has been set.
• After the volume level of each individual speaker has been adjusted, the maximum volume may be reduced.
• When the levels of each speaker have been adjusted, the maximum possible volume may be reduced.
Noise can be heard
• Using cable ties to bundle audio cables with power cords, speaker cables, and so on may degrade the audio performance, so don’t do it.
• An audio cable may be picking up interference. Try repositioning your cables.
The Late Night function does not work
• Make sure that the source material is Dolby Digital, Dolby Digital Plus, and Dolby TrueHD.
DTS signal problems
• When DTS program material ends and the DTS bitstream stops, the receiver remains in DTS listening mode and the DTS indicator remains on. This is to prevent noise when you use the pause, fast forward, or fast reverse function on your player. If you switch your player from DTS to PCM, because the receiver does not switch formats immediately, you may not hear any sound, in which case you should stop your player for about three seconds, and then resume playback.
• With some CD and LD players, you won’t be able to playback DTS material properly even though your player is connected to a digital input on the receiver. This is usually because the DTS bitstream has been processed (for example, output level, sampling rate, or frequency response changed) and the receiver does not recognize it as a genuine DTS signal. In such cases, you may hear noise.
• When playing DTS program material, using the pause, fast forward, or fast reverse function on your player may produce a short audible noise. This is not a malfunction.
The beginning of audio received by an HDMI IN can not be heard
• Since it takes longer to identify the format of an HDMI signal than it does for other digital audio signals, audio output may not start immediately.
VIDEO Problems
No picture
• Make sure that all video connecting plugs are pushed in all the way.
• Make sure that each video component is properly connected.
• If the video source is connected to a component video input, you must assign that input to an input selector, and your TV must be connected to COMPONENT VIDEO MONITOR OUT.
• If the video source is connected to a composite video input, your TV must be connected to the corresponding composite video output.
• If the video source is connected to an HDMI input, you must assign that input to an input selector, and your TV must be connected to the HDMI OUT.
• On your TV, make sure that the video input to which the receiver is connected is selected.
There is no picture from a source connected to an HDMI IN
• Reliable operation with an HDMI-to-DVI adapter is not guaranteed. In addition, video signals from a PC are not guaranteed.
The on-screen menus do not appear
• On your TV, make sure that the video input to which the receiver is connected is selected.
• When the receiver doesn’t connect TV with HDMI, onscreen menus are not displayed.
Category Problem/Possible Solution
TUNER Problems
Reception is noisy, FM stereo reception is noisy, or the FM STEREO indicator does not light
• Relocate your antenna.
• Move the receiver away from your TV or computer.
• Listen to the station in mono.
• When listening to an AM station, operating the remote control may cause noise.
• Passing cars and airplanes can cause interference.
• Concrete walls weaken radio signals.
• If nothing improves the reception, install an outdoor antenna.
WIRELESS Problems
No communication between the NS-RB1 and your receiver
• Make sure that Hub Status switch on the NS-RB1 is set correctly.
• Make sure that the power LEDs on NS-RB1 and other devices light solid blue/green. If the power LEDs blink slowly, try to establish the link again. For more information, see "Establishing communications" on page 13.
Cannot connect a source device
• If your network is already full with transmitters when joining is attempted, the source LED will blink three times and then turn off. Remove (power down) a transmitting device and try again.
• When you try to join a device to a network that has too many nodes, the device will stay in joining mode until it times out (30 second timeout). Upon timeout the unit should be on and flash the power ring LED in a slow blink indicating it is not connected to the network.
REMOTE CONTROL Problems
The remote control does not work
• Before operating this unit, be sure to press RECEIVER.
• Make sure that the batteries are installed with the correct polarity.
• Install new batteries. Don’t mix different types of batteries, or old and new batteries.
• Make sure that the remote control is not too far away from the receiver, and that there’s no obstruction between the remote control and the receiver’s remote control sensor.
• Make sure that the A receiver is not subjected to direct sunshine or inverter-type fluorescent lights. Relocate if necessary.
• If the receiver is installed in a rack or cabinet with colored-glass doors, the remote control may not work reliably when the doors are closed.
• Make sure you’ve selected the correct remote control mode.
• Make sure you’ve entered the correct remote control code.
• Make sure to set the same ID on both the receiver and remote control.
Cannot control other components
• Make sure that you have selected the correct remote control mode.
• If you cannot operate it, you need to enter the appropriate remote control code.
RECORDING Problems
Cannot record
• On your recorder, make sure the correct input is selected.
• To prevent signal loops and damage to the receiver, input signals are not fed through to outputs with the same name (for example, VCR/DVR IN to VCR/ DVR OUT).
MISCELLANEOUS Problems
The sound changes when I connect my headphones
• When a pair of headphones is connected, the listening mode is set to Stereo, unless it’s already set to Stereo, Mono, or Direct.
Category Problem/Possible Solution
34
Insignia NS-R5101AHD-A AV Home Theater Receiver
www.insigniaproducts.com
Specifications
Amplifier section
Video section
Tuner section
General section
Wireless
How do I change the language of a multiplex source
• Use the Multiplex setting on the Audio Adjust menu to select Main or Sub.
The following settings can be made for the composite video inputs
You must use the buttons on the unit to make these settings.
1. While holding down the input selector button for the input source that you want to set, press SETUP.
2. Use / to change the setting.
3. Press the input selector button for the input source that you want to set when you have finished.
Video Attenuation
This setting can be made for the BD/DVD, VCR/DVR, CBL/SAT, GAME, or AUX input.
If you have a games console connected to the composite video input, and the picture is not very clear, you can attenuate the gain.
Video ATT–0: (default).
Video ATT–2: Gain is reduced by 2 dB.
Note
Design and specifications are subject to change without notice.
Element Specification
Rated output power All channels
90 watts per channel, 8 ohms, at 1 kHz with a maximum total harmonic distortion of 1%.
THD (Total Harmonic Distortion)
0.08% (1 kHz, 1 W)
Input sensitivity and impedance
200 mV/47 kohms (LINE)
Output level and impedance
200 mV/2.2 kohms (REC OUT)
Frequency response
20 Hz - 50 kHz/+1 dB - 3 dB (DSP bypass)
Tone control
±10 dB, 50 Hz (BASS) ±10 dB, 20 kHz (TREBLE)
Signal to Noise ratio
90 dB (LINE, IHF-A)
Speaker impedance
6 ohms - 16 ohms
Element Specification
Input sensitivity/ Output level and impedance
1 Vp-p/75 ohms (Component)
0.7 Vp-p/75 ohms (Component PB/CB, PR/CR) 1 Vp-p/75 ohms (Composite)
Component video frequency response
5 Hz - 100 MHz/±0 dB, - 3 dB
Category Problem/Possible Solution
Element Specification
FM tuning frequency range
87.5 MHz - 107.9 MHz
AM tuning frequency range
530 kHz - 1710 kHz
Preset channels
40
Element Specification
Power supply
AC 120 V, 60 Hz
Power consumption
3.3 A
Standby power consumption
0.2 W
Dimensions (W x H x D)
17-1/8" x 5-15/16" x 13-3/8" 435 mm x 150.5 mm x 339 mm
Weight
17.6 lbs (8 kg)
HDMI
Input
IN1, IN2, IN3
Output
OUT
Video Resolution
1080p
Audio Format
Dolby TrueHD, DTS Master Audio, DVD-Audio, DSD
Supported
CEC, 3D, ARC, Deep Color, x.v.Color, LipSync
VIDEO INPUTS
Component
IN 1, IN 2
Composite
BD/DVD, VCR/DVR, CBL/SAT, GAME, AUX
VIDEO OUTPUTS
Component
OUT
Composite
MONITOR OUT, VCR/DVR
AUDIO INPUTS
Digital
Optical: 2 Coaxial: 1
Analog
BD/DVD, VCR/DVR, CBL/SAT, GAME, TV/CD, AUX
AUDIO OUTPUTS
Analog
VCR/DVR,
Subwoofer Pre Output
1
Speaker Outputs
Front (L, R), C, SL, SR
Phones
1 (6.3 ø)
Element Specification
Signal to Noise ratio
90 dB (LINE, IHF-A)
35
Insignia NS-R5101AHD-A AV Home Theater Receiver
www.insigniaproducts.com
Legal notices
FCC Part 15
This system contains an NS-RB1 wireless audio sender/receiver. FCC ID: ATMUPT1WL IC: 6547A-UPT1WL
This device complies with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply within the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced technician for help.
FCC warning
Per FCC regulation 47 CFR 15.21: Changes or modifications not
expressly approved by the party responsible for compliance with the FCC Rules could void the user’s authority to operate this equipment.
Canada ICES-003 statement
This Class B digital apparatus complies with Canadian ICES-003.
Dolby TrueHD
Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories.
DTS HD™
Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195; 7,272,567 & other U.S. and worldwide patents issued & pending. DTS is a registered trademark and the DTS logos, Symbol are trademarks of DTS, Inc.
©1996-2008 DTS, Inc. All Rights Reserved.
HDMI®
“HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.”
Audyssey 2EQ®
Manufactured under license from Audyssey Laboratories™. U.S. and foreign patents pending. Audyssey 2EQ®, Audyssey Dynamic Volume®, and Audyssey Dynamic EQ® are registered trademarks of Audyssey Laboratories.
37
Insignia NS-R5101AHD-A AV Home Theater Receiver
www.insigniaproducts.com
One-year limited warranty
Insignia Products (“Insignia”) warrants to you, the original purchaser of this new NS-R5101AHD-A (“Product”), that the Product shall be free of defects in the original manufacture of the material or workmanship for a period of one (1) year from the date of your purchase of the Product (“Warranty Period”). This Product must be purchased from an authorized dealer of Insignia brand products and packaged with this warranty statement. This warranty does not cover refurbished Product. If you notify Insignia during the Warranty Period of a defect covered by this warranty that requires service, terms of this warranty apply.
How long does the coverage last?
The Warranty Period lasts for 1 year (365 days) from the date you purchased the Product. The purchase date is printed on the receipt you received with the Product.
What does this warranty cover?
During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Insignia and are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your Insignia Product during the Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the Product.
How to obtain warranty service?
If you purchased the Product at a retail store location, take your original receipt and the Product to the store you purchased it from. Make sure that you place the Product in its original packaging or packaging that provides the same amount of protection as the original packaging. If you purchased the Product from an online web site, mail your original receipt and the Product to the address listed on the web site. Make sure that you put the Product in its original packaging or packaging that provides the same amount of protection as the original packaging.
To obtain in-home warranty service for a television with a screen 25 inches or larger, call 1-888-BESTBUY. Call agents will diagnose and correct the issue over the phone or will have an Insignia-approved repair person dispatched to your home.
Where is the warranty valid?
This warranty is valid only to the original purchaser of the product in the United States, Canada, and Mexico.
What does the warranty not cover?
This warranty does not cover:
• Customer instruction
• Installation
• Set up adjustments
• Cosmetic damage
• Damage due to acts of God, such as lightning strikes
• Accident
• Misuse
• Abuse
• Negligence
• Commercial use
• Modification of any part of the Product, including the antenna
• Plasma display panel damaged by static (non-moving) images applied for lengthy periods (burn-in).
This warranty also does not cover:
• Damage due to incorrect operation or maintenance
• Connection to an incorrect voltage supply
• Attempted repair by anyone other than a facility authorized by Insignia to service the Product
• Products sold as is or with all faults
• Consumables, such as fuses or batteries
• Products where the factory applied serial number has been altered or removed
REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY. INSIGNIA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. INSIGNIA PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.
Contact Insignia: For customer service please call 1-877-467-4289
www.insigniaproducts.com Distributed by Best Buy Purchasing, LLC
7601 Penn Avenue South, Richfield, Minnesota, U.S.A. 55423-3645 © 2010 BBY Solutions, Inc. All rights reserved. INSIGNIA is a trademark of BBY Solutions, Inc. Registered in some countries. All other products and brand names are trademarks of their respective owners.
www.insigniaproducts.com (877) 467-4289
Distributed by Best Buy Purchasing, LLC
7601 Penn Avenue South, Richfield, MN USA 55423-3645
© 2010 BBY Solutions, Inc.
All rights reserved. INSIGNIA is a trademark of BBY Solutions, Inc. Registered in some countries.
All other products and brand names are trademarks of their respective owners.
ENGLISH 10-0487
SN 29400379
Loading...
