Before starting the procedure

 What's in the box

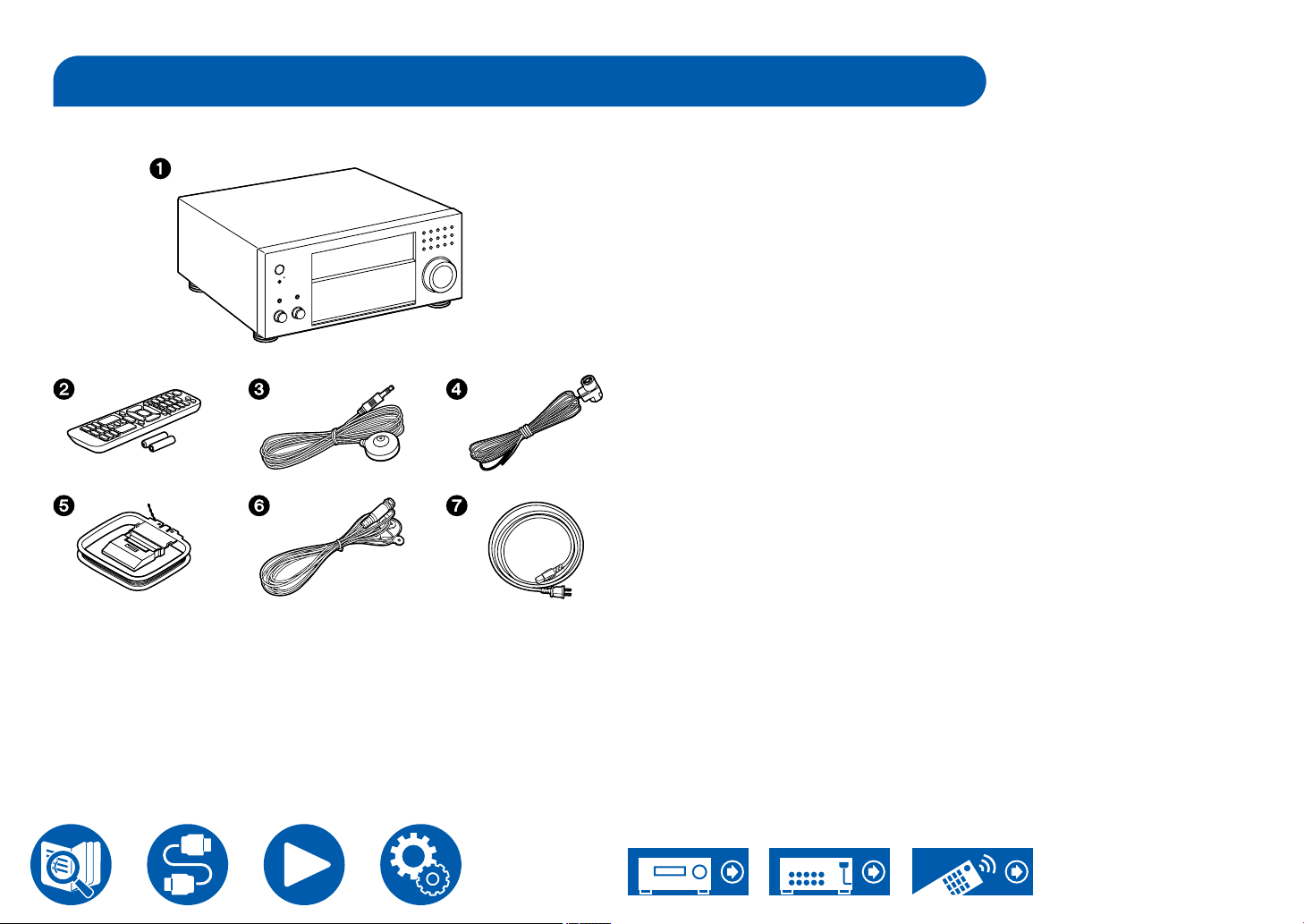

A Main unit (1) B Remote controller (RC-972R) (1), Batteries (AA A/R03) (2) C Speaker setup microphone (1)

• Used during Initial Setup.

D Indoor FM antenna (North American, Australian and Asian models) (1) E AM loop antenna (North American, Australian and Asian models) (1) F DAB/FM antenna (European models) (1) G Power cord (1)

• Initial Setup Guide (1) * This is an online user manual. This is not supplied with the product.

 Note

• Connect speakers with an impedance of 4 Ω to 16 Ω.

• The power cord must be connected only after all other connections are

completed.

• We will not accept any responsibility for damage arising from the connection with equipment manufactured by other companies.

• Network services and content that can be used may no longer be available if new functions are added by updating rmware or the service providers

terminate their services. Also, available services may differ depending on your area.

• Details on the rmware update will be posted on our website and through

other means at a later date.

• The illustrations in this manual use those of North American models unless otherwise mentioned.

• Specications and appearance are subject to change without prior notice.

Page 8

Firmware Update

This unit is equipped with a function to update the rmware via network or USB port when the rmware update is announced after purchase. This enables

various functions to be added and operations to be improved.

Depending on the manufacturing timing of the product, the rmware may be

switched to the updated one. In such a case, new functions may be added

from the star t. For how to conrm the latest rmware contents and the rmware

version of your product, see the following section.

Update Information of the rmware

For the latest rmware contents and the rmware version, visit our company's website. If the rmware version of your product differs from the latest one, it is recommended to update the rmware. To conrm the rmware version of your product, press the button on the

remote controller, and refer to "7. Miscellaneous" - "Firmware Update" - "Version" ( →p156).

Firmware Update Procedure

The update may take approx. 20 minutes to complete via network or via USB port. Existing settings are guaranteed in either updating method.

When this unit is connected to the network, notications of rmware updates may be displayed. To update the rmware, select "Update Now" with the cursor

buttons of the remote controller and press ENTER. The unit automatically enters standby mode after "Completed!" is displayed, and the update is completed.

Disclaimer: The program and accompanying online documentation are furnished to you for use at your own risk. Our company will not be liable and you will have no remedy for damages for any claim of any kind whatsoever concerning your use of the program or the accompanying online documentation, regardless of legal theory, and whether arising in tort or contract. In no event will our company be liable to you or any third party for any special, indirect, incidental, or consequential damages of any kind, including, but not limited to, compensation, reimbursement or damages on account of the loss of

present or prospective prots, loss of data, or for any other reason whatsoever.

Updating the Firmware via Network

• While updating the rmware, do not do the following:

– Disconnecting and reconnecting cables, USB storage device, speaker

setup microphone or headphones, or performing operations on the unit such as turning the power off

– Accessing this unit from a PC or smartphone using their applications

• Check that the unit is turned on, and the connection to the Internet is secured.

• Turn off control devices (PC etc.) connected to the network.

• Stop an Internet radio, USB storage device, or server content being played.

• If the multi-zone function is active, turn it off.

• If "HDMI CEC" is set to "On", set it to "Off".

– Press . Next, select "5. Hardware" - "HDMI" and press ENTER, then

select "HDMI CEC" and select "Off".

* The descriptions may differ from the actual on-screen displays, however, operations

and functions are the same.

Update

1. Press . The Setup menu is displayed on the TV screen.

2. Select "7. Miscellaneous" - "Firmware Update" - "Update via NET" with the cursors in order, then press ENTER.

• If "Firmware Update" is grayed out and cannot be selected, wait for a while until it starts up.

• If there is no updatable rmware, "Update via NET" cannot be selected.

3. Press ENTER with "Update" selected, and start update.

• During the update, the TV screen may go black depending on the program to be updated. In such a case, check the progress on the display of the unit. The TV screen will remain black until the update is completed and the power is turned on again.

• When "Completed!" is displayed, the update is complete.

4. Press ON/STANDBY on the main unit to turn the unit into standby mode.

The process is completed, and your rmware is updated to the latest version.

• Do not use on the remote controller.

If an Error Message is Displayed

If an error occurs, "- Error!" is displayed on the display of the unit. (""

Page 9

represents an alphanumeric character.) Refer to the following descriptions and check.

Error Code

• - 01, -10: Ethernet cable not found. Connect the Ethernet cable properly.

• -02, -03, -04, -05, -06, -11, -13 , -14, -16, -17, -18, -20, -21:

Internet connection error. Check the following:

– Whether the router is turned on

– Whether this unit and the router are connected via the network Unplug and plug the power cords of this unit and the router. This may solve the problem. If you are still unable to connect to the Internet, the DNS server or proxy server may be temporarily down. Check the server operation status with your Internet service provider.

• Others: After removing the power plug once, insert it to the outlet, and then start the operation from the beginning.

Updating via USB

• While updating the rmware, do not do the following:

– Disconnecting and reconnecting cables, USB storage device, speaker

setup microphone or headphones, or performing operations on the unit such as turning the power off

– Accessing this unit from a PC or smartphone using their applications

• Prepare a 1 GB or larger USB storage device. The format of USB storage devices supports FAT16 or FAT32 le system format.

– Media inserted into a USB card reader may not be used for this function. – USB storage devices equipped with the security function are not

supported.

– USB hubs and USB devices equipped with the hub function are not

supported. Do not connect these devices to the unit.

• Delete any data stored on the USB storage device.

• Turn off control devices (PC etc.) connected to the network.

• Stop an Internet radio, USB storage device, or server content being played.

• If the multi-zone function is active, turn it off.

• If "HDMI CEC" is set to "On", set it to "Off".

– Press . Next, select "5. Hardware" - "HDMI" and press ENTER, then

select "HDMI CEC" and select "Off".

* Depending on the USB storage device or its content, long time may be required

for loading, the content may not be loaded correctly, or power may not be supplied co rre ctl y.

* Our company will not be liable whatsoever for any loss or damage of data, or

storage failure arising from the use of the USB storage device. Please note this in advance.

* The descriptions may differ from the actual on-screen displays, however, operations

and functions are the same.

Update

1. Connect the USB storage device to your PC.

2. Download the rmware le from the our company's website to your PC and unzip.

Firmware les are named as below.

ON K AV R_R.zip

Unzip the le on your PC. The number of unzipped les and folders varies

depending on the model.

3. Copy all unzipped les and folders to the root folder of the USB storage device.

• Make sure to copy the unzipped les.

Page 10

4. Connect the USB storage device to the USB port of this unit.

• If an AC adapter is supplied with the USB storage device, connect the AC adapter, and use it with a household outlet.

• If the USB storage device has been partitioned, each section will be treated as an independent device.

5. Press . The Setup menu is displayed on the TV screen.

6. Select "7. Miscellaneous" - "Firmware Update" - "Update via USB" with the cursors in order, then press ENTER.

• If "Firmware Update" is grayed out and cannot be selected, wait for a while until it starts up.

• If there is no updatable rmware, "Update via USB" cannot be selected.

7. Press ENTER with "Update" selected, and start update.

• During the update, do not turn the power off, or disconnect or reconnect the USB storage device.

• When "Completed!" is displayed, the update is complete.

8. Disconnect the USB storage device from the unit.

9. Press ON/STANDBY on the main unit to turn the unit into standby mode.

The process is completed, and your rmware is updated to the latest version.

• Do not use on the remote controller.

If an Error Message is Displayed

If an error occurs, "- Error!" is displayed on the display of the unit. ("" represents an alphanumeric character.) Refer to the following descriptions and check.

Error Code

• - 01, -10: The USB storage device cannot be recognized. Check if the USB storage device or USB cable is securely inserted to the USB port of the unit. Connect the USB storage device to an external power source if it has its own power supply.

• -05, -13, -20, -21: The rmware le is not present in the root folder of the USB storage device, or the rmware le is for another model. Retry from the download of the rmware le.

• Others:

After removing the power plug once, insert it to the outlet, and then start the operation from the beginning.

Page 11

Part Names

Front Panel

A ON/STANDBY button B PURE AUDIO button/indicator: Switches to the

Pure Audio mode. The indicator lights when the mode is on. ( →p196)

C HYBRID STANDBY indicator: Lights up when

any of the following functions is working or enabled in standby state of this unit. When this indicator is lighting, the power consumption in

DEFG

standby state increases, however, the increase in power consumption is minimized by entering the HYBRID STANDBY mode where only the essential circuits operate.

– HDMI CEC ( →p143) – HDMI Standby Through ( →p143) – USB Power Out at Standby ( →p150) – Network Standby ( →p150) – Bluetooth Wakeup ( →p151)

D Display ( →p13) E Remote control sensor: Receives signals from

the remote controller.

• The reception range of the remote controller is within a distance of approx. 16´/5 m, and an angle of 20° in vertical direction and 30° to right and left.

F Input selector buttons: Switches the input to

be played.

G ZONE 2/ZONE 3 buttons: Controls the multi-

zone function. ( →p107) OFF button: Switches the multi-zone function off.

H LISTENING MODE button/dial: Press the

LISTENING MODE button (above) to select a category from "Movie/TV", "Music" and "Game", and then turn the LISTENING MODE dial (below) to change the listening mode ( →p89).

I TONE button/dial: Adjusts the sound quality.

Press the TONE button (above) to select an item to adjust from "Bass", "Vocal" and "Treble", and turn the TONE dial (below) to adjust.

J Front ap K MASTER VOLUME

Page 12

Front Panel

MNOP QR STU

L SLEEP button: Sets the sleep timer. Select

the time from "30 min", "60 min" and "90 min". ( →p150)

M MUSIC OPTIMIZER button: Turns on/off the

MUSIC OPTIMIZER function that improves the quality of the compressed audio.

N HDMI OUT button: Select the HDMI OUT jack

to output video signals. ( →p126)

R DIMMER button: Switches the brightness of the

display with three levels. It cannot be turned off completely.

S MEMORY button: Used to register DAB

(European models)/AM (North American, Australian and Asian models)/FM radio stations. ( →p88)

T TUNING MODE button: Used to switch between

automatic tuning and manual tuning for AM/FM stations. ( →p83)

U WHOLE HOUSE MODE button: Enable the

WHOLE HOUSE MODE function to play the same source in all rooms that are multi-zoneconnected. ( →p109, p111)

V PHONES jack: Connect headphones with a

standard plug (ø1/4″/6.3 mm).

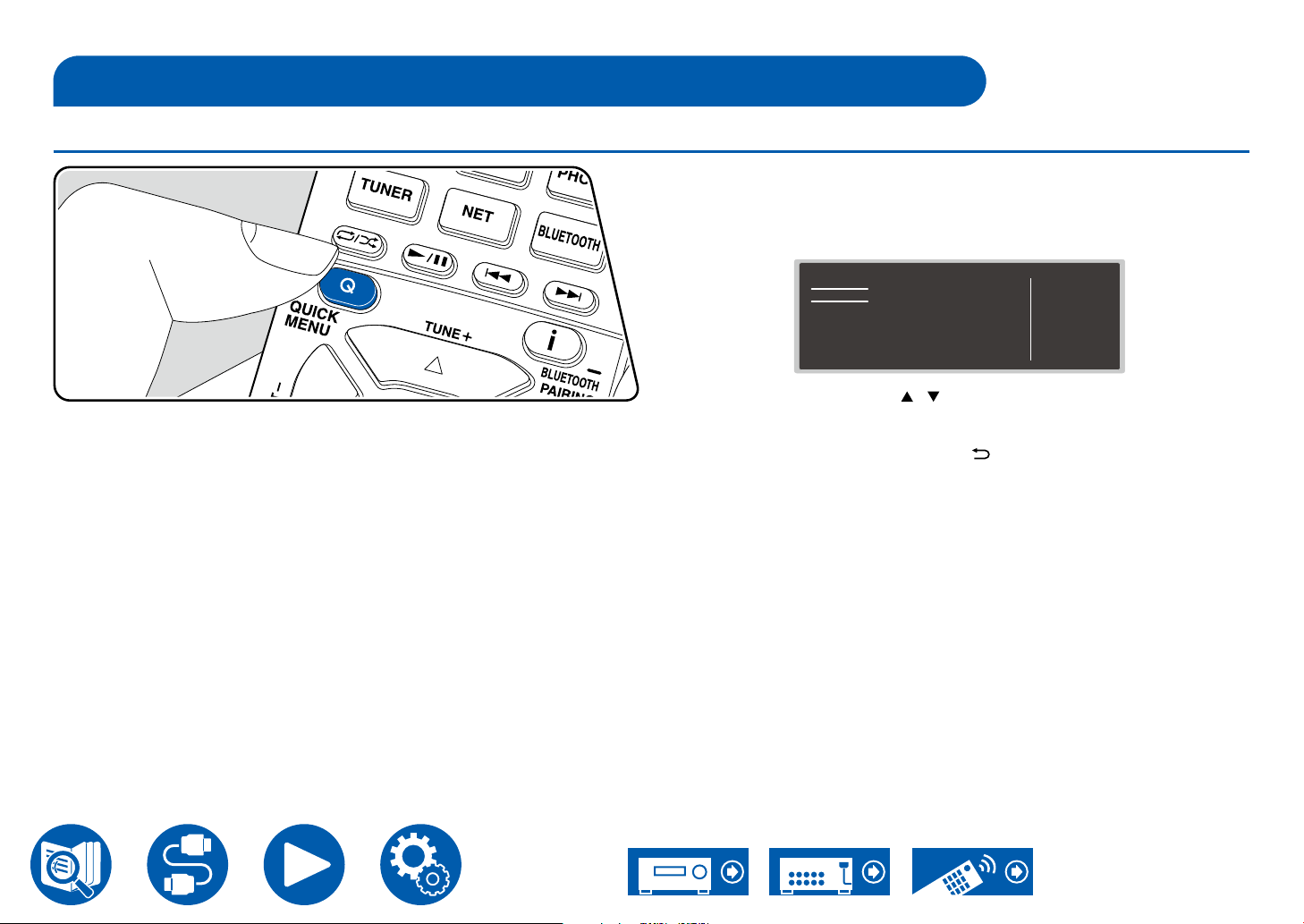

W QUICK MENU button: Pressing this button

during playback can make settings such as "HDMI" and "Audio" quickly on the TV screen while playing. ( →p91)

X Cursor buttons ( / / / ) and ENTER

button: Select an item with the cursors, and

press ENTER to conrm your selection. When

using TUNER, use them to tune in to stations. ( →p83)

Y AUX INPUT HDMI jack: Connect a video

WX YZV

O INFO button: Switches the information on the

display. ( →p90)

P SETUP button: You can display advanced

setting items on the TV and the display to have a more enjoyable experience with this unit. ( →p124)

Q RETURN button: Returns the display to the

previous state while setting.

camera, etc. using an HDMI cable. ( →p69)

Z SETUP MIC jack: Connect the supplied speaker

setup microphone. ( →p161, p163)

Page 13

Display

2 3 4

FM radio

FM ST: Receiving FM stereo. SLEEP: Sleep timer is set. AUTO STBY: Auto Standby is set. ( →p150)

E Blinks when muting is on. F Displays various information of the input signals.

• "DialogNorm: X dB" ("X" is a numerical value) may be displayed when software recorded in Dolby lineage or DTS lineage audio formats is played. For example, if "DialogNorm: +4 dB" is displayed, the source being played is recorded with 4 dB plus the THX standard level. If you play it with the THX standard level, lower the volume by 4 dB.

G Cursors ( / / / ): These may light when

performing operations while “NET” is selected with the input selector. / light when there are

multiple folders or les that are available to be

selected. / light when text information does not t with the range provided by “6”.

A Speaker/Channel display: Displays the output

channel that corresponds to the selected listening mode.

B Lights in the following conditions.

: Headphones are connected.

Z2/Z3: ZONE 2/ZONE 3 is on.

: Connected by BLUETOOTH. : Connected by Wi-Fi.

NET: Lights when connected to the network with the "NET" input selector. It will blink if incorrectly connected to the network. USB: Lights when the "NET" input selector is selected, a USB device is connected and the USB input is selected. It will blink if the USB device is not properly connected.

HDMI: HDMI signals are input and the HDMI input is selected. DIGITAL: Digital signals are input and the digital input is selected.

A: Audio is output only to ZONE A. B: Audio is output only to ZONE B. AB: Audio is output to both ZONE A and ZONE

C Lights according to the type of input digital audio

signal and the listening mode.

D Lights in the following conditions.

RDS (European, Australian and Asian models): Receiving RDS broadcasting. TUNED: Receiving DAB (European models)/AM (North American, Australian and Asian models)/

Page 14

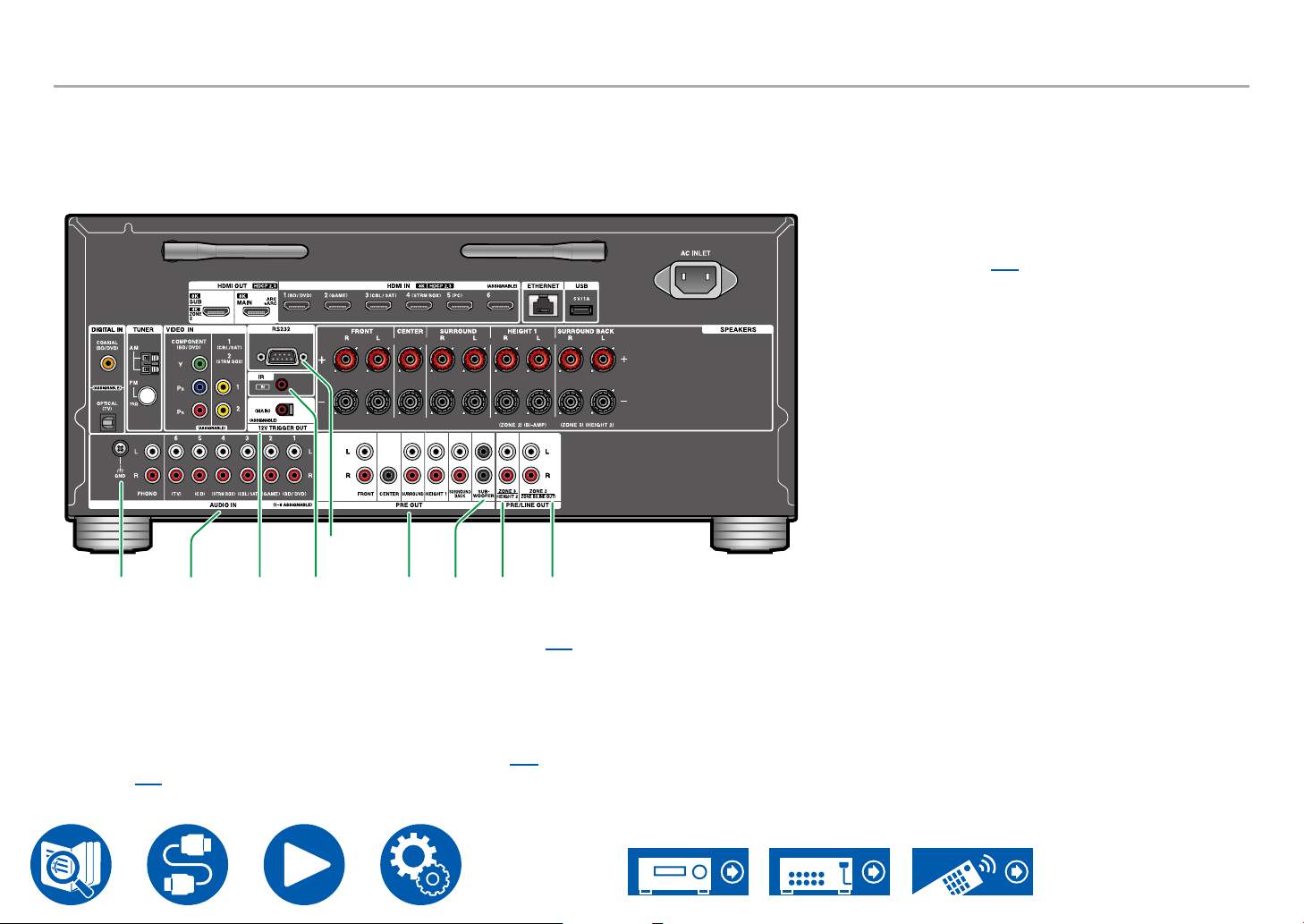

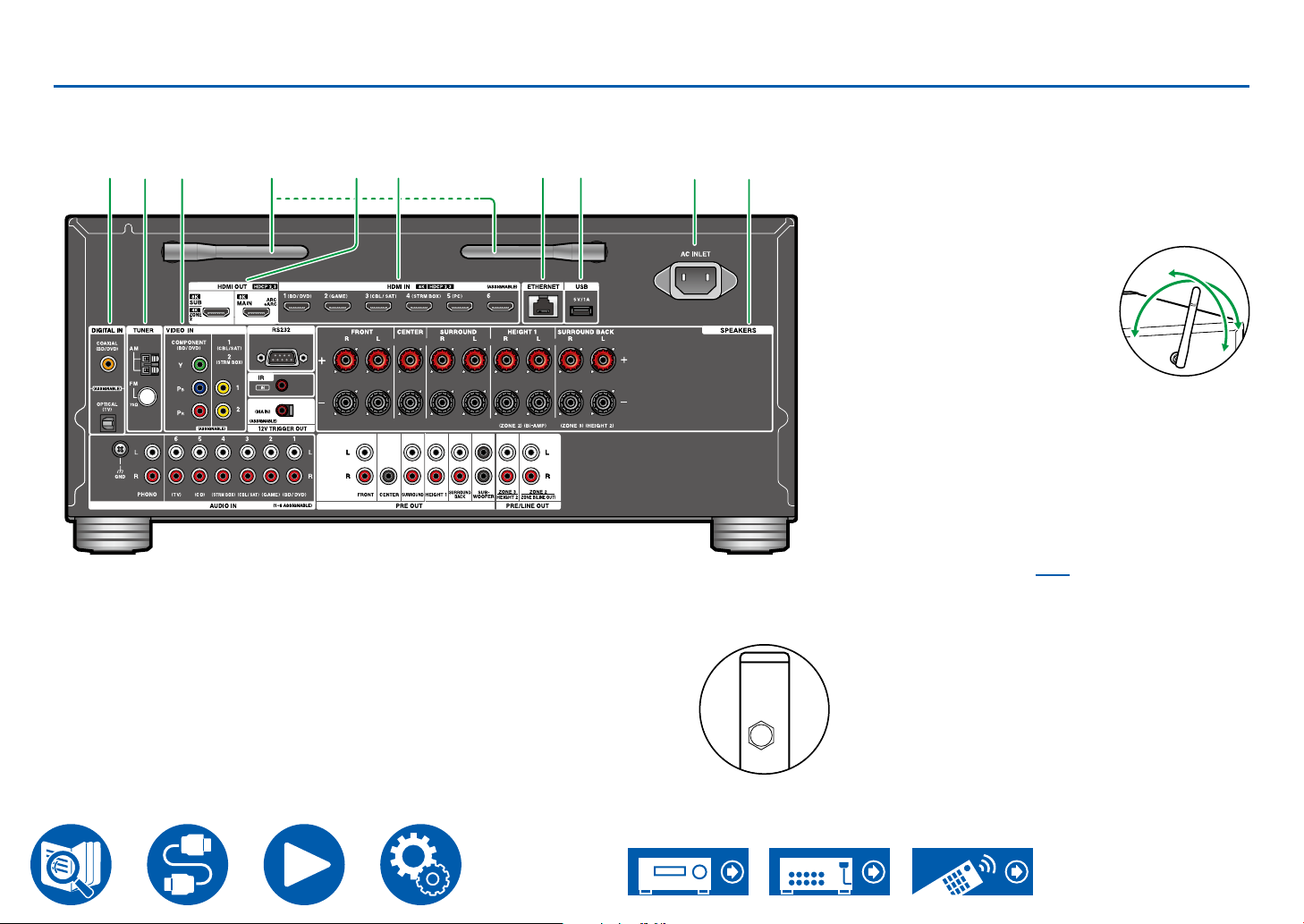

Rear Panel (North American models)

ABCD 6 7 HIJE

audio signals with an HDMI cable connected to a monitor such as a TV or projector.

F HDMI IN jacks: Transmit video signals and audio

signals with an HDMI cable connected to an AV component.

G ETHERNET port: Connect to the network with

an Ethernet cable.

H USB port: Connect a USB storage device to

play music les ( →p114). You can also supply power (5 V/1 A) to USB devices with a USB cable.

I AC INLET: Connect the supplied power cord. J SPEAKERS terminals: Connect speakers with

speaker cables. Support banana plugs. Use a plug 4 mm in diameter. Y plug connection is not supported.

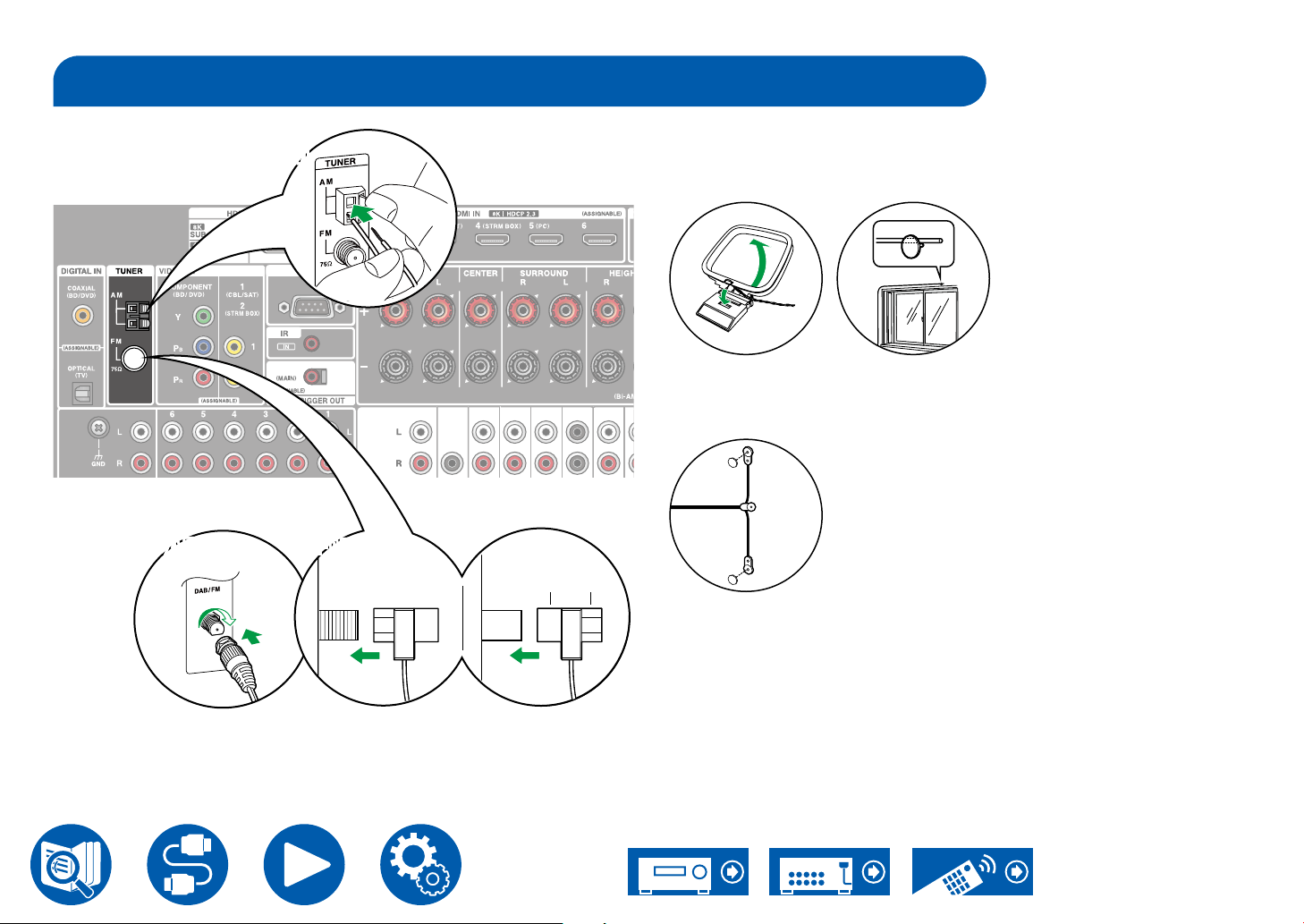

A DIGITAL IN OPTICAL/COAXIAL jacks: Input

TV or AV component digital audio signals with a digital optical cable or digital coaxial cable.

B TUNER AM/FM terminal: Connect the supplied

antennas.

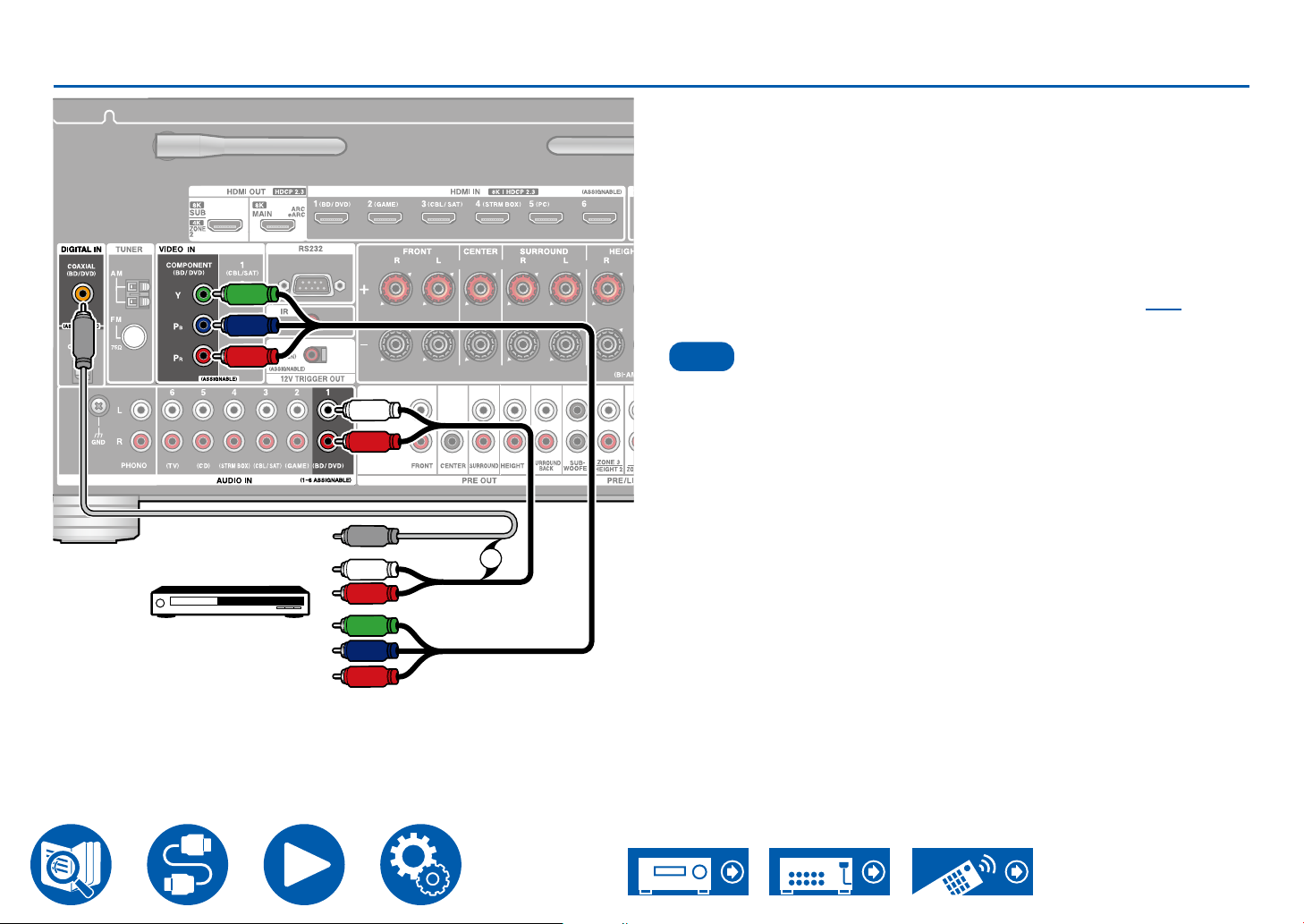

C COMPONENT VIDEO IN jacks: Input AV

component video signals with a component

video cable. (Compatible only with 480i or 576i

resolution.) VIDEO IN jacks: Input AV component video

signals with an analog video cable.

D Wireless antenna: Used for WI-Fi connection or

when using a BLUETOOTH enabled device. Adjust the angles according to the connection status.

E HDMI OUT jacks: Transmit video signals and

90°

180°

Page 15

Rear Panel (North American models)

Up to two powered subwoofers can be connected. The same signal is output from each SUBWOOFER PRE OUT jack.

R ZONE 3 PRE/LINE OUT jacks: Output audio

signals with an analog audio cable connected

to an integrated amplier in a separate room

(ZONE 3). HEIGHT 2 PRE OUT jacks: Connect a power

amplier. (

S ZONE 2 PRE/LINE OUT jacks: Output audio

signals with an analog audio cable connected

to an integrated amplier in a separate room

(ZONE 2). ZONE B LINE OUT jacks: Simultaneously output the same audio source as the speakers (ZONE A) connected to this unit by connecting this unit to wireless headphones, wireless speaker transmitter, etc., using an analog audio cable.

p60)

KLMN P

K GND terminal: Connect the ground wire of the

turntable.

L AUDIO IN jacks: Input AV component audio

signals with an analog audio cable.

M 12V TRIGGER OUT jack: Connect a device

equipped with a 12V trigger input jack to enable power link operation between the device and this unit. ( →p76)

N IR IN port: Connect a remote control receiver

QR S

unit. ( →p75)

O RS232 port: Connect a home control system

equipped with an RS-232C port. For installing a home control system, contact the specialized stores.

P PRE OUT jacks: Connect to a power amplier.

( →p60)

Q SUBWOOFER PRE OUT jacks: Connect a

powered subwoofer with a subwoofer cable.

Page 16

Rear Panel (European, Australian and Asian models)

DAB / FM

TUNER

ABCD 6 7 HIJE

A DIGITAL IN OPTICAL/COAXIAL jacks: Input

TV or AV component digital audio signals with a digital optical cable or digital coaxial cable.

B TUNER AM/FM terminal (Australian and Asian

models): Connect the supplied antennas.

TUNER DAB/FM terminal (European models): Connect the supplied antennas.

C COMPONENT VIDEO IN jacks: Input AV

component video signals with a component

video cable. (Compatible only with 480i or 576i

resolution.) VIDEO IN jacks: Input AV component video signals with an analog video cable.

D Wireless antenna: Used for WI-Fi connection or

when using a BLUETOOTH enabled device. Adjust the angles according to the connection status.

E HDMI OUT jacks: Transmit video signals and

audio signals with an HDMI cable connected to a monitor such as a TV or projector.

F HDMI IN jacks: Transmit video signals and audio

signals with an HDMI cable connected to an AV component.

G ETHERNET port: Connect to the network with

an Ethernet cable.

H USB port: Connect a USB storage device to

play music les ( →p114). You can also supply power (5 V/1 A) to USB devices with a USB cable.

I AC INLET: Connect the supplied power cord. J SPEAKERS terminals: Connect speakers

with speaker cables. Y plug connection is not supported.

90°

180°

Page 17

Rear Panel (European, Australian and Asian models)

Up to two powered subwoofers can be connected. The same signal is output from each SUBWOOFER PRE OUT jack.

R ZONE 3 PRE/LINE OUT jacks: Output audio

signals with an analog audio cable connected

to an integrated amplier in a separate room

(ZONE 3). HEIGHT 2 PRE OUT jacks: Connect a power amplier. ( →p60)

S ZONE 2 PRE/LINE OUT jacks: Output audio

signals with an analog audio cable connected

to an integrated amplier in a separate room

KLMN P

K GND terminal: Connect the ground wire of the

turntable.

L AUDIO IN jacks: Input AV component audio

signals with an analog audio cable.

M 12V TRIGGER OUT jack: Connect a device

equipped with a 12V trigger input jack to enable power link operation between the device and this unit. ( →p76)

N IR IN port: Connect a remote control receiver

QR S

unit. ( →p75)

O RS232 port: Connect a home control system

equipped with an RS-232C port. For installing a home control system, contact the specialized stores.

P PRE OUT jacks: Connect to a power amplier.

( →p60)

Q SUBWOOFER PRE OUT jacks: Connect a

powered subwoofer with a subwoofer cable.

Page 18

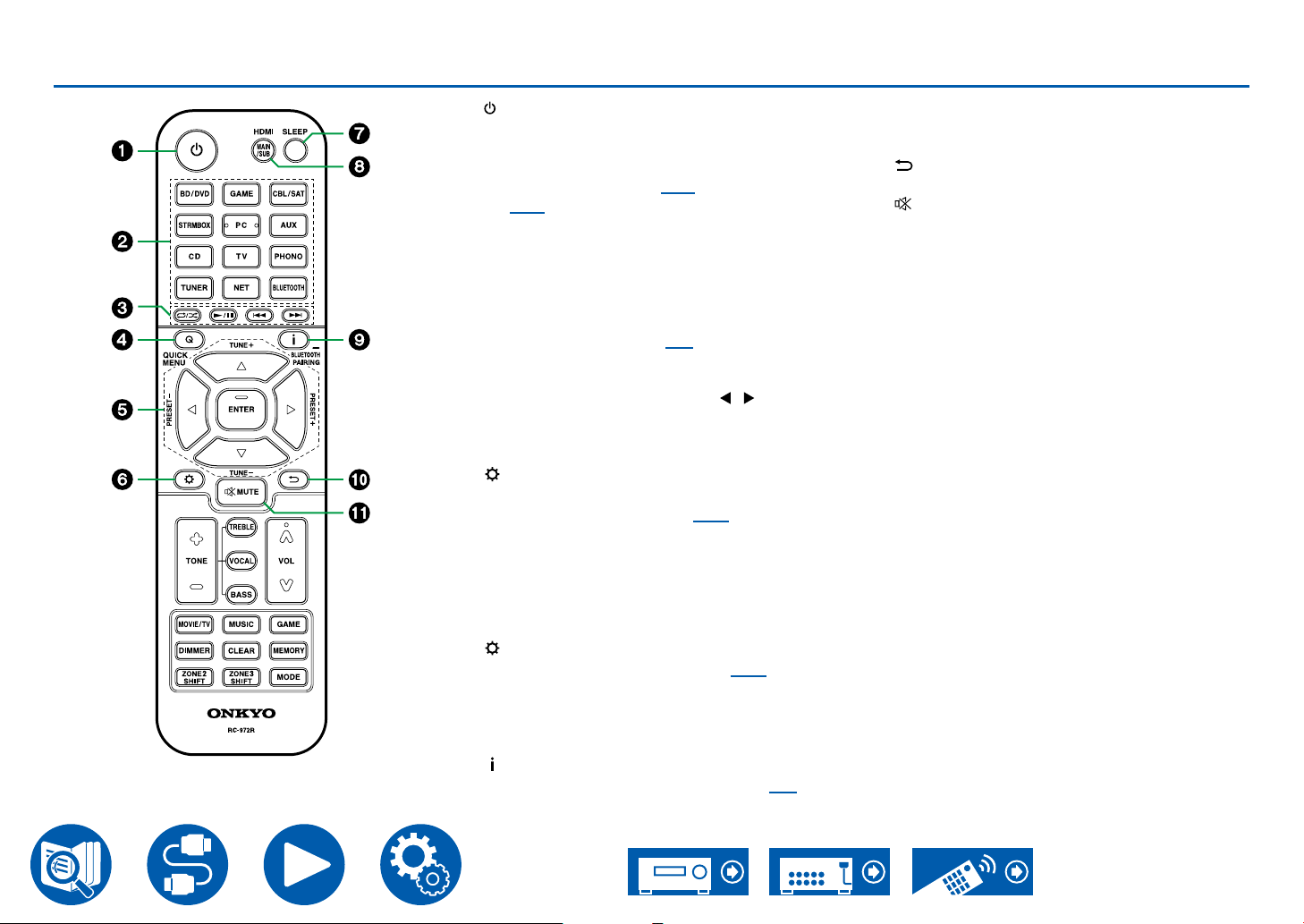

Remote Controller

A ON/STANDBY button B Input selector buttons: Switches the input to be

played.

C Play buttons: Used for playback operations

for the Music Server ( →p116) or USB device ( →p114). Also, switching to "CEC MODE" with "19. MODE button" allows you to operate an HDMI CEC function-enabled AV component. (Some devices may not be operated.)

D Q (QUICK MENU) button: Pressing this button

during playback allows you to make settings such as "HDMI" and "Audio" quickly on the TV screen while playing. ( →p91)

E Cursor buttons and ENTER button: Select

an item with the cursors, and press ENTER to conrm your selection. Pressing / button allows you to switch the screen when a music

folder list or le list is not displayed on one

screen on the TV.

F button: Displays advanced setting items on

the TV or the display to have a more enjoyable experience with this unit. ( →p124)

G SLEEP button: You can allow the unit to enter

standby automatically when the specied time

has elapsed. Select the time from "30 min", "60 min", "90 min" and "Off". When you do not want to turn the unit to standby automatically, select "Off". You can also set this by pressing

button and selecting "5. Hardware" - "Power

Management" - "Sleep Timer" ( →p150) on the Setup menu.

H HDMI MAIN/SUB button: Select the HDMI OUT

jack to output video signals from "MAIN", "SUB", and "MAIN+SUB".

I button: Switches the information on the

display and is used to operate RDS ( →p84).

Also, when the "BLUETOOTH" input selector is selected, pressing and holding this button for 5 seconds or more will switch to the pairing mode.

J button: Returns the display to the previous

state while setting.

K MUTE button: Temporarily mutes audio.

Press the button again to cancel muting.

Page 19

Remote Controller

L TONE buttons: Adjusts the sound quality. Press

"TREBLE", "BASS", or "VOCAL" to select what you want to adjust, then adjust with + and -. TREBLE/BASS button: You can adjust the sound quality of the speakers.

1.Press TREBLE or BASS to select the content to adjust. TREBLE: Enhances or moderates the hightone range of the speakers. BASS: Enhances or moderates the low-tone range of the speakers.

2. Press + or - to adjust.

VOCAL button: Emphasizes movie dialogues and music vocals to listen to them more easily. It is effective to movie lines in particular. Also, it exerts the effect even if the center speaker is not used. Select a desired level from "1" (low) to "5" (high).

1. Press VOCAL.

2. Press + or - to adjust.

• Depending on the input source or listening mode setting, selection is not possible, or the desired effect may not be achieved.

M LISTENING MODE buttons: Selects a listening

mode ( →p89, p186).

N DIMMER button: Switches the brightness of the

display with three levels. It cannot be turned off completely.

O ZONE 2/ZONE 3 SHIFT button: Used to control

the multi-zone function ( →p107).

P VOLUME buttons Q CLEAR button: Deletes all characters you have

entered when entering text on the TV screen.

R MEMORY button: Used to register DAB

(European models)/AM (North American, Australian and Asian models)/FM radio stations. ( →p88)

S MODE button: Switches between automatic

tuning and manual tuning for AM (North American, Australian and Asian models)/FM stations ( →p83), and allows you to select the order for displaying DAB stations (European models) ( →p87). Also, when an HDMI CEC function-enabled AV component is connected to this unit, you can switch "3. Play buttons" between "CEC MODE" and "RCV MODE" (normal mode).

Page 20

Inputting Characters

You can input characters or symbols on the keyboard displayed on the TV screen such as when inputting a password for Wi-Fi Setup ( →p145) or naming a preset radio station ( →p141).

1. Select a character or symbol with the cursors / / / on the remote controller and press the ENTER button.

2. When saving characters after input, select "OK" and press the ENTER button.

, . ;/ : ], . ; :

/ / /

ENTER

CLEAR

ZONE 2

MODE

SHIFT

• Select "A/a" to switch between upper and lower cases. (Can also be switched with the MODE button on the remote controller.)

• To enter a space, select " ".

• To delete a character on the left of the cursor, select " ".

• To delete all the input characters, press the CLEAR button on the remote

control.

• On the ZONE 2 playback screen, operate the remote controller while pressing and holding the ZONE 2 SHIFT button. To delete all the input characters, only press the CLEAR button without pressing the ZONE 2 SHIFT button.

Page 21

Speaker Layout

This unit can be used in different ways, depending on the layout of the speakers you are installing. Select the speaker layout that suits the installation

environment, then conrm the methods for installation and connection.

5.1c h

 Speaker layout ( →p23)  Speaker Installation ( →p32)  Speaker Connections ( →p38)  Speaker Combinations ( →p199)

7.1c h

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 22

The listening room and the speaker layout

ZONE A

(Main Room)

Speaker Layout

A ZONE A Speakers The speaker system set up in the main room (where this unit is located).

B ZONE 2 Speakers The 2 ch speaker system set up in a separate room (ZONE 2). This enables you to play the same source in the main room and the separate at the same time, or to play separate sources.

C ZONE 3 Speakers The 2 ch speaker system set up in a separate room (ZONE 3). This enables you to play the same source in the main room and the separate at the same time, or to play separate sources.

5.1c h

ZONE 2

ZONE 3

7.1c h

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 23

Speaker Layout

Zone 2Zone 2

Zone 2Zone 2 Zone 3Zone 3

5.1 Channel System

Basic system ( →p33)

5.1 ch (Bi-Amping (Front)) ( →p33)

This is a basic 5.1 Channel System.

5.1 ch + ZONE 2 ( →p33)

Main Room

5.1 ch + ZONE 2/ZONE 3 ( →p33)

Main Room

5.1c h

7.1c h

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 24

Speaker Layout

Zone 2Zone 2

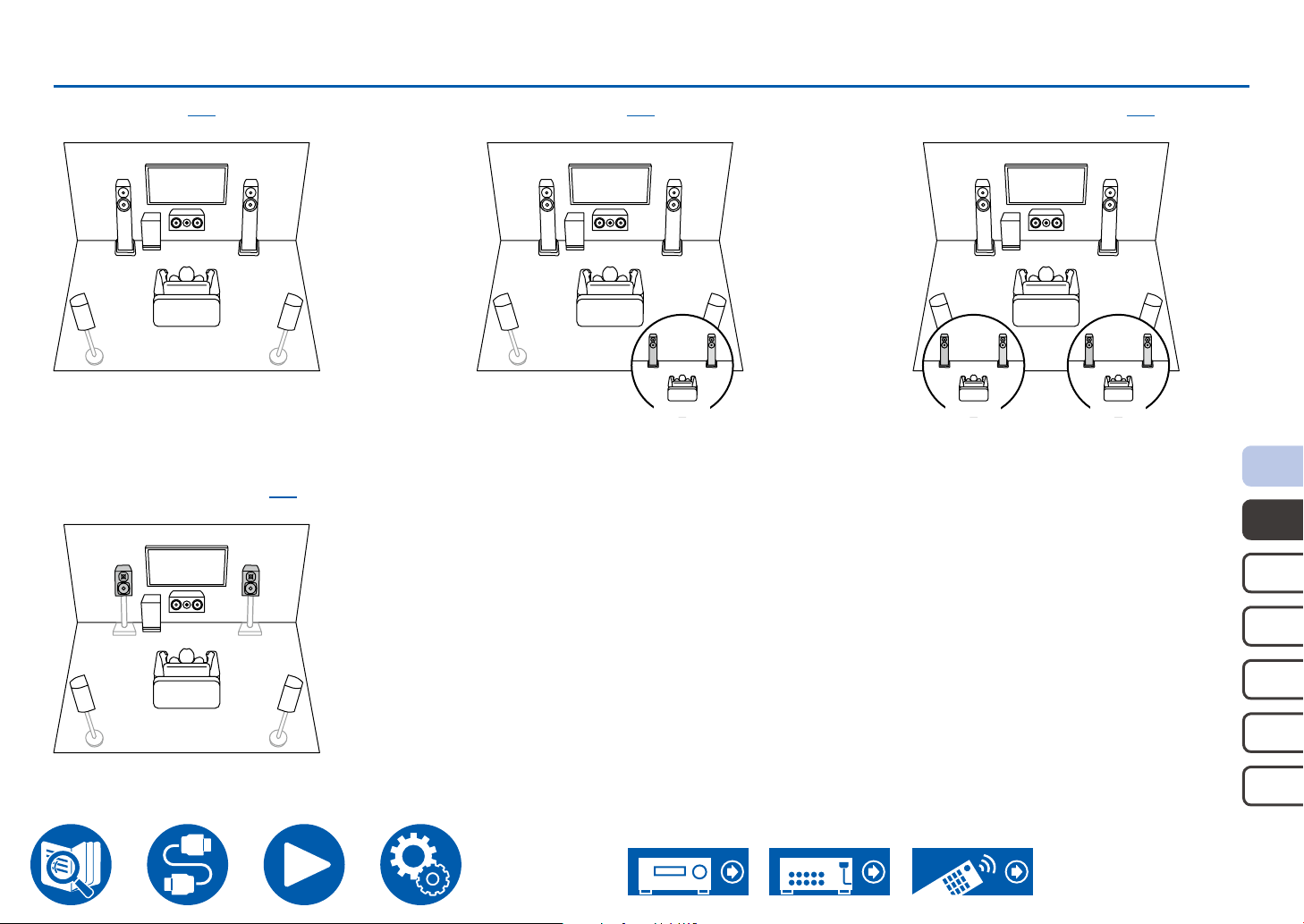

7.1 Channel System

Basic system ( →p33)

This is a 7.1 Channel System that consists of the basic 5.1 Channel System and added surround back speakers.

7.1 ch + ZONE 2 ( →p33) 7.1 ch (Bi-Amping (Front)) ( →p33)

Main Room

5.1c h

7.1c h

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 25

Speaker Layout

Zone 2Zone 2

Main Room

Zone 3Zone 3Zone 2Zone 2

Main Room

5.1.2 Channel System

5.1.2 ch (Front High or Rear High) ( →p34) 5.1.2 ch (Top Front or Top Middle or Top Rear)

5.1.2 ch + ZONE 2 ( →p34) 5.1.2 ch (Bi-Amping (Front)) ( →p34)5.1.2 ch + ZONE 2/ZONE 3 (North American

A Speaker System that is a 5.1 Channel System with one set of height speakers added.

( →p34)

models) ( →p34)

5.1.2 ch (Dolby Enabled Speakers (Front or Surround)) ( →p34)

5.1c h

7.1c h

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 26

Speaker Layout

Zone 2Zone 2

Main Room

7.1.2 Channel System

7.1. 2 ch (Front High or Rear High) ( →p35) 7.1. 2 ch (Top Front or Top Middle or Top Rear)

7.1.2 ch + ZONE 2 (North American models) ( →p35)

A Speaker System that is a 7.1 Channel System with one set of height speakers added.

( →p35)

7.1. 2 ch (Dolby Enabled Speakers (Front or Surround or Surround Back)) ( →p35)

5.1c h

7.1c h

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 27

Speaker Layout

5.1.4 Channel System

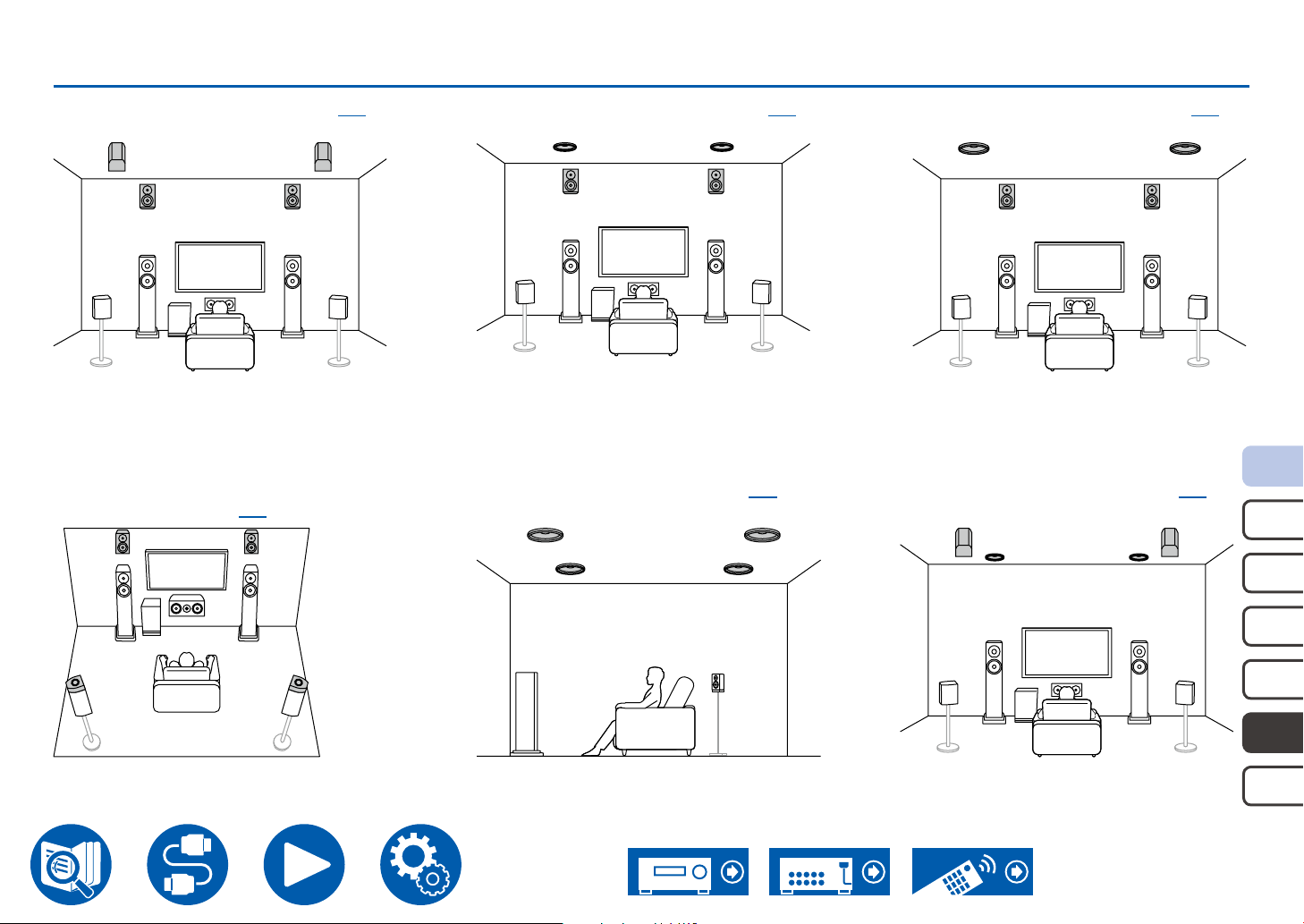

5.1. 4 ch (Front High and Rear High) ( →p36) 5.1. 4 ch (Front High and Top Middle) ( →p36)

5.1. 4 ch (Front High and Dolby Enabled Speakers (Surround)) ( →p36)

A Speaker System that is a 5.1 Channel System with two sets of height speakers added.

5.1. 4 ch (Top Front and Top Rear) ( →p36) 5.1. 4 ch (Top Front and Rear High) ( →p36)

5.1. 4 ch (Front High and Top Rear) ( →p36)

5.1c h

7.1c h

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 28

5.1.4 Channel System

Zone 2Zone 2

Main Room

Speaker Layout

5.1. 4 ch (Top Front and Dolby Enabled Speakers (Surround)) ( →p36)

5.1. 4 ch (Dolby Enabled Speakers (Front) and Rear High) ( →p36)

5.1. 4 ch (Top Middle and Rear High) ( →p36)

5.1. 4 ch (Dolby Enabled Speakers (Front) and Top Rear) ( →p36)

5.1. 4 ch (Dolby Enabled Speakers (Front and Surround)) ( →p36)

5.1.4 ch + ZONE 2 (North American models) ( →p36)

5.1c h

7.1c h

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 29

Speaker Layout

7.1.4 Channel System

7.1. 4 ch (Front High and Rear High) ( →p37) 7.1. 4 ch (Front High and Top Middle) ( →p37)

7.1. 4 ch (Front High and Dolby Enabled Speakers (Surround)) ( →p37)

A Speaker System that is a 7.1 Channel System with two sets of height speakers added.

7.1. 4 ch (Front High and Dolby Enabled Speakers (Surround Back)) ( →p37)

7.1. 4 ch (Front High and Top Rear) ( →p37)

7.1. 4 ch (Top Front and Top Rear) ( →p37)

5.1c h

7.1c h

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 30

7.1.4 Channel System

Speaker Layout

7.1. 4 ch (Top Front and Rear High) ( →p37)

7.1. 4 ch (Top Middle and Rear High) ( →p37)

7.1. 4 ch (Top Front and Dolby Enabled Speakers (Surround)) ( →p37)

7.1. 4 ch (Dolby Enabled Speakers (Front and Surround)) ( →p37)

7.1. 4 ch (Top Front and Dolby Enabled Speakers (Surround Back)) ( →p37)

7.1.4 ch (Dolby Enabled Speakers (Front and Surround Back)) ( →p37)

5.1c h

7.1c h

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 31

7.1.4 Channel System

Zone 2Zone 2

Main Room

Speaker Layout

7.1.4 ch (Dolby Enabled Speakers (Front) and Rear High) ( →p37)

7.1.4 ch (Dolby Enabled Speakers (Front) and Top Rear) ( →p37)

7.1.4 ch + ZONE 2 (North American models) ( →p37)

5.1c h

7.1c h

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 32

Speaker Installation

Setting Up the Speakers

How the speakers are set up depends on the size and shape of the room, so here we introduce just a basic layout example.

The alphabetic symbols used in this chapter represent the following speakers:

FL Front speaker Left

FR Front speaker Right

C Center speaker

SW powered SubWoofer

SL Surround speaker Left

SR Surround speaker Right

SBL Surround Back speaker Left

SBR Surround Back speaker Right

FHL Front High speaker Left

FHR Front High speaker Right

RHL Rear High speaker Left

RHR Rear High speaker Right

TFL Top Front speaker Left

TFR Top Front speaker Right

TML Top Middle speaker Left

TMR Top Middle speaker Right

TRL Top Rear speaker Left

TRR Top Rear speaker Right

DFL Dolby enabled speaker Front Left

DFR Dolby enabled speaker Front Right

DSL Dolby enabled speaker Surround Left

DSR Dolby enabled speaker Surround Right

DSBL Dolby enabled speaker Surround Back Left

DSBR Dolby enabled speaker Surround Back Right

5.1c h

7.1c h

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 33

Speaker Installation

 5.1 Channel System

FL FR

SL SR

a: 22° to 30°, b: 120°

FL, FR Place the Left and Right Front Speakers to match ear height. C The center speaker should be set up facing the listening position at

an angle.

SW Place the powered subwoofer between the center speaker and a

front speaker.

SL, SR Place the Left and Right Surround Speakers to be just above ear

height.

 7.1 Channel System

FL FR

SL SR

a: 22° to 30°, b: 90° to 110°, c: 135° to 150°

FL, FR Place the Left and Right Front Speakers to match ear height. C The center speaker should be set up facing the listening position

at an angle.

SW Place the powered subwoofer between the center speaker and a

front speaker.

SL, SR Place the Left and Right Surround Speakers to be just above ear

height.

SBL, SBR Place the Left and Right Surround Back Speakers at ear height.

• If surround back speakers are installed, be sure to install surround speakers as well.

SBL SBR

5.1c h

7.1c h

 5.1 ch connection ( →p41)  5.1 ch + ZONE 2/ZONE 3 connection (North American models)

( →p42)

 5.1 ch + ZONE 2/ZONE 3 connection (European, Australian and

Asian models) ( →p43)

 5.1ch (Bi-Amping (Front)) connection ( →p44)

 7.1 ch connection ( →p45)  7.1 ch + ZONE 2 connection (North American models)

( →p46)

 7.1 ch + ZONE 2 connection (European, Australian and Asian

models) ( →p47)

 7.1 ch (Bi-Amping (Front)) connection ( →p48)

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 34

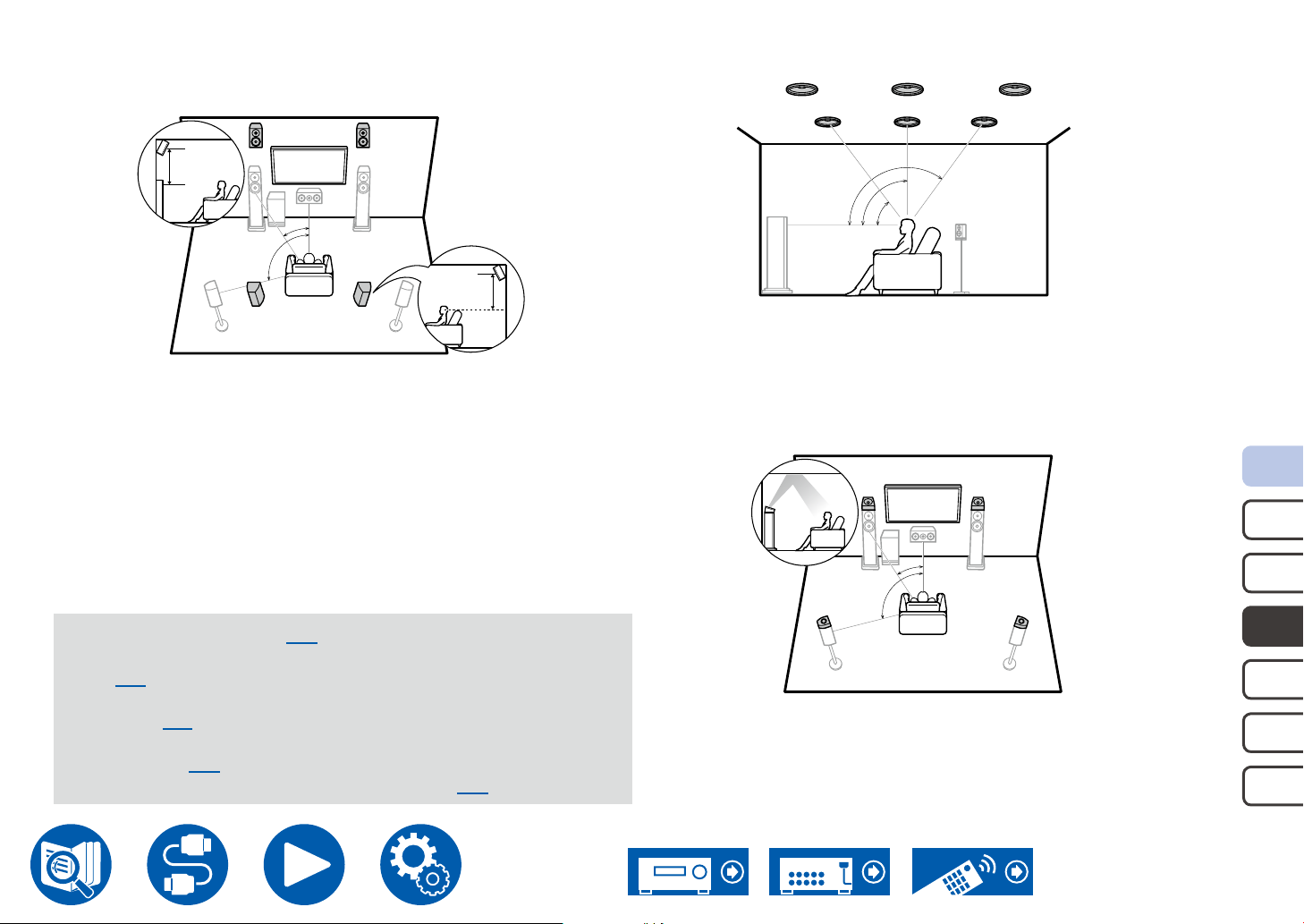

 5.1.2 Channel System

TFL

TML

TRL

High Speakers

FHL FHR

3´ (0.9 m) or more

RHL RHR

FHL, FHR Place the front high speakers directly above the front speakers,

angled to face the listening position.

RHL, RHR Place the rear high speakers so the lateral distance matches the

front speakers, angled to face the listening position.

a: 22° to 30° b: 120 °

3´ (0.9 m) or more

Speaker Installation

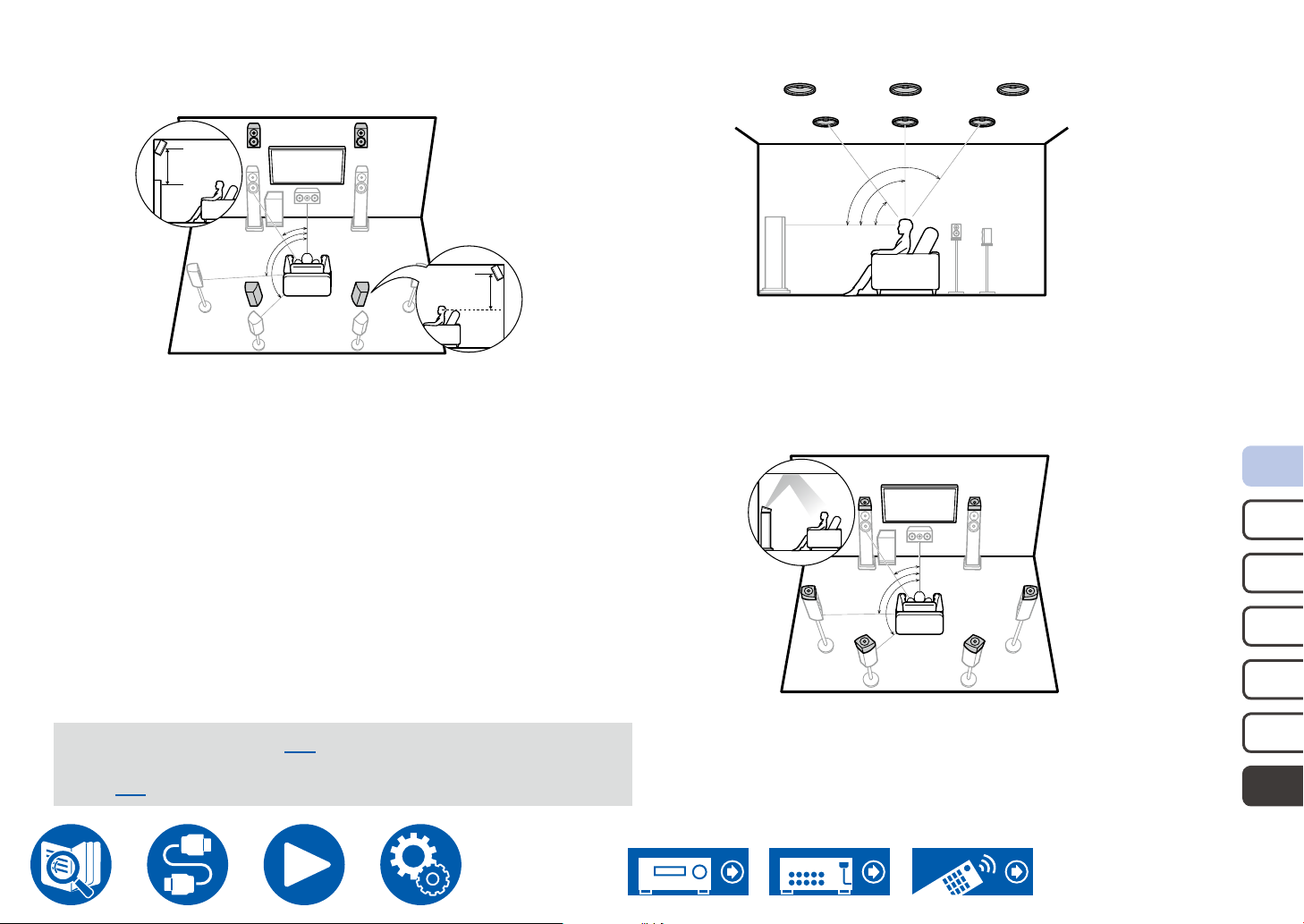

Top Speakers

TFR

TFL, TFR

Fit top front speakers on the ceiling in front of the listening position.

TML, TMR Fit top middle speakers on the ceiling directly above the listening

position.

TRL, TRR Fit top rear speakers on the ceiling behind the listening position.

• Match the lateral distance of the top speakers to the front speakers.

Dolby Enabled Speakers

TMR

DFL DFR

TRR

a: 30° to 55° b: 65° to 100° c: 125° to 150°

a: 22° to 30° b: 120 °

5.1c h

 5.1.2 ch connection ( →p49)  5.1.2 ch + ZONE 2 connection (North American models)

( →p50)

 5.1.2 ch + ZONE 2/ZONE 3 connection (North American models

only) ( →p51)

 5.1.2 ch + ZONE 2 connection (European, Australian and Asian

models) ( →p52)

 5.1.2 ch (Bi-Amping (Front)) connection ( →p53)

DSL DSR

DFL, DFR The Dolby enabled speakers (front) are installed on top of the

front speakers.

DSL, DSR The Dolby enabled speakers (surround) are installed on top of the

surround speakers.

7.1c h

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 35

 7.1.2 Channel System

TFL

TML

TRL

High Speakers

FHL FHR

3´ (0.9 m) or more

Speaker Installation

Top Speakers

a: 22° to 30° b: 90° to 110° c: 135° to 150°

TFR

TMR

TRR

a: 30° to 55° b: 65° to 100° c: 125° to 150°

RHL RHR

3´ (0.9 m) or more

FHL, FHR Place the front high speakers directly above the front speakers,

angled to face the listening position.

RHL, RHR Place the rear high speakers so the lateral distance matches the

front speakers, angled to face the listening position.

 7.1.2 ch connection ( →p54)  7.1.2 ch + ZONE 2 connection (North American models only)

( →p55)

TFL, TFR

Fit top front speakers on the ceiling in front of the listening position.

TML, TMR Fit top middle speakers on the ceiling directly above the listening

position.

TRL, TRR Fit top rear speakers on the ceiling behind the listening position.

• Match the lateral distance of the top speakers to the front speakers.

Dolby Enabled Speakers

a: 22° to 30°

DFL DFR

DSL DSR

DSBL DSBR

b: 90° to 110° c: 135° to 150°

DFL, DFR The Dolby enabled speakers (front) are installed on top of the

front speakers.

DSL, DSR The Dolby enabled speakers (surround) are installed on top of the

surround speakers.

DSBL, DSBR

The Dolby enabled speakers (surround back) are installed on top

of the surround back speakers.

5.1c h

7.1c h

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 36

 5.1.4 Channel System

TFL

TML

TRL

High Speakers

FHL FHR

3´ (0.9 m) or more

RHL RHR

FHL, FHR Place the front high speakers directly above the front speakers,

angled to face the listening position.

RHL, RHR Place the rear high speakers so the lateral distance matches the

front speakers, angled to face the listening position.

a: 22° to 30° b: 120 °

3´ (0.9 m) or more

Speaker Installation

Top Speakers

TFR

TFL, TFR

Fit top front speakers on the ceiling in front of the listening position.

TML, TMR Fit top middle speakers on the ceiling directly above the listening

position.

TRL, TRR Fit top rear speakers on the ceiling behind the listening position.

• Match the lateral distance of the top speakers to the front speakers.

Dolby Enabled Speakers

TMR

DFL DFR

TRR

a: 30° to 55° b: 65° to 100° c: 125° to 150°

a: 22° to 30° b: 120 °

5.1c h

 5.1.4 ch connection ( →p56)  5.1.4 ch + ZONE 2 connection (North American models only)

( →p57)

DSL DSR

DFL, DFR The Dolby enabled speakers (front) are installed on top of the

front speakers.

DSL, DSR The Dolby enabled speakers (surround) are installed on top of the

surround speakers.

7.1c h

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 37

 7.1.4 Channel System

TFL

TML

TRL

High Speakers

FHL FHR

3´ (0.9 m) or more

Speaker Installation

Top Speakers

a: 22° to 30° b: 90° to 110° c: 135° to 150°

TFR

TMR

TRR

a: 30° to 55° b: 65° to 100° c: 125° to 150°

RHL RHR

3´ (0.9 m) or more

FHL, FHR Place the front high speakers directly above the front speakers,

angled to face the listening position.

RHL, RHR Place the rear high speakers so the lateral distance matches the

front speakers, angled to face the listening position.

 7.1.4 ch connection ( →p58)  7.1.4 ch + ZONE 2 connection (North American models only)

( →p59)

TFL, TFR

Fit top front speakers on the ceiling in front of the listening position.

TML, TMR Fit top middle speakers on the ceiling directly above the listening

position.

TRL, TRR Fit top rear speakers on the ceiling behind the listening position.

• Match the lateral distance of the top speakers to the front speakers.

Dolby Enabled Speakers

a: 22° to 30°

DFL DFR

DSL DSR

DSBL DSBR

b: 90° to 110° c: 135° to 150°

DFL, DFR The Dolby enabled speakers (front) are installed on top of the

front speakers.

DSL, DSR The Dolby enabled speakers (surround) are installed on top of the

surround speakers.

DSBL, DSBR

The Dolby enabled speakers (surround back) are installed on top

of the surround back speakers.

5.1c h

7.1c h

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 38

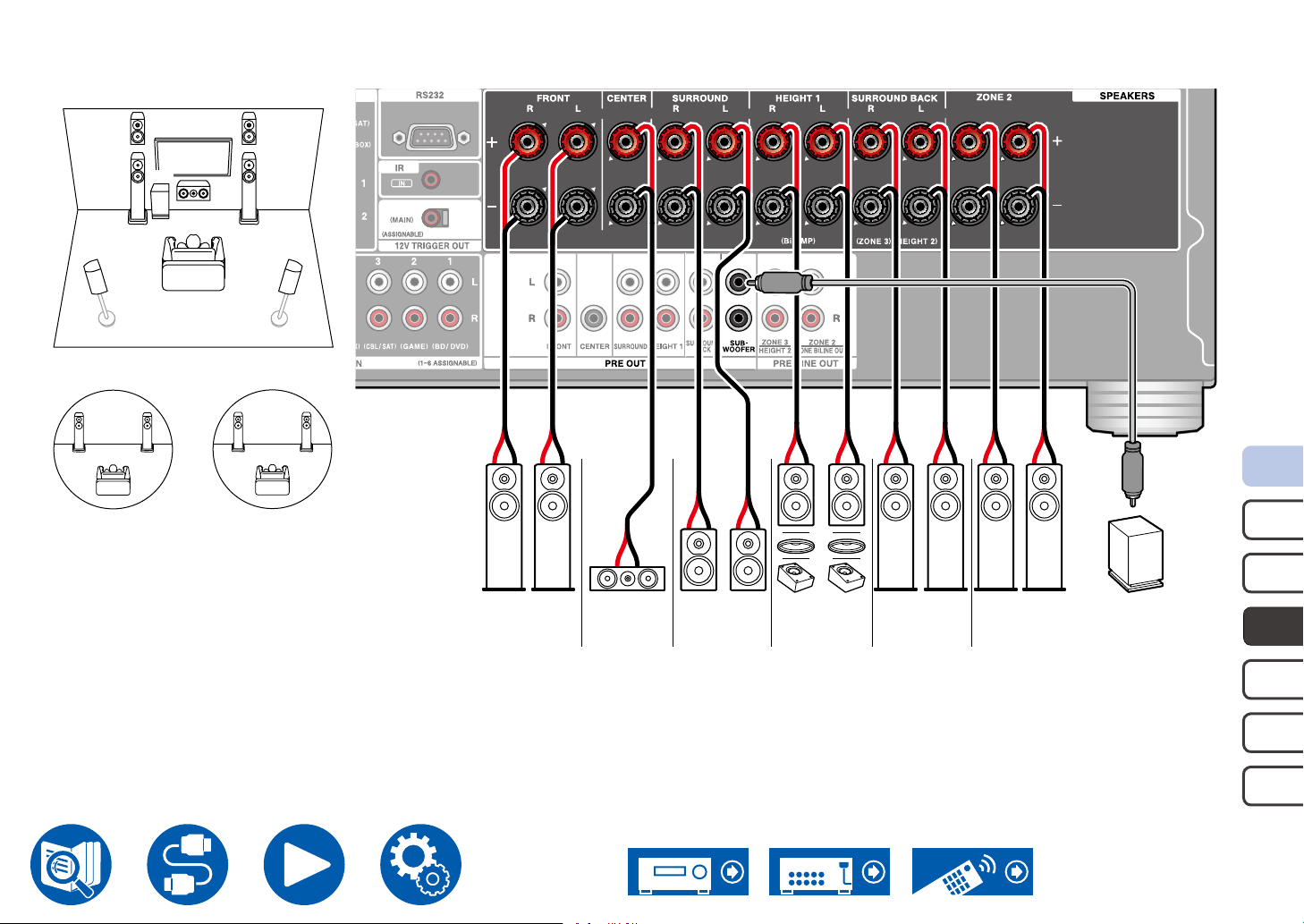

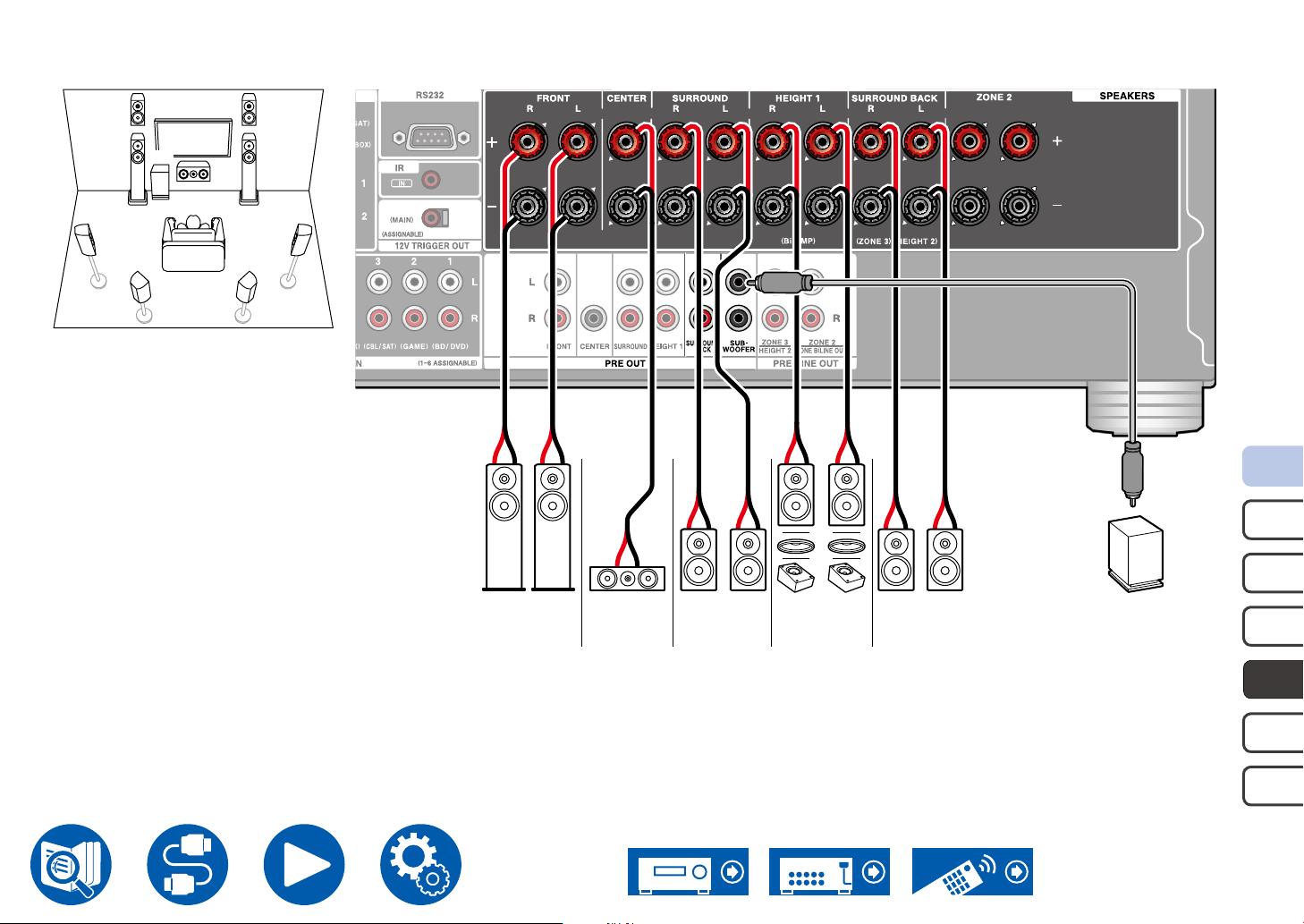

Speaker Connections

(Before starting the procedure) Speakers you can use with this unit and cable connections 39

4-16Ω

Speaker Connections

Connect the Subwoofer 40

5.1 Channel System 41, 42, 43, 44

7.1 Channel System 45, 46, 47, 48

5.1.2 Channel System 49, 50, 51, 52, 53

7.1.2 Channel System 54, 55

5.1.4 Channel System 56, 57

7.1.4 Channel System 58, 59

Connecting a Power Amplier 60

5.1c h

7.1c h

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 39

Speaker Connections

1/2˝

(12 mm)

Speakers you can use with this unit and cable connections

 Speakers you can use with this unit

This unit supports speakers with 4 Ω to 16 Ω impedance. For speaker impedance, check the speaker instruction manual.

 (Note) Speaker Impedance

If any of the speakers to be connected has an impedance of 4 Ω or more and less than 6 Ω, set "Speaker Impedance" to "4ohms" for "Speaker Setup" in the Initial Setup section ( →p158). When setting "Speaker Impedance" from the Setup menu, press on the remote controller, and set "2. Speaker" - "Conguration" - "Speaker Impedance" ( →p132) to "4ohms".

 Connect the Speaker Cables

Make correct connection between the unit's jacks and speaker's jacks (+ side to + side, and - side to - side) for each channel. If the connection is wrong, a bass

sound will not be reproduced properly due to reverse phase. Twist the wires exposed from the tip of the speaker cable so that the wires do not stick out of the speaker terminal when connecting. If the exposed wires touch the rear panel, or the + side and – side wires touch each other, a malfunction may occur.

5.1c h

7.1c h

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 40

Connect the Subwoofer

Speaker Connections

Connect a powered subwoofer with this unit using a subwoofer cable. Up to two powered subwoofers can be connected. The same signal is output from each SUBWOOFER PRE OUT jack.

5.1c h

a Subwoofer cable

7.1c h

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 41

 5.1 Channel System

SR SLFR FL SR

FL FR

SL SR

Speaker Connections

5.1c h

7.1c h

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 42

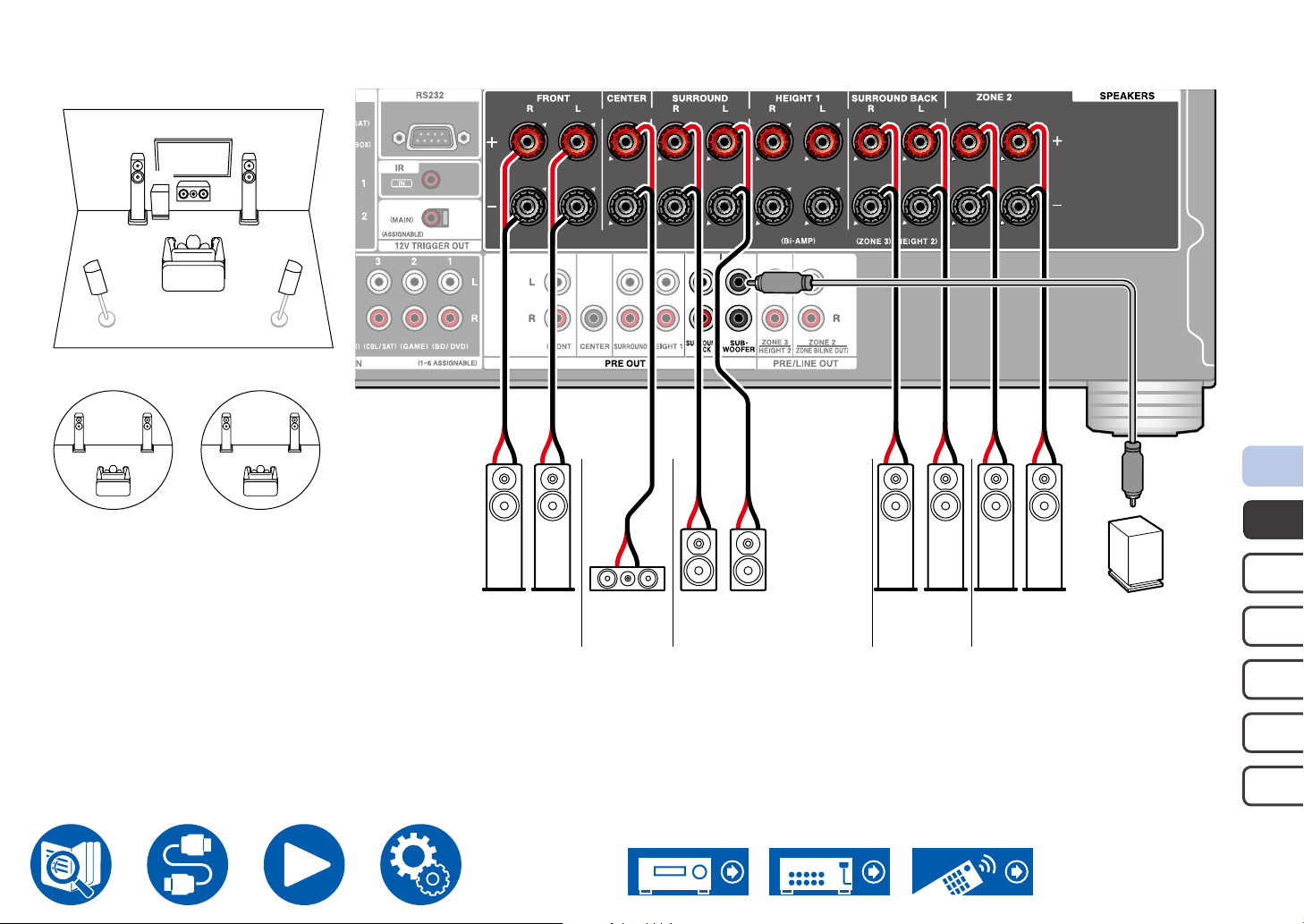

 5.1 Channel System + ZONE SPEAKER (North American models)

FR FL

(Z3) (Z3)

SR SLFR FL SR FR

(Z2) (Z2)

MAIN ROOM

FL FR

SL SR

Speaker Connections

ZONE 2

FL(Z2)FR(Z2)

To output audio from an externally connected AV component to ZONE 3, use an analog audio cable for connection. Note that ZONE 3 output is not possible with the connection using a HDMI cable, digital coaxial cable, or digital optical cable.

ZONE 3

FL(Z3)FR(Z3)

5.1c h

7.1c h

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 43

Speaker Connections

 5.1 Channel System + ZONE SPEAKER (European, Australian and Asian models)

MAIN ROOM

FL FR

SL SR

ZONE 2

FL(Z2)FR(Z2)

ZONE 3

FL(Z3)FR(Z3)

FR FL

(Z3) (Z3)

SR SLFR FL SR

(Z2) (Z2)

5.1c h

7.1c h

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 44

 5.1 Channel System (Bi-Amping the Speakers)

FL FR

SL SR

Speaker Connections

High:

Low:

FR FLSR

Be sure to remove the jumper bar connecting between the woofer jacks and tweeter jacks of the Bi-Amping supported speakers. Refer to the instruction manual of your speakers as well.

SR SL

High:

Low:

5.1c h

7.1c h

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 45

 7.1 Channel System

FL FR

SL SR

SBL SBR

Speaker Connections

5.1c h

7.1c h

SR SLFR FL SR

SBR SBL

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 46

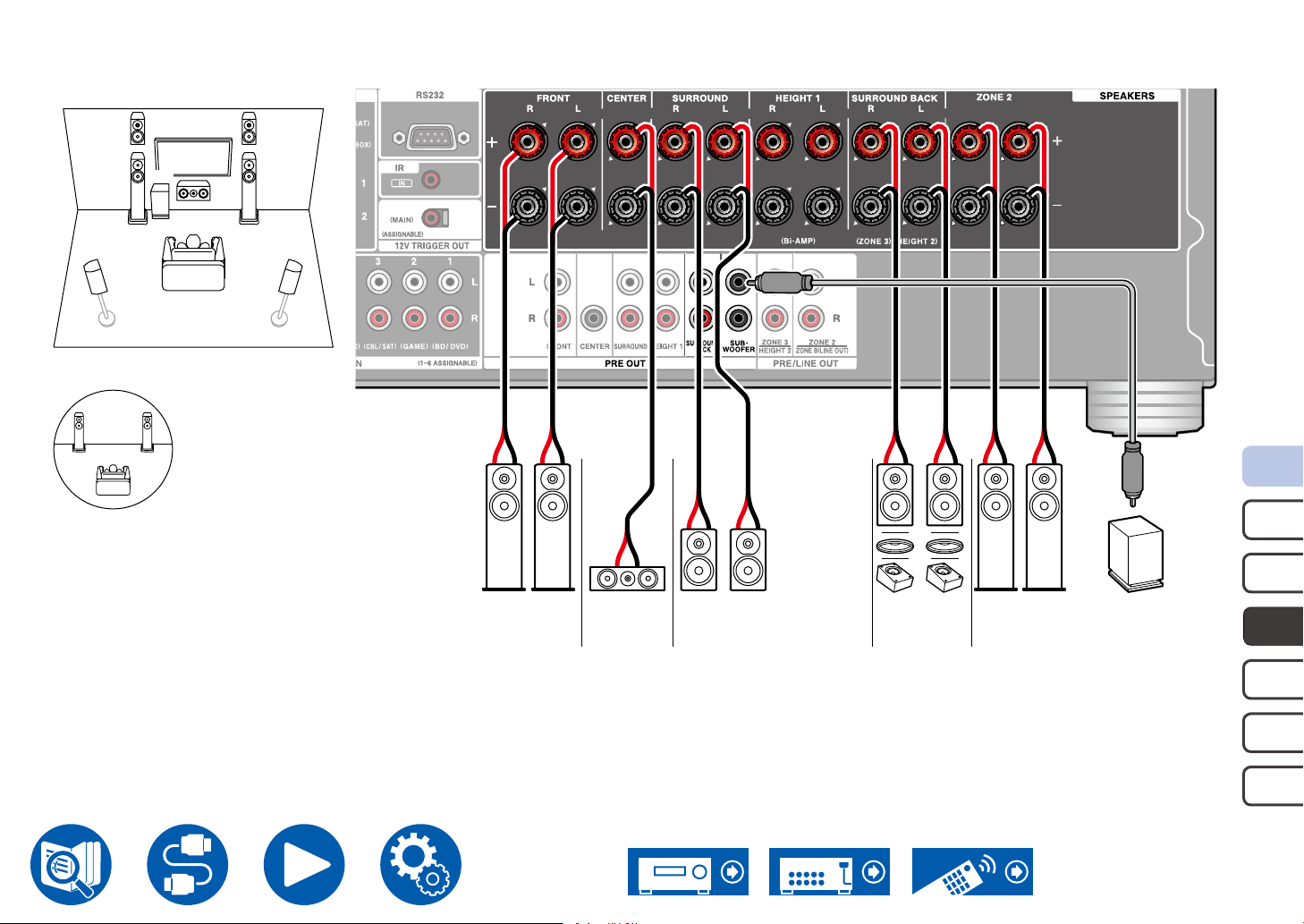

 7.1 Channel System + ZONE SPEAKER (North American models)

MAIN ROOM

FL FR

SL SR

SBL SBR

ZONE 2

FL(Z2)FR(Z2)

Speaker Connections

5.1c h

7.1c h

SR SLFR FL SR FR

SBR SBL

(Z2) (Z2)

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 47

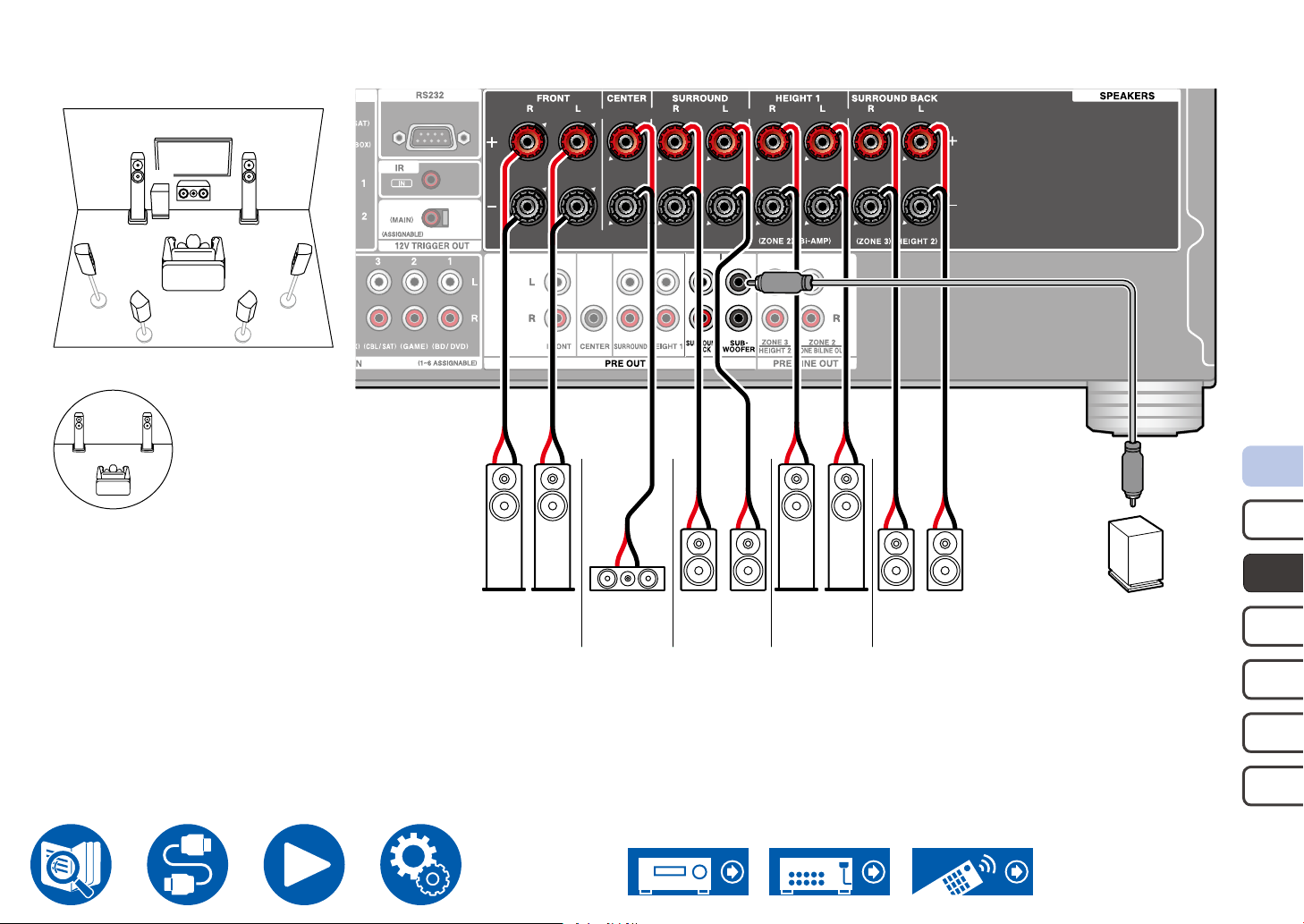

Speaker Connections

 7.1 Channel System + ZONE SPEAKER (European, Australian and Asian models)

MAIN ROOM

FL FR

SL SR

SBL SBR

ZONE 2

FL(Z2)FR(Z2)

5.1c h

7.1c h

SBR SBLFR

SR SLSRFR FL

(Z2) (Z2)

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 48

 7.1 Channel System (Bi-Amping the Speakers)

SBR SBL

SR SL

High:

Low:

High:

Low:

FR FLSR

FL FR

SL SR

SBL SBR

Speaker Connections

5.1c h

Be sure to remove the jumper bar connecting between the woofer jacks and tweeter jacks of the Bi-Amping supported speakers. Refer to the instruction manual of your speakers as well.

7.1c h

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 49

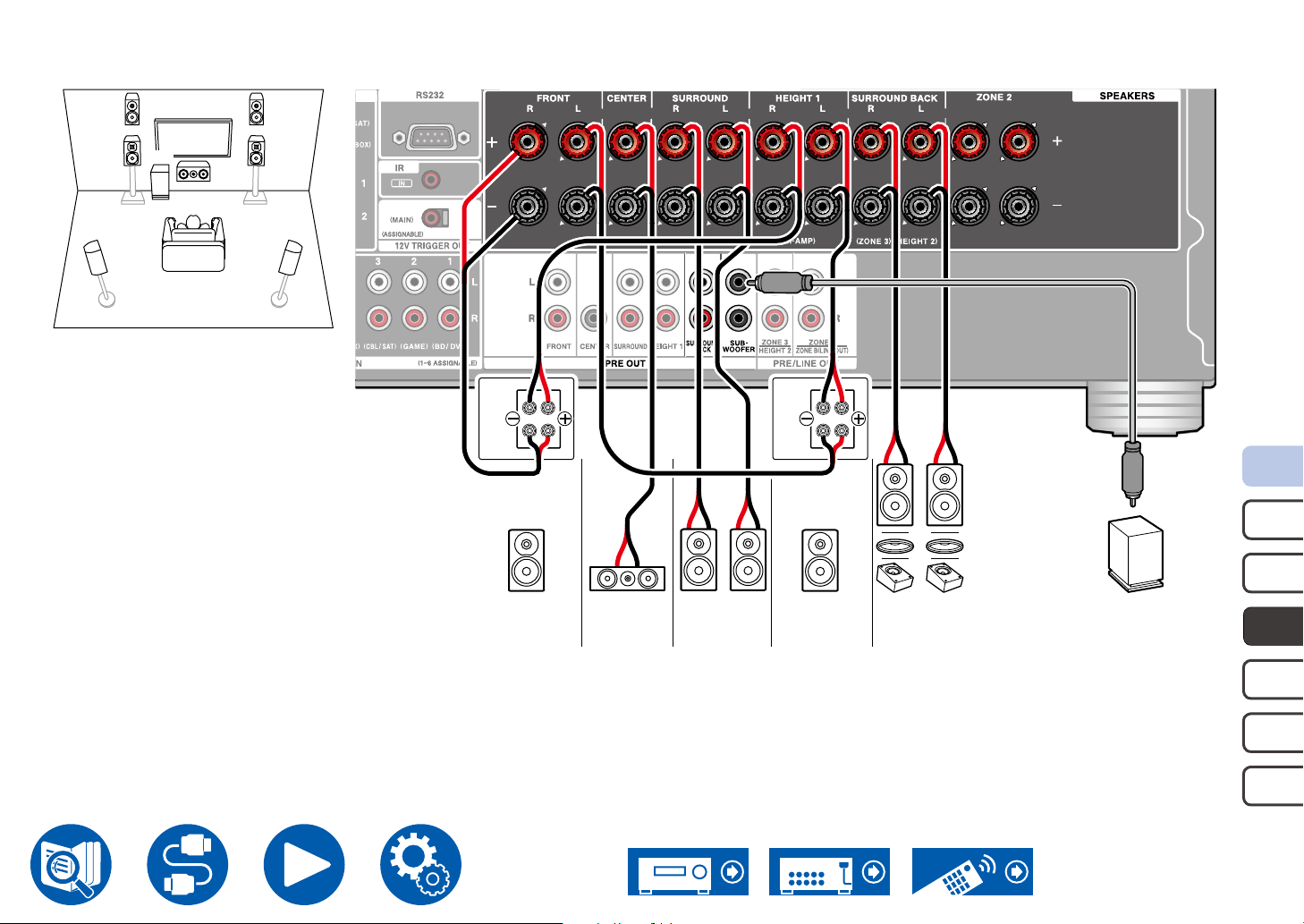

 5.1.2 Channel System

HL HR

FL FR

SL SR

Speaker Connections

5.1c h

SR SLFR FL SR

HR HL

*1 Connect the Height Speakers you have actually installed (HL/HR: Height Speakers, Top Speakers, Dolby Enabled Speakers).

7.1c h

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 50

 5.1.2 Channel System + ZONE SPEAKER (North American models)

MAIN ROOM

HL HR

FL FR

SL SR

ZONE 2

FL(Z2)FR(Z2)

Speaker Connections

5.1c h

SR SLFR FL FR

HR HL

*1 Connect the Height Speakers you have actually installed (HL/HR: Height Speakers, Top Speakers, Dolby Enabled Speakers).

(Z2) (Z2)

7.1c h

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 51

Speaker Connections

 5.1.2 Channel System + ZONE 2/ZONE 3 SPEAKER (North American models only)

MAIN ROOM

HL HR

FL FR

SL SR

ZONE 2

FL(Z2)FR(Z2)

• While ZONE 2/ZONE 3 layback is being performed, Height 1 speakers installed in the main room cannot play audio.

*1 Connect the Height Speakers you have actually installed (HL/HR: Height Speakers, Top Speakers, Dolby Enabled Speakers).

ZONE 3

FL(Z3)FR(Z3)

SR SLFR FL SR

FR FL

(Z3) (Z3)

FLHR HL

(Z2) (Z2)

5.1c h

7.1c h

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 52

Speaker Connections

 5.1.2 Channel System + ZONE SPEAKER (European, Australian and Asian models)

MAIN ROOM

HL HR

FL FR

SL SR

ZONE 2

FL(Z2)FR(Z2)

5.1c h

HR HLFR

SR SLFR FL

(Z2) (Z2)

*1 Connect the Height Speakers you have actually installed (HL/HR: Height Speakers, Top Speakers, Dolby Enabled Speakers).

7.1c h

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 53

 5.1.2 Channel System (Bi-Amping the Speakers)

HR HL

SR SL

High:

Low:

High:

Low:

FR FLSR

HL HR

FL FR

SRSL

Speaker Connections

5.1c h

Be sure to remove the jumper bar connecting between the woofer jacks and tweeter jacks of the Bi-Amping supported speakers. Refer to the instruction manual of your speakers as well.

*1 Connect the Height Speakers you have actually installed (HL/HR: Height Speakers, Top Speakers, Dolby Enabled Speakers).

7.1c h

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 54

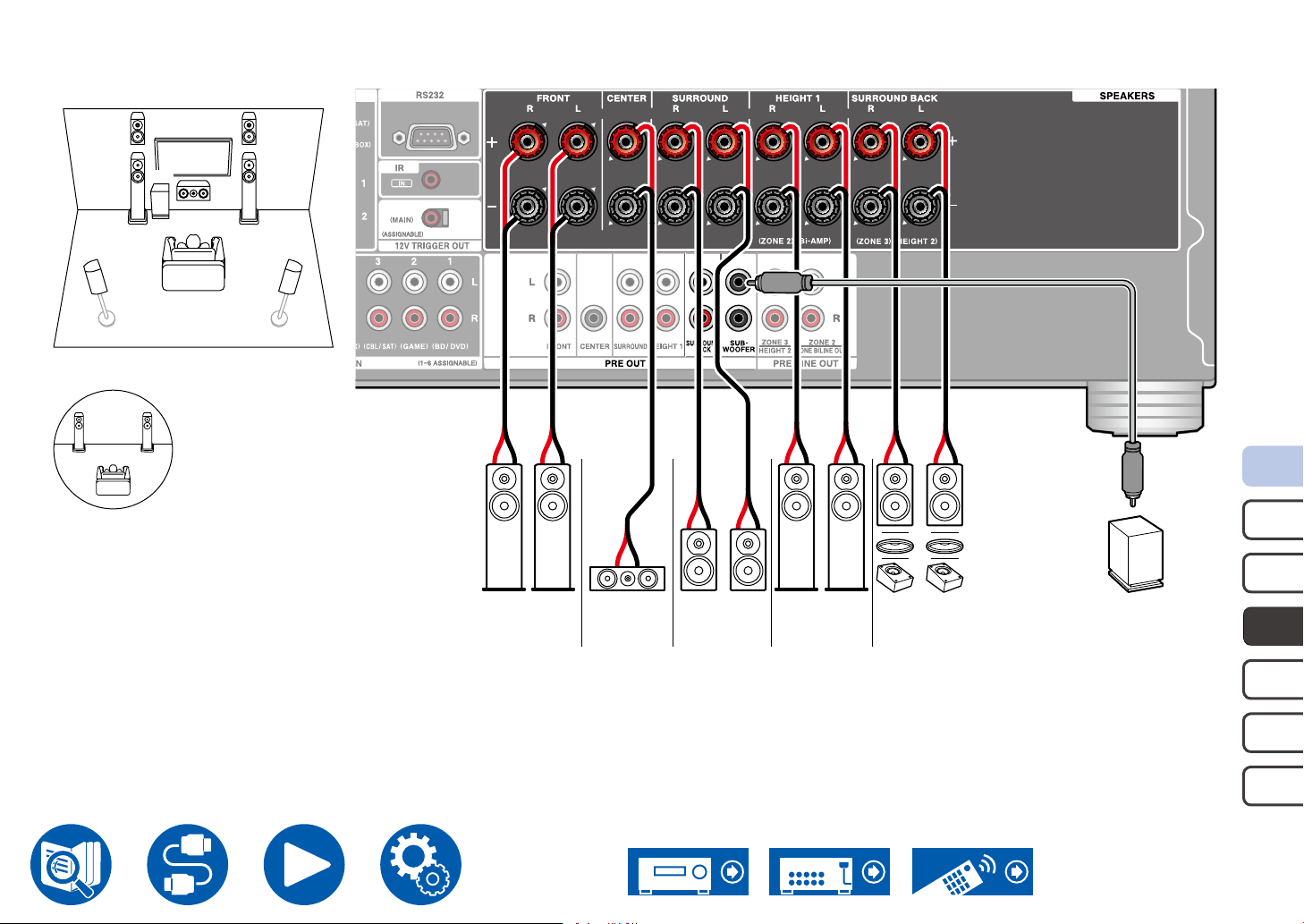

 7.1.2 Channel System

SBR SBLHR HL

SR SLFR FL SR

HRHL

FL FR

SL SR

SBL SBR

Speaker Connections

5.1c h

*1 Connect the Height Speakers you have actually installed (HL/HR: Height Speakers, Top Speakers, Dolby Enabled Speakers).

7.1c h

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 55

 7.1.2 Channel System + ZONE SPEAKER (North American models only)

MAIN ROOM

HRHL

FL FR

SL SR

SBL SBR

ZONE 2

FL(Z2)FR(Z2)

Speaker Connections

5.1c h

SR SLFR FL FR

SBR SBLHR HL

• While ZONE 2 playback is being performed, Height 1 speakers installed in the main room cannot play audio.

*1 Connect the Height Speakers you have actually installed (HL/HR: Height Speakers, Top Speakers, Dolby Enabled Speakers).

(Z2) (Z2)

7.1c h

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 56

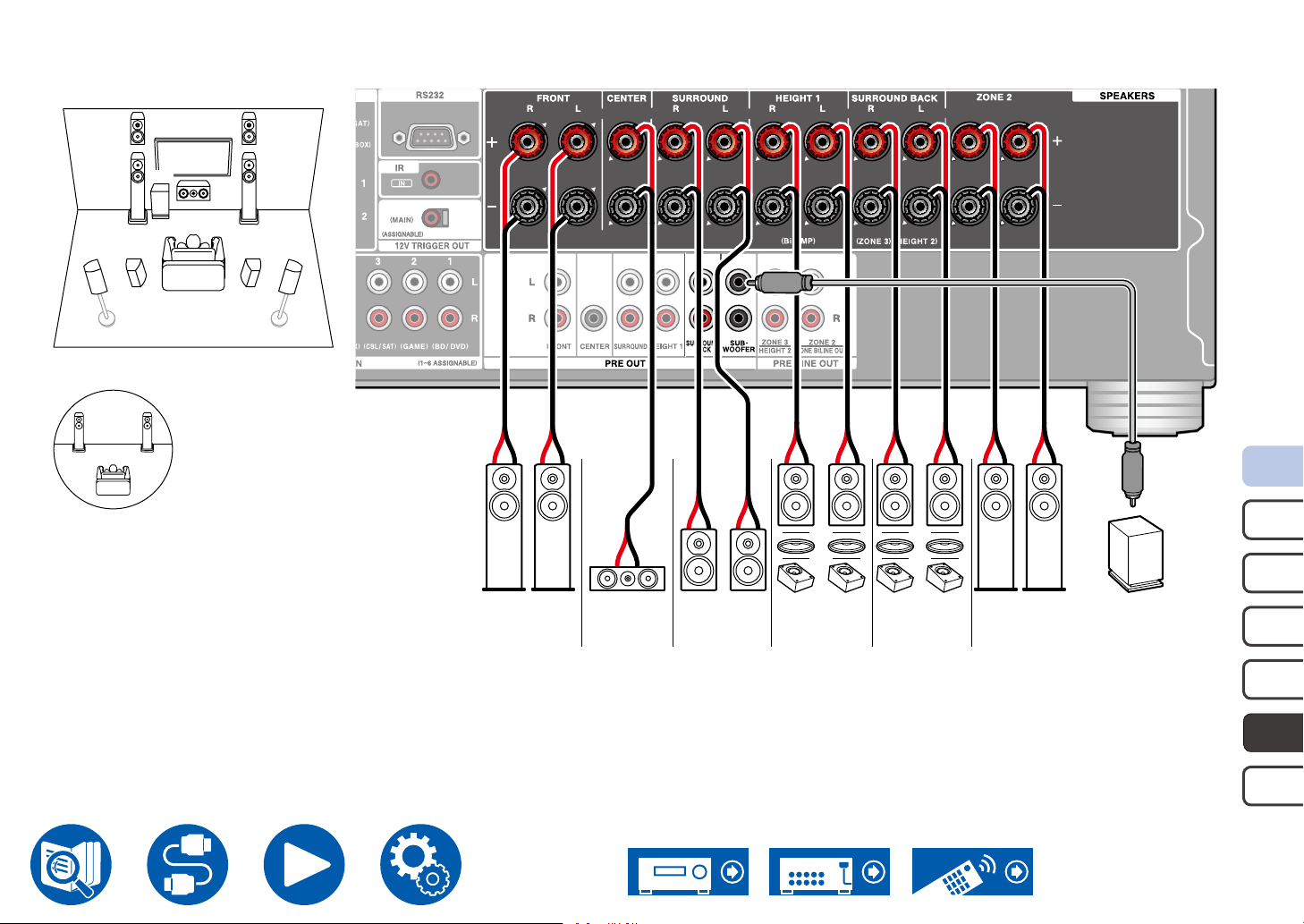

 5.1.4 Channel System

SR SLFR FL HR2 HL2HR1 HL1SR

HL1 HR1

FL FR

SL SR

HR2HL2

Speaker Connections

5.1c h

*1 *2

*1 Connect the Height Speakers you have actually installed (HL1/HR1: Front Height Speakers, Top (front side) Speakers, Dolby Enabled Speakers (Front)). *2 Connect the Height Speakers you have actually installed (HL2/HR2: Rear Height Speakers, Top (rear side) Speakers, Dolby Enabled Speakers (Surround)).

7.1c h

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 57

 5.1.4 Channel System + ZONE SPEAKER (North American models only)

MAIN ROOM

HL1 HR1

FL FR

SL SR

ZONE 2

FL(Z2)FR(Z2)

HR2HL2

Speaker Connections

5.1c h

SR SLFR FL HR2 HL2HR1 HL1

(Z2) (Z2)

*1 *2

• While ZONE 2 playback is being performed, Height 1 speakers installed in the main room cannot play audio.

7.1c h

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 58

 7.1.4 Channel System

MAIN ROOM

RHL

TML

TMR

Speaker Connections

RHR

SBL SBR

FR FL HR2 HL2HR1 HL1SR SLSBR SBL

*1 *2

5.1c h

7.1c h

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 59

 7.1.4 Channel System + ZONE SPEAKER (North American models only)

MAIN ROOM

RHL

TML

TMR

RHR

Speaker Connections

SBL SBR

ZONE 2

FL(Z2)FR(Z2)

• While ZONE 2 playback is being performed, Height 1 speakers installed in the main room cannot play audio.

FR FL HR2 HL2HR1 HL1SR SLSBR SBL

*1 *2

(Z2) (Z2)

5.1c h

7.1c h

5.1. 2c h

7.1. 2c h

5.1.4ch

7.1.4ch

Page 60

Connecting a Power Amplier

Speaker Connections

Power amplier

You can connect a power amplier to the unit and use the unit as a pre-amplier

in order to produce a large volume that cannot be output with the unit only.

Connect the speakers to the power amplier. For details, refer to the power amplier's instruction manual.

• Use the PRE OUT jacks for connection as show on the left.

Setup

• Set "2. Speaker" - "Conguration" - "Speaker Channels" ( →p131) according to the number of channels of the connected speakers.

5.1c h

7.1c h

5.1. 2c h

a Analog audio cable

7.1. 2c h

5.1.4ch

7.1.4ch

Page 61

Connections

Notes regarding connections with HDMI cables 62 Connecting the TV 63 Connecting the SUB Monitor 65 Connecting Playback Devices 66

Connecting a TV or Integrated Amplier in a

separate room (Multi-zone) 70 Connecting Antennas 73

Connections

Network Connection 74 Connecting External Control Devices 75 Connecting the Power Cord 77

Page 62

Notes regarding connections with HDMI cables

Connections

HDMI (High-Denition Multimedia Interface) is a digital interface standard for

connecting TVs, projectors, Blu-ray Disc players, game consoles, and other video components. With HDMI, a single cable can carry control signals, digital video, and digital audio.

Connections

Push HDMI cables straight in and all the way. You can damage the terminals if you try to insert at an angle.

Right

Right Wrong

Wrong

 (Note) Placement of cables

Putting a load on HDMI cables can lead to poor operational performance. Place the cables so there is no load put on them.

Right Wrong Wrong

• When 4K high-quality video (4K 60Hz, 4K HDR, etc.) is to be played, use Premium High Speed HDMI Cable or Premium High Speed HDMI Cable with Ethernet that have the "PREMIUM Certied Cable" label attached to the packaging.

• When 8K high-quality video (8K 60Hz, etc.) is to be played, use ULTRA High

Speed HDMI Cable that has the "ULTRA HIGH SPEED" label attached to the packaging.

• Hold the terminal housing on the HDMI cable when unplugging. Pulling on the cable may lead to damaged cabling.

Page 63

Connections

HDMI IN

(

ARC

)

Connecting the TV

By connecting a TV to this unit, you can show the video from AV devices connected to this unit on the TV and also play the sound from the TV through this unit.

SUB Monitor ( →p65)

ZONE 2 ( →p70)

Be sure to insert the HDMI cable all the way in.

Non-ARC TV

ARC TV

DIGITAL OPTICAL

OUT

To ARC/eARC TV

If the TV supports the ARC (Audio Return Channel) function(*), use only the HDMI cable to connect with the TV. Use the ARC-compatible HDMI IN jack of the TV for connection. You connect the HDMI cable to the HDMI OUT MAIN jack labeled "ARC" on the receiver side.

• When a TV compatible with the eARC function is connected, use an HDMI cable that supports Ethernet.

To Non-ARC TV

If the TV does not support the ARC (Audio Return Channel) function(*), connect an HDMI cable and digital optical cable. If the TV does not have a DIGITAL OPTICAL OUT jack, you can use an analog audio cable to connect with the AUDIO IN TV jack.

• If you use a cable set-top box, etc. connected to the input jack of this unit to watch TV (without using a TV’s built-in tuner), connection with a digital optical cable or analog audio cable is not required.

Setup

• When not using the ARC function, press on the remote controller, then set "5.Hardware" - "HDMI" - "Audio Return Channel (eARC supported)" ( →p144) to "Off".

(*)The ARC function and eARC function transmit the audio signals of the TV via

an HDMI cable, and plays the audio of the TV on this unit. To check if the TV supports the ARC function and eARC function, refer to the instruction manual of the TV, etc. ARC/eARC compatible audio formats ( →p204)

a HDMI cable, b Digital optical cable

Page 64

• Settings are required when 4K or 8K high-quality video is to be played.

Refer to "HDMI 4K/8K Signal Format" ( →p127) for information on the settings. Also, use an HDMI cable that supports 4K or 8K video.

Connections

Page 65

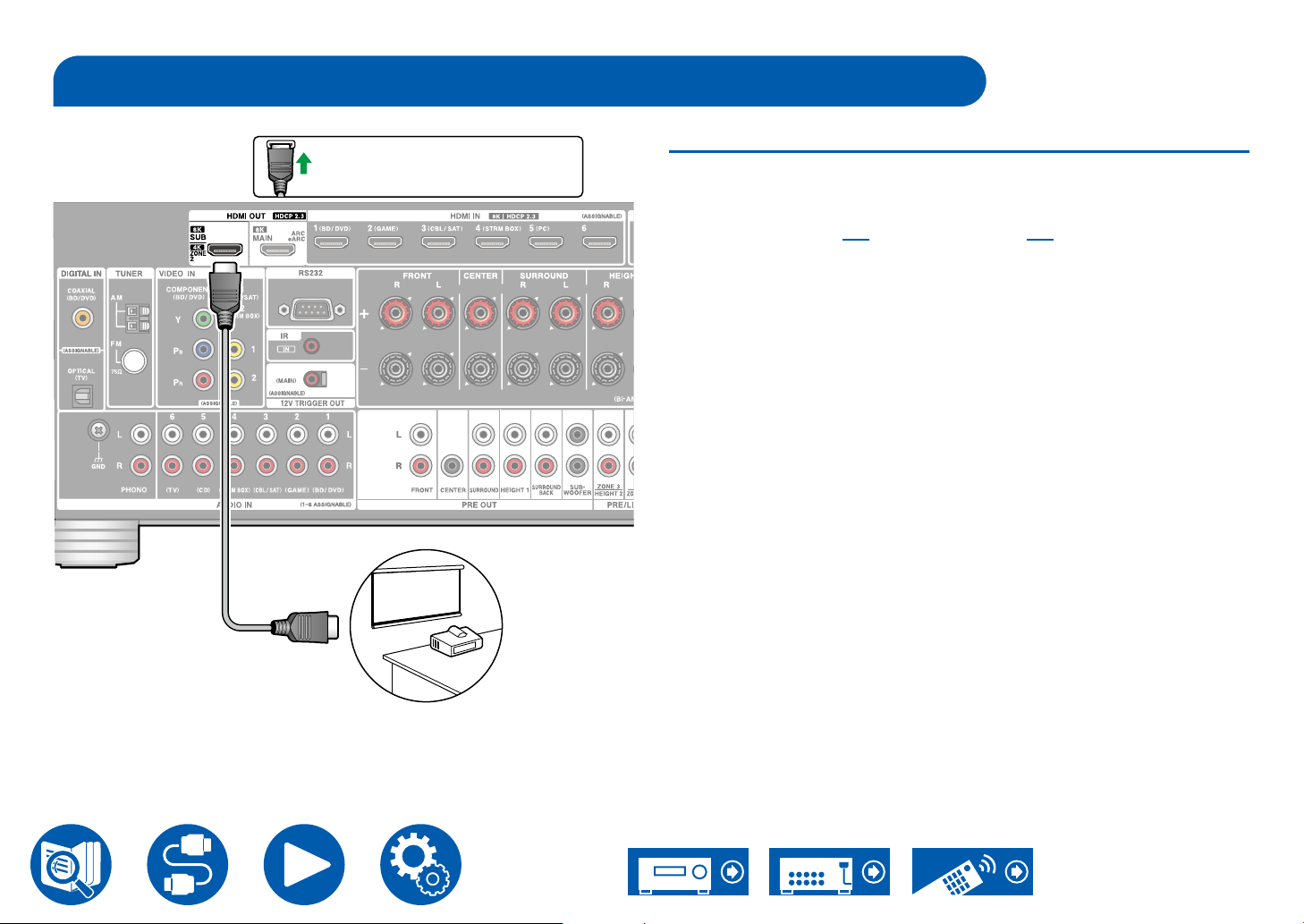

Connecting the SUB Monitor

Be sure to insert the HDMI cable all the way in.

Connections

SUB Monitor

This unit has multiple HDMI OUT jacks, and another TV or projector can be connected to the HDMI OUT SUB jack.

• Switch between MAIN and SUB using the HDMI MAIN/SUB button on the remote controller ( →p18) or "Quick Menu" ( →p91). Note that this jack is not ARC-compatible.

• If devices with different resolutions are connected to HDMI OUT MAIN jack and SUB jack, images are output with the lower resolution.

a HDMI cable

SUB Monitor

Page 66

Connecting Playback Devices

Note

Connections to BD/DVD and GAME with HDMI jacks

This is a connection example of an AV component equipped with an HDMI jack.

Be sure to insert the HDMI cable all the way in.

When connecting with an AV component that conforms to the CEC (Consumer Electronics Control) standard, you can use the HDMI CEC function (*) that enables linking with input selectors, etc. and the HDMI Standby Through function that can transmit video and audio signals of the AV component to the TV even if this unit is in standby mode.

• Settings are required when 4K or 8K high-quality video is to be played. Refer

to "HDMI 4K/8K Signal Format" ( →p127) for information on the settings. Also, use an HDMI cable that supports 4K or 8K video.

• The corresponding resolution is different depending on the HDMI jack

connected. See "Corresponding input resolutions" ( →p205) for details.

• To enjoy digital surround sound including Dolby Digital, set the audio output of the connected Blu-ray Disc player etc. to the Bitstream output.

(*)The HDMI CEC function: This function enables various linking operations with

CEC-compliant devices, such as switching input selectors interlocking with a CEC-compliant player, switching audio output between TV and this unit or adjusting the volume using the remote controller of a CEC-compliant TV, and automatically switching this unit to standby when the TV is turned off.

Connections

BD/DVD GAME

a HDMI cable

Cable/Satellite

set-top box

Page 67

Connecting a BD/DVD without HDMI Jack Mounted

Note

This is a connection example of an AV component unequipped with an HDMI jack. Select cables that match the jacks of the AV component for connection. For example, when video input is connected to the BD/DVD jack, connect the audio input to BD/DVD jack, too. Thus, video input jacks and audio input jacks should have the same name for connection. Note that video signals input to the VIDEO IN jack or the COMPONENT VIDEO IN jack are converted to HDMI video signals, and then output from the HDMI OUT jack.

• To enjoy digital surround playback in formats such as Dolby Digital, you need to make a connection for audio signals with a digital coaxial cable or a digital optical cable.

• According to the illustration, changing the input assignment ( →p129) enables connection to jacks other than the BD/DVD jack.

• The COMPONENT VIDEO IN jacks are compatible only with 480i or 576i

resolution. When connecting to the COMPONENT VIDEO IN jacks, set the

output resolution of the player to 480i or 576i. If there is no option such as 480i, select interlace. If your player does not support 480i or 576i output, use

the VIDEO IN jack.

• To enjoy digital surround sound including Dolby Digital, set the audio output of the connected Blu-ray Disc player etc. to the Bitstream output.

Connections

BD/DVD

a Digital coaxial cable, b Analog audio cable, c Component video cable

Page 68

Connecting an Audio Component

Connections

This is a connection example of an audio component. Connect a CD player using an analog audio cable. You can also connect a turntable that has an MMtype cartridge to the PHONO jack.

• If the turntable has a built-in phono equalizer, connect it to any of the AUDIO IN jacks other than the PHONO jack. Further, if the turntable uses an MC type cartridge, install a phono equalizer compatible with the MC type cartridge between the unit and the turntable, and then connect it to any of the AUDIO IN jacks other than the PHONO jack.

If the turntable has a ground wire, connect it to the GND terminal of this unit.

a Analog audio cable

Turntable

Page 69

Connecting a Video Camera, etc.

Connections

Connect a video camera, etc. to the AUX INPUT HDMI jack on the front panel using an HDMI cable.

a HDMI cable

Be sure to insert the HDMI cable all the way in.

Video camera

Page 70

Connecting a TV or Integrated Amplier in a separate room (Multi-zone)

Connecting a TV (ZONE 2)

While a disc is played on a Blu-ray Disc player in the main room (where this unit

Be sure to insert the HDMI cable all the way in.

is located), you can play the video and audio of the same Blu-ray Disc player or another AV component on the TV equipped with an HDMI IN jack in a separate room (ZONE 2). Note that only the devices connected to the HDMI IN1 to IN3 jacks can be played on the TV in the separate room.

• Audio from an externally connected AV component can be output only when the audio is 2 ch PCM audio signal. Also, the audio output of the AV component may need to be changed to the PCM output.

Setup

• When video and audio via HDMI input are output to ZONE 2, set "1. Input/ Output Assign" - "TV Out / OSD" - "Zone 2 HDMI" ( →p127) to "Use" on the Setup menu. Note that when "Zone 2 HDMI" is set to "Use", the resolution of the video that can be output by the HDMI OUT SUB/ZONE 2 jack will be limited to "4K Enhanced" ( →p127).

Connections

a HDMI cable

Page 71

Connecting an Integrated Amplier (ZONE 2)

Input

Terminal

Connections

You can enjoy 2 ch audio in the separate room (ZONE 2) while performing playback in the main room (where this unit is located). Use an analog audio cable to connect the ZONE 2 PRE/LINE OUT jack on this unit to the input jack

on an integrated amplier in the separate room.

• To output audio from an externally connected AV component to ZONE 2,

connect it to any of HDMI IN1 to IN3 jacks. If the AV component is not equipped with an HDMI jack, use a digital coaxial cable, digital optical cable or analog audio cable. Also, the audio from externally connected AV components can be output to ZONE 2 only when the audio is analog or 2 ch PCM signal. When the AV component is connected to this unit with a digital coaxial cable or digital optical cable, change the audio output of the AV component to the PCM output.

Setup

• Settings are required to output audio to ZONE 2. Press on the remote controller, and set "2. Speaker" - "Conguration" - "Zone 2 Preout" ( →p132)

to "Zone 2".

• When connecting an integrated amplier that does not have a volume control,

set "6. Multi Zone" - "Zone 2" - "Output Level" ( p153) to "Variable" on the Setup menu. If you do not set this, the volume output will be very loud and

there is a danger of damage to the integrated amplier, speakers, etc. When connecting an integrated amplier that has a volume control, leave this as

"Fixed".

a Analog audio cable

Integrated

amplier

Page 72

Connecting an Integrated Amplier (ZONE 3)

Input

Terminal

Connections

You can enjoy 2-ch audio in the separate room (ZONE 3) while performing playback in the main room (where this unit is located). Use an analog audio cable to connect the ZONE 3 PRE/LINE OUT jack on this unit to the input jack

on an integrated amplier in the separate room. The same source can be played

back in the main room and ZONE 3 simultaneously. Also, different sources can be played back in both rooms.

• To output audio from an externally connected AV component to ZONE 3, use an analog audio cable for connection. Note that ZONE 3 output is not possible with the connection using a HDMI cable, digital coaxial cable, or digital optical cable.

Setup

• This function can be used when any of the combinations among 2.1 ch, 3.1 ch, 4.1 ch, 5.1 ch, 2.1.2 ch*, 3.1.2 ch*, 4.1.2 ch* and 5.1.2 ch* in "Speaker combinations" ( →p199) is used. Note this function cannot be used if Bi-AMP or ZONE 2 (ZONE SPEAKER) is used in speaker combinations with “*” mark.

(For North American models only) Note that if a power amplier is connected

to the ZONE 3 PRE/LINE OUT jacks, ZONE 2 (ZONE SPEAKER) and ZONE 3 (ZONE SPEAKER) can be used.

• When connecting the power amplier, set "6. Multi Zone" - "Zone 3" - "Output

Level" ( p153) to "Variable" on the Setup menu. If it is not set, a large

volume is output and the power amplier, speakers, etc. may be damaged.

BD/DVD

a Analog audio cable

Integrated

amplier

Page 73

Connecting Antennas

A B

Connections

DABDAB

AMAM

FMFM

(North American,

Australian and Asian

models)

B A

North American, Australian and Asian models

Connect the antenna to this unit, and set up the antenna at the best position for listening while receiving radio signals. Attach the indoor FM antenna to the wall using push pins or adhesive tape.

European models

Make sure the plug is pushed in all the way, then x in place by turning the nut to the right. Use a tack or similar to x the antenna to a wall.

(European models)

a AM loop antenna, b DAB/FM antenna, c Indoor FM antenna

(North American

models)

(Australian and

Asian models)

Page 74

Network Connection

Connections

This unit can be connected to the network using a wired LAN or Wi-Fi (wireless LAN). You can enjoy network functions such as Internet radio by network connection. If connection is made by the wired LAN, connect the router and the ETHERNET jack with the Ethernet cable as shown in the illustration. To connect by Wi-Fi, select your desired setting method in "Network Connection" ( →p159)

of Initial Setup, and then follow the on-screen instructions. To congure the

setting on the Setup menu after the completion of Initial Setup, press the button on the remote controller, and select "5. Hardware" - "Network" to make the setting ( →p145). For the Wi-Fi connection, stand the wireless antenna for use.

a Ethernet cable

Router

Page 75

Connecting External Control Devices

IR IN port

Connections

When connecting a remote control receiver unit consisting of an IR Receiver, etc. to this unit, operation using the remote controller is possible even if the

remote control signal is difcult to reach (due to installation in the cabinet,

etc.). You can also operate the unit using the remote controller from a separate room such as ZONE 2. For installing a remote control receiver unit, contact the specialized stores.

• For the type of cable required for connection, refer to the operation manual, etc. of the remote control receiver unit.

IR Receiver

Page 76

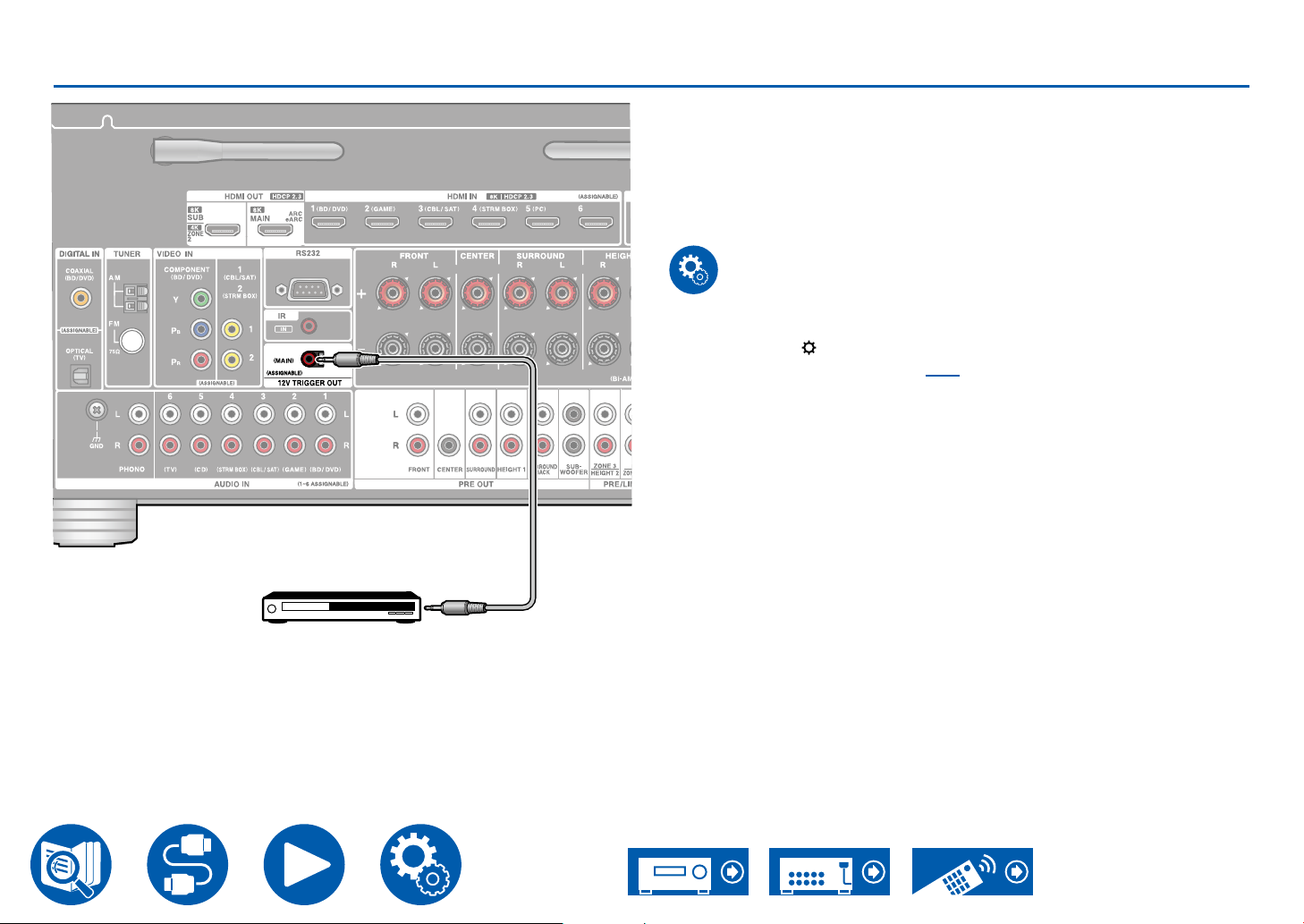

12V TRIGGER OUT jack

Connections

When connecting a device equipped with a TRIGGER IN jack such as a BD/ DVD player to this unit, the device can be turned on or set to standby by interlocking the operation on this unit. When any input is selected, this unit outputs a maximum of 12 V/100 mA control signal from the 12V TRIGGER OUT jack, and controls the power link operation of the external device.

• For connection, use a monaural mini plug cable (ø1/8″/3.5 mm) without

resistance. Do not use a stereo mini plug cable.

Setup

• Settings are required to output control signals from the 12 V TRIGGER OUT jack. Press the button on the remote controller, select the input desired for "5.Hardware" - "12V Trigger" ( →p151), and set the output destination for the control signal.

BD/DVD

a Monaural mini plug cable (ø1/8″/3.5 mm)

Page 77

Connecting the Power Cord

Connections

Connect the power cord after all the connections are completed.

• This model includes a removable power cord. Be sure to connect the power cord to the AC INLET of the unit rst, and then connect it to the outlet. Always disconnect the outlet side rst when disconnecting the power cord.

a Power cord

Page 78

Playback

Basic Operations

Playing audio from an externally connected device 79 BLUETOOTH Listening To the Radio 83 Listening Mode 89 Quick Menu 91

Playback 80

Network Services

Playback

Spotify 94 AirPlay DTS Play-Fi

97 Amazon Alexa 98 Amazon Music 100 TIDAL 102 Connecting the Sonos System for Playback 103 Internet Radio 105

Convenience functions

Multi-zone 107 Playing different audio and video 112

Playing music les saved on a USB storage device 114

Music Server 116 Play Queue 119 Connecting a transmitter for playback 121

Page 79

Playback

INPUT

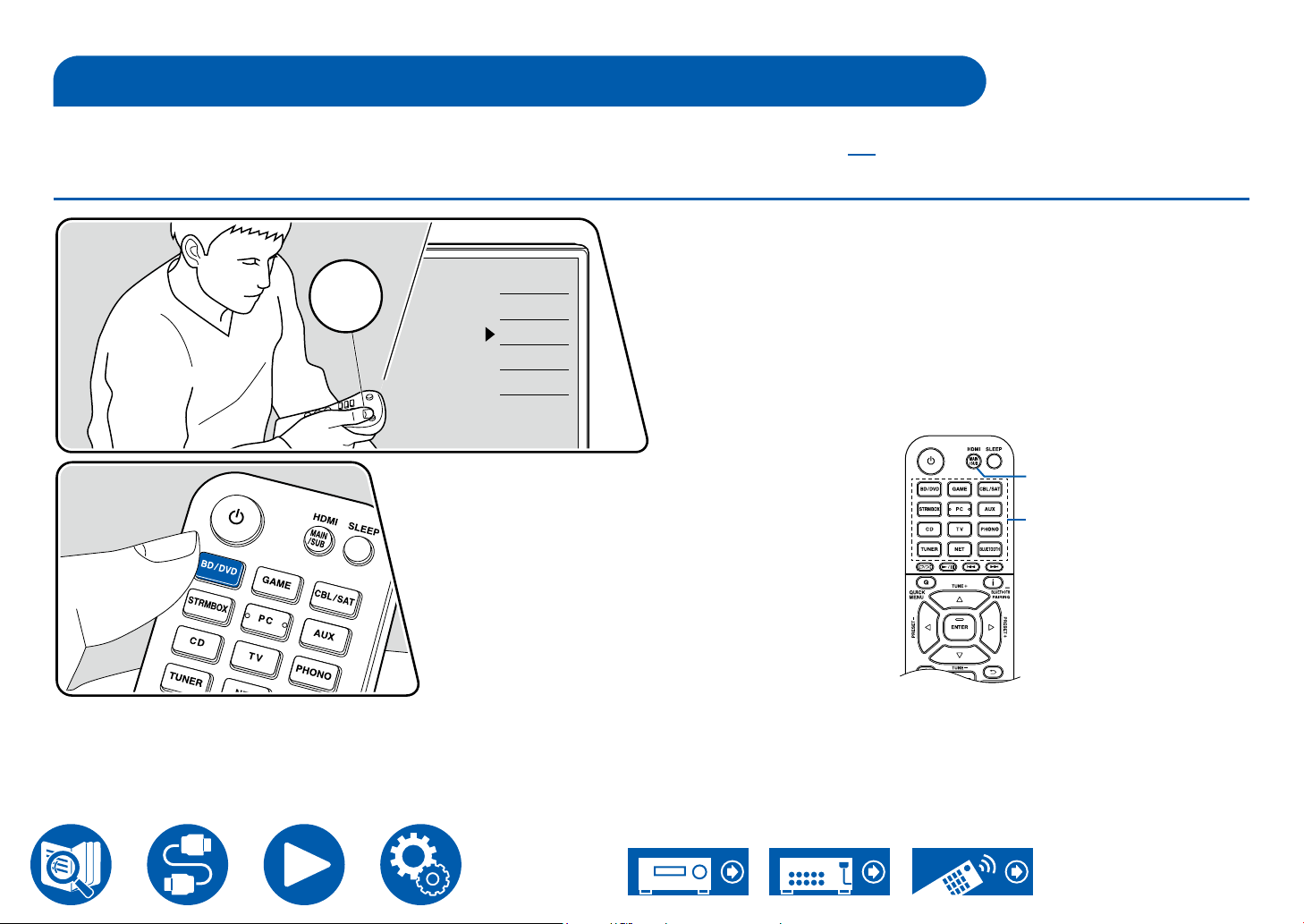

Playing audio from an externally connected device

You can play the audio from AV components, such as Blu-ray disc players through this unit.

• When a TV is connected to the HDMI OUT SUB jack, use the HDMI MAIN/SUB button or "Quick Menu" ( →p91) to switch between MAIN and SUB.

Basic Operations

Perform the following procedure when this unit is on.

TV’s REMOTE

Inputs

TV HDMI 1 HDMI 2 HDMI 3

1. Switch the input on the TV to the input connected to the unit.

2. Press the input selector whose name is the same as that of the jack to which

the player is connected. For example, press BD/DVD to play the player connected to the BD/DVD jack. Press TV to listen to the sound of the TV. Also, to play a device connected to the AUX INPUT HDMI jack on the front panel, press AUX.

• When the CEC link function works, the input switches automatically when a CEC compliant TV or player is connected to this unit using HDMI connection.

3. Start play on the AV component.

HDMI MAIN/SUB

Input selector

Page 80

Playback

Onkyo TX-RZ

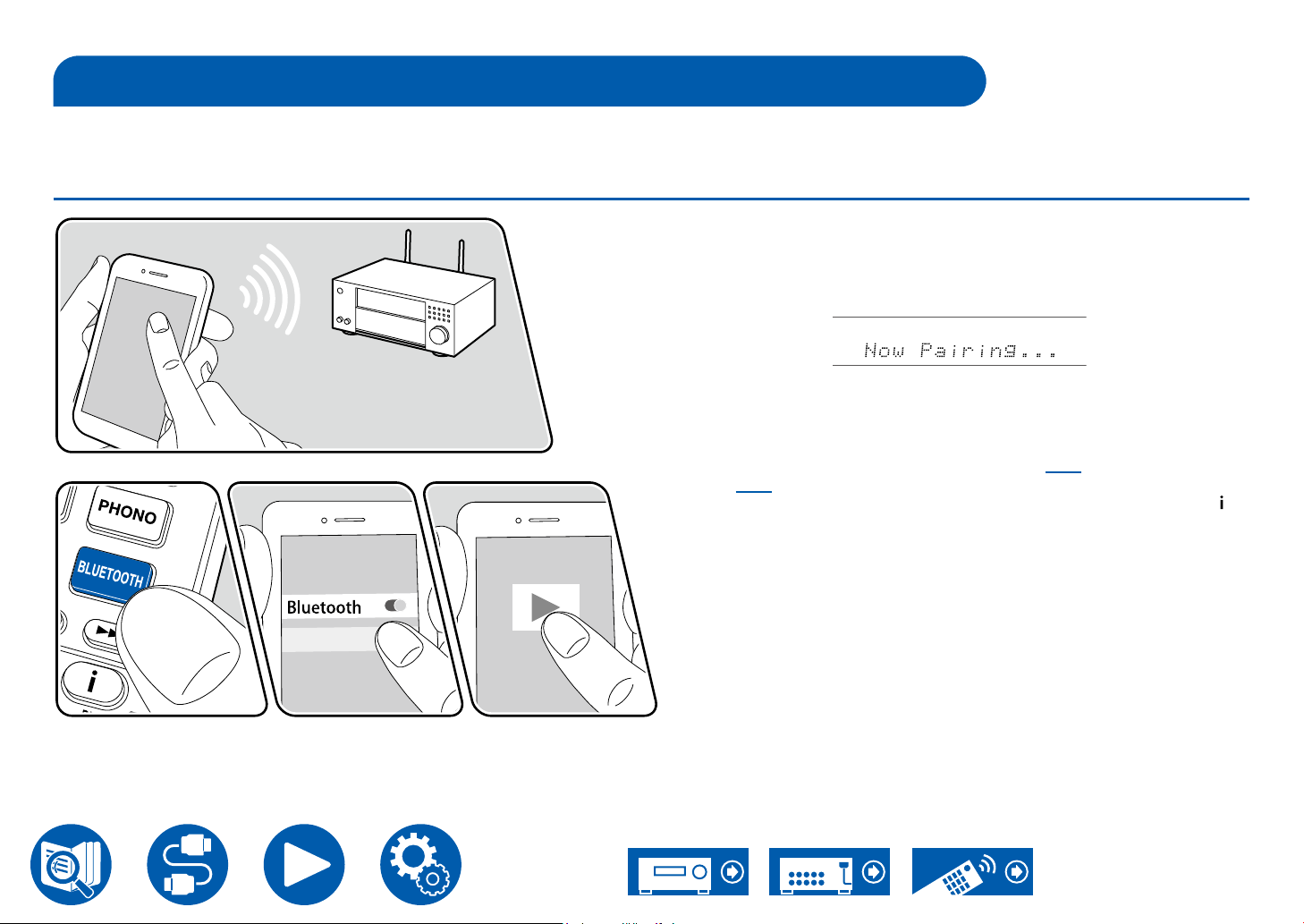

BLUETOOTH® Playback

You can wirelessly play music on a smartphone or other BLUETOOTH wireless technology enabled device through the speakers connected to this unit. It is also possible to transmit the audio from this unit to BLUETOOTH enabled headphones, wireless speakers, etc.

Playing audio from BLUETOOTH wireless technology enabled devices with this unit

Perform the following procedure when this unit is on.

Pairing

1. When you press the BLUETOOTH button, "Now Pairing..." appears on the display, and the pairing mode is enabled.

2. Enable (turn on) the BLUETOOTH function of the BLUETOOTH enabled device, and then select this unit from among the devices displayed. If a password is requested, enter "0000".

• This unit is displayed as "Onkyo TX-RZ50 XXXXXX". This display can be

changed using the Friendly Name function ( →p146) or Onkyo Controller ( →p164) (available on iOS or Android™).

• To connect another BLUETOOTH enabled device, press and hold the button at least 5 seconds, and then perform step 2. This unit can store the

pairing information of up to 8 paired devices.

• The coverage area is approx. 48´/15 m. Note that connection is not always

guaranteed with all BLUETOOTH enabled devices.

The illustration shows an image.

Playing Back

1. Perform the connection procedure on the BLUETOOTH enabled device.

2. Playing the music le. The input on this unit automatically switches to "BLUETOOTH". Turn up the volume of the BLUETOOTH enabled device to an appropriate level.

• Due to the characteristics of BLUETOOTH wireless technology, the sound produced on this unit may slightly be behind the sound played on the BLUETOOTH enabled device.

Page 81

Playback

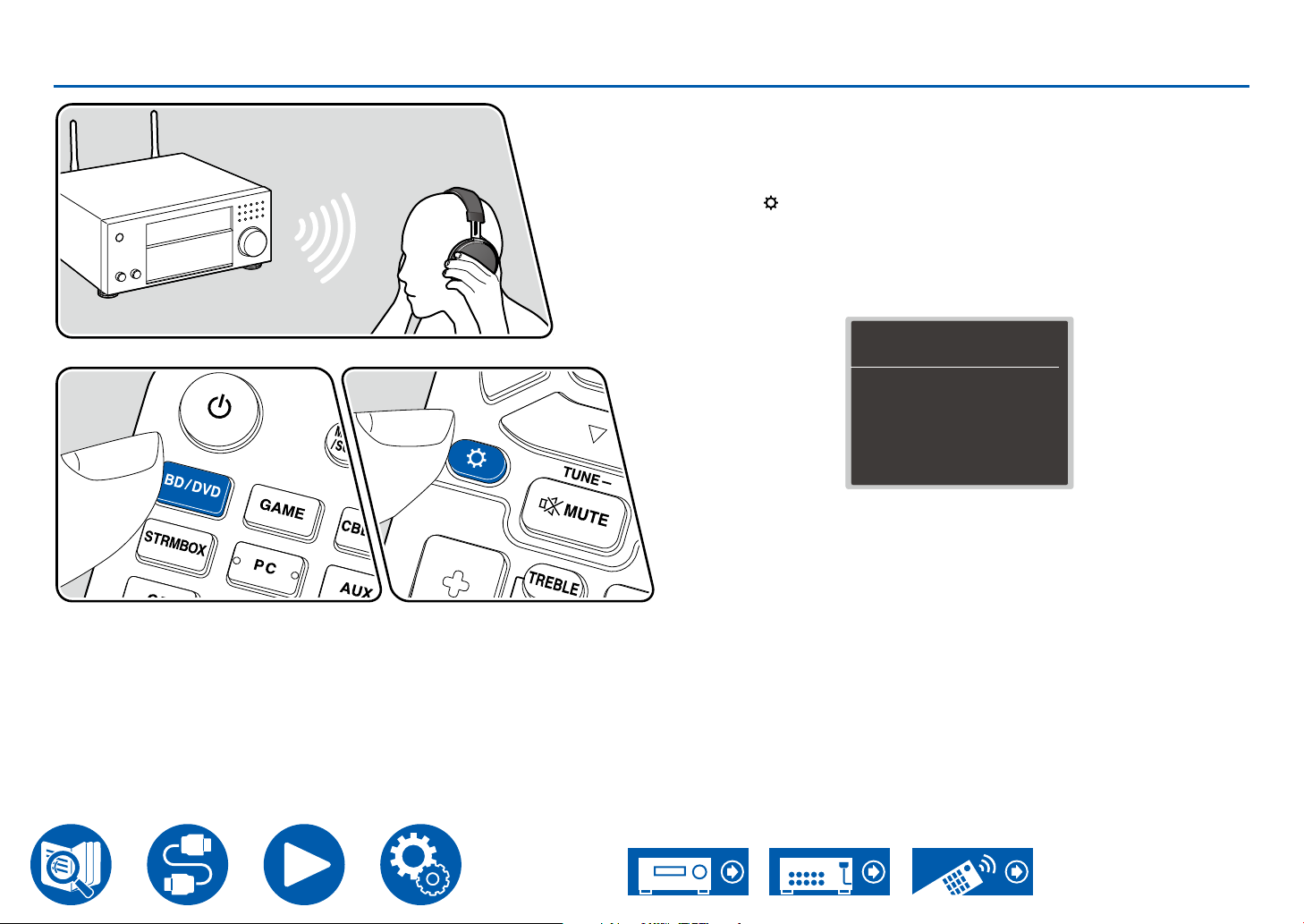

Transmitting audio from this unit to BLUETOOTH wireless technology enabled devices

Pairing

1. Press the input selector you want to play.

• Select a source other than "BLUETOOTH". This function does not work if you select "BLUETOOTH ".

2. Press the button on the remote controller, select "5. Hardware" "Bluetooth" - "Bluetooth Transmitter", and press the ENTER button.

3. Select either "On (Tx)" or "On (Main + Tx)" in "Bluetooth Transmitter".

• If you select "On (Tx)", playback is from the Bluetooth wireless technology enabled device only, and if you select "On (Main + Tx)", playback is from both the Bluetooth wireless technology enabled device and the main unit.

The illustration shows an image.

Bluetooth Transmitter

Bluetooth Transmitter Search Devices Output Level aptX HD Low Latency Mode Pairing Information Device Status

Set to “Off” if you are not using the Bluetooth Transmitter.

On (Tx)

Start

Variable

Clear

Ready

Off Off

4. In "Search Devices", press ENTER.

• The search starts for BLUETOOTH wireless technology enabled devices that are able to receive, then a list of relevant devices is displayed.

5. Select the device you want to output the audio from, and when you press ENTER the message "Now Pairing…" is displayed and the two are paired.

• Depending on the BLUETOOTH wireless technology enabled device, you may need to pair manually. If the device name does not appear in the list, check the settings of the BLUETOOTH wireless technology enabled device.

Page 82

Playing Back

1. Do the play operations on the AV component connected to this unit. Do the play operations on this unit when the input is TUNER or NET.

• If "Variable" has been selected for the "Output Level", the volume can be adjusted on this unit. Adjust to a suitable volume on the connected Bluetooth wireless technology enabled device beforehand. If "Fixed" is selected, adjust the volume on the Bluetooth wireless technology enabled device.

• You cannot transmit audio to multiple BLUETOOTH wireless technology enabled devices from this unit.

• The coverage area is approx. 48´/15 m. Note that connection is not always

guaranteed with all BLUETOOTH enabled devices.

• When "Bluetooth Transmitter" is "On (Tx)" or "On (Main + Tx)" and in the following cases, when this unit detects a paired Bluetooth wireless technology enabled device, it will automatically reconnect with that device.

– When the power is turned on again after the unit is switched to standby – While other than "BLUETOOTH" is selected – When the "NET" input is selected and there is audio output from a network

service/content (some services excluded) When not using this function, select "Off" in "Bluetooth Transmitter" to cancel the connection. Also disconnect on the receiving device (if disconnection is possible on the receiving device).

• Audio cannot be output from a BLUETOOTH wireless technology enabled device in the following cases:

– When the audio le is DSD format – When playing audio from one of the following network services:

Chromecast built-in, Amazon Alexa, AirPlay, DTS Play-Fi

• Sound quality adjustments and listening modes of this unit cannot be applied to the output audio.

• This function can be used in the main room (where this unit is located). This function turns off if you turn on the Multi-zone function which outputs audio from a separate room (ZONE 2/ZONE 3).

Playback

Page 83

Listening To the Radio

You can receive AM (North American, Australian and Asian models)/FM/DAB (European models) radio stations on this unit with the built-in tuner.

Listening To the AM/FM Radio

Tuning into a Radio Station

Perform the following procedure when this unit is on.

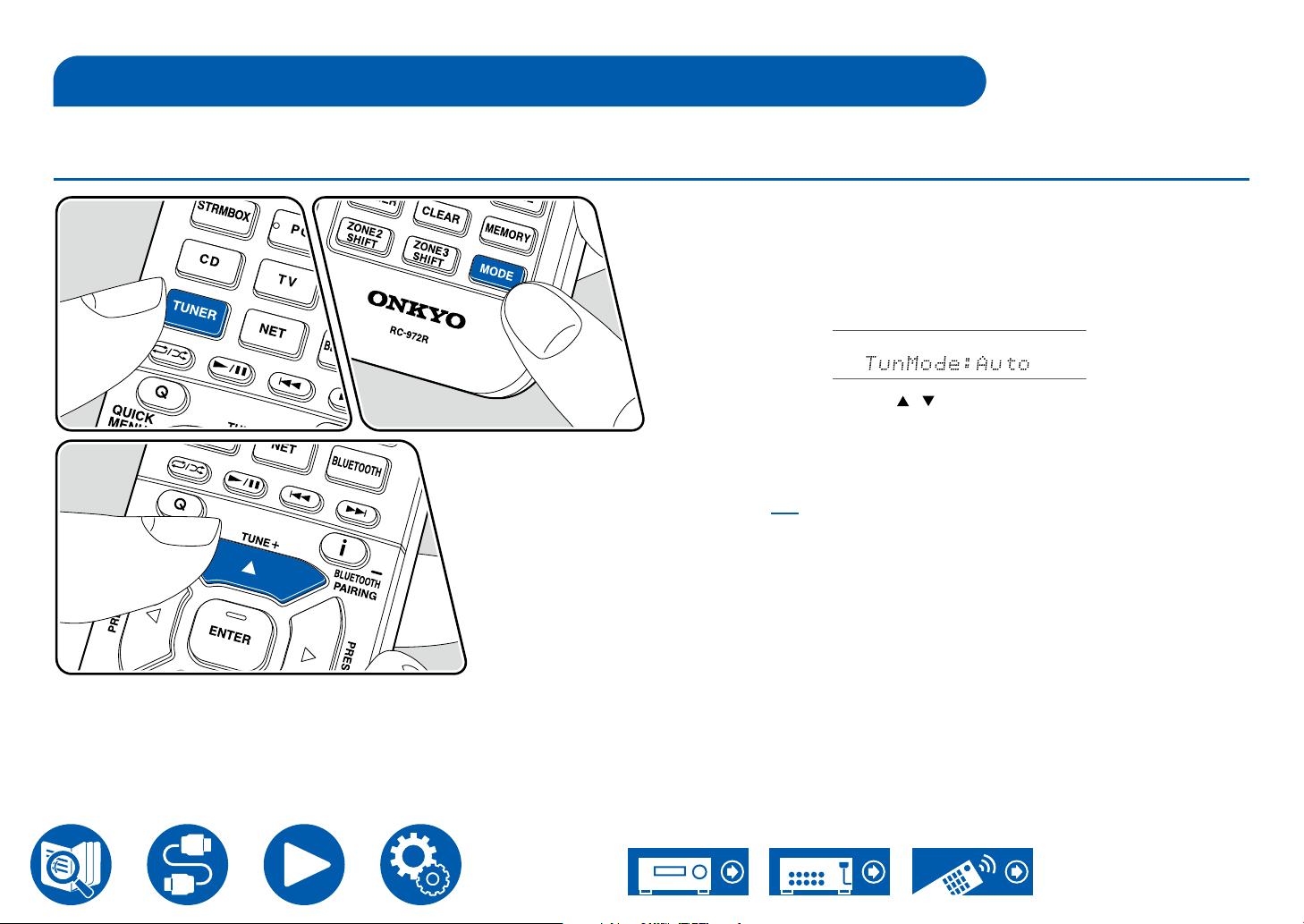

 Tuning Automatically

1. Press TUNER repeatedly to select either "AM" or "FM".

2. Press MODE repeatedly to display "TunMode: Auto" on the display.

3. When you press the cursors / , automatic tuning starts, and searching stops when a station is found. When tuned in to a radio station, the "TUNED" indicator on the display lights up. When tuned in to an FM radio station, the "FM ST" indicator lights up.

When FM broadcasts reception is poor: Perform the procedure for "Tuning

Manually" ( →p84). Note that if you tune manually, the reception for FM broadcasts will be monaural rather than stereo, irrespective of the sensitivity of the reception.

Playback

Page 84

Playback

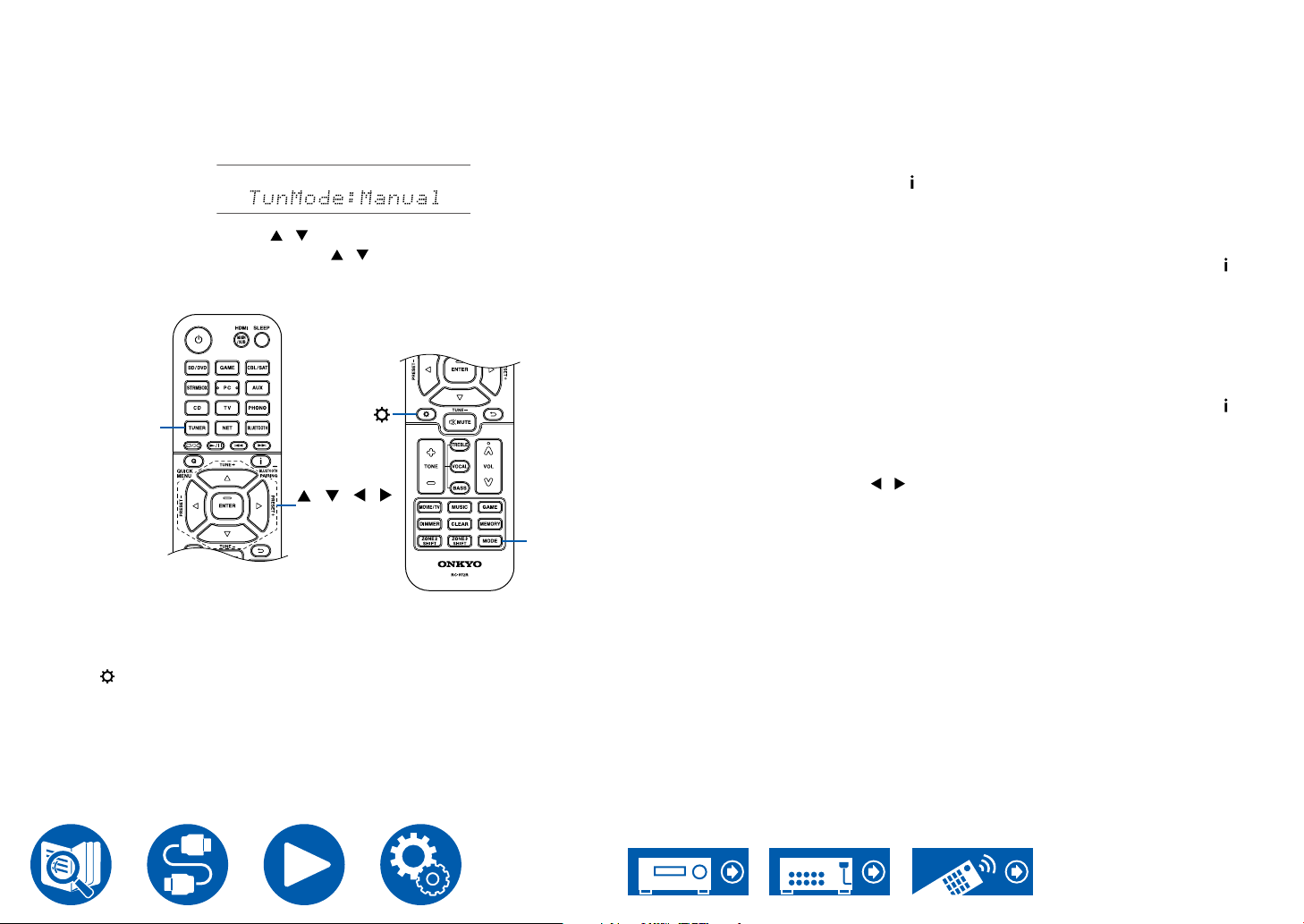

 Tuning Manually

Note that if you tune manually, the reception for FM broadcasts will be monaural rather than stereo, irrespective of the sensitivity of the reception.

1. Press TUNER repeatedly to select either "AM" or "FM".

2. Press MODE repeatedly to display "TunMode: Manual" on the display.

3. While pressing the cursors / , select the desired radio station.

• Each time you press the cursors / , the frequency changes by 1 step. If the button is held down, the frequency changes continuously, and if the button is released, the frequency stops changing.

TUNER

/ / /

ENTER

MODE

 Frequency step setting (North American, Australian

and Asian models)

Press , and using the cursors and ENTER, select "7. Miscellaneous" "Tuner" - "AM/FM Frequency Step" or "AM Frequency Step", and then select the frequency step for your area. Note that when this setting is changed, all radio presets are deleted.

Using RDS (European, Australian and Asian models)

RDS stands for Radio Data System, and is a method of transmitting data in FM radio signals. In regions where RDS can be used, when you tune in to a radio station broadcasting program information, the radio station name is displayed on the display. When you press the button on the remote controller in this state, you can use the following functions.

 Display Text Information (Radio Text)

1. While the name of the station is being displayed on the display, press the button on the remote controller once. The Radio Text (RT), which is text information delivered by the station, is displayed scrolling across the display. "No Text Data" is displayed when no text information is delivered.

 Search for Stations by Program Type

1. While the name of the station is being displayed on the display, press the button on the remote controller twice.

• If none of the Program Types are set for the radio station under reception, "None" is displayed.

2. Press the cursor buttons / on the remote controller to select the Program Type you want to search for, and then press the ENTER button to start the search.

• The Program Types displayed are as follows: None / News (News reports) / Affairs (Current affairs) / Info (Information) / Sport / Educate (Education) / Drama / Culture / Science (Science and technology) / Varied / Pop M (Pop music) / Rock M (Rock music) / Easy M (Middle of the road music) / Light M (Light classics) / Classics (Serious classics) / Other M (Other music)

/ Weather / Finance / Children (Children's programmes) / Social (Social

affairs) / Religion / Phone In / Travel / Leisure / Jazz (Jazz music) / Country (Country music) / Nation M (National music) / Oldies (Oldies music) / Folk M (Folk music) / Document (Documentary)

• The information displayed may not match the content delivered by the station.

3. When a station is found, the station blinks on the display. Pressing the

ENTER button in this state will receive that station. If you don't press the

ENTER button, the unit starts to search for another station.

Page 85

• If no stations are found, the message "Not Found" is displayed.

• Unusual characters may be displayed when the unit receives unsupported

characters. This is not a malfunction. Also, if the signal from a station is weak, information may not be displayed.

Playback

 Presetting a Radio Station ( →p88)

Page 86

Listening To DAB Digital Radio (European models only)

Tuning into a Radio Station

Perform the following procedure when this unit is on.

1. Press TUNER repeatedly to select "DAB".

• The very rst time you select DAB, the Auto Tuning function automatically

scans the DAB Band 3 for the multiplexes (i.e., stations) available in your

area. Once the scanning process is complete, the rst station that was

detected is selected.

2. Select the desired radio station with / .

• If a new DAB station is introduced, or you move to a new area, press , then use the cursors and ENTER button to run the "DAB Auto Scan" in "7. Miscellaneous" - "Tuner".

TUNER

Playback

/ / /

ENTER

MODE

Page 87

 Changing the order stations are displayed

You can sort the available stations alphabetically or by multiplex.

1. Press MODE repeatedly to set the method for sorting the display order from the following.

Alphabet (default setting): Sort stations alphabetically. Multiplex: Sort stations by multiplex.

 Displaying DAB Radio Information

1. Press repeatedly to display more information about the selected DAB station.

DLS (Dynamic Label Segment): When tuned to a station that's broadcasting

DLS text data, the text will scroll across the display.

Program Type: Displays the type of program. Bit Rate and Audio Mode: Displays the station's bit rate and audio mode

(Stereo, Mono). Quality: Displays the signal quality. 0 - 59: Poor reception 60 - 79: Good reception

80 - 100: Excellent reception

Multiplex Name: Displays the name of the current multiplex. Multiplex Number and Frequency:

Displays the number and frequency of the current multiplex.

Playback

Page 88

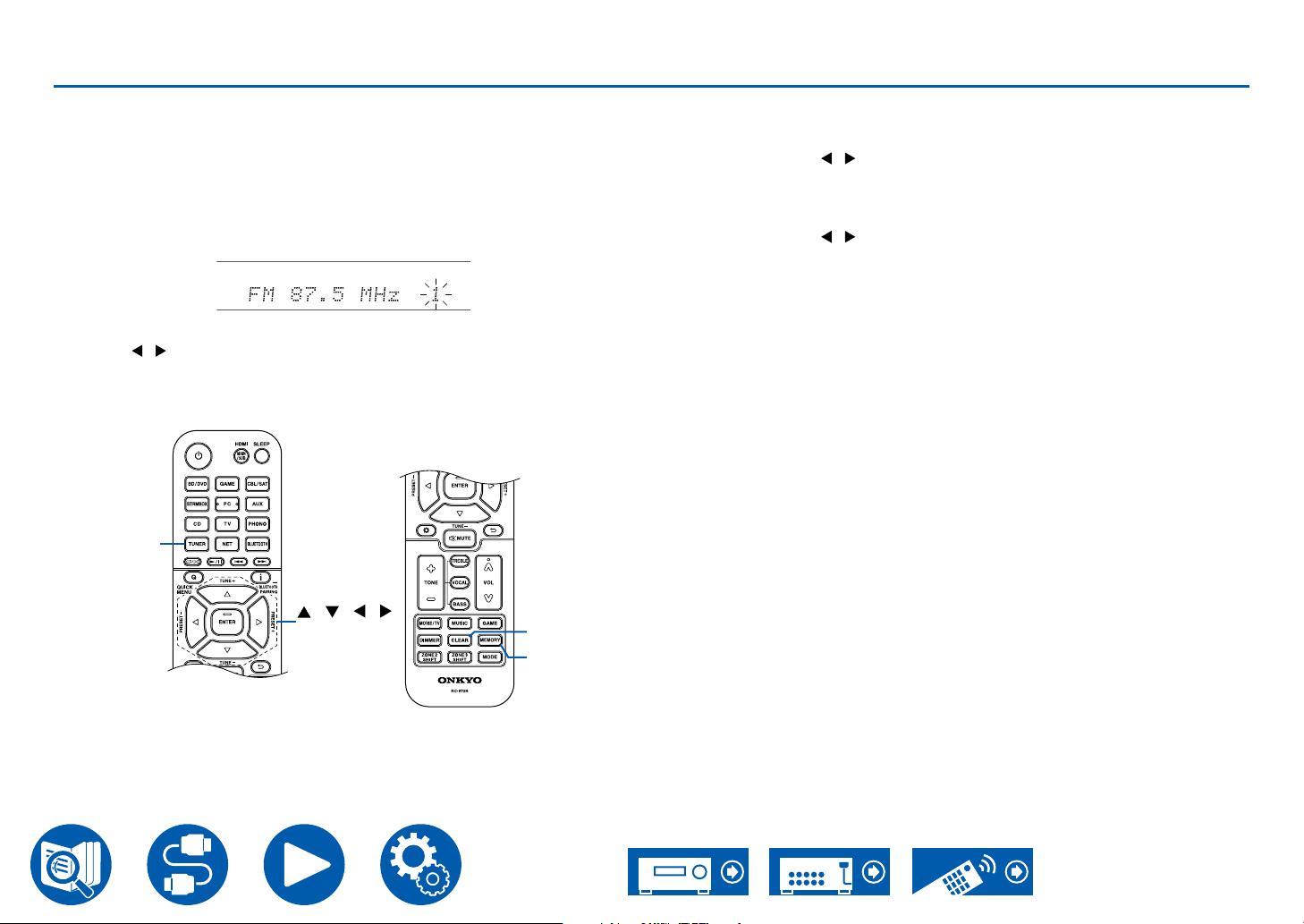

Presetting a Radio Station

Playback

 Registration Procedure

You can preset up to 40* of your favorite radio stations. *North American, Australian and Asian models: AM and FM stations European models: FM and DAB stations

After tuning in to the radio station you want to register, perform the following procedure.

1. Press MEMORY so that the preset number on the display blinks.

2. While the preset number is blinking (approx. 8 seconds), repeatedly press the cursors / to select a number between 1 and 40.

3. Press MEMORY again to register the station.

When the station is registered, the preset number stops ashing. Repeat this

procedure for all of your favorite radio stations.

TUNER

/ / /

ENTER

CLEAR MEMORY

 Selecting a Preset Radio Station

1. Press TUNER.

2. Press the cursors / to select a preset number.

 Deleting a Preset Radio Station

1. Press TUNER.

2. Press the cursors / to select the preset number to delete.

3. After pressing MEMORY, press CLEAR while the preset number is blinking, and delete the preset number. When deleted, the number on the display disappears.

Page 89

Playback

Listening Mode

This unit is equipped with a variety of listening modes, and you can select the optimum listening mode for movies, TV, music, and games by pressing MOVIE/TV, MUSIC, and GAME. ( →p186)

• For details of the effects of each listening mode, refer to "Listening Mode Effects" ( →p192).

• For listening modes selectable for each audio format of input signals, refer to "Input Formats and Selectable Listening Modes" ( →p188).

Selecting a Listening mode

1. Press one from among MOVIE/TV, MUSIC, and GAME during playback.

2. Press the selected button repeatedly to switch the modes displayed on the display of the main unit.

• Each of MOVIE/TV, MUSIC and GAME buttons stores the listening mode that was selected last. If content incompatible of the listening mode selected last is played, the most standard listening mode for the content is automatically selected.

Page 90

Checking the input format and listening mode

Repeatedly pressing the button on the remote controller switches the display of the main unit in the following order.

• The content displayed depends on the source, BLUETOOTH, etc., being played.

• Not all the information is necessarily displayed.

Input source and volume

Listening mode

Input format

The display is switched in a few seconds.

Sampling frequency

Input signal resolution

Playback

Page 91

Quick Menu

Menu operations

Playback

You can quickly adjust the settings you frequently use, such as tone adjustments, etc.

You can make the settings on the TV screen during playback. Press Q on the remote controller to display the Quick Menu.

Quick Menu

HDMI

Audio

Room EQ

Level

HDMI Out

A/V Sync

Audio Return Channel

BD/DVD

Select the item with the cursors / of the remote controller, and press the

ENTER button to conrm your selection.

Use the cursors to change the settings.

• To return to the previous screen, press .

• To exit the settings, press Q.

Page 92

 HDMI

"Front" "Surround"

HDMI Out: Select the HDMI OUT jack to output video signals from "MAIN",

"SUB", and "MAIN+SUB".

A/V Sync: If the video is behind the audio, you can delay the audio to offset the

gap. The setting can be set for each input.

• It cannot be set if the listening mode is Pure Audio or Direct.

Audio Return Channel: You can enjoy the sound of the HDMI-connected ARC-

compatible T V through the speakers connected to the unit. Select "On" when listening to the audio of TV using the speakers of this unit. Select "Off" when the ARC function is not used.

 Audio

Music Optimizer: Improve the quality of the compressed audio. Playback sound

of lossy compressed les such as MP3 will be improved. The setting can be set for each input. This works in signals whose sampling frequencies are 48 kHz or

less. The setting is not effective in the bitstream signals.

• It cannot be set if the listening mode is Pure Audio or Direct.

• This cannot be selected when either of the slots is selected with "Dirac Live"

( →p93).

Late Night: Enable small sounds to be easily heard in detail. It is useful when

you need to reduce the volume while watching a movie late night.

• This function cannot be used in the following cases.

– When playing Dolby Digital Plus or Dolby TrueHD with "Loudness

Management" set to "Off" – When the input signal is DTS:X, and "Dialog Control" is not 0 dB – When the input signal is Analog/DSD and the listening mode is Pure Audio

or Direct

Playback

Stereo Assign: This function enables you to select a pair of speakers to output

stereo sound. Apart from the front speakers (Front), you can select the Surround speakers (Surround), Surround Back speakers (Surround Back), Height 1 speakers (Height 1) and Height 2 speakers (Height 2).

Selectable

• The listening mode switches to "Stereo" if the audio output destination is changed.

Zone B: Select a method of outputting audio to ZONE B from among "Off",

"On (A+B)" and "On (B)".

• In the following cases, "Zone B" cannot be selected.

– When ZONE 2 is On – When "2. Speaker" - "Conguration" - "Zone 2 Preout" on the Setup menu

is set to "Zone 2". ( →p132)

Digital Filter: You can switch the type of digital lter in the AUDIO DAC (digital

analog converter). You can choose "Slow" (gives the sound a soft and uid feel), "Sharp" (gives the sound more structure and rmer feel) or "Auto" (auto). The

setting can be separately set to each input selector. This can be set when the sampling frequency is 44.1 kHz or more.

Page 93

Playback

 Room EQ

Dirac Live (*1): You can select the equalizers measured with Dirac Live

( →p161, p165) from "Slot1" to "Slot3". When disabling the equalizer, select "O f f ".

• The Dirac Live measurement results are saved in "Slot1" to "Slot3", but you are able to register your own original sound quality with "Manual Adjust" ( →p166).

• This cannot be selected when measurements are made using "AccuEQ Room Calibration".

AccuEQ (*1)(*2): Enable or disable the equalizer function that corrects for

sound distortion caused by the acoustic environment of the room. On (All Ch): EQ that corrects according to the room acoustics acquired with the AccuEQ calibration is applied to all channels. On (ex. L/R): The same EQ as "On (All Ch)" is applied to speakers other than the Front Speakers. EQ correction for the Front Speakers is turned off.

• The setting can be separately set to each input selector.

Manual Equalizer (*1)(*2): Select "Preset 1" to "Preset 3" congured in "2.

Speaker" - "Equalizer Settings" on the Setup menu. When this is set to "Off", the

same sound eld setting is applied to all ranges.

Re-EQ, Re-EQ(THX) (*1)(*2): Adjusts the soundtrack with the enhanced high

range so that it suits a home theater. The following listening modes can be used for Re-EQ: Dolby Audio - DD, Dolby Audio - DD+, Dolby Audio - Surr, Dolby Audio - TrueHD, Multichannel, DTS, DTS-ES, DTS 96/24, DTS-HD High Resolution Audio, DTS-HD Master Audio, DTS Neural:X, DTS Express and DSD In Re-EQ(THX), the following listening modes can be used: THX Cinema and THX Select Cinema.

EQ for Standing Wave (*1)(*2): Setting this "On" will control the effect of

the standing wave generated by the sound wave reected by wall or similar

interfering with the original sound wave.

(*1) It cannot be set if the listening mode is Pure Audio or Direct. (*2) This function cannot be used if Dirac Live ( →p161, p165) is being used.

Furthermore, there is no effect even if it can be selected.

 Level

Front: Adjust the speaker level of the front speakers while listening to the sound.

Center: Adjust the speaker level of the center speaker while listening to the

sound.

Subwoofer: Adjust the speaker level of the subwoofer while listening to the

sound.

• If you set the unit to the standby mode, the adjustments you made will be restored to the previous statuses.

Page 94

Spotify

Use your phone, tablet or computer as a remote control for Spotify. Go to spotify.com/connect to learn how.

Playback

Page 95

Playback

Onkyo TX-RZ

iPhone

Wi-Fi

AirPlay

By connecting this unit to the same network as that of iOS devices such as iPhone®, iPod touch® and iPad®, you can enjoy music les on iOS devices wirelessly.

• Update the OS version on your iOS device to the latest version.

• Depending on the iOS version, operation screens or operation procedures on the iOS device may be different. For details, refer to the operating instructions for the

iOS device.

Basic Operations

1. Connect the iOS device to the access point where this unit is connected via network.

2. Tap the AirPlay icon in the play screen of the music app on an iOS device that supports AirPlay and select this unit from the list of devices displayed.

3. Play the music le on the iOS device.

• When "5. Hardware" - "Power Management" - "Network Standby" is set to "Off" in the Setup menu, turn this unit on manually, and press the NET button on the remote controller. In the factory default setting, the Network Standby function ( →p150) is set to On.

• Due to the characteristics of AirPlay wireless technology, the sound produced on this unit may slightly be behind the sound played on the AirPlay-enabled device.

You can also play the music les on a PC with iTunes (Ver. 10.2 or later) equipped. Conrm that this unit and the PC are connected to the same network

beforehand. Then, press NET on the remote controller. Next, click the AirPlay

in iTunes, select this unit from the displayed devices, and start play of a

icon

music le.

e.g., iOS 10

Page 96

Playing Back on multiple devices (AirPlay2)

Onkyo TX-RZ

iPhone

Onkyo XXXXXXXX

Wi-Fi

e.g., iOS 11.4

Playback

This unit supports AirPlay2. If the version of the iOS device is iOS11.4 or later, you can play the tracks on the iOS device simultaneously on this device and on another device that supports AirPlay2.

1. Connect the iOS device to the access point where this unit is connected via network.

2. Tap the AirPlay icon on the play screen of the music play application on the iOS device, and select this unit and AirPlay2-supported devices to play from the displayed devices.

• AirPlay2-supported devices are displayed with white circle on the right side.

• Multiple AirPlay2-supported devices can be selected.

• The volume can be adjusted on individual devices.

3. Play the music le on the iOS device.

• When "5. Hardware" - "Power Management" - "Network Standby" is set to

"Off" in the Setup menu, turn this unit on manually, and press the NET button on the remote controller. In the factory default setting, the Network Standby function ( →p150) is set to On.

• Due to the characteristics of AirPlay wireless technology, the sound produced on this unit may slightly be behind the sound played on the AirPlay-enabled device.

You can also play the music les on a PC with iTunes (Ver. 12.8 or later) equipped. Conrm that this unit and the PC are connected to the same network

beforehand. Then, press NET on the remote controller. Next, click the AirPlay

in iTunes, select this unit and AirPlay2-supported devices to play from

icon

the displayed devices, and start play of a music le.

Page 97

Playback

DTS Play-Fi

When connecting this unit to the same network as mobile devices, such as a smartphone and tablet, you can enjoy music played on the mobile device wirelessly. Music from a streaming distribution service or music in the music library on a mobile device can be played. This function also supports a playlist on iTunes. Also, connecting multiple speakers supporting DTS Play-Fi on the same network will enable "Group playback" that plays the same music in separate rooms at home. To enjoy this function, download Onkyo Music Control App (available on iOS or Android™).

https://play-.com/

Playing Back

1. Download Onkyo Music Control App using your mobile device.

https://www.onkyo.com/play/app_o.html

2. Connect the mobile device to the network where this unit is connected.

3. Starting up Onkyo Music Control App will automatically display compatible devices.

4. Select this device from the compatible devices. Then, a list of applications such as a music streaming distribution service is displayed. Select the content to play, and perform operation according to the on-screen instructions.

• For detailed operation and FAQ, visit the following URL. https://www.onkyo.com/play/info_o.html

• To use a music streaming distribution service, user registration may be

required.

• This unit does not support the following DTS Play-Fi functions.

– Spotify – Wireless Surround Sound – Line In Rebroadcast – Internet Radio

• Some of the settings in the "Setup menu" cannot be changed on this unit. To change those settings, cancel the connection of this unit from the application.

• Listening modes cannot be selected during playback.

Page 98

Amazon Alexa

Playback

Alexa is a cloud-based voice service developed by Amazon. When this unit is registered with an Amazon account, you can use a terminal with Amazon Alexa (an Amazon Echo, etc.) or Amazon Alexa App (available on iOS and Android™) to perform operations such as adjusting the volume of this unit or playing music using voice commands.

• You need an Amazon account to use Amazon Alexa. For more information, see the Amazon website.

Registering this unit with an Amazon account

1. Register with the Amazon account on Onkyo Controller. This cannot be set with operations on this unit. Refer to "Onkyo Controller" ( →p164) for information about the app.

2. Start Onkyo Controller and tap the unit when displayed.

3. Tap "NET" or "NETWORK" at the top of the Onkyo Controller screen, and after switching to the network menu, tap the "amazon alexa" icon.

• If the login screen is not displayed but an update or installation screen is displayed instead, perform the update or installation according to the onscreen instructions.

Available ser vices may differ depending on your area.

4. Tap "Start Setup", and in the Setup screen, select the language and register the device name. Select the same language as the one you have selected for your other terminals with Amazon Alexa (an Amazon Echo, etc.). For the device name, use one that can easily be called up vocally. For example: Speaker

5. Tap "Next" to display the Amazon Alexa screen.

6. Follow the on screen instructions to enter the Amazon account information, such as your email address and password, to log into Amazon (*1). After logging in, tap "Allow" and register this unit with an Amazon account.

Page 99

(*1) Log in using the same account as other terminals with Amazon Alexa.

7. When registration is nished, the screen returns to the one for Onkyo Controller. Follow the on screen instructions and talk to the terminal with

Amazon Alexa (an Amazon Echo, etc.), and conrm that you can use voice

commands. For example: "Alexa, raise the volume of the speaker (*2)" "Alexa, play music from the speaker (*2)" (*2) Use the device name you registered in Step 4 when talking.

Playback

Operating this unit

You can use voice commands to adjust the volume on this unit, start and stop music, and skip music up or down.

1. With the unit on, speak at the terminal with Amazon Alexa (an Amazon Echo, etc.). When using the Amazon Alexa app, after starting the app, tap the Alexa logo and speak at the mobile device. For example: "Alexa, raise the volume of the speaker (*3)" "Alexa, play music from the speaker (*3)" (*3) Use the device name you registered in Step 4 of "Registering this unit with an Amazon account" when talking.

• Refer to the website for details about voice commands. (Click here )

• It is not possible to turn the unit on or off, or to switch the listening mode.

• Refer to the Amazon websites for information about operation of the Amazon

Alexa app.

Page 100

Amazon Music

Registering this unit with Amazon Music allows you to enjoy the music distribution service provided by Amazon.

• To play Amazon Music, you need to have your Amazon account and sign up for Amazon Prime or Amazon Music Unlimited. For more information, see the Amazon website.

Amazon Music is now available in several countries. If Amazon Music is not available in your country, please visit https://music.amazon.com/ for more info.

Playback

Registering This Unit with Amazon Music

1. Register with the Amazon account on Onkyo Controller. This cannot be set with operations on this unit. Refer to "Onkyo Controller" ( →p164) for information about the app.

2. Start Onkyo Controller and tap the unit when displayed.

3. Tap "NET" or "NETWORK" on the upper part of the Onkyo Controller’s screen to switch to the network menu. Then tap the "Amazon Music" icon to display the login screen of Amazon Music. (Depending on the model, the icon names may be different.)

• If the login screen is not displayed but an update or installation screen is displayed instead, perform the update or installation according to the onscreen instructions.

Available ser vices may differ depending on your area.

4. Enter the Amazon account information such as email address and password to log in to Amazon. When the login is successful and this unit is registered, the Amazon Music menu is displayed. For playback, proceed to step 3 in the next section.

100

Onkyo TZ-RZ50 Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Before starting the procedure

Firmware Update

Firmware Update Procedure

Part Names

Front Panel

Display

Rear Panel (North American models)

Rear Panel (European, Australian and Asian models)

Remote Controller

Inputting Characters

Speaker Layout

The listening room and the speaker layout

Speaker Installation

Setting Up the Speakers

Speaker Connections

Speakers you can use with this unit and cable connections

Connect the Subwoofer

Connections

Notes regarding connections with HDMI cables

Connections

Connecting the TV

To ARC/eARC TV

To Non-ARC TV

Connecting the SUB Monitor

SUB Monitor

Connecting Playback Devices

Connections to BD/DVD and GAME with HDMI jacks

Connecting a BD/DVD without HDMI Jack Mounted

Connecting an Audio Component

Connecting a Video Camera, etc.

Connecting a TV (ZONE 2)

Connecting Antennas

Network Connection

Connecting External Control Devices

IR IN port

12V TRIGGER OUT jack

Connecting the Power Cord

Playback

Playing audio from an externally connected device

Basic Operations

BLUETOOTH® Playback

Playing audio from BLUETOOTH wireless technology enabled devices with this unit

Transmitting audio from this unit to BLUETOOTH wireless technology enabled devices

Listening To the Radio

Listening To the AM/FM Radio

Listening To DAB Digital Radio (European models only)

Presetting a Radio Station

Listening Mode

Selecting a Listening mode

Quick Menu

Menu operations

Spotify

Basic Operations

Playing Back on multiple devices (AirPlay2)

Playing Back

Amazon Alexa

Registering this unit with an Amazon account

Operating this unit

Amazon Music

Registering This Unit with Amazon Music
