Onkyo SKS-HT518, SKW-501, HTP-518, SKM-518S, SKW-518 User Manual

)

HTP-518SKS-HT518En.fm Page 1 Wednesday, March 12, 2008 3:57 PM

Contents

5.1ch Home Theater Speaker Package

HTP-518 SKS-HT518

SKF-518F SKC-518C SKM-518S SKW-518 SKW-501

(HTP-518

(SKS-HT518

FRONT SPEAKER CENTER SPEAKER SURROUND SPEAKER

POWERED SUBWOOFER POWERED SUBWOOFER

Getting Started

Important Safety Instructions ...........2

Precautions........................................ 3

Package Contents.............................. 3

Getting to know Your Speaker

Package ...................................... 4

Installing & Using

Connecting the Speakers...................6

Power Cord Precautions....................9

Adjustment........................................ 9

Operating Precautions....................... 9

Instruction Manual

Thank you for purchasing an Onkyo home theater speaker package. Please read this manual thoroughly before using your new speakers. Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your speaker package. Please retain this manual for future reference.

Appendix

Troubleshooting..............................10

Speciﬁcations..................................11

HTP-518SKS-HT518En.fm Page 2 Wednesday, March 12, 2008 3:57 PM

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories speciﬁed by the manufacturer.

12.

Use only with the cart, stand, tripod, bracket, or table speciﬁed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

PORTABLE CART WARNING

S3125A

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to

persons. The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

AVIS

RISQUE DE CHOC ELECTRIQUE

NE PAS

OUVRIR

15. Damage Requiring Service Unplug the apparatus from the wall outlet and refer servicing to qualiﬁed service personnel under the following conditions: A. When the power-supply cord or plug is damaged, B. If liquid has been spilled, or objects have fallen

into the apparatus,

C. If the apparatus has been exposed to rain or

water,

D. If the apparatus does not operate normally by

following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualiﬁed technician to restore the apparatus to its normal operation,

E. If the apparatus has been dropped or damaged in

any way, and

F. When the apparatus exhibits a distinct change in

performance this indicates a need for service.

16. Object and Liquid Entry Never push objects of any kind into the apparatus through openings as they may touch dangerous voltage points or short-out parts that could result in a ﬁre or electric shock. The apparatus shall not be exposed to dripping or splashing and no objects ﬁlled with liquids, such as vases shall be placed on the apparatus. Don’t put candles or other burning objects on top of this unit.

17. Batteries Always consider the environmental issues and follow local regulations when disposing of batteries.

18. If you install the apparatus in a built-in installation, such as a bookcase or rack, ensure that there is adequate ventilation. Leave 20 cm (8") of free space at the top and sides and 10 cm (4") at the rear. The rear edge of the shelf or board above the apparatus shall be set 10 cm (4") away from the rear panel or wall, creating a ﬂue-like gap for warm air to escape.

HTP-518SKS-HT518En.fm Page 3 Wednesday, March 12, 2008 3:57 PM

Precautions

1. AC Fuse

The fuse is located inside the chassis and is not userserviceable. If power does not come on, contact your Onkyo authorized service station.

2. Care

From time to time you should wipe off the cabinet with a soft cloth. For heavier dirt, dampen a soft cloth in a weak solution of mild detergent and water, wring it out dry, and wipe off the dirt. Following this, dry immediately with a clean cloth. Do not use rough material, thinners, alcohol or other chemical solvents or cloths since these may damage the ﬁnish or remove the panel lettering.

Use a vacuum cleaner to remove dust from hard-to-reach grilles.

3. Power WARNING

BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY. The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (AC 220-240 V, 50/60 Hz (SKW-501), AC 230, 50 Hz (SKW-518)) written on the rear panel.

The power cord plug is used to disconnect this unit from the AC power source. Make sure that the plug is readily operable (easily accessible) at all times.

Auto standby function does not fully shutdown the SKW-518/SKW-501. If you do not intend to use the SKW-518/SKW-501, remove the power cord from the AC outlet.

For Canadian models

For models having a power cord with a polarized plug:

CAUTION:

MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

Modèle pour les Canadien

Sur les modèles dont la ﬁche est polarisee:

ATTENTION:

TRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

TO PREVENT ELECTRIC SHOCK,

POUR ÉVITER LES CHOCS ÉLEC-

Package Contents

Make sure your box contains all of the items below. If anything is missing, contact the nearest Onkyo dealer.

• Front speakers (SKF-518F)

• Center speaker (SKC-518C)

• Surround speakers (SKM-518S)

• Subwoofer

SKW-518 (HTP-518) SKW-501 (SKS-HT518)

• RCA cable for subwoofer connection

• 16 thin rubber stoppers, 12 thick rubber stoppers

* SKW-501 (SKS-HT518):

How to detach the power-plug adapter :

The SKS-HT518 ships with the power-plug adapter already attached. If the adapter does not match with your AC outlet, remove the adapter

• Speaker cable for front speakers 3.5 m

(Red) (White)

• Speaker cable for center speaker 3.5 m

(Green)

• Speaker cables for surround speakers 9 m

(Blue) (Gray)

•4 ﬂoor pads for the subwoofer

The alphabet displayed at the end of the product name found in catalogs and on package represents the color of the system. Though the color varies, the speciﬁcations and operations are the same.

HTP-518SKS-HT518En.fm Page 4 Wednesday, March 12, 2008 3:57 PM

Getting to know Your Speaker Package

Front, Center, and Surround speakers (SKF-518F, SKC-518C, SKM-518S)

■ Rear

1322

SKM-518SSKF-518F SKC-518C

Speaker terminals

These push terminals are for connecting the speaker to the AV receiver with the supplied speaker cables. The supplied speaker cables are color-coded for easy identiﬁcation. Simply connect each cable to the same-colored positive speaker terminal.

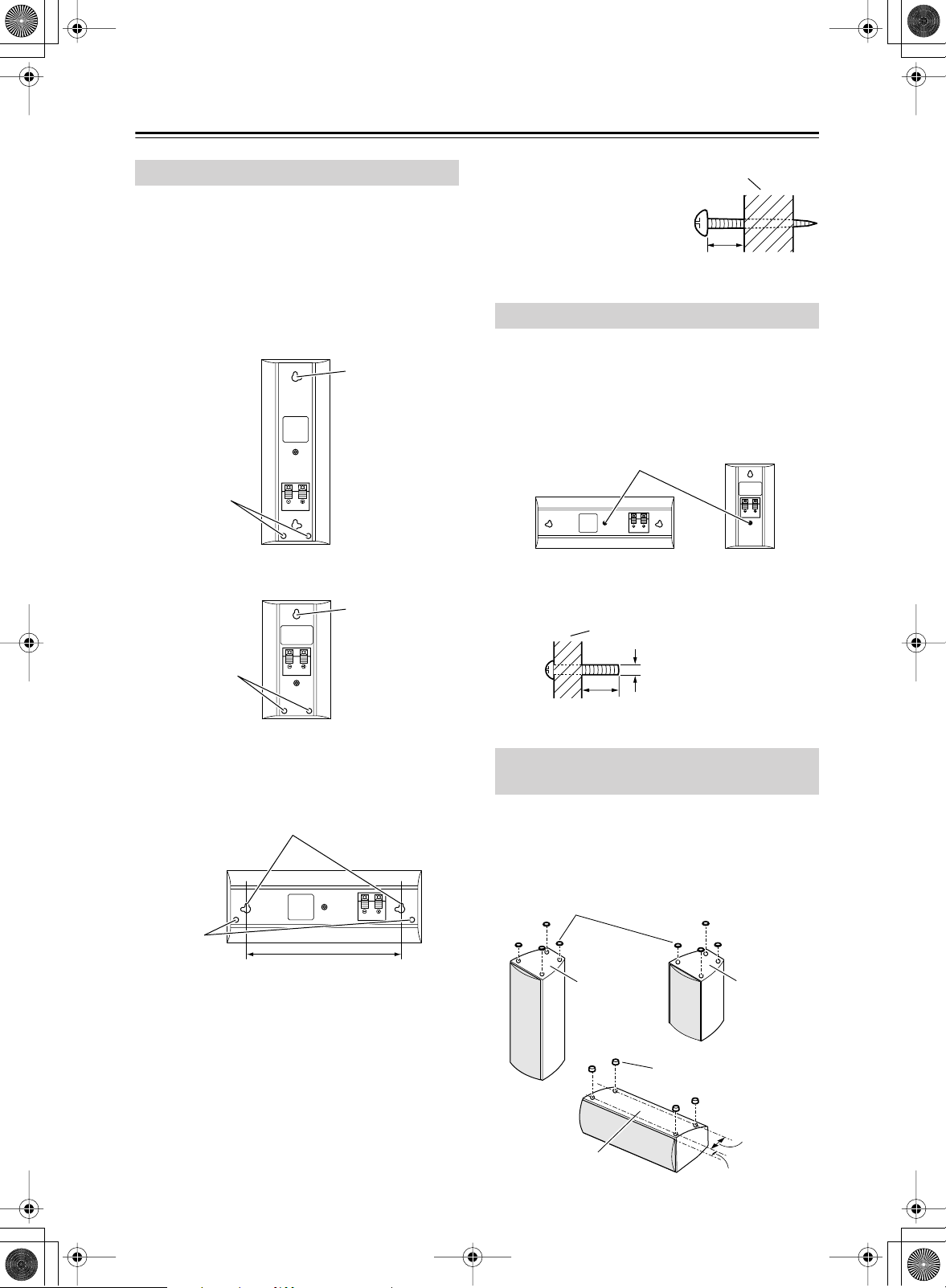

Keyhole slots

These keyhole slots can be used to wall-mount the speaker (see page 8).

Speaker mount/bracket inserts

These threaded inserts can be used to attach the speaker to a speaker mount or bracket (see page 8).

Note:

Use commercially available machine screws to attach the speaker to a speaker mount or bracket. Rrequire M5 (5 mm) screws.

Caution:

The front grilles are not designed to be removed so do not attempt to remove them forcibly, as this will damage them.
