SPEAKER SYSTEM
SKS-4700
Thank you for your purchase of the Onkyo speaker system.
Please read this manual thoroughly before using it.
Following the instructions in this manual will enable you to
obtain optimum performance and listening enjoyment from
your new speaker system.
Please retain this manual for future reference.
Before using this unit
● The speaker cabinet is made of wood and is therefore sensitive to
extreme temperatures and humidity. Avoid placing the speaker
systems in locations subjected to direct sunlight, or in smoky or in
humid places, such as near an air conditioner, humidifi er, bathroom,
or kitchen. Doing so may result in damage to the speaker.
●
Place the unit on a rigid, level surface. Placing it on a slanted
surface or weak base not only may cause the unit to fall, but
also results in decreased sound quality.
● Be sure to turn off your amplifi er before connecting the speaker
system. Connecting them with the amplifi er's power on may result
in damage to the amplifi er or the speaker system.
●
Keep water or other liquids away from the unit. If water is spilled
into the unit, not only the unit but also the speakers themselves
may be damaged.
Precaution on use
●
This speaker system can handle the specifi ed input power when
it is used for ordinary music reproduction. If the following abnormal
signals are fed to the speaker, however, an overcurrent may
fl ow in the internal circuits, causing burning or breakage of the
wires even if the input power is below the specifi ed rating.
1. Noise produced when FM station is not tuned in
2.
Sound produced when fast-forwarding cassette tape deck
3. High-frequency sound generated by an oscillator, an
electronic musical instrument, etc.
4. Oscillating amplifi er signals
5. Special test signals produced by audio checking CD, etc.
6. Sound produced when connecting or disconnecting audio
connection cables (Always turn off the amplifi er’s power
before connecting or disconnecting cables.)
7. Howling when a microphone is used
●
Do not place magnetic objects such as screwdrivers and iron
parts near the tweeter since they use speakers with strong
magnets. Otherwise, the objects may be attracted, causing
injury or damaging the diaphragm.
Instruction Manual
Connecting to AV amplifi er
1. Strip the insulation of speaker cables,
and twist the core wires tightly.
2. While pressing the lever, insert the
wire into the hole, and then release
the lever.
3. Make sure that the terminals are
gripping the core wires, not the
insulation.
SKF-4700
Front right speaker
Red
AV amplifi er
SURROUND BACK
SPEAKER
Gray
SKC-4700
Center speaker
SURROUND
SPEAKERS
+–
SKF-4700
Front left speaker
+–
Green
FRONT
SPEAKERS A
L
R
CENTER
SPEAKER
Blue
+–
White
+–+–
Model name
Center speaker system SKC-4700 × 1
Surround speaker system SKM-4700 × 2
Connections
● Turn the sound volume to the minimum and disconnect the power
cord from the amplifi er before connecting the speaker cables.
●
The nominal impedance of this speaker system is 8 Ω. Use
only amplifi ers capable of handling this impedance.
●
Use the supplied speaker cables to connect between speaker’s
input terminals and the amplifi er’s speaker
terminals as illustrated on the right.
●
Connect the speaker cables securely to the
terminals, with the core wires twisted
properly. In this case, make sure that the
core wires do not touch each other. Note
that a short circuit in core wires may result
in damage to the amplifi er.
Before turning on the amplifi er’s power switch:
●
●
●
SKM-4700
Surround right speaker
SKM-4700
Surround left speaker
Make sure that the positive (+) and negative (-) speaker cables
do not contact each other. Otherwise, a short-circuit may occur,
causing damage to the amplifi er.
Be sure to connect the speaker cables with correct polarity
(connect the speaker’s positive (+) and negative (-) binding
posts with the amplifi er’s corresponding speaker terminals).
Reversed polarity results in impaired bass-range reproduction,
causing mislocalization of the sound image. Also, be sure to
connect the Right and Left speakers with the amplifi er’s
corresponding speaker terminals.
Pull lightly on the speaker cables to ensure that they are
connected fi rmly.
En
Placement
Use with a TV set
For better-quality sound, observe the following precautions when
you install the speaker system:
●
Placing the speaker system on several small-diameter supports
generally results in better sound than placing it directly on a
wide installation surface. Also note that high quality bass cannot
be obtained if the speaker system is unstably positioned.
Always use the spacers or thin metal discs (such as coins) to
seat the speaker stably.
● Place the Right and Left surround speakers in similar conditions.
If they are placed in extremely different conditions, left right channel
balance will be adversely affected.
SKC-4700 Center Speaker
Place the SKC-4700 as close as possible to your TV set, for
example, above or below the TV set. Be sure to set the
SKC-4700 fi rmly on the TV set or other equipment so that it
cannot slip and fall. This is especially important if you have
small children. If the SKC-4700 is to be placed on a TV set, be
sure that:
● The supporting area of the TV set is larger than that of the SKC-
4700.
●
The TV set’s support surface is fl at and level.
●
The TV set is not placed on an unstable support.
SKM-4700 Surround Speaker
If the speakers are to be wall-mounted, make sure that the
walls are strong enough to support the speaker's weight. The
weight that mounting screws can support varies greatly
depending on the wall material and the position of the reinforcing
ribs embedded in the wall. Use the thickest and longest possible
mounting screws with mounting screw head diameters less
than 9 mm and shank diameters less than 4 mm (consult with
your interior designer or contractor).

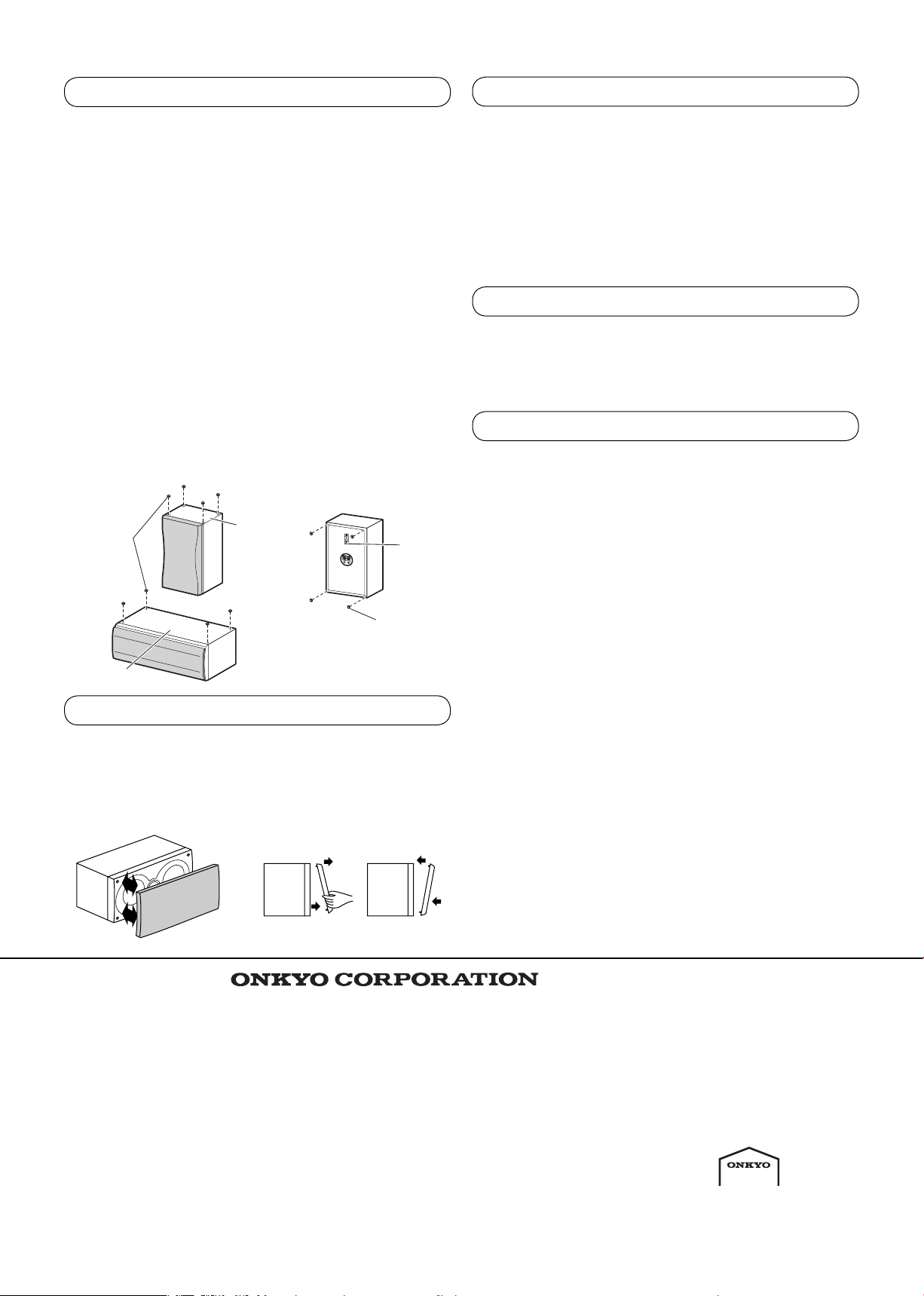

Using spacers
Affi x four of the supplied spacers to the SKC-4700/SKM-4700.
Mounting on a wall
Spacer
Bottom of the
SKM-4700
Wall
bracket
In general, Braun tubes used for color TV sets, etc. are extremely
sensitive and can be affected even by the magnetism of the earth.
If a speaker system is used near them, therefore, discoloration or
distortion of pictures will occur. To allow use with color TV sets,
etc., this speaker system is provided with magnetic shielding.
Even so, discoloration may still result, depending on the installation
environment. If discoloration occurs, turn off the power of the TV
set, wait for 15 to 30 minutes and then turn it on again. This activates
the self-demagnetizing function of the TV set, improving the display
condition. If discoloration persists even after performing this remedy,
move the speaker apart from the TV set. Discoloration may also
be caused when a magnet or other magnetizing object exists near
the TV set because of the combined effect.
Speaker care
Your Onkyo speakers are fi nished with a very high quality polymer
laminate covering that serves to protect the wood speaker
cabinet.
Wipe the cabinet periodically with a dry, silicon-embedded or plain
soft cloth.
The covering may be cleaned with a soft cloth moistened with
water and a mild soap. Avoid the use of furniture polishes or harsh
cleansers. Use a soft brush or hand vacuum cleaner to remove
dust and lint from the grille material.
Specifi cations
SKC-4700
Type: 2-way bass refl ex
Impedance: 8
Maximum input power: 130 W
Output sound pressure level: 89 dB/W/m
Frequency response: 60 Hz - 40 kHz
Crossover frequency: 4.5 kHz
Cabinet capacity: 11 L
Speaker (woofer): 12 cm cone x 2
Speaker (tweeter): 2.5 cm balanced dome
Dimensions: 433 (W) x 157 (H) x 194 (D) mm
Weight: 3.9 kg
Others: Magnetic shielding
Ω
(Overall dimensions)
SKM-4700
Type: 2-way bass refl ex
Spacer
Impedance: 8
Maximum input power: 130 W
Output sound pressure level: 81 dB/W/m
Frequency response: 50 Hz- 50 kHz
Bottom of the
SKC-4700
Crossover frequency: 6 kHz
Cabinet capacity: 4 L
Speaker (woofer): 10 cm cone
Attaching and detaching the speaker grilles (for SKC-4700 only)
The SKC-4700 uses detachable grilles. Use the following method
to attach or detach the grilles.
1. While holding the long edge of the speaker grille with both
hands, pull it gently toward you to remove that side of the
grille.
Speaker (tweeter): 2.5 cm balanced dome
Dimensions: 155 (W) x 266 (H) x 140 (D) mm
Weight: 1.8 kg
Others: Magnetic shielding
Accessory: 3 m speaker cable
2. In the same way, gently pull the other long edge of the speaker
grille toward you to remove it from the main unit.
3. To replace the grille, push the projections at the corners into
the grille plug holes on the speaker cabinet.
Removal
SKC-4700
Replacement
Spacer x 12
Specifi cations and appearance are subject to change for improvement
without prior notice.
Ω
(Overall dimensions)
9 m speaker cable x 2
Instruction manual
扬声器系统
SKS-4700
非常感谢您购买Onkyo扬声器系统。
在使用之前，请详细阅读本使用手册。
遵照本使用手册的指示和说明进行操作，将使您通过新购置的扬
声器系统，得到最佳的音响效果和听觉享受。
请妥善保管本使用手册，以备将来参考。
使用本系统之前
● 本扬声器的箱体是木质的，因此，对极高（或极低）的温度和
湿度非常敏感。请不要将扬声器系统放置在阳光直射之处，或
多烟尘和高湿度的地方，如靠近空调机、加湿器、浴室或厨房
中。否则，将会损坏扬声器。
●
请将系统放置在牢固的水平表面上。若将其放置在斜面上或放置
不稳，则不仅会有扬声器系统跌落的危险，还会降低其音质。
● 在连接扬声器系统之前，请务必先关闭您的放大器。若在放大
器电源打开的状况下进行连接，则可能会损坏放大器或扬声器
系统。
● 请注意不要让水或其它液体溅入本系统。如果有水溅入本系
统，本系统和扬声器都有可能受到损坏。
使用注意事项
● 当本扬声器系统被用来进行普通的音乐再现时，可以承受一定
的输入功率。但如果下述异常信号被输入扬声器，即使其输入
功率低于最大输入功率，也有可能在内部电路中产生过大的电
流，使线路烧毁或损坏。
1. 当收听调频广播未调准电台时产生的噪音
2. 当盒式录音带快进时产生的声音
3. 由振荡器、电声乐器等产生的高频音响
4. 振荡的放大器信号
5. 由音频测试CD等产生的特殊测试信号
6. 在连接或拆除音频连接线时产生的声音（请务必在连接或
拆除连接线前关闭放大器的电源）。
7. 使用麦克风时的反馈啸声
● 请勿将螺丝刀等磁性物体和铁制物品放置在扬声器系统附近，
因为它们会通过强磁场影响扬声器系统，或者，它们可能会被
磁性吸至扬声器上，导致振动膜的损伤或彻底损坏。
连接到 AV 放大器
SKF-4700
前置右扬声器
+–
1. 剥除扬声器连接线的绝缘外层，
扭紧芯线。
2. 压下端子杆，将扬声器连接线插
入洞中，然后松开端子杆。
3. 确认端子接触的是芯线而非绝缘
外层。
SKC-4700
中心扬声器
+–
绿色
红色
AV 放大器
SURROUND BACK
SPEAKER
灰色
SURROUND
SPEAKERS
FRONT
SPEAKERS A
使用手册
SKF-4700
前置左扬声器
+–
白色
CENTER
SPEAKER
L
R
蓝色
型号名称
中心扬声器系统 SKC-4700×1
环绕声扬声器系统 SKM-4700×2
连接
● 在连接扬声器连接线之前，请先将放大器音量调至最小，并拔
出放大器的电源线。
● 本扬声器系统的额定阻抗是8Ω。请只使用对应于此阻抗的放
大器。
● 如右图所示，使用随机附带的扬声器连接
线，连接扬声器的输入端子和放大器的扬声
器端子。
● 连接扬声器连接线时，请正确地缠绕芯线，
将其牢固地连接在端子上。这时，请确认芯
线没有相互接触。请注意，芯线间的短路会
导致放大器的损坏。
+–+–
SKM-4700
环绕声右扬声器
SKM-4700
环绕声左扬声器
在打开放大器的电源开关之前：
● 确认扬声器连接线的正极(+)和负极(-)没有相互接触。否则可能
会发生短路，导致放大器的损坏。
● 在连接扬声器连接线时，一定要保证极性的正确。（将扬声器
的正(+)和负(-)接线柱连接至放大器上相应的扬声器端子。) 极
性接反将会阻碍低音的再现，并导致声场不能正确定位。同
时，请务必使左侧和右侧的两个扬声器与放大器上相应的扬声
器端子正确地连接。
● 轻拉扬声器连接线，以确认其已牢固地连接。
Cs
安放
作为电视机的外接扬声器使用时
为了获得最佳的音质，在安装扬声器系统时请遵守下列注意事项。
●
与直接安放在平面上相比，将扬声器系统安放在几个支脚上能获得更
佳的音响效果。另外，如果扬声器系统放置不平，则无法获得优质的
低音效果。请务必使用薄软木片或金属（如硬币）将扬声器垫平。
● 将左侧和右侧的扬声器安放在相近状态下。如果它们安放的状态截
然不同，则将对左声道和右声道的平衡带来不良影响。
SKC-4700中心扬声器
请将SKC-4700尽量靠近电视机，比如放在电视机之上或之下。务必将
SKC-4700稳固地放在电视机或其他设备之上，使其不会滑落。家有小
孩时这一点尤其重要。如果将SKC-4700放在电视机之上，请确保：
● 电视机的支撑面积大于SKC-4700。
● 电视机的支撑面平整且水平。
● 电视机放在平稳的支撑面上。
SKM-4700环绕声扬声器
如果要将扬声器安装在墙壁上，墙壁的强度必须足够支撑扬声器的重
量。视墙壁材质和加固肋嵌入墙壁的位置不同，安装螺丝可支撑的重量
有很大差异。请尽量使用最粗最坚固的安装螺丝，螺丝头直径需小于
9 mm，螺丝杆直径需小于4 mm（请咨询您的室内设计师或承包人）。
使用调整垫
将随附的4个调整垫固定到SKC-4700/SKM-4700。
安装在墙壁上
SKM-4700
调整垫
SKC-4700底部
底部
墙壁挂架
调整垫
扬声器前格板的安装和拆除（仅适用于 SKC-4700）
SKC-4700使用可拆式前格板。安装和拆除的方法如下。
1. 用两手抓住扬声器前格板的底边，轻轻向外拉，将前格板的下部拆
开。
2. 用同样的方法，轻轻向外拉前格板的上边，将前格板从箱体上拆
下。
3. 装回前格板时，将突起部推入扬声器箱体的前格板安装插孔。
拆除 装回
SKC-4700
通常，应用于彩色电视机等的阴极射线管是极为敏感的，它们甚至会
受到地球磁场的影响。如果扬声器系统靠近它们，则会产生色调混乱
或图像失真。为了能够和彩色电视机等同时使用，本扬声器系统进行
了磁场屏蔽。
但是，即使进行了屏蔽，根据安装的环境，也有可能发生色调混乱。
如果出现色调混乱，请关闭电视机的电源，等待15至30分钟，然后再
次打开电视机电源。这将启动电视机的自动消磁功能，改善显示状况。
如果在进行这种补救措施后仍有色调混乱，请将扬声器离开电视机远
一些。由于综合影响，当一块磁铁或其它磁性物体放置在电视机附近
时，也有可能出现色调混乱现象。
扬声器的维护
您的Onkyo扬声器表面覆盖了一层高质量的聚合物薄膜，以保护木质的
箱体。请定期用一块干燥的软硅布或普通软布擦拭机体。
其表面可以用软布蘸清水来擦拭，可以使用刺激性不强的肥皂。请不
要使用家具抛光剂或去污粉。请用软刷或手持型吸尘器去除沾在前格
板上的灰尘和绒毛。
规格
SKC-4700
型式： 双路低音反射
阻抗： 8 Ω
最大输入功率： 130 W
输出声压电平： 89 dB/W/m
频率响应： 60 Hz-40 kHz
交叉频率： 4.5 kHz
箱体容积： 11 L
低音扬声器： 12 cm 锥型扬声器 ×2
高音扬声器： 2.5 cm 平衡圆顶型扬声器
尺寸： 433（宽）×157（高）×194（深）mm
（包括扬声器前格板）
重量： 3.9 kg
其它： 磁场屏蔽
SKM-4700
型式： 双路低音反射
阻抗： 8 Ω
最大输入功率： 130 W
输出声压电平： 81 dB/W/m
频率响应： 50 Hz-50 kHz
交叉频率： 6 kHz
箱体容积： 4 L
低音扬声器： 10 cm 锥型扬声器
高音扬声器： 2.5 cm 平衡圆顶型扬声器
尺寸： 155（宽）×266（高）×140（深）mm
（包括扬声器前格板）
重量： 1.8 kg
其它： 磁场屏蔽
附件： 3 m 扬声器连接线
9 m 扬声器连接线 ×2
使用手册
调整垫 ×12
规格和外形如有变更，恕不另行通知。
Sales & Product Planning Div. : 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN
Tel: 072-831-8023 Fax: 072-831-8124
ONKYO U.S.A. CORPORATION
18 Park Way, Upper Saddle River, N.J. 07458, U.S.A.
Tel: 201-785-2600 Fax: 201-785-2650 http://www.us.onkyo.com/
ONKYO EUROPE ELECTRONICS GmbH
Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY
Tel: +49-8142-4401-0 Fax: +49-8142-4401-555 http://www.eu.onkyo.com/
ONKYO EUROPE UK Office
Suite 1, Gregories Court, Gregories Road, Beaconsfield, Buckinghamshire, HP9 1HQ
UNITED KINGDOM Tel: +44-(0)1494-681515 Fax: +44(0)-1494-680452
ONKYO CHINA LIMITED
Unit 1&12, 9/F, Ever Gain PlazaTower 1, 88, Container Port Road, Kwai Chung,
N.T., HONG KONG Tel: 852-2429-3118 Fax: 852-2428-9039
http://www.ch.onkyo.com/
SN 29344553
(C) Copyright 2007 ONKYO CORPORATION Japan. All rights reserved.
HOMEPAGE
http://www.onkyo.com/
Printed in Japan
N0707-1
Loading...
