Onkyo SKC-770, SKW-770, SKS-HT870, SKR-770, SKF-770 User Manual
...
7.1ch Home Theater Speaker Package
English Français Español
HTP-770
SKS-HT870
SKF-770 FRONT SPEAKERS
SKC-770 CENTER SPEAKER
SKR-770 SURROUND SPEAKERS
SKB-770 SURROUND BACK SPEAKERS
SKW-770 POWERED SUBWOOFER
Getting Started ............En-2
Pour commencer..........Fr-2
Procedimientos
iniciales..................... Es-2
Installing & Using ......En-10
Installation et
utilisation .................Fr-10
Instalación y uso .......Es-10
Appendix ....................En-12
Annexe.........................Fr-12
Apéndice ....................Es-12
Fr Es
E
n
WARNING:
G
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPARATUS TO
RAIN OR MOISTURE.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO
USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE
PERSONNEL.
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
11. Only use attachments/accessories specified by the
manufacturer.
12.
Use only with the cart, stand,
tripod, bracket, or table
specified by the
manufacturer, or sold with
the apparatus. When a cart is
used, use caution when
moving the cart/apparatus
combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or
when unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
PORTABLE CART WARNIN
S3125A
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
AVIS
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
15. Damage Requiring Service
Unplug the apparatus from the wall outlet and refer
servicing to qualified service personnel under the
following conditions:
A. When the power-supply cord or plug is
damaged,
B. If liquid has been spilled, or objects have fallen
into the apparatus,
C. If the apparatus has been exposed to rain or
water,
D. If the apparatus does not operate normally by
following the operating instructions. Adjust
only those controls that are covered by the
operating instructions as an improper
adjustment of other controls may result in
damage and will often require extensive work
by a qualified technician to restore the apparatus
to its normal operation,
E. If the apparatus has been dropped or damaged in
any way, and
F. When the apparatus exhibits a distinct change in
performance this indicates a need for service.
16. Object and Liquid Entry
Never push objects of any kind into the apparatus
through openings as they may touch dangerous
voltage points or short-out parts that could result in
a fire or electric shock.
The apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids, such as
vases shall be placed on the apparatus.
Don’t put candles or other burning objects on top of
this unit.
17. Batteries
Always consider the environmental issues and
follow local regulations when disposing of batteries.
18. If you install the apparatus in a built-in installation,
such as a bookcase or rack, ensure that there is
adequate ventilation.
Leave 20 cm (8") of free space at the top and sides
and 10 cm (4") at the rear. The rear edge of the shelf
or board above the apparatus shall be set 10 cm (4")
away from the rear panel or wall, creating a fluelike gap for warm air to escape.
En-2
Precautions
Contents
1. AC Fuse—The fuse is located inside the chassis
and is not user-serviceable. If power does not come
on, contact your Onkyo authorized service station.
2. Care—From time to time you should wipe off the
cabinet with a soft cloth. For heavier dirt, dampen a
soft cloth in a weak solution of mild detergent and
water, wring it out dry, and wipe off the dirt.
Following this, dry immediately with a clean cloth.
Do not use rough material, thinners, alcohol or other
chemical solvents or cloths since these may damage
the finish or remove the panel lettering.
Use a vacuum cleaner to remove dust from hard-toreach grilles.
3. Power
WARNING
BEFORE PLUGGING IN THE UNIT FOR THE
FIRST TIME, READ THE FOLLOWING
SECTION CAREFULLY.
The voltage of the available power supply differs
according to country or region. Be sure that the
power supply voltage of the area where this unit will
be used meets the required voltage (AC 120 V,
60 Hz) written on the rear panel.
The power cord plug is used to disconnect this unit
from the AC power source. Make sure that the plug
is readily operable (easily accessible) at all times.
Getting Started
Important Safety Instructions..................................... 2
Precautions ............................................................... 3
Speaker Precautions................................................. 4
Package Contents..................................................... 5
Enjoying Home Theater............................................. 6
Getting to know Your Speaker Package ...................7
Installing & Using
Connecting the Speakers ........................................ 10
Appendix
Troubleshooting....................................................... 12
Specifications .......................................................... 13
For Canadian Models
NOTE: THIS CLASS B DIGITAL APPARATUS
COMPLIES WITH CANADIAN ICES-003.
For models having a power cord with a polarized plug:
CAUTION: TO PREVENT ELECTRIC SHOCK,
MATCH WIDE BLADE OF PLUG TO WIDE SLOT,
FULLY INSERT.
Modèle pour les Canadien
REMARQUE: CET APPAREIL NUMÉRIQUE DE
LA CLASSE B EST CONFORME À LA NORME
NMB-003 DU CANADA.
Sur les modèles dont la fiche est polarisée:
ATTENTION: POUR ÉVITER LES CHOCS
ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS
LARGE DE LA FICHE DANS LA BORNE
CORRESPONDANTE DE LA PRISE ET POUSSER
JUSQU’AU FOND.
En-3
Speaker Precautions
Placement
• The speaker cabinets are made out of wood and are
therefore sensitive to extreme temperatures and
humidity, do not put them in locations subject to direct
sunlight or in humid places, such as near an air
conditioner, humidifier, bathroom, or kitchen.
• Do not put water or other liquids close to the speakers.
If liquid is spilled over the speakers, the drive units
may be damaged.
• Speakers should only be placed on sturdy, flat surfaces
that are free from vibration. Putting them on uneven or
unstable surfaces, where they may fall and cause
damage, will affect the sound quality.
• Subwoofer is designed to be used in the upright
vertical position only. Do not use it in the horizontal or
tilted position.
• If the unit is used near a turntable, CD player or DVD
player, howling or slipping of sound may occur. To
prevent this, move the unit away from the turntable,
CD player or DVD player otherwise lower the unit’s
output level.
Using Close to a TV or Computer
TVs and computer monitors are magnetically sensitive
devices and as such are likely to suffer discoloration or
picture distortion when conventional speakers are placed
nearby. In such situations, try moving the speakers away
from your TV or monitor. If discoloration should occur,
turn off your TV or monitor, wait 15 to 30 minutes, and
then turn it back on again. This normally activates the
degaussing function, which neutralizes the magnetic
field, thereby removing any discoloration effects. Note
that discoloration can also be caused by a magnet or
demagnetizing tool that’s too close to your TV or
monitor.
Input Signal Warning
The speakers can handle the specified input power when
used for normal music reproduction. If any of the
following signals are fed to them, even if the input power
is within the specified rating, excessive current may flow
in the speaker coils, causing burning or wire breakage:
1. Interstation noise from an untuned FM radio.
2. Sound from fast-forwarding a cassette tape.
3. High-pitched sounds generated by an oscillator,
electronic musical instrument, and so on.
4. Amplifier oscillation.
5. Special test tones from audio test CDs and so on.
6. Thumps and clicks caused by connecting or
disconnecting audio cables. (Always turn off your
amplifier before connecting or disconnecting
cables.)
7. Microphone feedback.
Speaker Care
Wipe the cabinet occasionally with a dry silica or soft
cloth. For heavier dirt, after dampening a soft cloth in a
weak solution of mild detergent and water and wringing
it out dry, wipe off the dirt. Then, dry immediately with
a clean cloth. Do not use rough material, thinners,
alcohol or other chemical solvents or cloths since these
could damage the finish, remove the panel lettering, or
cause discoloration. If you are using a chemical cloth,
always follow the instructions that come with the cloth.
For dust accumulated on grilles, use a vacuum cleaner or
brush it off.
Power Cord Precautions
• Before connecting the power cord, connect all of your
speakers and AV components.
• Turning on the SKW-770 may cause a momentary
power surge that might interfere with other electrical
equipment on the same circuit. If this is a problem,
plug the SKW-770 into a different branch circuit.
En-4
Speaker Package HTP-770/
SKS-HT870
Front speakers
(SKF-770)
(Blue) (Gray) (Brown) (Tan)
Speaker cables for surround and surround back
speakers 26 ft. (8.0 m)
RCA cable for subwoofer connection 10 ft. (3.0 m)
Center speaker
(SKC-770)
Surround speakers
(SKR-770)
Surround back
speakers (SKB-770)
Subwoofer (SKW-770)
(Red)(White)
Speaker cables for front speakers 11 ft. (3.5 m)

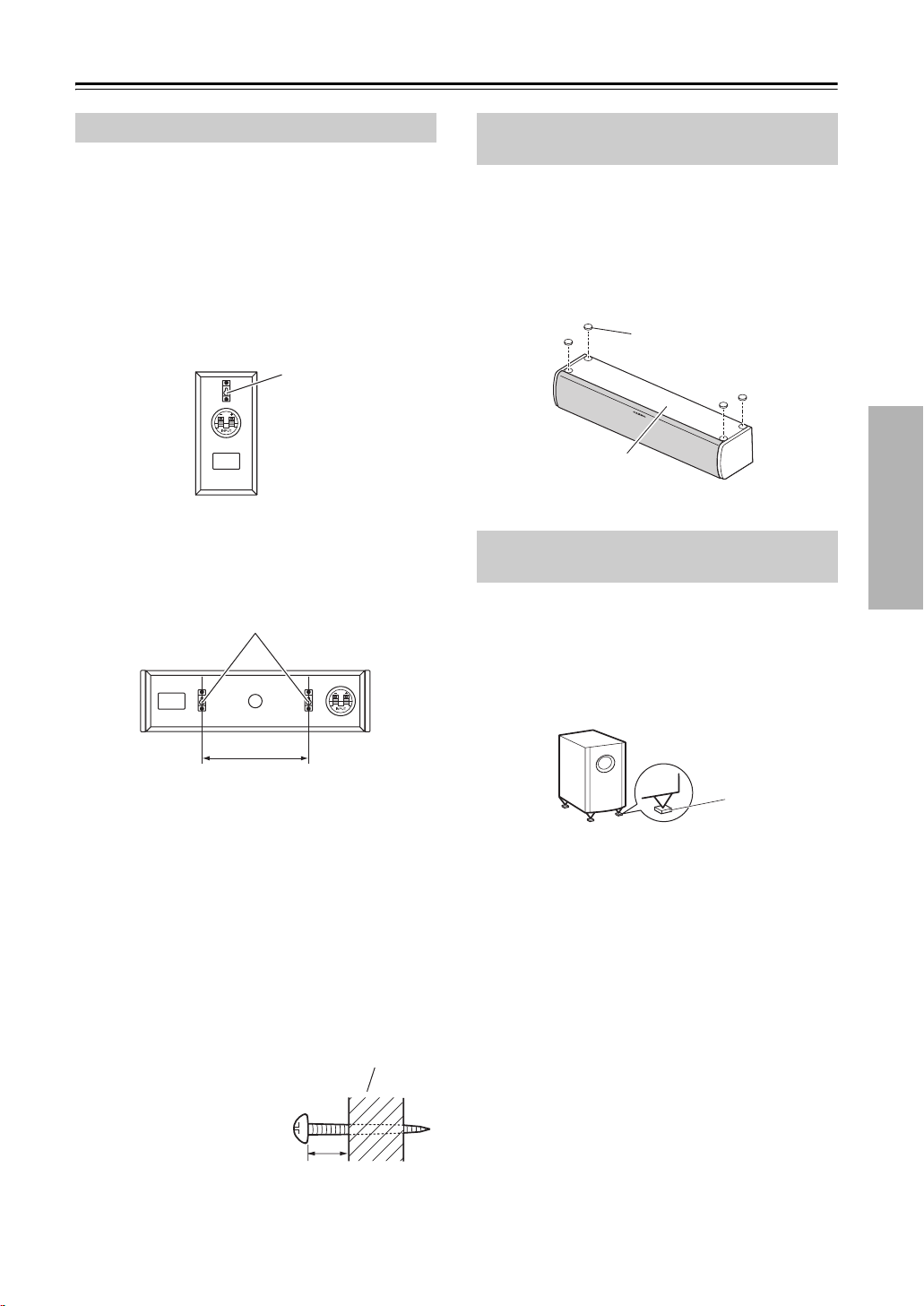

4 floor pads for the subwoofer
4 cork stoppers for center speaker
2 speaker bases and 8 screws
(Green)
Speaker cable for center speaker 10 ft. (3.0m)
En-5
Enjoying Home Theater
The Home Theater means that you can enjoy surround sound with a real sense of movement in your own home — just
like being in a movie theater or concert hall.
Front left and right speakers (SKF-770)
These output the main sound. Their role in a home theater is to provide a solid
anchor for the sound image. They should be positioned facing the listener at
about ear level, and equally spaced from the TV. Angle them inward slightly so
as to create a triangle, with the listener at the apex.
Center speaker (SKC-770)
This speaker enhances the front left
and right speakers, making sound
movements distinct and providing a
full sound image. For movies it’s used
mainly for dialog.
Position it close to your TV (preferably
on top) facing forward at about ear
level, or at the same height as the
front left and right speakers.
Subwoofer (SKW-770)
The subwoofer handles the bass sounds of the
LFE (Low-Frequency Effects) channel. The
volume and quality of the bass output from
your subwoofer will depend on its position, the
shape of your listening room, and your
listening position. In general, a good bass
sound can be obtained by installing the
subwoofer in a front corner, or at one-third the
way along the front wall, as shown.
Tip: To find the best position for your
subwoofer, while playing a movie or some
music with good bass, experiment by placing
your subwoofer at various positions within the
room and choose the one that provides the
most satisfying results.
Surround back left and right speakers (SKB-770)
These speakers are necessary to enjoy Dolby Digital
EX, DTS-ES Matrix, DTS-ES Discrete, etc. They
enhance the realism of surround sound and improve
sound localization behind the listener. Position them
behind the listener about 2 to 3 feet (60 to 100 cm)
above ear level.
Surround left and right speakers
(SKR-770)
These speakers are used for precise
sound positioning and to add realistic
ambience.
Position them at the sides of the
listener, or slightly behind, about 2 to
3 feet (60 to 100 cm) above ear level.
Ideally they should be equally spaced
from the listener.
En-6
Corner
position
1/3 of wall
position

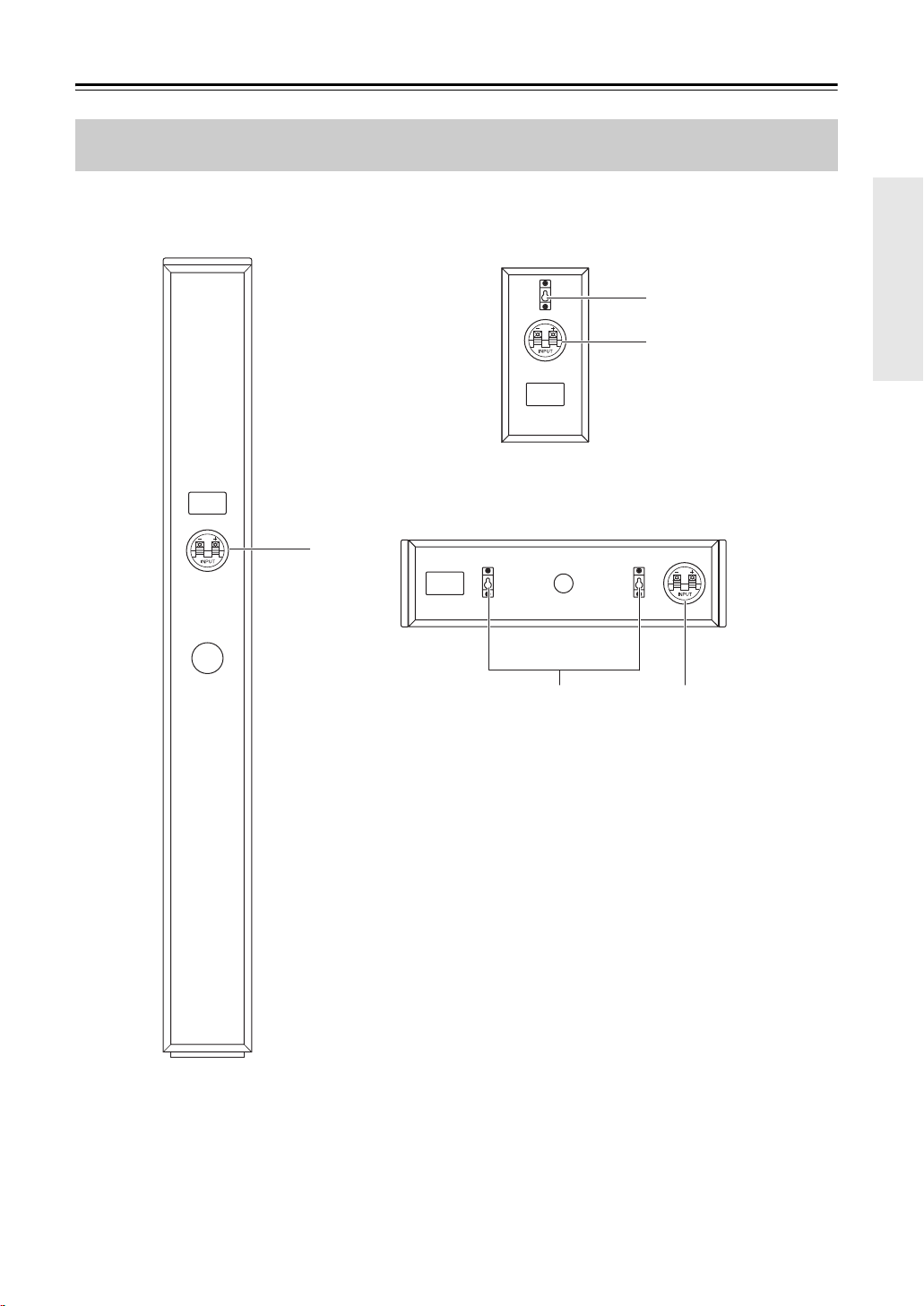

Getting to know Your Speaker Package
Front, Center, Surround, and Surround Back Speakers
(SKF-770, SKC-770, SKR-770, and SKB-770)
■ Rear
SKF-770
SKR-770/SKB-770
a
b
SKC-770
b
ab
a Keyhole slots
These keyhole slots can be used to wall-mount the speaker
(see page 11).
b Speaker terminals
These push terminals are for connecting the speaker to the
AV receiver with the supplied speaker cables. The supplied
speaker cables are color-coded for easy identification.
Simply connect each cable to the same-colored positive
speaker terminal.
Caution:
The front grilles are not designed to be removed so do not attempt
to remove them forcibly, as this will damage them.
En-7
Getting to know Your Speaker Package—Continued
Attaching the Speaker Bases
Before you connect the speakers, attach the supplied
speaker base to each SKF-770.
1. Turn the speaker upside down with the protection
cover attached.
2. Align the speaker base while the arrow mark is
headed in the same direction as the speaker’s face.
Be careful not to tip over the speaker.
3. Align the screw holes on the speaker base with
those on the bottom of each speaker, and affix the
speaker base using the supplied screws.
Recommended torque is 10 kgf·cm (9 lbf·in).
Be careful not to tip over the speaker.
4. Turn the speaker right side up.
5. Remove the protection cover.
SAFETY PRECAUTIONS:
• Attach the speaker bases in a manner that will not
allow the speakers to tip over.
• Be sure to tighten the screws when you attach the
speaker bases.
• Attach the speaker bases on a flat, level, and stable
floor.
• After you attach the speaker bases, make sure that the
speakers stand upright and are stable.
Top of SKF-770
Protection cover
Supplied screws
Arrow mark
Speaker base
Bottom of SKF-770
En-8
Getting to know Your Speaker Package—Continued
Subwoofer (SKW-770)
■ Front
STANDBY/ON indicator
STANDBY/ON indicator
Red: Subwoofer in standby mode
Blue: Subwoofer on
With the Auto Standby function, the SKW-770
automatically turns on when an input signal is
detected in Standby mode. When there’s no input
signal for a while, the SKW-770 automatically
enters Standby mode.
Setting the Subwoofer Level
To set the level of the subwoofer, use the OUTPUT
LEVEL control. Set it so that bass sounds are evenly
balanced with the treble sounds from the other speakers.
Because our ears are less sensitive to very low bass
sounds, there’s a temptation to set the level of the
subwoofer too high. As a rule of thumb, set the
subwoofer level to what you think is the optimal level,
and then back it off slightly.
■ Rear
SKW-770
ab
To AC outlet
a OUTPUT LEVEL control
This control is used to adjust the volume of the
subwoofer.
b LINE INPUT
This RCA input should be connected to the
subwoofer pre out on your AV receiver with
supplied RCA cable.
Note:
The Auto Standby function turns the subwoofer on when
the input signal exceeds a certain level. If the Auto
Standby function does not work reliably, try slightly
increasing or decreasing the subwoofer output level on
your receiver.
En-9
Connecting the Speakers
Speaker Connection Precautions
Read the following before connecting your speakers:
• Turn off your receiver before making any connections.
• Pay close attention to speaker
wiring polarity. Connect positive
(+) terminals to only positive (+)
terminals, and negative (–)
terminals to only negative (–)
terminals. If the speakers are
wired incorrectly, the sound will
be out of phase and will sound unnatural.
• Be careful not to short the positive and negative wires.
Doing so may damage your amp.
Connecting the Speaker Cables
Use the supplied speaker cables to connect
each speaker input terminals to the
corresponding speaker output terminals on
your receiver.
Front right
speaker
Match the color of each cable to the corresponding
speaker terminal.
To make a connection, while pressing the
terminal lever, insert the wire into the
hole, and then release the lever. Make
sure that the terminals are gripping the
bare wires, not the insulation.
Connecting the Subwoofer
Using the supplied RCA cable, connect the
subwoofer’s LINE INPUT to your receiver’s PRE
OUT: SUBWOOFER.
HT-S7200: If you are using an Onkyo HT-S7200
system, you can connect the powered subwoofer with
two PRE OUT: SUBWOOFER jacks respectively. When
using a single subwoofer, you can connect either jack.
The other jack is for connecting additional subwoofer.
Front left
speaker
Powered
subwoofer
Red
Center speaker
Green
GrayBrownTa n
White
Blue
En-10
Surround
back right
speaker
Surround
back left
speaker
Surround
right
speaker
Surround
left
speaker
Connecting the Speakers—Continued
Wall Mounting
The speakers (center, surround, and surround back) can
easily be wall mounted by using the keyhole slots.
To mount the surround or surround back speakers
vertically, use the keyhole slot shown to hang each
speaker on a screw that’s securely screwed into the wall.
Surround speakers/Surround back speakers
(SKR-770/SKB-770)
Keyhole slot for wall
mounting
To mount the center speaker horizontally, use the two
keyhole slots shown to hang each speaker on two screws
that are securely screwed into the wall.
Center speaker (SKC-770)
Keyhole slots for wall mounting
Using the Cork Stoppers for a More
Stable Platform
We recommend using the provided cork stoppers to
achieve the best possible sound from your speakers. The
cork stoppers prevent the speakers from moving,
providing a more stable platform. Use stoppers for the
center speaker.
Cork stoppers
Bottom of the
SKC-770
Using the Floor Pads for Subwoofer
If the subwoofer is placed on a hard floor (wood, vinyl,
tile, etc.) and playback is very loud, the subwoofer’s feet
may damage the flooring. To prevent this, place the
supplied pads underneath the subwoofer’s feet. The pads
also provide a stable base for the subwoofer.
7-7/8" (200 mm)
Caution:
A mounting screw’s ability to support a speaker depends
on how well it’s anchored to the wall. If you have hollow
walls, screw each mounting screw into a stud. If there are
no studs, or the walls are solid, use suitable wall anchors.
Use screws with a head diameter of 5/16" (8 mm) or less
and a shank diameter of 5/32" (4 mm) or less. With
hollow walls, use a cable/pipe detector to check for any
power cables or water pipes before making any holes.
Leave a gap of between 7/32"
(5 mm) and 3/8" (10 mm)
between the wall and the base
of the screw head, as shown.
(We recommend that you
consult a home installation
professional.)
7/32" to 3/8"
(5 to 10mm)
Wall
Pad
En-11
Troubleshooting
Symptom Possible cause Remedy
There’s no sound
coming from certain
speakers?
The subwoofer does not
turn on?
The subwoofer produces
no sound?
The subwoofer produces
hardly any sound?
A humming sound can
be heard from the
subwoofer?
The speaker cables are not connected
properly.
The speaker configuration is not set
correctly.
The power plug is not fully inserted into
the wall outlet.
The OUTPUT LEVEL control is set to
minimum.
The RCA cable is not properly connected
to the subwoofer’s LINE INPUT.
The level of the input signal was too low
and the subwoofer entered Standby
mode.
The Subwoofer configuration is not set
correctly.
The source material contain little or no
bass content.
The RCA cable is not properly connected
to the subwoofer’s LINE INPUT.
External interference from a TV or other
electronic device is being picked up.
Check the speaker cables and correct as
necessary.
Check the speaker configuration.
Insert the power plug fully into the wall
outlet.
Turn up the OUTPUT LEVEL control.
Make sure that the RCA cable is properly
connected to the subwoofer’s LINE INPUT.
Slightly increase the subwoofer pre out
output level on your AV receiver.
Check the subwoofer setting in the speaker
configuration on your AV receiver.
Choose source material with more bass
content.
Make sure that the RCA cable is properly
connected to the subwoofer’s LINE INPUT.
Move the subwoofer and RCA cable away
from the interference source. Make sure your
audio system is grounded properly.
En-12
Specifications
■ Powered Subwoofer (SKW-770)
Type: Bass-reflex
Input sensitivity/impedance:
Maximum output power: 290 W (Dynamic Power)
Frequency response: 25 Hz to 150 Hz
Cabinet capacity: 37 L (1.3 cubic feet)
Dimensions (W × H × D):
Weight: 11.6 kg (25.6 lbs.)
Drivers unit: 25 cm (10") Cone Woofer × 1
Power supply: AC 120 V, 60 Hz
Power consumption: 163 W
Other: Auto Standby function
140 mV / 20 kΩ
275 × 507 × 411 mm
(10-13/16" × 19-15/16" × 16-3/16")
(incl. projection)
■ Front Speakers (SKF-770)
Type: 2 Way Bass-reflex
Impedance: 6 Ω
Maximum input power: 130 W
Sensitivity: 79.5 dB/W/m
Frequency response: 55 Hz to 50 kHz
Crossover frequency: 4 kHz
Cabinet capacity: 7.3 L (0.26 cubic feet)
Assembly dimensions (with supplied speaker base)
(W × H × D):
Weight: 5.2 kg (11.5 lbs.)
Drivers unit: 8 cm (3-1/4") cone (Woofer) × 2
Terminal: Spring type color coded
Grille: Fixed
262 × 1050 × 262 mm
(10-5/16" × 41-5/16" × 10-5/16")
(incl. projection)
(incl. speaker base)
2.5 cm (1") Balanced dome (Tweeter)
■ Center Speaker (SKC-770)
Type: 2 Way Bass-reflex
Impedance: 6 Ω
Maximum input power: 130 W
Sensitivity: 79 dB/W/m
Frequency response: 60 Hz to 50 kHz
Crossover frequency: 4 kHz
Cabinet capacity: 2.8 L (0.10 cubic feet)
Dimensions (W × H × D):
Weight: 2.2 kg (4.9 lbs.)
Drivers unit: 8 cm (3-1/4") Cone (Woofer) × 2
Terminal: Spring type color coded
Keyhole slot: 2
Grille: Fixed
430 × 115 × 121 mm
(16-15/16" × 4-1/2" × 4-3/4")
(incl. grille and projection)
2.5 cm (1") Balanced dome (Tweeter)
■ Surround/Surround Back Speakers
(SKR-770/SKB-770)
Type: Full-range closed box
Impedance: 6 Ω
Maximum input power: 130 W
Sensitivity: 81 dB/W/m
Frequency response: 80 Hz to 20 kHz
Cabinet capacity: 1.0 L (0.036 cubic feet)
Dimensions (W × H × D):
Weight: 1.0 kg (2.2 lbs.)
Drivers unit: 8 cm (3-1/4") Cone
Terminal: Spring type color coded
Keyhole slot: 1
Grille: Fixed
115 × 230 × 96 mm
(4-1/2" × 9-1/16" × 3-3/4")
(incl. grille and projection)
Specifications and appearance are subject to change
without prior notice.
