Onkyo SKM-550S, SKF-550F, SKC-550C, HT-R550, SKB-550 User Manual

...

7.1ch Home Theater System

HT-SR800

AV Receiver (HT-R550) Front Speakers (SKF-550F) Center Speaker (SKC-550C) Surround Speakers (SKM-550S) Surround Back Speakers (SKB-550) Powered Subwoofer (SKW-550)

Instruction Manual

Contents

Introduction ..................................... 2

Connection .................................... 19

Turning On & First Time Setup..... 36

Basic Operation

Playing your AV components....... 42

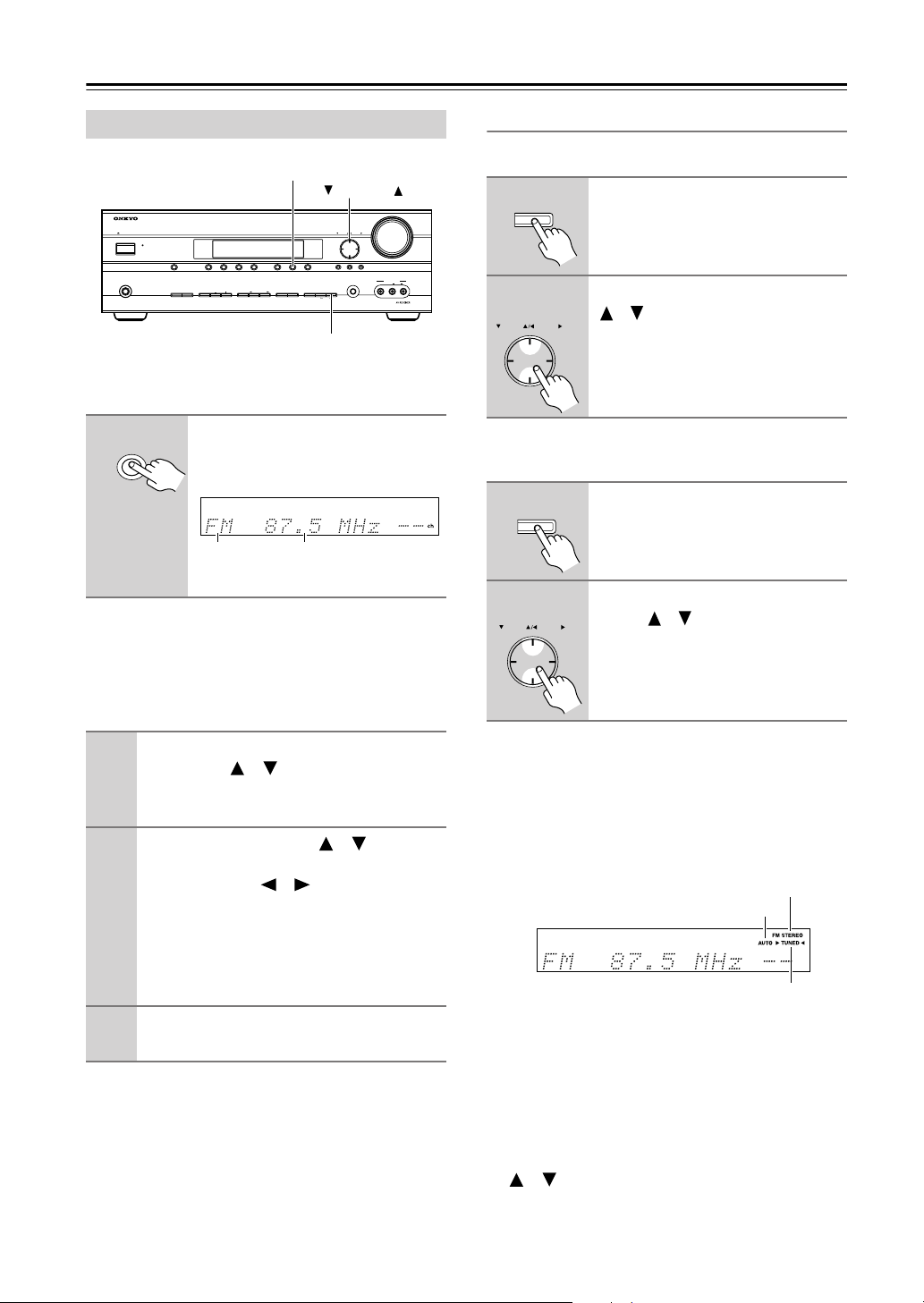

Listening to the Radio.................. 44

Thank you for purchasing an Onkyo 7.1ch Home Theater System. Please read this manual thoroughly before making connections and plugging in the unit. Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new 7.1ch Home Theater System. Please retain this manual for future reference.

Enjoying the Listening Modes ..... 48

Advanced Operation..................... 55

Troubleshooting ............................ 65

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories speciﬁed by the manufacturer.

12.

Use only with the cart, stand, tripod, bracket, or table speciﬁed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

PORTABLE CART WARNING

S3125A

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to

persons. The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

AVIS

RISQUE DE CHOC ELECTRIQUE

NE PAS

OUVRIR

15. Damage Requiring Service Unplug the apparatus from the wall outlet and refer servicing to qualiﬁed service personnel under the following conditions: A. When the power-supply cord or plug is damaged, B. If liquid has been spilled, or objects have fallen

into the apparatus,

C. If the apparatus has been exposed to rain or

water,

D. If the apparatus does not operate normally by

following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualiﬁed technician to restore the apparatus to its normal operation,

E. If the apparatus has been dropped or damaged in

any way, and

F. When the apparatus exhibits a distinct change in

performance this indicates a need for service.

16. Object and Liquid Entry Never push objects of any kind into the apparatus through openings as they may touch dangerous voltage points or short-out parts that could result in a ﬁre or electric shock. The apparatus shall not be exposed to dripping or splashing and no objects ﬁlled with liquids, such as vases shall be placed on the apparatus. Don’t put candles or other burning objects on top of this unit.

17. Batteries Always consider the environmental issues and follow local regulations when disposing of batteries.

18. If you install the apparatus in a built-in installation, such as a bookcase or rack, ensure that there is adequate ventilation. Leave 20 cm (8") of free space at the top and sides and 10 cm (4") at the rear. The rear edge of the shelf or board above the apparatus shall be set 10 cm (4") away from the rear panel or wall, creating a ﬂue-like gap for warm air to escape.

Precautions

1. Recording Copyright

only, recording copyrighted material is illegal without the permission of the copyright holder.

2. AC Fuse

serviceable. If you cannot turn on the unit, contact your Onkyo dealer.

3. Care

over with a soft cloth. For stubborn stains, use a soft cloth dampened with a weak solution of mild detergent and water. Dry the unit immediately afterwards with a clean cloth. Don’t use abrasive cloths, thinners, alcohol, or other chemical solvents, because they may damage the ﬁnish or remove the panel lettering.

4. Power WARNING

BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY. AC outlet voltages vary from country to country.

Make sure that the voltage in your area meets the voltage requirements printed on the unit’s rear panel (e.g., AC 230–240 V, 50 Hz or AC 120 V, 60 Hz).

The power cord plug is used to disconnect this unit from the AC power source. Make sure that the plug is readily operable (easily accessible) at all times.

Pressing the [STANDBY/ON] button to select Standby mode does not fully shutdown the unit. If you do not intend to use the unit for an extended period, remove the power cord from the AC outlet.

5. Never Touch this Unit with Wet Hands

handle this unit or its power cord while your hands are wet or damp. If water or any other liquid gets inside this unit, have it checked by your Onkyo dealer.

6. Handling Notes

• If you need to transport this unit, use the original

• Do not leave rubber or plastic items on this unit

• This unit’s top and rear panels may get warm

• If you do not use this unit for a long time, it may

—The AC fuse inside the unit is not user-

—Occasionally you should dust the unit all

packaging to pack it how it was when you originally bought it.

for a long time, because they may leave marks on the case.

after prolonged use. This is normal.

not work properly the next time you turn it on, so be sure to use it occasionally.

—Unless it’s for personal use

—Never

For U.S. models

FCC Information for User

CAUTION:

The user changes or modiﬁcations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

For Canadian Models

NOTE:

COMPLIES WITH CANADIAN ICES-003. For models having a power cord with a polarized plug:

CAUTION:

MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

THIS CLASS B DIGITAL APPARATUS

TO PREVENT ELECTRIC SHOCK,

Modèle pour les Canadien

REMARQUE:

LA CLASSE B EST CONFORME À LA NORME NMB-003 DU CANADA. Sur les modèles dont la ﬁche est polarisée:

ATTENTION:

TRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

CET APPAREIL NUMÉRIQUE DE

POUR ÉVITER LES CHOCS ÉLEC-

Speaker Precautions

Placement

• The speaker cabinets are made out of wood and are therefore sensitive to extreme temperatures and humidity, do not put them in locations subject to direct sunlight or in humid places, such as near an air conditioner, humidiﬁer, bathroom, or kitchen.

• Do not put water or other liquids close to the speakers. If liquid is spilled over the speakers, the drive units may be damaged.

• Speakers should only be placed on sturdy, ﬂat surfaces that are free from vibration. Putting them on uneven or unstable surfaces, where they may fall and cause damage, will affect the sound quality.

• Subwoofer is designed to be used in the upright vertical position only. Do not use it in the horizontal or tilted position.

• If the unit is used near a turntable, CD player or DVD player, howling or slipping of sound may occur. To prevent this, move the unit away from the turntable, CD player or DVD player otherwise lower the unit’s output level.

Using Close to a TV or Computer

TVs and computer monitors are magnetically sensitive devices and as such are likely to suffer discoloration or picture distortion when conventional speakers are placed nearby. To prevent this, the SKF-550F and SKC-550C feature internal magnetic shielding. In some situations, however, discoloration may still be an issue, in which case you should turn off your TV or monitor, wait 15 to 30 minutes, and then turn it back on again. This normally activates the degaussing function, which neutralizes the magnetic ﬁeld, thereby removing any discoloration effects. If discoloration problems persist, try moving the speakers away from your TV or monitor. Note that discoloration can also be caused by a magnet or demagnetizing tool that’s too close to your TV or monitor.

Input Signal Warning

The speakers can handle the speciﬁed input power when used for normal music reproduction. If any of the following signals are fed to them, even if the input power is within the speciﬁed rating, excessive current may ﬂow in the speaker coils, causing burning or wire breakage:

Interstation noise from an untuned FM radio.

Sound from fast-forwarding a cassette tape.

High-pitched sounds generated by an oscillator, electronic musical instrument, and so on.

Ampliﬁer oscillation.

Special test tones from audio test CDs and so on.

Thumps and clicks caused by connecting or disconnecting audio cables (Always turn off your ampliﬁer before connecting or disconnecting cables.)

Microphone feedback.

Enjoying Home Theater

Speaker Sets A and B

You can use two sets of speakers with the AV receiver:

Speaker set A

*While speaker set B is on, speaker set A is reduced to 5.1-channel playback.

Speaker set B

*Only analog input sources are output by speaker set B.

Speaker set A Speaker set B Indicator Output

(included speakers) should be used in your main listening room for up to 7.1-channel playback.

(not included) can be used in another room and offers 2-channel stereo playback.

TUNING

PRESET

SPEAKERS

SETUP ENTER

SETUP MIC

TUNING MODE

CLEAR

A B

Off

STANDBY/ON

STANDBY

MULTI CH C

PHONES

ABSPEAKERS

AUXCBL/SATVCR/DVR

DVD

TONE DISPLAYSTEREO DIMMER MEMORY

LISTENING MODE

TUNERTAPE

DIGITAL INPUT

Off Set A: 7.1 channels

On Set B: 2 channels

Off No sound

RETURN

VIDEO

speaker set A

MASTER VOLUME

AUX INPUT

AUDIOLR

Set A: 5.1 channels Set B: 2 channels

and

speaker set B

DISC

VOL

INPUT

GUIDE

TOP MENU

SP A / B

PLAYLIST/CAT PLAYLIST/CAT

SETUP RETURN

ALBUM

ENTER

VOL

MUTING

Main Room (speaker set A, the supplied speakers)

Center speaker

Front right

speaker

Surround

right

speaker

right speaker

Subwoofer

Surround

left

speaker

Front left

speaker

Surround back

left speaker

* While speaker set B is on, the surround

back speakers output no sound.

Sub Room (speaker set B)

* Digital input sources are not output

by speaker set B. Connect your source component with an analog connection.

Package Contents

Make sure you have the following items:

AV receiver (HT-R550)

Surround and Surround back speakers (SKM-550S/SKB-550)

Remote controller and two batteries (AA/R6)

Indoor FM antenna

AM loop antenna

Speaker setup microphone

Speaker terminal tool

Subwoofer (SKW-550)

(Red) (White)

Speaker cable for front speakers 11 ft. (3.5 m)

(Green)

Speaker cable for center speaker 10 ft. (3 m)

(Blue) (Gray)

(Brown) (Tan)

Speaker cables for surround speakers 30 ft. (9 m)

Front speakers (SKF-550F)

Center speaker (SKC-550C)

RCA cable for subwoofer connection 10 ft. (3 m)

4 ﬂoor pads for the subwoofer

* In catalogs and on packaging, the letter at the end of the

product name indicates the color. Speciﬁcations and operation are the same regardless of color.

Features

Ampliﬁer

• 7-channel ampliﬁer

• 110 watts per channel rms into 8 ohms, 2 channels driven at 1 kHz, less than 0.9% total harmonic distortion (FTC rating)

• WRAT (Wide Range Ampliﬁer Technology)

• Optimum Gain Volume Circuitry

• Audyssey 2EQ/HTIB room correction

Processing

• Dolby*2 Digital EX and Dolby Pro Logic IIx

• DTS, DTS-ES Matrix/Discrete, DTS Neo:6, and DTS

96/24

• Neural Surround

(North American models only)

• Theater-Dimensional*5 virtual surround sound

• Linear PCM 192 kHz/24-bit D/A converters on all channels

• Pure Audio listening mode (not North American model)

•Powerful and highly accurate 32-bit DSP processing

Audio/Video

•2 HDMI*6 inputs, 1 output

• Adjustable crossover (40, 50, 60, 80, 100, 120, 150, 200 Hz)

• HDTV-capable component video (3 inputs, 1 output)

•3 S-Video inputs, 2 outputs

•4 assignable digital inputs (2 optical, 2 coaxial)

• Subwoofer pre out

• Color-coded 7.1 multichannel input for use with Super Audio CD and DVD-Audio

• A/B speaker drive

• Color-coded speaker terminal posts

Manufactured under license from Audyssey Laboratories. U.S. and foreign patents pending. Audyssey 2EQ/HTIB is a trademark of Audyssey Laboratories.

Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are registered trademarks of Dolby Laboratories.

“DTS” and “DTS-ES | Neo: 6” are registered trademarks of DTS, Inc. “96/24” is a trademark of DTS, Inc.

Neural Surround name and related logos are trademarks owned by Neural Audio Corporation.

Theater-Dimensional is a trademark of Onkyo Corporation.

HDMI, the HDMI logo and High Deﬁnition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC. This unit incorporates HDMI technology.

is a registered trademark of XM Satellite

Tuner

•XM*7 Satellite Radio (North American models only)

*XM Passport System required; sold separately.

• SIRIUS*8 Satellite Radio (North American models only)

• 40 radio presets

• AM/FM auto tuning

Remote Controller

• Preprogrammed for use with other AV components

Speaker

• Color-coded speaker terminals and speaker cables

• Subwoofer Auto standby function

• Magnetically shielded front and center speakers

©2005 SIRIUS Satellite Radio Inc. “SIRIUS,” the SIRIUS dog logo, channel names and logos are trademarks of SIRIUS Satellite Radio Inc. Available only in the contiguous United States (excluding Alaska and Hawaii) and Canada.

Getting Started in Five Easy Steps

1. Hookup

Connect the speakers and your AV components to the AV receiver.

☞ page 19

SIRIUS

HDMI

ASSIGNABLE

OUT

IN 1IN 2

ANTENNA

FMAM75

DIGITAL IN

ASSIGNABLE

COAXIAL 1

(DVD)

(CBL/SAT)

OPTICAL

(VCR/DVR)

(CD)

REMOTE CONTROL

OUT

CBL/SAT IN

VCR/DVR IN

DVD IN

COMPONENT VIDEO

OUT

IN IN

TAPE

B/PB

CR/PR

MONITOR

CBL/SAT

VCR/DVR

DVD

OUT

SURROUND BACK

SPEAKERS

OUT

IN IN

FRONT

SURROUND

SURR BACK

CENTER

INININ

OUT

SUB

WOOFER

CBL/SAT

VCR/DVR

DVD

SURROUND

FRONT

CENTER

SPEAKERS

SPEAKERS A

SPEAKER

PRE OUT

SUB WOOFER

FRONT

SPEAKERS B

2. Turning On

With the hookup complete, you’re ready to switch on.

☞ page 36

3. First Time Setup

A few simple settings to get the very best from your system.

☞ page 37

HDMI Video

Setup

Automatic

Speaker Setup

4. Playing Your AV Components

Enjoying movies and music.

☞ page 42

5. Using the Listening Modes

Time to really enjoy your home theater system!

☞ page 48

Digital Input

Input Display

Introduction

Important Safety Instructions ....................2

Precautions .................................................3

Speaker Precautions ..................................4

Enjoying Home Theater..............................5

Speaker Sets A and B ...................................5

Package Contents.......................................6

Features .......................................................7

Getting to Know the AV Receiver............10

Remote Controller.....................................13

Speakers ....................................................18

Connection

Connecting Your Speakers ......................19

Connecting Antennas...............................22

Connecting Your Components ................24

About AV Connections ................................24

Connecting Audio and Video Signals

to the AV Receiver .................................... 25

Which Connections Should I Use?..............25

TV or Projector DVD player

Components with HDMI ..............................29

VCR or DVD Recorder for Playback ...........30

VCR or DVD Recorder for Recording.......... 31

Camcorder, Games Console,

or Other Device.........................................31

Satellite, Cable, Set-top box,

or Other Video Source ..............................32

CD Player or Turntable................................33

RI Dock........................................................34

Cassette, CDR, MiniDisc,

or DAT Recorder.......................................34

Connecting Onkyo Components

Connecting the Power Cord ........................35

..........................................26

.................................................27

..........35

Turning On & First Time Setup

Basic Operation

Playing Your AV Components ................ 42

Basic AV Receiver Operation ..................... 42

Using the Multichannel DVD Input.............. 43

Displaying Source Information.................... 43

Listening to the Radio.............................. 44

Listening to AM/FM Stations....................... 44

Presetting AM/FM Stations ......................... 45

Common Functions.................................. 46

Setting the Display Brightness.................... 46

Adjusting the Bass and Treble.................... 46

Muting the AV Receiver .............................. 46

Using the Sleep Timer ................................ 47

Using Headphones ..................................... 47

Adjusting Speaker Levels ........................... 47

Enjoying the Listening Modes

Using the Listening Modes...................... 48

Selecting Listening Modes.......................... 48

About the Listening Modes ......................... 50

Using the Late Night Function

(Dolby Digital only) ................................... 52

Using the CinemaFILTER........................... 52

Using the Audio Adjust Settings ................. 52

Advanced Operation

Recording.................................................. 55

Advanced Setup ....................................... 56

Advanced Speaker Settings ....................... 56

Digital Input Signal Formats ....................... 61

Correcting Sound and Picture Sync ........... 61

Controlling Other Components............... 62

Entering Remote Control Codes................. 62

Remote Control Codes for Onkyo

Components Connected via .............. 63

Resetting REMOTE MODE Buttons ........... 63

Resetting the Remote Controller ................ 63

Turning On the AV Receiver ....................36

First Time Setup........................................37

Automatic Speaker Setup

(Audyssey 2EQ/HTIB)...............................37

HDMI Video Setup.......................................40

Digital Audio Input Setup.............................41

Changing the Input Display .........................41

Troubleshooting ....................................... 65

If you can’t resolve an issue, try resetting the AV receiver by holding down the [VCR/DVR] button and pressing the [STANDBY/ON] button.

Specifications ........................................... 69

Getting to Know the AV Receiver

Front Panel

North American Model

STANDBY/ON

STANDBY

3 5 6 74

TUNING

MASTER VOLUME

PRESET

MULTI CH C D

PHONES

ABSPEAKERS

DVD

TONE DISPLAYSTEREO DIMMER MEMORY

Other Models

STANDBY/ON

STANDBY

PURE AUDIO

DVDMULTI CHPURE AUDIO C D

PHONES

ABSPEAKERS

TONE

For detailed information, see the pages in parentheses.

STANDBY/ON button (36)

Sets the AV receiver to On or Standby.

STANDBY indicator (36)

Lights up when the AV receiver is on Standby and ﬂashes while a signal is being received from the remote controller.

Remote-control sensor (13)

Receives control signals from the remote controller.

Display

See “Display” on page 11.

Input selector buttons (42)

Select the input sources. The [MULTI CH] button selects the multichannel

DVD input.

AUXCBL/SATVCR/DVR

LISTENING MODE

AUXCBL/SATVCR/DVR

LISTENING MODE

TUNERTAPE

DIGITAL INPUT

TUNING MODE

CLEAR

SETUP ENTER

SETUP MIC

RETURN

AUX INPUT

VIDEO

AUDIOLR

UJKLMNOPQ8 9RTS

MASTER VOLUME

TUNING

PRESET

TUNERTAPE

DISPLAYSTEREO DIMMER MEMORY

DIGITAL INPUT

Arrow/TUNING/PRESET and ENTER buttons

TUNING MODE

CLEAR

When the tuner is selected, the TUNING [ ] [ ] buttons are used for radio tuning, and the PRESET

[] [ ] buttons are used to select radio presets (see page 45). With the setup menus, they work as arrow buttons and are used to select and set items. The ENTER button is also used with the setup menus.

MASTER VOLUME control (42)

Sets the volume of the AV receiver to MIN, 1 through 79, or MAX.

PHONES jack (47)

This 1/4-inch phone jack is for connecting a standard pair of stereo headphones for private listening.

SPEAKERS A and B buttons (5, 42)

Turn speaker sets A and B on or off.

SETUP ENTER

SETUP MIC

RETURN

AUX INPUT

VIDEO

AUDIOLR

Getting to Know the AV Receiver

—Continued

TONE, [–], and [+] buttons (46)

Used to adjust the bass and treble.

STEREO button (48)

Selects the Stereo listening mode.

LISTENING MODE [ ]/[ ] buttons (48)

Select the listening modes.

DISPLAY button (43)

Displays various information about the currently selected input source.

DIGITAL INPUT button (41, 61)

Used to assign the digital inputs and to specify the format of digital input signals.

DIMMER button (46)

Adjusts the display brightness.

MEMORY button (45)

Used when storing or deleting radio presets.

Display

TUNING MODE button (44)

Selects the Auto or Manual tuning mode for AM and FM radio.

SETUP button

Used to access the setup menus.

SETUP MIC (38)

The automatic speaker setup microphone connects here.

RETURN button

Selects the previously displayed setup menu.

AUX INPUT (31, 55)

Used to connect a camcorder, games console, and so on. There are jacks for composite video and analog audio.

PURE AUDIO button and indicator (48)

The North American model doesn’t have this button and indicator.

Selects the Pure Audio listening mode. The indicator lights up when this mode is selected.

213 5

For detailed information, see the pages in parentheses.

A and B speaker indicators (5, 42)

Indicator A lights up when speaker set A is on. Indicator B lights up when speaker set B is on.

MUTING indicator (46)

Flashes while the AV receiver is muted.

Input signal format indicators

Show the audio signal format of the current input source.

Listening mode indicators (50)

Show the selected listening mode.

Radio indicators

FM STEREO (44):

reo FM station.

Lights up when tuned to a ste-

AUTO (44):

Auto Tuning mode is selected, and disappears when Manual Tuning mode is selected.

TUNED (44):

tion.

SLEEP indicator (47)

Lights up when the Sleep function has been set.

Message area

Displays various information about the selected input source.

Audyssey indicator (37)

Lights up during automatic speaker setup.

For AM and FM radio, lights up when

Lights up when tuned to a radio sta-

Getting to Know the AV Receiver

Rear Panel

7 8

1 2 53 6

DIGITAL IN

ASSIGNABLE

COAXIAL

(DVD)

(CBL/SAT)

OPTICAL

(VCR/DVR)

(CD)

REMOTE CONTROL

CBL/SAT IN

IN 1IN 2

B/PB

CR/PR

OUT

VCR/DVR IN

DVD IN

COMPONENT VIDEO

OUT

IN IN

TAPE

HDMI

ASSIGNABLE

OUT

CBL/SAT

ANTENNA

VCR/DVR

OUT

VCR/DVR

FMAM75

IN IN

FRONT

SIRIUS

MONITOR

DVD

OUT

SURROUND

DVD

—Continued

(North American model only)

SURROUND BACK

SPEAKERS

SURR BACK

CENTER

SUB

WOOFER

SURROUND SPEAKERS

PRE OUT

SUB

WOOFER

SPEAKERS A

FRONT

SPEAKERS B

FRONT

CENTER

SPEAKER

J K L M N O

DIGITAL IN OPTICAL 1, 2 and COAXIAL 1, 2

These optical and coaxial digital audio inputs are for connecting components with optical or coaxial digital audio outputs, such as CD and DVD players.

HDMI IN 1, 2, and OUT

These jacks are for connecting HDMI-compatible components. Audio and video signals received by the HDMI IN jacks pass through to the HDMI OUT jack.

COMPONENT VIDEO

A DVD player, TV, or other component that supports component video can be connected here.

AM ANTENNA

These push terminals are for connecting an AM antenna.

FM ANTENNA

This jack is for connecting an FM antenna.

MONITOR OUT

The S-Video or composite video output should be connected to a video input on your TV or projector.

SIRIUS antenna (North American models

only)

This jack is for connecting a SIRIUS Satellite Radio antenna (see the separate SIRIUS instructions).

XM antenna (North American models only)

This jack is for connecting an XM Passport System, sold separately (see the separate XM instructions).

FRONT SPEAKERS A, SURROUND SPEAKERS, CENTER SPEAKER, and SURROUND BACK SPEAKERS

These terminal posts are for connecting speaker set A.

REMOTE CONTROL

This Remote Interactive jack can be connected to the jack on another -capable Onkyo component. To use , you must make an analog audio

connection (RCA) between the AV receiver and the other component, even if they are connected digitally.

CD IN

This analog audio input is for connecting a CD player’s analog audio output.

TAPE IN/OUT

This analog audio input and output are for connecting a recorder with an analog audio input and output, such as a cassette deck, MD recorder, etc.

VCR/DVR IN/OUT and CBL/SAT IN

The VCR/DVR inputs and outputs can be used to connect a VCR or DVR (digital video recorder).

The CBL/SAT inputs can be used to connect a cable/satellite receiver, set-top box, etc.

DVD IN

These jacks can be used to connect a DVD player with an analog multichannel audio output for SACD and DVD-Audio playback.

SUBWOOFER PRE OUT

A powered subwoofer can be connected here.

FRONT SPEAKERS B

These push terminals are for connecting speaker set B.

See pages 19–35 for hookup information.

Remote Controller

Installing the Batteries

To open the battery compartment, press

the small hollow and slide open the cover.

Insert the two supplied batteries (AA/R6)

in accordance with the polarity diagram

inside the battery compartment.

Slide the cover shut.

Notes:

• If the remote controller doesn’t work reliably, try replacing the batteries.

• Don’t mix new and old batteries or different types of batteries.

• If you intend not to use the remote controller for a long time, remove the batteries to prevent damage from leakage or corrosion.

• Expired batteries should be removed as soon as possible to prevent damage from leakage or corrosion.

Aiming the Remote Controller

When using the remote controller, point it toward the AV receiver’s remote control sensor, as shown below.

Remote control sensor

AV receiver

STANDBY indicator

Approx. 16 ft. (5 m)

Notes:

• The remote controller may not work reliably if the AV receiver is subjected to bright light, such as direct sunlight or inverter-type ﬂuorescent lights. Keep this in mind when installing.

• If another remote controller of the same type is used in the same room, or the AV receiver is installed close to equipment that uses infrared rays, the remote controller may not work reliably.

• Don’t put anything on top of the remote controller, such as a book or magazine, because a button may be pressed continuously, thereby draining the batteries.

• The remote controller may not work reliably if the AV receiver is installed in a rack behind colored glass doors. Keep this in mind when installing.

• The remote controller will not work if there’s an obstacle between it and the AV receiver’s remote control sensor.

Remote Controller

—Continued

Using the Remote Controller

Including the AV receiver, the remote controller can be used to control up to seven different components. The remote controller has a speciﬁc operating mode for use with each type of component. Modes are selected by using the six REMOTE MODE buttons.

■

RECEIVER/TAPE Mode

In RECEIVER/TAPE mode, you can control the AV receiver and an Onkyo cassette recorder connected via .

■

DVD and CD/MD/CDR/DOCK Modes

With these modes, you can control a DVD player and CD player, MD recorder, CDR, or RI dock. By entering the appropriate remote control code, you can control Onkyo components or components made by other manufacturers (see page 62).

■

TV, VCR and SAT/CABLE Modes

With these modes, you can control a TV, VCR, and satellite or cable receiver. You must enter the appropriate remote control code ﬁrst (see page 62).

REMOTE MODE

RECEIVER

TAPE/AMP

Press one of the REMOTE MODE buttons to select a mode.

DVD

M D/CDR

DOCK

VCR

CABLE

SAT

RECEIVER

TAPE/AMP

DVD

M D/CDR

DOCK

VCR

CABLE

SAT

RECEIVER/TAPE Mode

RECEIVER/TAPE mode is used to control the AV receiver. It can also be used to control an Onkyo cassette recorder connected via .

RECEIVER

TAPE/AMP

STANDBY/ON

INPUT SELECTOR

123

VCR/DVR

456

AUX

789

10 11 12

D TUN

--/---

INPUT

GUIDE

TOP MENU

SP A / B

PLAYLIST/CAT PLAYLIST/CAT

SETUP RETURN

CBL/SAT

MULTI CH

DIMMER

VOL

REMOTE MODE

RECEIVER

TAPE/AMP

DVD

CLR

ENT

SLEEP

DISC

ALBUM

ENTER

DVD

D/CDR

C D

DOCK

VCR

C DTAPE TUNER

CABLE

SAT

VOL

MUTING

LISTENING MODE

SURROUND

STEREO

RANDOM

SUBTITLE

AUDIO REPEAT

TEST TONE

CH SEL

PLAY MODE

DISPLAY

LEVEL

L NIGHT

LEVEL

CINE FLTR

HDDDVDVCR

P Q

Use the buttons supported by that mode to control the component.

RECEIVER/TAPE mode:

see right column

DVD mode:

see page 16

CD/MD/CDR/DOCK mode:

see page 17

TV, VCR, SAT/CABLE modes:

see page 64

Note:

Some of the remote controller operations described in this manual may not work as expected with other components.

Buttons

1, 2, 3

, and 4 are used when the TUNER

or TAPE input is selected.

681M

Remote Controller

—Continued

For detailed information, see the pages in parentheses.

STANDBY/ON button (36)

Sets the AV receiver to On or Standby.

INPUT SELECTOR buttons (42)

Used to select the input sources.

MULTI CH button (43)

Selects the multichannel DVD input.

DIMMER button (46)

Adjusts the display brightness.

SP A/B button (5, 42)

Used to turn speaker sets A and B on or off.

Arrow [ ]/[ ]/[ ]/[ ] and ENTER buttons

Used to select and adjust settings.

SETUP button

Used to access the setup menus.

LISTENING MODE buttons (48)

Used to select the listening modes. These buttons work in all remote controller modes.

STEREO button

Selects the Stereo listening mode.

SURROUND button

Selects the Dolby and DTS listening modes and the Neural Surround listening mode (North American model only).

[ ]/[ ] buttons

Used to select the available listening modes.

TEST TONE, CH SEL, LEVEL-, and LEVEL+ buttons (47, 59)

Used to adjust the level of each speaker.

DISPLAY button (43)

Displays various information about the selected input source.

REMOTE MODE buttons (14)

Used to select the remote controller modes. When a remote controller button is pressed, the REMOTE MODE button for the currently selected mode lights up.

SLEEP button (47)

Used with the Sleep function.

VOL [ ]/[ ] button (42)

Adjusts the volume of the AV receiver regardless of the currently selected remote controller mode.

MUTING button (46)

Mutes or unmutes the AV receiver.

RETURN button

Selects the previously displayed setup menu.

CINE FLTR button (52)

Used with the CinemaFILTER function.

L NIGHT button (52)

Used with the Late Night function.

■

Buttons used when the TUNER input is selected

To select the Tuner (AM/FM) as the input source, press:

RECEIVER

Number, D TUN, and ENT buttons (45)

Used to select AM and FM radio stations directly.

CH +/– button (45)

Used to select radio presets.

Arrow [ ]/[ ] buttons

For AM and FM, the Up and Down [ ]/[ ] buttons are used for tuning.

■

Buttons used when the TAPE input is selected

To select your Cassette deck as the input source, press:

RECEIVER

Playback buttons

On twin cassette decks, only deck B can be controlled.

Play [ ] button

Starts playback.

Stop [ ] button

Stops playback.

Reverse Play [ ] button

Starts reverse playback.

Rewind and FF [ ]/[ ] buttons

The Rewind [ ] button starts rewind. The FF [] button starts fast forward.

TUNER

TAPE

Remote Controller

—Continued

DVD Mode

By default, the remote controller is set to control an Onkyo DVD player.

To select your DVD player as the input source, press:

DVD

REMOTE MODE

RECEIVER

TAPE/AMP

DVD

ENT

SLEEP

ALBUM

ENTER

C DTAPE TUNER

CLR

DISC

DVD

D/CDR

C D

DOCK

VCR

CABLE

SAT

VOL

MUTING

MULTI CH

DVD

RECEIVER

STANDBY/ON

INPUT SELECTOR

123

CBL/SAT

CR/DVR

456

AUX

MULTI CH

789

10 11 12

D TUN

--/---

DIMMER

VOL

INPUT

GUIDE

TOP MENU

SP A / B

PLAYLIST/CAT PLAYLIST/CAT

SETUP RETURN

LISTENING MODE

SURROUND

8 9

STEREO

RANDOM

SUBTITLE

AUDIO REPEAT

TEST TONE

CH SEL

PLAY MODE

DISPLAY

LEVEL

L NIGHT

LEVEL

CINE FLTR

HDDDVDVCR

N O

681M

STANDBY/ON button

Sets the DVD player to On or Standby.

Number buttons

Used to enter title, chapter, and track numbers and times for locating speciﬁc points.

DISC +/– button

Selects discs on a DVD changer.

TOP MENU button

Selects a DVD’s top menu.

Arrow [ ]/[ ]/[ ]/[ ] and ENTER buttons

Used to navigate DVD menus and the DVD player’s onscreen setup menus.

SETUP button

Used to access the DVD player’s onscreen setup menus.

Playback buttons

From left to right: Pause, Play, Stop, Fast Reverse, Fast Forward, Previous, and Next.

SUBTITLE button

Selects subtitles.

AUDIO button

Selects foreign language soundtracks and audio formats (e.g., Dolby Digital or DTS).

DISPLAY button

Displays information about the current disc, title, chapter, or track, including elapsed time, remaining time, total time, and so on.

CLR button

Cancels functions and clears entered numbers.

MENU button

Displays a DVD’s menu.

RETURN button

Exits the DVD player’s onscreen setup menus.

RANDOM button

Used with the random playback function.

REPEAT button

Used with the repeat playback functions.

VCR, DVD, and HDD buttons

Used to select VCR, HDD (hard disk drive), or DVD playback on a VCR/DVD recorder with a built-in hard disk drive.

PLAY MODE button

Selects play modes on components with selectable play modes.

Remote Controller

—Continued

CD/MD/CDR/DOCK Mode

By default, the remote controller is set to control an Onkyo CD player.

To select the input source, press:

C D

RECEIVER

TAPE

* If you’re using an MD, CDR, or an RI Dock, you must

change the Input Display (see page 41).

STANDBY/ON

INPUT SELECTOR

4 5

123

CBL/SAT

CR/DVR

456

AUX

MULTI CH

789

10 11 12

D TUN

--/---

DIMMER

VOL

INPUT

GUIDE

TOP MENU

SP A / B

PLAYLIST/CAT PLAYLIST/CAT

SETUP RETURN

CD player

MD or CD recorder

RI Dock

CBL/SAT

REMOTE MODE

RECEIVER

TAPE/AMP

DVD

C DTAPE TUNER

CLR

ENT

SLEEP

DISC

ALBUM

MUTING

ENTER

DVD

D/CDR

C D

DOCK

VCR

CABLE

SAT

VOL

M D/CDR

C D

DOCK

LISTENING MODE

SURROUND

STEREO

RANDOM

SUBTITLE

AUDIO REPEAT

TEST TONE

CH SEL

PLAY MODE

DISPLAY

LEVEL

L NIGHT

LEVEL

CINE FLTR

HDDDVDVCR

K L

STANDBY/ON button

Sets the component to On or Standby.

Number buttons

Used to enter track numbers and times for locating speciﬁc points on CD/MD players.

DISC/ALBUM +/– button

Selects discs on a CD changer, or the next or previous album on an HDD-compatible component connected to an RI Dock.

TOP MENU button

Works as a Mode button when used with a DS-A2 RI Dock.

Arrow [ ]/[ ] and ENTER buttons

Used to navigate menus on an HDD-compatible component connected to an RI Dock.

Playback buttons

From left to right: Pause, Play, Stop, Fast Reverse, Fast Forward, Previous and Next.

DISPLAY button

Displays information about the current disc or track on a CD player or MD/CD recorder, including elapsed time, remaining time, total time, and so on. On an HDD-compatible component connected to an RI Dock, it turns on the back light for 30 seconds.

CLR button

Cancels functions and clears entered numbers on a CD player or MD/CD recorder.

MENU button

Used to navigate menus on an HDD-compatible component connected to an RI Dock.

PLAYLIST [ ]/[ ] buttons

Selects the previous or next playlist on an HDDcompatible component connected to an RI Dock.

RANDOM button

Used with the random/shufﬂe playback function.

REPEAT button

Used with the repeat playback functions.

PLAY MODE button

Used to select play modes on components with selectable play modes. Works as a Resume button when used with a DS-A2 RI Dock.

681M

Speakers

Subwoofer (SKW-550)

For detailed information, see the pages in parentheses.

■ Front

■ Rear

(Not North American model)

POWER

OFF

243

To AC outlet

STANDBY/ON indicator

Red: Subwoofer in standby mode Green: Subwoofer on

With the Auto Standby function, the SKW-550 automatically turns on when an input signal is detected in Standby mode. When there’s no input signal for a while, the SKW-550 automatically enters Standby mode.

OUTPUT LEVEL control (42)

This control is used to adjust the volume of the subwoofer.

LINE INPUT (20)

This RCA input should be connected to the subwoofer pre out on the AV receiver with supplied RCA cable.

POWER switch (Not North American model) (36)

Press this switch to the ON position to turn on the power. Press it to the OFF position to turn off the power.

Note:

The Auto Standby function turns the subwoofer on when the input signal exceeds a certain level. If the Auto Standby function does not work reliably, try slightly increasing or decreasing the subwoofer output level on the AV receiver (page 59).

■ Attaching and detaching the speaker grilles

Front and Center speakers have detachable grilles. Use the following method to attach or detach the grilles.

1. While holding the bottom edge of the speaker grille with your both hands, pull it gently toward you to remove the bottom of the grille.

2. In the same way, gently pull the upper edge of the speaker grille toward you to remove it from the main unit.

3. To replace the grill, push the projections at the corners into the grille plug holes on the speaker cabinet.

ReplacementRemoval

Connecting Your Speakers

Enjoying Home Theater

Thanks to the AV receiver’s superb capabilities, you can enjoy surround sound with a real sense of movement in your own home—just like being in a movie theater or concert hall. You can enjoy DVDs featuring DTS and Dolby Digital. With analog and digital TV, you can enjoy Dolby Pro Logic IIx and Onkyo’s own DSP surround listening modes.

Front left and right speakers (SKF-550F)

These output the overall sound. Their role in a home theater is to provide a solid anchor for the sound image. They should be positioned facing the listener at about ear level, and equally spaced from the TV. Angle them inward slightly so as to create a triangle, with the listener at the apex.

Surround back left and right speakers (SKB-550)

These speakers are necessary to enjoy Dolby Digital EX, DTS-ES

Center speaker (SKC-550C)

This speaker enhances the front left and right speakers, making sound movements distinct and providing a full sound image. For movies it’s used mainly for dialog.

Position it close to your TV facing forward at about ear level, or at the same height as the front left and right speakers.

Subwoofer (SKW-550)

The subwoofer handles the bass sounds of the LFE (Low-Frequency Effects) channel. The volume and quality of the bass output from your subwoofer will depend on its position, the shape of your listening room, and your listening position. In general, a good bass sound can be obtained by installing the subwoofer in a front corner, or at one-third the way along the wall, as shown.

Tip: To ﬁnd the best position for your subwoofer, while playing a movie or some music with good bass, experiment by placing your subwoofer at various positions within the room, and choose the one that provides the most satisfying results.

Corner

1/3 wall length

Matrix, DTS-ES Discrete. They enhance the realism of surround sound and improve sound localization behind the listener. Position them behind the listener about 2–3 feet (60–100 cm) above ear level.

* While speaker set B is on,

these speakers output no sound.

If the subwoofer is placed on a hard ﬂoor (wood, vinyl, tile, etc.) and playback is very loud, the subwoofer's feet may damage the ﬂooring. To prevent this, place the supplied pads underneath the subwoofer's feet. The pads also provide a stable base for the subwoofer.

Surround left and right speakers (SKM-550S)

These speakers are used for precise sound positioning and to add realistic ambience.

Position them at the sides of the listener, or slightly behind, about 2–3 feet (60–100 cm) above ear level. Ideally they should be equally spaced from the listener.

Connecting Your Speakers

—Continued

Speaker Connection Precautions

Read the following before connecting your speakers:

•You can connect speakers with an impedance of between 8 and 16 ohms. If you use speakers with a lower impedance, and use the ampliﬁer at high volume levels for a long period of time, the built-in amp protection circuit may be activated.

• Disconnect the power cord from the wall outlet before making any connections.

•Pay close attention to speaker wiring polarity. In other words, connect positive (+) terminals to only positive (+) terminals, and negative (–) terminals to only negative (–) terminals. If you get them the wrong way around, the sound will be out of phase and will sound unnatural.

• Unnecessarily long or very thin speaker cables may affect the sound quality and should be avoided.

• Be careful not to short the positive and negative wires. Doing so may damage the AV receiver.

• Don’t connect more than one cable to each speaker terminal. Doing so may damage the AV receiver.

• Don’t connect a speaker to several terminals.

Connecting Speaker Set A

The AV receiver’s positive (+) speaker terminals and speaker’s positive (+) terminals are color-coded for ease of identiﬁcation. (The negative (–) speaker terminals are all black.) Match the color of each cable to the corresponding speaker terminal.

Speaker terminal Color

Front left White

Front right Red

Center Green

Surround left Blue

Surround right Gray

Surround back left Brown

Surround back right Tan

On the AV receiver, unscrew the terminal. Fully

insert the bare wires. Make sure that the bare wire is touching the inside of the pole. Screw the terminal tight.

On the speakers, while pressing

the terminal lever, insert the wire into the hole, and then release the lever.

Using the Speaker Terminal Tool

The supplied speaker terminal tool makes it easy to tighten and loosen the speaker terminals. If you are using banana plugs, to ensure optimum sound quality, tighten the speaker terminal before inserting the banana plug.

Using the supplied RCA cable, connect the AV

receiver’s SUBWOOFER PRE OUT to LINE INPUT on the subwoofer.

Make sure the cable is plugged all the way.

Connecting Speaker Set B (sold separately)

Strip 3/8" (10 mm) of insu-

lation from the ends of the speaker cables, and twist the bare wires tightly, as shown.

While pressing the lever, insert

the wire into the hole, and then release the lever.

Make sure that the terminals are gripping the bare wires, not the insulation.

Note:

When speaker set B is turned on, speaker set A is reduced to 5.1-channel playback.

3/8" (10 mm)

Connecting Your Speakers

—Continued

The following illustration shows which speaker should be connected to each pair of terminals.

Speaker Set A (supplied)

Front right

speaker

Center

speaker

Subwoofer

LINE INPUT

Surround

back right

speaker

Surround

back left speaker

Surround

right

speaker

Surround

left

speaker

Front left

speaker

DIGITAL IN

ASSIGNABLE

COAXIAL

(DVD)

(CBL/SAT)

OPTICAL

(VCR/DVR)

CBL/SAT IN

(CD)

REMOTE CONTROL

HDMI

OUT

ASSIGNABLE

IN 1IN 2

B/PB

CR/PR

OUT

VCR/DVR IN

DVD IN

COMPONENT VIDEO

OUT

IN IN

TAPE

CBL/SAT

INININ

CBL/SAT

SIRIUS

ANTENNA

FMAM75

MONITOR

VCR/DVR

DVD

OUT

SURROUND BACK

SURROUND

SPEAKERS

OUT

IN IN

FRONT

SURROUND

OUT

VCR/DVR

SPEAKERS

SURR BACK

CENTER

SUB

WOOFER

DVD

Wall Mounting

The speakers can easily be mounted on a wall by using the attached wall brackets.

To mount a front, surround, or surround back speaker vertically, use its wall bracket, as shown, to hang it on a screw that's securely screwed into the wall.

To mount the center speaker horizontally, use its two wall brackets, as shown, to hang it on two screws that are securely screwed into the wall.

FRONT

CENTER

SPEAKERS A

SPEAKER

PRE OUT

SUB

WOOFER

FRONT

SPEAKERS B

Front speaker

(SKF-550F)

SURROUND BACK

SPEAKERS

SURROUND SPEAKERS

Wall brackets

Surround and

Surround back speaker

(SKM-550S/SKB-550)

FRONT

SPEAKERS A

CENTER

SPEAKER

Front right

speaker

Front left

speaker

Speaker Set B

13" (330 mm)

Center speaker

(SKC-550C)

Caution:

A mounting screw’s ability to support a speaker depends on how well it’s anchored to the wall. If you have hollow walls, screw each mounting screw into a stud. If there are no studs, or the walls are solid, use suitable wall anchors.

Use screws with a head diameter of 5/16" (9 mm) or less and a shank diameter of 1/8" (4 mm) or less. With hollow walls, use a cable/pipe detector to check for any power cables or water pipes before making any holes.

Leave a gap of between 5/16" (7 mm) and 7/16" (10 mm) between the wall and the base of the screw head, as shown.

(We recommend that you consult a home installation professional.)

5/16" – 7/16"

(7 mm) – (10 mm)

Wall

Connecting Antennas

This section explains how to connect the supplied indoor FM antenna and AM loop antenna, and how to connect commercially available outdoor FM and AM antennas.

The AV receiver won’t pick up any radio signals without any antenna connected, so you must connect the antenna to use the tuner.

AM antenna push terminals FM antenna jack

OUT

ANTENNA

FMAM75

OUT

Connecting the Indoor FM Antenna

The supplied indoor FM antenna is for indoor use only.

Attach the FM antenna, as shown.

■

American Model

FM 75

Insert the plug fully into the jack.

Connecting the AM Loop Antenna

The supplied indoor AM loop antenna is for indoor use only.

Assemble the AM loop antenna, inserting

the tabs into the base, as shown.

Connect both wires of the AM loop

antenna to the AM push terminals, as shown.

(The antenna’s wires are not polarity sensitive, so they can be connected either way around).

Make sure that the wires are attached securely and that the push terminals are gripping the bare wires, not the insulation.

Push Insert wire Release

■

Other Models

FM 75

Insert the plug fully into the jack.

Once your AV receiver is ready for use, you’ll need to tune into an FM radio station and adjust the position of the FM antenna to achieve the best possible reception.

Use thumbtacks or something similar to

ﬁx the FM antenna into position.

Thumbtacks, etc.

Caution:

Be careful that you don’t injure yourself

when using thumbtacks.

Once your AV receiver is ready for use, you’ll need to tune into an AM radio station and adjust the position of the AM antenna to achieve the best possible reception.

Keep the antenna as far away as possible from your AV receiver, TV, speaker cables, and power cords.

If you cannot achieve good reception with the supplied indoor AM loop antenna, try using it with a commercially available outdoor AM antenna (see page 23).

If you cannot achieve good reception with the supplied indoor FM antenna, try a commercially available outdoor FM antenna instead (see page 23).

Connecting Antennas

—Continued

Connecting an Outdoor FM Antenna

If you cannot achieve good reception with the supplied indoor FM antenna, try a commercially available outdoor FM antenna instead.

FM 75

Notes:

• Outdoor FM antennas work best outside, but usable results can sometimes be obtained when installed in an attic or loft.

•For best results, install the outdoor FM antenna well away from tall buildings, preferably with a clear line of sight to your local FM transmitter.

• Outdoor antenna should be located away from possible noise sources, such as neon signs, busy roads, etc.

•For safety reasons, outdoor antenna should be situated well away from power lines and other high-voltage equipment.

• Outdoor antenna must be grounded in accordance with local regulations to prevent electrical shock hazards.

■

Using a TV/FM Antenna Splitter

It’s best not to use the same antenna for both FM and TV reception, as this can cause interference problems. If circumstances demand it, use a TV/FM antenna splitter, as shown.

Connecting an Outdoor AM Antenna

If good reception cannot be achieved using the supplied AM loop antenna, an outdoor AM antenna can be used in addition to the loop antenna, as shown.

Outdoor antenna

Insulated antenna cable

AM loop antenna

Outdoor AM antennas work best when installed horizontally outside, but good results can sometimes be obtained indoors by mounting horizontally above a window. Note that the AM loop antenna should be left connected.

Outdoor antenna must be grounded in accordance with local regulations to prevent electrical shock hazards.

TV/FM antenna splitter

To AV receiver To TV (or VCR)

Connecting Your Components

About AV Connections

• Before making any AV connections, read the manuals supplied with your other AV components.

• Don’t connect the power cord until you’ve completed and double-checked all AV connections.

Optical Digital Jacks

The AV receiver’s optical digital jacks have shutter-type covers that open when an optical plug is inserted and close when it’s removed. Push plugs in all the way.

Caution:

plug straight when inserting and removing.

AV Cables and Jacks

Video

Component video cable

S-Video cable

Composite video cable

To prevent shutter damage, hold the optical

Cable Jack Description

AV Connection Color Coding

RCA-type AV connections are usually color coded: red, white, and yellow. Use red plugs to connect right-channel audio inputs and outputs (typically labeled “R”). Use white plugs to connect left-channel audio inputs and outputs (typically labeled “L”). And use yellow plugs to connect composite video inputs and outputs.

Left (white)

Right (red)

(Yellow)

• Push plugs in all the way to make good connections (loose connections can cause noise or malfunctions).

•To prevent interference, keep audio and video cables away from power cords and speaker cables.

Component video separates the luminance (Y) and

color difference signals (PR, PB), providing the best

B/PB

picture quality. (Some TV manufacturers label their component video jacks slightly differently.)

CR/PR

S-Video separates the luminance and color signals

and provides better picture quality than composite video.

Composite video is commonly used on TVs, VCRs,

and other video equipment. Use only dedicated composite video cables.

Analog audio

Composite video

Left (white)

Right (red)

(Yellow)

Right!

Wrong!

Audio

Cable Jack Description

Optical digital audio cable

Coaxial digital audio cable

Analog audio cable (RCA)

Multichannel analog audio cable (RCA)

Note:

The AV receiver does not support SCART connections.

OPTICAL

COAXIAL

This offers the best sound quality and allows you to enjoy Dolby Digital and DTS. The audio quality is the same as for coaxial.

This offers the best sound quality and allows you to enjoy Dolby Digital and DTS. The audio quality is the same as for optical.

This cable carries analog audio. It’s the most common connection format for analog audio and can be found on virtually all AV components.

This cable carries multichannel analog audio and is typically used to connect DVD players with a 7.1channel analog audio output. Several standard analog audio cables can be used instead of a multichannel cable.

Connecting Your Components

—Continued

Connecting Audio and Video Signals to the AV Receiver

By connecting both the audio and video outputs of your DVD player and other AV components to the AV receiver, you can switch the audio and video signals simultaneously simply by changing the input source on the AV receiver.

: Signal Flow

Video

Audio

Speakers (see page 21 for hookup details)

DVD player, etc.

Audio

TV, projector, etc.

Which Connections Should I Use?

The AV receiver supports several connection formats for compatibility with a wide range of AV equipment. The format you choose will depend on the formats supported by your other components. Use the following sections as a guide.

For video components, such as a DVD player, you must make an audio connection and a video connection.

Audio Connection Formats

When choosing a connection format, bear in mind that the AV receiver doesn’t convert between formats.

Video Connection Formats

Video equipment can be connected by using any one of the following video connection formats: composite video, S-Video, or component video, the latter offering the best picture quality.

When choosing a connection format, bear in mind that the AV receiver doesn’t convert between formats, so only outputs of the same format as the input will output the signal.

Video Signal Flow Chart

DVD player, etc.

Composite S-Video Component

AV Receiver

Composite S-Video Component

TV, projector, etc.

MONITOR OUT

Connecting Your Components

Connecting a TV or Projector

—Continued

Step 1: Choose a video connection from , , and .

Step 2: Choose an audio connection from , , and .

•With connection , you can listen to and record audio from your TV and listen via speaker set B.

•To enjoy Dolby Digital and DTS, use connection or . (For recording, use and , or and .)

A B

a b c

a b a c

Connection AV receiver Signal ﬂow TV Picture quality

COMPONENT VIDEO OUT

MONITOR OUT S

MONITOR OUT V

CBL/SAT IN L/R

DIGITAL IN COAXIAL 2

DIGITAL IN OPTICAL 1

DIGITAL IN

COAXIAL

(DVD)

(CBL/SAT)

OPTICAL

(VCR/DVR)

(CD)

ASSIGNABLE

REMOTE CONTROL

CBL/SAT IN

VCR/DVR IN

DVD IN

COMPONENT VIDEO

IN IN IN

⇒

⇐

HDMI

ASSIGNABLE

OUT

IN 1IN 2

B/PB

CR/PR

OUT

TAPE

Component video input Best

S-Video input Better

Composite video input Standard

Analog audio L/R output

Digital coaxial output

Digital optical output

FMAM75

IN IN

FRONT

SIRIUS

MONITOR

DVD

OUT

SURROUND BACK

SPEAKERS

SURROUND

SURR BACK

CENTER

SUB

WOOFER

DVD

CBL/SAT

ANTENNA

VCR/DVR

OUT

VCR/DVR

SURROUND SPEAKERS

PRE OUT

SUB

WOOFER

FRONT

SPEAKERS A

SPEAKERS B

FRONT

R S VIDEO

AUDIO

OUT

VIDEO

OUT

OPTICAL

OUT

YCOAXIAL

COMPONENT VIDEO IN

Connect one or the other Connection must be assigned (see page 41)

TV, projector, etc.

If your TV has no audio outputs, connect an audio output from your VCR or cable or satellite

Hint!

receiver to the AV receiver and use its tuner to listen to TV programs through the AV receiver (see pages 30 and 32).

Connecting Your Components

cab

Connecting a DVD player

—Continued

Step 1: Choose a video connection from , , and .

A B

You must connect the AV receiver to your TV via the same type of connection.

Step 2: Choose an audio connection from , , and .

•With connection , you can listen to and record audio from a DVD and listen via speaker set B.

•To enjoy Dolby Digital and DTS, use connection or . (For recording, use and , or and .)

a b

a c

• If your DVD player has main left and right outputs and multichannel left and right outputs, be sure to use the main left and right outputs for connection .

Connection AV receiver Signal ﬂow DVD player Picture quality

COMPONENT VIDEO DVD IN

DVD IN S

DVD IN V

DVD IN FRONT

DIGITAL IN COAXIAL 1

DIGITAL IN OPTICAL 1

DIGITAL IN

ASSIGNABLE

COAXIAL

(DVD)

(CBL/SAT)

OPTICAL

(VCR/DVR)

(CD)

REMOTE CONTROL

⇐

OUT

IN 1IN 2

B/PB

CR/PR

CBL/SAT IN

VCR/DVR IN

COMPONENT VIDEO

OUT

DVD IN

OUT

IN IN IN

TAPE

Component video output Best

S-Video output Better

Composite video output Standard

Analog audio L/R output

Digital coaxial output

Digital optical output

HDMI

ASSIGNABLE

CBL/SAT

ANTENNA

VCR/DVR

OUT

VCR/DVR

FMAM75

IN IN

FRONT

SIRIUS

MONITOR

DVD

OUT

SURROUND BACK

SPEAKERS

SURROUND

SURR BACK

CENTER

SUB

WOOFER

DVD

SURROUND SPEAKERS

PRE OUT

SUB

WOOFER

FRONT

SPEAKERS A

SPEAKERS

FRONT

R S VIDEO

AUDIO

OUT

VIDEO

OUT

OPTICAL

OUT

YCOAXIAL

COMPONENT VIDEO OUT

Connect one or the other Connection must be assigned (see page 41)

DVD player

To connect a DVD player or DVD-Audio/SACD-capable player with a multichannel analog audio output, see page 28.

Connecting Your Components

—Continued

Hooking Up the Multichannel DVD Input

If your DVD player supports multichannel audio formats such as DVD-Audio or SACD, and it has a multichannel analog audio output, you can connect it to the AV receiver’s multichannel DVD input.

Use a multichannel analog audio cable, or several normal audio cables, to connect the AV receiver’s DVD IN FRONT L/R, CENTER, SURROUND L/R, SURR BACK L/R, and SUBWOOFER jacks to the 7.1-channel analog audio output on your DVD player. If your DVD player has a 5.1-channel analog audio output, don’t connect anything to the AV receiver’s SURR BACK L/R jacks.

DIGITAL IN

ASSIGNABLE

COAXIAL

(DVD)

(CBL/SAT)

OPTICAL

(VCR/DVR)

(CD)

REMOTE CONTROL

OUT

IN 1IN 2

B/PB

CR/PR

CBL/SAT IN

VCR/DVR IN

COMPONENT VIDEO

OUT

DVD IN

OUT

IN IN IN

TAPE

HDMI

ASSIGNABLE

CBL/SAT

ANTENNA

VCR/DVR

OUT

VCR/DVR

FMAM75

IN IN

FRONT

SIRIUS

MONITOR

DVD

OUT

SURROUND

DVD

SURROUND BACK

SPEAKERS

SURR BACK

CENTER

SUB

WOOFER

SURROUND

SPEAKERS

FRONT

PRE OUT

SUB

WOOFER

FRONT

SPEAKERS A

SPEAKERS B

5.1 ch

SURROUND

FRONT

DVD

7.1 ch

CENTER

SPEAKER

CENTER

SUB

WOOFER

SURR BACK

FRONT

LLR

SURROUND

CENTER SUB

WOOFER

DVD player

SURR BACK

Connecting Your Components

—Continued

Connecting Components with HDMI

If you have an HDMI-compatible player, you can connect it to the AV receiver with an HDMI cable.

Step 1: Connect your HDMI-compatible TV to the AV receiver’s HDMI OUT jack.

Step 2: Connect your HDMI-compatible player to the AV receiver’s HDMI IN 1 or 2 jack.

Step 3: Connect your HDMI-compatible player to an analog and/or digital audio input on the AV

receiver.

✽ Audio and video signals received via the HDMI IN 1 and 2 jacks are output by the HDMI OUT jack as they

are (HDMI pass-through), so even if you only make the connections in steps 1 and 2, your TV will output sound. However, if you want to listen through the speakers connected to the AV receiver, in addition to an

HDMI connection, you’ll also need to make a separate analog or digital audio connection.

Step 4: Assign the HDMI IN.

Turn on the AV receiver, and then assign the HDMI IN (see page 40)

HDMI

OUT

HDMI

Step 1

HDMIHDMI

DVD player

Step 3 ✽

Step 2

ASSIGNABLE

IN 1

Tip!

If you make the connection described in step 3, to fully enjoy the AV receiver's listening modes, turn down the volume on your TV all the way so that its speakers output no sound.

SURR BACK

Sound off

Connect one or the other

DIGITAL IN

ASSIGNABLE

COAXIAL

(DVD)

(CBL/SAT)

OPTICAL

(VCR/DVR)

(CD)

REMOTE CONTROL

OUT

IN 1IN 2

B/PB

CR/PR

VCR/DVR IN

IN IN

DVD IN

OUT

TAPE

CBL/SAT IN

COMPONENT VIDEO

HDMI

ASSIGNABLE

CBL/SAT

ANTENNA

FMAM75

VCR/DVR

OUT

IN IN

OUT

VCR/DVR

FRONT

SURROUND BACK

SPEAKERS

MONITOR

DVD

OUT

SURROUND

CENTER

SUB

WOOFER

DVD

Notes:

• Audio and video signals received via the HDMI IN jacks are output only by the HDMI OUT.

• Audio and video signals received via inputs other than the HDMI IN jacks are not output by the HDMI OUT.

• The HDMI video stream is compatible with DVI (Digital Visual Interface), so TVs and displays with a DVI input can be connected by using an HDMI-to-DVI adapter cable. (Note that DVI connections only carry video, so you’ll need to make a separate connection for audio.) However, reliable operation with such an adapter is not guaranteed. In addition, video signals from a PC are not supported.

•To watch an HDMI source that’s connected via the AV receiver’s HDMI jacks, the AV receiver must be turned on, otherwise no HDMI signal will be output.

• The HDMI audio signal (sampling rate, bit length, etc.) may be restricted by the connected source component. If the picture is poor or there’s no sound from a component connected via HDMI, check its setup. Refer to the connected component’s instruction manual for details.

Connecting Your Components

N E

—Continued

Connecting a VCR or DVD Recorder for Playback

Hint!

Step 1: Choose a video connection from , , and .

With this hookup, you can use your VCR’s tuner to listen to your favorite TV programs via the AV receiver, useful if your TV has no audio outputs.

A B

You must connect the AV receiver to your TV via the same type of connection.

Step 2: Choose an audio connection from , , and .

•With connection , you can listen to the VCR or DVD recorder even via speaker set B.

•To enjoy Dolby Digital and DTS, use connection or . (To listen via speaker set B, use and , or and .)

Connection AV receiver Signal ﬂow VCR or DVD recorder Picture quality

COMPONENT VIDEO VCR/DVR IN

VCR/DVR IN S

VCR/DVR IN V

VCR/DVR IN L/R

DIGITAL IN COAXIAL 2

DIGITAL IN OPTICAL 1

DIGITAL IN

ASSIGNABLE

COAXIAL

(DVD)

(CBL/SAT)

OPTICAL

(VCR/DVR)

(CD)

REMOTE CONTROL

a b c

⇐

OUT

IN 1IN 2

B/PB

CR/PR

CBL/SAT IN

VCR/DVR IN

COMPONENT VIDEO

OUT

DVD IN

OUT

IN IN IN

TAPE

Component video output

S-Video output Better

Composite video output

Analog audio L/R output

Digital coaxial output

Digital optical output

HDMI

ASSIGNABLE

CBL/SAT

ANTENNA

VCR/DVR

OUT

VCR/DVR

FMAM75

IN IN

FRONT

SIRIUS

MONITOR

DVD

OUT

SURROUND BACK

SPEAKERS

SURROUND

CENTER

SUB

WOOFER

DVD

a b a

SURR BACK

Best

Standard

SURROUND

SPEAKERS

PRE OUT

WOOFER

FRONT

SPEAKERS A

SUB

FRO

SPEAK

OUT

OPTICAL

OUT

YCOAXIAL

R S VIDEO

COMPONENT VIDEO OUT

AUDIO

OUT

VIDEO

OUT

Connect one or the other Connection must be assigned (see page 41)

VCR,

DVD recorder

Connecting Your Components

—Continued

Connecting a VCR or DVD Recorder for Recording

Step 1: Choose a video connection from and .

A B

The video source to be recorded must be connected to the AV receiver via the same type of connection.

Step 2: Make the audio connection .

AUDIO

DIGITAL IN

ASSIGNABLE

COAX- IAL

(DVD)

(CBL/SAT)

OPTICAL

(VCR/DVR)

CBL/SAT IN

VCR/DVR IN

(CD)

REMOTE CONTROL

COMPONENT VIDEO

IN IN IN

VCR, DVD recorder

DVD IN

ANTENNA

CR/PR

OUT

TAPE

CBL/SAT

VCR/DVR

B/PB

OUT

CBL/SAT

VCR/DVR

S VIDEO IN

Connection AV receiver Signal ﬂow VCR or DVD recorder Picture quality

VCR/DVR OUT S

VCR/DVR OUT V

VCR/DVR OUT L/R

⇒

S-Video input

Composite video input Standard

Analog audio L/R input

FMAM75

IN IN

VIDEO IN

FRONT

SIRIUS

MONITOR

DVD

OUT

SURROUND SPEAKERS

SURROUND

DVD

SURROUND BACK

SPEAKERS

SURR BACK

CENTER

SUB

WOOFER

PRE OUT

SUB

WOOFER

Better

—

FRONT

SPEAKERS A

SPEAKERS B

FRONT

Connecting a Camcorder, Games Console, or Other Device

Step 1: Make the video connection .

Step 2: Make the audio connection .

TUNING

PRESET

RETURN

SETUP ENTER

SETUP MIC

TUNING MODE

AUX INPUT

VIDEO

Connection AV receiver Signal ﬂow Camcorder or console

AUX INPUT VIDEO

AUX INPUT L-AUDIO-R

MASTER VOLUME

AUX INPUT LR

AUX INPUT

VIDEO

AUDIOLR

AUDIO

⇐

AUDIO

OUT

VIDEO OUT

Composite video output

Analog audio L/R output

Camcorder, games console, etc.

Connecting Your Components

O K

—Continued

Connecting a Satellite, Cable, Set-top box, or Other Video Source

Hint!

Step 1: Choose a video connection from , , and .

With this hookup, you can use your satellite or cable receiver to listen to your favorite TV programs via the AV receiver, useful if your TV has no audio outputs.

A B

You must connect the AV receiver to your TV via the same type of connection.

Step 2: Choose an audio connection from , , and .

•With connection , you can listen to and record audio from the video source and listen via speaker set B.

•To enjoy Dolby Digital and DTS, use connection or . (For recording, use and , or and .)

Connection AV receiver Signal ﬂow Video source Picture quality

COMPONENT VIDEO CBL/SAT IN

CBL/SAT IN S

CBL/SAT IN V

CBL/SAT IN L/R

DIGITAL IN COAXIAL 2

DIGITAL IN OPTICAL 1

DIGITAL IN

ASSIGNABLE

COAXIAL

(DVD)

(CBL/SAT)

OPTICAL

(VCR/DVR)

(CD)

REMOTE CONTROL

a b c

⇐

OUT

IN 1IN 2

B/PB

CR/PR

CBL/SAT IN

VCR/DVR IN

COMPONENT VIDEO

OUT

DVD IN

OUT

IN IN IN

TAPE

a b a c

Component video output

S-Video output Better

Composite video output

Analog audio L/R output

Digital coaxial output

Digital optical output

HDMI

ASSIGNABLE

CBL/SAT

ANTENNA

VCR/DVR

OUT

VCR/DVR

FMAM75

IN IN

DVD

FRONT

BCB

SIRIUS

MONITOR

OUT

SURROUND

DVD

SURROUND BACK

CENTER

SUB

WOOFER

SPEAKERS

SURR BACK

Best

Standard

SURROUND SPEAKERS

PRE OUT

SUB

WOOFER

FRONT

SPEAKERS

SPEA

OUT

OPTICAL

OUT

YCOAXIAL

R S VIDEO

COMPONENT VIDEO OUT

AUDIO

OUT

VIDEO

OUT

Connect one or the other Connection must be assigned (see page 41)

Satellite, cable, set-top box, etc.

Connecting Your Components

cab

—Continued

Connecting a CD Player or Turntable

■

CD Player or Turntable (MM) with Built-in Phono Preamp

Step 1:

Choose a connection that matches your CD player ( , , or ). Use connection for a turntable with a built-in phono preamp.

COAX-

IAL

Connect one or the other Connection

must be assigned (see page 41)

COAXIAL

OUT

OPTICAL

(CD)

OPTICAL

(CBL/SAT)

OUT

AUDIO

OUT

a b

HDMI

ASSIGNABLE

OUT

DIGITAL IN

ASSIGNABLE

COAXIAL

(DVD)

(CBL/SAT)

OPTICAL

(VCR/DVR)

(CD)

REMOTE CONTROL

IN 1IN 2

B/PB

CR/PR

CBL/SAT IN

OUT

VCR/DVR IN

DVD IN

COMPONENT VIDEO

OUT

IN IN INININ

R R

TAPE

CBL/SAT

ANTENNA

OUT

VCR/DVR

FMAM75

IN IN

SIRIUS

MONITOR

DVD

OUT

SURROUND BACK

SPEAKERS

FRONT

SURROUND

SURR BACK

CENTER

SUB

WOOFER

DVD

AUDIO

OUTPUT

CD player

Turntable (MM) with built-in phono preamp

•With connection , you can listen to and record audio from your CD player or turntable and listen via speaker set

•To connect the CD player digitally, use connection or . (For recording, use and , or and .)

Connection AV receiver Signal ﬂow CD or turntable

■

Turntable (MM) with no Phono Preamp Built-in

CD IN L/R

DIGITAL IN COAXIAL 2

DIGITAL IN OPTICAL 2

A phono preamp is necessary to connect a turntable that doesn’t have a phono preamp built-in.

COAXIAL

(CBL/SAT)

OPTICAL

(VCR/DVR)

DIGITAL IN

ASSIGNABLE

(DVD)

CBL/SAT IN

VCR/DVR IN

COMPONENT VIDEO

(CD)

IN IN INININ

R R

REMOTE CONTROL

HDMI

ASSIGNABLE

OUT

IN 1IN 2

CBL/SAT

B/PB

CR/PR

OUT

DVD IN

OUT

TAPE

CBL/SAT

AUDIO

OUTPUT

AUDIO

OUTPUT

ANTENNA

FMAM75

VCR/DVR

DVD

OUT

IN IN

FRONT

OUT

VCR/DVR

Phono preamp

SIRIUS

MONITOR

OUT

SURROUND

DVD

CENTER

SUB

WOOFER

SURROUND BACK

SPEAKERS

SURR BACK

AUDIO

INPUT

⇐

■

Turntable with an MC (Moving Coil) Cartridge

Analog audio L/R output

Digital coaxial output

Digital optical output

a c

An MC head amp and phono preamp are necessary to connect a turntable with an MC (Moving Coil) cartridge.

ANTENNA

FMAM75

MONITOR

VCR/DVR

DVD

OUT

IN IN

FRONT

SURROUND

OUT

VCR/DVR

MC head amp or

OUTPUT

SIRIUS

OUT

SURROUND BACK

SPEAKERS

SURR BACK

CENTER

SUB

WOOFER

DVD

AUDIO

INPUT

MC transformer

AUDIO

HDMI

ASSIGNABLE

OUT

DIGITAL IN

ASSIGNABLE

COAXIAL

(DVD)

(CBL/SAT)

OPTICAL

(VCR/DVR)

(CD)

REMOTE CONTROL

IN 1IN 2

B/PB

CR/PR

OUT

CBL/SAT IN

VCR/DVR IN

DVD IN

COMPONENT VIDEO

OUT

IN IN INININ

R R

TAPE

AUDIO

OUTPUT

CBL/SAT

Phono preamp

AUDIO

OUTPUT

AUDIO INPUT

Connecting Your Components

—Continued

Connecting an RI Dock

■

RI Dock with video

Connect your RI Dock’s analog audio output jacks and S-Video output jack to the AV receiver’s CBL/SAT IN L/R jacks and CBL/SAT IN S jack.

■

RI Dock without video

Connect your RI Dock’s analog audio output jacks to the AV receiver’s TAPE IN L/R jacks (1).

Notes:

• Connect the Remote Interactive Dock with an cable (see page 35).

• Set the Remote Interactive Dock’s RI MODE switch to HDD or HDD/DOCK.

• Set the AV receiver’s Input Display to DOCK (see page 41).

• Refer to the Remote Interactive Dock’s instruction manual.

DIGITAL IN

COAXIAL

(DVD)

(CBL/SAT)

OPTICAL

(VCR/DVR)

(CD)

ASSIGNABLE

REMOTE CONTROL

CBL/SAT IN

IN 1IN 2

VCR/DVR IN

COMPONENT VIDEO

OUT

DVD IN

OUT

IN IN IN

TAPE

(DS-A1 hookup shown here.)

S VIDEO

OUT

HDMI

ASSIGNABLE

OUT

B/PB

CR/PR

AUDIO

OUT

ANTENNA

FMAM75

CBL/SAT

VCR/DVR

OUT

IN IN

OUT

CBL/SAT

VCR/DVR

DVD

FRONT

SIRIUS

MONITOR

OUT

SURROUN

DVD

Connecting a Cassette, CDR, MiniDisc, or DAT Recorder

Step 1:

Choose a connection that matches the recorder ( , , or ), and then make the connection.

COAX-

IAL

(CBL/SAT)

OPTICAL

(VCR/DVR)

Connect one or the

other

These connections

must be assigned

(see page 41)

•With connection , you can listen via speaker set B.

COAXIAL

OUT

OPTICAL

OUT

•To connect the recorder digitally, use connections and , or and .

Connection AV receiver Signal ﬂow Cassette/CDR/MD/DAT recorder

TAPE IN L/R TAPE OUT L/R

DIGITAL IN COAXIAL 2

DIGITAL IN OPTICAL 1

a b c

DIGITAL IN

ASSIGNABLE

COAXIAL

(DVD)

(CBL/SAT)

OPTICAL

(VCR/DVR)

CBL/SAT IN

VCR/DVR IN

REMOTE CONTROL

COMPONENT VIDEO

R R

(CD)

Cassette recorder, CDR, etc.

a b a c

⇐ ⇒

⇐

IN 1IN 2

DVD IN

OUT

IN IN

TAPE

HDMI

ASSIGNABLE

OUT

B/PB

CR/PR

OUT

Analog audio L/R output Analog audio L/R input

Digital coaxial output

Digital optical output

OUT

TAPE

IN OUT

REC PLAY

Connecting Your Components

—Continued

Connecting Onkyo Components

Step 1: Make sure that each Onkyo component is connected to the AV receiver with an analog audio cable (con-

nection in the hookup examples) (see pages 27 to 34).

Step 2: Make the connection. Step 3: If you’re using an MD, CDR, or RI Dock, change the input Display (see page 41).

With (Remote Interactive), you can use the following special functions:

■

Auto Power On/Standby

When you start playback on a component connected via , if the AV receiver is on Standby, it will automatically turn on and select that component as the input source. Similarly, when the AV receiver is set to Standby, all components connected via will also go on Standby. This function will not work on components connected to an AC OUTLET on the AV receiver.

■

Direct Change

When playback is started on a component connected via , the AV receiver automatically selects that component as the input source. If your DVD player is connected to the AV receiver’s multichannel DVD input, you’ll need to press the [MULTI CH] button to hear all channels (see page 43), as the Direct Change function only selects the FRONT DVD IN jacks.

■

Remote Control

You can use the AV receiver’s remote controller to control your other -capable Onkyo components, pointing the remote controller at the AV receiver’s remote control sensor instead of the component. You must enter the appropriate remote control code ﬁrst (page 63).

Notes:

• Use only cables for connections. cables are supplied with Onkyo players (DVD, CD, etc.).

• Some components have two jacks. You can connect either one to the AV receiver. The other jack is for connecting additional -capable components.

REMOTE CONTROL

DIGITAL IN

ASSIGNABLE

COAXIAL

(DVD)

(CBL/SAT)

OPTICAL

(VCR/DVR)

CBL/SAT IN

(CD)

REMOTE CONTROL

HDMI

ASSIGNABLE

OUT

IN 1IN 2

CBL/SAT

B/PB

CR/PR

OUT

VCR/DVR IN

DVD IN

COMPONENT VIDEO

OUT

IN IN INININ

R R

CBL/SAT

TAPE

SIRIUS

ANTENNA

FMAM75

MONITOR

VCR/DVR

DVD

OUT

SURROUND BACK

SPEAKERS

OUT

IN IN

FRONT

SURROUND

SURR BACK

CENTER

OUT

VCR/DVR

SUB

WOOFER

DVD

FRONT

SURROUND

FRONT

SPEAKERS

CENTER

SPEAKERS A

SPEAKER

PRE OUT

SUB

WOOFER

FRONT

SPEAKERS B

DVD

• Connect only Onkyo components to jacks. Connecting other manufacturer’s components may cause a malfunction.

• Some components may not support all functions. Refer to the manuals supplied with your other Onkyo components.

e.g., CD player

e.g., DVD player

ANALOG

AUDIO OUT

ANALOG

AUDIO OUT

Connecting the Power Cord

• Connect the AV receiver’s power cord to a suitable wall outlet.

Notes:

•

Before connecting the power cord, connect all of your speakers and AV components.

•Turning on the AV receiver may cause a momentary power surge that might interfere with other electrical equipment on the same circuit. If this is a problem, plug the AV receiver into a different branch circuit.

Turning On the AV Receiver

STANDBY/ON

STANDBY indicator

STANDBY/ON

STANDBY

DVD

PHONES

MULTI CH C D

TONE DISPLAYSTEREO DIMMER MEMORY

ABSPEAKERS

AUXCBL/SATVCR/DVR

LISTENING MODE

Turning On and Standby

AV receiver

STANDBY/ON

Remote

controller

RECEIVER

STANDBY/ON

Press the [STANDBY/ON] button. Alternatively, press the remote controller’s [RECEIVER] button, followed

by the [STANDBY/ON] button.

The AV receiver comes on, the display lights up, and the STANDBY indicator goes off.

To turn the AV receiver off, press the [STANDBY/ON] button again. The AV receiver will enter Standby mode. To prevent any loud surprises when you next turn on the AV receiver, always turn down the volume before you turn it off.

To turn on the subwoofer, press its [POWER] switch to the ON position

American models).

DIGITAL INPUT

STANDBY/ON

RECEIVER

MASTER VOLUME

TUNING

PRESET

CLEAR

TUNING MODE

SETUP ENTER

RETURN

AUX INPUT

VIDEO

SETUP MIC

AUDIOLR

TUNERTAPE

D TUN

TOP MENU

SP A / B

CR/DVR

AUX

--/---

INPUT

GUIDE

REMOTE MODE

RECEIVER

TAPE/AMP

INPUT SELECTOR

123

CBL/SAT

456

789

DVD

MULTI CH

C DTAPE TUNER

10 11 12

CLR

ENT

DIMMER

SLEEP

DISC

VOL

ALBUM

DVD

D/CDR

C D

DOCK

VCR

CABLE

SAT

VOL

MUTING

(not North

Smooth Operation in a Few Easy Steps

To ensure smooth operation, here’s a few easy steps to help you conﬁgure the AV receiver before you use it for the very ﬁrst time. These settings only need to be made once.

■ Do the automatic speaker setup—this is essential!

See “Automatic Speaker Setup (Audyssey 2EQ/HTIB)” on page 37.

■ Have you connected a component to an HDMI IN?

HDMI

If you have, see “HDMI Video Setup” on page 40.

■ Have you connected a component to a digital audio input?

COAXIAL

If you have, see “Digital Audio Input Setup” on page 41.

OPTICAL

■ Have you connected an Onkyo MD recorder, CD recorder, or RI Dock?

OUT IN

If you have, see “Changing the Input Display” on page 41.

TAPE

CD recorder, MD recorder, RI Dock

First Time Setup

This section explains the settings that you need to make before using the AV receiver for the very ﬁrst time.

Automatic Speaker Setup (Audyssey 2EQ/HTIB)

With the supplied speaker setup microphone, the Audyssey 2EQ/HTIB function can measure the number of speakers connected, their sizes, crossover frequencies, and distances from the listening position, and then calculate the optimal speaker settings for your listening environment.

Before using this function, connect and position all of the supplied speakers.

Measurement Points

To create a listening area in which several people can enjoy home theater simultaneously, the Audyssey 2EQ/HTIB function takes measurements at three points within the listening area:

First measurement point

This is the center point of the listening area, or the listening position if it’s just one person.

Second measurement point

The right side of the listening area.

Third measurement point

The left side of the listening area.

and 2 and points 1 and 3 must be at least 1 meter.

The distances between points From the examples below, choose the listening area that best matches yours and place the microphone accordingly when

prompted.

TV TV TV

Listening area

Listening position

First Time Setup

—Continued

Using Audyssey 2EQ/HTIB

STANDBY/ON

STANDBY

AUXCBL/SATVCR/DVR

MULTI CH C D

PHONES

ABSPEAKERS

DVD

TONE DISPLAYSTEREO DIMMER MEMORY

LISTENING MODE

TUNERTAPE

DIGITAL INPUT

2, 6

Turn on the AV receiver.

Put the speaker setup microphone at

measurement point 1 (page 37), and connect it to the SETUP MIC jack.

SETUP MIC

Notes:

• Make sure the microphone is horizontal.

• If there’s an obstacle between the microphone and any speaker, the automatic setup will not work correctly. Set up the room as you would when enjoying a DVD.

• Positioning the microphone close to where your ears would normally be will provide better results. You can adjust the height of the microphone by using a tripod or level table.

SETUP ENTER

TUNING MODE

CLEAR

TUNING

PRESET

RETURN

SETUP MIC

Notes:

• If the AV receiver was previously muted, it will

MASTER VOLUME

be unmuted.

•Automatic speaker setup cannot be performed while a pair of headphones is connected.

AUX INPUT

VIDEO

AUDIOLR

• It takes about 10 minutes to complete the automatic speaker setup.

When the following display appears,

move the speaker setup microphone to measurement point

(page 37), and

then press [ENTER].

Audyssey 2EQ/HTIB performs more measurements.

This takes a few minutes.

When the following display appears,

move the speaker setup microphone to measurement point

(page 37), and

then press [ENTER].

Audyssey 2EQ/HTIB performs more measurements.

This takes a few minutes. When the measurements are complete, the

results are calculated and saved automatically.

Press [ENTER].

The automatic speaker setup starts.

A test tone is output by each speaker in turn, as the Audyssey 2EQ/HTIB function determines which speakers are connected. This takes a few minutes.

Note:

• If any extraneous noise is picked up by the microphone, the automatic setup may not work correctly, so don’t make any noise.

When the automatic speaker setup is

complete, disconnect the speaker setup microphone.

Notes:

• When the automatic speaker setup is complete, the Equalizer Settings (page 60) will be set to “Audyssey.”

•You can cancel the automatic speaker setup at any point in this procedure simply by disconnecting the setup microphone.

First Time Setup

—Continued

Error Messages

While the automatic speaker setup is in progress, one of the following error messages may appear:

Ambient noise is too high

This message appears if there’s too much background noise and the measurements cannot be performed properly. Remove the source of the noise and try again.

Speaker Detect Errors

This message appears if one of the speaker-related errors below occurs.

• One of the front speakers has not been detected.

• One of the surround speakers has not been detected.

• The surround back speakers have been detected but the surround speakers haven’t.

• The right surround back speaker has been detected but the left surround back speaker hasn’t.

• The number of speakers detected on the second or third measurment was different to the number detected on the ﬁrst measurement.

Write Error

Changing the Speaker Settings Manually

In some situations, the measurements taken by the automatic speaker setup may not provide usable results. If running the speaker setup a second time still doesn’t provide usable results, you’ll have to set the speaker settings manually (see pages 56–60).

Using a Powered Subwoofer

If you’re using a powered subwoofer, because it outputs very low-frequency sound and its position is usually low down, it may not be detected by the automatic speaker setup. In this case, increase the subwoofer’s volume, set it to its highest crossover frequency, and then try running the automatic speaker setup again. Note that if the volume is set too high and the sound distorts, it may not be detected, so use an appropriate volume level. If the subwoofer has a low-pass ﬁlter switch, set it to Off or Direct. Refer to your subwoofer’s instruction manual for details.

This message appears if saving fails.

To Retry the Automatic Speaker Setup

Press the [ENTER] button.

Make sure speakers that cannot be detected are connected properly.

First Time Setup

—Continued

HDMI Video Setup

If you connect a video component to HDMI IN 1 or 2, use this setting to assign that input to an input selector.

RECEIVER

ENTER

SETUP

STANDBY/ON

123

CR/DVR

456

AUX

789

D TUN

--/---

INPUT

GUIDE

TOP MENU

SP A / B

PLAYLIST/CAT PLAYLIST/CAT

SETUP RETURN

STEREO

AUDIO REPEAT

TEST TONE

DISPLAY

TAPE/AMP

INPUT SELECTOR

CBL/SAT

MULTI CH

10 11 12

ENT

DIMMER

VOL

ENTER

LISTENING MODE

SURROUND

RANDOM

SUBTITLE

CH SEL

PLAY MODE

681M

REMOTE MODE

RECEIVER

DOCK

DVD

C DTAPE TUNER

CABLE

CLR

SLEEP

DISC

ALBUM

MUTING

LEVEL

L NIGHT

DVD

D/CDR

C D

VCR

SAT

VOL

CINE FLTR

HDDDVDVCR

RECEIVER

Press the [RECEIVER] button, followed by the [SETUP] button.

SETUP

Use the Up and Down [ ]/[ ] buttons to select “Video Input,” and then press [ENTER].

Use the Up and Down [ ]/[ ] buttons to select “HDMI DVD,” “HDMI VCR,” or “HDMI CBL” and

use the Left and Right [ ]/[ ] buttons to change the setting.

If you connect a video component to HDMI IN 1 or 2, you must assign that input to an input selector. For example,

if you connect your DVD player to HDMI IN 1, you must assign HDMI DVD setting to IN1.

IN1:

Select if the video component is connected to HDMI IN 1.

IN2:

Select if the video component is connected to HDMI IN 2.

No:

Select if you’re not using the HDMI OUT.

SETUP

HDMI

Input

video

Press the [SETUP] button.

Setup closes.

First Time Setup

—Continued

Digital Audio Input Setup

1 2, 3

TUNING

STANDBY/ON

STANDBY

MULTI CH C D

PHONES

ABSPEAKERS

AUXCBL/SATVCR/DVR

DVD

TONE DISPLAYSTEREO DIMMER MEMORY

LISTENING MODE

TUNERTAPE

DIGITAL INPUT

PRESET

SETUP ENTER

SETUP MIC

TUNING MODE

CLEAR

To enjoy Dolby Digital and DTS, you must connect your DVD player to the AV receiver digitally (coaxial or optical).

These are the default digital audio input assignments.

Input selector

DVD C OAX 1

VCR/DVR OPT 1

CBL/SAT COAX 2

TAPE - - - -

CD OPT 2

AUX - - - -

Default assignment

You can change the digital audio input assignments if necessary. For example, if you connect your DVD player to the OPTICAL 1 DIGITAL IN (OPT1), you must assign that input to the DVD input selector, as follows.

DVD

AUX

DIGITAL INPUT

TAPE

Press the input selector button for the input selector that you want to assign.

CBL/SATVCR/DVR

(Digital inputs cannot be assigned to the TUNER input selector.)

Press the [DIGITAL INPUT] button.

The current assignment appears.

MASTER VOLUME

RETURN

AUX INPUT

VIDEO

AUDIOLR

Changing the Input Display

If you connect an -capable Onkyo MiniDisc recorder, CD recorder, or RI Dock to the TAPE IN/OUT or CBL/SAT IN jacks, for to work properly, you must change this setting.

This setting can only be changed on the AV receiver.

1, 21, 2

MASTER VOLUME

RETURN

AUX INPUT

VIDEO

AUDIOLR

STANDBY/ON

PHONES

TAPE

CBL/SAT

TAPE

CBL/SAT

STANDBY

DVD

MULTI CH C

TONE DISPLAYSTEREO DIMMER MEMORY

ABSPEAKERS

Press the [TAPE] or [CBL/SAT] input selector button so that “TAPE” or “CBL/SAT” appears on the display.

Press and hold down the [TAPE] or [CBL/SAT] input selector button (about 2 seconds) to change the setting.

Repeat this step to select MD, CDR, or DOCK.

For the TAPE input selector, the setting changes in this order:

TAPE

For the CBL/SAT input selector, the setting changes in this order:

CBL/SAT

TUNING

AUXCBL/SATVCR/DVR

TUNERTAPE

SETUP ENTER

DIGITAL INPUT

LISTENING MODE

→

MD → CDR → DOCK

SETUP MIC

TUNING MODE

CLEAR

→

↔

DOCK

PRESET

DIGITAL INPUT

Press the [DIGITAL INPUT] button repeatedly to select COAX1, COAX2, OPT1, OPT2, or “– – – –” (analog).

Note:

Make sure that components connected digitally are conﬁgured to output digital audio. Refer to the relevant manuals.

Note:

DOCK can be selected for the TAPE input selector or CBL/SAT input selector, but not both at the same time.

Playing Your AV Components

Basic AV Receiver Operation

STANDBY/ON

PHONES

AV receiver

DVD

AUX

AV receiver

SPEAKERS

MULTI CH

STANDBY

AUXCBL/SATVCR/DVR

DVD

MULTI CH C D

TONE DISPLAYSTEREO DIMMER MEMORY

ABSPEAKERS

LISTENING MODE

Remote

controller

RECEIVER

CBL/SATVCR/DVR

TUNERTAPE

VCR/DVR CBL/SAT

AUX

789

controller

DVD

Remote

DISPLAY

DIGITAL INPUT

MASTER VOLUME

TUNING

PRESET

TUNERTAPE

RETURN

SETUP ENTER

TUNING MODE

CLEAR

AUX INPUT

VIDEO

AUDIOLR

SETUP MIC

STANDBY/ON

D TUN

REMOTE MODE

DVD

RECEIVER

TAPE/AMP

CBL/SAT

MULTI CH

DIMMER

D/CDR

C D

DOCK

DVD

VCR

C DTAPE TUNER

CABLE

SAT

CLR

ENT

SLEEP

DISC

VOL

ALBUM

MUTING

ENTER

INPUT SELECTOR

123

CR/DVR

456

AUX

789

10 11 12

--/---

INPUT

GUIDE

TOP MENU

SP A / B

PLAYLIST/CAT PLAYLIST/CAT

Subwoofer’s

rear panel

MIN

OUTPUT LEVEL

Use the AV receiver’s input selector buttons to select the input source.

To select the input source with the remote controller, press the [RECEIVER] REMOTE MODE button, and then use the INPUT SELECTOR buttons.

C DTAPE TUNER

To turn the speakers on or off, use the AV receiver’s SPEAKERS [A] and [B] buttons, or use the remote controller’s [SP A/B] button.

Pressing the remote controller’s [SP A/B] button cycles through the following settings: Speaker Set A → Speaker Set A&B → Speaker Set B → Off.

Note that while speaker set B is on, speaker set A is reduced to 5.1-channel

Indicators

playback.

MAX

AV receiver

MASTER VOLUME

Remote

controller

VOL

See page 5 for more information about speaker sets A and B.

Start playback on the source component.

To watch a DVD or other video source, on your TV, select the video input that’s connected to the AV receiver’s MONITOR OUT jack.

If your TV is connected to the HDMI OUT, see the tip on page 29.

To adjust the volume, use the MASTER VOLUME control, or the remote controller’s [VOL] button.

The volume can be set to MIN, 1 through 79, or MAX. Since the AV receiver is designed for home theater enjoyment, it has a wide volume range for precise adjustment.

To set the level of the subwoofer, use the OUTPUT LEVEL control.

Because our ears are less sensitive to very low bass sounds, there’s a temptation to set the level of the subwoofer too high. As a rule of thumb, set the subwoofer level to what you think is the optimal level, and then back it off slightly.

Select a suitable listening mode and enjoy!

See “Using the Listening Modes” on page 48.

Playing Your AV Components

MULTI CH

DISPLAY

STANDBY/ON

123

VCR/DVR

456

AUX

789

D TUN

--/---

STEREO

AUDIO REPEAT

TEST TONE

DISPLAY

TAPE/AMP

INPUT SELECTOR

CBL/SAT

MULTI CH

10 11 12

ENT

DIMMER

VOL

LISTENING MODE

SURROUND

RANDOM

SUBTITLE

CH SEL

PLAY MODE

VCR

681M

REMOTE MODE

RECEIVER

DVD

C DTAPE TUNER

CABLE

CLR

SLEEP

DISC

ALBUM

LEVEL

L NIGHT

DVD

D/CDR

C D

DOCK

VCR

SAT

VOL

LEVEL

CINE FLTR

HDDDVD

—Continued

RECEIVER

Using the Multichannel DVD Input

The multichannel DVD input is for connecting a component with a 7.1-channel analog audio output, such as a DVD-Audio or SACD-capable DVD player, or an MPEG decoder. See page 28 for hookup information.

RECEIVER

MULTI CH

Press the [RECEIVER] REMOTE MODE button, followed by the [MULTI CH] button.

The MULTI CH indicator appears on the display.

MULTI CH indicator

Displaying Source Information

You can display various information about the current input source as follows.

RECEIVER

DISPLAY

The following information can typically be displayed:

Input source &

volume*

Signal format*

or sampling

frequency

Input source & listening mode

*1 When AM or FM radio is used, the band, preset num-

ber, and frequency are displayed.

*2 If the input signal is analog, or AM or FM radio is

selected, no format information is displayed. If the input signal is PCM, the sampling frequency is displayed. If the input signal is digital but not PCM, the signal format is displayed. Information is displayed for about 3 seconds, then the previous display reappears.

Note:

• The listening mode is displayed only when speaker set A is on.

Interpreting Surround Channel Information

Press the [RECEIVER] REMOTE MODE button, and then press the [DISPLAY] button repeatedly to cycle through the available information.

Audio from the multichannel DVD input will now be used for the DVD input source.

Note:

• While the multichannel DVD input is selected, the Speaker Conﬁguration settings on page 56 are ignored, and signals from the multichannel input are fed to the speakers as they are.

ABC

A: The number of front channels (front left, front right,

and center).

B: The number of surround channels (surround left and

surround right). If there’s surround back channel information, this number will be 3.

C: LFE channel for subwoofer (1 means yes).

Listening to the Radio

Listening to AM/FM Stations

TUNER

TUNING

STANDBY/ON

STANDBY

MULTI CH C D

PHONES

ABSPEAKERS

AUXCBL/SATVCR/DVR

DVD

TONE DISPLAYSTEREO DIMMER MEMORY

LISTENING MODE

TUNERTAPE

DIGITAL INPUT

PRESET

SETUP ENTER

SETUP MIC

TUNING MODE

CLEAR

TUNING MODE

With the built-in tuner, you can enjoy AM and FM radio stations.

Use the [TUNER] input selector button to select AM or FM.

In this example, FM has been selected.

TUNER

Band Frequency

(Actual display depends on country.)

■

AM Frequency Step Setup (not North America)

You must specify the AM frequency step used in your area. Note that when this setting is changed, all radio presets are deleted.

MASTER VOLUME

RETURN

AUX INPUT

VIDEO

AUDIOLR

Tuning into AM/FM Radio Stations

■

Auto Tuning Mode

TUNING MODE

TUNING

PRESET

■

Manual Tuning Mode

TUNING MODE

TUNING

PRESET

Press the [TUNING MODE] button so that the AUTO indicator appears on the display.

Press the TUNING Up or Down [ ]/[ ] button.

Searching stops when a station is found.

Press the [TUNING MODE] button so that the AUTO indicator disappears from the display.

Press and hold the TUNING Up or Down [ ]/[ ] button.

The frequency stops changing when you release the button.

Press the buttons repeatedly to change the frequency one step at a time.

Press the [SETUP] button, use the Up

and Down [ ]/[ ] buttons to select “0. Hardware Setup,” and then press [ENTER].

Use the Up and Down [ ]/[ ] buttons

to select “AM Freq,” and then use the Left and Right [ ]/[ ] buttons to

select:

10 kHz:

Select if 10 kHz steps are used in your area.

9 kHz:

Select if 9 kHz steps are used in your area.

Press the [SETUP] button.

Setup closes.

The American model changes FM frequency in 0.2 MHz steps, 10 kHz steps for AM. For other models it’s

0.05 MHz steps for FM and 9 kHz (or 10 kHz) steps for AM.

When tuned into a station, the TUNED indicator appears. When tuned into a stereo FM station, the FM STEREO indicator also appears.

FM STEREO

AUTO

TUNED

Tuning into Weak FM Stereo Stations

If the signal from a stereo FM station is weak, it may be impossible to get good reception. In this case, switch to

Manual Tuning mode and listen to the station in mono.

Note:

•You can also use the remote controller’s Up and Down [ ]/[ ] buttons to tune the radio.

Listening to the Radio

■

Tuning into Stations by Frequency

—Continued

You can tune into AM and FM stations directly by entering the appropriate frequency.

STANDBY/ON

REMOTE MODE

DVD

Number buttons

RECEIVER

D TUN

RECEIVER

TAPE/AMP

CBL/SAT

MULTI CH

DIMMER

DVD

C DTAPE TUNER

CABLE

CLR

ENT

SLEEP

DISC

VOL

ALBUM

MUTING

ENTER

INPUT SELECTOR

123

CR/DVR

456

AUX

789

10 11 12

D TUN

--/---

INPUT

GUIDE

TOP MENU

SP A / B

PLAYLIST/CAT PLAYLIST/CAT

SETUP RETURN

Press the [RECEIVER] button, followed by the [D TUN] button.

D/CDR

C D

DOCK

VCR

SAT

VOL

RECEIVER

CH +/–

(Actual display depends on country.) The [RECEIVER] button ﬂashes.

123

VCR/DVR CBL/SAT

456

MULTI CHAUX

789

10 11 12

D TUN

--/---

DIMMER

Within 8 seconds, use the number buttons to enter the frequency of the radio station.

For example, to tune to 87.5 (FM),

DVD

press 8, 7, 5.

C DTAPE TUNER

Note

CLR

ENT

SLEEP

: While the [RECEIVER] button is ﬂashing, the input source cannot be changed by using the remote controller.

MEMORY

TUNING

PRESET

MEMORY

■

Selecting Presets

TUNING

PRESET

DISC

ALBUM

■

Deleting Presets

Press the [MEMORY] button.

The preset number ﬂashes.

While the preset number is ﬂashing (about 8 seconds), use the PRESET [ ]/[ ] buttons to select a preset from 1 through 40.

Press the [MEMORY] button again to store the station or channel.

The station or channel is stored and the preset number stops ﬂashing.

Repeat this procedure for all of your favorite AM/FM radio stations.

To select a preset, use the PRESET [ ]/[ ] buttons, or the remote controller’s CH [+/–] button.

Presetting AM/FM Stations

PRESET

TUNING

STANDBY/ON

STANDBY

MULTI CH C D

PHONES

ABSPEAKERS

AUXCBL/SATVCR/DVR

DVD

TONE DISPLAYSTEREO DIMMER MEMORY

LISTENING MODE

TUNERTAPE

DIGITAL INPUT

MEMORY

PRESET

SETUP ENTER

SETUP MIC

TUNING MODE

CLEAR

TUNING MODE

You can store a combination of up to 40 of your favorite AM/FM radio stations as presets.

Tune into the AM/FM station that you want to store as a preset.

MASTER VOLUME

RETURN

AUX INPUT

VIDEO

AUDIOLR

MEMORY

TUNING MODE

CLEAR

Select the preset that you want to delete.

See the previous section.

While holding down the [MEMORY] button, press the [TUNING MODE] button.

The preset is deleted and its number disappears from the display.

Common Functions

This section explains functions that can be used with any input source.

DIMMER

CH SEL

STANDBY/ON

123

CR/DVR

456

AUX

789

D TUN

--/---

INPUT

GUIDE

TOP MENU

SP A / B

PLAYLIST/CAT PLAYLIST/CAT

SETUP RETURN

STEREO

AUDIO REPEAT

TEST TONE

DISPLAY

TAPE/AMP

INPUT SELECTOR

CBL/SAT

MULTI CH

10 11 12

ENT

DIMMER

VOL

ENTER

LISTENING MODE

SURROUND

RANDOM

SUBTITLE

CH SEL

PLAY MODE

681M

REMOTE MODE

RECEIVER

DVD

C DTAPE TUNER

CLR

SLEEP

DISC

ALBUM

LEVEL

L NIGHT

DVD

D/CDR

C D

DOCK

VCR

CABLE

SAT

VOL

MUTING

LEVEL

CINE FLTR

HDDDVDVCR

Press [RECEIVER] ﬁrst

SLEEP

MUTING

LEVEL – +

Adjusting the Bass and Treble

You can adjust the bass and treble for the front speakers, except when the Direct or Pure Audio (not North American models) listening mode is selected.

TONE

■

Bass

You can boost or cut low-frequency sounds output by the front speakers from –10 dB to +10 dB in 2 dB steps.

■

Treble

You can boost or cut high-frequency sounds output by the front speakers from –10 dB to +10 dB in 2 dB steps.

Note:

•To bypass the bass and treble tone circuits, select the Direct or Pure Audio (not North American model) listening mode.

Press the AV receiver’s [TONE] button repeatedly to select either Bass or Treble.

Use the TONE [–]/[+] buttons to adjust.

TONE, –, +

TUNING

STANDBY/ON

STANDBY

MULTI CH C D

PHONES

ABSPEAKERS

AUXCBL/SATVCR/DVR

DVD

TONE DISPLAYSTEREO DIMMER MEMORY

LISTENING MODE

TUNERTAPE

DIGITAL INPUT

PRESET

SETUP ENTER

SETUP MIC

TUNING MODE

CLEAR

PHONES DIMMER

Setting the Display Brightness

You can adjust the brightness of the display.

Press the remote controller’s [DIMMER] button repeatedly to

DIMMER

select: dim, dimmer, or normal brightness.

Alternatively, you can use the AV receiver’s [DIMMER] button.

Muting the AV Receiver

MASTER VOLUME

RETURN

AUX INPUT

VIDEO

AUDIOLR

You can temporarily mute the output of the AV receiver.

Press the remote controller’s [MUTING] button.

MUTING

To unmute the AV receiver,

The output is muted and the MUTING indicator ﬂashes on the display.

press the remote controller’s [MUTING] button again, or adjust the volume. The output is unmuted and the MUTING indicator goes off.

Muting is cancelled when the AV receiver is set to Standby.

Common Functions

—Continued

Using the Sleep Timer

With the sleep timer, you can set the AV receiver so that it turns off automatically after a speciﬁed period.

Press the remote controller’s [SLEEP] button repeatedly to

SLEEP

To cancel the sleep timer,

repeatedly until the SLEEP indicator disappears.

To check the remaining sleep time,

button. Note that if you press the [SLEEP] button while the sleep time is being displayed, you’ll shorten the sleep time by 10 minutes.

select the required sleep time.

You can set the sleep time from 90 to 10 minutes in 10 minute steps.

The SLEEP indicator appears on the display when the sleep timer has been set, as shown. The speciﬁed sleep time appears on the display for about 5 seconds, then the previous display reappears.

SLEEP indicator

press the [SLEEP] button

press the [SLEEP]

Adjusting Speaker Levels

You can adjust the volume of each speaker in speaker set A. These temporary adjustments are cancelled when the AV receiver is set to Standby.

CH SEL

LEVEL

Notes:

•You cannot use this function while the AV receiver is muted.

• Speakers that are set to No or None in the Speaker Conﬁguration cannot be adjusted.

■

Speaker Set B

While speaker set B is on, you can adjust the volume of the left and right speakers, from –12 dB to +12 dB.

Use the remote controller’s [CH SEL] button to select each speaker, and use the [LEVEL–] and [LEVEL+] buttons to adjust the volume.

You can adjust the volume of each

LEVEL

speaker from –12 dB to +12 dB (–15 dB to +12 dB for the subwoofer).

Using Headphones

For private listening, you can connect a pair of stereo headphones (1/4-inch phone plug) to the AV receiver’s PHONES jack.

STANDBY/ON

STANDBY

PHONES

Notes:

•Always turn down the volume before connecting your headphones.

• Speaker sets A and B are turned off while the headphones plug is inserted in the PHONES jack.

• When you connect a pair of headphones, the listening mode is set to Stereo, unless it was set to Pure Audio, Mono, Stereo, or Direct, in which case it stays the same.

• When the multichannel DVD input is selected, only the front left and front right channels can be heard in the headphones.

• These settings are stored when the AV receiver is set to Standby.

• While speaker set B is on, you cannot adjust the levels of speaker set A’s surround back speakers.

■

Headphones

While a pair of headphones is connected, you can adjust the volume of each headphone speaker, from –12 dB to +12 dB each.

• These settings are stored when the AV receiver is set to Standby.

Using the Listening Modes

Selecting Listening Modes

For a description of each listening mode, see “About the Listening Modes” on page 50.

• The Dolby Digital and DTS listening modes can only be selected if your DVD player is connected to the AV receiver with a digital audio connection (coaxial or optical).

• Listening mode availability depends on the format of the current input signal.

• While a pair of headphones is connected, you can select only the Pure Audio (not North American model), Mono, Direct, or Stereo listening mode.

• The listening modes cannot be selected while speaker set A is off.

Selecting on the AV Receiver

STANDBY/ON

STANDBY

PURE AUDIO

PHONES

ABSPEAKERS

PURE AUDIO

AUXCBL/SATVCR/DVR

DVDMULTI CHPURE AUDIO C D

LISTENING MODE

TONE

STEREO

LISTENING MODE

TUNERTAPE

DISPLAYSTEREO RT/PTY/TP MEMORY

DIGITAL INPUT

TUNING

PRESET

SETUP ENTER

SETUP MIC

TUNING MODE

CLEAR

MASTER VOLUME

RETURN

AUX INPUT

VIDEO

AUDIOLR

Selecting with the Remote Controller

DISC

VOL

INPUT

GUIDE

TOP MENU

SP A / B

PLAYLIST/CAT PLAYLIST/CAT

SETUP RETURN

SURROUND

LISTENING MODE

SURROUND

STEREO

■

[STEREO] button

STEREO

SUBTITLE

AUDIO REPEAT

TEST TONE

CH SEL

PLAY MODE

DISPLAY

This button selects the Stereo listening mode.

■

[SURROUND] button

This button selects the Dolby Digital and DTS listening modes and the Neural Surround* listening mode (* North American model only).

■

LISTENING MODE [ ]/[ ] buttons

Pressing these buttons repeatedly cycles through all of the listening modes that can be used with the current input source.

ENTER

RANDOM

681M

ALBUM

LEVEL

L NIGHT

VOL

MUTING

LEVEL

CINE FLTR

HDDDVDVCR

■

[PURE AUDIO] button (not North American model)

This button selects the Pure Audio listening mode. When this mode is selected, the AV receiver outputs no video signals and its display is turned off. Pressing this button again will select the previous listening mode. Video received by the HDMI IN 1 and 2 inputs is passed through to the HDMI OUT even if the Pure Audio listening mode is selected.

■

[STEREO] button

This button selects the Stereo listening mode.

■

LISTENING MODE [ ]/[ ] buttons

Pressing these buttons repeatedly cycles through all of the listening modes that can be used with the current input source.

Using the Listening Modes

—Continued

The following table shows which listening modes can be used with each input signal format.

Source format

Listening mode

Pure Audio (Not North

American models)

Direct

Stereo Mono

Multich

PLIIx Movie/Music/Game Neo:6 Cinema Neo:6 Music

Neural Surround (North

American models only)

Dolby D

Dolby D + Neo:6 Dolby D EX

Dolby

Dolby D+PLIIx Music

Dolby D+PLIIx Movie

DTS, DTS 96/24

DTS-ES Discrete

DTS-ES Matrix

DTS

DTS+Neo:6 DTS+Dolby EX DTS+PLIIx Music

DTS+PLIIx Movie

T- D

Mono Movie

Onkyo Original DSP

*1. In the Pure Audio and Direct listening modes, 32 kHz, 44.1 kHz, and 48 kHz PCM is processed at 64 kHz, 88.2 kHz, and 96 kHz respectively. In

*2. In listening modes other than Pure Audio, Direct, Stereo, and DTS 96/24, DTS 96/24 sources are processed as normal DTS. *3. If the Surr Back parameter is set to None, or speaker set B is on, normal Pro Logic II is used. *4. Not available for 88.2 kHz and 96 kHz PCM input signals. *5. If the Surr Back setting is set to None, or speaker set B is on, normal DTS is used. *6. Available only when surround speakers are connected.

Orchestra Unplugged Studio-Mix TV Logic All Ch Stereo Full Mono

listening modes other than Pure Audio, Direct, and Stereo, 64 kHz, 88.2 kHz, and 96 kHz PCM is processed at 32 kHz, 44.1 kHz, and 48 kHz respectively.

Analog,

PCM

CD, TV,

radio,

cassette,

etc.

3/2.1 2/2.1

✔ ✔✔✔✔✔✔ ✔ ✔

✔ ✔✔✔✔✔✔ ✔

✔✔ ✔

✔

✔✔

✔

✔ ✔✔✔✔✔✔ ✔

Dolby Digital

2/0 1/0, 1+1 Other

DVD, DTV, etc. DVD, CD, etc. DVD

3/2.1 2/2.1

DTS/DTS 96/24

2/0

✔

DTS-ES

Discrete Matrix

✔

Multich

analog

✔

: Only available on 6.1/7.1-channel playback systems. Not available while speaker set B is on. : Only available on 7.1-channel playback systems. Not available while speaker set B is on.

Tip: To check the format of the digital input signal, see “Displaying Source Information” on page 43.

Using the Listening Modes

—Continued

About the Listening Modes

The AV receiver’s listening modes can transform your listening room into a movie theater or concert hall, with high ﬁdelity and stunning surround sound.

The illustration shows which speakers are active in each listening mode with 7.1 channel speaker system.

Front left Center Front right

Subwoofer

Surround left

Pure Audio (not North American models)

back left/ right

Surround rightSurround

In this mode, the display and video circuitry are turned off, minimizing possible noise sources for the ultimate in high-ﬁdelity reproduction. (As the video circuitry is turned off, no video signals are output in this mode.)

Direct

In this mode, audio from the input source is output directly with minimal processing, providing high-ﬁdelity reproduction. All of the source’s audio channels are output as they are.

Stereo

Sound is output by the front left and right speakers and subwoofer.

Mono

Use this mode when watching an old movie with a mono soundtrack, or use it with the foreign language soundtracks recorded in the left and right channels of some movies. It can also be used with DVDs or other sources containing multiplexed audio, such as karaoke DVDs.

Dolby Pro Logic IIx

Dolby Pro Logic II

Dolby Pro Logic IIx

expands any 2-channel source for

7.1-channel playback. It provides a very natural and seamless surround-sound experience that fully envelops the listener. As well as music and movies, video games can also beneﬁt from the dramatic spatial effects and vivid imaging. If you’re not using any surround back speakers,

Dolby Pro Logic II

will be used instead of

Dolby Pro Logic IIx.

• PLIIx Movie

Use this mode with any stereo or Dolby Surround (Pro Logic) movie (e.g., TV, DVD, VHS).

• PLIIx Music

Use this mode with any stereo or Dolby Surround (Pro Logic) music source (e.g., CD, radio, cassette, TV, VHS, DVD).

• PLIIx Game

Use this mode with video games, especially those that bear the Dolby Pro Logic II logo.

Dolby Digital

Use this mode with DVDs that bear the Dolby Digital logo, and Dolby Digital TV broadcasts. This is the most common digital surroundsound format, and it’ll put you right in the middle of the action, just like being in a movie theater or concert hall.

Dolby Digital EX DTS+Dolby EX

These modes expand 5.1-channel Dolby Digital and DTS sources for 6.1/7.1-channel playback. They’re especially suited to Dolby Digital EX soundtracks that include a matrix-encoded surround back channel. The additional channel adds an extra dimension and provides an enveloping surround sound experience, perfect for rotating and ﬂy-by sound effects. Use them with DVDs that bear the Dolby Digital or DTS logo.

Dolby Digital+PLIIx Music DTS+PLIIx Music

These modes use the Pro Logic IIx Music mode to expand 5.1-channel Dolby Digital and DTS sources for 6.1/7.1-channel playback. Use them with Dolby Digital or DTS 5.1 music sources (e.g., DVD and Dolby Digital TV broadcasts).

Dolby Digital+PLIIx Movie DTS+PLIIx Movie

These modes use the Pro Logic IIx Movie mode to expand 5.1-channel Dolby Digital and DTS sources for 7.1-channel playback. Use them with Dolby Digital and DTS 5.1 movies (e.g., DVD and select digital TV broadcasts).

DTS

The DTS digital surround-sound format supports up to 5.1 discrete channels and uses less compression for high-ﬁdelity reproduction. Use it with DVDs and CDs that bear the DTS logo.

DTS 96/24

This mode is for use with DTS 96/24 sources. This is high-resolution DTS with a 96 kHz sampling rate and 24-bit resolution, providing superior ﬁdelity. Use it with DVDs that bear the DTS 96/24 logo.

DTS-ES Discrete

This mode is for use with DTS-ES Discrete soundtracks, which use a discrete surround back channel for true 6.1/7.1-channel playback. The seven totally separate audio channels provide better spatial imaging and 360-degree sound localization, perfect for sounds that pan across the surround channels. Use it with DVDs that bear the DTS-ES logo, especially those with a DTS-ES Discrete soundtrack.

Using the Listening Modes

—Continued

DTS-ES Matrix

This mode is for use with DTS-ES Matrix soundtracks, which use a matrix-encoded back-channel for 6.1/7.1-channel playback. Use it with DVDs that bear the DTS-ES logo, especially those with a DTS-ES Matrix soundtrack.

DTS Neo:6

This mode expands any 2-channel source for 6.1-channel playback. It uses six full-bandwidth channels of matrix decoding for matrix-encoded material, providing a very natural and seamless surround sound experience that fully envelops the listener.

• Neo:6 Cinema

Use this mode with any stereo movie (e.g., TV, DVD, VHS).

• Neo:6 Music

Use this mode with any stereo music source (e.g., CD, radio, cassette, TV, VHS, DVD).

Dolby Digital + Neo:6 DTS+Neo:6

This mode uses Neo:6 to expand 5.1-channel Dolby Digital and DTS sources for

6.1/7.1-channel playback. Use it with DVDs that bear the Dolby Digital or DTS logo and feature a 5.1-channel soundtrack.

Neural Surround

(North American models only)

Neural Surround represents the latest advancement in surround technology developed for music and is adopted by XM Satellite Radio for digital radio broadcast of surround recordings and live events in surround sound. Neural Surround employs psychoacoustic frequencydomain processing, which allows delivery of a more detailed sound stage, with superior channel separation and localization of audio elements. System playback is scalable from 5.1 to 7.1 multichannel surround playback.

Onkyo Original DSP Modes

Mono Movie

This mode is suitable for old movies and other mono sources. The center speaker outputs the sound as it is, while reverb is applied to the sound output by the other speakers, giving presence to even mono material.

Orchestra

Suitable for classical or operatic music, this mode emphasizes the surround channels in order to widen the stereo image, and simulates the natural reverberation of a large hall.

Unplugged

Suitable for acoustic instruments, vocals, and jazz, this mode emphasizes the front stereo image, giving the impression of being right in front of the stage.

Studio-Mix

Suitable for rock or pop music, listening to music in this mode creates a lively sound ﬁeld with a powerful acoustic image, like being at a club or rock concert.

TV Logic

This mode adds realistic acoustics to TV shows produced in a TV studio, surround effects to the entire sound, and clarity to voices.

All Ch Stereo

Ideal for background music, this mode ﬁlls the entire listening area with stereo sound from the front, surround, and surround back speakers.

Full Mono

In this mode, all speakers output the same sound in mono, so the sound you hear is the same regardless of where you are within the listening room.

T-D (Theater-Dimensional) or

With this mode, you can enjoy virtual 5.1 surround sound even with only two or three speakers. This works by controlling how sounds reach the listener’s left and right ears. Good results may not be possible if there’s too much reverb, so we recommend that you use this mode in an environment with little or no natural reverb.

Using the Listening Modes

ENTER

SETUP

STANDBY/ON

CR/DVR

AUX

D TUN

--/---

INPUT

GUIDE

TOP MENU

SP A / B

PLAYLIST/CAT PLAYLIST/CAT

SETUP RETURN

STEREO

AUDIO REPEAT

TEST TONE

DISPLAY

REMOTE MODE

RECEIVER

TAPE/AMP

INPUT SELECTOR

123

CBL/SAT

456

789

DVD

MULTI CH

C DTAPE TUNER

10 11 12

CLR

ENT

DIMMER

SLEEP

DISC

VOL

ALBUM

ENTER

LISTENING MODE

SURROUND

RANDOM

SUBTITLE

CH SEL

LEVEL

PLAY MODE

L NIGHT

681M

DVD

D/CDR

C D

DOCK

VCR

CABLE

SAT

VOL

MUTING

LEVEL

CINE FLTR

HDDDVDVCR

—Continued

RECEIVER

CINE FLTR

L NIGHT

Using the CinemaFILTER

With the CinemaFILTER, you can soften overly bright movie soundtracks, which are typically mixed for reproduction in a movie theater.

CinemaFILTER can be used with the following listening modes: Dolby Digital, Dolby Digital EX, PLII/IIx Movie, DTS, DTS-ES, DTS Neo:6 Cinema, DTS 96/24, Dolby/DTS+PLIIx Movie, Dolby/DTS+Neo:6, and DTS+Dolby EX.

RECEIVER

Press the [RECEIVER] REMOTE MODE button, and then press the [CINE FLTR] button repeatedly to select:

On:

CINE FLTR

CinemaFILTER on.

Off:

CinemaFILTER off.

Using the Audio Adjust Settings

The Audio Adjust settings only affect speaker set A.

RECEIVER

Press the [RECEIVER] button followed by the [SETUP] button.

Using the Late Night Function (Dolby Digital only)

With the Late Night function, you can reduce the dynamic range of Dolby Digital material so that you can still hear quiet parts even when listening at low volume levels—ideal for watching movies late at night when you don’t want to disturb anyone.

RECEIVER

L NIGHT

Notes:

• The effect of the Late Night function depends on the Dolby Digital material that you are playing, and with some material there will be little or no effect.

• The Late Night function is set to Off when the AV receiver is set to Standby.

Press the [RECEIVER] REMOTE MODE button, and then press the [L NIGHT] button repeatedly to select:

Off:

Late Night function off.

Low:

Small reduction in dynamic range.

High:

Big reduction in dynamic range.

SETUP

Use the Up and Down [ ]/[ ] buttons to select “Audio Adjust,” and then press [ENTER].

Use the Left and Right [ ]/[ ] buttons to change the setting.

Press the Down [ ] button to select the next setting.

Repeat this step for the other settings.

Using the Listening Modes

SETUP

The Audio Adjust settings are explained below.

Press the [SETUP] button.

Setup closes.

—Continued

Input Channel Settings

■

Multiplex

This setting determines which channel is output from a stereo multiplex source. Use it to select audio channels or languages with multiplex sources, multilingual TV broadcasts, and so on.

Main:

The main channel is output (default).

Sub:

The sub channel is output.

M/S:

Both the main and sub channels are output.

■

Mono Input Ch

This setting determines which channel is output when the Mono listening mode is used with a stereo source.

L+R:

Both the left and right channels are output (default).

Only the left channel is output.

Only the right channel is output.

PLII and PLIIx Music Mode Settings

These settings apply to only 2-channel (stereo) sources.

■

Center Width

With this setting, you can adjust the width of the sound from the center speaker when using the Pro Logic II Music or Pro Logic IIx Music listening mode. Normally, the center channel sound is output by only the center speaker. (If you’re not using a center speaker, the center channel sound will be distributed to the front left and right speakers to create a phantom center). This setting adjusts the front left, right, and center mix, allowing you to adjust the weight of the center channel sound. It can be adjusted from 0 to 7 (default value is 3).

DTS Neo:6 Music Mode Setting

■

Center Image

The DTS Neo:6 Music listening mode creates 6-channel surround sound from 2-channel (stereo) sources. With this setting, you can specify by how much the front left and right channel output is attenuated in order to create the center channel. It can be adjusted from 0 to 5 (default value is 2). This setting has no effect if no center speaker is connected.

When set to 0, the front left and right channel output is attenuated by half (–6 dB), giving the impression that the sound is located centrally. This setting works well when the listening position is considerably off center. When set to 5, the front left and right channels are not attenuated, maintaining the original stereo balance.

Dolby Digital EX Input Signal Setting

■

Panorama

With this setting, you can broaden the width of the front stereo image when using the Pro Logic II Music or Pro Logic IIx Music listening mode.

On:

Panorama function on.

Off:

Panorama function off (default).

■

Dimension

With this setting, you can move the sound ﬁeld forward or backward when using the Pro Logic II Music or Pro Logic IIx Music listening mode. The default value is 0. It can be adjusted from –3 to +3. Higher settings move the sound ﬁeld forward. Lower settings move it backward.

If the stereo image feels too wide, or there’s too much surround sound, move the sound ﬁeld forward to improve the balance. Conversely, if the stereo image feels like it’s in mono, or there’s not enough surround sound, move it backward.

■

Dolby EX

This setting determines how Dolby Digital EX signals are handled. This setting is unavailable if no surround back speakers are connected or speaker set B is on.

Auto:

If the source signal contains a Dolby Digital EX ﬂag, the Dolby Digital EX listening mode is used (default).

Manual:

You can select Pro Logic IIx Movie, Pro Logic IIx Music, Dolby Digital, or Dolby Digital EX.

Using the Listening Modes

—Continued

T-D Listening Angle Setting

■

Lstn Angl (Listening Angle)

With this setting, you can specify the angle of the front left and right speakers relative to the listening position. Processing for the Theater-Dimensional listening mode is based on this setting. Ideally, the front left and right speakers should be equidistant from the listening position and at an angle close to one of the three available settings.

Front left speaker Front right speaker

20/30/40˚

Narrow:

Middle:

Select if the listening angle is 20 degrees. Select if the listening angle is 30 degrees

(default).

Wide:

Select if the listening angle is 40 degrees.

Multichannel Subwoofer Setting

■

SW Sens

On some DVD players, the signal from the multichannel subwoofer output is 15 dB higher than normal. You can change the subwoofer sensitivity to match your DVD player. Note that this setting only affects signals connected to the SUBWOOFER input jack of the multichannel DVD input.

You can select 0 dB (default), +5 dB, +10 dB, or +15 dB. If you ﬁnd that your subwoofer is too loud, try the

+10 dB or +15 dB setting.

Recording

VIDEO

AUDIOLR

AUX INPUT

B R

This section explains how to record the selected input source to a component with recording capability, and how to record audio and video from different sources.

Recording the Input Source

You can only record to a component that’s connected to the TAPE OUT or VCR/DVR OUT jacks.

See pages 24–35 for information on connecting your AV components.

DVD

AUX

Remote

controller

VCR/DVR CBL/SAT

AUX

789

Use the input selector buttons to select the component that you want to record.

CBL/SATVCR/DVR

Audio signals from the selected input source are output by the TAPE OUT

TUNERTAPE

and VCR/DVR OUT jacks. You can listen to the source while

recording. The AV receiver’s VOLUME control has no effect on recording.

DVD

C DTAPE TUNER

On your recorder, start recording.

Start playback on the source component.

Recording Audio and Video from Separate Sources

You can overdub audio onto your video recordings by simultaneously recording audio and video from two separate sources. This is possible because only the audio source is switched when an audio-only input source, such as TAPE, TUNER, or CD, is selected, the video source remains the same.

In the following example, audio from the CD player connected to the CD IN jacks, and video from the camcorder connected to the AUX INPUT VIDEO jack are recorded by the VCR connected to the VCR/DVR OUT jacks.

Camcorder

video signal audio signal

VCR/DVR

FMAM75

IN IN

SIRIUS

MONITOR

DVD

OUT

SURROUND

SPEAKE

FRONT

SURROUND

SURR BA

CENTER

SUB

WOOFER

DVD

DIGITAL IN

COAXIAL

(DVD)

(CBL/SAT)

OPTICAL

(VCR/DVR)

(CD)

ASSIGNABLE

REMOTE CONTROL

OUT

IN 1IN 2

B/PB

CR/PR

CBL/SAT IN

OUT

VCR/DVR IN

DVD IN

COMPONENT VIDEO

OUT

IN IN INININ

R R

TAPE

HDMI

ASSIGNABLE

ANTENNA

CBL/SAT

OUT

CBL/SAT

Notes:

•You cannot record from a component that’s connected to a digital input. Only analog inputs can be recorded.

• The surround sound effects provided by the listening modes cannot be recorded.

•You cannot record from a component that’s connected to the multichannel DVD input.

• If you select another input source while recording, that input source will be recorded instead.

• While the Pure Audio listening mode is selected, the VCR/DVR OUT V and S jacks don’t output video signals, so select another mode when recording.

VCRCD player

Prepare the camcorder and CD player for playback.

Prepare the VCR for recording.

Press the [AUX] input selector button.

Press the [CD] input selector button.

This selects the CD player as the audio source, but leaves the camcorder as the video source.

Start recording on the VCR, then start playback on the camcorder and CD player.

Video from the camcorder and audio from the CD player are recorded by the VCR.

Advanced Setup

Advanced Speaker Settings

This section explains how to check the speaker settings and how to set them manually, which is useful if you change a speaker after performing the automatic speaker setup.

Some speaker settings are set automatically by the Automatic Speaker Setup function (see page 37).

Speaker Conﬁguration

These settings are set automatically by the Automatic Speaker Setup function (see page 37).

This section explains how to specify which speakers are connected and their sizes.

For speakers with a cone diameter larger than 6-1/2 inches (16 cm), specify

Large

(full band). For those

with a smaller diameter, specify

Small

(default crossover 100 Hz)

The crossover frequency can be changed on page 57.

RECEIVER

Press the [RECEIVER] button followed by the [SETUP] button.

Cone diameter

Use the Down [ ] button to select “Front,” and then use the

Left and Right [ ]/[ ] buttons to select

Small

Large

Small:

Large:

Note:

• If the Subwoofer setting in step 3 is

Use the Down [ ] button to select “Center,” and then use the

Left and Right [ ]/[ ] buttons to select

Small:

Large:

Note:

• If the Front setting in step 4 is set to

Select if the front speakers are small.

Select if the front speakers are large.

set to No, this setting is ﬁxed at Large and does not appear.

Small, Large

Select if the center speaker is small.

Select if the center speaker is large.

None:

Select if no center speaker is connected.

Small, the Large option cannot be selected.

, or

None

SETUP

Use the Up and Down [ ]/[ ] buttons to select “Sp Conﬁg,” and then press the [ENTER] button.

While the Subwoofer setting is selected, use the Left and Right

[ ]/[ ] buttons to select

Yes:

Select if a subwoofer is connected.

No:

Select if no subwoofer is connected.

Yes

Use the Down [ ] button to select “Surround,” and then use

the Left and Right [ ]/[ ] buttons to select

None

Small:

Large:

None:

Note:

• If the Front setting in step 4 is set to Small, the Large option cannot be selected.

Small, Large

Select if the surround speakers are small.

Select if the surround speakers are large.

Select if no surround speakers are connected.

, or

Advanced Setup

—Continued

Note:

• These settings cannot be changed while headphones are connected, speaker set B is on, or the multichannel DVD input is being used.

Use the Down [ ] button to select “Surr Back,” and use the

Left and Right [ ]/[ ] buttons to select

Small, Large

Small:

Select if the surround back

speakers are small.

Large:

Select if the surround back

speakers are large.

None:

Select if no surround back

speakers are connected.

Notes:

• If the Surround setting in step 6 is set to None, this setting does not appear.

• If the Surround setting in step 6 is set to Small, the Large option cannot be selected.

Use the Down [ ] button to select “Surr Back Ch,” and use

the Left and Right [ ]/[ ] buttons to select

2ch:

Select if two (left and right) surround back speakers are connected.

1ch:

Select if one surround back speaker is connected.

Note:

• If the Surround and Surr Back settings in steps 6 and 7 are set to None, this setting does not appear.

Continue with step 9 of the “Crossover Frequency” setting.

2ch

, or

1ch

None

Crossover Frequency

This setting is set automatically by the Automatic Speaker Setup function (see page 37).

This setting only applies to the speakers that you speciﬁed as

Small

in the “Speaker Conﬁguration” on page 56.

To get the best bass performance from your speaker system, you need to set the crossover frequency according to the size and frequency response of your speakers

Notes:

•For a more accurate setting, look up the frequency response in the manuals supplied with your speakers and set accordingly.

• Choose a higher crossover frequency if you want more sound from your subwoofer.

• These settings cannot be changed while headphones are connected, speaker set B is on, or the multichannel DVD input is being used.

Use the Down [ ] button to select “Crossover,” and then use

the Left and Right [ ]/[ ] buttons to select a crossover frequency.

Use the diameter of the smallest speaker in your system when choosing the crossover frequency.

Speaker cone

diameter

Over 8 in.

(20 cm)

6-1/2 to 8 in.

(16–20 cm)

5-1/4 to 6-1/2 in.

(13–16 cm)

3-1/2 to 5-1/4 in.

(9–13 cm)

Under 3-1/2 in.

(9 cm)

*Choose the setting suitable for the speaker.

Continue with step 10 of the “Double Bass” setting on the next page.

Crossover

frequency

40/50/60Hz*

80Hz

100Hz (default)

120Hz

150/200Hz*

Advanced Setup

—Continued

Double Bass

This setting is not set automatically by the Automatic Speaker Setup function (see page 37).

With the Double Bass function, you can boost bass output by feeding bass sounds from the front left and right channels to the subwoofer. This function can be set only if the Subwoofer setting (step 3) is set to Yes, and the Front setting (step 4) is set to Large in the Speaker Conﬁguration on page 56.

Use the Down [ ] button to select “Double Bass,” and then

use the Left and Right [ ]/[ ] buttons to select:

On:

Double Bass function on.

Bass from the front left and right channels is also fed to the subwoofer (default).

Off:

Double Bass function off.

Press the [SETUP] button.

Setup closes.

Speaker Distance

These settings are set automatically by the Automatic Speaker Setup function (see page 37).

With these settings, you can specify the distance from each speaker to the listening position.

RECEIVER

SETUP

Measure and make a note of the distance from each speaker to the listening position.

Press the [RECEIVER] REMOTE MODE button, followed by the [SETUP] button.

Use the Up and Down [ ]/[ ] buttons to select “Sp Distance,” and then press [ENTER].

SETUP

Note:

• These settings cannot be changed while headphones are connected, speaker set B is on, or the multichannel DVD input is being used.

While “Unit” is displayed, use the Left and Right [ ]/[ ] buttons to

select “feet” or “meters”.

feet:

Distances can be set in feet. Range: 1 to 30 feet in 1-foot steps.

meters:

Use the Down [ ] button to select “Front,” and use the Left

and Right [ ]/[ ] buttons to specify the distance for the front speakers, then press the Down

[] button to select the next speaker.

Repeat step 5 for all speakers.

Note:

Speakers that you set to No or None in the Speaker Conﬁguration (page 56) cannot be selected.

Distances can be set in meters. Range: 0.3 to 9 meters in 0.3-meter steps.

Advanced Setup

—Continued

SETUP

Notes:

• The Center and Subwoofer distances can be set up to 5 ft. (1.5 m) more or less than the Front distance. For example, if the Front distance is set to 20 ft. (6 m), the Center and Subwoofer distances can be set between 15 and 25 ft. (4.5 and 7.5 m).

• The Surround and Surround Back distances can be set up to 5 ft. (1.5 m) more or 15 ft. (4.5 m) less than the Front distance. For example, if the Front distance is set to 20 ft. (6 m), the SurrRight, Surr Left, Surr Back R, and Surr Back L distances can be set between 5 and 25 ft. (1.5 and 7.5 m).

• The speaker distance cannot be adjusted while a pair of headphones is connected, speaker set B is on, or the multichannel DVD input is being used.

Press the [SETUP] button.

Setup closes.

Speaker Levels

These settings are set automatically by the Automatic Speaker Setup function (see page 37).

You can set the volume level of each speaker so that all speakers can be heard equally at the listening position.

RECEIVER

SETUP

Press the [RECEIVER] REMOTE MODE button, followed by the [SETUP] button.

Use the Up and Down [ ]/[ ] buttons to select “Level Cal,” and then press [ENTER].

A pink noise test tone is output by the front left speaker.

SETUP

Notes:

•A quick way to adjust the speaker levels is to press the remote controller’s [TEST TONE] button to turn on the test tone, use the [LEVEL–] and [LEVEL+] buttons to adjust the levels, and use the [CH SEL] button to select the speakers.

• The speaker levels cannot be adjusted while a pair of headphones is connected, speaker set B is on, or the AV receiver is muted.

Turn up the volume so that you can hear the test tone sufﬁciently.

As each speaker outputs the test tone, its name appears on the display.

Use the Left and Right [ ]/[ ] buttons to adjust the speaker

level, and use the Down [ ] button to select the next speaker.

The levels can be adjusted from –12 to +12 dB in 1 dB steps (–15 to +12 dB for the subwoofer).

Repeat step 4 so that the level of the test tone coming from each speaker is the same.

Speakers that you set to No or None in the Speaker Conﬁguration (page 56) do not output the test tone.

Press the [SETUP] button.

Setup closes. Don’t forget to turn down the volume if

you turned it up while setting the levels.

Advanced Setup

—Continued

Equalizer Settings

These settings are set automatically by the Automatic Speaker Setup function (see page 37).

Here you can adjust the tone of individual speakers. To set the volume of individual speakers, see page 59.

RECEIVER

SETUP

Press the [RECEIVER] REMOTE MODE button, followed by the [SETUP] button.

Use the Up and Down [ ]/[ ] buttons to select “Equalizer,” and then press [ENTER].

Use the Up and Down [ ]/[ ] buttons to select a frequency.

Use the Left and Right [ ]/[ ] buttons to adjust the level at that frequency.

The volume at each frequency can be adjusted from –6 to +6 dB in 1 dB steps.

Tip: Low frequencies (e.g., 80 Hz)

affect bass sounds; high frequencies (e.g., 8000 Hz) affect treble sounds.

Use the Up [ ] button to select “Ch,” and then use the Left and

Right [ ]/[ ] buttons to select another speaker.

Repeat steps 5 and 6 for each speaker. Speakers that you’ve set to No or None

in the Speaker Conﬁguration (page 56) cannot be selected.

Use the Left and Right [ ]/[ ] buttons to select:

Off: Tone off, response ﬂat.

Audyssey: The tone for each speaker

is set automatically by the Automatic Speaker Setup function. Be sure to select this setting after having performed the Automatic Speaker Setup.

Manual: You can adjust the equal-

izer for each speaker manually.

If you selected Manual, continue with this procedure. If you selected Off or Audyssey, go to step 7.

Press the Down [ ] button, and then use the Left and Right

[ ]/[ ] buttons to select a speaker.

SETUP

Notes:

• The front, center, surround, and surround back speakers can be adjusted at 2500 Hz, and 8000 Hz. The subwoofer can be adjusted at 40 Hz, 80 Hz, and 160 Hz.

• While the Direct or Pure Audio listening mode is selected, the equalizer settings have no effect.

• This procedure can also be performed on the AV receiver by using its [SETUP], [ENTER], and arrow buttons.

Press the [SETUP] button.

The setup menu closes.

Hz, 250 Hz, 800 Hz,

Advanced Setup

—Continued

Digital Input Signal Formats

The following table shows the display indicator for each digital signal format.

Format Display

Dolby Digital

DTS

PCM

Normally, the AV receiver detects the signal format automatically. However, if you experience either of the following issues when playing PCM or DTS material, you can specify the signal format as either PCM or DTS:

• If the beginnings of tracks from a PCM source are cut off, try the PCM setting.

• If noise is produced when fast forwarding or reversing a DTS CD, try the DTS setting.

STANDBY/ON

STANDBY

MULTI CH C

PHONES

ABSPEAKERS

PCM

AUXCBL/SATVCR/DVR

DVD

TONE DISPLAYSTEREO DIMMER MEMORY

LISTENING MODE

TUNERTAPE

DIGITAL INPUT

TUNING

PRESET

SETUP ENTER

SETUP MIC

TUNING MODE

CLEAR

MASTER VOLUME

RETURN

AUX INPUT

VIDEO

AUDIOLR

Correcting Sound and Picture Sync

When using progressive scanning on your DVD player, you may ﬁnd that the picture and sound are out of sync. With this setting, you can correct this by delaying the audio signals. You can set it from 0 to 100 milliseconds (ms) in 20 millisecond steps.

STANDBY/ON

REMOTE MODE

DVD

SELECTOR

RECEIVER

TAPE/AMP

INPUT

INPUT SELECTOR

123

CR/DVR

456

AUX

789

D TUN

--/---

INPUT

GUIDE

TOP MENU

SP A / B

PLAYLIST/CAT PLAYLIST/CAT

SETUP RETURN

CBL/SAT

DVD

MULTI CH

C DTAPE TUNER

10 11 12

CLR

ENT

DIMMER

SLEEP

DISC

VOL

ALBUM

ENTER

CABLE

MUTING

Press the [RECEIVER] REMOTE MODE button.

D/CDR

C D

DOCK

VCR

SAT

VOL

RECEIVER

DIGITAL INPUT

Press and hold the AV receiver’s [DIGITAL INPUT] button for about 3 seconds.

While “Auto” is displayed (about 3 seconds), press the [DIGITAL INPUT] button repeatedly to select: PCM, DTS, or Auto.

PCM:

Only PCM format input signals will be heard. If the input signal is not PCM, the PCM indicator will ﬂash and there will be no sound.

DTS:

Only DTS format input signals will be heard. If the input signal is not DTS, the DTS indicator will ﬂash and there will be no sound.

Auto (default):

The format is detected automatically. If no digital input signal is present, the corresponding analog input is used instead.

VCR/DVR CBL/SAT

AUX

Press and hold, for more than 4 seconds, the input selector button for the input source that you

want to correct.

DVD

This can be the [DVD], [VCR/DVR], [CBL/SAT], or [AUX] input source.

Use the Left and Right [ ]/[ ] buttons to adjust the delay from 0 to 100 milliseconds in 20 millisecond steps.

Note:

• This setting is not available when the Pure Audio listening mode is used, or the Direct listening mode is used with an analog input signal.

Controlling Other Components

You can use the AV receiver’s remote controller (RC-681M) to control your other AV components, including those made by other manufacturers. This section explains how to enter the necessary remote control code for the component that you want to control (e.g., DVD player, TV, or VCR).

Entering Remote Control Codes

To control another component, you must ﬁrst enter the appropriate remote control code to a REMOTE MODE button. You’ll need to enter a code for each component that you want to control.

RECEIVER

Number

buttons

STANDBY/ON

123

CR/DVR

456

AUX

789

D TUN

--/---

INPUT

GUIDE

TOP MENU

SP A / B

PLAYLIST/CAT PLAYLIST/CAT

SETUP RETURN

TAPE/AMP

INPUT SELECTOR

CBL/SAT

MULTI CH

10 11 12

ENT

DIMMER

VOL

ENTER

REMOTE MODE

RECEIVER

DVD

C DTAPE TUNER

CLR

SLEEP

DISC

ALBUM

MUTING

DVD

D/CDR

DOCK

VCR

CABLE

REMOTE

C D

SAT

VOL

MODE

REMOTE MODE

DVD

M D/CDR

DOCK

VCR

CABLE

SAT

DISPLAY

123

VCR/DVR

CBL/SAT

456

AUX

MULTI CH

DIMMER

DVD

ENT

789

Look up the appropriate remote control code in the separate Remote Control Codes list.

The codes are organized by category (e.g., DVD player, TV, etc.).

While holding down the REMOTE MODE button that you want to set, press the [DISPLAY] button for 3 seconds.

The REMOTE MODE button lights up.

Within 30 seconds, use the number buttons to enter the 4-digit remote control code.

The REMOTE MODE button ﬂashes twice.

C DTAPE TUNER

DISPLAY

LISTENING MODE

SURROUND

STEREO

AUDIO REPEAT

TEST TONE

DISPLAY

SUBTITLE

CH SEL

PLAY MODE

681M

RANDOM

LEVEL

L NIGHT

LEVEL

CINE FLTR

HDDDVDVCR

L NIGHT

Press the REMOTE MODE button again to select the remote controller mode, point the remote controller at the component, and check the operation.

If the remote controller doesn’t work as expected, and several remote codes are listed, try each one in turn and use the one that works best.

Notes:

•A remote control code cannot be entered for the [RECEIVER] REMOTE MODE button.

• The remote control codes provided are correct at the time of printing, but are subject to change.

Controlling Other Components

—Continued

Remote Control Codes for Onkyo Components Connected via

Onkyo components that are connected via are controlled by pointing the remote controller at the AV receiver, not the component. This allows you to control components that are out of view, in a rack, for example.

Make sure the Onkyo component is con-

nected with an cable and an analog audio cable (RCA).

See page 35 for details.

Enter the appropriate remote control code

for the [DVD] or [CD] REMOTE MODE button.

[DVD] REMOTE MODE button

1612:

Onkyo DVD player with

[CD/MD/CDR/DOCK] REMOTE MODE button

1327:

Onkyo CD player with

1808:

Onkyo MD recorder with

1322:

Onkyo CD recorder with

1993:

Onkyo RI Dock with

See the previous page for how to enter remote control codes.

Press the [DVD] or [CD] REMOTE MODE

button, point the remote controller at the AV receiver, and operate the component.

If you want to control an Onkyo component by pointing the remote controller directly at it, or you want to control an Onkyo component that’s not connected via , use the following remote control codes:

•[DVD] REMOTE MODE button

0627:

Onkyo DVD player without (default)

• [CD/MD/CDR/DOCK] REMOTE MODE button

1817:

Onkyo CD player without (default)

0868:

Onkyo MD recorder without

1323:

Onkyo CD recorder without

2990:

Onkyo RI Dock without

Note:

If you connect an -capable Onkyo MD recorder, CD recorder, or RI Dock component to the TAPE IN/OUT or CBL/SAT jacks, for remote operation to work properly, you must set the Input Display to MD, CDR, or DOCK (see page 41).

Resetting REMOTE MODE Buttons

You can reset a REMOTE MODE button to its default remote control code.

REMOTE MODE

L NIGHT

REMOTE MODE

While holding down the REMOTE MODE button that you want to reset, press the [L NIGHT] button

DVD

for 3 seconds.

M D/CDR

The REMOTE MODE button lights up.

DOCK

VCR

CABLE

SAT

Press the REMOTE MODE button again.

The REMOTE MODE button ﬂashes

DVD

twice, indicating that it’s been reset.

M D/CDR

DOCK

The [DVD] and [CD] REMOTE MODE buttons are preprogrammed

VCR

with remote control codes for control-

CABLE

ling Onkyo DVD players and CD play-

SAT

ers respectively. When these buttons are reset, the preprogrammed code is restored.

Resetting the Remote Controller

You can reset the remote controller to its default settings.

RECEIVER

L NIGHT

RECEIVER

While holding down the [RECEIVER] REMOTE MODE button, press the [L NIGHT] button for 3 seconds.

The [RECEIVER] button lights up.

Press the [RECEIVER] REMOTE MODE button again.

The [RECEIVER] button ﬂashes twice, indicating that it’s been reset.

Controlling Other Components

—Continued

To control another component, point the remote controller at it and use the buttons explained below. (You must select the appropriate remote control mode ﬁrst.) With some AV components, certain buttons may not work as expected, and some may not work at all.

■

Controlling a TV

■

Controlling a VCR

■

Controlling a Satellite or Cable Receiver

STANDBY/ON

D TUN

TOP MENU

REMOTE MODE

RECEIVER

TAPE/AMP

INPUT SELECTOR

123

CBL/SAT

CR/DVR

456

AUX

MULTI CH

DVD

789

C DTAPE TUNER

10 11 12

CLR

ENT

--/---

DIMMER

SLEEP

DISC

VOL

ALBUM

INPUT

GUIDE

SP A / B

ENTER

PLAYLIST/CAT PLAYLIST/CAT

SETUP RETURN

DVD

D/CDR

DOCK

VCR

CABLE

SAT

VOL

MUTING

C D

Press [TV] ﬁrst

2 3

4 5 6

LISTENING MODE

SURROUND

STEREO

RANDOM

SUBTITLE

AUDIO REPEAT

TEST TONE

CH SEL

PLAY MODE

DISPLAY

[STANDBY/ON], TV [ ]*

Sets the TV to On or Standby.

Number buttons

Enter numbers.

TV VOL [ ]/[ ]*

Adjusts the TV’s volume.

[CH +/–]

Selects channels on the TV.

[PREVIOUS]

Selects the previous channel.

[TV INPUT]*

Selects the TV’s VCR input.

[], [ ], [ ], [ ], [ ]

Operates the VCR.

* Buttons marked with an asterisk

(*) are exclusively for controlling a TV and can be used at anytime regardless of the current remote controller mode.

LEVEL

L NIGHT

LEVEL

CINE FLTR

HDDDVDVCR

STANDBY/ON

REMOTE MODE

RECEIVER

TAPE/AMP

INPUT SELECTOR

123

CR/DVR

CBL/SAT

456

AUX

MULTI CH

DVD

789

C DTAPE TUNER

10 11 12

CLR

ENT

D TUN

--/---

DIMMER

SLEEP

DISC

VOL

ALBUM

INPUT

GUIDE

TOP MENU

SP A / B

PLAYLIST/CAT PLAYLIST/CAT

SETUP RETURN

ENTER

DVD

D/CDR

DOCK

VCR

CABLE

VOL

MUTING

C D

SAT

Press [VCR] ﬁrst

LISTENING MODE

SURROUND

STEREO

RANDOM

SUBTITLE

AUDIO REPEAT

TEST TONE

DISPLAY

[STANDBY/ON]

CH SEL

PLAY MODE

LEVEL

L NIGHT

Sets the VCR to On or Standby.

Number buttons

Select channels.

[CLR]

Cancels functions.

[CH +/–]

Selects channels on the VCR.

[], [ ], [ ]

Pause, Play, Stop.

[], []

Rewind and Fast forward.

LEVEL

CINE FLTR

HDDDVDVCR

STANDBY/ON

D TUN

REMOTE MODE

RECEIVER

TAPE/AMP

INPUT SELECTOR

123

CBL/SAT

CR/DVR

456

AUX

DVD

MULTI CH

789

C DTAPE TUNER

10 11 12

CLR

ENT

--/---

DIMMER

SLEEP

DISC

VOL

ALBUM

INPUT

GUIDE

TOP MENU

SP A / B

ENTER

PLAYLIST/CAT PLAYLIST/CAT

SETUP RETURN

DVD

D/CDR

DOCK

VCR

CABLE

MUTING

C D

SAT

VOL

Press [SAT] ﬁrst

3 4

5 6 7 8

LISTENING MODE

SURROUND

STEREO

RANDOM

SUBTITLE

AUDIO REPEAT

TEST TONE

CH SEL

PLAY MODE

DISPLAY

[STANDBY/ON]

Sets the satellite/cable receiver to On or Standby.

Number buttons

Enter numbers.

[CLR]

Cancels functions.

[CH +/–]

Selects satellite/cable channels.

[PREVIOUS]

Selects the previous channel.

[GUIDE]

Displays the program guide.

[ENTER]

Conﬁrms the selection.

[ ]/[ ]/[ ]/[ ]

Selects menu items.

[], [ ], [ ], [ ], [ ]

Operates the VCR.

LEVEL

L NIGHT

LEVEL

CINE FLTR

HDDDVDVCR

Troubleshooting

If you have any trouble using the AV receiver, look for a solution in this section.

If you can’t resolve the issue yourself, try resetting the AV receiver before contacting your Onkyo dealer.

To reset the AV receiver to its factory defaults, turn it on and, while holding down the [VCR/DVR] button, press the [STANDBY/ON] button. “Clear” will appear on the display and the AV receiver will enter Standby mode.

STANDBY/ON

VCR/DVR

Note that resetting the AV receiver will delete your radio presets and custom settings.

Power

Can’t turn on the AV receiver

• Make sure that the power cord is plugged into the wall outlet properly.

• Unplug the power cord from the wall outlet, wait 5 seconds or more, then plug it in again.

The AV receiver turns off as soon as it’s turned on

• The amp protection circuit has been activated. Remove the power cord from the wall outlet immediately. Disconnect all speaker cables and input sources, and leave the AV receiver with its power cord disconnected for 1 hour. After that, reconnect the power cord and set the volume to maximum. If the AV receiver stays on, set the volume to minimum, disconnect the power cord, and reconnect your speakers and input sources. If the AV receiver turns off when you set the volume to maximum, disconnect the power cord, and contact your Onkyo dealer.

Audio

There’s no sound or it’s very quiet

• Make sure that the digital input source is selected properly (page 41). Press the [DIGITAL INPUT] button repeatedly.

• Make sure the speaker set A or B is on (page 5).

• Make sure that all audio connecting plugs are pushed in all the way (page 24).

• Make sure that the polarity of the speaker cables is correct, and that the bare wire is in contact with metal part of each speaker terminal (page 20)

• Make sure that the speaker cables are not shorting.

• Check the volume. It can be set to MIN, 1 through 79, or MAX (page 42). The AV receiver is designed for home theater enjoyment and has a wide volume range for precise adjustment.

• If the MUTING indicator is shown on the display, press the remote controller’s [MUTING] button to unmute the AV receiver (page 46).

• While a pair of headphones is connected, no sound is output by the speakers (page 47).

• Check the digital audio output settings on the connected device. On some games consoles, such as those that can play DVDs, the default setting is off.

•With some DVD-Video discs, you need to select an audio format from a menu.

• If your turntable doesn’t have a phono preamp built-in, you must connect one between it and the AV receiver. If your turntable uses an MC cartridge, you must connect an MC head amp, or an MC transformer and a phono preamp.

• Make sure that the speaker setup microphone is not still connected.

• Specify the speaker distances and adjust the individual speaker levels (pages 58, 59).

• The input signal format is set to PCM or DTS. Set it to Auto (page 61).

• Audio from a DVD player connected via HDMI is not output by the speakers connected to the AV receiver. To listen to this audio through the speakers, in addition to an HDMI connection, you’ll also need to make a separate analog or digital audio connection (page 29).

• If your DVD player is connected via HDMI and your TV produces no sound, check your DVD player’s audio output settings, and be sure to select an audio format that’s supported by your TV.

Only the front speakers produce sound

• When the Stereo or Mono listening mode is selected, only the front speakers and subwoofer produce sound.

• Make sure the speakers are conﬁgured correctly (page 56).

Only the center speaker produces sound

• If you use the Pro Logic IIx Movie, Pro Logic IIx Music, or Pro Logic IIx Game listening mode with a mono source, such as an AM radio station or mono TV program, the sound is concentrated in the center speaker.

• Make sure the speakers are conﬁgured correctly (page 56).

The surround speakers produce no sound

• When the Stereo or Mono listening mode is selected, the surround speakers produce no sound (page 50).

• Depending on the source and current listening mode, not much sound may be produced by the surround speakers. Try selecting another listening mode.

• Make sure the speakers are conﬁgured correctly (page 56).

Troubleshooting

—Continued

The center speaker produces no sound

• When the Stereo or Mono listening mode is selected, the center speaker produces no sound (page 50).

• Make sure the speakers are conﬁgured correctly (page 56).

The surround back speakers produce no sound

• While speaker set B is on, speaker set A is reduced to

5.1-channel playback and the surround back speakers produce no sound.

• The surround back speakers are not used with all listening modes. Select another listening mode (page 50).

• Not much sound may be produced by the surround back speakers with some sources.

• Make sure the speakers are conﬁgured correctly (page 56).

The subwoofer produces no sound

• The subwoofer outputs no sound while only speaker set B is on. Turn on speaker set A.

• When you play source material that contains no information in the LFE channel, the subwoofer produces no sound.

• Make sure the speakers are conﬁgured correctly (page 56).

Speaker set B produces no sound

• Speaker set B only outputs sources that are connected to an analog input. Make sure that the analog audio cables are connected properly.

There’s no sound with a certain signal format

• Check the digital audio output setting on the connected device. On some games consoles, such as those that can play DVDs, the default setting is off.

•With some DVD-Video discs, you need to select an audio output format from a menu.

Can’t get 6.1- or 7.1-channel playback

• While speaker set B is on, speaker set A is reduced to

5.1-channel playback.

The volume cannot be set to 79

• When the volume level of each speaker has been adjusted (pages 47, 59), the maximum possible volume may be reduced.

Noise can be heard

• Using cable ties to bundle audio cables with power cords, speaker cables, and so on may degrade the audio performance, so don’t do it.

• An audio cable may be picking up interference. Try repositioning your cables.

The Late Night function doesn’t work

• Make sure the source material is Dolby Digital (page 52).

The multichannel DVD input doesn’t work

• Check the multichannel DVD input connections (page 28).

•To select the multichannel DVD input, press the [MULTI CH] input selector button.

• Check the audio output settings on your DVD player.

About DTS signals

• When playing DTS program material, using the pause, fast forward, or fast reverse function on your player may produce a short audible noise. This is not a malfunction.

• When DTS program material ends and the DTS bitstream stops, the AV receiver remains in DTS listening mode and the DTS indicator remains on. This is to prevent noise when you use the pause, fast forward, or fast reverse function on your player. If you switch your player from DTS to PCM, because the AV receiver does not switch formats immediately, you may not hear any sound, in which case you should stop your player for about 3 seconds, and then resume playback.

•With some CD players, you won’t be able to playback DTS material properly even though your player is connected to a digital input on the AV receiver. This is usually because the DTS bitstream has been processed (e.g., output level, sampling rate, or frequency response changed) and the AV receiver doesn’t recognize it as a genuine DTS signal. In such cases, you may hear noise.

Video

There’s no picture

• Make sure that all video connecting plugs are pushed in all the way (page 24).

• Make sure that each video component is properly connected.

• The AV receiver does not convert between formats, so if a video source component is connected to a component video input, your TV must be connected to the component video output (page 25).

• If a video component is connected to an HDMI input, your TV must be connected to the HDMI OUT (page 29).

• On your TV, make sure that the video input to which the AV receiver is connected is selected.

• While the Pure Audio listening mode (not North American model) is selected, the video circuits are turned off and the AV receiver outputs no video signals.

• Reliable operation with an HDMI-to-DVI adapter is not guaranteed. In addition, video signals from a PC are not supported (page 29).

Troubleshooting

—Continued

Tuner

Reception is noisy, stereo FM reception suffers from hiss, or the FM STEREO indicator doesn’t appear

• Relocate your antenna.

•Move the AV receiver away from your TV or computer.

• Listen to the station in mono (page 44).

• When listening to an AM station, operating the remote controller may cause noise.

•Passing cars and airplanes can cause interference.

• Concrete walls weaken radio signals.

• If nothing improves the reception, install an outdoor antenna.

Remote Controller

The remote controller doesn’t work

• Make sure that the batteries are installed with the correct polarity (page 13).

• Make sure that the remote controller is not too far away from the AV receiver, and that there’s no obstruction between the remote controller and the AV receiver’s remote control sensor (page 13).

• Make sure you’ve selected the correct remote controller mode (page 14).

• Make sure you’ve entered the correct remote control code (page 62).

Can’t control other components

• Make sure you’ve selected the correct remote controller mode (page 14).

• If you’ve connected an -capable Onkyo MD recorder, CD recorder, or RI Dock to the TAPE IN/OUT jacks or CBL/SAT jacks, for the remote controller to work properly, you must set the Input Display to MD, CDR, or DOCK (page 41).

• The entered remote control code may not be correct. If more than one code is listed, try each one.

•With some AV components, certain buttons may not work as expected, and some may not work at all.

•To control an Onkyo component that’s connected via

, point the remote controller at the AV receiver. Be sure to enter the appropriate remote control code ﬁrst (page 62).

•To control an Onkyo component that’s not connected via , or another manufacturer’s component, point the remote controller at the component. Be sure to enter the appropriate remote control code ﬁrst (page 62).

Recording

Can’t record

• On your recorder, make sure the correct input is selected.

•To prevent signal loops and damage to the AV receiver, input signals are not fed through to outputs with the same name (e.g., TAPE IN to TAPE OUT, or VCR/DVR IN to VCR/DVR OUT).

• When the Pure Audio listening mode is selected, recording is not possible because no video signals are output. Select another listening mode.

Others

The sound changes when I connect my headphones

• When a pair of headphones is connected, the listening mode is set to Stereo, unless it’s already set to Stereo, Mono, Direct, or Pure Audio (not North American model).

The display doesn’t work

• The display is turned off when the Pure Audio (not North American model) listening mode is selected.

How do I change the language of a multiplex source

• Use the “Multiplex” setting on the “Audio Adjust” menu to select Main or Sub (page 53).

The functions don’t work

•To use , you must make an connection and an analog audio connection (RCA) between the component and AV receiver, even if they are connected digitally (page 35).

During automatic speaker setup, measurement fails and the message “Noise Error!” appears

• This can be caused by a speaker malfunction. Make sure all of your speakers are working properly.

Troubleshooting

The AV receiver contains a microcomputer for signal processing and control functions. In very rare situations, severe interference, noise from an external source, or static electricity may cause it to lockup. In the unlikely event that this happens, unplug the power cord from the wall outlet, wait at least ﬁve seconds, and then plug it back in again.

Onkyo is not responsible for damages (such as CD rental fees) due to unsuccessful recordings caused by the unit’s malfunction. Before you record important data, make sure that the material will be recorded correctly.

Before disconnecting the power cord from the wall outlet, set the AV receiver to Standby.

Memory Backup

The AV receiver uses a battery-less memory backup system in order to retain radio presets and other settings when it’s unplugged or in the case of a power failure. Although no batteries are required, the AV receiver must be plugged into an AC outlet in order to charge the backup system. Once it has been charged, the AV receiver will retain the settings for several weeks, although this depends on the environment and will be shorter in humid climates.

—Continued

Speciﬁcations

Ampliﬁer Section

Rated Output Power (FTC)

All channels: 110 watts minimum continuous power

Rated Output Power (IEC)

Maximum Output Power (JEITA)

Dynamic Power 210 W (3

THD (Total Harmonic Distortion) 0.08% (Power Rated) Damping Factor 60 (Front, 1kHz, 8 Input Sensitivity and Impedance 200 mV/ 47 k Output Level and Impedance 200 mV/ 470 Frequency Response 5 Hz–100 kHz/ +1 dB–3 dB

Tone Control ±10 dB, 50 Hz (BASS)

Signal to Noise Ratio 100 dB (LINE, IHF-A) Speaker Impedance 8

per channel, 8 ohm loads, 2 channels driven at 1 kHz, with a maximum total harmonic distortion of 0.9%

7 ch

130 W at 8 ohms, 1 kHz, 1 ch

driven

7 ch

160 W at 8 ohms, 1 kHz, 1 ch

driven

Ω

–16

, 1 ch driven)

Ω

, 1 ch driven)

Ω

, 1 ch driven)

Ω

)

Ω

(LINE)

Ω

(REC OUT)

190 W (4 130 W (8

(Direct mode)

±10 dB, 20 kHz (TREBLE)

Ω

Video Section

Input Sensitivity/Output Level and Impedance 1 Vp-p /75

0.7 Vp-p /75

0.28 Vp-p /75

1 Vp-p /75 Component Video Frequency Response 5 Hz – 50 MHz

Ω

(Component and S-Video Y)

Ω

(Component PB/CB, PR/CR)

Ω

(S-Video C)

Ω

(Composite)

Tuner Section

FM Tuning Frequency Range North American: 87.5 MHz– 107.9 MHz

AM Tuning Frequency Range North American: 530 kHz–1710 kHz

Radio Presets 40

Other: 87.5 MHz– 108.0 MHz

Others: 522/530 kHz–1611/1710 kHz

General

Power Supply North American: AC 120 V, 60 Hz

Power Consumption North American: 5.9 A

Standby Power Consumption North American: 0.1 W

Dimensions (W

H × D)

Weight 10.2 kg

■

Video Inputs

HDMI IN1, IN2 Component DVD, VCR/DVR, CBL/SAT S-Video DVD, VCR/DVR, CBL/SAT Composite DVD, VCR/DVR, CBL/SAT, AUX

■

Video Outputs

HDMI OUT Component OUT S-Video MONITOR, VCR/DVR Composite MONITOR, VCR/DVR

■

Audio Inputs

Digital Inputs Optical: 2

Analog Inputs DVD (MULTICHANNEL), VCR/DVR,

Multichannel Inputs 7.1

■

Audio Outputs

Analog Outputs TAPE, VCR/DVR Subwoofer Pre Outputs 1 Speaker Outputs SP A (L, R, C, SL, SR, SBL, SBR)

Phones 1

Speciﬁcations and features are subject to change without notice.

Others: AC 230 V, 50 Hz

Others: 670 W

Others: 0.5 W

150 × 377 mm

435

17-1/8" × 5-7/8" × 14-13/16"

22.5 lbs.

Coaxial: 2

CBL/SAT, AUX, TAPE, CD

SP B (L, R)

Speciﬁcations

—Continued

7.1ch Home Theater Speaker Package

■

Powered Subwoofer (SKW-550)

Type: Bass-reﬂex Input sensitivity/ impedance: 140 mV / 20 k Maximum output power:230 W (Dynamic Power) Frequency response: 25 Hz–150 Hz Cabinet capacity: 1.34 cubic feet (38 L) Dimensions (W

H × D): 10-7/8" × 20-1/16" × 16-7/16"

Weight: 25.1 lbs. (11.4 kg) Drivers unit: 10" (25 cm) Cone Woofer Power supply: North American: AC 120 V, 60 Hz

Power consumption: North American: 140 W

Other: Auto Standby function

■

Front Speaker (SKF-550F)

Type: 2 Way Bass-reﬂex Impedance: 8 Maximum input power: 130 W Output sound pressure level: 87.5 dB/W/m Frequency response: 60 Hz–50 kHz Crossover frequency: 4.5 kHz Cabinet capacity: 0.28 cubic feet (8 L) Dimensions (W

H × D): 6-3/16" × 17-1/16" × 7-5/8"

Weight: 8.58 lbs. (3.9 kg) Drivers unit:

Terminal: Spring type color coded Wall bracket: 1 Grille: Detachable Other: Magnetic shielding

(276

Others: AC 230-240 V, 50 Hz

Others: 137 W

Ω

(157

5" (12 cm) OMF Cone (Woofer) 1" (2.5 cm) Balanced Dome (Tweeter)

Ω

510 × 417 mm)

433 × 194 mm)

■

Center Speaker (SKC-550C)

H × D): 17-1/16" × 6-3/16" × 7-5/8"

Weight: 8.58 lbs. (3.9 kg) Drivers unit: 5" (12 cm) OMF Cone (Woofer)

Terminal: Spring type color coded Wall bracket: 2 Grille: Detachable Other: Magnetic shielding

■

Surround Speaker (SKM-550S/SKB-550)

Type: Full-range closed box Impedance: 8 Maximum input power: 130 W

Output sound pressure level:

Frequency response: 160 Hz–20 kHz Cabinet capacity: 0.057 cubic feet (1.6 L) Dimensions (W

H × D): 6-1/8" × 10-1/2" × 3-7/8"

Weight: 2.86 lbs. (1.3 kg) Drivers unit: 3-1/4" (8 cm) Cone Terminal: Spring type color coded Wall bracket: 1 Grille: Fixed

Ω

157 × 194 mm)

(433

1" (2.5 cm) Balanced Dome (Tweeter)

Ω

82 dB/W/m

266 × 98 mm)

(155

Speciﬁcations and appearance are subject to change without prior notice.

Memo

Sales & Product Planning Div. : 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN Tel: 072-831-8023 Fax: 072-831-8124

ONKYO U.S.A. CORPORATION

18 Park Way, Upper Saddle River, N.J. 07458, U.S.A. Tel: 201-785-2600 Fax: 201-785-2650 http://www.us.onkyo.com/

ONKYO EUROPE ELECTRONICS GmbH

Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY Tel: +49-8142-4401-0 Fax: +49-8142-4401-555 http://www.eu.onkyo.com/

ONKYO EUROPE UK Office

Suite 1, Gregories Court, Gregories Road, Beaconsfield, Buckinghamshire, HP9 1HQ UNITED KINGDOM Tel: +44-(0)1494-681515 Fax: +44(0)-1494-680452

ONKYO CHINA LIMITED

Unit 1&12, 9/F, Ever Gain PlazaTower 1, 88, Container Port Road, Kwai Chung, N.T., HONG KONG Tel: 852-2429-3118 Fax: 852-2428-9039 http://www.ch.onkyo.com/

SN 29344416

HOMEPAGE

http://www.onkyo.com/

I0702-1

* 2 9 3 4 4 4 1 6 *

Onkyo SKM-550S, SKF-550F, SKC-550C, HT-R550, SKB-550 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Important Safety Instructions

Precautions

Speaker Precautions

Enjoying Home Theater

Package Contents

Features

Contents

Getting to Know the AV Receiver

Front Panel

Display

Rear Panel

Remote Controller

Installing the Batteries

Aiming the Remote Controller

Using the Remote Controller

RECEIVER/TAPE Mode

DVD Mode

CD/MD/CDR/DOCK Mode

Speakers

Subwoofer (SKW-550)

Connecting Your Speakers

Enjoying Home Theater

Speaker Connection Precautions

Connecting Speaker Set A

Using the Speaker Terminal Tool

Connecting Speaker Set B (sold separately)

Wall Mounting

Connecting Antennas

Connecting the Indoor FM Antenna

Connecting the AM Loop Antenna

Connecting an Outdoor FM Antenna

Connecting an Outdoor AM Antenna

Connecting Your Components

About AV Connections

Connecting Audio and Video Signals to the AV Receiver

Which Connections Should I Use?

Connecting a TV or Projector

Connecting a DVD player

Connecting Components with HDMI

Connecting a VCR or DVD Recorder for Playback

Connecting a VCR or DVD Recorder for Recording

Connecting a Camcorder, Games Console, or Other Device

Connecting a Satellite, Cable, Set-top box, or Other Video Source

Connecting a CD Player or Turntable

Connecting an RI Dock

Connecting a Cassette, CDR, MiniDisc, or DAT Recorder

Connecting Onkyo Components

Connecting the Power Cord

Turning On the AV Receiver

Turning On and Standby

First Time Setup

HDMI Video Setup

Digital Audio Input Setup

Changing the Input Display

Playing Your AV Components

Basic AV Receiver Operation

Using the Multichannel DVD Input

Displaying Source Information

Listening to the Radio

Listening to AM/FM Stations

Presetting AM/FM Stations

Common Functions

Adjusting the Bass and Treble

Setting the Display Brightness

Muting the AV Receiver

Using the Sleep Timer

Adjusting Speaker Levels

Using Headphones

Using the Listening Modes

Selecting Listening Modes

About the Listening Modes

Using the CinemaFILTER

Using the Audio Adjust Settings

Recording

Recording the Input Source

Recording Audio and Video from Separate Sources
