AV Receiver

TX-NR3007

Contents

Introduction ................................... 2

Connection ..................................18

TX-NR5007

Instruction Manual

Thank you for purchasing an Onkyo AV Receiver. Please read this manual thoroughly before making connections and plugging in the unit. Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new AV Receiver. Please retain this manual for future reference.

Turning On & First Time Setup

Basic Operations.........................67

Using the Listening Modes ........81

Advanced Setup ..........................92

NET/USB...................................120

Multi Zone ................................130

Controlling Other Components

.....48

....139

Others......................................... 154

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Important Safety Instructions

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to

persons. The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

AVIS

RISQUE DE CHOC ELECTRIQUE

NE PAS

OUVRIR

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart,

PORTABLE CART WARNIN

stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus

S3125A

combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Damage Requiring Service Unplug the apparatus from the wall outlet and refer

servicing to qualified service personnel under the following conditions: A. When the power-supply cord or plug is dam-

aged,

B. If liquid has been spilled, or objects have fallen

into the apparatus,

C. If the apparatus has been exposed to rain or

water,

D. If the apparatus does not operate normally by

following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the apparatus to its normal operation,

E. If the apparatus has been dropped or damaged in

any way, and

F. When the apparatus exhibits a distinct change in

performance this indicates a need for service.

16. Object and Liquid Entry Never push objects of any kind into the apparatus

through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases shall be placed on the apparatus. Don’t put candles or other burning objects on top of this unit.

17. Batteries Always consider the environmental issues and fol-

low local regulations when disposing of batteries.

18. If you install the apparatus in a built-in installation, such as a bookcase or rack, ensure that there is adequate ventilation. Leave 20 cm (8") of free space at the top and sides

and 10 cm (4") at the rear. The rear edge of the shelf or board above the apparatus shall be set 10 cm (4") away from the rear panel or wall, creating a fluelike gap for warm air to escape.

Precautions

1. Recording Copyright—Unless it’s for personal use only, recording copyrighted material is illegal without the permission of the copyright holder.

2. AC Fuse—The AC fuse inside the unit is not userserviceable. If you cannot turn on the unit, contact your Onkyo dealer.

3. Care—Occasionally you should dust the unit all over with a soft cloth. For stubborn stains, use a soft cloth dampened with a weak solution of mild detergent and water. Dry the unit immediately afterwards with a clean cloth. Don’t use abrasive cloths, thinners, alcohol, or other chemical solvents, because they may damage the finish or remove the panel lettering.

4. Power WARNING

BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY. AC outlet voltages vary from country to country. Make sure that the voltage in your area meets the voltage requirements printed on the unit’s rear panel (e.g., AC 230 V, 50 Hz or AC 120 V, 60 Hz).

The power cord plug is used to disconnect this unit from the AC power source. Make sure that the plug is readily operable (easily accessible) at all times.

Pressing the [ON/STANDBY] button to select Standby mode does not fully shutdown the unit. If you do not intend to use the unit for an extended period, remove the power cord from the AC outlet.

5. Preventing Hearing Loss Caution

Excessive sound pressure from earphones and headphones can cause hearing loss.

6. Batteries and Heat Exposure War nin g

Batteries (battery pack or batteries installed) shall not be exposed to excessive heat as sunshine, fire or the like.

7. Never Touch this Unit with Wet Hands—Never handle this unit or its power cord while your hands are wet or damp. If water or any other liquid gets inside this unit, have it checked by your Onkyo dealer.

8. Handling Notes

• If you need to transport this unit, use the original

packaging to pack it how it was when you originally bought it.

• Do not leave rubber or plastic items on this unit

for a long time, because they may leave marks on the case.

• This unit’s top and rear panels may get warm

after prolonged use. This is normal.

• If you do not use this unit for a long time, it may

not work properly the next time you turn it on, so be sure to use it occasionally.

For U.S. models

FCC Information for User

CAUTION:

The user changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

For Canadian Models

NOTE: THIS CLASS B DIGITAL APPARATUS

COMPLIES WITH CANADIAN ICES-003. For models having a power cord with a polarized plug:

CAUTION: TO PREVENT ELECTRIC SHOCK,

MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

Modèle pour les Canadien

REMARQUE: CET APPAREIL NUMÉRIQUE DE

LA CLASSE B EST CONFORME À LA NORME NMB-003 DU CANADA.

Sur les modèles dont la fiche est polarisée:

AT TE NT IO N : POUR ÉVITER LES CHOCS ÉLEC-

TRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

Precautions—Continued

Supplied Accessories

For British models

Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel.

IMPORTANT

The wires in the mains lead are coloured in accordance with the following code:

Blue: Neutral Brown: Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

IMPORTANT

The plug is fitted with an appropriate fuse. If the fuse needs to be replaced, the replacement fuse must approved by ASTA or BSI to BS1362 and have the same ampere rating as that indicated on the plug. Check for the ASTA mark or the BSI mark on the body of the fuse.

If the power cord’s plug is not suitable for your socket outlets, cut it off and fit a suitable plug. Fit a suitable fuse in the plug.

For European Models

Declaration of Conformity

We,

ONKYO EUROPE ELECTRONICS GmbH LIEGNITZERSTRASSE 6, 82194 GROEBENZELL, GERMANY

declare in own responsibility, that the ONKYO product described in this instruction manual is in compliance with the corresponding technical standards such as EN60065, EN55013, EN55020 and EN61000-3-2, -3-3.

GROEBENZELL, GERMANY

K. MIYAGI

ONKYO EUROPE ELECTRONICS GmbH

Make sure you have the following accessories:

Remote controller & two batteries (AA/R6)

(Note for China: The battery for the remote controller is not supplied for this unit.)

Speaker setup microphone

Indoor FM antenna

AM loop antenna

Power cord

(Plug type varies from country to country.)

LEFT

RIGHT

FRONT

SURROUND

FRONT

LEFT

SURROUND

LEFT

FRONT

RIGHT

FRONT

LEFT

SURROUND

LEFT

FRONT

RIGHT

Speaker Cable

LEFT

RIGHT

CENTER

SURROUND

RIGHT

CENTER

SURROUND

RIGHT

LEFT

FRONT HIGH

LEFT

RIGHT

CENTER

SP-B/ZONE2

SURROUND BACK

SP-B/ZONE2

RIGHT

SURROUND BACK

RIGHT

SURROUND BACK

LEFT

SP-B/ZONE2

RIGHT

SP-B/ZONE2

LEFT

SURROUND BACK

RIGHT

CENTER

SURROUND BACK

LEFT

SP-B/ZONE2

LEFT

RIGHT

FRONT HIGH

FRONT WIDE

FRONT HIGH

RIGHT

FRONT WIDE

LEFT

FRONT WIDE

LEFT

FRONT WIDE

RIGHT

FRONT WIDE

RIGHT

FRONT HIGH

RIGHT

FRONT HIGH

LEFT

Speaker cable labels

Power-plug adapter

Only supplied in certain countries. Use this adapter if your AC outlet does not match with the plug on the AV receiver’s power cord (adapter varies from country to country).

*How to mount the AC plug:

* In catalogs and on packaging, the letter at the end of the product

name indicates the color. Specifications and operations are the same regardless of color.

Contents

Introduction

Important Safety Instructions ............................................ 2

Precautions....................................................................... 3

Supplied Accessories ....................................................... 4

Features............................................................................ 6

Front & Rear Panels ......................................................... 8

Front Panel ................................................................... 8

Display ........................................................................ 10

Rear Panel .................................................................. 11

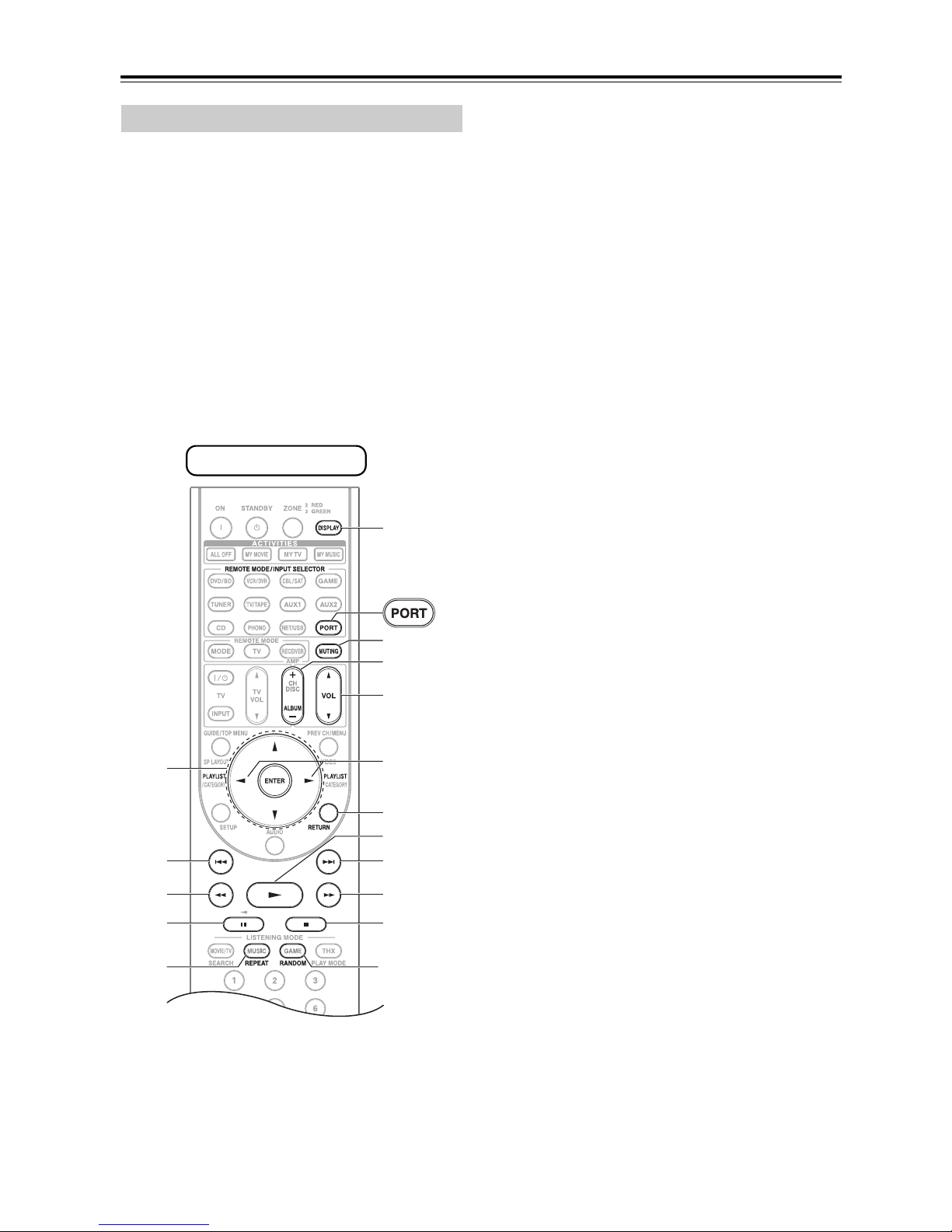

Remote Controller........................................................... 14

Installing the Batteries................................................. 14

Aiming the Remote Controller..................................... 14

Controlling the AV Receiver........................................ 15

About Home Theater ...................................................... 17

Enjoying Home Theater ..............................................17

Connection

Connecting the AV receiver ............................................ 18

Connecting Your Speakers ......................................... 18

Bi-amping the Front Speakers A................................. 23

Bridging the Front Speakers A.................................... 24

Bi-amping the Front Speakers B................................. 25

Bridging the Front Speakers B.................................... 26

Connecting Antenna ................................................... 27

About AV Connections................................................ 29

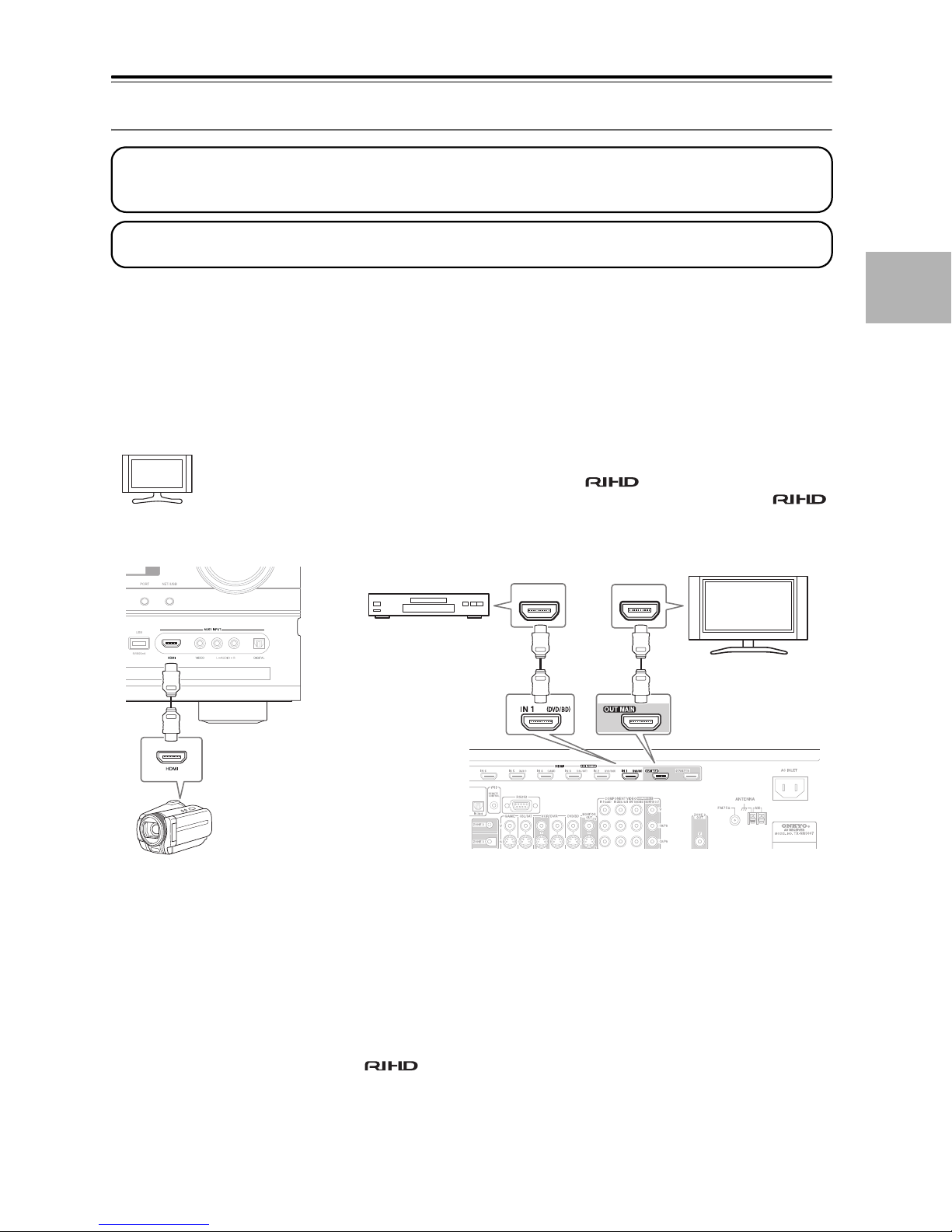

Connecting Components with HDMI ........................... 30

Connecting Both Audio & Video.................................. 32

Which Connections Should I Use? ............................. 32

Connecting a TV or Projector...................................... 35

Connecting a DVD Player ........................................... 36

Connecting a VCR or DVD Recorder for Playback ..... 38

Connecting a VCR or DVD Recorder for Recording ...39 Connecting a Satellite, Cable, Terrestrial Set-top box,

or Other Video Source.............................................. 40

Connecting a Game Console...................................... 41

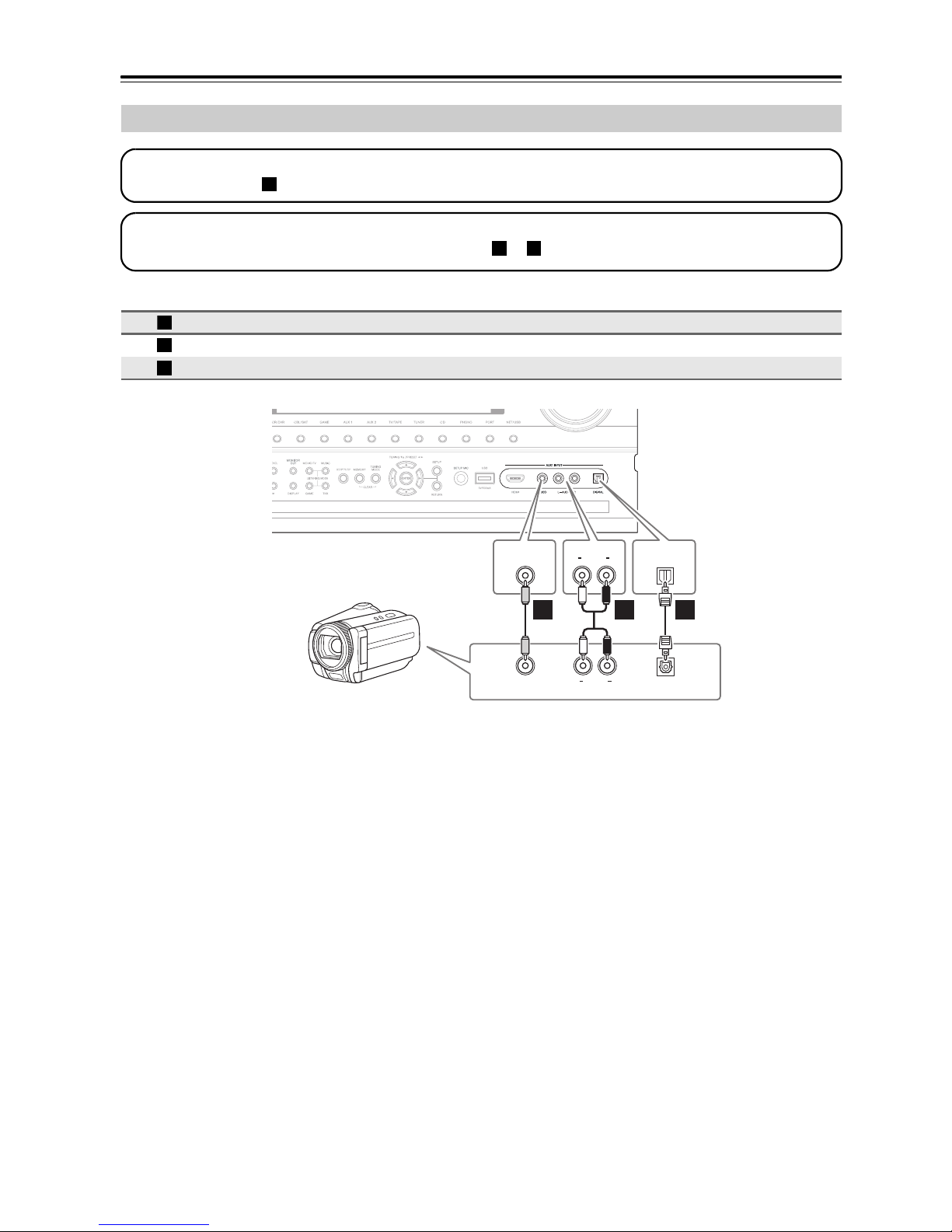

Connecting a Camcorder or Other Device .................. 42

Connecting a CD Player or Turntable ......................... 43

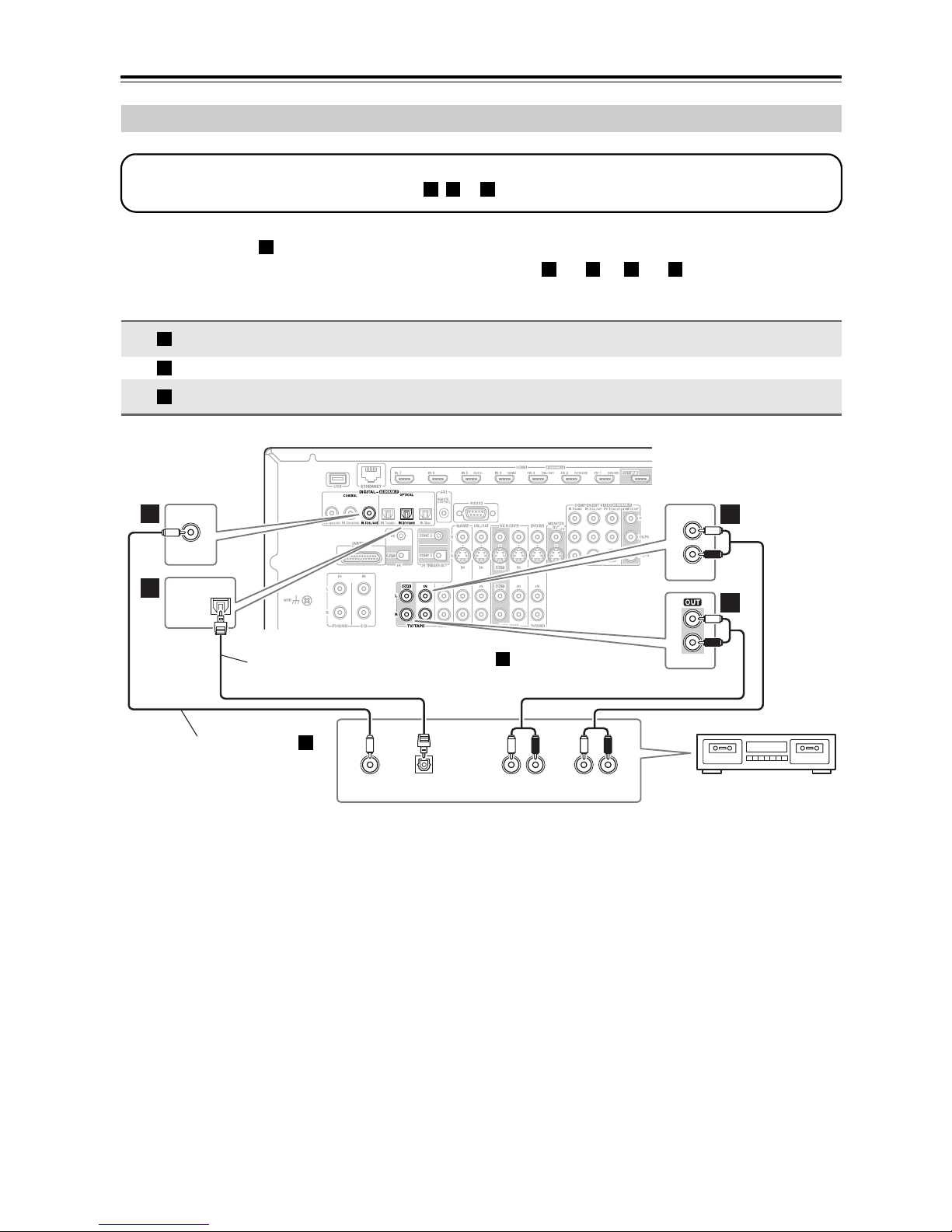

Connecting a Cassette, CDR, MiniDisc, or DAT Recorder

Connecting a Power Amplifier..................................... 45

Connecting an RI Dock ............................................... 46

Connecting a Universal Port Option Series ................ 46

Connecting Onkyo u Components........................... 47

Connecting the Power Cord........................................ 47

Turning On & First Time Setup

Turning On the AV receiver ............................................ 48

Turning On and Standby............................................. 48

First Time Setup ............................................................. 49

Monitor Setup.............................................................. 49

Selecting the Language used for the onscreen setup menus

Using the Onscreen Setup Menus .............................. 51

Using the Display to change the settings.................... 51

Monitor Out Setup....................................................... 52

Video Input Setup ....................................................... 54

Digital Audio Input Setup ............................................ 56

Analog Audio Input Setup ........................................... 57

Speaker Settings......................................................... 57

TV Format Setup (European and Asian models) ........ 59

FM/AM Frequency Step Setup.................................... 59

Changing the Input Display......................................... 60

Audyssey MultEQ

Speaker Setup.......................................................... 61

XT Room Correction and

Basic Operations

Basic Operations ............................................................ 67

Selecting the Input Source.......................................... 67

Adjusting the Bass & Treble........................................ 68

Displaying Source Information .................................... 68

Setting the Display Brightness .................................... 69

Muting the AV Receiver ..............................................69

Using the Sleep Timer ................................................ 69

Selecting Speaker Layout ........................................... 70

Using Headphones ..................................................... 70

Using Easy Macros ..................................................... 71

Listening to the Radio ..................................................... 73

Using the Tuner .......................................................... 73

Presetting AM/FM Stations .........................................74

Using RDS (European models)................................... 75

..44

..... 50

Universal Port Option UP-A1 Dock for iPod ................... 77

About the UP-A1 Dock ............................................... 77

Compatible iPod models............................................. 77

Function Overview...................................................... 77

Controlling iPod .......................................................... 78

Recording ....................................................................... 80

Using the Listening Modes

Using the Listening Modes ............................................. 81

Selecting Listening Modes.......................................... 81

Listening Modes Available for Each Source Format

About the Listening Modes ......................................... 89

.... 82

Advanced Setup

Advanced Setup ............................................................. 92

Onscreen Setup Menus .............................................. 92

Input/Output Assign .................................................... 93

Speaker Setup ............................................................ 95

Audio Adjust ............................................................. 100

Source Setup............................................................ 104

Assigning Listening Modes to Input Sources............ 109

Miscellaneous (Volume/OSD) Setup ........................ 110

Hardware Setup........................................................ 111

Lock Setup................................................................ 116

Digital Input Signal Formats ..................................... 116

Using the Audio Settings .......................................... 117

NET/USB

NET/USB ...................................................................... 120

About NET ................................................................ 120

Connecting the AV Receiver .................................... 120

Listening to Internet Radio........................................ 121

Playing Music Files on a Server ............................... 122

Network Settings ...................................................... 126

About USB................................................................ 127

Playing Music Files on a USB Device ...................... 128

Multi Zone

Multi Zone..................................................................... 130

Multiroom Capability ................................................. 130

Connecting Zone 2 ................................................... 131

Connecting Zone 3 ................................................... 133

Setting the Powered Zone 2/3 .................................. 134

Setting the Multi Zone............................................... 135

Using Zone 2/3 ......................................................... 136

Using the Remote Controller in Zone 2/3 and

Multiroom Control Kits............................................ 138

Controlling Other Components

Controlling Other Components ..................................... 139

Preprogrammed Remote Control Codes .................. 139

Looking up for Remote Control Code ....................... 139

Entering Remote Control Codes............................... 141

Remote Control Codes for Onkyo Components

Connected via u .................................................. 142

Resetting REMOTE MODE Buttons ......................... 142

Resetting the Remote Controller .............................. 142

Controlling a TV........................................................ 143

Controlling a DVD Player or DVD Recorder ............. 144

Controlling a VCR or PVR ........................................ 145

Controlling a Satellite Receiver or Cable Receiver ... 146 Controlling a CD Player, CD Recorder or

MD Recorder.......................................................... 147

Controlling an RI Dock.............................................. 148

Controlling a Cassette Recorder .............................. 149

Activities Setup ......................................................... 150

Learning Commands ................................................ 152

Using Normal Macros ............................................... 153

Others

Troubleshooting............................................................ 154

Specifications (TX-NR3007) ......................................... 160

Specifications (TX-NR5007) ......................................... 161

Video Resolution Chart................................................. 162

To reset the AV receiver to its factory defaults, turn it on and, while holding down the [VCR/DVR] button, press the [ON/STANDBY] button (see page 154).

Features

Amplifier

(TX-NR3007)

• 140 Watts/Channel @ 8 ohms (FTC)

• 200 Watts/Channel @ 6 ohms (IEC)

• 250 Watts/Channel @ 6 ohms (JEITA) (TX-NR5007)

• 145 Watts/Channel @ 8 ohms (FTC)

• 220 Watts/Channel @ 6 ohms (IEC)

• 280 Watts/Channel @ 6 ohms (JEITA)

• WRAT–Wide Range Amplifier Technology (5 Hz-100 kHz bandwidth)

• Linear Optimum Gain Volume Circuitry

• 3-Step Inverted Darlington Circuitry

• H.C.P.S. (High Current Power Supply) Massive High Power Transformer

• Toroidal transformer (TX-NR5007)

Processing

• THX Ultra2 Plus*1 Certified

• HQV-Reon-VX Video Processing with 1080p Video Upscaling of All Video Sources via HDMI

• HDMI ver.1.3a with (Deep Color, x.v.Color, Lip Sync,

DTS

-HD Master Audio, Dolby TrueHD*3, DSD and

Multi-CH PCM)

• Dolby Pro Logic IIz

– New Surround Format (front-

high)

• Audyssey Dynamic Surround Expansion™

for New

Surround Channels (front-wide/front-high)

• DTS Surround Sensation Speaker/Headphone Tech-

nology

• 4 DSP Modes for Gaming; Rock/Sports/Action/RPG

• Non-Scaling Configuration

• Direct Mode and Pure Audio Mode

• Music Optimizer

for Digital Music Files

• A-Form Listening Mode Memory

• Latest Burr-Brown 192 kHz/32-Bit DACs Improve Jitter Performance for Cleaner Sound (TX-NR5007)

• Burr-Brown 192 kHz/24-Bit DACs Improve Jitter Performance for Cleaner Sound (TX-NR3007)

• Three TI (Aureus) 32-bit Processing DSP

• Neural Surround Decoding

*10

•DSD Direct

Connections

• 7 HDMI*5 Inputs and 2 Outputs (TX-NR3007)

• 8 HDMI

• Onkyo for System Control

• 6 Digital Inputs (3 Optical/ 3 Coaxial) (TX-NR3007)

• 7 Digital Inputs (4 Optical/3 Coaxial) (TX-NR5007)

• Universal Port for UP-A1 (Dock for the iPod)/HD Radio™ DAB+ tuner module (European models)

• 2 Independent Subwoofer Pre Outs

Inputs and 2 Outputs (TX-NR5007)

tuner module (North American models)/

• SIRIUS*8 Satellite Radio Connectivity (North American models)

• Banana Plug-Compatible Speaker Posts

• Powered Zone 2/3

• Internet Radio* Connectivity (SIRIUS Internet

Radio

/vTuner/Last.fm/Pandora/Rhapsody)

* Services available may vary depending on the

region.

• Network Capability for Streaming Audio Files

• Bi-Amping and BTL Capability

• USB Port for a USB Mass Storage Device (Audio Only)

Miscellaneous

• 40 SIRIUS*8/AM/FM Presets (North American models)

• 40 AM/FM Presets (European and Asian models)

•Dolby Volume

• Audyssey MultEQ®XT*9 to Correct Room Acoustic Problems

• Audyssey Dynamic EQ™

• Audyssey Dynamic Volume™

• Crossover Adjustment (40/50/60/70/80/90/100/120/150/200 Hz)

• A/V Sync Control Function (up to 250 ms)

• Bi-Directional Preprogrammed (with onscreen display setup) RI-Compatible Learning Remote with 4 Activities and Mode-Key LEDs

• ISF (Imaging Science Foundation) Video Calibration

*1.

*2.

Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195; 7,272,567 & other U.S. and worldwide patents issued & pending. DTS is a registered trademark & the DTS logos, Symbol, DTS-HD Master Audio and DTS Surround Sensation are trademarks of DTS, Inc. ©1996-2008 DTS, Inc. All Rights Reserved.

*3.

Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, “Surround EX” and the double-D symbol are trademarks of Dolby Laboratories.

*4. Music Optimizer™ is a trademark of Onkyo Corporation.

*5.

HDMI, the HDMI logo and High Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.

for Loudness Correction

Features—Continued

*6.

HD Radio™ and the HD Radio Ready logo are proprietary trademarks of iBiquity Digital Corporation. To receive HD Radio broadcasts, you must install an Onkyo UP-HT1 HD Radio tuner module (sold separately).

*7. In Europe, using banana plugs to connect speakers to an audio

amplifier is prohibited.

*8.

SIRIUS, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. and its subsidiaries. All other marks and logos are the property of their respective owners. All rights reserved. SIRIUS and XM subscriptions sold separately. Taxes and a one-time activation fee may apply. XM tuners and home docks or SIRIUS tuners (each sold separately) are required to receive the SIRIUS or XM satellite radio service. All programming and fees subject to change. It is prohibited to copy, decompile, disassemble, reverse engineer, hack, manipulate or otherwise make available any technology or software incorporated in receivers compatible with the SIRIUS or XM Satellite Radio Systems. Service not available in Alaska and Hawaii.

*9.

Manufactured under license from Audyssey Laboratories. U.S. and foreign patents pending. Audyssey MultEQ®XT,

Audyssey Dynamic Surround Expansion™, Audyssey Dynamic Volume™ and Audyssey Dynamic EQ™ are trademarks of Audyssey Laboratories.

*10.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited consumer uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

THX Ultra2 Plus

Before any home theater component can be THX Ultra2 Plus certified, it must pass a rigorous series of quality and performance tests. Only then can a product feature the THX Ultra2 Plus logo, which is your guarantee that the Home Theater products you purchase will give you superb performance for many years to come. THX Ultra2 Plus requirements define hundreds of parameters, including power amplifier performance, and pre-amplifier performance and operation for both digital and analog domains. THX Ultra2 Plus receivers also feature proprietary THX technologies (e.g., THX Mode) which accurately translate movie soundtracks for home theater playback.

* “Xantech” is a registered trademark of Xantech Corporation. * “Niles” is a registered trademark of Niles Audio Corporation. * Apple and iPod are trademarks of Apple Inc., registered in the

U.S. and other countries.

* “x.v.Color” is a trademark of Sony Corporation. * Rhapsody and the Rhapsody logo are registered trademarks of

RealNetworks, Inc.

* “DLNA®, the DLNA Logo and DLNA CERTIFIED™ are

trademarks, service marks, or certification marks of the Digital Living Network Alliance.”

* Re-Equalization and the “Re-EQ” logo are trademarks of THX

Ltd.

Front & Rear Panels

Front Panel

e gb

The actual front panel has various logos printed on it. They are not shown here for clarity. The page numbers in parentheses show where you can find the main explanation for each item.

a ON/STANDBY button (48)

This button is used to set the AV receiver to On or Standby.

b STANDBY indicator (48)

Lights when the AV receiver is in Standby mode, and it flashes while a signal is being received from the remote controller.

c ZONE 2 indicator (136)

Lights when Zone 2 is selected.

d ZONE 3 indicator (136)

Lights when Zone 3 is selected.

e Input selector buttons (67)

These buttons are used to select from the following input sources: DVD/BD, VCR/DVR, CBL/SAT, GAME, AUX 1, AUX 2, TV/TAPE, TUNER, CD, PHONO, PORT, NET/USB.

f Remote control sensor/transmitter (14)

The sensor receives control signals from the remote controller. The transmitter transmits setting data to the remote controller.

g Display

See “Display” on page 10.

Front flap

h MASTER VOLUME control (67) and indicator

This control is used to adjust the volume of the AV receiver to –Q dB, –81.5 dB through +18.0 dB (relative display). The volume level can also be displayed as an absolute value. See “Volume Setup” on page 110.

i PURE AUDIO button (81)

Selects the Pure Audio listening mode. Pressing this button again selects the previous listening mode.

Pull here to open the flap

Front & Rear Panels—Continued

(North American models)

jkl m n o pq r s t w xv

y z

(European and Asian models)

The page numbers in parentheses show where you can find the main explanation for each item.

j PHONES jack (70)

This 1/4-inch phone jack is for connecting a standard pair of stereo headphones for private listening.

k ZONE 2, ZONE 3, and OFF buttons (136)

The [ZONE 2] button is used to select Zone 2. The [ZONE 3] button is used to select Zone 3. The [OFF] button is used to turn off Zone 2 or Zone 3.

l TONE button (68, 137)

Used to select the tone (bass and treble) for the main room, and the tone and balance for Zone 2 or Zone 3.

m LEVEL button (137)

Used to select the volume level of Zone 2 or Zone 3.

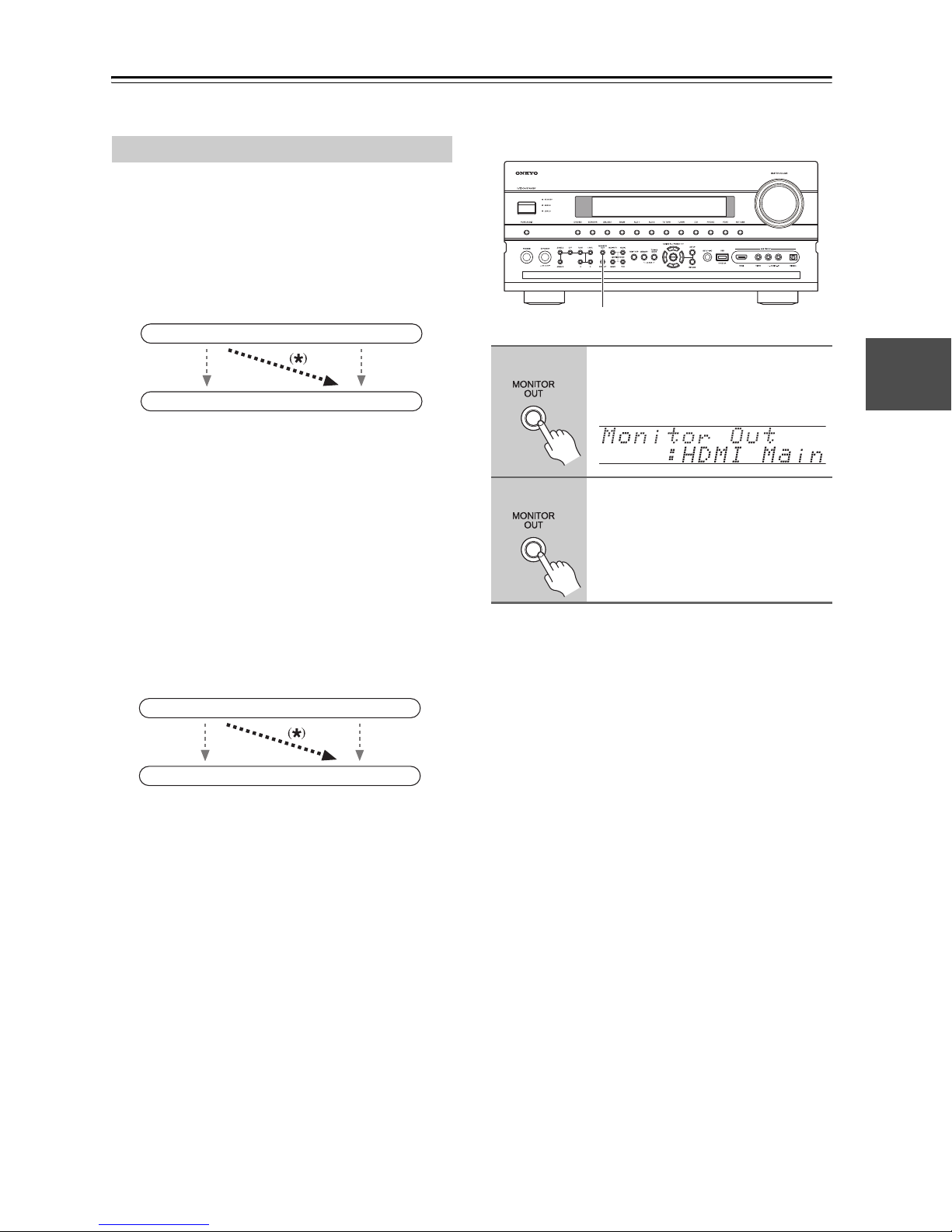

n MONITOR OUT button (49)

Used to set the “Monitor Out” setting.

o LISTENING MODE buttons (81)

MOVIE/TV:

Selects the listening modes intended for use with movies and TV.

MUSIC:

Selects the listening modes intended for use with music.

GAME:

Selects the listening modes intended for use with video games.

THX:

Selects the THX listening modes.

p DIMMER button (69)

(North American models)

This button is used to adjust the display brightness.

RT/PTY/TP button (75) (European and Asian models)

This button is used for RDS (Radio Data System). The [RT/PTY/TP] button does not work in areas where RDS broadcasts are not available. See “Using RDS (European models)” on page 75.

q MEMORY button (74)

This button is used when storing or deleting radio presets.

r TUNING MODE button (73)

This button is used to select the Auto or Manual tuning mode.

s Arrow, TUNING, PRESET and ENTER

buttons

When the AM or FM input source is selected, the TUNING [q]/[w] buttons are used to tune the tuner, and the PRESET [e]/[r] buttons are used to select radio presets (see pages 74 and 76). When the onscreen setup menus are used, they work as arrow buttons and are used to select and set items. The [ENTER] button is also used with the onscreen setup menus.

t SETUP button

This button is used to access the onscreen setup menus that appear on the connected TV.

u RETURN button

This button is used to return to the previously displayed onscreen setup menu.

Front & Rear Panels—Continued

v SETUP MIC jack (62)

Audyssey MultEQ®XT Room Correction and Speaker Setup microphone connects here.

w USB port (127)

A USB mass storage device, such as a USB flash drive or MP3 player, containing music files can be plugged in here and the music selected can be played through the AV receiver.

x AUX 1 INPUT (42)

This input can be used to connect a camcorder, game console, and so on. There are jacks for composite video, analog audio, and optical digital audio.

AUX 1 INPUT HDMI (31)

Used to connect an HD camcorder etc.

Display

bedgfa ch

y Up [r] and Down [e] buttons (68, 137)

Used to adjust the tone (bass and treble) for the main room and the volume, tone and balance for Zone 2 or Zone 3.

z DISPLAY button (68)

This button is used to display various information about the currently selected input source.

A POWER switch (48)

(European and Asian models)

This is the main power switch. When set to OFF, the AV receiver is completely shutdown. It must be set to ON to set the AV receiver to On or Standby.

i jk

For detailed information, see the pages in parentheses.

a Speaker/channel indicators

Indicate the speaker channels used by the current listening mode. The following abbreviations indicate which audio channels are outputted for the current listening mode.

LW: Front wide left LH: Front high left RH: Front high right RW: Front wide right FL: Front left C: Center FR: Front right SL: Surround left SW: Subwoofer (Low Frequency Effects) SR: Surround right SBL: Surround back left SB: Surround back SBR: Surround back right

b Z2 indicator (136)

Lights when Powered Zone 2 is being used.

c A and B indicators (70)

Indicate which speaker set is selected: A or B.

d Z3 indicator (136)

Lights when Powered Zone 3 is being used.

e Listening mode and format indicators (81)

Show the selected listening mode and audio input signal format.

Audyssey (61, 98):

Flashes during Audyssey MultEQ rection and Speaker Setup. Lights when the “Equalizer Settings” is set to “Audyssey” or Audyssey Dynamic Surround Expansion™ listening mode is selected.

Dynamic EQ (102):

Lights when “Dynamic EQ” is enabled.

Vol (102, 118):

Lights when “Dynamic Volume” is enabled.

Vol (101, 118):

Lights when “Dolby Volume” is enabled.

f NETWORK indicator (121)

Lights when the Net input selector is selected.

mno

XT Room Cor-

Front & Rear Panels—Continued

g Tuning indicators

RDS (European models) (75):

Lights when tuned to a radio station that supports RDS (Radio Data System).

AUTO (73):

Lights when Auto Tuning mode is selected for AM or FM radio. Goes off when Manual Tuning mode is selected.

TUNED (73):

Lights when tuned to a radio station.

FM STEREO (73):

Lights when tuned to a stereo FM station.

h SLEEP indicator (69)

Lights when the Sleep function has been set.

i Bi AMP indicator (23, 25)

Lights when the “Speakers Type(FrontA)” or “Speakers Type(FrontB)” setting is set to “Bi-Amp”.

Rear Panel

j BTL indicator (24, 26)

Lights when the “Speakers Type(FrontA)” or “Speakers Type(FrontB)” setting is set to “BTL” for bridged front speaker operation.

k Headphone indicator (70)

Lights when a pair of headphones are plugged into the PHONES jack.

l Message area

Displays various information.

m USB indicator (128)

Lights up when a USB mass storage device is detected.

n Volume level (67)

Displays the volume level.

o MUTING indicator (69)

Flashes while the AV receiver is muted.

p Audio input indicators

Indicate the type of audio input that’s selected as the audio source: HDMI, ANALOG, or DIGITAL.

* North American models(TX-NR5007)

d k

bhg

ac f

a UNIVERSAL PORT

This port is for connecting the component with the Universal Port option such as UP-A1 Dock.

b IR IN/OUT

A commercially available IR receiver can be connected to the IR IN jack, allowing you to control the AV receiver while you’re in Zone 2/3, or control it when it’s out of sight, for example, installed in a cabinet.

txwyy D*

A commercially available IR emitter can be connected to the IR OUT jack to pass IR (infrared) remote control signals through to other components.

c DIGITAL OPTICAL IN 1 and 2 (TX-NR3007)

DIGITAL OPTICAL IN 1, 2, and 3 (TX-NR5007)

These optical digital audio inputs are for connecting components with optical digital audio outputs, such as CD and DVD/BD players. They’re assignable, which means you can assign each one to an input selector to suit your setup. See “Digital Audio Input Setup” on page 56.

A BBC

nm o

Front & Rear Panels—Continued

d DIGITAL COAXIAL IN 1, 2, and 3

These coaxial digital audio inputs are for connecting components with coaxial digital audio outputs, such as CD and DVD/BD players. They’re assignable, which means you can assign each one to an input selector to suit your setup. See “Digital Audio Input Setup” on page 56.

e USB port (TX-NR5007)

A USB mass storage device, such as a USB flash drive or MP3 player, containing music files can be plugged in here and the music selected can be played through the AV receiver.

f ETHERNET

This port is for connecting the AV receiver to your Ethernet network (e.g., router or switch) for playing music files on a networked computer or media server, or for listening to Internet radio.

g u REMOTE CONTROL

This u (Remote Interactive) jack can be connected to an u jack on another Onkyo AV component. The AV receiver’s remote controller can then be used to control that component. To use u, you must make an analog audio connection (RCA) between the AV receiver and the other AV component, even if they are connected digitally.

h RS232

Terminal for control.

i HDMI IN 1–6, OUT MAIN, and OUT SUB

(TX-NR3007) HDMI IN 1–7, OUT MAIN, and OUT SUB

(TX-NR5007)

HDMI (High Definition Multimedia Interface) connections carry digital audio and digital video. The HDMI inputs are for connecting components with an HDMI output, such as a DVD player, Bluray Disc Player, DVD recorder, or DVR (digital video recorder). They’re assignable, which means you can assign each one to an input selector to suit your setup. See “HDMI Input Setup” on page 54. The HDMI outputs are for connecting a TV or projector with an HDMI input.

j MONITOR OUT

These S-Video and composite video jacks should be connected to a video input on your TV or projector.

k COMPONENT VIDEO IN 1, 2 and 3

These RCA component video inputs are for connecting components with a component video output, such as a DVD player, DVD recorder, or DVR (digital video recorder). They’re assignable, which means you can assign each one to an input selector to suit your setup. See “Component Video Input Setup” on page 55.

l COMPONENT VIDEO MONITOR OUT

These RCA component video outputs are for connecting a TV or projector with a component video input.

m ZONE 2 OUT

This composite video output can be connected to a video input on a TV in Zone 2.

n FM ANTENNA

This jack is for connecting an FM antenna.

AM ANTENNA

These push terminals are for connecting an AM antenna.

o AC INLET

The supplied power cord is connected here. The other end of the power cord should be connected to a suitable wall outlet.

p GND screw

This screw is for connecting a turntable’s ground wire.

q PHONO IN

These analog audio inputs are for connecting a turntable.

r CD IN

These analog audio inputs are for connecting a CD player’s analog audio output.

s 12V TRIGGER OUT ZONE 2

This output can be connected to the 12-volt trigger input on a component in Zone 2. When Zone 2 is turned on, a 12-volt trigger signal is output.

12V TRIGGER OUT ZONE 3

This output can be connected to the 12-volt trigger input on a component in Zone 3. When Zone 3 is turned on, a 12-volt trigger signal is output.

t TV/TAPE IN/OUT

These analog audio inputs and outputs are for connecting a TV or recorder with an analog audio input and output (cassette, Mini Disc, etc.).

u AUX 2 IN

This analog audio input is for connecting an analog audio output, such as an audio device, etc.

v GAME IN

Here you can connect a game console, etc. Input jacks include S-Video, composite video, and analog audio.

w CBL/SAT IN

Here you can connect a cable/satellite receiver, settop box, etc. Input jacks include S-Video, composite video, and analog audio.

x VCR/DVR IN/OUT

Here you can connect a VCR or DVR (digital video recorder). Input and output jacks include S-Video, composite video, and analog audio.

Front & Rear Panels—Continued

y DVD/BD IN

Here you can connect a DVD/BD player. Input jacks include S-Video, composite video, and analog audio. You can connect a DVD/BD player’s 2-channel analog audio output.

z MULTI CH input: FRONT L/R, CENTER,

SUBWOOFER, SURR L/R, and SURR BACK L/R

This analog multichannel input is for connecting a component with a 5.1/7.1-channel analog audio output, such as a DVD player, DVD-Audio or Super Audio CD-capable player, or an MPEG decoder.

A PRE OUT: FRONT L/R, CENTER, SURR L/R,

SURR BACK L/R, and FRONT HIGH/WIDE L/R

These multichannel analog audio outputs can be connected to the analog audio input on a multichannel power amplifier for when you want to use the AV receiver solely as a preamplifier.

PRE OUT: SW1, SW2

These analog audio outputs can be connected to a powered subwoofer. You can connect the powered subwoofer with each jacks respectively. Level and distance can be set individually for each output.

B PRE OUT: ZONE 2, ZONE 3 L/R

These analog audio outputs can be connected to the line inputs on amplifiers in Zone 2 and Zone 3.

C FRONT L/R, CENTER, SURR L/R, SURR

BACK/ZONE 3 L/R, FRONT HIGH L/R, and FRONT WIDE/ZONE 2 L/R

These terminal posts are for connecting the front L/R, center, surround L/R, surround back/zone 3 L/R, front high L/R, and front wide/zone 2 L/R speakers. The FRONT L/R and SURR BACK/ZONE 3 L/R terminal posts can be used with front speakers A and surround back speakers respectively, or used to bi-amp or bridge the front speakers A. See “Bi-amping the Front Speakers A” on page 23 and “Bridging the Front Speakers A” on page 24. The FRONT WIDE/ZONE 2 L/R and SURR BACK/ZONE 3 L/R terminal posts can be used with front speakers B and surround back speakers respectively, or used to biamp or bridge the front speakers B. See “Bi-amping the Front Speakers B” on page 25 and “Bridging the Front Speakers B” on page 26. The FRONT WIDE/ZONE 2 L/R terminals can be used with front wide speakers respectively, or used to connect the speakers in Zone 2. See “Connecting Zone 2” on page 131. The SURR BACK/ZONE 3 L/R terminals can be used with surround speakers respectively, or used to connect the speakers in Zone 3. See “Connecting Zone 3” on page 133.

D SIRIUS antenna

(North American models)

This jack is for connecting a SIRIUS Satellite Radio antenna, sold separately (see the separate SIRIUS instructions).

See pages 18 to 47 for connection information.

Remote Controller

Installing the Batteries

To open the battery compartment, press

the small lever and remove the cover.

Insert the two supplied batteries (AA/R6)

in accordance with the polarity diagram inside the battery compartment.

Aiming the Remote Controller

To use the remote controller, point it at the AV receiver’s remote control sensor, as shown below.

Transmission

Remote control sensor

AV r e c e i ver

30° off center (Left/Right/Up/Down)

Received

Transmitter

Incoming sensor

Approx. 16 ft. (5 m)

AV r e c e i ver

Replace the cover and push it shut.

Notes:

• If the remote controller doesn’t work reliably, try replacing the batteries.

• Don’t mix new and old batteries or different types of batteries.

• If you intend not to use the remote controller for a long time, remove the batteries to prevent damage from leakage or corrosion.

• Expired batteries should be removed as soon as possible to prevent damage from leakage or corrosion.

15° off center (Left/Right/Up/Down)

Notes:

• The remote controller may not work reliably if the AV receiver is subjected to bright light, such as direct sunlight or inverter-type fluorescent lights. Keep this in mind when installing.

• If another remote controller of the same type is used in the same room, or the AV receiver is installed close to equipment that uses infrared rays, the remote controller may not work reliably.

• Don’t put anything, such as a book, on the remote controller, because the buttons may be pressed inadvertently, thereby draining the batteries.

• The remote controller may not work reliably if the AV receiver is installed in a rack behind colored glass doors. Keep this in mind when installing.

• The remote controller will not work if there’s an obstacle between it and the AV receiver’s remote control sensor.

• When the remote control codes have been registered and you want to operate another component (page 141), or when you want to operate an Onkyo component without u connection, point the remote controller at the other component to use it.

• When you want to operate an Onkyo component with u connection or an -compatible compo- nent connected via HDMI (pages 143 and 144), point the remote controller at the AV receiver’s remote control sensor.

Approx. 16 ft. (5 m)

Remote Controller—Continued

Controlling the AV Receiver

To control the AV receiver, press the [RECEIVER] button to select Receiver mode.

You can also use the remote controller to control your DVD/BD player, CD player, and other components.

See page 141 for more details.

a b

c d

n o

f g

For detailed information, see the pages in parentheses.

a STANDBY button (48)

Sets the AV receiver to Standby.

b ON button (48)

Turns on the AV receiver.

c ACTIVITIES buttons (71, 153)

Used with the MACRO function.

d REMOTE MODE/INPUT SELECTOR buttons

(67, 143 to 149)

Selects the remote controller modes and the input sources.

e SP LAYOUT button (70)

This button is used to change the speaker selection: Front High speakers or Front Wide speakers Speakers A or Speakers B.

*2 If you use surround back speakers, you can select the combina-

tion of surround back and front high, or surround back and front wide speakers.

f Arrow [q]/[w]/[e]/[r] and ENTER buttons

Used to select and adjust settings.

g SETUP button

Used to change settings.

h LISTENING MODE buttons (81)

Used to select the listening modes.

i DIMMER button (69)

Adjusts the display brightness.

j DISPLAY button (68)

Displays information about the current input source.

k MUTING button (69)

Mutes or unmutes the AV receiver.

l VOL [q]/[w] button (67)

Adjusts the volume of the AV receiver regardless of the currently selected remote controller mode.

m VIDEO button (49, 53, 105)

Used to change video settings.

n RETURN button

Returns to the previous display when changing settings.

o AUDIO button (117)

Used to change audio settings. When the “Audio TV Out” setting is set to “On” (page 113), this button is disabled.

p SLEEP button (69)

Used with the Sleep function.

*1 When you want to change the remote controller mode without

changing the current input source, press the [MODE] button and within about eight seconds, press the REMOTE MODE button. Then, with the AV receiver’s remote controller, you can control the component corresponding to the button you pressed.

Remote Controller—Continued

■ Controlling the tuner

To control the AV receiver’s tuner, press the [TUNER] (or [RECEIVER]) button.

You can select AM or FM by pressing the [TUNER] button repeatedly.

1 Arrow [q]/[w] buttons

Used to tune into radio stations.

2 D.TUN button (73)

(TUNER remote mode only) Selects the Direct tuning mode.

3 DISPLAY button

Displays information about the band, frequency, preset number, and so on.

4 CH +/– button (74)

Used to select radio presets.

5 Number buttons (73, 74)

Used to select radio stations directly in the Direct tuning mode. Also you can select a preset directly.

Note:

An Onkyo cassette recorder connected via u can also be controlled in Receiver mode (see page 149).

About Home Theater

Enjoying Home Theater

Thanks to the AV receiver’s superb capabilities, you can enjoy surround sound with a real sense of movement in your own home—just like being in a movie theater or concert hall. With DVDs you can enjoy DTS and Dolby Digital. With analog or digital TV, you can enjoy Dolby Pro Logic IIx, DTS Neo:6, or Onkyo’s original DSP listening modes.

You can also enjoy THX Surround EX (THX-certified THX speaker system recommended).

Front left and right speakers

These output the overall sound. Their role in a home theater is to provide a solid anchor for the sound image. They should be positioned facing the listener at about ear level, and equidistant from the TV. Angle them inward so as to create a triangle, with the listener at the apex.

Front high left and right speakers

These speakers are necessary to enjoy Dolby Pro Logic IIz Height, and Audyssey Dynamic Surround Expansion™. They significantly enhance the spatial experience. Position them at least 3.3 feet (100 cm) above the front left and right speakers (preferably as high as possible) and at an angle slightly wider than the front left and right speakers.

Center speaker

This speaker enhances the front left and right speakers, making sound movements distinct and providing a full sound image. In movies it’s used mainly for dialog. Position it close to your TV facing forward at about ear level, or at the same height as the front left and right speakers.

Front wide left and right speakers

These speakers are necessary to enjoy Audyssey Dynamic Surround Expansion™ (DSX). They significantly enhance the spatial experience. Position them well outside of the front left and right speakers. See also http://www.audyssey.com/technology/dsx.html about optimum speaker placement for Audyssey Dynamic Surround Expansion™.

Subwoofer

The subwoofer handles the bass sounds of the LFE (Low-Frequency Effects) channel. The volume and quality of the bass output from your subwoofer will depend on its position, the shape of your listening room, and your listening position. In general, a good bass sound can be obtained by installing the subwoofer in a front corner, or at one-third the width of the wall, as shown. Tip: To find the best position for your subwoofer, while playing a movie or some music with good bass, experiment by placing your subwoofer at various positions within the room, and choose the one that provides the most satisfying results.

1/3 of wall position

Surround back left and right speakers

These speakers are necessary to enjoy Dolby Digital EX, DTS-ES Matrix, DTS-ES Discrete, THX Surround EX, etc. They enhance the realism of surround sound and improve sound localization behind the listener. Position them behind the listener about 2 to 3 feet (60 to 100 cm) above ear level.

Surround left and right speakers

These speakers are used for precise sound positioning and to add realistic ambience. Position them at the sides of the listener, or slightly behind, about 2 to 3 feet (60 to 100 cm) above ear level. Ideally they should be equidistant from the listener.

Corner position

Connecting the AV receiver

Connecting Your Speakers

About Speakers A and Speakers B

Speakers A and Speakers B allows you to have two speaker configurations of up to 7.2 speakers. Each configuration has its own pair of stereo front speakers and can use the same subwoofer, center, surround, and surround back speakers, as required. You could, for example, use Speakers A when watching a DVD movie with 7.2-channels surround sound and use Speakers B for serious music listening with a pair of stereo speakers (2-channels).

The speakers are configured by using the “Speaker Settings” on page 57 and “Speaker Setup” on page 95. Front Speakers A and front Speakers B can be wired normally, bi-amped, or bridged, but A and B cannot be bi-amped

or bridged at the same time. For example, if front Speakers A are bridged, front Speakers B can only be wired normally. Similarly, if front Speakers B are bi-amped, Speakers A can only be wired normally. When bridging or bi-amping is used, the AV receiver can drive up to 5.2 speakers in the main room. See pages 22 to 26 for more information.

The Speakers A and Speakers B configurations are selected by using the [SP LAYOUT] button on the remote controller. Only one configuration can be selected at a time.

The versatility offered by the Speakers A and Speakers B configurations means you can configure the AV receiver to suit your exact requirements and application. Two typical applications are shown below.

■ 7.2-channel Playback with Speakers A and Stereo Playback with Speakers B

In this example, Speakers A provides 7.2-channel surround sound for enjoying DVD movies, while Speakers B is used for serious music listening with a pair of top-quality stereo speakers.

Speakers B

FL FR

FL C FR

Speakers A

SW1

SBL SBR

2–1. Speaker Settings

Speaker Impedance Speakers Type(FrontA) Speakers Type(FrontB) Powered Zone2 Powered Zone3

2–2. Speaker Configuration

Subwoofer

Front

Center Surround Surr Back

Use

Use Use Use

SW2

6ohms Normal Normal Not Act Not Act

Speaker A

■ 5.2-channel Playback with Bridged Front Speakers

In this example, Speakers A provides 5.2-channel surround sound for enjoying DVD movies, while Speakers B is bridged for use with a pair of highpower stereo speakers, the subwoofer is used with Speakers A and Speakers B.

Speakers B

FL FR

FL CFR

Subwoofer

used with A

and B

Speaker Impedance

Speakers Type(FrontA) Speakers Type(FrontB) Powered Zone2 Powered Zone3

Subwoofer

Front

Center Surround

Surr Back

Speakers A

SW1

SL SR

2–1. Speaker Settings

2–2. Speaker Configuration

Use

Use Use

Not Use

SW2

8ohms

Normal

BTL Not Act Not Act

Speaker A

2–2. Speaker Configuration

Subwoofer

Front

Center Surround Surr Back

Not Use

Use

Not Use Not Use Not Use

Speaker B

2–2. Speaker Configuration

Subwoofer

Front

Center Surround

Surr Back

Not Use Not Use

Not Use

Use

Speaker B

Connecting the AV receiver—Continued

Speaker Configuration

For 9.2-channel surround-sound playback, you need nine speakers and two powered subwoofers. The following table indicates the channels you should use depending on the number of speakers that you have.

Number of speakers: 23456777889991011

Front left ✓✓✓✓✓✓✓✓✓✓✓✓✓✓✓

Front right ✓✓✓✓✓✓✓✓✓✓✓✓✓✓✓

Center ✓ ✓✓✓✓✓✓✓✓✓✓✓✓

Surround left ✓✓✓✓✓✓✓✓✓✓✓✓✓

Surround right ✓✓✓✓✓✓✓✓✓✓✓✓✓

Surround back* ✓✓✓✓

Surround back left ✓✓✓✓

Surround back right ✓✓✓✓

Front high left ✓✓✓✓✓✓

Front high right ✓✓✓✓✓✓

Front wide left ✓ ✓ ✓✓✓✓

Front wide right ✓ ✓ ✓✓✓✓

* If you’re using only one surround back speaker, connect it to the SURR BACK/ZONE 3 L terminal.

No matter how many speakers you use, two powered subwoofers are recommended for a really powerful and solid bass. To get the best from your surround sound system, you need to set the speaker settings. You can do this automatically

(see page 61) or manually (see page 95).

Note:

Front high and front wide speakers produce no sound at the same time.

Attaching the Speaker Labels

The AV receiver’s positive (+) speaker terminals are all red (the negative (–) speaker terminals are all black).

Speaker Color

Front left White

Front right Red

Center Green

Surround left Blue

Surround right Gray

Surround back left, Zone 3 left Brown

Surround back right, Zone 3 right Tan

Front high left White

Front high right Red

Front wide left, Zone 2 left White

Front wide right, Zone 2 right Red

The supplied speaker cable labels are also color-coded and you should attach them to the positive (+) side of each speaker cable in accordance with the above table. Then all you need to do is to match the color of each label to the corresponding speaker terminal.

(North American models)

• If you are using banana plugs, tighten the speaker terminal before inserting the banana plug.

• Do not insert the speaker code directly into the center hole of the speaker terminal.

Connecting Powered Subwoofers

Using a suitable cable, connect the AV receiver’s PRE OUT: SW1, SW2 to an input on your powered subwoofer, as shown. If your subwoofer is unpowered and you’re using an external amplifier, connect the PRE OUT: SW1, SW2 to an input on the amp.

You can connect the powered subwoofer with each jacks respectively. Level and distance can be set individually for each output. If you use one subwoofer, connect it to PRE OUT: SW1.

Powered subwoofer

LINE INPUT

Connecting the AV receiver—Continued

Using Dipole Speakers

You can use dipole speakers for the surround left and right, surround back left and right speakers. Dipole speakers output the same sound in two directions.

Dipole speakers typically have an arrow printed on them to indicate how they should be positioned. The surround left and right dipole speakers should be positioned so that their arrows point toward the TV/screen, while the surround back left and right and front high left and right and front wide left and right dipole speakers should be positioned so that their arrows point toward each other, as shown.

Dipole speakers

9 10

TV/screen

11 12

7 8

1. Subwoofers

2. Front left speaker

3. Center speaker

4. Front right speaker

5. Surround left speaker

6. Surround right speaker

7. Surround back left speaker

Normal speakers

9 10

TV/screen

11 12

8. Surround back right speaker

9. Front high left speaker

10.Front high right speaker

11.Front wide left speaker

12.Front wide right speaker

7 8

Speaker Connection Precautions

Read the following before connecting your speakers:

• You can connect speakers with an impedance of between 4 and 16 ohms. If the impedance of any of the connected speakers is 4 ohms or more, but less than 6 ohms, be sure to set the minimum speaker impedance to “4ohms” (see page 57). If you use speakers with a lower impedance, and use the amplifier at high volume levels for a long period of time, the built-in protection circuit may be activated.

• Disconnect the power cord from the wall outlet before making any connections.

• Read the instructions supplied with your speakers.

• Pay close attention to speaker wiring polarity. In other words, connect positive (+) terminals only to positive (+) terminals, and negative (–) terminals only to negative (–) terminals. If you get them the wrong way around, the sound will be out of phase and will sound unnatural.

• Unnecessarily long, or very thin speaker cables may affect the sound quality and should be avoided.

• If you use 4 or 5 speakers, connect each of the two surround speakers to the SURR L/R terminals. Do not connect them to the SURR BACK/ZONE 3 L/R, FRONT WIDE/ZONE 2 L/R, or FRONT HIGH L/R terminals.

• Be careful not to short the positive and negative wires. Doing so may damage the AV receiver.

• Make sure the metal core of the wire does not have contact with the AV receiver’s rear panel. Doing so may damage the AV receiver.

• Don’t connect more than one cable to each speaker terminal. Doing so may damage the AV receiver.

• Don’t connect one speaker to several terminals.

Connecting the AV receiver—Continued

Connecting the Speaker Cables

Strip 1/2" to 5/8" (12 to

15 mm) of insulation

1/2" to 5/8"

(12 to 15 mm)

Fully insert the bare

wires. from the ends of the speaker cables, and twist the bare wires tightly, as shown.

Screw the terminal tight.

Unscrew the terminal.

■ 9.2-channel Playback with Speakers A

The following illustration shows which speaker should be connected to each pair of terminals. If you’re using only one surround back speaker, connect it to the SURR BACK/ZONE 3 L terminal.

Front high

right　

speaker

Surround

right

speaker

Front wide

right

speaker

Front right speaker A

Surround back right

speaker

Front left

speaker A

Front wide left

speaker

Surround

back left speaker

Front high

left

speaker

Center

speaker

Surround

left

speaker

Connecting the AV receiver—Continued

■ 7.2-channel Playback with Speakers A or Speakers B

The following illustration shows which speaker should be connected to each pair of terminals for up to 7.2-channel playback with Speakers A or Speakers B. If you’re using only one surround back speaker, connect it to the SURR BACK/ZONE 3 L terminal.

Surround

right

speaker

Front right speaker B

Front right speaker A

Surround

back right

speaker

Front left

speaker A

Front left

speaker B

Surround

back left

speaker

Center

speaker

Surround

left

speaker

Notes:

• When Speakers A is selected as the main front speakers, connect the front left speaker to FRONT L, front right speaker to FRONT R. When Speakers B is selected as the main front speakers, connect the front left speaker to FRONT WIDE/ZONE 2 L, front right speaker to FRONT WIDE/ZONE 2 R.

• The speakers are configured by using the “Speaker Settings” on page 57 and “Speaker Setup” on page 95.

• You can choose which of the spakers you want to use with the Speakers A or Speakers B configuration (see page 96).

• When you use the Speakers B configuration, front high speakers cannnot be used.

Connecting the AV receiver—Continued

Bi-amping the Front Speakers A

The FRONT L/R and SURR BACK/ZONE 3 L/R terminal posts can be used with front speakers and surround back speakers respectively, or bi-amped to provide separate tweeter and woofer feeds for a pair of front speakers A that support bi-amping, providing improved bass and treble performance.

• When bi-amping is used, surround back speakers cannot be used.

• For bi-amping, the FRONT L/R terminal posts connect to the front speakers’ woofer terminals. And the SURR BACK/ZONE 3 L/R terminal posts connect to the front speakers’ tweeter terminals.

• Once you’ve completed the bi-amping connections shown below and turned on the AV receiver, you must set the “Speakers Type(FrontA)” setting to “Bi-Amp” to enable biamping (see page 57).

• When front Speakers A are biamped, front Speakers B must be wired normally or not used.

Important:

• When making the bi-amping connections, be sure to remove the jumper bars that link the Speakers’ tweeter (high) and woofer (low) terminals.

• Bi-amping can only be used with speakers that support bi-amping. Refer to your speaker manual.

Bi-amping Speaker Hookup

Connect the AV receiver’s FRONT R positive (+)

terminal to the right speaker’s positive (+) Woofer (low) terminal. And connect the AV receiver’s FRONT R negative (–) terminal to the right speaker’s negative (–) Woofer (low) terminal.

Connect the AV receiver’s SURR BACK/ZONE 3

R positive (+) terminal to the right speaker’s positive (+) Tweeter (high) terminal. And connect the AV receiver’s SURR BACK/ZONE 3 R negative (–) terminal to the right speaker’s negative (–) Tweeter (high) terminal.

Connect the AV receiver’s FRONT L positive (+)

terminal to the left speaker’s positive (+) Woofer (low) terminal. And connect the AV receiver’s FRONT L negative (–) terminal to the left speaker’s negative (–) Woofer (low) terminal.

Connect the AV receiver’s SURR BACK/ZONE 3

L positive (+) terminal to the left speaker’s positive (+) Tweeter (high) terminal. And connect the AV receiver’s SURR BACK/ZONE 3 L negative (–) terminal to the left speaker’s negative (–) Tweeter (high) terminal.

Tweeter (high)

Right speaker

Woofer (low)

Tweeter (high)

Woofer (low)

Left speaker

Connecting the AV receiver—Continued

Bridging the Front Speakers A

The FRONT L/R and SURR BACK/ZONE 3 L/R terminal posts can be used with front speakers and surround back speakers respectively, or bridged together to provide almost double the output power for the front speakers A.

• When bridging is used, surround back speakers cannot be used.

• For bridging, the positive (+) FRONT L/R and SURR BACK/ZONE 3 L/R terminal posts are used, but the negative (–) FRONT L/R and SURR BACK/ZONE 3 L/R terminals are not.

• Once you’ve completed the bridging connections shown below and turned on the AV receiver, you must set the “Speakers Type(FrontA)” setting to “BTL” to enable bridging (see page 57).

• When front Speakers A are bridged, front Speakers B must be wired normally or not used.

Notes:

• Use only front speakers with an impedance of 8 ohms or higher for bridging. Failure to do so may seriously damage the AV receiver.

• When using bridging, make sure that your front speakers can handle the additional power.

Bridged Speaker Hookup

Connect the AV receiver’s FRONT R positive (+)

terminal to the right speaker’s positive (+) terminal. And connect the AV receiver’s SURR BACK/ZONE 3 R positive (+) terminal to the right speaker’s negative (–) terminal.

Connect the AV receiver’s FRONT L positive (+)

terminal to the left speaker’s positive (+) terminal. And connect the AV receiver’s SURR BACK/ZONE 3 L positive (+) terminal to the left speaker’s negative (–) terminal.

Right speaker Left speaker

Connecting the AV receiver—Continued

Bi-amping the Front Speakers B

The FRONT WIDE/ZONE 2 L/R and SURR BACK/ZONE 3 L/R terminal posts can be used with front wide speakers and surround back speakers respectively, or bi-amped to provide separate tweeter and woofer feeds for a pair of front speakers B that support bi-amping, providing improved bass and treble performance.

• When bi-amping is used, surround back speakers cannot be used.

• For bi-amping, the FRONT WIDE/ZONE 2 L/R terminal posts connect to the front speakers’ woofer terminals. And the SURR BACK/ZONE 3 L/R terminal posts connect to the front speakers’ tweeter terminals.

• Once you’ve completed the bi-amping connections shown below and turned on the AV receiver, you must set the “Speakers Type(FrontB)” setting to “Bi-Amp” to enable biamping (see page 57).

• When front Speakers B are biamped, front Speakers A must be wired normally.

Important:

• When making the bi-amping connections, be sure to remove the jumper bars that link the Speaker’s tweeter (high) and woofer (low) terminals.

• Bi-amping can only be used with speakers that support bi-amping. Refer to your speaker manual.

Bi-amping Speaker Hookup

Connect the AV receiver’s FRONT

WIDE/ZONE 2 R positive (+) terminal to the right speaker’s positive (+) Woofer (low) terminal. And connect the AV receiver’s FRONT WIDE/ZONE 2 R negative (–) terminal to the right speaker’s negative (–) Woofer (low) terminal.

Connect the AV receiver’s SURR BACK/ZONE 3

Connect the AV receiver’s FRONT

WIDE/ZONE 2 L positive (+) terminal to the left speaker’s positive (+) Woofer (low) terminal. And connect the AV receiver’s FRONT WIDE/ZONE 2 L negative (–) terminal to the left speaker’s negative (–) Woofer (low) terminal.

Connect the AV receiver’s SURR BACK/ZONE 3

Woofer (low)

Tweeter (high)

Right speaker

Tweeter (high)

Woofer (low)

Left speaker

Connecting the AV receiver—Continued

Bridging the Front Speakers B

The FRONT WIDE/ZONE 2 L/R and SURR BACK/ZONE 3 L/R terminal posts can be used with front wide speakers and surround back speakers respectively, or bridged together to provide almost double the output power for the front speakers B.

• When bridging is used, surround back speakers cannot be used.

• For bridging, the positive (+) FRONT WIDE/ZONE 2 L/R and SURR BACK/ZONE 3 L/R terminal posts are used, but the negative (–) FRONT WIDE/ZONE 2 L/R and SURR BACK/ZONE 3 L/R terminals are not.

• Once you’ve completed the bridging connections shown below and turned on the AV receiver, you must set the “Speakers Type(FrontB)” setting to “BTL” to enable bridging (see page 57).

• When front Speakers B are bridged, front Speakers A must be wired normally.

Notes:

• Use only front speakers with an impedance of 8 ohms or higher for bridging. Failure to do so may seriously damage the AV receiver.

• When using bridging, make sure that your front speakers can handle the additional power.

Bridged Speaker Hookup

Connect the AV receiver’s FRONT

WIDE/ZONE 2 R positive (+) terminal to the right speaker’s positive (+) terminal. And connect the AV receiver’s SURR BACK/ZONE 3 R positive (+) terminal to the right speaker’s negative (–) terminal.

Connect the AV receiver’s FRONT

WIDE/ZONE 2 L positive (+) terminal to the left speaker’s positive (+) terminal. And connect the AV receiver’s SURR BACK/ZONE 3 L positive (+) terminal to the left speaker’s negative (–) terminal.

Right speaker Left speaker

Connecting the AV receiver—Continued

Connecting Antenna

This section explains how to connect the supplied indoor FM antenna and AM loop antenna, and how to connect commercially available outdoor FM and AM antennas.

The AV receiver won’t pick up any radio signals without any antenna connected, so you must connect the antenna to use the tuner.

AM ANTENNA push terminals

FM ANTENNA jack

Connecting the Indoor FM Antenna

The supplied indoor FM antenna is for indoor use only.

Attach the FM antenna, as shown.

(North American models)

If you cannot achieve good reception with the supplied indoor FM antenna, try a commercially available outdoor FM antenna instead (see page 28).

Connecting the AM Loop Antenna

The supplied indoor AM loop antenna is for indoor use only.

Assemble the AM loop antenna, inserting

the tabs into the base, as shown.

Connect both wires of the AM loop

antenna to the AM antenna push terminals, as shown.

(The antenna’s wires are not polarity sensitive, so they can be connected either way around.)

Make sure that the wires are attached securely and that the push terminals are gripping the bare wires, not the insulation.

Insert the plug fully into the jack.

(European and Asian models)

Insert the plug fully into the jack.

Once your AV receiver is ready for use, you’ll need to tune into an FM radio station and adjust the position of the FM antenna to achieve the best possible reception.

Use thumbtacks or something similar to

fix the FM antenna into position.

Thumbtacks, etc.

Push Insert wire Release

Once your AV receiver is ready for use, you’ll need to tune into an AM radio station and adjust the position of the AM antenna to achieve the best possible reception.

Keep the antenna as far away as possible from your AV receiver, TV, speaker cables, and power cords.

If you cannot achieve good reception with the supplied indoor AM loop antenna, try using it with a commercially available outdoor AM antenna (see page 28).

Caution:

Be careful that you don’t injure yourself when using thumbtacks.

Connecting the AV receiver—Continued

Connecting an Outdoor FM Antenna

If you cannot achieve good reception with the supplied indoor FM antenna, try a commercially available outdoor FM antenna instead.

Notes:

• Outdoor FM antennas work best outside, but usable results can sometimes be obtained when installed in an attic or loft.

• For best results, install the outdoor FM antenna well away from tall buildings, preferably with a clear line of sight to your local FM transmitter.

• Outdoor antenna should be located away from possible noise sources, such as neon signs, busy roads, etc.

• For safety reasons, outdoor antenna should be situated well away from power lines and other high-voltage equipment.

• Outdoor antenna must be grounded in accordance with local regulations to prevent electrical shock hazards.

Connecting an Outdoor AM Antenna

If good reception cannot be achieved using the supplied AM loop antenna, an outdoor AM antenna can be used in addition to the loop antenna, as shown.

Outdoor antenna

Insulated antenna cable

AM loop antenna

Outdoor AM antennas work best when installed outside horizontally, but good results can sometimes be obtained indoors by mounting horizontally above a window. Note that the outdoor antenna should be right connected.

Outdoor antenna must be grounded in accordance with local regulations to prevent electrical shock hazards.

■ Using a TV/FM Antenna Splitter

It’s best not to use the same antenna for both FM and TV reception, as this can cause interference problems. If circumstances demand it, use a TV/FM antenna splitter, as shown.

TV/FM antenna splitter

To AV receiver To TV (or VCR)

Connecting the AV receiver—Continued

About AV Connections

• Before making any AV connections, read the manuals supplied with your other AV components.

• Don’t connect the power cord until you’ve completed and double-checked all AV connections.

Optical Digital Jacks

The AV receiver’s optical digital jacks have shutter-type covers that open when an optical plug is inserted and close when it’s removed. Push plugs in all the way.

Caution:

To prevent shutter damage, hold the optical plug straight when inserting and removing.

AV Cables & Jacks

Video / Audio

Cable Jack Description

HDMI

AV Connection Color Coding

RCA-type AV connections are usually color-coded: red, white, and yellow. Use red plugs to connect right-channel audio inputs and outputs (typically labeled “R”). Use white plugs to connect left-channel audio inputs and outputs (typically labeled “L”). And use yellow plugs to connect composite video inputs and outputs.

Left (white)

Right (red) Right (red)

(Yellow)

• Push plugs in all the way to make good connections (loose connections can cause noise or malfunctions).

• To prevent interference, keep audio and video cables away from power cords and speaker cables.

HDMI

HDMI connections can carry uncompressed standard- or high-definition digital video and audio and offer the best picture and sound quality.

Analog audio

Composite video

Left (white)

(Yellow)

Right!

Wrong!

Video

Component video cable

S-Video cable

Composite video cable

Audio

Optical digital audio cable

Coaxial digital audio cable

Analog audio cable (RCA)

Multichannel analog audio cable (RCA)

B/CB

PR/CR

B/CB

PR/CR

Component video separates the luminance (Y) and color difference signals (PR, PB), providing the best picture quality (some TV manufacturers label their component video sockets slightly differently).

S-Video separates the luminance and color signals and

OPTICAL

provides better picture quality than composite video. Composite video is commonly used on TVs, VCRs,

and other video equipment.

Offers the best sound quality and allows you to enjoy surround sound (e.g., Dolby Digital, DTS). The audio quality is the same as for coaxial.

Offers the best sound quality and allows you to enjoy surround sound (e.g., Dolby Digital, DTS). The audio quality is the same as for optical.

This cable carries analog audio. It’s the most common connection format for analog audio, and can be found on virtually all AV components.

This cable carries multichannel analog audio and is typically used to connect DVD players with a 7.1channel analog audio output. Several standard analog audio cables can be used instead of a multichannel cable.

The AV receiver does not support SCART plugs.

Connecting the AV receiver—Continued

Connecting Components with HDMI

About HDMI

Designed to meet the increased demands of digital TV, HDMI (High Definition Multimedia Interface) is a new digital interface standard for connecting TVs, projectors, DVD/BD players, set-top boxes, and other video components. Until now, several separate video and audio cables have been required to connect AV components. With HDMI, a single cable can carry control signals, digital video, and up to eight channels of digital audio (2-channel PCM, multichannel digital audio, and multichannel PCM).

The HDMI video stream (i.e., video signal) is compatible with DVI (Digital Visual Interface)*1, so TVs and displays with a DVI input can be connected by using an HDMI-to-DVI adapter cable. (This may not work with some TVs and displays, resulting in no picture.)

The AV receiver uses HDCP (High-bandwidth Digital Content Protection) can display the picture.

The AV receiver’s HDMI interface is based on the following standard: x.v.Color, Deep Color, Lip Sync, DTS-HD Master Audio, DTS-HD High Resolution Audio, Dolby TrueHD, Dolby

Digital Plus, DSD, and Multichannel PCM

Supported Audio Formats

• 2-channel linear PCM (32–192 kHz, 16/20/24 bit)

• Multichannel linear PCM (up to 7.1 ch, 32–192 kHz, 16/20/24 bit)

• Bitstream (DSD, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS Express, DTS-HD High Resolution Audio, DTS-HD Master Audio)

Your DVD/BD players must also support HDMI output of the above audio formats.

, so only HDCP-compatible components

■ Onkyo for System Control

, which stands for Remote Interactive over HDMI, is the name of the system control function found on Onkyo components. The AV receiver can be used with CEC (Consumer Electronics Control), which allows system control over HDMI and is part of the HDMI standard. CEC provides interoperability between various components, however, operation with components other than -compatible components cannot be guaranteed.

• Set “HDMI Control (RIHD)” to “On” (page 114).

• See “Controlling a TV” (page 143) and “Controlling a DVD Player or DVD Recorder” (page 144) for operation.

Notes:

• Do not connect the -compatible component more than the following number to the HDMI input terminal so

that the linked operations work properly.

a. DVD/BD player is up to three. b. DVD/BD recorder is up to three. c. Cable/Satellite Set-top box is up to four.

• Do not connect the AV receiver to the other AV receiver /AV amplifier via HDMI.

• When the -compatible component more than the above-mentioned is connected, the linked operations are

not guaranteed.

• The control does not support HDMI OUT SUB. Use HDMI OUT MAIN instead.

About Copyright Protection

The AV receiver supports HDCP (High-bandwidth Digital Content Protection)*2, a copy-protection system for digital video signals. Other devices connected to the AV receiver via HDMI must also support HDCP.

*1 DVI (Digital Visual Interface): The digital display interface standard set by the DDWG *2 HDCP (High-bandwidth Digital Content Protection): The video encryption technology developed by Intel for HDMI/DVI. It’s designed to

protect video content and requires a HDCP-compatible device to display the encrypted video.

*3 DDWG (Digital Display Working Group): Lead by Intel, Compaq, Fujitsu, Hewlett Packard, IBM, NEC, and Silicon Image, this open

industry group’s objective is to address the industry’s requirements for a digital connectivity specification for high-performance PCs and digital displays.

in 1999.

Connecting the AV receiver—Continued

Making HDMI Connections

Step 1:

Use HDMI cables to connect the AV receiver’s HDMI jacks to your HDMI-compatible DVD/BD player, TV, projector, and so on.

Step 2:

Assign each HDMI IN to an input selector in the HDMI Input Setup (see page 54).

■ Video Signals

Digital video signals received by the HDMI IN jacks are normally output by the HDMI MAIN OUT and SUB OUT for display on your TV. Composite video, S-Video, and component video sources can be upconverted for the HDMI output. See “Video Connection Formats” on page 32 for more information.

■ Audio Signals

Digital audio signals received by the HDMI IN jacks are output by the speakers and headphones connected to the AV receiver. Normally, they are not output by the HDMI outputs, unless the “Audio TV Out” setting is set to “On” (see page 113).

Hint!

To listen to audio received by the HDMI IN jacks through your TV’s speakers:

•Set the “TV Control” setting to “On” (see page 114) for an -compatible TV.

•Set the “Audio TV Out” setting to “On” (see page 113) when the TV is not compatible with or the “TV Control” setting to “Off”.

•Set your DVD/BD player’s HDMI audio output setting to PCM.

HDMI

HD camcorder, etc

DVD/BD player

HDMI OUT

Notes:

• The HDMI video stream is compatible with DVI (Digital Visual Interface), so TVs and displays with a DVI input can be connected by using an HDMI-to-DVI adapter cable. (Note that DVI connections only carry video, so you’ll need to make a separate connection for audio.) However, reliable operation with such an adapter is not guaranteed. In addition, video signals from a PC are not guaranteed.

• When listening to an HDMI component through the AV receiver, set the HDMI component so that its video can be seen on the TV screen (on the TV, select the input of the HDMI component connected to the AV receiver). If the TV power is off or the TV is set to another input source, this may result in no sound from the AV receiver or the sound may be cut off.

• When the “Audio TV Out” setting is set to “On” (see page 113) to hear from your TV’s speakers, by controlling the AV receiver’s volume, the sound will be output from the AV receiver’s speakers, too. When the is set to

“On” to hear from speakers of -compatible TV, by controlling the AV receiver’s volume, the AV

“TV Control” setting

receiver’s speakers will produce sound while the TV’s speakers are muted. To stop the AV receiver’s speakers producing sound, change the settings, change your TV’s settings, or turn down the AV receiver’s volume.

• The HDMI audio signal (sampling rate, bit length, etc.) may be restricted by the connected source component. If the picture is poor or there’s no sound from a component connected via HDMI, check its setup. Refer to the connected component’s instruction manual for details.

Connecting the AV receiver—Continued

Connecting Both Audio & Video

By connecting both the audio and video outputs of your DVD/BD player and other AV components to the AV receiver, you can select both the audio and video simultaneously simply by selecting the appropriate input source on the AV receiver.

: Signal Flow

Video

Audio

DVD/BD player, etc.

Speakers

(see page 21 for connection information)

Video

Audio

TV, projector,

etc.

Which Connections Should I Use?

The AV receiver supports several connection formats for compatibility with a wide range of AV equipment. The format you choose will depend on the formats supported by your other components. Use the following sections as a guide.

Video Connection Formats

Video equipment can be connected to the AV receiver by using any one of the following video connection formats: composite video, S-Video, component video, or HDMI, the latter offering the best picture quality.

The AV receiver can upconvert and downconvert between video formats, depending on the “Monitor Out” setting, which generally determines whether video signals are upconverted for the component video output or the HDMI output.

For optimal video performance, THX recommends that video signals pass through the system without upconversion (e.g., component video input through to component video output).

It is also recommended that you press the [VCR/DVR] and [RETURN] buttons on the AV receiver at the same time. Select “Skip” in the “VideoProcessor” setting by pressing the [RETURN] button repeatedly on the display. To reset back to the original setting, press the same button at the same time.

■ “Monitor Out” Setting Set to “HDMI Main” or “HDMI Sub”

With the “Monitor Out” setting set to “HDMI

DVD/BD player, etc.

Video Signal Flow Chart

Main” or “HDMI Sub” (see page 52), video input signals flow through the AV receiver as shown, with composite video, S-Video, and component video sources all being upconverted for the HDMI output. Use the “HDMI Main” or

Composite

S-Video

Component

HDMI

“HDMI Sub” setting if you connect the AV receiver’s HDMI OUT MAIN or HDMI OUT

AV receiver

SUB, respectively, to your TV.

The composite video, S-Video, and component video outputs pass through their respective input

Composite

MONITOR OUT

S-Video

Component

HDMI

signals as they are.

Note:

If not connected to the same output you have selected in the “Monitor Out” setting, the “Monitor Out” setting will be automatically switched

TV, projector, etc.

to “Analog” (see page 52). In this case, the setting of the output resolution will be that for HDMI output (see page 52). However, it will be switched to “1080i” when “1080p” is selected, and to “Through” when “Auto” is selected.

Connecting the AV receiver—Continued

■ “Monitor Out” Setting Set to “Both”, “Both(Main)” or “Both(Sub)”

With the “Monitor Out” setting set to “Both”,

DVD/BD player, etc.

“Both(Main)” or “Both(Sub)” (see page 52), video input signals flow through the AV receiver as shown, with composite video, S-Video, and component video sources all being upconverted for both HDMI outputs. Use the “Both”,

“Both(Main)” or “Both(Sub)” setting if you connect the AV receiver’s HDMI OUT MAIN and HDMI OUT SUB to your TVs.

AV receiver

The composite video, S-Video, and component video outputs pass through their respective input signals as they are.

Both: Video signals are output from both HDMI outputs at the resolution supported by both TVs. You cannot select “Resolution” setting. The picture adjust setting will be that for “HDMI Main”.

Both (Main): Video signals are output from both

TV, projector, etc.

HDMI outputs but HDMI OUT MAIN will become a priority; depending on the resolution, video signals may not be output from HDMI OUT SUB.

Both (Sub): Video signals are output from both HDMI outputs but HDMI OUT SUB will become a priority; depending on the resolution, video signals may not be output from HDMI OUT MAIN.

Note:

The “Monitor Out” setting will be automatically switched to “Analog” (see page 52) if not connected to both outputs when “Both” is selected or if not connected to a priority output when “Both(Main)” or “Both(Sub)” is selected.

■ “Monitor Out” Setting Set to “Analog”

With the “Monitor Out” setting set to “Analog” (see page 52), video input signals flow through

DVD/BD player, etc.

the AV receiver as shown, with composite video and S-Video sources being upconverted for the component video output. Use this setting if you

connect the AV receiver’s COMPONENT VIDEO MONITOR OUT to your TV.

Composite video is upconverted to S-Video and S-Video is downconverted to composite video.

AV receiver

Note that these conversions only apply to the MONITOR OUT V and S outputs, not the VCR/DVR OUT V and S outputs.

The composite video, S-Video, and component video outputs pass through their respective input signals as they are.

This signal flow also applies when the “Resolution” setting is set to “Through” (see page 52).

Video Signal Flow and the Resolution Setting

TV, projector, etc.

DVD/BD player, etc.

When the “Monitor Out” setting is set to “Analog” (see page 52), if the “Resolution” setting is set to anything other than “Through” (see page 52), the video signal flow will be as shown here, with composite video and S-Video sources being upconverted for the component video output.

AV receiver

The composite video, S-Video, and component video outputs pass through their respective analog input signals as they are. HDMI input signals are not output.

Video Signal Flow Chart

Composite

Video Signal Flow Chart

Composite

Video Signal Flow Chart

Composite

S-Video

MONITOR OUT

S-Video

MONITOR OUT

S-Video

MONITOR OUT

S-Video

Component

HDMI

TV, projector, etc.

Connecting the AV receiver—Continued

Audio Connection Formats

Audio equipment can be connected to the AV receiver by using any of the following audio con-

DVD/BD player, etc.

Audio Signal Flow Chart

nection formats: analog, optical, coaxial, analog multichannel, or HDMI.

When choosing a connection format, bear in

Optical CoaxialMultichannelAnalog HDMI

mind that the AV receiver does not convert digital input signals for analog line outputs and vice

AV receiver

versa. For example, audio signals connected to an optical or coaxial digital input are not output by the analog TV/TAPE OUT.

TV, projector, etc.

*1 Depends on the “Audio TV Out” setting (see

page 113).

*2 Only the front L/R channels are output.

HDMI Analog

If signals are present at more than one input, the inputs will be selected automatically in the following order of priority: HDMI, digital, analog.

Connecting the AV receiver—Continued

Connecting a TV or Projector

See “Connecting Components with HDMI” on page 30 for HDMI connection information.

Step 1: Video Connection

Choose a video connection that matches your TV ( , , or ), and then make the connection.

Step 2: Audio Connection

Choose an audio connection that matches your TV ( , , or ), and then make the connection.

A B C

a b c

• With connection , you can listen to and record audio from your TV or listen in Zone 2 or Zone 3.

• To enjoy Dolby Digital and DTS, use connection or . (To record or listen in Zone 2 or Zone 3 as well, use and , or and .)

a b a c

b c

Connection AV receiver Signal flow TV, projector, etc.

COMPONENT VIDEO MONITOR OUT ⇒ Component video input

MONITOR OUT S ⇒ S-Video input

MONITOR OUT V ⇒ Composite video input

TV/TAPE IN L/R ⇐ Analog audio L/R output

DIGITAL COAXIAL IN 2 (VCR/DVR) ⇐ Digital coaxial output

DIGITAL OPTICAL IN 1 (GAME) (TX-NR3007)

DIGITAL OPTICAL IN 2 (TV/TAPE) (TX-NR5007)

⇐ Digital optical output

When you use connection ,

you need to assign the digital audio input (see page 56).

Hint!

COAXIAL

If your TV has no audio outputs, connect an audio output from your VCR or cable or satellite receiver to the AV receiver and use its tuner to listen to TV programs through the AV receiver (see pages 38 and

OUT

OPTICAL

OUT

40).

(TX-NR3007) When you use connection , you need to assign the digital audio input (see page 56).

AUDI O

OUT

S VIDEOINVIDEO

YPB PR

IN COMPONENT VIDEO IN

TV, projector,

etc.

Connecting the AV receiver—Continued

Connecting a DVD Player

See “Connecting Components with HDMI” on page 30 for HDMI connection information.

Step 1: Video Connection

Choose a video connection that matches your DVD player ( , , or ), and then make the connection. You must connect the AV receiver to your TV via the same type of connection.

Step 2: Audio Connection

Choose an audio connection that matches your DVD player ( , , or ), and then make the connection.

A B C

a b c

• With connection , you can listen to and record audio from your DVD player or listen in Zone 2 or Zone 3.

• To enjoy Dolby Digital and DTS, use connection or . (To record or listen in Zone 2 or Zone 3 as well, use and , or and .)

a b a c

b c

• If your DVD player has main left and right outputs and multichannel left and right outputs, be sure to use the

main left and right outputs for connection .

Connection AV receiver Signal flow DVD player

COMPONENT VIDEO IN 1 (DVD/BD) ⇐ Component video output

DVD/BD IN S ⇐ S-Video output

DVD/BD IN V ⇐ Composite video output

DVD/BD IN L/R ⇐ Analog audio L/R output

DIGITAL COAXIAL IN 1 (DVD/BD) ⇐ Digital coaxial output

DIGITAL OPTICAL IN 1 (GAME) ⇐ Digital optical output

COAXIAL

OUT

OPTICAL

OUT

When you use connection , you need to assign the digital audio input (see page 56).

AUDI O

OUT

S VIDEO

OUT

VIDEO

OUT COMPONENT VIDEO OUT

YPB PR

DVD player

Connecting the AV receiver—Continued

Hooking Up the Multichannel Input

If your DVD player supports multichannel audio formats such as DVD-Audio and Super Audio CD, and it has a multichannel analog audio output, you can connect it to the AV receiver’s multichannel input.

Use a multichannel analog audio cable, or several normal audio cables, to connect the AV receiver’s MULTI CH: FRONT L/R, CENTER, SURR L/R, SURR BACK L/R, and SUBWOOFER jacks to the 7.1-channel analog audio output on your DVD player. If your DVD player has a 5.1-channel analog audio output, don’t connect anything to the AV receiver’s SURR BACK L/R jacks.

Before using the multichannel input, you must assign it to an input selector. See “Analog Audio Input Setup” on page 57. To select the multichannel input, see “Audio Selector” on page 119. To adjust the subwoofer sensitivity for the multichannel input, see “Subwoofer Input Sensitivity” on page 94.

7.1 ch

5.1 ch

CENTER

FRONT

SUB

WOOFER

DVD player

SURROUND

SURR BACK

Connecting the AV receiver—Continued

Connecting a VCR or DVD Recorder for Playback

Hint!

With this hookup, you can use your VCR’s tuner to listen to your favorite TV programs via the AV receiver, useful if your TV has no audio outputs.

Step 1: Video Connection

Choose a video connection that matches your VCR or DVD recorder ( , , or ), and then make the connection.

A B C

You must connect the AV receiver to your TV via the same type of connection.

Step 2: Audio Connection

Choose an audio connection that matches your VCR or DVD recorder ( , , or ), and then make the connection.

• With connection , you can listen to the VCR or DVD recorder in Zone 2 or Zone 3.

• To enjoy Dolby Digital and DTS, use connection or . (To listen in Zone 2 or Zone 3 as well, use and , or and .)

b a c

Connection AV receiver Signal flow VCR or DVD recorder

b c a

COMPONENT VIDEO IN 2 (CBL/SAT) ⇐ Component video output

VCR/DVR IN S ⇐ S-Video output

VCR/DVR IN V ⇐ Composite video output

VCR/DVR IN L/R ⇐ Analog audio L/R output

DIGITAL COAXIAL IN 2 (VCR/DVR) ⇐ Digital coaxial output

DIGITAL OPTICAL IN 1 (GAME) ⇐ Digital optical output

a b c

COAXIAL

OUT

OPTICAL

OUT

When you use connection , you need to assign the digital audio input (see page 56).

AUDI O

OUT

S VIDEO

OUT

VIDEO

YPB PR

OUT COMPONENT VIDEO OUT

When you use connection , you need to assign the component video input (see page 55).

VCR or DVD

recorder

Connecting the AV receiver—Continued

Connecting a VCR or DVD Recorder for Recording

Step 1: Video Connection

Choose a video connection that matches your VCR or DVD recorder ( or ), and then make the connection. The video source to be recorded must be connected to the AV receiver via the same type of connection.

Step 2: Audio Connection

Make the audio connection .

Connection AV receiver Signal flow VCR or DVD recorder

VCR/DVR OUT S

VCR/DVR OUT V

VCR/DVR OUT L/R

A B

⇒

S-Video input

Composite video input

Analog audio L/R input

VCR or DVD

recorder

L R

AUDI O

S VIDEO

VIDEO

Notes:

• The AV receiver must be turned on for recording. Recording is not possible while it’s in Standby mode.

• If you want to record directly from your TV or playback VCR to the recording VCR without going through the AV receiver, connect the TV/VCR’s audio and video outputs directly to the recording VCR’s audio and video inputs. See the manuals supplied with your TV and VCR for details.

• Video signals connected to composite video inputs can only be recorded via composite video outputs. If your TV/VCR is connected to a composite video input, the recording VCR must be connected to a composite video output. Similarly, video signals connected to S-Video inputs can only be recorded via S-Video outputs. If your TV/VCR is connected to an S-Video input, the recording VCR must be connected to an S-Video output.

• Sources connected to a digital input cannot be recorded. Only analog inputs can be recorded.

Connecting the AV receiver—Continued

Connecting a Satellite, Cable, Terrestrial Set-top box, or Other Video Source

Hint!

With this hookup, you can use your satellite or cable receiver to listen to your favorite TV programs via the AV receiver, useful if your TV has no audio outputs.

Step 1: Video Connection

Choose a video connection that matches the video source ( , , or

A B C

), and then make the connection.

You must connect the AV receiver to your TV via the same type of connection.

Step 2: Audio Connection

Choose an audio connection that matches the video source ( , , or ), and then make the connection.

• With connection , you can listen to and record audio from the video source or listen in Zone 2 or Zone 3.

• To enjoy Dolby Digital and DTS, use connection or . (To record or listen in Zone 2 or Zone 3 as well, use and , or and .)

a b a c

Connection AV receiver Signal flow Video source

COMPONENT VIDEO IN 2 (CBL/SAT) ⇐ Component video output

CBL/SAT IN S ⇐ S-Video output

CBL/SAT IN V ⇐ Composite video output

CBL/SAT IN L/R ⇐ Analog audio L/R output

DIGITAL COAXIAL IN 3 (CBL/SAT) ⇐ Digital coaxial output

DIGITAL OPTICAL IN 1 (GAME) ⇐ Digital optical output

a b c

b c

COAXIAL

OUT

OPTICAL

OUT

When you use connection , you need to assign the digital audio input (see page 56).

AUDI O

OUT

S VIDEO

OUT

VIDEO

YPB PR

OUT COMPONENT VIDEO OUT

Satellite, cable,

set-top box, etc.

Connecting the AV receiver—Continued

Connecting a Game Console

Step 1: Video Connection

Choose a video connection that matches your game console ( , , or ), and then make the connection. You must connect the AV receiver to your TV with the same type of connection.

Step 2: Audio Connection

Choose an audio connection that matches your game console ( or ), and then make the connection.

A B C

a b

• With connection , you can listen to and record audio from your game console or listen in Zone 2 or Zone 3.

• To enjoy Dolby Digital and DTS, use connection . (To record or listen in Zone 2 or Zone 3 as well, use and .)

b a

Connection AV receiver Signal flow Game console

COMPONENT VIDEO IN 3 (GAME) ⇐ Component video output

GAME IN S ⇐ S-Video output

GAME IN V ⇐ Composite video output

GAME IN L/R ⇐ Analog audio L/R output

DIGITAL OPTICAL IN 1 (GAME) ⇐ Digital optical output

OPTICAL

OUT

AUDI O

OUT

S VIDEO

OUT

VIDEO

YPB PR

OUT COMPONENT VIDEO OUT

Game Console

Connecting the AV receiver—Continued

Connecting a Camcorder or Other Device

Step 1: Video Connection

Make the connection .

Step 2: Audio Connection

Choose an audio connection that matches your camcorder ( or ), and then make the connection.

Connection AV receiver Signal flow Camcorder etc.

a b

AUX1 INPUT VIDEO ⇐ Composite video output

AUX1 INPUT L-AUDIO-R ⇐ Analog audio L/R output

AUX1 INPUT DIGITAL ⇐ Digital optical output

Camcorder etc.

AUX1 INPUTAUX1 INPUT

L R

VIDEO

OUT

AUDIO

A b

L R

AUDIO

OUT

AUX1 INPUT

DIGITAL

OPTICAL

OUT

Connecting the AV receiver—Continued

Connecting a CD Player or Turntable

■ CD Player or Turntable (MM) with Built-in Phono Preamp

Step 1:

Choose a connection that matches your CD player ( , , or ). Use connection for a turntable with a built-in phono preamp.

a b c a

• With connection , you can listen to and record audio from your CD player or listen in Zone 2 or Zone 3.

• To connect the CD player digitally, use connection or . (To record or listen in Zone 2 or Zone 3 as well, use and , or and .)

a b a c

b c

Connection AV receiver Signal flow CD or turntable

DIGITAL OPTICAL IN 2 (CD) (TX-NR3007) DIGITAL OPTICAL IN 3 (CD) (TX-NR5007)

When you use connection , you

need to assign the digital audio input (see page 56).

DIGITAL COAXIAL IN 2 (VCR/DVR) ⇐ Digital coaxial output

CD IN L/R ⇐ Analog audio L/R output

⇐ Digital optical output

COAXIAL

OPTICAL

COAXIAL

OUT

IN 2

(VCR/DVR)

IN 3 (CD)

OPTICAL

OUT

AUDI O

OUT

CD player

AUDI O

OUTPUT

Turntable (MM) with

built-in phono preamp

■ Turntable (MM) with no Phono Preamp Built-in

The AV receiver’s PHONO IN is designed for use with a moving magnet (MM) type cartridge.

Use an analog audio cable to connect the AV receiver’s PHONO IN L/R jacks to the audio output on your turntable.

Notes:

• If your turntable has a ground wire, connect it to the AV receiver’s GND screw. With some turntables, connecting the ground wire may produce an audible hum. If this happens, disconnect it.

• If your turntable has a moving coil (MC) type cartridge, you’ll need a commercially available MC head amp or MC transformer. Connect your turntable to the head amp or transformer, and connect that to the AV receiver’s PHONO IN L/R jacks.

• You can also use a phono equalizer to connect a turntable with an MC-type cartridge. See your phono equalizer’s manual for details.

AUDIO

OUTPUT

Turntable (MM) with no

phono preamp built-in

Connecting the AV receiver—Continued

Connecting a Cassette, CDR, MiniDisc, or DAT Recorder

Step 1:

Choose a connection that matches the recorder ( , or ), and then make the connection.

a b c

• With connection , you can play and record or listen in Zone 2 or Zone 3.

• To connect the recorder digitally for playback, use connections and , or and .

a b a c

Connection AV receiver Signal flow Cassette, CDR, MD, or DAT recorder

(CBL/SAT)

OPTICAL

(TV/TAPE)

TV/TAPE IN L/R

TV/TAPE OUT L/R

DIGITAL COAXIAL IN 3 (CBL/SAT) ⇐ Digital coaxial output

DIGITAL OPTICAL IN 1 (GAME) (TX-NR3007)

DIGITAL OPTICAL IN 2 (TV/TAPE) (TX-NR5007)

COAXIAL

IN 3

IN 2

(TX-NR3007) When you use connection , you need

⇐ ⇒

Analog audio L/R output

Analog audio L/R input

⇐ Digital optical output

TV/TAPE

to assign the digital audio input (see page 56).

When you use connection ,

you need to assign the digital audio input (see page 56).

COAXIAL

OUT

OPTICAL

OUT

L R

AUDI O

L R

AUDI O

OUT

Cassette, CDR, MD, or

DAT recorder

Connecting the AV receiver—Continued

Connecting a Power Amplifier

If you want to use a more powerful power amplifier and use the AV receiver as a preamp, connect it to the PRE OUT jacks, and connect all speakers and the subwoofer to the power amplifier. You can connect the powered subwoofer with each jacks respectively. If you use one subwoofer, connect it to PRE OUT: SW1.

234567891

1. Front left speaker

2. Center speaker

3. Front right speaker

4. Surround left speaker

5. Surround right speaker

6. Surround left back speaker

7. Surround right back speaker

8. Front wide/Front high left speaker* 9 Front wide/Front high right speaker*

Note:

* Specify “None” for the channel that you don’t want to output in the “Speaker Configuration” (page 95).

Power amplifier

Powered subwoofer

See “Connecting Powered Subwoofers” on page 19 for more information.

Connecting the AV receiver—Continued

Connecting an RI Dock

Not all iPod models output video. For information about which iPod models are supported by the RI Dock, see the RI Dock’s instruction manual.

■ If Your iPod Supports Video:

Connect your RI Dock’s audio output jacks to the AV receiver’s GAME IN or VCR/DVR IN L/R jacks, and connect its video output jack to the AV receiver’s GAME IN V or VCR/DVR IN V jack. (Onkyo DSA2 hookup shown below.)

■ If you have an Onkyo DS-A1 RI Dock

Connect its video output jack to the AV receiver’s GAME IN S or VCR/DVR IN S jack.

■ If Your iPod Doesn’t Support Video:

Connect your RI Dock’s audio output jacks to the AV receiver’s TV/TAPE IN L/R jacks. (Onkyo DSA2 hookup shown below.)

TV/TAPE

GAME

VCR/DVR

Make either connection.

Notes:

• Enter the appropriate remote control code before using the AV receiver’s remote controller for the first time (see page 141).

• Connect the RI Dock to the AV receiver with an u cable (see page 47).

• Set the RI Dock’s RI MODE switch to “HDD” or “HDD/DOCK”.

• Set the AV receiver’s Input Display to “DOCK” (see page 60).

• See the RI Dock’s instruction manual for more information.

Connecting a Universal Port Option Series

Note:

When UP-A1 Dock that seated iPod is connected, the power consumption on standby mode slightly increases.

ex. UP-A1

Connecting the AV receiver—Continued

Connecting Onkyo u Components

Step 1:

Make sure that each Onkyo component is connected to the AV receiver with an analog audio cable (connection in the hookup examples) (see pages 35 to 44, 46).

Step 2:

Make the u connection (see illustration right).

Step 3:

If you’re using an MD, CDR, or RI Dock, change the Input Display (see page 60).

With u (Remote Interactive), you can use the following special functions:

■ Auto Power On/Standby

■ Direct Change

■ Remote Control

Notes:

•Use only u cables for u connections. u cables are supplied with Onkyo players (DVD, CD, etc.).

• Some components have two u jacks. You can connect either one to the AV receiver. The other jack is for connecting additional u-capable components.

• Connect only Onkyo components to u jacks. Connecting other manufacturer’s components may cause a malfunction.

• Some components may not support all u functions. Refer to the manuals supplied with your other Onkyo components.

• While Zone 2 or Zone 3 is on, the Auto Power On/Standby and Direct Change u functions do not work.

When you start playback on a component connected via u, if the AV receiver is on Standby, it will auto-

matically turn on and select that component as the input source. Similarly, when the AV receiver is set

to Standby, all components connected via u will also go on Standby.

When playback is started on a component connected via u, the AV receiver automatically selects that

component as the input source.

You can use the AV receiver’s remote controller to control your other u-capable Onkyo components,

pointing the remote controller at the AV receiver’s remote control sensor instead of the component. You must enter the appropriate remote control code first (see page 142).

REMOTE

CONTROL

e.g., CD player

e.g., DVD player

ANALOG

AUDIO OUT

ANALOG

AUDIO OUT

DVD/BD

L R

Connecting the Power Cord

Notes:

• Before connecting the power cord, connect all of your speakers and AV components.

• Turning on the AV receiver may cause a momentary power surge that might interfere with other electrical equipment on the same circuit. If this is a problem, plug the AV receiver into a different branch circuit.

• Do not use a power cord other than the one supplied with the AV receiver. The supplied power cord is designed exclusively for use with the AV receiver and should not be used with any other equipment.

• Never disconnect the power cord from the AV receiver while the other end is still plugged into a wall outlet. Doing so may cause an electric shock. Always disconnect the power cord from the wall outlet first, and then the AV receiver.

Step 1:

Connect the supplied power cord to the AV receiver’s AC INLET.

To AC wall outlet

Step 2:

Plug the power cord into an AC wall outlet.

Turning On the AV receiver

(North American models)

ON/STANDBY ON/STANDBY

STANDBY indicator

Turning On and Standby

AV receiver

Remote

controller

(European and Asian models)

Set the [POWER] switch to the ON position ( ).

On the AV receiver, press the [ON/STANDBY] button.

On the remote controller, press the [RECEIVER] button, followed by the [ON] button.

The AV receiver comes on, the display lights up, and the STANDBY indicator goes off. Pressing the remote controller’s [ON] button again will turn on any components

connected via u.

(European and Asian models)

STANDBY indicator

POWER

STANDBY

RECEIVER

To turn the AV receiver off, press the [ON/STANDBY] button, or press the remote controller’s [STANDBY] button. The AV receiver will enter Standby mode. To prevent any loud surprises when you turn on the AV receiver, always turn down the volume before you turn it off.

European and Asian models: To completely shut down the AV receiver, set the [POWER] switch to the OFF position

().

Smooth Operation in a Few Easy Steps

To ensure smooth operation, here’s a few easy steps to help you configure the AV receiver before you use it for the very first time. These settings only need to be made once.

■ Did you connect your TV to an HDMI output or COMPONENT VIDEO MONITOR OUT?

If you did, “Monitor Setup” on page 49.

■ Run MultEQ XT Room Correction and Speaker Setup—this is essential!

See “Audyssey MultEQ

■ Have you connected a component to an HDMI input, component video input, or digital audio input?

If you have, see “HDMI Input Setup” on page 54, “Component Video Input Setup” on page 55, or “Digital Audio Input Setup” on page 56 respectively.

■ Have you connected an Onkyo MD recorder, CD recorder, or RI Dock?

If you have, see “Changing the Input Display” on page 60.

XT Room Correction and Speaker Setup” on page 61.

HDMI

OUT IN

TV/TAPE

MD recorder, CD recorder,

RI Dock

First Time Setup

This section explains the settings that you need to make before using the AV receiver for the very first time.

Monitor Setup

If you connect your TV to HDMI OUT MAIN, “Monitor Out” setting is automatically set so that the onscreen setup menus are displayed and composite video, SVideo, and component video sources are upconverted* and output.

Composite video, S-Video,

component video

OUT

Composite video, S-Video,

component video

On the “Monitor Out” settings, you can select whether or not to have the video sources’ images output through the HDMI output, as well as whether to have the onscreen setup menu output through the HDMI output or through an analog output.

If you connect your TV to the COMPONENT VIDEO MONITOR OUT (not the HDMI output), “Monitor Out” setting is automatically set so that the onscreen setup menus are displayed and composite video and S-Video sources are upconverted* and output.

Composite video, S-Video

OUT

Composite video, S-Video

HDMI

Component video

■ Change “Monitor Out” setting manually

MONITOR OUT

Tips:

• The “Monitor Out” setting can also be set using the [VIDEO] button on the remote controller.

• This setting can also be performed by using Onscreen Setup Menu (see page 52).

Notes:

• See page 32 for charts showing how the “Monitor Out” and “Resolution” (see page 52) settings affect the video signal flow through the AV receiver.

• You can specify the output resolution for the HDMI outputs and COMPONENT VIDEO MONITOR OUT and have the AV receiver upconvert the picture resolution as necessary to match the resolution supported by your TV (see page 52).

Press the [MONITOR OUT] button.

The current setting is displayed.

Press the [MONITOR OUT] button repeatedly to select: Analog, HDMI Main, HDMI Sub, Both, Both(Main) or Both(Sub)

For details on each item, see step 4 in the page 52.

First Time Setup—Continued

In this Instruction Manual, illustrations from the onscreen menu or explanations referring to the menu will be in the same language as the Instruction Manual. The default Language setting for the onscreen menu is English. If your Instruction Manual is in a language other than English, first follow the instructions below to change the Language.

Selecting the Language used for the onscreen setup menus

This setting determines the language used for the onscreen setup menus. You can select: English, German, French, Spanish, Italian, Dutch, Swedish, or Chinese.

RECEIVER

qwer

ENTER

SETUP

Press the [RECEIVER] button, followed by the [SETUP] button.

The main menu appears onscreen. If the main menu doesn’t appear, make

sure the appropriate external input is selected on your TV.

1. Input/Output Assign

2. Speaker Setup

3. Audio Adjust

4. Source Setup

5. Listening Mode Preset

6. Miscellaneous

7. Hardware Setup

8. Remote Controller Setup

9. Lock Setup

Use the Up and Down [q]/[w] buttons to select “6. Miscellaneous”, and then press [ENTER].

The “Miscellaneous” menu appears.

Use the Up and Down [q]/[w] buttons to select “2. OSD Setup”, and then press [ENTER].

The “OSD Setup” menu appears.

6–2. OSD Setup

Immediate Display Display Position TV Format Language

(European and Asian models)

Use the Up and Down [q]/[w] buttons to select “Language”, and

Bottom

Auto

English

then use the Left and Right [e]/ [r] buttons to select:

English, Deutsch, Français, Español, Italiano, Nederlands, Svenska, 中文

Press the [SETUP] button.

The setup menu closes.

Note:

This procedure can also be performed on the AV receiver by using its [SETUP] button, arrow buttons, and [ENTER] button.

6. Miscellaneous

1. Volume Setup

2. OSD Setup

First Time Setup—Continued

Using the Display to change the settings

The settings of the AV receiver can be changed using the Display.

RECEIVER

qwer

ENTER

SETUP

Using the Onscreen Setup Menus

Carry out the settings for the AV receiver by using the Onscreen Setup Menu.

Press the [RECEIVER] button followed by the [SETUP] button.

The main menu appears onscreen. If the main menu doesn’t appear, make

sure the appropriate external input is selected on your TV.

1. Input/Output Assign

2. Speaker Setup

3. Audio Adjust

4. Source Setup

5. Listening Mode Preset

6. Miscellaneous

7. Hardware Setup

8. Remote Controller Setup

9. Lock Setup

Tip:

On several functions, the explanation will be displayed under the screen.

Use the Up and Down [q]/[w] buttons to select item and then press [ENTER].

The submenu appears. Press the [SETUP] button to close the

menu. Press the [RETURN] button to return to

the previous menu.

Press the [RECEIVER] button followed by the [SETUP] button.

The main menu item appears on the display.

Use the Up and Down [q]/[w] buttons to select item and then press [ENTER].

The submenu item appears on the display.

Press the [SETUP] button to close the menu.

Press the [RETURN] button to return to the previous menu.

Onscreen Setup Menus and Display

As each item in the Onscreen Setup Menus is selected, the selected items will be displayed one by one.

Onscreen Setup Menus

1. Input/Output Assign

2. Speaker Setup

3. Audio Adjust

4. Source Setup

5. Listening Mode Preset

6. Miscellaneous

7. Hardware Setup

8. Remote Controller Setup

9. Lock Setup

Display

Note:

During Audyssey MultEQ Speaker Setup, messages, etc., that are displayed on the TV screen will appear in the Display.

XT Room Correction and

First Time Setup—Continued

Monitor Out Setup

If you connect your TV to the HDMI output, set the “Monitor Out” setting so that the onscreen setup menus are displayed and composite video, S-Video, and component video sources are upconverted and output.

If you connect your TV to the COMPONENT VIDEO MONITOR OUT, set the “Monitor Out” setting so that the onscreen setup menus are displayed and composite video and S-Video sources are upconverted and output.

You can specify the output resolution for the HDMI outputs and COMPONENT VIDEO MONITOR OUT and have the AV receiver upconvert the picture resolution as necessary to match the resolution supported by your TV.

Press the [RECEIVER] button, followed by the [SETUP] button.

The main menu appears onscreen. If the main menu doesn’t appear, make

sure the appropriate external input is selected on your TV.

Use the Up and Down [q]/[w] buttons to select “1. Input/Output Assign”, and then press [ENTER].

The “Input/Output Assign” menu appears.

1. Input/Output Assign

1. Monitor Out

2. HDMI Input

3. Component Video Input

4. Digital Audio Input

5. Analog Audio Input

Use the Up and Down [q]/[w] buttons to select “1. Monitor Out”, and then press [ENTER].

The “Monitor Out” menu appears.

1–1. Monitor Out

Monitor Out Resolution Brightness Contrast Hue Saturation

HDMI Main

Through

0 0 0 0

Use the Up and Down [q]/[w] buttons to select “Monitor Out”, and use the Left and Right [e]/[r] buttons to select:

Analog:

Select this if your TV is connected to the COMPONENT VIDEO MONITOR OUT, S MONITOR OUT, or V MONITOR OUT.

HDMI Main:

Select this if your TV is connected to the HDMI OUT MAIN.

HDMI Sub:

Select this if your TV is connected to the HDMI OUT SUB.

Both:

Select this if your TVs are connected to the HDMI OUT MAIN and HDMI OUT SUB. Video signals are output from both HDMI outputs at the resolution supported by both TVs.

Both (Main):

Select this if your TVs are connected to the HDMI OUT MAIN and HDMI OUT SUB. Video signals are output from both HDMI outputs but HDMI OUT MAIN will become a priority; depending on the resolution, video signals may not be output from HDMI OUT SUB.

Both (Sub):

Select this if your TVs are connected to the HDMI OUT MAIN and HDMI OUT SUB. Video signals are output from both HDMI outputs but HDMI OUT SUB will become a priority; depending on the resolution, video signals may not be output from HDMI OUT MAIN.

Notes:

• If not connected to the same output you have selected in the“Monitor Out” setting, the “Monitor Out” setting will be automatically switched to “Analog”.

• When you select other than “Analog”, the onscreen setup menus are output by only the HDMI outputs. If you’re not using the

HDMI output and select settings by mistake and the menus disappear, press the [MONITOR OUT] button to select “Analog”.

• For Deep Color output, if the “Monitor Out” setting is set to “Both (Main)” or “Both (Sub)”, the number of bit may be limited due to the capability of your TV connected to a priority output.

First Time Setup—Continued

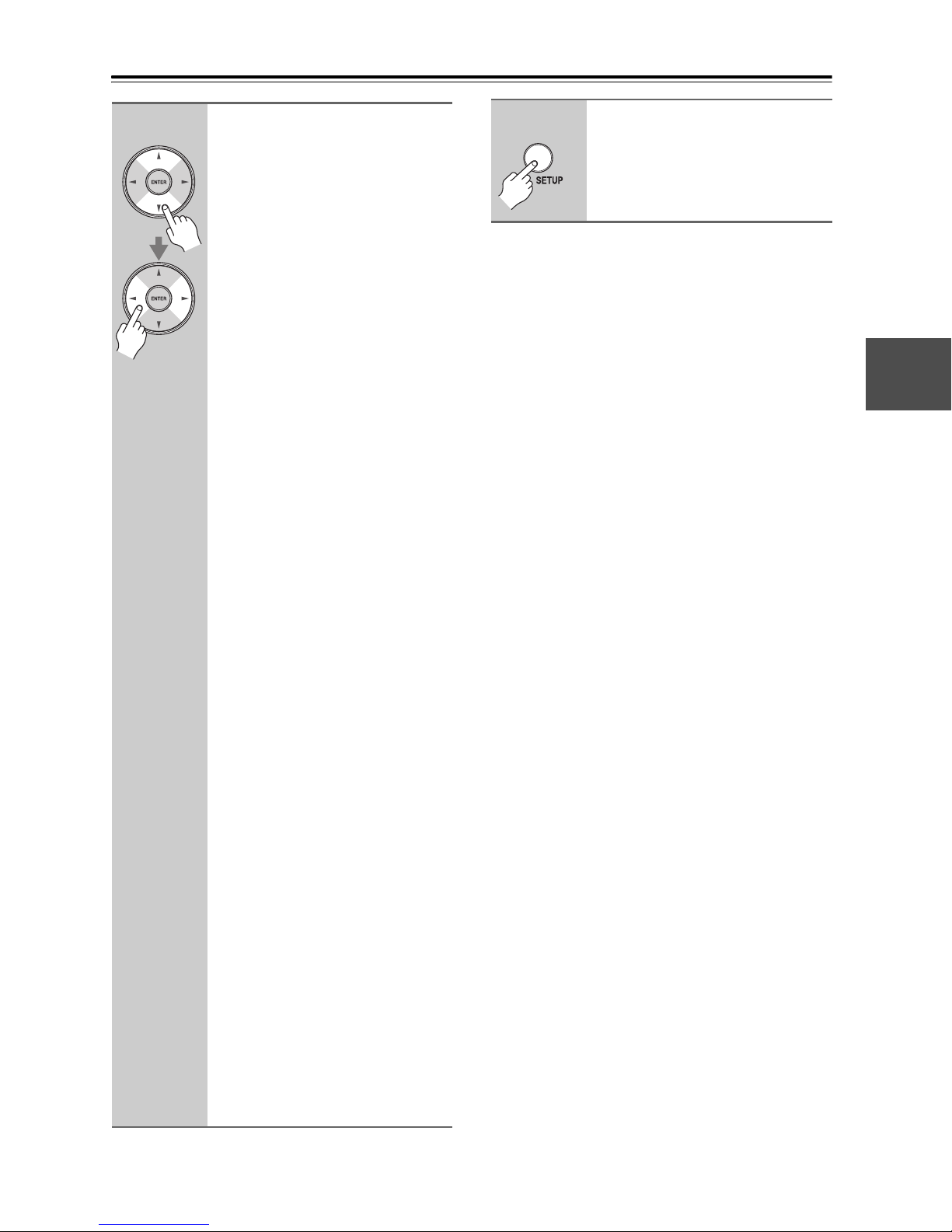

Use the Up and Down [q]/[w] buttons to select “Resolution”, and use the Left and Right [e]/[r] buttons to select:

Through:

Select this to pass video through the AV receiver at the same resolution and with no conversion.

Auto :

Select this to have the AV receiver automatically convert video at resolutions not supported by your TV.

480p (480p/576p):

Select this for 480p or 576p output and video conversion as necessary.

720p:

Select this for 720p output and video conversion as necessary.

1080i:

Select this for 1080i output and video conversion as necessary.

1080p :

Select this for 1080p output and video conversion as necessary.

Notes:

• See page 32 for charts showing how the “Monitor Out” and “Resolution” settings affect the video signal flow through the AV receiver.

• This procedure can also be performed on the AV receiver by using its [SETUP] button, arrow buttons, and [ENTER] button.

Press the [SETUP] button.

The setup menu closes.

1080p/24 :

Source:

Tips:

• The “Resolution” setting can also be

• The “Resolution” setting is set

Notes:

• Settings marked with an asterisk ( )

• If the “Monitor Out” setting is set to

• Depending on the incoming video

Select this for 1080p output at 24 frames per second and video conversion as necessary.

Output will be according to the resolution level which was set in the “Picture Adjust” setting (see page 105).

set using the [VIDEO] button on the remote controller.

respectively of main, sub, and analog.

are not available when the “Monitor Out” setting is set to “Analog”.

“Both”, this setting is fixed at “Auto”.

signal, video playback may not be smooth or the vertical resolution may be lowered. In this case select other than “1080p/24”.

First Time Setup—Continued

Video Input Setup

HDMI Input Setup

If you connect a video component to HDMI IN, you must assign that input to an input selector. For example, if you connect your DVD/BD player to HDMI IN 1, you must assign HDMI IN 1 to the DVD/BD input selector.

If you’ve connected your TV to the AV receiver with an HDMI cable, you can set the AV receiver so that composite video, S-Video, and component video sources are upconverted* and output by the HDMI output. You can set this for each input selector by selecting the “-----” option.

Composite video, S-Video,

component video

Composite video, S-Video,

component video

Press the [RECEIVER] button followed by the [SETUP] button.

The main menu appears onscreen. If the main menu doesn’t appear, make

sure the appropriate external input is selected on your TV.

OUT

HDMI

Use the Up and Down [q]/[w] buttons to select an input selector, and use the Left and Right [e]/ [r] buttons to select:

HDMI1, HDMI2, HDMI3, HDMI4, HDMI5, HDMI6, HDMI7 (TX-NR5007):

Select the HDMI IN to which the video component has been connected.

-----: Output composite video, S-Video, and component video sources from the HDMI outputs. The video output signal from the HDMI outputs is the one configured in “Component Video Input Setup” (see page 55).

• Each HDMI IN cannot be assigned to more than one input selector. When HDMI IN have already been assigned, you must set first any unused input selectors to “- - - - -” or you will be unable to assign HDMI IN to input selector.

• “AUX 1” is used only for digital input from the front panel terminals.

Press the [SETUP] button.

The setup menu closes.

Use the Up and Down [q]/[w] buttons to select “1. Input/Output Assign”, and then press [ENTER].

The “Input/Output Assign” menu appears.

1. Input/Output Assign

1. Monitor Out

2. HDMI Input

3. Component Video Input

4. Digital Audio Input

5. Analog Audio Input

Use the Up and Down [q]/[w] buttons to select “2. HDMI Input”, and then press [ENTER].

The “HDMI Input” menu appears.

1–2. HDMI Input

DVD/BD VCR/DVR CBL/SAT GAME

AUX 1

HDMI1 HDMI2 HDMI3 HDMI4

FRONT

Notes:

• For composite video, S-Video, and component video upconversion for the HDMI output, the “Monitor Out” setting must be set to other than “Analog” (see page 52), and the “HDMI Input” setting must be set to “- - - - -”. See page 32 for more information on video signal flow and upconversion.

• If no video component is connected to HDMI output (even if the HDMI input is assigned), the AV receiver selects the video source based on the setting of Component Video Input.

• When an HDMI IN is assigned to an input selector, the AV receiver will select audio from HDMI IN as a priority. See “Digital Audio Input Setup” on page 56.

• The TUNER input selector cannot be assigned and is fixed at the “- - - - -” option.

• If you connect an input component (such as UP-A1 Dock that seated iPod) to the UNIVERSAL PORT jack, you cannot assign any input to PORT selector.

• Do not assign the component connected with the HDMI input to the TV/TAPE selector when you set “TV Control” setting to “On” (see page 114). Otherwise, appropriate CEC (Consumer Electronics Control) operation is not guaranteed.

• This procedure can also be performed on the AV receiver by using its [SETUP] button, arrow buttons, and [ENTER] button.

First Time Setup—Continued

Component Video Input Setup

If you connect to a COMPONENT VIDEO IN, you must assign it to an input selector. For example, if you connect your DVD/BD player to COMPONENT VIDEO IN 2, you should assign it to the DVD/BD input selector.

Input selector Default assignment

DVD /BD IN1

VCR/DVR -----

CBL/SAT IN2

GAME IN3

AUX1 -----

AUX2 -----

TV/TAPE -----

TUNER ----- (Fixed)

CD -----

PHONO -----

PORT -----

If you’ve connected your TV to the AV receiver with a component video cable, you can set the AV receiver so that composite video and S-Video sources are upconverted* and output by the COMPONENT VIDEO MONITOR OUT selector by selecting the “- - - - -” option.

Composite video, S-Video

*1 Only when “Monitor Out” setting is set to “Analog”.

. You can set this for each input

Component video

OUT

Component video

Use the Up and Down [q]/[w] buttons to select “3. Component Video Input”, and then press [ENTER].

The “Component Video Input” menu appears.

1–3. Component Video Input

DVD/BD VCR/DVR CBL/SAT GAME AUX 1

IN1

- - - - IN2 IN3

- - - - -

Use the Up and Down [q]/[w] buttons to select an input selector, and then use the Left and Right [e]/[r] buttons to select:

IN1: Select if the video component

is connected to COMPONENT VIDEO IN 1.

IN2: Select if the video component

is connected to COMPONENT VIDEO IN 2.

IN3: Select if the video component

is connected to COMPONENT VIDEO IN 3.

-----: Select if you are using the HDMI outputs, rather than the COMPONENT VIDEO OUT, for the output from composite video, S-Video, and component video sources.

Press the [SETUP] button.

The setup menu closes.

Press the [RECEIVER] button followed by the [SETUP] button.

The main menu appears onscreen. If the main menu doesn’t appear, make

sure the appropriate external input is selected on your TV.

Use the Up and Down [q]/[w] buttons to select “1. Input/Output Assign”, and then press [ENTER].

The “Input/Output Assign” menu appears.

1. Input/Output Assign

1. Monitor Out

2. HDMI Input

3. Component Video Input

4. Digital Audio Input

5. Analog Audio Input

Notes:

• For composite video and S-Video upconversion for the COMPONENT VIDEO MONITOR OUT, the “Monitor Out” setting must be set to “Analog” (see page 52), and the “Component Video Input” setting must be set to “- - - - -”. See page 32 for more information on video signal flow and upconversion.

• If not connected to the same output you have selected in the “Monitor Out” setting, the “Monitor Out” setting will be automatically switched to “Analog” (see page 52).

• If you connect an input component (such as UP-A1 Dock that seated iPod) to the UNIVERSAL PORT jack, you cannot assign any input to PORT selector.

• This procedure can also be performed on the AV receiver by using its [SETUP] button, arrow buttons, and [ENTER] button.

First Time Setup—Continued

Digital Audio Input Setup

If you connect a component to a digital input jack, you must assign that jack to an input selector. For example, if you connect your CD player to the OPTICAL IN1 jack, you should assign that jack to the CD input selector. By default, the COAXIAL IN1 jack is assigned to the DVD/ BD input selector, although this can be changed.

Here are the default assignments.

Input selector

DVD/BD COAX1 COAX1

VCR/DVR COAX2 COAX2

CBL/SAT COAX3 COAX3

GAME OPT1 OPT1 AUX 1 FRONT (Fixed) FRONT (Fixed) AUX2 ----- -----

TV/TAPE - - - - - OPT2

TUNER - - - - - (Fixed) - - - - - (Fixed)

CD OPT2 OPT3

PHONO ----- -----

PORT ----- -----

Press the [RECEIVER] button followed by the [SETUP] button.

The main menu appears onscreen. If the main menu doesn’t appear, make

sure the appropriate external input is selected on your TV.

Use the Up and Down [q]/[w] buttons to select “1. Input/Output Assign”, and then press [ENTER].

The “Input/Output Assign” menu appears.

Use the Up and Down [q]/[w] buttons to select “4. Digital Audio Input”, and then press [ENTER].

The “Digital Audio Input” menu appears.

Default assignment

(TX-NR3007) (TX-NR5007)

1. Input/Output Assign

1. Monitor Out

2. HDMI Input

3. Component Video Input

4. Digital Audio Input

5. Analog Audio Input

1–4. Digital Audio Input

DVD/BD VCR/DVR CBL/SAT GAME AUX 1

COAX1 COAX2 COAX3

OPT1

FRONT

Use the Up and Down [q]/[w] buttons to select an input selector, and use the Left and Right [e]/ [r] buttons to select “COAX1”, “COAX2”, “COAX3”, “OPT1”, “OPT2”, “OPT3” (TX-NR5007), or “----- (analog)”.

• When an HDMI IN is assigned to an input selector in “HDMI Input Setup” on page 54, the AV receiver will select audio from HDMI IN as a priority.

• Press the [ENTER] button when you do not use the signal of audio from the HDMI IN. The “ ” mark is displayed like “COAX1 ”.

• “AUX 1” is used only for digital input from the front panel terminals.

Examples:

If you connect your DVD player to the OPTICAL IN 1 jack, set “DVD/BD” to “OPT1”.

If you want to listen to audio from the component connected to the OPTICAL IN 2 jack when the VCR/DVR input selector is selected, set “VCR/DVR” to “OPT2”.

If you want to listen to audio from the component connected to the COAXIAL IN 1 jack when the CBL/ SAT input selector is selected, set “CBL/SAT” to “COAX1”.

For input selectors that you don’t want to assign a digital input jack, set to “----- (analog)”.

Press the [SETUP] button.

The setup menu closes.

Notes:

• Available sampling rate for PCM signals from a digital input (optical and coaxial) is 32/44.1/48/88.2/ 96 kHz/16, 20, 24 bit.

• If you connect an input component (such as UP-A1 Dock that seated iPod) to the UNIVERSAL PORT jack, you cannot assign any input to PORT selector.

• This procedure can also be performed on the AV receiver by using its [SETUP] button, arrow buttons, and [ENTER] button.

First Time Setup—Continued

Analog Audio Input Setup

If you connect a component to the AV receiver’s analog multichannel input, you must assign that input to an input selector. For example, if you connect your DVD/ BD player to the MULTI CH input, you must assign it to the DVD/BD input selector.

Press the [RECEIVER] button, followed by the [SETUP] button.

The main menu appears onscreen. If the main menu doesn’t appear, make

sure the appropriate external input is selected on your TV.

Use the Up and Down [q]/[w] buttons to select “1. Input/Output Assign”, and then press [ENTER].

The “Input/Output Assign” menu appears.

1. Input/Output Assign

1. Monitor Out

2. HDMI Input

3. Component Video Input

4. Digital Audio Input

5. Analog Audio Input

Use the Up and Down [q]/[w] buttons to select “5. Analog Audio Input”, and then press [ENTER].

The “Analog Audio Input” menu appears.

1–5. Analog Audio Input

Multich Subwoofer Input Sensitivity

- - - - -

Notes:

• To listen to the component connected to the multichannel input, press the [AUDIO] button and select the “Audio selector” (see page 119).

• This procedure can also be performed on the AV receiver by using its [SETUP] button, arrow buttons, and [ENTER] button.

Press the [SETUP] button.

The setup menu closes.

Speaker Settings

If you change these settings, you must run Audyssey MultEQ® XT Room Correction and Speaker Setup again (see page 61).

If the impedance of any speaker is 4 ohms or more but less than 6, set the minimum speaker impedance to 4 ohms.

To use bi-amping or bridging, you must change the “Speakers Type(FrontA)” or “Speakers Type(FrontB)” setting. For hookup information, see pages 23 to 26.

Notes:

• When bridging is used, the AV receiver is able to drive up to 7.2 speakers in the main room.

• When bi-amping is used, the AV receiver is able to drive up to 7.2 speakers in the main room.

• Before you change these settings, turn down the volume.

Press the [RECEIVER] button, followed by the [SETUP] button.

The main menu appears onscreen. If the main menu doesn’t appear, make

sure the appropriate external input is selected on your TV.

Use the Left and Right [e]/[r] buttons to select an input selector.

You can assign the multichannel input to the following input selectors: “DVD/ BD”, “VCR/DVR”, “CBL/SAT”, “GAME”, “AUX 1”, “AUX 2”, “TV/ TAPE”, “CD”, or “PHONO”. If you don’t want to assign the multichannel input, set to “- - - - -”.

First Time Setup—Continued

Use the Up and Down [q]/[w] buttons to select “2. Speaker Setup”, and then press [ENTER].

The “Speaker Setup” menu appears.

2. Speaker Setup

1. Speaker Settings

2. Speaker Configuration

3. Speaker Distance

4. Level Calibration

5. Equalizer Settings

6. THX Audio Setup

Use the Up and Down [q]/[w] buttons to select “1. Speaker Settings”, and then press [ENTER].

The “Speaker Settings” menu appears.

2–1. Speaker Settings

Speaker Impedance Speakers Type(FrontA) Speakers Type(FrontB) Powered Zone2 Powered Zone3

6ohms Normal

Not Use

Not Act Not Act

Use the Up and Down [q]/[w] buttons to select “Speaker Impedance”, and then use the Left and Right [e]/[r] buttons to select:

4ohms: Select if the impedance of any

speaker is 4 ohms or more but less than 6.

6ohms: Select if the impedances of all

speakers are between 6 and 16 ohms.

Note:

When bridging is used, “Speaker Impedance” setting is fixed at “8ohms”.

Use the Up and Down [q]/[w] buttons to select “Speakers Type(FrontA)”, and then use the Left and Right [e]/[r] buttons to select:

Normal: Select this if you’ve con-

nected your front speakers A normally.

Bi-Amp: Select this if you’ve con-

nected your front speakers A for bi-amped operation.

BTL: Select this if you’ve con-

nected your front speakers A for bridged operation. The BTL indicator will appear on the display.

Notes:

• “Bi-Amp” and “BTL” cannot be selected if “Speakers Type(FrontB)” is set to “Bi-Amp” or “BTL”.

• Surround back speakers and Powered Zone 3 cannot be used if you select “Bi-Amp” or “BTL”.

Use the Up and Down [q]/[w] buttons to select “Speakers Type(FrontB)”, and use the Left and Right [e]/[r] buttons to select:

Not Use: Select this if you’re not using

speakers B.

Normal: Select this if you’ve con-

nected your front speakers B normally.

Bi-Amp: Select this if you’ve con-

nected your front speakers B for bi-amped operation.

BTL: Select this if you’ve con-

nected your front speakers B for bridged operation. The BTL indicator will appear on the display.

Notes:

• “Bi-Amp” and “BTL” cannot be selected if “Speakers Type(FrontA)” is set to “Bi-Amp” or “BTL”.

• Front high speakers, front wide speakers and Powered Zone 2 cannot be used if you select other than “Not Use”.

• Surround back, front high, and front wide speakers and Powered Zone 3 cannot be used if you select “Bi-Amp” or “BTL”.

Press the [SETUP] button.

The setup menu closes.

Powered Zone 2/3

See “Setting the Powered Zone 2/3” on page 134.

Note:

This procedure can also be performed on the AV receiver by using its [SETUP] button, arrow buttons, and [ENTER] button.

First Time Setup—Continued

TV Format Setup (European and Asian models)

For the onscreen setup menus to display properly, you must specify the TV system used in your area.

Press the [RECEIVER] button followed by the [SETUP] button.

The main menu appears onscreen. If the main menu doesn’t appear, make

sure the appropriate external input is selected on your TV.

Use the Up and Down [q]/[w] buttons to select “6. Miscellaneous”, and then press [ENTER].

The “Miscellaneous” menu appears.

6. Miscellaneous

1. Volume Setup

2. OSD Setup

When you’ve finished, press the [SETUP] button.

The setup menu closes.

Note:

This procedure can also be performed on the AV receiver by using its [SETUP] button, arrow buttons, and [ENTER] button.

FM/AM Frequency Step Setup

For FM/AM tuning to work properly, you must specify the FM/AM frequency step used in your area. Note that when this setting is changed, all radio presets are deleted.

Press the [RECEIVER] button, followed by the [SETUP] button.

The main menu appears onscreen. If the main menu doesn’t appear, make

sure the appropriate external input is selected on your TV.

Use the Up and Down [q]/[w] buttons to select “2. OSD Setup”, and then press [ENTER].

The “OSD Setup” menu appears.

6–2. OSD Setup

Immediate Display Display Position TV Format Language

Bottom

Auto

English

Use the Up and Down [q]/[w] buttons to select “TV Format”, and then use the Left and Right

[e]/[r] buttons to select:

Auto: Select this to automatically

detect the TV system from the video input signals.

NTSC: Select if the TV system in

your area is NTSC.

PAL: Select if the TV system in

your area is PAL.

Use the Up and Down [q]/[w] buttons to select “7. Hardware Setup”, and then press [ENTER].

The “Hardware Setup” menu appears.

7. Hardware Setup

1. Remote ID

2. Multi Zone

3. Tuner

4. HDMI

5. Network

6. Firmware Update

First Time Setup—Continued

Use the Up and Down [q]/[w] buttons to select “3. Tuner”, and then press [ENTER].

The “Tuner” menu appears.

(North American models)

7–3. Tuner

FM/AM Frequency Step SAT Radio Mode

(European and Asian models)

7–3. Tuner

AM Frequency Step 9kHz

Use the Left and Right [e]/[r] buttons to select:

(North American models)

200kHz/10kHz:

Select if 200 kHz/10 kHz steps are used in your area.

50kHz/9kHz:

Select if 50 kHz/9 kHz steps are used in your area.

200kHz/10kHz

None

GAME TV/TAPE

VCR/DVR

Press the [TV/TAPE], [GAME] or [VCR/DVR] input selector button so that “TV/TAPE”, “GAME” or “VCR/DVR” appears on the display.

(European and Asian models)

10kHz: Select if 10 kHz steps are

used in your area.

9kHz: Select if 9 kHz steps are used

in your area.

Note:

This procedure can also be performed on the AV receiver by using its [SETUP] button, arrow buttons, and [ENTER] button.

Press the [SETUP] button.

The setup menu closes.

Changing the Input Display

If you connect an u-capable Onkyo MiniDisc recorder, CD recorder, or RI Dock to the TV/TAPE IN/ OUT jacks, or connect an RI Dock to the GAME IN or VCR/DVR IN jacks, for u to work properly, you must change this setting.

This setting can only be changed on the AV receiver.

(3 seconds)

Notes:

• DOCK can be selected for the TV/TAPE or GAME or VCR/DVR input selector, but not at the same time.

• Enter the appropriate remote control code before using the AV receiver’s remote controller for the first time (see page 141).

Press and hold down the [TV/ TAPE], [GAME] or [VCR/DVR] input selector button (about 3 seconds) to change the setting.

Repeat this step to select MD, CDR, or DOCK.

For the TV/TAPE input selector, the setting changes in this order:

TV/TAPE → MD → CDR

→

DOCK For the GAME input selector, the setting changes in this order: GAME ↔ DOCK For the VCR/DVR input selector, the setting changes in this order: VCR/DVR

↔ DOCK

→

First Time Setup—Continued

Audyssey MultEQ® XT Room Correction and Speaker Setup

With the supplied calibrated microphone, Audyssey MultEQ XT automatically determines the number of speakers connected, their size for purposes of bass management, optimum crossover frequencies to the subwoofer (if present), and distances from the primary listening position.

Audyssey MultEQ XT then removes the distortion caused by room acoustics by capturing room acoustical problems over the listening area in both the frequency and time domain. The result is clear, well-balanced sound for everyone. Enabling Audyssey MultEQ XT allows you to also use Audyssey Dynamic EQ maintains the proper octave-to-octave balance at any volume level (see page 102).

Before using this function, connect and position all of your speakers.

If Audyssey Dynamic EQ is set to “On”, Audyssey Dynamic Volume

™

becomes available.

About Audyssey Dynamic EQ

Audyssey Dynamic EQ solves the problem of deteriorating sound quality as volume is decreased by taking into account human perception and room acoustics. Dynamic EQ selects the correct frequency response and surround levels moment-by-moment at any userselected volume setting. The result is bass response, tonal balance, and surround impression that remain constant despite changes in volume. Dynamic EQ combines information from incoming source levels with actual output sound levels in the room, a prerequisite for delivering a loudness correction solution. Audyssey Dynamic EQ works in tandem with Audyssey MultEQ XT to provide well-balanced sound for every listener at any volume level.

About Audyssey Dynamic Volume

Audyssey Dynamic Volume solves the problem of large variations in volume level between television programs, commercials, and between the soft and loud passages of movies. Dynamic Volume looks at the preferred volume setting by the user and then monitors how the volume of program material is being perceived by listeners in real time to decide whether an adjustment is needed. Whenever necessary, Dynamic Volume makes the necessary rapid or gradual adjustments to maintain the desired playback volume level while optimizing the dynamic range. Audyssey Dynamic EQ is integrated into Dynamic Volume so that as the playback volume is adjusted automatically, the perceived bass response, tonal balance, surround impression, and dialog clarity remain the same whether watching movies, flipping between television channels, or changing from stereo to surround sound content.

™

, which

Measurement Positions

To create a listening environment in your home theater that all listeners will enjoy, Audyssey MultEQ XT takes measurements at up to eight positions within the listening area.

■ First measurement point

Also referred to as the Main Listening Position this refers to the most central position where one would normally sit within the listening environment. MultEQ XT uses the measurements from this position to calculate speaker distance, level, polarity, and the optimum crossover value for the subwoofer.

■ Second

These are the other listening positions (i.e., the places where the other listeners will sit). You can measure up to eight positions.

The following examples show some typical home theater seating arrangements. Choose the one that best matches yours, and position the microphone accordingly when prompted.

−eighth measurement positions

TV TV TV

: listening area : listening position

–

First Time Setup—Continued

Using Audyssey MultEQ® XT

ON/STANDBY

Speaker setup microphone

ENTER

qwer

Turn on the AV receiver and the connected TV.

On the TV, select the input to which the AV receiver is connected.

Set the speaker setup microphone at the Main Listening Position a (page 61), and connect it to the SETUP MIC jack.

The speaker setting menu appears.

MultEQ XT: Auto Setup

Speakers Type(FrontA) Speakers Type(FrontB) Powered Zone2 Powered Zone3

Normal

Not Use

Not Act Not Act

If you change these settings, refer to step 5 on “Speaker Settings” (page 57) or step 4 on “Setting the Powered Zone 2/3” (page 134).

When you’ve finished, press the [ENTER] button.

MultEQ XT: Auto Setup

Please place setup microphone at

center of listening area at

ear height.

Notes:

• If any of your speakers is 4 ohms, change “Speaker Impedance” setting before running Audyssey MultEQ XT Room Correction and Speaker Setup (see page 57).

• If the AV receiver is muted, it will be unmuted automatically when Audyssey MultEQ XT Room Correction and Speaker Setup starts.

• Room correction and speaker setup can only be used with Speakers A.

• Room correction and speaker setup cannot be performed while a pair of headphones is connected, or Speakers B is selected.

• It takes about 30 minutes to complete the room correction and speaker setup for eight positions. Total measurement time varies depending on the number of speakers.

• Do not disconnect the speaker setup microphone during the room correction and speaker setup, unless you want to cancel the setup.

• Do not connect or disconnect any speakers during the room correction and speaker setup.

Notes:

• Before starting Audyssey MultEQ XT Room Correction and Speaker Setup, arrange the room and connect the speakers as you would for enjoying movies. Changes to the room after auto setup requires you run the auto setup again, as room EQ characteristics may have changed.

• When starting the room correction and speaker setup, do not stand between the speakers and microphone, and avoid obstacles blocking the path between speakers and microphone. This will produce inaccurate results.

• Position the microphone at ear height of a seated listener with the microphone tip pointed directly at the ceiling using a tripod. Do not hold the microphone in your hand during measurements as this will produce inacurate results.

First Time Setup—Continued

• Make the room as quiet as possible. Background noise can disrupt the room measurements. Close windows, silence cell phones, televisions, radios, air conditioners, fluorescent lights, home appliances, light dimmers, or other devices.

• Cell phones should be turned off or placed away from all audio electronics during the measurement process as Radio Frequency Interference (RFI) may cause measurement disruptions (even if the cell phone is not in use).

Press [ENTER].

The room correction and speaker setup starts.

MultEQ XT: Auto Setup

Do not unplug setup microphone.

Please keep quiet.

Now measuring. . .

Test tones are played through each speaker as Audyssey MultEQ

XT Room Correction and Speaker Setup runs. This process takes a few minutes. Please refrain from talking during measurements and do not stand between speakers and the microphone.

The following screen appears.

MultEQ XT: Auto Setup

When prompted, place the setup microphone at the next position, and repeat step 5.

After the 3rd to the 8th measurement, the following screen appears.

MultEQ XT: Auto Setup

Please select [Next], when measuring next position,

and select [Finish], when ending.

Next Finish(Calculate)

Use the Up and Down [q]/[w] buttons to select an option, and then press [ENTER].

Select “Next” to begin measuring the next measurement position. After the 8th measurement has been taken, the procedure automatically proceeds to step 8.

Finish(Calculate):

Select this if you don’t want to measure any more listening positions and are ready to calculate the results, then go to step 8.

When the measurements are complete, the following screen appears.

MultEQ XT: Auto Setup

Please place setup microphone at 2nd position at

ear height.

Place the setup microphone at the next position (page 61), and then press [ENTER].

Audyssey MultEQ XT performs more measurements. This takes a few minutes.

MultEQ XT: Auto Setup

Do not unplug setup microphone.

Please keep quiet.

Now measuring. . .

Calculating...

First Time Setup—Continued

When the calculations are complete, the following screen appears.

MultEQ XT: Auto Setup

Review SP Configuration Subwoofer No Front Full Band Center 40Hz Surround 120Hz Front Wide Full Band Front High Full Band Surr Back 150Hz Surr Back Ch 2ch

Save Cancel

Use the Up and Down [q]/[w] buttons to select an option, and then press [ENTER].

The options are:

Save:

Save the calculated settings and exit the room correction and speaker setup.

Cancel:

Cancel the room correction and speaker setup.

Note:

You can view the calculated settings for the speaker configuration, speaker distances, and speaker levels by using the Left and Right [e]/[r] buttons.

If you selected “Save”, the results are saved, and the following screen appears.

MultEQ XT: Auto Setup

Saving...

Notes:

• When the room correction and speaker setup is complete, the “Equalizer Settings” (page 98) will be set to “Audyssey” and “Dynamic EQ” (page 102) will be set to “On”.

• You can cancel the Room Correction and Speaker Setup at any point in this procedure simply by disconnecting the setup microphone.

Error Messages

While the room correction and speaker setup is in progress, one of the following error messages may appear:

❏ Ambient noise is too high.

MultEQ XT: Auto Setup

Ambient noise is too high.

Retry Cancel

This message appears if the background noise is too loud and the measurements cannot be performed properly.

Remove the source of the noise and try again.

Retry: Return to the measured point immediately

before and start set up again.

Cancel: Cancel the room correction and speaker setup.

❏ Speaker Detect Error

This message appears if a speaker is not detected. “Yes” means that a speaker was detected. “No” means that no speaker was detected.

Tip:

See “Speaker Configuration” (page 19) for appropriate settings.

Disconnect the speaker setup microphone.

MultEQ XT: Auto Setup

Please, unplug setup microphone.

MultEQ XT: Auto Setup

Speaker Detect Error

Retry Cancel

FL : No SL : --FWL : --FHL : --SBL : --C : ---

FR : --SR : --FWR : --FHR : --SBR : --SW1 : --SW2 : ---

The front speaker has not been detected.

First Time Setup—Continued

MultEQ XT: Auto Setup

Speaker Detect Error

Retry Cancel

FL : Yes SL : --FWL : Yes FHL : Yes SBL : --C : Yes

FR : No SR : --FWR : Yes FHR : Yes SBR : --SW1 : --SW2 : ---

One of the front speakers has not been detected.

MultEQ XT: Auto Setup

Speaker Detect Error

Retry Cancel

FL : Yes SL : --FWL : Yes FHL : Yes SBL : --C : Yes

FR : --SR : --FWR : No FHR : Yes SBR : --SW1 : --SW2 : ---

One of the front wide speakers has not been detected.

MultEQ XT: Auto Setup

Speaker Detect Error

Retry Cancel

FL : Yes SL : --FWL : Yes FHL : Yes SBL : --C : Yes

FR : --SR : --FWR : --FHR : No SBR : --SW1 : --SW2 : ---

One of the front high speakers has not been detected.

MultEQ XT: Auto Setup

Speaker Detect Error

Retry Cancel

FL : Yes SL : No FWL : Yes FHL : Yes SBL : Yes C : Yes

FR : Yes SR : Yes FWR : Yes FHR : Yes SBR : Yes SW1 : --SW2 : ---

One of the surround speakers has not been detected.

MultEQ XT: Auto Setup

Speaker Detect Error

Retry Cancel

FL : Yes SL : --FWL : No FHL : No SBL : --C : Yes

FR : Yes SR : No FWR : No FHR : No SBR : Yes SW1 : --SW2 : ---

The surround back speakers have been detected but the surround speakers haven’t.

MultEQ XT: Auto Setup

Speaker Detect Error

Retry Cancel

FL : Yes SL : --FWL : No FHL : Yes SBL : --C : Yes

FR : Yes SR : No FWR : No FHR : Yes SBR : --SW1 : --SW2 : ---

The front high speakers have been detected but the surround speakers haven’t.

MultEQ XT: Auto Setup

Speaker Detect Error

Retry Cancel

FL : Yes SL : --FWL : Yes FHL : No SBL : --C : Yes

FR : Yes SR : No FWR : Yes FHR : No SBR : --SW1 : --SW2 : ---

The front wide speakers have been detected but the surround speakers haven’t.

MultEQ XT: Auto Setup

Speaker Detect Error

Retry Cancel

FL : Yes SL : --FWL : Yes FHL : Yes SBL : No C : Yes

FR : Yes SR : Yes FWR : Yes FHR : Yes SBR : Yes SW1 : --SW2 : ---

The right surround back speaker has been detected but the left surround back speaker hasn’t.

MultEQ XT: Auto Setup

Speaker Detect Error

Retry Cancel

FL : Yes SL : --FWL : No FHL : No SBL : Yes C : Yes

FR : Yes SR : No FWR : No FHR : No SBR : No SW1 : --SW2 : ---

The left surround back speaker has been detected but the surround speaker hasn’t.

MultEQ XT: Auto Setup

Speaker Detect Error

Retry Cancel

FL : Yes SL : Yes FWL : Yes FHL : Yes SBL : Yes C : Yes

FR : Yes SR : Yes FWR : Yes FHR : Yes SBR : Yes SW1 : No SW2 : Yes

Subwoofer 2 has been detected but Subwoofer 1 has not.

First Time Setup—Continued

MultEQ XT: Auto Setup

Speaker Detect Error

Retry Cancel

FL : Error SL : Yes FWL : --FHL : --SBL : Yes C : Yes

FR : Yes SR : Yes FWR : --FHR : --SBR : Yes SW1 : Yes SW2 : Yes

The speaker type detected does not match what was expected. The speaker may be incorrect type or broken. Please check that it is the correct speaker type.

❏ Speaker Matching Error!

MultEQ XT: Auto Setup

Speaker Matching Error!

Retry Cancel

The number of speakers detected on the second measurement and later was different to the number detected on the first measurement.

Make sure speakers that could not be detected are connected properly.

Retry: Return to step 2 and try again.

Cancel: Cancel the room correction and speaker setup.

❏ Writing Error!

MultEQ XT: Auto Setup

Writing Error!

Changing the Speaker Settings Manually

If you wish to make changes to the settings found during the room correction and speaker setup, follow the directions on pages 95 to 98.

Notes:

• Please note that THX recommends any THX main speakers be set to “80Hz(THX)”. If you set up your speakers using Audyssey MultEQ XT Room Correction and Speaker Setup, please make sure manually that any THX speakers are set to 80 Hz (THX) crossover (see page 95).

• Sometimes due to the electrical complexities of subwoofers and the interaction with the room, THX recommends setting the level and the distance of the subwoofer manually.

• Sometimes due to interaction with the room, you may notice irregular results when setting the level and/or distance of the main speakers. If this happens, THX recommends setting them manually.

Using Powered Subwoofers

If you’re using powered subwoofers that output very low-frequency sound at a low volume level, it may not be detected by Audyssey MultEQ® XT Room Correction and Speaker Setup.

If the “Subwoofer” appears on the “Review SP Configuration” screen as “No”, increase the subwoofer’s volume to the half-way point, set it to its highest crossover frequency, and then try running Audyssey MultEQ XT Room Correction and Speaker Setup again. Note that if the volume is set too high and the sound distorts, detection issues may occur, so use an appropriate volume level. If the subwoofer has a lowpass filter switch, set it to Off or Direct. Refer to your subwoofer’s instruction manual for details.

Retry Cancel

This message appears if saving fails.

Try saving again. If this message appears after 2 or 3 attempts, the AV receiver is probably malfunctioning. Contact your Onkyo dealer.

Retry: Return to step 2 and try again.

Cancel: Cancel the room correction and speaker setup.

Basic Operations

Selecting the Input Source

This section explains how to select the input source (i.e., the AV component that you want to listen to or watch).

AV receiver

MASTER VOLUME

Input selector buttons

Remote

controller

INPUT SELECTOR

RECEIVER

VOL q/w

Use the AV receiver’s input selector buttons to select the input source.

To select the input source with the remote controller, press the [RECEIVER] button, and then press the INPUT SELECTOR buttons.

AV receiver Remote

controller

Start playback on the source component.

When you select DVD or another video component, on your TV, you’ll need to select the video input that’s connected to the AV receiver’s HDMI outputs, COMPONENT VIDEO MONITOR OUT or MONITOR OUT.

On some DVD players, you may need to turn on the digital audio output.

To adjust the volume, use the MASTER VOLUME control, or the remote controller’s VOL [q]/[w] button.

The volume can be set to –Q play).

The AV receiver is designed for home theater enjoyment. It has a wide volume range, allowing precise adjustment.

The volume level can also be displayed as an absolute value. See “Volume Setup” on page 110.

Select a listening mode and enjoy!

See “Using the Listening Modes” on page 81.

dB, –81.5 dB through +18.0 dB (relative dis-

Basic Operations—Continued

DISPLAY

TONE, e, r DIMMER

Press [RECEIVER] first.

SP LAYOUT

DISPLAY

MUTING

Notes:

• This setting is not available when the multichannel Analog input is selected.

• The tone can be adjusted for Speakers A and Speakers B individually.

• To bypass the bass and treble tone circuits, select the Direct, Pure Audio or THX listening mode.

Displaying Source Information

You can display various information about the current input source as follows.

Remote

controller

Note:

This procedure can also be performed on the AV receiver by using its [DISPLAY] button.

Press the [RECEIVER] button, and then press the [DISPLAY] button repeatedly to cycle through the available information.

DIMMER

SLEEP

Adjusting the Bass & Treble

You can adjust the bass and treble for the front speakers, except when the Direct, Pure Audio or THX listening mode is selected.

AV receiver

Press the [TONE] button repeatedly to select either “Bass” or “Treble” for each speaker or subwoofer.

Use the Up [r] and Down [e] buttons to adjust.

Tip:

This procedure can also be performed on the remote controller by using [AUDIO] button (see page 117).

The following information can typically be displayed for input sources.

Input source

Listening

mode

Signal format*

Sampling

frequency

Input Signal

Resolution

Output

Resolution

* If the input signal is analog, no format information is displayed.

If the input signal is PCM, the sampling frequency is displayed. If the input signal is digital but not PCM, the signal format and the number of channels is displayed. For some digital input signals, including multichannel PCM, the signal format, number of channels, and sampling frequency is displayed. Information is displayed for about three seconds, then the previously displayed information reappears.

■ Bass

You can boost or cut low-frequency sounds output by the front speakers from –10 dB to +10 dB in 2 dB steps.

■ Trebl e

You can boost or cut high-frequency sounds output by the front speakers from –10 dB to +10 dB in 2 dB steps.

Basic Operations—Continued

Setting the Display Brightness

You can adjust the brightness of the AV receiver’s display.

Remote

controller

Press the [RECEIVER] button, and then press the [DIMMER] button repeatedly to select:

• Normal + VOLUME light on.

• Normal + VOLUME light off.

• Dim + VOLUME light off.

• Dimmer + VOLUME light off. Alternatively, you can use the AV

receiver’s [DIMMER] button (North American models).

Muting the AV Receiver

You can temporarily mute the output of the AV receiver.

Remote

controller

Press the [RECEIVER] button, and then press the [MUTING] button.

The output is muted and the MUTING indicator flashes on the display, as shown.

Using the Sleep Timer

With the sleep timer, you can set the AV receiver to turn off automatically after a specified period.

Remote

controller

If you need to cancel the sleep timer, press the [SLEEP] button repeatedly until the SLEEP indicator disappears.

To check the time remaining until the AV receiver sleeps, press the [SLEEP] button. Note that if you press the [SLEEP] button while the sleep time is being displayed, you’ll shorten the sleep time by 10 minutes.

Press the [RECEIVER] button, and then press the [SLEEP] button repeatedly to select the required sleep time.

The sleep time can be set from 90 to 10 minutes in 10 minute steps.

The SLEEP indicator appears on the display when the sleep timer has been set. The specified sleep time appears on the display for about five seconds, then the previous display reappears.

To unmute the AV receiver, press the [MUTING] button again, or adjust the volume.

The Mute function is cancelled when the AV receiver is set to Standby.

Tip:

You can specify how much the output is muted with the “Muting Level” setting (page 110).

Basic Operations—Continued

Selecting Speaker Layout

Remote

controller

Front High or Front Wide Speakers

When “Speakers Type(FrontB)” setting is set to “Not Use”, you can select the priority of the use of Front High or Front Wide speakers.

Notes:

• Front High or Front Wide speakers cannot be selected in either of the following cases:

1. “Speakers Type(FrontB)” is set to “Bi-Amp”,

“BTL”, or “Normal” (page 57).

2. Powered Zone 2 is being used (page 134).

• When the listening mode that doesn’t support Front High or Front Wide speakers is used, the setting cannot be selected.

• If you use surround back speakers, the speaker selection will be based on the combination of surround back and front high speakers, or surround back and front wide speakers.

Speakers A or Speakers B Configuration

Press the [RECEIVER] button, and then press the [SP LAYOUT] button repeatedly.

Using Headphones

You can connect a pair of stereo headphones (1/4-inch phone plug) to the AV receiver’s PHONES jack for private listening, as shown.

Notes:

• Always turn down the volume before connecting your headphones.

• While the headphones plug is inserted in the PHONES jack, the Headphone indicator, speaker/channel indicator FL and FR light up. (The Powered Zone 2/3 speakers are not turned off.)

• When you connect a pair of headphones, the listening mode is set to Stereo, unless it’s already set to Stereo, Mono, Direct, Pure Audio or DTS Surround Sensation.

• Listening mode automatically changes into DTS surround sensation when you connect a pair of headphones while DTS surround sensation mode is currently selected.

• The following listening modes can be used with headphones (the listening modes available also depend on the currently selected input source): Stereo, Direct, Pure Audio, Mono and DTS Surround Sensation.

When “Speakers Type(FrontB)” setting is set to other than “Not Use”, you can choose which of the speakers you want to use with the Speakers A or Speakers B configuration. Speakers A or B can be switched regardless of listening modes.

Notes:

• When you use Speakers B configuration, you cannot use front high and front wide speakers.

• When you use Speakers B configuration, listening modes that require front high or front wide speakers such as Dolby Pro Logic IIz Height or Audyssey Dynamic Surround Expansion™ are unavailable.

• While you are using Speakers B, you cannot use Audyssey MultEQ Speaker Setup (Audyssey Dynamic EQ™ and Audyssey Dynamic Volume™).

XT Room Correction and

Basic Operations—Continued

Using Easy Macros

Using the Easy macro command in the Easy macro mode, you can sequentially operate Onkyo components with simple commands by simply pressing one button. These commands are user-specifiable (see page 150) and the default actions are described below. Press the ACTIVITIES buttons to start the Easy macro command.

Once the AV receiver has entered the normal macro mode, all of the ACTIVITIES buttons will automatically switch to the normal macro mode. In this case, pressing the [ALL OFF] button will set only the AV receiver to Standby mode.

ACTIVITIES buttons

ALL OFF, MY MOVIE, MY TV, MY MUSIC

RECEIVER

AUDIO

MY MUSIC (default):

1. The Onkyo CD player connected to the AV receiver is turned on.

2. The AV receiver is turned on.

3. The input selector of the AV receiver is set to “CD”.

4. The player starts playback.

Note:

Once you start the Easy macro command, you cannot use other ACTIVITIES buttons during the execution. If you want to operate other components halfway, press the [ALL OFF] to stop and press desired ACTIVITIES button.

Press the [ALL OFF] button.

1. The connected component stops and turns off.

2. The AV receiver turns off.

3. The TV connected to the AV receiver turns off (Standby).

*1. Depending on the start-up time of the DVD/BD player, the AV

receiver may not activate this playback command. In this case, press the Play [1] button on the remote controller.

*2. When [MY MUSIC] is selected, with the default settings, this

will not be performed.

*3. With some televisions, the power may not be turned off (or enter

standby).

*2*3

Press the [MY MOVIE], [MY TV], or [MY MUSIC] button.

MY MOVIE (default):

1. The TV connected to the AV receiver is turned on.

2. The Onkyo DVD player connected to the AV receiver is turned on.

3. The AV receiver is turned on.

4. The input selector of the AV receiver is set to “DVD/BD”.

5. The player starts playback.

MY TV (default):

1. The TV connected to the AV receiver is turned on.

2. The cable set-top box connected to the AV receiver is turned on.

3. The AV receiver is turned on.

4. The input selector of the AV receiver is set to “CBL/SAT”. You can enjoy cable TV.

Basic Operations—Continued

Changing Source Component

When you want to operate the component that is not assigned as the source component, you can assign it as the source component. For the default assignment, see page 151.

While holding down the REMOTE MODE button, press and hold down the [MY MOVIE], [MY TV], or [MY MUSIC] button (about 3 seconds).

The ACTIVITIES buttons that you pressed flashes twice, indicating that the setting has been established.

Examples:

When you press the [MY MUSIC] button and want to start the Onkyo Cassette recorder, while holding down [TV/TAPE] button, press and hold down the [MY MUSIC] button (about

(3 seconds)

3 seconds) flashes twice.

Tip:

This procedure can also be performed via onscreen menu (see page 150).

Restoring Default

(3 seconds)

While holding down the [AUDIO] button, press and hold down the [ALL OFF] button until the [ALL OFF] button lights up (about 3 seconds).

Release the [AUDIO] and [ALL OFF] buttons and press the [ALL OFF] button again.

The [ALL OFF] button flashes twice.

Listening to the Radio

Using the Tuner

With the built-in tuner you can enjoy AM and FM radio stations. You can store your favorite stations as presets for quick selection.

TUNER

TUNING MODE TUNING /

Listening to the Radio

Use the [TUNER] input selector button to select either AM or FM.

In this example, FM has been selected. Each time you press the [TUNER] but-

ton, the input source changes between AM and FM.

Band Frequency

TUNED

AUTO

TERE

■ Manual Tuning Mode

This model changes FM/AM frequency in 200k/10k (or 50k/9k) Hz steps.

In Manual Tuning mode, FM stations will be in mono.

Press the [TUNING MODE] button so that the AUTO indicator disappears from the display.

Press and hold the TUNING Up or Down [q]/[w] buttons.

The frequency stops changing when you release the button.

Press the buttons repeatedly to change the frequency one step at a time.

(Actual display depends on country.)

Tuning into Radio Stations

■ Auto Tuning Mode

When tuned into a station, the TUNED indicator appears. When tuned into a stereo FM station, the FM STEREO indicator appears on the display, as shown.

Press the [TUNING MODE] button so that the AUTO indicator appears on the display.

Press the TUNING Up or Down [q]/[w] buttons.

Searching stops when a station is found.

Tuning into weak FM stereo stations

If the signal from a stereo FM station is weak, it may be impossible to get good reception. In this case, switch to

Manual Tuning mode and listen to the station in mono.

■ Tuning into Stations by Frequency

You can tune into AM and FM stations directly by entering the appropriate frequency.

Remote

controller

Press the [TUNER] button repeatedly to select AM or FM, followed by the [D.TUN] button.

(Actual display depends on country.)

Within 8 seconds, use the number buttons to enter the frequency of the radio station.

For example, to tune to 87.5 (FM), press 8, 7, 5.

Listening to the Radio—Continued

Presetting AM/FM Stations

MEMORY PRESET e/

You can store a combination of up to 40 of your favorite AM/FM radio stations as presets.

Tune into the AM/FM station that you want to store as a preset.

Press the [MEMORY] button.

The preset number flashes.

AV receiver

Remote

controller

Remote

controller

To select a preset, use the PRESET [e]/[r] buttons, or the remote controller’s CH [+/–] button.

You can also use the remote controller’s number buttons to select a preset directly.

Note:

You can name your radio presets for easy identification (see page 105). Its name is displayed instead of the band and frequency.

While the preset number is flashing (about 8 seconds), use the PRESET [e]/[r] buttons to select a preset from 1 through 40.

Press the [MEMORY] button again to store the station or channel.

The station or channel is stored and the preset number stops flashing.

Repeat this procedure for all of your favorite AM/FM radio stations.

Selecting Presets

PRESET e/r

Deleting Presets

MEMORY, TUNING MODE

Select the preset that you want to delete.

See the previous section.

While holding down the [MEMORY] button, press the [TUNING MODE] button.

The preset is deleted and its number disappears from the display.

Listening to the Radio—Continued

Using RDS (European models)

RDS only works in areas where RDS broadcasts are available.

When tuned into an RDS station, the RDS indicator appears.

RDS indicator

■ What is RDS?

RDS stands for Radio Data System and is a method of transmitting data in FM radio signals. It was developed by the European Broadcasting Union (EBU) and is available in most European countries. Many FM stations use it these days. In addition to displaying text information, RDS can also help you find radio stations by type (e.g., news, sport, rock, etc.).

The AV receiver supports four types of RDS information:

PS (Program Service)

When tuned to an RDS station that’s broadcasting PS information, the station’s name will be displayed. Pressing the [DISPLAY] button will display the frequency for 3 seconds.

RT (Radio Text)

When tuned to an RDS station that’s broadcasting text information, the text will be shown on the display (see page 76).

PTY (Program Type)

This allows you to search for RDS radio stations by type (see page 76).

TP (Traffic Program)

This allows you to search for RDS radio stations that broadcast traffic information (see page 76).

Notes:

• In some cases, the text characters displayed on the AV receiver may not be identical to those broadcast by the radio station. Also, unexpected characters may be displayed when unsupported characters are received. This is not a malfunction.

• If the signal from an RDS station is weak, RDS data may be displayed intermittently or not at all.

RDS Program Types (PTY)

Type Display

None None

News reports News

Current affairs Affairs

Information Info

Sport Sport

Education Educate

Drama Drama

Culture Culture

Science and technology Science

Var ied Var ied

Pop music Pop M

Rock music Rock M

Middle of the road music Easy M

Light classics Light M

Serious classics Classics

Other music Other M

Weather Weather

Finance Finance

Children’s programmes Children

Social affairs Social

Religion Religion

Phone in Phone In

Tr av el Tr a ve l

Leisure Leisure

Jazz music Jazz

Country music Country

National music Nation M

Oldies music Oldies

Folk music Folk M

Documentary Document

Alarm test TEST

Alarm Alarm!

Listening to the Radio—Continued

When tuned to an RDS station that’s broadcasting text information, the text can be displayed.

Displaying Radio Text (RT)

RT/PTY/TP

Press the [RT/PTY/TP] button once.

The RT information scrolls across the display.

Notes:

• The message “Waiting” may appear while the AV receiver waits for the RT information.

• If the message “ no RT information is available.

No Text Data” appears on the display,

Finding Stations by Type (PTY)

To start the search, press [ENTER].

The AV receiver searches until it finds a station of the type you specified, at which point it stops briefly before continuing with the search.

When a station you want to listen to is found, press [ENTER].

If no stations are found, the message “Not Found” appears.

Listening to Traffic News (TP)

RT/PTY/TP

You can search for stations that broadcast traffic news.

ENTER

PRESET

RT/PTY/TP

You can search for radio stations by type.

Press the [RT/PTY/TP] button twice.

The current program type appears on the display.

Use the PRESET [e]/[r] buttons to select the type of program you want.

See the table on page 75.

e/r

ENTER

Press the [RT/PTY/TP] button three times.

If the current radio station is broadcasting TP (Traffic Program), “[TP]” will appear on the display, and traffic news will be heard as and when it’s broadcast. If “TP” without square brackets appears, this means that the station is not broadcasting TP.

To locate a station that is broadcasting TP, press [ENTER].

The AV receiver searches until it finds a station that’s broadcasting TP.

If no stations are found, the message “Not Found” appears.

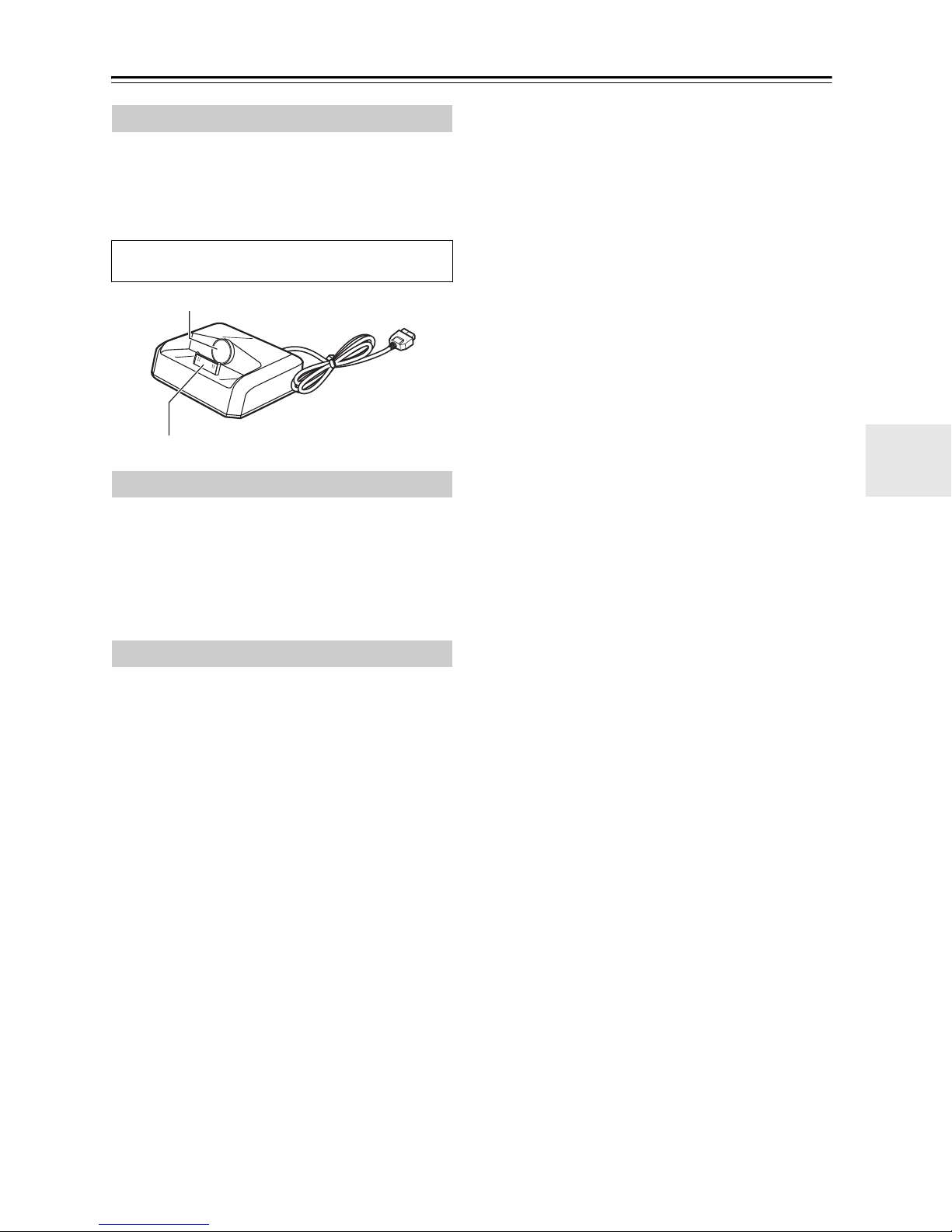

Universal Port Option UP-A1 Dock for iPod

About the UP-A1 Dock

With the UP-A1 Dock (sold separately), you can easily play the music, photo, or movie stored on your Apple iPod through the AV receiver and enjoy great sound. You can use the AV receiver’s remote controller to operate your iPod.

For the latest information on the Dock, see the Onkyo Web site at: http://www.onkyo.com

iPod adapter

Dock connector

Compatible iPod models

For information about which iPod models are supported by the UP-A1 Dock, see the UP-A1 Dock instruction manual.

Note:

Before using the UP-A1 Dock, update your iPod with the latest software, available from the Apple Web site.

Function Overview

■ Basic Operation

Note:

The AV receiver may take several seconds to startup, so you might not hear the first few seconds of the first song.

• Auto Power On Function

If you start iPod playback while the AV receiver is on Standby, the AV receiver will automatically turn on and select your iPod as the input source.

• Direct Change Function

If you start iPod playback while listening to another input source, the AV receiver will automatically select your iPod as the input source.

• Using the AV receiver's Remote Controller

You can use the AV receiver’s remote controller to control basic iPod functions.

Operating Notes:

• Functionality depends on your iPod model and generation.

• Before selecting a different input source, stop iPod playback to prevent the AV receiver from selecting the iPod input source by mistake.

• If any accessories are connected to your iPod, the AV receiver may not be able to select the input source properly.

• While your iPod is in the UP-A1 Dock, its volume control has no effect. If you adjust your iPod models volume control while it’s in the UP-A1 Dock, make sure it’s not set too high before you reconnect your headphones.

• The Auto Power On function will not work if you set your iPod in the UP-A1 Dock while it is playing.

• When Zone 2 or 3 is turned on, you can’t use Auto Power On and Direct Change functions.

■ Using Your iPod models Alarm Clock

You can use your iPod models Alarm Clock function to automatically turn on your iPod and the AV receiver at a specified time. The AV receiver’s input source will automatically be set to the [PORT] selector.

Notes:

• To use this function, your iPod must be in the UP-A1 Dock, and the UP-A1 Dock must be connected to the AV r ec ei ve r.

• When you use this function, be sure to set the AV receiver’s volume control to a suitable level.

• The AV receiver may take several seconds to startup, so you might not hear the first few seconds of the first song.

• When Zone 2 or 3 is turned on, you can’t use this function.

• You cannot use this function for sound effects on your iPod.

■ Charging Your iPod models Battery

The UP-A1 Dock charges your iPod models battery while your iPod is in the UP-A1 Dock and connected to the UNIVERSAL PORT jacks on the AV receiver. While your iPod is seated in the UP-A1 Dock, its battery will be charged when the AV receiver is set to “On” or “Standby”.

Note:

When UP-A1 Dock that seated iPod is connected, the power consumption on standby mode slightly increases.

Universal Port Option UP-A1 Dock for iPod—Continued

Controlling iPod

By pressing the REMOTE MODE button that’s been programmed with the remote control code for your Dock, you can control your iPod in the Dock with the following buttons.

The [PORT] button is preprogrammed with the remote control code for controlling a Dock with Universal Port connector.

For details on entering a remote control code, see page 141.

When Using a Dock with Universal Port connector:

• Connect the Dock to the UNIVERSAL PORT jack.

• See the Dock’s instruction manual for more information.

You can control your iPod when “PORT” is selected as the input source.

Press [PORT] button first.

g h

k l

b c

Notes:

• With some iPod models and generations, certain buttons may not work as expected.

• For detailed operation of the iPod, please refer to the instruction manual.

m n

p

a Arrow [q]/[w] and ENTER buttons

Used to navigate menus and select items.

b Previous [7] button

Restarts the current song. Press it again to select the previous song.

c Fast Reverse [5] button

Press and hold to fast reverse.

d Pause [3] button

Pauses playback. Press it again to start playback.

e REPEAT button

Used with the repeat function.

f DISPLAY button

Select Standard or Extended mode

g MUTING button (69)

Mutes or unmutes the AV receiver.

h ALBUM +/– button

Selects the next or previous album.

i VOL [q]/[w] button (67)

Adjusts the volume of the AV receiver.

j PLAYLIST [e]/[r] buttons

Selects the previous or next playlist on the iPod.

k RETURN button

Exits the menu or returns to the previous menu.

l Play [1] button

Starts playback. If the component is off, it will turn on automatically.

m Next [6] button

Selects the next song.

n Fast Forward [4] button

Press and hold to fast forward.

o Stop [2] button

Stops playback and displays a menu.

p RANDOM button

Used with the shuffle function.

Standard mode

Nothing is displayed on your TV and you navigate and select your contents by using your iPod’s display.

Only this mode can playback the video.

Extended mode

Playlists (artists, albums, songs, and so on) are displayed on your TV, and you can navigate and select your music while looking at your TV.

Notes:

• In Extended mode, the playback will be continued even if the AV receiver is turned off.

• In Extended mode, you cannot operate your iPod directly.

• In Extended mode, it may take some time to acquire the contents.

• In Extended mode, video contents can not display on your TV.

Universal Port Option UP-A1 Dock for iPod—Continued

Status messages

❏ PORT Reading

The AV receiver is checking the connection with the dock.

❏ PORT Not Support

The AV receiver do not support the connected dock.

❏ PORT UP-A1

UP-A1 Dock is connected.

Notes:

• The AV receiver displays the message “UP-A1” for several seconds after recognizing the UP-A1.

• When the status message is not displayed on the AV receiver’s display, check the connection to your iPod.

Recording

This section explains how to record the selected input source to a component with recording capability, and how to record audio and video from different sources.

Notes:

• The surround sound and DSP listening modes cannot be recorded.

• Copy-protected DVDs cannot be recorded.

• Sources connected to a digital input cannot be recorded. Only analog inputs can be recorded.

• DTS signals will be recorded as noise, so don’t attempt analog recording of DTS CDs or LDs.

• While the listening mode is set to Pure Audio, no image is provided because the power is turned off for the video circuit. If you want to make recordings, select other listening mode.

AV Recording

Audio sources can be recorded to a recorder (e.g., cassette deck, CDR, MD) connected to the TV/TAPE OUT jack. Video sources can be recorded to a video recorder (e.g., VCR, DVD recorder) connected to the VCR/DVR OUT jack. See pages 32 to 47 for hookup information.

Use the input selector buttons to select the source that you want to record.

You can watch the source while recording. The AV receiver’s MASTER VOLUME control has no effect on recording.

Recording Separate AV Sources

Here you can record audio and video from completely separate sources, allowing you to overdub audio onto your video recordings. This function takes advantage of the fact that when an audio-only input source (i.e., TV/ TAPE, TUNER, CD or PHONO) is selected, the video input source remains unchanged.

In the following example, audio from the CD player connected to the CD IN, and video from the camcorder connected to the AUX 1 INPUT VIDEO jack are recorded by the VCR connected to the VCR/DVR OUT jacks.

Camcorder

video signal audio signal

On your recorder, start recording.

On the source component, start playback.

If you select another input source during recording, that input source will be recorded.

VCRCD player

Prepare the camcorder and CD player for

playback.

Prepare the VCR for recording.

Press the [AUX 1] input selector button.

Press the [CD] input selector button.

This selects the CD player as the audio source, but leaves the camcorder as the video source.

Start recording on the VCR and start play-

back on the camcorder and CD player.

The video from the camcorder and the audio from the CD player are recorded by the VCR.

Using the Listening Modes

Selecting Listening Modes

See “About the Listening Modes” on page 89 for detailed information about the listening modes.

• The Dolby Digital and DTS listening modes can only be selected if your DVD player is connected to the AV receiver with a digital audio connection (coaxial, optical, or HDMI).

• The listening modes you can select depend on the format of the input signal. To check the format, see “Displaying Source Information” on page 68.

• While a pair of headphones is connected, you can only select the Pure Audio, Mono, Direct, DTS Surround Sensation, or Stereo listening mode.

Selecting on the AV receiver

PURE AUDIO

Selecting with the Remote Controller

MOVIE/TV

MUSIC

Remote

controller

Press the [RECEIVER] button, and then press the LISTENING MODE button repeatedly to select the listening mode.

THX GAME

LISTENING MODE

■ [PURE AUDIO] button

This button selects the Pure Audio listening mode. When this mode is selected, the AV receiver’s display is turned off and only video signals input through HDMI IN can be output. Pressing this button again will select the previous listening mode. This listening mode is not available while you are using Zone 2 (“Not Available” will appear on the display). If you turn Zone 2 on during the Pure Audio listening mode, the listening mode will change to Direct.

■ LISTENING MODE buttons

[MOVIE/TV] button

This button selects the listening modes intended for use with movies and TV.

[MUSIC] button

This button selects the listening modes intended for use with music.

[GAME] button

This button selects the listening modes intended for use with video games.

[THX] button

This button selects the THX listening modes.

■ LISTENING MODE buttons

[MOVIE/TV] button

This button selects the listening modes intended for use with movies and TV.

[MUSIC] button

This button selects the listening modes intended for use with music.

[GAME] button

This button selects the listening modes intended for use with video games.

[THX] button

This button selects the THX listening modes.

Using the Listening Modes—Continued

Listening Modes Available for Each Source Format

The Speaker layout illustration shows which speakers are set to active in the “Speaker Configuration” setting (see page 95).

The LISTENING MODE button illustration shows that listening modes can be selected.

Mono/Multiplex Sources

Listening Mode Button

Pure Audio*

LH RH

LW RW

SW SW

SL SR

: active in the speaker settings

: non-active in the speaker settings

LH RH

FL FR

LW RW

SL SR

SW SW

SBRSBL

✔✔✔✔

FL FR

SBRSBL

LH RH

FL FR

LW RW

SL SR

SW SW

: Front left speaker

: Front wide left speaker

: Front high left speaker

: Center speaker

: Front high right speaker

: Front wide right speaker

: Front right speaker

: Surround right speaker

: Surround back right speaker

SBR

: Surround back left speaker

SBL

: Surround left speaker

: Subwoofer

Speaker layout

LH RH

LW RW

SW SW

SL SR

SBRSBL

✔: Available Listening Modes

LH RH

*1 *1*2

FL FR

SBRSBL

FL FR

LW RW

*1 *1 *2

SL SR

*2*2

SBRSBL

Direct ✔✔✔✔

Stereo ✔✔✔✔

Mono ✔✔✔✔

Orchestra ✔

Unplugged ✔

Studio-Mix ✔

TV Logic ✔

Game-RPG ✔

Game-Action ✔

Game-Rock ✔

Game-Sports ✔

All Ch Stereo ✔✔

Full Mono ✔✔ T-D (Theater-

Dimensional) DTS Surround Sensation

✔✔✔✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

Notes:

*1 For 7ch output, output can be switched between Front high or Front wide speakers by pressing the [SP LAYOUT] button (depending on the

“Speaker Configuration” setting (see page 95)).

*2 For 9ch output, output can be switched between the combination of Surround back and Front high, or Surround back and Front wide

speakers by pressing the [SP LAYOUT] button.

*5 This listening mode is not available while you are using Zone 2 (“Not Available” will appear on the display). If you turn Zone 2 on during

the Pure Audio listening mode, the listening mode will change to Direct.

• Available sampling rate for PCM input signal is 32/44.1/48/88.2/96/176.4/192kHz.

• The listening modes cannot be selected with some source formats.

Using the Listening Modes—Continued

Stereo Source (1/2)

LH RH

FL FR

LW RW

Listening Mode Button

SW SW

LW RW

Speaker layout

LH RH

FL FR

SW SW

✔: Available Listening Modes

LH RH

FL FR

LW RW

SW SW

LH RH

*1 *1 *2*2

FL FR

LW RW

*1 *1 *2 *2

Pure Audio

SL SR

SBRSBL

✔✔✔✔

SL SR

SBRSBL

SL SR

SBRSBL

SL SR

*2*2

SBRSBL

Direct ✔✔✔✔

Stereo ✔✔✔✔

Mono ✔✔✔✔

PLII/PLIIx

Movie* PLII/PLIIx

Music* PLII/PLIIx

Game*

✔✔✔

PLIIz Height ✔

Neo:6 Cinema ✔✔✔

Neo:6 Music ✔✔✔

Neural Surround Neural Digital Music PLII/PLIIx

Movie*

✔✔✔

✔✔

THX Cinema PLII/PLIIx Movie Audyssey DSX* PLllz Height THX Cinema Neo:6 Cinema THX Cinema Neo:6 Cinema Audyssey DSX* Neural THX Cinema PLII/PLIIx

Music*

✔✔

✔

THX Music PLII/PLIIx Music Audyssey DSX* PLllz Height THX Music Neo:6 Music THX Music Neo:6 Music Audyssey DSX*

✔✔

✔

Neural Digital Music

✔✔

THX Music

Using the Listening Modes—Continued

Stereo Source (2/2)

LH RH

FL FR

LW RW

Listening Mode Button

SW SW

LW RW

Speaker layout

LH RH

FL FR

SW SW

✔: Available Listening Modes

LH RH

FL FR

LW RW

SW SW

LH RH

*1 *1 *2*2

FL FR

LW RW

*1 *1 *2 *2

PLII/PLIIx

Game* THX Games

PLII/PLIIx Game Audyssey DSX*

PLllz Height THX Games

Neural THX Games

PLII Game THX Ultra2 Games

PLIIz Height THX Ultra2 Games

Orchestra ✔

Unplugged ✔

Studio-Mix ✔

TV Logic ✔

Game-RPG ✔

Game-Action ✔

Game-Rock ✔

Game-Sports ✔

All Ch Stereo ✔✔

Full Mono ✔✔

T-D (TheaterDimensional)

Neo:6 Cinema DTS Surround Sensation

Neo:6 Music DTS Surround Sensation

Notes:

*1 For 7ch output, output can be switched between Front high or Front wide speakers by pressing the [SP LAYOUT] button (depending on the

“Speaker Configuration” setting (see page 95)).

*2 For 9ch output, output can be switched between the combination of Surround back and Front high, or Surround back and Front wide

speakers by pressing the [SP LAYOUT] button.

*3 If there are no surround back speakers, or Powered Zone 3 is being used, Dolby Pro Logic II is used. *4 • This listening mode can be selected only when all the following conditions are satisfied:

a. Center speaker is connected to the AV receiver. b. Either of Front High speakers or Front Wide speakers is connected to the AV receiver.

• Output can be switched between Front high or Front wide speakers by pressing the [SP LAYOUT] button (depending on the “Speaker Configuration” setting (see page 95)).

*5 This listening mode is not available while you are using Zone 2 (“Not Available” will appear on the display). If you turn Zone 2 on during

the Pure Audio listening mode, the listening mode will change to Direct.

• Available sampling rate for PCM input signal is 32/44.1/48/88.2/96/176.4/192kHz.

• The listening modes cannot be selected with some source formats.

SL SR

SBRSBL

✔✔✔✔

SL SR

SBRSBL

SL SR

SBRSBL

✔✔

✔

SL SR

*2*2

SBRSBL

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

Using the Listening Modes—Continued

5.1 channel Sources (1/3)

LH RH

FL FR

LW RW

Listening Mode Button

SW SW

LW RW

Speaker layout

LH RH

FL FR

SW SW

✔: Available Listening Modes

LH RH

FL FR

LW RW

SW SW

LH RH

*1 *1 *2*2

FL FR

LW RW

*1 *1 *2 *2

Pure Audio

SL SR

SBRSBL

✔✔✔✔

SL SR

SBRSBL

SL SR

SBRSBL

SL SR

*2*2

SBRSBL

Direct ✔✔✔✔

Stereo ✔✔✔✔

Mono ✔✔✔✔

DolbyDigital/ DolbyDigital Plus/TrueHD/ Multichannel/ DTS/

DTS 96/24 DTS Express/

✔✔✔

DTS-HD High Resolution Audio/DTS-HD Master Audio/

DSD

PLIIx Movie ✔

PLIIx Music ✔

PLIIz Height

✔

DolbyEX ✔

DolbyEX Audyssey DSX

✔

Neo:6 ✔

Neo:6 Audyssey DSX Neural Surround

Audyssey DSX

✔

THX Cinema ✔✔

PLIIx Movie THX Cinema PLIIx Movie Audyssey DSX PLIIz Height THX Cinema Neo:6 THX Cinema Neural THX Cinema

✔

THX Music ✔✔

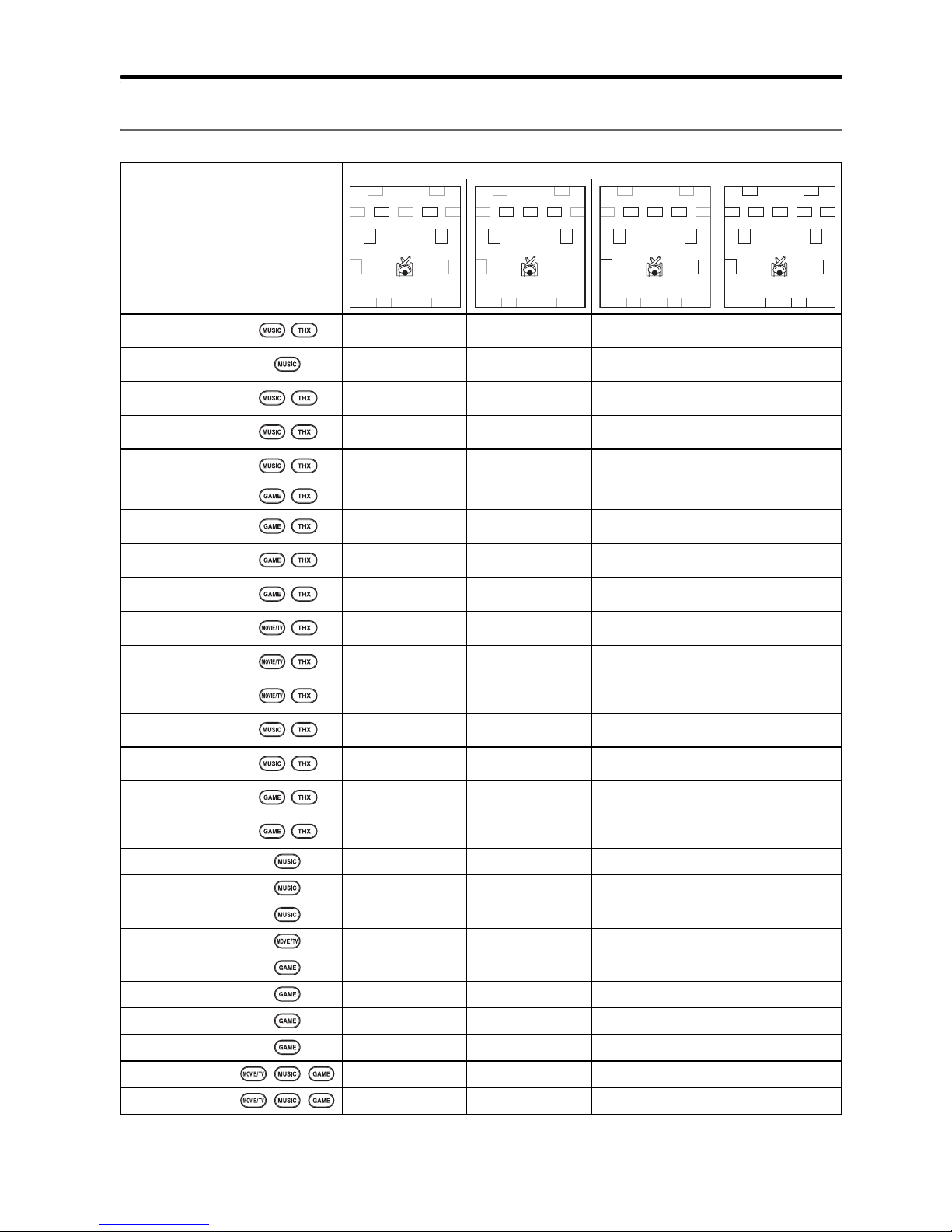

Using the Listening Modes—Continued

5.1 channel Sources (2/3)

LH RH

FL FR

LW RW

Listening Mode Button

SW SW

LW RW

Speaker layout

LH RH

FL FR

SW SW

✔: Available Listening Modes

LH RH

FL FR

LW RW

SW SW

LH RH

*1 *1 *2*2

FL FR

LW RW

*1 *1 *2 *2

SL SR

SBRSBL

PLIIx Music THX Music PLIIx Music Audyssey DSX PLIIz Height THX Music Neo:6 THX Music Neural THX Music

SL SR

SBRSBL

SL SR

SBRSBL

SL SR

*2*2

SBRSBL

✔

THX Games ✔✔

PLIIx Height THX Games Neo:6 THX Games Neural THX Games THX Surround EX THX Ultra2 Cinema PLIIz THX Ultra2 Cinema THX Ultra2 Music PLIIz THX Ultra2 Music THX Ultra2 Games PLIIz THX Ultra2 Games

Orchestra ✔

Unplugged ✔

Studio-Mix ✔

TV Logic ✔

Game-RPG ✔

Game-Action ✔

Game-Rock ✔

Game-Sports ✔

All Ch Stereo ✔✔

Full Mono ✔✔

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

Using the Listening Modes—Continued

5.1 channel Sources (3/3)

LH RH

FL FR

LW RW

Listening Mode Button

SW SW

LW RW

Speaker layout

LH RH

FL FR

SW SW

✔: Available Listening Modes

LH RH

FL FR

LW RW

SW SW

LH RH

*1 *1 *2*2

FL FR

LW RW

*1 *1 *2 *2

T-D (TheaterDimensional) DTS Surround Sensation

SL SR

SBRSBL

✔✔✔✔

SL SR

SBRSBL

SL SR

SBRSBL

SL SR

*2*2

SBRSBL

Notes:

*1 For 7ch output, output can be switched between Front high or Front wide speakers by pressing the [SP LAYOUT] button (depending on the

“Speaker Configuration” setting (see page 95)).

*2 For 9ch output, output can be switched between the combination of Surround back and Front high, or Surround back and Front wide

speakers by pressing the [SP LAYOUT] button.

*3 AV receiver can input the DSD signal from HDMI IN. Setting the output setting on the player side to PCM might obtain a better sound

according to the player. In that case, set the output setting on the player side to PCM.

*4 • This listening mode can be selected only when all the following conditions are satisfied:

a. Center speaker is connected to the AV receiver. b. Either of Front High speakers or Front Wide speakers is connected to the AV receiver.

• Output can be switched between Front high or Front wide speakers by pressing the [SP LAYOUT] button (depending on the “Speaker Configuration” setting (see page 95)).

*5 This listening mode is not available while you are using Zone 2 (“Not Available” will appear on the display). If you turn Zone 2 on during

the Pure Audio listening mode, the listening mode will change to Direct.

*6 Depending on the input source, DTS is used.

• Available sampling rate for PCM input signal is 32/44.1/48/88.2/96/176.4/192kHz.

• The listening modes cannot be selected with some source formats.

Using the Listening Modes—Continued

7.1 channel Sources

LH RH

FL FR

LW RW

Listening Mode Button

SW SW

LW RW

Speaker layout

LH RH

FL FR

SW SW

✔: Available Listening Modes

LH RH

FL FR

LW RW

SW SW

LH RH

*1 *1 *2*2

FL FR

LW RW

*1 *1 *2 *2

Pure Audio*

SL SR

SBRSBL

✔✔✔✔

SL SR

SBRSBL

SL SR

SBRSBL

SL SR

*2*2

SBRSBL

Direct ✔✔✔✔

Stereo ✔✔✔✔

Mono ✔✔✔✔

Multichannel/ DolbyDigital Plus/TrueHD/ DTS-HD High Resolution Audio/DTS-HD

✔✔

✔

Master Audio/ DTS-ES Discrete*

DTS-ES Matrix*

PLIIz Height ✔

Audyssey DSX*

✔

THX Cinema ✔✔

PLIIz Height THX Cinema

✔

THX Music ✔✔

PLIIz Height THX Music

✔

THX Games ✔✔

PLIIz Height THX Games

Orchestra ✔

Unplugged ✔

Studio-Mix ✔

TV Logic ✔

Game-RPG ✔

Game-Action ✔

Game-Rock ✔

Game-Sports ✔

All Ch Stereo ✔✔

Full Mono ✔✔

T-D (TheaterDimensional) DTS Surround Sensation

✔✔✔✔

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

*1*2

✔

Using the Listening Modes—Continued

Notes:

*1 For 7ch output, output can be switched between Front high or Front wide speakers by pressing the [SP LAYOUT] button (depending on the

“Speaker Configuration” setting (see page 95)).

*2 For 9ch output, output can be switched between the combination of Surround back and Front high, or Surround back and Front wide

speakers by pressing the [SP LAYOUT] button.

*3 Based on the audio channels contained in the source, the corresponding speakers will output the sound. *4 • This listening mode can be selected only when all the following conditions are satisfied:

a. Center speaker is connected to the AV receiver. b. Either of Front High speakers or Front Wide speakers is connected to the AV receiver.

• Output can be switched between Front high or Front wide speakers by pressing the [SP LAYOUT] button (depending on the “Speaker Configuration” setting (see page 95)).

*5 This listening mode is not available while you are using Zone 2 (“Not Available” will appear on the display). If you turn Zone 2 on during

the Pure Audio listening mode, the listening mode will change to Direct.

*6 If there are no surround back speakers, DTS is used.

• Available sampling rate for PCM input signal is 32/44.1/48/88.2/96/176.4/192kHz.

• The listening modes cannot be selected with some source formats.

About the Listening Modes

The AV receiver’s listening modes can transform your listening room into a movie theater or concert hall, with high fidelity and stunning surround sound.

Pure Audio

In this mode, the display and video circuitry are turned off, minimizing possible noise sources for the ultimate in high-fidelity reproduction. (As the video circuitry is turned off, only video signals input through HDMI IN can be output.)

Direct

In this mode, audio from the input source is output directly with minimal processing, providing high-fidelity reproduction. All of the source’s audio channels are output as they are.

Stereo

Sound is output by the front left and right speakers and subwoofer.

Mono

Use this mode when watching an old movie with a mono soundtrack, or use it with the foreign language soundtracks recorded in the left and right channels of some movies. It can also be used with DVDs or other sources containing multiplexed audio, such as karaoke DVDs.

Multichannel

This mode is for use with PCM multichannel sources.

Dolby Pro Logic IIx

Dolby Pro Logic II

Dolby Pro Logic IIx expands any 2-channel source for

7.1-channel playback. It provides a very natural and seamless surround-sound experience that fully envelops the listener. As well as music and movies, video games can also benefit from the dramatic spatial effects and vivid imaging. If you’re not using any surround back speakers, Dolby Pro Logic II will be used instead of Dolby Pro Logic IIx.

• Dolby PLIIx Movie

Use this mode with any stereo or Dolby Surround (Pro Logic) movie (e.g., TV, DVD, VHS).

• Dolby PLIIx Music

Use this mode with any stereo or Dolby Surround (Pro Logic) music source (e.g., CD, radio, cassette, TV, VHS, DVD).

• Dolby PLIIx Game

Use this mode with video games, especially those that bear the Dolby Pro Logic II logo.

Dolby Pro Logic IIz Height

Dolby Pro Logic IIz Height is designed to more effectively use existing program material when height channel speaker outputs are present. Dolby Pro Logic IIz Height can be used to upmix a variety of sources from movies and music, but are particularly well-suited to upmix game content.

Dolby Digital

Use this mode with DVDs that bear the Dolby Digital logo, and Dolby Digital TV broadcasts. This is the most common digital surround-sound format, and it’ll put you right in the middle of the action, just like being in a movie theater or concert hall.

Audyssey Dynamic Surround Expansion™

Audyssey Dynamic Surround Expansion™ is a scalable system that adds new speakers to improve surround impression. Starting with a 5.1 system Dynamic Surround Expansion first adds Wide channels for the biggest impact on envelopment. Research in human hearing has proven that information from the Wide channels is much more critical in the presentation of a realistic soundstage than then Back Surround channels found in traditional

7.1 systems. Dynamic Surround Expansion then creates a pair of Height channels to reproduce the next most important acoustical and perceptual cues. In addition to these new Wide and Height channels, Dynamic Surround Expansion applies Surround Envelopment Processing to enhance the blend between the front and surround channels.

Using the Listening Modes—Continued

5.1-channel source + Dolby EX

These modes expand 5.1-channel sources for 6.1/7.1channel playback. They’re especially suited to Dolby EX soundtracks that include a matrix-encoded surround back channel. The additional channel adds an extra dimension and provides an enveloping surround sound experience, perfect for rotating and fly-by sound effects.

Dolby Digital Plus

Developed for use with HDTV, including the new video disc formats Blu-ray and HD DVD, this is the latest multichannel audio format from Dolby. It supports up to 7.1 channels with 48 kHz sampling rate.

Dolby TrueHD

Designed to take full advantage of the additional storage space offered by the new Blu-ray and HD DVD disc formats, this new Dolby format offers up to 7.1 discrete channels of digital audio with 48/96 kHz, up to 5.1-channels with 192 kHz sampling rate.

5.1-channel source + Dolby PLIIx Music

These modes use the Dolby Pro Logic IIx Music mode to expand 5.1-channel sources for 6.1/7.1-channel playback.

5.1-channel source + Dolby PLIIx Movie

These modes use the Dolby Pro Logic IIx Movie mode to expand 5.1-channel sources for 7.1-channel playback.

DTS

The DTS digital surround-sound format supports up to

5.1 discrete channels and uses less compression for highfidelity reproduction. Use it with DVDs and CDs that bear the DTS logo.

DTS 96/24

This mode is for use with DTS 96/24 sources. This is high-resolution DTS with a 96 kHz sampling rate and 24-bit resolution, providing superior fidelity. Use it with DVDs that bear the DTS 96/24 logo.

DTS-ES Discrete

This mode is for use with DTS-ES Discrete soundtracks, which use a discrete surround back channel for true 6.1/

7.1-channel playback. The seven totally separate audio channels provide better spatial imaging and 360-degree sound localization, perfect for sounds that pan across the surround channels. Use it with DVDs that bear the DTSES logo, especially those with a DTS-ES Discrete soundtrack.

DTS-ES Matrix

This mode is for use with DTS-ES Matrix soundtracks, which use a matrix-encoded back-channel for 6.1/7.1channel playback. Use it with DVDs that bear the DTSES logo, especially those with a DTS-ES Matrix soundtrack.

DTS Neo:6

This mode expands any 2-channel source for up to 7.1channel playback. It uses seven full-bandwidth channels of matrix decoding for matrix-encoded material, providing a very natural and seamless surround sound experience that fully envelops the listener.

•Neo:6 Cinema

Use this mode with any stereo movie (e.g., TV, DVD, VHS).

• Neo:6 Music

Use this mode with any stereo music source (e.g., CD, radio, cassette, TV, VHS, DVD).

5.1-channel source + Neo:6

This mode uses Neo:6 to expand 5.1-channel sources for

6.1/7.1-channel playback.

DTS-HD High Resolution Audio

Developed for use with HDTV, including the new video disc formats Blu-ray and HD DVD, this is the latest multichannel audio format from DTS. It supports up to 7.1 channels with 96 kHz sampling rate.

DTS-HD Master Audio

Designed to take full advantage of the additional storage space offered by the new Blu-ray and HD DVD disc formats, this new DTS format offers up to 7.1 discrete channels of digital audio with 48/96 kHz, up to 5.1-channels with 192 kHz sampling rate.

DTS Express

This format supports up to 5.1 channels and a lower sampling rate of 48 kHz. Applications include interactive audio and commentary encoding for HD DVD Sub Audio and Blu-ray Secondary Audio. Also broadcast and media servers.

Neural Digital Music

Neural Digital Music is a new surround mode specifically designed to enhance the playback of compressed digital music content. It provides listeners with an expanded sound stage and clean surround experience, even with compressed audio sources such as MP3s and Internet streams.

DSD

DSD stands for Direct Stream Digital and is the format used to store digital audio on Super Audio CDs (SACD). This mode can be used with Super Audio CDs that feature multichannel audio.

DTS Surround Sensation Speaker

With this mode you can enjoy a virtual 5.1 surround sound even with only two speakers.

• Neo:6 Cinema + DTS Surround Sensation

• Neo:6 Music + DTS Surround Sensation

These modes use Neo:6 to expand stereo sources for virtual surround playback.

DTS Surround Sensation Headphone

DTS Surround Sensation Headphone delivers simulated virtual multi-channel surround sound through any stereo headphones.

Using the Listening Modes—Continued

THX

Founded by George Lucas, THX develops stringent standards that ensure movies are reproduced in movie theaters and home theaters just as the director intended.

THX Modes carefully optimize the tonal and spatial characteristics of the soundtrack for reproduction in the home-theater environment. They can be used with 2channel matrixed and multichannel sources.

Surround back speaker output depends on the source material and the selected listening mode.

• THX Cinema

THX Cinema mode corrects theatrical soundtracks for playback in a home theater environment. In this mode, THX Loudness Plus is configured for cinema levels and Re-EQ, Timbre Matching, and Adaptive Decorrelation are active.

•THX Music

THX Music mode is tailored for listening to music, which is typically mastered at significantly higher levels than movies. In this mode, THX Loudness Plus is configured for music playback and only Timbre Matching is active.

•THX Games

THX Games mode is meant for spatially accurate playback of game audio, which is often mixed similarly to movies but in a smaller environment. THX Loudness Plus is configured for game audio levels, with Timbre Matching active.

• THX Ultra2 Cinema

This mode expands 5.1-channel sources for 7.1channel playback. It does this by analyzing the composition of the surround source, optimizing the ambient and directional sounds to produce the surround back channel output.

• THX Ultra2 Music

This mode is designed for use with music. It expands

5.1-channel sources for 7.1-channel playback.

• THX Ultra2 Games

This mode is designed for use with video games. It can expand 5.1-channel sources for 6.1/7.1-channel playback.

• THX Surround EX

This mode expands 5.1-channel sources for 6.1/7.1channel playback. It’s especially suited to Dolby Digital EX sources. THX Surround EX, also known as Dolby Digital Surround EX, is a joint development between Dolby Laboratories and THX Ltd.

Neural Surround

Neural Surround employs psychoacoustic frequency domain processing, which allows delivery of a more detailed sound stage, with superior channel separation and localization of audio elements. The Neural Surround modes can expand any 2-channel stereo source for 5.1or 7.1-channel playback, respectively. Use them with CD, radio, cassette, TV, VHS, DVD, and other 2-channel

stereo sources, including video games. Neural Surround can also be used by broadcasters to encode and transmit surround-sound content over a stereo signal, which listeners can enjoy as either surround sound or normal stereo.

Onkyo Original DSP Modes

Orchestra

Suitable for classical or operatic music, this mode emphasizes the surround channels in order to widen the stereo image, and simulates the natural reverberation of a large hall.

Unplugged

Suitable for acoustic instruments, vocals, and jazz, this mode emphasizes the front stereo image, giving the impression of being right in front of the stage.

Studio-Mix

Suitable for rock or pop music, listening to music in this mode creates a lively sound field with a powerful acoustic image, like being at a club or rock concert.

TV Logic

This mode adds realistic acoustics to TV shows produced in a TV studio, surround effects to the entire sound, and clarity to voices.

Game-RPG

Use this mode when playing role playing game discs.

Game-Action

Use this mode when playing action game discs.

Game-Rock

Use this mode when playing rock game discs.

Game-Sports

Use this mode when playing sports game discs.

All Ch Stereo

Ideal for background music, this mode fills the entire listening area with stereo sound from the front, surround, and surround back speakers.

Full Mono

In this mode, all speakers output the same sound in mono, so the sound you hear is the same regardless of where you are within the listening room.

T-D (Theater-Dimensional)

With this mode you can enjoy a virtual surround sound even with only two or three speakers. This works by controlling how sounds reach the listener’s left and right ears. Good results may not be possible if there’s too much reverb, so we recommend that you use this mode in an environment with little or no natural reverb.

Advanced Setup

Onscreen Setup Menus

The onscreen setup menus appear on the connected TV and provide a convenient way to change the AV receiver’s various settings. Settings are organized into nine categories on the main menu, most containing a submenu.

Main menu

1. Input/Output Assign

2. Speaker Setup

3. Audio Adjust

4. Source Setup

5. Listening Mode Preset

6. Miscellaneous

7. Hardware Setup

8. Remote Controller Setup

9. Lock Setup

pages 110–111

6. Miscellaneous

1. Volume Setup

2. OSD Setup

pages 111–115

7. Hardware Setup

1. Remote ID

2. Multi Zone

3. Tuner

4. HDMI

5. Network

6. Firmware Update

page 135

Submenus

pages 93–94

1. Input/Output Assign

1. Monitor Out

2. HDMI Input

3. Component Video Input

4. Digital Audio Input

5. Analog Audio Input

page 57

pages 95–99

2. Speaker Setup

1. Speaker Settings

2. Speaker Configuration

3. Speaker Distance

4. Level Calibration

5. Equalizer Settings

6. THX Audio Setup

pages 100–103

3. Audio Adjust

Multiplex/Mono

Dolby

DTS

Audyssey

Theater-Dimensional

LFE Level

Direct

pages 104–108

page 52page 54page 55page 56

page 57

page 126

Remote Controller Setup

1. Remote Mode Setup

2. Activities Setup

page 139page 150

page 116

9. Lock Setup

Lock Unlocked

page 59

4. Source Setup

1. IntelliVolume

2. A/V Sync

3. Name Edit

4. Picture Adjust

page 109

5. Listening Mode Preset

1. DVD/BD

2. VCR/DVR

3. CBL/SAT

4. GAME

5. AUX1

DVD/BD

Advanced Setup—Continued

Input/Output Assign

This section explains items on the “Input/Output Assign” menu.

Press the [RECEIVER] button followed by

the [SETUP] button.

The main menu appears onscreen. If the main menu doesn’t appear, make sure the

appropriate external input is selected on your TV.

Use the Up and Down [q]/[w] buttons to

select “1. Input/Output Assign”, and then press [ENTER].

Use the Up and Down [q]/[w] buttons to

select the submenu, and then press [ENTER].

Monitor Out

Resolution

Brightness –50 to +50 (default: 0)

With this setting you can adjust the picture brightness. “–50” is the darkest. “+50” is the brightest.

Contrast –50 to +50 (default: 0)

With this setting you can adjust contrast. “–50” is the least. “+50” is the greatest.

Hue –20 to +20 (default: 0)

With this setting you can adjust the red/green balance. “–20” is the strongest green. “+20” is the strongest red.

Saturation –50 to +50 (default: 0)

With this setting you can adjust saturation. “–50” is the weakest color. “+50” is the strongest color.

Red Brightness –50 to +50 (default: 0)

With this setting you can adjust the picture red brightness. “–50” is the darkest. “+50” is the brightest.

Red Contrast –50 to +50 (default: 0)

With this setting you can adjust red contrast. “–50” is the least. “+50” is the greatest.

Green Brightness –50 to +50 (default: 0)

With this setting you can adjust the picture green brightness. “–50” is the darkest. “+50” is the brightest.

Green Contrast –50 to +50 (default: 0)

With this setting you can adjust green contrast. “–50” is the least. “+50” is the greatest.

Blue Brightness –50 to +50 (default: 0)

With this setting you can adjust the picture blue brightness. “–50” is the darkest. “+50” is the brightest.

Blue Contrast –50 to +50 (default: 0)

With this setting you can adjust blue contrast. “–50” is the least. “+50” is the greatest.

See “Monitor Out Setup” on page 52.

Use the Up and Down [q]/[w] buttons to

select setting, and then use the Left and Right [e]/[r] buttons to set them.

When you’ve finished, press the [SETUP]

button.

The setup menu closes.

Note:

This procedure can also be performed on the AV receiver by using its [SETUP] button, arrow buttons, and [ENTER] button.

HDMI Input

See “HDMI Input Setup” on page 54.

Advanced Setup—Continued

Component Video Input

See “Component Video Input Setup” on page 55.

Digital Audio Input

See “Digital Audio Input Setup” on page 56.

Analog Audio Input

Multich See “Analog Audio Input Setup” on page 57.

Subwoofer Input Sensitivity

0dB (default), 5dB, 10dB, 15dB

Some DVD players output the LFE channel from their analog subwoofer output at 15 dB higher than normal. With this setting, you can change the AV receiver’s subwoofer sensitivity to match your DVD player. Note that this setting only affects signals connected to the AV receiver’s MULTI CH: SUBWOOFER jack.

If you find that your subwoofer is too loud, try the 10 dB or 15 dB setting.

Advanced Setup—Continued

Speaker Setup

Some of the settings in this section are set automatically by Audyssey MultEQ® XT Room Correction and Speaker Setup (see page 61). For Speakers B, you need to change the settings manually.

Here you can check the settings made by Audyssey MultEQ manually, which is useful if you change one of the connected speakers after using Audyssey MultEQ® XT Room Correction and Speaker Setup.

Note:

The Speaker Setup cannot be carried out while headphones are connected to the AV receiver.

XT Room Correction and Speaker Setup, or set them

Press the [RECEIVER] button, and then

use the remote controller’s [SP LAYOUT] button to select Speakers A or Speakers B.

Note:

Speakers B cannot be selected if “Speakers Type(FrontB)” is set to “Not Use”.

Press the [SETUP] button.

The main menu appears onscreen. If the main menu doesn’t appear, make sure the

appropriate external input is selected on your TV.

Use the Up and Down [q]/[w] buttons to

select “2. Speaker Setup”, and then press [ENTER].

Speaker Settings

See “Speaker Settings” on page 57.

Speaker Configuration

With these settings, you can specify which speakers are connected and a crossover frequency for each speaker. You can set the crossover frequencies, distances, and levels of the front Speakers A and front Speakers B independently. The other speakers (i.e., subwoofer, center, surround, and surround back) use the same crossover frequencies, distances, and levels for Speakers A and Speakers B. The following crossover frequencies can be specified: “Full Band”, “40Hz”, “50Hz”, “60Hz”, “70Hz”, “80Hz(THX)”, “90Hz”, “100Hz”, “120Hz”, “150Hz”, or “200Hz”. Specify “Full Band” for speakers that can output low frequency bass sounds adequately, for example, speakers with a good sized woofer. For smaller speakers, specify a crossover frequency. Sounds below the crossover frequency will be output by the subwoofer instead of the speaker. Refer to your speaker’s manuals to determine the optimum crossover frequencies.

If you set up your speakers using Audyssey MultEQ manually that any THX speakers are set to “80Hz(THX)” crossover.

Subwoofer 1ch: Audio signal is outputted from SW1 jack only.

2ch: Audio signal is outputted from SW1 and SW2 jacks (default).

No: Select if no subwoofer is connected.

Front

Center

Surround

Front Wide

Front High

Surr Back

*2*3*5*7

*2*3*7*10

*3*4*6

Full Band, 40Hz, 50Hz, 60Hz, 70Hz, 80Hz(THX) (default), 90Hz, 100Hz, 120Hz, 150Hz, 200Hz

Full Band, 40Hz, 50Hz, 60Hz, 70Hz, 80Hz(THX), 90Hz, 100Hz, 120Hz, 150Hz, 200Hz

None: Select if no speaker is connected.

XT Room Correction and Speaker Setup, please make sure

Use the Up and Down [q]/[w] buttons to

select the submenu, and then press [ENTER].

Use the Up and Down [q]/[w] buttons to

select setting, and then use the Left and Right [e]/[r] buttons to set them.

When you’ve finished, press the [SETUP]

button.

The setup menu closes.

Advanced Setup—Continued

Surr Back Ch

1ch: Select if only one surround back L speaker is connected. 2ch: Select if two (left and right) surround back speakers are connected (default).

LPF of LFE (Low-Pass Filter for the LFE Channel)

80Hz(THX) (default), 90Hz, 100Hz, 120Hz

This setting is not set automatically by Audyssey MultEQ

XT Room Correction and Speaker Setup (see

page 61). With this setting, you can specify the cutoff frequency of the LFE channel’s low-pass filter (LPF), which can

be used to filter out unwanted hum. The LPF only applies to sources that use the LFE channel.

* If you’re using THX-certified speakers, select “80Hz(THX)”.

DoubleBass

On: Double Bass function on (default).

Off (THX): Double Bass function off.

This setting is not set automatically by Audyssey MultEQ

XT Room Correction and Speaker Setup (see

page 61). With the Double Bass function, you can boost bass output by feeding bass sounds from the front left and right,

center channels to the subwoofer.

* If you’re using THX-certified speakers, select “Off(THX)”.

Notes:

*1 If the “Subwoofer” setting is set to “No”, the “Front” setting is fixed at “Full Band”. *2 If the “Front” setting is set to anything other than “Full Band”, “Full Band” cannot be selected here. *3 If the “Surround” setting is set to “None”, this setting cannot be selected. *4 If the “Surround” setting is set to anything other than “Full Band”, “Full Band” cannot be selected here. *5 If the “Powered Zone2” setting is set to “Act” (page 134), this setting cannot be selected. *6 If the “Powered Zone3” setting is set to “Act” (page 134), or “Speakers Type(FrontA)” setting is set to “Bi-Amp” or “BTL”

(page 58), this setting cannot be selected.

*7 If the “Speakers Type(FrontB)” setting is set to “Normal”, “Bi-Amp” or “BTL” (page 57), this setting cannot be selected. *8 If the “Surr Back” setting is set to “None”, this setting cannot be selected. *9 This function can be set only if the “Subwoofer” setting is set to “1ch” or “2ch”, and the “Front” setting is set to “Full Band”. *10 If the Powered Zone 2 is being used (page 134), this setting cannot be selected.

Subwoofer, Front, Center, Surround, Surr Back

(Setting Speakers A and Speakers B)

Not Use: Select if you don’t want to use each speaker with Speakers A or Speakers B.

Use: Select if you do want to use each speaker with Speakers A or Speakers B.

If you’re using Speakers B, you can choose whether or not to use the subwoofer, center, surround, and surround back speakers with the Speakers A and Speakers B configurations independently. You cannot choose whether or not to use the front speakers.

Notes:

• These settings can only be displayed when the “Speakers Type(FrontB)” setting is set to other than “Not Use” (page 57).

• You cannot select speakers that you set to “No” or “None”.

Advanced Setup—Continued

Speaker Distance

This setting is set automatically by Audyssey MultEQ® XT Room Correction and Speaker Setup (see page 61). Here you can specify the distance from each speaker to the listening position so that the sound from each speaker

arrives at the listener’s ears as the sound designer intended. You can set the distances for front Speakers A and front Speakers B independently. The other speakers (i.e., sub-

woofer, center, surround, and surround back) use the same distance settings for Speakers A and Speakers B.

Unit feet: Distances can be set in feet. Range: 0.5 to 30 feet in 0.5-foot steps.

(North American models: default)

meters: Distances can be set in meters. Range: 0.15 to 9 meters in 0.15-meter steps.

(European and Asian models: default)

Left, Front Wide Left, Front High Left, Center, Front High Right, Front Wide Right, Right, Surr Right,

Surr Back Right, Surr Back Left, Surr Left, Subwoofer 1, Subwoofer 2

Specify the distance from the each speaker to your listening position.

Notes:

• You cannot select speakers that you set to “No” or “None” in the “Speaker Configuration” (page 95).

• Speakers B cannot be selected if “Speakers Type(FrontB)” is set to “Not Use”.

*1 If the “Subwoofer” setting is set to “1ch”, this setting cannot be selected.

Level Calibration

Level Calibration can be set automatically by Audyssey MultEQ®XT Room Correction and Speaker Setup (see page 61).

If you prefer, you can adjust the level of each speaker with the built-in test tone so that the volume of each speaker is the same at the listening position. You can adjust the levels of front Speakers A and front Speakers B independently. The other speakers (i.e., subwoofer, center, surround, and surround back) use the same level settings for Speakers A and Speakers B.

Left, Front Wide Left, Front High Left, Center, Front High Right, Front Wide Right, Right, Surr Right,

Surr Back Right, Surr Back Left, Surr Left, Subwoofer 1, Subwoofer 2

The levels can be adjusted from –12.0 to +12.0 dB in 0.5 dB steps (–15.0 to +12.0 dB for the subwoofer).

Notes:

• The speakers cannot be calibrated while the output of the AV receiver is muted.

• The test tone is output at the standard level for THX, which is 0 dB (absolute volume setting 82). If you normally listen at volume settings below this, be careful because the test tone will be much louder.

• You cannot get the test tone from speakers that you set to “No” or “None” in the “Speaker Configuration” (page 95).

• Speakers B cannot be selected if “Speakers Type(FrontB)” is set to “Not Use”.

*1 If the “Subwoofer” setting is set to “1ch”, this setting cannot be selected.

Tip:

If you’re using a handheld sound level meter, adjust the level of each speaker so that it reads 75 dB SPL at the listening position, measured with C-weighting and slow reading.

Advanced Setup—Continued

Equalizer Settings

This setting is set automatically by Audyssey MultEQ® XT Room Correction and Speaker Setup (see page 61). With the Equalizer settings, you can adjust the tone of speakers individually with a 7-band equalizer. The volume of

each speaker can be set on this page. The Equalizer settings only apply to Speakers A and cannot be adjusted while Speakers B is selected.

Notes:

• You can select: “63Hz”, “160Hz”, “400Hz”, “1000Hz”, “2500Hz”, “6300Hz”, or “16000Hz”. And for the subwoofer, “25Hz”, “40Hz”, “63Hz”, “100Hz”, or “160Hz”.

• While the Direct or Pure Audio listening mode is selected, the equalizer settings have no effect.

Equalizer Manual: You can adjust the equalizer for each speaker manually. If you selected “Manual”,

continue with this procedure.

Press the Down [w] button to select “Channel”, and then use the

Left and Right [e]/[r] buttons to select a speaker.

Use the Up and Down [q]/[w] buttons to select a frequency, and

then use the Left and Right [e]/[r] buttons to adjust the level at that frequency.

The volume at each frequency can be adjusted from –6 to +6 dB in 1 dB steps.

Tip:

Low frequencies (e.g., 63Hz) affect bass sounds; high frequencies (e.g., 16000Hz) affect treble sounds.

Use the Up [q] button to select “Channel”, and then use the Left

and Right [e]/[r] buttons to select another speaker.

Repeat steps 1 and 2 for each speaker. You cannot select speakers that you set to “No” or “None” in the “Speaker

Configuration” (page 95).

Audyssey: The tone for each speaker is set automatically by Audyssey MultEQ

Correction and Speaker Setup. Be sure to select this setting after having performed Room Correction and Speaker Setup. “Audyssey” is automatically selected when “Dynamic EQ” and “Dynamic Volume” are set to “On” (see page 102). When “Audyssey” is selected, “Dolby Volume” becomes “Off” automatically (page 118).

Off: Tone off, response flat (default).

XT Room

Advanced Setup—Continued

THX Audio Setup

This setting is not set automatically by Audyssey MultEQ® XT Room Correction and Speaker Setup (see page 61). With the “SurrBack Sp Spacing” setting, you can specify the distance between your surround back speakers. This

setting is used by Speakers A and Speakers B. If you’re using a THX-certified subwoofer, set the “THX Ultra2/Select2 Subwoofer” setting to “Yes”. You can then

apply THX’s Boundary Gain Compensation (BGC) to compensate the perceived exaggeration of low frequencies for listeners sitting very close to a room boundary (i.e., wall).

You can also set the THX Loudness Plus. When the “Loudness Plus” is set to “On”, it is possible to enjoy even subtle nuances of audio expression at low volume.

This result is only available when the THX listening mode is selected.

SurrBack Sp Spacing

< 1ft (< 0.3m):

Select this if your surround back speakers are between 0 and 1 foot (0–30 cm) apart.

1 ft – 4 ft (0.3 m – 1.2 m):

Select this if your surround back speakers are between 1 and 4 feet (0.3–1.2 m) apart.

> 4ft (> 1.2m) (default):

Select this if your surround back speakers are more than 4 feet (1.2 m) apart.

Note:

Cannot be set if “Surr Back Ch” is set to “1ch” (page 96) or “Surr Back” is set to “None” (page 95).

THX Ultra2/Select2 Subwoofer

No: Select this if you do not have a THX-certified subwoofer.

Ye s : Select this if you have a THX-certified subwoofer.

Note:

If the “Subwoofer” setting is set to “No”, this setting cannot be selected (page 95).

BGC Off: Select this to turn off BGC.

On: Select this to turn on BGC.

Note:

This setting is only available if “THX Ultra2/Select2 Subwoofer” is set to “Yes”.

Loudness Plus Off: Select this to turn off Loudness Plus.

On: Select this to turn on Loudness Plus (default).

Preserve THX Settings

Ye s : Audyssey Dynamic EQ™ / Audyssey Dynamic Volume™ will not be active in

THX listening mode.

No: Audyssey Dynamic EQ / Audyssey Dynamic Volume will be active in THX lis-

tening mode depending on the setting.

Note:

This setting is fixed at “Yes” if “Loudness Plus” is set to “On”.

THX Loudness Plus

THX Loudness Plus is a new volume control technology featured in THX Ultra2 Plus™ and THX Select2 Plus™ Certified receivers. With THX Loudness Plus, home theater audiences can now experience the rich details in a surround mix at any volume level. A consequence of turning the volume below Reference Level is that certain sound elements can be lost or perceived differently by the listener. THX Loudness Plus compensates for the tonal and spatial shifts that occur when the volume is reduced by intelligently adjusting ambient surround channel levels and frequency response. This enables users experience the true impact of soundtracks regardless of the volume setting. THX Loudness Plus is automatically applied when listening in any THX listening mode. The new THX Cinema, THX Music, and THX Games modes are tailored to apply the proper THX Loudness Plus settings for each type of content.

Advanced Setup—Continued

Audio Adjust

With the Audio Adjust functions and settings, you can adjust the sound and listening modes as you like.

Press the [RECEIVER] button followed by

the [SETUP] button.

The main menu appears onscreen. If the main menu doesn’t appear, make sure the

appropriate external input is selected on your TV.

Use the Up and Down [q]/[w] buttons to

select “3. Audio Adjust”, and then press [ENTER].

Use the Up and Down [q]/[w] buttons to

select the submenu, and then press [ENTER].

Multiplex/Mono

Multiplex

Input Channel Main: The main channel is output (default).

Sub: The sub channel is output.

Main/Sub: Both the main and sub channels are output.

This setting determines which channel of a stereo multiplex source is output. Use it to select audio channels or languages with multiplex sources, multilingual TV broadcasts, and so on.

Mono

Input Channel

This setting specifies the channel to be used for playing any 2-channel digital source such as Dolby Digital, or 2-channel analog/PCM source in the Mono listening mode.

Output Speaker Center: Mono audio is output by the center speaker (default).

This setting determines which speakers output mono audio when the Mono listening mode is selected.

Note:

If the “Center” setting is set to “None” (page 95), this setting is fixed at “Left / Right”.

Left + Right:Both the left and right channels are output (default).

Left: Only the left channel is output.

Right: Only the right channel is output.

Left / Right

: Mono audio is output by the front left and right speakers.

Use the Up and Down [q]/[w] buttons to

select setting, and then use the Left and Right [e]/[r] buttons to set them.

When you’ve finished, press the [SETUP]

button.

The setup menu closes.

Note:

This procedure can also be performed on the AV receiver by using its [SETUP] button, arrow buttons, and [ENTER] button.

Dolby

PLIIx Music (2ch Input)

These settings apply to only 2-channel stereo sources. If you’re not using any surround back speakers, these settings apply to Dolby Pro Logic II, instead of Dolby Pro

Logic IIx.

Panorama On: Panorama function on.

With this setting, you can broaden the width of the front stereo image when using the Dolby Pro Logic IIx Music listening mode.

Dimension –3 to +3 (default: 0)

With this setting, you can move the sound field forward or backward when using the Dolby Pro Logic IIx Music listening mode. Higher settings move the sound field backward. Lower settings move it forward.

If the stereo image feels too wide, or there’s too much surround sound, move the sound field forward to improve the balance. Conversely, if the stereo image feels like it’s in mono, or there’s not enough surround sound, move it backward.

100

Off: Panorama function off (default).

Onkyo NR3007 - TX AV Network Receiver, TX-NR3007, TX-NR5007 Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
