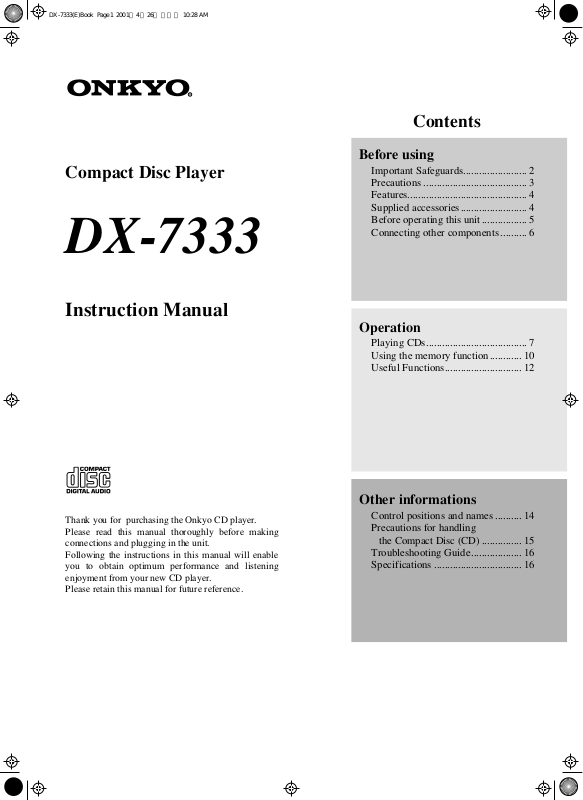

Onkyo DX-7333 User Manual

Compact Disc Player

DX-7333

Instruction Manual

Contents

Before using

Important Safeguards........................ 2

Precautions ....................................... 3

Features............................................. 4

Supplied accessories......................... 4

Before operating this unit ................. 5

Connecting other components .......... 6

Operation

Playing CDs...................................... 7

Using the memory function............ 10

Useful Functions............................. 12

Thank you for purchasing the Onkyo CD player.
Please read this manual thoroughly before making
connections and plugging in the unit.
Following the instructions in this manual will enable
you to obtain optimum performance and listening
enjoyment from your new CD player.
Please retain this manual for future reference.

Other informations

Control positions and names .......... 14

Precautions for handling

the Compact Disc (CD) ............... 15

Troubleshooting Guide................... 16

Specifications ................................. 16

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

Important Safeguards

1.

Read Instructions

should be read before the appliance is operated.

2.

Retain Instructions

should be retained for future reference.

3.

Heed Warnings

operating instructions should be adhered to.

4.

Follow Instructions

should be followed.

5.

Water and Moisture

water – for example, near a bathtub, washbowl, kitchen sink,
laundry tub, in a wet basement, or near a swimming pool, and
the like.

6.

Carts and Stands

cart or stand that is recom­mended by the manufacturer.

6A.An appliance and cart combi-

nation should be moved with
care. Quick stops, excessive
force, and uneven surfaces may
cause the appliance and cart
combination to overturn.

7.

Wall or Ceiling Mounting

to a wall or ceiling only as recommended by the manufacturer.

8.

Ventilation

tion or position does not interfere with its proper ventilation.
For example, the appliance should not be situated on a bed,
sofa, rug, or similar surface that may block the ventilation
openings; or if placed in a built-in installation, such as a book­case or cabinet that may impede the flow of air through the
ventilation openings, there should be free space of at least 5 cm
(2 in.) and an opening behind the appliance.

9.

Heat

– The appliance should be situated away from heat
sources such as radiators, heat registers, stoves, or other appli­ances (including amplifiers) that produce heat.

– All the safety and operating instructions

– The safety and operating instructions

– All warnings on the appliance and in the

– All operating and use instructions

– The appliance should not be used near

– The appliance should be used only with a

PORTABLE CART WARNING

S3125A

– The appliance should be mounted

– The appliance should be situated so that its loca-

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of uninsulated
“dangerous voltage” within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.

10.

Power Sources –

power supply only of the type described in the operating
instructions or as marked on the appliance.

11.

Polarization

having one blade wider than the other, please read the following
information:
The polarization of the plug is a safety feature. The polarized plug
will only fit the outlet one way. If the plug does not fit fully into the
outlet, try reversing it. If there is still trouble, the user should seek
the services of a qualified electrician. Under no circumstances
should the user attempt to defeat the polarization of the plug.

12.

Power-Cord Protection

routed so that they are not likely to be walked on or pinched by
items placed upon or against them, especially near plugs, con­venience receptacles, and the point where they exit from the
appliance.

13.

Cleaning

mended by the manufacturer.

14.

Nonuse Periods

unplugged from the outlet when left unused for a long period
of time.

15.

Object and Liquid Entry

objects do not fall and liquids are not spilled into the enclosure
through openings.

16.

Damage Requiring Service

viced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged; or
B. Objects have fallen, or liquid has been spilled into the

C. The appliance has been exposed to rain; or
D. The appliance does not appear to operate normally or

E. The appliance has been dropped, or the enclosure damaged.

17.

Servicing

beyond that described in the operating instructions. All other ser­vicing should be referred to qualified service personnel.

– The appliance should be cleaned only as recom-

appliance; or

exhibits a marked change in performance; or

– The user should not attempt to service the appliance

The appliance should be connected to a

– If the appliance is provided with a polarized plug

– Power-supply cords should be

– The power cord of the appliance should be

AVIS

RISQUE DE CHOC ELECTRIQUE

– Care should be taken so that

– The appliance should be ser-

OUVRIR

NE PAS

This unit contains a semiconductor laser system and is classified
as a “CLASS 1 LASER PRODUCT”. So, to use this model prop­erly, read this Instruction Manual carefully. In case of any trou­ble, please contact the store where you purchased the unit. To
prevent being exposed to the laser beam, do not try to open the
enclosure.

DANGER:

INVISIBLE LASER RADIATION WHEN OPEN AND INTER­LOCK FAILED OR DEFEATED. AVOID DIRECT EXPOSURE
TO BEAM.

CAUTION:

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS
OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT
IN HAZARDOUS RADIATION EXPOSURE.

2

“CLASS 1 LASER

PRODUCT ”

This label on the rear panel states that:

1. This unit is a CLASS 1 LASER PRODUCT and employs a
laser inside the cabinet.

2. To prevent the laser from being exposed, do not remove the
cover. Refer servicing to qualified personnel.

Precautions

1. Warranty Claim

You can find the serial number on the rear panel of this unit. In case
of warranty claim, please report this number.

2. Recording Copyright

Recording of copyrighted material for other than personal use is
illegal without permission of the copyright holder.

3. Power
WARNING

BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME,
READ THE FOLLOWING SECTION CAREFULLY.

The voltage of the available power supply differs according to
country or region. Be sure that the power supply voltage of the area
where this unit will be used meets the required voltage (e.g., AC
230–240 V, 50 Hz) written on the rear panel.

4. Do not touch this unit with wet hands

Do not handle this unit or power cord when your hands are wet or
damp. If water or any other liquid enters the case, take this unit to
an authorized service center for inspection.

5. Location of this unit

Place this unit in a well-ventilated location.
Take special care to provide plenty of ventilation on all sides of this
unit especially when it is placed in an audio rack. If ventilation is
blocked, this unit may overheat and malfunction.

Do not expose this unit to direct sunlight or heating units as this
unit’s internal temperature may rise and shorten the life of the
pickup.

Avoid damp and dusty places and places directly affected by vibra­tions from the speakers. In particular, avoid placing the unit on or
above one of the speakers.

Be sure this unit is placed in a horizontal position. Never place it on
its side or on a slanted surface as it may malfunction.

Do not place near tuners or TV sets.
If placed next to a TV or tuner, it may cause reception interference
resulting in some noise in the TV or tuner output.

6. Care

From time to time you should wipe the front and rear panels and the
cabinet with a soft cloth. For heavier dirt, dampen a soft cloth in a
weak solution of mild detergent and water, wring it out dry, and
wipe off the dirt. Following this, dry immediately with a clean cloth.

Do not use rough material, thinners, alcohol or other chemical sol­vents or cloths since these could damage the finish or remove the
panel lettering.

7. Points to remember

If this unit is brought from a cold environment to a warm one or is
in a cold room that is quickly heated, condensation may form on
the pickup, preventing proper operation. In this case, remove the
disc and leave the power ON for about one hour to remove the con­densation.

When transporting this unit, be careful not to bump it.

For British model

Replacement and mounting of an AC plug on the power supply cord
of this unit should be performed only by qualified service personnel.

IMPORTANT

The wires in the mains lead are coloured in accordance with the
following code:

Blue : Neutral

Brown : Live
As the colours of the wires in the mains lead of this apparatus may
not correspond with the coloured markings identifying the termi­nals in your plug, proceed as follows:
The wire which is coloured blue must be connected to the terminal
which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the termi­nal which is marked with the letter L or coloured red.

IMPORTANT

A 5 ampere fuse is fitted in this plug. Should the fuse need to be
replaced, please ensure that the replacement fuse has a rating of 5
amperes and that it is approved by ASTA or BSI to BS1362. Check
for the ASTA mark or the BSI mark on the body of the fuse.
IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE
SOCKET OUTLET IN YOUR HOME, THEN THE FUSE
SHOULD BE REMOVED AND THE PLUG CUT OFF AND DIS­POSED OF SAFELY. THERE IS A DANGER OF SEVERE
ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED
INTO ANY 13 AMPERE SOCKET.
If in any doubt, please consult a qualified electrician.

Declaration of Conformity

We,

ONKYO EUROPE
ELECTRONICS GmbH
INDUSTRIESTRASSE 20
82110 GERMERING,
GERMANY

declare in own responsibility, that the ONKYO product described
in this instruction manual is in compliance with the corresponding
technical standards such as EN60065, EN55013, EN55020 and
EN61000-3-2, -3-3.

GERMERING, GERMANY

A.HORIUCHI

ONKYO EUROPE ELECTRONICS GmbH

3

Features

Supplied accessories

High-quality sound design in concert with the concept

■

of “Onkyo Soundism”

The high-quality playback performance offers a powerful yet
musically elegant sound that “re-creates music that not only
sounds ‘beautiful’ but also echoes in the soul.”

AccuPulse D/A converter with Single-bit PWM (Pulse

■

Width Modulation) technology

The D/A converter uses AccuPulse D/A conversion with Single­bit PWM (Pulse Width Modulation) technology that generates
zero cross-distortion and improves non-linearity to achieve high­quality sound.

Two optical digital outputs

■

You can connect up to two digital recording devices, such as a
DAT deck and an MD recorder.

Peak search (Remote controller only)

■

Next selection (Remote controller only)

■

Memory and Memory reverse

■

The Memory function enables you to select tracks to play; the
Memory reverse function enables you to easily specify tracks
you did not wish to play.

36-Track Random Memory (Remote controller only)

■

Five mode repeat function: entire side, single track, A-B,

■

memory and shuffle (Remote controller only)
10-key direct track access (Remote controller only)

■

Check that the following accessories are supplied with this unit.

D

IS

P
L

AY

12

4

7

5

3

R

E
P

8

6

E
A

T

M

EM

9

O

R

Y

S

NEXT

ELECTIO

C

L
E

A
R

N

S

TIME ED

H

U
F

F
L

IT

E

C

× 1

× 2

Audio connection cable ×1

× 1

cable

+

10 0

PEAK

SEAR

CH

A–

B

R

E

MO

T

E

C

O

N

TR

O

L
L

E

R

R

C

-4
0
2

Remote controller

Batteries (size AA, R6 or UM-3)

4

Before operating this unit

Installing the remote controller batteries

1. Remove the battery compartment cover by opening it as shown in

1

2

3

the illustration.

2. Insert two AA (R6- or UM-3)-size batteries into the battery compart­ment. Carefully follow the polarity diagram (positive (+) and nega­tive (–) symbols) inside the battery compartment.

3. After batteries are installed and seated correctly, replace the com­partment cover.

Notes

•

Do not mix new batteries with old batteries or different kinds of
batteries.

•

To avoid corrosion, remove the batteries if the remote controller
is not to be used for a long time.

•

Remove dead batteries immediately to avoid damage from cor­rosion. If the remote controller doesn’t operate smoothly,
replace both the batteries at the same time.

•

The life of the batteries supplied is about six months but this
will vary depending on usage.

Using the remote controller

Remote
control sensor

30˚

D
I
S
P

L
A
Y

1

4

2

7

5

3

R
E

+10

P

8

6

E

A

T
P
E

M

A

E

K

M

0

9

S

O

E

R
A
R

Y

C
H

S

N

E

E

C

L

X

L

A

E
T

E

C

–B

AR
T
I
O
N

R

S

T

EM

H

I
M

U

E

F

OTE

E

F

D

L

I

E

T

CO
NT

RO
LLE

R

R
C-4

02C

30˚

DX-7333

approx. 5 m

(16 feet)

Point the remote controller toward the remote control sensor.

Notes

•

Place the unit away from strong light such as direct sunlight or
inverted fluorescent light which can prevent proper operation of the
remote controller.
Using another remote controller of the same type in the same

•

room or using the unit near equipment which uses infrared rays
may cause operational interference.
Do not put any object such as a book on the remote controller.

•

The buttons of the remote controller may be pressed by mistake
and drain the batteries.

•

Make sure the audio rack doors do not have colored glass. Plac­ing the unit behind such doors may prevent proper remote con­troller operation.
If there is any obstacle between the remote controller and the

•

remote control sensor, the remote controller will not operate.

5

Connecting other components

• Do not plug in the AC power cord until all other connections have been made.

• For output jacks, the jack marked R corresponds to the right channel, and the jack marked L to the left channel. Refer to the

amplifier’s instruction manual for further information on connections.

• Avoid bundling the audio connection cables with the power cord or speaker cables. Doing so may degrade sound reproduction.

• Insert the plugs and connectors securely. Remember that improper connection can result in noise, poor performance, or dam-

age to the equipment.

Improper
connection

Protection caps are attached to the DIGITAL OUTPUT OPTICAL
jacks. Remove the cap for the jack you wish to use when connect-

Insert
completely

ing the DX-7333 to digital equipment. Replace the caps if you are
not using the DIGITAL OUTPUT OPTICAL jacks.

1

Audio connection cable

L

R

ANALOG
OUTPUT

DIGITAL OUTPUT

OPTICAL

2

REMOTE

CONTROL

3

Connecting an Onkyo product
with connectors enables you
to use the System function.

cable

Optical fiber cable
(not included)

LR

CD jack jack

Amplifier without

OPTICAL IN jack

MD player, DAT, etc.

with digital inputs

OPTICAL IN jack

Amplifier, Tuner amplifier,

etc. with digital inputsdigital inputs

A Connection with the amplifier

Connect the DX-7333 to the CD jacks of your amplifier.

B Connection via the digital output jack (DIGITAL

OUTPUT OPTICAL)

Connection to digital equipment, such as an MD recorder or
DAT.
Use an optical cable to connect this unit to the digital input
(optical) jack of an MD recorder or DAT in order to make dig­ital recordings. The optical cable should have connectors
which fit into the digital jacks.

C Connections for remote control

When the DX-7333 is connected to an amplifier with the Onkyo

jack, pressing the CD operation button on the amplifier’s

remote controller enables you to operate the CD player.

Note:

• The upper and lower remote control jacks have the

same function.

• Remote control operation is not possible when only the

remote control cable is connected – the audio cables must
also be connected.

• An cable equipped with a 1/8" (3.5mm) diameter min-

iature two-conductor phone plug is included with the DX­7333 and with every tuner or cassette tape deck with the

symbol.

AVIS

WARNING

RISK OF ELECTRIC SHOCK

COMPACT DISC PLAYER

MODEL NO. DX-7333

2-1, NISSHIN-CHO, NEYAGAWA-SHI,OSAKA,
JAPAN

MANUFACTURED IN MALAYSIA

DO NOT OPEN

RISQUE DE CHOC ELECTRIQUE

OUVRIR

NE PAS

4

To AC outlet

TUNER

DX-7333

AMPLIFIER

TAPE DECK

ONKYO

D Connecting the AC power cord and turning the

power on

1. Insert the AC power cord into a wall outlet.

2. Press the POWER button.

The display will light.

6

Playing CDs

TRACK

TRACK

NEXT

PAUSE

STOP

STOP PLAYPAUSE

PHONES

PHONES LEVEL

MIN MAX

COMPACT DISC PLAYER DX

POWER

POWER

ON

OFF

MEMORY CLEAR

Disc tray

LINEAR SINGLE Bit D/A CONVERTER

DISPLAY

Open/close

12

POWER

ON

OFF

Remote controller

3

Label side

POWER

ON

OFF

MEMORY CLEAR

STOP PLAYPAUSE

PHONES

PHONES LEVEL

DISPLAY

MIN MAX

-

COMPACT DISC PLAYER DX

7333

4

Remote controller

TRACK

DISC

TOTAL REMAIN

OVER

11

1

2345

678910

12

DISPLAY

PLAY

SELECTION

A–B SHUFFLE

REPEAT

3

MEMORY

6

CLEAR

9

NEXT

TIME EDIT

12

45

-

7333

78

+10 0

PEAK SEARCH

REMOTE CONTROLLER RC-402C

Normal play

1. Press the POWER button to turn on the power.

2. Press the (Open/close) button.

3. Put the disc in the disc tray, with the label side of the disc
facing up.

4. Press the button.

5. Press the PLAY button.

The CD player will play the first track (track 1).
* If you want to, you can skip step 4 by pressing the PLAY

button instead of the button. The disc tray will close auto­matically and play track 1.

If the CD player does not start playing when the PLAY button
is pressed:

•

The disc may be upside down in the tray. Press the button to
open the disc tray. If you cannot read the label on the disc, turn
the disc over.
Moisture may have formed inside the CD player. Remove the

•

disc from the disc tray and leave the power on for about one
hour to evaporate the moisture.

Using the timer for play

The CD player starts playing the loaded CD automatically as soon
as power is supplied. Using this feature, you can enjoy timer play
using your audio timer. For instructions on how to set the timer, see
the instruction manual supplied with the timer.

5

PLAY

Remote controller

PAUSE

TRACK

DISC

NEXT

STOP

Remote controller

SINGLE ELAPSED

Remote controller

1

2345

678910

12

11

PAUSE

Contents of the display

Before starting play after you have inserted a disc

•

a

The total number of tracks on the disc

b

All of the track numbers on the disc (When the number of tracks
exceeds 20, the OVER indicator lights.)

c

The total playing time of the disc

After starting play

•

d

The track number currently being played

e

The next track number

f

The elapsed time of the current track
The display can be changed by pressing the DISPLAY button.

Stopping play

Press the STOP button.

Stopping play temporarily

Press the PAUSE button.
The PAUSE indicator will light.

To resume play, press the PLAY button or the PAUSE but­ton. The PAUSE indicator will turn off.

7

Playing CDs

POWER

ON

DISPLAY

Remote controller

DISPLAY

PLAY

PHONES LEVELPHONES

DISPLAY

DISPLAY

,

LINEAR SINGLE Bit D/A CONVERTER

OFF

MEMORY CLEAR

DISPLAY

DISPLAY

STOP PLAYPAUSE

PHONES

PHONES LEVEL

MIN MAX

COMPACT DISC PLAYER DX

,/

SELECTION

A–B SHUFFLE

REPEAT

3

MEMORY

6

CLEAR

9

NEXT

TIME EDIT

12

45

-

7333

78

+10 0

PEAK SEARCH

/

REMOTE CONTROLLER RC-402C

,

1 – 9, 0, +10

Listening with the headphones

DISPLAY

STOP PLAYPAUSE

PHONES

PHONES LEVEL

MIN MAX

COMPACT DISC PLAYER DX

-

7333

•

Plug the headphones with a standard binaural (stereo) plug into
the PHONES jack, and then adjust the sound level using the
PHONES LEVEL knob.
Turn the knob clockwise to increase the sound level; turn it

•

counterclockwise to decrease the sound level.

DISPLAY button

TOTAL REMAIN

SINGLE ELAPSED

SINGLE REMAIN

Press the DISPLAY button during play to switch the time display
among the following three modes:

a

TOTAL REMAIN:

Shows how much playing time is left for

the entire disc.

b

SINGLE ELAPSED:

Shows how long the current track has

been playing.

c

SINGLE REMAIN:

Shows how much time is left for the track

currently playing.

PLAY

Remote controller

Remote controller

Remote controller

Remote controller

12

45

78

+10 0

Search play

Hold down the / or / button (or the or
button on the remote controller) during play.
Release your finger when the music you would like to listen to is
reached. The music will start playing from that point.

Skip play

1. Each time the / button (or the button on the remote
controller) is pressed, the pickup will advance one track; and
each time the / button (or the button on the remote
controller) is pressed, the pickup will go back one track. Press
these buttons until the desired track number is selected.

2. Press the PLAY button to begin play.
When the / button (or the button on the remote
controller) is pressed once while playing, the pickup will return
to the beginning of the current track and play it.

3

6

9

Starting play from a given track
(Remote controller only)

1. Select the track number you wish to play, using the number
buttons and the +10 button.

2. The CD player starts playing automatically.

•

The +10 number button is used to select a track with a number
of 10 or higher. For example, to select Track Number 30, press
this button three times, and then press 0.

8

Playing CDs

DISPLAY

Full repeat

Remote controller

REPEAT

Single repeat

Remote controller

REPEAT

Twice

Block repeat

Remote controller

1

A–B

2

Remote controller

A–B

1 2

REPEAT

REPEAT

AB

AB

A–B A–B

Point A

Point B

12

45

78

+10 0

PEAK SEARCH

REMOTE CONTROLLER RC-402C

1

Flashes

Lights

REPEAT

SELECTION

A–B SHUFFLE

3

6

9

NEXT

MEMORY

CLEAR

TIME EDIT

REPEAT

SHUFFLE
A

-

B

Repeating play (Remote controller only)

Press the REPEAT button to enter the repeat play mode.
Repeat play can be used in conjunction with normal, memory, and
shuffle play modes.

Full repeat (Repeating all tracks on a disc)

Press the REPEAT button once.
During normal play

When the last track on the CD finishes, the CD player starts
playing from the first track on the CD.

During memory play

When the last track in memory finishes, the CD player starts
playing from the first track in memory.

During shuffle play

When the last track in shuffle play finishes, the CD player starts
playing the CD again, in a different order.

Press the REPEAT button to cancel repeat play. The REPEAT

•

indicator will turn off.

Single repeat

Press the REPEAT button twice.
Before starting play

The CD player will play the first track repeatedly.

During play

The CD player will play the current track repeatedly.

•

Press the REPEAT button to cancel repeat play. The REPEAT
indicator will turn off.

Block repeat (Repeating a block of music)

You can repeatedly play a part between the start and end points
specified with the A-B button.

Follow the procedure below while a CD is playing.

1. Press the A-B button at the beginning of the block repeat.
(Point A)

2. Press the A-B button at the end of the block repeat. (Point B)

The section between A and B will be played repeatedly.

Note:

You can specify A and B points beyond a track.
This function is not available during memory play, repeat play (full
repeat and single repeat), shuffle play, and time edit play.

•

Press the A-B button once again to cancel block repeat play.

Remote controller

SHUFFLE

SHUFFLE

Shuffle play (Remote controller only)

Press the SHUFFLE button.

In shuffle play mode, the CD player will play the tracks in random order.

•

The auto space function will insert 3 seconds of blank time
between tracks during shuffle play. Play automatically begins.

•

This function can be used in memory mode. In this case, the
programmed tracks are played at random.

Press the SHUFFLE button to cancel shuffle play. The SHUFFLE
indicator will turn off.

Note:

In shuffle play repeat mode, when all of the tracks have been played
once, play will be repeated with a different track progression.

9

Using the memory function

TRACK

NEXT

Up to 36 tracks can be stored in memory.

•

STOP

DISPLAY

PLAY

POWER

ON

OFF

MEMORY CLEAR

CLEAR

MEMORY

1

MEMORY

Remote controller

MEMORY

LINEAR SINGLE Bit D/A CONVERTER

MEMORY

STOP PLAYPAUSE

PHONES

DISPLAY

PHONES LEVEL

MIN MAX

COMPACT DISC PLAYER DX

-

7333

,/

/

12

45

78

+10 0

PEAK SEARCH

REMOTE CONTROLLER RC-402C

SELECTION

A–B SHUFFLE

REPEAT

3

MEMORY

6

CLEAR

9

NEXT

TIME EDIT

MEMORY
CLEAR

1 – 9, 0, +10

Storing a program into memory and playing it

1. Press the MEMORY button.

2. Select the desired track number, using the and but­tons and press the MEMORY button.

To enter further track numbers into memory, repeat this proce­dure. You can store maximum of 36 tracks in memory.

2

MEMORY

Remote controller

12

45

78

+10 0

If you use the remote controller, press the number buttons to

3

6

9

select the desired track.

3. When you press the PLAY button, the CD player will
play the tracks in the order you selected.

Note:

If more than 36 tracks are selected, “FL” will flash in the mem-

•

ory channel display area to indicate that the memory is full.

•

If the MEMORY button is pressed during play, the current track
being played is stored in memory.

Contents of the display

TRACK

DISC

MEMO CH

3

TRACK

DISC

NEXT

TOTAL REMAIN

PLAY

SINGLE ELAPSED

1

MEMORY

2345

678910

12

11

Remote controller

MEMORY

2

69

12

Example:

•

a
b

c

•

d

After storing tracks 2, 3, 5, 6, 9 and 12 in memory.

Before starting play

The selected track numbers
Memory channel
The total playing time of selected tracks

During play

Track number 2 is currently being played (the first track in
memory).

e

Next track number in memory

f

Time elapsed in track currently playing

g

The remaining track numbers in memory

5

3

Stopping a memory play

STOP

Remote controller

Press the STOP button.

10

Using the memory function

TRACK

TRACK

TRACK

TRACK

TRACK

DISC

MEMO CH

TRACK

DISC

MEMO CH

MEMORY

CLEAR

TOTAL REMAIN

TOTAL REMAIN

Remote controller

MEMORY

1

MEMORY

MEMORY

2345

678910

1

2345

678910

Remote controller

CLEAR

Memory reverse function

When track numbers 2, 4, 6, 8 and 10 have been stored in memory,

Press the MEMORY button.

All tracks which have not been stored in memory will be stored in
memory, replacing the previous contents. When you press the
PLAY button, the CD player will start playing.

Clearing the last track stored

Press the CLEAR button.

The last track programmed in memory is cleared.

Canceling the memory play

STOP

Remote controller

Press the STOP button while the CD player is in stop mode.

The contents of the memory are completely cleared.

SPACE indicator

A 3-second silence will be automatically added between tracks dur-

SPACE

1

TRACK

DISC

MEMO CH

2

SINGLE REMAIN

Remote controller

MEMORY

1

2345

678910

12

11

ing memory play (the SPACE indicator will flash). However, dur­ing normal sequential play this space will not be inserted.

Checking what is stored in memory

1. When the CD player stops during memory play, the last pro­gram number stored in memory will be shown in the dis­play.

2. When you press the button, the display will show each
track number stored in memory, in turn.

a

The selected track numbers

b

Memory channel and stored track number in memory channel

c

The playing time of track

TRACK

DISC

MEMO CH

SINGLE REMAIN

MEMORY

1

2345

678910

12

11

11

Useful Functions

DISPLAY

REPEAT

3

12

MEMORY

6

45

CLEAR

9

78

NEXT

+10 0

PEAK SEARCH

REMOTE CONTROLLER RC-402C

SELECTION

A–B SHUFFLE

TIME EDIT

,

1 – 9, 0, +10

TIME EDIT

NEXT SELECTION

12

1

2

1

Remote controller

2

3

Remote controller

NEXT

SELECTION

DISC

Remote controller

Remote controller

12

45

78

+10 0

Remote controller

TIME EDIT

TIME EDIT

TOTAL REMAIN

or

Remote controller

NEXT

3

6

9

1

2

3

678

Remote controller

12

45

78

+10 0

PAUSE

45

3

6

9

Selecting the next track for play
(Remote controller only)

1. During playback, press the NEXT SELECTION button.

2. While the “– –” is flashing, select the next desired track
using the number buttons and the +10 button.

After playing the current track, the selected track will be played.

Note:

The Memory Play or the Shuffle Play mode, if appropriate, will be
canceled before the playing of the specified track begins.

Time edit function (Remote controller only)

This function can be used when recording from a CD to a cassette
tape.
Make sure that you cancel the memory mode before using this
function.

1. Press the TIME EDIT button.

Pressing this button will change the Track Number display from

•

46 → 50 → 54 → 60 → 70 → 80 → 90 → 46 → .....

These numbers indicate the length of the tape.

a

Tape length.

b

The track numbers to be recorded onto side A will be displayed
in a box.

c

This is the total time for the tracks on side A. This changes to
the display for side B ( ) after 2 or 3 seconds. Pressing the
DISPLAY button will show the display for the A side again.
Each time the / buttons are pressed, the tape length will

•

change by 1 minute.

•

Use number buttons and + 10 button to directly enter the length
of the tape.
The maximum setting is 99 minutes.

2. Press the button.

The CD player starts playing from the first track on the disc to
be recorded onto side A.
When the last track on side A is completed, the pause mode is
automatically set.

3. Press the button again.

The pause mode is canceled and the CD player starts playing the
remaining tracks for recording onto side B.

Note:

The time edit mode does not function for discs with more than

•

20 tracks, or when the first track is longer than half the indicated
length of the tape.
During time edit play, buttons other than STOP, Open/close,

•

DISPLAY and number buttons cannot be used for input.

Useful Functions

DISPLAY

12

45

78

+10 0

PEAK SEARCH

REMOTE CONTROLLER RC-402C

1

Remote controller

PEAK SEARCH

REPEAT

3

MEMORY

6

CLEAR

9

NEXT

TIME EDIT

SELECTION

A–B SHUFFLE

A–B

PEAK SEARCH

Peak search (Remote controller only)

This function searches for the peak sound level on the disc.
When using the memory mode, press the MEMORY button to
return to normal mode.

1. Press the PEAK SEARCH button.

•

LightsFlashes

PEAK SEARCHPEAK SEARCH

The CD player checks the disc for the highest sound level. The
PEAK SEARCH indicator will flash during this operation.
When the search is complete, the indicator will light.

2. Press the A-B button.

“P” appears in the memory channel display area and flashes.

3. Press the button.

The section of the disc with the highest sound level will be

•

played repeatedly for 6 seconds. Refer to this level when record-

2

Remote controller

A–B

ing the disc onto a cassette tape.

4. Press the button.

The CD player stops.

•

This level is stored until the button is pressed or the power is
turned off. To repeat the 6-seconds playback of the peak level,
follow steps 2, 3, and 4 when the CD player is stopped.
Pressing the PEAK SEARCH button will turn off the PEAK

•

3

Remote controller

SEARCH indicator and the level will be cleared from the
memory.

•

Pressing the A-B button after pressing the button will start
the block repeat operation.

Note:

Depending on the disc playing, memorizing of a level which is not
the maximum audible level could occur. This is due to the CD

4

Remote controller

player’s microprocessor memorizing inaccurate information
because of flaws in the disc itself, or recording conditions. Under
such circumstances, the recording level for the cassette tape may be
very low, or else distortion or similar symptoms could arise on
account of excessively high signal levels. To avoid this, be sure to
reset the recording level of the cassette deck if such symptoms
occur.

13

Control positions and names

TRACK

NEXT

Note:

If there is a protective film on the surface of the display, making it difficult to read the display, remove it.
For more information about the function of a particular button, please turn to the page listed in the brackets ([ ]) following each name.

Front panel

13425678

LINEAR SINGLE Bit D/A CONVERTER

ON

POWER

OFF

MEMORY CLEAR

abcdefg

Display

TRACK

DISC

NEXT

MEMO CH

REPEAT1A B SPACE MEMORY

TOTAL REMAIN
SINGLE ELAPSED
SINGLE REMAIN

PEAK SEARCH SHUFFLE

PAUSE TIME EDIT OVER

Front panel Display

DISPLAY

1

2

45

3

678910

11

16 17

12

13 14

18 19 20

15

hijklm

STOP PLAYPAUSE

PHONES

PHONES LEVEL

COMPACT DISC PLAYER DX

MIN MAX

-

7333

91011121314

1. POWER button [7]

2. Remote control sensor [5]

3. Disc tray [7]

4. Display (Refer to the “Display” illustration.)

5. Open/close button [7]

6. PAUSE button [7]

7. STOP button [7, 11]

8. PLAY button [7, 10]

9. PHONES LEVEL knob [8]

10. PHONES jack [8]

11. Skip/Search buttons [8, 10]

12. DISPLAY button [8]

13. CLEAR button [11]

14. MEMORY button [10, 11]

a. Track number display
b. REPEAT indicator
c. Block repeat indicator

d. PEAK SEARCH indicator

e. SPACE indicator

f. SHUFFLE play indicator

g. MEMORY indicator

h. Music calendar display

i. OVER indicator

j. Time display

k. TIME EDIT indicator

l. PAUSE indicator

m. Next track number/memory channel display

14

Control positions and names

Remote controller

1. Open/close button [7]

2. CD operation buttons

16

DISPLAY

2

3. Number buttons and +10 button [8, 10, 12]

REPEAT

12

45

3

78

+10 0

PEAK SEARCH

4

5

REMOTE CONTROLLER RC-402C

3

6

9

NEXT

SELECTION

A–B SHUFFLE

MEMORY

CLEAR

TIME EDIT

7

8

9

10

11

12

4. PEAK SEARCH button [13]

5. A-B button [9, 13]

6. DISPLAY button [8]

7. REPEAT button [9]

8. MEMORY button [10, 11]

9. CLEAR button [11]

10. TIME EDIT button [12]

11. NEXT SELECTION button [12]

12. SHUFFLE button [9]

: Pause button [7]
: Stop button [7, 11, 13]
: Play button [7, 10, 12, 13]
: Fast reverse button [8]
: Fast forward button [8, 11]
: Reverse skip button [8, 12]
: Forward skip button [8, 12]

Precautions for handling the Compact Disc (CD)

Important note on handling CDs

1. Carefully lift the disc from the disc case, making sure to hold
the disc by its edges or the hole in the middle.

2. A dry, soft cloth may be used to wipe dust and fingerprints
off the surface of CDs.
Do not use volatile agents on discs, such as thinner or ben­zine. Also, do not use conventional record cleaner or anti­static agents.

•

Do not place a CD in direct sunlight or locations subject to high
humidity or low temperature.

•

Do not store a CD in this unit tray for a long period of time.

Playable discs

This unit can play back the following discs.

Disc mark Contents Disc size Maximum playback time

Audio

CDs

Audio

12 cm

8 cm

(CD single)

You cannot play back discs other than those listed above.

Do not use discs that are not audio discs (e.g. CD-ROMs for use
with personal computers), as these could damage the speakers and
amplifier.

Avoid using heart-shaped or octagonal discs. playing irregularly
shaped discs may damage the internal mechanism of the unit.

Do not use discs on which adhesive from adhesive tape or a disc
label (if it is a rental disc) remains.
Otherwise, you may not be able to eject the discs or the unit may
become inoperative.

74 minutes

20 minutes

15

Troubleshooting Guide

Specifications

No power.

•

Cause:

Power cable is not properly plugged into the AC outlet.

Remedy:

•

A disc is loaded in the disc tray, but playback will not start.

Cause:

Remedy:

Cause:

Remedy:

Cause:

Remedy:

•

No sound is heard.

Cause:

Remedy:

Cause:

Remedy:

Disc playback skips.

•

Cause:

Remedy:

Cause:

Remedy:

Cause:

Remedy:

Search time (when locating a specific track) is extremely long.

•

Cause:

Remedy:

Cause:

Remedy:

Track numbers cannot be stored in memory.

•

Cause:

Remedy:

Cause:

Remedy:

•

Front panel controls function correctly, but remote control­ler does not.

Cause:

Remedy:

Cause:

Remedy:

Insert the power plug firmly.

A disc in the disc tray may be upside down.

Load the disc with the label facing upward.

The disc is dirty.

Clean the disc.

Moisture has accumulated inside the CD player.

Remove the disc from the disc tray, place the CD
player in a warm place, and leave the power on for
about one hour.

Connections may be incomplete or incorrect.

Check all cable connections. Insert all the plugs

firmly into the jacks.
The input selector switch on the amplifier may be set
incorrectly.

Set the switch to the proper position. See your

amplifier’s operating instructions for more informa-

tion.

The disc is dirty.

Clean the disc.
A disc is scratched.

Replace the disc.
The CD player is subject to being accidentally bumped.

Place the CD player in a more stable location.

The disc is dirty.

Clean the disc.
The disc is scratched.

Replace the disc.

No disc in the tray.

Load a disc in the tray.
You have entered a track number that does not exist on
the disc.

Use only the track numbers that exist on the disc.

No batteries in remote controller.

Insert batteries.
Batteries have worn out.

Replace batteries.

Signal readout system: Optical non-contact
Reading rotation: About 500 - 200 r.p.m.

(constant linear velocity)
Linear velocity: 1.2 - 1.4 m/s
Error correction system: Cross Interleave Reed-Solomon code
D/A converter: Single-bit PWM (Pulse Width Mod-

ulation)/AccuPulse
Sampling frequency: 352.8 kHz (8 times oversampling)
Number of channels: 2 (stereo)
Frequency response: 5 Hz - 20 kHz
Total harmonic distortion: 0.005% (at 1 kHz)
Dynamic range: 96 dB
Signal-to-noise ratio: 90 dB
Channel separation: 85 dB (at 1 kHz)
Wow and Flutter: Below threshold of measurability
Output level: 2 volts r.m.s.
Power consumption: 9 watts
Power supply: 230-240 V, 50 Hz
Dimensions (W × H × D): 435 × 91 × 314 mm

(17-1/8" × 3-9/16" × 12-3/8")
Weight: 4.0 kg (8.8 lbs.)

Specifications and features are subject to change without notice.

This unit contains a sensitive microcomputer, which under certain
circumstances might fail to operate due to excessive noise interfer­ence. In such case, switch off the main power by pressing the
POWER switch, wait five seconds, then switch it on again.

Sales & Product Planning Div. : 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN
Tel: [phone] Fax: [phone] http://www.onkyo-intl.com

ONKYO U.S.A. CORPORATION

18 Park Way, Upper Saddle River, N.J. 07458, U.S.A.
Tel: [phone] Fax: [phone] http://www.onkyo.net

ONKYO EUROPE ELECTRONICS GmbH

Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY
Tel: [phone] Fax: [phone] http://www.onkyo.net

ONKYO CHINA LIMITED

Units 2102-2107, Metroplaza Tower I, 223 Hing Fong Road, Kwai Chung,
N.T., HONG KONG Tel: [phone] Fax: [phone] http://www.onkyochina.com

16

SN 29343067

HOMEPAGE

http://www.onkyo.co.jp/

I0104-1

E
