Onix XCD - 50SE User Manual

COMPACT DISC PLAYER

LETTORE COMPACT DISK

LECTEUR DE DISQUE COMPACT

CD-SPIELER

REPRODUCTOR DE DISCOS COMPACTOS

Mod. XCD - 50SE

MANUALE D’USO

USER'S GUIDE

GUIDE DE L'UTILISATEUR

BEDIENUNGSANLEITUNG

GUÍA DEL USUARIO

INDEX

ENGLISH............................3

ITALIANO...........................8

FRANÇAIS........................13

DEUTSCH.........................18

ESPAÑOL.........................23

Thank you for purchasing ONIX Electronics. With sincere appreciation, we suggest that you should read this User’s
Manual thoroughly before operation and keep the Manual properly for further reference. .

USER'S GUIDE

INSTALLATION

CONNECTIONS

Insta ll th e un it in a w ell v entil at ed pl ac e and n ot
exposed to high temperatures or humidity, nor any heat
sources such as heaters or radiators. Be sure to leave
space around the unit for ventilation to improve heat
radiation (at least 30 cm at top, 10 cm at rear, and 20 cm
at each side). If not enough space is provided between the
unit and walls or other equipment, heat will build up inside, interfering with performance or causing malfunctions.

Before making or changing the connections, switch o the power switch to prevent damaging the product.

Connect the white plug 3 to the L (left) channel 1,
and the red plug 4 to the R (right) channel 2.
Be sure to push the plugs securely.

The CD player is equipped with lters for the suppression of radio interference in accordance with EEC regulation

MAINTENANCE OF EXTERNAL SURFACES

Remove dust and dirt with a clean, dry cloth.
Never use solvents, gasoline, insecticide sprays and other
chemicals on or near the equipment because they can
corrode the surfaces.

Handle the power cord by the plug. Do not pull out the
plug by tugging the cord and never touch the power cord
when your hands are wet as this could cause a short circuit
or electric shock.

POWER-CORD CAUTION

3

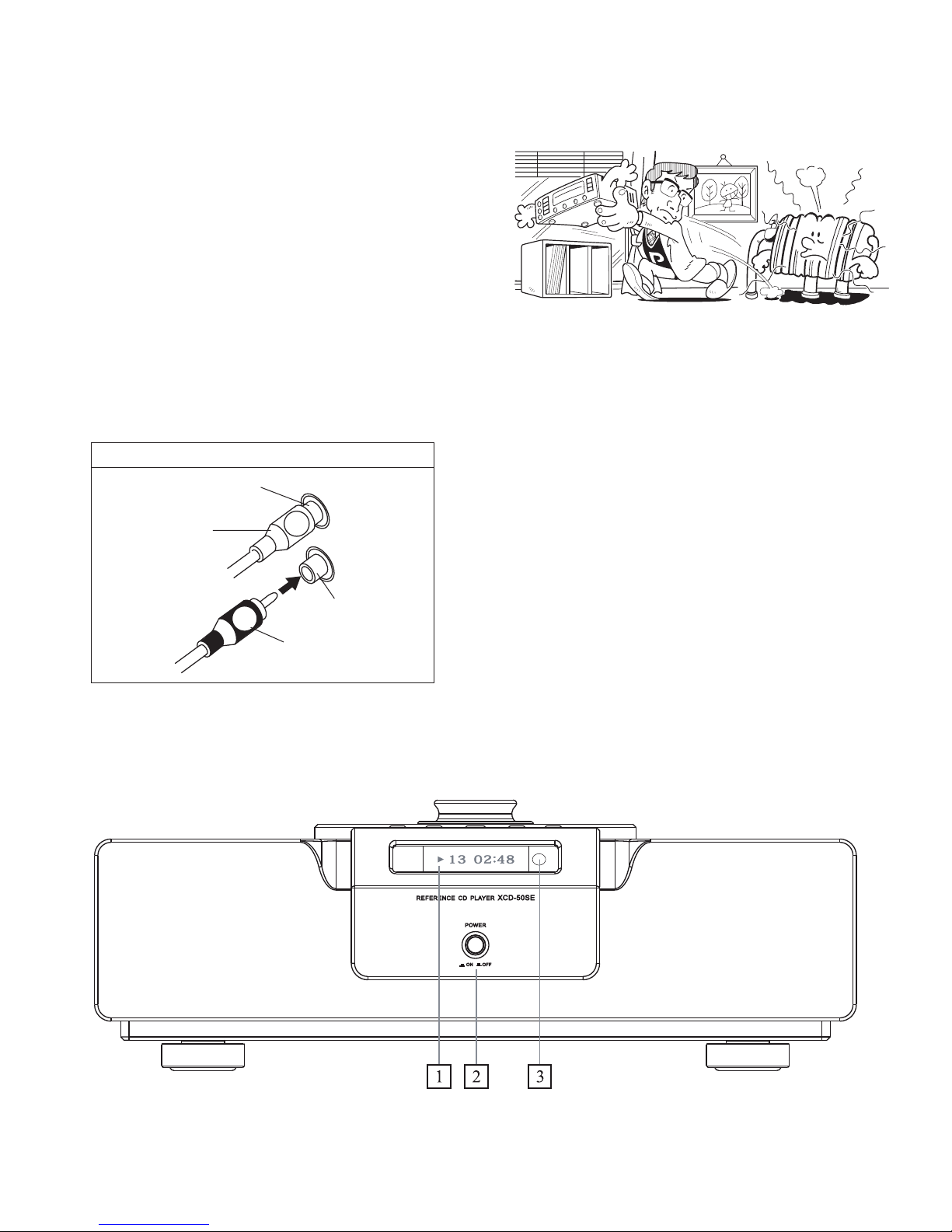

CONNECTING THE PIN-RCA CORDS

L

R

1 Left channel

2 Right channel

4 Red plug

3 White plug

3. Screen 4. Remote receiving window10. Power switch

2. Stop button

1. Input selector button

3. Play/pause button

4. Fast rewind/Previous button

5. Fast forward/Next button

4

5. AES/EBU digital output

6. Coaxial digital output

7. USB digital input

8. Power socket with fuse

1. Right channel analog balanced output

2. Right channel analog non-balanced output

3. Left channel analog non-balanced output

4. Left channel analog balanced output

Disc cover

Disc press

Disc

Disc loading area

Disc Loading diagram

Connect signal cable and
power cable, and press
POWER button of the machine.
Load disc, disc press and disc
cover as illustrated in the gure.
Press PLAY button to play the disc.

5

Listening

Remote Control

Note: Keys not described are
not intended for the machine.
It is normal if there is no respons
pushing them..

IN P U T

L E V E L

T U N IN G

P R O G

P R E S E T R A N D O M

B A N D V O L U M E

D I S P L A Y

D I M M E R

M U T E

S C A N

E N T E R

X R C - 1

A M P

T U N E R

CD /

S A C D

C D

D A C

R E P

A - B

1 2 3

5

6

748

9

0

IN F O

M E M

1 0

Switch

Set switch to CD

Direct selection digits

Fast rewind/fast forward keys

Previous/next keys

Stop key

Play/pause key

Input selector key

Replay key

A-B segment replay key

Random play key

Mute key
Brightness adjustment key

Description remote control buttons

1. Connect CD player to the amplifier with appropriate cables .

2. Lift disc cover and disc press and then put the disc in. Put disc press and disc cover back.

3. Once the loader is started, screen shall display total tracks and time.

4. Press ( ) button on machine or key on remote control to play all contents on the disc.

USB Setup: 1. Connect the USB cable from PC to the rear panel of the unit.

2. Turn on the unit and choose the USB source by press the INPUT on the top panel or the
CD INPUT on the remote control.

3. Install the driver software into the PC from the“USB driver disc”.

4. Setup the“SOUND”option on the PC, set the“Speaker XMOS XS1-L1 Audio”as the default device.

Programmed play key

Track scan key

Scan button: During stop mode, press (SCAN) key on remote control, screen shall display “SCAN” in the top left
corner, indicating track scan is functioning. Track scanning function plays the first ten seconds of a track sequentially
untill all tracks are played. Number of corresponding track shall be displayed on screen. Once all tracks are scanned,
the machine will be in stop mode.
To cancel during track scanning, press (SCAN) key or ( ) key once.

To operate the remote
control requires two battery of
AAA 1.5 V, which are not included.

Load/eject

6

Protection

Troubleshooting

The device has a sophisticated protection circuit against the short circuits, distinguishing itself with the simultaneous
flashing of all LEDs for a few seconds, in this case must be unplugged the power cord and leave unplugged for at
least 15 minutes..

Symptom Cause Remedy

No power
supplied to unit

Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is something wrong
with this component, check the points below. Sometimes the trouble may lie in another component. Investigate the
other components and electrical appliances being used. If the trouble cannot be rectified even after exercising the
checks listed below, ask your nearest ONIX authorized service center or your dealer to carry out repair work.

Power plug is disconnected from outlet

Check that power cord and insert the plug
securely into outlet

No sound

Connecting cords are disconnected
from terminals, or connected
incorrectly

Check if connections between CD-player and
the amplifier are connected correctly.

No sound from
one speaker

Connecting cords or speaker cords are
disconnected.

Verify that the cables between amplifier and
CD-player are well- connected according to
the different polarity.

The position of the input selector does
not correspond to the component to be
played back.

Check that the selector on the amplifier is
positioned on the input of the CD.

RANDOM button: allows the random selection of tracks, screen shall display “ ”.
REP button: Press once to repeat a single track, press twice to repeat the entire CD, screen shall display or .
A-B segment repeated play: Press A-B key at the start point of your desired content. Screen shall

display A- in the top left corner. Press A-B key again at the stop point of your desired content. Screen shall
display A-B in the top left corner and the machine shall repeatedly play the segment between start point A and stop
point B until A-B key is pressed again to cancel segment play.

FAST REWIND/FAST FORWARD: During normal playback, press button ( ) to search backward at high speed,

release this key to return to normal playback. During normal playback, press ( ) button to search forward at high
speed, release this key to return to normal playback. .

TRACK SELECTING: Press numerical key 1 to 9 to select track.

Press ( ) button on front panel or ( ) key on

remote control to play the previous track.Press ( ) button

on front panel or ( ) key on remote control to play the

next track.

DISPLAY BRIGHTNESS ADJUSTMENT: Press (DIMMER) key on remote control to adjust the brightness of

displayed characters, each time (DIMMER) key is pressed, screen brightness shall change from “bright”, “normal”

to “dark” in circular. Screen will be set to “bright” as default when the machine is turned off.

MUTE buttom: pressing (MUTE) button while the CD is plaing will activate the mute function (no sound), will,
display the message "MUTING" flashing, press the button (MUTE) for return to normal.

Components:

Specications

Warranty

For warranty information, please contact your local ONIX distributor. Your purchase receipt is your permanent record
of a valuable purchase. It should be kept in a safe place to be referred to as necessary for insurance purposes or when
corresponding with ONIX. When seeking warranty service, it is responsibility of the consumer to establish proof and
date of purchase. Your purchase receipt or invoice is adequate for such proof.

Every specication and design of the product is subject to change without prior notice

7

Mechanical section: We have a Philips Pro II drive and servo system, built under Onix’s specications. The quality of
the player is improved by a damper made by an aluminum alloy with a brass capsule that’s placed on top of the cd
during play, improving it’s quality.
The special blue LED positioned internaly ,while the cd is reading, reduces the diraction from laser beam.
D/A converter: Superb Crystal CS 4396 D/A converter made by Cirrus Logic a Texan company. It is a24 bit, 192 kHz
D/A without equals. Music has never been heard like this. The end results are startling.
Power supply: R-CORE “high grade silicon steel core” transformers made by Onix’s specications. To protect the
audio circuitry, the player uses two separate power transformers: one for the servo and digital system and another
just for audio. In addition, the power supply regulation on the audio circuit board auto helps itself establish stable
operation for the audio D/A converters.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

CAUTION:
TO PREVENT THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.

IMPORTANT

The lightning ash w ith arrowhead symbol,
within an equilateral triangle, is intended to alert
the u ser to th e pr esen ce o f un insu late d
"d angerou s voltage " withi n the pro duct's
enclosure that may be of sucient magnitude
to constitute a risk of electric shock to persons.

The exclamation point within an equilateral
triangle is intended to alert the user to the
pr esence of imp ortant operatin g and
maintenance (servicing) instructions in the
literature accompanying the appliance.

This product complies with the Low Voltage Directive
(73/23/EEC), EMC Directives (89/336/EEC, 92/31/EEC) and CE
Marking Directive (93/68/EEC).

OUTPUT LEVEL 2.0V
FREQUENCY RESPONSE 06Hz ~20KH z (-0 ,5 dB)

>110 dB (A weig hted)SIGNAL/NOISE RATIO

≥0,0 0 26% a 1KH z

100 dB
>96d B (1K Hz)

4.0V
5Hz~ 30KHz (-1 dB)
>115 dB (A weig hted)

≥0,0 0 18% a 1KH z

100 dB
>100 dB (1 KHz)

DIME NSION L 430 x P 410 x A 161 mm.
WEIG HT 14 K g.
POWE R SUP PLY 220V - 24 0V AC

THD

DYNAMIC RANGE

OUTPUT LEVEL
FREQUENCY RESPONSE
SIGNAL/NOISE RATIO

THD

DYNAMIC RANGE

CROS STALK

CROS STALK
USB RECEI VER S PECS

USB 2.0, 24 bi t/192K Hz (M AX)

RCAXLR

Grazie per aver acquistato un prodotto della ONIX Electronics. Prima di collegare la presa elettrica del apparecchio si
prega di leggere attentamente questo manuale.

MANUALE D’USO

INSTALLAZIONE

COLLEGAMENTI

Installare l’apparecchio in un luogo ben ventilato e
non esposto ad alte temperature o umidità, ne a fonti
di calore quali stufe o radiatori. Assicuratevi di lasciare
uno spazio intorno al prodotto per ottenere una corretta
ventilazione (lasciate uno spazio minimo di 30 cm in alto,
di 10 cm dietro l’unità e di 20 cm ai lati). Se non si rispettano
queste distanze l’apparecchio si surriscalderà alterandoil suo normale funzionamento con un possibile guasto.

Prima di eettuare o modicare qualsiasi collegamento spegnere sempre prima l’apparecchio evitando
danneggiamenti del prodotto.

COLLEGAMENTO DEI CAVI PIN-RCA

L

R

1 Canale sinistro

2 Canale destro

4 Spinotto rosso

3 Spinotto bianco

Collegare la spina bianca 3 al canale L (sinistro) 1,
e la spina rossa 4 al canale R (destro) 2.
Le Spine devono essere inserite saldamente e ben
a fondo.

Il lettore CD è dotato di ltri per la soppressione delle interferenze in radiofrequenza, secondo la normativa CEE

MANUTENZIONE DELLE SUPERFICI ESTERNE

Togliere la polvere e lo sporco con un panno pulito e
asciutto. Non usare mai solventi, benzina, insetticidi spray
ed altre sostanze chimiche su o vicino all’apparecchio
perché ne corrodono le superci.

Prendete sempre il lo di alimentazione per la spina.
Non tiratelo mai agendo per il lo stesso e non toccate mai
il lo con le mani bagnati, perchè questo potrebbe causare
cortocircuiti o scosse elettriche.

AVVERTIMENTO RIGUARDANTE IL FILO DI
ALIMENTAZIONE

8

1. Display 4. Sensore del telecomando10. Accensione/spegnimento

9

2. Tasto Stop

1. Tasto selezione ingresso

3. Tasto play/pause

4. Tasto riavvolgimento
veloce/brano precedente

5. Tasto avanzamento
veloce/brano successivo

5. Uscita digitale AES/EBU

6.

Uscita digitale coassiale

7.

Ingresso digitale USB

8.

Ingresso di alimentazione con fusibile

1. Uscita analogica bilanciata canale destro

2. Uscita analogica non bilanciata canale destro

3. Uscita analogica non bilanciata canale sinistro

4. Uscita analogica bilanciata canale sinistro

Scrigno

Stabilizzatore

CD audio

Vano CD

Schema inserimento CD

Il caricamento del CD deve
essere eettuato come riportato
dallo schema a anco.
Prima di chudere lo scrigno,
ricordarsi sempre di posizionare
lo stabilizzatore sul CD, altrimenti
il lettore CD non legge le tracce.
