Onix OC103 User Manual

COMPACT DISC PLAYER

LETTORE COMPACT DISK

LECTEUR DE DISQUE COMPACT

CD-SPIELER

REPRODUCTOR DE DISCOS COMPACTOS

Mod. OC103

MANUALE D’USO...8

USER'S GUIDE...2

GUIDE DE L'UTILISATEUR...14

BEDIENUNGSANLEITUNG...22

GUÍA DEL USUARIO

U

S

B

O

P

TI

C

A

L

C

O

A

X

I

A

L

C

O

AX

I

A

L

R

C

A

1

R

C

A

2

X

L

R

R

C

A

1

R

C

A

2

R

A

E

S

/

E

B

U

D

I

G

I

T

A

L

I

N

P

U

T

D

I

G

I

T

A

L

O

U

TP

U

T

AN

A

L

O

G

O

U

T

P

U

T

O

N

I

X

E

N

/

S

T

A

N

D

B

Y

i

P

o

d

CD PLAYER

OC103

The CD player is equipped with lters for the suppression of radio interference in accordance with EEC regulation

2

Thank you for purchasing ONIX Electronics. With sincere appreciation, we suggest that you should read this User’s
Manual thoroughly before operation and keep the Manual properly for further reference. .

USER'S GUIDE

INSTALLATION

CONNECTIONS

Install the unit in a well ventilated place and not
exposed to high temperatures or humidity, nor any heat
sources such as heaters or radiators. Be sure to leave
space around the unit for ventilation to improve heat
radiation (at least 30 cm at top, 10 cm at rear, and 20 cm
at each side). If not enough space is provided between the
unit and walls or other equipment, heat will build up inside, interfering with performance or causing malfunctions.

Before making or changing the connections, switch o the power in order to prevent damaging the product.

Connect the white plug 3 to the L (left) channel 1,
and the red plug 4 to the R (right) channel 2.
Be sure to push the plugs securely.

MAINTENANCE OF EXTERNAL SURFACES

Remove dust and dirt with a clean, dry cloth.
Never use solvents, gasoline, insecticide sprays and other
chemicals on or near the equipment because they can
corrode the surfaces.

Handle the power cord by the plug. Do not pull out the
plug by tugging the cord and never touch the power cord
when your hands are wet as this could cause a short circuit
or electric shock.

POWER-CORD CAUTION

CONNECTING THE PIN-RCA CORDS

L

R

1 Left channel

2 Right channel

4 Red plug

3 White plug

Disc loading area

Fast forward/
Next button

Fastrewind/
Previous button

Stop button

Pause button

Play button

P

O

W

E

R

O

N

O

F

F

S

E

A

R

C

H

I

N

P

U

T

3

1. USB digital signal input port

2. Optical digital signal input port

3. XLR digital signal input port

4. Coaxial digital signal input port

5. Coaxial digital signal output port

6. XLR digital signal output port

7. RCA1 right channel audio output port

8. RCA2 right channel audio output port

9. XLR right channel audio output port

10. RCA left channel audio output port

11. RCA2 left channel audio output port

12. XLR left channel audio output port

13. Software upgrade port

14. Remote control signal in port

15. Remote control signal out port

16. Power switch

17. Power input socket

USB OPTI CAL COAX IAL COAX IAL

FUSE 100 V - 120V: T2 AL

220V - 240 V: T1AL

AC IN

POWE R

ON

OFF

RCA 1 RCA 2 XLR RCA 1 RCA 2 XLR

LR

AES / EB U AES / EB U

MODE L: OC10 3
POWE R CONSU MPTIO N: 15W

CD PLAY ER

SERI AL NO.:

DIGI TAL INP UT DIGI TAL OUT PUT

ANAL OG OUTP UT

USE ONLY WITH A 250V F USE

~ /220V 50Hz

IR IN

IR OUT

UPGRADE

PORT

ONI X ENGL AND E LECTR ONICS LTD

CLASS1LASERPRODUCT

APPAREILLASER DECLASSE 1

PRODUCTOLASER CLASE1

7 13 14 15 16 17

654321

8 9 10 11 12

ON / STAN DBY

iPod

CD PLAYER

OC103

31 2 4 5

1. Display area

2. Standby indicator lamp

3. Standby touch switch
(whole metal strip)

4. Remote control receiving window

5. iPod signal in port

4

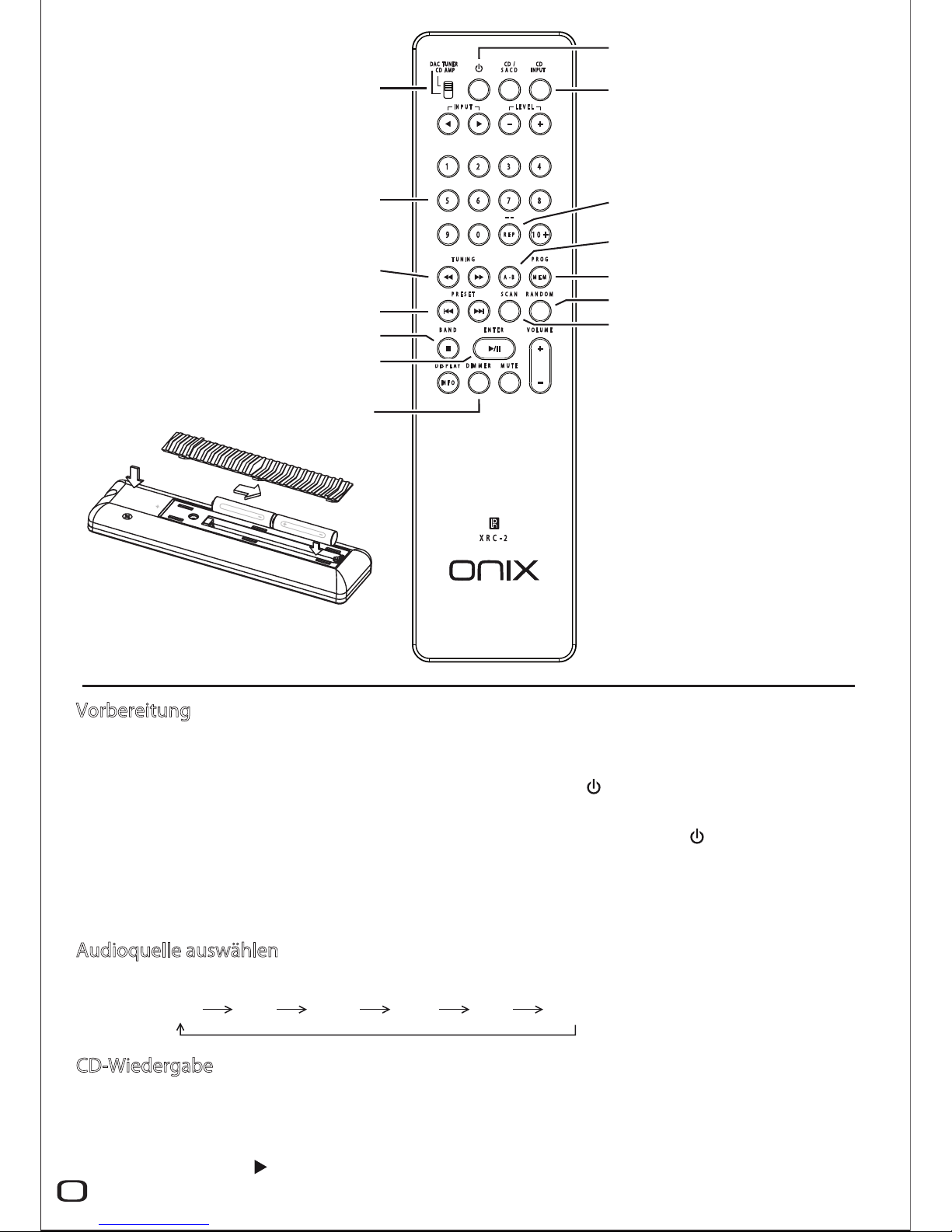

Remote Control

Note: Keys not described are
not intended for the machine.
It is normal if there is no respons
pushing them..

To operate the remote
control requires two battery of
AAA 1.5 V, which are not included.

IN P U T

L E V E L

T U N I N G P R O G

P R E S E T R A N D O M

B A N D V O L U M E

D IS P L A Y

D IM M E R

M U T E

S C A N

E N T E R

CD

INPUT

CD /

S A C D

R E P

A - B

1 2 3

5

6

748

9

0

IN F O

M E M

1 0

DA C TUNER/

CD AMP/

X R C - 2

Selector switch

Move the switch to CD/AMP

Standby switch

Input selector key

Display area brightness regulating key

Direct selection digits

Fast rewind/fast forward keys

Previous/next keys

Stop key

Play/pause key

Replay key

A-B segment replay key

Random play key

Programmed play key

Track scan key

Read USB IPOD OPTI AES COAX

Preparation

1. Firstly connect the device properly.

2. Push the power switch on the rear panel into the location of “ON”, then the “ON/STANDBY” indicator lamp on the
panel will be on in red. In such case, touch any location on the metal strip on the touch panel after one second or the
〈〉key on the remote controller, then the indicator lamp will turn green. After about 3s, the relay will make. then the
device will enter the normal work state.

3. To power off this device, touch any location on the metal strip on the touch panel after one second or the〈〉key on
the remote controller, then the indicator lamp will turn red and the device will be in the standby state; then push the
power switch on the rear panel to the location of OFF to turn off this device.

4. If this device is idle for long, be sure to unplug the AC power cord from the device.

Select source

Press〈CD INPUT〉button on the remote control, then the display on the front panel will show the following text

Play the disc

1. Opening the disc cover by push back it slowly, put disc clamp on the disc, and close the disc cover by manual.

2. Once the loader is started, screen shall display area total tracks and time.

3. Press〈 〉button on machine or key on remote control to play all contents on the disc.

5

Previous/Next

1. During normal playback, press〈 〉button on front panel or key on remote control to play the previous track.

2. During normal playback, press〈 〉button on front panel or key on remote control to play the next track.

Repeated play

1. To continuously play tracks of the current disc, press〈REP〉key on remote control once. Display area shall display
“T” in front of the track time, then it shows the track number and “T” alternately. To continuously repeat playing
tracks of the entire disc, press〈REP〉key on remote control again. Display area shall display “A” in front of the
track time, then it shows the track number and “T” alternately. To cancel repeated play function, press〈REP〉key
on remote control again. Display area shall display normally.

2. This key is not functional if pressed when the disc is stopped.

A-B segment repeated play

1. Press 〈A-B〉 key on remote control at the start point of your desired content. Display area shall display A- in front
of the track time, then it shows the track number and “A-” alternately. Press〈A-B〉key again at the stop point of
your desired content. Display area shall display “A- B” in front of the track time, then it shows the track number and
“A B” alternately. And the machine shall repeatedly play the segment between start point “A” and stop point “B”
until〈A-B〉key is pressed again to cancel segment play.

2. This key is not functional if pressed when the disc is stopped.

Fast Rewind/fast Forward

1. During normal playback, press button ( ) to search backward at high speed, release this key to return to normal
playback.

2. During normal playback, press ( ) button to search forward at high speed, release this key to return to normal
playback.

Track scanning

1. During playback and stop mode, press〈SCAN〉key on remote control, screen area shall display “S” in front of the
track time and then it shows the track number and “S” alternately, indicating track scan is functioning. Track scanning
function plays the first ten seconds of a track sequentially until all tracks are played. Number of corresponding track
shall be displayed on screen area. Once all tracks are scanned, the machine will be in stop mode.

2. To cancel during track scanning, press〈SCAN〉key or〈 〉key once.

Random play

1. During stop or normal playback mode, press〈RANDOM〉key on remote control, display area shall display “R” in
front of the track time, then it shows the track number and “R” alternately, indicating random play is functioning.
Random play will play the disc until all tracks are played.

2. To cancel during random play, press〈RANDOM〉key or〈 〉key once.

Programmed play

1. Press〈PROG〉key on remote control during stop mode, the display area shall display “P00 - 00 ”.

2. Input the number of desired tracks one by one. If the input is wrong, press〈PROG〉key again to cancel
programming. Then press key again to re-input desired track.

3. Once programming completed, press〈 〉key on machine or remote control to start playing programmed tracks.
Display area shall display “M” in front of track time, then it shows the track number and “M” alternately.

4. To cancel programmed play, press〈 〉key twice.

6

Troubleshooting

Protection

The device has a sophisticated protection circuit against the short circuits, distinguishing itself with the simultaneous
flashing of all LEDs for a few seconds, in this case must be unplugged the power cord and leave unplugged for at
least 15 minutes..

Symptom Cause Remedy

No power
supplied to unit

Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is something wrong
with this component, check the points below. Sometimes the trouble may lie in another component. Investigate the
other components and electrical appliances being used. If the trouble cannot be rectified even after exercising the
checks listed below, ask your nearest ONIX authorized service center or your dealer to carry out repair work.

Power plug is disconnected from outlet

Check that power cord and insert the plug
securely into outlet

No sound

Connecting cords are disconnected
from terminals, or connected
incorrectly

Check if connections between CD-player and
the amplifier are connected correctly.

No sound from
one speaker

Connecting cords or speaker cords are
disconnected.

Verify that the cables between amplifier and
CD-player are well- connected according to
the different polarity.

The position of the input selector does
not correspond to the component to be
played back.

Check that the selector on the amplifier is
positioned on the input of the CD.

Display brightness adjustment

Press (dimmer) key on remote control to adjust the brightness of displayed characters, each time (dimmer) key
Is pressed, screen brightness shall change from “bright”, “normal” to “dark” in circular. Screen will be set to “bright”
As default when the machine is turned off.

USB Setup

1. Connect the USB cable from PC to the rear panel of the unit.

2.Turn on the unit and choose the USB source by press the〈CD INPUT〉on the remote control.

3. Install the driver software into the PC from the “USB driver disc”.

4. Setup the “SOUND” option on the PC, set the “Speaker XMOS XS1-L1Audio” as the default device.

iPod input

This function is corresponding the “iPod” jack on the bottom right corner of front panel, it is a USB type interface, it
can be connected by the supplied cable from iPod. Also this interface can offer 5V/1.5Apower supply.

1. Connect iPod/iPhone/iPad into the “iPod” jack on the front panel.

2. Power on the unit and press the〈CD INPUT〉button on the remote control, select the corresponding iPod source.

3. Using〈 〉、〈 〉、〈 〉buttons from remote control to operate the iPod.

: Play/pause
: Previous track
: Next track

Components:

Specications

Warranty

For warranty information, please contact your local ONIX distributor. Your purchase receipt is your permanent record

of a valuable purchase. It should be kept in a safe place to be referred to as necessary for insurance purposes or when

corresponding with ONIX. When seeking warranty service, it is responsibility of the consumer to establish proof and

date of purchase. Your purchase receipt or invoice is adequate for such proof.

Every specication and design of the product is subject to change without prior notice

7

Mechanic: Philips CD Pro II drive, mounted inside a frame of aluminum 3-Point-Suspended.

DAC converters: CS 8416, CS4396 with 24/192kHz CRYSTAL (Cirrus Logic), Audio USB 2.0 XMOS XS1-L1 asynchronous,

No. 2 R-core transformers, capacitors Nichicon "Gold Tune" and WIMA, super servo system designed by ONIX.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

CAUTION:
TO PREVENT THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.

IMPORTANT

The lightning ash with arrowhead symbol,
within an equilateral triangle, is intended to alert
the user to the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sucient magnitude
to constitute a risk of electric shock to persons.

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.

This product complies with the Low Voltage Directive
(73/23/EEC), EMC Directives (89/336/EEC, 92/31/EEC) and CE
Marking Directive (93/68/EEC).

OUTPUT LEVEL

RCA: 2.3V - XLR: 4.6V

RCA: >96dB - XLR: >100dB

FREQUENCY RESPONSE
SIGNAL/NOISE RATIO

RCA: 0.002% A 1 kHz - XLR: 0,0018% a 1KHz

>110 dB
24 bit/192 khz
0,001%

RCA: 06Hz-20KHz (-0,5) dB - XLR:5Hz-30KHz (-1) dB
RCA: 110dB (A weighted) - XLR: 115dB (A weighted)

DIMENSION

W 480 x D 394 x H 195 mm.

WEIGHT

26 Kg.
<60W

POWER SUPPLY 220V - 240V AC

THD

THD

USB

CROSSTALK

DYNAMIC RANGE

POWER CONSUMPTION

DAC

Grazie per aver acquistato un prodotto della ONIX Electronics. Prima di collegare la presa elettrica del apparecchio si
prega di leggere attentamente questo manuale.

MANUALE D’USO

INSTALLAZIONE

COLLEGAMENTI

Installare l’apparecchio in un luogo ben ventilato e
non esposto ad alte temperature o umidità, ne a fonti
di calore quali stufe o radiatori. Assicuratevi di lasciare
uno spazio intorno al prodotto per ottenere una corretta
ventilazione (lasciate uno spazio minimo di 30 cm in alto,
di 10 cm dietro l’unità e di 20 cm ai lati). Se non si rispettano
queste distanze l’apparecchio si surriscalderà alterandoil suo normale funzionamento con un possibile guasto.

Prima di eettuare o modicare qualsiasi collegamento spegnere sempre prima l’apparecchio evitando
danneggiamenti del prodotto.

COLLEGAMENTO DEI CAVI PIN-RCA

L

R

1 Canale sinistro

2 Canale destro

4 Spinotto rosso

3 Spinotto bianco

Collegare la spina bianca 3 al canale L (sinistro) 1,
e la spina rossa 4 al canale R (destro) 2.
Le Spine devono essere inserite saldamente e ben
a fondo.

Il lettore CD è dotato di ltri per la soppressione delle interferenze in radiofrequenza, secondo la normativa CEE

MANUTENZIONE DELLE SUPERFICI ESTERNE

Togliere la polvere e lo sporco con un panno pulito e
asciutto. Non usare mai solventi, benzina, insetticidi spray
ed altre sostanze chimiche su o vicino all’apparecchio
perché ne corrodono le superci.

Prendete sempre il lo di alimentazione per la spina.
Non tiratelo mai agendo per il lo stesso e non toccate mai
il lo con le mani bagnati, perchè questo potrebbe causare
cortocircuiti o scosse elettriche.

AVVERTIMENTO RIGUARDANTE IL FILO DI
ALIMENTAZIONE

8

P

O

W

E

R

O

N

O

F

F

S

E

A

R

C

H

I

N

P

U

T

Vano CD

Avanzamento veloce/
traccia successiva

Riavvolgimento veloce/
traccia precedente

Tasto stop

Tasto pausa

Tasto play

9

1. Ingresso digitale USB

2. Ingresso digitale ottico

3. Ingresso digitale XLR

4. Ingresso digitale coassiale

5. Uscita digitale coassiale

6. Uscita digitale XLR

7. Uscita RCA1 canale destro

8. Uscita RCA2 canale destro

9. Uscita bilanciata XLR canale destro

10. Uscita RCA1 canale sinistro

11. Uscita RCA2 canale sinistro

12. Uscita bilanciata XLR canale sinistro

13. porta aggiornamento software

14. Ingresso segnale telecomando

15. Uscita segnale telecomando

16. Interruttore di accensione

17. Presa di alimentazione

USB OPTI CAL COAX IAL COAX IAL

FUSE 100 V - 120V: T2 AL

220V - 240 V: T1AL

AC IN

POWE R

ON

OFF

RCA 1 RCA 2 XLR RCA 1 RCA 2 XLR

LR

AES / EB U AES / EB U

MODE L: OC10 3
POWE R CONSU MPTIO N: 15W

CD PLAY ER

SERI AL NO.:

DIGI TAL INP UT DIGI TAL OUT PUT

ANAL OG OUTP UT

USE ONLY WITH A 250V F USE

~ /220V 50Hz

IR IN

IR OUT

UPGRADE

PORT

ONI X ENGL AND E LECTR ONICS LTD

CLASS1LASERPRODUCT

APPAREILLASER DECLASSE 1

PRODUCTOLASER CLASE1

7 13 14 15 16 17

654321

8 9 10 11 12

ON / STAN DBY

iPod

CD PLAYER

OC103

31 2 4 5

1. Display

2. Led di standby

3. Tasto accensione/standby, avviene
sorando la striscia dorata

4. Sensore del telecomando

5. Porta USB per iPod

10

Telecomando

Note:
I tasti non descritti, non sono
utilizzabili per questo apparecchio,
se premuti, potrebbero avere
nessuna funzione.

Per il suo funzionamento il
telecomando necessita di due
batterie mod. AAA 1,5V non incluse.

IN P U T

L E V E L

T U N I N G P R O G

P R E S E T R A N D O M

B A N D V O L U M E

D IS P L A Y

D IM M E R

M U T E

S C A N

E N T E R

CD

INPUT

CD /

S A C D

R E P

A - B

1 2 3

5

6

748

9

0

IN F O

M E M

1 0

DA C TUNER/

CD AMP/

X R C - 2

Switch

Impostare su CD

Standby

Tasto selezione ingresso

Regolazione luminosità display

Selezione diretta delle tracce

riavvolgimento/

avanzamento veloce traccia

Traccia successiva/precedente

Funzione stop

Funzione play/pause

Riproduzione ripetuta

Riproduzione ripetuta
segmento A-B

Riproduzione casuale

Riproduzione programmata

Scansione tracce

Read USB IPOD OPTI AES COAX

Preparazione

1. Collegare correttamente il dispositivo.

2. Premere il pulsante di accensione sul pannello posteriore nella posizione di "ON", la spia "ON / STANDBY" sul
pannello frontale diventa rossa, toccare la striscia di metallo sul pannello o il tasto ( ) sul telecomando dopo di che
la spia diventa verde, dopo circa 3s il dispositivo sarà pronto per la riproduzione della musica

3. Per spegnere il dispositivo, toccare la striscia di metallo sul pannello frontale o il tasto ( ) sul telecomando quindi la
spia "ON / STANDBY" diventa rossa e il dispositivo va in standby, dopo di che premere l’interruttore di accensione
sul pannello posteriore nella posizione OFF per spegnere il dispositivo.

4. Se il dispositivo non saràutilizzato per molto tempo, scollegare il cavo di alimentazione dalla presa elettrica.

Selezione sorgente audio

Premere il pulsante (CD INPUT) sul telecomando, sul display del pannello frontale apparirà il seguente testo

Riproduzione CD

1. Aprendo il vano CD spingendo lentamente lo sportello indietro, inserire il CD e chiudere il coperchio manualmente.

2. Quando inizia la lettura sul display appare il nr delle tracce e la durata totale.

3. Premere il tasto ( ) per riprodurre l’intero contenuto del CD.
