Onix A - 65 User Manual
INTEGRATED AMPLIFIER
AMPLIFICATORE INTEGRATO
AMPLIFICATEUR INTÉGRÉ
VOLLVERSTÄRKER
AMPLIFICADOR INTEGRADO
Mod. A - 65
P
O
W
E
R
P
H
O
N
E
ON
OF
F
AC IN
R
I
G
H
T
L
E
F
T
R
I
G
H
T
FUSE 10 0V - 120V: T 6.3AL
220V - 24 0V: T3.1 5AL
WARNING
TOP REVENT FIRE ORS HOCK HAZARD
DO NOTEX POSET HISU NITTO RAIN OR MOISTURE
~ /22 0V 5 0H z
USE ONLY WIT HA 25 0V FUSE
MANUALE D’USO
USER'S GUIDE
GUIDE DE L'UTILISATEUR
BEDIENUNGSANLEITUNG
GUÍA DEL USUARIO
INDEX
ENGLISH.......................3-23
ITALIANO...........................7
FRANÇAIS........................11
DEUTSCH.........................15
ESPAÑOL.........................20
Thank you for purchasing ONIX Electronics. With sincere appreciation, we suggest that you should read this User’s
Manual thoroughly before operation and keep the Manual properly for further reference. .
USER'S GUIDE
INSTALLATION
CONNECTIONS
1. Strip o the vinyl covering and twist the tip of
the wire core.
2. Loosen the knob and insert the wire core into
the terminal hole.
3. Tighten the knob to x the wire core in place.
In sta ll t he un it in a we ll ve nti lat ed pl ac e a nd no t
exposed to high temperatures or humidity, nor any heat
sources such as heaters or radiators. Be sure to leave
space around the unit for ventilation to improve heat
radiation (at least 30 cm at top, 10 cm at rear, and 20 cm
at each side). If not enough space is provided between the
unit and walls or other equipment, heat will build up inside, interfering with performance or causing malfunctions.
Before making or changing the connections, switch o the power switch to prevent damaging the product.
To connect the speakers, always check the correct polarity (red +) (black -) to avoid damaging them irreparably.
10mm
1.

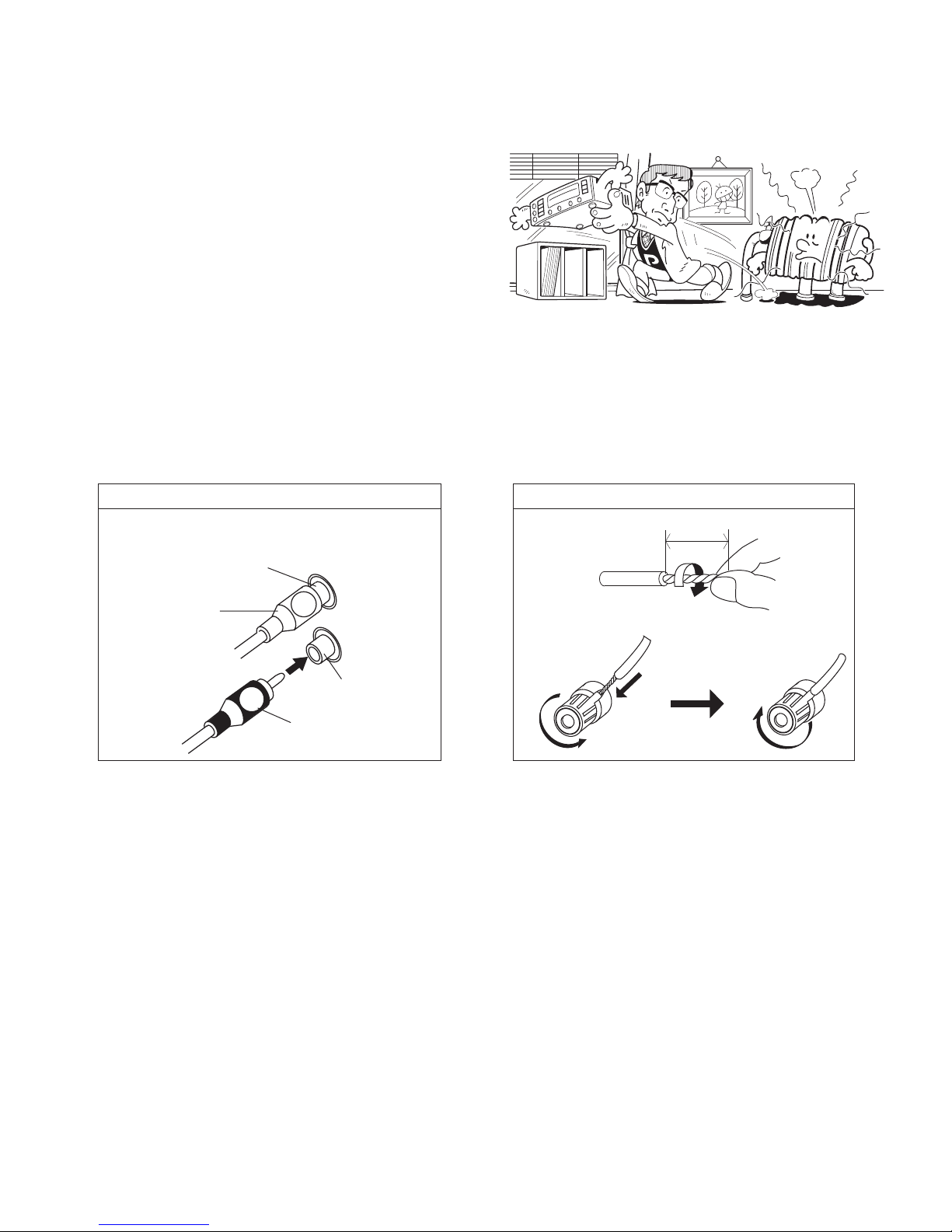

CONNECTING THE SPEAKER CORDS
2.
3.
Twist the wire core.
1
2
CONNECTING THE PIN-RCA CORDS
L
R
1 Left channel
2 Right channel
4 Red plug
3 White plug
Connect the white plug 3 to the L (left) channel 1,
and the red plug 4 to the R (right) channel 2.
Be sure to push the plugs securely.
The amplier is equipped with lters for the suppression of radio interference in accordance with EEC regulation
MAINTENANCE OF EXTERNAL SURFACES
Remove dust and dirt with a clean, dry cloth.
Never use solvents, gasoline, insecticide sprays and other chemicals on or near the equipment because they can
corrode the surfaces.
Handle the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord
when your hands are wet as this could cause a short circuit or electric shock.
POWER-CORD CAUTION
3
AC IN
AUX
DVD
TUNE R
CD
TAPE
OUT IN
BYPASS
L
R
RIGH T LEFT
RIGH T LEFT
FUSE 100V - 120 V: T6.3A L
220V - 240 V: T3.15 AL
ONI X EL ECTRO NICS LTD . ENGLA ND
WARNING
TOPREVE NTFIR EOR SHOCK HAZA RD
DONOT EXPOSE THIS UNIT TO RAIN OR MOISTURE
~ /22 0 V 50 H z
USEO NLY WITH A 250V F USE
MODE L: A-65
POWE R CONSU MPTIO N: <200 W
STER EO INTE GRATED AMP LIFIE R
SERI AL NO. :
1. Power input with fuse by means of the power cable
as supplied.
2. Terminals for connecting the right channel.
3. Terminals for connecting the left channel.
4. BYPASS for using the amplier as a nal.
power (not using the stage preamplier).
5. RCA terminals for recording
6. RCA terminals for playback
7. RCA AUX input terminals
8. RCA TUNER input terminal
9. RCA DVD input terminal
10. RCA CD input terminals
Input selector
Regulation
Volume
Remote control
IN P U T
L E V E L
T U N IN G P R O G
P R E S E T R A N D O M
B A N D
V O L U M E
D IS P L A Y
D IM M ER M U T E
S C A N
E N T E R
OP EN /
C L O S E
X R C - 1
A M P
T U N E R
CD /
S A C D
C D
D A C
R E P
A- B
1 2 3
5
6
748
9
0
IN F O
M E M
1 0
POWERPHONE
VOLU MESELE CT
CD DVD
TUNER AUX
TAPE BYPASS
STER EO INT EGRATE D A MPLIF IER A -65
ON OFF
1. Input signal display
2. Input selector - Turn the knob clockwise or
counterclockwise until the indicator lights of the
desired source.
3. Volume control -Use to adjust the volume level
.
4. Remote sensor
5. Phones jack- Use to listen through headphones,
when the plug inserted to the jack, the speakers
will be automatically disable.
6. Power OFF – Press to turn power to the unit ON/OFF
The supplied remote is used for all the devices
of the classic series, so some keys may have no
function for this unit.
To operate the remote control requires two
battery of AAA 1.5 V, which are not included.
Selector components
4
Listening
1 Set the VOLUME control to minimum and press the power switch (POWER), the blue LED (INPUT
SELECTOR) will confirm the power of the unit.
2. Set the INPUT SELECTOR on the source desired to play.
3. By means of the knob you can select the desired playback source.
4. Adjust the volume of the amplifier by using the VOLUME of the control.
Protection
Troubleshooting
The device has a sophisticated protection circuit against the short circuits, distinguishing itself with the
simultaneous flashing of all LEDs for a few seconds, in this case must be unplugged the power cord and leave
unplugged for at least 15 minutes.
Symptom Cause Remedy
No power
supplied to unit
Inputs
The amplifier has six inputs for various audio components, inputs, CD, DVD, TUNER and AUX have the same
function, while the TAPE MONITOR is used as an input to listen and record the various inputs, somehow, the
input BYPASS only allows to use the amplifier only as a power amplifier, not the preamplifier stage.
Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is something wrong
with this component, check the points below. Sometimes the trouble may lie in another component. Investigate
the other components and electrical appliances being used.
If the trouble cannot be rectified even after exercising the checks listed below, ask your nearest ONIX authorized
service center or your dealer to carry out repair work
.
Power plug is disconnected from outlet
Check that power cord and insert the plug
securely into outlet
No sound
Connecting cords are disconnected
from terminals, or connected
incorrectly
Check if connections between external device
and the amplifier are connected correctly.
No sound from
one speaker
Connecting cords or speaker cords
are disconnected on the side.
Verify that the cables between amplifier and
speaker are well- connected according to the
different polarity.
The position of the input selector does
not correspond to the component to be
played back.
Check if the LED of the input selector
corresponds to the input source that you want
to listen.
Components:
5
Power transistor Sanken 2SC2837/2SA1186 for every channel, Filter capacitor Nichicon “Gold Tune” 4 x 10.000
uF/63V, 8 x MUR 8100 Ultra fast rectier diodes, high eciency toroidal trasformer supplying power to two
channels independently 420VA, Motorized Alps “Blue Velvet” potentiometer Hi-End.
Specications
Warranty
OUTPUT POWER 2 X 65 W RMS (8 Ohm) - 2 x 120 W RMS (4 Ohm)
FREQUENCY RESPONSE 10 Hz - 30kHz (-0,5 dB)
INPUT SENSIBILITY 205mV/47Kohm
SIGNAL/NOISE RATIO > 91dB (A ponderato)
CHANNEL SEPARATION > 51dB
THD
0,003% (3W/8Ohm)
DIMENSION L 430 x P 401 x A 109 mm.
WEIGHT 10,5 Kg.
POWER CONSUMPTION 300 W
POWER SUPPLY 220V - 240V AC
For warranty information, please contact your local ONIX distributor. Your purchase receipt is your permanent record
of a valuable purchase. It should be kept in a safe place to be referred to as necessary for insurance purposes or when
corresponding with ONIX. When seeking warranty service, it is responsibility of the consumer to establish proof and
date of purchase. Your purchase receipt or invoice is adequate for such proof.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
CAUTION:
TO PREVENT THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
IMPORTANT
The lightni ng ash wi th arro whead s ymbol,
within an equilateral triangle, is intended to alert
the use r to the presen ce of unin sulate d
"d anger ous v oltag e" wi thin t he pr oduct 's
enclosure that may be of sucient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
pr esence of imp ortant opera ting an d
maintenance (servicing) instructions in the
literature accompanying the appliance.
Every specication and design of the product is subject to change without prior notice
6
This product complies with the Low Voltage Directive
(73/23/EEC), EMC Directives (89/336/EEC, 92/31/EEC ) and CE
Marking Directive (93/68/EEC).
Grazie per aver acquistato un prodotto della ONIX Electronics. Prima di collegare la presa elettrica del apparecchio si
prega di leggere attentamente questo manuale.
MANUALE D’USO
INSTALLAZIONE
COLLEGAMENTI
1. Mettere a nudo le estremità dei cavi ed
attorcigliarne l’anima di rame.
2. Allentare la manopola ed inserire nel foro del
terminale la parte di cavo messa a nudo.
3. Riavvitare la manopola per ssare bene il cavo.
Installare l ’apparecch io in un l uogo ben vent ilato e
non esposto ad alte temperature o umidità, ne a fonti
di calore quali stufe o radiatori. Assicuratevi di lasciare
uno spazio intorno al prodotto per ottenere una corretta
ventilazione (lasciate uno spazio minimo di 30 cm in alto,
di 10 cm dietro l’unità e di 20 cm ai lati). Se non si rispettano
queste distanze l’apparecchio si surriscalderà alterandoil suo normale funzionamento con un possibile guasto.
Prima di eettuare o modicare qualsiasi collegamento spegnere sempre prima l’apparecchio evitando
danneggiamenti del prodotto. Per il collegamento ai diusori vericare sempre la giusta polarità (rosso +) (nero -)
per non danneggiarlo irrimediabilmente.
10mm
1.

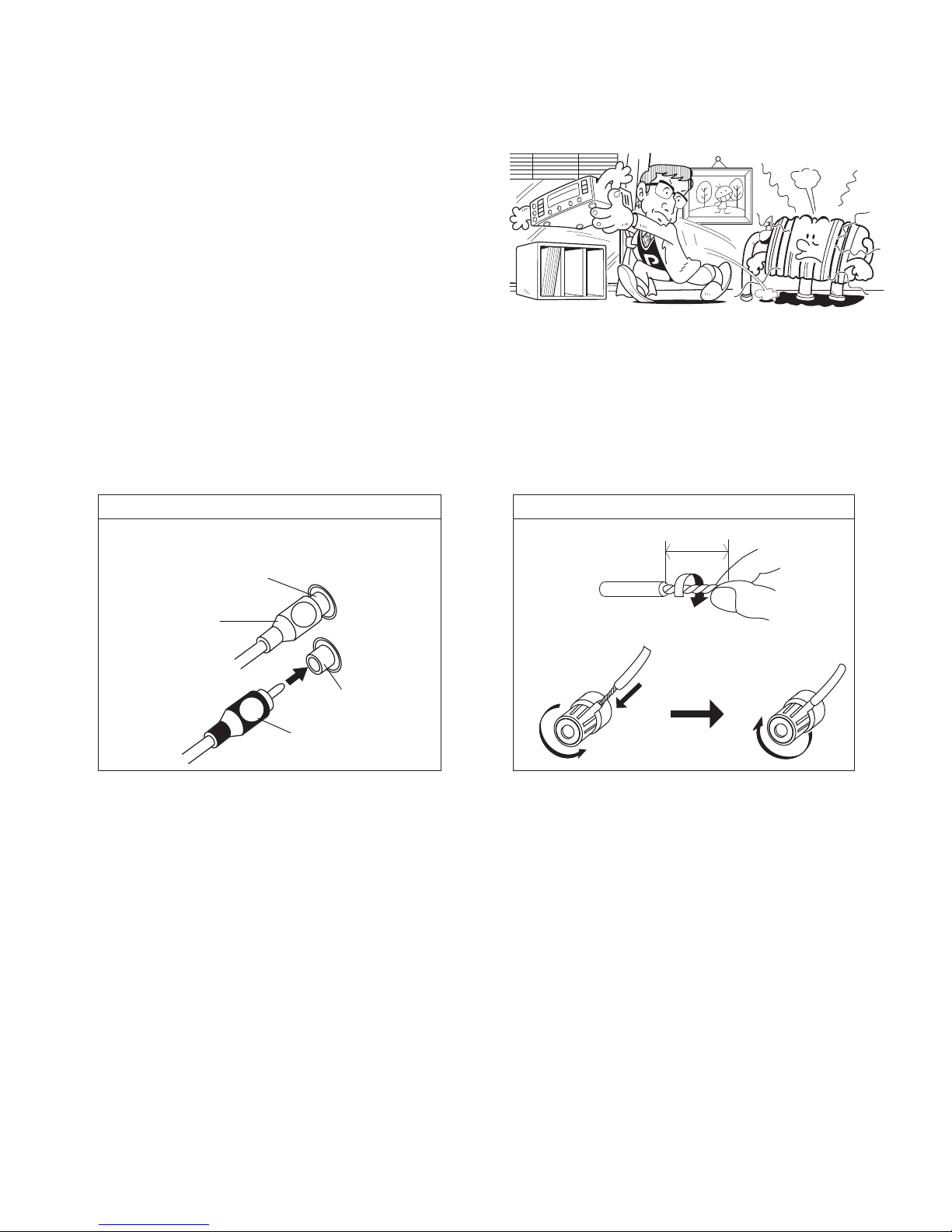

COLLEGAMENTO DEI CAVI DEGLI ALTOPARLANTI
2.
3.
Attorcigliate l’anima del cavo.
1
2
COLLEGAMENTO DEI CAVI PIN-RCA
L
R
1 Canale sinistro
2 Canale destro
4 Spinotto rosso
3 Spinotto bianco
Collegare la spina bianca 3 al canale L (sinistro) 1,
e la spina rossa 4 al canale R (destro) 2.
Le Spine devono essere inserite saldamente e ben
a fondo.
L’amplicatore è dotato di ltri per la soppressione delle interferenze in radiofrequenza, secondo la normativa CEE
MANUTENZIONE DELLE SUPERFICI ESTERNE
Togliere la polvere e lo sporco con un panno pulito e asciutto.
Non usare mai solventi, benzina, insetticidi spray ed altre sostanze chimiche su o vicino all’apparecchio perché ne
corrodono le superci.
Prendete sempre il lo di alimentazione per la spina. Non tiratelo mai agendo per il lo stesso e non toccate mai il
lo con le mani bagnati, perchè questo potrebbe causare cortocircuiti o scosse elettriche.
AVVERTIMENTO RIGUARDANTE IL FILO DI ALIMENTAZIONE
7
AC IN
AUX
DVD
TUNE R
CD
TAPE
OUT IN
BYPASS
L
R
RIGH T LEFT
RIGH T LEFT
FUSE 100V - 120 V: T6.3A L
220V - 240 V: T3.15 AL
ONI X EL ECTRO NICS LTD . ENGLA ND
WARNING
TOPREVE NTFIR EOR SHOCK HAZA RD
DONOT EXPOSE THIS UNIT TO RAIN OR MOISTURE
~ /22 0 V 50 H z
USEO NLY WITH A 250V F USE
MODE L: A-65
POWE R CONSU MPTIO N: <200 W
STER EO INTE GRATED AMP LIFIE R
SERI AL NO. :
1. Ingresso di alimentazione con fusibile per mezzo del
cavo di alimentazione dato in dotazione
2. Morsetti per collegamento del canale destro
3. Morsetti per il collegamento del canale sinistro
4. BYPASS per utilizzare l’amplicatore come nale di
potenza (non utilizzando lo stadio preamplicatore).
5. Terminali RCA per la registrazione
6. Terminali RCA per la riproduzione
7. Terminali RCA per ingresso AUX
8. Terminali RCA per ingresso TUNER
9. Terminali RCA per ingresso DVD
10. Terminali RCA per ingresso CD
Selettore ingressi
Regolazione
volume
Telecomando
IN P U T
L E V E L
T U N IN G P R O G
P R E S E T R A N D O M
B A N D
V O L U M E
D IS P L A Y
D IM M ER M U T E
S C A N
E N T E R
OP EN /
C L O S E
X R C - 1
A M P
T U N E R
CD /
S A C D
C D
D A C
R E P
A- B
1 2 3
5
6
748
9
0
IN F O
M E M
1 0
POWERPHONE
VOLU MESELE CT
CD DVD
TUNER AUX
TAPE BYPASS
STER EO INT EGRATE D A MPLIF IER A -65
ON OFF
1. Visualizzatore del segnale in ingresso
2. Manopola selettore ingresso - Girare la manopola in
senso orario o antiorario nché non si accende
l’indicatore della fonte desiderata.
3. Controllo del volume,
regola il volume sonoro.
4. Sensore del telecomando
5. Presa per le cue, per ascoltare attraverso le
cue, disabilita automaticamente i diusori.
6. Interruttore di spegnimento - OFF / accensione
- ON della corrente (POWER)
Il telecomando in dotazione è utilizzato per tutti
gli apparecchi della serie classic, quindi alcuni
tasti potrebbero avere nessuna funzione per
questo apparecchio.
Per il suo funzionamento il telecomando necessita
di due batterie mod. AAA 1,5V non incluse.
Selettore componenti
8
Loading...
