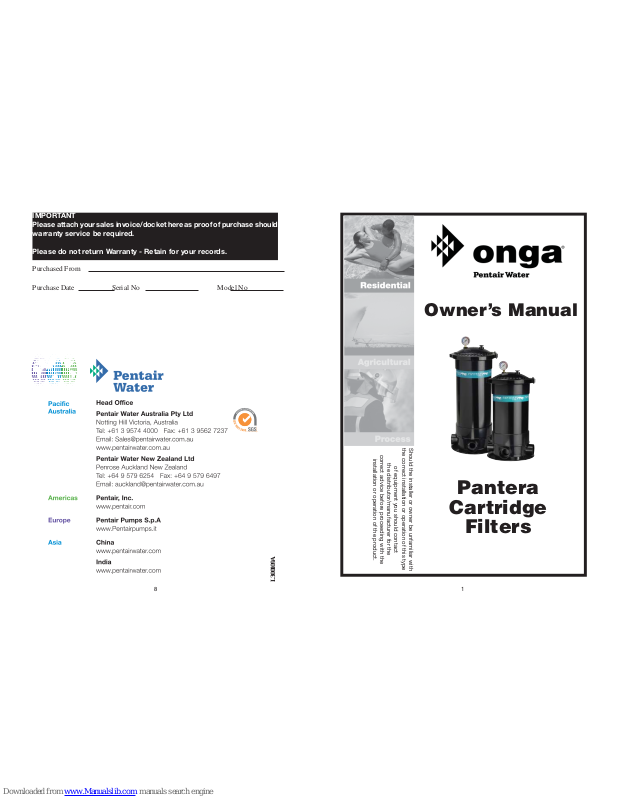

onga PCF60, PCF75, PCF100 Owner's Manual

Download

Page 1

8 1

L300109A

IMPORTANT Please attach your sales invoice/docket here as proof of purchase should warranty service be required.

Please do not return Warranty - Retain for your records.

Purchased From

Purchase Date Serial No Model No

Pantera

Cartridge

Filters

Should the installer or owner be unfamiliar with

the correct installation or operation of this type

of equipment you should contact

the distributor/manufacturer for the

correct advice before proceeding with the

installation or operation of the product.

Owner’s Manual

Page 2

2 7

Pentair Water Product Warranty (Continued)

5) Hydrostatic relief valve supplied separately or incorporated in products are sold with the express understanding that such products offer limited hydrostatic relief and no representation is made or implied as to the suitability of such products for a speciﬁ c application as their condition at the time of sale are unknown and beyond Pentair Water’s control. It is the responsibility of the installer to ensure that the performance of the valve meets the required application.

6) Swimming pools or spa equipment will not be warranted where the Langelier Saturation Index ‘pH’ range is outside 7.2 to 7.6 and they have not been regularly treated with chlorine or bromine based sanitising systems, or other recognised sanitising systems.

Spare Parts:

Spare parts are usually stocked for a reasonable period of time following last production.

Pentair Water does not warrant that spare parts will be made available for the whole of the

reasonable period and reserves its right to cease supplying spare parts or providing facilities for repair of spare parts in circumstances which are beyond its control including the requirement to remove spare parts from sale as a consequence of changes in the law or otherwise as it deems ﬁ t.

How to get service: In Australia please contact your local Clark Rubber Store 13 80 90

Claims under this warranty must give evidence of date of purchase, model and serial number of the

product and the claimants name, address and telephone number.

1) To obtain warranted service, you will be required to provide to either Pentair Water state ofﬁ ce or recommended service agent:-

a) the product; b) conﬁ rmation in writing specifying the nature of your claim; c) proof providing date of original purchase; d) full contact details including name and address; e) the serial number of the product if any.

2) Authorised warranty will be free of charge for the ﬁ rst 12 month period from date of the ﬁ rst consumer purchase. After the initial 12 month period the product is to be forwarded by the customer freight paid to Pentair Water, inﬁ eld service by an authorised Pentair Water Service Agent will incur a travel, removal & reinstallation fee to adjudicate on warranty issues.

3) Warranty service work will be denied or suspended, on equipment not readily accessible to service personnel, that is products that are behind barriers, tiled or bricked in, installed in roofs or second storey external walls including inaccessible power points.

4) Any service of any product which is found to be faulty due to abuse, misuse or improper installation will be charged to the owner at the

service agents current servicing

Limitation of implied warranties: THERE ARE NO WARRANTIES, EXPRESSED OR IMPLIED, WHICH EXTEND BEYOND THE DESCRIPTION CONTAINED HEREIN INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE.

Exclusion of damages: PENTAIR WATER’S LIABILITY IS LIMITED TO THE COST OF REPAIR OR REPLACEMENT OF THE PROD-

UCT. PENTAIR WATER SHALL NOT BE LIABLE FOR:

1) DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECTS IN THE PRODUCT, DAMAGES BASED UPON INCONVENIENCE, LOSS OF USE OF THE PRODUCT, LOSS OF TIME, LOSS OF PROFITS, LOSS OF BUSINESS OPPORTUNITY, LOSS OF GOODWILL, INTERFERENCE OF BUSINESS RELATIONSHIPS, OR OTHER COMMERCIAL LOSS, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

2) ANY OTHER DAMAGES, WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE.

3) ANY CLAIM AGAINST THE CUSTOMER BY ANY OTHER PARTY.

Effective law:

This warranty gives you speciﬁ c legal rights, and you may also have other rights which vary from state to state. Nothing in this warranty limits or restricts, or is intended to derogate from, any right or remedy which the purchaser or ultimate user of the product may have pursuant to Australian state and/or Australian federal consumer protection legislation, New Zealand Sale of Goods Act, Consumer Guarantees Act, Fair Trading Act or any other relevant and applicable New Zealand legislation or authority and where necessary shall so be read and construed.

Relax - you’ve bought an Onga ...

Congratulations on your decision to purchase an Onga

product. Onga is one of the best known brands in its ﬁ eld, with a proud local and International reputation.

Onga is a brand for reliability, value for money and technological

innovation. You will ﬁ nd Onga product wherever people need to move water in 3 broad markets covering:

Technologically advanced solutions for moving and treating water in the Home, Garden, Pool and Spa.

Innovative Stock and Crop water management solutions for Primary Industries.

Water movement products for Building services, Emergency services and Original Equipment manufacturers.

Page 3

6 3

Pentair Water Product Warranty

Pentair Water warrants that, when this product is used for the purpose it was designed, is correctly housed and vented against weather, vermin, dust etc., that it will be free of material and manufacturing defects at the time of the original purchase.

This warranty is limited to the cost of the product and does not cover third party costs including the costs of electricians, plumbers, etc. unless authorised by Pentair Water.

TERMS AND CONDITIONS APPLICABLE INTERNATIONALLY

How long the warranty is effective Internationally

1) This Pentair Water product is warranted for 12 months for all parts from the date of the ﬁ rst consumer purchase. Should any parts fail as a result of such defects within the speciﬁ ed period, the part will be replaced free of charge. (This does not include travel charges, removal and reinstallation charges.)

TERMS AND CONDITIONS APPLICABLE IN AUSTRALIA

1) YOU SHOULD CAREFULLY READ THE INSTRUCTIONS SUPPLIED PRIOR TO USING THIS PENTAIR WATER PRODUCT.

This product is to be installed and operated in accordance with the instructions provided. This warranty will not apply if it is used in a manner otherwise than in accordance with the instructions.

What the warranty covers:

Pentair Water warrants its products to be free of defects in material and workmanship during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, then Pentair Water will, at its sole option repair or replace the product with a like

product. Replacement product or parts may include re-manufactured or refurbished parts or components.

How long the warranty is effective:

1) This Pentair Water product is warranted for 12 months (60 months Tank Body) for all parts from the date of the ﬁ rst consumer purchase.

2) Where this Pentair Water product is sold for commercial application as deﬁ ned in the relevant Trade Practices and Consumer Protection legislation the warranty shall be for a period of six months from the date of purchase by the end user.

3) Ancillary equipment including but not limited to plastics and metal ﬁ ttings, electrical controls (including touch pads), bladders, pressure switches, ﬁ lter cartridges, pressure gauges, etc. shall be warranted for a period of twelve months only in relation to consumer applications and six months in relation to commercial applications.

Who the warranty protects:

This warranty is valid only for the consumer purchaser.

What the warranty does not cover:

1) Damage, deterioration or malfunction resulting from: a) accident, misuse, negligence, ﬁ re, water, lightning, or other acts of nature, unauthor-

ised product modiﬁ cation or failure to follow instructions supplied with the product; b) repair or attempted repair by anyone not authorised by Pentair Water; c) any damage to the product due to shipment; d) removal or installation of the product; e) causes external to the product such as electric power ﬂ uctuations or failure; f) use of supplies or parts not meeting Pentair Water speciﬁ cations; g) normal wear and tear; h) water ingression or exposure to abnormal corrosive conditions or run in dry conditions; i) any other cause which does not relate to a product defect.

2) Damage caused to the product as a consequence of use of another manufacturer’s product

used in conjunction with Pentair Water and afﬁ liate companies.

3) This warranty does not cover such products as combustion engines, mechanical seals or

other component parts of units not manufactured by Pentair Water, but where possible Pentair Water will make available to purchaser the beneﬁ t of any warranty of that manufacturer.

4) This guarantee does not cover underwater light bulbs, underwater lights will only be warrant-

ed if wiring is to approved standards, and an approved transformer incorporating thermistors has been used, running the light not submerged in water will void warranty.

The Pantera range of cartridge ﬁ lters are ideal for domestic swimming pool and spa applications. They offer a more effective ﬁ ltration area taking up less space when compared to sand or D.E. ﬁ lters. The Pantera cartridge ﬁ lters have been designed to provide performance at a realistic cost.

IMPORTANT!

The operator must be provided with this owner’s manual. This must be read before operation and followed during operation. These instructions are a guide only. Users not familiar with pool equipment should seek advice from suitably qualiﬁ ed persons with experience in pool equipment installation.

Technical Data

Inlet

UPVC inlet to suit 40mm or 50mm PVC

pipe internal

Outlet

UPVC inlet to suit 40mm or 50mm PVC

pipe internal

Max. Working Pressure 280 kPa Water Temperature Range 5 – 45

Max Ambient Temperature 55

Optimal pH Range 7.2 - 7.6 (Guide Only)

Materials of Construction

Filter Housing

UV Resistant UPVC

Filter Lid

UV Resistant UPVC O’Ring Nitrile Clamp Powder Coated Marine grade Aluminium Cartridge Material Dupont Remay Cartridge moulded end caps Urethrae Cartrige Core ABS Pressure Guage 0-270 kPa Glycerine ﬁ lled

Model Sq Foot Model Sq Foot

PCF60 60 PCF150 150 PCF75 75 PCF180 180

PCF100 100

Page 4

All glued ﬁ ttings and pipe work should be allowed to dry to atmosphere for 24 hours before closing installation. Failure to do so could cause injury or installation failure.

INSTALLATION

FILTER INSTALLATION

1. Place ﬁ lter on solid Horizontal surface. (Concrete slab recommend.) NOTE: Allow sufﬁ cient height clearance for cartridge removal! PCF60 = 330mm PCF75 = 450mm PCF100 = 650mm PCF150 = 450mm PCF180 = 450mm

2. Fit interconnecting plumbing between pump and ﬁ lter. Pump discharge should be plumbed up to the outlet marked ‘IN’ Outlet marked ‘OUT’ should return to Pool or Spa

3. Fit manual air bleed and pressure gauge to top of ﬁ lter.

4. Fix ﬁ lter base to foundation surface via holes on ring on base.

5. Blank off unused inlet and outlet connections using blanks provided

NOTE:

1. Ensure the ﬁ lter clamp band is correctly ﬁ tted and ﬁ rmly in place. Failure to ﬁ t clamp correctly may result in ﬁ lter lid lifting off in a violent movement.

2. If you are not familiar with ﬁ tting of ﬁ lter clamp band - do not attempt this operation - consult your pool serviceman or ring your local pool store.

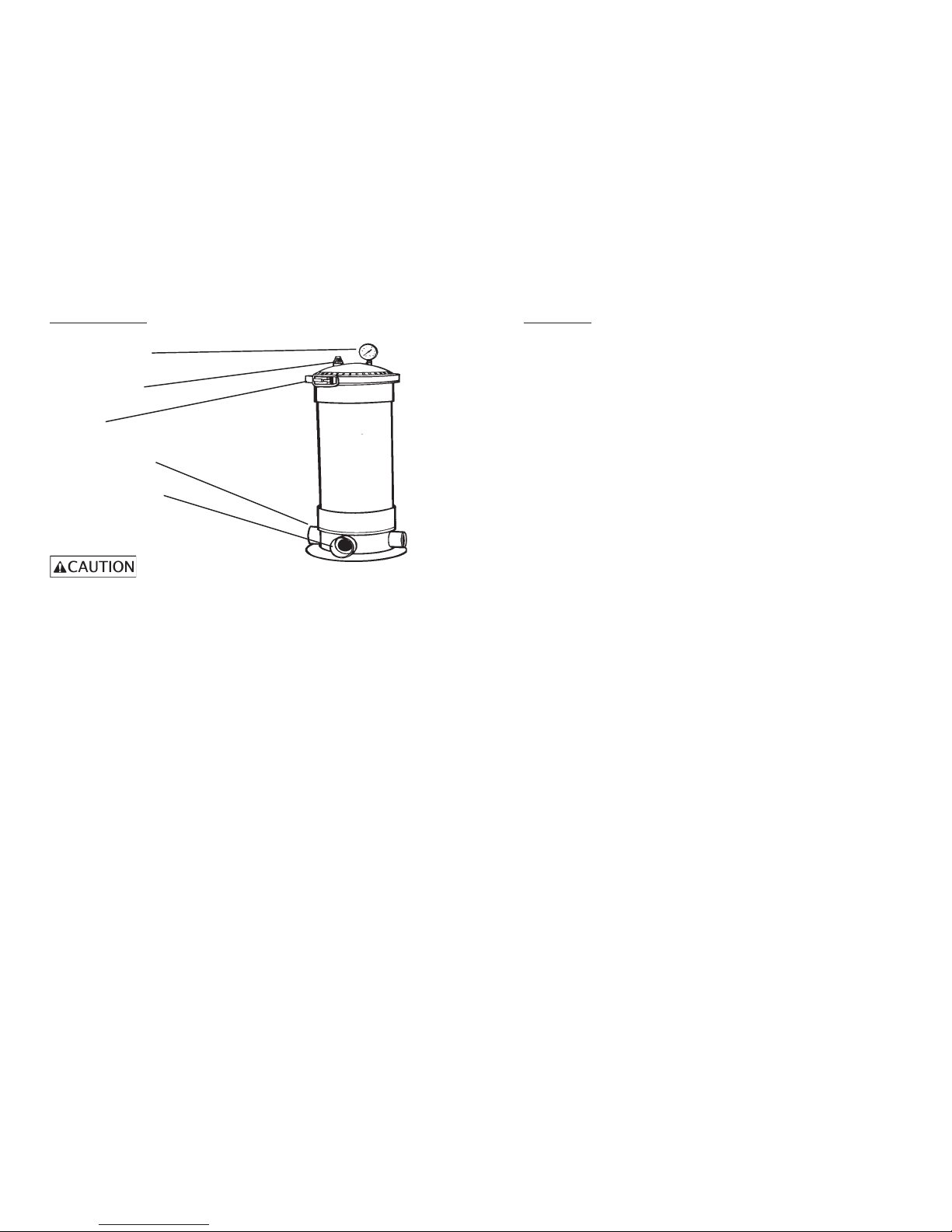

Pressure Guage

Air Relief Valve

Inlet Connection

Outlet Connection

Clamp

Operation

1. Ensure pool is ﬁ lled with water - water level must be ¾ of the way up to skimmer opening.

2. Open manual air bleed at ﬁ lter, air will be expelled from the ﬁ lter as it ﬁ lls with water from the pool. Close manual air bleed when water is released.

3. Switch on Pump - ensure water ﬂ ows freely through system and back to pool.

4. Record the startup pressure - when a 70 kPa rise from start up pressure is detected clean the cartridge.

5. To clean the cartridge refer service and maintenence

6. If the time period between ﬁ lter cartridge "cleans" becomes progressively shorter it maybe necessary to "soak" or clean the cartridge with a propriety cleaner.

7. If the cartridge element is mechanically damaged then correct ﬁ ltration conditions cannot be maintained - the cartridge element must be replaced. Periodic replacement approximately every 24 months is recommended.

8. For Spa Pools, with hot water and higher bather loads, clean cartridge on regular basis - minimum fortnightly.

Cartridge Maintenance

To Clean the cartridge.

A) Switch off the pump and isolate from mains power.

B) Shut off any valves to isolate the ﬁ lter from the plumbing system.

C) Release the air relief valve to relieve any built up pressure in the ﬁ lter housing

D) Remove ﬁ lter clamp ring - take care to note how to reassemble the clamp ring correctly

E) Lift cartridge element out of housing and hose clean with a strong jet from a garden hose.

- If the time period between ﬁ lter cartridge ‘cleans’ becomes progressively shorter it maybe necessary to ‘soak’ the cartridge with a propriety cleaner.

F) Replace cartridge Element and reﬁ t lid and ﬁ lter clamp ring.

G) Open any previously closed valves and follow start up ﬁ lter procedure.
