OneTouch Model H700 User Manual

Mooddeell

M

Usseerr''ss

U

Nova 4710 Motherboard, 12.1 & 15 inch LCD’s

H770000

H

Maannuuaall

M

PDF created with pdfFactory Pro trial version www.pdffactory.com

PDF created with pdfFactory Pro trial version www.pdffactory.com

Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment to an outlet on a circuit different from that to which the receiver is

connected.
Consult the dealer or an experienced radio/TV technician for help.

Shielded interconnect cables and shielded AC power cables must be employed with this
equipment to insure compliance with the pertinent RF emission limits governing this device.
Changes or modifications not expressly approved by the system’s manufacturer could void the
user’s authority to operate the equipment.

Declaration of Conformity

This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:

1. This device may not cause harmful interference, and

2. this device must accept any interference received, including interference that may cause
undesired operation.

PDF created with pdfFactory Pro trial version www.pdffactory.com

DHHS- the CD-ROM Drive
FDA Regulations require the following statement for all laser-based devices:
“Caution, Use of controls or adjustments or performance of procedures other than those

specified herein may result in hazardous radiation exposure.”

Caution: This appliance contains a laser system and is classified as a “CLASS 1 LASER PRODUCT”.
To use this model properly, read the instruction manual carefully and keep this manual for future
reference. In case of any trouble with this model, please contact your nearest “Authorized Service
Station”. To prevent direct exposure to the laser beam, do not try to open this enclosure.

PDF created with pdfFactory Pro trial version www.pdffactory.com

Important Safety Information
SAFETY INSTRUCTIONS

1. Please read these safety instructions carefully.

2. Keep this User’s Manual for later reference.

3. Disconnect this equipment from the AC outlet before cleaning. Don’t use liquid or spray
detergent for cleaning. Use only a moistened sheet or cloth.

4. For pluggable equipment, the socket-outlet should be installed near the equipment and
should be easily accessible.

5. Keep this equipment from humidity.

6. Lay this equipment on a stable surface when installing.

7. Do not leave this equipment in an non-air-conditioned environment, or in a storage
temperature above 60∘C. Such conditions may damage the equipment.

8. The openings on the enclosure are for air convection and protect the equipment from
overheating. DO NOT COVER THE OPENINGS.

9. Check the voltage of the power source when connecting the equipment to the power outlet.

10. Place the power cord so that it will not be stepped on. Do not place anything over the
power cord. The power cord must be rated for the product and for the voltage and current
marked on the product’s electrical ratings label. The voltage and current rating of the cord
should be greater than the voltage and current rating marked on the product.

11. All cautions and warnings on the equipment should be noted.

12. If the equipment is not used for a long time, disconnect the equipment from the mains to
avoid damage.

13. Never allow liquid into ventilation openings. This could cause fire or electrical shock.

14. Never open the equipment. For safety reasons, qualified service personnel should only
open the equipment.

15. If one of the following situations arises, get the equipment checked by service personnel:
a. The Power cord or plug is damaged.
b. Liquid has penetrated the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well or you cannot get it work according to the user’s

manual.
e. The Equipment has been dropped and damaged.
f. The equipment has obvious signs of damage.

PDF created with pdfFactory Pro trial version www.pdffactory.com

Copyright

The information in this guide is subject to change without prior notice.
The manufacturer shall not be liable for technical or editorial errors or omissions contained

herein, nor for incidental or consequential damages resulting from the furnishing, performance,
or use of this material.

This manual contains information protected by copyright. No part of this manual may be
photocopied or reproduced in any form without prior written consent from the manufacturer.

© 2001 All rights reserved.
The software described in this guide is furnished under a license agreement or nondisclosure

agreement. The software may be used or copied only in accordance with the terms of the
agreement.

Product names mentioned herein may be trademarks and/or registered trademarks of their
respective companies.

First Edition November 2003

PDF created with pdfFactory Pro trial version www.pdffactory.com

Taa

T

CChhaapptteerr 11

Introduction 1

Model H700 Characteristics.....................................................................................................1

How to Use This Manual..........................................................................................................2

A Visual Tour of Model H700...................................................................................................3

Connector Panels.....................................................................................................................8

CChhaapptteerr 22

Hardware Setup 10

Model H700 Assembly...........................................................................................................10

CMOS Setup..........................................................................................................................21

What comes with Model H700..........................................................................................4

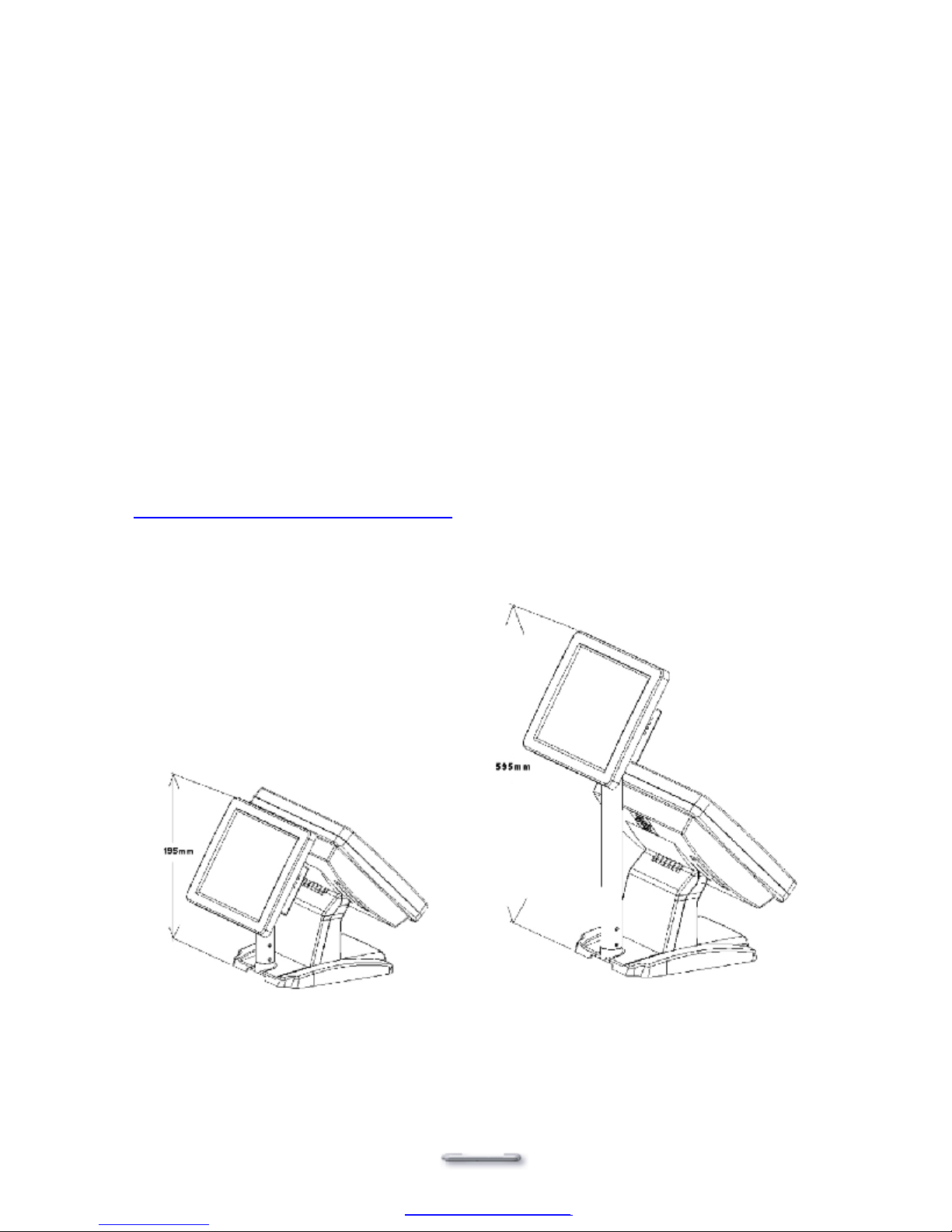

Dimensions 12.1” ..............................................................................................................6

Dimensions 15” .................................................................................................................7

Primary Connector Panel..................................................................................................8

Second Connector Panel..................................................................................................9

Remove the rear neck plate............................................................................................10

Hard Disk Drive Installation.............................................................................................11

Compact Flash Installation..............................................................................................12

Magnetic Card Reader Installation.................................................................................13

MCR Parameter Modification..........................................................................................15

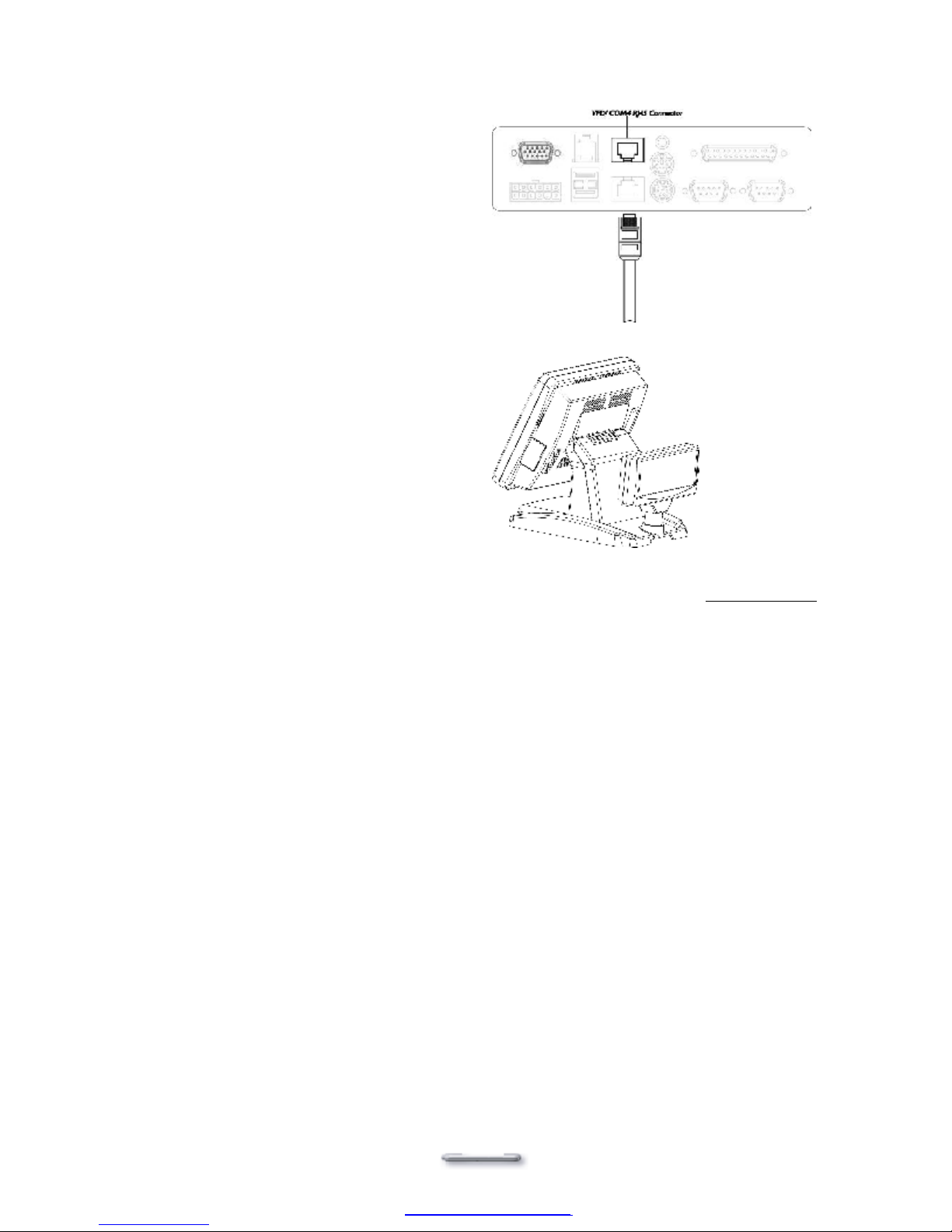

VFD Customer Display Installation.................................................................................16

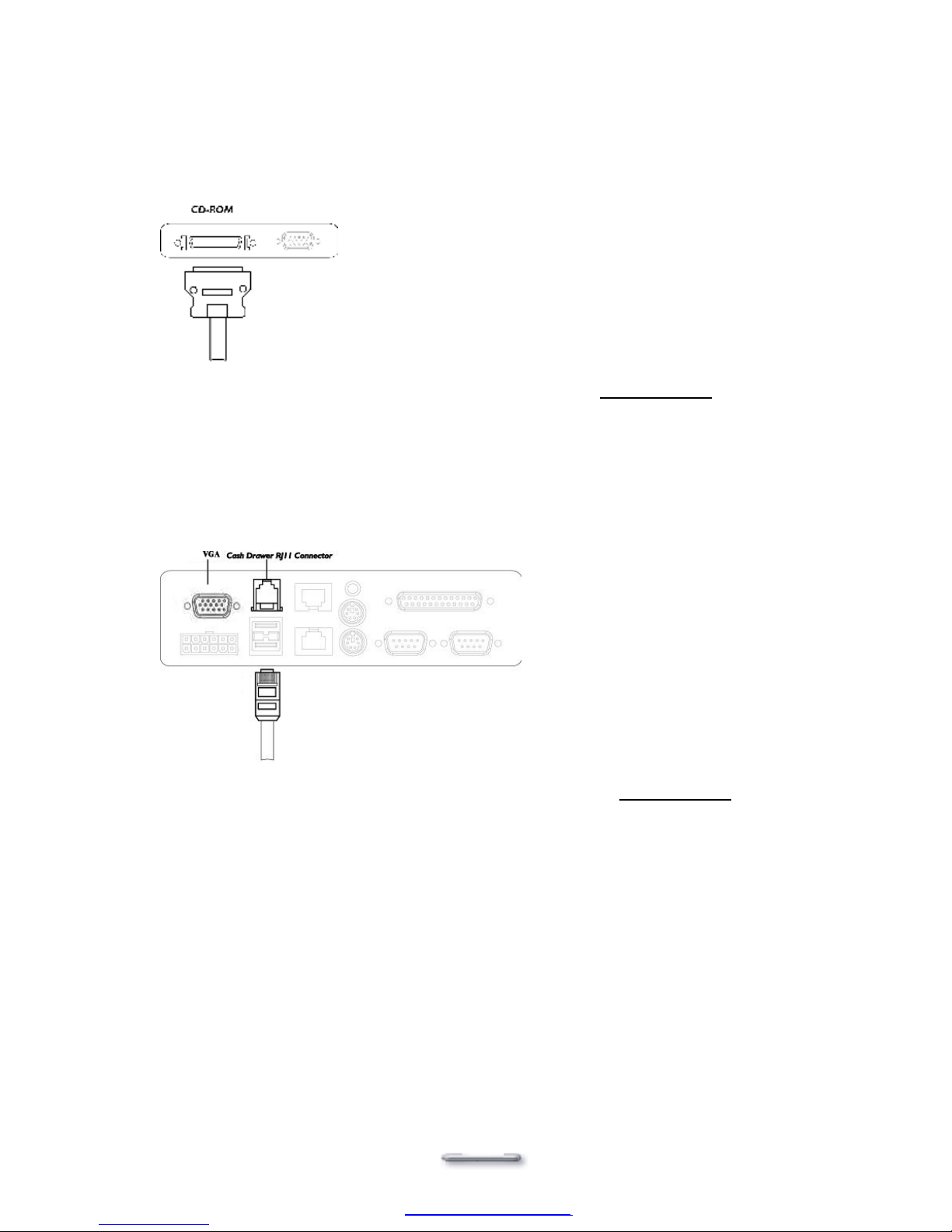

Cash Drawer Installation.................................................................................................18

Optional Second LCD Panel Display..............................................................................19

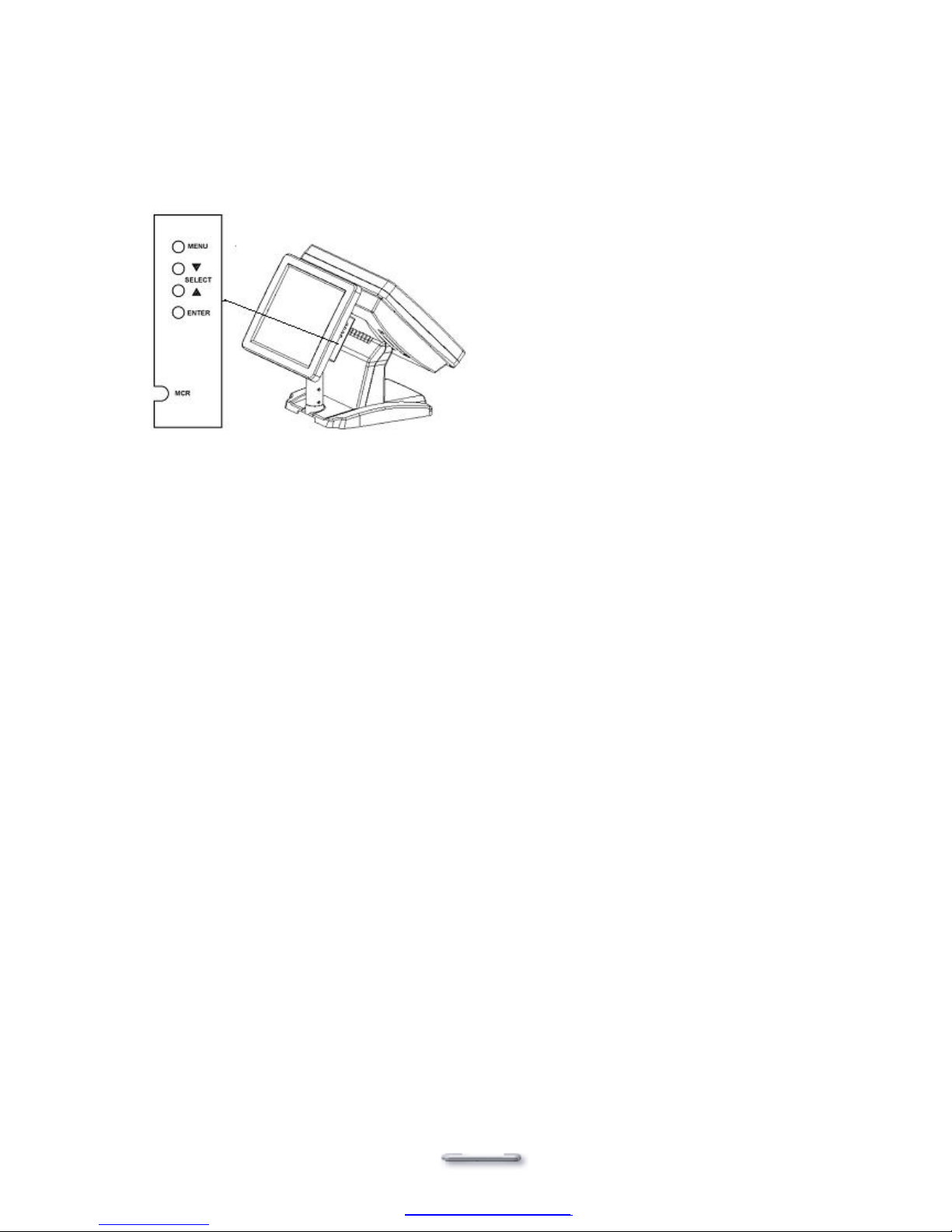

OSD Settings for Second LCD Panel.............................................................................20

bllee

b

off

o

C

C

o

nttee

o

n

ntt

n

110

1

1

0

CChhaapptteerr 33

Software Setup 22

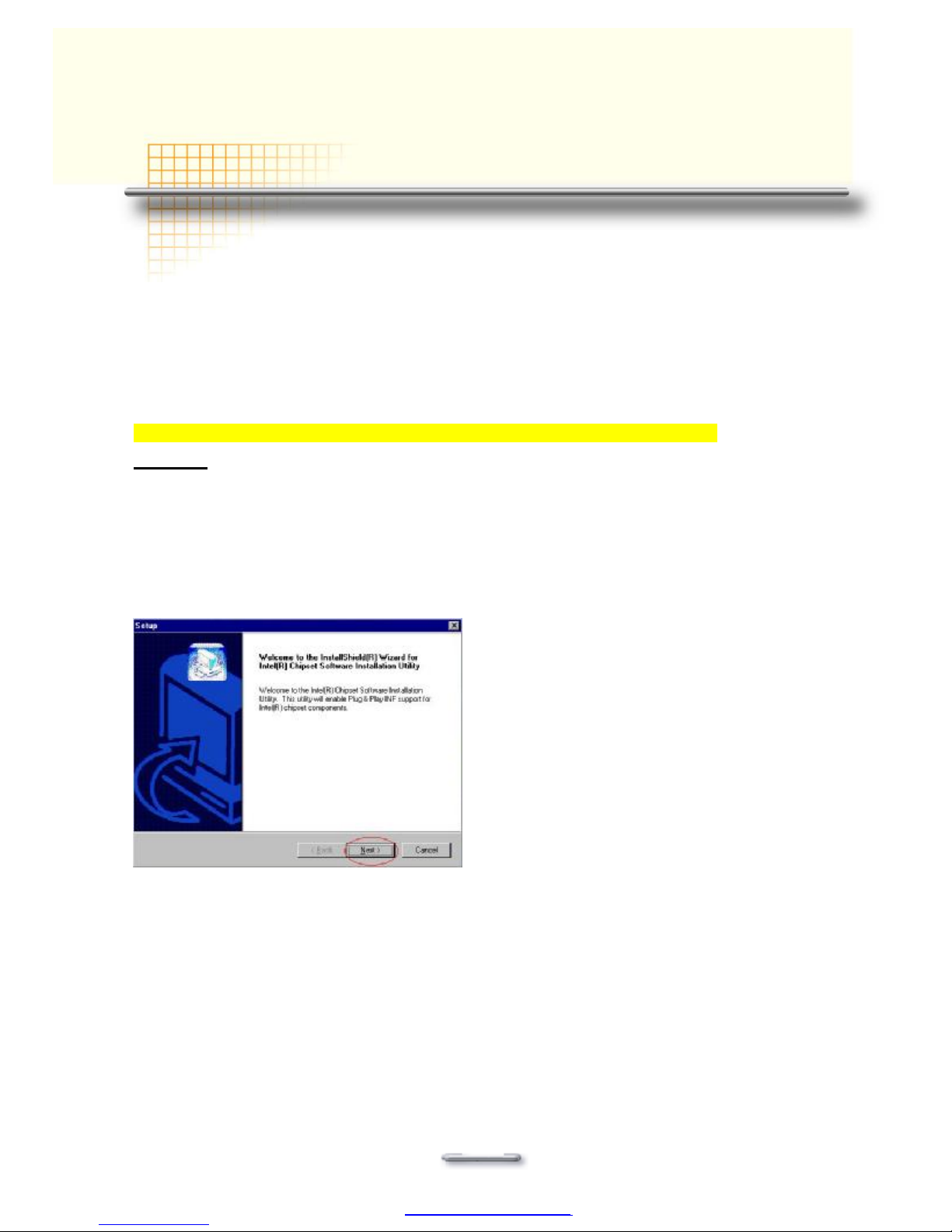

Intel Chip Set Driver Installation for all Windows Operating Systems...................................22

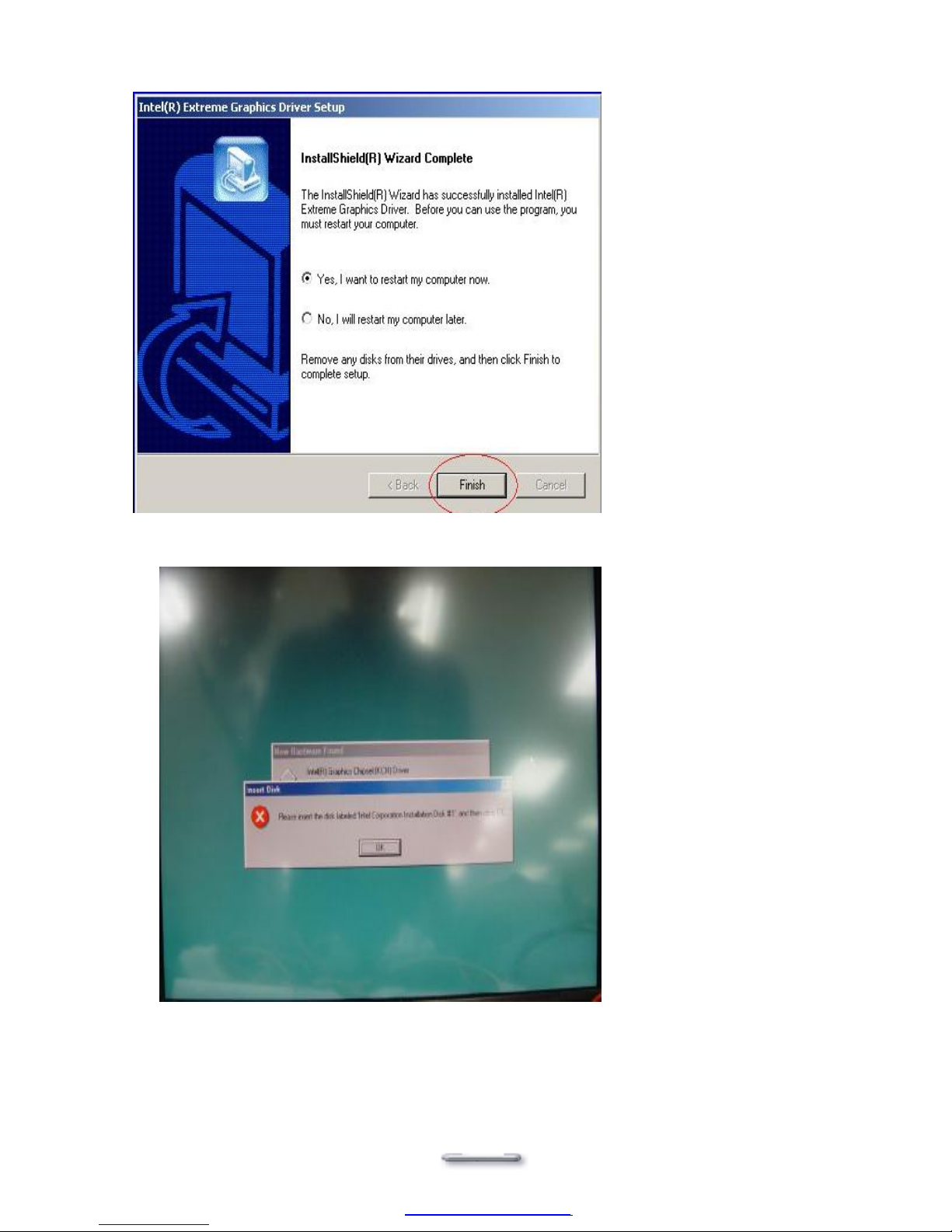

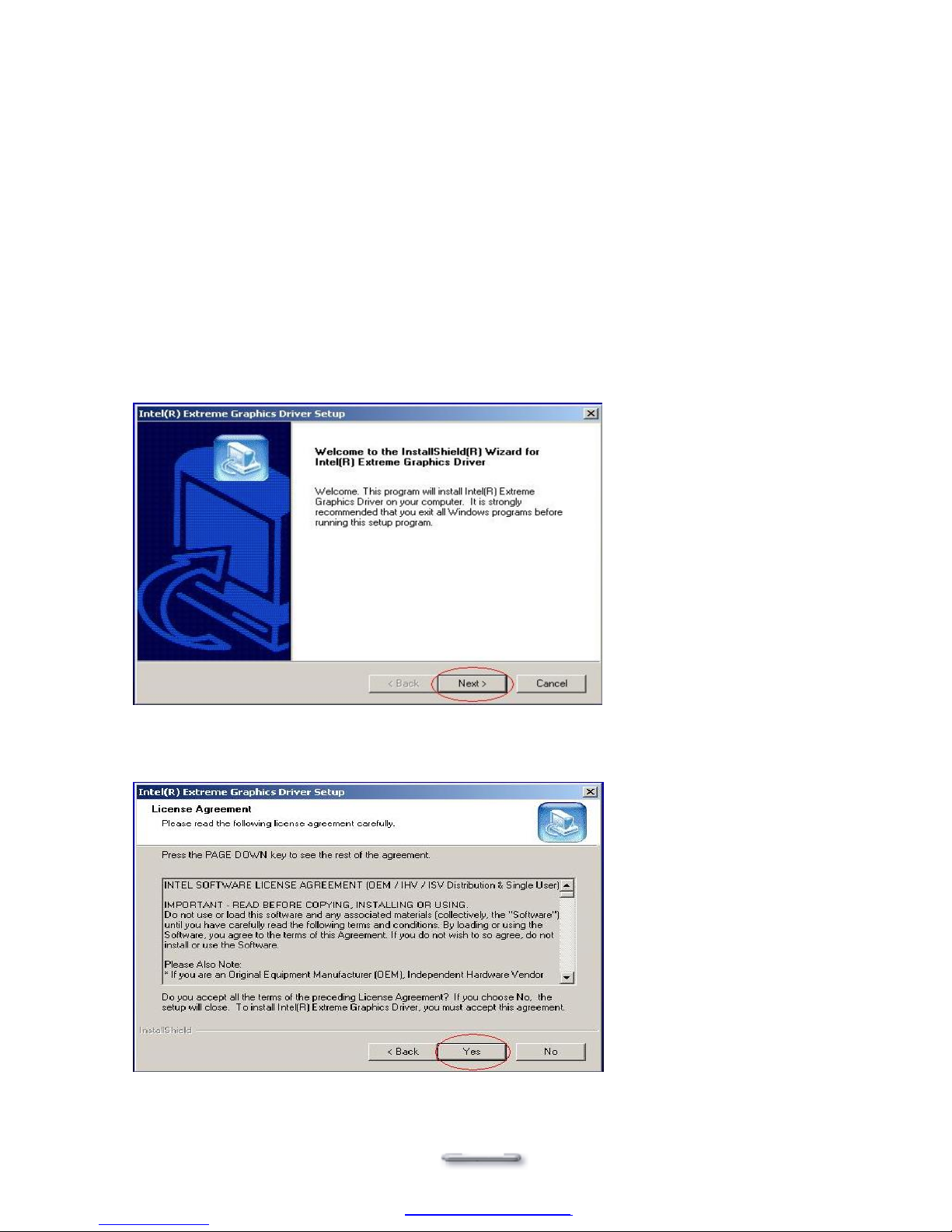

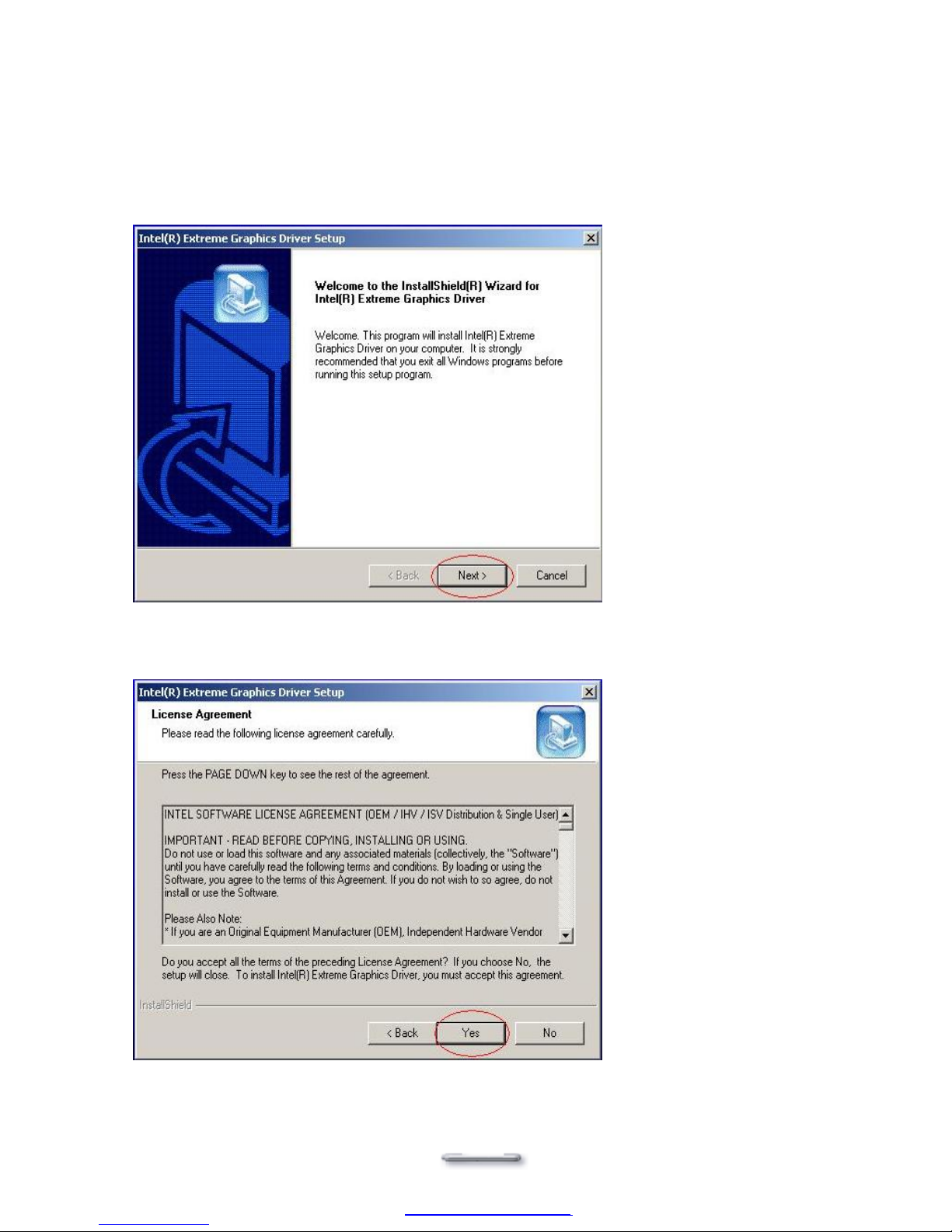

VGA Driver Installation...........................................................................................................25

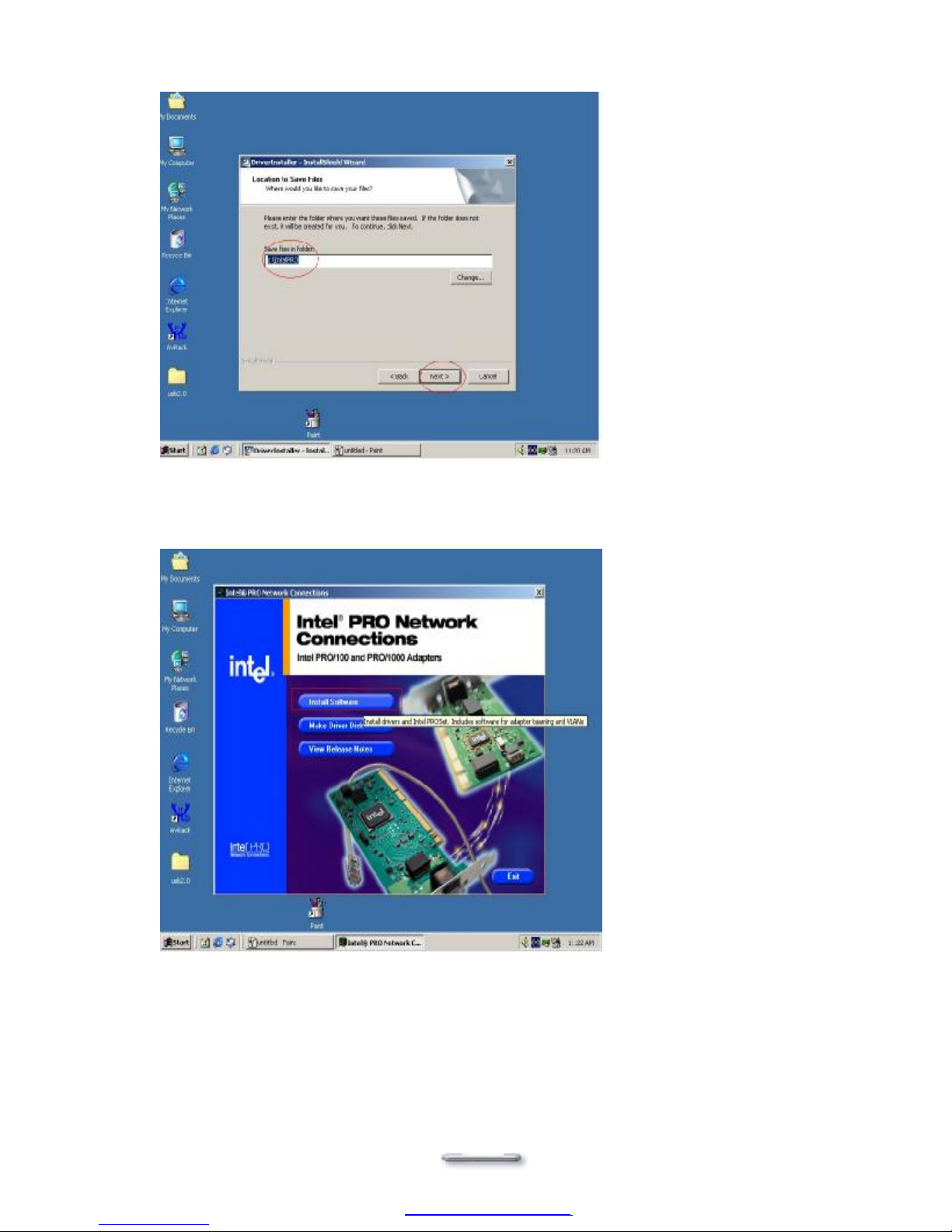

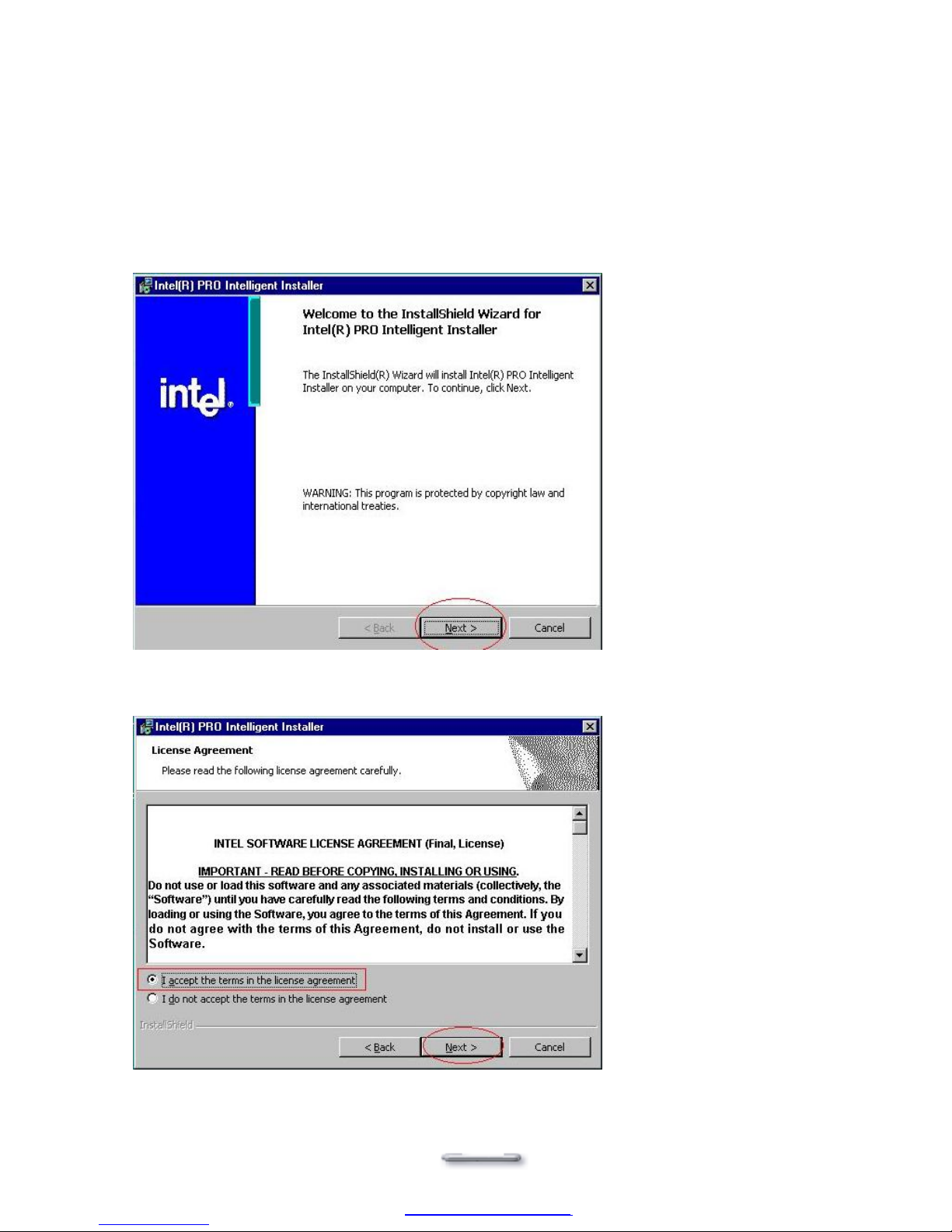

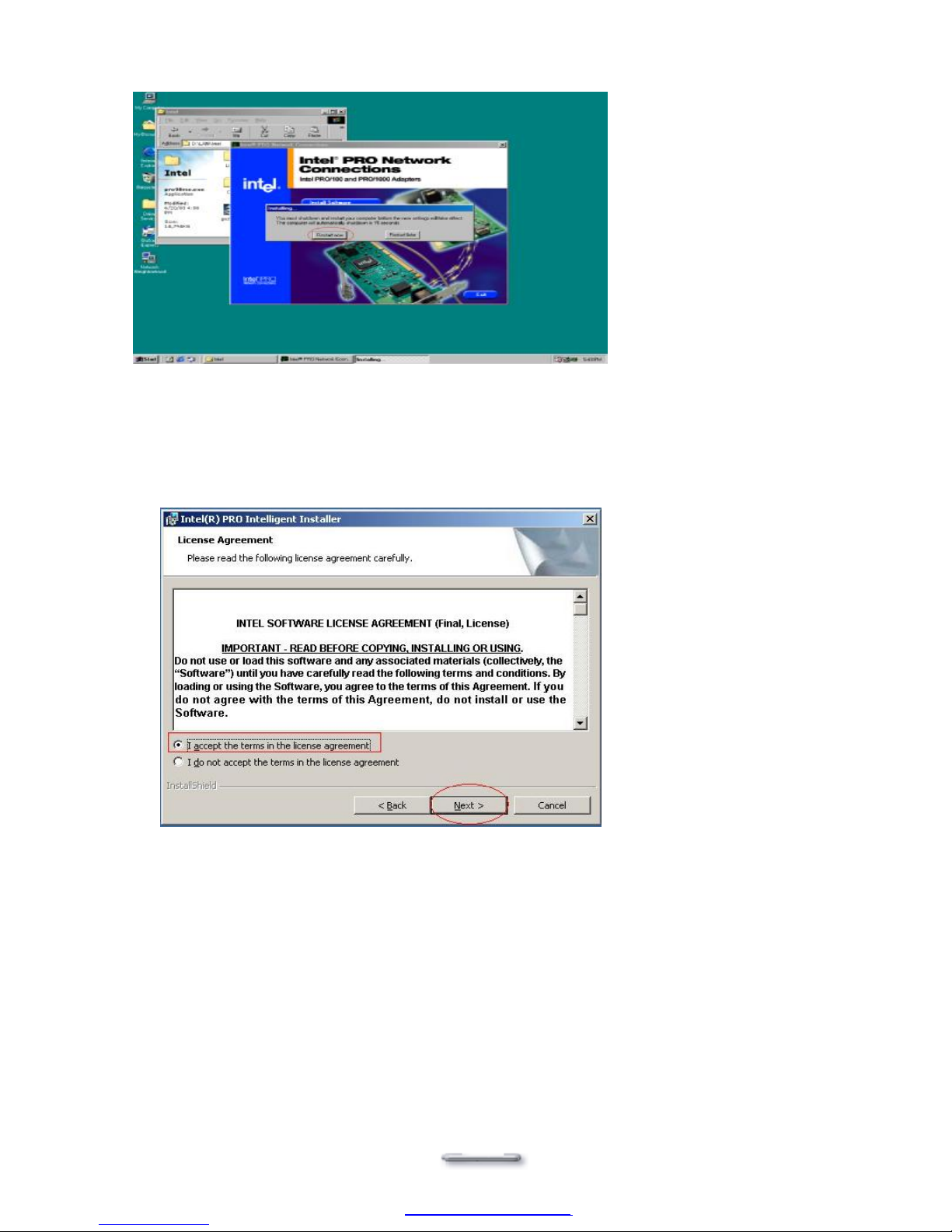

LAN Driver Installation............................................................................................................32

Audio Driver Installation.........................................................................................................36

ELO Touch Tools Installation.................................................................................................45

PDF created with pdfFactory Pro trial version www.pdffactory.com

852GME driver installation Windows 98 & ME...............................................................25

852GME driver installation Windows 2000 & XP...........................................................27

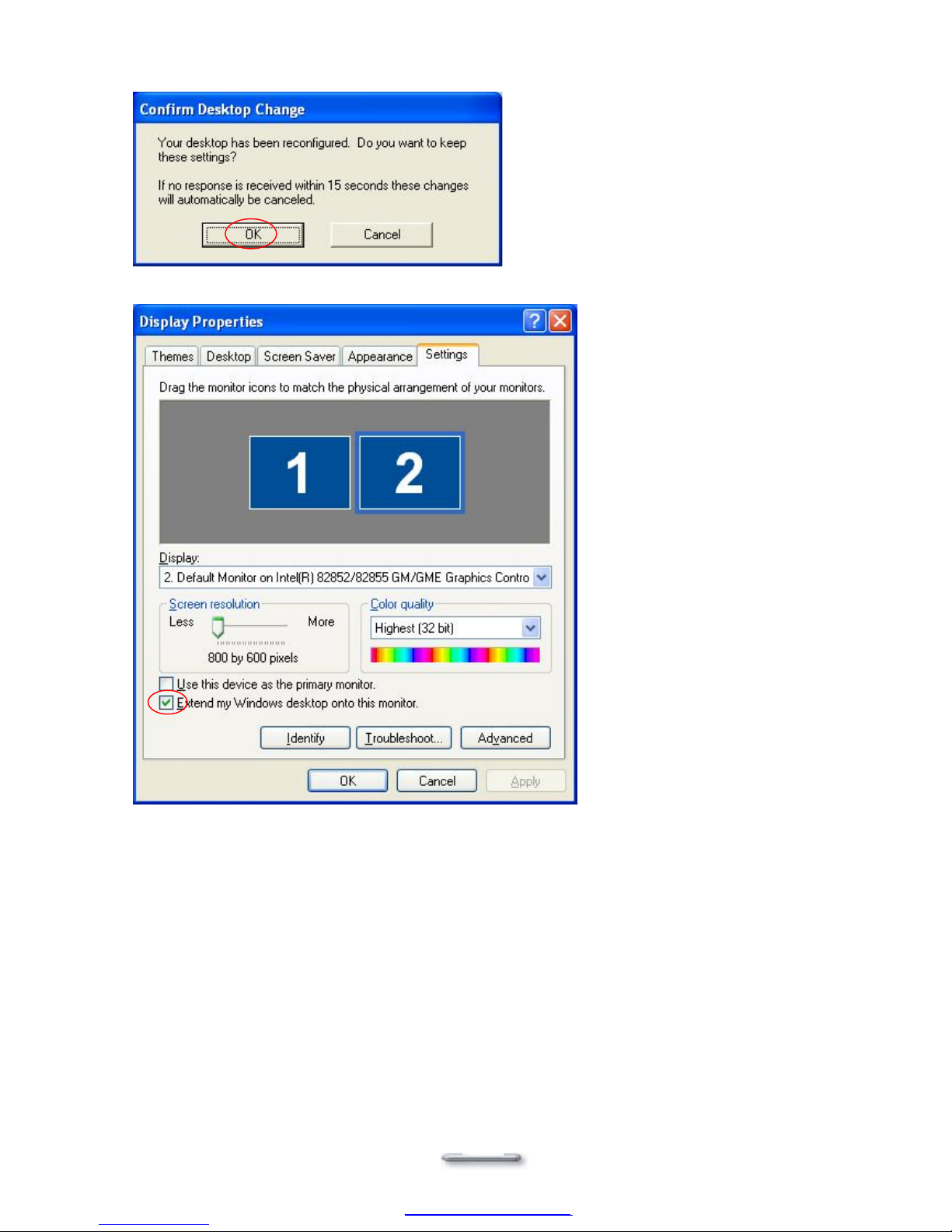

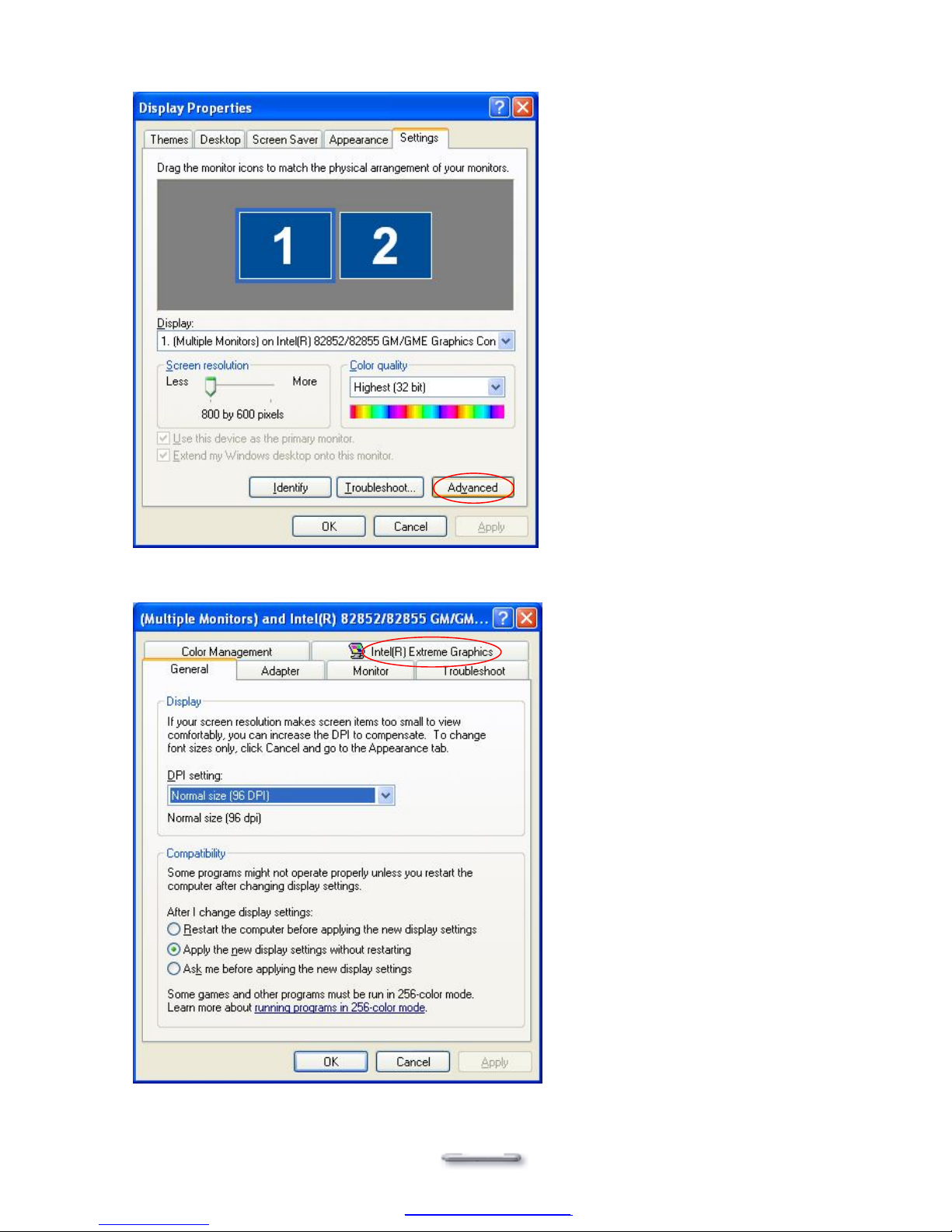

Enable second LCD panel setting Windows 2000/Windows XP....................................28

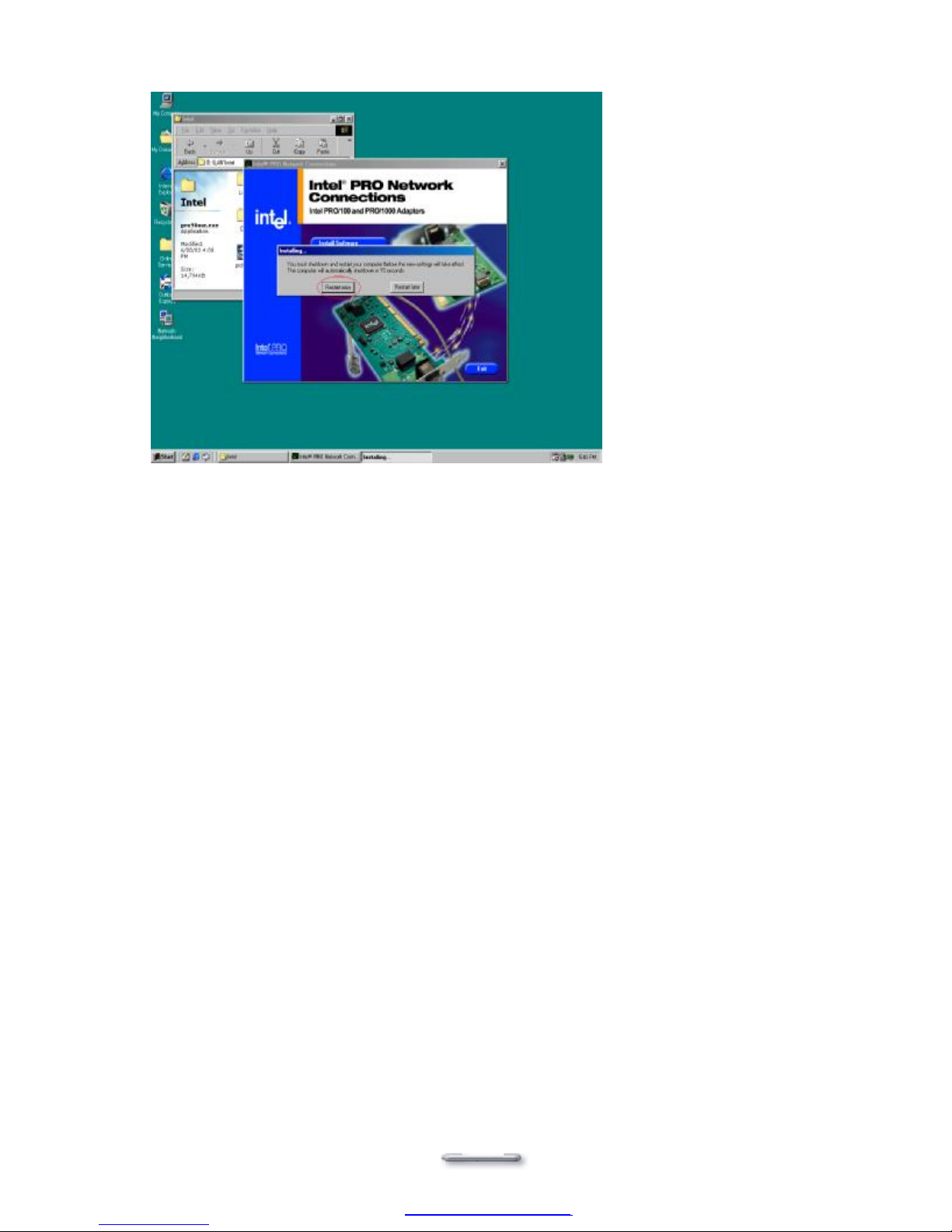

LAN Driver Installation Windows 98 & ME.....................................................................32

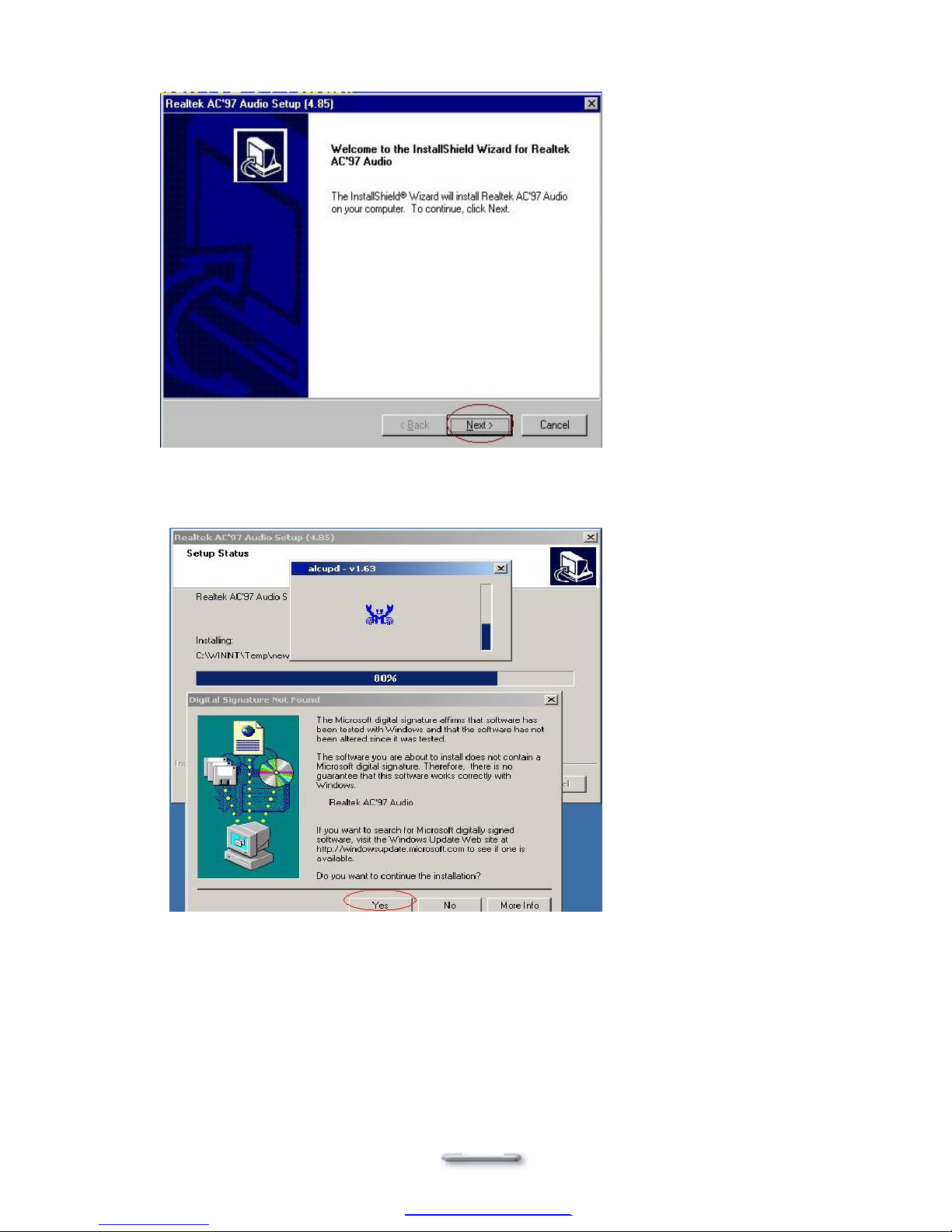

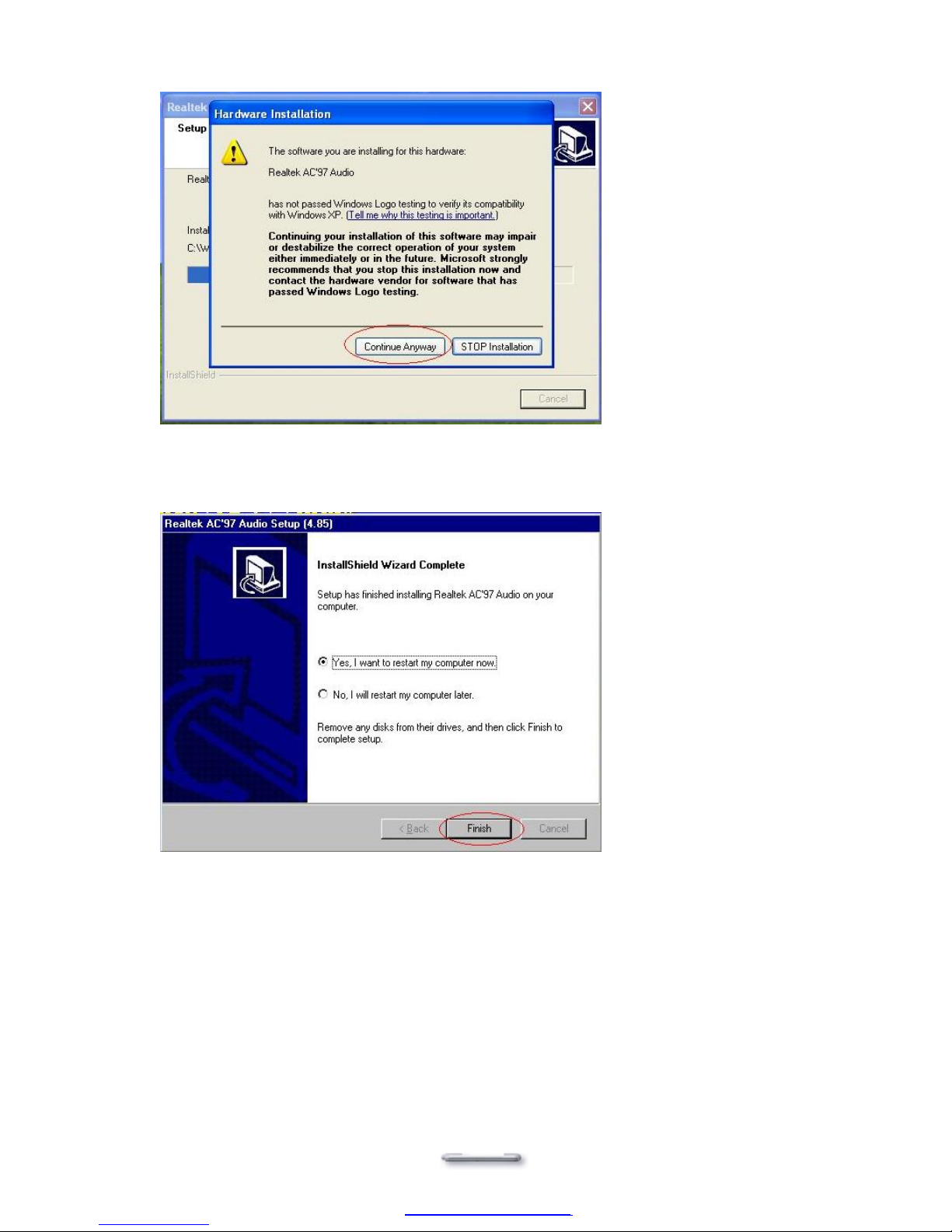

Audio Driver Installation for all Windows Operating Systems........................................36

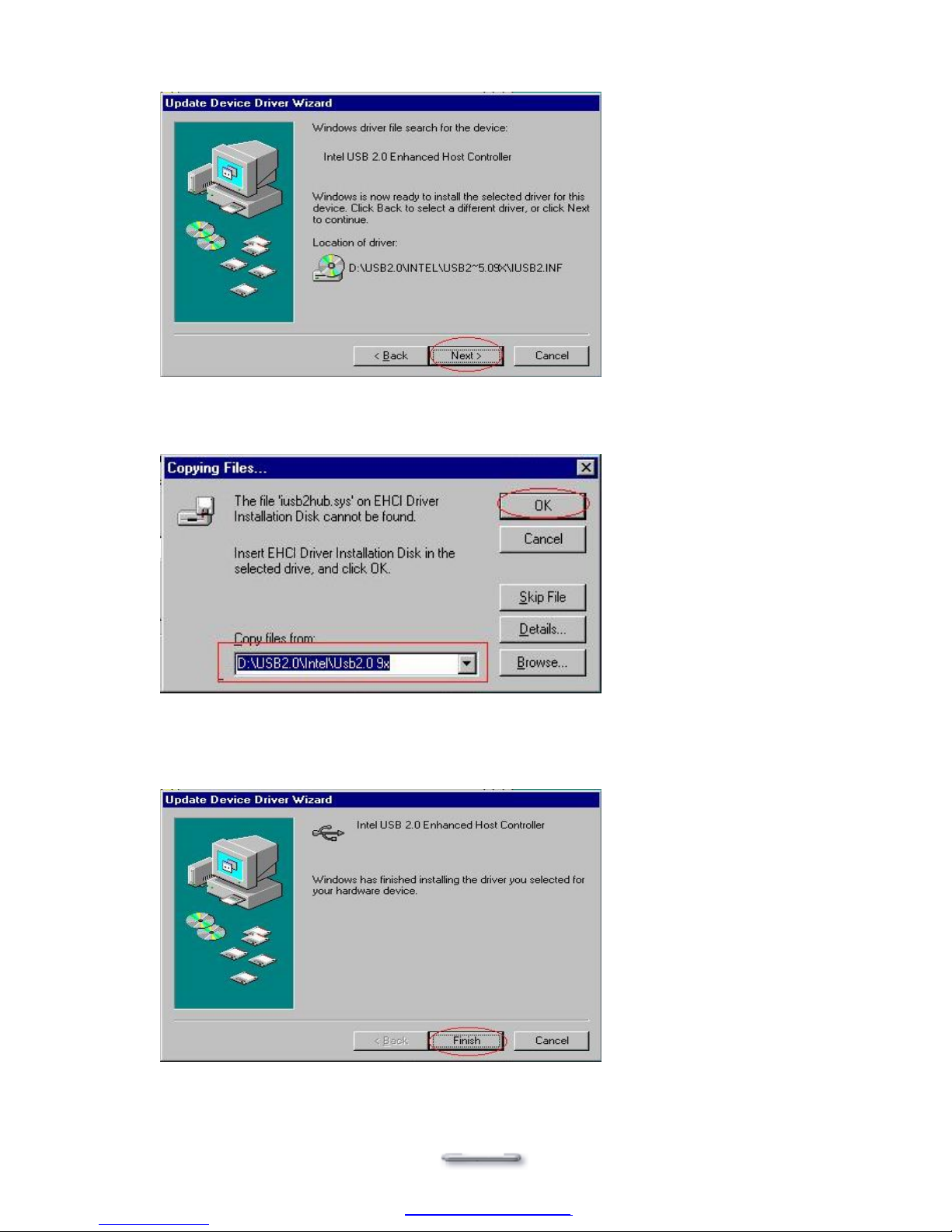

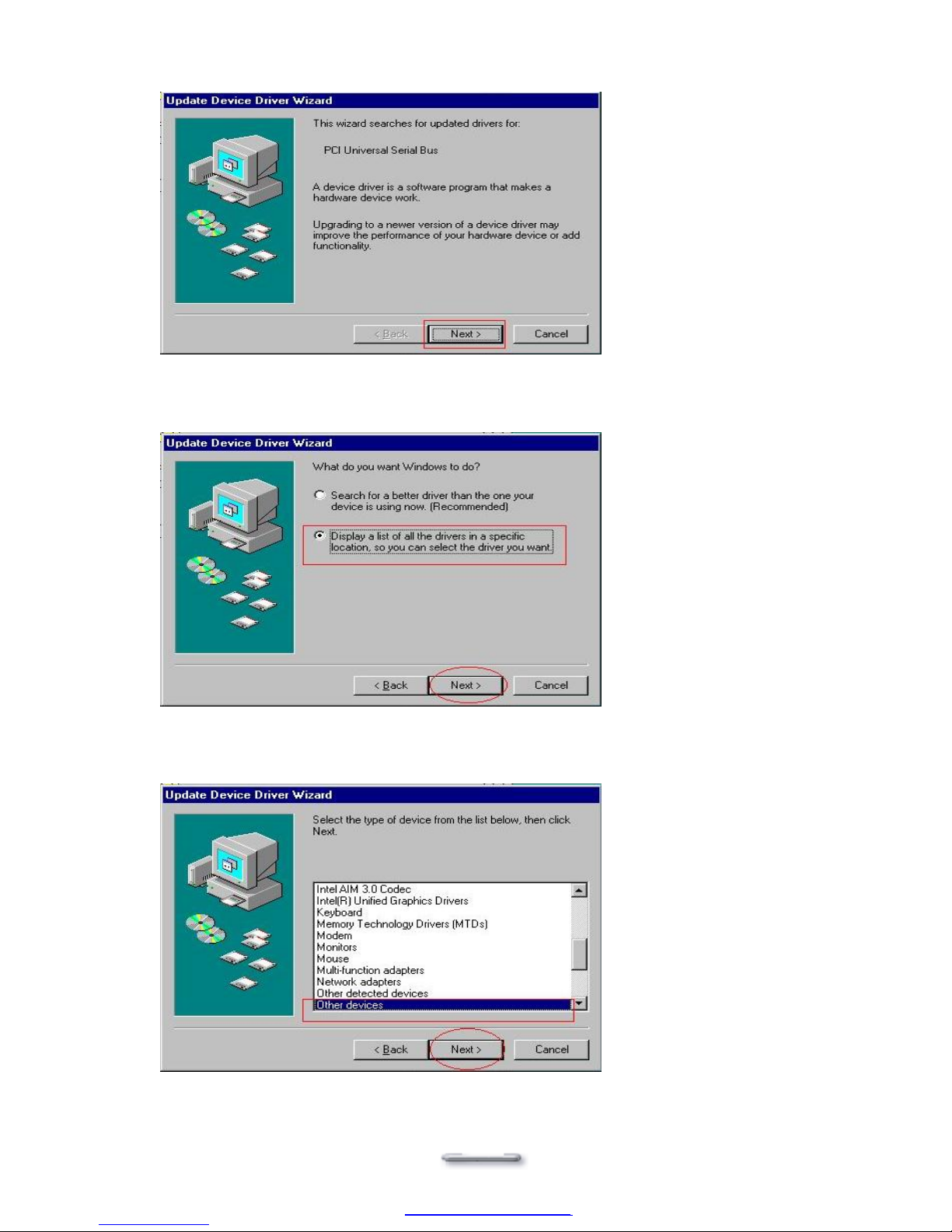

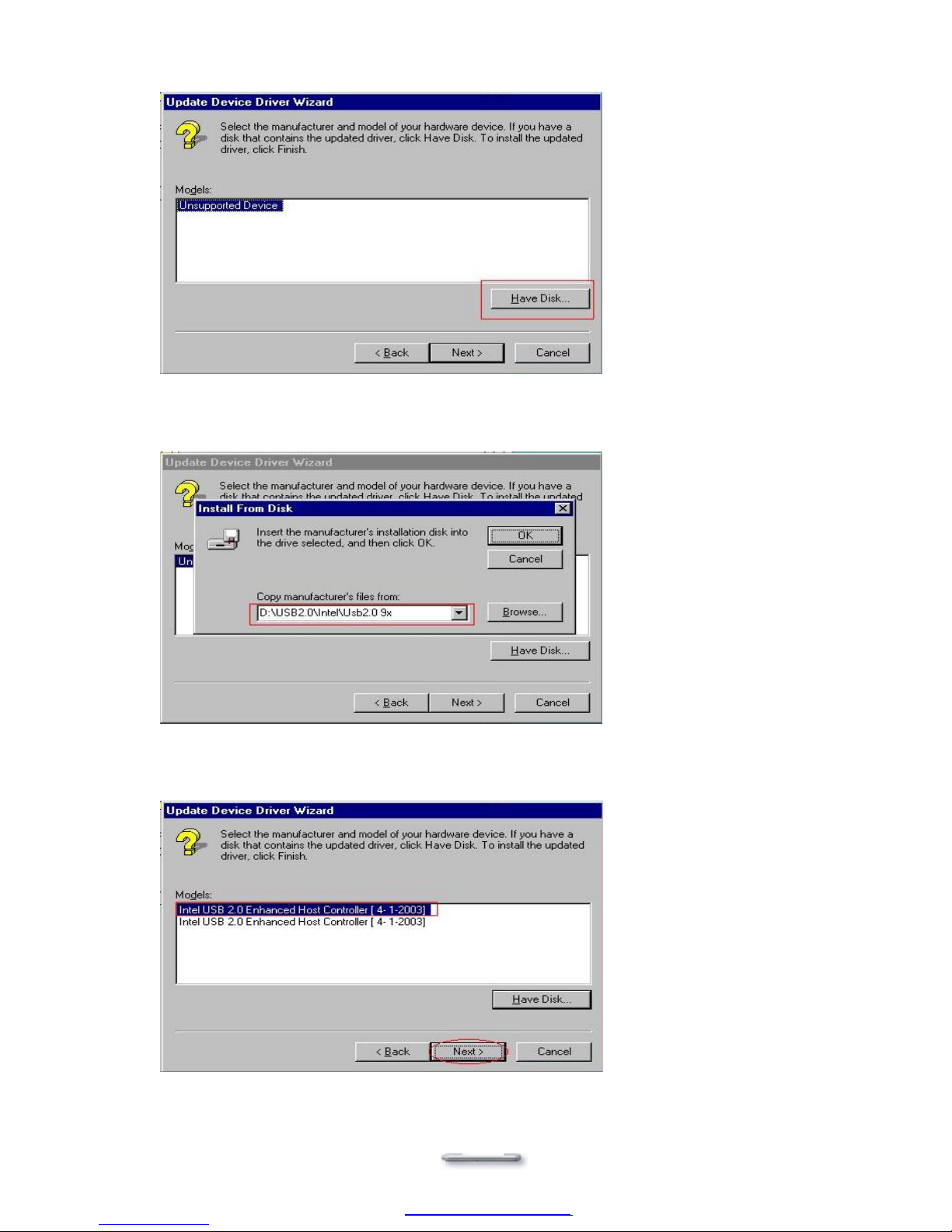

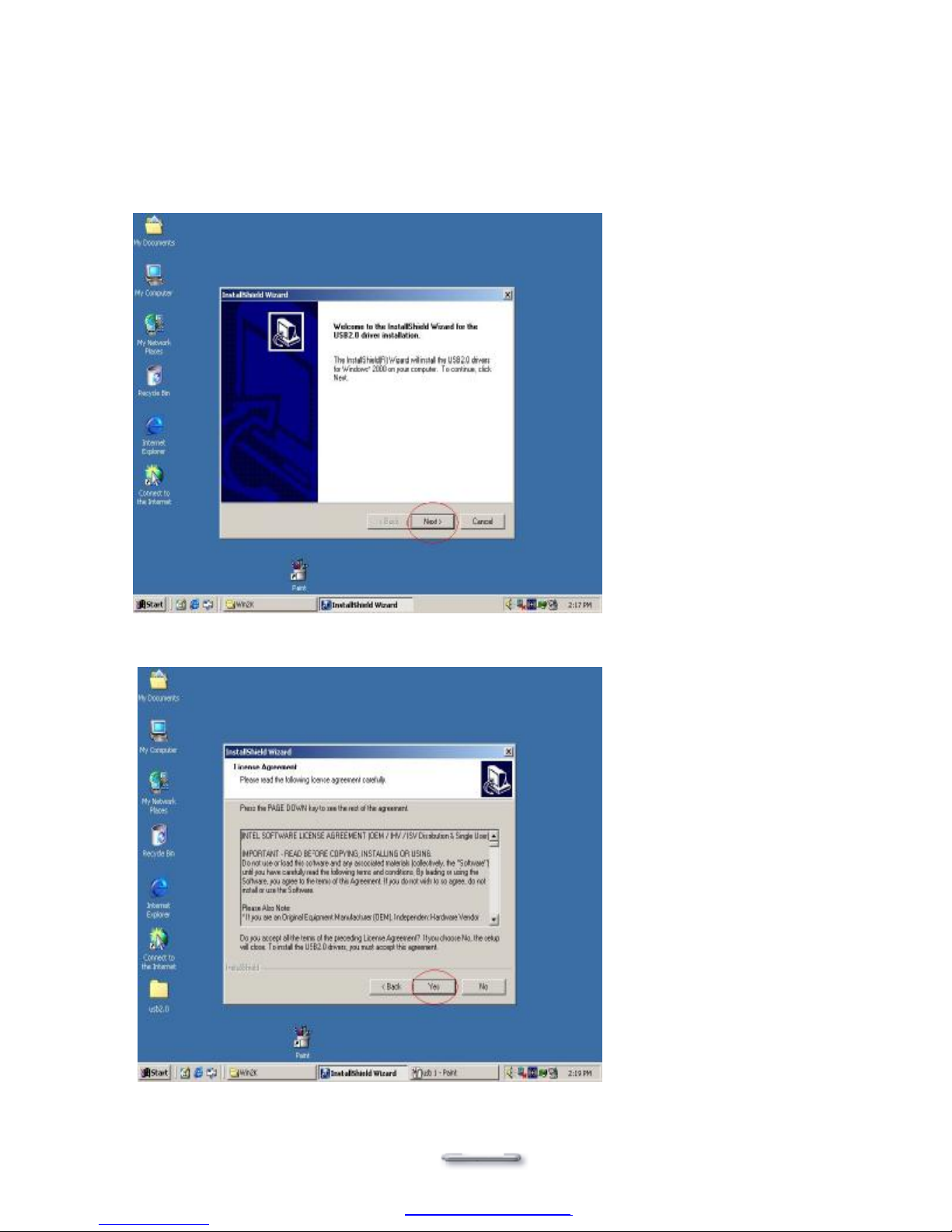

USB 2.0 Installation for Windows 2000 & Windows XP.................................................43

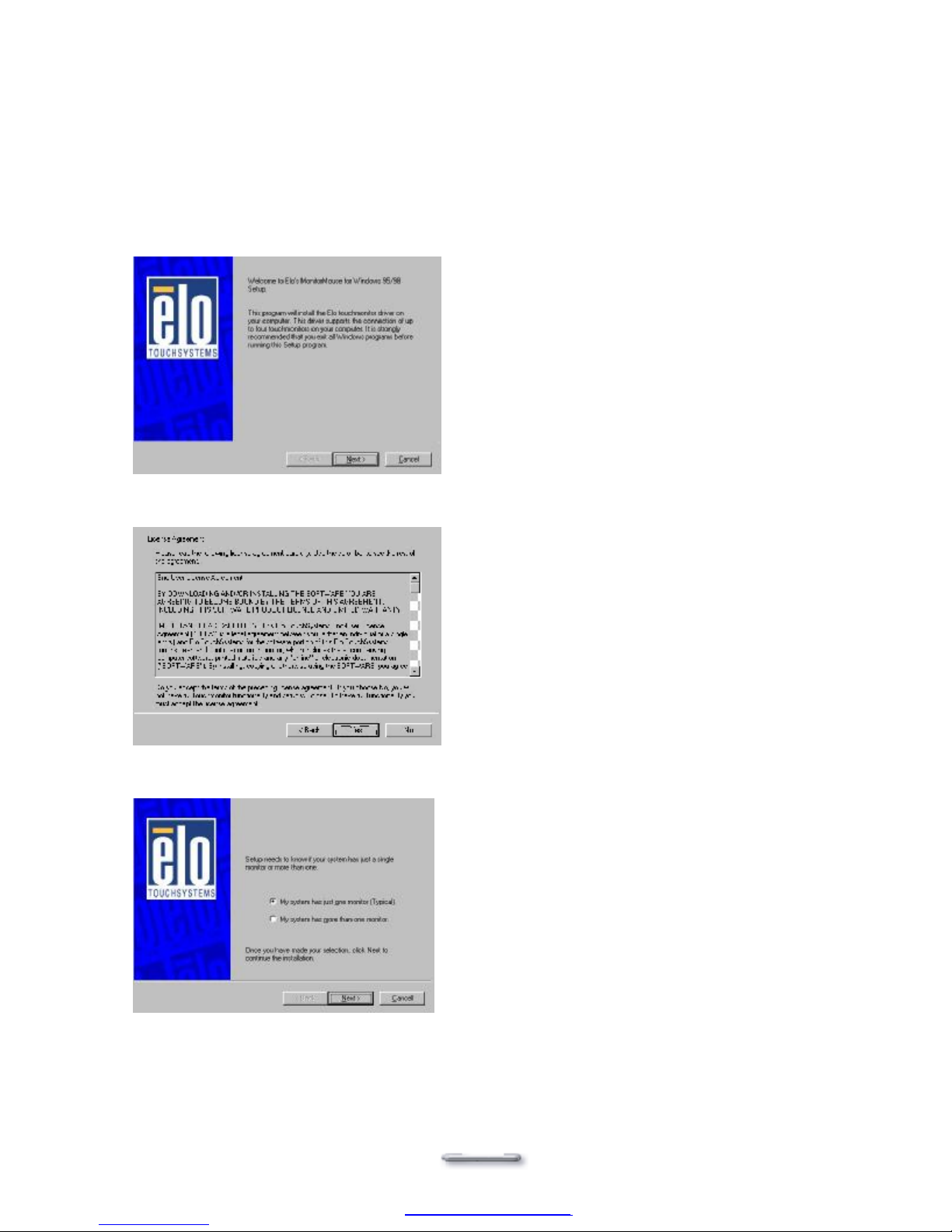

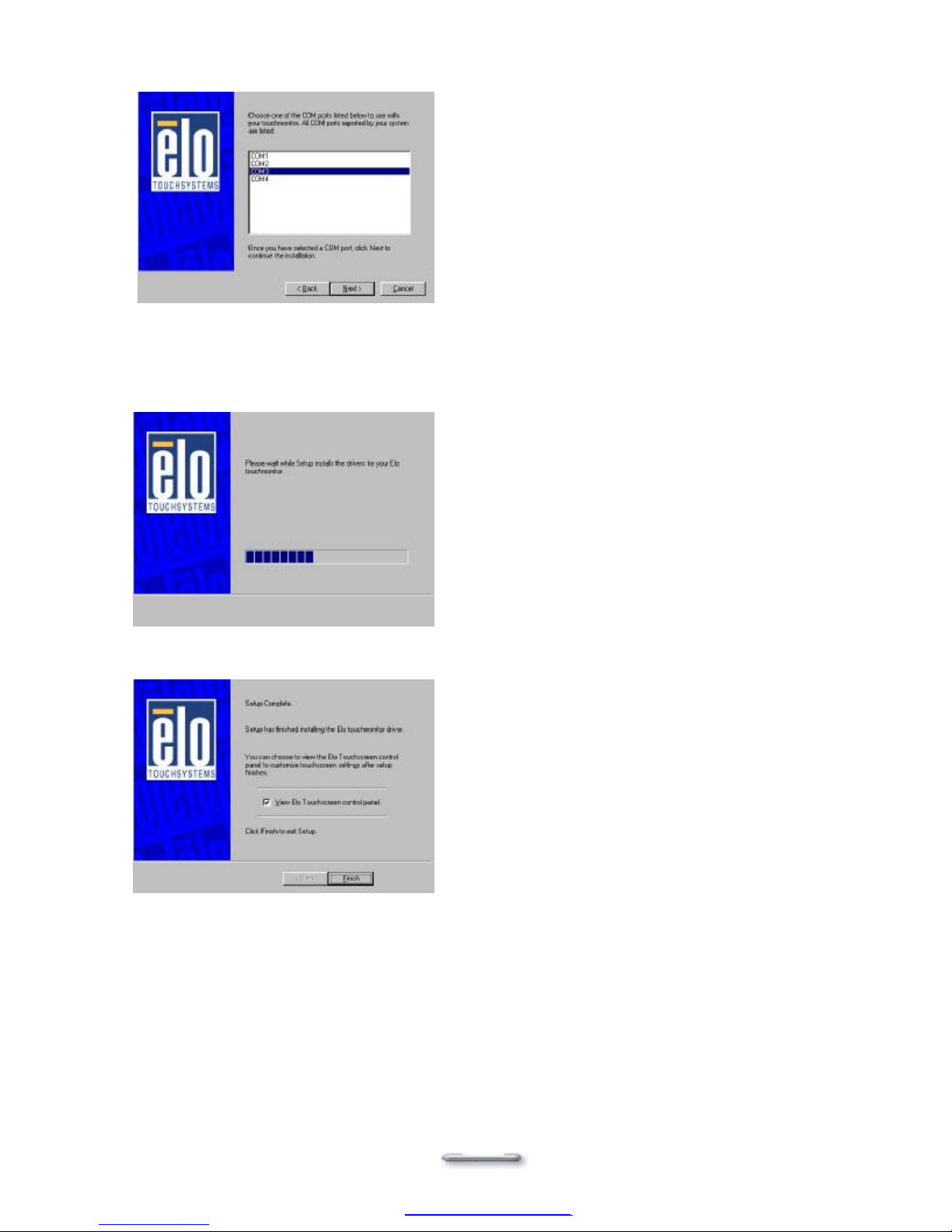

ELO Touch Tools Installation for Windows 98...............................................................45

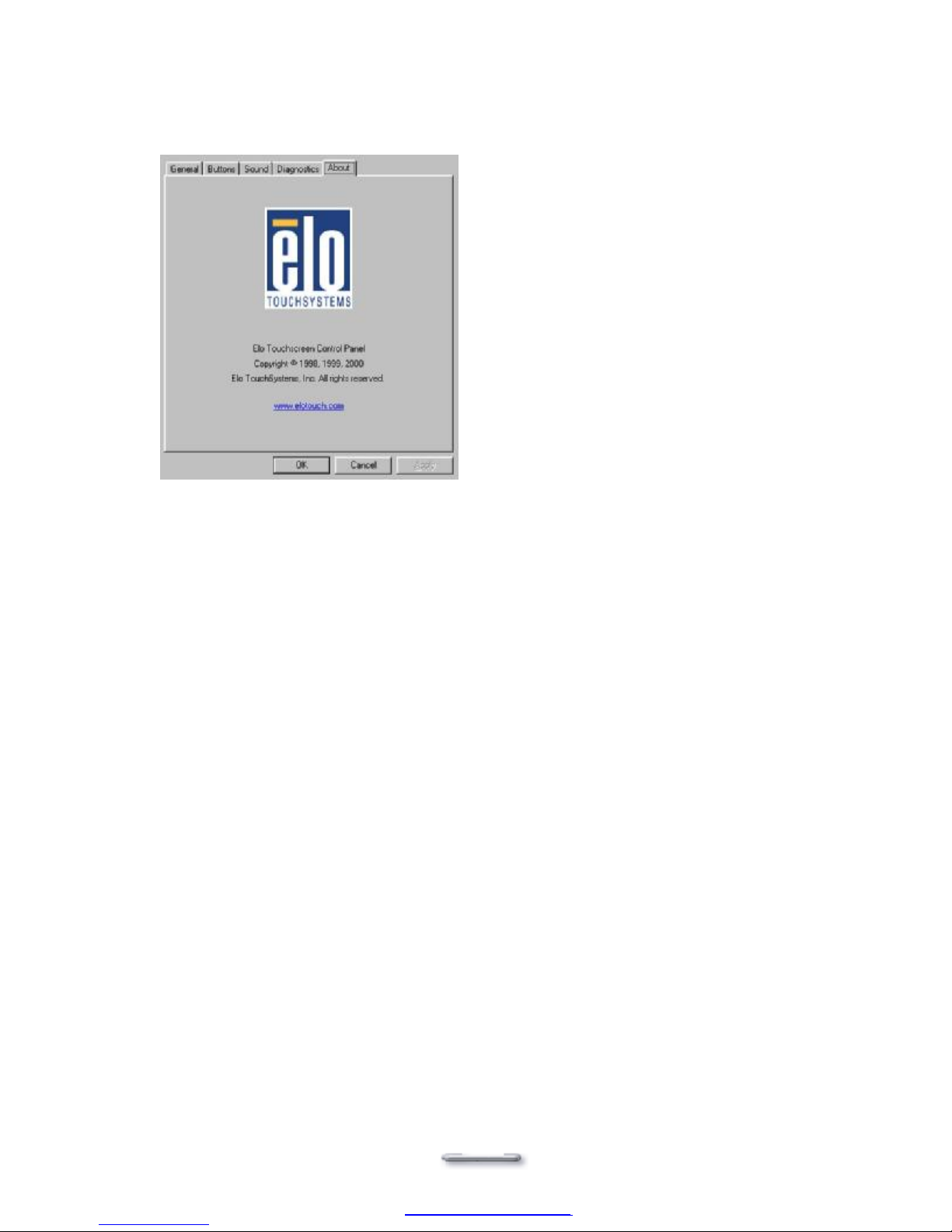

ELO Control Panel..........................................................................................................47

ELO Touch Tools Installation for Windows 2000/XP......................................................49

222

2

CChhaapptteerr 4

4

Specifications 50

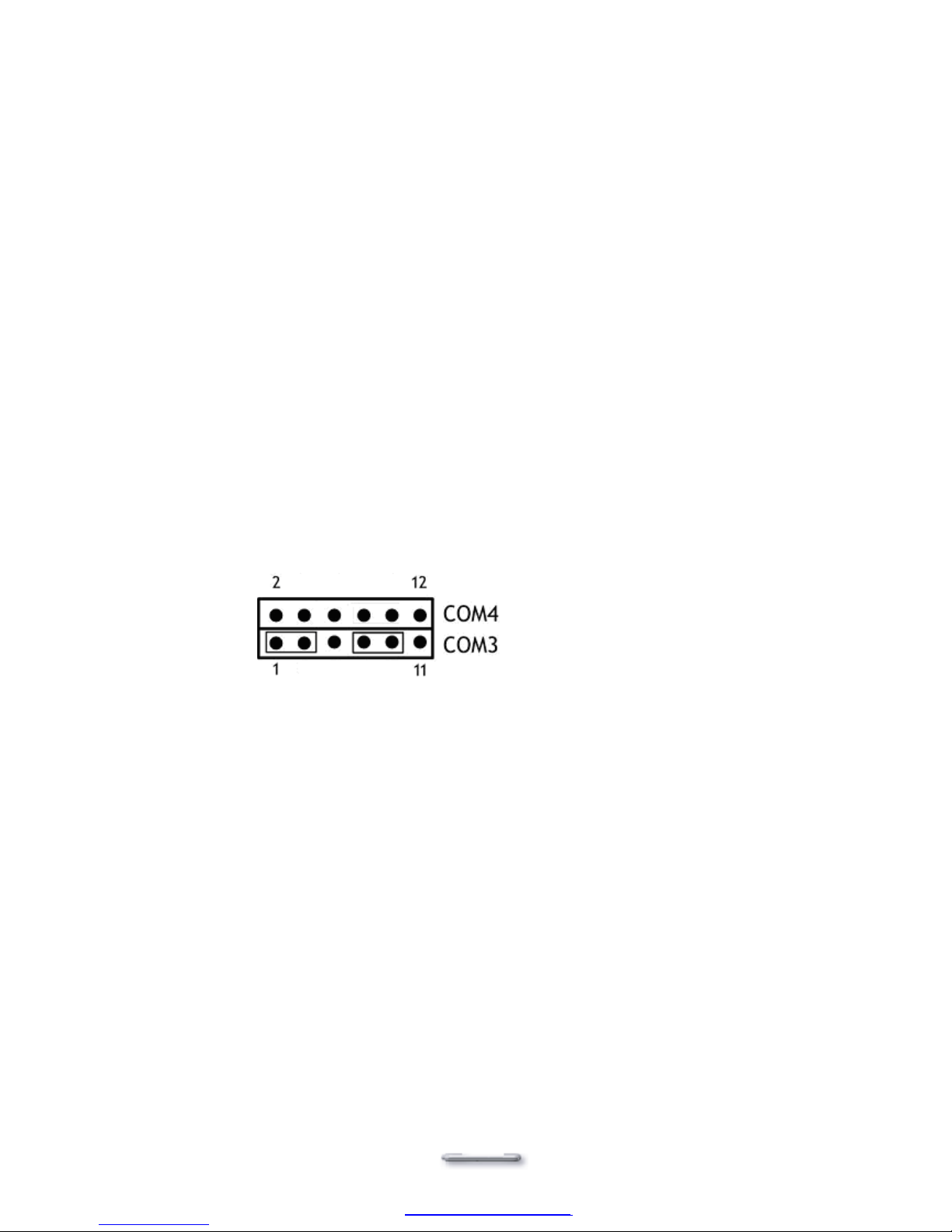

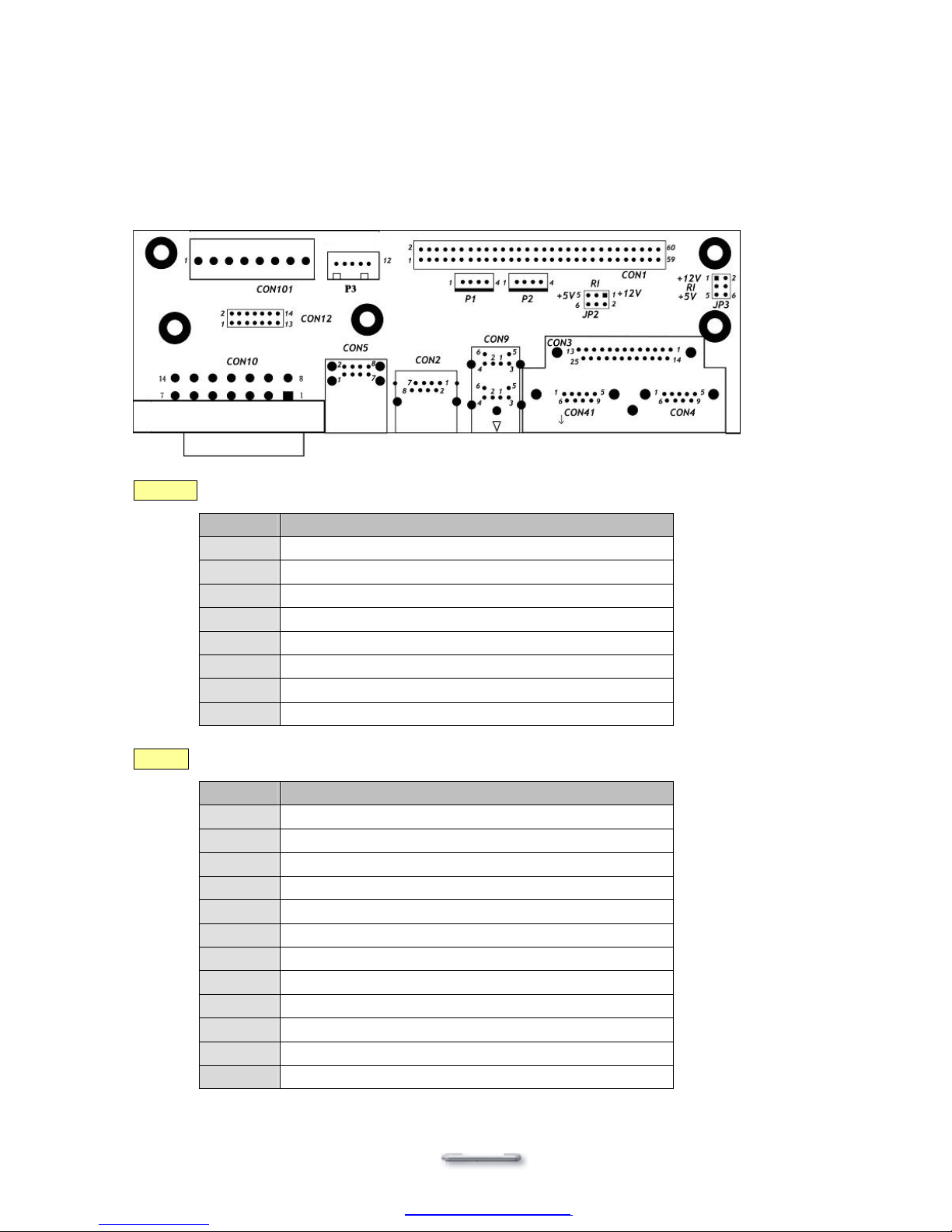

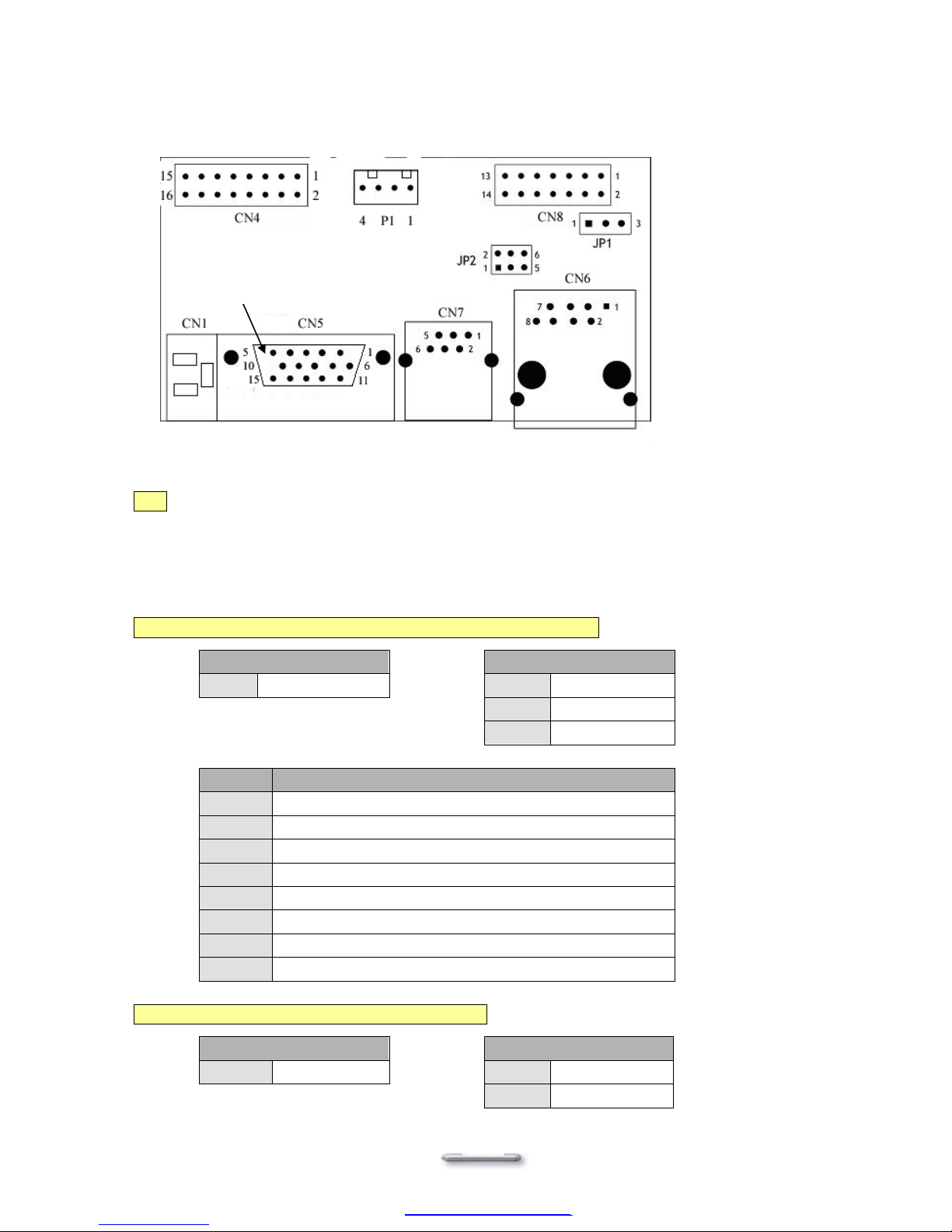

I/O board Configuration..........................................................................................................52

9000PB0550 I/O Board Pin Definition............................................................................52

9000PB0480 I/O Board Pin Definition............................................................................57

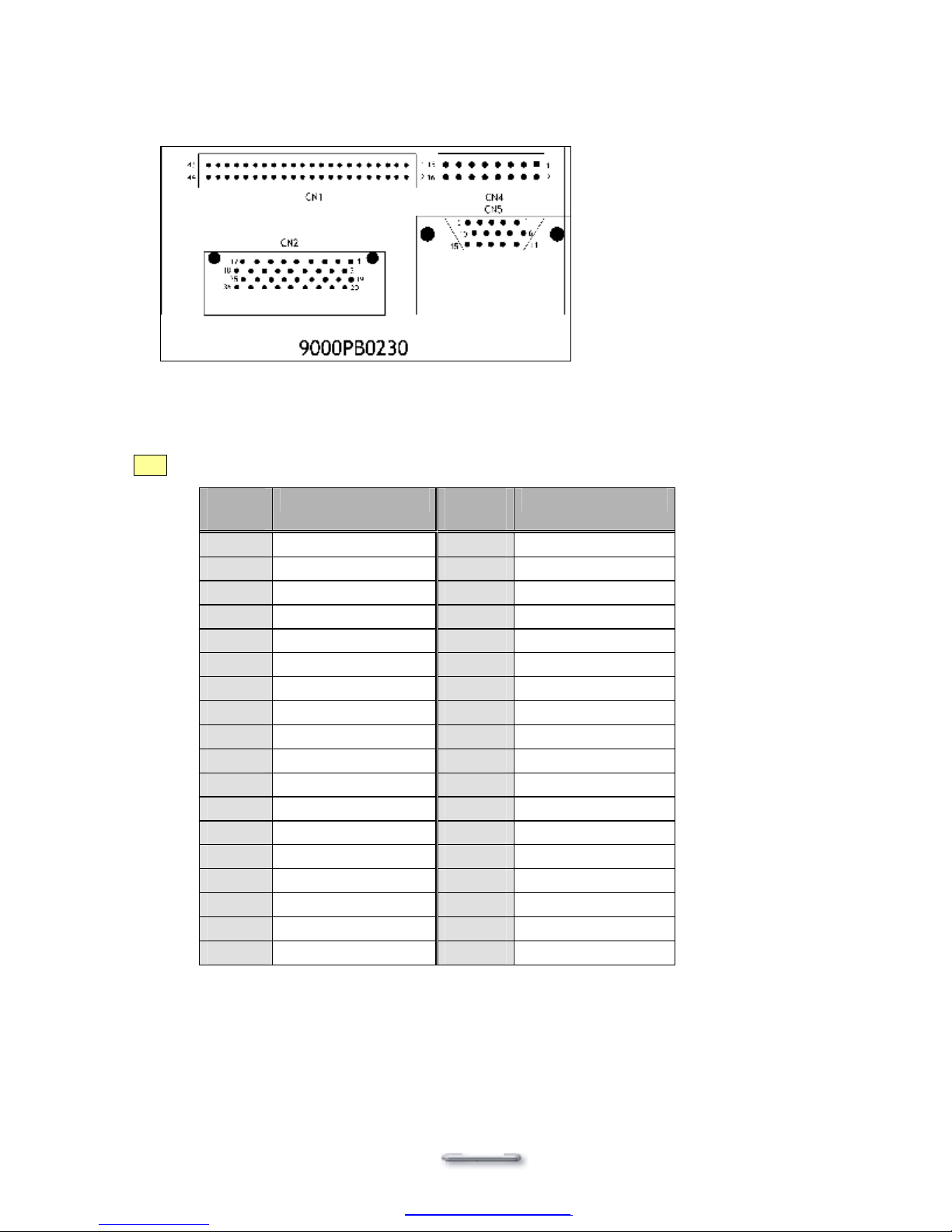

9000PB0230 I/O Board Pin Definition............................................................................60

CChhaapptteerr 5

5

Troubleshooting 62

Cannot Detect HDD........................................................................................................64

Touch Panel Does not Work...........................................................................................64

ELO Touch Panel Cannot Calibrate Correctly................................................................64

Second LCD Panel is Not Functioning Properly.............................................................64

PS/2 Keyboard is not Functioning Normally...................................................................65

MCR is not Functioning Properly....................................................................................65

VFD Display is not Functioning Properly........................................................................66

External CD-ROM is not Functioning Properly...............................................................66

LAN is not Functioning Properly.....................................................................................66

COM1, COM2 and LPT1 are not Functioning Properly..................................................66

Cash Drawer Port is not Functioning Properly...............................................................67

USB device is not Functioning Properly.........................................................................67

550

662

0

2

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

1

CChhaapptteerr 11

IInnttrroodduuccttiioonn

Model H700 Characteristics

Ø Model H700 uses a high speed processor capable of handling a high capacity of data

efficiently.

Ø Model H700’s solid quality Aluminum housing distinguishes it from ordinary plastic

housings.

Ø The Model H700 touch terminal all-in-one design combines a powerful PC, multiple

LCD and touch screens, which are suitable for any market. The primary LCD panel can

be tilted at multiple angles.

Ø Model H700’s functionality extends far beyond the standard setup. Model H700 can be

adapted for a variety of uses with the addition of any of the following options: Magnetic

Card Reader, VFD/LCD customer display and cashdrawer, Modem, LAN, Audio

devices, Compact Flash or USB devices (all available upon request).

Ø Model H700’s security is designed to prevent data theft. The Model H700 system is

comprised of an internal 3.5” HDD and removable external CD-Rom and FDD making it

hard to copy data without authority.

Ø The solid aluminum design enhances heat dissipation and passes EMI testing.

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

2

How to Use This Manual

This manual contains all the information you need to set up and use Model H700. In addition, you
can also consult the manuals for the operating system and added hardware.

Chapter 1 Provides an introduction to Model H700 and this manual.

Chapter 2 Provides all necessary information for all hardware setup.

Chapter 3 Provides the necessary information for installing the Intel Chip set driver, Video

drivers and the touch screen tools, Audio, USB and LAN drivers.

Chapter 4 Lists all Model H700 specifications and Information for the 9000PB0550,

9000PB0480 and 9000PB0230 I/O board configuration.

Chapter 5 Provides information for troubleshooting Model H700.

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

3

A Visual Tour of Model H700

Before you start, take a few moments to become familiar with Model H700.

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

4

What comes with Model H700

The following items are standard with Model H700:

Ø Main system with LCD panel
Ø Base
Ø ATX power supply
Ø Model H700 user’s guide
Ø Nova 4710 motherboard user’s guide
Ø ELO touch screen driver CD
Ø Utility and Motherboard chipset driver CD
Ø AC power cord

Model H700 and power adapter

Model H700 with MCR

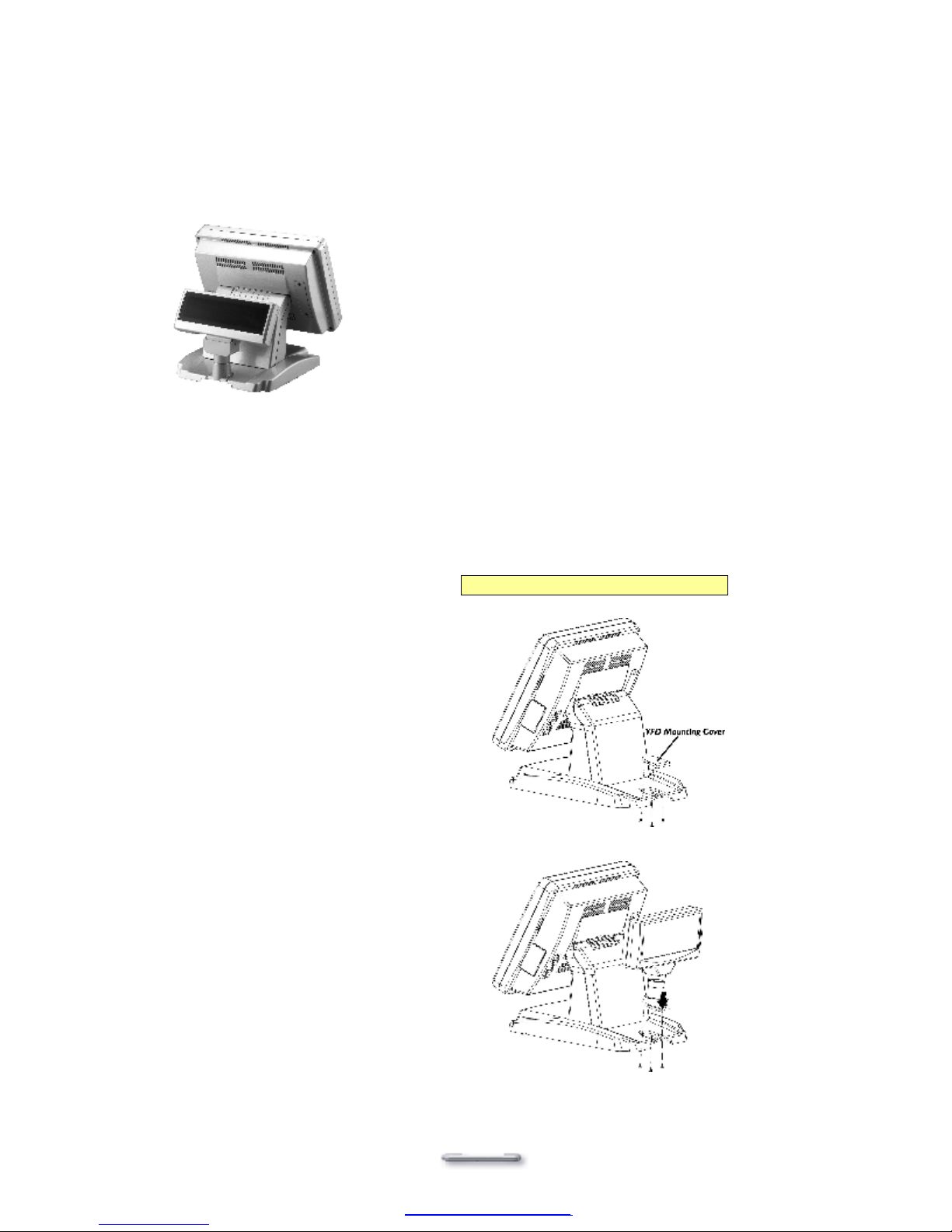

Model H700 with VFD

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

5

The following items are optional:

Ø Magnetic card reader (MCR) and bracket
Ø External CD-ROM drive with cable
Ø External USB floppy disk drive with cable
Ø VFD customer display

Optional accessories

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

6

Dimensions

12.1”

Model H700
Dimensions

Model H700 and
MCR Dimensions

Model H700 and
VFD customer
display

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

7

Dimensions

15”

Model H700
Dimensions

Model H700 and
MCR Dimensions

Model H700 and
VFD customer
display

PDF created with pdfFactory Pro trial version www.pdffactory.com

8

COM

Out

Connector Panels

Primary Connector Panel

The primary connector panel is located at the bottom of the main unit base. To clearly see the
panel you must turn Model H700 upside down.

DC

E EXT VGA

2nd LCD

Cash

VFD/

Line

PS/2
Mouse

LPT1

Power LAN

Note: This configuration is for Model H700 units that have been supplied with an integral second LCD panel.

USB

KBD

COM

COM

I/O Port Connector Type Description
Power DC Power Connector Connects Model H700 to the power supply.
USB USB The USB (Universal Serial Bus) port can be used

to connect USB devices.

LAN LAN RJ45 Connector The LAN port is used to hook Model H700 to a

local area network.

KBD PS/2 Keyboard

The KBD port for an external keyboard.

Connector

PS2/Mouse PS/2 Mouse Connector PS2 ports can be used for a mouse.
COM1
COM2

DSUB Connector The serial ports COM1/COM2 can be used to

connect serial devices such as a mouse or a
fax/modem.

EXT VGA 15 PIN VGA Connector The Ext VGA port is used to attach an external 2nd

Panel display or CRT monitor.

DC 12V Out 2 PIN Socket This is used for the 2nd Panel display.
Cash

Drawer
VFD VFD/ COM4 RJ45

RJ11 Connector Cash Drawer Connector, 12 V Actuation support

for solenoid.
The VFD port is used to attach An RJ45 cable for

Connector

a VFD customer display.

Line Out Earphone Connector The audio port is for speakers.
LPT1 DSUB Connector The parallel port LPT1 can be used to connect

parallel devices, such as a printer.

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

9

Second Connector Panel

The Second connector panel is located on left side of the back of the main unit. It comes with a
cover that needs to be removed to install a CD ROM Driver.

I/O Port Connector Type Description
VGA Connector No Function.
CD-ROM 36 PIN SCSI II Connector The CD-ROM port is used to attach an external

CD-ROM.

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

10

CChhaapptteerr 22

HHaarrddw

waarree SSeettuupp

Model H700 Assembly

Please make sure that the system power is turned off and the power supply is disconnected when
making any hardware changes to Model H700.

Remove the rear neck plate

There are two I/O ports, 9000PB0550 and 9000PB0480, located on the back of the neck. The
rear neck plate must therefore be removed before alterations can be made to the hardware. As
an example, to set up for DC+5V or DC+12V at Pin9 of COM1 or COM2, follow the steps:

1. Tilt the screen to 180 degrees.

2. Unscrew the 2 screws adjacent to the hinges.

3. Tilt the screen to 90 degrees.

4. Remove the rear neck plate.

5. Select the appropriate jumper settings as needed; refer to CON4&CON41 of Com1 and
COM2 D-sub connector.

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

11

Hard Disk Drive Installation

Model H700 comes with an empty hard disk drive (HDD), unless a special request has been made.

Installing a HDD

1. Turn off power and remove power cable from main unit.

2. Remove the Base/HDD Plate from the
base (4 screws).

3. Secure the hard disk drive on the plate
(4 screws).

4. Plug the IDE and power cable to the HDD. The red stripe on the ribbon cable should be
aligned with PIN1 on the IDE connector of HDD.

5. Put the plate back to the base and
secure with 4 screws.

6. Connect the main unit power.

Note: If the HDD does not work normally, please refer to troubleshooting.

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

12

Compact Flash Installation

Model H700 will configure Compact Flash in IDE mode as secondary master after it is installed.
The next available drive letter will be automatically assigned to Compact Flash.

Installing Compact Flash

1. Turn off power and remove power cable from Model H700.

2. As the compact Flash socket is located on the soldering side of M/B, remove the 4 screws
and disassemble the front panel plate.

3. Insert Compact Flash and lock the black lever in a 90 degree position.

Black lever in a
90 degree
position

4. Reassemble front panel plate to main unit.

5. Connect the main unit power.

Compact Flash

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

13

Unplug the loopback from the MCR socket. The

MCR socket is found on the right side on the

it and

Magnetic Card Reader Installation

An optional Magnetic Card Reader (MCR) can be installed on the right side of Model H700.

Magnetic Card Reader (MCR)

Installing an MCR

1. Turn off system power.

2.
back of the main Unit.

3. Attach the MCR Assembly to the main un
connect the MCR cable to the MCR socket.

4. Secure the MCR to the main unit with 2 screws.

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

14

5. Turn on system power.

Note: If the MCR does not work normally, please refer to troubleshooting.

Attention: The loopback or the MCR cable must be inserted in the socket for an external keyboard to

function with Model H700.

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

15

MCR Parameter Modification

This option is for users who need to customize the MCR parameters for a particular task.
Some of the useful parameters include:

The selection of country code, other than the default English.
The choice of track combinations.
The preamble/postamble codes.
The MCR parameters can be modified by using the supplied utility program.

The utility can be found on the CD that came with your system in the “Utilities” folder. The
program name is msr_v12_win.zip.
If you are upgrading and earlier system to include our MCR reader, then this utility can located on
our website at http://www.firich.com.tw/tech_drivers.htm in the section labeled as “MSR Utility”.

Unzip this file onto your system hard disk, in a folder of your choice.
It will also create 3 subfolders named Disk1, Disk2, and Disk3.
Change to the folder “Disk1” and run the “Setup.exe” program, and follow the simple onscreen
instructions.

When the installation finishes, you will find that a new folder has been created in your “Program files”
folder, labeled as “Decoder” with a subfolder named “S64 Decoder”.

Now change folder to C:\Program Files\Decoder\S64 Decoder and run the program named
“S64_cfg.exe”.

When the program has loaded please select the Magnic_Reader menu item as in the following
picture. By using the 3 top items listed; Interface, Communication and Miscellaneous, you will
be able to alter many of the parameters associated with the MCR unit.
When you have finished your modifications and are sure that they are set exactly how you want
them to be, just click on the menu item Transmit to download the new parameter to the MCR unit.
Please refer to the Help menu for any further assistance.

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

16

VFD Customer Display Installation

An optional VFD customer display can be installed on the back of Model H700.

Rear view with VFD attached.

Installing a VFD

1. Turn off system power.

2. Make sure that JP1 and JP2 on the secondary I/O board 9000PB0480 are set correctly. It's
important to note that the supply voltage for the customer display has been set to +12V, which
is for VFD type. IF an LCD customer display is chosen, please change it to +5V through JP1
on 9000PB0480. Please refer to page 57, Mode1 RJ45 connector used for VFD.

3. Remove the VFD Mounting Cover from
the base.

4. Secure the VFD Holder to the base with
3 screws and place VFD display into the
holder.

PDF created with pdfFactory Pro trial version www.pdffactory.com

17

5. Connect the VFD RJ45 cable in the
VFD/COM4 port on the I/O panel which
located under the base.

6. Turn on VFD power switch, then turn on
system power.

NOVA 4710 Main Board

Note: If the VFD does not display correctly after an application is loaded, please refer to troubleshooting.

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

18

CD-ROM Installation

1. Please make sure the IDE 2 in the CMOS setup is enabled.

2. Turn off the power.

3. Plug the CD-ROM cable to the CD-ROM port.

Note: If the CD-ROM cannot be detected by the system, please refer to troubleshooting.

Cash Drawer Installation

1. Before connecting the cash drawer to Model H700, please make sure the driver voltage and
cable pin assignment of the cash drawer matches the definition of the cash drawer port of
Model H700. Please refer to page 57 Cash Drawer .

2. Plug cash drawer cable into cash drawer port.

Note: If the cash drawer cannot be detected by the system, please refer to troubleshooting.1

.

3. Up to two cash drawers may be driven from this port. Driving voltage of the solenoid is

DC+12V. I/O port 201h is used for drawer operation. A test program is supplied, for all
Windows O/S, source code of which is available on request to software developers.
Hardware logic is as follows.
To open drawer1, write 10h to port 201h, wait 200 msec, then write 00h to turn off the drive.
To open drawer2, write 20h to port 201h, wait 200 msec, then write 00h to turn off the drive.

To test for drawer open, read port 201h, if bit 0=1 then drawer is open, if bit0=0 drawer is
closed

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

19

Optional Second LCD Panel Display

An optional second LCD panel can be easily installed on Model H700.
There are two standard pole heights that may be ordered, 150mm and 400mm.
The mechanical fitting of the second panel display is a very simple process.

Position the Model H700 onto it’s side.
Remove the 3 screws and Mounting Cover from the base unit.
Position the already assembled Second Panel Display, Pole and Holder to the base and
secure firmly with the 3 screws.
Now connect the Second Panel Display cables to the Power and VGA sockets on the
underside of the Model H700 unit. If you also ordered the second display Touch panel
option then connect this to the COM4 socket.

Note. CMOS BIOS settings should be altered to make COM4 use IRQ11, and boot
Display ‘CRT+LVDS’ should be enabled.
Dependant upon which operating system is used, drivers will have to be installed,
therefore please refer to the CD that came with your Model H700, or visit our website at:

http://www.firich.com.tw/tech_drivers.htm

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

20

OSD Settings for Second LCD Panel

Model H700 secondary LCD panel has built-in OSD (on screen display) controls to adjust various
display parameters. The control buttons are located on the right side of the back cover.

OSD Settings

There are four buttons on the OSD panel: Select, Down, Up, and Enter. The functions of these
four buttons are as follows:

Menu Press to open the OSD window.
Back one menu level up.
Press to exit the OSD window while in OSD mode.

DownArrow Press to scroll item selection bar down.
To decrease the parameter value.
To switch the item selection (Ex: YES / NO).

UpArrow Press to scroll item selection bar up.
To increase the parameter value.
To switch the item selection (Ex: YES / No).

Enter Enter the selected sub-menu.
Confirm selected function.

OSD Menu Structure

RGB Menu Brightness
Red -127~127
Green -127~127
Blue -127~127
Color Temp 0~7
Sharpness 0,1
Main Menu

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

21

CMOS Setup

Model H700 systems have adopted the motherboards NOVA4710 , using AWARD BIOS.
Please refer to the NOVA4710 M/B User's Manual for a detailed description of the BIOS CMOS

setup.

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

22

CChhaapptteerr 33

SSooffttw

H700 comes with a variety of drivers for different operating systems.
You will find 1 CD with H700. The CD has all the necessary drivers to setup H700.
Important: You must install the Intel Chip Set Driver first.

waarree SSeettuupp

Intel Chip Set Driver Installation for all Windows Operating
Systems

1. Insert the CD into your CD ROM Drive.

2. Locate D:\Others\Intel\INF folder

3. Double click Setup.exe

4. Click Next.

PDF created with pdfFactory Pro trial version www.pdffactory.com

23

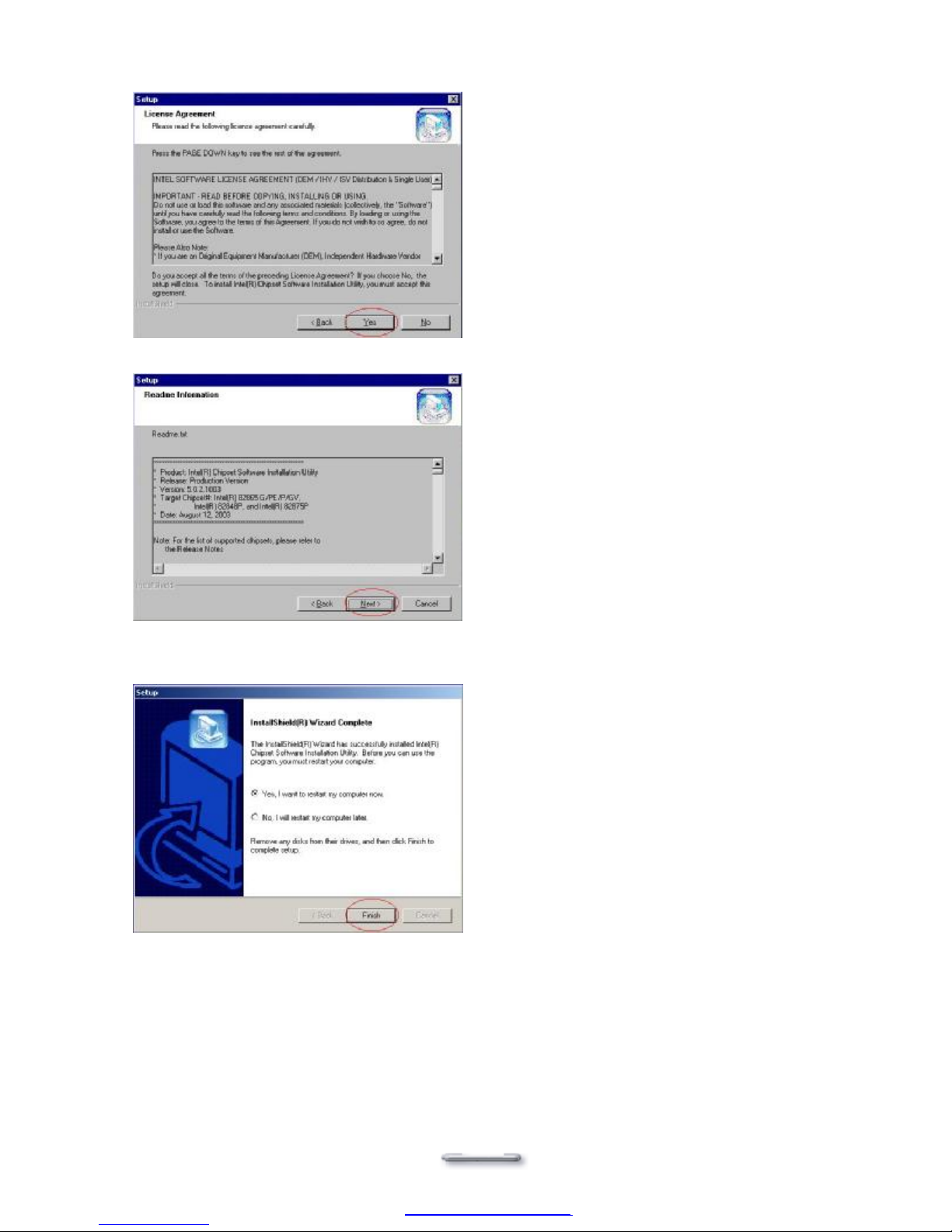

5. Read the License Agreement and click Yes.

NOVA 4710 Main Board

6. Click Next and the drivers for the Intel Chip set will install.

7. When the 'Setup COMPLETE' message appears click Finish to restart your computer.

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

24

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

25

VGA Driver Installation

Nova 4710 uses only one chipset “852GME” that is capable of driving a single or dual panel
display.

Only one driver needs to be installed.

852GME driver installation Windows 98 & ME

1. Locate the VGA folder on the utilities CD.

2. Open D:\VGA\Intel\852GM_GME\win9x folder

3. Run setup.exe.

4. Select Next to continue.

5. Read the License Agreement and click Yes.

PDF created with pdfFactory Pro trial version www.pdffactory.com

26

6. Click Finish to complete the installation procedure and restart H700.

NOVA 4710 Main Board

7. When entering Windows, Windows will find new hardware.
Insert Disk
Open D:\VGA\Intel\825GM_GME\Win9x\Win9x\ikch8xx.cat folder

Click OK

PDF created with pdfFactory Pro trial version www.pdffactory.com

27

852GME driver installation Windows 2000 & XP

1. Open D:\VGA\Intel\852GM_GME\win2k_xp folder.

2. Run setup.exe

NOVA 4710 Main Board

3. Select Next to continue.

4. Read the License Agreement and click Yes.

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

28

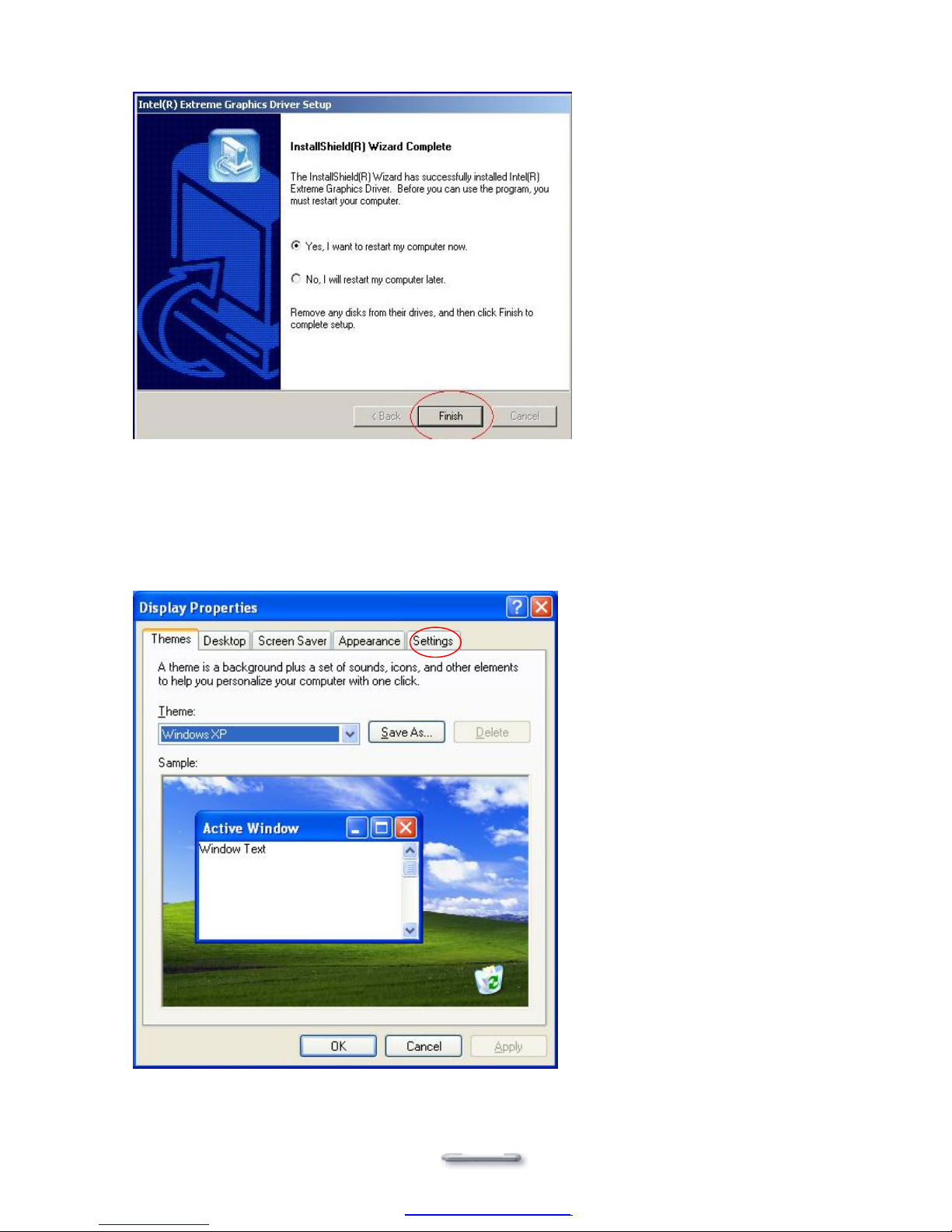

5. Click Finish to complete the installation procedure and restart the system.

Enable second LCD panel setting Windows 2000/Windows XP.

After you have installed the VGA driver you must adjust the settings.

1. Right click your mouse anywhere on the desktop then click properties.

2. Click the settings tab.

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

29

3. Click Advanced.

4. Click Intel(R) Extreme Graphics.

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

30

5. Click Graphics Properties.

6. Click Extended Desktop and select Notebook for primary device, monitor for secondary
device.

PDF created with pdfFactory Pro trial version www.pdffactory.com

31

7. Click OK.

NOVA 4710 Main Board

8. Select the second LCD panel. This is done either by clicking on the number 2 or selecting from

the dropdown menu.
For the second LCD panel make sure that Extend my Windows desktop onto this monitor is

selected.

9. Click Apply then click OK to finish the settings.

Note. During boot sequence “No Sync” will appear on the second LCD panel.
The boot sequence can take a minute or so when a second LCD panel is installed.

PDF created with pdfFactory Pro trial version www.pdffactory.com

32

LAN Driver Installation

LAN Driver Installation Windows 98 & ME

8. Open D:\LAN\Intel folder.

9. Double click on pro98me.exe

NOVA 4710 Main Board

10. Select Next to continue.

Read the License Agreement and select “I accept the terms in the license agreement”.

PDF created with pdfFactory Pro trial version www.pdffactory.com

33

11. Select Next to continue.

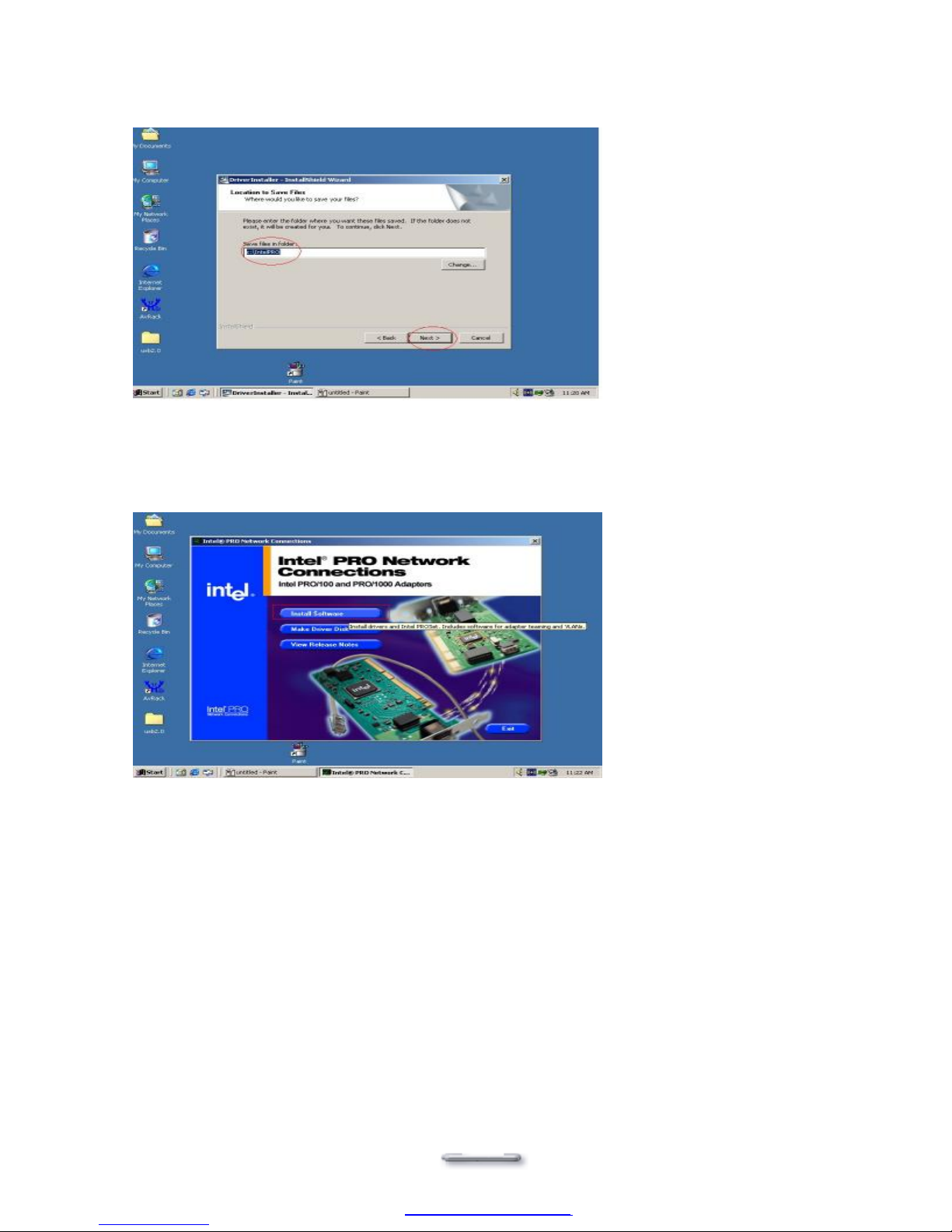

Click C:\IntelPRO

12. Select NEXT to continue

NOVA 4710 Main Board

13. Select Install Software.

PDF created with pdfFactory Pro trial version www.pdffactory.com

34

14. Click Restart Now

Intel LAN Driver Installation Windows 2000 & XP

15. Open D:\LAN\Intel folder.

16. Double click on pro2kXP.exe

NOVA 4710 Main Board

Read the License Agreement and select “I accept the terms in the license agreement”.

17. Select Next to continue.

PDF created with pdfFactory Pro trial version www.pdffactory.com

35

Click C:\IntelPRO

18. Select Next to continue.

NOVA 4710 Main Board

19. Click Install Software

PDF created with pdfFactory Pro trial version www.pdffactory.com

36

20. Click Restart Now

NOVA 4710 Main Board

Audio Driver Installation

Audio Driver Installation for all Windows Operating Systems.

1. Open D:\AUDIO\Realtek

2. double click Setup.exe.

PDF created with pdfFactory Pro trial version www.pdffactory.com

37

3. Select Next to continue.

NOVA 4710 Main Board

Note: For Windows 2K. If you receive this warning message, please click Yes to continue.

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

38

Note: For XP If you receive this warning message, please click Continue Anyway .

4. Click Finish and restart the system.

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

39

USB Driver Installation

USB 2.0 Installation for Windows 98 & ME

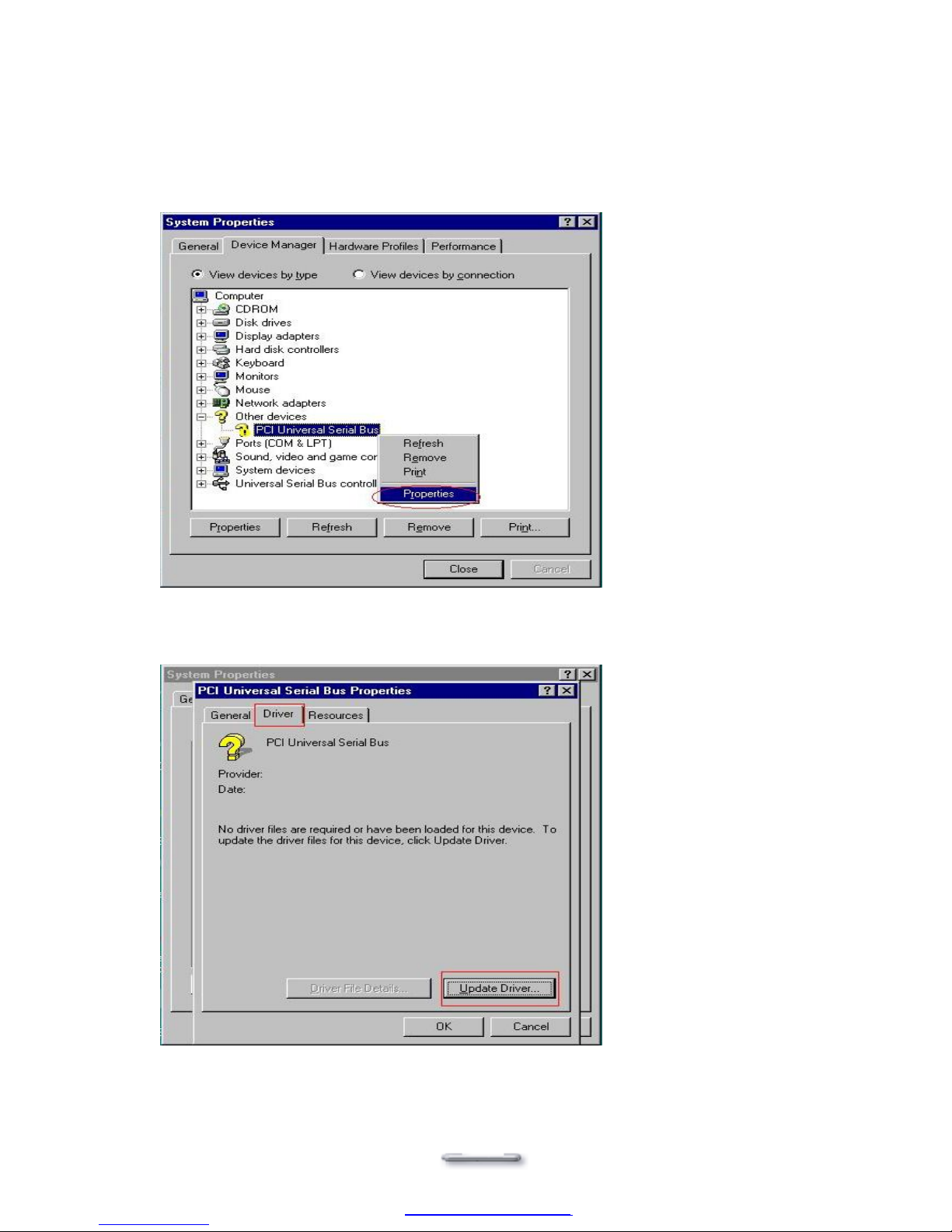

21. In Control Panel, double click on System Properties and select Device Manager.

22. Right click on PCI Universal serial Bus and Left click on Properties.

23. Click the Driver tab and then click on Update Driver.

PDF created with pdfFactory Pro trial version www.pdffactory.com

40

24. Select Next to continue.

NOVA 4710 Main Board

25. Select Display a List of all the drivers…. click Next.

26. Highlight Other devices and click Next.

PDF created with pdfFactory Pro trial version www.pdffactory.com

41

27. Click Have Disk.

NOVA 4710 Main Board

28. Browse the CD to D:\Usb20\Intel\Win98_ME then click OK.

29. Click Next.

PDF created with pdfFactory Pro trial version www.pdffactory.com

42

30. Select Next to continue.

NOVA 4710 Main Board

31. During the copy process you may receive the above message, again Browse the CD to
D:\Usb20\Intel\Win98_ME then click OK.

32. Click Finish.

PDF created with pdfFactory Pro trial version www.pdffactory.com

43

USB 2.0 Installation for Windows 2000 & Windows XP

33. Locate D:\Usb20\Intel\Win2K or D:\Usb20\Intel\WinXP folder.

34. Double click USB20_2K.exe or Usb20.exe

NOVA 4710 Main Board

35. Select Next to continue.

36. Click Yes to continue

PDF created with pdfFactory Pro trial version www.pdffactory.com

44

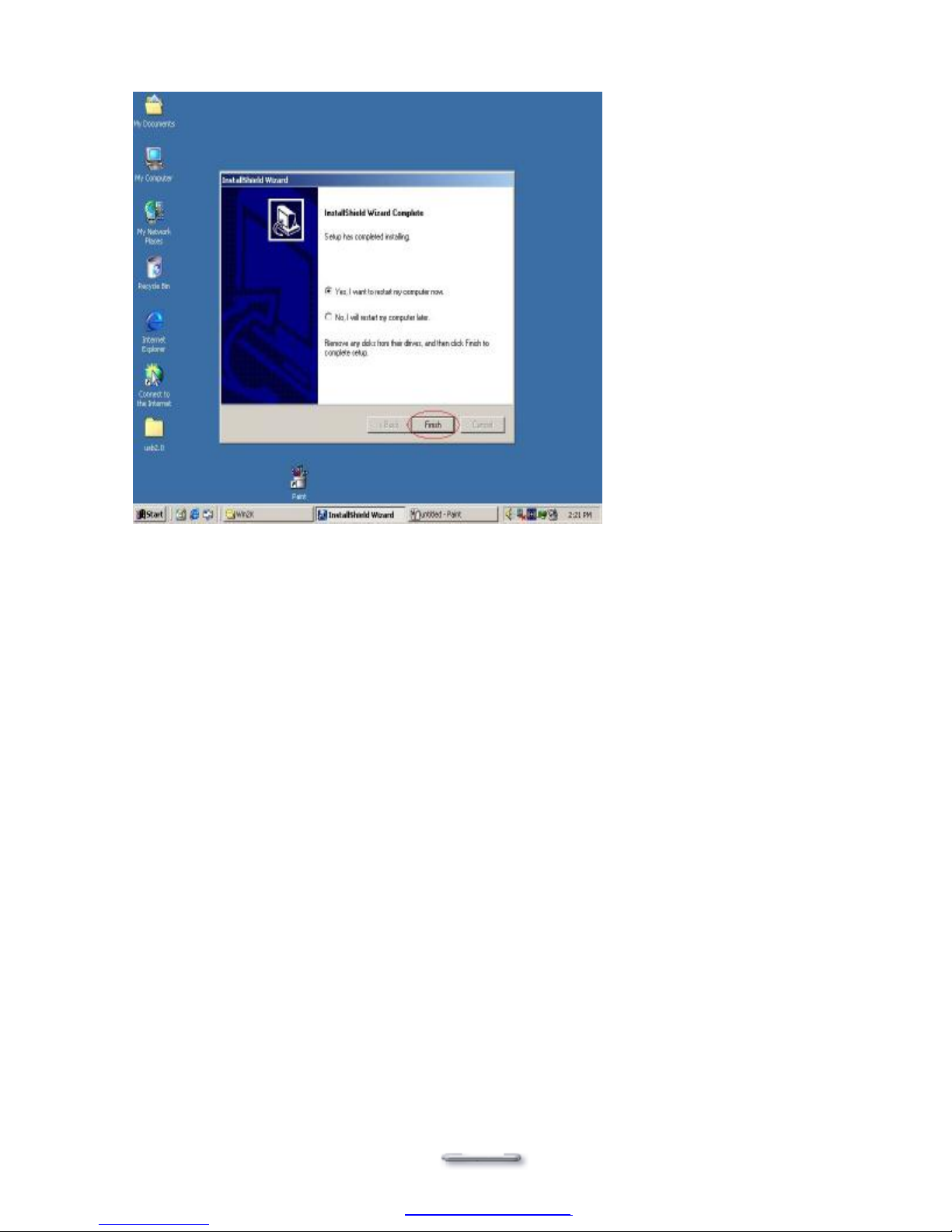

37. Click Finish and restart the system.

NOVA 4710 Main Board

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

45

ELO Touch Tools Installation

ELO Touch Tools Installation for Windows 98

1. Insert the Utility CD and locate the touch screen folder “Touch screen\ELO Win 9X_me”.

2. Run Setup.exe

3. Click Next.

4. Read the “License Agreement” and click Yes if you accept it.

5. Select if you have one or two monitors and click Next.

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

46

6. Select the COM port for the monitor. It is recommended that you select COM3 for primary

touch screen and COM4 for second touch screen. Then click Next.

7. Wait until the ELO Touch Tools have been installed.

8. Select View ELO touch screen control panel and click Finish.

10. Click Yes to restart the system.

11. After the system finishes rebooting follow the directions to calibrate ELO Touch Tools.

PDF created with pdfFactory Pro trial version www.pdffactory.com

47

ELO Control Panel

This section explains the different options in the ELO control Panel.

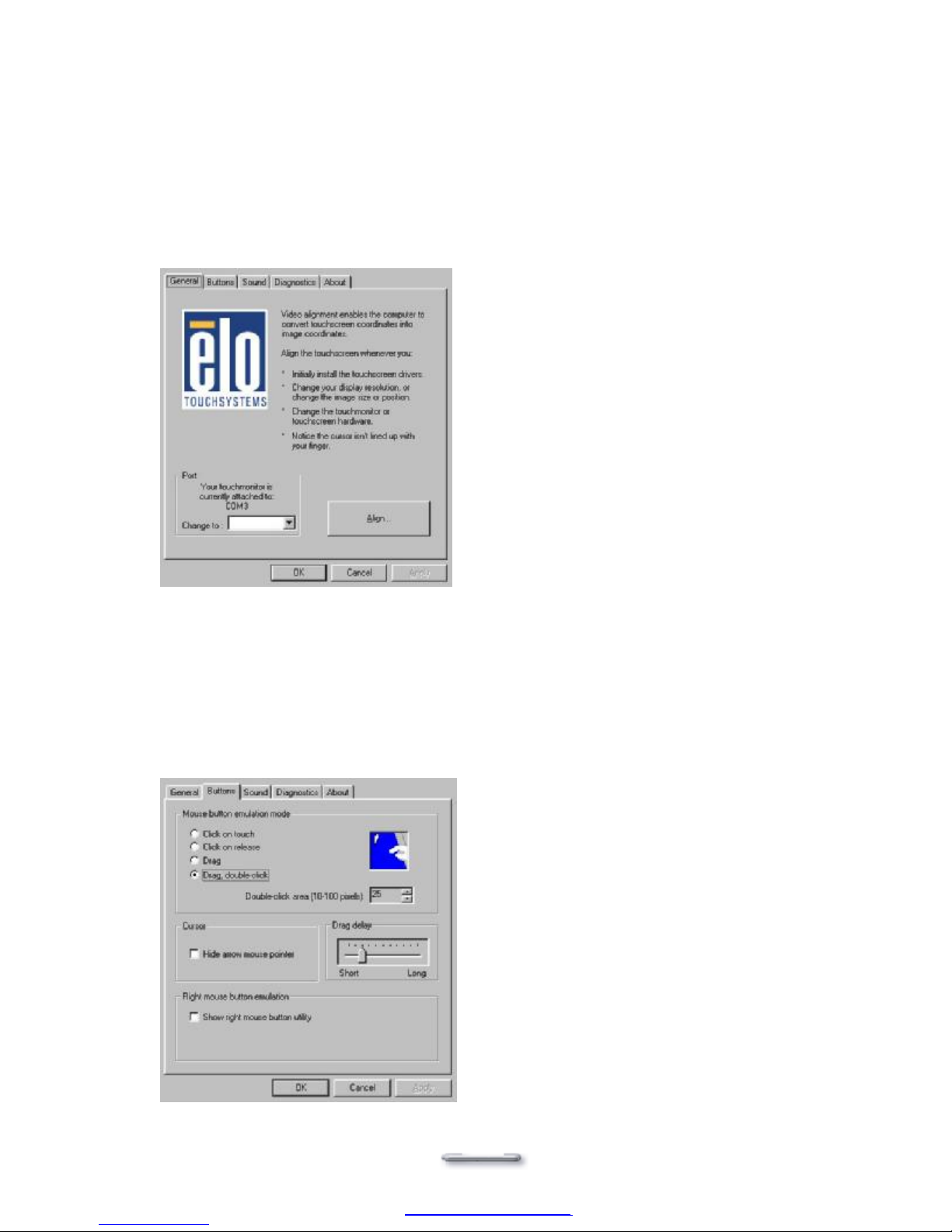

General tab

The general tab allows you to:

Ø Change the COM port your touch screen is set to.
Ø Calibrate the touch screen with the Align button.

NOVA 4710 Main Board

Buttons tab

The Buttons tab allows you to:

Ø Adjust all mouse emulation controls.
Ø Change cursor properties.
Ø Enable or disable right mouse button utility.

PDF created with pdfFactory Pro trial version www.pdffactory.com

48

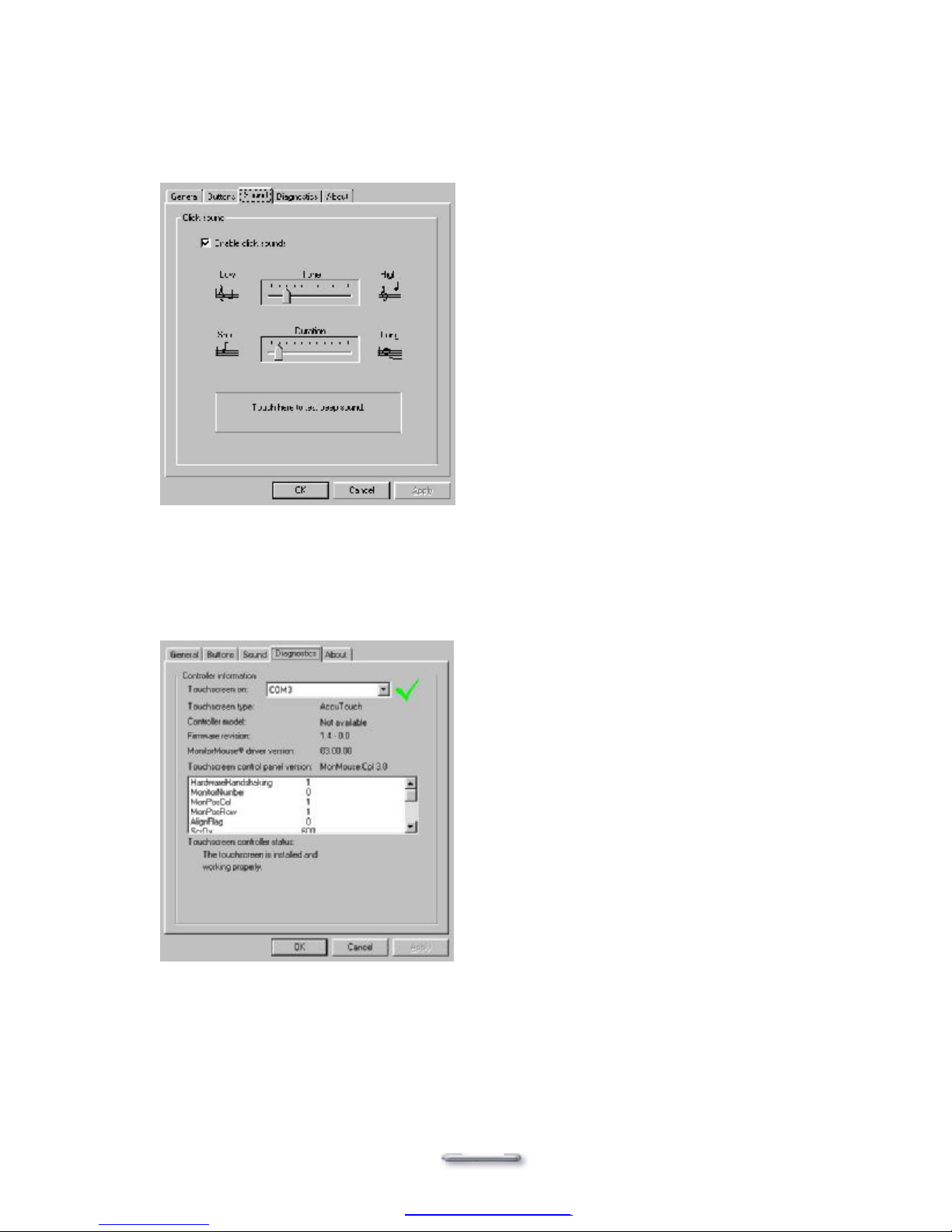

Sound tab

The Sound tab allows you to:

Ø To change sound properties for ELO touch tools.

NOVA 4710 Main Board

Diagnostics tab

The Diagnostics tab allows you to:

Ø View Controller Information.

PDF created with pdfFactory Pro trial version www.pdffactory.com

49

About tab

The About tab displays Information about ELO Touchsystems

NOVA 4710 Main Board

ELO Touch Tools Installation for Windows 2000/XP

The procedure is the same for Windows 2000 and Windows XP.

1.Insert the Utility CD and locate the touch screen folder “Touch screen\ELO Touch

2K_XP”.

2.Run Setup.exe

3.Select “Install serial touch screen Drivers” check box.

4.Read the “License Agreement” and click “Yes” if you accept it.

5. select “Auto detect ELO devices” check box

6.select “COM3 for 1st touch screen”, “COM4 for 2nd touch screen” then click ”next”

7.confirm the required com ports are selected then click “next”

8.select “Calibrate ELO touch screen monitor” check box then click “finish”

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

50

CChhaapptteerr 44

SSppeecciiffiiccaattiioonnss

System Configuration
CPU (PGA 478) Intel (Mobile) Pentium 4 / Celeron Processor, supports 400/533

Bus speed PCI: 33 MHz
DMA channels 7
Interrupt levels 15
Chipset INTEL® 852GM/GME (GMCH).
Real-time clock INTEL 82801DB (ICH4)
DRAM One 184-pin DIMM socket to support DDR 200/266/333 SDRAM.

VGA controller Built-in AGP2.0 4X 3D graphics engine. Share system DDR

Primary LCD Panel 12” or 15” TFT LCD Panel (800X600/1024x768).
Primary Touch

Panel
CompactFlash

Disk socket
HDD Internal 3.5” 40GB hard disk drive (or above).
ATA/100
IDE interface
Hardware monitor Built in to monitor power supply voltage and fan speed status
Watchdog timer Software Programmable Reset generated when CPU does not

Speaker 3 watt pedestal-integrated speaker.
Power 250 watt external power adapter.
I/O Port
Serial Port 2 User available Com ports (COM1 & COM2).

MHz FSB

The maximum memory is up to 1 GB.

SDRAM 32MB(max). Flat panel on-chip 852GM(852GME)
Supports 18bit/24bit single pixel or 36bit/48bit dual pixel color
LVDS TFT LCD.

12” or 15” ELO 5-wire resistive touch panel.

Type I/II CompactFlash™ Disk. The Flash Disk provides 100%
compatibility with (IDE2) hard disk.

Up to four PCI Enhanced IDE hard drives. The ATA/100 IDE can
handle data transfer up to 100 MB/s.

periodically trigger the timer. Your can use INT15 to control the
watchdog and generate a system reset.

2 System assigned Com ports (COM3 & COM4).

Ø COM3 for primary touch screen.
Ø COM4 for secondary touch screen or customer character

display.

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

51

Ø Optional COM5 & COM6 (Special Request)

Parallel Port One Bi-directional Parallel Port Support ECP/EPP (IEEE1284).
USB port Supports 4 USB 2.0 ports for future expansion

(2*Internal, 2*External)

Cash drawer port RJ11 Single/Dual Cashdrawer port ,12V actuation support. use I/O

PORT 201H to control it.

Mouse Port One PS/2 mouse port.
Keyboard Port One PS/2 keyboard port.
LAN Port ICH4 Fast Ethernet controllers, IEEE 802.3u Auto-Negotiation

support for 10BASE-T/ 100BASE-TX standard.

VGA Port Standard VGA Port for second LCD panel.
CD-ROM Port Supports 24x Slim type external CD-Rom drive.
Audio Port Integrated Sound Blaster compatible, AC97 Audio Codec.
Construction
Injection-Molded, Die-cast aluminum enclosure, spill resistance.
Optional Features
Customer display Integrated VFD/LCD customer display.
Magnetic card

reader
FDD External USB Floppy disk drive.

CD-ROM External 24X slim type CD-ROM drive.
Second LCD Panel Optional 12” TFT LCD Panel.
Second Touch

Panel
Power Consumption

Integrated Single／Dual／Triple Track MCR.

Optional 12” ELO 5-wire resistive touch panel.

Power
consumption

Operating temperature
Operating

temperature

80-1000W Idle
(Standard system & secondary LCD panel while accessing HDD).

0 ℃ ~ 35 ℃

(*CPU needs Cooler & silicone heat sink paste*)

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

52

I/O board Configuration

The main I/O board 9000PB0550 covers the primary I/O ports to the mainboard. Including: DC
power input, COM1 and COM2, LPT1, PS/2 keyboard, PS/2 mouse, audio, USB and LAN port.

9000PB0550 I/O Board Pin Definition

CON101 DC power connector

PIN No. Description

1 DC +5V
2 DC +5V
3 +5SB
4 DC +12V
5 PSON
6 GND
7 GND
8 GND

CON10 System DC power connector for Mainboard

PIN No. Description

1 DC +12V
2 +5SB
3 DC+12V
4 GND
5 DC+12V
6 GND
7 NC
8 DC +5V

9 DC +5V
10 DC+12V
11 GND
12 GND

PDF created with pdfFactory Pro trial version www.pdffactory.com

53

13 PSON
14 NC

CON3 parallel port LPT1 D-SUB25 connector

PIN No. Description PIN No. Description

1 PRT_STB# 2 PRT_D0
3 PRT_D1 4 PRT_D2
5 PRT_D3 6 PRT_D4
7 PRT_D5 8 PRT_D6

9 PRT_D7 10 PRT_ACK#
11 PRT_BUSY 12 PRT_PE
13 PRT_SLCT 14 PRT_AED#
15 PRT_ERR# 16 PRT_INIT#
17 PRT_SLIN 18 GND
19 GND 20 GND
21 GND 22 GND
23 GND 24 GND
25 GND

NOVA 4710 Main Board

CN10 PS/2 keyboard connector

PIN No. Description

1 KB-DATA
2 NC
3 GND
4 +5V
5 KB-CLK
6 NC

CON8 PS/2 mouse connector

PIN No. Description

1 Mouse_DATA
2 NC
3 GND
4 +5V
5 Mouse_CLK
6 NC

PDF created with pdfFactory Pro trial version www.pdffactory.com

54

CON13 Audio line output EAR connector

PIN No. DESCRIPTION

1 EAROUT-L
2 GND
3 EAROUT-R

CON2 RJ45 LAN connector

PIN No. Description

1 LAN_TX+
2 LAN_TX-
3 LAN_RX+
4 LAN_L45
5 LAN_L45
6 LAN_RX-
7 LAN_L78
8 LAN_L78

NOVA 4710 Main Board

CON4&CON41 RS232 port COM1 and COM2 D-SUB connector

PIN No. Description

1 DCD
2 SIN
3 SOUT
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 RI/DC output (RI is the default setting)

Pin9 signal can be selected as standard RI or DC power output depending on the JP2 and JP3
jumper settings. The default settings are for RI.

Attention: For devices using external power supplies and connected through Pin9 of COM1 or COM2, JP2
and JP3 should be open.

JP3 Description

1-2 PIN9 of COM1=DC +12V
3-4 PIN9 of COM1=RI (Default setting)
5-6 PIN9 of COM1=DC +5V

JP2 Description

PDF created with pdfFactory Pro trial version www.pdffactory.com

55

1-2 PIN9 of COM2=DC +12V
3-4 PIN9 of COM1=RI(Default setting)
5-6 PIN9 of COM2=DC +5V

CON5 USB port

NOVA 4710 Main Board

PIN No. Description PIN

1 +5V 2 +5V
3 USB_0- 4 USB_1-
5 USB_0+ 6 USB_1+
7 GND 8 GND

CON1 I/O Bus connector

PIN No. Description PIN No. Description

1 EAROUT_L 2 DIO_IN00

3 DIO_OUT01 4 DIO_OUT00

5 COM4_DTR 6 COM4_DSR

7 COM4_RTS 8 COM4_CTS

9 EAROUT_R 10 COM4_SOUT
11 COM2_CTS 12 COM2_RI
13 COM2_DSR 14 COM2_RTS
15 COM2_SOUT 16 COM2_DTR
17 COM2_DCD 18 COM2_SIN
19 COM1_CTS 20 COM1_RI
21 COM1_DSR 22 COM1_RTS
23 COM1_SOUT 24 COM1_DTR
25 COM1_DCD 26 COM1_SIN
27 PC_CLK 28 PC_DATA
29 MOUSE_CLK 30 MOUSE_DATA
31 USB_1+ 32 USB_1-
33 USB_0+ 34 USB_0-
35 COM4_SIN 36 PRT_STB#
37 PRT_D0 38 PRT_D1
39 PRT_D2 40 PRT_D3
41 PRT_D4 42 PRT_D5
43 PRT_D6 44 PRT_D7
45 PRT_ACK# 46 PRT_PE
47 PRT_BUSY 48 PRT_SLCT
49 PRT_AED# 50 PRT_ERR#
51 PRT_INIT# 52 PRT_SLIN

Description

No.

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

56

53 LAN_L78 54 LAN_L78
55 LAN_L45 56 LAN_L45
57 LAN_TX+ 58 LAN_RX+
59 LAN_TX- 60 LAN_TX+

CON12 COM4, Digit I/O signal and DC power connector

A 14 wire cable connects to 9000PB0480 secondary I/O board CN8, this supplies single and
power for the VFD customer display and Cash Drawer.

PIN No. Description PIN NO Description

1 DIO_OUT00 2 COM4_CTS

3 DIO_OUT01 4 COM4_SIN

5 DIO_IN00 6 COM4_OUT

7 +5V 8 COM4_RTS

9 +5V 10 COM4_DTR
11 +12V 12 COM4_DSR
13 +12V 14 GND

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

57

VGA

9000PB0480 I/O Board Pin Definition

9000PB0480 secondary I/O board includes VGA port, Cash drawer, and COM4/VFD ports.
CN6
Com4 uses the RJ-45 connector to accept VFD customer display. If the customer display is not

required, this port may function as an RS-232C port. An adapter cable to convert RJ-45 to DB-9
may be obtained from your supplier. Jumpers on the circuit board must also be reconfigured as
shown in the figure.

Mode1 RJ45 connector used for VFD (factory default setting)

JP1 JP2

1-2 Short 1-2 Short

3-5 Short
4-6 Short

PIN No. Description

1 COM4_SIN
2 COM4_SOUT
3 COM4_DSR
4 COM4_DTR
5 GND
6 GND
7 +12V
8 +12V

Mode2 RJ45 connector used for RS232 device

JP1 JP2

2-3 Short 1-3 Short

2-4 Short

PDF created with pdfFactory Pro trial version www.pdffactory.com

58

PIN No. Description

1 COM4_SIN
2 COM4_SOUT
3 COM4_DSR
4 COM4_DTR
5 COM4_RTS
6 GND
7 COM4_CTS
8 +5V

CN7 Cash drawer RJ11 connector

PIN No. DESCRIPTION

1 FG
2 L1-
3 SW+
4 DC +12V (L1+/L2+)
5 L2-
6 SW-

NOVA 4710 Main Board

CN8 VGA 2x8 PIN header connector connects to the mainboard CN6

PIN
No

Description PIN

No

Description

1 RED 2 GREEN
3 BLUE 4 NC
5 GND 6 GND
7 GND 8 GND

9 NC 10 GND
11 NC 12 SM DATA
13 SM CLK 14 V-SYNC
15 H-SYNC 16

P1 DC 12V Power Source for second LCD panel

A 4 wire cable connects to the P1 of 9000PB0480, this supplies DC +12V power for second
LCD panel.

PIN No. Description

1 12V

2 12V

3 GND

4 GND

5 GND

PDF created with pdfFactory Pro trial version www.pdffactory.com

59

CN5 VGA connector

PIN No. DESCRIPTION

1 RED
2 GREEN
3 BLUE
4 NC
5 GND
6 GND
7 GND
8 GND

9 NC
10 GND
11 NC
12 SM DATA
13 SM CLK
14 V-SYNC
15 H-SYNC

NOVA 4710 Main Board

PDF created with pdfFactory Pro trial version www.pdffactory.com

60

9000PB0230 I/O Board Pin Definition

9000PB0230 Third I/O board includes external CD ROM and VGA port.

CN2 External CD ROM connector

NOVA 4710 Main Board

PIN
No

Description PIN

No

Description

1 IDE RESET 2 GND
3 DATA7 4 DATA8
5 DATA6 6 DATA9
7 DATA5 8 DATA10
9 DATA4 10 DATA11

11 DATA3 12 DATA12
13 DATA2 14 DATA13
15 DATA1 16 DATA14
17 DATA0 18 DATA15
19 GND 20 GND
21 IO WRITE 22 ADDR2
23 IO READ 24 ADDR1
25 HD READY 26 ADDR0
27 IRQ14 28 HDD SELECT0
29 GND 30 HDD SELECT1
31 VCC 32 VCC
33 LINE-L 34 VCC
35 GND 36 LINE-R

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

61

CN1 44PIN 2.00mm IDE connector connects to the mainboard secondary IDE

connector CN3

PIN No. Description PIN No. Description

1 RESET# 2 GND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10

9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GND 20 N/C
21 IDE DRQ 22 GND
23 IOW# 24 GND
25 IOR# 26 GND
27 IDE CHRDY 28 GND
29 IDE DACK 30 GND
31 INTERRUPT 32 N/C
33 SA 1 34 N/C
35 SA 0 36 SA 2
37 HDC CS0# 38 HDC CS1#
39 HDD ACTIVE# 40 GND
41 +5V 42 +5V
43 GND 44 +5V

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

62

CChhaapptteerr 55

TTrroouubblleesshhoooottiinngg

Please note that the following troubleshooting guide is designed for people with strong
computer hardware knowledge such as System Administrators and Engineers.

Power is on, but there is no Panel Display

A) Check that the external power adapter LED is on when the power adapter power switch

is in the on position.

B) Check that the Power and CPU fans are running when system power is on.

B-1) Check whether the ATX power switch cable is properly connected to mainboard

B-2) Check that the power cable is connected properly between 9000PB0550

B-3) Check the 12V CPU Power cable is connected properly between P3 of I/O

CN13 (Please refer to page 7 and page12 in the NOVA4710 User’s guide).

primary I/O board CON101 and mainboard CN1.

board 9000PB0550 to CN2 on the motherboard.

C) Please ensure that the IDE cable is properly connected to the HDD and the red stripe on

the ribbon cable is aligned with PIN 1 on the IDE connector of HDD.

D) Reset CMOS DATA by shorting mainboard JP4 PIN3 and PIN2 for a few seconds

(Please refer to page10 in the NOVA4710 User’s guide).

E) Check if the system is beeping.

E-1) A single long repeated beep indicates that a DRAM error has occurred. Make

sure DRAM is properly installed or replace DRAM.

E-2) One short beep after power on, means the system board is OK, but the LCD

panel or onboard VGA interface could be defective.
E-2-1) Check CMOS Setup/Advanced Chipset Features/Panel Number is set

to 800x600 resolution. Note. If this setting has been accidentally set to a
resolution higher than 800x600 you will need to attach an external
monitor to the VGA port to be able to see the CMOS Setup screen. Also
check Boot Display = CRT+LVDS

E-2-2) Check the inverter cable is connected properly between the LCD

connector board and motherboard CN5.

E-2-3) Check the cable between the LVDS connector on motherboard CN4

and the 1st LCD connector board is connected properly.

E-2-4) The 1st LCD connector board could be defective.
E-2-5) The connection between the 1st LCD connector board and the LCD

panel is not connected properly or LCD cable could be defective.

E-2-6) The Inverter cannot produce backlight.
E-2-7) The LCD panel could be defective.

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

63

To check where the problem could be:

Please connect a VGA monitor to the VGA port. If the VGA monitor is display normally, one of
the problems above is occurring, otherwise it could be the mainboard is not functioning
properly.

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

64

Cannot Detect HDD

A) IDE cable is not connected properly to mainboard IDE1 or it could be defective.
B) HDD power cable is not connected properly to the I/O board or it could be defective.
C) Check CMOS setup, set IDE HDD to Auto detects.
D) On-board IDE port could be defective.

Touch Panel Does not Work

A) Check CMOS settings, COM3 needs to be “Enabled”. The correct settings are “3E8h”

and “IRQ10”.

B) Check that there are no conflicts between COM3 IRQ10 and any other devices.
C) Check that the ELO driver has been properly installed. Or try to re-install again (Please

refer to the ELO driver installation).

D) Check that the ELO controller on COM3 has been detected during the ELO driver

installation. If yes, than check that the flat cable from the ELO touch screen has been
properly connected to the ELO controller (Attention: Pin1 mark should be on the same
side as the ELO controller).

E) Check that the ELO controller Green LED is blinking?

If no, there is no DC+5V support for the ELO controller from the mainboard.
E-1) Check the mainboard JP6 jumper settings. The correct jumper settings for the

Touch screen are:

E-2) Check that the COM3 cable is properly connected between mainboard CN6 and

the Touch screen controller.

F) Touch screen controller could be defective or the touch panel could be defective.

ELO Touch Panel Cannot Calibrate Correctly

A) Please replace the ELO controller, and re-calibrate. If this works, change back to the

original ELO controller, and re-calibrate.

B) If the ELO touch panel still cannot calibrate correctly after changing to a new ELO

controller, the touch panel may be not installed properly or it could be defective.

Second LCD Panel is Not Functioning Properly

A) Check that the VGA driver 852GME is installed properly (Please refer to the VGA driver

installation section).

B) Connect a VGA CRT monitor to the VGA2 connector, if there is a display, then the

second LCD panel could be defective or is not installed properly.

B-1) Please check that both the VGA signal cable and second LCD power cable are

connected properly (Shut the power off before connecting the 2 above mentioned
cables).

B-2) Check that the VGA cable is connected to A/D board CN2. Or it could be

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

65

defective.

B-3) Check that the LCD signal cable is properly connected to A/D board CN8 and

LCD panel. Or it could be defective.
Please re-connect both ends of the LCD signal cable in the correct location. Or

replace with a new cable.

B-4) There will be no backlight if the is inverter is defective.

C) Check that the 10 PIN VGA cable is connected to mainboard CN3 and 9000PB0480

secondary I/O board CN4 properly.

D) The mainboard VGA chip could be defective.
E) The 9000PB0480 secondary I/O board could be defective.
F) If there is no power supply from the 9000PB0480 secondary I/O board, then check if the

power cable is properly connected between position P1 of 9000PB0480 and position P1
of 9000PB0550. If there is still no power then the fuse “F3” on the 9000PB0480 could be
defective.

PS/2 Keyboard is not Functioning Normally

A) Make sure the keyboard is properly connected to the PS/2 keyboard port before the

system is powered up. If the keyboard is connected after Windows2000 has been booted,
the keyboard will not work.

B) Check that the LED on the keyboard goes on then off after power on. If yes, the

keyboard is getting power correctly. If not, the F3 fuse on the 9000PB0550 primary I/O
board could be faulty.

C) If the MCR is not required. Please make sure the loopback is plugged into the MCR

connector board.

D) Check that the 6 wire cable has been properly connected between the MCR connector

board and mainboard CN17.

The mainboard CN17 cable can be removed. Then short PINs 2-3 and PINs 4-5 If the
keyboard still does not work, then check next step. Otherwise, the cable or MCR
connector board could be defective.

E) Check that the 60PIN I/O bus cable is properly connected.
F) The mainboard could be defective.

MCR is not Functioning Properly

A) Check if the green MCR LED is on.

A-1) Check if the MCR is properly connected to the MCR connector board on main

system.

A-2) Make sure the 6 wire cable is properly connected between mainboard CN17 and

the MCR connector board.

A-3) The MCR connector board could be defective.
A-4) The MCR module could be defective.

B) If a keyboard is connected to the PS/2 keyboard port, and functions correctly, then the

MCR module could be defective.

C) For an MCR to work under Windows2000, the keyboard must be connected prior to

booting the system.

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

66

VFD Display is not Functioning Properly

A) Ensure that COM4 is enabled in the CMOS setup, and data is written to COM4 in the

application.

B) Check if there is any display when system power is ON, if the screen is blank, please

follow the steps below.

B-1) Make sure the power switch on the VFD display is on before powering the main

system.

B-2) Make sure that the 9000PB0480 secondary I/O board JP1 & JP2 jumper settings

are correct.
The proper settings are:

JP1 PINs 1-2 shorted
JP2 PINs 1-2, PINs 3-5 and PINs 4-6 shorted

B-3) Fuse F1 on the 9000PB0480 secondary I/O board could be faulty.

C) Check if the 14pin cable is properly connected between 9000PB0480 secondary I/O

board CON8 and 9000PB0550 primary I/O board CON12.

D) The 9000PB0550 primary I/O board or 9000PB0480 secondary I/O board could be

defective.

E) The on-board COM4 I/O chips could be defective.

External CD-ROM is not Functioning Properly

A) Make sure IDE2 is set to “AUTO” in the CMOS setup.
B) If compact flash memory is installed, remove it and try again.
C) Make sure the CD-ROM cable is properly connected to the CD-ROM port of I/O panel

and the CD-ROM drive. This must be done with the system power off.

D) Check that the 44pin cable is properly connected between 9000PB0230 third I/O board

CN1 and mainboard IDE2.

E) The CD-ROM could be defective.
F) The 9000PB0230 third I/O board could be defective.
G) The on board IDE2 port could be defective.

LAN is not Functioning Properly

A) Check if the LAN driver is installed properly. (Please refer to the LAN driver installation).
B) Check if there are any IRQ conflicts.
C) Check if the RJ45 twinspare cable is properly connected.
D) Check if the 60pin I/O bus cable is properly connected.
E) The 9000PB0550 primary I/O board could be defective.
F) The on board LAN chip could be defective.

COM1, COM2 and LPT1 are not Functioning Properly

A) Check if the I/O ports are enabled in the CMOS setup.
B) Check if there are any IRQ conflicts.

PDF created with pdfFactory Pro trial version www.pdffactory.com

NOVA 4710 Main Board

67

C) Check if the 60pin I/O bus cable is properly connected.
D) The 9000PB0550 primary I/O board could be defective.
E) The mainboard could be defective.

Cash Drawer Port is not Functioning Properly

A) Make sure the pin assignment matches between the cash drawer and the RJ11 cash

drawer port.

B) Verify the digit I/O port address and bit are “201h” and “bit4” respectively. Command

send “L” level for 200ms (Refer to NOVA4710 user’s manual page 80).

C) Check if the 60pin I/O bus cable is properly connected.
D) Check that the 14PIN cable is properly connected between 9000PB0550 primary I/O

board CON12 and 9000PB0480 secondary I/O board CON8.

E) The 9000PB0550 primary I/O board or 9000PB0480 secondary I/O board could be

defective.

F) The mainboard could be defective.

USB device is not Functioning Properly

A) Ensure that the USB controller is “enabled” in the CMOS setup.
B) Check if the 60pin I/O bus cable is properly connected.
C) Fuse F2 on the 9000PB0550 primary I/O board could be faulty. If so no power can

supply the USB port.

D) The mainboard or 9000PB0550 primary I/O board could be defective.

PDF created with pdfFactory Pro trial version www.pdffactory.com
