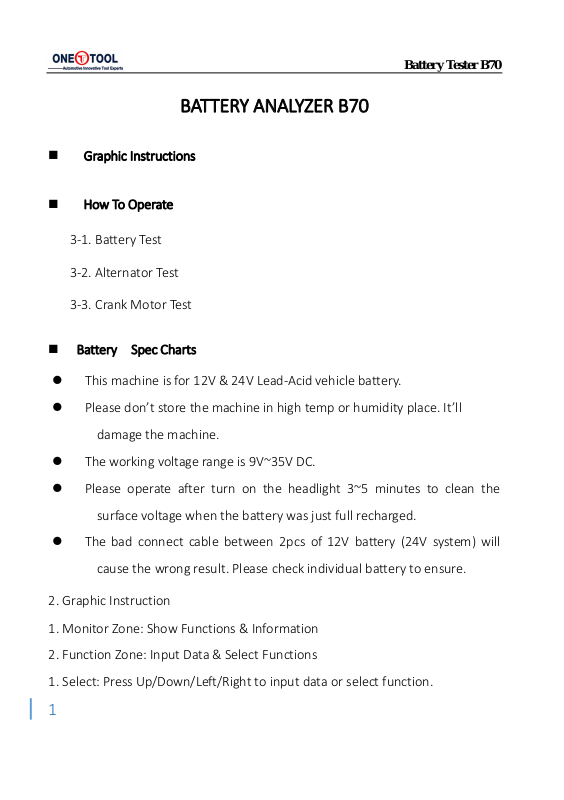

Battery Tester B70
BATTERY ANALYZER B70
Graphic Instructions
How To Operate
3-1. Battery Test
3-2. Alternator Test
3-3. Crank Motor Test
Battery Spec Charts
This machine is for 12V & 24V Lead-Acid vehicle battery.
Please don’t store the machine in high temp or humidity place. It’ll
damage the machine.
The working voltage range is 9V~35V DC.
Please operate after turn on the headlight 3~5 minutes to clean the
surface voltage when the battery was just full recharged.
The bad connect cable between 2pcs of 12V battery (24V system) will
cause the wrong result. Please check individual battery to ensure.
2. Graphic Instruction
1. Monitor Zone: Show Functions & Information
2. Function Zone: Input Data & Select Functions
1. Select: Press Up/Down/Left/Right to input data or select function.
1
Page 2
2. Enter: Confirm the selected function or data.
Select Input ▲▼
CCA IEC
EN JIS
DIN Unknown
Select Rating ▲▼
SET 520 CCA
Press Enter to Start
Analyzing Wait
▌▌
Select Item ▲▼
Battery
Alternator
Cranking
3. Exit: Abort the function or clear the data.
3. How to Operate.
3.1 Battery Test----12/24V
Select Test Item--Battery
Battery Tester B70
2
Select Battery Type
Enter Battery Rating
Page 3
Battery Voltage 12.52V
RESULTS Good
12.52V 480 CCA
Int.R 6.65mΩ
LIFE 65%
RESULTS Good
25.86V 80CCA
Int.R. 13.30mΩ
LIFE 65%
Charged 100% 13.2V
Battery Tester B70
Waiting for Result
Result
90% 12.9V
75% 12.45V
CCA Value 480CCA
The computed CCA value
In 24V system testing, CCA is the half of the sum of two batteries.
Internal Resist 6.65mΩ
(Int.R) It will between 2-15mΩ
Greater CCA with minor resist
In 24V system testing, Internal Resist will the sum of two batteries.
LIFE The computed life of battery, suggest to change if under 50%
3
Page 4
3.2 Alternator Test----12V
Select Item ▲▼
Battery
Alternator
Cranking
Start the Engine
Then press Enter
3000RPM 13.96V
Max 14.07 V < 15.0 V
Min 13.55 V > 13.3 V
Press Enter Continue
Load is all opened
Then press Enter
Start the engine then press Enter to test
Battery Tester B70
Select Testing Item—Alternator
Pump to 3000 RPM for 3-5 Seconds,
Max Volt must under 15.0V, Min V must above 13.3V
4
(When turn off all loads)
Page 5
Battery Tester B70
2000RPM 13.89V
Max13.96 V > 13.5V
Min 13.76V > 12.5V
Select Item ▲▼
Battery
Alternator
Cranking
Start the Engine
Then press Enter
Turn on the headlight & A/C(Max),
Then press Enter to start
Pump to 2000 RPM for 3-5 Seconds,
Max Volt must above 13.5V, Min V must above 12.5V (When turn on all loads)
3.3 Alternator Test----24V
5
Select Testing Item—Alternator
Start the engine then press Enter to test
Page 6
Battery Tester B70
1500RPM 28.89V
Max28.96 V > 27.0V
Min 27.76V > 25.0V
1000RPM 27.96V
Max 38.57 V < 30.0 V
Min 26.55 V > 26.6 V
Press Enter Continue
Load is all opened
Then press Enter
Pump to 1000 RPM for 2-5 Seconds,
Max Volt must under 30.0V, Min V must above 26.6V (When turn off all loads)
Turn on the headlight & A/C(Max),
Then press Enter to start
Pump to 1500 RPM for 2-5 Seconds,
Max Volt must above 27.0V, Min V must above 25.0V (When full loading)
3.4 Crank Motor Test----12V
6
Page 7
Battery Tester B70
Select Item ▲▼
Battery
Alternator
Cranking
Start the motor
Normal V 12.6 V
Crank V 10.3 V
Crank V > 9.2 V
Select Item ▲▼
Battery
Alternator
Cranking
Select Test Item—Cranking
The voltage should be above 9.2V when cranking.
Please test the battery before testing the alternator and crank motor. The bad
battery will affect the result of alternator and crank motor testing.
We should test the crank motor particularly when the voltage is under 9.2V,
but the result of battery testing is good.
Please change a good battery then start this test if the battery marked as
REPLACE in the battery testing.
3.5 Crank Motor Test----24V
7
Page 8
Battery Tester B70
Start the motor
Normal V 25.90 V
Crank V 17.81 V
Crank V > 16.0 V
Select Test Item—Cranking
The voltage should be above 16.0V when cranking.
Please test the battery before testing the alternator and crank motor. The bad
battery will affect the result of alternator and crank motor testing.
We should test the crank motor particularly when the voltage is under 9.2V,
but the result of battery testing is good.
Please change a good battery then start this test if the battery marked as
REPLACE in the battery testing.

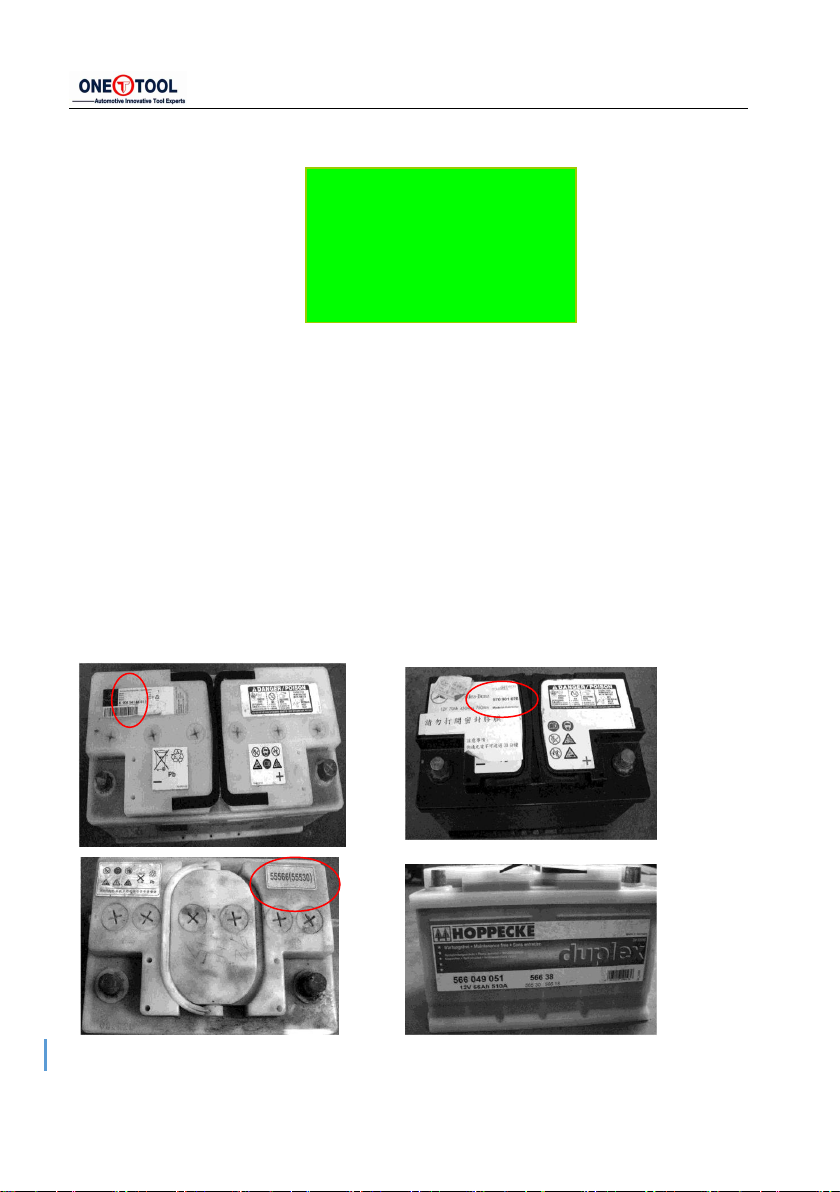

Where The Battery Model Number Is.
8
Page 9
Battery Tester B70
Traditional test method (1/2 CCA Load Test)
A deep discharge test simulating the demands imposed on a battery. Test the
ability to deliver a starter motor's cranking current requirements while
maintaining a terminal post voltage above a minimum standard.
Apply a load equal to 1/2 the CCA rating for 15 seconds and measure the
voltage drop. Compare the voltage to a voltage chart.
The battery state -of-charge must be 75% (12.4 v) to perform a 1/2 CCA test. If
the battery is below 75% state-of-charge, it must be charged before testing.
New Measurement Techniques:
Ohmic Measurement
Resistance Measurements(DC method)
Impedance Measurements(AC method)
Conductance Measurements(AC method)
Resistance Measurement
Resistance measurements can be performed by applying a load across the
cell/unit and measuring the step change in voltage and current. The Ohmic
value is calculated by dividing the change in voltage by the change in current.
9
Page 10
Battery Tester B70
Impedance Measurements
Impedance measurements can be performed by passing a current of known
frequency and amplitude through the battery and measuring the resultant ac
voltage drop across each cell/unit. The ac voltage measurement is taken
between the positive and negative terminals of individual cells or the smallest
group of cells possible. Compute the resultant impedance by Ohm's law.
Conductance measurements(Our Testing Method)
Conductance measurements can be performed by applying a voltage of known
frequency and amplitude across a cell/unit and observing the ac current that
flows in response to it. The conductance is the ratio of the ac current
component that is in-phase with the ac voltage, to the amplitude of the ac
voltage producing it.
The Benefit of Our Test Method
Conductance correlates directly to battery capacity
Passive test method is safe & repeatable
Never discharges the battery
Can Test discharged batteries
Provides a unique indication of battery
10
Page 11
Provides a unique indication of state of charge
Battery Model
CCA
Battery Model
CCA
JIS(New)
JIS(Old)
MF
CMF
JIS(New)
JIS(Old)
MF
CMF
26A17R
200
55B24RS
NT80-S6S
430
420
500
26A17L
200
55B24LS
NT80-S6LS
430
420
500
26A19R
12N24-4
200
220
264
55D26R
N50Z
350
440
525
26A19L
12N24-3
200
220
264
55D26L
N50ZL
350
440
525
28A19R
NT50-N24
250
60D23R
520
28A19L
NT50-N24L
250
60D23L
520
32A19R
NX60-N24
270
295 65D23R
420
540
580
32A19L
NX60-N24L
270
295 65D23L
420
540
580
26B17R
200
65D26R
NS70
415
520
625
26B17L
200
65D26L
NS70L
415
520
625
28B17R
245
65D31R
N70
390
520
630
28B17L
245
65D31L
N70L
390
520
630
28B19R
NS40S
245
70D23R
35-60
490
540
580
28B19L
NS40LS
245
70D23L
25-60
490
540
580
32B20R
NS40
270
75D23R
500
520
580
32B20L
NS40L
270
75D23L
500
520
580
32C24R
N40
240
325
400
75D26R
F100-5
490
32C24L
N40L
240
325
400
75D26L
F100-5L
490
34B17R
280
75D31R
N70Z
450
540
735
34B17L
280
75D31L
N70ZL
450
540
735
34B19R
NS40ZA
270
325
400
80D23R
580
34B19L
NS40ZAL
270
325
400
80D23L
580
36B20R
NS40Z
275
300
360
85B60K
500
36B20L
NS40ZL
275
300
360
85BR60K
500
36B20RS
NS40ZS
275
300
360
95D31R
NX120-7
620
660
850
JIS Battery Model Convert Chart
Battery Tester B70
11
Page 12
Battery Tester B70
36B20LS
NS40ZLS
275
300
360
95D31L
NX120-7L
620
660
850
38B20R
NX60-N24
330
340
410
95E41R
N100
515
640
770
38B20RS
NT60-N24S
330
340
410
95E41L
N100L
515
640
770
Battery Model
CCA
Battery Model
CCA
JIS(New)
JIS(Old)
MF
CMF
JIS(New)
JIS(Old)
MF
CMF
38B20L
NX60-24L
330
340
410
105E41R
N100Z
580
720
880
38B20LS
NX60-24LS
330
340
410
105E41L
N100ZL
580
720
880
40B20L
330
105F51R
N100Z
580
40B20R
330
105F51L
N100ZL
580
42B20R
330
115E41R
NS120
650
800
960
42B20L
330
115E41L
NS120L
650
800
960
42B20RS
330
115F51R
N120
650
800
960
42B20LS
330
115F51L
N120L
650
800
960
46B24R
NS60
325
360
420
130E41R
NX200-10
800
46B24L
NS60L
325
360
420
130E41L
NX200-10L
800
46B24RS
NS60S
325
360
420
130F51R
800
46B24LS
NS60LS
325
360
420
130F51L
800
46B26R
360
145F51R
NS150
780
920
46B26L
360
145F51L
NS150L
780
920
46B26RS
360
145G51R
N150
780
900
1100
34B19RS
NS40ZAS
270
325
400
80D26R
NX110-5
580
580
630
34B19LS
NS40ZALS
270
325
400
80D26L
NX110-5L
580
580
630
46B26LS
360
145G51L
N150L
780
900
1100
48D26R
N50
280
360
420
150F51R
NT200-12
640
48D26L
N50L
280
360
420
150F51L
NT200-12L
640
50D20R
310
380
480
165G51R
NS200
935
980
50D20L
310
380
480
165G51L
NS200L
935
980
50D23R
85BR60K
500
170F51R
NX250-12
104
50D23L
85B60K
500
170F51L
NX250-12L
104
50B24R
NT80-S6
390
180G51R
NT250-15
109
50B24L
NT80-S6L
390
180G51L
NT250-15L
109
50D26R
50D20R
370
195G51R
NX300-51
114
12
Page 13
50D26L
50D20L
370
195G51L
NX300-51L
114
55D23R
355
480
500
190H52R
N200
925
1100
1300
55D23L
355
480
500
190H52L
N200L
925
1100
1300
55B24R
NX100-S6
435
420
500
245H52R
NX400-20
153
1250
55B24L
NX100-S6L
435
420
500
245H52L
NX400-20L
153
1250
55B24L
NX100-S6L
435
420
500
245H52L
NX400-20L
153
1250
EN & DIN Battery Model Convert Chart
Model
Same Model
DIN
EN
Model
Same Model
DIN
EN
52805
52815
180
240
56420
56322
88066
300
510
53517
175
300
56530
56618
56638
300
510
53520
53521
53522
150
240
56618
56619
56620
300
510
53625
53638
53836
175
300
56633
56647
56641
300
510
53646
53621
88038
175
300
56820
56821
56828
315
540
53653
53624
53890
175
300
57024
57029
315
540
54038
54039
175
300
57113
57539
400
680
54232
175
300
57114
56821
88074
400
680
54313
54324
54464
220
330
57218
57219
420
720
54317
54312
88146
210
360
57220
57217
420
720
54437
54466
54459L
210
360
57230
380
640
54459
54434
88046
210
360
57412
57413
57412L
400
680
54469
54449
54465
210
360
57512
57513
57531
350
570
54519
54533
54612
210
360
58515
58424
450
760
54523
54524
220
300
58521
58513
320
540
54537
54545
54801
190
300
58522
58514
320
540
54551
54580
220
300
58815
58821
395
640
54533
54577
54579
220
300
58820
58515
58527
395
640
54584
54578
220
300
58827
400
640
54590
210
330
58838
58833
88092
400
680
Battery Tester B70
13
Page 14
Battery Tester B70
54827
240
360
59040
59017
59018
360
600
55040
88056
265
450
59218
59219
290
480
55041
55042
220
360
59226
59215
450
760
55044
55414
88056
265
450
59514
320
540
55046
300
510
59518
59519
395
640
55056
320
540
59615
59616
360
600
55057
54827
88156
320
540
60018
60019
250
410
55068
55069
55548
220
390
60026
58811
440
720
55218
255
420
60044
60038
500
760
Model
Same Model
DIN
EN
Model
Same Model
DIN
EN
55414
55415
55421
265
450
60527
60528
410
680
55422
55566
55040
265
450
61017
61018
400
680
55428
55423
55427
300
510
61023
62529
450
760
55457
265
450
61047
61048
450
760
55529
220
360
62034
62038
62045
420
680
55531
55545
55559L
255
420
63013
470
680
55559
55530
88056
255
420
63545
63549
420
680
55564
55552
55563
255
420
64020
64317
64318
325
550
55564
55565
55548
255
420
64028
64035
520
760
55570
55567
55565L
255
420
64036
460
760
56012
230
390
64317
64318
64323
540
900
56048
56068
56069
250
390
65513
540
900
56049
56069
56073
250
390
65514
65515
570
900
56077
56530
300
510
67043
67045
600
1000
56091
55811
360
540
68032
68034
600
1000
56111
55048
300
540
70029
70038
70027
630
1050
56218
56092
300
510
70036
68040
68021
570
950
56219
56216
300
510
71014
71015
700
1150
56220
280
510
72512
680
1150
14
Page 15
56225
56323
300
510
73011
740
1200
56318
56312
56311
300
510
Yuasa Battery Model Chart
Yuasa Model
CCA
Yuasa Model
CCA
GT50L-MF
356CCA
75A-72
630CCA
GTH55DL-MF
356CCA
78A-72
670CCA
GTH60DL-MF
325CCA
34-610MF
610CCA
GTH75DL-MF
520CCA
75-6MF
615CCA
GTH40S
275CCA
58-6MF
530CCA
GTH40L
276CCA
34-6MF
500CCA
GTH40
277CCA
24-500
500CCA
GTH60L
325CCA
34-710
710CCA
65-900
850CCA
41-580
580CCA
GTH75DR-MF
521CCA
58-530
530CCA
55D23R-MF
522CCA
65-730
730CCA
34-60
525CCA
75-660
660CCA
58-60
525CCA
78-710
710CCA
65-70
700CCA
GR40R-MF
700CCA
74-60
525CCA
GR40R-CMF
820CCA
75-72
500CCA
GR96R-MF
500CCA
35-580
580CCA
GR96R-CMF
580CCA
Battery Tester B70
Easy way to know the CCA of your battery
(when you can’t find the battery model)
Cube Capacity Approx. CCA
1200 ~ 1600CC 350 CCA
1600 ~ 2000CC 500 CCA
15
Page 16
Battery Tester B70
2000 ~ 3000CC 650 CCA
3000CC+ 750 CCA
M. Benz over 3000CC 760 EN
Customer Service Center
Any question during the operation, please contact
Contact person: Mr. Wei
Tel: 86-010-61592445
Cell phone: +86 18910829060
For more information of our products, please visit our website www.one-tool.net
16
Loading...
