One Systems POPS SUBa User Manual

P

ORTABLE OUTDOOR POWERED SYSTEM

POPSSUBa USER MANUAL

The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operation and maintenance
instructions.

The lightening flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the products enclosure that may
be of sufficient magnitude to constitute a risk of electric shock to persons.

NOTE: The POPS Sub uses an auto-detection circuit that senses and
adjusts internal operating voltages to the AC Mains supply. The POPS Sub
will operate between 104VAC and 253VAC. However, there are separate AC
Mains cable assemblies for 115VAC or 230VAC operation!
Although the AC Mains is automatically selected the user must insure that
the proper AC Mains cable is supplied (GFCI enabled for 115VAC operation
and PRCD enabled for 230VAC operation)

The Portable Outdoor Powered System Sub (POPSSub) was designed by One
Systems to provide additional bass and sub bass response for the POPS15
system. The POPSSub features an 18 inch (457 mm) diameter woofer that
delivers extremely high acoustic output capability at very low frequencies. The
POPSSub was designed for use in any direct weather outdoor application, such
as sporting events, theme park events, civic celebrations and general outdoor
presentations. POPSSub was designed for ALL weather applications and all
components, including all electronics and transducers have been developed for
use in rain, snow and other inclement weather applications. The highly portable
design is also ideal for portable applications in gymnasiums, indoor and outdoor
swimming pools and meeting rooms. POPSSub features large diameter
pneumatic (air-filled) wheels to allow for easy transportation on soft, wet, grassy
surfaces such as football fields, soccer pitches, baseball diamonds etc.

Specifications

Frequency Response: 40 Hz – 80 Hz
Coverage Pattern: Essentially omnidirectional

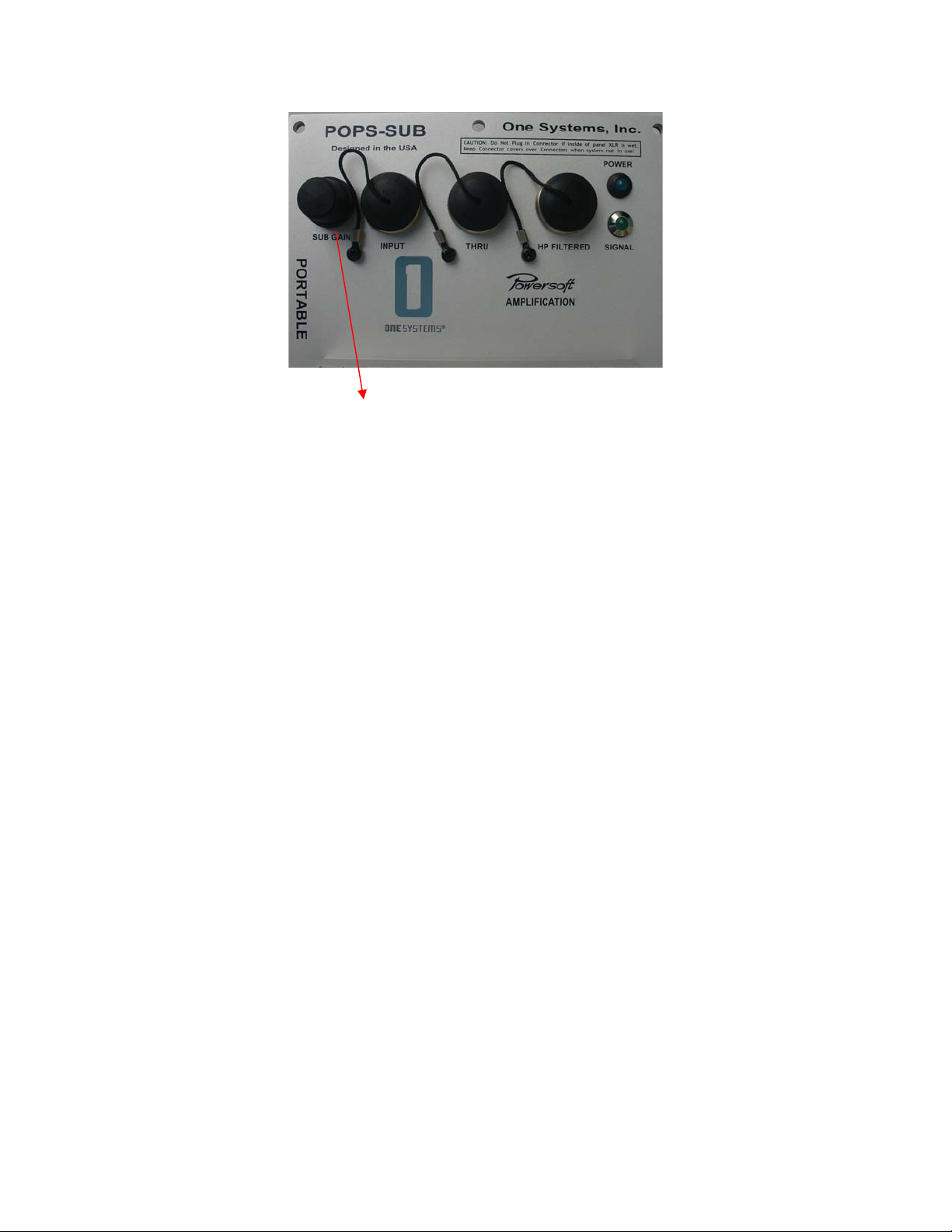

Input: 3-Pin XLR-type (IP 67)

(Pin 2 +)
Outputs: Thru (balanced)

High Pass Filtered out
(balanced)

Power
Peak - Total System: 2,000 Watts
Continuous- Total System: 1,000 Watts

AC Mains Power: 104 V AC – 253 V AC
(50 Hz – 60 Hz)

Max Acoustic Output (Peak): 128dB*
Weather Performance: IEC 529 / IP 56

Supplied Accessories: AC Mains Cable (100Ft / 30.5 m)
Input /Output XLR-XLR (6.6 Ft / 2 m)

1.375 inch (35 mm) manual crank-up pole

Dimensions (H X W X D): 344.5 X 790 X 909.8 mm

21.44 X 31.1 X 35.82 inches
Weight 40 kg (88.2 lbs)
Operating Temperature 0C – 40C (32F – 104F)
Available Accessories POPS 15
* NOTE: Max Acoustic Output is based on smoothed overall system response,

not peak driver response.

544,5 [21,44]

790,0 [31,10]

909,8 [35,82]

790,0 [31,10]

The image below shows POPS15 mounted on the POPSSub using the pole
supplied with the POPSSub:

Read all of the instructions included in this manual

NOTE: The AC mains supply end of the POPS Sub power cable MUST be
plugged into a supply source that has a GROUND FAULT CIRCUIT
INTERRUPTER (GFCI). The 115 VAC version is supplied with an in-line GFCI.
The 230 VAC version is supplied with a Portable Residual Current Device
(PRCD). In Europe, these devices are also referred to as Residual Current
Devices or Residual Current Circuit Breakers.

NOTE: THE RESET ON THIS DEVICE SHOULD BE TESTED TO VERIFY
PROPER OPERATION OF THE SAFETY DEVICE!

The POPS Sub is supplied with an “in line” GFCI device for use in countries that
use 115VAC. DO NOT bypass this device or disable. The end of the AC Mains
cable that is plugged in to the AC Mains supply must be in a dry condition.

The POPS Sub is supplied with an “in line” PRCD device for use in countries that
use 230VAC. DO NOT bypass this device or disable. The end of the AC Mains
cable that is plugged in to the AC Mains supply must be in a dry condition.

NOTE: If a hard-wired GFCI or PRCD device is already located at the AC Mains
source connection then the “in line” devices may be removed. THIS MUST BE
DONE BY A LICSENSED ELECTRICIAN THAT IS FAMILIAR WITH ALL LOCAL
AND NATIONAL ELECTRICAL CODES AND PRACTICES.

DO NOT BYPASS THE GFCI OR PRCD DEVICE UNLESS YOU ARE FULLY
LICSENSED AND QUALIFIED TO DO SO!

Copies of this manual should be retained by both the system installer AND end
user.

 This manual must be read and understood and ALL warnings must be

followed.

 Follow all instructions to insure optimal product performance.
 Copies of this manual should be retained by both the system installer AND

end user.

 This manual must be read and understood and ALL warnings must be

followed.

 Follow all instructions to insure optimal product performance.

POPSSub’s amplifier is a convection-cooled device and requires at least 7
inches (178 mm) of clearance behind the enclosure to allow the heat sink to
adequately cool the internal electronics.

SEE SECTION BELOW ON POPSSub AND HIGH TEMPERATURE AMBIENT
ENVIRONMENTS AND SOLAR GAIN.

DO NOT INSTALL NEAR ANY HEAT SOURCES!
Use ONLY the supplied AC Mains connector. DO NOT SUBSTITUTE!
Protect the AC Mains power cord from being walked on or otherwise damaged

and inspect for damaged connections and damaged insulation.
Use ONLY the supplied XLR/XLR cable. DO NOT SUBSTITUTE!
There are NO user serviceable parts inside the enclosure. DO NOT REMOVE

THE AMPLIFIER MODULE! (See Service section for details OR contact One
Systems)

WARRANTY

ONE SYSTEMS products are warranted by ONE SYSTEMS, Inc, and ONE
SYSTEMS GLOBAL Co. Ltd for a period of 5 years. (3 years for all electronic
products) This warranty period begins with the date of purchase by the original
end-user of the product. All products are warranted against defects in materials
and workmanship.

This Limited Warranty does not cover product abuse including, but not limited to,
mechanical and thermal failures associated with excessive input power applied to
ONE SYSTEMS loudspeaker systems. In addition, damage caused by accident,
misuse or failure to observe instructions included in the following manuals:
“Outdoor installation of loudspeakers” and “Rigging and Suspension of ONE
SYSTEMS products” (These manuals may be found on the ONE SYSTEMS web
site, www.ONESYSTEMS.com) is not covered. Other acts which are not the fault
of ONE SYSTEMS are not covered. Defects or damages resulting from service,
testing, product modification or alteration by someone other than ONE
SYSTEMS or its authorized agents or service centers are not covered. ONE
SYSTEMS is not responsible for misrepresentations by the seller or other parties.

All products covered by this limited warranty must be shipped to an authorized
service center (see details below) prepaid. ONE SYSTEMS will pay all material
and labor costs associated with repair or replacement of covered products. ONE
SYSTEMS will pay all return costs associated with products covered under the
terms of this limited warranty.

Limitation of Implied Warranties
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE

IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS
LIMITED WARRANTY, OTHERWISE THE REPAIR, REPLACEMENT, OR
REFUND AS PROVIDED UNDER THEIS EXPRESS LIMITED WARRANTY IS
THE EXCLUSIVE REMEDY OF THE END USER (CONSUMER), AND IS
PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OF IMPLIED.
IN NO EVENT SHALL ONE SYSTEMS , OR ANY OF ITS OPERATING
DIVISIONS, BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING
NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF
THE PRODUCT, ACCESSORY OR SOFTWARE, OR FOR ANY INDIRECT,
INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMANGES OF ANY KIND,
OR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF
INFORMATION OR DATA, SOFTWASRE OR APPLICATIONS OR OTHER
FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE ABILITY
OR INABILITY TO USE THE PRODUCTS, ACCESSORIES OR SOFTWARE TO
THE FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.

Some states and jurisdictions do not allow the limitation or exclusion of
incidental or consequential damages, or limitation on the length of an
implied warranty, so the above limitations or exclusions my not apply. This
warranty provides specific legal rights, and other rights may exist from
state to state or from one jurisdiction to another.

REGULATORY AND SAFETY DATA

This product was tested to International Standards for safe operation. The
POPSSub is compliant with EN60065. Test certification may be obtained from
One Systems.

CONTENTS

The POPSSub system is shipped in three cartons. The contents of the cartons
are as follows:

POPSSub ENCLOSURE

One Portable Outdoor Powered Systems Sub (POPSSub) that includes a class­D digital power amplifier. The complete POPSSub is rated to IEC 529 / IP 56.

Also included in this carton is a 1.375 inch (35 mm) standard diameter mounting
pole for use with POPS15.
