One Systems PM3.M User guide

Page 1

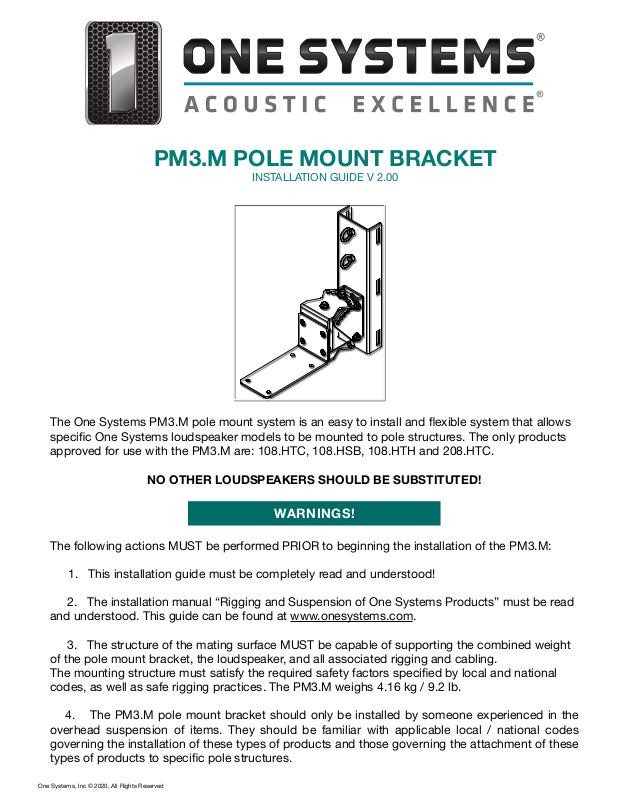

PM3.M POLE MOUNT BRACKET

INSTALLATION GUIDE V 2.00

The One Systems PM3.M pole mount system is an easy to install and ﬂexible system that allows speciﬁc One Systems loudspeaker models to be mounted to pole structures. The only products approved for use with the PM3.M are: 108.HTC, 108.HSB, 108.HTH and 208.HTC."

NO OTHER LOUDSPEAKERS SHOULD BE SUBSTITUTED!

The following actions MUST be performed PRIOR to beginning the installation of the PM3.M:" #"

1. This installation guide must be completely read and understood!"

2. The installation manual “Rigging and Suspension of One Systems Products” must be read and understood. This guide can be found at www.onesystems.com."

3. The structure of the mating surface MUST be capable of supporting the combined weight of the pole mount bracket, the loudspeaker, and all associated rigging and cabling. The mounting structure must satisfy the required safety factors speciﬁed by local and national codes, as well as safe rigging practices. The PM3.M weighs 4.16 kg / 9.2 lb. "

4. The PM3.M pole mount bracket should only be installed by someone experienced in the overhead suspension of items. They should be familiar with applicable local / national codes governing the installation of these types of products and those governing the attachment of these types of products to speciﬁc pole structures."

WARNINGS!

Page 2

WARNINGS! (cont’d)

5. Heed all safety warnings."

6. # As a backup to the main mount, we recommend the use of another PM3.M or other type of secondary safety mount. "

NOTE: Caution should be exercised when connecting One Systems Marine-Grade speakers and

Marine-Grade rigging to other dissimilar metals. The potential for galvanic corrosion is high in

marine environments, where the One Systems Marine-Grade enclosures and rigging are speciﬁed

or required. Compatible metals and appropriate anode to cathode area ratios must be

maintained. A structural engineer with galvanic corrosion experience should be consulted prior to

installation of ANY One Systems products in marine environments. "

CAUTION: All structures outdoors are subjected to wind forces. These forces must be

considered when suspending any product outdoors. It is necessary to know the “Eﬀective Projected Area” (EPA) of the loudspeaker prior to installation of the loudspeaker and the PM3.M. The eﬀective areas are shown in Appendix 1. Periodic inspections of the rigging, loudspeaker enclosure and installation are strongly recommended."

IMPORTANT NOTE: All products in direct weather installations can be subjected to high wind

speeds. The working load limit and safety factor ratings are provided for static vertical (gravitational) loads only. For use in high wind areas, One Systems recommends consultation with a licensed structural engineer to calculate an appropriately re-rated safety factor. For wind speed exposure over 74 miles per hour (119.1 kilometers per hour, 64.3 knots) the loudspeaker enclosure, bracket, banding and link assembly or secondary safety must be inspected for signs of damage or fatigue!"

INSTALLATION

The PM3.M may be used on round or square poles. "

For square / rectangular poles, the minimum ﬂat dimension must be 3.75 inches (95.25 mm) at the speaker’s mounting height and for round poles, the minimum required diameter is 4 inches (101.6 mm) at mounting height. The PM3.M was designed for use with the 108.HTC, 108.HSB,

108.HTH and 208.HTC only. NO SUBSTITUTIONS ARE ALLOWED!"

NOTE: One Systems does not imply suitability of speciﬁc pole diameters. Each pole must be veriﬁed by the pole manufacturer or others, as to the structural suitability of the pole for use with the total load of the PM3.M, the loudspeaker, as well as all required safety factors. "

THE PM3.M is designed for pole mounting ONLY! DO NOT wall mount the PM3.M. "

The PM3.M is shown below. The PM3.M allows a down tilt adjustment of up to 40 degrees in 8 degree increments. "

One Systems, Inc.## www.onesystems.com tel:+1-615-823-1655 fax: +1-615-261-1429

Page 3

PM3.M

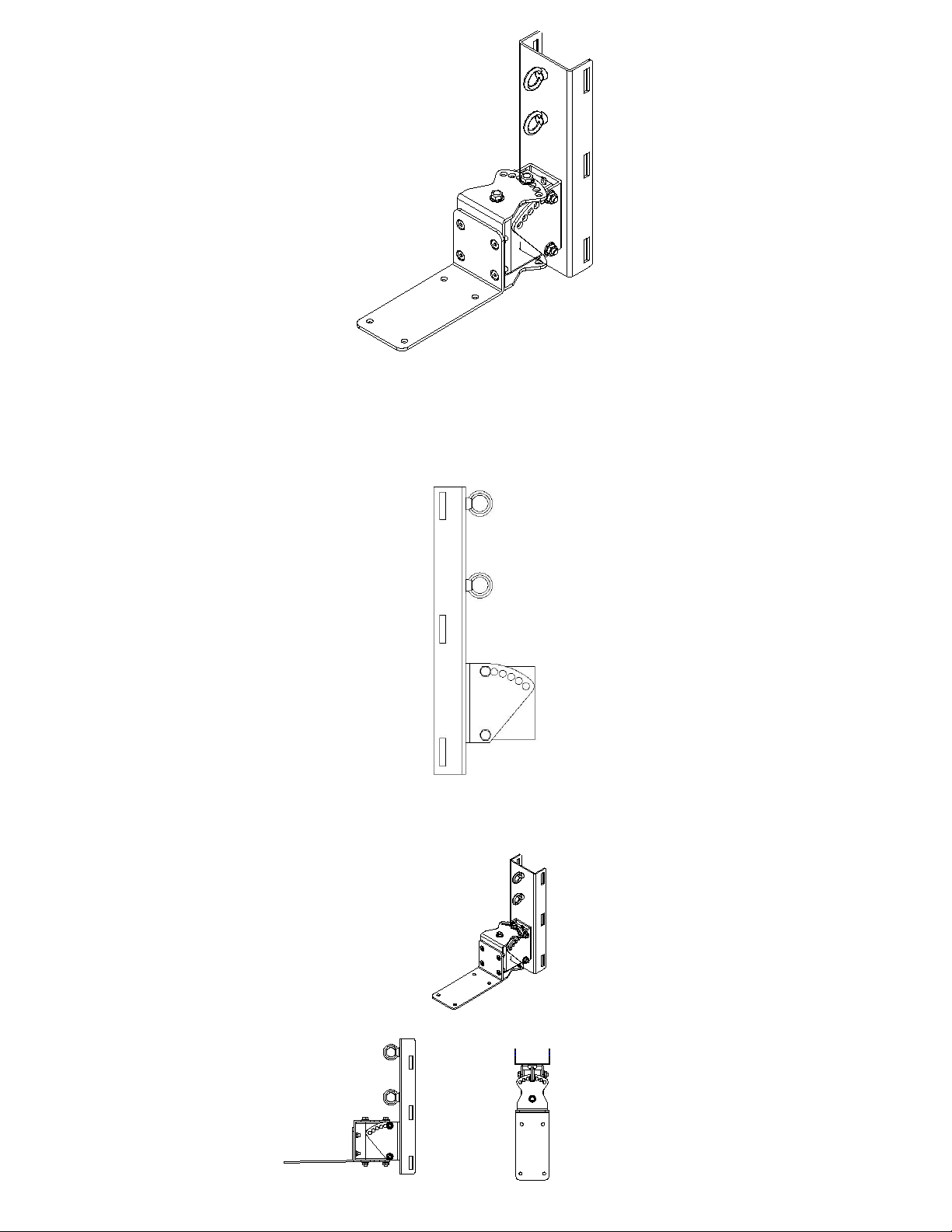

The PM3.M consists of three parts: the pole bracket, the loudspeaker bracket and the Link. The PM3.M pole bracket is shown below:

PM3/M

PM3.M Pole Bracket

Views of the PM3.M

Page 4

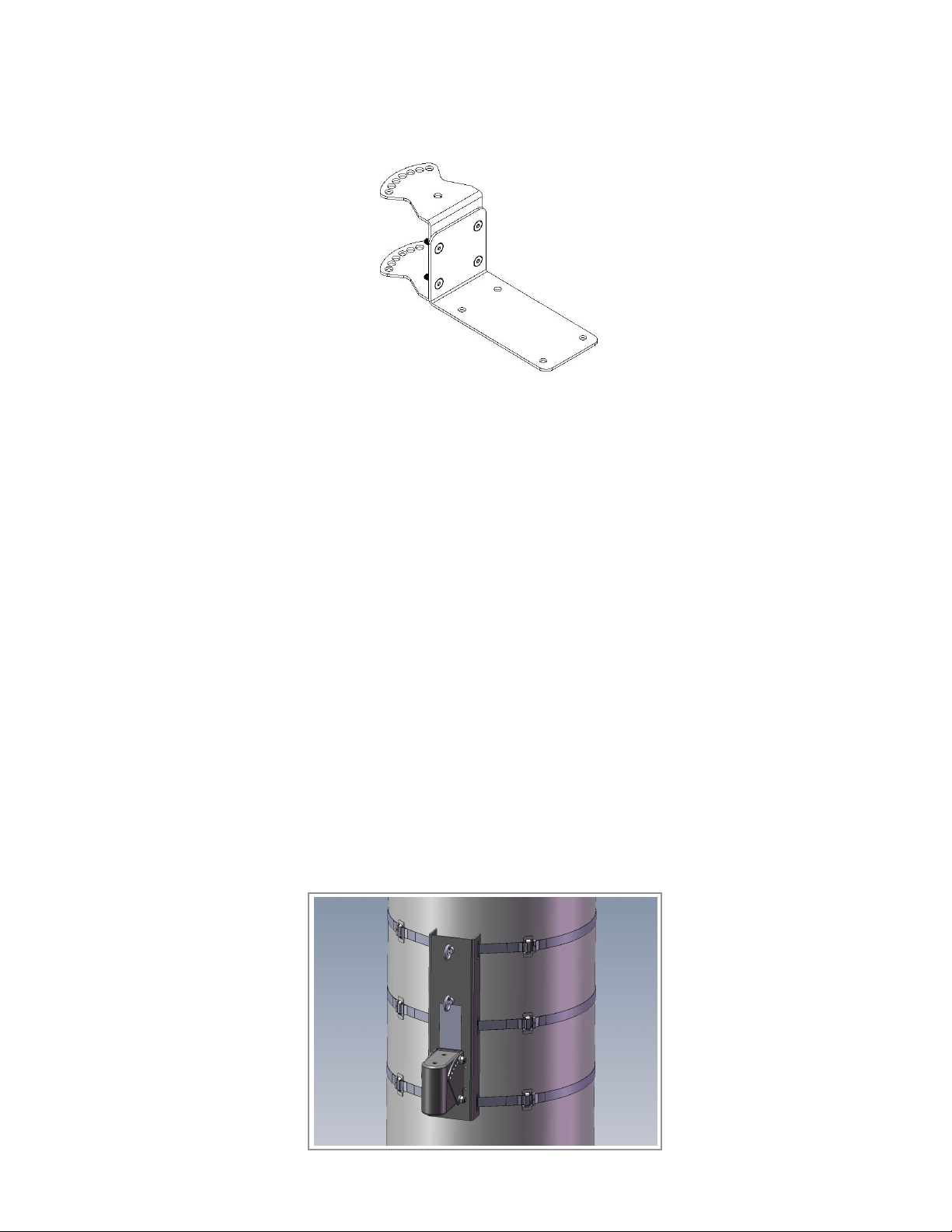

Prior to mounting the pole bracket to the pole, the speaker mount section should be removed. To remove the speaker mount section, remove the pan pivot bolt and pan aiming bolt. See the ﬁgure below and refer to page 10 for the location of the pan pivot bolt and pan aiming bolt.

Views of the PM3/M

Speaker mount section

NOTE: There are three M8 forged shoulder eyebolts supplied with the PM3.M. Make sure that two of them are mounted to the PM3.M back plate (pole bracket) as shown on page 3 BEFORE attempting to mount the PM3.M pole bracket assembly to a pole structure!"

NOTE: Instructions for mounting the Band-It bands and buckles are supplied by Band-It.

The PM3.M has three slots for mounting the pole bracket assembly on a pole. ALL THREE slots MUST be used. Each slot MUST be DOUBLE WRAPPED (two independent bands per slot!) using the speciﬁed Band-It straps ONLY! DO NOT substitute any other straps. IT IS NECESSARY TO USE ALL MOUNTING SLOTS TO INSURE A SAFE AND SECURE MATE TO THE ASSOCIATED SURFACE!"

IMPORTANT: It is REQUIRED that each of the three band slots be wrapped TWICE (TWO INDEPENDENT SINGLE WRAPS PER SLOT). This should not be confused with “double wrapping”, which is two wraps of banding through a single buckle. This means that a total of 6 bands and 6 buckles are required for a single PM3.M bracket. Two independent single wraps per slot will ensure a strong and secure mounting of the bracket to the pole. Insure that the two buckles are separated from each other in each slot! The image below illustrates the double wrapping required for each of the three slots."

Note the TWO independent bands and buckles per slot

Page 5

IT IS CRITICAL THAT THE MATING SURFACE (Pole) BE CAPABLE OF SUPPORTING THE LOAD OF THE PM3.M BRACKET, THE LOUDSPEAKER AND ALL SUSPENSION HARDWARE, AS WELL AS PROVIDING THE PROPER SAFETY FACTORS. DO NOT ATTEMPT TO SUSPEND THE BRACKET AND LOUDSPEAKER UNTIL THE STRUCTURAL CHARACTERISTICS OF THE MATING SURFACE (Pole) ARE UNDERSTOOD. DO NOT INSTALL THE POLE MOUNT BRACKET AND LOUDSPEAKER IF THE MATING SURFACE (Pole) IS NOT CAPABLE OF SUPPORTING THE ENTIRE ASSEMBLY’S WEIGHT, AS WELL AS PROVIDING THE REQUIRED SAFETY FACTORS!"

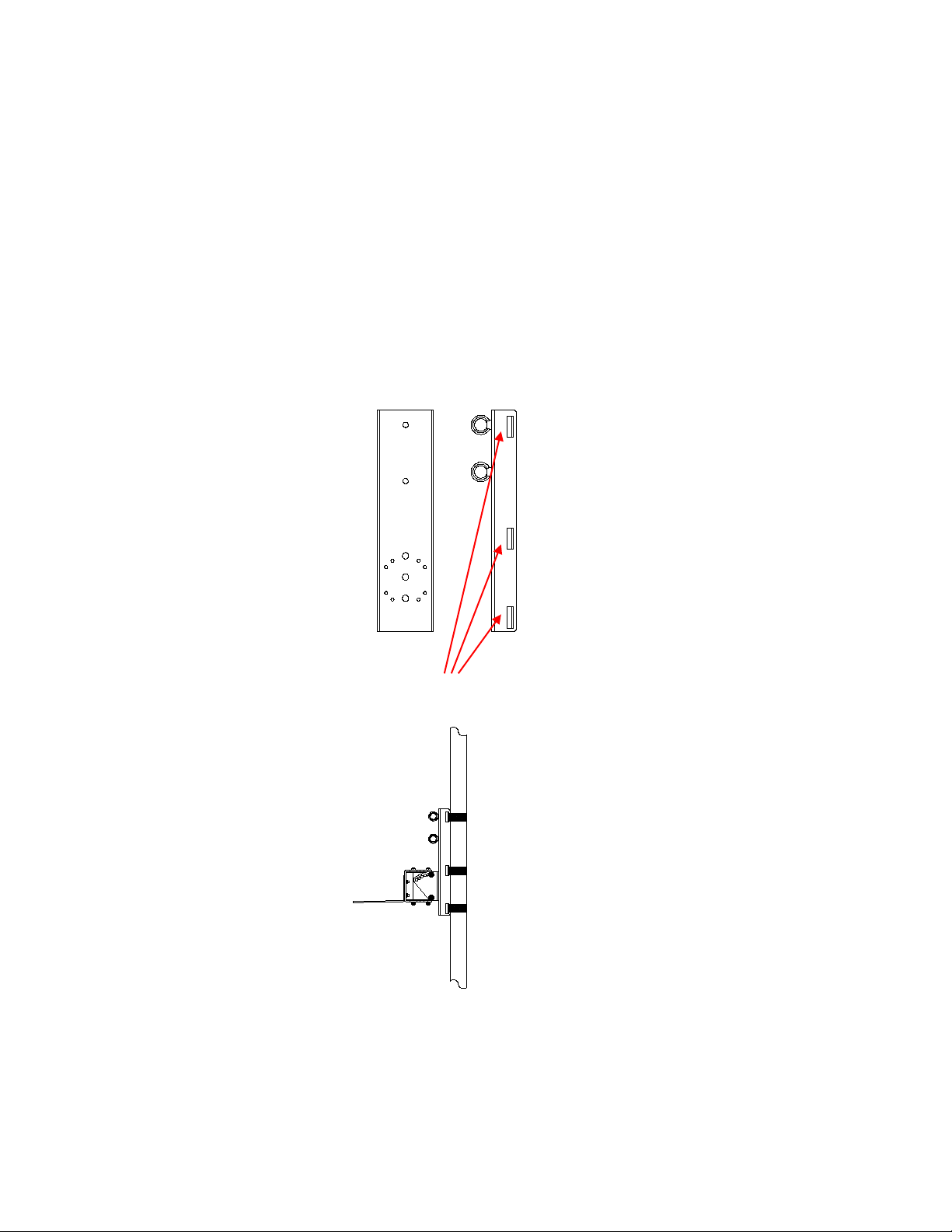

IMPORTANT: There are 3 slots indicated by the red arrows in the image below. Each of the 3 slots must be utilized to insure a secure mount to a pole. ALL 3 slots must use double wrapped bands (Two independent bands wrapped in each slot)! The image below shows the PM3.M mounted to a round pole. As shown, ALL three band slots must be used and all locations MUST be double wrapped (two independent band assemblies per slot per the

image on the previous page of this manual!)

The red arrows indicate the 3 slots used to band the PM3.M to a pole structure

The PM3.M showing ALL three band locations being used

Mount the PM3.M bracket assembly to the pole at the desired height on the pole. The bracket is mounted to the pole using BAND-IT stainless steel bands. DO NOT SUBSTITUTE bands of other material or widths. There are 3 slot locations for the PM3.M and ALL 3 of them MUST BE USED.

Page 6

The required materials are: "

#" ###BAND-IT # C206R9 stainless steel bands; " ###BAND-IT # C25699 buckles; " ###BAND-IT # C00169 tensioning tool."

The stainless steel band is Type 201SS 0.030 inches (0.762 mm) thick and 0.750 inches

(19 mm) wide. These banding materials should be used for “inland” environments.

NOTE: For oceanfront and marine environments, the only approved materials are:

###BAND-IT # C406R9 stainless steel bands (316 stainless steel)"

###BAND-IT # C45699 buckles; " ###BAND-IT # C00169 tensioning tool."

The stainless steel band is 316 grade stainless 0.030 inches (0.762 mm) thick and 0.750 inches (19 mm) wide."

WARNING: DO NOT substitute band materials or banding dimensions. Installation

instructions from BAND-IT should be precisely followed. Operating instructions are supplied with the tensioning tool (All BAND-IT parts and tools must be purchased separately. These parts and tools are not supplied by or available through One Systems). The stainless steel banding material, buckles and tensioning tools are available from the following locations (or through distributors recommended by these business locations):"

#####BAND-IT IDEX, Inc. " #####4799 Dahlia St. " #####Denver, Colorado 80216 USA. " #####1-800-525-0758"

#####FELIX PONCE " ### #Calle Ignacio Zaragonza No. 8 " ### #Colonia Ahuehuetes Atizapan 52953 " #####Edo. de Mexico. " #####(52) 555825 8502. "

#####BAND-IT Company Limited" #####Speedwell Industrial Estate " ## ###Stavely, Nr. Chesterfield " #####Derbyshire, S43 3PF England" #####Home Sales (44) 1246-479479. " #####Export Sales (44) 1246 479480. "

Page 7

# # # # BAND-IT Shanghai Sales Office " ####Wanbao International Business Center #207 " ######660 Xinhua Road " #####Shanghai, China 200052. " #####021-62826348-308"

#####BAND-IT Clamps (Asia) Pte Ltd. " #####11 Second Chin Bee Road" #####Singapore, 61877" #####(65) 6265-8853"

Now the M8 forged shoulder eyebolt should be installed in the top rear of the loudspeaker enclosure. Make certain that the eyebolt is seated on the enclosure’s surface. "

Note that the desired pan and tilt angles may be set either before or after the loudspeaker is mounted to the PM3.M assembly. However, the pan and tilt angle adjustments must be double checked and tightened after the loudspeaker has been mounted. "

Next, the loudspeaker should be mounted to the PM3.M speaker mount bracket using the supplied M8 stainless steel bolts and internal tooth lock washers. DO NOT SUBSTITUTE ANY PARTS."

BAND-IT Clamps (ASIA) Pte. Ltd.

11 Second Chin Bee Road

Singapore 618777

65-62658853

BAND-IT Shanghai Sales Office

207 room

Wanbao International Business Centre

660# Xinhua Road

Shanghai, China 200052

021-62826348-308

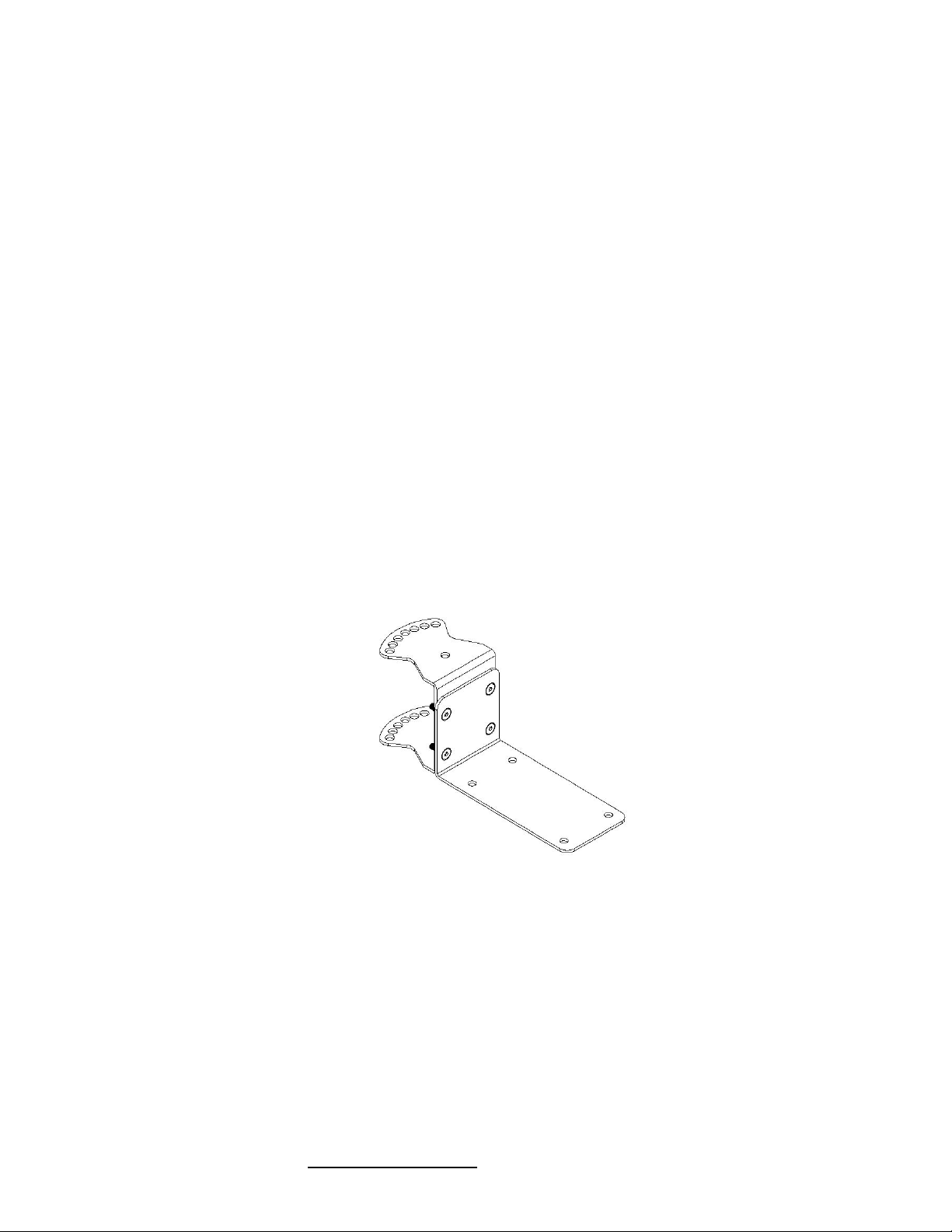

PM3.M Speaker mount bracket section

The PM3.M mounts to the bottom of the 108.HTC, 108.HSB, 108.HTH or 208.HTC using the M8 locations on each respective speaker. The mounting locations are highlighted in red. "

NOTE: Remove all M8 cover plugs before installing the loudspeaker on the PM3.M’s bracket plate!

DO NOT SUBSTITUTE MOUNTING LOCATIONS!

One Systems, Inc.## www.onesystems.com tel:+1-615-823-1655 fax: +1-615-261-1429

Page 8

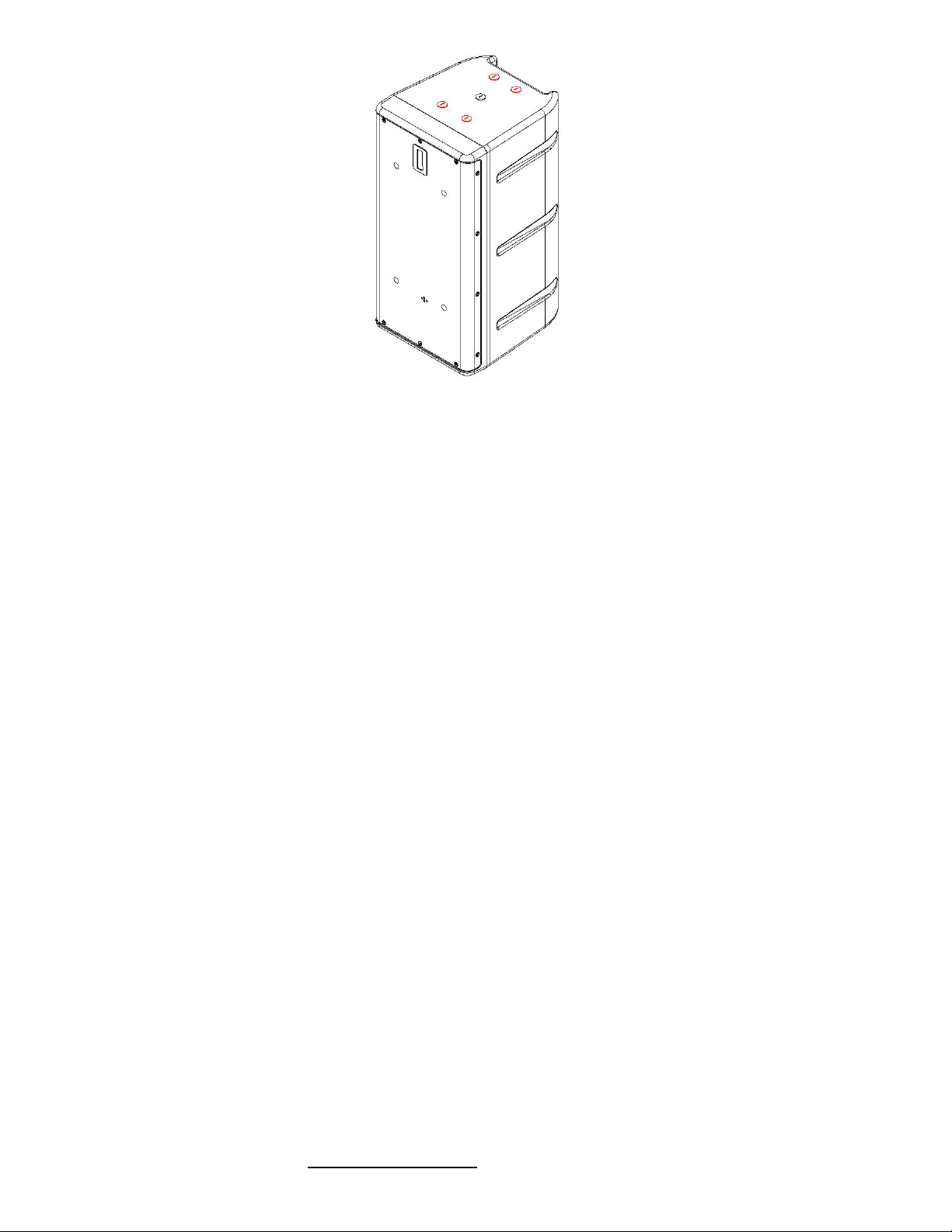

PM3.M Mounting locations highlighted in red (bottom ONLY) for the 108.HTC, 108.HSB,

108.HTH and 208.HTC

USE EXTREME CAUTION! The loudspeaker is heavy and it is likely that the desired mounting location is high in the air. This process should never be attempted by a single person. "

TWO PEOPLE ARE REQUIRED TO MOUNT THE LOUDSPEAKER ENCLOSURE TO THE POLE AND BRACKET. Safety harnesses should always be worn when working on an elevated platform. The loudspeaker and loudspeaker section of the bracket may now be joined to the pole section and the required pan and tilt angles selected. This is a two-person job and extreme care should be exercised to avoid serious injury. "

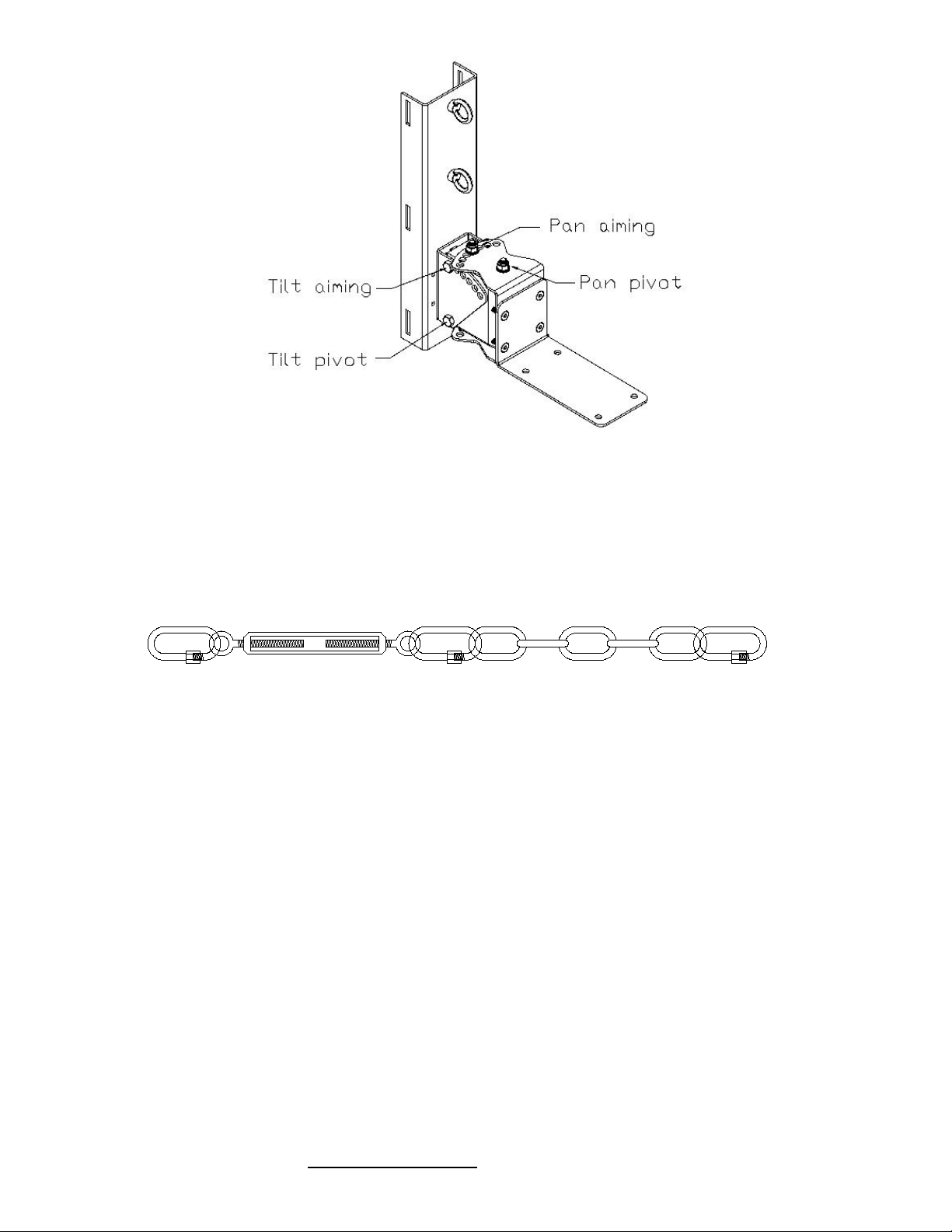

The pan pivot bolt should be inserted ﬁrst and secure but not completely tightened using the nylon insert nuts supplied. The pan pivot is shown below in Figure 2d. Then the pan aiming bolt should be inserted and nylon insert nuts applied. "

CAUTION: DO NOT REMOVE THE PAN PIVOT BOLT AFTER INSERTION!

Next, the pan angle may be adjusted by removing the pan aiming bolt and setting the desired pan angle and then re-inserting the bolt. DO NOT REMOVE THE PAN PIVOT BOLT!

The tilt angle may be adjusted by removing the tilt aiming bolt and setting the desired angle. DO

NOT REMOVE THE TILT PIVOT BOLT!

After both the tilt and pan angles are set, make certain that all bolts are tight and secure.

One Systems, Inc.## www.onesystems.com tel:+1-615-823-1655 fax: +1-615-261-1429

Page 9

UNDER NO CIRCUMSTANCES SHOULD THE LOUDSPEAKER’S DOWN TILT EXCEED 40 DEGREES FROM VERTICAL FOR THE PM3.M!"

LINK ASSEMBLY

Now the Link must be installed."

INSTALLING THE PM3.M BRACKET WITHOUT THE LINK IS NOT ALLOWED!

The Link consists of stainless steel quick links, a stainless steel turnbuckle and several links of stainless steel chain. The use of the chain pieces and quick links with the turnbuckle is based on the tilt angle of the speaker. The turnbuckle should always be used. "

DO NOT SUBSTITUTE ANY PART OF THIS LINK ASSEMBLY!

The Link should be tightened by rotating the turnbuckle until there is VERY SLIGHT tension on the Link assembly. DO NOT OVER-TIGHTEN. The purpose of the Link is to provide support for the main Pole Mount System tilting bracket at the bottom of the assembly. "

WARNING: If the turnbuckle assembly is turned and the loudspeaker enclosure’s angle begins

to change (if the down tilt angle begins to move toward 0 degrees vertical) then the turnbuckle has been OVER TIGHTENED. Turn the turnbuckle until there is VERY slight tension on the Link assembly and the down tilt angle of the enclosure is set by the tilt bolts on the PM3.M.

One Systems, Inc.## www.onesystems.com tel:+1-615-823-1655 fax: +1-615-261-1429

Page 10

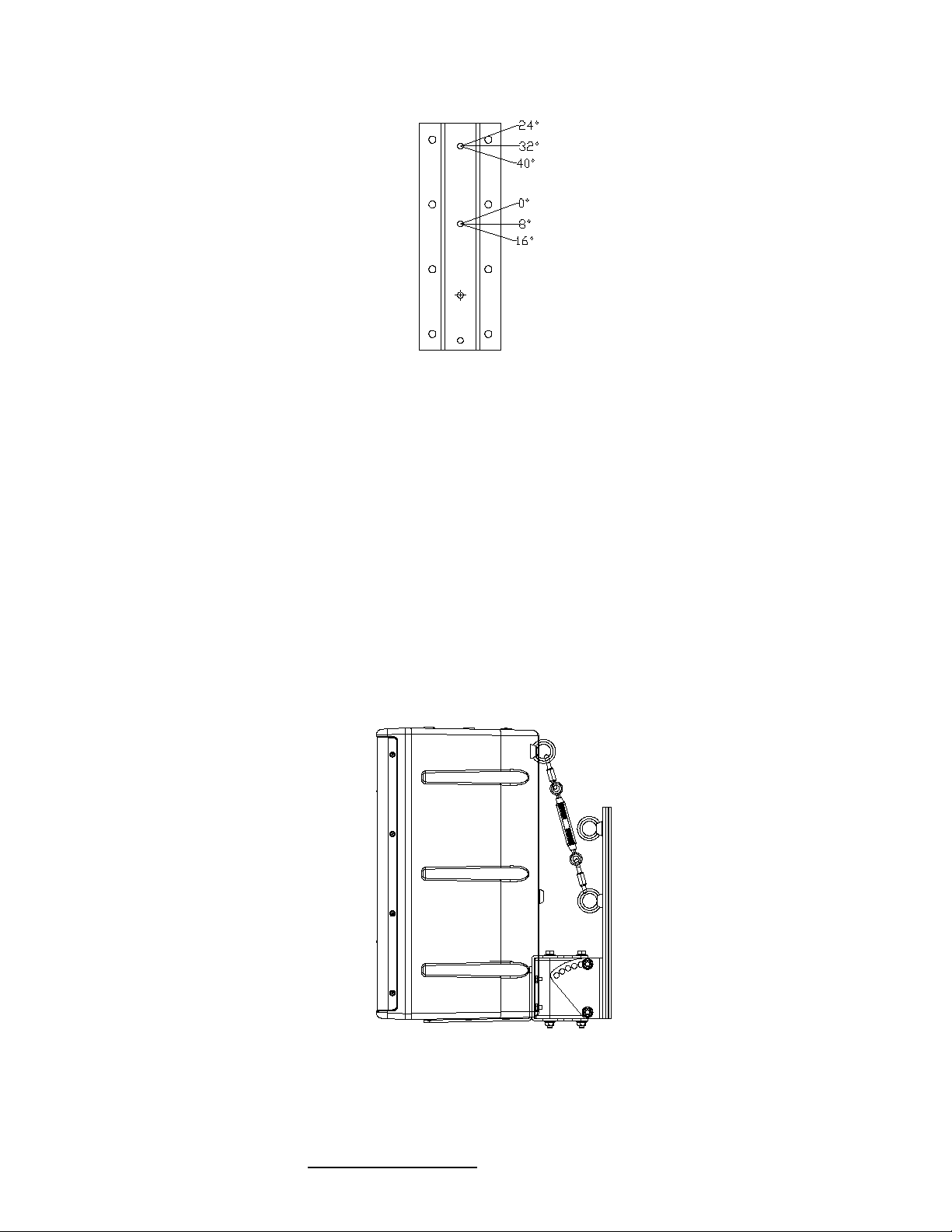

The back plate section of the PM3.M has two eyebolts attached to it. The ﬁgure below illustrates the proper eyebolt to use for each down tilt angle of the bracket.

PM3.M EYEBOLT AIMING LOCATIONS

Be certain to use the appropriate combination of Link parts to insure proper connection between the PM3.M and the speciﬁc One Systems speaker. The required combination of Link parts is determined by the down tilt angle of the enclosure. "

The assembly may be conﬁgured with any combination of turnbuckle, chain link sections and quick link in order to achieve the proper tension on the system, but the turnbuckle must always be used. The ﬁgures below show a 108.HTH or 208.HTH and PM3.M at vertical, 24 degrees and 40 degrees using the eyebolt positions shown in the PM3.M BOLT AIMING LOCATIONS shown above. Note that Figure 8a and 8b use the same Link and turnbuckle combination but with diﬀerent eyebolt locations; Figure 8c uses chain sections as well as the quick links and the turnbuckle.

Figure 8a

This image represents the Link assembly with the enclosure in a vertical orientation and the Link using the lower eyebolt position.

One Systems, Inc.## www.onesystems.com tel:+1-615-823-1655 fax: +1-615-261-1429

Page 11

Figure 8a

Figure 8b

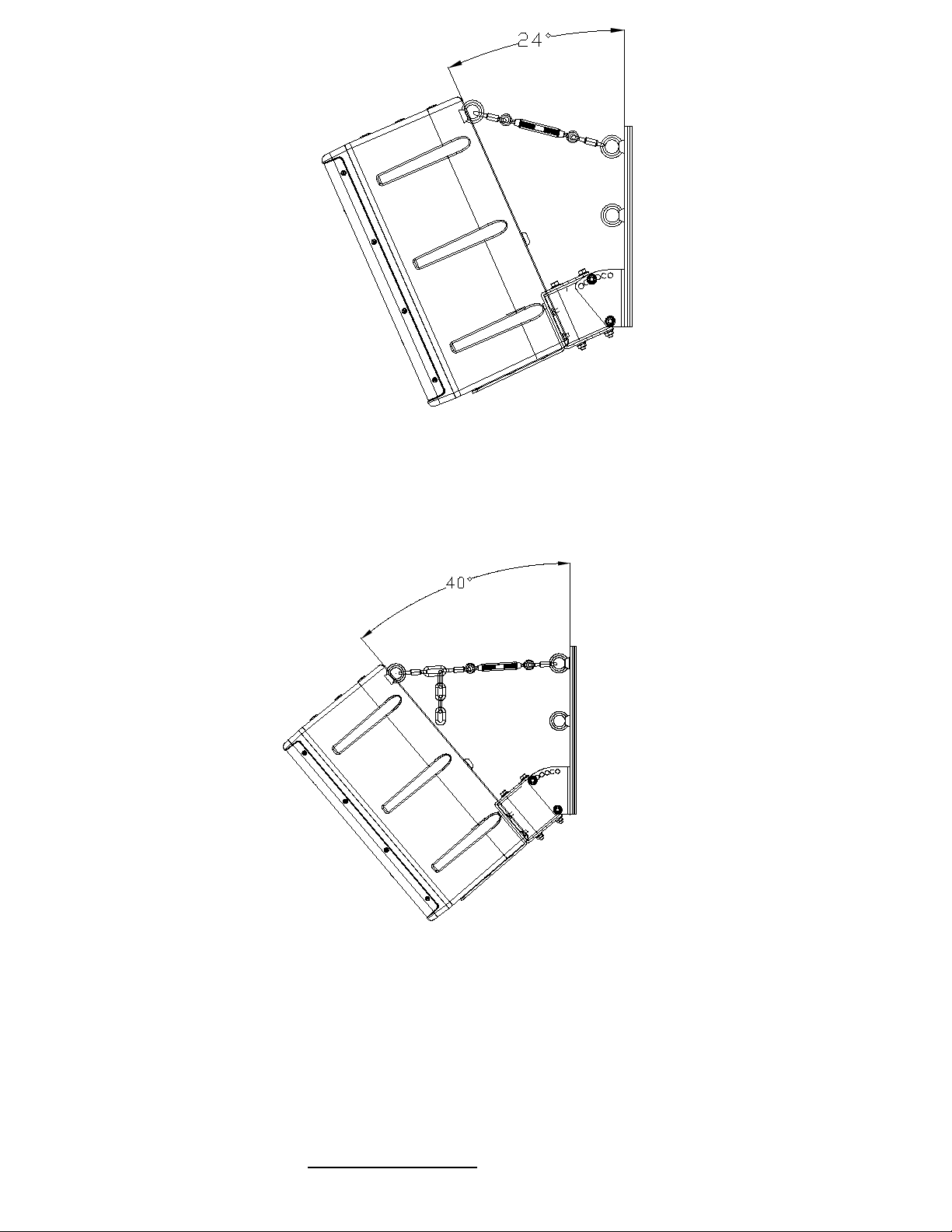

Figure 8B represents the Link with the speaker in a 24-degree tilt. The Link is using the top eyebolt and the turnbuckle has been adjusted to provide VERY MILD tension.

Figure 8c

Figure 8c represents the Link assembly with the enclosure in a 40-degree tilt. The Link assembly uses the top eyebolt and the stainless steel chain has been added to achieve that proper tension on the assembly. Notice the “dropped” chain links in Figure 8c.

One Systems, Inc.## www.onesystems.com tel:+1-615-823-1655 fax: +1-615-261-1429

Page 12

Warning: If the turnbuckle assembly is turned and the loudspeaker enclosure’s angle begins to change (if the down tilt angle begins to move toward 0 degrees vertical then the turnbuckle has been OVER TIGHTENED. Turn the turnbuckle until there is VERY slight tension on the Link assembly.

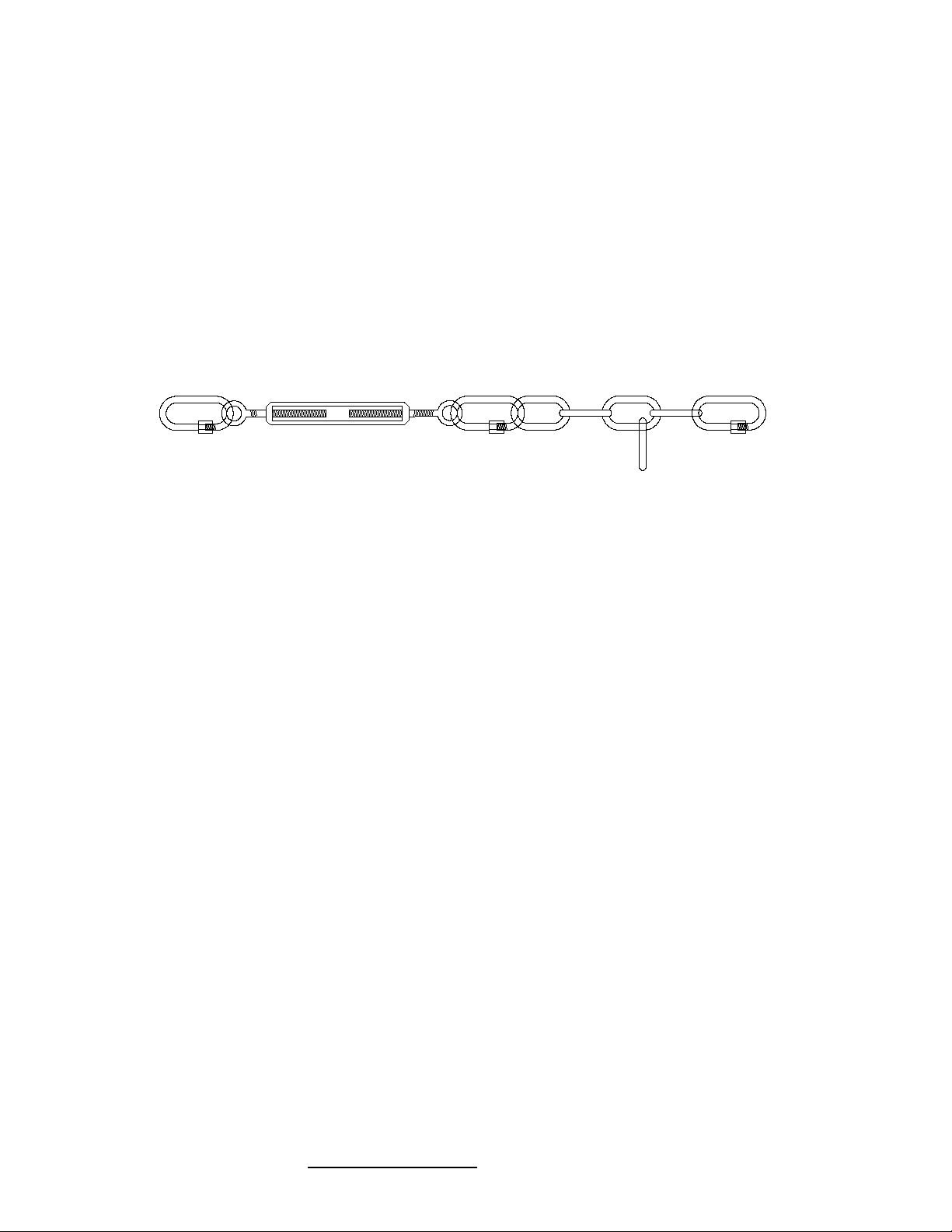

Figure 10 is a close up view of the Link assembly. Certain down tilt angles may require a link to be “dropped” from the chain as shown below. The lower quick link is positioned in various chain segments based on the desired degree of down tilt. The turnbuckle should be adjusted, as described in this section."

In any position, the turnbuckle must be adjusted to allow the proper amount of tension on the Link. The Link should never pull the loudspeaker up towards vertical. The Link may be conﬁgured with or with the chain section and quick link depending on the down tilt angle of the enclosure.

Figure 8c

Figure 10

Secondary safety cables are STRONGLY recommended and should be secured to a structural point NOT associated with the Pole Mount bracket or loudspeakers. The Link assembly is NOT a secondary safety! One Systems does NOT supply a secondary safety.

APPENDIX 1

(PROJECTED AREA VALUES)

The values below should be supplied to the speciﬁc pole manufacturer for safety calculations. These values were determined by adding the projected areas of the high frequency horns, the woofer cones and ports to the cross-sectional area of the front of each enclosure listed. Each enclosure will present a diﬀerent EPA based on wind direction. The values listed below are for wind loads directly into the front of the enclosure and represent maximum values. # # # "

####108.HTC . . . . . 169.4 in2 (109,278 mm2)

108.HSB . . . . . 188.4 in2 (119,331 mm2)

108.HTH . . . . . 250 in2 (161,290 mm2) (60o x 40o Horn)

208.HTC . . . . . 207 in2 (133,550 mm2)
