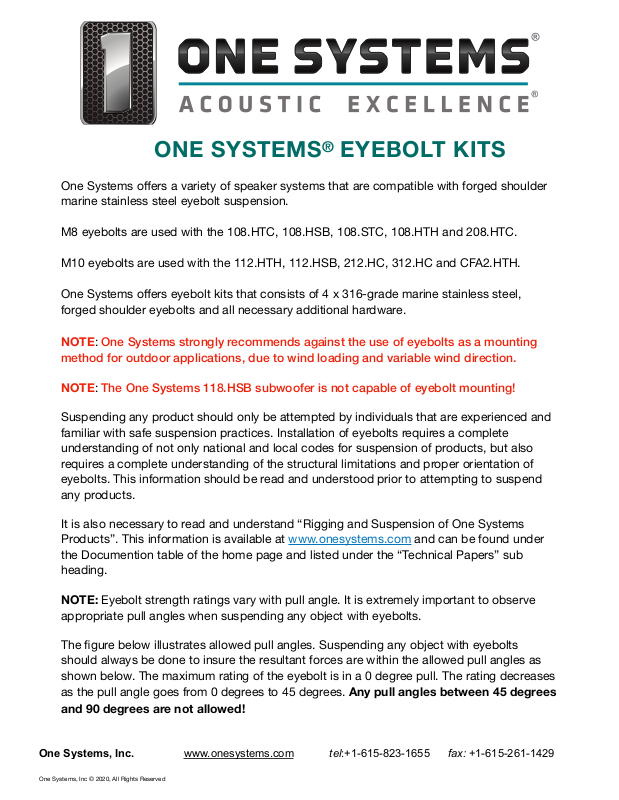

ONE SYSTEMS® EYEBOLT KITS

One Systems offers a variety of speaker systems that are compatible with forged shoulder
marine stainless steel eyebolt suspension. "

M8 eyebolts are used with the 108.HTC, 108.HSB, 108.STC, 108.HTH and 208.HTC. "

M10 eyebolts are used with the 112.HTH, 112.HSB, 212.HC, 312.HC and CFA2.HTH."

One Systems offers eyebolt kits that consists of 4 x 316-grade marine stainless steel,
forged shoulder eyebolts and all necessary additional hardware. "

NOTE: One Systems strongly recommends against the use of eyebolts as a mounting
method for outdoor applications, due to wind loading and variable wind direction.

NOTE: The One Systems 118.HSB subwoofer is not capable of eyebolt mounting!

Suspending any product should only be attempted by individuals that are experienced and
familiar with safe suspension practices. Installation of eyebolts requires a complete
understanding of not only national and local codes for suspension of products, but also
requires a complete understanding of the structural limitations and proper orientation of
eyebolts. This information should be read and understood prior to attempting to suspend
any products. "

It is also necessary to read and understand “Rigging and Suspension of One Systems
Products”. This information is available at www.onesystems.com and can be found under
the Documention table of the home page and listed under the “Technical Papers” sub
heading. "

NOTE: Eyebolt strength ratings vary with pull angle. It is extremely important to observe
appropriate pull angles when suspending any object with eyebolts. "

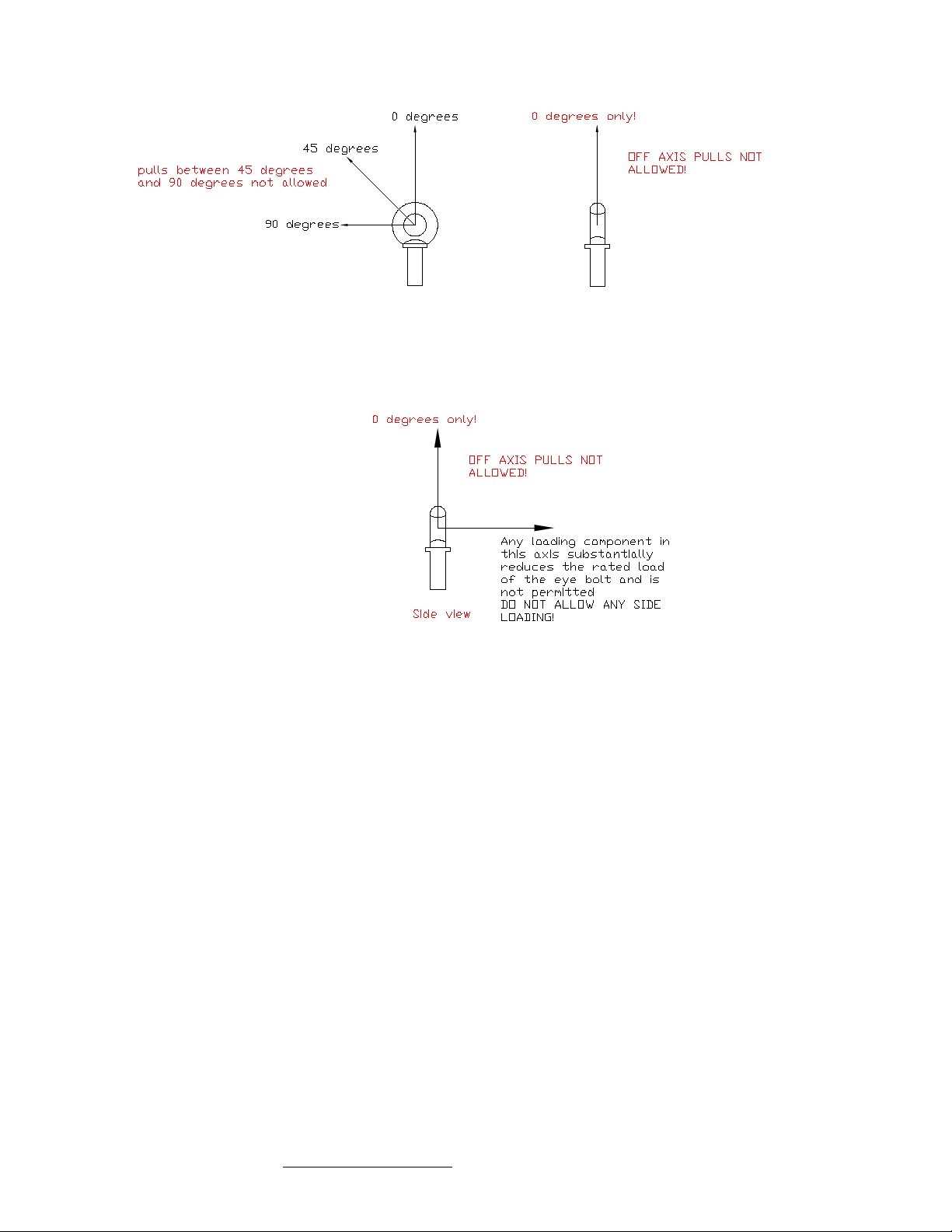

The figure below illustrates allowed pull angles. Suspending any object with eyebolts
should always be done to insure the resultant forces are within the allowed pull angles as
shown below. The maximum rating of the eyebolt is in a 0 degree pull. The rating decreases
as the pull angle goes from 0 degrees to 45 degrees. Any pull angles between 45 degrees

and 90 degrees are not allowed!
