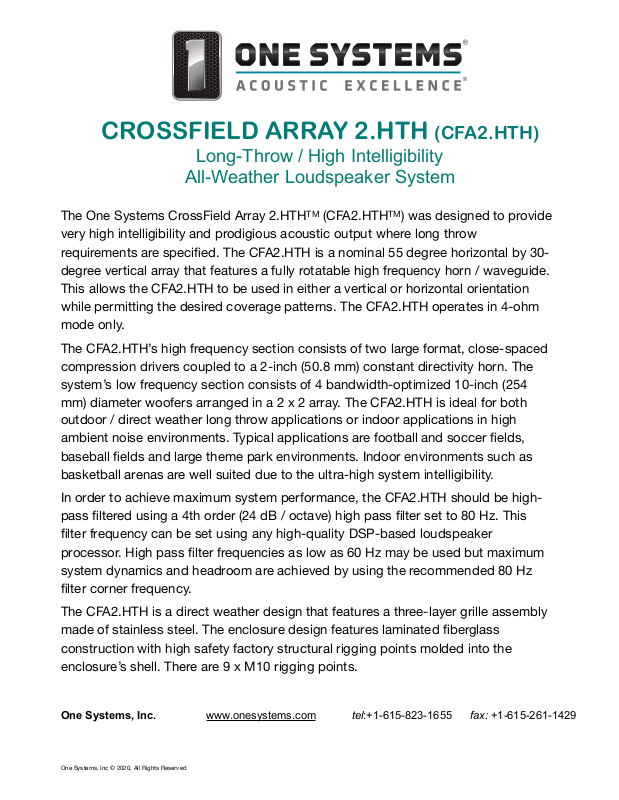

The One Systems CrossField Array 2.HTHTM (CFA2.HTHTM) was designed to provide very high intelligibility and prodigious acoustic output where long throw requirements are speciﬁed. The CFA2.HTH is a nominal 55 degree horizontal by 30degree vertical array that features a fully rotatable high frequency horn / waveguide. This allows the CFA2.HTH to be used in either a vertical or horizontal orientation while permitting the desired coverage patterns. The CFA2.HTH operates in 4-ohm mode only. "

The CFA2.HTH’s high frequency section consists of two large format, close-spaced compression drivers coupled to a 2-inch (50.8 mm) constant directivity horn. The system’s low frequency section consists of 4 bandwidth-optimized 10-inch (254 mm) diameter woofers arranged in a 2 x 2 array. The CFA2.HTH is ideal for both

outdoor / direct weather long throw applications or indoor applications in high ambient noise environments. Typical applications are football and soccer ﬁelds, baseball ﬁelds and large theme park environments. Indoor environments such as basketball arenas are well suited due to the ultra-high system intelligibility. "

In order to achieve maximum system performance, the CFA2.HTH should be highpass ﬁltered using a 4th order (24 dB / octave) high pass ﬁlter set to 80 Hz. This ﬁlter frequency can be set using any high-quality DSP-based loudspeaker processor. High pass ﬁlter frequencies as low as 60 Hz may be used but maximum system dynamics and headroom are achieved by using the recommended 80 Hz ﬁlter corner frequency. "

The CFA2.HTH is a direct weather design that features a three-layer grille assembly made of stainless steel. The enclosure design features laminated ﬁberglass construction with high safety factory structural rigging points molded into the enclosure’s shell. There are 9 x M10 rigging points. "

CROSSFIELD ARRAY 2.HTH (CFA2.HTH)

Long-Throw / High Intelligibility

All-Weather Loudspeaker System

Page 2

One Systems, Inc.!! www.onesystems.com tel:+1-615-823-1655 fax: +1-615-261-1429

There is an optional U-Bracket (CFA2.UM), that includes a stainless steel strap kit that allows the desired tilt angle to be set and maintained regardless of wind loading. All rigging points on the CFA2.HTH are made of 316-grade marine stainless steel. The

grille is made of stainless steel and features a newly-developed marine-grade coating system. The CFA2.HTH may be used in oceanfront and marine applications as well as for general inland direct weather installations.

The CFA2.HTH is also compatible with the One Systems PM4.M pole mount system if vertical tilt requirements are required for a pole mount application. The One Systems PT76.M is also compatible with the CFA2.HTH when pan and tilt are required. The

One Systems PM4.M is compatible with pole mounting only, and the PT76.M is compatible with flat surface mounting only.

The system’s input is a four-position barrier strip. The input section features a weather cover with an integral IP 68-rated gland nut. The gland nut will accommodate outside

cable diameters of 7 mm to 12 mm (0.236 inch to 0.472 inch). This maximum diameter will accept most 2-conductor AWG12 cable assemblies.

CFA2.HTH FEATURES AND BENEFITS:

•

Very High Intelligibility

•

Long Throw / High Acoustic Output

• Fully-Rotatable 55o x 30o High Frequency Waveguide

•

IP 56 Direct Weather Rated

•

Two Large-Format High Frequency Drivers Coupled to 2-inch Waveguide

• 2 x 2 Array of 10-inch (254 mm) Low Frequency Drivers with 4-inch voice coils

•

Compact size

•

Multiple Fly Points and Rigging Accessories

•

All M10 rigging points are made of 316-grade marine stainless steel

Page 3

CFA2.HTH SPECIFICATIONS:

Frequency Response:! ! ! ! 60 - 16,000 Hz + 3 dB"

Coverage Pattern:!! ! ! ! 55o x 30o Fully Rotatable"

Passive Crossover Frequency:! ! ! 1,500 Hz! ! "

Input Connection:! ! ! ! ! 4-position barrier strip"

System Sensitivity (1 watt@ 1 meter):! ! 104 dB"

Calculated Output (Continuous / Peak):! 134.8 dB / 140.8 dB @ 1 meter"

Power Handling:! ! ! ! ! 1,200 watts continuous"

! ! ! ! ! ! ! 2,400 watts program"

! ! ! ! ! ! ! 4,800 watts peak *"

NOTE: All system power handling ratings are ampliﬁer headroom dependent"

Nominal Impedance:! ! ! ! 4 ohms"

System Components:"

! Low Frequency: ! ! ! ! 4 x 10 inch with 4-inch voice coils"

! High Frequency:! ! ! ! 2 x Large-Format Compression ! !

! ! ! ! ! ! ! Drivers with Titanium Diaphragms"

Recommended High-Pass Filter:! ! Butterworth 24 dB @ 80 Hz"

Suspension / Mounting Points:! ! ! 9 each M10"

Direct Weather Performance:! ! ! IEC 529 - IP 56 / Mil Spec 810"

Dimensions (H x W x D), mm:! ! ! 876.5 x 572.6 x 446.3 mm"

Dimensions (H x W x D), in: 34.5 x 22.5 x 17.6 in"

Net Weight:! ! ! ! ! ! 60.6 kg / 133.6 lb"

Optional Accessories:! ! ! ! PM4.M Pole Mount Bracket"

! ! ! ! ! ! ! PT76.M Pan / Tilt Bracket"

! ! ! ! ! ! ! CFA2.UM U-Bracket

One Systems, Inc.!! www.onesystems.com tel:+1-615-823-1655 fax: +1-615-261-1429

Page 4

One Systems, Inc.!! www.onesystems.com tel:+1-615-823-1655 fax: +1-615-261-1429

The CFA2.HTH may be suspended using either the optional U-Bracket or the Pole Mount System PM4.M for pole mount applications or the PT76.M for wall mounting. The CFA2.HTH may be suspended horizontally using points 1 and 3 shown below via M10

eyebolts. All of these optional suspension hardware systems are made of 316-grade marine stainless steel.

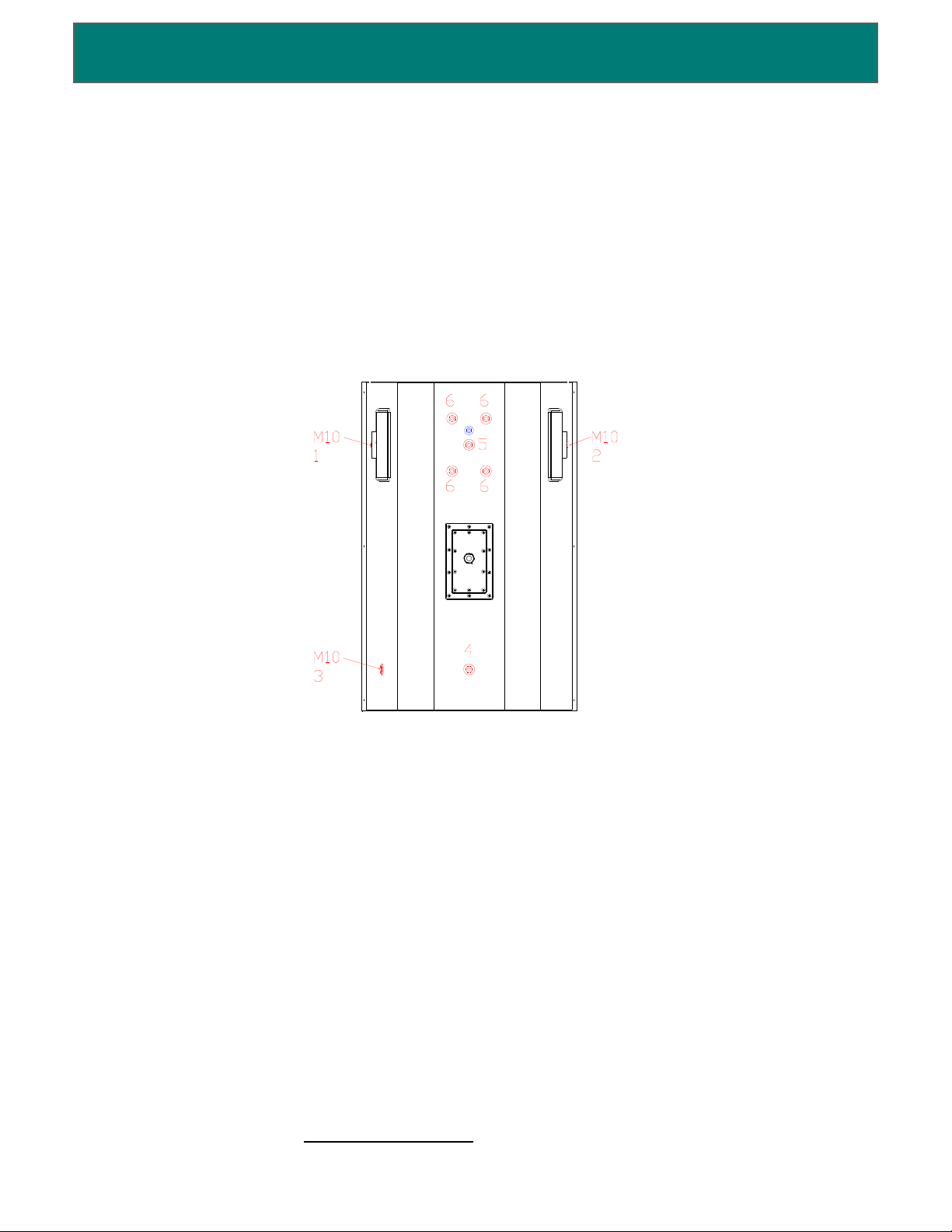

The CFA2.HTH’s rigging points (9 x M10 points) and a mounting point for the U-Bracket hardware kit (plus an M8 insert is NOT A SUSPENSION POINT) are shown below.

The suspension points shown in red are all M10. The single blue-colored point is an M8. The points are numbered in this image to illustrate their intended usage as follows:

Points 1 and 2 -- U-Bracket mounts (the blue point, M8, is used for the U-Bracket’s aiming strap. The blue M8 point is NOT a structural suspension point and is used for the U-Bracket’s aiming strap ONLY!)

Points 1 and 3, 4 and 5 -- Horizontal enclosure mounts. NOTE: All 4 points, (Points 1, 3, 4, and 5) must be used for horizontal mount conﬁgurations. Point 4 and 5

are for pull-up and safety!

Points 6 -- These four points are used with the PT76.M or the PM4.M Pole Mount System (NOTE: Point 4 is used for the “link” portion of the PT76.M or the PM4.M Pole

Mount System).

One Systems, Inc.!! www.onesystems.com tel:+1-615-823-1655 fax: +1-615-261-1429

SUSPENDING THE CFA-2/HTH

The CFA-2/HTH may be suspended using either the optional U-Bracket or the Pole Mount System PM4/M for pole mount applications or the PT-76/M for either wall or pole mounting. The CFA-2/HTH may be suspended horizontally using points 1 and 3 shown

below via M10 eyebolts. All of these optional suspension hardware systems are made of 316-grade marine stainless steel.

The CFA-2/HTH’s rigging points (9 x M10 points) and a mounting point for the U-Bracket hardware kit (M8 -‐ 1 point (NOT A SUSPENSION POINT) are shown below.

The suspension points shown in red are all M10. The single blue-colored point is an M8. The points are numbered in this image to illustrate their intended usage as follows:

Points 1 and 3, 4 and 5 -- Horizontal enclosure mounts. NOTE: All 4 points, (Points 1, 3, 4, and 5) must be used for horizontal mount conﬁgurations. Point 4 and 5

are for pull-up and safety!

Points 6 -- These four points are used with the PT-76/M or the PM4/M Pole Mount System (NOTE: Point 4 is used for the “link” portion of the PT-76/M or the PM4/M Pole

Mount System).

SUSPENSION OF THE CFA2.HTH

Page 5

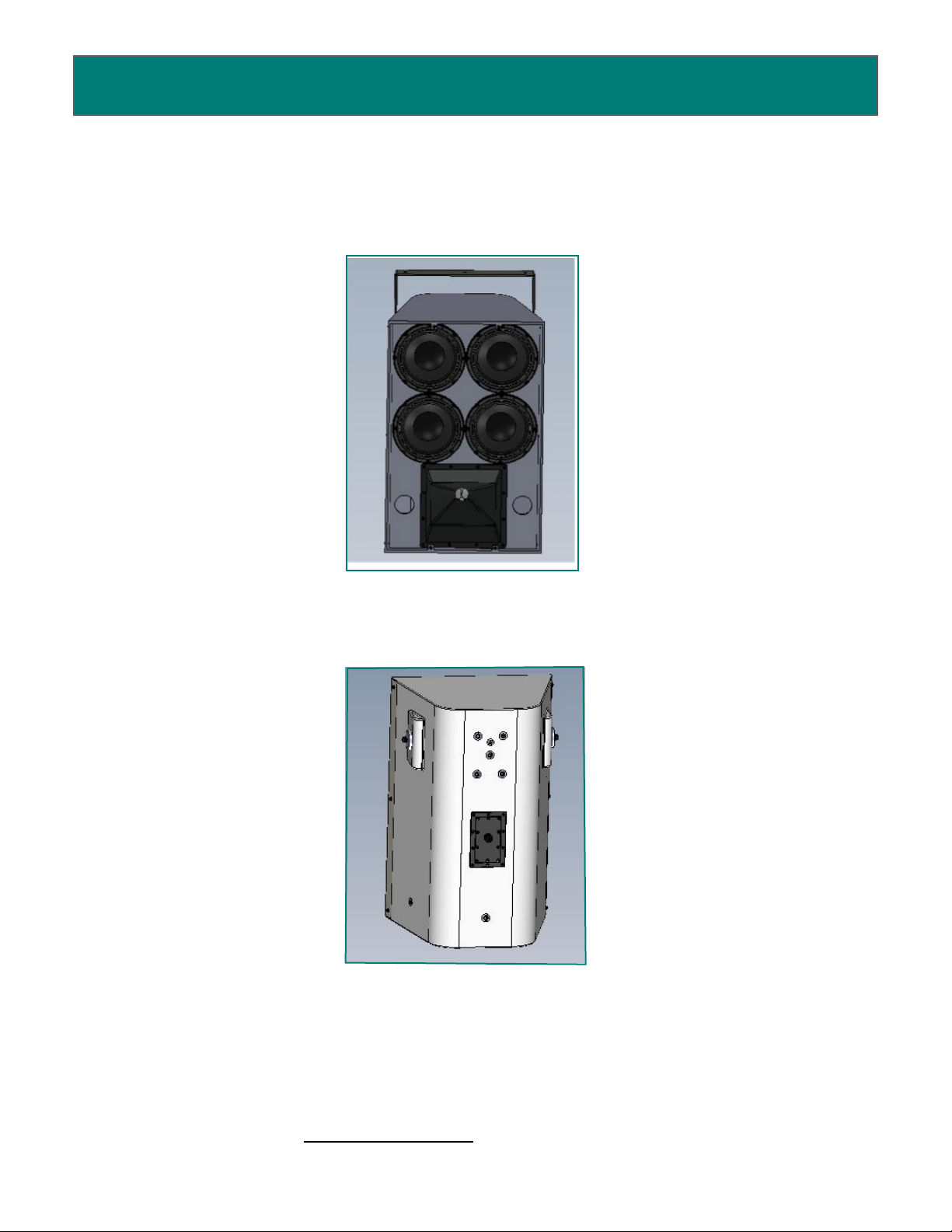

The optional U-Bracket requires the speaker be suspended “upside down” with its high frequency section positioned near the bottom of the front bafﬂe. The

U-Bracket will allow adjustment in the vertical axis (tilt) only. See the image below.

One Systems, Inc.!! www.onesystems.com tel:+1-615-823-1655 fax: +1-615-261-1429

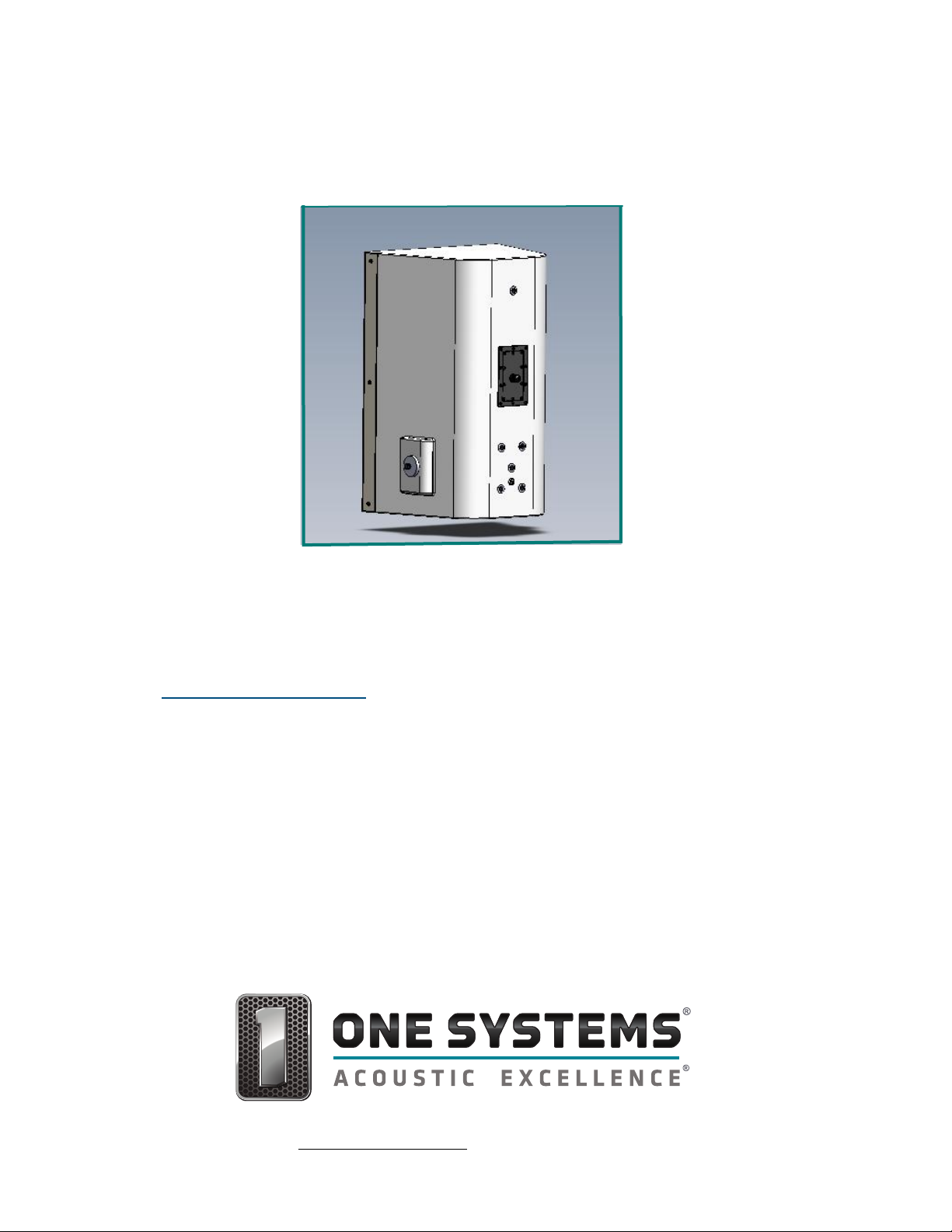

CFA2.HTH’s orientation when used with the optional U-Bracket

The CFA2.HTH’s optional U-Bracket and hardware kit allow the enclosure to be tilted back and locked into position. This kit prevents wind loading and “gravity sag”

from altering the required down-tilt aiming angle of the enclosure.

CFA2.HTH U-BRACKET SUSPENSION

Page 6

One Systems, Inc.!! www.onesystems.com tel:+1-615-823-1655 fax: +1-615-261-1429

The kit consists of:

1 each - Band-It AE4779 All-Purpose Band 316SS (Black Coated) 475 mm long 2 each - M8 304-grade stainless steel bolts

1 each - M8 304-grade stainless steel nylon insert nut 3 each - 304 stainless steel ﬂat washers 1 each - lock washer

The M8 ﬁtting is located in the middle of the 4 x M10 points (see notes for #6 above).

NOTE: The M8 suspension point should NOT be used for rigging. The M8 point is to be

used to mount the hardware aiming kit ONLY!

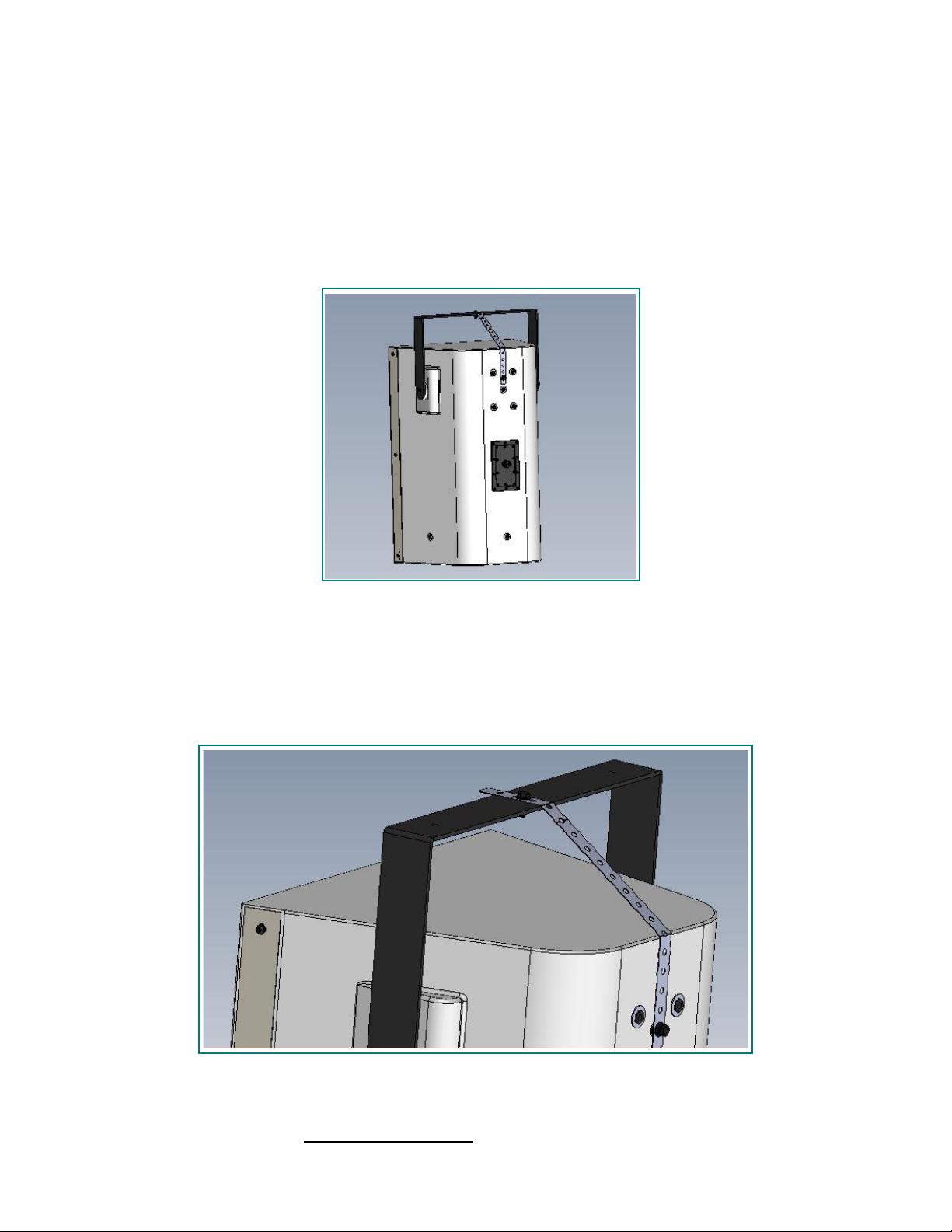

The U-Bracket kit is shown installed in the illustration above and a close-up below:

"#$!HI!,&''&*F!&+!9)(/'$2!K$'M$$*!'#$!H.J!=)&*'+0!!

OP"5-!"#$!HI!=)&*'!+#);92!OP"!K$!;+$2!,)<!<&FF&*F0!

"#$!HI!=)&*'!&+!')!K$!;+$2!')!E);*'!'#$!#/<2M/<$!%&'!PONQR!

"#$!STU!K</(%$'!%&'!&+!+#)M*!&*+'/99$2!/K)V$!/*2!/!(9)+$!;=!K$9)M0!

Page 7

One Systems, Inc.!! www.onesystems.com tel:+1-615-823-1655 fax: +1-615-261-1429

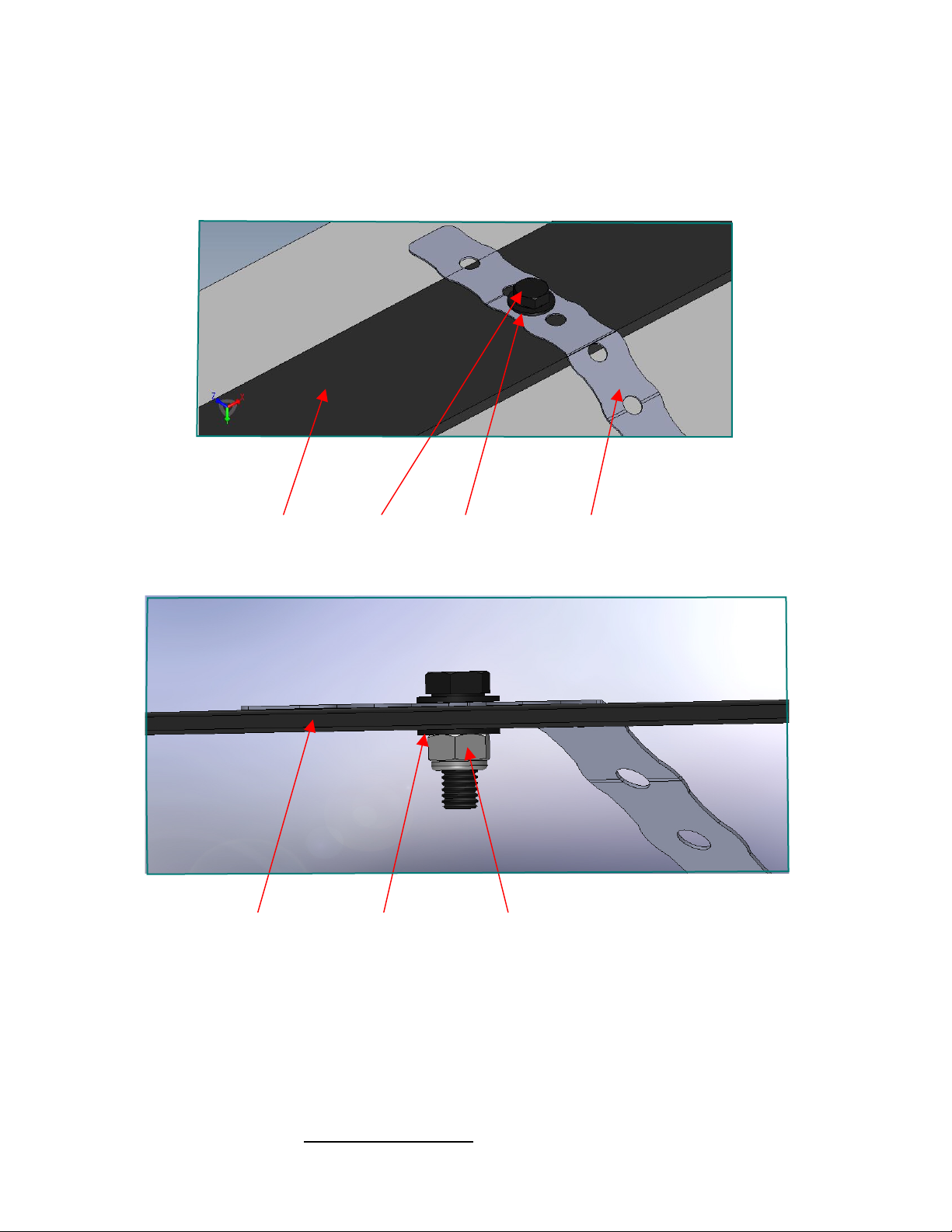

The stainless steel band is connected to the U-Bracket by using one M8 bolt and ﬂat washer on the top as shown in the close-up below. A second ﬂat washer and the nylon insert nut are used below the U-Bracket to secure the stainless steel band to the top of

the U-Bracket.

" " "

The"stainless"steel"band"is"connected"to"the"“U”"bracket"by"using"one"M8"bolt"and" flat"washer"on"the"top"as"shown"in"the"close"up"below."A"second"flat"washer"and"the" nylon"insert"nut"are"used"below"the"“U”"bracket"to"secure"the"stainless"steel"band"to" the"top"of"the"“U”"bracket." " "

" " "

" " “U”"bracket""""""M8"bolt"""""Flat"Washer"""Stainless"Steel"Band" " "

U-Bracket Flat Washer M8 Nylon Insert Nut

U-Bracket M8 bolt Flat Washer Stainless Steel Band

Page 8

One Systems, Inc.!! www.onesystems.com tel:+1-615-823-1655 fax: +1-615-261-1429

! !

! "#$!%&''&('!)*&(+!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!",!)*&(+!!!!!!!!!!!!!!"#$!%&''&('!!!!!",!-*.+!!!!!!"#$!%&''&('!)*&(+!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!/.0+!10234%!!!!5*67!10234%!

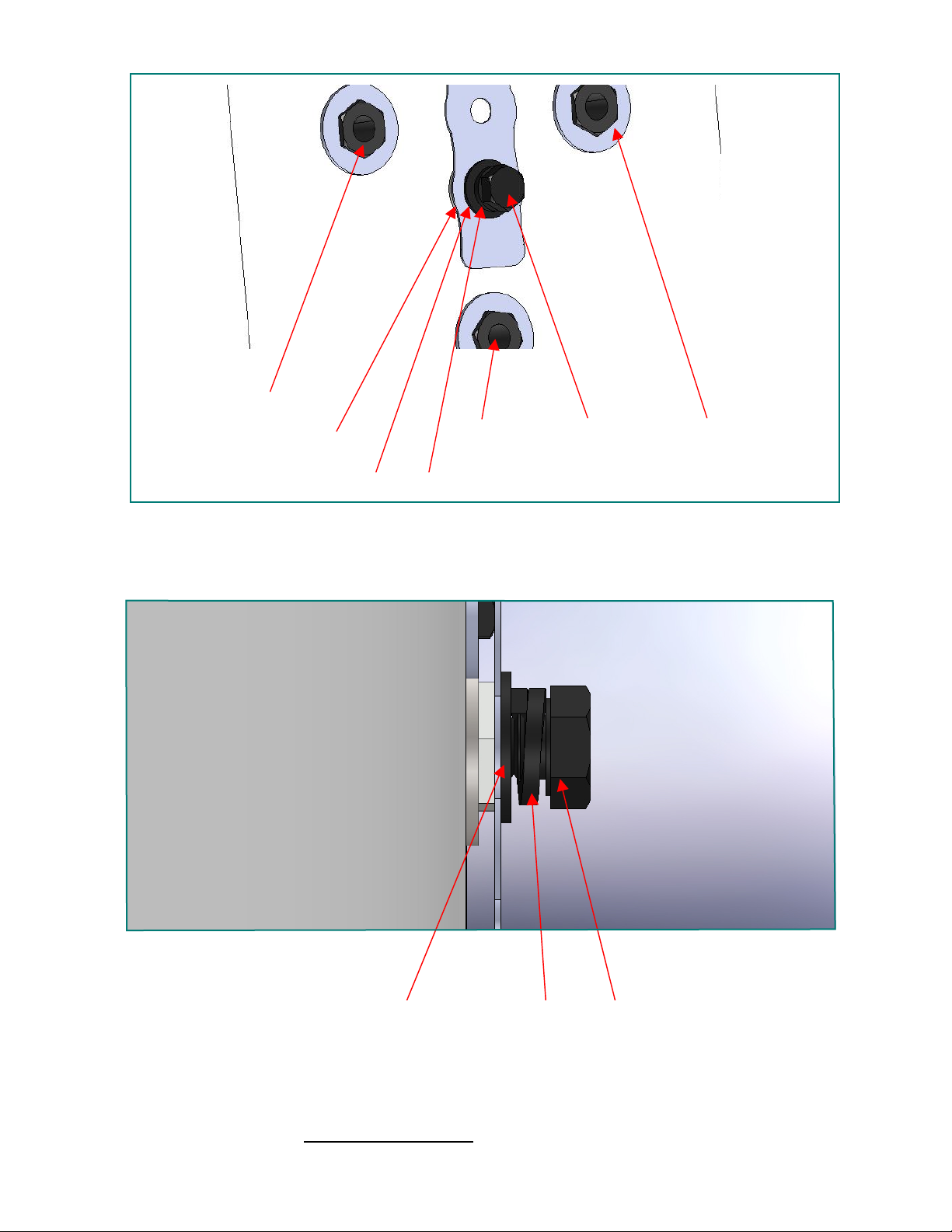

The band is secured to the back of the enclosure using the M8 point, a ﬂat washer, a lock washer and the second M8 bolt as shown above.

! !

! "#$!%&''&('!)*&(+!

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!",!)*&(+!!!!!!!!!!!!!!"#$!%&''&('!!!!!",!-*.+!!!!!!"#$!%&''&('!)*&(+!

! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!/.0+!10234%!!!!5*67!10234%! ! 834!-0(9!&2!246:%49!*(!+34!-067!*;!+34!4(6.*2:%4!:2&('!+34!",!)*&(+<!0!;.0+!=0234%<!0! .*67!=0234%!0(9!+34!246*(9!",!-*.+!02!23*=(!0-*>4?! !

! ! !

The above image shows the rear of the CFA2.HTH with the strap kit’s mounting

Flat Washer Lock Washer M8 Bolt

Page 9

One Systems, Inc.!! www.onesystems.com tel:+1-615-823-1655 fax: +1-615-261-1429

POLE MOUNT and PAN / TILT BRACKET SUSPENSION

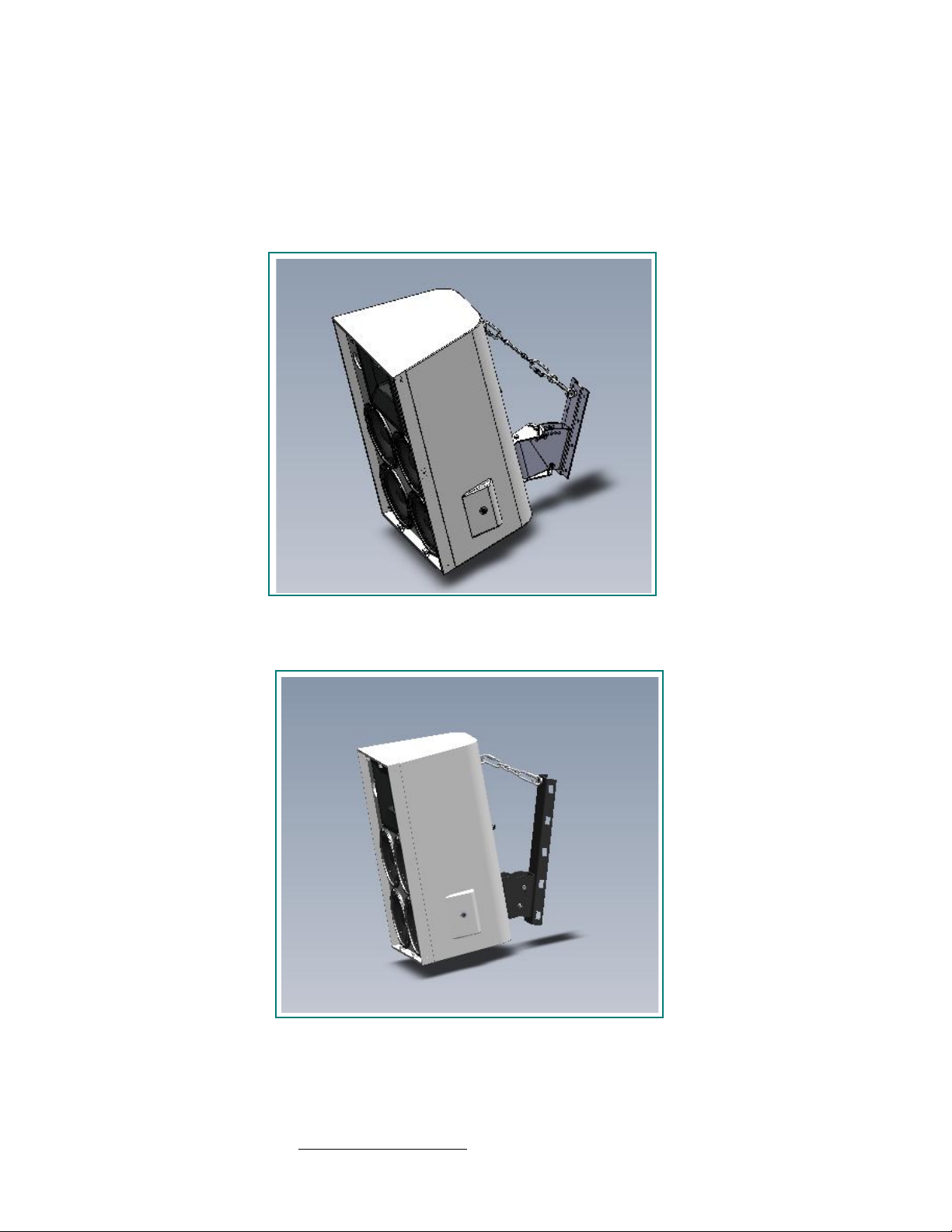

The CFA2.HTH is shown below using the PT76.M Pan / Tilt Bracket and the PM4.M Pole Mount Bracket. When the CFA2.HTH is suspended using either the PT76.M or the PM4.M, the enclosure must be oriented with the woofers located near the bottom of

the mount.

CFA2.HTH with the PT76.M

%&'()$-*1"$2!(34$

CFA2.HTH with the PM4.M

Page 10

One Systems, Inc.!! www.onesystems.com tel:+1-615-823-1655 fax: +1-615-261-1429

NOTE: When the CFA2.HTH is used with the PT76.M or the PM4.M, the enclosure should be oriented with the horn located near the top as shown below:

Detailed installation instructions for the PT76.M and the PM4.M can be found in the products and documentation sections of the One Systems web site: www.onesystems.com.
