User Guide
Guide de l'Utilisateur
Manual do Usuário
EFFECTS
CRYIN’
THE WAH WHA PEDAL
2
E
N
G
L
I
S
H
Product Overwiew
Thank you for choosing an Onerr product.
The wah wah effect was made popular by the most influential guitar players of the late 60s.
The Cryin' CB-01 wah wah was designed to be used with
guitar, and its modern design and solid
construction will give years and years
of outstanding performance.
The TRUE BYPASS switch keeps your
guitar tone unaffected while working
in by-pass mode.
3
Powering
To connect a battery to your wah wah pedal, simply remove the plastic cover located on the bottom plate. Use
alkaline batteries for longest battery life.
This pedal is supplied with no battery installed to prevent this
unit against leaking. A 9 volts battery (not included) must be
installed if you are not using an optional power supply.
1 - Connect the guitar cord into the wah wah "GUITAR" jack.
2 - Connect a cord from the wah wah "AMPLIFIER" jack into
your amplifier input jack.
3 - To turn the wah wah effect ON, push the toe of the
pedal all of the way down until your hear or feel a click.
You can also send the wah wah "AMPLIFIER" cord
to other effect devices and last to your amplifier
input jack.

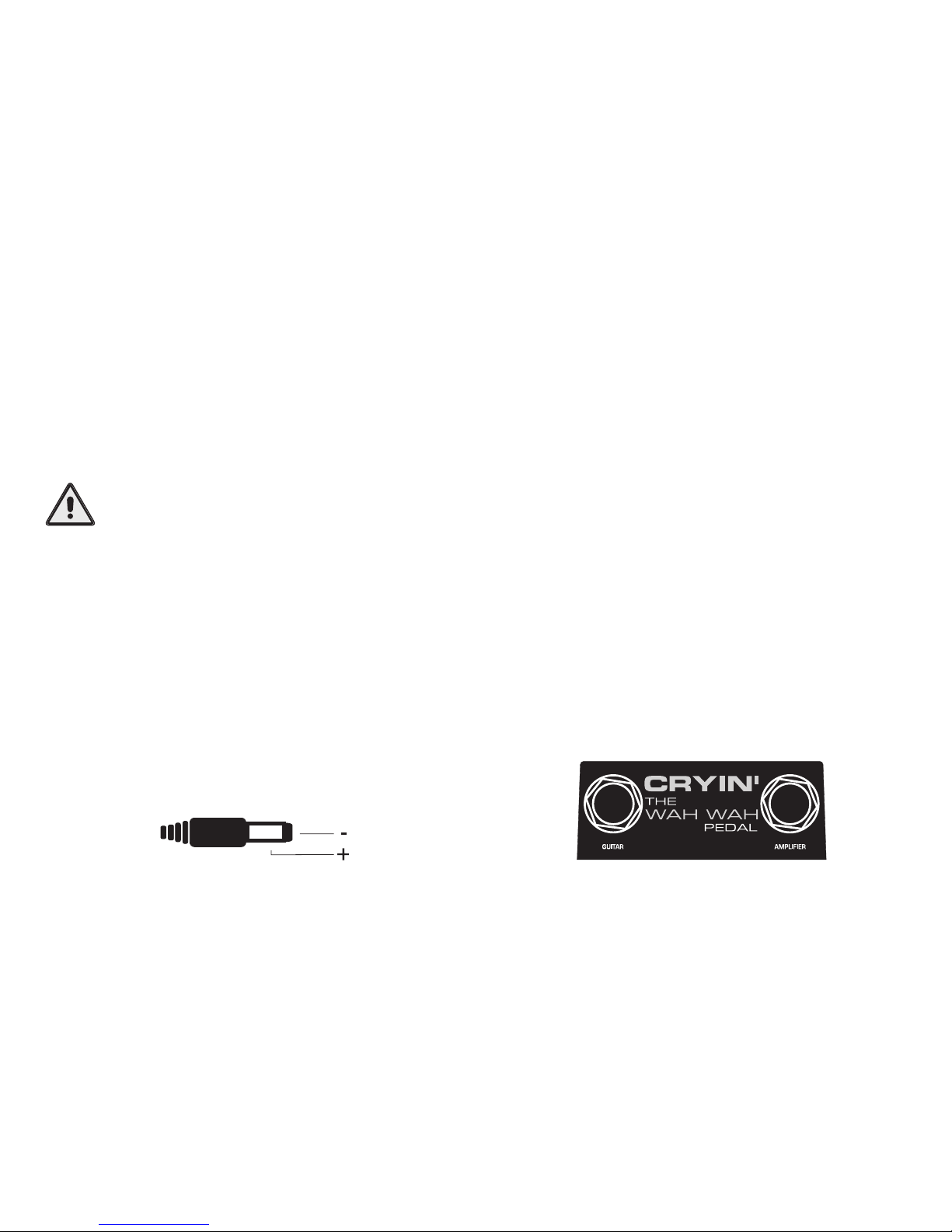

Power supply specification:
Output: DC 9V 100 mA
Negative center
Warning
Battery is engaged when a plug is inserted into the guitar jack. For longest battery life, remove the guitar cords
from pedal when not in use.
4
Guitar
AC Adaptor
Out
In
In
OutIn
Wah Wah
Effects
Conecting
Amplifier
A wah wah effect is an active sweepable bandpass
filter.
With the heel down, low frequencies will be
more accentuated.
With the toe down, high frequencies will be
more accentuated.
4- To turn your wah wah pedal OFF, just push the
toe of the pedal all of the way down until you
hear or feel a little click. This indicates that
now you are working in bypass mode.
Try also connecting your wah wah pedal after
your effect pedals. The wah wah effect sounds
different when used after distortions and overdrives
compared to when used before them.
This method will not cause any damage to your
equipment, so don't be afraid to experiment!
5
Warning
The input jack also serves as a power switch. Power is turned on when an instrument plug is inserted into the input jack
and is it turned off when disconnected. When this unit is not in use you should disconnect any cord connected to the input jack.
Care and Maintenace:
Use a soft, dry cloth for external cleaning. Do not use chemical products, which may damage its rubber and plastic parts.
The CB-01 wah wah pedal uses an internal long life potentiometer that controls the sweep of the wah wah filter.
It may eventually present unexpected noises due to dust and dirt accumulation. A “scraping” sound will become audible
through your amplifier.
If you experience this problem, try cleaning the potentiometer with a spray contact cleaner.
Just remove the back aluminum cover for potentiometer access. Apply a fine spray of electronic contact cleaner with
lubricant directly inside the potentiometer. Move pedal back and forth to ensure penetration of cleaner.
Put the aluminum plate back and test the pedal.
If the results are unsatisfactory, seek authorized service for potentiometer replacement.
Notes:
Only use reliable cords to connect your pedals.
Before powering your pedals, make all necessary linking connections. If you need to change any connection, do not forget to turn
the power off in order to prevent any possible damage to your units.
Only use regulated adaptors for best performance.
Do not worry if you accidentally change the input to output cord. This will not damage your unit. Just turn the power off and
reconnect it correctly.
6
Tu rn the power off and remove the AC adaptor from the outlet
if any of the following conditions occur:
- The AC adaptor cord has been cut or damaged.
- This unit has been exposed to rain or some liquid has
penetrated the unit.
- This product does not appear to operate normally or
presents some change in performance.
Do not use or store this product in places that are:
-Dusty,
-Humid or Damp
- Subject to very high (such as sunlight or near heating
equipment) or very low temperatures
- Subject to rain
Do not allow any kind of object or liquid to penetrate this
product. This may cause irreparable damages.
Before using this product be sure to read and check all
instructions of this Owner's manual.
Other than the battery compartment, do not open
this product in any way. This will void the warranty and
may cause damage to the unit if manipulated by nonauthorized people.
Use only reliable AC adaptors with proper line voltage.
Non-reliable AC adaptors with different polarity or
voltage may cause damage or malfunction and void the
warranty.
Using this pedal safely
Warning or Caution: Instructions alerting the user
to possible risks and/or injuries if the produc is used
improperly.
Forbidden actions: Used to advise those actions that
can't be carried out.
7
Microtronix Eletrônica Ltda warrants this unit to be free from defects in materials and workmanship for a period of
1 (one) year from date of first purchase.
This warranty does not include any kind of damage resulting from accidents, misuse, abusie, alteration to the internal
circuitry or vital parts and damages caused by non-reliable AC adaptors.
If in any way this unit becomes defective within the warranty period, Microtronix Eletrônica Ltda will elect to repair
or replace it free of charge.
After the warranty period, Microtronix Eletrônica Ltda will repair this unit for a fee.
This warranty is extended for residents of Brazil. Please call main office for return
authorization number. Microtronix will not accept packages without prior authorization,
pre-paid freight, and proper insurance.
Please call or e-mail the international distributor
for warranty information.
Warranty
Produzido no Brasil por
Microtronix Eletrônica Ltda.
Impresso no Brasil
www.onerr.com
