OneProd HAWK User Manual

1

HAWK
USER MANUAL

2

Brand of ACOEM

3

Brand of ACOEM

Document reference: DOC3122 – OCTOBER 2014 A
Name: HAWK USER MANUAL

www.acoemgroup.com

[e-mail]

Copyright © 2014, 01dB-Metravib SAS

This document is the property of 01dB-Metravib SAS. Any dissemination, copying or publicising of this document, in whole or in

part, is prohibited without the owner’s written authorisation.

HAWK
USER MANUAL

4

Brand of ACOEM

TABLE OF CONTENT

General presentation ...................................................................................................... 6 CHAPTER 1.

1.1 Introduction ............................................................................................................................ 6

1.2 Safety instructions ................................................................................................................. 6

1.3 First power-up ........................................................................................................................ 6

1.4 User interface ........................................................................................................................ 7

1.5 Connections ........................................................................................................................... 7

1.6 Built-in sensors ...................................................................................................................... 8

1.7 Wireless Sensor .................................................................................................................... 9

1.8 Data exchange with PC ....................................................................................................... 10

1.9 Status indications ................................................................................................................ 12

1.10 Shortcuts panel .................................................................................................................... 13

1.11 Battery management ........................................................................................................... 17

1.12 Remote Display & Control function ..................................................................................... 19

General settings ........................................................................................................... 20 CHAPTER 2.

2.1 Collect .................................................................................................................................. 20

2.2 Measurement ....................................................................................................................... 20

2.3 Wireless sensor ................................................................................................................... 21

2.4 Tachometer.......................................................................................................................... 22

2.5 Spectrum display ................................................................................................................. 22

2.6 Camera ................................................................................................................................ 23

2.7 Touchscreen ........................................................................................................................ 23

2.8 About ................................................................................................................................... 23

2.9 Date – language .................................................................................................................. 24

2.10 Network ................................................................................................................................ 24

2.11 Data management ............................................................................................................... 25

2.12 Update firmware .................................................................................................................. 25

2.13 Auto test ............................................................................................................................... 25

2.14 Calibration ............................................................................................................................ 26

2.15 Battery management ........................................................................................................... 26

2.16 Mix of wired and wireless sensors ....................................................................................... 26

Supervisor module ....................................................................................................... 28 CHAPTER 3.

3.1 Introduction .......................................................................................................................... 28

3.2 Cloud server architecture .................................................................................................... 28

3.3 First connection to the NEST software ................................................................................ 29

3.4 Create a machine in NEST software ................................................................................... 29

3.5 Load a machine on HAWK .................................................................................................. 35

3.6 Make measurements with HAWK Supervisor ..................................................................... 36

3.7 Display measurements ........................................................................................................ 42

3.8 Run automatic diagnosis ..................................................................................................... 44

3.9 Add comments to the diagnosis .......................................................................................... 45

3.10 Transfer measurements to NEST Software ........................................................................ 45

3.11 Print a report from NEST Supervision module .................................................................... 46

3.12 Ask for remote assistance from NEST Supervision module ............................................... 48

3.13 Copy / Paste machines on HAWK ....................................................................................... 49

Balancing module ......................................................................................................... 50 CHAPTER 4.

4.1 Balancing module guideline ................................................................................................. 51

4.2 Folder list ............................................................................................................................. 52

4.3 Balancing List ...................................................................................................................... 52

4.4 Installing the equipment ....................................................................................................... 53

4.5 Setup ................................................................................................................................... 54

4.6 Run-out measurement ......................................................................................................... 57

4.7 Free run ............................................................................................................................... 58

5

Brand of ACOEM

4.8 Trial run ................................................................................................................................ 59

4.9 Balancing result ................................................................................................................... 61

4.10 Trim steps ............................................................................................................................ 62

4.11 Steps browser ...................................................................................................................... 62

4.12 One run balancing ............................................................................................................... 62

4.13 Report .................................................................................................................................. 63

Maintenance ................................................................................................................. 64 CHAPTER 5.

5.1 RESET ................................................................................................................................. 64

5.2 Cleaning ............................................................................................................................... 64

5.3 Calibration ............................................................................................................................ 64

5.4 Backup of instrument memory ............................................................................................. 64

5.5 Instrument firmware update ................................................................................................. 64

5.6 WLS sensor firmware update .............................................................................................. 64

5.7 Screen frame protection ...................................................................................................... 65

Appendix ...................................................................................................................... 66 CHAPTER 6.

6.1 Appendix 1: Data storage organization ............................................................................... 66

6

Brand of ACOEM

GENERAL PRESENTATION CHAPTER 1.

1.1 INTRODUCTION

We want to congratulate you on your choice and hope that you will be fully satisfied with it. For this reason, we
recommend that you read carefully the present user guide and more specifically the safety instructions.

Designed to meet industrial requirements for enhancing productivity, HAWK is a portable multichannel instrument
coming along with a large touchscreen, a 3-axis wireless sensor and numerous accessories. This innovative all-in­one solution makes vibration analysis available to all users.

HAWK is available in 2 versions. The HAWK (red rubber) is for safe area, and the HAWK-EX (black rubber) for
ATEX Zone II area. All functionalities described in this manual are applicable to both versions.

In case of a problem, please contact our Hotline at [e-mail]

1.2 SAFETY INSTRUCTIONS

The safety instructions delivered with the instrument (printed and on the CDROM) should be carefully
followed and the instrument should always be used within the limits specified here.

1.3 FIRST POWER-UP

The instrument turns on automatically a few seconds after being connected to the mains through the power supply
module. If the battery level is too low, the charge starts and goes on as long as the instrument is connected to its
power supply.

When using a new battery, leave the battery in charge for about 10 hours in order to achieve full charge. Do not
use the instrument prior to 2-3 hours of charge. Usual charging time is about 6 hours when instrument is switched
off.

 On-Off:

o Power on: press the On-Off key
o Power off: press the On-Off key, then message “Shutdown”

 Battery charge:

o Connect the instrument to the charger
o Connect the charger on the main. The instrument is automatically powered on. During the charge you

can continue to use it. For a faster charge it is recommended to switch-off the instrument. A full charge
requires about 6 hours.

It is recommended to disconnect the charger from the main when you are not using it.

7

Brand of ACOEM

1.4 USER INTERFACE

HAWK starts on its “Home screen”. It is a touch screen and a simple pressure on it gives access to the application
modules installed on the instrument and to 2 side panels:

For more details:

 Supervisor module: see CHAPTER 3
 Balancing module: see CHAPTER 4
 Status panel: see § 1.9
 Shortcuts panel: see § 1.10

The 2 side panels are accessible from any screen.

1.5 CONNECTIONS

1.5.1 Connectors A to D on the top of the instrument

Those connectors can be used in industrial environment. They are IP65.

 Connector A: channels 1 and 3. Use this connector when the instrument is set in single-channel mode.
 Connector B: channels 2, 3 and 4. Use this connector with wired triaxial sensor when the instrument is set

in multi-channel mode.
Note: for 2-channel measurement, use connectors A and B. For 4-channel measurement, you also need Y
adaptors.

 Connector C: Tachometer input, Stroboscope output, Power supply input. It is marked in yellow as well as

all cables used on this connector

 Connector D: Ethernet, Microphone input, Audio output.

Warning:

 Do not connect channels 1, 2, 3, 4 and tachometer input on a not buffered output or in parallel

to other instrument as their impedance is not maintained when changing configuration or when
the instrument is switched off.

 Respect the maximum input voltage to the A/B/C/D connectors: maximum input voltage ± 24 V

DC, ± 24 volts peak AC.

Access to

application

modules

Access to

status side

panel

Access to

shortcuts

side panel

A B C

D

Antenna for WLS
sensor and Wi-Fi

8

Brand of ACOEM

1.5.2 Connectors E to I behind the trapdoor

Those connectors are behind a trapdoor. It must remain close in industrial environment to preserve the IP65
protection. Use those connectors only in office environment.

 Connector E: Power supply input
 Connector F: Ethernet RJ45
 Connector G: USB 2 type A host (for USB memory stick)
 Connector H: USB 2 type B device (direct connection with PC)
 Connector I: serial interface for maintenance purposes only

1.6 BUILT-IN SENSORS

The back of the instrument gives access to the built-in sensors.

For the stroboscope and the pyrometer, please see the safety instructions delivered with the instrument
(printed and on the CDROM)

High-power LED for
stroboscope and
camera flash

Laser beam source
for pyrometer sighting

Pyrometer window

Camera window

E F G

H

9

Brand of ACOEM

1.7 WIRELESS SENSOR

HAWK can be used with a wireless triaxial accelerometer (WLS Sensor). This chapter described
how to use HAWK with this sensor.

1.7.1 WLS sensor battery

Use the USB cable and charger supplied with the sensor. The connector is protected by the
rubber cap on the top of the sensor. It can also be charged from any USB interface with power
supply (! measurement is not possible if the WLS is connected to a USB PC port). Charging time
is 8 hours with the standard 500 mA charge current.

Note: WLS sensor battery replacement must be done by qualified personnel only.

1.7.2 WLS sensor first connection

 Switch on WLS: press on/off for 2s, until the red LED is on, and wait until the red LED is off and the blue

LED is continuously on. See details below concerning LED indication.

 On HAWK from the home screen proceed as follows:

o Check first if Wi-Fi is enabled in:

Shortcuts > Setting > > Wi-Fi = enabled

o Set HAWK to work with a WLS sensor:

Shortcuts > Setting > > Accelerometer link = Wireless

o Shortcuts > Setting > Wireless sensor:

 Input WLS serial number (e.g., 10015)
 Save the settings

 Wait for about 30 s until the blue LED is flashing. Then 20 s later, the connection must be

set up. It can be seen from the status panel where you can see the sensor identification
(e.g., WLS_10015). It can also be checked from Wireless sensor setting with the Test

function.

If Wi-Fi is enabled further connections are automatic after switch on of the instrument and the WLS sensor.
Note: it is not possible to connect an instrument with a WLS sensor already connected to another
instrument.

1.7.3 WLS sensor switch off

Press on/off for 6s until the red LED flashes on. The sensor is also automatically switched off if there is no
connectivity during 10 min.

10

Brand of ACOEM

1.7.4 WLS: LED indication

Red LED

Blue LED

Significance

WLS connected
to the charger

———

Charge in progress (LED brightness = 50%)

━━━━

Charge completed (LED brightness = 100%)

- - - - -

Charge error

Switch on
(press 2s on/off)

——— (< 10 s)

Off

Start in progress

——— (> 15 s)

Off

Error

———

WLS ready and not connected to the
instrument

- - - - -

WLS connected to the instrument

Switch off
(press 7 s on/off)

- - - - -

Stop in progress

Off

Off

WLS is switched off

Low battery

- - - - -

Notation:

━━━━ brightness = 100%

——— brightness = 50%

- - - - - flashing

Blank any status

1.8 DATA EXCHANGE WITH PC

HAWK can exchange data with the PC when the Communication module is run from the home screen. See
below the different settings according to the type of communication. Once the communication is established, you
can also use the NEST software to upload or download routes. The instrument is also seen as an external drive
from the PC (see § 6.1).

1.8.1 Using USB (Connector H)

No settings are required, the PC automatically detects the instrument after its connection.

1.8.2 Using USB memory (Connector G)

It is possible to use a USB memory stick connected on port G to exchange the following data:

 Firmware update: see § 2.12
 Load and download machines: see §3.5 and §3.10
 Issue balancing reports: see § 4.13

Note: USB memory stick format must be FAT32, NTFS format is not accepted. It is always possible to reformat it to
FAT32.

1.8.3 Using Ethernet (Connector D or F)

 Direct connection PC- HAWK setting:

o On PC: Setup Network

 DHCP = No
 Set the IP address: Ex 192.168.1.10
 Mask = 255.255.255.0

o On HAWK:

Shortcuts > Setting > Network >

 DHCP = No
 Set the IP address = e.g., 192.168.1.12

Note: the first 3 numbers must be the same (192.168.1) and the last one different from that
of the PC (10 ≠ 12)

 Mask = 255.255.255.0

11

Brand of ACOEM

Once the setting is done, to access the data use HAWK IP address, e.g., in the Explorer type
“\\192.168.1.10\Data”.

 PC- HAWK connection through LAN Network:

o On PC: Setup Network

 DHCP = Yes

o On HAWK:

Shortcuts > Setting > Network >

 DHCP = Yes

Connect HAWK to the LAN, set it in communication mode and wait until it gets its IP address.
The IP address can be read in Setting > About information page.

If there is a DNS, it is also possible to access the instrument with its name. The name is
HAWK_serial_number (e.g., HAWK_10015).

Once the setting is done, to access the data use HAWK IP address, e.g., in the Explorer type
“\\HAWK_10015\Data”.

1.8.4 Using Wi-Fi

Check first if Wi-Fi is enabled in:

Shortcuts > Setting > > Wi-Fi = enabled

 Direct Wi-Fi connection PC- HAWK setting without WLS sensor:

o On HAWK:

Setting > Network > Wi-Fi part

 Enabled = Yes
 Adhoc = Yes
 SSID = My_HAWK or other
 Canal = 5
 Authentication = none
 DHCP = No
 Set the IP address: Ex 192.168.1.16

Note: the first 3 numbers must be the same (192.168.1) and the last one different from that
of the PC (14 ≠ 16)

 Mask = 255.255.255.0

o On PC: Setup WIFI network

 DHCP = No
 Set the IP address, e.g., 192.168.1.14
 Mask: 255.255.255.0
 Scan Wi-Fi networks and select HAWK SSID.

Once the setting is done, to access the data use HAWK IP address, e.g., in the Explorer type
“\\192.168.1.16\Data”.

 Direct Wi-Fi connection PC- HAWK-WLS setting:

o On HAWK:

 First set the connection HAWK-WLS: see § 1.7.2
 Wait for sensor connection (status panel)

 In Setting > About information page check HAWK WIFI IP address

(192.168.1.xxx with xxx the last 3 digits of HAWK serial number)

o On PC: Setup Wi-Fi network

 DHCP = No
 Set the IP address: 192.168.1.yyy (yyy ≠ xxx)
 Mask: 255.255.255.0
 Scan Wi-Fi networks and select HAWK SSID (WLS_10015).

12

Brand of ACOEM

Once the setting is done, to access the data use HAWK IP address, e.g., in the Explorer type
“\\192.168.1.xxx\Data”.
Note: this type of communication can also be used if the WLS Sensor is switched off.

 Wi-Fi LAN connection PC- HAWK setting without WLS sensor:

Note: WLS sensor cannot be used simultaneously with this mode.

o On HAWK:

Setting > Network > Wi-Fi part

 Enabled: Yes
 Adhoc: No

 Save the setting

Setting > Network > Wi-Fi part

 Scan network until you detect the right SSID
 Set Authentication, Encryption and Key according to selected SSID
 DHCP: Yes

The IP address can be read in Setting > About information page.
If there is a DNS, it is also possible to access the instrument with its name. The name is:
HAWK_serial_number (e.g., HAWK_10015).

o On PC: the PC must also be connected to the same Wi-Fi LAN

1.9 STATUS INDICATIONS

1.9.1 Status summary

The status is indicated at the bottom of the right hand side of the screen

 General status

o Date and time
o Battery level of the instrument

 During analogic measurement

o Input overload indication in percentage of time.
o Sensor integrity indicator

 During wireless measurement

o Sensor overload indication in percentage of time.
o Battery level of the sensor

1.9.2 Status panel

If you click on the status summary, the status panel appears on the right hand side of the screen. It shows the
following information:

 Wi-Fi:

o Off: Wi-Fi is disabled in Shortcuts > Setting >
o Not connected: the instrument is not connected to a WLS sensor or another Wi-Fi network
o WLS_xxxxx: the instrument is connected to a WLS sensor, xxxxx is the serial number of the sensor.
o Network: Wi-Fi is connected to a network.

 Sensor battery: this information shows the battery level of the WLS sensor. It is not displayed if the

instrument is not connected to a WLS sensor.

 System battery: this information shows the battery level of the instrument.
 Next calibration date: display the recommended date for the next calibration.
 The amount of available memory.

13

Brand of ACOEM

1.10 SHORTCUTS PANEL

From any screen, button opens the Shortcuts panel. It gives direct access to a group of functions. The list of
accessible functions depends of the current screen.

1.10.1 Photo

 From the Collect module, measurement list screen: take an inspection picture
 From Balancing module, any screen: take picture for your report (balanced machine, sensor installation, weight

mounting)

Take the picture:

: take the picture. You must not move during few seconds.

Brightness adjustment.

Flash on and off.

Stored picture management:

Add a new picture.

See previous picture.

See next picture.

Add a comment to the current picture.

Delete the current picture.

14

Brand of ACOEM

1.10.2 Text note

 From Collect module, measurement list screen: input text inspection note directly from the keyboard or from a

list of predefined notes. The list of predefined notes is only available if this list is created in PC database (in
XPR menu “Libraries/Predefined notes”)

 From Balancing module, any screen: balancing comment for the report
Keyboard details:

 Keyboard type:

o EN: English
o FR: French
o PT: Portuguese
o CN: Chinese

 Character selection bar: if one key is used for several characters (e.g., @#$, eéè, …), a long press

displays them in the bar for selection.

1.10.3 Help

From any screen, it gives explanation of each command .

Select

keyboard

type

Character

selection bar

Validate and

return to

previous screen

Cancel: return

to previous

screen with no

modification

Delete all

characters

Delete last

character

15

Brand of ACOEM

1.10.4 Vocal note

Before using a headphone, please read the safety instructions delivered with the instrument (printed and on the
CDROM)

From Collect module, measurement list screen: take a vocal inspection note.

Record: record your comment.

Make sure you set the volume to a low level before starting to listen

Play: listen to the comment

For this function, you must have the optional 3.5 mm jack adapter on connector D (ref: CPC1229000 - HAWK
ECTD-JACKF).

1.10.5 Barcode

From the Collect module, measurement list screen: read the barcode (QR code format):
Notes:

 If the code is unknown, the system suggests associating it to the current point (learning mode). The

association is then memorized for a future collection.

 If a point in the route is already associated with the code, the system goes directly to this point.

1.10.6 Listening to the signal

Before using a headphone, please read the safety instructions delivered with the instrument (printed and on the
CDROM)

 From the Collect module, measurement list screen: listen to the signal of the sensor
 From the Collect module, time wave display screen: listen to the recorded signal

Make sure to set the volume to a low level before starting to listen
Press to start and then adjust the level to your convenience.

For this function, you must have the optional 3.5 mm jack adapter on connector D (ref: CPC1229000 - HAWK
ECTD-JACKF).

Note: if a triaxial sensor is used, the live output is the Z axis of the sensor.

16

Brand of ACOEM

1.10.7 Pyrometer

For the pyrometer please read the safety instructions delivered with the instrument (printed and on the CDROM)
From any screen, read the temperature with the built-in pyrometer

Notes:

 from the Collect module, measurement list screen: if in Measurement setting, if “Pyrometer” = “Internal”,

temperature measurement of the route with input type = DC will be done with the built-in pyrometer

 The pyrometer measures the average temperature in a circle. The diameter of the circle depends on the

distance to the target. The diameter is about 4 cm at a distance of 50 cm.

Warning: due to the distance between the pyrometer cell and the laser source, the circle is decentred by 3
cm.

1.10.8 Stroboscope

For the stroboscope please see the safety instructions delivered with the instrument (printed and on the CDROM)

 From any screen, read the rotation speed with the stroboscope
 From the Collect module, measurement list screen: check or adjust rotation speed of the machine.
 From the Collect module, spectrum display screen: check or read rotation speed of the machine.

Fine tune. A continuous press speeds up the modification

Fast tune. A continuous press speeds up the modification

Divide or Multiply the value by 2.

Set the flash duration: default value is 5 degrees. The longer the duration, the brighter the flash, but

the fuzzier the target on the rotor. Limits range from 0.5 to 15 degrees.

This function is only accessible in Collect module.

 For machine with variable rotation speed: rotation speed measurement of the machine is updated by the

stroboscope value.

 For machine with fixed rotation speed: rotation speed setting of the machine is updated by the stroboscope

value. In this case, when downloading the route, the new rotation speed is used to update the NEST

initial setting

Notes:

 It is recommended to start with a frequency higher than the rotation and decrease gradually until stopping

the rotor marker.

 Default unit is set in "Spectrum display" parameters (see § 2.5)
 Once the marker is stopped, to be sure not to be on a sub-multiple of the rotation, use , the marker

should appear 2 times. Use to return to the initial frequency.

1.10.9 Screenshot

From anywhere, you can save a screen copy. Images are stored in folder “Screenshots”. Connect your PC to
HAWK to copy them (see § 1.8).

17

Brand of ACOEM

1.10.10 Settings

See CHAPTER 2.

1.10.11 Home

From anywhere you can go directly to the home screen.

1.11 BATTERY MANAGEMENT

For battery management, please read the safety instructions delivered with the instrument (printed and
on the CDROM)

1.11.1 Battery charge

When using a new battery, leave the battery in charge for about 10 hours in order to achieve full charge. Do not
use the instrument prior to 2-3 hours of charge. Usual charging time is about 6 hours when instrument is switched
off.

 Battery charge:

o Connect the instrument to the charger delivered with the instrument.
o Connect the charger to the mains. The instrument is automatically powered up. During the charge you

can continue using it. For a faster charge, it is recommended to switch the instrument off. A full charge
requires about 6 hours.

It is recommended to disconnect the charger from the mains when you are not using it.

1.11.2 Battery replacement

 Safety instructions:

o Do not use batteries other than type PIL1133 provided for HAWK and identified as 01dB

Metravib WILPA 2344A

o Do not open or disassemble the battery pack. The pack includes protections and an assembly

essential for the safety that should be changed in no case.

o The battery pack is interchangeable only for maintenance purposes. The operating lifetime of the pack

is sufficient for a full working day. The pack should not be changed periodically to artificially increase its
lifetime. The pack is not intended for this type of use, which would result in a dangerous mechanical
wear.

18

Brand of ACOEM

o Do not short-circuit the terminals of the battery connector. For safety reasons, the battery pack

includes an internal non-resettable fuse. A short-circuit makes it unusable.

o Respect voltage, current and temperature indicated on the label of the battery.
o Do not expose the battery to water or condensation.
o Do not place the battery in fire or near any other source of temperature (> 70°C). This can cause

overheating or a fire start. Such use may also lead to a loss of performance and a significant reduction
of the lifetime of the battery.

o Disconnect the battery and the charger immediately in the following situation:

 unusual odour
 abnormally high temperature

 Replacement instructions:

o Remove the battery:

 Unscrew the 2 screws of the battery trapdoor.

 Remove the connector by gently pulling the two cables. It should come off easily. In the case

of an abnormal resistance, do not force and contact our after-sales service.

 Remove the battery.

o When setting up the battery, be sure to not pinch or crush the cables.
o Check the orientation of the battery pack. The wire output must be placed beside the connector to

avoid crushing by the trapdoor.

o When inserting the battery, make sure not to hurt the pack. The insertion must be done without forcing

excessively. When in doubt, pull out the battery and check that nothing is blocking its insertion.

o Check the orientation of the connector. The coding should be facing up.

o To insert the connector, hold it with the cables.
o Check that trapdoor does not crush the cables by pushing them to the right hand side.

Screws

Screws

OK

NO

Coding

19

Brand of ACOEM

1.12 REMOTE DISPLAY & CONTROL FUNCTION

Procedure to take control of HAWK from a PC:

 Install Real VNC Viewer ® on the PC
 HAWK must be first networked by Ethernet (see § 1.8.3) or by Wi-Fi (see § 1.8.4) with the PC
 To work also with WLS Sensor, use the ‘Direct Wi-Fi connection PC- HAWK-WLS setting’ configuration.
 Run Real VNC Viewer ®
 Set the Input Server address: IP address of HAWK or its hostname (e.g., HAWK_10015) if there is a DNS.
 It is then possible to control HAWK from the PC.

Note: it is possible to protect this access with a password: see § 2.10

20

Brand of ACOEM

GENERAL SETTINGS CHAPTER 2.

Access: Shortcuts panel > Settings

2.1 COLLECT

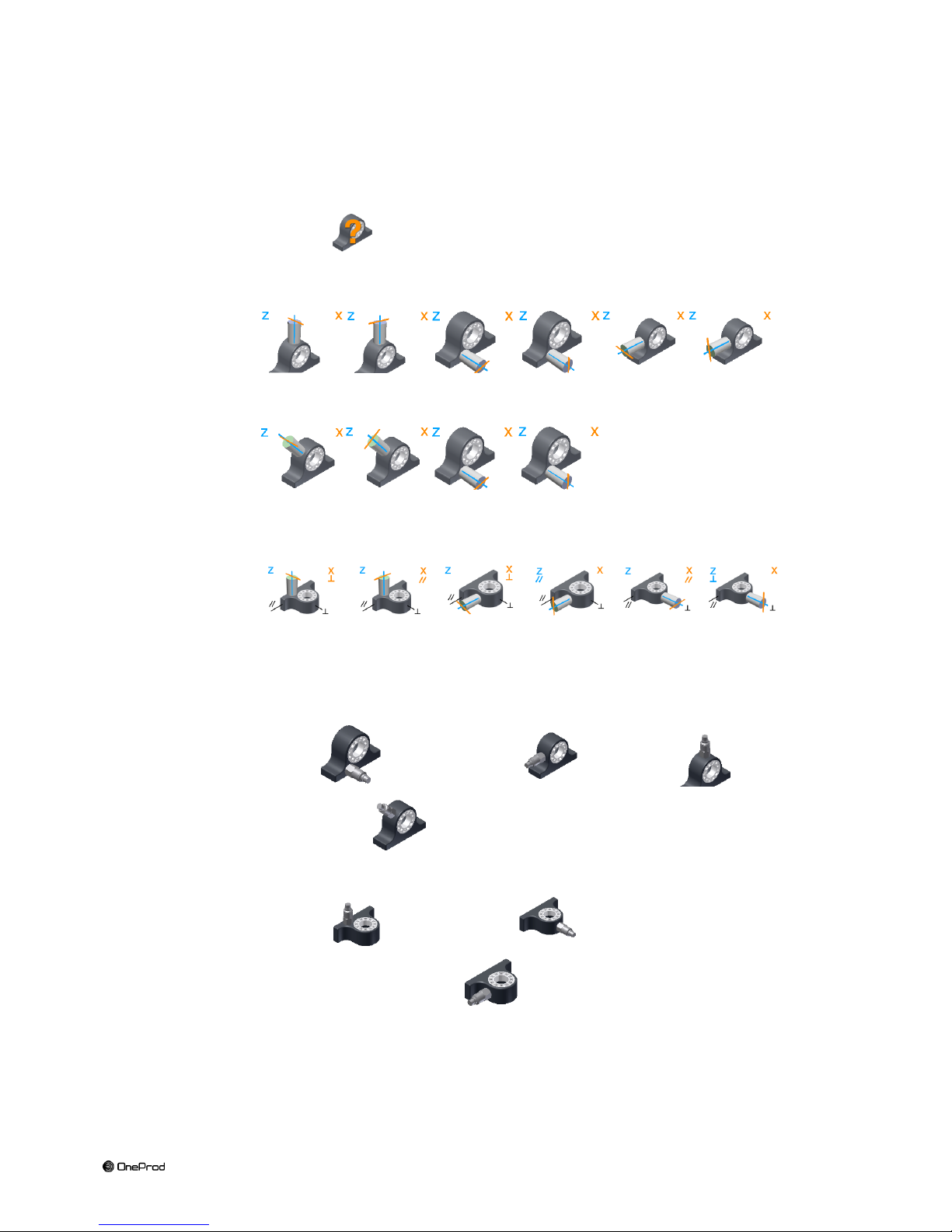

 Possibility to protect* the modification of some route data: sensor position pictogram, location or point picture,

barcode, rotation speed for measurement done by tachometer

 Possibility to protect* the functions ‘Delete’ and ‘Reset’ for routes not downloaded.

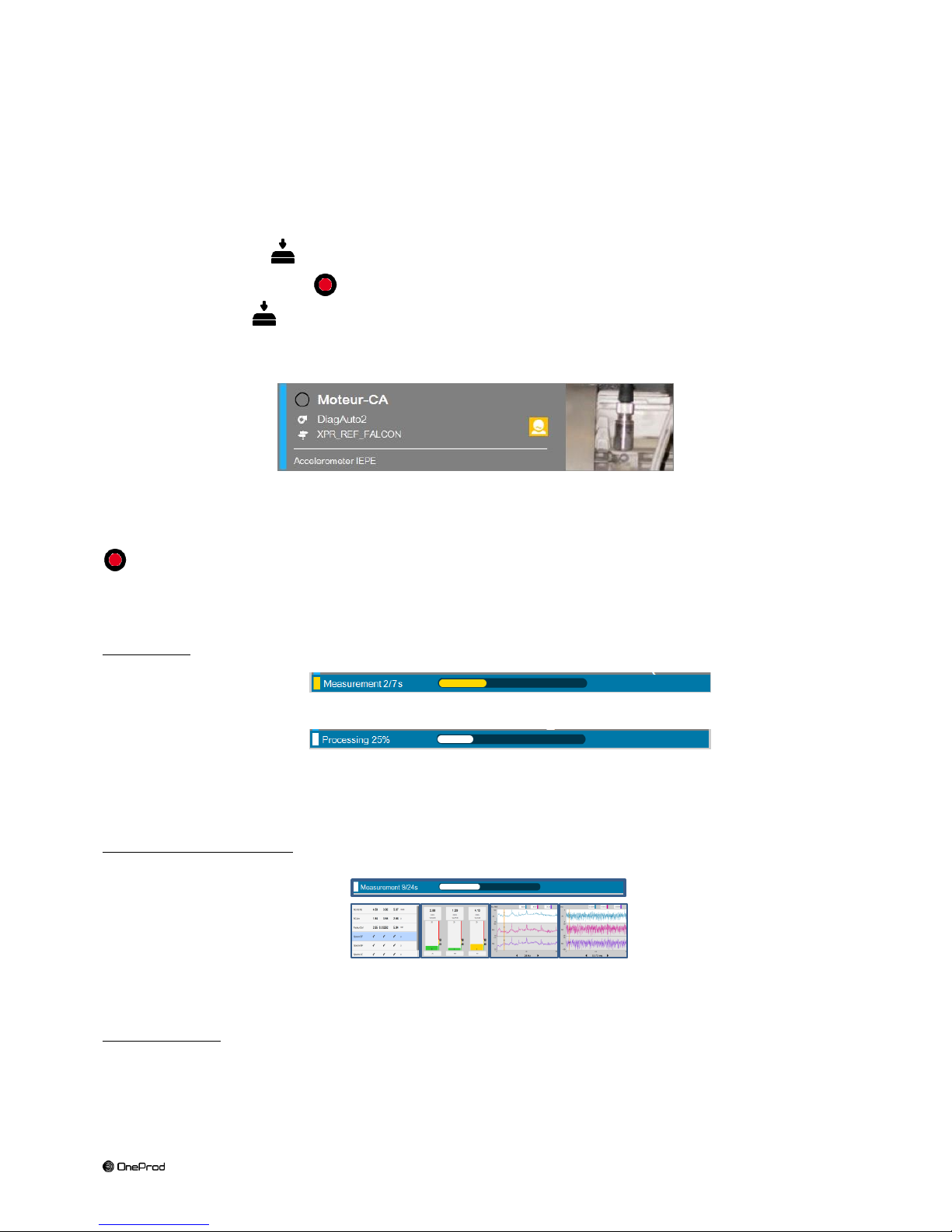

 Selection of data type displayed during acquisition: progress bar only, overall level, spectrum or time wave

* The protection is applied if you define a password on the last line of > Settings > About (See § 2.8)

2.2 MEASUREMENT

 Acquisition power supply permanent or not: If this option is set to YES, the acquisition components are

permanently supplied. If it is set to NO, its supply is activated only when a measurement is to be carried out,
but it requires a short waiting time before signal stabilisation. The advantage of permanent supply is the speed
to carry out numerous measurements. But the current consumption will be a little higher, and so the instrument
autonomy will be shorter.

 IEPE stabilisation time: increase pre-measurement delay for IEPE transducers with large stabilisation time.

Unit = second.
WARNING: when IEPE input type is selected, a constant current is powered up (current source: 4 mA – 23 DC).
It is important to check that the signal source is compatible.

 Pyrometer:

o External: temperature is measured on DC input
o Internal: temperature is measured with built-in pyrometer

 Pyrometer unit : °C / °F
 Wired channel number:

o Single: measurement is always done on channel 1 (connector A)
o Multi: measurements are done on channels 2 to 4 for triaxial compatible accelerometer configuration

(connector B) and on channels1 to 4 otherwise (connectors A and B)

 Accelerometer link:

o Wire: accelerometer is connected to connector A or B
o Wireless: use the WLS sensor (see § 1.7.2).

Note: Accelerometer link setting is not used for measurement synchronous with the tachometer input (e.g.,
Balancing module)

21

Brand of ACOEM

2.3 WIRELESS SENSOR

Instructions for the first connection are presented in § 1.7.2.

If the communication is bad or not possible, check following points:

 Check if the sensor is switched on and if the blue LED is continuously on (searching for connection) or

flashing (connected to an instrument)

 Check on HAWK if Wi-Fi is enabled in:

Shortcuts > Setting > > Wi-Fi = enabled

 Check if HAWK is set to work with a WLS sensor:

Shortcuts > Setting > > Accelerometer link = Wireless

 Check if the serial number of the sensor is that declared in HAWK

Shortcuts > Setting > Wireless sensor

 Check with a shorter distance and no obstacle between the sensor and the instrument.
 If the connection is OK and the communication is bad, it may be due to another Wi-Fi network using the

same channel. You can try to use another one:

Shortcuts > Setting > Wireless sensor:

o Change the channel number only in case of bad quality transmission
o Select in the list another channel
o Keep the sensor powered near the device
o Press "Save".
o It will take a few seconds for the sensor to restart on the new channel.

You can also use the test function, it returns:

 The status of the test (Successful or Failed)
 WLS firmware version
 WLS hardware version
 Sensitivity for each of the 3 channels.
