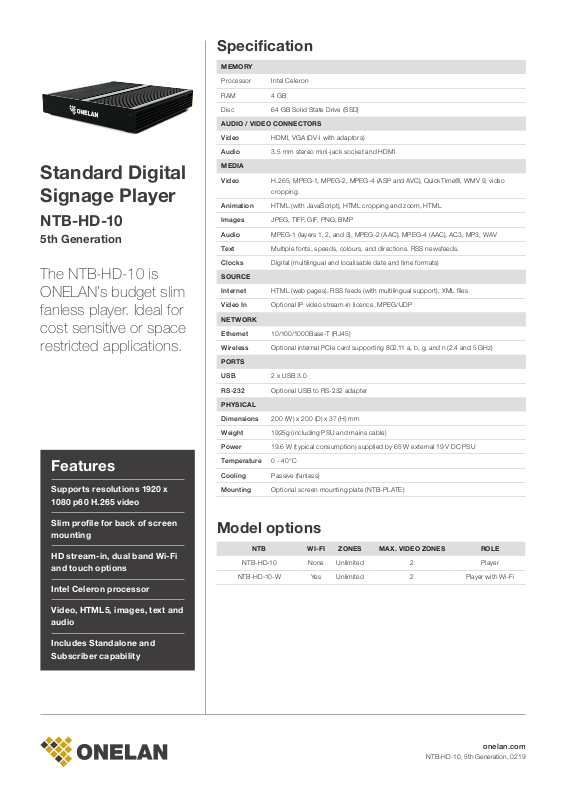

ONELAN NTB-HD-10 Specification

Standard Digital Signage Player

NTB-HD-10

5th Generation

The NTB-HD-10 is ONELAN’s budget slim fanless player. Ideal for cost sensitive or space restricted applications.

Features

Supports resolutions 1920 x 1080 p60 H.265 video

Speciﬁcation

MEMORY

Processor Intel Celeron

RAM 4 GB

Disc 64 GB Solid State Drive (SSD)

AUDIO / VIDEO CONNECTORS

Video HDMI, VGA (DV-I with adaptors)

Audio 3.5 mm stereo mini-jack socket and HDMI

MEDIA

Video H.265, MPEG-1, MPEG-2, MPEG-4 (ASP and AVC), QuickTime®, WMV 9, video

cropping.

Animation HTML (with JavaScript), HTML cropping and zoom, HTML

Images JPEG, TIFF, GIF, PNG, BMP

Audio MPEG-1 (layers 1, 2, and 3), MPEG-2 (AAC), MPEG-4 (AAC), AC3, MP3, WAV

Tex t Multiple fonts, speeds, colours, and directions. RSS newsfeeds.

Clocks Digital (multilingual and localisable date and time formats)

SOURCE

Internet HTML (web pages), RSS feeds (with multilingual support), XML ﬁles

Video In Optional IP video stream-in licence, MPEG/UDP

NETWORK

Ethernet 10/10 0/10 0 0B as e-T (RJ 45 )

Wireless Optional internal PCIe card suppor ting 802.11 a, b, g, and n (2.4 and 5 GHz)

PORTS

USB 2 x USB 3.0

RS-232 Optional USB to RS-232 adapter

PHYSICAL

Dimensions 200 (W ) x 200 (D) x 37 (H) mm

Weight 1925g (including PSU and mains cable)

Power 19.6 W (typical consumption) supplied by 65 W ex ternal 19 V DC PSU

Temperature 0 - 40°C

Cooling Passive (fanless)

Mounting Optional screen mounting plate (NTB-PLATE)

Slim proﬁle for back of screen mounting

HD stream-in, dual band Wi-Fi and touch options

Intel Celeron processor

Video, HTML5, images, text and audio

Includes Standalone and Subscriber capability

Model options

NTB WI-FI ZONES MAX. VIDEO ZONES ROLE

NTB-HD-10 None Unlimited 2 Player

NTB-HD-10-W Yes Unlimited 2 Player with Wi-Fi

onelan.com

NTB-HD-10, 5th Generation, 0219
