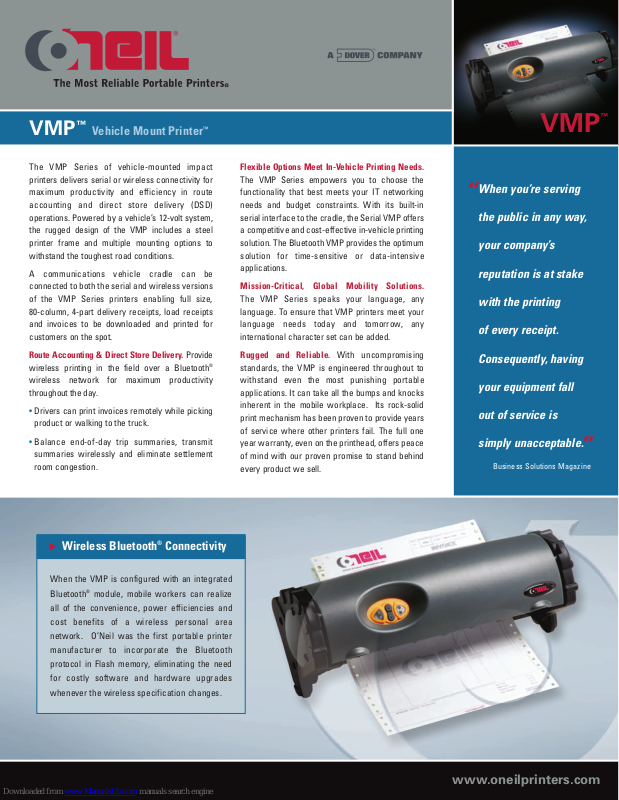

Page 1
VMP
™
Vehicle Mount Printer
™
™
VMP
The VMP Series of vehicle-mounted impact
printers delivers serial or wireless connectivity for
aximum productivity and efficiency in route
m
accounting and direct store delivery (DSD)
operations. Powered by a vehicle’s 12-volt system,
the rugged design of the VMP includes a steel
printer frame and multiple mounting options to
withstand the toughest road conditions.
A communications vehicle cradle can be
connected to both the serial and wireless versions
of the VMP Series printers enabling full size,
80-column, 4-part delivery receipts, load receipts
and invoices to be downloaded and printed for
customers on the spot.
Route Accounting & Direct Store Delivery. Provide
wireless printing in the field over a Bluetooth
wireless network for maximum productivity
throughout the day.
• Drivers can print invoices remotely while picking
product or walking to the truck.
• Balance end-of-day trip summaries, transmit
summaries wirelessly and eliminate settlement
room congestion.
®
Flexible Options Meet In-Vehicle Printing Needs.
The VMP Series empowers you to choose the
unctionality that best meets your IT networking
f
needs and budget constraints. With its built-in
serial interface to the cradle, the Serial VMP offers
a competitive and cost-effective in-vehicle printing
solution. The Bluetooth VMP provides the optimum
solution for time-sensitive or data-intensive
applications.
Mission-Critical, Global Mobility Solutions.
The VMP Series speaks your language, any
language. To ensure that VMP printers meet your
language needs today and tomorrow, any
international character set can be added.
Rugged and Reliable. With uncompromising
standards, the VMP is engineered throughout to
withstand even the most punishing portable
applications. It can take all the bumps and knocks
inherent in the mobile workplace. Its rock-solid
print mechanism has been proven to provide years
of service where other printers fail. The full one
year warranty, even on the printhead, offers peace
of mind with our proven promise to stand behind
every product we sell.
When you’re serving
“
the public in any way,
your company’s
reputation is at stake
with the printing
of every receipt.
Consequently, having
your equipment fall
out of service is
simply unacceptable.
”
Business Solutions Magazine
u Wireless Bluetooth
When the VMP is configured with an integrated
®
Bluetooth
all of the convenience, power efficiencies and
cost benefits of a wireless personal area
network. O’Neil was the first portable printer
manufacturer to incorporate the Bluetooth
protocol in Flash memory, eliminating the need
for costly software and hardware upgrades
whenever the wireless specification changes.
module, mobile workers can realize
®
Connectivity
www.oneilprinters.com
Page 2
Standard Features at a Glance
• Optional cradle support for hand-held computers provides on the spot
printing of reports, invoices and receipts.
• Rugged, steel printer frame and vibration isolation bracket for
maximum performance in the toughest conditions.
• Easy-to-load/unload paper reduces driver training
nd enhances reliability.
a
Runs off a vehicle’s 12-volt power system and requires no
•
xpensive voltage adapters.
e
• Easily mounts wherever needed – from bulkhead/wall
to the dashboard/console.
• Programmable sleep mode to extend vehicle battery life.
• Printer fonts and operating system stored in Flash memory so the
printer can be upgraded right in the office.
VMP
Specification Highlights VMP
Physical Characteristics VMP™2000 Serial VMP™2000, Bluetooth
Dimensions 15.75" x 4.75" x 4.0625" 15.75" x 4.75" x 4.0625"
Weight (printer only) 115.7 oz (3.280 kg) 114.7 oz (3.252 kg)
User Environment
Operating Temperature
Storage Temperature -40° F to 158° F (-40° C to 70° C)
Relative Humidity 10% to 90% non-condensing
ESD Protection 8 kV Air, 4 kV Contact
Communications
Serial
®
Bluetooth
Network Environment Ad hoc environment
Protocol
Print Technology
Printhead 9 pin impact
Printhead Life 100 million dots
Print Speed
Ribbon Cartridge 2,000,000 characters
Options / Accessories
• Cradle Bracket for Dash-Mount
• Dash-Mount Bracket
Fuse Box Power Cable Kit
•
• Paper Tray
• Power Adapter Cable
• Power Extension Kit
• Ribbon
• Horizontal Vibration Bracket Kit
all-Mount V
W
•
ibration Bracket Kit
(
400 x 120.65 x 103.19 mm) (400 x 120.65 x 103.19 mm)
-4° F to 122° F(-20° C to 50° C)
RS-232, up to 115.2k baud with built-in serial cable to
standard cradles
v1.2 (compatible with v1.1 devices)
270 characters per second
™
Vehicle Mount Printer
Media
Type NCR, Plain (up to 4-ply)
Width 3" minimum, 8.5"/ A4 maximum
Capacity Up to 200 sheets
Fonts & Languages
Memory Capacity
Standard Fonts 10 CPI Pica/Elite & 12 CPI Pica/Elite
International Characters Arab-T, Arab-S, Arab-E, Cyrillic (Cy110 & CY210),
Graphics Supports transient “print once” graphics
Agency Approvals
FCC B, CE, UL/cUL
Warranty
1 year (including printer case and printhead*)
™
®
Flash/RAM Memory:
(additional fonts available)
Greek (GRDOS & GRWIN), Hebrew (HB110, HB210, HB310)
& Latin (additional international characters available)
1024kB/512kB
*When used with approved ribbon.
VMP™and Vehicle Mount Printer™are trademarks of O’Neil Product Development, Inc.
Specifications are subject to change without notice. All product and company names are
trademarks, service marks or registered trademarks of their respective owners.
Copyright 2007, O’Neil Product Development, Inc.
rev. 7/07 Made in the U.S.A.
