features at a glance
The PrintPAD integrated printing systems offer mobile workers the convenience of a
portable thermal printer and mobile computer united in a compact and ergonomic,
rugged and reliable unit. This PrintPAD series was designed for use with Motorola’s
MC65, MC67, MC70 and MC75 mobile computers.
The sleek design of the PrintPAD allows users to conveniently and securely carry their
mobile computer, communicate with the printer, as well as charge both the mobile
computer and the printer, all in a single integrated package. This innovative one
piece printer system combines an enhanced 4” wide thermal printer, the 4te, with
an embedded communications charging cradle designed for use in a number of
applications including route accounting, direct store delivery and field service.
Beverage and Food
Sales
•
Delivery Receipts
•
Inventory Reports
•
Route/Labor Scheduling
•
Credit Card Transactions
Route Accounting/
Direct Store Delivery
•
Delivery Receipts
•
Inventory Reports
•
Route/Labor Scheduling
•
Credit Card Transactions
Field Service
•
Service Receipts
•
Pickups/Deliveries
•
Signature Proofs
•
Credit Transaction
Receipts
Mobile POS
•
Transaction Receipts
•
Rain Checks
•
Coupons
•
Queue Busting
Compatible with Motorola® mobile
•
computers - MC65/67, MC70/75
Optional Bluetooth® wireless connectivity
•
enables the printing of receipts and
invoices wherever they are needed
Optional DEX communication enables
•
seamless communicate with the store’s
DEX system by plugging directly into the
PrintPAD’s external DEX port
Motorola
®
Compatible PrintPAD
Integrated Printing System
popular applications
™
Swipe-style card reader allows users to
•
print receipts and process payments easily
in the field
Graphics: Supports the printing of
•
graphics, 1D barcodes, 2D symbologies,
and signature capture
Intelligent power management
•
and programmable sleep mode for
extended battery life
Charging options include external charge
•
contacts, AC adapter or 12V vehicle
cigarette lighter adapter. Charge both the
printer and mobile computer at the same
time from a single device.
your benefits
Increased productivity – Using a reliable
printer means your operation will run
smoothly without downtime. The PrintPAD
offers an integrated solution that will
increase the efficiency of field workers.
Safe and secure – In the storefront, at
Rugged and reliable, the PrintPAD is
•
engineered throughout to withstand even
the most punishing portable applications
Warranty: Comes with the industry’s only
•
two-year standard warranty – twice that of
the competition
the office, in the warehouse, and on the
road, wireless technology is a critical tool
for conducting business. To help ensure
your wireless transactions are secure,
the PrintPAD offers a broad range of
security and encryption protocols that are
compatible with today’s high-tech security
requirements.
Lower total cost of ownership (TCO) – Save
money on unnecessary charging accessories
and expensive extended warranties.
Datamax-O’Neil is the only company to
stand behind its mobile thermal printers
with a two-year standard warranty.
Did you know?
?
Using quality labels and paper can
significantly prolong the life of your
printhead. Datamax-O’Neil offers a wide
variety of high quality media for its printers
including custom and stock labels and
receipts, ticketing media, and cleaning
products. When you choose DatamaxO’Neil, you receive a proven commitment to
superior quality. Quality that results in
performance and
compatibility...
Guaranteed.
PrintPAD advantage
Simplify Daily Operations: Carry, Charge, Communicate
Carry
The PrintPAD is designed to simplify your daily operations. With the PrintPAD, users carry both their
handheld computer and printer in one convenient well-designed unit. Using a single integrated
product eliminates the hassle of juggling multiple devices and decreases the chance of dropping
or misplacing a device in the field. The PrintPAD also provides another layer of protection to your
handheld computer.
Charge
The PrintPAD provides a smart recharging solution by charging both the handheld and the printer
at the same time from a single AC or car adaptor. That means you have half the adaptors to buy and
keep track of on the road. This is not only convenient for workers in the field but also reduces the cost
associated with purchasing and maintaining multiple charging devices.
Communicate
The PrintPAD provides seamless communication between the handheld computer and printer. When
the handheld is in the cradle, it communicates directly with the printer. An integral Bluetooth option
gives mobile workers the ability to communicate with the printer wirelessly when the handheld
device is not residing in the PrintPAD. The optional DEX port makes DEX connections to central
distributors easy without the need for special software or mechanical switches.
Cost Effective . . .
In today’s cost conscious market, the purchase cost and the cost to maintain
a solution are critically important.
Fewer accessories - In a typical solution using a separate printer and
mobile computer, you need accessories for both devices. But with the
PrintPAD you don’t need all those cables. Since the PrintPAD charges both
devices at the same time, all you need is a cigarette light adaptor and an
AC Adaptor. That means you save up to 90% on the initial purchase plus the
PrintPAD MC70
Reliable - Reliability is an important attribute in keeping your mobile workforce productive and profitable. The PrintPAD offers a
proven design with 15 years of product refinement and an uncompromising standard for reliability. In fact, Datamax-O’Neil offers
the only “PrintPAD” type device with a published 6-foot drop specification. With this type of durability it’s easy to see why DatamaxO’Neil is also the only company to include a two year standard warranty.
No hidden cost - Another way to keep cost down is to look for hidden cost. Unlike some other products on the market, the PrintPAD
batteries are included in the purchase price. And when its time to replace them, the PrintPAD uses economical replacement
batteries. This can add up to big savings for your company.
hidden cost to maintain all those devices.
Looking for a desktop label printer?
?
Datamax-O’Neil manufactures an extensive selection of desktop label printers that are ideal for manufacturing,
warehouse, healthcare, ticketing, postal services and RFID labeling requirements. Competitive custom and standard
media products are also available for all your label, receipt and ticketing needs.
product specifications
physical characteristic
• Dimensions:
7.5” H x 11.8” W x 2.4” D
(190.5mm H x 299.7mm W x 60.96mm D)
• Weight (with batteries, paper and handheld):
– With MC70 handheld: 66.4 oz (1.88 kg)
– With MC75 handheld: 70.1 oz (1.99 kg)
– With MC65 handheld: 62.4 oz (1.77 kg)
– With MC67 handheld: 62.4 oz (1.77 kg)
• Drop specification:
– 4 ft. (1.22 m) tested with handheld MC70/75
– 6 ft. (1.83 m) tested with handheld MC65/67
user environment
• Operating temperature:
-4° F to 122° F (-20° C to 50° C)
• Storage temperature:
-40° F to 158° F (-40° C to 70° C)
• Charging temperature:
41° F to 104° F (5° C to 40° C)
• Relative humidity:
10% to 90% non-condensing
• ESD protection:
8 kV Air, 4 kV contact
print technology
• Printhead:
– Direct thermal
– 203 dots per inch (8 dots per mm)
• Print width:
– 4.10” (104.1mm)
• Print mechanism speed:
– 2” per second (51 mm per second)
power source
• Batteries:
– (2) 7.2V Lithium-ion (Li-ion), 2200 mAh (for a
total of 4400 mAh)
• DC inputs (for charging only):
– External DC jack, 12-15V, built-in spike and
surge protection
• Endurance:
– Serial: prints approx. 2,240 – 6” (152.4mm)
receipts or 13,440” on a single battery charge
– Bluetooth: prints approx. 1,150 – 6” (152.4mm)
receipts or 6,900” on a single battery charge
• Printer recharging:
– 7 - 9 hours from AC adapter or cigarette
adapter
• Handheld recharging:
– approx. 3 - 4 hours from AC adapter or
cigarette adapter (depending on the handheld
model)
communication
• Serial:
– RS-232; up to 460.8 kbps
• USB*
– 2.0 (full speed)
• Cradle:
– Standard handheld interface connector
(depending on model)
• Bluetooth:
– Supported versions: v1.2 (compatible with
v1.1 devices)
• DEX port (optional):
– DEX/UCS standard
media
• Media type:
– Direct thermal receipt paper (standard,
premium, heavy duty, long-life, image protect,
hi-temp, and all weather), synthetic media,
UV coated media
– Limited label support
• Maximum roll capacity:
– 2.25” (57.15mm) O.D.
– 0.4” (10.16mm) I.D. core
• Roll width:
– 4.41” (112.01mm)
• For optimum print quality and printer
performance, use Certified Datamax-O’Neil
supplies
agency approval
Contact sales representative for the most
current approval list
warranty
• 2 years (including platen roller, printhead,
and installed options) when used with
approved supplies
• Contact sales representative for extended
warranty options
*Download USB driver from our website
barcodes/fonts/graphics
• Memory (RAM/Flash):
2MB / 4MB
• Standard fonts:
– 5.5CPI, 7.2CPI, 10.2 CPI, 10.7CPI, 18.5CPI
20.4CPI, 22.6CPI & 34.0CPI (additional
fonts available)
• Optional characters:
– Arabic, Greek, Hebrew, OCRA, OCRB,
Unicode subset including Latin & Thai
– Asian** (including Big 5,
Simplified Chinese, Korean and Shift JIS) additional international characters available
• Barcodes:
– Linear: Codabar, Code 39, Code 93, Code
128, EAN-8, EAN13, Interleaved 2 of 5,
MSI/Plessey, UCC/EAN-128, UPC-A, UPC-E
– 2D symbologies**: PDF417, AZTEC, QR,
GS1, Datamatrix
• Graphics:
– Supports storage of graphics/logos in Flash
memory and transient “print once” graphics
software
• Protocol:
– Line Printer Mode, Easy Print
• Drivers:
– Windows
• Compatible label design software:
– NiceLabel, BarTender
• Software development kit:
– C++, Visual Basic, Java, Microsoft Dynamics
• Configuaration Tool
®
CE and Desktop
®
, DP Designer
options
• Wireless Bluetooth communication
• Magnetic stripe card reader
• External charge contacts
Thermal Transfer on the Go Learn more at: www.datamax-oneil.com/supplies
With DTransfer™ media exclusively from Datamax-O’Neil, you can print durable, weatherresistant thermal transfer labels directly from your PrintPAD portable printer. DTransfer
incorporates a long-life, abrasion and scratch-resistant polypropylene thermal transfer label
stock with a thermal transfer ribbon onto a single roll. Now, printing thermal transfer labels
on-the-go is as easy as loading a roll of DTransfer media into your PrintPAD.
®
accessories
Included with each PrintPAD:
required
DB9 F
Cable
recommended
USB Cable
DEX Cable
optional
(2) batteries, (1) hand strap and (1) paper roll
AC Adapter
Cigarette Lighter Adapter
DB9 F Serial/Configuration Cable
DEX Cable
USB Cable
Cleaning Cards & Kits
AC Adapter available with US, UK, Australia, or Euro plugs
Allows you to charge the printer from the vehicle cigarette lighter
7’ DB9 F coiled right angle cable for connecting to a laptop or desktop computer
For use with models with optional DEX port
DB9 right angle USB download cable
Use of cleaning cards is recommended to extend the life of the printhead
(visit www.datamax-oneil.com/supplies for more information)

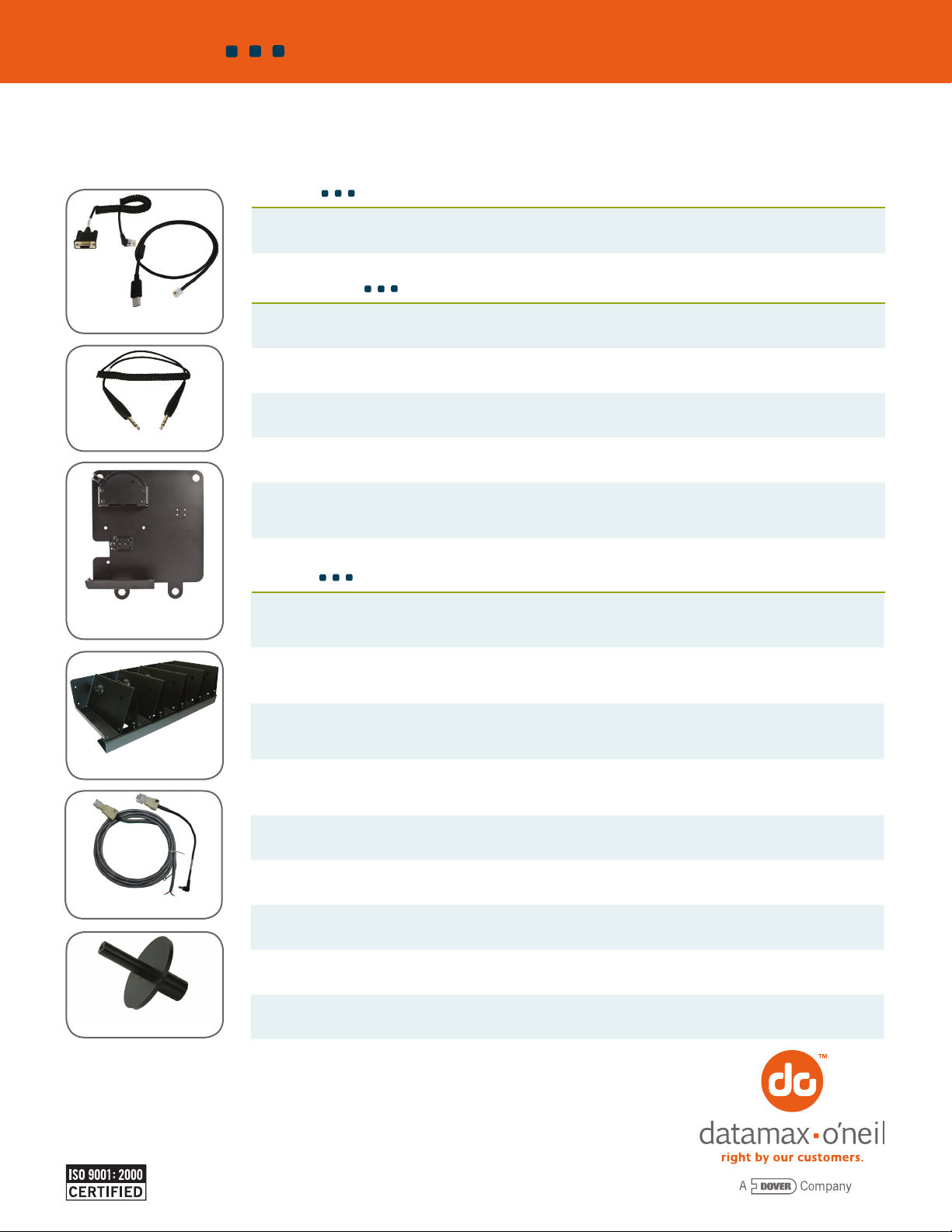

Vehicle Mount
Charging Bracket
Settlement Room
Charging Bracket
Fuse Box Power Cable Kit
3” Spindle Bracket
Vehicle Mounting Bracket
Vehicle Mounting Charging Bracket
Settlement Room Charging Bracket
Fuse Box Power Cable Kit, 10’
Spare Battery
Double Bay Battery Charger
75” Shoulder Strap
Hand Strap Kit
3” Spindle Bracket
Metal bracket mounts in the vehicle and holds the PrintPAD securely in place.
Bracket can also be wall mounted in the settlement room
Allows you to mount and charge (1) PrintPAD equipped with optional external
e-charge contacts; US, UK, Australia, Swiss, and Euro versions available
Allows you to charge (5) PrintPADs equipped with optional external e-charge
contacts; US, UK, Australia, Swiss, and Euro versions available
Charge your printer from a vehicle’s fuse box
Extension cables available in 3’, 6’, and 10’ lengths for existing installations
Lithium-Ion, 7.2V, 2200mAh (PrintPADs require 2 batteries per printer)
2-bay battery charger keeps additional batteries charged and ready for use
Adjustable strap allows the user to comfortably carry the PrintPAD from the shoulder
Replacement kit for handstrap
Turns the PrintPAD into a 3-inch printer
to learn more, visit www.datamax-oneil.com
Specifications subject to change without notice. Copyright 2013, Datamax-O’Neil (rev. 02.28.13)
Loading...
