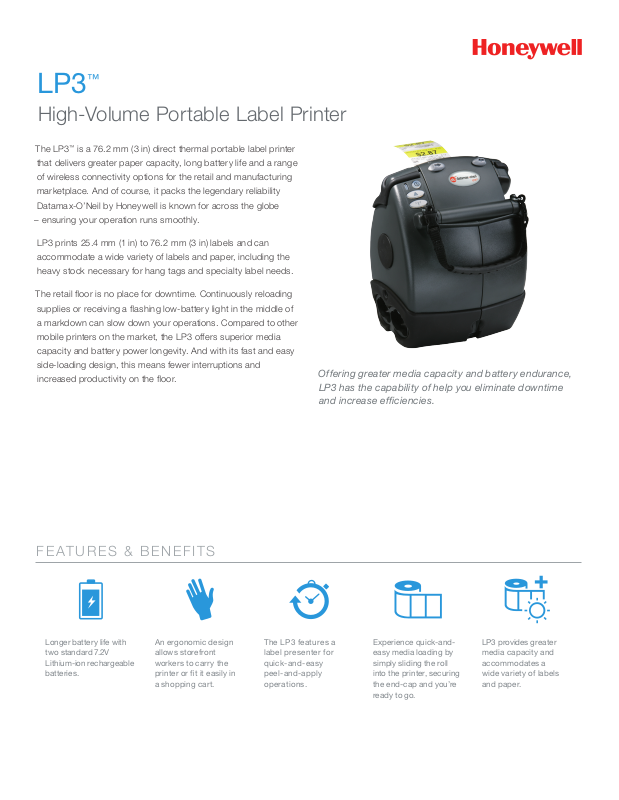

O'Neil 200268-100 Product Data Sheet

LP3™

High-Volume Portable Label Printer

The LP3™ is a 76.2 mm (3 in) direct thermal portable label printer

that delivers greater paper capacity, long battery life and a range

of wireless connectivity options for the retail and manufacturing

marketplace. And of course, it packs the legendary reliability

Datamax-O’Neil by Honeywell is known for across the globe

– ensuring your operation runs smoothly.

LP3 prints 25.4 mm (1 in) to 76.2 mm (3 in) labels and can

accommodate a wide variety of labels and paper, including the

heavy stock necessary for hang tags and specialty label needs.

The retail oor is no place for downtime. Continuously reloading

supplies or receiving a ashing low-battery light in the middle of

a markdown can slow down your operations. Compared to other

mobile printers on the market, the LP3 offers superior media

capacity and battery power longevity. And with its fast and easy

side-loading design, this means fewer interruptions and

increased productivity on the oor.

Offering greater media capacity and battery endurance, LP3 has the capability of help you eliminate downtime and increase efﬁciencies.

FEATURES & BENEFITS

Longer battery life with two standard 7.2V Lithium-ion rechargeable batteries.

An ergonomic design allows storefront workers to carry the printer or t it easily in a shopping cart.

The LP3 features a label presenter for quick-and-easy peel-and-apply operations.

Experience quick-andeasy media loading by simply sliding the roll into the printer, securing the end-cap and you’re ready to go.

LP3 provides greater media capacity and accommodates a wide variety of labels and paper.

Technical Specications

PHYSICAL CHARACTERISTIC

Dimensions (HxWxD): 199.6 mm x 157.5 mm x 131.3 mm (7.86 x 6.2 x 5.17 in) Weight: Printer only: 1.13 kg (39.9 oz), With batteries & paper roll: 1.8 kg (63.5 oz) Drop Speciﬁcation: 1.22 m (4 ft)

USER ENVIRONMENT

Operating Temperature: 0°C to 45°C (-4°F to 113°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F Charging Temperature: 5°C to 40°C (41°F to 104°F )

Relative Humidity: 10% to 90% non-condensing ESD Protection: 8 kV Air, 4 kV contact

PRINT TECHNOLOGY

Printhead: Direct thermal, 8 dots per mm (203 dots per inch)

Print Width: 72.1 mm (2.84 in) Print Mechanism Speed: 51 mm per second

(2 in per second)

POWER SOURCE

Batteries: (2) 7.2V Lithium-ion (Li-ion), 2200 mAh (for a total of 440 0 mAh) DC Inputs (for Charging Only): 12-15V, built-in spike and surge protection Endurance: 802.11b/g: prints approx. 8,760,

50.8 mm (2 in) x 28.575 mm (1.125 in) labels on a single battery charge (36.5 hours) Bluetooth®: Prints approx. 13,392, 50.8 mm (2 in) x 28.6 mm (1.13 in) labels on a single battery charge (55.8 hours) Recharging: 4-5 hours from AC adapter or 12V auto power adapter

COMMUNICATION

Serial: RS-232; up to 460.8 kbps USB: 2.0 (full speed)

802.11 b/g: Frequency band: 2.4 to 2.4897 GHz,

Data rates: Standard 802.11b/g rates, network standard: IEEE 802.11b/g, wireless access modes: Infrastructure and ad hoc

Security Protocols:

WPA WPA2

Modes

Security/Encryption

Authentication

Network Support: D H C P, T C P, U DP, B O OT P, remote-management support, (compatible with the remote-management sof tware and other remote-management systems) Bluetooth®: Network Environment: Ad hoc or piconet, Supported Versions: v1.2 (compatible with v1.1 d e v i c e s )

PSK/Enterprise

TKIP/RC4 CCMP/AES

EAP-FAST, EAP-PEAP,

EAP-TTLS

MEDIA

Typ e : Labels: 19 mm (0.75 in) to 76.2 mm (3.0 in) linered labels w/Q-mark or gap sensing, synthetic media, UV-coated media, 50.8 mm (2 in) hang tags Maximum Roll Capacity: 88.9 mm (3.5 in) O.D.;

25.4 mm (1.0in) I.D. core

Roll Width: 25.4 mm (1.0 in) to 76.2 mm (3.0 in) Thickness:

Minimum: 0.05 mm (0.002 in) Maximum: 0.18 mm (0.007 in)

For optimum print quality and printer performance, use certiﬁed Honeywell media supplies.

AGENCY APPROVAL

Contact your Honeywell sales representative for the most recent list of agency approvals.

BARCODES/FONTS/GRAPHICS

Memory: 2MB RAM/4MB Flash Standard Fonts: 5.5CPI, 7.2CPI, 10.2 CPI,

10.7CPI, 18.5CPI 20.4CPI, 22.6CPI & 34.0CPI (additional fonts available) Optional Characters: Arabic, Greek, Hebrew, OCRA, OCRB, Unicode subset including Latin & Thai, Asian (including Big 5, Simplied Chinese, Korean and Shift JIS) - additional international characters available

Barcodes: Linear: Codabar, Code 39, Code 93, Code 128, EAN-8, EAN13, Interleaved 2 of 5, MSI/Plessey, UCC/EAN-128, UPC-A, UPC-E, 2D Symbologies: PDF417, AZTEC, QR, GS1, Datamatrix (available on wireless only) Graphics: Supports storage of graphics/logos in Flash memory and transient “print once” graphics

SOFTWARE/FIRMWARE

Protocol: Line Printer Mode, Easy Print Device Management (for 802.11 models only):

Remote Management Software (RMS), Wavelink® Avalanche MC, Motorola MSP

Drivers: Windows® CE and Desktop Compatible Label Design Sof tware: NiceLabel,

BarTender®, DP Designer Software Development Kit: C++, Visual Basic, Java, Microsoft Dynamics, Blackberry Device Interface: OPOS, JPOS

OPTIONS

Wireless Communication: Bluetooth® or

802.11 b /g

WARRANTY

Standard Warranty: Printer: 1 year* Printhead: 1 year* or 25,400,000 mm (1,000,000

in), whichever comes rst

Extended Warranty: Contact your Honeywell sales representative for ex tended warrant y options available through Honeywell Repair Services

* Covers p laten rol ler, printhe ad and ins talled o ptions
