INSTRUCTION BOOKLET
OA115A PARTY SPEAKER
Model: OA115A
ALL IN ONE DJ SYSTEM SPEAKER SET
>> PAGE 1<<
Introduction
Congratulations on your new purchase of the OA115 DJ System Speaker Set! We appreciate
your business and hope you enjoy the quality sounds and set up of our speakers. It is our
goal to provide a good audio system at a good price. Our OA115 is a powerful speaker with
two ways to charge and even more ways to play. Included in this set is a 15” speaker,
speaker stand and microphone. The speaker is also pole mounting ready. Please read and
understand this manual completely before attempting to operate your new speaker system.
This booklet contains important information concerning the proper and safe operation of your
new speaker.
Safety Precautions
We recommend that all fitting and installation of this speaker cabinet be carried out by a
qualified adult following the approved safety standards. Do not attempt to clean the plastic
enclosure with solvents or petrochemical based cleaners. Do not place objects which are
sources of heat on the speaker cabinet such as lighting equipment or smoke machines. Do
not expose the speaker cabinet to direct rain or water. Liquid getting into the box will risk a
short circuit and is very hazardous. Do not stack the speaker cabinet in a manner that
could cause injury should a cabinet become dislodge. When using this speaker make sure
the grille is always attached. Before powering on make sure to set the gain controls to their
lowest level to avoid damaging the speaker.
Before Installation
Ensure that the voltage and frequency of the wall outlet intended for use matches the power
requirements of the speaker. When connecting other cables, disconnect the main power cord
to cut off electrical flow and avoid surges. Make sure that the power-cord is never crimped or
damaged by sharp edges. Never let the power-cord come into contact with other cables. Only
handle the power-cord by the plug. If the fuse or cable needs to be replaced, it MUST be
identical in rate and dimensions to the original cord. Fully charge the battery before using the
speaker.
This symbol on the product or on Its packaging indicates that this product shall not be treated as
household waste. Instead it shall be
handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will
help prevent potential negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product The recycling of materials will help to conserve natural
resources. For more detailed information about recycling of this product, please contact your local city office, your household waste
disposal service or the shop where you
purchased the product.
TECHNICAL SPECIFICATION
Every OA115 has been thoroughly tested to meet our standards. Carefully check the
shipping carton for damage that may have occurred during shipping. If the carton appears to
be damaged, carefully inspect your units for any damage and be sure all accessories
necessary to operate the system have arrived intact. In the event damage has been found or
parts are missing, please contact us for support.
Speaker and Amplifier
Input voltage: 115 VAC 60 Hz
Power consumption: 30 W
Memory Card Reader: USB / SD
TWS Bluetooth Compatible
Independent Volume Control
Treble and Bass Control
MIC INPUT
Speaker with Amplifier / Passive speaker
12V7AH battery inside: 3 hour working,8 hours recharge
Maximum Power: 90 W PMPO
Impedance: 4 ohm
Frequency response: 60 Hz – 20 kHz
Sensitivity: 98 dB/W/m
Cabinet Size: 44.2 cm X 35.8 cm X 68.5 cm
Tweeter : Pizeo
Woofer 15” (38,10 cm)
Accessories
Wireless Microphone* 1 pc
Speaker stand 1pc
Power cable 1pc
*Wireless Microphone requires a 9V battery to operate. Battery Not Included.
TWS Bluetooth Instructions:
- Use the MODE button to enter Bluetooth Mode.
- Use the TWS button to enter Bluetooth automatic pairing.
- Blue LED will flash rapidly when searching.
- Enable Bluetooth on your device and select One Audio to connect.
- A solid light will indicate the device is paired.

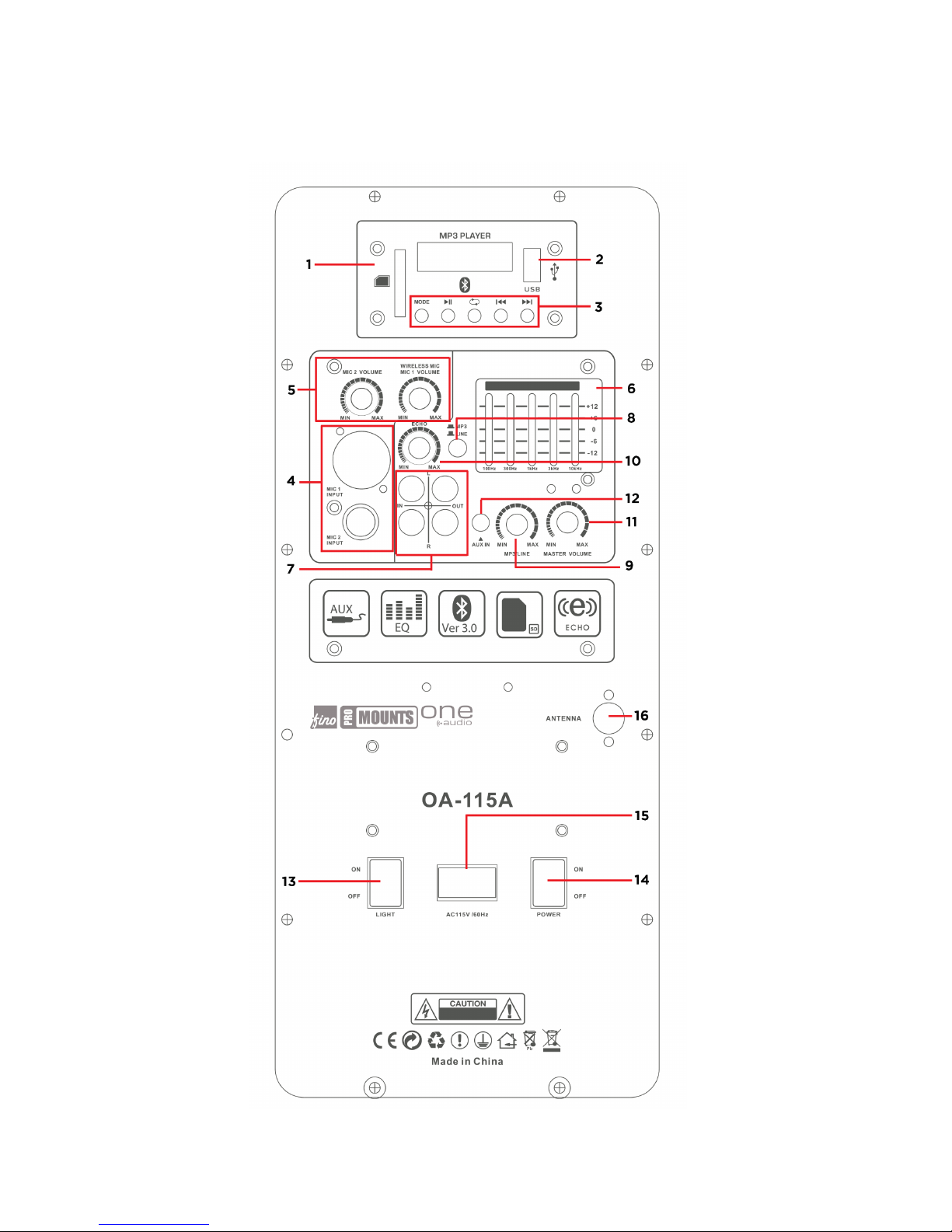

Active Speaker Rear Panel
Rear Panel Guide
1. SD: Entry for SD Memory Cards up to 16GB
2. USB: Entry for USB Memory Cards up to 16GB
3. Play, Pause and Skip Functions
4. MIC 1 and 2 Input: 6.35 Jack input for Microphone
5. Microphone Controls: Separate Volume Control for the inputs for Microphone MIC1 and
MIC2
6. Equalizer Panel: 5 Band Equalizer with range from -12 to +12 Db
7. L/R RCA Input/Output
8. MP3/Line Toggle: Mode selection button to switch between Line and MP3
9. MP3/Line Volume: Control for the USB/SD/AUX/Bluetooth or Line modes
10. MIC Echo Control: Control for the intensity of the echo effect on the microphone inputs
11. Master Volume Control: Adjusts the intensity or level of the volume
12. AUX IN: 3.5mm auxiliary jack input
13. LED Light Switch: Switch for the built in LED lights on the front of the speaker
14. Power Switch: Switch to turn the speaker on or off
15. Power Socket: Location for the power cord for wired and charging modes
16. Speaker Antenna
Getting Set Up
Speaker Pole/Tri-pod Mounting
The OA115 speaker set also includes a pole mount option. The pole mount socket located on
the bottom of the speaker may be used to secure the speaker to the included tri-pod. Always
be sure to follow the guidelines listed below when pole mounting your speaker;
• Always be sure the stand is designed to support the weight of the speaker
• In outdoor situations that are prone to strong windy conditions, be sure to use sandbags to
weigh down the tri-pod support, this will greatly reduce the risk of tipping
• Do not stack speakers on top of each other when mounting on a tri-pod. Only one speaker
should be mounted to a tri-pod at one time.
• Always position the tri-pod legs away from foot traffic
• Extend the tri-pod legs to their fully extended position to avoid accidental tipping
• Observe and follow all safety guidelines and regulations specified by the tri-pod’s
manufacturer
• Be sure the tri-pod is situated on a flat, level, and stable surface and always tighten all locks.
Warranty
1-year limited warranty
One Audio hereby warrants to the original purchaser that all One Audio products to be free of
manufacturing defects in material and workmanship for a period of 1 year (365 days) from the
date of purchase. This warranty shall be valid only if the product is purchased within the North
American continent. It is the owner’s responsibility to establish date and place of purchase
by acceptable evidence, at the time service is sought.
For warranty service, send the product only to the One Audio factory. (Contact us for more
information) All shipping charges must be pre-paid. If the requested repairs or service
(including parts replacement) are within the terms of this warranty One Audio will pay return
shipping charges only to a designated point within the North American Continent. If the
entire instrument is sent, it must be shipped in its original package. No accessories should be
shipped with the product. If any accessories are shipped with the product, One Audio shall
have no liability whatsoever for loss of or damage to any such accessories, nor for the safe
return thereof.
This warranty is void if the serial number has been altered or removed; if the product is
modified in any manner which One Audio concludes, after inspection, affects the reliability of
the product; if the product has been repaired or serviced by anyone other than the One Audio
factory unless prior written authorization was issued to the purchaser by One Audio: if the
product is damaged because not properly maintained as set forth in the instruction manual.
One Audio reserves the right to make changes in design and/or improvements upon its
products without any obligation to include these changes in any product theretofore
manufactured.
No warranty, whether expressed or implied is given or made with respect to any accessory
supplied with products described above. Except to the extent prohibited by applicable law, all
implied warranties made by One Audio in connection with this product, including warranties of
merchantability or fitness, are limited in duration to the warranty period set forth above. And
no warranties, whether expressed or implied, including warranties of merchantability or
fitness, shall apply to this product after said period has expired. The consumer’s and or
dealer’s sole remedy shall be such repair or replacement as is expressly provided above; and
under no circumstances shall One Audio be liable for any loss or damage, direct or
consequential arising of the use of, or inability to use this product.
One Audio by Promounts
© Scadlock LLC
20218 Hamilton Ave
Torrance, CA, USA 90502
www.promounts.com
Tel: 1 310 645 6400
