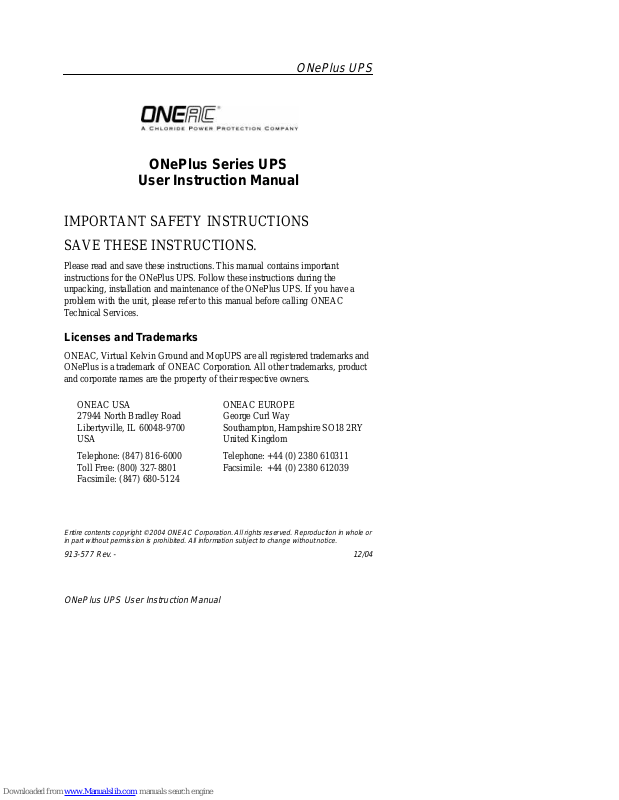

ONEAC ONePlus User Instruction Manual

ONePlus UPS

ONePlus Series UPS

User Instruction Manual

IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS.

Please read and save these instructions. This manual contains important instructions for the ONePlus UPS. Follow these instructions during the unpacking, installation and maintenance of the ONePlus UPS. If you have a problem with the unit, please refer to this manual before calling ONEAC Technical Services.

Licenses and Trademarks

ONEAC, Virtual Kelvin Ground and MopUPS are all registered trademarks and ONePlus is a trademark of ONEAC Corporation. All other trademarks, product and corporate names are the property of their respective owners.

ONEAC USA 27944 North Bradley Road Libertyville, IL 60048-9700 USA

Telephone: (847) 816-6000 Toll Free: (800) 327-8801 Facsimile: (847) 680-5124

913-577 Rev. - 12/04

ONePlus UPS User Instruction Manual

ONEAC EUROPE George Curl Way Southampton, Hampshire SO18 2R Y United Kingdom

Telephone: +44 (0) 2380 610311 Facsimile: +44 (0) 2380 612039

Introduction ....................................................................................... 1

Registering Your ONEAC UPS .............................................................1

Technical Support ...............................................................................1

FCC Compliance ................................................................................2

Safety (English) ...................................................................................3

Sicherheitshinweise (Deutsch) .............................................................4

Mesures de sécurité (Français) ............................................................5

Seguridad (Español) ............................................................................6

Theory of Operation ...........................................................................7

AC Power Mode ..........................................................................7

Battery Backup Mode ...................................................................7

Output Overload Protection .........................................................8

Setup and Installation .........................................................................9

Installation ................................................................................... 9

Long Term Storage ......................................................................9

Ventilation ................................................................................. 10

Grounding the Unit ....................................................................10

Connections ..............................................................................11

ONePlus Front Panel ...................................................................12

Power Switch .............................................................................13

Self-Test .....................................................................................14

Indicators and Alarms ................................................................14

Communications ........................................................................16

Features and Specifications ...............................................................19

Physical and Electrical Specifications ...........................................20

Specifications and Characteristics ...............................................21

Typical Runtimes ........................................................................ 23

Battery Considerations .....................................................................23

Battery Replacement Procedures ................................................24

Testing New Batteries ................................................................25

Battery Disposal .........................................................................26

UPS Disposal ....................................................................................26

Troubleshooting ............................................................................... 27

Warranty .......................................................................................... 30

Batteries ....................................................................................30

Limitations of Warranty ..............................................................30

Exclusive Remedies .....................................................................30

Return Procedure ....................................................................... 30

ONePlus UPS User Instruction Manual i

Introduction

Registering Your ONEAC UPS

Technical Support

Thank you for selecting this uninterruptible power supply (UPS). ONEAC’s ONePlus UPS offers the most reliable protection from the harmful effects of electrical line disturbances for your computing and communications equipment. ONEAC’s ISO 9001 certiﬁcation represents our commitment to building world-class products. W e take pride in e very unit that leaves our manufacturing facility.

T o ensure that your ONePlus Series UPS model and serial number are registered, complete and mail the enclosed postage-paid warranty card or go on line at www.oneac.com.

ONEAC offers 24-hour technical support. T o contact ONEAC Technical Services:

• North America: (847) 816-6000, option 3 or toll free (800) 327-8801, option 3.

• Europe: +44 (0) 1235 861962

• email: ts@oneac.com.

In North America, all calls received before 7 a.m. and after 5 p.m. CST are forwarded to a cell phone. Between 5 p.m. and 10 p.m. CST , ONEAC T echnical Services Representatives will return your call within one half hour (between 5 p.m. and 10 p.m.). Except for emergencies, calls receiv ed between 10 p.m. and 7 a.m. CST will be returned during normal business hours.

Please check with ONEAC Technical Services before attempting to repair or return any ONEAC product. If an ONEAC UPS needs repair or replacement, ONEAC Technical Services will issue a Return Material Authorization (RMA) number along with instructions on how to return the UPS.

ONePlus UPS User Instruction Manual 1

FCC Compliance

ATTENTION: Changes or modiﬁcations to this unit

not expressly appr oved by the party r esponsible or in FCC compliance could void the user’s authority to operate the equipment.

This equipment was tested and complies with the limits for a Class A digital de vice, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the UPS is operating in a commercial environment. The UPS generates, uses, and can radiate radio frequency energy . If installation and use is not in accordance with the instruction manual, it may cause harmful interference to radio communications.

ATTENTION: Operation of this equipment in a

residential area may cause harmful radio communications interference. The user is responsible for correcting the interference.

2 ONePlus UPS User Instruction Manual

Safety

(English)

WARNING: This equipment services power from

more than one source. The output receptacles may have voltage even when the unit is unplugged.

UPSs present a different safety issue than most electrical equipment because unplugging the UPS puts it into backup mode. Unplugging the UPS does not remove the electrical charge. To ensure that the UPS is off, turn the power switch OFF before unplugging the UPS from the wall outlet.

CAUTION: Operating this equipment without

proper grounding may present a risk of electrical shock.

Do not use A C adaptors with only tw o conductors to connect the input line cord to the wall socket as this will not connect the earth ground to the equipment.

WARNING: Dangerous volta ges are present within

this unit! There ar e no user -serviceable parts inside. Any repairs or modiﬁcations by the user may result in out-of-warranty repair charges, unsafe electrical conditions, or violation of electrical code.

Do not remove the cover. All repairs should be done by qualiﬁed service personnel. Voltages inside the UPS may be lethal. Internal components are powered even when the UPS is turned OFF. Even with the battery disconnected and the unit unplugged, energy is stored in high voltage capacitors and represents a severe shock hazard.

ONePlus UPS User Instruction Manual 3

Sicherheitshinweise

(Deutsch)

ACHTUNG: Dieses Gerät erhält seinen Strom von

mehr als einer Quelle. Die Ausgangssteckdosen führen unter Umständen Spannung, selbst wenn der Stecker des Gerätes ausgesteckt wurde.

Für USVs müssen andere Sicherheitsmaßnahmen als für die meisten Elektrogeräte ergriffen werden, da die USV durch Ausstecken in den Reservebetrieb gebracht wird. Wenn der Stecker der USV abgezogen wird, wird die elektrische Ladung hierdurch nicht entfernt. Um sicherzustellen, daß die USV ausgeschaltet ist, muß der Netzschalter auf AUS (OFF) gestellt werden, bevor der Stecker der USV aus der Wandsteckdose gezogen wird.

VORSICHT: Durch Betreiben dieses Gerätes ohne

ordnungsgemäße Erdung können Elektroschocks riskiert werden.

Keine Wechselstromadapter mit nur zwei Stromleitern verwenden, um das Netzkabel an die Wandsteckdose anzuschließen, weil das Gerät hierdurch nicht an die Erde angeschlossen wird.

ACHTUNG: In diesem Gerät sind gefährliche

Spannungen vorhanden! Im Inneren dieses Gerätes beﬁnden sich keine vom Benutzer zu wartenden Teile. Durch etwaige Repar atur en oder Modiﬁkationen durc h den Benutzer können nicht von der Garantie gedec kte Reparaturkosten, gefährliche elektrisc he Zustände oder Verstöße gegen Str omvor schriften entstehen.

Abdeckung nicht entfernen. Alle Reparaturen sollten von qualiﬁzierten Wartungstechnikern durchgeführt werden. Die Spannungen im Inneren der USV können tödliche Verletzungen zur Folge haben. Die internen Komponenten führen Strom, selbst wenn der Stromschalter auf AUS (OFF) steht. Auch wenn die Batterie nicht angeschlossen und der Stecker des Gerätes ausgesteckt ist, wird Energie in Hochspannungskondensatoren gespeichert, und dies bedeutet eine ernsthafte Elektroschockgefahr.

4 ONePlus UPS User Instruction Manual

Mesures de sécurité

(Français)

AVERTISSEMENT : Cet équipement est alimenté

par plus d'une source. Des tensions peuvent être présentes aux prises de sortie, même lorsque l'unité est débranchée.

Le problème de sécurité sur l'UPS diffère de celui de la plupart des équipements électriques, car lorsqu'il est débranché, il se met en mode de réserve. Son débranchement n'élimine pas la charge électrique. Pour s'assurer que l'UPS est hors tension, mettre l'interrupteur d'alimentation sur ARRÊT (OFF) a vant de débrancher l'UPS de la prise murale.

ATTENTION : Si cet équipement fonctionne sans

être correctement mis à la terre, un risque de choc électrique peut en résulter.

Ne pas utiliser d'adaptateurs CA n'ayant que deux conducteurs pour brancher le cordon d'alimentation dans la prise murale, car l'équipement ne serait pas mis à la terre.

AVERTISSEMENT : Cet équipement renferme des

tensions dangereuses! Il ne contient aucune pièce réparable par l'usager. Toutes réparations ou modiﬁcations effectuées par l'usager peuvent entraîner des frais de réparation non couverts par la garantie, un danger électrique ou l'infraction à un code électrique.

Ne pas enlever le couvercle. Conﬁer toutes les réparations à un personnel d'entretien qualiﬁé. Les tensions présentes dans l'UPS peuvent être mortelles. Les composants internes de l'unité sont sous tension, même lorsque l'interrupteur d'alimentation est sur ARRÊT (OFF). Même lorsque la batterie est déconnectée et l'unité débranchée, de l'énergie est stockée dans des condensateurs à haute tension et représente un grave risque d'électrocution.

ONePlus UPS User Instruction Manual 5

Seguridad

(Español)

ADVERTENCIA: Este equipo suministra

alimentación desde más de una fuente. Los tomacorrientes de salida pueden tener voltaje aun cuando la unidad esté desenchufada.

Las UPS (fuentes de alimentación ininterrumpibles) cuentan con una característica de seguridad diferente a la mayoría de los equipos eléctricos, ya que al desenchufarse, quedan en el modo de reserva. Al desenchufar una UPS no se elimina la carga eléctrica. Para cerciorarse de que una UPS esté apagada, gire el interruptor de alimentación a la posición APAGADO (OFF) antes de desenchufar el UPS del tomacorriente mural.

PRECAUCION: El hacer funcionar este equipo sin

la conexión a tierra adecuada representa un riesgo de descargas eléctricas.

No utilice adaptadores de CA con sólo dos conductores para conectar el cable de la línea de entrada al enchufe mural debido a que éste no conectará el equipo a tierra.

ADVERTENCIA: ¡Esta unidad tiene voltajes

peligrosos!. En su interior no hay piezas que pueda reparar el usuario. Las reparaciones o modiﬁcaciones hechas por el usuario pueden dar como resultado cargos de reparación no cubiertos por la garantía, y producir situaciones de riesgo eléctrico o violación de los códigos eléctricos.

No retire la cubierta. Todas las reparaciones deben ser realizadas por personal de servicio caliﬁcado. Los voltajes del interior de las UPS pueden ser mortales. Los componentes internos tienen electricidad aun cuando el interruptor esté en la posición APAGADO (OFF). Incluso si la batería está desconectada y la unidad desenchufada, se almacena energía en capacitores de alto voltaje, lo cual representa un peligro grave de descarga.

6 ONePlus UPS User Instruction Manual

Theory of Operation

AC Power Mode

Battery Backup Mode

The ONePlus UPS has two operating modes: Conditioned AC Power and Conditioned Battery Backup.

When utility AC power is present and within the correct voltage range, the UPS provides fully conditioned power:

• Electronic equipment is protected from harmful transient voltage spikes and other electrical noise.

• UPS detector circuits continuously monitor the utility power for blackout, low voltage, and overvoltage events.

The buck and boost feature will compensate for a wide range of voltage variations without depleting the batteries.

In an extreme over- or under-voltage situation, the detector circuits determine that utility AC power is no longer in an appropriate voltage range. The UPS switches to battery to supply continuous conditioned power .

While in backup mode, detector circuits monitor the return of utility AC power. The UPS synchronizes with the utility’s frequenc y when utility A C po wer is available. The equipment is supplied continuously with conditioned power even when running in battery backup mode.

ONePlus UPS User Instruction Manual 7

Theory of Operation

If the battery becomes exhausted while maintaining the load, battery backup terminates and the UPS output turns off. A low battery warning is sounded and transmitted via the communications port approximately two minutes prior to termination of battery backup. The UPS monitors the line and provides output when utility power is restored to normal operating range.

Output ON/OFF Switch

Front Panel Display

Fig. 1: ONePlus UPS Front View

Output Overload Protection

During normal operation, electronic output overload protection is active. If the output is loaded to more than 105 percent of the UPS rating, battery power to the UPS is not available. T o reset, turn the UPS OFF, remove some of the load, then turn the UPS ON. (For GS compliance: The power distribution system for all models is type TN.)

Input Protector

A grossly overloaded UPS trips the rear panel circuit breaker. The front panel display reads “c1.” To reset the circuit breaker, push the button in.

• If the circuit breaker trips repeatedly following reset, unplug the equipment from the UPS output receptacles and reset the circuit breaker once again.

• If operation appears to be normal, check the total equipment load. Add your equipment to the output one device at a time. Check the front panel display after each device is powered ON.

8 ONePlus UPS User Instruction Manual

Setup and Installation

• If the circuit breaker trips with nothing plugged into the output receptacles, there may be an internal problem with the UPS. Call ONEAC Technical Services for assistance (refer to page 1).

Setup and Installation

Inspection and Unpacking

Installation

Before shipment, this product was tested, inspected and found to be free of mechanical and electrical defects. Upon receipt of your UPS, carefully examine the packing containers for any sign of physical damage. Notify the carrier immediately if damage is present. After inspecting, carefully unpack the UPS. Retain the packaging materials for reuse or dispose of the materials properly , see Return Procedure on page 30. Once unpacked, inspect and test the unit for hidden damage that may have occurred in transit. If damage is evident, contact ONEAC Technical Services.

When selecting a location for your UPS, be sure that the unit is near a properly wired AC electrical outlet and is easily accessible for all other connections (the loads and/or optional communications cable). Leave at least 2 inches of clearance on each side of the UPS for proper ventilation.

CAUTION: Do not cover or install the UPS in a

conﬁned or enclosed space.

Choose an area that is clean and dust-free. If the environment is dusty, clean the outside of the unit with a vacuum cleaner.

For optimal battery life, keep the UPS at an ambient temperature of 25°C (77°F).

Long Term Storage

ONePlus UPS User Instruction Manual 9

Improper long-term UPS storage may damage the UPS battery and invalidate the battery warranty. Unplugging a UPS from its AC utility power source for an extended period of time results in lost battery charge. Restoration of charge to maximum capacity requires 24 - 48 hours.

Setup and Installation

To keep the battery enclosure fully charged and to maximize the life of the battery , plug the UPS into an outlet while it is in storage. If the UPS is stored without power access, plug it into a power source for 24 hours at least once every 4 - 6 months.

ATTENTION: If the storage temperature is greater

than 30 for 24 hours every 2 to 3 months.

ATTENTION: The UPS should not be stored at

temperatures below -15

C (86 ° F) plug the UPS into a power source

C (+5 ° F).

Ventilation

Grounding the Unit

The ventilation requirement for ONePlus is a minimum of 2 inches (50 mm) of clearance on all sides.

To eliminate shock hazard, connect the unit to a properly grounded AC receptacle.

Before applying power , verify that the a v ailable line voltage matches the voltage listed on the rear-panel label.

CAUTION: Interruption of the protective gr ounding

conductor or disconnection of the protective earth terminal presents a potential shock hazar d that could result in personal injury and damage to the equipment.

NOTE: When connecting the UPS, make sure that

the receptacle has power available and is not controlled by a wall switch.

10 ONePlus UPS User Instruction Manual

Setup and Installation

Site Wiri

Connections

Site Wiring Fault Indicator

Serial Communication Port

Four 5-15 Receptacles

Serial Communication Port

Site Wiring

Fault Indicator

5-15 Receptacles

Six

Before beginning, shut down and unplug the equipment to be protected. DO NOT make any connections or attempt to use any of the equipment until all the following connection instructions have been reviewed and completed.

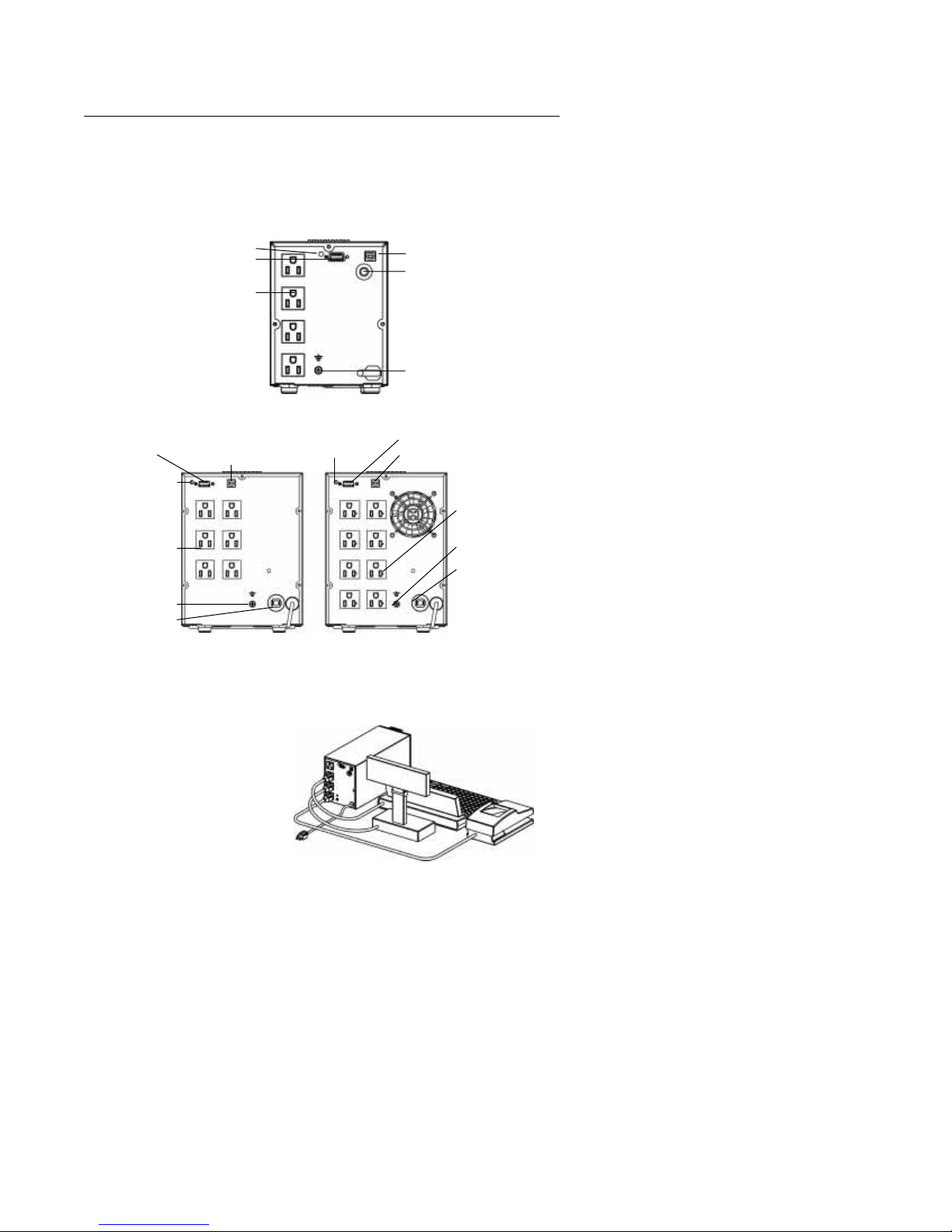

ﬁg. 2: 250 and 400 VA ONePlus UPS Back Panels

USB Communication Port

Fault Indicator

Serial Communication Port USB Communication Port

USB Communication Port Input Circuit Breaker

Ground Lug

Eight 5-20 (for 5-15R or 5-20Rs)

Ground Lug Input Circuit Breaker

Ground Lug

Input Circuit Breaker

600 VA ONePlus 1000 VA ONePlus

ﬁg. 3: 600 and 1000 VA ONePlus UPS Back Panels

Connect communication cable from Terminal to UPS (optional)

ﬁg. 4: Typical UPS Installation

ONePlus UPS User Instruction Manual 11

Setup and Installation

CAUTION: Do not attach laser printers to the UPS.

A laser printer periodically draws signiﬁcantly more power during use and may overload the UPS.

The ONePlus performs a self-test when it is ﬁrst plugged in and turned on. After the self-test the unit enters Normal-mode. If the alarm sounds or the UPS alarm indicator stays on, see T able 4, “System Code Status Chart,” on page 27.

NOTE: The batteries charge to 90% capacity in

approximately 3 to 6 hours. However, it is recommended that the batteries charge for 6 - 24 hours after installation or after long-term storage . If long term storage is necessary, the batteries should be charged e very 6 months by plugging the UPS into a power outlet for 24 hours.

1. Plug the ONePlus UPS into a properly wired A C electrical outlet.

2. Plug the equipment to be protected into the UPS.

3. Press the power switch ( ) on the front panel of the UPS for 2 seconds to turn the unit ON.

ONePlus Front Panel

12 ONePlus UPS User Instruction Manual

The ONePlus front panel lights indicate status of the unit and potential power problems. For alarm codes

Setup and Installation

and indicators, see System Code Status Chart on page 27.

Power Switch Audible Alarm/Load Power

Battery Fault Temperature

250-400 VA ONePlus UPS Front Panel

Temperature

Power Switch

Power

Battery

Fault

Power Switch Audible Alarm/Load

600-1000 VA ONePlus1

ﬁg. 5: ONePlus UPS Front Panel

With the UPS connected to a properly wired AC input power source, press the power switch ( ) on the front panel for 2 seconds. Power is supplied to the output connectors.

Turn OFF the UPS by pressing the power switch ( ) for 2 seconds. This turns the power to the output connectors “OFF.” The internal charger will continue to charge and maintain the battery as long as the line cord is connected to a live input A C power source.

ONePlus UPS User Instruction Manual 13

Setup and Installation

Self-Test

Indicators and Alarms

The UPS performs a self-test when it is ﬁrst plugged in and turned ON. A green LED indicates normal A C output. The three LEDs on the front panel will indicate the status. A blinking yello w LED shows the battery is being charged. The UPS will continuously monitor the condition of the battery. If the battery cannot be charged, is disconnected or takes too long to charge, a code is represented in the LED Display.

NOTE: The System Code Status Chart on the back of

the UPS (and on page 27 of this manual) provides a quick refer ence for interpretation of the system status LEDs.

T o initiate a self-test, press and hold the button for ﬁve seconds. If the UPS ﬁnds a problem, an LED indicates where the problem is. For more about the LED indicator lights, see Troubleshooting on page

28.

NOTE: Be sure the batteries are fully charged and

the UPS is not in Battery-mode before initiating the self-test.

Battery-Mode

If the AC input power source to the UPS rises too high, too low or fails, the UPS will switch to the internal inverter to deliver power to the outlet receptacles from the batteries. The LEDs will indicate that the UPS is on battery (see System Code Status Chart on page 27). An audible alarm will also sound every minute.

Low Battery

When the battery voltage falls to a predetermined level, the audible alarm will sound continuously and the green and yellow LEDs will blink. If the UPS continues to operate in this mode for two minutes or more, the UPS will shutdown and remove power from the output receptacles.

When AC power returns, the UPS will return to on-line operation and the batteries will automatically recharge.

14 ONePlus UPS User Instruction Manual

Setup and Installation

Overload

If the load on the UPS exceeds its capacity, the red and green LEDs will blink. The audible alarm will sound once every minute.

If the UPS is heavily overloaded, the audible alarm will sound continuously and will shut down in 4 seconds. The input circuit breaker may also trip. To reset the breaker, turn off the UPS (press the UPS power switch and hold for 5 seconds) remove the load and push the breaker back into its housing.

Battery Replacement

If the UPS has determined that the battery is no longer functional, the green and red LEDs will be on continuously and the yellow LED will ﬂash. The audible alarm will sound every ﬁve minutes. See Battery Considerations on page 23 for more information regarding battery replacement.

Indicator Lights

The front of the UPS has four indicator lights: green, yellow, and red.

Green

Yellow

Red

Green

ﬁg. 6: Front Panel Indicator Lights

ONePlus UPS User Instruction Manual 15

Power

Battery

Fault

Over Temperature

Setup and Installation

The front panel indicator lights serve four functions:

1. T o indicate status of the UPS, whether operating normally or in fault condition. See System Code Status Chart on page 27 for details.

2. To indicate % of load connected to the UPS. To determine % load, the UPS must be on AC

power, not on battery. Press and hold the button until the indication lights illuminate, indicating load % as follows:

100%

75%

50%

25%

ﬁg. 7: Percentage of Load or Percentage of Remaining Runtime Indicators

3. To indicate % of remaining runtime. To determine % of remaining runtime, the UPS

must be on battery, not on AC power. Press and hold the button until the indication lights illuminate. See ﬁg. 7 for determining% of remaining runtime.

4. To indicate over temperature. When illuminated, the unit has exceeded safe

operating temperatures. See Table 5, “Troubleshooting,” on page 28.

Communications

With a communications cable and MopUPS

Express installed, MopUPS Express can exchange data with the UPS. This power management softw are polls the UPS for detailed information on the status of the power environment. If a power emergency occurs, the software initiates an orderly shutdown of the equipment. The interface ports will send On

16 ONePlus UPS User Instruction Manual

Setup and Installation

Battery and Low Battery signals to the host computer. The interface ports will also accept a shutdown inverter signal to conserve battery life.

Serial Port USB Port

ﬁg. 8: ONePlus Communications Ports

Installing MopUPS Express

T o establish communications between the UPS and a computer:

1. Connect the computer to the UPS communications port using the supplied USB communications cable.

NOTE: If a serial connection is requir ed, contact the

factory to purchase optional serial cable (ONEAC part number CA-2B10S-03).

NOTE: RS232 and USB communications ports

cannot be used simultaneously.

2. Insert the supplied software CD into the computer’s CD-ROM drive.

3. Once the CD is inserted into the drive, an installation wizard will appear. Follow the installation instruction from the wizard.

Once MopUPS Express is installed and launched, the User Manual can be accessed by clicking on the Help button. If further assistance is needed, contact ONEAC Technical Service at 800-327-8801, option 3 or email: ts@oneac.com.

ONePlus UPS User Instruction Manual 17

Setup and Installation

Table 1. Pin Signals for Supplied USB Cable

PIN # Signal Name Function Position

1 Low batt

2 RxD Receive from external device and shut down input In 3 TxD Transmit to external device Out 4 — No connection — 5 GND Signal common —

6 AC fail

7 — No connection — 8 — No connection —

9 AC fail

Low battery simulated contact; 20 mA, 30 VDC contact rating

Closes when low

AC fail, simulated contact, open on fail; 20 mA, 20 VDC

contact rating

AC Fail, simulated contact, close on fail; 20 mA, 30 VDC

contact rating

Out

18 ONePlus UPS User Instruction Manual

Features and Speciﬁcations

Your ONEAC ONePlus UPS features full output isolation and power conditioning with V irtual Kelvin

Ground level of protection from power line disturbances available.

ONEAC’s ONE ONePlus UPSs.The patented technology diverts transient errant current from ﬂowing through ground circuit leads of datacom cables—minimizing the effect of ground potential shifts that can effect the performance of interconnected systems.

NOTE: In order to maintain the full performance

beneﬁts of this technology, equipment connected to the ONePlus UPS should not externally rebond the grounding connector to b uilding structural steel or a common conductor between the UPS and the equipment it is powering

• Five-year warranty on power control systems

• Two-year warranty on batteries

• True sine wave output

• Intelligent battery management system includes:

• Site wiring fault indicator shows lack of ground

output ﬁltering. This provides the highest

GROUND

• Battery condition monitoring and status alerts

• Low battery indication

• User-replaceable battery

• Battery charge indication

• Buck and boost low/high line voltage

compensation without battery depletion

• Controlled inverter shutdown if battery is

depleted

connection or line neutral reversed.

is a standard feature on all

ONePlus UPS User Instruction Manual 19

Features and Speciﬁcations

Physical and Electrical Speciﬁcations

Surge voltage withstand capability: ANSI/IEEE

C62.41 Category A&B, 6 kV/ 200 & 500 Amp, 100 kHz ringwave

Surge voltage let-through (max): Less than 10 V Normal mode (L-N), less than 0.5V Common mode (N-G) when subjected to 6 kV ANSI/IEEE C62.41 Cat. A

Normal & common mode clamping response time: Instantaneous

Transfer time (max): <6 milliseconds On battery output voltage: Sine wave Buck and Boost: maintains output voltage between

101 and 132 VA C while input voltage v aries between 89 and 152 VAC.

Load power factor range (crest factor): UPS .65 to

1.0 (3) Batteries: Sealed, maintenance-free lead acid with a

2-4 year typical lifetime, user replaceable Recharge time to 90% available capacity: 3-6

hours after full discharge to cut off

20 ONePlus UPS User Instruction Manual

Features and Speciﬁcations

Speciﬁcations and Characteristics

Table 2. Physical/Electrical Speciﬁcations and P erformance Char acteristics

Speciﬁcation and Characteristics ONePlus250 ONePlus400 ONePlus600 ONePlus1000

Part Number ONE254AG-SE ONE404AG-SE ONE604AG-SE ONE1004AG-SE Maximum Load VA/W 250/167 400/268 600/402 1000/670

Rated Power Factor UPS .67

Crest Factor <3 Nominal Input Voltage 120 V A C Low Limit for On-line Operation 89 VAC High Limit for On-line Operation 152 VAC Frequency Limits (on-line) 60Hz +/ -5% Input Connection 6’ attached line cord with 5-15P plug Input Over Current Protection resettable circuit breaker

Buck and Boost

Nominal Output Voltage (on battery) 115 VAC On Battery Waveshape sine-wave On Battery Frequency 60Hz +/- 1% T ransf er Time 6mS, max Output Connection Battery Type maintenance free, spill proof, sealed lead-acid Typical Battery Life 2 - 4 years, depends on number of discharges and ambient temperature Typical Battery Recharge Time

(90% Recovery) Communications isolated basic signaling

Interface Connector USB and RS232 communications ports

Input Signal - static

Output Signals - stimulated relay

Maximum Collector Voltage 25 VDC

Maximum Collector Current 25 mADC Operating Temperature** 0 to +40° C (32 to 104° F) Storage Temperature** -15 to 45° C (+5 to 113° F) Relative Humidity 0 to 95%, non-condensing

maintains output voltage between 101 and 132 VAC

while input voltage varies between 89 and 152 VAC

(4) 5-15R (4) 5-15R (6) 5-15R (8) 5-20R (T*)

3-6 hours after full discharge to cut off

inverter shut down [pin 2 (+) to pin 5 (common)]

(+3 to +27 VDC shuts down inverter)

on battery (pin 9 N.O., (N.C.), pin 5 (common)

Low battery (pin 1 N.O.)

Table continued on next page.

ONePlus UPS User Instruction Manual 21

Features and Speciﬁcations

Table 2. Physical/Electrical Speciﬁcations and P erformance Char acteristics

Speciﬁcation and Characteristics ONePlus250 ONePlus400 ONePlus600 ONePlus1000

Operating Elevation 0 to 3,000 m (0 to 10,000 ft.) Storage Elevation 0 to 15,000 m (0 to 50,000 ft.) UPS Dimensions(HxWxL) in.

(HxWxL) (cm)

UPS Shipping Weights lbs. (kg) 28 (12.7) 28.6 (13) 57 (25.7) 63 (28.5)

Surge Voltage Withstand Capability

Surge Voltage Let-through

Normal & Common Mode Clamping Response Time

* “T-slot” output connector will accept either 5-15P or 5-20P plugs ** ONePlus UPS should be operated or stored in locations where ambient temperature does not exceed 25°C (77°F) to preserve optimal battery life.

7.1 x 5.5x 13.8 7.1 x 5.5x 15.4 9.3 x 7.1 x 15.0 9.3 x 7.1 x 15.0 (18 x 14 x 35) (18 x 14 x 35) (23.5 x 18 x 38) (23.5 x 18 x 38)

ANSI/IEEE C62.41 Category A&B, 6kV/200 &500 Amp, 100kHz

Ringwave

Less than 10V normal mode (L-N), less than 0.5 V Common mode (N-G)

when subjected to ANSI/IEEE C62.41 Cat. A

instantaneous

22 ONePlus UPS User Instruction Manual

Battery Considerations

Typical Runtimes

Table 3. Typical ONePlus UPS Runtimes

Typical

Runtime by

System Load

VA LOAD RUNTIME Half Load 22 min. 12 min. 12 min. 12 min.

Full Load 8 min. 5 min. 5 min 5 min.

NOTE: Due to application speciﬁc conditions, your actual run time may be different.

ONE254AG-SE ONE404AG-SE ONE604AG-SE ONE1004AG-SE

Battery Considerations

NOTE:To obtain new batteries, contact ONEAC Technical Services at (847) 816-6000, option 3 or toll free at (800)-327-8801, option 3. In Eur ope, dial +44 (0) 1235 534721.

ONePlus batteries are user replaceable. It is a safe procedure that is isolated from electrical hazards. The UPS and attached loads can be left powered “ON” during the procedure. If the unit is “ON,” the audible alarm will sound when the battery is disconnected and the yellow and red LEDs will blink.

Although not necessary, AC power can be removed for battery replacement. Press the power switch ( ) for 2 seconds to turn the unit “OFF” AND unplug the UPS from the AC power source.

NOTE:The UPS cannot protect against power outages while the batteries are disconnected.

Before replacing batteries, read all warnings below.

WARNING:Due to the presence of electrical c harge, batteries can present a risk of electrical shock or burn.

To minimize the risk of electrical shock:

• Remove watches, rings or other metal objects;

• Use tools with insulated handles;

ONePlus UPS User Instruction Manual 23

Battery Considerations

• Do not lay tools or metal parts on the battery. WARNING:DO NOT attempt to change battery

wiring or connectors. Doing so can cause injury. WARNING:Replace batteries with the same type

and quantity as previously installed in the unit. WARNING:DO NOT disconnect the batteries if the

UPS is in battery mode.

Battery Replacement Procedures

ONePlus 250 & 400 VA models ONePlus 600 & 1000 VA models

1. Remove plastic bezel from the front of the UPS by pulling the top left corner forward and sliding the front panel off (see ﬁg. 9).

ﬁg. 9: Removing the Front Panel

2. Remove the metal battery retention plate to access the battery by removing the coin slot screw(s) and sliding the plate up (see ﬁg. 10).

ﬁg. 10: Removing the Metal Cover

3. Disconnect the keyed wire connector which connects the cable to the battery.

4. Carefully slide old battery out of battery chamber onto a ﬂat, stable surface (see ﬁg. 11).

CAUTION:Be sure battery is supported when removed from battery chamber.

24 ONePlus UPS User Instruction Manual

Battery Considerations

ONePlus 250 & 400 VA models ONePlus 600 & 1000 VA models

ﬁg. 11: Removing the Battery

5. Slide the new battery into chamber.

6. Connect the cable to the battery using the keyed wire connector.

NOTE:The ONePlus battery wire connectors are keyed to assure proper installation and that the correct battery is used with the UPS.

7. Replace metal battery retention plate and lock into place with the coin slot screw.

8. Carefully snap plastic bezel into the closed position.

9. Dispose of the old battery pack according to current environmental regulations. See Battery Disposal, below, if you would like ONEAC to dispose of depleted battery.

Testing New Batteries

ONePlus UPS User Instruction Manual 25

NOTE:Once new batteries are installed it is recommended that the batteries charge 6 - 24 hours prior to testing.

T o test the batteries, press and hold the sound button,

, for ﬁve seconds. The self-test will initiate, distributing the load to the batteries and testing their performance.Once this 15-second self-test is complete, the UPS will go to Normal mode, If there is trouble with the batteries, the (battery) indicator will ﬂash and the (fault) indicator will be illuminated.

First check the battery connections and be sure the battery is fully charged. If the problem continues,

UPS Disposal

contact ONEAC Technical Services. See Technical Support on page 1 for all contact information.

Battery Disposal

UPS Disposal

Batteries contain toxic and acidic materials. Disposal method must adhere to local/national recycling laws. Dispose of the battery in one of three ways:

1. Return batteries prepaid to ONEAC for proper recycling using the prepaid shipping label included with your ONEAC replacement battery pack. If misplaced, contact OEAC Technical Services at (847) 816-6000, toll free at (800) 327-8801 option 3 or in Europe at +44 (0) 1235 534721 for an RMA number. Mark the RMA number on the packing slip and shipping carton.

2. Phone ONEAC Corporation for the number of a local battery collection site (US only).

3. Make arrangements with a local auto shop that collects automotive batteries for reprocessing.

CAUTION:DO NO T dispose of battery in a ﬁr e. The battery may explode. Do not open or mutilate the battery or battery enclosure. Released electrolyte is harmful to the skin and eyes and is toxic.

Once your UPS has reached the end of its useful life and it is necessary to dispose of the unit:

1. Remove the batteries as instructed in Battery Considerations on page 23.

2. Dispose of the batteries as instructed in Battery Disposal above.

3. Dispose of the unit in accordance with local/ national recycling or disposal ordinances.

26 ONePlus UPS User Instruction Manual

Troubleshooting

ONEAC offers 24-hour technical support. If you have questions or problems regarding your ONePlus UPS:

1. Refer to the T roubleshooting table on page 28 for corrective or recommended action.

2. If you are unable to troubleshoot the problem, contact Technical Services. Refer to page 1, Technical Support for the correct telephone number in your area. T echnical Services will ask you to describe the problem. They will attempt to solve the problem over the telephone or may issue a Return Material Authorization (RMA) number along with instructions on how to return the UPS if service is required.

NOTE:You will need to supply the service repr esentative with the UPS part number and serial number. You can access these numbers on the back panel of the unit on a label located near the receptacles.

Always check with ONEAC Technical Services before attempting to repair or return any ONEAC product.

Table 4. System Code Status Chart

Unit Status

Power Battery Fault

O O O OFF

●

O O ON/AC Present

●❋❋

●❋

●❋● ❋ ❋● ❋❋

OO O OO

O ON AC/Battery Charging

❋

O ON Battery Power O ON Battery/Battery Low

❋

●●

●

O = Off,

● = On, ❋ = Blinking

ON AC/No Battery

ON AC/Replace Battery

ON AC/Overload

Off/Overload

Off/No AC - Fault

Off/Unit Fault

ONePlus UPS User Instruction Manual 27

Troubleshooting

Table 5. Troubleshooting

Problem Possible Cause Solution

UPS will not turn ON

UPS operates on battery even with line voltage present.

Site Wiring Fault is ON.

Audible Alarm is sounding.

Fault LED is ON.

Front Panel Switch not engaged.

UPS’s input circuit breaker tripped.

Unit not plugged in. Plug unit into wall outlet. No batteries installed or

defective batteries.

UPS’s input circuit breaker tripped.

High or low line. Contact qualiﬁed electrician.

Out of frequency range.

Ground wire connection does not exist. Line and neutral wires are reversed in the line receptacle.

See Troubleshooting on page 28 for Audible Alarms codes and resolutions.

If yellow LED is blinking, the battery needs to be replaced.

If yellow LED is off or on solid, there is an internal UPS fault.

Press the power switch ( ) for 2 seconds.

Reduce the load on the UPS by unplugging the load and press the circuit breaker in on the rear panel.

Check for batteries or contact ONEAC Technical Services for replacement.

Reduce the load on the UPS by unplugging the load and press the circuit breaker in on the rear panel.

Check for UPS compatibility with power source.

Contact qualiﬁed electrician.

(NOTE: the UPS operates while the Site Wiring Fault is ON, but may not provide rated noise and surge suppression.)

To silence the alarm for an existing fault, press the button. If the UPS status changes, the alarm will sound again. The alarm will not silence if there is a UPS fault, low battery condition, or if the battery needs to be replaced.

Contact ONEAC for replacement. See Battery Considerations on page 23.

Contact ONEAC Technical Services. See Technical Support on page 1.

28 ONePlus UPS User Instruction Manual

Table 5. Troubleshooting

Problem Possible Cause Solution

Fault LED is blinking

Over Temperature LED is ON

If yellow LED is blinking, there is no battery connected or detected.

If green LED is blinking or off, the output is overloaded.

UPS is overheated

• Check battery connection or

• replace battery.

Reduce load on the UPS (disconnect one ore more devices) and restart the UPS.

• Operating environment is too hot.

• Vent openings are blocked - 2” clearance.

• Load too high.

Troubleshooting

ONePlus UPS User Instruction Manual 29

Warranty

Batteries

Limitations of Warranty

ONEAC products are warranted to be free from defects in materials and workmanship for ﬁve years. This warranty is limited to repairing or replacing, at ONEAC’s option, any defective component, circuit board, or module contained within the product only when it is returned with an ONEAC Return Material Authorization (RMA) number to ONEAC or to an ONEAC-designated repair facility. In all cases, the customer is responsible for shipping charges to and from ONEAC or the ONEAC-designated repair facility.

Certain modules or peripherals included with the product, but not manufactured by ONEAC, including but not limited to batteries or battery enclosures, are warranted for two years or the extent of the manufacturer’s warranty, whichever is longer.

This limited warranty does not cover any losses or damage resulting from shipment to or from the customer, or from improper installation, inappropriate environment, abuse, modiﬁcations, adjustments, or unauthorized repair.

For full details of the warranty, see ONEAC Warranty, Policy and Procedures (part number 955-053).

Exclusive Remedies

Return Procedure

30 ONePlus UPS User Instruction Manual

Except as set forth herein and except as to title, there are no warranties, express or implied, or any afﬁrmations of fact or promises by ONEAC for the products, their merchantability, or ﬁtness for any particular purpose. In no event shall ONEAC be liable for lost proﬁts, goodwill or any other special or consequential damages.

T o return a UPS, contact ONEA C Technical Support (page 1) for a Return Material Authorization (RMA) number. This number must be marked on the shipping carton and packing slip of the unit returned. The customer is responsible for repair charges for damages incurred in shipment that result from inadequate or improper packing of the product.

Warranty

ONePlus UPS User Instruction Manual 31

ONEAC ONePlus User Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
